. 2020 Apr 17;9(4):520. doi: 10.3390/plants9040520

Metabolomics Response for Drought Stress Tolerance in Chinese Wheat Genotypes (Triticum aestivum)

Xiaoyang Guo 1, Zeyu Xin 1, Tiegang Yang 2, Xingli Ma 1, Yang Zhang 3, Zhiqiang Wang 1, Yongzhe Ren 1, Tongbao Lin 1,*
PMCID: PMC7238273  PMID: 32316652

Abstract

Metabolomics is an effective biotechnological tool that can be used to attain comprehensive information on metabolites. In this study, the profiles of metabolites produced by wheat seedlings in response to drought stress were investigated using an untargeted approach with ultra-performance liquid chromatography-mass spectrometry (UPLC-MS) to determine various physiological processes related to drought tolerance from the cross between drought-tolerant genotype (HX10) and drought-sensitive genotype (YN211). The current study results showed that under drought stress, HX10 exhibited higher growth indices than YN211. After drought stress treatment, a series of phenolics accumulated higher in HX10 than in YN211, whereas the amount of thymine, a pyrimidine, is almost 13 folds of that in YN211. These metabolites, as well as high levels of different amino acids, alkaloids, organic acids, and flavonoids in the drought treated HX10 could help to explain its strong drought-tolerant capacity. The current study explored the understanding of the mechanisms involved in the drought response of wheat seedling; these metabolome data could also be used for potential QTL or GWAS studies to identify locus (loci) or gene(s) associated with these metabolic traits for the crop improvement.

Keywords: untargeted approach, drought stress, metabolites, photosynthesis indices, wheat

1. Introduction

Wheat (Triticum aestivum) is one of the most widely cultivated cereal crops all over the world. In China, owing to its high nutritional content of carbohydrates, wheat has been recognized as a staple food for a long time [1]. However, in the process of wheat growth and development, it always suffers many abiotic stresses, such as drought, dry-hot wind, low temperature, water-logging, and so on [2].

Drought stress has profound negative impacts on plants at the morphological, physiological, and biochemical levels, with decreased photosynthesis [3], impaired cell elongation and division [4], and losses of cell turgor [5]. Drought stress also inhibits plants from further nutrient absorption and affects the gene expression, distribution, yield, and quality of crops [6,7,8]. In recent years, the losses of winter wheat grain yield induced by drought stress were increasing over all the wheat growing areas across the globe [9,10,11].

In nature, many plants have adapted to various abiotic stresses by using their enormous metabolic homeostasis to produce a large variety of primary and secondary metabolites. During abiotic stresses, plant metabolites and related pathways can be influenced [12,13]. In the case of drought stress, plant responses may involve a few important metabolic pathways, such as photosynthesis, sugar synthesis, tricarboxylic acid (TCA) cycle, glycolysis, and hormone synthesis [14,15,16]. Many metabolites such as fructose, sucrose, proline, and other amino acids, and betaine could contribute to drought stress tolerance [17,18,19].

Metabolomics has largely focused on the organic molecular compounds (metabolites) and the related biochemical changes found in or produced by organisms and their tissues and cells [20,21,22]. In plant researche, metabolomics is now considered a widespread significant biotechnological tool for different molecular biology studies.

Metabolomics includes multifarious analytical approaches to identify organic molecular metabolomic components, for instance, metabolic fingerprinting, metabolite profiling and targeted analysis, gas chromatography-mass spectrometry (GC-MS), liquid chromatography-mass spectrometry (LC-MS), and nuclear magnetic resonance (NMR). These technologies can be employed to identify metabolomic components accurately [23,24,25]. Previous studies have focused on the drought responses and tolerance of plants by means of metabolomic technologies. For example, Bowne et al. used a targeted GC-MS approach to identify compounds that differ in three different genotypes of bread wheat characterized by different levels of tolerance under drought stress [26]. Using an LC-MS method, Alvarez et al. found increased proline, malate, p-coumarate, and caffeate and decreased ferulate in the maize xylem sap under water stress [27]. Charlton et al. found increased levels of c-amino butyrate (GABA), and myoinositol, malate, as well as proline, leucine, isoleucine, valine, threonine, and homoserine in pea leaves (Pisum sativum L.) under simulated field conditions, but noted that leucine and isoleucine were not elevated when grown in a greenhouse using NMR [28]. However, more metabolite secrets in the plant drought tolerance are still waiting to be revealed. Thus, the aim of this paper was to investigate the metabolites of the seedlings of two wheat genotypes with different levels of drought tolerance using ultra-performance liquid chromatography-mass spectrometry (UPLC-MS) to increase our understanding of drought-tolerant mechanisms of wheat.

2. Results

2.1. Physiological Responses to Drought Stress

After treated by 20% poly-ethylene glycol (PEG) for seven days, the growth parameters of wheat seedlings were measured. The results showed that the drought stress significantly influenced the growth of wheat seedlings, especially for the drought-sensitive genotype YN211. As shown in Figure 1, both sensitive and tolerant cultivars showed retarded growth compared with the untreated control samples (CK) after seven days of treatment. For the YN211, biomass, fresh weight, and the relative water content (RWC) were markedly decreased. However, the influence of drought treatment on the growth of HX10 was limited. The seedling height, fresh weight, and the relative water content (RWC) of HX10 were only reduced a little compared with the CK samples.

Figure 1.

Figure 1

Open in a new tab

Growth performances of two wheat genotypes under control and drought stress conditions at the seedling stage. (A), the two wheat genotypes exhibited morphological differences after seven days treatment with 20% PEG. (B), growth parameters of two wheat genotypes. CK1:YN211 under normal conditions, T1: YN211 under drought treatment, CK2:HX10 under normal conditions, T2: HX10 under drought treatment. Asterisk (*) and double asterisk (**) indicate significant (p < 0.05) and highly significant (p < 0.01) differences between controls and treatments, respectively.

2.2. Metabolite Profile under Drought Stress

2.2.1. Principal Component Analysis of Metabolites Profiles

A total of 691 peaks were detected, of which 175 were identified as known metabolites, and the remaining peaks were unknown metabolites. The identified metabolites include amino acids, organic acids, sugars, polyamines, nitrogenous compounds, and polyphenols.

Principle components analysis (PCA) was performed to evaluate the repeatability and stability of the metabolic profiles from the UPLC-MS and compare the similarities and differences among all samples. Figure 2 showed that for both the electron spray ionization (ESI) models, ESI (-) and ESI (+), samples including the quality control (QC) samples were clearly divided into five groups, and samples from the same genotypes and treatments were grouped together, demonstrating the high quality of the data. This result indicated that drought stress and wheat genotypes had a combinatory effect on metabolite variation of the samples, and both factors influenced metabolite variation significantly.

Figure 2.

Figure 2

Open in a new tab

Principal component analysis (PCA) of metabolic profiles in leaves of HX10 and YN211 under control or drought stress (eight biological replicates). CK1:YN211 under normal conditions, T1: YN211 under drought treatment, CK2:HX10 under normal conditions, T2: HX10 under drought treatment.

2.2.2. Partial Least Square Discriminant Analysis of Metabolites Profiles

Partial least square discriminant analysis (PLS-DA) was also conducted to compare the differences between groups CK1 vs. CK2, T1 vs. T2, CK1 vs. T1, CK2 vs. T2 in ESI (+) or ESI (-) model. Similar classification results with PCA analysis was observed from Figure 3. Samples gathered in a certain area according to the treatment or genotype. All R2Y and Q2Y data supported the predictive accuracy of the model.

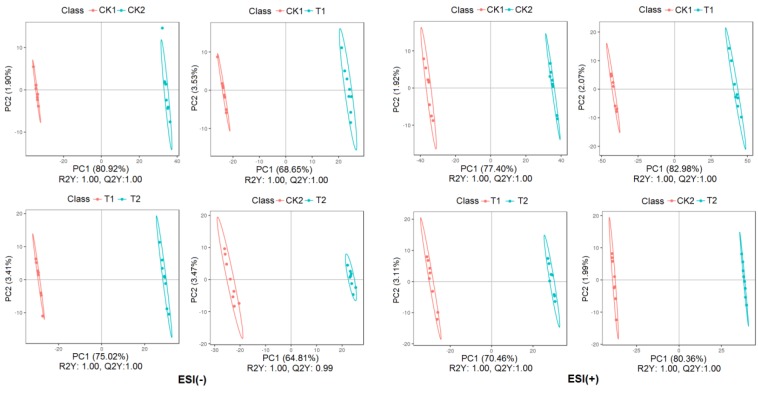

Figure 3.

Figure 3

Open in a new tab

Partial least squares discriminant analysis (PLS-DA) of metabolic profiles in the leaves of HX10 and YN211 under control or drought stress (eight biological replicates). CK1:YN211 under normal conditions, T1: YN211 under drought treatment, CK2:HX10 under normal conditions, T2: HX10 under drought treatment.

The scores plot between PC1 and PC2 revealed two distinct groups associated with the drought and control samples seven days after drought stress (Figure 3), suggesting the clear distinction in the metabolite accumulation under normal conditions and drought stress treatment. Furthermore, the sensitive genotype (YN211) and tolerant genotype (HX10) samples were separated from each other under both drought and control conditions.

PLS-DA was also utilized to identify the important metabolites associated with the drought condition based on the VIP (Variable Importance in the Projection) score (VIP > 1.0, fold change (FC > 2.0 or FC < 0.5) and p-value < 0.05) (Table 1, Figure 4). In general, 2544 metabolites were detected in ESI (-) model. For sensitive genotype YN211, the concentrations of 464 metabolites were changed between T1 and CK1, including 366 increased and 98 reduced. For the drought-tolerant genotype HX10, the concentrations of 429 metabolites were changed between T2 and CK2, including 318 increased and 111 reduced. Six hundred ten metabolites showed obvious differences between the two genotypes, including 390 increased and 220 reduced (CK2 vs. CK1). Under drought treatment, 584 metabolites showed obvious differences between two genotypes, including 326 increased and 258 reduced (T2 vs. T1). A total of 3028 metabolites were detected in the ESI (+) model. For sensitive genotype YN211, the concentrations of 527 metabolites were changed between T1 and CK1, including 449 increased and 78 reduced. For the drought-tolerant genotype HX10, the concentrations of 499 metabolites were changed between T2 and CK2, including 397 increased and 102 reduced. Eight hundred eleven metabolites showed obvious differences between the two genotypes, including 523 increased and 288 reduced (CK2 vs. CK1). Under drought treatment, 797 metabolites showed obvious differences between two genotypes, including 425 increased and 372 reduced (T2 vs. T1).

Table 1.

Statistics of differently accumulated metabolites in each group.

Compared Samples Num. of Total Ident Num. of Total Sig Num. of Sig. Up Num. of Sig. Down
T1 vs. CK1_pos 3028 527 449 78
T2 vs. CK2_pos 3028 499 397 102
CK2 vs. CK1_pos 3028 811 523 288
T2 vs. T1_pos 3028 797 425 372
T1 vs. CK1_neg 2544 464 366 98
T2 vs. CK2_neg 2544 429 318 111
CK2 vs. CK1_neg 2544 610 390 220
T2 vs. T1_neg 2544 584 326 258
Open in a new tab
Figure 4.

Figure 4

Open in a new tab

Volcanic plots of metabolites in wheat leaves of two genotypes under control or drought. The x-axis represents log2 value of fold change of each metabolite, y-axis represents the p-value of metabolites (log10 value), gray represents metabolites with no significant difference, red represents up-regulated metabolites, green represents down-regulated metabolites. CK1:YN211 under normal conditions, T1: YN211 under drought stress, CK2:HX10 under normal conditions, T2: HX10 under drought stress.

2.2.3. Dynamic Metabolic Changes of Drought-Tolerant Genotype and Drought-Sensitive Wheat Genotype under Normal Conditions or Drought Stress

Kruskal-Wallis ANOVA was used to compare the overall variation in metabolism associated with drought stress in different genotypes. Fourteen changed metabolites were identified in YN211 between T1 and CK1, including 12 up-regulated and two down-regulated, while 10 changed metabolites were identified in HX10, including four up-regulated and six down-regulated. The metabolites were different between two genotypes under normal conditions. Compared with HX10, there were 18 metabolites with a higher level and 24 with a lower level in the drought-sensitive YN211. Major metabolites were organic acids (caffeic acid, ascorbic acid, gentinic acid, syringic acid) and flavones (amygdalin, astragaloside, kaila anthocyanin, flavone of rehmannia mauritiana, baima glycoside, and arbutin).

Under drought treatment, mass spectrometry analysis of changed metabolites enabled the identification of 56 metabolites, including amino acids, organic acids, carbohydrates, alkaloids, flavones, purines, and pyrimidines (Table 2, Figure 5, Figure S1). There were 24 metabolites with a higher level in HX10, and 32 with a lower level, compared with YN211. A series of phenolics including homovanillic acid, gallic acid, vanillin, 3,4-dihydroxybenzaldehyde, 3-dimethylallyl-4-hydroxymandelic acid, alpha-phocaecholic acid, kynurenic acid, coniferyl aldehyde, vanillyl alcohol, pyridoxal, and picolinic acid accumulated more in HX10. Furthermore, the thymine, which is a pyrimidine accumulated highly in drought-tolerant genotype with almost 13-fold of the amount in YN211. Meanwhile, a purine, guanine, also accumulated more in HX10. Other metabolites with a higher level in HX10 were two flavonoids, dhurrin and genistein; the amino acids, L-cysteinylglycine and fructoselysine; alkaloids, dihydroxyindole and scopoletin; citric acid (organic acids), farney pyrophosphate, D-Ribulose 5-phosphate, and anti-zeatin. Metabolites with a low level in drought treated HX10 compared with YN211 mainly included amino acids, flavonoids, alkaloids, phenolics, and organic acids (Table 2).

Table 2.

Identification results of differently accumulated metabolites between two wheat genotypes under drought. FC: fold change, VIP: variable importance in the projection.

Ionization Mode Classification Metabolite RT (min) m/z Formula VIP FC p Value
ESI (+) 1 Amino acid L-Isoleucine 1.648 131.0946 C6 H13 N O2 1.51 0.33 1.49 × 10−7
ESI (+) 2 Amino acid L-Tyrosine 1.413 181.0738 C9 H11 N O3 1.40 0.37 1.12 × 10−5
ESI (+) 3 Amino acid L-Phenylalanine 3.199 165.07893 C9 H11 N O2 2.37 0.22 0.014226
ESI (+) 4 Flavonoids Dhurrin 6.244 311.09967 C14 H17 N O7 1.49 2.97 1.55 × 10−12
ESI (+) 5 Flavonoids Amygdalin 8.234 457.15781 C20 H27 N O11 2.36 0.18 8.67 × 10−10
ESI (+) 6 Flavonoids Luteolin 8.624 286.04691 C15 H10 O6 1.37 0.36 1.83 × 10−10
ESI (+) 7 Flavonoids Salidroside 7.593 300.11993 C14 H20 O7 3.30 0.09 1.41 × 10−7
ESI (+) 8 Flavonoids Quercetin 3-O-sophoroside 7.941 626.14635 C27 H30 O17 1.38 0.43 0.00944
ESI (+) 9 Flavonoids Arbutin 6.052 272.08903 C12 H16 O7 1.05 0.46 2.43 × 10−6
ESI (+) 10 Flavonoids Keracyanin 10.441 595.1657 C27 H31 O15 1.53 0.32 1.40 × 10−9
ESI (+) 11 Alkaloids N-Methyltryptamine 5.986 174.1156 C11 H14 N2 3.42 0.07 1.98 × 10−6
ESI (+) 12 Alkaloids Harmine 9.559 212.09404 C13 H12 N2 O 2.21 0.20 4.11 × 10−12
ESI (+) 13 Alkaloids Tryptamine 5.638 160.09996 C10 H12 N2 3.98 0.05 1.02 × 10−8
ESI (+) 14 Organic acids Dihydroxyindole 7.901 149.04764 C8 H7 N O2 1.06 2.16 2.82 × 10−8
ESI (+) 15 Alkaloids Indole 5.788 117.05778 C8 H7 N 1.01 0.48 1.32 × 10−9
ESI (+) 16 Amino acid L-Glutamic acid 1.088 147.05307 C5 H9 N O4 1.15 0.43 1.65 × 10−6
ESI (+) 17 Phenolics Vanillin 2.477 152.04724 C8 H8 O3 1.65 3.36 2.90 × 10−10
ESI (+) 18 Phenolics 3,4-Dihydroxybenzaldehyde 6.419 138.03162 C7 H6 O3 1.74 3.56 8.94 × 10−12
ESI (+) 19 Alkaloids Tyramine 3.173 137.08408 C8 H11 N O 2.63 0.23 0.045753
ESI (+) 20 Phenolics 3-Dimethylallyl-4-hydroxymandelic acid 8.564 236.1046 C13 H16 O4 1.21 2.43 1.10 × 10−12
ESI (+) 21 Alkaloids Scopoletin 8.437 192.04209 C10 H8 O4 2.26 5.20 5.97 × 10−12
ESI (+) 22 Phenolics Sinapyl alcohol 7.064 210.08902 C11 H14 O4 1.30 0.39 2.92 × 10−8
ESI (+) 23 Phenolics Eugenol 10.704 164.08361 C10 H12 O2 1.02 0.46 1.13 × 10−5
ESI (+) 24 Amino acid L-Cysteinylglycine 6.258 178.04111 C5 H10 N2 O3 S 1.05 2.16 4.38 × 10−6
ESI (+) 25 Sugars D-Ribulose 5-phosphate 1.324 230.01883 C5 H11 O8 P 1.54 3.05 2.43 × 10−7
ESI (+) 26 Phenolics Eriodictyol 10.112 288.0633 C15 H12 O6 2.38 0.18 6.33 × 10−11
ESI (+) 27 Others Farnesyl pyrophosphate 11.295 382.12948 C15 H28 O7 P2 1.10 2.11 0.000214
ESI (+) 28 Others trans-Zeatin 6.178 219.11171 C10 H13 N5 O 1.15 2.51 0.002331
ESI (+) 29 Pyrimidine Thymine 4.325 126.04292 C5 H6 N2 O2 3.57 13.72 4.45 × 10−15
ESI (+) 30 Amino acid Fructoselysine 11.044 308.15916 C12 H24 N2 O7 1.45 2.89 1.29 × 10−8
ESI (+) 31 Phenolics Syringic acid 6.276 198.05268 C9 H10 O5 1.55 0.32 6.83 × 10−11
ESI (+) 32 Phenolics alpha-Phocaecholic acid 1.133 424.28289 C24 H40 O6 1.74 3.63 8.48 × 10−9
ESI (+) 33 Phenolics Caffeic acid 10.025 180.04209 C9 H8 O4 1.28 0.42 0.00074
ESI (+) 34 Phenolics 1,4-Dihydroxy-2-naphthoic acid 7.005 204.04184 C11 H8 O4 1.18 0.42 2.88 × 10−8
ESI (+) 35 Phenolics Kynurenic acid 8.003 189.04248 C10 H7 N O3 1.91 3.98 5.60 × 10−8
ESI (+) 36 Purine Guanine 1.934 151.04938 C5 H5 N5 O 1.11 2.34 0.000149
ESI (-) 37 Organic acids L-Proline 1.165 115.0632 C5 H9 N O2 2.33 0.16 2.24 × 10−8
ESI (-) 38 Organic acids Citric acid 7.876 192.027 C6 H8 O7 1.03 2.31 1.13 × 10−6
ESI (-) 39 Organic acids Fumaric acid 1.029 116.0109 C4 H4 O4 2.11 0.20 2.39 × 10−6
ESI (-) 40 Organic acids trans-Cinnamic acid 2.965 148.0523 C9 H8 O2 1.45 0.31 2.96 × 10−9
ESI (-) 41 Phenolics Ascorbic acid 1.118 176.032 C6 H8 O6 2.30 0.16 9.97 × 10−8
ESI (-) 42 Others Reduced Glutathione 1.066 307.0832 C10 H17 N3 O6 S 1.56 0.28 1.62 × 10−9
ESI (-) 43 Phenolics Homovanillic acid 6.58 182.0578 C9 H10 O4 1.10 2.42 2.62 × 10−11
ESI (-) 44 Phenolics Gallic acid 2.486 170.0215 C7 H6 O5 1.42 3.15 1.87E × 10−8
ESI (-) 45 Phenolics Coniferyl aldehyde 8.86 178.0628 C10 H10 O3 1.57 3.55 2.55 × 10−9
ESI (-) 46 Amino acid metabolic intermediates Saccharopine 0.965 276.1314 C11 H20 N2 O6 1.23 0.39 3.55 × 10−5
ESI (-) 47 Phenolics Gentisic acid 6.882 154.0265 C7 H6 O4 2.80 0.10 1.87 × 10−9
ESI (-) 48 Phenolics Vanillyl alcohol 5.27 154.0629 C8 H10 O3 1.54 3.62 2.76 × 10−5
ESI (-) 49 Phenolics 4-Nitrophenol 8.546 139.0268 C6 H5 N O3 1.20 2.63 2.73 × 10−9
ESI (-) 50 Phenolics Pyridoxal 1.622 167.058 C8 H9 N O3 1.11 2.44 1.41 × 10−8
ESI (-) 51 Flavonoids Pumiloside 8.868 512.1788 C26 H28 N2 O9 1.29 0.37 1.59 × 10−5
ESI (-) 52 Flavonoids Genistein 11.175 270.0521 C15 H10 O5 1.15 2.66 0.000446
ESI (-) 53 Flavonoids Astragalin 8.489 448.1001 C21 H20 O11 1.53 0.31 2.36 × 10−5
ESI (-) 54 Flavonoids Quercitrin 7.573 448.0997 C21 H20 O11 1.89 0.22 1.35 × 10−9
ESI (-) 55 Flavonoids Quercetin 3-O-(beta-D-xylosyl-(1-> 2)-beta-D-glucoside) 6.96 596.1377 C26 H28 O16 1.79 0.24 2.16 × 10−10
ESI (-) 56 Phenolics Picolinic acid 7.886 123.032 C6 H5 N O2 1.17 2.55 5.31 × 10−11
Open in a new tab
Figure 5.

Figure 5

Open in a new tab

Classification of 56 differently accumulated metabolites between two wheat genotypes under drought stress.

Analysis of the detailed levels of these different metabolites in all samples showed that all of the phenolics, as well as the thymine and guanine with a higher level in the drought-treated HX10, were also highly accumulated in the untreated HX10 (Figure 6), demonstrating that the high level of these metabolites in HX10 was a consistent feature rather than an environment induced feature. Similarly, the two amino acids enriched in drought treated HX10 were also showed higher level in untreated HX10. However, both of them were obviously induced after treatment in both genotypes. This expression pattern also occurred for farney pyrophosphate, which is the precursor of sesquiterpenes and triterpenes which includes the well-known drought-related hormone abscisic acid. The high level of farney pyrophosphate may indicate a high level of abscisic acid.

Figure 6.

Figure 6

Open in a new tab

Relative contents of the 24 metabolites accumulated at a higher level in HX10 after drought treatment in all samples. CK1:YN211 under normal conditions, T1: YN211 under drought treatment, CK2:HX10 under normal conditions, T2: HX10 under drought treatment.

3. Discussion

In the comparison of different metabolites identified in two genotypes under drought stress, as much as 12 phenolics showed a higher level in HX10, accounting for half of the total 24 higher accumulated metabolites in this genotype. Phenolics are a group of important antioxidants, the production of phenolic compounds (or polyphenols) is one of the strategies used by plants to avoid the oxidative damage caused by drought [29]. It was reported that the level of phenolic compounds could be used as indicators of drought resistance in shrubs [30]. Moreover, studies have shown that the drought stress could increase the number of phenolic compounds in some plants, and some drought resistant genotype could produce more phenolic compounds with or without drought treatment [31,32]. The current study also indicated the critical role of phenolic compounds in the drought tolerance ability of HX10. It is known that drought stress exacerbates reactive oxygen species (ROS) production in plant cells, which causes oxidative damage such as membrane disruption, protein degradation, enzyme inactivation, and ironic imbalance [33,34,35]. Phenolics have been proved to be a group of important antioxidants, the production of phenolic compounds (or polyphenols) is one of the strategies used by plants to avoid the oxidative damage caused by drought stress [29,36,37]. Total phenolics content, total flavonoids content, anthocyanin content, and schaftoside content in wheat leaves were enhanced during drought treatment [38]. A previous study showed that the protective role of phenolic compounds is due to the special structure, e.g., hydroxyl group, double carbon bonds, and modifications like glycosylation, prenylation, and methylation [29,38]. All the 12 phenolic compounds identified in HX10 in the current study have hydroxyl group, double carbon bonds, or the methyl group. Thus, the highly accumulated phenolic compounds in HX10 might act as powerful antioxidants to protect the plant from drought stress caused oxidative damage.

The current study revealed the significantly higher amount of thymine (a purine nucleotide) and guanine (a pyrimidine nucleotide) in the drought-tolerant genotype HX10. As shown in previous studies, the promotion of purine and pyrimidine nucleotide biosynthesis provided ATP energy through drought stress [39,40]. Furthermore, the purine degradation contributed to the protective responses such as synergistic activation of abscisic acid metabolism and accumulation of the cellular protectant proline to drought stress [41,42]. Besides, there were studies showing that drought stress could induce the increase of purine and pyrimidine by transcriptome or metabolomics [43,44]. Thus, the current study indicated that thymine and guanine might contribute to the drought tolerance of HX10 by producing energy and enhancing protective responses.

Metabolomic analysis showed increased proline levels in leaves of drought-sensitive genotype YN211 subjected to drought, but not in HX10. Apart from proline, several other amino acids were clearly induced in YN211 but not in HX10. Many amino acids have been shown in response to the water/drought stress either at a higher or lower level [45,46]. Proline is one of the main osmolytes in plants and could accumulate in response to various abiotic stresses [47]. Besides acting as an excellent osmolyte, proline plays three major roles during stress, i.e., as a metal chelator, an antioxidative defense molecule, and a signaling molecule [47,48]. A recent investigation on bread wheat genotypes showed that proline content significantly increased under stress, but weakly or not significantly correlated with agronomic traits such as plant height under both optimal, and water-limited conditions [49]. In the current study, alghough the plant height was also not correlated with proline content. However, the proline did not elevate in drought-tolerant genotype HX10, indicating that there may be another mechanism for its tolerant capacity. The present study observed the increased amount of two special amino acids, L-cysteinylglycine, and fructoselysine, in the drought-tolerant genotype. In plants, reduced glutathione (GSH), which is a tripeptide constituted of glutamate, cysteine, and glycine, is considered the most important intracellular defense against ROS in plant cells among nonenzymetic antioxidants [50]. The presence of Cys in the chemical reactivity and higher water solubility of the thiol (-SH) group of GSH confers its biological properties and make it a crucial metabolite to perform multiple functions including growth, development and plant responses to drought stress [51,52]. Thus, the L-cysteinylglycine with Cys and thiol may also be considered with strong confer antioxidants property in drought responses in wheat. For fructoselysine, a previous study in Arabidopsis showed that oxidative stress led to increased protein glycation [53] and glucoselysine as well as fructoselysine were proved with protective antioxidative activity [54]. The fructoselysine in the drought-tolerant genotype may also take part in its drought tolerance as an antioxidant.

4. Materials and Methods

4.1. Materials and Growth Conditions

Wheat genotype Hanxuan10 (HX10) and Yunong211 (YN211) were used in this study. Hanxuan10 is an important source in China with drought resistance which collected from Luoyang Academy of Agriculture and Forestry Sciences, Luoyang City, Henan Province, China. HX10 is widely grown in semi-arid areas under rain-fed conditions. YN211 is one of the drought-sensitive wheat genotypes grown in Henan Province, China. Both of HX10 and YN211 are hexaploid. HX10 was released in 1966. HX10 has excellent characteristics of drought-resistance, barren-resistance, and cold-resistance, which was grown widely in dryland wheat regions of North China. Its germplasm number is ZM009279. YN211 was cultivated by Henan Agricultural University in 2014, China, and cultured through breeding Yunong201//Yunong9234903/Baiyingdong. The germplasm number of YN211 is Yushenzhengzi2014004.

Formic acid was purchased from Waters Corporation (Waters Corporation, Milford, MA, USA). Acetonitrile and methanol were purchased from Fisher Scientific; Ultra-pure water was prepared using a Millipore Alpha-Q water purification system (Millipore Corporation, Bedford, MA, USA) [55].

The seeds of HX10 and YN211 were surface-sterilized with 70% alcohol and 0.1% HgCl for 5 min and 15 min, respectively. Then washed five times with distilled water and soaked in water for 12 h, and then incubated in water in the dark at 25 °C for three days to germinate. Seedlings were then cultivated in 1/2 Hoagland’s nutrient solution in a light incubator at 25 °C/22 °C with 16/8 h light/dark photoperiod and 65% relative humidity. Hoagland’s nutrient solution was changed every three days [56].

4.2. Treatments

At the two-leaf stage, YN211 and HX10 seedlings were subjected to drought stress induced by 20% (m/v) poly-ethylene glycol-6000 (PEG-6000; −0.975 MPa) and designated as T1 and T2, respectively. YN211 and HX10 seedlings grown under normal conditions were used as the controls and were designated as CK1 and CK2, respectively. The culture solutions were refilled twice a week. Leaf tissues were collected seven days after 20% PEG treatment. Fresh materials were used to measure the physiological indexes. The dried biomass was determined using samples dried at 70 °C overnight. The samples used to analyze the metabolite contents were frozen immediately in liquid nitrogen and stored at −80 °C before analysis. For physiological analysis, the treatments were repeated in triplicate, and for metabolomics analysis, the treatments were repeated eight times to control experimental variability [56]. All samples were collected, marked, and frozen immediately in liquid nitrogen for 20 min and stored at −80 °C before analysis.

4.3. Growth Parameters

After seven days of drought treatment, a series of growth parameters were recorded. Plant height was measured using a metric ruler. To determine the plant biomass, leaves were collected and washed by distilled water, then dried at 60 °C for 72 h, and the biomass was weighed using an electronic scale.

Leaf relative water content (RWC) was determined with fully expanded leaves after seven days of drought stress imposition [57]. Briefly, leaves were cut off and weighed (fresh weight, FW) and then soaked in water at room temperature for 24 h and then wiped down excess water with paper towels immediately before weighing (saturated weights, SW). The leaves were dried in an oven at 60 °C for 72 h and weighed as the dry weight (DW). Leaf RWC was calculated using the following formula: RWC (%) = (FW-DW)/(SW-DW) × 100.

4.4. Metabolite Extraction

Leaves (100 mg) were individually grounded with liquid nitrogen, and the homogenate was resuspended with prechilled 80% methanol (−20 °C) followed by good vortexing. The samples were incubated at −20 °C for 60 min and then were centrifuged at 14,000× g, 4 °C for 20 min. The supernatants were subsequently transferred to a fresh Eppendorf tube and spun in a vacuum concentrator until dry. The dried metabolite pellets were resuspended by 60% methanol and analyzed by LC-MS/MS. All samples were randomized to eliminate instrument errors. To monitor the stability and repeatability of the instrument analysis, quality control (QC) samples were prepared, while sample processing. The QC samples were equally mixing samples of experimental samples, which were used to balance the chromatographic-mass spectrometry system, monitor the state of LC-MS system performance, and to evaluate the stability of the system during the whole experiment process. The correlation value of the QC samples was positively related to the stability of the method [58]. If the distribution of the QC samples mixed together in the PCA analysis diagram, this would demonstrate that the correlation value of QC samples is high [59]. At the same time, blank samples were set up to remove background ions.

4.5. Chromatographic Separation

An untargeted approach with UHPLC-MS/MS analysis was used to identify metabolites associated with the alteration of wheat seedlings in response to drought stress. A Vanquish UHPLC system (Thermo Fisher Scientific, Bremen, Germany) fitted with Q-Exactive HF-X Orbitrap mass spectrometer (Thermo Fisher Scientific, Bremen, Germany) operating in the data-dependent acquisition (DDA) mode was used in the current study.

Chromatographic separation was performed with a Vanquish UHPLC system (Thermo Fisher Scientific, Bremen, Germany). Samples were injected onto an Accucore HILIC column (100 × 2.1 mm, 2.6 μm) using a 16-min linear gradient at a flow rate of 0.3 mL/min. The eluents for the positive polarity mode were eluent A (0.1% formic acid (FA, Waters Corporation, Milford, USA) in 95% acetonitrile (ACN), 10 mM ammonium acetate) and eluent B (0.1% FA in 50% ACN, 10 mM ammonium acetate). The eluents for the negative polarity mode were eluent A (95% ACN, 10 mM ammonium acetate, pH 9.0) and eluent B (50% ACN, 10 mM ammonium acetate, pH 9.0). The solvent gradient was set as follows: 2% B, 1.5 min; 2–100% B, 12.0 min; 100% B, 14.0 min; 100–2% B, 14.1 min; 2% B, 16 min. The flow rate was 300 µL/min. The column temperature was set at 40 ℃ [60].

4.6. Mass Spectrometry

Detection of the compounds was performed using Q-Exactive HF-X Orbitrap Mass Spectrometer (Thermo Fisher Scientific, Bremen, Germany) operating in the data-dependent acquisition (DDA) mode. Q-Exactive HF-X mass spectrometer was operated in positive/negative polarity mode with a spray voltage of 3.2 kV, capillary temperature of 320 ℃, sheath gas flow rate of 35 arb and aux gas flow rate of 10 arb [60].

4.7. Data Analysis

The raw data files generated by UHPLC-MS/MS analysis were processed using the Compound Discoverer 3.0 (CD 3.0, Thermo Fisher Scientific, San Jose, CA, USA) to perform peak alignment, peak picking, and quantitation for each metabolite. The main parameters were set as follows: retention time tolerance, 0.2 minutes; actual mass tolerance, 5ppm; signal intensity tolerance, 30%; signal/noise ratio, 3; minimum intensity, 100,000. After that, peak intensities were normalized to the total spectral intensity. The normalized data were used to predict the molecular formula based on additive ions, molecular ion peaks, and fragment ions. Then peaks were matched with the mzCloud (https://www.mzcloud.org/) and ChemSpider (http://www.chemspider.com/) database to obtain the accurate qualitative and relative quantitative results. The resulting data were subjected to principal component analysis (PCA) and Partial Least Square Discriminant Analysis (PLS-DA) using the R program [60].

5. Conclusions

The present study compared the metabolites of the drought-sensitive genotype YN211 and drought-tolerant wheat genotype HX10 under drought treatment by untargeted analysis with UPLC-MS data. Under drought treatment, the growth of HX10 only showed slight retardation, especially in the seedling height, fresh weight, and RWC, compared with YN211. Fifty-six changed metabolites were identified between the two genotypes under drought /PEG 6000 treatment. In HX10, a series of phenolics accumulated at a higher level than those in YN211, and the amount of a pyrimidine-thymine is almost 13 folds of that in YN211. These metabolites, as well as high levels of amino acids, alkaloids, organic acids, and flavonoids, could help to explain the strong drought-tolerant capacity of HX10.

The current study provided important information on metabolites about the two wheat genotypes HX10 and YN211, which differ in drought tolerance. Further study on the transcriptome or proteome of these genotypes will help to find possible related genes/enzymes with the identified important metabolites. These metabolome data could also be used in future QTL or GWAS studies to identify locus (loci) or gene(s) associated with these metabolic trait(s), and thus to offer gene(s) or trait-specific marker(s) for the crop improvement.

Acknowledgments

We are grateful to Suoyi Han from Industrial Crops Research Institute, Henan Academy of Agricultural Sciences, and Bo Fu from Henan Agricultural University for the valuable suggestions on the revision of our manuscript.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/4/520/s1, Figure S1: Hierarchical cluster heat map of significantly different metabolites between two genotypes after drought stress. (A), Positive mode, (B), negative mode.

Click here for additional data file. (647.7KB, pdf)

Author Contributions

X.G. performed experiments and wrote the manuscript; Z.X. contributed to the conception of the experiments; T.Y. provided reagents/materials/analysis tools; X.M. and Y.Z. contributed to the data analysis; Z.W. and Y.R. gave important advices. T.L. provided financial support for the study. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants of The National Key Research and Development Program of China (2016YFD0300205) and the National Key Technology R & D Program of China (2013BAC09B01).

Conflicts of Interest

The authors declare no conflict of interest.

References

  • 1.Selim D.A.-F.H., Nassar R.M.A., Boghdady M.S., Bonfill M. Physiological and anatomical studies of two wheat cultivars irrigated with magnetic water under drought stress conditions. Plant Physiol. Biochem. 2019;135:480–488. doi: 10.1016/j.plaphy.2018.11.012. [DOI] [PubMed] [Google Scholar]
  • 2.Yu X., Wang T., Zhu M., Zhang L., Zhang F., Jing E., Ren Y., Wang Z., Xin Z., Lin T. Transcriptome and physiological analyses for revealing genes involved in wheat response to endoplasmic reticulum stress. BMC Plant Biol. 2019;19:193. doi: 10.1186/s12870-019-1798-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.McKay J.K., Richards J.H., Mitchell-Olds T. Genetics of drought adaptation in Arabidopsis thaliana: I. Pleiotropy contributes to genetic correlations among ecological traits. Mol. Ecol. 2003;12:1137–1151. doi: 10.1046/j.1365-294X.2003.01833.x. [DOI] [PubMed] [Google Scholar]
  • 4.Bal W., Kozlowski H., Robbins R., Pettit L.D. Improving Drought Tolerance by Exogenous Application of Glycinebetaine and Salicylic Acid in Sunflower. J. Agron. Crop Sci. 2010;194:193–199. [Google Scholar]
  • 5.Taiz L., Zeiger E. Plant Physiology. 4th ed. Sinauer Associates Inc Publishers; Sunderland, MA, USA: 2006. [Google Scholar]
  • 6.Steudle E., Peterson C.A. How does water get through roots? J. Exp. Bot. 1998;49:775–788. doi: 10.1093/jxb/49.322.775. [DOI] [Google Scholar]
  • 7.Cattivelli L., Rizza F., Badeck F.-W., Mazzucotelli E., Mastrangelo A.M., Francia E., Marè C., Tondelli A., Stanca A.M. Drought tolerance improvement in crop plants: An integrated view from breeding to genomics. Field Crops Res. 2008;105:1–14. doi: 10.1016/j.fcr.2007.07.004. [DOI] [Google Scholar]
  • 8.Prasad P.V.V., Staggenborg S., Ristic Z. Impacts of drought and/or heat stress on physiological, developmental, growth, and yield processes of crop plants. Adv. Agric. Syst. Model. Ser. 2008;1:301–355. [Google Scholar]
  • 9.Foulkes M.J., Sylvester-Bradley R., Weightman R., Snape J.W. Identifying physiological traits associated with improved drought resistance in winter wheat. Field Crops Res. 2007;103:11–24. doi: 10.1016/j.fcr.2007.04.007. [DOI] [Google Scholar]
  • 10.Godfray H.C.J., Beddington J.R., Crute I.R., Lawrence H., David L., Muir J.F., Jules P., Sherman R., Thomas S.M., Camilla T. Food security: The challenge of feeding 9 billion people. Science. 2010;327:812. doi: 10.1126/science.1185383. [DOI] [PubMed] [Google Scholar]
  • 11.Li X., Waddington S.R., Dixon J., Joshi A.K., Vicente M.C.D. The relative importance of drought and other water-related constraints for major food crops in South Asian farming systems. Food Secur. 2011;3:19–33. doi: 10.1007/s12571-011-0111-x. [DOI] [Google Scholar]
  • 12.Dixon R.A., Paiva N.L. Stress-Induced Phenylpropanoid Metabolism. Plant cell. 1995;7:1085–1097. doi: 10.2307/3870059. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Adams H.D., Guardiolaclaramonte M., Barrongafford G.A., Villegas J.C., Breshears D.D., Zou C.B., Troch P.A., Huxman T.E. Reply to Leuzinger et al: Drought-induced tree mortality temperature sensitivity requires pressing forward with best available science. Proc. Natl Acad. Sci. USA. 2009;106:E107. doi: 10.1073/pnas.0909227106. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Spickett C.M. Metabolic Response of MaizeRootstoHyperosmotic Shock’ AninVivo 31P Nuclear Magnetic Resonance Study. Plant Physiol. 1992;99:856–863. doi: 10.1104/pp.99.3.856. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Hare P.D., Cress W.A., Van Staden J. Dissecting the roles of osmolyte accumulation during stress. Plant Cell Environ. 1998;21:535–553. [Google Scholar]
  • 16.Dennison K.L., Robertson W.R., Lewis B.D., Hirsch R.E., Sussman M.R., Spalding E.P. Functions of AKT1 and AKT2 potassium channels determined by studies of single and double mutants of Arabidopsis. Plant Physiol. 2001;127:1012–1019. doi: 10.1104/pp.010193. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Chen T.H.H., Murata N. Enhancement of tolerance of abiotic stress by metabolic engineering of betaines and other compatible solutes. Curr. Opin. Plant Biol. 2002;5:250–257. doi: 10.1016/S1369-5266(02)00255-8. [DOI] [PubMed] [Google Scholar]
  • 18.Yasar F., Uzal O., Tufenkci S., Yildiz K., Pasa O. Ion accumulation in different organs of green bean genotypes grown under salt stress. Plant Soil Environ. 2006;52:476. doi: 10.17221/3469-PSE. [DOI] [Google Scholar]
  • 19.Wang H. Effects of salt stress on ion balance and nitrogen metabolism of old and young leaves in rice (Oryza sativa L.) BMC Plant Biol. 2012;12:194. doi: 10.1186/1471-2229-12-194. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Oliver F. Metabolomics—The link between genotypes and phenotypes. Plant Mol. Biol. 2002;48:155–171. [PubMed] [Google Scholar]
  • 21.Hillenmeyer M.E., Ericson E., Davis R.W., Nislow C., Koller D., Giaever G. Systematic analysis of genome-wide fitness data in yeast reveals novel gene function and drug action. Genome Biol. 2010;11:R30. doi: 10.1186/gb-2010-11-3-r30. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Marco O., Stephan L., Simon P., Kirsten S., Nadine S., Christiane W. Metabolomics: Current state and evolving methodologies and tools. Appl. Microbiol. Biotechnol. 2007;76:495–511. doi: 10.1007/s00253-007-1029-2. [DOI] [PubMed] [Google Scholar]
  • 23.Meng J., Zhang X., Wu H., Bu J., Shi C., Deng C., Mao Y. Morphine-induced conditioned place preference in mice: Metabolomic profiling of brain tissue to find “molecular switch” of drug abuse by gas chromatography/mass spectrometry. Anal. Chim. Acta. 2012;710:125–130. doi: 10.1016/j.aca.2011.09.033. [DOI] [PubMed] [Google Scholar]
  • 24.Ruan C.J., Ja T.D.S. Metabolomics: Creating new potentials for unraveling the mechanisms in response to salt and drought stress and for the biotechnological improvement of xero-halophytes. Crit. Rev. Biotechnol. 2011;31:153–169. doi: 10.3109/07388551.2010.505908. [DOI] [PubMed] [Google Scholar]
  • 25.Barding G.A., Szabolcs B., Takeshi F., Julia B.S., Larive C.K. Comparison of GC-MS and NMR for metabolite profiling of rice subjected to submergence stress. J. Proteome Res. 2013;12:898–909. doi: 10.1021/pr300953k. [DOI] [PubMed] [Google Scholar]
  • 26.Bowne J.B., Erwin T.A., Juttner J., Schnurbusch T., Langridge P., Bacic A., Roessner U. Drought Responses of Leaf Tissues from Wheat Cultivars of Differing Drought Tolerance at the Metabolite Level. Mol. Plant. 2012;5:418–429. doi: 10.1093/mp/ssr114. [DOI] [PubMed] [Google Scholar]
  • 27.Alvarez S., Marsh E.L., Schroeder S.G., Schachtman D.P. Metabolomic and proteomic changes in the xylem sap of maize under drought. Plant Cell Environ. 2008;31:325–340. doi: 10.1111/j.1365-3040.2007.01770.x. [DOI] [PubMed] [Google Scholar]
  • 28.Charlton A.J., Donarski J.A., Harrison M., Jones S.A., Godward J., Oehlschlager S., Arques J.L., Ambrose M., Chinoy C., Mullineaux P.M., et al. Responses of the pea (Pisumsativum L.) leaf metabolome to drought stress assessed by nuclear magnetic resonance spectroscopy. Metabolomics. 2008;4:312. doi: 10.1007/s11306-008-0128-0. [DOI] [Google Scholar]
  • 29.Rice-Evans C., Miller N., Paganga G. Antioxidant properties of phenolic compounds. Trends Plant Sci. 1997;2:152–159. doi: 10.1016/S1360-1385(97)01018-2. [DOI] [Google Scholar]
  • 30.Varela M.C., Arslan I., Reginato M.A., Cenzano A.M., Luna M.V. Phenolic compounds as indicators of drought resistance in shrubs from Patagonian shrublands (Argentina) Plant Physiol. Biochem. 2016;104:81–91. doi: 10.1016/j.plaphy.2016.03.014. [DOI] [PubMed] [Google Scholar]
  • 31.Sarker U., Oba S. Drought stress enhances nutritional and bioactive compounds, phenolic acids and antioxidant capacity of Amaranthus leafy vegetable. BMC Plant Biol. 2018;18:258. doi: 10.1186/s12870-018-1484-1. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Quan N.T., Anh L.H., Khang D.T., Tuyen P.T., Toan N.P., Minh T.N., Minh L.T., Bach D.T., Ha P.T.T., Elzaawely A.A., et al. Involvement of Secondary Metabolites in Response to Drought Stress of Rice (Oryza sativa L.) Agriculture. 2016;6:23. doi: 10.3390/agriculture6020023. [DOI] [Google Scholar]
  • 33.Baier M., Kandlbinder A., Golldack D., Dietz K.-J. Oxidative stress and ozone: Perception, signalling and response. Plant Cell Environ. 2005;28:1012–1020. doi: 10.1111/j.1365-3040.2005.01326.x. [DOI] [Google Scholar]
  • 34.Tarchoune I., Sgherri C., Izzo R., Lachaal M., Ouerghi Z., Navari-Izzo F. Antioxidative responses of Ocimum basilicum to sodium chloride or sodium sulphate salinization. Plant Physiol. Biochem. 2010;48:772–777. doi: 10.1016/j.plaphy.2010.05.006. [DOI] [PubMed] [Google Scholar]
  • 35.Suzuki N., Koussevitzky S., Mittler R., Miller G. ROS and redox signalling in the response of plants to abiotic stress. Plant Cell Environ. 2012;35:259–270. doi: 10.1111/j.1365-3040.2011.02336.x. [DOI] [PubMed] [Google Scholar]
  • 36.Rice-Evans C.A., Miller N.J., Paganga G. Structure-antioxidant activity relationships of flavonoids and phenolic acids. Free Rad. Biol. Med. 1996;20:933–956. doi: 10.1016/0891-5849(95)02227-9. [DOI] [PubMed] [Google Scholar]
  • 37.Rice-evans C.A., Miller N.J., Bolwell P.G., Bramley P.M., Pridham J.B. The Relative Antioxidant Activities of Plant-Derived Polyphenolic Flavonoids. Free Radic. Res. 1995;22:375–383. doi: 10.3109/10715769509145649. [DOI] [PubMed] [Google Scholar]
  • 38.Ma D., Sun D., Wang C., Li Y., Guo T. Expression of flavonoid biosynthesis genes and accumulation of flavonoid in wheat leaves in response to drought stress. Plant Physiol. Biochem. 2014;80:60–66. doi: 10.1016/j.plaphy.2014.03.024. [DOI] [PubMed] [Google Scholar]
  • 39.Yang C., Zhang C., Zhang J., Gong P., Zhang X., Zhang Y., Khurram Z., Ye Z., Li H., Wang T., et al. Transcriptional profiles of drought-responsive genes in modulating transcription signal transduction, and biochemical pathways in tomato. J. Exp. Bot. 2010;61:3563–3575. doi: 10.1093/jxb/erq167. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40.Stasolla C., Katahira R., Thorpe T.A., Ashihara H. Purine and pyrimidine nucleotide metabolism in higher plants. J. Plant Physiol. 2003;160:1271–1295. doi: 10.1078/0176-1617-01169. [DOI] [PubMed] [Google Scholar]
  • 41.Watanabe S., Matsumoto M., Hakomori Y., Takagi H., Shimada H., Sakamoto A. The purine metabolite allantoin enhances abiotic stress tolerance through synergistic activation of abscisic acid metabolism. Plant Cell Environ. 2014;37:1022–1036. doi: 10.1111/pce.12218. [DOI] [PubMed] [Google Scholar]
  • 42.Watanabe S., Kounosu Y., Shimada H., Sakamoto A. Arabidopsis Xanthine dehydrogenase mutants defective in purine degradation show a compromised protective response to drought and oxidative stress. Plant Biotechnol. 2014;31:173–178. doi: 10.5511/plantbiotechnology.14.0117a. [DOI] [Google Scholar]
  • 43.Das A., Rushton P.J., Rohila J.S. Metabolomic Profiling of Soybeans (Glycine max L.) Reveals the Importance of Sugar and Nitrogen Metabolism under Drought and Heat Stress. Plants. 2017;6:21. doi: 10.3390/plants6020021. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 44.Liu S.-C., Jin J.-Q., Ma J.-Q., Yao M.-Z., Ma C.-L., Li C.-F., Ding Z.-T., Chen L. Transcriptomic Analysis of Tea Plant Responding to Drought Stress and Recovery. PLoS ONE. 2016;11:e0147306. doi: 10.1371/journal.pone.0147306. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 45.Mibei E.K., Owino W.O., Ambuko J., Giovannoni J.J., Onyango A.N. Metabolomic analyses to evaluate the effect of drought stress on selected African Eggplant accessions. J. Sci. Food Agric. 2018;98:205–216. doi: 10.1002/jsfa.8458. [DOI] [PubMed] [Google Scholar]
  • 46.Lima M.R.M., Machado A.F., Gubler W.D. Metabolomic Study of Chardonnay Grapevines Double Stressed with Esca-Associated Fungi and Drought. Phytopathology. 2017;107:669–680. doi: 10.1094/PHYTO-11-16-0410-R. [DOI] [PubMed] [Google Scholar]
  • 47.Liang X., Zhang L., Natarajan S.K., Becker D.F. Proline mechanisms of stress survival. Antioxid. Redox Signal. 2013;19:998–1011. doi: 10.1089/ars.2012.5074. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 48.Hayat S., Hayat Q., Alyemeni M.N., Wani A.S., Pichtel J., Ahmad A. Role of proline under changing environments: A review. Plant Signal. Behav. 2012;7:1456–1466. doi: 10.4161/psb.21949. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 49.Mwadzingeni L., Shimelis H., Tesfay S., Tsilo T.J. Screening of bread wheat genotypes for drought tolerance using phenotypic and proline analyses. Front. Plant Sci. 2016;7:1276. doi: 10.3389/fpls.2016.01276. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 50.Anjum S.A., Farooq M., Xie X.-y., Liu X.-j., Ijaz M.F. Antioxidant defense system and proline accumulation enables hot pepper to perform better under drought. Sci. Horticult. 2012;140:66–73. doi: 10.1016/j.scienta.2012.03.028. [DOI] [Google Scholar]
  • 51.Gill S.S., Anjum N.A., Hasanuzzaman M., Gill R., Trivedi D.K., Ahmad I., Pereira E., Tuteja N. Glutathione and glutathione reductase: A boon in disguise for plant abiotic stress defense operations. Plant. Physiol. Biochem. 2013;70:204–212. doi: 10.1016/j.plaphy.2013.05.032. [DOI] [PubMed] [Google Scholar]
  • 52.Jozefczak M., Remans T., Vangronsveld J., Cuypers A. Glutathione is a key player in metal-induced oxidative stress defenses. Int. J. Mol. Sci. 2012;13:3145–3175. doi: 10.3390/ijms13033145. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 53.Bechtold U., Rabbani N., Mullineaux P.M., Thornalley P.J. Quantitative measurement of specific biomarkers for protein oxidation, nitration and glycation in Arabidopsis leaves. Plant J. 2009;59:661–671. doi: 10.1111/j.1365-313X.2009.03898.x. [DOI] [PubMed] [Google Scholar]
  • 54.Jing H., Kitts D.D. Comparison of the antioxidative and cytotoxic properties of glucose-lysine and fructose-lysine Maillard reaction products. Food Res. Int. 2000;33:509–516. doi: 10.1016/S0963-9969(00)00076-4. [DOI] [Google Scholar]
  • 55.Zhang Y., Ma X.-M., Wang X.-C., Liu J.-H., Huang B.-Y., Guo X.-Y., Xiong S.-P., La G.-X. UPLC-QTOF analysis reveals metabolomic changes in the flag leaf of wheat (Triticum aestivum L.) under low-nitrogen stress. Plant Physiol. Biochem. 2017;111:30–38. doi: 10.1016/j.plaphy.2016.11.009. [DOI] [PubMed] [Google Scholar]
  • 56.Ma X., Xin Z., Wang Z., Yang Q., Guo S., Guo X., Cao L., Lin T. Identification and comparative analysis of differentially expressed miRNAs in leaves of two wheat (Triticum aestivum L.) genotypes during dehydration stress. BMC Plant Biol. 2015;15:21. doi: 10.1186/s12870-015-0413-9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 57.Barrs H., Weatherley P. A re-examination of the relative turgidity technique for estimating water deficits in leaves. Aust. J. Biol. Sci. 1962;15:413–428. doi: 10.1071/BI9620413. [DOI] [Google Scholar]
  • 58.Zhang W., Tan B., Ye G., Wang J., Dong X., Yang Q., Chi S., Liu H., Zhang S., Zhang H. Identification of potential biomarkers for soybean meal-induced enteritis in juvenile pearl gentian grouper, Epinephelus lanceolatus♂ × Epinephelus fuscoguttatus♀. Aquaculture. 2019;512:734337. doi: 10.1016/j.aquaculture.2019.734337. [DOI] [Google Scholar]
  • 59.Luo P., Yin P., Hua R., Tan Y., Li Z., Qiu G., Yin Z., Xie X., Wang X., Chen W., et al. A Large-scale, multicenter serum metabolite biomarker identification study for the early detection of hepatocellular carcinoma. Hepatology. 2018;67:662–675. doi: 10.1002/hep.29561. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 60.Liu X., Yang Q., Lu Y., Li Y., Li T., Zhou B., Qiao L. Effect of purslane (Portulaca oleracea L.) extract on anti-browning of fresh-cut potato slices during storage. Food Chem. 2019;283:445–453. doi: 10.1016/j.foodchem.2019.01.058. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Click here for additional data file. (647.7KB, pdf)

Articles from Plants are provided here courtesy of Multidisciplinary Digital Publishing Institute (MDPI)

RESOURCES
