Subtropical South American Hailstorm Characteristics and Environments

Zachary S Bruick *,1, Kristen L Rasmussen *, Daniel J Cecil +
PMCID: PMC7241597  NIHMSID: NIHMS1581908  PMID: 32440028

Abstract

Hailstorms in subtropical South America are known to be some of the most frequent anywhere in the world, causing significant damage to the local agricultural economy every year. Convection in this region tends to be orographically forced, with moisture supplied from the Amazon rainforest by the South American low-level jet. Previous climatologies of hailstorms in this region have been limited to localized and sparse observational networks. Due to the lack of sufficient ground-based radar coverage, objective radar-derived hail climatologies have also not been produced for this region. As a result, this study uses a 16-year dataset of TRMM Precipitation Radar and Microwave Imager observations to identify possible hailstorms remotely, using 37-GHz brightness temperature as a hail proxy. By combining satellite instruments and ERA-Interim reanalysis data, this study produces the first objective study of hailstorms in this region. Hailstorms in subtropical South America have an extended diurnal cycle, often occurring in the overnight hours. Additionally, they tend to be multi-cellular in nature, rather than discrete. High-probability hailstorms (≥ 50% probability of containing hail) tend to be deeper by 1–2 km and horizontally larger by greater than 15,000 km2 than storms having a low-probability of containing hail (< 25% probability of containing hail). Finally, hailstorms are supported synoptically by strong upper- and lower-level jets, anomalously warm and moist low levels, and enhanced instability. The findings of this study will support the forecasting of these severe storms and mitigation of their damages within this region.

I. Introduction

Hail in subtropical South America can be very large (Rasmussen et al. 2014) and frequent (10-30 storms/year in central Argentina; Cecil and Blankenship 2012), and causes significant impacts to property and the agricultural economy in this region. Hail has been studied for more than five decades, yet relatively little is known about the storms that produce hail or the environments that support hail-producing storms in subtropical South America. Hail research in the region goes back to the 1960s, when hail mitigation experiments began near Mendoza, Argentina (Grandoso and Iribarne 1963). Hail observations were extremely limited at this time, but some frequency of hail was noted near the Atlantic coast and the Andes Mountains (Frisby and Sansom 1967; Williams 1973). More recent mitigation work has continued in the Mendoza area to reduce hail risk to wineries (Makitov 1999) and to study the time series of hail events (Prieto et al. 1999). Large hail (>2 cm) was found to cause 80% of the agricultural damages in the Mendoza region through only 2-3 events annually (Pérez and Puliafito 2006). An in-depth study of hailpad observations was undertaken by Sánchez et al. (2009), which compared the hailpad climatologies of Mendoza to regions in France and Spain. This study found that the network in Argentina has a greater frequency of large hailstones than those in Europe. Other recent hail research in South America includes the analyses of hailpad observations in Colombia (Arias and Ramiro 2010) and the national hail report database in Brazil (Martins et al. 2017).

The most thorough report-based hail climatology for subtropical South America used weather station observations of hail to produce an interpolated gridded hail frequency (Mezher et al. 2012). This study highlighted two main areas of frequent hail: 1) Mendoza, extending east towards Córdoba and the central plains of Argentina, and 2) Patagonia (see Fig. 1 for geographical references). This southern region of hail activity may be a result of graupel being counted as hail in this colder region of the continent, as the hail frequency in this region is relatively higher in winter and spring than other regions of Argentina. Mezher et al. (2012) also found that hailstorms tend to occur when there are warm temperature anomalies near the surface and cold anomalies in the upper atmosphere, leading to the creation of an unstable atmosphere. While this study produced a national hail climatology over an extended time period, it was limited to surface station observations, which are relatively sparse across the region within Argentina and must be manually recorded by an observer. Ground-based radar-derived hail climatologies, such as those conducted in the U.S. (e.g., Počakal et al. 2009; Cintineo et al. 2012), are unable to be produced in subtropical South America due to the very recent installation of ground-based radar networks in Argentina. With time, this will be a promising avenue to explore hail within this region, but currently the data record is not extensive enough for a thorough analysis.

Fig. 1.

Fig. 1.

Open in a new tab

South America with topography and the study area outlined.

As a result, the most comprehensive way to examine the climatology of hail in subtropical South America and compare these results to other parts of the world is to use passive microwave satellite observations of ice hydrometeors. These measurements have been shown to be well-calibrated to large hail reports (1 inch or greater diameter) within the U.S. (Cecil 2009), which has allowed their use in producing global climatologies of hailstorms and intense convection (Cecil and Blankenship 2012; Ferraro et al. 2015; Ni et al. 2016; Mroz et al. 2017; Bang and Cecil 2019). It is important to note that these methods are limited in the tropics and thus the inferred frequency should be adjusted to lower values, as deep layers of large graupel can produce similar signatures as hail (Cecil and Blankenship 2012; Ferraro et al. 2015). However, the subtropical region of South America is more similar to the subtropical United States where the climatologies were trained, than to the equatorial tropical regions such as the Congo rainforest in Africa, thus no adjustment is required (Cecil and Blankenship 2012). These satellite-based hail studies found intense convection with likely hail production, and specifically maxima in hail frequency, in the lee of major mountain ranges that is consistent with spaceborne radar-based climatologies of deep convection (Zipser et al. 2006; Houze et al. 2015). These findings also correspond well with recent observational work in Canada (Smith and Yau 1993; Etkin and Brun 2001), Croatia (Počakal et al. 2009), China (Zhang et al. 2008; Li et al. 2018), and Argentina (Mezher et al. 2012). However, the frequencies of hail within these different regions show a large degree of variability. Comparing the foothills of the Rockies to the foothills of the Andes, there is an order of magnitude increase in the frequency of large hail in the subtropical South American region (Cecil and Blankenship 2012). The reason is not well-understood for this difference between hail frequencies in close proximity to major mountain ranges.

Meanwhile, examination of extreme convection using the Tropical Rainfall Measuring Mission (TRMM) satellite’s Precipitation Radar (PR) showed that subtropical South America has some of the most extreme deep convection anywhere in the world (Zipser et al. 2006; Houze et al. 2015). This convection tends to be orographically-favored, with warm and moist air supplied by the South American low-level jet (SALLJ) from the Amazon, and convective inhibition through mechanical subsidence in the lee of the Andes (Rasmussen and Houze 2011, 2016a). These storms remain close to the terrain, back-building over time (Rasmussen et al. 2014). Even as stratiform precipitation develops downstream, deep convection often remains tied to the terrain, where constant orographic lift and moisture convergence enables maintenance of strong convection. Additionally, these extreme storms have been linked with the production of severe hazards, including hail, tornadoes, and flash flooding. However, the lack of an extensive storm report database in this region prevents an in-depth collocation of the TRMM PR dataset with storm reports.

Therefore, this study seeks to combine TRMM PR and radiometer measurements to examine the diurnal and annual cycles and characteristics of likely hailstorms, and use ERA-Interim reanalysis data to identify the synoptic environments that support hailstorms in subtropical South America, as such data synthesis has been shown to be useful for objective analysis of hailstorms and their synoptic environments (e.g., Punge et al. 2017; Bedka et al. 2018). The results of this study will improve the understanding of how, why, and when hailstorms form and what characteristics may differentiate them from convection that does not produce hail. Through this analysis, a more comprehensive understanding of the climatology of hail and hail-producing environments will be presented. The results from this study will provide context for the results of the Remote sensing of Electrification, Lightning, And Mesoscale/microscale Processes with Adaptive Ground Observations (RELAMPAGO) field campaign2 (1 November – 18 December 2018) and the Cloud, Aerosol, and Complex Terrain Interactions (CACTI) field campaign3 (1 October 2018 – 30 April 2019). Finally, this study will contribute to a better global understanding of hailstorms to help improve forecasting and diagnosis of hailstorms in subtropical South America.

II. Methodology

Due to the lack of a hail report database in subtropical South America, satellite measurements of ice scattering serve as sufficient proxies for analyzing convection that may support the production of hail (Cecil 2009; Cecil and Blankenship 2012). Using the methods established in Cecil and Blankenship (2012), sixteen years of data (1998-2013) from the Tropical Rainfall Measuring Mission (TRMM) satellite were used. The Precipitation Radar (PR) and TRMM Microwave Imager (TMI) were utilized to identify convection and determine the probability that it contains hail. The TRMM satellite orbited the tropics between 35°N and 35°S from 1997 to 2014 (Kummerow et al. 1998). With this precessing orbit, TRMM conducted 3-4 overpasses per day within the study region, with overpass times varying with each orbit. While this could cause under- or over-sampling of individual storm complexes, given the length of this study, these sampling artifacts should have minimal impact on the aggregated observations. TRMM PR had a resolution of 4-5 km horizontally and 250 m vertically, while the TMI had a resolution of 16 km by 9.7 km for the 37-GHz channel (Kummerow et al. 1998, 2000). The 37-GHz channel is the best frequency on the TMI to discriminate whether convection is likely to produce hail (Cecil 2009). Lower frequencies have more sensitivity to large particles, but sacrifice horizontal resolution. It is also important to note that this approach to hail identification is unable to distinguish hail size, as the satellite is only able to detect the volume of large ice particles within a storm.

While TMI deciphers whether a storm is likely to contain hail, it does not provide direct information about the three-dimensional characteristics of the storm. As a result, collocated TRMM PR data are used to provide details about hailstorm structure. Two TRMM data products are used in this study:

  • 2A23 (rain characteristics; Awaka et al. 1997), where precipitation is separated into the three categories of convective, stratiform, and other.

  • 2A25 (rainfall rate and profile; Iguchi et al. 2000), which contains the three-dimensional attenuation-corrected reflectivity data.

To focus this study on hail-producing convection in subtropical South America, a study area was defined that includes the primary region of intense convection and satellite-derived climatological hail maximum (Fig. 1; Cecil and Blankenship 2012; Rasmussen et al. 2014, 2016). The study area includes the Andean foothills and Sierras de Córdoba (SDC), which are hypothesized to be an orographic trigger for convective initiation (Rasmussen and Houze 2011, 2016), due to the impingement of the South American low-level jet (SALLJ) on the topography. The orographic forcing helps to overcome any mechanical capping produced by subsiding upper-level air in the lee of the Andes. Additionally, the SDC and the plains immediately to their east were the focus of the RELAMPAGO and CACTI field campaigns.

In order to understand the lifecycle of intense convection, the TRMM PR data were separated into three categories, including deep, deep and wide, and wide convective cores (DCCs, DWCCs, and WCCs, respectively) following the methodology established by Houze et al. (2007) and Romatschke and Houze (2011). DCCs are defined as convection that has a contiguous three-dimensional 40-dBZ echo above 10 km, WCCs are storms that have a contiguous 40-dBZ echo over 1000 km2, and DWCCs are convection that meet the criteria to be both DCCs and WCCs. While DWCCs are a subset of DCCs and WCCs, in this study they are treated as an exclusive category, such that there is no overlap in data between the three storm types. DCCs and DWCCs represent the most intense deep convection, while the DWCCs and WCCs are indicative of mesoscale convective systems, which are large, well-organized, mature convective storms (Houze 2004). This methodology has been used in many previous studies on convective storm characteristics around the world (Rasmussen et al. 2014, 2016; Rasmussen and Houze 2011, 2016; Zuluaga and Houze 2015).

The 37-GHz polarization-corrected brightness temperatures (PCT; Cecil and Chronis 2018) from TMI are analyzed to assign probabilities that DCCs, DWCCs, and WCCs contained hail. Correcting the brightness temperatures based on the differences between the polarized channels allows for discrimination between surface water features and ice scattering within convection. The probability that a storm contained large hail is based on Cecil and Blankenship (2012), who computed calibrated probabilities using reports of 1-inch (2.5 cm) diameter or larger hail in the U.S. If the storm had a 37-GHz PCT greater than 200 K, it was found to have a low probability (less than 25%) of hail and designated as a null case in this study. Storms with 37-GHz PCTs between 176-200 K were considered to have a medium probability of hail; those thresholds correspond to between 25-50% likelihood of large hail (at least 1-inch diameter, or 2.5 cm) being reported in the U.S. Storms with 37-GHz PCT below 176 K have a high probability (>50%) of producing large hail. These classifications based on 37-GHz PCT allowed for investigation into differences between storms with different probabilities of containing hail. To analyze the statistical significance of differences in storm characteristics between probability-binned storms, two-sided t-tests were employed, as normal distributions can be assumed through the large number of storms analyzed and the Central Limit Theorem.

Finally, synoptic environments for each storm were analyzed with ERA-Interim reanalysis data (Dee et al. 2011). All maps use 18 UTC, or 3 pm local time (LT) in Argentina, for the composite, which was composed of days when storms were observed after 12 UTC or the day prior if the storms were observed before 12 UTC. All days analyzed in this study had at least one storm occur between 18 and 00 UTC. This method best represents the initiating environment for these storms, as they typically form in the afternoon hours (Rasmussen et al. 2014). Additionally, this time also best represents the time of peak heating and instability in this region, and is therefore the most representative time for synoptic conditions for intense convection given the 6-hourly time resolution of ERA-Interim (Punge et al. 2017; Bedka et al. 2018). Days were binned by hail probability category (high, medium, or null) based upon the maximum hail probability that occurred during each day. Parameters analyzed within this study were retrieved directly from the ERA-Interim data.

III. Results

a). Annual and Diurnal Cycles

During the 16-year observational period, a large number of storms were captured by the TRMM satellite (Table 1). DWCC storms contained the greatest percentage of potential hailstorms (66.4%, or 789 of 1188 storms). 29.4% of DCCs (382 out of 1301) were potential hailstorms, while only 11.9% of WCCs (345 out of 2891) were classified as potential hailstorms. The annual cycle of hailstorms in this region is similar to that in the U.S. (Allen and Tippett 2015), with the maximum frequency of hail occurring during the austral warm season (October through March; Fig. 2). Hailstorm activity begins to increase during September, reaches a fairly steady frequency from October through March, and the frequency decreases in April with reduced hail activity during the austral winter. These results match well with the annual cycle found by Mezher et al. (2012) in their E and H regions, which cover central and northwestern Argentina, respectively.

Table 1.

The number of storms identified by the TRMM PR and TMI during 1998–2013 within the study area by storm type and hail probability.

DCC DWCC WCC Total
High-probability hailstorms (≥50% probability of hail) 167 364 79 610
Medium-probability hailstorms (25%<x<50% probability of hail) 215 425 266 906
Null hailstorms (<25% probability of hail) 919 399 2546 3864
Total 1301 1188 2891
Open in a new tab

Fig. 2.

Fig. 2.

Open in a new tab

The annual cycle of hailstorms within the study area as a stacked bar graph of upper-threshold and lower-threshold hailstorms.

An examination of the diurnal cycle of hailstorms demonstrates the unique nature of these storms in subtropical South America (Fig. 3). Hailstorm activity begins to increase early in the afternoon (17 UTC; 2 pm LT) and continues through the next morning. This diurnal cycle is significantly extended into the nocturnal hours compared to the U.S., where hail is infrequent after midnight (Allen and Tippett 2015). Cecil and Blankenship (2012) noted a broad peak between 3 pm and 12 am LT for subtropical South America, with a slow decline in activity through the morning hours. This contrasted with sharp declines after 9 pm LT for all other regions with high hail frequencies in their study - the U.S., Central Africa, Pakistan, and Bangladesh. The high-probability storms in Fig. 3 have their maximum frequency from 20 to 03 UTC (5 pm to 12 am LT). For medium-probability events, the period of maximum frequency extends through 06 UTC (3 am LT). This enhanced frequency of hail during the overnight hours is a unique feature of subtropical South America, which has also been anecdotally observed via surface station and social media reports (Piersante 2017). Additionally, Martins et al. (2017) also noted this extended diurnal cycle of hail in southern Brazil, with a secondary maximum in hail frequency occurring between 4am-6am LT.

Fig. 3.

Fig. 3.

Open in a new tab

The diurnal cycle of hailstorms within the study area as a stacked bar graph of upper-threshold and lower-threshold hailstorms.

Breaking the diurnal cycle down by storm type, high-probability hail-producing DCCs and DWCCs have similar diurnal cycles, with their primary frequency peak during the late afternoon and evening hours (Fig. 4a). High-probability WCC hailstorms tend to form later in the day, as storms grow upscale, so the WCC diurnal cycle is delayed, with the maximum frequency between 22 UTC and 04 UTC. Without regard for hail, the diurnal cycle for WCCs is similar to that found in the U.S. (Haberlie and Ashley 2018). The medium-probability cases for all three types of extreme convection follow a similar diurnal pattern to their high-probability counterparts during the day and early evening through 02 UTC, although the DCCs are more favored than the other storm types during this time period (Fig. 4b). However, after that time, medium-probability storms have a second peak in frequency, while the high-probability cases diminish. While this was seen earlier in Figure 3, it is noteworthy that this overnight frequency maximum is a product of increases in the frequency of medium-probability hailstorms of all extreme storm types, but especially of WCCs and DWCCs. This overnight maximum aligns with the 06 UTC peak in heavy rainfall for this region, shown by Matsudo and Salio (2011). A picture emerges of storm severity peaking in the evening and early nighttime hours, with storm coverage and rainfall peaking later in the overnight. Consistent with this, Matsudo and Salio (2011) showed a peak in extreme wind gusts around 21 UTC, a gradual decline of wind gusts during the night, then the peak of heavy rainfall at 06 UTC.

Fig. 4.

Fig. 4.

Open in a new tab

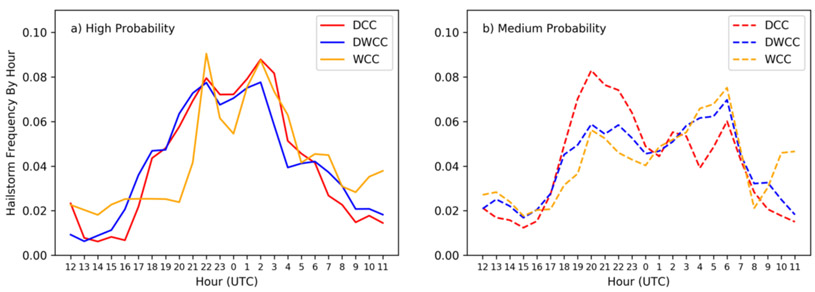

The diurnal cycle of hailstorms within the study area separated by hail probability and storm type, with panel a showing higher-probability hailstorms and panel b showing lower-probability hailstorms.

The nocturnal maxima of hailstorms in subtropical South America can also be seen in a spatial dimension using Hovmöller diagrams. Storms were composited for these diagrams if they occurred between 28°S and 36°S, to match the methodology of Rasmussen et al. (2014), in order to identify the unique back-building component of convection in this region. It is important to note that TRMM does not capture the lifecycle of individual storms given its orbit, but by compositing all of the storms captured by TRMM the diurnal cycle of convection can be inferred. For all high-hail probability DCCs and DWCCs, storms begin to initiate around 18 UTC (3 pm LT) between 55°W and 65°W in response to diurnal heating and upslope flow regimes (Fig. 5a, d). These storms then increase in frequency with time, but the favored locations do not move longitudinally, as was seen in similar Hovmöller analyses of lightning flash rates within DCCs from Rasmussen et al. (2014). WCCs occur later, with maximum frequency between 00 and 06 UTC and are mostly located west of 60°W (Fig. 5g). There is little eastward propagation of these storms with time, until early in the morning after 06 UTC.

Fig. 5.

Fig. 5.

Open in a new tab

Hovmöller diagrams of storm frequency between 28°S and 36°S, with storm type designated by row and hail probability by column. The average topography within this region is outlined in black.

For the medium-probability hailstorms, the diurnal cycle is shifted later (Fig. 5b, e), as shown earlier. The maximum frequency in the Hovmöller diagrams for all three types of extreme convection occurs after 00 UTC (9 pm LT). Medium-probability DCCs are clearly tied to the terrain near 65°W, and remain in place through 06 UTC. WCCs tend to propagate eastward more than the other storm types, but they also do occur over the elevated terrain for a substantial amount of time (Fig. 5h), which concurs with previous research in this region (Rasmussen and Houze 2011, 2016a; Rasmussen et al. 2014).

The null convection cases do not seem to be specifically tied to the topography unlike the high- and medium-probability hail cases (Fig. 5c, f, i). There is increased frequency east of 60°W for all null-convection storm types and reduced frequency over the mountainous areas. Therefore, if a storm contains a medium to high probability of hail, it is more likely to be located near the Andes terrain and foothills relative to storms that do not. Additionally, the locations favoring both high and medium probability hailstorms tend to remain relatively stationary near the mountains and have secondary nocturnal peaks in frequency over these areas, which has been identified by previous research as well (Rasmussen and Houze 2011; Rasmussen et al. 2014). Thus, these new results support the notion that the Andes and SDC topography is a critical ingredient in producing intense lightning- and hail-producing storms in the region.

b). Hailstorm Mode

Using the same convective storm mode definitions applied to the TRMM-based methodology as in Mulholland et al. (2018), the high-probability hailstorms that occurred between September and March were classified as discrete, multicell-organized, or multicell-unorganized. A total of 264 high-probability storms were analyzed across all storm types with the following results: 6.8% of storms were discrete, 84.5% were multicell-organized, and 8.7% were multicell-unorganized. There is some potential bias because the ~150 km2 TRMM 37-GHz footprint size may lead to underestimating the likelihood of hail from discrete cells, thereby preventing some discrete cells from qualifying as “high-probability” storms. However, the TRMM PR-based and ground-radar-based classification of discrete storms in Mulholland et al. (2018) came within 10-15% of each other, indicating that the TRMM PR-based classification is a useful tool when ground-based radar data is unavailable. This study also found 80% of identified storms to be multi-cellular in nature as well. Therefore, the analysis contained here shows that a large majority of high-probability hailstorms during the austral spring and summer are multi-cellular and that they are usually organized. This is not simply because there were more DWCC and WCC storms included in this analysis, which naturally tend to be multi-cellular, as 83% of DCCs analyzed were also multi-cellular. While this classification method is unable to diagnose rotation within storms, which affects the growth of hailstones (Ashworth and Knight 1978), these findings indicate that a majority of significant hail production does not come from discrete storms, such as isolated supercells, but rather from organized multi-cell convection, such as mesoscale convective systems (MCSs). Additionally, out of the 15 hailstorms with documented evidence of hail in Rasmussen et al. (2014), 7 of the storms were medium or high hail-probability DWCCs and 2 were medium or high hail-probability WCCs. These findings provide some ground truth that large, organized, multi-cellular convection does indeed produce severe hail.

These results stand in contrast with the hailstorms in the U.S., where a majority of hail has been found to come from discrete storms (Blair et al. 2011, 2017; Grams et al. 2011; Smith et al. 2012). Some research has shown that multicell-organized convection can produce all types of severe weather, including hail (Gallus et al. 2008). Hail is most likely to be produced by MCSs classified as leading-stratiform or line-parallel, as they can form in similar synoptic environments as supercell thunderstorms. However, observational studies in Canada (Marwitz 1972), Spain (Sánchez et al. 2003), and the U.S. (Kennedy and Detwiler 2003) have shown that multi-cellular storms do produce hail if environmental conditions are sufficiently favorable.

The satellite-based methodology used herein responds to the hail and graupel volume in the storm and does not provide sufficient information on the size distribution of hail within each storm. Due to the lack of systematic storm reports in this region, it is challenging to correlate radiometer-indicated hail with ground truth observations. It is certainly possible that the large hail (>2 cm) consistently reported by ground observations in subtropical South America still does occur within discrete or embedded supercells, but is beyond the scope of the current study given observational limitations. The satellite data are also better suited for highlighting horizontally extensive storms compared to smaller ones. However, it is also likely that given the results from this analysis, MCSs in this region are more likely to produce hail relative to their counterparts in the U.S. (as in Rasmussen et al. 2011). Overall, the results presented within this study suggest a significant difference in the hailstorm mode in subtropical South America that is not found in the U.S.

c). Hailstorm Characteristics

When a DCC more likely contains hail, per satellite measurements, it is also likely to be horizontally larger and vertically deeper than DCCs with less possibility of containing hail (Fig. 6). DCCs with a high probability of hail have a greater average area by more than 21,000 km2, while DCCs with medium hail probability have an increased area by about 16,000 km2. Additionally, probable DCC hailstorms tend to be deeper, by 1–2 km on average, than DC null cases. All of these differences in area and depth are significant at the 99% confidence interval. The result that deeper storms are more likely to contain hail is not a surprising one, as other recent studies using satellite-based radars have found similar results (Ni et al. 2016, 2017; Mroz et al. 2017). However, the larger horizontal area associated with hailstorms in subtropical South America is unique result to this study and supports the results from Section 3b above.

Fig. 6.

Fig. 6.

Open in a new tab

Boxplots of storm area (panel a) and maximum height (panel b) of the 40-dBZ echo core by hail threshold. The orange line represents the median, while the box spans the lower to upper quartiles of the data. The whiskers extend to 1.5 times the interquartile range and any point outside of that range are classified as outliers and labeled with open circles.

When a DCC has begun to grow upscale, it is likely to reach the DWCC classification, as the spatial area of its convective core increases significantly. At this stage, though, it still maintains its deep component, representing persistent and strong updrafts. For DWCCs, probable hailstorms remain larger and deeper than null convection, with the difference significant at the 99% confidence interval (Fig. 7). The differences in area between high- and medium-probability hailstorms and null convection is smaller than the differences found with DCCs. Once these storms lose their DCCs and are solely WCCs, they tend to have similar height differences between probable hailstorms and null cases, but their areas are more similar, as upscale growth processes mature these systems into large storms regardless of their hail production chances (Fig. 8).

Fig. 7.

Fig. 7.

Open in a new tab

As in Fig. 6, but for DWCCs.

Fig. 8.

Fig. 8.

Open in a new tab

As in Fig. 6, but for WCCs.

In order to further understand the structure of these hail-producing storms, TRMM PR reflectivity data was analyzed using Contoured Frequency by Altitude Diagrams (CFADs; Yuter and Houze 1995). At each vertical level, the frequencies are normalized by the maximum frequency at that level. For DCCs, there is a strong shift to higher reflectivities within the convective core for probable hailstorms, as compared to DCCs with less chance of hail production (Fig. 9a). Meanwhile, for stratiform rain, a complex tri-pole structure exists, where hailstorms see increases in high and low reflectivity values (Fig. 9b). There is low confidence in this signal due to the inability of the radar to measure intense rainfall below ice layers (Battaglia et al. 2016), which are undoubtedly present within these storms. Within DWCC storms, there is a greater frequency of higher reflectivities for convective rain if a storm has the likelihood of containing large hail (Fig. 10a). Additionally, a similar tri-pole signal exists for the DWCC stratiform reflectivity difference (Fig. 10b). When these storms reach the WCC stage of their lifecycle, convective regions within hailstorms still have a strong shift to higher reflectivities than null convection (Fig. 11a). For all three storm types, the convective difference profile bends to higher reflectivites just below 4 km where the melting level resides. Even when hail is present somewhere within a storm, a large majority of the radar profiles will contain high-reflectivity liquid rain at low levels with lower-reflectivity ice aloft.

Figure 9.

Figure 9.

Open in a new tab

Differenced Contoured Frequency by Altitude Diagram (CFAD; Yuter and Houze 1995) for DCCs, separated by convective and stratiform rain with each vertical level normalized by the most frequent reflectivity bin within that level. Positive values represent an increase in frequency for storms with a non-zero hail probability. The number of pixels that went into each composite are listed in the top right corner of each panel.

Figure 10.

Figure 10.

Open in a new tab

As in Fig. 9, but for DWCCs.

Fig. 11.

Fig. 11.

Open in a new tab

As in Fig. 9, but for WCCs.

d). Synoptic Environments of Hailstorms

Understanding the environment that these dangerous hailstorms form in will provide better details to help forecasters warn the public ahead of such conditions. It is important to note that hail production is not simply a result of the environmental conditions in which storms form. Rather, internal storm dynamics play a significant role in hail production (e.g., Ashworth and Knight 1978; Nelson 1987; Grant and van den Heever 2014). However, the consideration of storm dynamics is outside the scope of this study and may be considered in future work using RELAMPAGO and CACTI observations. This analysis contains 136, 187, and 1180 unique days for high-probability hailstorms, medium-probability-hailstorms, and null storms, respectively. Examining the differences in synoptic environments between high-probability hailstorm days and null storms days, potentially useful signals for forecasting may be identified. At the surface (Fig. 12a), the lee cyclone has a negative mean sea-level pressure anomaly centered just north of the SDC during hailstorm days compared to null storm days. This corresponds to lee cyclone development that preceded intense convection identified by Rasmussen and Houze (2016). Additionally, the 2-m temperature and dewpoint temperature increases by about 4°C along the foothills and northern SDC (Fig. 12b). Meanwhile, at the 850-hPa pressure level, specific humidity is increased during hailstorm days to the east of the SDC upwards of 3 g kg−1 (Fig. 12c). The SALLJ is also strengthened, with northerly wind speeds increased by 4 m s−1 over northern Argentina, similar to findings from Rasmussen and Houze (2016). In the upper troposphere, a trough is moving onshore over southern South America, with ridging downstream (Fig. 12a, d). As a result of this anomalous height pattern, the upper-level jet stream is shifted south and the wind speed enhanced by 10 m s−1. This southward shift of the jet stream places the equatorward entrance region of the jet over the SDC and foothills in central Argentina, which enables rising motion to help break any capping inversion that may exist in addition to orographic lifting.

Fig. 12.

Fig. 12.

Open in a new tab

The difference between hailstorm and non-hailstorm convective days is plotted for multiple vertical levels. Convection had to occur within the primary study area in subtropical South America to be counted. Panel a contains the differences in mean sea-level pressure (MSLP; filled) and geopotential height (contoured). Panel b displays the differences of 2-m temperature (filled) and 2-m dewpoint (contoured). Panel c shows the differences in 850-hPa specific humidity (filled), meridional wind speed (contoured), and wind (vectors). Panel d plots the differences in 250-hPa wind speed (filled) and geopotential height (contoured).

If the same method is applied to the medium-probability hailstorm cases, similar qualitative anomalies are identified at all vertical levels (Fig. 13). However, the magnitude of these anomalies is reduced by approximately 50%, as the magnitude of the synoptic anomalies is correlated with the probability of hail. As a result, these synoptic anomalies for hailstorm days seem to be useful from a forecasting perspective. The low-level temperature and moisture anomalies should affect the available instability for these storms as well. Indeed, convective available potential energy (CAPE) is increased across much of the study region by an average of 600-900 J kg−1 during high-probability hailstorm days and 200-300 J kg−1 on medium-probability hailstorm days, as compared to null convection days (Fig. 14). When the maximum CAPE within the study region is compared between the hail probability and null categories, there is also a clear distinction between days that contained storms with much likelihood of hail as compared to days with null storm cases, even though they still contained convection (Fig. 15). The mean maximum CAPE values for high-probability, medium-probability, and null hailstorm days are 3439, 2835, and 2416 J kg−1, respectively. The difference between these means is statistically significant at the 99% confidence interval. By enhancing instability, stronger updrafts are able to form, which would be more capable of supporting large hail. Of course, updraft strength is not only a product of thermodynamic instability, but is also affected by dynamic contributions such as storm rotation (e.g., Dennis and Kumjian 2016), as well as hydrometeor loading and entrainment. However, deep vertical wind shear was evaluated and there were no significant differences between the hail categories, with very similar means overall (Table 2).

Fig. 13.

Fig. 13.

Open in a new tab

As in Fig. 12, but showing the differences between medium-probability hail days and null-case convective days.

Fig. 14.

Fig. 14.

Open in a new tab

The difference between surface-based CAPE between a) upper-threshold hail days and null convection days and b) lower-threshold hail days and null convection days.

Fig. 15.

Fig. 15.

Open in a new tab

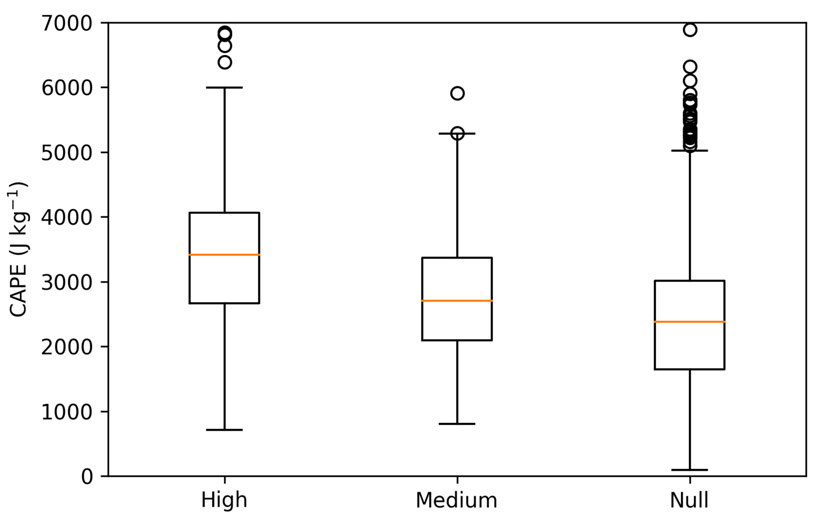

Boxplot of the maximum CAPE found within the study region based upon the maximum hail probability found within the region on a particular day.

Table 2.

The mean and standard deviation of the surface – 500-hPa vertical wind shear (VWS) hail-probability category.

VWS Mean (m s−1) VWS Standard Deviation (m s−1)
High-probability 14.44 3.95
Medium-probability 14.22 4.45
Null-probability 14.88 4.77
Open in a new tab

Finally, the SALLJ has been theorized to play a main role in the initiation, maintenance, and back-building of convection near the Sierras de Cárdoba (e.g., Rasmussen and Houze 2011, 2016). While the 18 UTC anomalies were shown earlier in Figures 12 and 13, the 00 and 06 UTC SALLJ anomalies are included in Figure 16. For the high-probability hail days, the SALLJ remains anomalously strong, as it continues to advect moisture into the region and provide orographic forcing for ascent. Romatschke and Houze (2010) found a similar diurnal cycle of the SALLJ for the intense convective cases they analyzed. The medium-probability days have more modest increases in the strength of the SALLJ, with minimal increases in wind speed or specific humidity. Additionally, the SALLJ does not appear to rotate very much with time as is seen in the U.S (Shapiro et al. 2016). Generally, it does seem that the SALLJ is important for strong convective storms in this region, especially for those that produce hail.

Fig. 16.

Fig. 16.

Open in a new tab

The differences in 850-hPa specific humidity (filled), meridional wind speed (contoured), and wind (vectors) at 00 UTC and 06 UTC between high-probability and null hail days (panels a and c) and 00 and 06 UTC between medium-probability and null hail days (panels b and d).

Overall, these hailstorms appear to be more strongly forced by the synoptic environment compared to the null convection category. The ingredients for vigorous deep convection are more easily produced by strong synoptic forcing, such as when a trough is moving into the region, bringing colder upper-level air, a strong jet stream, and a low level jet that imports abundant moisture. Through these enhanced synoptic conditions, hailstorms can more easily form in this region, often with very large hail. These results do not preclude hailstorm formation within weakly forced environments, but rather they show the tendency to have these strong storms occur in strongly-forced synoptic conditions.

IV. Conclusion

Convection in subtropical South America is known to be some of the most intense anywhere on Earth. As a result, understanding the severe convective hazards produced by storms within this region is critical, as they threaten personal safety, agriculture, and socioeconomic considerations in Argentina. Within this region, hail is notably frequent in occurrence compared to other regions of the world, but little work has been done to understand hailstorm characteristics, structure, or supporting environments. This study aims to provide insight into this important problem by utilizing long-term satellite measurements of intense convection to identify hailstorm characteristics and their supporting environments to provide a greater understanding of high-impact weather around the world.

Hailstorms are found to have an annual cycle similar to the U.S., with the maximum hailstorm activity occurring during the spring and summer. However, per these satellite-based methods, hailstorms in subtropical South America have an extended diurnal cycle, compared to that found in the U.S., with a substantial portion of the distribution occurring during the overnight period. If a sufficient database of hail reports from subtropical South America is organized in the future, it would be beneficial to compare the diurnal cycle and other statistics from such a source to the U.S. hail reports, in order to add ground truth to these satellite-based findings. Additionally, a large majority (~84%) of these storms were found to be organized multi-cellular convection. Both the diurnal cycle and storm mode of hailstorms in subtropical South America are notably different from hailstorms in the U.S. that are primarily discrete storms that occur in the late afternoon hours. Hailstorms in this region also tend to be deeper and larger in horizontal area than storms that do not contain hail. Finally, hailstorms are supported by enhanced synoptic conditions, including increased instability through low-level temperature and moisture increases, an enhanced lee trough and SALLJ, and stronger upper-level jet streams.

While hailstorms in subtropical South America are supported synoptically by similar conditions to those found in the U.S., the storm mode and diurnal cycles of these storms are very different. As a result, they prove to be a challenge to forecast from numerical and operational perspectives, as the knowledge gained by studying U.S. hailstorms does not apply to this region as well as might be expected. Therefore, the results of the RELAMPAGO and CACTI field campaigns will be critical in improving the understanding of hailstorms within this region. Additionally, new understanding about hailstorms characteristics and associated environmental conditions in subtropical South America may aid the comprehension of hailstorms in the U.S. and other regions of the world, which in turn will improve forecasting of these dangerous storms. Future work will make use of the observations from this campaign to better understand why the diurnal cycle of hailstorms extends into the overnight hours, in addition to the analysis of rotation within storms and its role in supporting hailstone growth in a variety of convective modes.

Acknowledgements

The authors thank three anonymous reviewers for their insightful comments and suggestions, which greatly improved this manuscript. This research was sponsored by National Science Foundation Grant AGS-1661657 and an American Meteorological Society/NASA Earth Science graduate fellowship.

Footnotes

Bibliography

  1. Allen JT, and Tippett MK, 2015: The Characteristics of United States Hail Reports: 1955–2014. E-J. Sev. Storms Meteorol, 10. [Google Scholar]
  2. Arias C, and Ramiro E, 2010: Recopilación histórica y análisis climatológico de eventos de granizada ocurridos sobre Bogotá y su relación con el cambio climatico global / Historical data collection and climatological analysis of hailstorms events occurring over Bogota and its relation to global climate change. Universidad Nacional de Colombia, 342 pp. http://bdigital.unal.edu.co/3776/ (Accessed March 11, 2019). [Google Scholar]
  3. Ashworth T, and Knight CA, 1978: Cylindrical Ice Accretions as Simulations of Hail Growth: I. Effects of Rotation and of Mixed Clouds. J. Atmospheric Sci, 35, 1987–1996, . [DOI] [Google Scholar]
  4. Awaka J, Iguchi T, Kumagai H, and Okamoto K, 1997: Rain type classification algorithm for TRMM precipitation radar Geoscience and Remote Sensing, 1997. IGARSS ’97. Remote Sensing - A Scientific Vision for Sustainable Development., 1997 IEEE International, Vol. 4 of, Geoscience and Remote Sensing, 1997. IGARSS ’97. Remote Sensing - A Scientific Vision for Sustainable Development., 1997 IEEE International, 1633–1635 vol.4. [Google Scholar]
  5. Bang SD, and Cecil DJ, 2019: Constructing a Multi-Frequency Passive Microwave Hail Retrieval and Climatology in the GPM Domain. J. Appl. Meteorol. Climatol, 10.1175/JAMC-D-19-0042.1. [DOI]
  6. Battaglia A, Mroz K, Tanelli S, Tridon F, and Kirstetter P-E, 2016: Multiple-Scattering-Induced “Ghost Echoes” in GPM DPR Observations of a Tornadic Supercell. J. Appl. Meteorol. Climatol, 55, 1653–1666, 10.1175/JAMC-D-15-0136.1. [DOI] [Google Scholar]
  7. Bedka KM, Allen JT, Punge HJ, Kunz M, and Simanovic D, 2018: A Long-Term Overshooting Convective Cloud-Top Detection Database over Australia Derived from MTSAT Japanese Advanced Meteorological Imager Observations. J. Appl. Meteorol. Climatol, 57, 937–951, 10.1175/JAMC-D-17-0056.1. [DOI] [Google Scholar]
  8. Blair SF, Deroche DR, Boustead JM, Leighton JW, Barjenbruch BL, and Gargan WP, 2011: A Radar-Based Assessment of the Detectability of Giant Hail. E-J. Sev. Storms Meteorol, 6. [Google Scholar]
  9. ——, and Coauthors, 2017: High-Resolution Hail Observations: Implications for NWS Warning Operations. Weather Forecast., 32, 1101–1119, 10.1175/WAF-D-16-0203.1. [DOI] [Google Scholar]
  10. Cecil DJ, 2009: Passive Microwave Brightness Temperatures as Proxies for Hailstorms. J. Appl. Meteorol. Climatol, 48, 1281–1286, 10.1175/2009JAMC2125.1. [DOI] [Google Scholar]
  11. ——, and Blankenship CB, 2011: Toward a Global Climatology of Severe Hailstorms as Estimated by Satellite Passive Microwave Imagers. J. Clim, 25, 687–703, 10.1175/JCLI-D-11-00130.1. [DOI] [Google Scholar]
  12. ——,and ——, 2012: Toward a Global Climatology of Severe Hailstorms as Estimated by Satellite Passive Microwave Imagers. J. Clim, 25, 687–703, 10.1175/JCLI-D-11-00130.1. [DOI] [Google Scholar]
  13. ——, and Chronis T, 2018: Polarization Corrected Temperatures for 10-, 19-, 37-, and 89-GHz Passive Microwave Frequencies. J. Appl. Meteorol. Climatol, 10.1175/JAMC-D-18-0022.1. [DOI]
  14. Cintineo JL, Smith TM, Lakshmanan V, Brooks HE, and Ortega KL, 2012: An Objective High-Resolution Hail Climatology of the Contiguous United States. Weather Forecast., 27, 1235–1248, 10.1175/WAF-D-11-00151.1. [DOI] [Google Scholar]
  15. Dee DP, and Coauthors, 2011: The ERA-Interim reanalysis: configuration and performance of the data assimilation system. Q. J. R. Meteorol. Soc, 137, 553–597, 10.1002/qj.828. [DOI] [Google Scholar]
  16. Dennis EJ, and Kumjian MR, 2016: The Impact of Vertical Wind Shear on Hail Growth in Simulated Supercells. J. Atmospheric Sci, 74, 641–663, 10.1175/JAS-D-16-0066.1. [DOI] [Google Scholar]
  17. Etkin D, and Brun SE, 2001: Canada’s Hail Climatology [electronic Resource]: 1977-1993. Institute for Catastrophic Loss Reduction, 14 pp. [Google Scholar]
  18. Ferraro R, Beauchamp J, Cecil D, and Heymsfield G, 2015: A prototype hail detection algorithm and hail climatology developed with the advanced microwave sounding unit (AMSU). Atmospheric Res., 163, 24–35, 10.1016/j.atmosres.2014.08.010. [DOI] [Google Scholar]
  19. Frisby EM, and Sansom HW, 1967: Hail Incidence in the Tropics. J. Appl. Meteorol, 6, 339–354, . [DOI] [Google Scholar]
  20. Gallus WA, Snook NA, and Johnson EV, 2008: Spring and Summer Severe Weather Reports over the Midwest as a Function of Convective Mode: A Preliminary Study. Weather Forecast., 23, 101–113, 10.1175/2007WAF2006120.1. [DOI] [Google Scholar]
  21. Grams JS, Thompson RL, Snively DV, Prentice JA, Hodges GM, and Reames LJ, 2011: A Climatology and Comparison of Parameters for Significant Tornado Events in the United States. Weather Forecast., 27, 106–123, 10.1175/WAF-D-11-00008.1. [DOI] [Google Scholar]
  22. Grandoso HN, and Iribarne JV, 1963: Evaluation of the first three years in a hail prevention experiment in mendoza (Argentina). Z. Für Angew. Math. Phys. ZAMP, 14, 549–553, 10.1007/BF01601262. [DOI] [Google Scholar]
  23. Grant LD, and van den Heever SC, 2014: Microphysical and Dynamical Characteristics of Low-Precipitation and Classic Supercells. J. Atmospheric Sci, 71, 2604–2624, 10.1175/JAS-D-13-0261.1. [DOI] [Google Scholar]
  24. Haberlie AM, and Ashley WS, 2018: A Radar-Based Climatology of Mesoscale Convective Systems in the United States. J. Clim, 32, 1591–1606, 10.1175/JCLI-D-18-0559.1. [DOI] [Google Scholar]
  25. Houze RA, 2004: Mesoscale convective systems. Rev. Geophys, 42, RG4003, 10.1029/2004RG000150. [DOI] [Google Scholar]
  26. ——, Wilton DC, and Smull BF, 2007: Monsoon convection in the Himalayan region as seen by the TRMM Precipitation Radar. Q. J. R. Meteorol. Soc, 133, 1389–1411, 10.1002/qj.106. [DOI] [Google Scholar]
  27. Iguchi T, Kozu T, Meneghini R, Awaka J, and Okamoto K, 2000: Rain-Profiling Algorithm for the TRMM Precipitation Radar. J. Appl. Meteorol, 39, 2038–2052, . [DOI] [Google Scholar]
  28. Kennedy PC, and Detwiler AG, 2003: A Case Study of the Origin of Hail in a Multicell Thunderstorm Using In Situ Aircraft and Polarimetric Radar Data. J. Appl. Meteorol, 42, 1679–1690, . [DOI] [Google Scholar]
  29. Kummerow C, Barnes W, Kozu T, Shiue J, and Simpson J, 1998: The Tropical Rainfall Measuring Mission (TRMM) Sensor Package. J. Atmospheric Ocean. Technol, 15, 809–817, . [DOI] [Google Scholar]
  30. Kummerow C, and Coauthors, 2000: The Status of the Tropical Rainfall Measuring Mission (TRMM) after Two Years in Orbit. J. Appl. Meteorol, 39, 1965–1982, . [DOI] [Google Scholar]
  31. Makitov V, 1999: Organization and Main Results of the Hail Suppression Program in the Northern Area of the Province of Mendoza, Argentina. J. Weather Modif, 31, 76–86. [Google Scholar]
  32. Martins JA, and Coauthors, 2017: Climatology of destructive hailstorms in Brazil. Atmospheric Res., 184, 126–138, 10.1016/j.atmosres.2016.10.012. [DOI] [Google Scholar]
  33. Marwitz JD, 1972: The Structure and Motion of Severe Hailstorms. Part II: Multi-Cell Storms. J. Appl. Meteorol, 11, 180–188, . [DOI] [Google Scholar]
  34. Matsudo CM, and Salio PV, 2011: Severe weather reports and proximity to deep convection over Northern Argentina. Atmospheric Res., 100, 523–537, 10.1016/j.atmosres.2010.11.004. [DOI] [Google Scholar]
  35. Mezher RN, Doyle M, and Barros V, 2012: Climatology of hail in Argentina. Atmospheric Res., 114–115, 70–82, 10.1016/j.atmosres.2012.05.020. [DOI] [Google Scholar]
  36. Mroz K, Battaglia A, Lang TJ, Cecil DJ, Tanelli S, and Tridon F, 2017: Hail-Detection Algorithm for the GPM Core Observatory Satellite Sensors. J. Appl. Meteorol. Climatol, 56, 1939–1957, 10.1175/JAMC-D-16-0368.1. [DOI] [Google Scholar]
  37. Mulholland JP, Nesbitt SW, Trapp RJ, Rasmussen KL, and Salio PV, 2018: Convective Storm Life Cycle and Environments near the Sierras de Córdoba, Argentina. Mon. Weather Rev, 146, 2541–2557, 10.1175/MWR-D-18-0081.1. [DOI] [Google Scholar]
  38. Nelson SP, 1987: The Hybrid Multicellular–Supercellular Storm—an Efficient Hail Producer. Part II. General Characteristics and Implications for Hail Growth. J. Atmospheric Sci, 44, 2060–2073, . [DOI] [Google Scholar]
  39. Ni X, Liu C, Zhang Q, and Cecil DJ, 2016: Properties of hail storms over China and the United States from the Tropical Rainfall Measuring Mission. J. Geophys. Res. Atmospheres, 121, 12,031–12,044, 10.1002/2016JD025600. [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. ——, —— Cecil DJ, and Zhang Q, 2017: On the Detection of Hail Using Satellite Passive Microwave Radiometers and Precipitation Radar. J. Appl. Meteorol. Climatol, 56, 2693–2709, 10.1175/JAMC-D-17-0065.1. [DOI] [Google Scholar]
  41. Pérez RC, and Puliafito E, 2006: Study of hailstorms cells producing big damages in Mendoza (Argentina). Proc. ERAD, 4. [Google Scholar]
  42. Piersante J, 2017: Characteristics of Hail Events near the Sierras de Córdoba, Argentina. [Google Scholar]
  43. Počakal D, Večenaj Ž, and Štalec J, 2009: Hail characteristics of different regions in continental part of Croatia based on influence of orography. Atmospheric Res., 93, 516–525, 10.1016/j.atmosres.2008.10.017. [DOI] [Google Scholar]
  44. Prieto R, Gimeno L, García R, Herrera R, Hernández E, and Ribera P, 1999: Interannual variability of hail-days in the Andes region since 1885. Earth Planet. Sci. Lett, 171, 503–509, 10.1016/S0012-821X(99)00170-3. [DOI] [Google Scholar]
  45. Punge HJ, Bedka KM, Kunz M, and Reinbold A, 2017: Hail frequency estimation across Europe based on a combination of overshooting top detections and the ERA-INTERIM reanalysis. Atmospheric Res., 198, 34–43, 10.1016/j.atmosres.2017.07.025. [DOI] [Google Scholar]
  46. Rasmussen KL, and Houze RA, 2011: Orogenic Convection in Subtropical South America as Seen by the TRMM Satellite. Mon. Weather Rev, 139, 2399–2420, 10.1175/MWR-D-10-05006.1. [DOI] [Google Scholar]
  47. Rasmussen KL, and Houze RA, 2016a: Convective Initiation near the Andes in Subtropical South America. Mon. Weather Rev, 144, 2351–2374, 10.1175/MWR-D-15-0058.1. [DOI] [Google Scholar]
  48. ——, and ——, 2016b: Convective Initiation near the Andes in Subtropical South America. Mon. Weather Rev, 144, 2351–2374, 10.1175/MWR-D-15-0058.1. [DOI] [Google Scholar]
  49. Rasmussen KL, Zuluaga MD, and Houze RA, 2014: Severe convection and lightning in subtropical South America. Geophys. Res. Lett, 41, 2014GL061767, 10.1002/2014GL061767. [DOI] [Google Scholar]
  50. Rasmussen KL, Chaplin MM, Zuluaga MD, and Houze RA, 2016: Contribution of Extreme Convective Storms to Rainfall in South America. J. Hydrometeorol, 17, 353–367, 10.1175/JHM-D-15-0067.1. [DOI] [Google Scholar]
  51. Romatschke U, and Houze RA, 2010: Extreme Summer Convection in South America. J. Clim, 23, 3761–3791, 10.1175/2010JCLI3465.1. [DOI] [Google Scholar]
  52. ——, and —— 2011: Characteristics of Precipitating Convective Systems in the South Asian Monsoon. J. Hydrometeorol, 12, 3–26, 10.1175/2010JHM1289.1. [DOI] [Google Scholar]
  53. Sánchez JL, Fernández MV, Fernández JT, Tuduri E, and Ramis C, 2003: Analysis of mesoscale convective systems with hail precipitation. Atmospheric Res., 67–68, 573–588, 10.1016/S0169-8095(03)00074-7. [DOI] [Google Scholar]
  54. Sánchez JL, and Coauthors, 2009: Characterization of hailstone size spectra in hailpad networks in France, Spain, and Argentina. Atmospheric Res., 93, 641–654, 10.1016/j.atmosres.2008.09.033. [DOI] [Google Scholar]
  55. Shapiro A, Fedorovich E, and Rahimi S, 2016: A Unified Theory for the Great Plains Nocturnal Low-Level Jet. J. Atmospheric Sci, 73, 3037–3057, 10.1175/JAS-D-15-0307.1. [DOI] [Google Scholar]
  56. Smith BT, Thompson RL, Grams JS, Broyles C, and Brooks HE, 2012: Convective Modes for Significant Severe Thunderstorms in the Contiguous United States. Part I: Storm Classification and Climatology. Weather Forecast., 27, 1114–1135, 10.1175/WAF-D-11-00115.1. [DOI] [Google Scholar]
  57. Smith SB, and Yau MK, 1993: The Causes of Severe Convective Outbreaks in Alberta. Part II: Conceptual Model and Statistical Analysis. Mon. Weather Rev, 121, 1126–1133, . [DOI] [Google Scholar]
  58. Williams L, 1973: Hail and Its Distribution: Report No. 8 of “Studies of the Army Aviation V/STOL Environment.” Engineer Topographic Laboratories, 16 pp. [Google Scholar]
  59. Yuter SE, and Houze RA, 1995: Three-Dimensional Kinematic and Microphysical Evolution of Florida Cumulonimbus. Part II: Frequency Distributions of Vertical Velocity, Reflectivity, and Differential Reflectivity. Mon. Weather Rev, 123, 1941–1963, . [DOI] [Google Scholar]
  60. Zhang C, Zhang Q, and Wang Y, 2008: Climatology of Hail in China: 1961–2005. J. Appl. Meteorol. Climatol, 47, 795–804, 10.1175/2007JAMC1603.1. [DOI] [Google Scholar]
  61. Zipser EJ, Cecil DJ, Liu C, Nesbitt SW, and Yorty DP, 2006: Where are the most intense thunderstorms on earth? Bull. Am. Meteorol. Soc, 87, 1057–1072, 10.1175/BAMS-87-8-1057. [DOI] [Google Scholar]
  62. Zuluaga MD, and Houze RA, 2015: Extreme Convection of the Near-Equatorial Americas, Africa, and Adjoining Oceans as seen by TRMM. Mon. Weather Rev, 143, 298–316, 10.1175/MWR-D-14-00109.!. [DOI] [Google Scholar]
