Application of Hybrid MMP-Targeted and Dynamic ²⁰¹Tl SPECT/CT Imaging for Evaluation of Early Post Myocardial Infarction Remodeling

Abstract

Background:

The induction of matrix metalloproteinases (MMPs), and reduction in tissue inhibitors of MMPs (TIMPs) plays a role in ischemia/reperfusion (I/R) injury post myocardial infarction (MI) and subsequent left ventricular (LV) remodeling. We developed a hybrid dual isotope SPECT/CT approach for noninvasive evaluation of regional myocardial MMP activation with ^99mTc-RP805 and dynamic ²⁰¹Tl for determination of myocardial blood flow (MBF), in order to quantify the effects of intracoronary delivery of recombinant TIMP-3 (rTIMP-3) on I/R injury.

Methods:

Studies were performed in control pigs (n=5) and pigs (n=9) following 90-min balloon occlusion induced ischemia/reperfusion (I/R) of LAD. Prior to reperfusion, pigs with I/R were randomly assigned to intracoronary infusion of rTIMP-3 (1.0 mg/kg; n=5) or saline (n=4). Three days post-I/R, dual isotope imaging was performed with ^99mTc-RP805 and ²⁰¹Tl along with contrast cineCT to assess LV function.

Results:

The ischemic to non-ischemic ratio of ^99mTc-RP805 was significantly increased following I/R in saline group (4.03 ± 1.40), and this ratio was significantly reduced with rTIMP-3 treatment (2.22 ± 0.57; p=0.03). This reduction in MMP activity in the MI-rTIMP-3 treatment group was associated with an improvement in relative MI region MBF, compared to the MI-saline group and improved myocardial strain in the MI region.

Conclusions:

We have established a novel hybrid SPECT/CT imaging approach for the quantitative assessment of regional MMP activation, MBF and cardiac function post-I/R that can be used to evaluate therapeutic interventions such as intracoronary delivery of rTIMP-3 for reduction of I/R injury in the early phases of post-MI remodeling.

INTRODUCTION

The emphasis on early reperfusion strategies following acute myocardial infarction (MI) has resulted in complicating left ventricular (LV) myocardial injury due to ischemia-reperfusion (I/R). While several biological pathways are evoked early in the post I/R period, both basic and clinical studies have uniformly identified that an induction in the family of proteases, the matrix metalloproteinases (MMPs), occurs.¹ While the substrates for these MMPs were canonically thought to be extracellular matrix proteins such as collagens, it is now recognized that the substrate portfolio is diverse and includes processing of a number of biological signaling molecules.² In clinical observational studies, plasma levels of MMPs increase significantly and have been related to the degree of adverse LV remodeling in the early I/R period.³ In animal studies, a cause-effect relationship between MMP induction, LV injury and remodeling in the context of ischemia has been established.^4–7 However, these studies were hampered by the fact that quantification of MMP activity was through indirect measurement of circulating biomarkers or in vitro surrogate methods, and that actual LV myocardial MMP activity was not directly assessed. Past studies from this laboratory have established a novel strategy by which MMP activity can be visualized within the myocardium utilizing a single-photon emission computed tomography (SPECT) imaging approach using a ^99mTc-labeled MMP targeted radiotracer (^99mTc-RP805).^8–10 While our previous studies have validated this MMP activity imaging approach with permanent coronary occlusion, it remains unknown whether and to what degree these prior findings can be extended to a clinically relevant context of I/R injury, as well as at an early time point post reperfusion (~72 hrs post-I/R). We propose to apply a novel hybrid SPECT/CT dual isotope imaging approach that incorporates ^99mTc-RP805 for in vivo evaluation of regional myocardial MMP activity, with dynamic ²⁰¹Tl imaging for quantitative evaluation of regional myocardial blood flow (MBF), and contrast cine CT imaging to evaluate changes in regional myocardial strain, and global function in the early post-I/R period. Accordingly, the first objective of this study was to demonstrate that targeted MMP imaging can be successfully performed in the early post I/R period using a clinically relevant large animal (pig) model and to also examine regional MBF and function, using a multi-modality imaging approach.

MMP activity is tightly controlled at several levels including both transcriptional and post-translational regulation.² With respect to post-transcriptional regulation, the endogenous tissue inhibitors of the MMPs (TIMPs) have been shown to play an important role in the context of LV remodeling.¹¹ For example, transgenic deletion of a specific TIMP, TIMP-3, was shown to exacerbate LV remodeling and dysfunction following an ischemic insult.¹² In clinical observational studies, the relative magnitude of plasma TIMP-3 levels in the early post-I/R period is significantly blunted when compared to MMP release.^13–15 In more recent studies, myocardial supplementation (by direct injection or by intracoronary delivery) of recombinant TIMP-3 (rTIMP-3) has been shown to mitigate adverse LV remodeling in the early post-ischemic period.^16–19 However, direct in vivo assessment of MMP activity following rTIMP-3 delivery in the context of I/R has not been performed. Accordingly, the second objective of this study was to examine regional LV MMP activity following intracoronary delivery of rTIMP-3 in the context of the early post-I/R period. Moreover, this targeted MMP imaging approach was integrated with assessment of regional MBF and function.

METHODS

The experimental and imaging approach are provided herein (Figure 1), with expanded methodological detail provided in the Supplemental Methods. The authors declare that all supporting data are available within the article [and its online supplementary files].

Figure 1.

Experimental timelines for the ischemia-reperfusion surgery to acute imaging studies at Yale (A) and the imaging studies at the Yale facility (B).

rTIMP-3 Formulations

The rTIMP-3 formulation and intracoronary dose used was previously evaluated for efficacy in prior intracoronary delivery studies.¹⁶

I/R Induction and rTIMP-3 Delivery

This multi-institutional study was approved by the institutional animal care and use committees (IACUC) at both the University of South Carolina School of Medicine and Yale University School of Medicine and according to the National Institutes of Health Guidelines for Care and Use of Laboratory Animals. Mature Yorkshire male pigs (n=9; 25–30 kg) were anesthetized (1.5–2% isoflurane) (Supplemental Methods), and under fluoroscopic guidance (GE OEC 9600, UT), the left anterior descending artery (LAD) below the first diagonal branch underwent balloon occlusion for 90 minutes. At the final 4 minutes of the occlusion period, the pigs were randomized to receive either intracoronary rTIMP-3 (1.0 mg/kg, MI-rTIMP3 group, n=5) or saline (MI-saline group, n=4) contained in a total 1 mL volume.¹⁶ One day following I/R induction, the pigs were transported to the Yale Translational Research Imaging Center for the imaging studies. A separate cohort of control pigs that had no coronary intervention, underwent imaging and were analyzed in identical fashion to establish referent normal values.

In Vivo Dual-Isotope Hybrid SPECT/CT Imaging

The pigs were anesthetized (1.5–2% isoflurane), and central access catheters placed for intravenous injection of ^99mTc-RP805 (22–32 mCi), an in vivo marker of MMP activation. This MMP-targeted radiotracer binds to the catalytic domain of all major MMP types, but not to other proteolytic enzymes.^{8, 20} Approximately 4 hours following the ^99mTc-RP805 injection, an initial 15 min SPECT/CT image was acquired followed by injection of ²⁰¹Tl (1.5–3 mCi) and dual isotope dynamic SPECT/CT image was acquired over 30 minutes.

Dual Isotope SPECT/CT Imaging Methods (see Figure 1B for overview of imaging protocol).

SPECT/CT images were acquired on a hybrid dedicated cardiac cadmium-zinc-telluride (CZT) SPECT/64-slice CT imaging system (Discovery 570c NM/CT, GE Healthcare). Two consecutive 15-min list-mode scans were acquired followed by a non-contrast CT (Supplementary Methods). SPECT images were reconstructed using standardized iterative algorithms previously validated.²¹ An ECG-gated contrast CT was then acquired and endocardial and epicardial LV surfaces identified and used to compute volumes, ejection fraction (LVEF), and regional peak circumferential and radial strain as detailed in the Supplemental Methods. The mid-anteroseptal region was analyzed as representative of the central MI region and compared to the contralateral remote mid-lateral wall (Supplementary figure 1).

Ex vivo SPECT/CT Imaging and Tissue Gamma Well Counting

After completion of in vivo imaging the pigs were euthanized, and hearts excised. The excised hearts were then cast and placed back in the hybrid SPECT/CT imaging system for high resolution ex vivo imaging for optimal evaluation of the 3-dimensional distribution of radiotracer activity (Supplemental methods). The LV was sliced into 4-mm thick short axis slices from base to apex, and each slice was digitally photographed for analysis of MI size. Each slice was then divided into 8 radial pies, and further divided into epicardial and endocardial pieces for gamma well counting for quantitative determination of regional myocardial activity (Supplemental Methods). The absolute uptake of each tracer was computed as the percent injected dose per gram of tissue (%ID/g), with values displayed as a circumferential profile, as illustrated in Figure 2. Tissue segments with values greater than 70% of the overall maximum ²⁰¹Tl LV uptake were categorized as normal regions and segments with less than 70% of the maximum ²⁰¹Tl uptake were considered the MI region.

Figure 2.

Postmortem analysis of myocardial radiotracer uptake. A representative short axis postmortem slice is shown with an anteroseptal infarct (A). Hearts were cut in 4 mm thick slices and cut into 8 radial pies, subdivided into endocardial and epicardial segments. Myocardial radioactivity was assessed by gamma well counting, expressed as absolute uptake (%ID/g), and results displayed as circumferential profiles from the anterolateral to inferolateral wall in a counter-clockwise direction (B). ^99mTcRP805 uptake (Blue) was increased in the MI area (grey shaded area) that demonstrated decreased ²⁰¹Tl uptake (Black).

Statistical Analyses

All data are expressed as mean ± standard deviation of the mean. The comparative analysis between the means of the controls, MI-saline and MI-rTIMP3 treated animals was assessed with a one-way ANOVA using post-hoc Bonferroni analysis performed with SPSS software (version 24.0, SPSS Inc). The comparison of means for MBF was assessed with a with a 2-way ANOVA with a Sidak’s multiple comparison test and comparison of ^99mTc-RP805 uptake ratio assessed with a unpaired t-test performed in GraphPad Prism. A p value less than 0.05 was considered significant.

RESULTS

Global and Regional LV Function Early Post-I/R

At 3–4 days post-I/R, both MI treatment groups demonstrated a significant reduction in LVEF compared to the control group (Table 1). Although there was an improvement in LVEF in the MI-rTIMP3 group, this did not achieve statistical significance (p=0.36) at this early time point post I/R.

Table 1:

Global and Regional LV Function

	Controls (n=4)	MI only (n=4)	p value	rTIMP-3 1.0 mg/kg (n=5)	p value
LVEDvol (ml)	72.8 ± 21.1	57.3 ± 16.5	1.00	67.5 ± 30.5	1.00
LVESvol (ml)	35.5 ± 17.9	43.2 ± 15.0	1.00	48.9 ± 25.7	1.00
LVEF (%)	53.2 ± 14.2	25.3 ± 6.4	0.01	30.1 ± 8.0	0.02
Peak Circumferential Strain (Remote Area)	−10.3 ± 1.69	−10.71 ± 1.45	1.00	−7.76 ± 3.38	0.48
Peak Circumferential Strain (Infarct Area)	−13.40 ± 3.05	−1.47 ± 2.58	0.01	−7.34 ± 4.34	0.08
Peak Radial Strain (Remote Area)	20.18 ± 6.47	32.52 ± 5.49	0.05	26.02 ± 6.19	0.55
Peak Radial Strain (Infarct Area)	19.94 ± 6.62	1.33 ± 4.13	0.02	9.56 ± 9.45	0.19

Examples of short axis CT images with superimposed endocardial and epicardial contours are shown for representative pigs from each group (Figure 3A). Corresponding color coded polar maps are shown below for peak circumferential strain (Figure 3B) and peak radial strain (Figure 3C). Peak circumferential strain was significantly (p=0.002) reduced in the MI region of the MI-saline group (Table 1, Figure 4A) compared to controls, although relatively preserved in the MI-rTIMP3 group. Peak radial strain was also significantly reduced in the MI region of the MI-saline group compared to controls (p=0.015, Table 1), and again relatively preserved in the MI-rTIMP3 group. We also observed an increase in radial strain in the remote area of the MI-saline group (p=0.05, Table 1) compared to controls, which was not seen in the MI-rTIMP3 group (Figure 4B).

Figure 3.

Representative contrast CT images are shown from a control, MI-saline and an MI-rTIMP3 pig with the corresponding endocardial (red) and epicardial (green) contours (A). These contours were used to compute regional peak circumferential LV strain (B) and peak radial strain (C) for each of the 17 AHA segments, excluding apex. Color scale bars are associated with each map.

Figure 4.

Box plots of average peak LV circumferential strain (A) and peak LV radial strain (B) illustrating the full range of data. There was a significant decrease in both the peak circumferential (p= 0.01) and radial strain (p=0.02) in the MI area for the MI-Saline group compared to non-MI controls. Additionally, there was an increase in peak radial strain in the remote zone of the MI-saline group versus controls (p=0.05). This compensatory increase in remote radial strain was not seen in the MI-rTIMP3 group. *p<0.05 vs non-MI controls, #p=0.05, one-way ANOVA, with Bonferroni’s posthoc correction.

Quantitative Myocardial ²⁰¹Tl Flow

The mid-wall anteroseptal region was analyzed and served as representative of the central reperfused MI region and compared to the normal contralateral remote mid-wall lateral region (Supplementary Figure 1).

Representative quantitative polar maps of regional quantitative myocardial flow (K1) derived from dynamic ²⁰¹Tl SPECT imaging with kinetic modeling are shown for representative pigs from each group (Figure 5A). There were no significant regional differences in myocardial flow in control pigs. The MI-saline pigs demonstrated a significant (p=0.018) reduction in ²⁰¹Tl MBF in the MI region relative to control remote regions of the heart (Figure 5B). However, MBF in the MI region of the MI-r-TIMP3 group was similar to remote region (p=0.80), suggesting a relative preservation of MBF in the MI region following intracoronary infusion of rTIMP-3.

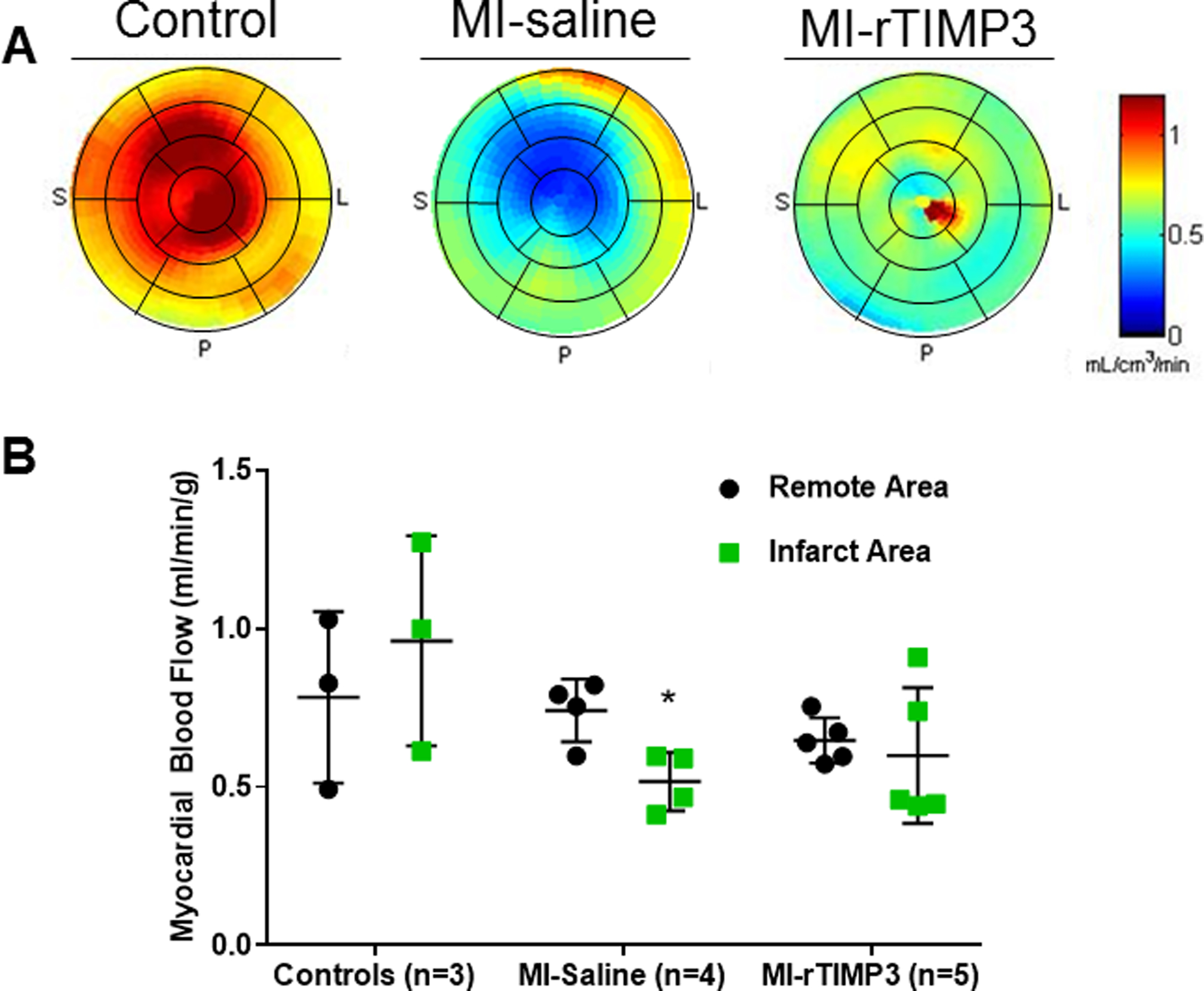

Figure 5.

Quantitative regional MBF determined from in vivo dynamic ²⁰¹Tl-SPECT imaging and kinetic modeling. Shown are representative myocardial flow (K1) polar maps for each group (A). There is a significant reduction in perfusion in the infarct territory compared to the contralateral remote area in the MI-saline group (p=0.02), although there was no significant reduction in myocardial blood flow in the MI-rTIMP3 group (p=0.80) (B). *p<0.05 vs remote, 2-way ANOVA.

Dual Isotope ^99mTc-RP805 and ²⁰¹Tl SPECT Imaging

In vivo dual isotope ^99mTc-RP805 and ²⁰¹Tl SPECT/CT imaging demonstrated increased focal uptake of ^99mTc-RP805 within the MI region that corresponded with the ²⁰¹Tl perfusion defect. Representative hybrid SPECT/CT images are shown for a pig in the MI-saline group (Figure 6). This pattern of mismatch between MMP activation and perfusion was consistently observed in the MI-saline group. Qualitatively, the MI-rTIMP3 group demonstrated a less dramatic increase in ^99mTc-RP805 uptake within the MI region on the delayed static ^99mTc-RP805 in vivo SPECT images.

Figure 6.

Representative in vivo hybrid dual isotope SPECT/CT images are shown in vertical long axis (VLA), horizontal long axis (HLA) and short axis (SA) from a MI-Saline pig. ²⁰¹Tl SPECT images are shown in green (A), ^99mTc-RP805 uptake in red (B), and contrast CT in black and white (C). A dense ²⁰¹Tl perfusion defect (red arrow) is seen in the anteroseptal wall with corresponding hypoperfusion zone on the contrast CT image (yellow arrow). The fusion of the SPECT and CT images (D) demonstrates focal ^99mTc-RP805 uptake within the perfusion defect.

Ex vivo SPECT/CT imaging was used to evaluate relative myocardial ²⁰¹Tl perfusion and ^99mTc-RP805 uptake in MI-saline and MI-rTIMP3 groups to avoid any confounding effects of motion or extracardiac activity. Representative bullseye maps of ²⁰¹Tl perfusion and ^99mTc-RP805 uptake are shown in Figure 7A.

Figure 7.

Representative ex vivo SPECT LV polar maps of relative ²⁰¹Tl and ^99mTc-RP805 uptake from both MI groups (A). Well counting of myocardial tissue demonstrated an increase in ^99mTc-RP805 uptake in the MI region (B). However, there was a significant reduction in relative myocardial ^99mTc-RP805 uptake in MI region relative to control region in the MI-rTIMP3 group compared to MI-Saline group (p=0.03). *p=0.03 vs MI-saline group, Student’s t-test.

Myocardial Gamma Well Counting of ^99mTc-RP805 and ²⁰¹Tl

The results from gamma well counting of myocardial tissue are shown in Figure 7B. Myocardial segments were separated into MI and remote non-MI regions based on relative ²⁰¹Tl activity. There was an increase in relative ^99mTc-RP805 uptake in the MI region in both MI groups (MI-saline: 4.03 ± 1.40; MI-TIMP3: 2.22 ± 0.57). However, the increase ^99mTc-RP805 uptake in the MI-rTIMP3 group was approximately half that seen in MI-saline group. (Figure 7B).

Ex vivo Infarct size

Postmortem analyses demonstrated a slight but non-significant decrease in MI size in the MI-rTIMP3 group versus the MI-saline group when expressed as a percentage of total LV area at this early time point post-MI (MI-rTIMP3: 14 ± 9%; MI-saline: 21 ± 5%, p=0.21).

DISCUSSION

The current study demonstrates that dual isotope ^99mTc-RP805 and ²⁰¹Tl hybrid SPECT/CT imaging can quantify myocardial MMP activation and regional MBF in a large animal model of I/R injury with contrast cineCT for assessment of regional myocardial strain. This is the first study to demonstrate that regional MMP activity changes as a function of intracoronary delivery of a recombinant pharmacological agent, in this case, intracoronary delivery of rTIMP-3. The reduction in MMP activation in the MI region was associated with both an improvement in quantitative MBF and a preservation of regional circumferential and radial strain in the early period following I/R. This multimodality imaging approach offers a noninvasive method to potentially guide and evaluate novel early therapeutic intervention to reduce reperfusion injury and modulate late post-MI remodeling and long term outcome.

Model of Reperfusion Injury

MI remains one of the leading causes of morbidity and mortality, and the primary focus has been to reduce MI size by limiting damage during ischemia such as the prevention of the reperfusion injury.^22–25 The current study used a porcine model of I/R injury in order to recapitulate the reperfusion injury that can be encountered following percutaneous coronary interventions with acute coronary syndromes. Specifically, a period of 90 minutes of coronary occlusion followed by reperfusion is not dissimilar to clinical context of “door-to-balloon” times of less than 90 minutes.^26–28 This model also allows use of standard clinical imaging systems which facilitates translation of these imaging approaches. This large animal model also reproduces the fundamental characteristics of the process of repair and myocardial remodeling, alterations in regional and global perfusion, and changes in wall thickness and function.²⁹

Dynamic SPECT/CT Imaging

The hybrid SPECT/CT approach has been previously used quite successfully for the purposes of measuring serial changes in myocardial perfusion in swine.²¹ In the current study, we utilized dynamic hybrid ²⁰¹Tl SPECT imaging for quantification of MBF. This dynamic imaging was facilitated by a high-resolution high-sensitivity SPECT/CT camera with 180° of CZT detectors that can simultaneously acquire 3D data with improved resolution compared to a more conventional dual-headed SPECT camera with sodium-iodide (NaI) detectors. The high sensitivity of this imaging system allows for dynamic imaging and quantification of MBF at relatively low doses of radiation (< 6–10 mSv). The improved energy resolution of CZT over conventional NaI detectors permitted dual isotope physiological imaging with ²⁰¹TI in conjunction with the targeted ^99mTc-labeled molecular radiotracer.

While improvement in LV global function with measurement of LVEF is commonly used to assess functional changes associated with post-MI remodeling, recent studies have indicated that strain assessed with echocardiography can have predictive value on myocardial functional recovery.³⁰ We demonstrated that high resolution cine CT performed with a low dose of a standard iodinated contrast agent can also provide precise LV regional myocardial circumferential and radial strain measurements. Circumferential strain has been recently reported to have a prognostic importance in patient’s post-MI.³¹ These authors propose that circumferential strain may be more indicative over longitudinal strain of myocardial salvage and the propensity to recover LV function in the longer term.³¹ Indeed, this identical swine IR model and rTIMP-3 intracoronary therapy resulted in an improvement in LVEF at four weeks post-MI.¹⁶

MMPs and TIMPs in Post-MI Remodeling and Dual Isotope Hybrid SPECT/CT Imaging

Previous basic and clinical studies have identified that the induction of MMPs, and reduction in endogenous TIMPs play a contributory role in early ischemic injury and late LV remodeling.^{10, 12, 14, 32–37} Circulating MMP plasma levels are elevated in patients following MI and appears to serve as a predictor for development of heart failure.^{15, 35, 38} However, despite a large number of mechanistic studies implicating MMP activation and adverse LV remodeling, clinical trials employing systemic pharmacological MMP inhibition have yielded mixed results (TIPTOP, PREMIER).^39–41 This may be due in part, to the lack of a direct approach to assess therapeutic targeting of MMP activation within the LV myocardium. Previous studies have investigated the use of targeted TIMP-3 delivery to the MI region and reported reduced adverse post-MI remodeling.^{14, 17, 18} More recently, it was established that intracoronary delivery of rTIMP-3 in pigs at the time of reperfusion favorably reduced LV remodeling and indices of heart failure progression.¹⁶ The present study critically advanced this field of pharmacological therapy by directly demonstrating that intracoronary rTIMP-3 delivery effectively reduced MMP activity in the targeted LV region following I/R. Our prior work demonstrated that ^99mTc-RP805 uptake was increased within the MI region at one week post MI induced by permanent coronary occlusion, and this increase was correlated to changes in the activity of several MMP types.¹⁰ However, these prior MMP targeted imaging studies employed models of permanent coronary occlusion without reperfusion.^{9, 10} In the current study, using a model of I/R, intracoronary delivery of rTIMP-3 improved regional MBF within the MI region, suggesting a potential reduction in the “no reflow” associated with reperfusion injury. Although we did not demonstrate a significant difference in LVEF at this early time point post rTIMP-3 delivery, previous work demonstrate that intracoronary rTIMP-3 did result in an improvement of global LV function at one month post MI.¹⁶ However, the present study did demonstrate in this early I/R time period, that rTIMP-3 improved regional myocardial strain within the MI region which in turn over time may contribute to improved LV pump function, as reported previously.¹⁶

Limitations and Summary

The current study was limited to only the early evaluation of myocardial MMP activation with ^99mTc-RP805 post-MI and the effects of intracoronary rTIMP-3 delivery. Based upon these unique proof of concept studies, combined imaging/pharmacological studies are warranted. There does appear to be a partial volume effect in the apical region of the in vivo MBF imaging results, however, the apical segments were not included in the evaluation of MBF. We also did not specifically demonstrate that myocardial uptake of ^99mTc-RP805 in the current study correlated with other molecular markers of MMP activation, although this has been done in previous studies.^10,16 Nevertheless, this study establishes the utility of a clinically relevant noninvasive imaging approach that can directly visualize, and quantify regional myocardial MMP activation in relation to changes in critical physiological indices of regional MBF and function. The application of this dual isotope hybrid SPECT/CT imaging approach may facilitate the optimization and translation of therapeutic interventions post-MI such as the use of intracoronary delivery of recombinant peptides for reduction of I/R injury in the early stages of post-MI remodeling.

CLINICAL PERSPECTIVE.

Myocardial infarction (MI) is prevalent occurring in more than 1.2 million patients annually. Following ischemia-reperfusion post-MI, there is activation of proteolytic enzymes, matrix metalloproteinases (MMPs) that degrade the extracellular matrix within the MI region. This process results in structural alterations, infarct expansion and adverse remodeling that can result in heart failure. In the current study, we developed and applied an advanced non-invasive dual isotope hybrid SPECT/CT imaging approach that provides a regional map of MMP activation in the myocardium in conjunction with quantification of regional MBF and function. This approach can be performed early following ischemia-reperfusion injury and can be used to guide and evaluate novel therapies to prevent post-MI remodeling. This methodology was specifically used to assess therapeutic intracoronary delivery of an MMP inhibitor, rTIMP-3, to the MI region, demonstrating a reduction in MMP activity as measured by SPECT imaging of a MMP-targeted imaging agent, ^99mTc-RP805, an increase in MBF with dynamic ²⁰¹Tl imaging, and an improvement in LV strain on cineCT. This novel hybrid imaging approach confirmed the therapeutic benefit of the intracoronary delivery of rTIMP-3 early following ischemia-reperfusion injury.
