Lattice Models for Protein Organization throughout Thylakoid Membrane Stacks

Abstract

Proteins in photosynthetic membranes can organize into patterned arrays that span the membrane’s lateral size. Attractions between proteins in different layers of a membrane stack can play a key role in this ordering, as was suggested by microscopy and fluorescence spectroscopy and demonstrated by computer simulations of a coarse-grained model. The architecture of thylakoid membranes, however, also provides opportunities for interlayer interactions that instead disfavor the high protein densities of ordered arrangements. Here, we explore the interplay between these opposing driving forces and, in particular, the phase transitions that emerge in the periodic geometry of stacked thylakoid membrane disks. We propose a lattice model that roughly accounts for proteins’ attraction within a layer and across the stromal gap, steric repulsion across the lumenal gap, and regulation of protein density by exchange with the stroma lamellae. Mean-field analysis and computer simulation reveal rich phase behavior for this simple model, featuring a broken-symmetry striped phase that is disrupted at both high and low extremes of chemical potential. The resulting sensitivity of microscopic protein arrangement to the thylakoid’s mesoscale vertical structure raises intriguing possibilities for regulation of photosynthetic function.

Significance

This work develops the first, to our knowledge, theoretical model for grana-spanning spatial organization of photosynthetic membrane proteins. Based on the stacked-disc structure of thylakoids in chloroplasts, it focuses on a competition between interactions that dominate in different parts of the granum. Analysis and computer simulations of the model reveal striped patterns of high protein density as a basic consequence of this competition, patterns that acquire long-range order for a broad range of physical conditions. Because natural changes in light and stress conditions can substantially alter the strengths of these competing interactions, we expect that an ordered phase with periodically modulated protein density is thermodynamically stable at or near some physiological conditions.

Introduction

Photosynthetic membranes are dense in proteins that cooperate to execute the complicated chemistry fundamental to light harvesting and other components of photosynthesis. Membrane functionality depends not only on these proteins but also supramolecular spatial arrangements thereof. Both the architecture of the membranes and the interactions of the protein components influence protein organization. Both levels of complexity are further influenced by light and physiological conditions.

In higher plants, photosynthetic membranes are arranged as stacks (called grana) of discs (called thylakoids). Each thylakoid, measuring roughly 300–600 nm in diameter and 10–15 nm thick, is bounded above and below by a lipid bilayer densely populated with photosynthetic proteins (see Fig. 1; (1, 2, 3)). A typical granum is composed of 10–100 thylakoid discs, spaced vertically by 2–4 nm. Grana do not exist in isolation in chloroplasts; rather, they are connected by unstacked membranes called stroma lamellae, which tend to be longer and have different protein composition (1,3,4). See (1,3) for visual representations of the membrane architecture.

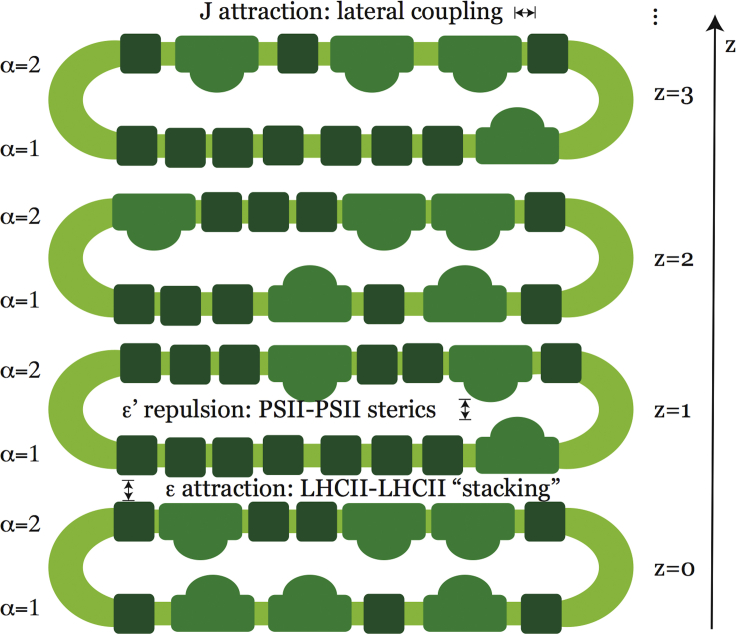

Figure 1.

Schematic cross section of a short stack of thylakoid discs. Dark green squares represent LHCII molecules, lighter green domed shapes represent PSII, and yellow-green bands represent lipid bilayers. Each disc (indexed by an integer z) comprises two layers (indexed α = 1 and α = 2). Protein attraction within each layer is assigned an energy scale J in our lattice model. Aligned LHCIIs in subsequent layers can engage in favorable stacking interactions, which is assigned an energy ε in the model. Protrusion of PSII into the lumen spaces (i.e., the interior of each disc) may lead to steric repulsion between the two layers of each disc. Mediated by thylakoid gap and membrane fluctuations, the effective steric energy scale is denoted ε′. To see this figure in color, go online.

This intricate geometry provides diverse opportunities for association among transmembrane proteins. We focus exclusively on protein-protein interactions. Although lipids are an important component of the protein environment, our models do not resolve their structure or composition explicitly. The role of lipids is limited in our perspective to an implicit influence on the strength of protein-protein attraction. The character of protein-protein interactions we have in mind—sharply repulsive at short range and smoothly attractive out to distances of ∼1 nm—is not special. Indeed, most folded proteins engage in similar forces, whether free in solution or bound within a membrane. The consequence of these interactions, however, may be strongly influenced by the geometry of the thylakoid. We emphasize in particular molecular organization involving two particular proteins, photosystem II (PSII) and light-harvesting complex II (LHCII), which abound in the central, mostly flat portion of thylakoid discs (1,5, 6, 7). “Supercomplexes” comprising a handful of these proteins can form with a variety of ratios LHCII:PSII (1,8). Supercomplexes are situated within a single lipid bilayer, but their stability may be influenced by interactions across the gap separating distinct thylakoid discs (9, 10, 11). These interactions across the gap appear to be net attractive because of solvent mediation of interactions between polar, protruding domains of LHCII proteins.

Such attractive “stacking” interactions may also drive larger-scale organization of these proteins within the plane of the bilayer, forming laterally extended periodic arrays that have been observed (10,12, 13, 14, 15). Computational work has suggested that these lateral arrays signal a phase transition to a crystalline state that would exhibit truly long-range two-dimensional order in the absence of constraints on protein population and disc size (9,16, 17, 18). Small changes in protein composition, density, and interaction strength could thus trigger sudden large-scale reorganization. Diminished stacking during state transitions and nonphotochemical quenching (NPQ) processes (processes of thylakoid restructuring to shift electronic excitations or to minimize photo-oxidative damage, respectively) may reflect control mechanisms that exploit this sensitivity (19).

In bulk solution, protein-protein attractions can stabilize a state of uniformly high density extending in all directions. By contrast, stacking interactions in the thylakoid, by themselves, do not correlate protein density across large vertical distances. Because LHCII lacks domains suitable to propagate such an interaction over the 4–6 nm inner thylakoid gap, stacking attractions do not act between the two membrane layers comprising the same disc. Only adjacent membrane layers of consecutive discs are influenced by this attraction, limiting the range of stacking-induced correlations to a microscopic scale in the vertical direction. The development of extended order in the thylakoid geometry would require additional factors.

Vertical protein-protein interactions in a stack of thylakoids can also be repulsive in character. Because of narrow spacing between apposed membranes and the significant protrusion of certain proteins into the region between stacked membranes, steric repulsion is likely to influence spatial organization in some circumstances. PSII, in particular, extends large domains toward the interior of thylakoid discs (called the lumen), a space that contracts under low light conditions. With sufficient contraction of the lumen, PSII molecules inhabiting a disc’s opposing membranes would be unable to share the same lateral position (10,20, 21, 22). Whereas in bulk solution, steric repulsions primarily constrain the local packing of proteins in states of high density, in the thylakoid, they can prevent the two layers of a disc from being simultaneously occupied at high protein density. As in the case of stacking attractions, these PSII repulsions can by themselves correlate protein density only over a limited vertical scale in the thylakoid geometry. PSII does not extend large domains into the space between discs, so steric constraints likely operate only within each disc and only in light conditions that favor a small lumenal gap. Development of extended order from steric repulsion along the thylakoid stack would require additional factors. The consequences of such a constraint on protein organization, e.g., its implications for the stability of stacked protein arrays, have not been directly explored in either experiment or simulation. However, the implications of these spatial constraints on the diffusion of molecules in the lumen has been addressed in (20,21).

For a system in low light to dark conditions, stacking attractions across the interdisc gap are strong, and steric repulsions across the lumenal gap can significantly constrain protein organization. These two interactions conflict in the thylakoid geometry, preventing a conventional scenario of aggregation that would be expected for such proteins in bulk solution. A state of vertically extended correlation among thylakoid proteins would instead involve spatially modulated order. To our knowledge, this possibility has not yet been carefully explored, in part because of the challenges posed by highly structured biological membranes for microscopy as well as for molecular simulation.

Our work addresses the interplay between attractive and repulsive protein-protein forces within grana stacks. To date, only one study has attempted to quantify the competition between attractive and repulsive protein-protein forces within grana stacks and its sensitivity to changing physiological conditions (23). Different interactions likely prevail in different parts of the stack because of proteins’ well-defined orientation relative to the lumen. We therefore focus on the possibility of spatially modulated order, patterns of protein density that alternate along the direction of stacking. To date, such patterns have not been observed in experiment, but the potential impacts of related kinds of granum-scale order on photosynthetic function have recently been discussed (24). The computational works mentioned above utilize coarse-grained particle approaches, whereas our model will be a lattice-based approach; in this manner, we attempt to create the simplest possible explanatory model for vertical ordering in photosynthetic membranes (9,16, 17, 18). Lattice models have been used for myriad studies of lipid organization in bilayers, as well as for lipid-protein membrane systems (25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37).

There is empirical evidence for vertically extended order within a stack of membranes, though in a much simpler context and with a focus on lipids rather than proteins. Specifically, synthetic membrane systems, devoid of proteins, have been constructed to examine compositional ordering in an array of lipid bilayers with multiple lipid constituents (38,39). Spatial modulations in lipid composition were observed to align and extend throughout the entire membrane stack, establishing a basic plausibility for the ordered phases discussed in this work.

To examine the basic physical requirements for protein correlations spanning an entire stack of thylakoids, we develop minimal models that account for locally fluctuating protein populations in a granum-like geometry. As described in Model, these fluctuations are biased by protein-dependent attractions between discs and by steric repulsion between proteins that reside in the same disc. The strengths of these interactions are determined by parameters that roughly represent light conditions and protein phosphorylation states. Such minimally detailed lattice models allow a thorough statistical mechanics analysis that would not be possible with a more elaborate representation. They also highlight symmetries that are shared by more explicit models but difficult to recognize amid atomistic details. Spontaneous breaking of such symmetries lies at the heart of phase transitions; it has clear-cut signatures in computer simulations, and it has important implications for thermodynamic properties and microscopic correlations as phase boundaries are approached. Finally, by sparing details we can potentially address a range of different physiological situations whose essential ordering scenarios coincide.

Using methods of Monte Carlo simulation detailed in Monte Carlo Simulations, as well as mean-field theories presented in Mean-Field Theory, we find that strongly cooperative behavior of our lattice models emerges over a wide range of conditions. As parameter values are changed, the model system can cross phase boundaries where intrinsic symmetries are spontaneously broken or restored. The correspondingly sudden changes in the microscopic arrangement of photosynthetic proteins suggest a mechanism for switching sharply between distinct states of light-harvesting activity, as discussed in the Discussion. In Conclusions, we conclude. Symbols used throughout this paper are summarized in Table 1.

Table 1.

Key Physical Variables and Parameters for the Thylakoid Lattice Model

Symbol	Definition
Lx, Ly	side length of the lattice in x and y directions
Lz	number of thylakoid discs in granum stack
z	thylakoid disc index (1 ≤ z ≤ Lz)
α	bottom (α = 0) or top (α = 1) of a thylakoid disc
i	location of a lattice site in the xy plane of a disc (1 ≤ i ≤ Lx × Ly)
$n_{\alpha ,i}^{\left(z\right)}$	presence ($n_{\alpha ,i}^{\left(z\right)}$ = 1) or absence ($n_{\alpha ,i}^{\left(z\right)}$ = 0) of proteins at a lattice site
β	inverse temperature (kBT)−1
J	strength of lateral protein attraction (J > 0)
ε	strength of vertical stacking attraction (ε > 0)
ε′	strength of vertical steric repulsion (ε′ > 0)
μ	protein chemical potential
$\overline{n}$	average total density (see Eq. 1)
Δn	striping order parameter (see Eq. 2)
K	net strength of attraction, relative to thermal energy (see Eq. 5)
F	free energy (see Eq. 4.1.2)
$p_{n_1{n}_2}$	probability of microstate (n1, n2) of a two-site cluster
δ	Boltzmann factor e−βε′ for steric repulsion
K∗	attraction strength at which striping transition becomes discontinuous

Model

Physical description

Our model of stacked thylakoid discs elaborates the familiar lattice gas model of liquid-vapor phase transitions. We represent the microscopic arrangement of proteins on a cubic lattice, resolving their transiently high number density in some parts of the membrane and low density in others. Proteins’ specific identities and internal structures are not resolved here; in discretizing space at the scale of a protein diameter, we have notionally averaged out such details. Our fluctuating degrees of freedom are thus binary variables n for each lattice site, indicating the local scarcity (n = 0) or abundance (n = 1) of protein. We refer to the local states n = 0 and n = 1 as unoccupied and occupied, respectively, although they do not strictly indicate the presence of an individual molecule.

The net protein density in our model membranes may be specified explicitly or else set indirectly through a chemical potential μ that regulates density fluctuations. For mathematical convenience, we take the latter approach in most calculations, in effect allowing exchange of material with a reservoir. Here, the stroma lamellae—unstacked regions of photosynthetic membrane—could play the role of reservoir. For a real thylakoid stack, such exchange might be very slow so that the largest-scale features of experimentally observed states are not well equilibrated. In that case, the phase transitions discussed below would not be manifested by coherent long-range order; instead, internally ordered domains would appear and grow, but their size would not reach a disc’s entire lateral area.

Interaction energies are assigned wherever adjacent sites on the lattice are occupied. The sign and strength of such an interaction depends on the locations of the two lattice sites involved, as depicted in Fig. 1. Within a planar layer of the stack (a disc comprises two layers), neighboring occupied sites contribute an attractive energy −J, representing lateral forces of protein-protein association. Stacking interactions occur between laterally aligned sites on the facing layers of sequential discs in the granum; each pair of occupied stacked sites contributes an attractive energy −ε.

Laterally aligned sites within the same disc are subject to a repulsive energy ε′, representing steric forces between transmembrane proteins protruding into the lumen. The harshly repulsive nature of steric interactions suggests that ε′ should be very large, effectively enforcing a constraint of volume exclusion. For this reason, we will consider ε′ = ∞ as a special case. Termed the “hard constraint limit,” this case offers mathematical simplification as well as transparent connections to a related class of spin models. Smaller values of ε′, however, may be more appropriate in situations in which steric overlap can be avoided through modest deformation of the membrane layers. Under high light conditions, when thylakoid discs swell in the vertical direction, very slight membrane deformation (or perhaps none at all) could be sufficient to allow simultaneous occupation of laterally aligned sites, corresponding to very small ε′.

The ground state of this model depends on values of the energetic parameters μ, ε, J, and ε′. Large, positive μ encourages the presence of proteins and thus favors a high average value $\overline{n}$ of the local occupation variable. In the limit μ → +∞, a state of complete occupation is thus energetically minimum. At high but finite μ, we generally expect thermodynamic states that are densely populated with protein, as depicted in Fig. 2, a and b. Conversely, at very negative values of μ, we expect very sparse equilibrium states, as depicted in Fig. 2, c and d.

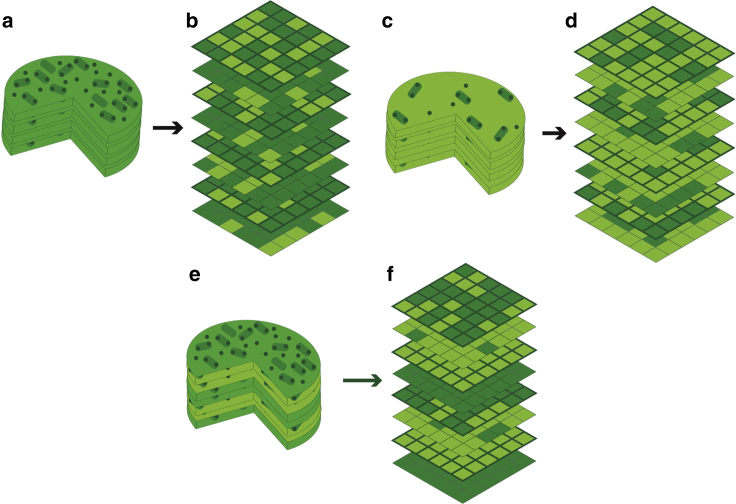

Figure 2.

Illustrations of three different granum states (a, c, and e), and their representations in our lattice model (b, d, and f). In (a), (c), and (e), yellow green indicates membrane that is not inhabited by protein, small dark circles are LHCII trimers, and oblong green shapes with small circles are PSII-LHCII supercomplexes. In (b), (e), and (f), yellow green indicates a local sparsity of proteins, and dark green represents a region that is densely populated by either protein. These colors and shapes are used consistently throughout this work. (a) and (b) depict a state of high average protein density in the granum. (c) and (d) depict a state of low average protein density. (e) and (f) illustrate a granum state with striped order. Here, layers of high and low protein density alternate vertically with a period of two discs. Each disc includes one high-density layer and one low-density layer, and each high-density layer is vertically adjacent to a dense layer on an adjacent disc. To see this figure in color, go online.

Equilibrium states at modest μ are characterized by competition among steric repulsion and the favorable energies of stacking and in-plane association. Large ε′ harshly penalizes lattice states that are more than half full—states that must feature simultaneous occupation of laterally aligned sites within the same disc. To realize in-plane attraction at half filling, one layer of each thylakoid must be depleted of protein. The stack then comprises a series of sparse and dense layers. Extensive stacking interaction between discs requires a coherent sequence of these layers, yielding ground states that are striped with a period of four layers. This pattern is illustrated in Fig. 2, e and f and is quantified by an order parameter Δn that compares protein density in the two layers of each thylakoid. More specifically, Δn is a linear combination of layer densities whose coefficients change sign with the same periodicity as the stripe pattern described.

Macroscopically ordered stripes of protein density may be an unlikely extreme in real grana. Slow kinetics of protein exchange with stroma lamellae, imperfect grana architecture, or insufficiently strong interactions could all prevent long-range coherence in practice. The tendency toward ordering for dark to low light conditions can still be of importance, e.g., in the form of transient striping over substantial length scales or a steep decline in the population of vertically adjacent PSIIs as the transition is approached.

The two layers of each disc are completely equivalent in our model energy function. Stripe patterns, which populate the two layers differently with a persistent periodicity, do not possess this symmetry. Equilibrium states with $\Delta n\ne 0$ therefore require a spontaneous symmetry breaking and a macroscopic correlation length, and they must be separated from symmetric states by a phase boundary. The computational and theoretical work reported in the following sections aims to determine what, if any, thermodynamic conditions allow for such symmetry-broken, coherently striped states at equilibrium.

Our goals in exploring this model are both explanatory and functional. For grana at conditions that have been examined in experiment, we aim to explain observed trends in protein distribution based on simple, physically realistic interactions. Some interesting behaviors of our model, however, may be fully realized only at protein densities that are challenging to reach with existing experimental techniques. For these conditions, our results offer predictions for the emergence of spatial patterns that have not yet been observed. Possible physiological consequences of this organization will be discussed in the Discussion.

Mathematical definition

To describe quantitatively the energetics and ordering described above, we introduce: a label z distinguishing different thylakoid discs, a label α distinguishing the two sides of each disc, and a label i distinguishing positions within each membrane layer. The notation $n_{\alpha ,i}^{\left(z\right)}$ for an occupation variable therefore indicates 1) the thylakoid disc to which it belongs, specified by a vertical coordinate z ranging from 1 to L_z; 2) which layer of the disc it inhabits, α = 1 (bottom) or α = 2 (top); and 3) its lateral position, specified by an integer i ranging from 1 to L_xL_y (see Fig. 1). The density and striping order parameters are then defined as

$$\overline{n}\equiv {\left(2L_x{L}_y{L}_z\right)}^{-1}\sum _{z,i,\alpha }{n}_{\alpha ,i}^{\left(z\right)}$$ (1)

and

$$\Delta n\equiv {\left(2L_x{L}_y{L}_z\right)}^{-1}\sum _{z,i}{\left(-1\right)}^z\left(n_{1,i}^{\left(z\right)}-n_{2,i}^{\left(z\right)}\right),$$ (2)

and the total energy of a configuration $\left\{n_{\alpha ,i}^{\left(z\right)}\right\}$ is written

$$\begin{array}{l}H\left[\left\{n_{\alpha ,i}^{\left(z\right)}\right\}\right]=-\mu \sum _{z,\alpha }\sum _i{n}_{\alpha ,i}^{\left(z\right)}-J\sum _{z,\alpha }\sum _{i,j}^{\text{'}}{n}_{\alpha ,i}^{\left(z\right)}{n}_{\alpha ,j}^{\left(z\right)}\\ -\epsilon \sum _z\sum _i{n}_{2,i}^{\left(z\right)}{n}_{1,i}^{\left(z+1\right)}+{\epsilon }^{\text{'}}\sum _z\sum _i{n}_{1,i}^{\left(z\right)}{n}_{2,i}^{\left(z\right)},\end{array}$$ (3)

where the primed summation extends over distinct pairs of lateral nearest neighbors. As described above, each occupation variable $n_{\alpha ,i}^{\left(z\right)}$ adopts values 1 (occupied) or 0 (unoccupied). The energetic parameters ε (in-plane attraction), J (stacking attraction), and ε′ (steric repulsion) are all positive constants. At temperature T, the equilibrium probability distribution of $\left\{n_{\alpha ,i}^{\left(z\right)}\right\}$ is proportional to the Boltzmann weight e^−βH, where β ≡ 1/k_BT.

In addition to transparent spatial symmetries, this model possesses a symmetry with respect to inverting occupation variables. Applying the transformation ${\hat{n}}_{\alpha ,i}^{\left(z\right)}=1-n_{\alpha ,i}^{\left(z\right)}$ to all lattice sites generates from any configuration $\left\{n_{\alpha ,i}^{\left(z\right)}\right\}$ a dual configuration $\left\{{\hat{n}}_{\alpha ,i}^{\left(z\right)}\right\}$, whose probability is also generally different from the original. As in the lattice gas, a certain choice of parameters renders the Boltzmann weight invariant under this transformation. In our case, this statistical invariance occurs when −2μ − 4J − ε + ε′ = 0, establishing a line of symmetry in parameter space. More usefully for our purposes, the duality establishes pairs of equilibrium states with related thermodynamic properties. Specifically, the states (μ, ε, J, ε′, T) and $\left(\hat{\mu },\epsilon ,J,\epsilon \text{'},T\right)$ have identical statistics of Δn for the choice

$$\hat{\mu }=-\mu -4J-\epsilon +\epsilon \text{'}.$$ (4)

Viewing density rather than chemical potential as a control parameter, distributions of Δn are identical in pairs of thermodynamic states $\left(\overline{n},\epsilon ,J,\epsilon \text{'},T\right)$ and $\left(\hat{\overline{n}},\epsilon ,J,\epsilon \text{'},T\right)$ related by $\hat{\overline{n}}=1-\overline{n}$; in other words, $\overline{n}$ = 1/2 is also a line of symmetry because of duality.

For the phase transitions of interest here, these arguments guarantee that any phase boundary at chemical potential μ (or density $\overline{n}$) is mirrored by a dual transition at $\hat{\mu }$ (or $\hat{\overline{n}}$) for any consistent choice of ε, J, ε′, and T. More physically, any phase change induced by controlling protein density must exhibit reentrance (or else occur exactly at the line of symmetry, which we do not observe).

In simpler terms, imagine an initial equilibrium state with very low protein density and negligible spatial correlation. Increasing protein occupancy toward half filling could (and often does) drive the model system into a striped state with long-range order. The inversion symmetry we have described dictates that a further increase in density must eventually destroy striped order. The latter transition may be more easily envisioned as a consequence of loading thylakoid discs beyond half filling—once steric energies have been overcome, the competition underlying striped order becomes imbalanced, and an unmodulated state of high density is thermodynamically optimal. Mathematically, the loss of modulated order at high protein density is simply the dual transition of its appearance.

Like the lattice gas, our thylakoid stack model can be mapped exactly onto a spin model with binary variables σ = 2n − 1 = ±1. Among the expansive set of spin models that have been explored numerically and/or analytically, we are not aware of one that maps precisely onto this variant of the lattice gas. Many, however, share similar ordering motifs and spin coupling patterns (40, 41, 42). Alternating attraction and repulsion in Eq. 3 correspond to mixed ferromagnetic and antiferromagnetic couplings in a spin model, e.g., in axial next-nearest neighbor Ising models, which can also support modulated order (43). A different class of spin models seems better suited to the hard constraint limit of Eq. 3 For ε′ = ∞, each lateral position on a thylakoid disc can adopt three possible states (both layers empty and one or the other layer filled), two of which are statistically equivalent. The similarity to a three-state Potts model in an external field is more than superficial. Much of the phase behavior we identify echoes what is known for that model in three dimensions (44), even for finite steric repulsion strengths (ε′).

The spirit of our approach echoes many previous efforts to understand basic physical mechanisms of collective behavior in membrane systems, from lipid domain formation to correlations among sites pinned by proteins or substrates (25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,45, 46, 47, 48, 49, 50, 51). By stripping away most molecular details, simplified descriptions of phase transitions such as spin models and field theories focus attention on the emergence of dramatic macroscopic response from a few microscopic ingredients. They also greatly reduce the computational cost of sampling pertinent fluctuations, which are simply inaccessible for biomolecular systems near phase boundaries when considered in full atomistic detail. This perspective has even been applied to lipid ordering in stacks of membrane layers, but not in the context of protein ordering or photosynthesis (36, 37, 38, 39).

Here, we examine equilibrium structure fluctuations of the lattice model defined by Eq. 3 using both computer simulations and approximate analytical theory. We first describe the results of Monte Carlo sampling, which confirm the stability of a striped phase over a broad range of temperature and density. We then present mean-field analysis that sheds light on the nature of symmetry breaking and relationships with previously studied models.

Results

Monte Carlo simulations

We used standard Monte Carlo methods to explore the phase behavior of our thylakoid lattice model. Specifically, we sampled the grand canonical probability distribution e^−βH for a periodically replicated system with L_x = L_y = 10 and L_z = 24 over broad ranges of temperature and chemical potential. This geometry can accommodate L_z/2 = 12 copies of the striped motif in the central simulation cell.

Within mean-field approximations presented in the next section, the attractive energy scales J and ε are most important in the combination 4J + ε. We therefore define a parameter

$$K\equiv \left(4J+\epsilon \right)/k_{B}T$$ (5)

and focus on βμ, K, and ε′ as essential control variables for this model. The ratio J/ε can also be varied, but for values of J/ε that are not extreme, this ratio is not expected to affect qualitative behavior. For simplicity, we limit attention to results exclusively for values of J/ε very close to 1/4, for which we have systematically varied βμ, K, and ε′. A limited set of simulations with J/ε = 0.5 and 1 support the ratio J/ε as inessential within the range studied.

These simulations confirm the ordering scenario described above, in which the average value $\langle \Delta n\rangle$ of the striping order parameter can become nonzero in an intermediate range of βμ. In other words, a phase with macroscopically coherent stripes can be thermodynamically stable at intermediate density. We identify and characterize transitions between this striped phase and the “disordered” phase with $\langle \Delta n\rangle$ = 0 by computing probability distributions P(Δn). Fig. 3 shows corresponding free-energy profiles F(Δn) = −k_BTlnP(Δn) determined by umbrella sampling (see Supporting Materials and Methods). For 2.6 < K < 6, the progression from convexity to bistability of F(Δn) as βμ increases at fixed K and ε′ is suggestive of Ising-like symmetry breaking. Quantitative features of F(Δn) support this connection. In particular, near the transition, Binder cumulants approach values characteristic of three-dimensional Ising universality (see Supporting Materials and Methods). For K > 6, thorough sampling of the equilibrium distribution becomes challenging because acceptance probabilities decline, a consequence of strong interactions and highly anisotropic striped domains. In the Supporting Materials and Methods, we present indirect evidence that the ordering transition becomes discontinuous at K ≥ 6.

Figure 3.

Statistics of the striping order parameter Δn at three different thermodynamic states. In all cases, Monte Carlo simulations were performed with ε′ = 20k_BT, J = 0.4k_BT, ε = 1.65k_BT (corresponding to K = 3.25), L_z = 24, and L_x = L_y = 10. The free energy relative to thermal energy, βF = −lnP(Δn), is shown for βμ = −1.5, βμ = −0.5, and βμ = 0.6. For the highest value of βμ, macroscopic bistability indicates a striped state with long-ranged order and broken symmetry. For the lowest value of βμ, Gaussian fluctuations in Δn typify the sparse disordered state. For the intermediate value of βμ, the quartically flat shape of βF near Δn = 0 indicates proximity to a continuous ordering transition. To see this figure in color, go online.

Over a wide range of interaction strength K, loading of proteins into the model thylakoid is thus accompanied by continuous transitions in $\langle \Delta n\rangle$, critical fluctuations, and correspondingly dramatic susceptibility. We locate this transition through the shape of the free-energy profile. The striped phase is stable wherever F(Δn) possesses global minima away from Δn = 0. Elsewhere, the thylakoid is macroscopically disordered, though stripe patterns may be prominent on microscopic scales.

Fig. 4 shows the phase diagram in the (K, βμ) plane. An equivalent but more intuitive representation in the plane of K and $\overline{n}$ is given in Fig. 5. Results are included for a broad range of ε′-values. In all cases, computed phase boundaries are lines of Ising-like critical points. All boundaries are mirrored across the lines of inversion symmetry of Eq. 4 or $\overline{n}$ = 1/2 in the $\overline{n}$ vs. K plane, respectively. As described in Mathematical Definition, striping transitions at finite ε′ are consequently reentrant for all finite steric repulsion strengths ε′. Modulated order requires sufficient filling of the lattice but is inevitably destroyed by high density.

Figure 4.

Phase diagrams of the thylakoid lattice model constructed from Monte Carlo simulation results, shown in the plane of attraction strength and chemical potential. Results are shown for several values of repulsion strength ε′. In the white region, the disordered phase is stable for all ε′. The region with darkest shading shows the range of βμ and K over which the ordered phase is stable for βε′ = 1. The next darkest region shows the additional range of ordered phase stability at βε′ = 1, and so on. All phase boundaries, which are assumed to follow straight lines between explicitly determined points (circles), mark continuous striping transitions. Results for the hard constraint limit, ε′ = ∞, are indistinguishable from those with βε′ = 20. To see this figure in color, go online.

Figure 5.

Phase diagrams of the thylakoid lattice model constructed from Monte Carlo simulation results, shown in the plane of attraction strength and density. Points and shading have the same meaning as in Fig. 4. Results for the hard constraint limit, ε′ = ∞, are indistinguishable from those with βε′ = 20. For the latter case, βε′ = 20, we did not impose high enough chemical potential in simulations to obtain results for $\overline{n}$ > 1/2. In the hard constraint limit, the regime $\overline{n}$ > 1/2 is strictly forbidden. To see this figure in color, go online.

The shapes of these phase diagrams clearly reflect the origin of modulated order in an interplay between proteins’ attraction and steric repulsion. The domain of stability of the striped phase is largest where attraction and repulsion are both potent (i.e., βε′ and K are both much greater than unity). Small values of either βε′ or K greatly compromise this stability or eliminate it entirely.

Mean-field theory

As with most critical phenomena, the long-ranged correlation of protein density fluctuations implied by these phase transitions greatly hinders accurate analytical treatment. Here, we employ the most straightforward of traditional approaches for predicting phase behavior, namely mean-field (MF) approximations, to further explore and explain the ordering behavior revealed by Monte Carlo simulations of the thylakoid model. Though quantitatively unreliable in general, mean-field methods provide a simple accounting for the collective consequences of local interactions, and thus a transparent view of phase transitions that result.

Mean-field theories generically treat the fluctuations of select degrees of freedom explicitly, regarding all others as a static, averaged environment. We first consider a pair of fluctuating lattice sites in a self-consistent field, whose continuous transitions can be easily inferred. We then analyze an extended subsystem of 12 tagged lattice sites, whose qualitative predictions align with the simpler treatment. This consistency suggests a robustness of mean-field predictions for the thylakoid model.

Two-site clusters

To describe the modulated order of the striped phase, a subsystem for mean-field analysis should include representatives from both layers of a thylakoid disc. Our simplest approximations therefore focus on a pair of tagged occupation variables, $n_{\mathrm{1,1}}^{\left(1\right)}$ and $n_{\mathrm{2,1}}^{\left(1\right)}$, describing density fluctuations at vertically neighboring lattice sites that interact directly through steric repulsion. We will describe mean-field analysis for this two-site cluster first in the simplifying case ε′ → ∞, i.e., the hard constraint limit. We then consider the more general case of finite repulsion strength.

Hard constraint limit

In the limit ε′ → ∞, the microstate $n_{\mathrm{1,1}}^{\left(1\right)}=n_{\mathrm{2,1}}^{\left(1\right)}$ = 1 of our two-site cluster is prohibited. As a result, the mean-field free energy F_MF can be written very compactly. We construct F_MF from 1) the Gibbs entropy associated with probabilities of the cluster’s three allowed microstates and 2) the average energy of interaction with a static environment. In terms of the order parameters $\overline{n}$ and Δn, we obtain

$$\begin{array}{l}\frac{2\beta F_{\text{MF}}}{N}=-2\beta \mu \overline{n}+\left(\overline{n}+\Delta n\right)\text{log}\left(\overline{n}+\Delta n\right)\\ +\left(\overline{n}-\Delta n\right)\text{log}\left(\overline{n}-\Delta n\right)\\ +\left(1-2\overline{n}\right)\text{log}\left(1-2\overline{n}\right)-K\left({\overline{n}}^2+\Delta n^2\right),\end{array}$$ (6)

where N is the total number of lattice sites. Equation 6 suggests a close relationship between our thylakoid model and the well-studied three-state Potts model of interacting spins. Applying the Curie-Weiss MF approach to that Potts model yields a free energy of identical form to Eq. 6 for the case of an external field that couples symmetrically to two of the spin states (44). The MF phase behavior of the two models is therefore isomorphic, involving both first-order and continuous symmetry-breaking transitions. The continuous transitions are qualitatively consistent with results of our Monte Carlo sampling. The discontinuous transitions were not observed in thylakoid model simulations for K < 6; evidence for them emerges only for larger values of K, at which sampling becomes challenging.

Continuous transitions may be identified by expanding Eq. 6 for small Δn. This expansion indicates a local instability to symmetry-breaking fluctuations that first appears at $\overline{n}$ = K⁻¹. A corresponding phase boundary in the (K, βμ) plane can then be found by minimizing F_MF with respect to $\overline{n}$, yielding βμ = −1 − ln(K − 2). This result, plotted as the black curve in Fig. 6, captures the most basic features of our simulation results at large βε′. As is typically true, the maximum temperature at which ordering occurs is overestimated by MF theory (i.e., the minimum value of K is underestimated).

Figure 6.

Phase diagram of the thylakoid lattice model determined from mean-field theory in the hard constraint limit ε′ = ∞, shown in the plane of attraction strength and chemical potential. In the white region, Eq. 6 has a single minimum at Δn = 0, indicating a lack of striped order. In the shaded region, global minima at nonzero Δn indicate symmetry breaking, i.e., striping with long-range coherence. The extremum of F_MF at Δn = 0 changes stability at the black curve, allowing for continuous ordering. At large K, this continuous change is preempted by a first-order transition (red curve). To see this figure in color, go online.

For sufficiently large K, numerical minimization of F_MF reveals transitions that are instead discontinuous, as shown by the red curve in Fig. 6. Here, the disordered state remains locally stable while global minima emerge at nonzero Δn. The onset of such transitions at K^∗ = 10/3 can be determined by careful Taylor expansion of F_MF in powers of $\overline{n}$ and Δn (see Supporting Materials and Methods). Both of these order parameters suffer discontinuities at the first-order phase boundary. For K < K^∗, no discontinuous transitions are observed (in Fig. 6, the red curve thus begins at K^∗).

The absence of first-order transitions in computer simulations near K = 10/3 could signal a failure of this simple mean-field theory. Alternatively, such transitions may occur only at higher values of K. This low-temperature regime is challenging to explore with our Monte Carlo sampling methods. Below, we will show that discontinuous transitions survive in more sophisticated MF treatments, suggesting they are a real feature of the model that is difficult to access with simulations.

Both simulations and MF theory indicate that the striping transition is not reentrant in the hard constraint limit. High-density disordered states are prohibited by steric repulsion at ε′ = ∞.

Soft steric repulsion

The same basic MF approach can be followed for finite ε′. In this case, however, F_MF is written most naturally not as a function of $\overline{n}$ and Δn, but instead in terms of probabilities $p_{n_1{n}_2}$ for the four possible cluster microstates:

$$\begin{array}{l}\frac{2\beta F_{\text{MF}}}{N}=p_{00}\text{ln}{p}_{00}+p_{10}\text{ln}{p}_{10}+p_{01}\text{ln}{p}_{01}+p_{11}\text{ln}{p}_{11}\\ -\frac{K}{2}\left[{\left(p_{11}+p_{10}\right)}^2+{\left(p_{11}+p_{01}\right)}^2\right]\\ +\beta \epsilon \text{'}{p}_{11}-\beta \mu \left(p_{10}+p_{01}+2p_{11}\right).\end{array}$$ (7)

Recognizing that Δn = (p₁₀ − p₀₁)/2 and $\overline{n}$ = (p₁₀ + p₀₁ + 2p₁₁)/2, expansion and minimization of Eq. 4 yields continuous transitions in the (K, n) plane along

$$\overline{n}=\frac{1}{2}\pm \frac{1}{2K}\sqrt{{\left(K-2\right)}^2-4\delta },$$ (8)

where δ = e^−βε′. The two values of $\overline{n}$ for each K > 2$\left(1+\sqrt{\delta }\right)$ mark transitions to the low- and high-density disordered phases, reflecting the occupation inversion symmetry discussed in Mathematical Definition. In the (K, βμ) plane, these transitions occur at

$$\beta \mu =\beta \epsilon \text{'}-K\overline{n}+\text{ln}\left(K\overline{n}-1\right),$$ (9)

where $\overline{n}$ refers to either solution of Eq. 8. Viewed as functions of K at given ε′, the two branches of βμ in Eq. 9 have the peculiar feature of crossing at a certain attraction strength K = K_cross(ε′) (see Supporting Materials and Methods). For K > K_cross, these solutions violate fundamental stability criteria of thermodynamic equilibrium (see Supporting Materials and Methods) and therefore cannot be global minima of the free energy. Lower-lying minima indeed appear at K^∗ < K_cross, preempting the continuous ordering transition before the two solutions cross.

The development of nonzero $\langle \Delta n\rangle$ with increasing density is thus predicted to become discontinuous at sufficiently low temperature, as in the hard constraint case. The onset of this first-order transition,

$$K^{\text{∗}}=\frac{10}{3}+\frac{2}{3}\delta +\mathcal{O}\left({\delta }^2\right),$$ (10)

can be determined by Taylor expansion of F_MF in the regime of strong repulsion, i.e., large ε′ and small δ. Figs. 7 and 8 show mean-field phase diagrams for several values of ε′, as determined by numerical minimization of Eq. 4.1.2. For this mean-field method, it is unnecessary to assume a value for J/ε because the mean field blurs distinctions between vertical and in-plane couplings for sites coupled via J or ε. As in the simulation results of Figs. 4 and 5, the data in Figs. 7 and 8 exhibit the symmetry guaranteed by duality. Discontinuous changes in density upon striping imply regions of coexistence in the plane of K and $\overline{n}$. For densities that lie between average values for the ordered and disordered states, both phases are present at equilibrium, as indicated in Fig. 8, separated by an interface.

Figure 7.

Mean-field phase diagram of the thylakoid lattice model at finite ε′, shown in the (K, βμ) plane. Shading has the same meaning as in Fig. 4. Phase boundaries, determined by minimizing Eq. 4.1.2, are continuous at small K and discontinuous beyond a value K^∗ that is well approximated by Eq. 10. To see this figure in color, go online.

Figure 8.

Mean-field phase diagram of the thylakoid lattice model at finite ε′, shown in the (K, $\overline{n}$) plane. Hatched regions indicate the striped phase, and the coloration corresponds to that of Fig. 4. Shaded but unhatched regions mark coexistence between striped and disordered phases. Phase boundaries, determined by minimizing Eq. 4.1.2, are continuous at small K and discontinuous beyond a value K^∗ (indicated by triangle markers, with the same color as corresponding ε′) that is well approximated by Eq. 10. To see this figure in color, go online.

The domain of stability of the striped phase in mean-field theory evolves with ε′ in the same basic way observed in Monte Carlo simulations. Relative to simulations, however, mean-field results are consistently shifted to lower K (higher T), increasingly so as ε′ decreases. The discontinuous nature of mean-field transitions at high K is not easily corroborated by simulations because sampling becomes challenging at high K. Limited simulations with very strong interactions suggest that first-order transitions appear between K = 6 and K = 7, in contrast to the mean-field crossover prediction of 3 < K^∗ < 4. Consequently, the coexistence regions displayed in Fig. 8 for mean-field theory do not appear in simulation for K < 6.

Bethe-Peierls approximation

The accuracy of MF theory is generally improved by examining a larger set of fluctuating degrees of freedom (52). In some cases, considering large clusters can even remove spurious transitions suggested by lower-level calculations. MF treatments of anisotropic Ising models, some of which incorrectly predict discontinuous transitions, are particularly interesting here. Neto et al. (53) have surveyed an array of MF approaches for one such model in two dimensions, which supports modulated order at low temperature. The simplest MF calculations predict a crossover from continuous to discontinuous ordering. The Bethe-Peierls (BP) approximation, a more sophisticated MF approach, captures the strictly continuous ordering observed in computer simulations (53).

We have performed BP analysis for the thylakoid model (in three dimensions) to test the robustness of phase behavior predicted by the two-site calculations described above. Here, we enumerate all microstates of a subsystem that includes $n_{\mathrm{1,1}}^{\left(1\right)}$, $n_{\mathrm{2,1}}^{\left(1\right)}$, and all of their remaining nearest neighbors, a total of 12 sites. The additional sites experience effective fields representing interactions that are not explicitly considered. For the specific case J = ε, only two of these fields may be distinct, greatly simplifying the self-consistent procedure. We focus exclusively on this case. The calculation and phase diagrams that result are presented in the Supporting Materials and Methods.

Like simpler MF approaches, the BP approximation yields several solutions for the effective fields at low temperature. Some of these solutions correspond to continuous ordering transitions, which can also be identified by Taylor expansion of the self-consistent equations. Other solutions describe symmetry-broken states that do not appear continuously, resembling in many respects the first-order transitions predicted by two-site calculations. Demonstrating that these states are thermodynamic ground states would require formulating a free energy for this BP approach, which we have not pursued. Their local stability, however, is clearly preserved in the BP scheme.

The most pronounced difference between BP phase diagrams and those of simpler MF treatments is a shift of phase boundaries to lower temperature (higher K). Agreement with Monte Carlo simulations is therefore improved. With this shift, the onset of discontinuous ordering transitions suggested by BP calculations occurs near K = 6. This result supports the notion that first-order transitions are a real feature of the thylakoid model, occurring near the temperature range suggested by flat histogram sampling; see the Supporting Materials and Methods.

Discussion

The model we have constructed to study vertical arrangement of proteins in grana stacks is deliberately sparse in microscopic detail. It does not distinguish among the associating protein species in photosynthetic membranes, nor does it account for shape fluctuations of lipid bilayers in which these proteins reside. These unresolved features are undoubtedly important for the physiological consequences of the ordering scenario we have described, but they are inessential to its origins. The finite size of grana stacks is also neglected here. The sharp transitions we have described would be rounded in real thylakoids by finite size effects, but natural photosynthetic membranes should be large enough to exhibit micron-scale cooperativity in protein rearrangements.

A model that distinguishes among LHCII, PSII, and their supercomplexes, we assert, should exhibit the same basic phase behavior as our coarse-grained representation so long as it incorporates the same fundamental competition between attraction and repulsion. But such a model would be much less amenable to the theoretical and computational analyses we have presented, particularly if it acknowledges the differences in these proteins’ sizes and shapes. PSII proteins are typically more oblong and significantly larger than LHCII proteins; these two species also extend from the membrane layer to different degrees, influencing their interactions with proteins on both adjacent sides. Capturing these geometric features would greatly complicate a lattice representation. It would also require commensurately detailed parameterization of protein-protein interactions; given the scarcity of experimental information, locating physiologically relevant regions of parameter space would be even more challenging than for our lattice description. In conducting such a broad survey with a computationally demanding model, the existence and stability of an ordered phase could easily escape discovery altogether.

The lattice model of Eq. 3 is thus well-suited to reveal the existence and basic nature of vertical ordering in a system with the geometry and varied interactions of a stack of thylakoid membranes, which is the focus of this work. Confidently establishing the conditions at which ordering occurs and assessing its functional implications calls for models with greater microscopic detail, like that of (9,16,54). In particular, distinguishing among LHCII, PSII, and supercomplexed PSII-LHCII would enable correlation of vertical ordering with protein speciation. It would similarly help to explore connections between vertical ordering and the emergence of horizontally extended arrays of PSII-LHCII supercomplexes. Previous work suggests that such lateral ordering can be significantly stabilized by stacking attractions between thylakoid layers whose PSIIs are appropriately aligned (12,55, 56, 57), providing a natural mechanism of communication between these modes of organization.

In models that distinguish among different protein species, a thylakoid’s protein composition, and the LHCII/PSII ratio in particular, will figure importantly in any ordering scenario. If, maintaining the same net protein density, the concentration of LHCII were increased uniformly throughout the central region of a granum stack, the balance between steric forces (involving PSII) and stacking attraction (involving LHCII) would shift. In the language of our lattice model, the effective value of K would increase, and ε′ would proportionally decrease. By looking at Figs. 5 and 8, one can see that in the density range 0.5 ≤ $\overline{n}$ ≤ 0.8, this compositional shift would favor either the striped phase or a coexistence of striped and disordered dense phase, depending on the magnitude of K. For densities greater than 0.8 and sufficiently large K, the system would enter the coexistence of striped and dense disordered phase.

Our model predicts that, at moderate to high protein density, LHCII stacking and PSII volume exclusion can induce coexistence between vertically striped and uniform phases in a stack of many membrane layers. Interestingly, previous work suggests that high density favors a coexistence scenario for lateral ordering as well. According to both experimental and computational studies, the extent of lateral ordering is quite sensitive to protein packing fraction. High density of LHCII in particular is known to destabilize lateral ordering (9,16,54,58, 59, 60, 61, 62, 63, 64). Computational studies suggest that, under such circumstances (0.65 ≤ $\overline{n}$ ≤ 0.85, with LHCII:PSII at most 5:1), crystalline ordered phases should appear only in coexistence with fluid phases (9,16,54). Physiologically relevant packing fractions can be similarly high (in the range 0.6–0.8), and measured LHCII/PSII ratios are in the range 2–6 (58, 59, 60, 61, 62, 63, 64), suggesting that coexistence between crystalline order and laterally disordered phases predominates both in vitro and in vivo. A tendency for phase separation in the context of both vertical and lateral ordering suggests that even weak coupling between the two could induce strong correlation.

The biological relevance of structural rearrangements predicted by our thylakoid model depends on the effective physiological values of parameters like K, ε′, and βμ. The inherent weakness of attraction or repulsion or else extreme values of protein density could prevent thylakoids from adopting a striped phase. Photosynthetic membranes, however, visit states in the course of normal function that vary widely in protein density and in features that control interaction strength. We therefore expect significant excursions in the parameter space of Figs. 4 and 5. Because ordering transitions in our model require only modest density and interactions not much stronger than thermal energy, we expect proximity to phase boundaries to be likely in natural systems. Biological relevance depends also on the functional consequences of striped order. Photochemical kinetics and thermodynamics are determined by details of microscopic structure that we have made no attempt to represent, in particular, gradients in pH. If those aspects of intramolecular and supermolecular molecular structure are sensitive to local protein density or to the nanoscale spacing between dense regions, then striping transitions could provide a way to switch sharply between distinct functional states.

Given the limited availability of thermodynamic measurements on photosynthetic membranes, making quantitative estimates of the control variables K, ε′, and βμ for real systems is very challenging. We will focus on the current qualitative knowledge of properties that are conjugate to these parameters to explore which phases could be pertinent to which functional states.

The majority of precise measurements on grana have assessed the density of specific proteins, which is, of course, conjugate to their chemical potential. For this reason, we have presented phase diagrams in terms of both βμ and $\overline{n}$. Densities in central grana tend to be quite high relative to other biological membranes. Combining information about the number density of PSII (from atomic force microscopy or electron microscopy images) with measured number densities or stoichiometries of other protein species relative to PSII (typically measured by gel electrophoresis), packing fractions approach $\overline{n}$ ≈ 0.6–0.8 (54,61, 62, 63, 64). Therefore, the top halves of Figs. 5 and 8 are likely the most relevant for biology.

The net attraction strength relative to temperature, K, is conjugate to the extent of protein association within each membrane layer and across the stromal gap. Because experiments suggest stacking interactions have an empirically measured, dramatic effect on protein association (10,12, 13, 14, 15), we will focus on the extent of stacking as a rough proxy for K. Previous computational work suggests that the range of K we have explored is physiologically reasonable. Focusing on lateral protein ordering in a pair of membrane layers, (9,54) found that configurations consistent with atomic force microscopy images could be obtained for weak in-plane protein-protein attractions of energy ≤2k_BT and stacking energy 4k_BT. Associating the energy scales of that particle model with the energies of our more coarse-grained lattice representation (βJ ≲ 2 and βε ≈ 4) suggests values of K in the neighborhood of 5–10. Ordering at moderate to large K is therefore likely to be most physiologically relevant. It is in this regime that we find evidence for a crossover in the nature of the striping transition, from continuous to discontinuous.

The strength of steric repulsion, ε′, is strongly influenced by thylakoid geometry. For a very narrow lumen and very rigid lipid bilayers, PSII molecules on opposite sides of a thylakoid disk are essentially forbidden to occupy the same lateral position, a hard constraint that is mimicked by the limit ε′ = ∞ of Hard Constraint Limit. Greater luminal spacing, together with membrane flexibility, abates or possibly nullifies this repulsion. We therefore regard thylakoid width as a rough readout of ε′. Because thylakoid width changes significantly as light conditions change, we also view ε′ as a control variable related to light intensity. Each thylakoid is roughly 10–15 nm thick, and the lumenal gap measures ∼2–7 nm, depending on light conditions (1, 2, 3).

In high light conditions, the luminal gap of the thylakoid discs widens (65,66). This geometric change should ease steric repulsion, though lumen widening is less substantial at the center of the discs than at their edges (67,68). If the light intensity is particularly high, this expansion can be accompanied by the disassembly of PSII-LHCII megacomplexes (and, to a much lesser extent, supercomplexes) en route to PSII repair (19,65,66,69,70). Although this disassembly is primarily limited to the edges of the thylakoid, we infer an overall decrease in the extent of stacking. Because PSII is subsequently shuttled to the stroma for repair, we also expect a concomitant decrease in protein density. The implied low to modest values of βμ, ε′, and K suggest that high light scenarios favor the sparse disordered phase of our model.

In low light conditions, thylakoid discs are thinner, and the stromal gaps between them decrease as well (1,2), pointing to large values of ε′ and K. The low light state thus appears to be the strongest candidate for the striped phase we have described.

During state transitions, a collection of changes causes the balance of electronic excitations to shift from PSII to photosystem I (19,67,68,71,72). Among these changes, a diminution of stacking and a shift of LHCII density toward the stroma lamellae are closely related to the ordering behavior of our thylakoid model. Both result from phosphorylation of some fraction of the LHCII population, which weakens attraction between discs, prompts disassembly of a fraction of PSII-LHCII megacomplexes and supercomplexes, and allows LHCII migration toward the thylakoid margins. The corresponding reduction of βμ and K is likely to be highly organism dependent because the extent of phosphorylation varies greatly from algae to higher plants (68,71, 72, 73, 74, 75). Lacking quantitative information about thylakoid thickness, as well, it is especially difficult to correlate state transitions with the phase behavior of our model. In the case of very limited phosphorylation (as in higher plants), the ordered and sparse disordered phases both seem plausible. With extensive phosphorylation (as in algae), substantial reductions in stacking attraction and density make the ordered state unlikely.

The relationship among granum geometry, protein repulsion strength, and long-range stripe order suggests interesting opportunities for manipulating the structure and function of thylakoid membranes in vivo. By adjusting the luminal spacing, mechanical force applied to a stack of discs in the vertical direction (i.e., the direction of stacking) should serve as a handle on the steric interaction energy ε′. The phase behavior of our model suggests that smooth changes in force can induce very sharp changes in density, protein patterning, and stack height. (67) demonstrates a capability to manipulate thylakoids in this way and could serve as a platform for testing the realism of our lattice model. Complementary changes in attraction strength might be achieved by controlling salt concentration, a strategy used in (11) to examine the influence of stacking interactions on lateral ordering of proteins in a pair of thylakoid discs.

Conclusion

The computer simulations and analysis we have presented establish that ordered stripes of protein density, coherently modulated from the bottom to the top of a granum stack, can arise from a very basic and plausible set of ingredients. Most important is the alternation of attraction and repulsion in the vertical direction, a feature that is strongly suggested by the geometry of thylakoid membranes. Provided the scales of these competing interactions are both substantial, a striped state with long-range order will dominate at moderate density. Under conditions accessible by computer simulation, the striping transition is continuous, with critical scaling equivalent to an Ising model or standard lattice gas. Mean-field analysis suggests that the transition becomes first order for strong attraction, switching sharply between macroscopic states but lacking the macroscopic fluctuations of a system near criticality.

Simple mechanisms for highly cooperative switching have been proposed and exploited in many biophysical contexts (49,50), including the lateral arrangement of proteins in photosynthetic membranes (3,7,11,19,65,67,69,71, 72, 73,75). We suggest that vertical ordering in stacks of such membranes can be a complementary mode of collective rearrangement with important functional consequences.
