Reconfigurable MRI technology for low-SAR imaging of deep brain stimulation at 3T: Application in bilateral leads, fully-implanted systems, and surgically modified lead trajectories

Abstract

Patients with deep brain stimulation devices highly benefit from postoperative MRI exams, however MRI is not readily accessible to these patients due to safety risks associated with RF heating of the implants. Recently we introduced a patient-adjustable reconfigurable coil technology that substantially reduced local SAR at tips of single isolated DBS leads during MRI at 1.5 T in 9 realistic patient models. This contribution extends our work to higher fields by demonstrating the feasibility of scaling the technology to 3T and assessing its performance in patients with bilateral leads as well as fully implanted systems. We developed patient-derived models of bilateral DBS leads and fully implanted DBS systems from postoperative CT images of 13 patients and performed finite element simulations to calculate SAR amplification at electrode contacts during MRI with a reconfigurable rotating coil at 3T. Compared to a conventional quadrature body coil, the reconfigurable coil system reduced the SAR on average by 83% for unilateral leads and by 59% for bilateral leads. A simple surgical modification in trajectory of implanted leads was demonstrated to increase the SAR reduction efficiency of the rotating coil to >90% in a patient with a fully implanted bilateral DBS system. Thermal analysis of temperature-rise around electrode contacts during typical brain exams showed a 15-fold heating reduction using the rotating coil, generating <1°C temperature rise during ~4-min imaging with high-SAR sequences where a conventional CP coil generated >10°C temperature rise in the tissue for the same flip angle.

1. Introduction

Deep brain stimulation (DBS) is an FDA-approved neurostimulation procedure treating drug resistant Parkinson’s disease (PD), essential tremor (ET), and dystonia (Flora et al., 2010; Hubble et al., 1996; Blomstedt et al., 2007; Kumar et al., 1999; Ostrem and Starr, 2008), with applications rapidly expanding to neuropathic pain (Owen et al., 2007; Boccard et al., 2012), obsessive compulsive disorder (Gabriels et al., 2003; Greenberget al, 2008), epilepsy (Boonet al, 2007), and Alzheimer’s disease (Laxton and Lozano, 2013). Although decades have passed since the inception of DBS and its clinical applications have grown exponentially, its biophysical mechanisms remain unclear. Uncertainties remain about which circuits are affected, which exact neural populations need to be targeted, and the most efficacious stimulation protocol (Lozanoet al, 2019). There is a consensus that meticulous use of neuroimaging, both for target verification and for postoperative monitoring of functional changes induced in the affected brain networks can help interpreting clinical outcomes and design enhanced therapeutic protocols (Williams et al., 2014; Cui and Ling, 2016). Due to its excellent soft tissue contrast and non-invasive nature, magnetic resonance imaging (MRI) is excellently poised to answer open questions regarding DBS mechanism and targeting. Unfortunately, the interaction of radiofrequency (RF) fields of MRI scanners and implanted leads results in safety hazards that limit postoperative accessibility of MRI to these patients (Rezaiet al, 2005; Rezaiet al, 2004). Today, MRI of DBS patients is limited to MR-conditional devices which require pulse sequences with a whole-head SAR of 0.1 W/kg (30 times below the FDA limit for imaging in the absence of conductive implants) and 3T systems are absolutely contraindicated (Medtronic, 2015; Jude Medical, 2018). This excludes sequences that are essential to rule out complications (e.g., diffusion and T2-weighted imaging to detect stroke and hemorrhage), state-of-the-art fast imaging techniques that have become an integral part of functional studies (e.g., simultaneous multi-slice imaging (Feinberg and Setsompop, 2013)), and novel high-precision electrode localization methods (e.g., zero-TE phase imaging (Ramani et al., 2018)).

The phenomenology of RF heating in the presence of conductive implants in the MRI environment has been studied extensively (Nitz et al., 2001; Park et al., 2007; Yeung et al., 2002; Buchli et al., 1988; Chou et al., 1997; Golestaniradet al, 2019a). The consensus is that the tangential component of the electric field (E_tan) along the length of elongated conductive implants acts as a local voltage source generating RF currents on the leads. When these currents are dissipated in the tissue at the exposed tip of the lead, local SAR amplification and temperature rise will occur which can damage the tissue. The past few years have witnessed a spike in feasibility studies investigating the applicability of parallel transmit methodologies to reduce the SAR during DBS MRI (McElcheran et al., 2015; McElcheran et al., 2017a; Eryaman et al., 2011; Eryamanet al, 2014; Wei et al., 2018; McElcheran et al., 2016; McElcheranet al, 2017; McElcheranet al, 2019), although such techniques have not been implemented in clinical settings yet. Recently, we introduced the concept of patient-adjustable reconfigurable MRI technology for DBS imaging at 1.5 T. The system is based on a mechanically rotating transmitter which steers a zero-electric field onto the electgrode, then images with a high SNR close-fitting receive array (Golestaniradet al, 2016; Golestaniradet al, 2017; Golestaniradet al., 2017). Numerical simulations with realistic models of single isolated DBS leads demonstrated virtual elimination of SAR amplification around electrode contacts in nine patient models (Golestaniradet al, 2017). With promising preliminary results at 1.5T, substantial interest has arisen toward scaling the technology to higher fields where imaging can render significant benefits. The present work sets the ground for the advancement of the reconfigurable MRI technology to 3T. We assess the scalability of the system for imaging at 127 MHz, evaluate its performance in patients with bilateral implants and fully implanted systems, and report for the first time, the result of modifications in the DBS surgical procedure that enhances the subsequent performance of the new coil. Finally, we discuss benefits of the technology in terms of possibility of using pulse sequences currently not accessible to DBS patients due to their high SAR.

Below is a brief description of motivations and novel contributions of this work.

1.1. Is reconfigurable MRI technology scalable to 3T?

Recent studies have demonstrated the feasibility of using a rotating transmit coil to reduce the SAR during MRI of DBS patients at 1.5T (Golestaniradet al, 2016; Golestaniradet al, 2017; Golestaniradet al., 2017). There is however, a strong incentive toward DBS imaging at 3T for target verification and ruling out complications. This is because 1.5 T MRI consistently underestimates the anterior and lateral boundaries of subthalamic nucleus and globus pallidus (DBS main target nuclei) compared to 3T fast gray matter T1 inversion recovery acquisitions (Kerl et al., 2012), and a clear delineation between healthy and diseased tissue that allows detection of intracranial hemorrhage is better achieved at 3T. As the reconfigurable coil works by steering a low E-field region of the transmit coil such that it maximally contains the implant trajectory, question arises as whether this low E-field region is “thick” enough at 3T to fully contain realistic leads trajectories. This is especially important considering that DBS leads have complex trajectories with substantially out-of-plane segments, and that the spatial homogeneity of MRI RF fields is reduced at higher frequencies.

1.2. Applicability to bilateral leads

To date, studies that have investigated shaping or steering of MRI electric fields to reduce the SAR during DBS imaging have focused on single (unilateral) implants (McElcheran et al., 2015; Eryamanet al, 2014; Wei et al., 2018; McElcheran et al., 2016; McElcheranet al, 2017; McElcheran et al., 2014; Eryamanet al, 2019). In practice however, most patients with Parkinson’s disease undergo bilateral lead implantation (Ondo et al., 2001) and 52% of patients with essential tremor who originally receive unilateral DBS eventually need bilateral stimulation (Tabaet al, 2010). In the context of reconfigurable MRI, the optimal coil rotation angle to minimize the SAR depends on individual lead trajectories (Golestaniradet al, 2017) meaning a rotating transmit coil has to be positioned at different angles to minimize the SAR of different leads. This raises the concern as whether the technique can ever be used in patients with bilateral implants. To our knowledge, the issue of RF heating of bilateral DBS leads has not been addressed in the context of E-field steering techniques, including techniques based on parallel transmit and dual-drive systems (McElcheran et al., 2015; Eryamanet al, 2014; Wei et al., 2018; McElcheran et al., 2016; McElcheranet al, 2017; McElcheran et al., 2014; Eryamanet al, 2019; McElcheran et al., 2017b).

1.3. Isolated leads vs fully implanted DBS systems

DBS surgery is performed in two stages. First, electrodes are implanted at specific target nuclei (e.g., subthalamic nucleus and globus pallidus for PD, ventrointermedius nucleus for ET) and the other end of the lead is tucked under scalp for later connection to the neurostimulator (Fig. 1A). MRI is useful at this stage for electrode localization and target verification (Cui and Ling, 2016). In the next step, an implantable pulse generator (IPG) is implanted in the chest or abdomen, and leads are connected to the IPG via subcutaneous extensions (Fig. 1B). Functional MRI studies that seek to disclose the neuromodulatory effect of DBS are performed on fully implanted systems (Hancuet al, 2018). To date, the performance of SAR reduction strategies based on E-field steering has been only investigated in isolated leads. It is established however that the presence, position, and configuration of the IPG has a significant effect on the RF heating (Matteiet al, 2008; Nordbecket al, 2009). Therefore, it is imperative to investigate the efficacy of field shaping techniques when applied on fully implanted DBS systems.

Fig. 1.

CT images of patients with isolated and fully implanted DBS devices. A: Patient with bilateral leads prior their connection to the implantable pulse generator (IPG). Labels “contralateral” and “ipsilateral” are with respect to the body side that the IPG is planned to be implanted later. B: A patient with a fully implanted DBS system consisting of two IPGs, two leads, and two extension cables connecting leads to the IPGs.

1.4. Surgical lead management combined with rotating coil technology

Unlike the meticulously planned intracranial trajectory of the electrode, for which almost every neurosurgeon follows textbook guidelines to determine the entry point on the skull and chose the angle of penetration to the target nuclei, there are no guidelines for the placement of extra cranial portions of the leads. Commercial DBS leads come in a series of fixed lengths at 30 cm, 40 cm and 50 cm which are longer than the distance from the surgical burr hole (where leads exists the skull) and the point where leads are connected to extensions (Fig. 1). Surgeons usually loop the leads arbitrarily on the skull to avoid positioning the excess material against soft tissue of the neck. This, causes a large variation in lead trajectories depending on surgeons’ preference and practice style. The concept of surgical lead management to reduce the risk of MRI RF heating was first introduced by Baker in phantom studies (Baker et al., 2005), suggesting the use of external guides to incorporate concentric loops in the trajectory of DBS leads to reduce RF heating during MRI at 1.5 T and 3T. These findings were later corroborated in simulation studies (Golestaniradet al., 2016) and demonstrated to be practically implementable in clinic (Golestaniradet al, 2019a). Theoretically, lead management techniques can be modified for use in combination with E-field steering techniques to augment their benefit. This work reports the first result of implementing such surgical modifications tailored to enhance the performance of reconfigurable MRI technology.

In what follows we give a brief overview of the theory and concept of reconfigurable coil technology for low-SAR DBS imaging, discuss the details of coil design, numerical simulations, and patient models; evaluate the SAR reduction performance of the coil for unilateral and bilateral DBS leads as well as fully implanted systems; introduce a surgical lead management strategy that significantly enhances performance of the rotating coil; and discuss the sensitivity of coil positioning to operational errors and electrical properties of the tissue. Finally, we investigate the temperature rise in the tissue around tips of DBS leads during eight typical MRI exams in a patient will fully implanted DBS system scanned with the body coil as well as the rotating coil in its optimum position.

2. An overview of patient-adjustable MRI coil technology

An overview of the working principle of the reconfigurable MRI coil technology is given in Fig. 2, depicting a linearly-polarized (LP) rotating birdcage transmitter loaded with a human head implanted with a patient-derived model of bilateral DBS leads. The electric field of the coil is given on a transverse plane passing through the center of the head. Such linearly-polarized birdcage transmitter has a slab-like region of low electric field which can be steered to coincide with the implant trajectory by mechanically rotating the coil around patient’s head. Fig. 2B gives the maximum of 1g-averaged SAR around tips of left and right DBS leads as the coil rotates around the patient’s head. As it can be observed, local SAR around DBS contacts can be minimized by positioning the coil at an optimum rotating angle such that the low E-field region maximally contains lead trajectories.

Fig. 2.

Overview of the working principle of the rotating coil system. A linearly polarized birdcage transmitter has a slab-like region of low electric field. The orientation of this low E-field region can be steered by mechanically rotating the coil around patient’s head. The heating of conductive wire implants can be minimized when they are maximally contained within this low field region. In this figure, the coil input power is adjusted to produce a mean ${\text{B}}_1^{+}$ =2 μT on a central axial plane passing through the head.

3. Numerical simulations: rotating coil and patient models

To assess the performance of the rotating coil system at 3T we constructed realistic lead models from postoperative computed tomography (CT) images of 13 patients implanted with bilateral DBS leads. From these, 12 patients had isolated leads and one patient had a fully implanted DBS system with bilateral IPGs. The prospective use of imaging data for simulation and modeling was approved by the IRB at our institutions. Details of image segmentation and model construction were similar to our previous work (Golestaniradet al, 2019a). The coil was a shielded 16-rung high-pass linearly-polarized birdcage transmitter with a diameter of 306 mm and a length of 236 mm, fed through a cable connected to the upper ring over a matching capacitor. The reference position for the feed (φ = 0°) was set to be in front of patient’s nose. The shield was an open solid copper cylinder with a length of 260 mm and a diameter of 365.6 mm. ANSYS Electronics Desktop 18.2 (ANSYS Inc. Canonsburg PA) was used to implement numerical simulations. The coil was tuned and matched to operate at 127 MHz using a combined finite element method and circuit analysis approach as described in previous works (Golestaniradet al, 2019a; Golestaniradet al, 2017; Golestaniradet al., 2017; Golestaniradet al., 2016; Kozlov and Turner, 2009; Golestaniradet al, 2019c).

Isolated lead models were registered to a homogeneous head phantom (ε_r = 78;σ = 0:47 S=m) that extended to the base of neck. The fully implanted system was modeled using the silhouette of the patient constructed from head and chest CT images. Fig. 3 shows patient-derived models and details of DBS contact electrodes.

Fig. 3.

Reconstructed models of DBS leads registered in a head phantom for finite element simulations. CT images of 12 patients with isolated leads and one patient with a fully implanted system were used to extract lead trajectories. Models of electrode contacts and the insulation were built around each trajectory.

For each patient model, the coil was rotated around the head with 5.625° increments and the maximum of 1g-averaged SAR was calculated around tips of left and right DBS leads in a 20 mm × 20 mm × 20 mm cubic area that surrounded all four electrode contacts (Fig. 4). SAR values were calculated based on IEEE STD P1528.4 recommendation (IEEE, 2014) using the built-in SAR calculator module in ANSYS HFSS. Although there are FDA recommended limits of 3.2 W/kg for the global head SAR, and 10 W/kg for 10g-averaged local head SAR when operating in normal mode, there is no guideline for the local SAR in presence of medical implants. It is well established however, that implant-induced RF heating is a local phenomenon that occurs in the first few millimeters of the device and dies off fast (Matteiet al, 2007). For this reason, we calculated 1g-avereaged local SAR which gives a more focal description of heating in the vicinity of DBS leads.

Fig. 4.

A: Spatial distribution of 1g-averaged SAR around DBS contact leads. The maximum of local SAR was calculated inside a cubic area surrounding all four electrode contacts. B: The spatial distribution of ${\text{B}}_1^{+}$ filed on a central axial plane. For all simulations, the input power of the coil was adjusted to produce a ${\text{B}}_1^{+}$ field with a spatial mean of 2 μT. C–D: Finite element mesh in the area surrounding the leads and on the electrode contacts. Mesh resolution was <0.7 mm in the cubic area surrounding the leads and <0.3 mm on the electrode contacts.

A fine mesh resolution was enforced in the tissue surrounding electrode contacts with the mesh size <0.7 mm. The mesh size on metallic contacts and internal wires was set to be < 0.3 mm. The computing space had ~4 million tetrahedral mesh after numerical convergence was achieved. Total computation time for each finite element simulation was ~4 h on a Dell PowerEdge R740xd system with 1.5 TB RAM and two Intel(R) Xenon(R) Gold 6140 CPUs (2.30 GHz, 18 cores).

A total of 832 simulations were performed (13 patients × 64 coil positions). To compare the SAR of linearly-polarized rotating coil with the SAR generated by a conventional circularly polarized (CP) body coil, we simulated a typical 3T high-pass birdcage coil with dimensions given in the literature (Yeo et al., 2011). To properly load the body coil, we registered isolated DBS leads into a homogeneous head and torso phantom that extended to the upper chest. Details of the body coil’s geometry, head and torso phantom, and positioning of patient-derived DBS lead models in the body coil are given in the Supplement Fig. S1. For all simulations, the input power of the coils was adjusted to produce a ${\text{B}}_{\text{1}}^{\text{+}}$ on a central axial plane with a spatial mean of 2 μT.

4. SAR reduction performance

Fig. 5 (solid lines) gives the maximum of 1g-averaged SAR (Max1g-SAR) around tips of right and left DBS electrodes for a full range of coil rotation angles. The Max1gSAR generated in the tissue by the body coil is also given for comparison (dashed-lines). For 11 patients, including the one with the fully-implanted system, we could find an optimum coil rotation angle that reduced the SAR at tips of both leads to a level below the Max1gSAR generated by the coil operated in CP mode.

Fig. 5.

The maximum of 1g-averaged SAR calculated around tips of left and right DBS leads as a function of rotating coil angle φ°(solid lines). The input power of the coil is adjusted to generate a mean ${\text{B}}_1^{+}$ = 2μT on a central axial plane. The maximum of 1g-averaged SAR is also given for the body coil generating the same mean ${\text{B}}_1^{+}$ = 2μT (dashed-lines).

4.1. SAR reduction for unilateral leads

To quantify the SAR-reduction performance of the coil we defined a metric called SAR-reduction efficiency (SRE) for each lead and at each coil rotation angle as:

$${\mathrm{SRE}}_{\text{Uni},\text{n},\text{i}}(\text{φ})=100\frac{\mathrm{Max}1{\text{gSAR}}_{\text{CP},\text{n},\text{i}}-\mathrm{Max}1\text{gSAR}{(\text{φ})}_{\text{LP},\text{n},\text{i}}}{\mathrm{Max}1{\text{gSAR}}_{\text{CP},\text{n},\text{i}}}$$

where Max1gSAR_CP,n,i is the maximum of 1g-averaged SAR at the tip of lead i (i = right, left) in patient n generated by the CP body coil, and Max1gSAR(φ)_LP,n,i is the maximum of 1g-averaged SAR at the tip of lead i in patient n generated by linearly-polarized rotating coil positioned at angle φ.

When considering each lead alone, an average SRE of 83.06% ± 12.38% was achieved over all 26 leads. The unilateral SRE was positive for all leads, meaning that we could always find a rotating position that reduced the SAR at the tip of a unilateral lead to a value below the SAR generated by the body coil. As expected, the optimum coil rotation angle that minimized the SAR was different for each lead, emphasizing the importance of taking realistic trajectories into account (Greenberget al, 2008; Boonet al, 2007; Laxton and Lozano, 2013).

Fig. 5 also demonstrates the periodic nature of the SAR profile exhibiting two minima as the coil rotates a full circle. The mean value of the first optimum rotation angle was 73.99° ± 41.65° averaged over all leads. From the practical point of view, this means that constructing the coil housing such that allows 180 rotational maneuverability around a default feed position at 73.99° will be sufficient to cover most typical DBS cases.

4.2. SAR reduction for bilateral leads

A bilateral SAR reduction metric can be defined as:

$${\mathrm{SRE}}_{\text{Bi},\text{n}}(\text{φ})=100\frac{\mathrm{Max}1{\text{gSAR}}_{\text{CP},\text{n}}-\mathrm{Max}1\text{gSAR}{(\text{φ})}_{\text{LP},\text{n}}}{\mathrm{Max}1{\text{gSAR}}_{\text{CP},\text{n}}}$$

where the Max1gSAR_CP/LP,n is the maximum of 1g-averaged SAR in the tissue of patient n at whichever lead that produces the higher SAR. When considering both leads, an average bilateral SRE of 59% ± 38% was achieved over all patients. Table 1 gives the values of the maximum of SRE_Uni,n,i and SRE_Bi,n for each patient and their corresponding optimum coil rotating angles.

Table 1:

Maximum of unilateral and bilateral SAR Reduction Efficiency (SREn,i and SREnb) for each patient and their corresponding optimum coil rotating angles.

Patients	Coil angle (°)	SRERight-lead (%)	Coil angle (°)	SRELeft-lead (%)	Coil angle (°)	SREBilateral (%)
ID1	124	98	101	69	124	97
ID2	90	67	39	47	56	−18
ID3	101	95	113	79	113	86
ID4	107	83	169	72	124	22
ID5	56	84	62	96	56	94
ID6	169	70	90	92	68	−15
ID7	34	77	39	89	39	89
ID8	17	90	62	96	45	49
ID9	6	94	39	92	28	52
ID10	62	67	68	81	68	81
ID11	62	84	51	88	51	88
ID12	23	78	45	76	39	71
ID13	79	98	118	97	101	70
Mean	71	83	77	83	70	59
Standard deviation	45	11	38	14	32	38

5. Surgical lead management to enhance the performance of reconfigurable coil

The feasibility and effectiveness of surgeon-initiated improvements in the routing of DBS leads to mitigate the risk of MRI-induced RF heating has been recently brought into attention by our group (Golestaniradet al, 2019a). Regarding the reconfigurable coil technology, one can think of implementing similar surgical strategies that ensure optimal performance of the rotating coil for bilateral leads. This can be achieved by implementing a few modifications. First, incorporating concentric loops close to the surgical bur hole will further reduce the SAR amplification at tips of both left and right leads through cancelation of induced voltages as described in our previous work (Golestaniradet al, 2019a). Second, aligning and overlapping the trajectories of right and left leads and extension cables will allow the rotating coil to maximally contain both leads in its low E field region and thus minimizing the SAR at tips of both implants simultaneously. In cases where two IPGs are implanted bilaterally to stimulate left and right leads separately, this can be done by careful planning to assure both leads, extensions, and IPGs are positioned into the same coronal plane. In the case where a single double-channel IPG is implanted unilaterally to stimulate both leads, this can be done much easier by overlapping extension cables.

To assess the feasibility of implementing surgically modified lead trajectories, we implanted a 74-year-old female PD patient operated for STN DBS with a dual channel IPG (Medtronic ACTIVA PC, Medtronic Inc., Minneapolis MN) stimulating both left and right leads. To guide the lead trajectory, we used curved mayo scissors passed posterior and to the left of the incision. The blades of the scissors were then opened to their widest to create a pocket for a coiled lead to be inserted (Fig. 6). The lead was looped into 2–3 concentric circles at the burr-hole and the rest of the lead was passed toward the temporal lobe where it would be later connected to the extension. The IPG was implanted in the left pectoralis (Fig. 7). Lead and extension trajectories were aligned and overlapped as shown in Fig. 7. A head and chest CT image of the patient was acquired after the full system was implanted and lead and extension trajectories were extracted from the image for model construction and simulations similar to previous patients.

Fig. 6.

A: curved mayo scissors with blades opened to the max were used to create a pocket for the looped leads to be inserted. B: Leads were looped 2–3 turns concentrically and placed on top of the surgical burr hole. A video demonstrating forming and positioning of the loop is given in the supplementary material.

Fig. 7.

Postoperative CT image of a patient implanted with bilateral DBS leads connected to a double-channel pulse generator implanted in the right pectoral region. Concentric loops were incorporated into lead trajectories at the surgical burr hole following the technique described in (Golestaniradet al, 2019a). The rest of the lead trajectories and extension cables were aligned and overlapped to follow the same path. A model of the patient’s silhouette and the fully implanted device was constructed based on the CT image for finite element simulations.

Fig. 8 gives the maximum of 1g-averaged SAR at the tips of left and right DBS leads as a function of coil’s rotation angle. The SAR values generated by the body coil are also given for comparison. As expected, when lead trajectories are surgically overlapped, the SAR profile of left and right leads vary in phase. A maximum bilateral SRE of 95% could be achieved in this case for the coil positioned at φ = 95:625°.

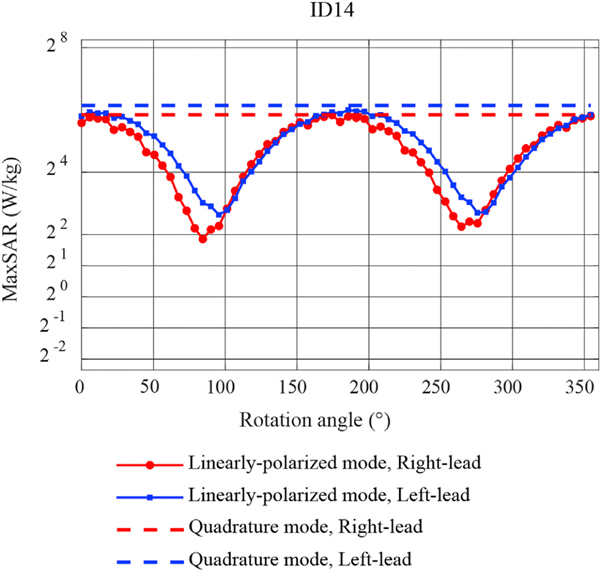

Fig. 8.

The maximum of 1g-averaged SAR calculated around tips of left and right DBS leads of patient #14 as a function of rotating coil angle φ° (solid lines). The input power of the coil is adjusted to generate a mean ${\text{B}}_1^{+}$ = 2μT on a central axial plane. The maximum of 1g-averaged SAR is also given for the body coil generating the same B1⁺ (dashed-lines). As expected, when lead trajectories are overlapped the SAR profiles of right and left leads vary very similarly as a function of coil rotation angle. This significantly enhances bilateral SAR reduction by allowing simultaneous SAR minimization at tips of both leads at a common optimum angle.

6. Sensitivity to operational errors

From Fig. 5 it can be observed that large deviations from coil’s optimal angle generate a SAR that is higher than the SAR produced by the body coil (when normalized to the same ${\text{B}}_{\text{1}}^{\text{+}}$). This has important safety implications considering both operational errors and uncertainties in determining the optimum angle. To assess the sensitivity of SAR to deviation of the coil from its optimal position we defined a metric called permissible rotation range (PRR) as the maximum deviation from the optimal position in either direction that increased the SAR to the level produced by the CP coil:

$${\text{PRR}}_{\text{i}}=|{\text{φ}}_{\text{i},\text{opt}}-{\text{φ}}_{\text{i},\text{CP}}|.$$

where φ_i,opt is the optimum angle for lead i and φ_i,CP is the angle that produces the SAR equal to the SAR generated by the CP coil. PRR was 20.16° ± 12.78° averaged over leads. For a coil constructed such that it allows rotational increments of 5° (which is practical) the PRR will be at least 4 times larger than coil’s rotation resolution.

7. Effect of electrical properties of the tissue on optimal coil position

A possible approach to determine the optimal position of the coil for individual patients is to perform simulations on patient-derived models of implanted device to determine the coil position that minimizes the SAR for each individual. If such simulation approach is adopted, it will be important to evaluate the sensitivity of coil’s positioning to electrical properties of the body model. To assess this, we repeated simulations in two cases with (a) a patient with isolated bilateral leads (ID5, Fig. 3) and (b) the patient with fully-implanted system and a double-channel unilateral IPG (ID14, Fig. 6), with a range of low to high tissue conductivities covering the limits reported in the literature (0.2 S/m-0.65 S/m). Fig. S2 of supplemental material gives the result of Max1gSAR as a function of coil rotating angle for each tissue conductivity. As expected, the absolute value of the SAR changed by varying the conductivity of the tissue. However, the position of coil’s optimum angle was insensitive to the electrical properties of body model (<1° change).

8. Temperature rise in the tissue during typical clinical scans

Although local SAR has been widely used as a surrogate to predict the severity of RF heating during MRI, temperature rise in the tissue (ΔT) is the ultimate measure of RF safety that dictates the limits. To have an estimate of rotating coil’s performance in terms of reducing the temperature rise in tissue we calculated ΔT around tips of left and right leads in patient 14 during eight typical MRI exams. Simulations were performed for the rotating coil positioned at its optimum angle as well as the scanner’s built-in body coil, where the input power to both coils was adjusted to produce the same flip angle on a central axial plane passing through the head. Table 2 gives the sequences and their parameters. Combined electromagnetic-thermal simulation were performed as described in our previous work (Golestaniradet al, 2019c). Scan parameters of Table 2 are based on typical clinical sequences on a Siemens 3 T Skyra system that we routinely use in our center. Thermal simulations were performed using the transient thermal analyses solver of ANSYS Mechanical (ANSYS Inc., Canonsburg, PA) which solves the Penne bio heat equation:

$$\text{cρ}\frac{\partial \text{T}}{\partial \text{t}}-\nabla \text{k}\nabla \text{T}=\text{ρ}(\text{SAR})$$ (2)

Table 2:

Sequences and scan parameters used in typical brain exams and in thermal simulations. Here TR refers to repetition time, TE to echo time, WE to bandwidth, FOV to field of view, FA to flip angle, and ST to slice thickness.

Index	Sequence	TR (ms)	TE (ms)	FOV (cm)	B1+ (uT)	Acq. Time	ΔT[°C] Body coil/LP coil
1	Localizer	8.6	4	250	0.4	0:13	<0.1°/<0.1°
2	AX T1 TSE	486	13	200	2.4	2:46	6.9°/0.3°
3	AX T2 TSE	4500	83	240	2.8	3:47	10.8°/0.7°
4	AX FLAIR	9000	81	220	1.7	2:44	2.2°/0.2°
5	AX CISS	8.21	3.81	180	2.4	5:30	8.0°/0.4°
6	AX 3D TOF	21	3.43	200	2.3	5:52	7.1°/0.5°
7	Diffusion	6600	99	220	1.3	1:54	2.0°/0.1°
8	fMRI	2020	20	170	0.9	8:33	1.3°/<0.1°

where c is the specific heat capacity of the tissue (4150 Jkg-1C-1 W/m/C (Cheng and Plewes, 2002)), k is the isotropic thermal conductivity (0.42 W/m-1C-1 (Cheng and Plewes, 2002)), ρ is the density (1000 kg/m3), and T is the temperature. The initial body temperature was set to 37°C. ΔT in the tissue generated by the rotating coil in its optimum angle remained below 1°C for all imaging sequences whereas temperature increases as high as 10.8°C was reached during imaging with the body coil.

9. Discussion and conclusion

A significant obstacle to develop and test hypotheses on the mechanism of action of DBS is the lack of a quantitative understanding of the extent and influence of the stimulation on the neural elements involved. Much of the scientific effort to address this question has focused on the cellular effects of stimulation near the electrode (Butson and McIntyre, 2006; Chaturvedi et al., 2010; Grill, 2001; McIntyre et al., 2004a; McIntyre et al., 2004b; Miocinovicet al, 2006; Golestaniradet al., 2013; Golestaniradet al., 2012; Golestaniradet al, 2018). While this interesting question continues to be explored, it is proposed that it may not be the fundamental issue underlying the therapeutic mechanisms of DBS, and that changes in the underlying dynamics of the stimulated brain networks may represent the intervention’s core effect (McIntyre and Hahn, 2010). When investigating the neuromodulatory effects of DBS, neuroimaging studies have largely used either positron emission tomography (PET) or single photon emission tomography (Geday et al., 2009; Ciliaet al, 2009). MRI has clear advantages to both of these techniques due to its excellent soft-tissue contrast, easy access, non-invasive nature, and the richness of the post-processing analytical methods that are available to use. Present MRI technology however, is limited in its post-operative applicability for DBS patients due to safety risks.

In the past few years, manufacturers of electronic implantable medical devices have largely reduced the use of ferromagnetic components to diminish the risk of device dislodgement due to static magnetic fields. Device programming has been also significantly enhanced to minimize the risk of malfunction due to interference from gradient fields. RF heating however, remains a major challenge. Although some manufacturers have relaxed their guidelines to allow the use of body coils which was previously prohibited, major practical challenges are virtually unaffected as stringent power monitoring remains in place (new guidelines limit the maximum rms of ${\text{B}}_1^{+}$ field to 2 μT and in cases where the scanner does not report the B field, the more conservative whole-head SAR limit of 0.1 W/kg should be applied). Considerable effort has been dedicated to understand and control safety risks by characterizing the problem of RF heating accounting for factors such as lead configuration (Rezaiet al, 2004; Baker et al., 2005; Golestaniradet al., 2016; Shrivastavaet al, 2010), position with respect to MRI RF coil (Nitz et al., 2001; Matteiet al, 2008; Golestaniradet al, 2019c) and lead material (Golestaniradet al, 2019b; Serano et al., 2015). There is however, a consensus that MRI RF safety is a complex phenomenon with a plethora of inter-playing factors. As such, it should be tackled from different fronts, meaning that efforts in designing MR-compatible leads, novel DBS-friendly MRI coils, and surgical lead management should be combined together to mitigate the risks effectively.

Recently we introduced the concept of reconfigurable MRI coil technology for low-SAR imaging of patients with DBS implants at 1.5 T. In this work we demonstrated the feasibility of advancing the technology to 3T where MRI can render major benefits, and for the first time assessed the possibility of including patients with bilateral leads and fully implanted systems which are most common practices.

9.1. Inter-subject variability of implanted lead trajectories and the role of surgical planning

During the past 5 years we have examined postoperative CT images of more than 120 patients with DBS leads for numerical simulations assessing the SAR. These patients have been operated at three different centers in Massachusetts General Hospital, Albany Medical Center and Northwestern Memorial Hospital, and by at least four different neuro-surgeons. A striking observation was the substantial patient-to-patient variation in the trajectory of extra cranial portion of the leads (see Fig. 3). Unlike the meticulously planned intracranial trajectory of the electrode, for which almost every neurosurgeon follows textbook guidelines to determine the entry point on the skull and chose the angle of penetration to the target nuclei, there are no guidelines for the placement of extra cranial portions of the leads. This causes a large variation in lead trajectories depending on surgeons’ preference and practice style. In the context of rotating coil technology, such variation poses a problem for simultaneous reduction of the SAR at tips of bilateral leads as it can be observed from Fig. 5. In cases where left and right leads have non-overlapping trajectories, the optimum rotation angle that minimizes the SAR for one lead could be far from optimum for the other lead. A relatively simple surgical modification can address this problem by aligning and overlapping trajectories of left and right leads and extension cables. This work demonstrated the first results of such modification implemented in a patient who was implanted with a bilateral lead system. The bilateral SAR Reduction Efficiency (SRE) of the coil was substantially higher for the patient with modified lead trajectories compared to the average in patients who were operated without any specific instruction (95% vs 59%). An interesting observation was that the SAR generated by the rotating coil at all rotation angles was always lower than the SAR generated by the body coil in the patient with modified DBS trajectory. This is a significant result as it suggests surgical modifications can significantly reduce the risks associates with operational errors when the rotating coil is used on patients. In general, rotating head coil significantly outperformed the body coil in patients with fully-implanted systems (ID13 and ID14) which was predictable considering a substantial portion of the DBS device will be outside of head coil’s field of view.

9.2. Limitations of DBS MRI in clinical settings

Currently Abbott (Abbott Laboratories, Chicago IL) is the only manufacturer of MR-conditional directional DBS leads that allow for current steering and selective target stimulation for which postoperative fMRI will provide invaluable information on the mechanism of action of stimulation. MRI labeling of Abbott DBS systems limits the ${\text{B}}_1^{+}$ to 1.3 μT for fully implanted systems. From Table 2 it can be observed that this value is well exceeded in many typical MRI brain exams. For example, running a T2-weighted turbo spin echo sequence which is the gold standard protocol for stroke diagnosis produced 10.8° temperature rise when the body coil was used, whereas the rotating head coil generated <1° heating. Other useful but high-SAR sequences are time of flight angiography and constructive interference in steady state (CISS) MRI. CISS MRI in particular, is widely used in evaluation of the cranial nerves, CSF rhinorrhea and aqueduct stenosis (Hingwala et al., 2011). Both sequences generated >7° temperature rise in simulations with the body coil and <0.5° heating when the rotating coil was used in its optimum angle. It is important to note that although our simulations were performed using simplified DBS lead models which does not reflect the actual temperature rise of the commercial device, they still give a fair comparative view of RF heating generated by MRI body coil and the rotating coil system.

This work presents a feasibility study to scale the reconfigurable MRI coil technology for low SAR imaging of DBS patients at 3T. We performed finite element simulations using patient-derived models of DBS systems with realistic device configurations. Both isolated leads and fully implanted systems were evaluated. A total of 832 simulations were performed to evaluate the SAR reduction performance of a rotating 3T head coil currently under construction in our lab. Our results showed a promising SAR reduction efficiency of >80% for unilateral leads and >59% for bilateral leads. A simple surgical modification in implantation of DBS leads boosted the coil’s SAR reduction efficiency to >90%, leading to a 15-fold reduction in temperature rise in the tissue during typical MRI exams compared to a CP body coil. Our results suggest that the reconfigurable MRI technology offers a promising solution to the problem of RF safety of deep brain stimulation implants at 3T.

10. Disclaimer

The mention of commercial products, their sources, or their use in connection with material reported herein is not to be construed as either an actual or implied endorsement of such products by the Department of Health and Human Services.
