A CTGF-YAP Regulatory Pathway Is Essential for Angiogenesis and Barriergenesis in the Retina

Summary

Connective tissue growth factor (CTGF) or cellular communication network 2 (CCN2) is a matricellular protein essential for normal embryonic development and tissue repair. CTGF exhibits cell- and context-dependent activities, but CTGF function in vascular development and barrier function is unknown. We show that endothelial cells (ECs) are one of the major cellular sources of CTGF in the developing and adult retinal vasculature. Mice lacking CTGF expression either globally or specifically in ECs exhibit impaired vascular cell growth and morphogenesis and blood barrier breakdown. The global molecular signature of CTGF includes cytoskeletal and extracellular matrix protein, growth factor, and transcriptional co-regulator genes such as yes-associated protein (YAP). YAP, itself a transcriptional activator of CTGF, mediates several CTGF-controlled angiogenic and barriergenic transcriptional programs. Re-expression of YAP rescues, at least partially, angiogenesis and barriergenesis in CTGF mutant mouse retinas. Thus, the CTGF-YAP regulatory loop is integral to retinal vascular development and barrier function.

Graphical Abstract

Highlights

• •CTGF has a strong and persistent expression in the retinal vasculature
• •Mice lacking CTGF exhibit defects in angiogenesis and blood barrier integrity
• •CTGF-targeted genes include matrix, growth, and transcription co-factors like YAP
• •YAP re-expression partly rescues angiogenic and barriergenic defects of CTGF loss

Molecular Biology; Cell Biology; Transcriptomics

Introduction

Functional vascular networks form as a result of a well-coordinated series of angiogenic events regulating endothelial cell (EC) proliferation, differentiation, polarization, and gene programming to produce stable tubular structures with specific barrier properties (Chow and Gu, 2015, Zhao et al., 2015). In the retina, angiogenesis occurs during postnatal stages when ECs from the brain invade the optic nerve, emerge from it, and spread over and within the retinal neuroepithelium (Fruttiger, 2007). This angiogenic process is coordinated with the simultaneous formation of a blood-retinal barrier wherein the paracellular permeability between adjacent ECs and transcellular transport across ECs are tightly regulated by junctional protein complexes and transporter proteins, respectively (van der Wijk et al., 2019). Cells within the cohesive vascular wall have cadherin-based adhesions at cell-cell junctions and integrin-based focal adhesions to cell-extracellular matrix (ECM) contacts. ECM proteins, in particular, form a network of fibrillary and fibrous proteins and glycans that are critical for all aspects of vascular growth and regeneration (Bishop, 2015). ECM proteins provide both anchorage points to the cells and chemical cues for directional migration, morphogenesis, and stability. In addition, EC-ECM interactions contribute to the acquisition of EC barrier properties appropriate for the nervous system (Scott et al., 2010, Segarra et al., 2018). However, the diversity of both the matrisome components (which constitute >1% of the proteome) and the mechanisms controlling the synthesis, composition, and remodeling of ECM proteins is suggestive of an intricate level of complexity for the control of angiogenesis and barriergenesis (Bou-Gharios et al., 2004).

Connective tissue growth factor (CTGF) is a candidate ECM protein whose precise function in the vascular matrix is largely unknown. CTGF was originally isolated by differential screening of cDNA libraries prepared from HUVECs and NIH 3T3 fibroblasts (Ryseck et al., 1991). The protein was named CTGF because of its mitogenic activity vis-à-vis fibroblasts and cultured ECs. CTGF is also referred to as cellular communication network 2 (CCN2) by virtue of its multimodular and structural analogy to the CCN family of proteins (Krupska et al., 2015, Perbal et al., 2018). The primary CTGF translational product is a ∼40-kDa protein that contains 38 conserved cysteine residues dispersed throughout four distinct structural modules. CTGF elicits its biological activities through binding to various cell surface receptors including integrin receptors, cell surface heparan sulfate proteoglycans (HSPGs), low-density lipoprotein receptor-related proteins (LRPs), and TrkA in a cell type- and context-dependent manner (Gao and Brigstock, 2004, Lau, 2016). It was suggested that such interactions enable CTGF to regulate a variety of cellular functions including cell adhesion, proliferation, migration, differentiation, survival, and ECM synthesis. In addition, in vitro assays showed that the CTGF N-terminal and C-terminal moieties interact with glycoproteins, proteoglycans, growth factors, and proteases, although the in vivo significance of such interactions is not well understood (Dean et al., 2007, Hashimoto et al., 2002, Inoki et al., 2002, Pi et al., 2011). Global CTGF deficiency in mice demonstrated the importance of CTGF in cardiovascular and skeletal development, as CTGF-null mice exhibited defects in basic lung development and failed thoracic expansion, leading to perinatal lethality (Ivkovic et al., 2003). Although no overt vascular alterations were observed in CTGF-deficient mice during the initial formation of the primitive blood vessels, deficiencies in the endocrine cell lineage and reduced growth plate angiogenesis were noted. In adults, CTGF plays an important role in wound repair and CTGF protein levels correlate with many vascular and inflammatory diseases such as arthritis, diabetic nephropathy, and retinopathy (Chintala et al., 2012, Leask et al., 2002, Nguyen et al., 2008, Praidou et al., 2010, Tang et al., 2018). In a rat model of glomerulonephritis, CTGF levels were elevated in areas of crescentic extracapillary proliferation, periglomerular fibrosis, and interstitial foci (Gupta et al., 2000, Toda et al., 2017). Although these in vivo studies suggested a potentially important role of CTGF in physiological and pathological angiogenesis, the specific mechanisms whereby CTGF regulates blood vessel development and function remain to be investigated.

Here we provide the first evidence that CTGF directly regulates retinal tissue vascularization and blood barrier integrity. We show that the loss of CTGF function impairs a genetic angiogenic program involved in vessel sprout morphogenesis and branching and barrier integrity. We further provide data about exemplar CTGF target genes such as yes-associated protein (YAP), which when re-expressed in the vasculature, rescues, at least in part, transcriptional programs associated with CTGF deficiency. Our results shed light on the genetic landscape responsible for CTGF-dependent regulation of proper vessel formation and function.

Results

Expression and Cellular Localization of CTGF in the Postnatal and Adult Retinal Vasculature

The retina is a complex neurovascular tissue organized into three cellular and two synaptic layers supported by a tripartite intraretinal vascular network. In mice, the retina is supported by three interconnected vascular layers that develop postnatally, making this model particularly useful for assessing the roles of genes potentially relevant to human vascular development and function (Lee et al., 2017). To determine the expression pattern and cellular sources of CTGF during retinal vessel development, we used a CTGF:GFP bacterial artificial chromosome transgenic mouse line in which the green fluorescent protein (GFP) reporter gene was placed downstream of a large CTGF promoter segment (>100 kb). Both endogenous CTGF and GFP transcript levels increased progressively as the superficial and deeper capillary plexuses invested the retina (Figure 1A). The dynamic CTGF:GFP expression pattern, which recapitulates endogenous CTGF transcript levels, suggests that the CTGF promoter-GFP reporter transgene contains the relevant cis-regulatory elements that regulate the CTGF gene in vivo. Similarly, CTGF protein levels progressively increased during retinal vessel development and plateaued during adult life (Figures 1B and 1C), indicating a constitutive expression of CTGF in the retinal tissue. We further examined the cellular sources of the CTGF:GFP signal in retinal flat mounts at P2, P6, and P28. As shown in Figure 1D, the reporter expression was found mainly in the expanding endothelial network stained with isolectin B4 (IB4) at P2 and P6 and persisted throughout the postnatal and adult periods. Further detailed analysis revealed a robust expression of CTGF in the ECs of the sprouting primary capillary plexus (Figure 1E). Endothelial tip cells with their filopodial extensions exhibited little or no CTGF:GFP signal (Figure 1F), whereas the trailing stalk ECs showed a strong CTGF:GFP signal indicating that CTGF potentially regulates stalk cell function including proliferation, lumenization, and stabilization. In addition, as the vascular tree developed, the CTGF:GFP signal spread into neuron-glial 2 (NG2)-positive mural cells (i.e., pericytes) of small and large vessels. In the retina, despite their small caliber, differences in vessel diameter distinguish arteries/arterioles and veins/venules. NG2-positive mural cells of the retinal arteries and capillaries (Figure S1A) expressed the CTGF:GFP signal (Figure 1G). The larger veins similarly expressed the CTGF:GFP signal in their mural NG2-negative desmin-positive cells, but little to no CTGF expression appeared in venous ECs (Figure S1B). Moreover, detailed analysis of tissue cross sections revealed the CTGF:GFP signal in glutamine synthase (GS)⁺ Müller cells and Iba-1⁺ microglia, particularly those of the inner layer (Figures S1C and S1D). Expression of CTGF was not associated with astrocytes (data not shown), even though these cells are a major source of vascular endothelial growth factor (VEGF), a bona fide regulator of CTGF expression in cultured cells (Asano et al., 2019, Nakamura-Ishizu et al., 2012, Suzuma et al., 2000). The brain vasculature, which is similar in its complexity and properties to the retinal vasculature, exhibited a strong expression of the CTGF:GFP marker as well (Figure S1E). Thus, CTGF exhibits heterogeneous and spatiotemporal expression patterns during vessel morphogenesis and a sustained expression in the adult vasculature of the central nervous system.

Figure 1.

Expression and Cellular Localization of CTGF in the Postnatal and Adult Retinal Vasculature

(A) Analysis of CTGF and GFP transcript levels in the CTGF:GFP reporter transgenic mouse strain during postnatal development of the retinal vasculature by real-time PCR. CTGF and GFP mRNA levels were normalized to those of GAPDH. Data are means ± standard error (SE) (n = 4).

(B and C) (B) Analysis of CTGF protein levels in WT mouse retinas by western blotting. (C) CTGF protein bands were quantified by densitometric scanning. Error bars are SE of the means (n = 4).

(D) Unstained (upper panels) and IB4-stained (red) flat-mounted retinas of P2, P6, and P28 CTGF-GFP reporter mice. Merged images in the lower panels show IB4 colocalization with the CTGF:GFP signal.

(E and F) High-magnification images of retinal flat mounts of CTGF:GFP reporter mice stained with (E) IB4 and (F) Col4A1 antibody, respectively. Arrows and arrowheads indicate CTGF-GFP reporter signals in endothelial stalk cells and lack thereof in tip cells, respectively.

(G) NG2 marker expression in mouse retinal flat mounts. Note the colocalization of the CTGF:GFP signal with the NG2 marker in small arteries and capillaries.

See also Figure S1.

Loss of CTGF Function Altered Normal Vessel Growth and Morphogenesis

As a secreted protein, CTGF exerts autocrine and paracrine actions because it localizes not only within the interstitial ECM but also pericellularly, due to its heparin-binding activity (Kireeva et al., 1997). To gain new insights into the function of vascular cell-derived CTGF, we examined the retinal vascular changes associated with global, EC-, or pericyte-specific loss of CTGF function. We used a CTGF mutant strain in which loxP sites had been engineered to flank exons 1 and 2 (Liu et al., 2011) (Figure S2A). These CTGF^flox/flox mice were crossed with transgenic Cre mice bearing an inducible Cre recombinase under the control of the ubiquitin C (UBC), Cdh5, or Cspg4 promoter to produce mouse mutants with global, EC-, and pericyte-specific deletion of CTGF (hereafter referred to as UBCΔCTGF, Cdh5ΔCTGF, and CspgΔCTGF), respectively (Figure S2B). The expression of CTGF was analyzed by qPCR to confirm its knockdown after three consecutive 4-hydroxytamoxifen (4HT) injections at P1, P2, and P3. UBC-, Cdh5-, and Cspg4-CreER^T2 recombination with floxed alleles effectively reduced CTGF mRNA levels by >85%, 55%, and 50% compared with wild-type (WT) (i.e., CTGF^flox/flox) mice, respectively (Figure S2C). CTGF protein levels were consistent with those of CTGF mRNA in WT and mutant mice (Figure S2D). The EC- and pericyte-specific knockdown was not fully penetrant due to the expression of CTGF by cells other than ECs and pericytes, respectively. The retinal vascular phenotypes were examined at P7 when the vasculature was not only still growing but also had acquired tissue- and barrier-specific properties to support organ function. Retinas from 4HT- or corn oil-injected littermate UBC-CreER^T2, Cdh5(PAC)-CreER^T2, and Cspg4-CreER^T2 exhibited a vascular phenotype identical to CTGF^flox/flox mouse retinas and were used as controls in all experiments. As shown in Figures 2A–2D, global loss of CTGF function resulted in a significant reduction of microvessel density, vascular branching, and vascular area. Arteriovenous differentiation and vascular expansion to the retinal edge were not affected, whereas the vascular network was partially shaped into rudimentary arterioles, venules, and capillaries. BrdU⁺ cell count at the angiogenic front showed a 45% reduction of cell proliferation (Figure 2E). Pericyte coverage (normalized to vascular area) was unaffected in UBCΔCTGF mutant mouse vessels suggesting that CTGF loss had no apparent effect on mural cell recruitment to the vasculature (Figure 2F). Similar to global CTGF deficiency, EC-specific CTGF deletion induced a significant decrease in vascular area, branching points, and cell proliferation, and simultaneous increase of vascular lacunarity, although these alterations were slightly milder than those of the UBCΔCTGF mutants (Figures 2G–2K). Conversely, the retinal vasculature in mice with pericyte-specific deletion of CTGF (i.e., CspgΔCTGF) closely resembled that in the WT control with respect to vascular morphology, architecture, and density (Figures 2L–2O), indicating that pericyte-derived CTGF had no major effect on retinal vascular development. Thus, CTGF deficiency in the endothelium recapitulates, at least in part, the global loss-of-function phenotype.

Figure 2.

Loss of CTGF Function Altered Normal Vessel Growth and Morphogenesis

(A) IB4-stained whole retinal flat mounts of WT (a) and UBCΔCTGF (b) mice. Quantitative analyses of vascular parameters were performed with AngioTool software (c and d). The vasculature outline, skeleton, and branching points were denoted in white, red, and green, respectively.

(B–D) Graphical representations of the changes in (B) vascular area, (C) junction density, and (D) lacunarity between WT and UBCΔCTGF mouse retinas. ∗p < 0.001 versus CTGF^+/+ (n = 5).

(E) Number of BrdU⁺ proliferating ECs per retinal area unit. ∗∗p < 0.05 versus CTGF^+/+ (n = 5).

(F) Representative immunofluorescence images of dual IB4 (red) and NG2 (green) staining of whole-mount retinas of CTGF^+/+ and UBCΔCTGF mice.

(G) IB4-stained whole retinal mounts of WT (a) and Cdh5ΔCTGF (b) mice and associated AngioTool-analyzed images (c and d), respectively.

(H–K) Graphical representations of the changes in (H) vascular surface, (I) junction density, and (J) lacunarity between WT and Cdh5ΔCTGF mouse retinas. BrdU⁺ cell count in the WT and mutant mouse retinas is shown in (K). ∗p < 0.05 versus CTGF^+/+ (n = 5).

(L–O) Effects of pericyte-specific deletion of CTGF on the retinal vascular phenotype. Vascular parameters and proliferating cell counts were determined as described in (B–E).

See also Figure S2.

Loss of Blood Barrier Function following Global and EC-Specific Deletion of CTGF

During vessel development, ECs tightly coordinate angiogenesis with vascular barrier formation. The latter involves the expression and engagement of tight junction (TJ) and adherens junction (AJ) proteins as well as expression of transporter proteins that limit paracellular and transcellular permeability between and across ECs (Dejana et al., 2008). To assess the effects of CTGF on barrier function, we examined the tissue localization of retro-orbitally-injected fluorescein isothiocyanate (FITC)-albumin, which does not traverse the vascular barrier under physiological conditions. In WT mice, the injected tracer was confined to the intravascular space of the retina (Figure 3A [a and b]). However, both UBCΔCTGF and Cdh5ΔCTGF mutant mice exhibited extensive vascular leakage, indicated by a diffuse hyperfluorescent background and patchy hyperfluorescence in the extravascular space (Figure 3A [c–f]). Conversely, pericyte-specific deletion of CTGF did not result in overt signs of FITC-albumin extravasation, which, in most cases, was similar to that of WT mouse retinas (Figure 3A [g and h]). Leakage of Evans Blue (EB), which rapidly binds to plasma albumin, was 4- to 9-fold higher in retinas of UBCΔCTGF and Cdh5ΔCTGF mutant mice, respectively, than that of WT controls (Figure 3B). There was no significant difference between WT and CspgΔCTGF mice with respect to EB leakage, which is consistent with the FITC-albumin results. Likewise, FITC-albumin extravasation was observed in the brain vasculature of the mutant mice indicating a defective blood-brain barrier as well (Figure S3A). Retro-orbital injection of Alexa Fluor 555-conjugated cadaverine, a small molecule (950 Da) reaching the size limit for passive paracellular transport through endothelial TJs, resulted in a remarkable infiltration of this tracer in the retinal and brain parenchyma of CTGF-deficient mice (Figures S3B and S3C). Thus, loss of CTGF function caused paracellular barrier disruption in the retina and brain. Furthermore, we determined whether the expression of CTGF is required for barrier maintenance by analyzing retinal vascular barrier permeability in adult (P36) mice following 4HT injection a week prior. As shown in Figure 3C, Cdh5ΔCTGF retinas showed numerous bright extravascular spots due to FITC-albumin leakage from the retinal vasculature. In contrast, age-matched littermates showed no tracer leakage in the retinal parenchyma. Vascular leakage index was 41% higher in CTGF mutant compared with age-matched WT retinas (Figure 3D), indicating the importance of CTGF signals in blood-retinal barrier maintenance as well.

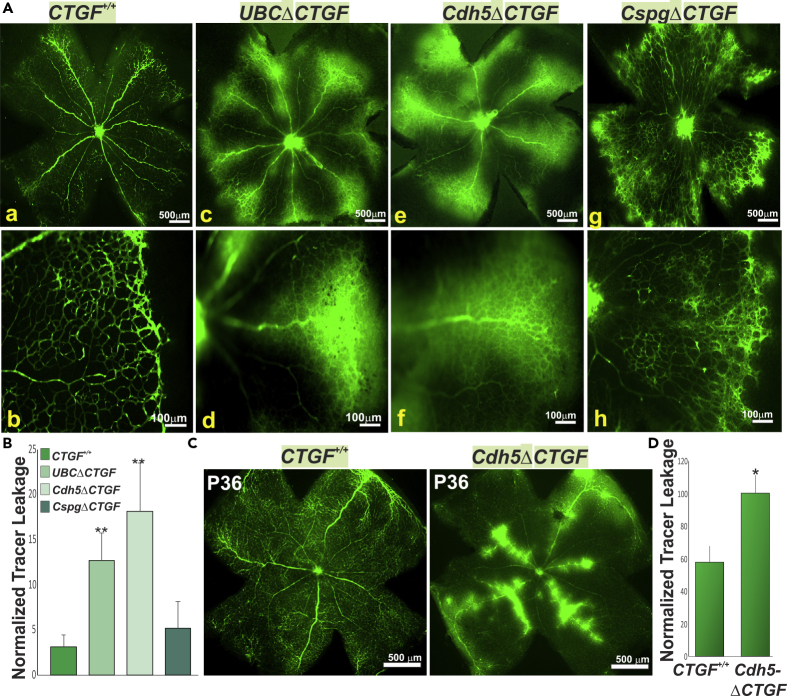

Figure 3.

Loss of the Blood Barrier Function Following Global and EC-Specific Deletion of CTGF

(A) Retinal flat mounts from CTGF^+/+ (a and b), UBCΔCTGF (c and d), Cdh5ΔCTGF (e and f), and CspgΔCTGF (g and h) mice following retro-orbital injection of FITC-albumin. Note that the tracer remained confined to the vascular lumen in CTGF^+/+ and CspgΔCTGF mouse retinas. Note the hyperfluorescence of FITC-albumin in the retinal parenchyma as a result of FITC-albumin extravasation/leakage in UBCΔCTGF and Cdh5ΔCTGF mouse retinas.

(B) Vascular permeability index was normalized to total vascular area. ∗∗ p<0.05 versus CTGF^+/+.

(C) FITC-albumin-injected retinal flat mounts from CTGF^+/+ and Cdh5ΔCTGF adult (P36) mice that have received three consecutive injections of 4HT a week prior.

(D) Vascular permeability index measured as described in (B). Values are means ± SE (n = 3). Values in Cdh5ΔCTGF mice were set to 100% to facilitate comparisons among animals. ∗,p<0.05 versus CTGF^+/+.

See also Figure S3.

Molecular Signature of CTGF during Retinal Vascular Development

The formation of an organized retinal vasculature depends on signaling among different vascular and non-vascular cellular components of the retina including ECs, mural cells, neurons, glia, and immune cells. As an ECM protein, CTGF signals may affect the interactions among all these cellular components. To determine the global genetic bases of CTGF-dependent regulation of vascular growth and barrier function, we examined the transcriptomic differences between CTGF^+/+ and UBCΔCTGF mutant mouse retinas through RNA sequencing (RNA-seq)-based gene profiling. Following three consecutive 4HT injections from P1 onward, retinas from three different litters of CTGF^flox/flox and CTGF^flox/flox-UBC-CreER^T2 intercrosses were harvested at P7 and processed for total RNA extraction and gene profiling. Unsupervised hierarchical clustering and principal-component analysis demonstrated clear segregation and reproducibility of the obtained gene expression profiles for WT and UBCΔCTGF mutants (Pearson's correlation coefficient ρ = 0.94) (Figures S3A–S3C). The candidate CTGF-regulated genes encode proteins with a wide range of biological activities, likely reflecting the large diversity of cell types and circuits in the retina (Figure S4D). Genes that encode proteins for the biosynthesis of RNA, macromolecules, nucleobase-containing compounds, neurogenesis, and RNA polymerase transcription were highly differentially expressed between WT and mutant retinas.

To expand our RNA-seq data analysis beyond the initial cutoff parameters, which often are subjective, arbitrary, and biologically unjustified, we used gene set enrichment analysis (GSEA) to map all detected unfiltered genes to defined gene sets (e.g., pathways), irrespective of their individual change in expression (Subramanian et al., 2005). We identified 209 significantly changed genes (133 downregulated and 76 upregulated genes) in UBCΔCTGF compared with CTGF^+/+ retinas (absolute log₂ fold change >0.5, p < 0.05) (Figure 4A). When the normalized transcriptomic data were compared to 1,454 Gene Ontology gene sets in the GSEA Molecular Signatures Database (i.e., MSigDB) (Liberzon et al., 2015), 20 gene sets were significantly enriched in the CTGF^+/+ or UBCΔCTGF group. Of these, 13 were closely related to neuronal progenitor differentiation linked to cone rod homeobox (CRX) pathway, cell cycle regulation (i.e., cyclins, p53, SRC, Kras), cell survival (i.e., Akt), and inflammation pathways (i.e., IL-15, NF-κB) (Figure 4B). Gene sets of the platelet-derived growth factor and mTOR pathways were similarly downregulated in UBCΔCTGF. Other core-enriched differentially expressed genes were involved in the regulation of tip cell differentiation, angiogenesis, ECM, and ECM metabolic pathways (Figures 4C–4E). In addition, CTGF deficiency resulted in downregulation of angiopoietin 1, ROBO1, integrin β1, Slit-1, Ephrin B2, Ephrin Receptor B4, and Dll-1, and upregulation of integrin β1-binding protein 1 and thrombospondin 1. Downregulated ECM protein genes included laminin 4, elastin, secreted protein acidic and cysteine rich (SPARC), fibrillin-2, glypican 5, collagen 4A1, and tenascin-C, whereas vitronectin, Col17A1, Col16A1, and Col5A3 genes were upregulated upon CTGF deletion. Genes encoding growth factors such as insulin-like growth factor-I (IGF-I), pleiotrophin, opticin, LTBP-1, transforming growth factor (TGF)-β1, TGF-β2, and fibroblast growth factor (FGF)-10 were downregulated in UBCΔCTGF mutant mice. These results are suggestive of an important role of CTGF in regulating angiogenesis-related processes such as cell growth, adhesion, migration and guidance, as well as cell-ECM interactions. Importantly, the expression of several transcriptional regulator genes (e.g., YAP, TEA domain [TEAD], NFAT5, and SRF) was downregulated upon loss of CTGF function. Transcription factors are endpoints of a network of signaling pathways enabling the cells to process signals they receive simultaneously from many different receptors. The multitude of transcription factors affected by CTGF deletion suggests that CTGF signals impact global mechanisms of gene regulation.

Figure 4.

Molecular Signature of CTGF During Retinal Vascular Development

(A) GSEA-generated heatmaps of defined gene sets enriched at the top of a gene list ordered on the basis of expression differences between CTGF^+/+ and UBCΔCTGF mouse retinas. Range of colors (red to blue) indicates the range of expression values (high to low).

(B) Pathway enrichment analysis of differentially expressed genes in UBCΔCTGF versus WT mouse retinas. The clusters with functional terms that reached significance of p < 0.05 are shown. Online functional databases were used to extract each term.

(C–E) Enrichment plot of the gene set of (C) tip cell, (D) angiogenesis, and (E) ECM/cell adhesion pathways. Genes that appear before or at the peak are defined as core enrichment genes for that gene set. Genes whose expression levels are most closely associated with the CTGF^+/+ group are located at the left, whereas genes from the UBCΔCTGF gene set within the ranked list are located at the right.

See also Figure S4.

CTGF-Dependent Transcriptional Program Targets YAP Network Genes

YAP was among the most remarkable transcriptional regulators and key angiogenic factors that were differentially expressed as a result of CTGF deletion (Figures 4A and S2D). Like CTGF, YAP expression has been reported to increase in the retinal vasculature at an early stage of development (Choi et al., 2015, Neto et al., 2018). YAP is also required for the VEGF-VEGFR2 signaling axis that controls angiogenesis (Wang et al., 2017). VEGF-induced YAP activation leads to cytoskeletal remodeling, which orchestrates cellular decisions of proliferation, differentiation, cell shape, and polarity (Kim et al., 2017). To investigate the role of YAP in the underlying mechanisms of CTGF-dependent regulation of angiogenesis, we determined whether the transcriptomic changes associated with CTGF deficiency correlated with those caused by YAP deletion (or overexpression). Using GSEA and previously reported data for YAP overexpression in the Msig (Liberzon et al., 2015), we found that numerous genes that were upregulated upon YAP stimulation were decreased by CTGF deletion (e.g., Filamin A, ASAP1, CRIM1, SLIT2) (Figures 5A–5D). Reversibly, genes that were downregulated upon YAP stimulation were upregulated upon CTGF deletion (e.g., Cox8A, RAB40C). For further CTGF target gene data validation, we analyzed 11 differentially expressed YAP network genes by qPCR. As shown in Figure 5E, the expression of 9 of the 11 genes was fully consistent with their RNA-seq expression profiles and trends (p < 0.05), suggesting that the CTGF-dependent transcriptional program is, at least in part, linked to YAP regulatory activities. As CTGF is itself a YAP target gene (Zhao et al., 2008), the expression and activity of CTGF and YAP are mutually regulated.

Figure 5.

CTGF-Dependent Transcriptional Program Targets YAP Network Genes

(A and B) Heatmaps of the top 32–43 enriched genes identified by GSEA showing differential regulation of YAP signature genes in retinas of UBCΔCTGF mice. Enrichment of CTGF signature with genes up-regulated in MCF10A cells (breast cancer) over-expressing YAP gene and YAP conserved signature/Hippo pathway genes are shown in (A) and (B), respectively.

(C and D) Running enrichment score for the gene set analyses shown in (A) and (B) as the analysis walks along the ranked list.

(E) Relative mRNA levels of YAP target genes in retinal lysates of CTGF^+/+ and UBCΔCTGF mice. The mRNA levels in CTGF^+/+ mice were set to 1. Each measurement was performed in triplicate. (∗p < 0.05, n = 3).

YAP-Mediated Rescue of Vascular Defects Caused by CTGF Deficiency

To further examine the extent of YAP involvement in CTGF-dependent effects on vascular development, we determined whether ectopic re-expression of YAP could rescue the vascular defects associated with CTGF deletion. To this end, YAP was ectopically expressed through adeno-associated virus isotype 6 (AAV6)-mediated gene transfer (Figure 6A). Retro-orbital injection of a control AAV6-GFP vector into P1 mouse pups produced efficient expression of the GFP transgene in ECs lining retinal blood vessels at P7 (Figure 6B). Quantitative analyses of the retinal vascular phenotype at P7 showed that AAV-mediated re-expression of YAP significantly increased vascular area and junction density in UBCΔCTGF mice compared with those injected with the AAV6-control transgene (i.e., AAV6-Luciferase or AAV6-Luc) (Figures 6C–6E). Similarly, BrdU⁺ cell count was significantly increased upon re-expression of YAP in CTGF-deficient mice, which is consistent with increased cell proliferation in sprouting vessels (Figure 6F). qPCR-based analyses of mRNA contents showed that YAP re-expression primarily affected genes involved in cell adhesion and migration (e.g., CCN1, TSPAN, CRIM1), proliferation (e.g., ECT2, SLIT2), differentiation (e.g., HEY1), and ECM remodeling (e.g., TIMP3) (Figure 6G). These gene targets are under direct or indirect regulation by YAP (Kim et al., 2015, Kim et al., 2016), suggesting that YAP acts as a relay for CTGF-dependent control of EC growth.

Figure 6.

YAP-Mediated Rescue of Vascular Defect Caused by CTGF Deletion

(A) Schematic representation of AAV6-mediated rescue protocol of CTGF deletion following AAV6-mediated expression of YAP. The AAV6 vector is injected at P1 followed by 4HT injection at P2, P3, and P4 to induce CTGF deletion. Vascular phenotype is analyzed at P7.

(B) Flat-mount images of IB4-stained retinas from CTGF^+/+ mice at P7 following retro-orbital injection of AAV6-GFP. Note that GFP expression is largely found in the retinal vascular endothelium lining blood vessels.

(C) IB4-stained retinal mounts of CTGF^+/+ (a) and UBCΔCTGF (b and c) mice following retro-orbital injection of either AAV6-luc (a and b) or AAV6-YAP (c). Analyses of vascular parameters (i.e., vascular area and junction density) performed with AngioTool software are shown in (d–f) as described in Figure 2A.

(D and E) Graphical representations of the changes in vascular area, junction density, and lacunarity between control and experimental groups described in Figure 6C. ∗∗p < 0.001 and ∗p < 0.05 versus CTGF^+/+ (n = 4).

(F) Proliferation index as determined by BrdU⁺ nucleus counts in retinal mounts of CTGF^+/+ and UBCΔCTGF mice following retro-orbital injection of either AAV6-luc or AAV6-YAP. Data are means ± SE. ∗p < 0.05; ∗∗p<0.001.

(G) Relative mRNA levels of YAP target genes in retinal lysates from CTGF^+/+ and UBCΔCTGF mouse retinas. The mRNA levels in CTGF^+/+ mouse retinas were set to 1. Each measurement was performed in triplicate. (∗p < 0.05, n = 3).

Regulation of the Paracellular Vascular Barrier through CTGF-YAP Functional Interaction

Next, we determined whether YAP re-expression may also improve vascular permeability defects associated with CTGF deletion. As shown in Figure 7A, FITC-albumin extravasation was markedly reduced in UBCΔCTGF mouse retinas transduced with AAV6-YAP compared with those transduced with the AAV6-Luc control. When normalized to the vascular area, re-expression of YAP significantly reduced vascular leakage in CTGF mutant mouse retinas compared with their control counterparts (Figure 7B).

Figure 7.

Regulation of the Paracellular Vascular Barrier through CTGF-YAP Functional Interaction

(A and B) (A) Retinal flat mounts of CTGF^+/+ (a) and UBCΔCTGF (b and c) mice following retro-orbital injection of FITC-albumin. CTGF^+/+ and UBCΔCTGF mice were transduced with either AAV6-luc (a and b) or AAV6-YAP (c). AAV vector injection and 4HT-induced CTGF exon recombination were as described in Figure 6A. Vascular permeability index in these groups is shown in (B). ∗p<0.05.

(C) Diagram outlining paracellular and transcellular transports in the endothelium.

(D and E) (D) GSEA-generated heatmap of CTGF transcriptome enrichment with transcellular transport proteins. Range of colors (red to blue) indicates the range of expression values (high to low). The enrichment score (ES) plot for transcellular gene set is shown in (E).

(F–K) Relative mRNA levels of transcellular (e.g., (F) PLVAP) and paracellular (e.g., (G) CDH5, (H) OCLN, (I) PECAM1, (J) CLDN5, and (K) YAP) in retinal lysates of CTGF^+/+ and UBCΔCTGF mice. Each experimental point was performed in triplicate. (∗∗p < 0.05, n = 3).

(L) High-magnification images of retinal vessels of P7 CTGF^+/+ and UBCΔCTGF mice stained with CDH5 antibodies. Single-channel images of retinal capillaries are shown. Straight mature CDH junctions are shown with red arrows. Vesicular endocytic CDH5 vesicles are shown with black arrows.

(M) A representative image of western blot analysis of CDH5 and pCDH5 (Tyr 731) in retinal lysates from WT and UBCΔCTGF mice. GAPDH was used as a loading control.

A defining feature of a functional retinal barrier is (1) a low rate of receptor- and transporter-mediated endocytosis (i.e., transcellular permeability) across ECs and (2) the expression of TJ and AJ proteins that limit paracellular permeability between adjacent ECs (Park-Windhol and D'Amore, 2016) (Figure 7C). Proteins involved in transcellular (endocytic) transport include plasmalemma vesicle-associated protein (PLVAP), dynamin-1 and dynamin-2, pacsin 2, flotillin-1 and flotillin-2, Msfd2a, and the glucose transporter Glut1 (Bosma et al., 2018). Our GSEA data showed that the transcriptomic changes associated with CTGF deletion did not include these transcellular permeability genes (Figures 7D and 7E). The mRNA levels of PLVAP, one of the most important endothelial genes encoding a structural protein of fenestral and stomatal diaphragms (van der Wijk et al., 2019), were not affected by either loss of CTGF function or YAP re-expression (Figure 7F), suggesting that CTGF signals do not target genes encoding transcellular transport proteins.

Next, we examined the effects of CTGF signals on EC-EC junction proteins that regulate the paracellular barrier in the retina. Quantitative analyses by qPCR showed that the expression of cadherin 5 (also known as CDH5 or VE-cadherin), occludin (OCLN), and PECAM1 was not altered in UBCΔCTGF compared with CTGF^+/+ retinas (Figures 7G–7I). In addition, re-expression of YAP in UBCΔCTGF mice did not influence the transcription of these junctional protein genes either, except for Claudin 5 (CLDN5). CTGF deletion significantly reduced CLDN5 expression, although ectopic YAP expression had no effect on CLDN5 gene transcription in the retina (Figure 7J). CLDN5 deficiency in mice was reported to affect vascular barrier to small (<0.8 kDa) molecules only (Nitta et al., 2003). As such, changes in Claudin 5 protein levels alone may not account for the vascular barrier breakdown in CTGF-deficient mice.

Meanwhile, even though the expression of CDH5, the EC-specific core regulator of vascular integrity and quiescence, was unchanged in CTGF mutant versus WT retinas, CDH5 phosphorylation is a major regulatory step leading to increased trans-vascular flux of fluid and proteins. CDH5 cytoplasmic phosphorylation displaces p120-catenin and β-catenin from AJs, thereby increasing endothelial permeability (Dejana et al., 2008). Immunohistochemical analysis of the pattern of CDH5 distribution showed that both WT and CTGF mutant retinal vessels exhibited straight CDH5-stained junctions characteristic of stable mature junction as well as endocytic CDH5 vesicles typical of CDH5 turnover and remodeling activities (Figure 7L). However, analysis of phosphorylated CDH5 did not reveal changes in CDH5 phosphorylation at Tyr 731 between WT and CTGF mutant retinas (Figure 7M), suggesting that CTGF regulation of the paracellular barrier may not be controlled through a CDH5 phosphorylation cascade. Importantly, because YAP is also a component of AJ and TJ complexes, it is reasonable to surmise that the remarkable reduction of YAP expression in CTGF-deficient mice (Figure 7K) could be responsible for the associated vascular leakage.

Reduced YAP Levels Destabilized Junctional Complexes in CTGF-Deficient ECs

YAP has been shown to associate with junctional protein complexes in stabilized TJs and AJs (Giampietro et al., 2015, Neto et al., 2018). To examine the role of the CTGF/YAP axis in the regulation of the paracellular barrier, we derived ECs from the brain tissue of UBCΔCTGF mice and their WT littermates and cultured them to confluence for subsequent in vitro experiments. Under normal culture conditions, CTGF-deficient ECs showed reduced levels of YAP at the mRNA and protein levels (Figures 8A–8C). BrdU⁺ cell count was significantly reduced in CTGF-deficient ECs, which is consistent with the role of CTGF and YAP in promoting EC proliferation (Figure 8D). In CTGF^+/+-derived cells, YAP localized to the cytoplasm, nucleus, and cell-cell junctions (Figure 8E). Co-immunoprecipitation and western blot analyses revealed that YAP forms a complex containing CDH5/VE-cadherin and α-catenin, corroborating the association of YAP with junctional proteins (Figure 8F). However, the levels of YAP-containing protein complexes were markedly reduced in CTGF^−/--derived cells. Furthermore, phalloidin-labeled, ZO1-stained cells showed that CTGF mutant ECs exhibited numerous intercellular gaps wherein cell borders (delineated by ZO1 staining) change from straight to zigzag lines (Figure 8G), which is indicative of and consistent with disrupted cell-cell junctions. Adenovirus-mediated re-expression of YAP, at least in part, reduced intercellular gaps and re-established continuous cell-cell demarcation lines. Together, these observations suggest that CTGF-induced YAP expression is, at least in part, critical for both EC growth and formation and maintenance of stable junctional complexes at cell-cell contacts.

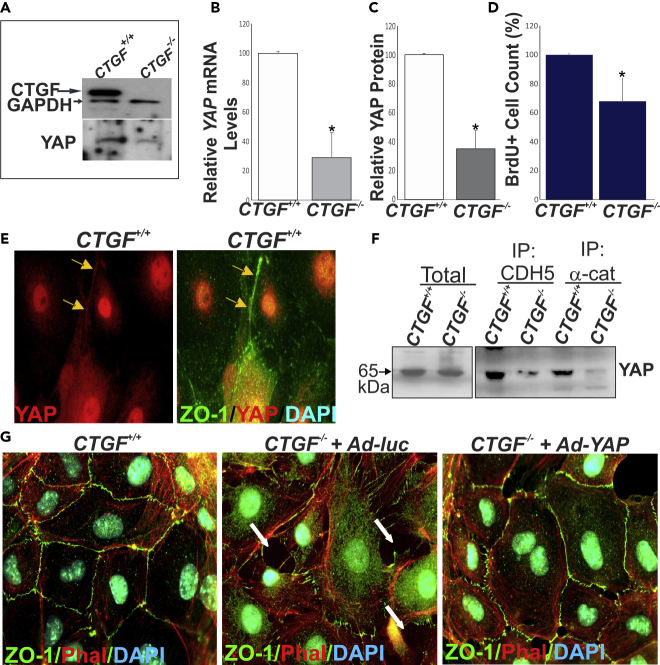

Figure 8.

Reduced YAP Levels Destabilized Junctional Complexes in CTGF-Deficient ECs

(A) Expression of CTGF and YAP proteins in ECs explanted from CTGF^+/+ and UBCΔCTGF (i.e., CTGF^−/-) mouse brain as determined by western blotting. GAPDH was used as a loading control.

(B and C) Relative YAP (B) mRNA and (C) protein levels in EC lysates of CTGF^+/+ and CTGF^−/- mice. ∗p < 0.05 (n = 3).

(D) Proliferation index of ECs cultured from CTGF^+/+ and CTGF^−/− mice as determined by cell count. ∗p < 0.05 (n = 3).

(E) Immunohistochemical localization of YAP in ECs explanted from CTGF^+/+ mouse brain mice. Colocalization with ZO-1 is shown.

(F) Immunoprecipitation of cultured EC protein extracts from CTGF^+/+ and CTGF^−/- mice. Protein extracts were immunoprecipitated with anti-CDH5 and anti-α-catenin, and further immunodetection was performed with antibodies against YAP.

(G) Immunohistochemical staining with phalloidin and ZO-1 antibody of CTGF^+/+ and CTGF^−/- mouse ECs grown to confluence. Arrows indicate location of intercellular gaps at EC-EC junctions. A representative image of adenovirus-mediated re-expression of YAP is shown.

Discussion

The matricellular protein CTGF is known to achieve numerous cell type-specific functions in the immediate microenvironment of the cells. CTGF signals regulate cell proliferation, differentiation, adhesion, migration, and epithelial-mesenchymal transition (Krupska et al., 2015, Leask, 2019). These effects are mediated by a CTGF interactome that includes integrin and non-integrin receptors, other cell surface molecules (e.g., HSPGs, LRPs), ECM, and growth factors (Lau, 2016). CTGF-integrin interactions induced angiogenesis in rat cornea (Babic et al., 1999) and in chick chorioallantoic membranes (Shimo et al., 1999). However, CTGF was also shown to inhibit angiogenesis in vitro by physically interacting with and sequestering VEGF in an inactive form (Inoki et al., 2002). Although these in vitro and ex vivo studies provided insightful information about the molecular properties of the CTGF protein, they did not integrate exogenous cues such as exposure to heterogeneous cell-cell interactions, flow and associated shear stress effects, and tissue-derived signals.

Using transgenic mouse models, targeted gene disruption, and “omic” approaches, we showed that CTGF provides a unique microenvironment in the vascular wall that fine-tunes angiogenesis and ensures barrier integrity. First, we showed that CTGF was robustly expressed primarily in endothelial stalk cells and secondarily in pericytes and glia during postnatal retinal vascular development and its expression persisted in the adult vasculature. In ECs, the expression was limited to cells making new cell-cell contacts, whereas ECs prone to occupy the tip cell position were CTGF-negative. These observations are in congruence with previous reports describing widespread expression of CTGF mRNA in the embryonic vascular system and constitutive regulation of the CTGF gene in ECs (Friedrichsen et al., 2003, Ivkovic et al., 2003). Hemodynamic forces, which play a critical role in determining the synthetic phenotype and function of ECs, are major inducers of CTGF gene expression (Chaqour and Goppelt-Struebe, 2006, Yoshisue et al., 2002). Indeed, tip cells at the sprouting vascular front experience very low levels of shear (Bernabeu et al., 2014) and minimally express, if at all, CTGF, suggesting that blood flow-induced shear deformation, which increases EC capacity to orient in the direction of the flow in newly lumenized vessels, is a potentially important inducer of CTGF gene expression in the endothelium. Interestingly, a study by Friedrichsen et al. revealed a dichotomized CTGF expression pattern in mouse embryos with higher CTGF mRNA levels in the pressured arteries (e.g., aorta, pulmonary, and peripheral arteries) than low-pressured veins (e.g., vena cava) (Friedrichsen et al., 2003). Congruently, our findings in the CTGF promoter reporter mouse retina showed that the CTGF:GFP reporter was expressed in ECs of the arterial and capillary walls, whereas venous ECs minimally expressed the CTGF:GFP reporter. Thus, the underlying basis for differential expression of CTGF between arterial and venous ECs is conceptually valid and strong. However, differential CTGF mRNA levels between ECs cultured from arterial (e.g., coronary arteries) and venous (e.g., HUVECS) vessels could not be detected when these cells were cultured under static conditions (data not shown), suggesting that differential pressure signals between arteries and veins could account for variations of CTGF gene regulation in arterial and venous ECs. However, it is noteworthy that the CTGF:GFP reporter was expressed in mural ensheathing cells of arteries, capillaries, and veins. This observation is at variance with Friedrichsen et al.'s study, which did not show CTGF mRNA signals in venous mural cells such as those of the vena cava. Such discrepancy between those findings and ours may be attributed to the methodology used to detect CTGF mRNA and protein signals, or it could be attributed to differences between the vascular bed types analyzed, blood vessel diameter/caliber, and/or three-dimensional geometry of the vessels. In addition, the confounding effects of transcriptional and post-transcriptional regulatory mechanisms of the CTGF gene could also account for differences in mRNA and protein signals.

Our data further demonstrated that global or EC-specific deletion of CTGF altered normal retinal vascular development. Loss of CTGF function at postnatal stages caused hypovascularization of the retina and altered vascular permeability, recapitulating the vascular defects characteristic of early-onset familial exudative vitreoretinopathy in humans (Kramer et al., 2016). CTGF deficiency reduced vascular area, density, and junctional point numbers, and increased vascular lacunarity, which was correlated with a significant decrease of EC proliferation. However, CTGF deficiency did not alter tip cell number and hierarchical specification of the vasculature into arteries, capillaries, and veins, indicating that CTGF expression does not affect the dynamics of EC phenotypical plasticity. Interestingly, global or EC-specific deletion of CTGF produced vascular defects similar to those associated with deletion of transcription factors such as SRF and MRTF-A (Weinl et al., 2015), two versatile transcription factors that toggle between disparate programs of gene expression related to cell growth and differentiation (Sun et al., 2006). Indeed, the CTGF gene is one of the CArG-box-containing promoter genes (i.e., CarGome) that is activated by the SRF/MRTF duo. Thus, CTGF can potentially act as an SRF/MRTF downstream effector molecule, mediating their regulatory effects on EC growth and function.

A previous study by Hall-Glenn et al. showed that a global CTGF deficiency in mice induced minor enlargement of blood vessels and local edema in the CTGF mutant dermis (Hall-Glenn et al., 2012). These changes have been attributed to incomplete coverage of microvessels by pericytes in the dermis of CTGF mutant mice. However, it was unclear whether the observed vascular phenotype was due to direct effects in ECs or secondary CTGF effects in other cell types. Our data showed that the angiogenic defects associated with CTGF deletion were largely due to the loss of EC-derived CTGF as EC-specific deletion of CTGF recapitulated, at least in part, those of its ubiquitous deletion. Because loss of CTGF function reduced EC proliferation, and sprouting, it appears to potentiate the effects of other regulators of angiogenesis. It is noteworthy that the loss of pericyte-derived CTGF minimally, if at all, altered vascular growth and integrity. The importance of pericytes in the development and function of microvessels has been well established, as illustrated by the phenotype of mice in which pericyte development has been disrupted (Enge et al., 2002). Therefore, targeting an important component of their secretome would be expected to have a greater impact during angiogenesis. More than one explanation is possible to rationalize the lack of retinal vascular defects in mice with pericyte-specific CTGF deletion. First, pericyte-specific knockdown of CTGF was not fully penetrant due to the expression of CTGF by cells other than NG2⁺ cells. Under these circumstances, the role of CTGF produced by ECs and glia may be magnified, fully compensating for the absence of pericyte-derived CTGF. Second, pericyte-specific deletion of CTGF was produced using transgenic mice expressing the Cre recombinase under the control of the NG2 (aka Cspg4) promoter/enhancer. As NG2 expression is restricted to arteriolar and capillary perivascular cells during angiogenesis (Chan-Ling and Hughes, 2005), Cre-mediated CTGF gene targeting with the NG2 promoter may be limited to NG2⁺ cell subpopulation of pericytes only, and this was inconsequential on the vascular phenotype. Third, the retinal model of angiogenesis that was used in our experiments is based on postnatal angiogenesis, even though the bulk of developmental angiogenesis occurs during embryonic stages. Therefore, it was not surprising that constitutive deletion of CTGF was reported to cause incomplete coverage of microvessels by pericytes in the dermis of CTGF mutant embryos (Hall-Glenn et al., 2012). This suggests that CTGF deficiency in pericytes may have a lesser impact during the postnatal than embryonic stages. Last, the effects of pericyte-derived CTGF may be minimal during normal postnatal angiogenic events but more effective in pathological events. Future studies addressing this hypothesis are warranted.

Molecularly, several clusters of genes and pathways involved in the regulation of important processes such as EC proliferation, migration, and junction formation were affected by CTGF deficiency. The expression of IGF-1, TGF-β1, TGF-β2, FGF-10, and angiopoietin 1 was downregulated upon CTGF deletion, and reduced expression of these growth factor genes may account for the subsequent hypovascularization of the retina. Similarly, loss of CTGF function decreased the expression of several key basement membrane (BM) protein genes such as laminin 4, collagen 4A1, SPARC, and tenascin C as well as other FACIT collagens and proteoglycans, many of which are important for the stability and compliance properties of the vascular wall.

In addition, several transcription factors and co-cofactors showed differential gene expression patterns between WT and mutant CTGF mouse retinas including YAP, NFAT5, and SRF. CTGF deletion significantly decreased the expression of these transcriptional regulators, many of which affect important aspects of vascular cell growth and differentiation. YAP regulation by CTGF signals is of particular significance as, thus far, YAP has been shown to be regulated largely at the post-translational levels by G-protein-coupled receptors (GPCR), mechanical forces, growth factors such as VEGF, actin dynamics, and Lats1 activity (Aragona et al., 2013, Avruch et al., 2012). The regulation of YAP expression by CTGF is highly significant in developmental angiogenesis, although the transcriptional or post-transcriptional mechanisms underlying such regulation remain to be determined. The autonomous role of YAP on vessel development has previously been reported in several independent studies using EC-specific deletion of YAP and TAZ, a paralog of YAP that also regulates gene expression through binding to YAP-interacting partners (Hong and Guan, 2012). Double knockout of YAP and TAZ in the endothelium decreased vascular density, branching, and sprouting (Choi et al., 2015), mimicking, at least in part, the CTGF loss-of-function phenotype. Concordantly, we found a significant gene profile overlap of CTGF and YAP target genes. It is conceivable that YAP expression and activity in ECs build a transcriptional response that sustains CTGF signals by coordinating the expression of sets of genes and proteins that regulate various aspects of sprouting angiogenesis.

YAP is a critical control node in cell fate decisions of proliferation, differentiation, survival, or apoptosis. Nuclear YAP physically interacts with DNA-binding transcription factors such as RUNX family, thyroid TF1 (TTF-1), TBX5, PAX3, PAX8, peroxisome proliferator-activated receptor γ, and TEAD to stimulate or repress the expression of downstream target genes (Panciera et al., 2017). The TEAD family of transcription factors plays an important role in YAP-dependent gene regulation and cell growth stimulation. The TEAD consensus sequences were found in at least 75% YAP target genes, as YAP and TEAD1 co-occupied >80% of the promoters pulled down by chromatin immunoprecipitation (Zanconato et al., 2015). Surprisingly, our data showed that whereas YAP gene expression was downregulated upon CTGF deletion, the expression of TEAD1 was upregulated in the CTGF-deficient mouse retina. These findings raise the question whether YAP and TEAD act independently of one another to control separate angiogenic programs. Recent studies provided an answer to this question. By investigating the biology of GPCR-activated YAP/TAZ during retinal angiogenesis, Yasuda et al. have shown that YAP acts independently of TEAD to suppress the expression of Dll4, a transmembrane ligand for the Notch family of receptors, which prevents overexuberant angiogenic sprouting (Yasuda et al., 2019). This suggests an essential role of TEAD-independent YAP activities in retinal angiogenesis. This is also consistent with other findings by Zhao et al. showing that TEAD binding-defective YAP-S94A mutant can still induce expression of a fraction of the YAP-regulated genes (Zhao et al., 2008). Further studies will be needed to tease apart the full spectrum of YAP-independent TEAD and TEAD-independent YAP functions in angiogenesis and determine whether increased TEAD1 expression in CTGF-deficient mice preserves/bolsters YAP-independent TEAD1 angiomodulatory activities. Importantly, CTGF and YAP are both molecular effectors and downstream targets of mechanical forces, as their expression and activity have been associated with cells exposed to mechanical stresses, such as shear stress, stretching, or stiffness of the surrounding ECM (Bertero et al., 2016, Dupont et al., 2011, Wang et al., 2016). A study by Nakajima et al. in zebrafish demonstrated that endothelial YAP functions in response to flow to maintain EC function in blood vessels (Nakajima and Mochizuki, 2017). The flow-induced reorganization of F-actin was associated with the release of YAP from angiomotin and its nuclear translocation during vessel growth. Molecularly, CTGF signals and YAP activity seem to reinforce the cell cytoskeleton and contractile apparatus, and through these mechanisms, they respond to and control the actomyosin-generated internal forces in the cells (Neto et al., 2018). Thus, both hemodynamic and internally generated forces in ECs potentially fuel and sustain a CTGF/YAP feedforward loop that sustains angiogenesis during vascular development.

Another important outcome of our study design is that CTGF is an important determinant of blood vessel integrity and stability. Barriergenesis in the developing retina involves the coordinated induction of proteins that maintain TJs and AJs and nutrient transporters across ECs (Obermeier et al., 2013). Thereafter, maturation of the barrier properties is achieved as functional and physical interactions occur with pericytes, astrocytes, and Müller cells. Assembly and maturation of junctional complexes between ECs are dependent on actomyosin dynamics regulated by the activity of small Rho GTPases such as RhoA and Cdc42 (Aoyama et al., 2012), which appears to be required for maintenance of blood barrier integrity during adulthood as well. However, the acquisition of endothelial barrier properties in CTGF-deficient retinas was not due to defects in transcellular transport because mutant CTGF mice showed no differences in the expression of PLVAP and other membrane proteins that localize to fenestrae and caveolar stomatal diaphragms of ECs. Instead, paracellular barrier protein association and organization seemed to have been altered in CTGF-deficient blood vessels. CTGF deletion similarly altered the barrier properties of preformed vessels in adult mice suggesting that basal expression of CTGF is critical for not only barrier formation but also its maintenance. It is noteworthy that vascular leakage was not associated with active hemorrhage sites in the retina and brain in CTGF-deficient mice. Similarly, the initial characterization of mice with constitutive deletion of CTGF did not report visible signs of hemorrhage during embryonic and fetal development (Ivkovic et al., 2003), even though defects in ECM formation or loss of genes crucial for EC-EC and EC-ECM interaction generally led to severe hemorrhagic phenotypes (Timmer et al., 2005). However, CTGF is different from common ECM proteins because, as a matricellular protein, CTGF does not subserve a structural role in the cell environment, but functions as an extracellular cue that optimizes the function of growth factors and ECM proteins. The absence of severe hemorrhage in CTGF mutant mice also raises the possibility of potential functional compensation for CTGF deficiency by CCN1, a closely related homolog of CTGF. Both genes are highly expressed in the vascular system and have similar activities in vitro (Chaqour, 2013, Lee et al., 2019). Although CTGF and CCN1 orchestrate complementary aspects of developmental angiogenesis, they may also serve redundant functions in vascular elements (Chintala et al., 2015). Studies designed to contrast the vascular phenotypes of CTGF, CCN1, and CTGF/CCN1 double mutants will be informative in this regard.

Last, our data showed that CTGF effects on the vascular permeability were, at least in part, dependent on YAP expression. Based on CTGF loss- and subsequent YAP gain-of-function phenotypes, reduced YAP levels in ECs disrupted intercellular junctional complex formation and stabilization. Our coimmunoprecipitation experiments showed that the presence of YAP in protein complexes of CDH5 and α-catenin is in agreement with previous findings that YAP associates with the VE-cadherin complex via 14-3-3 proteins, a family of phosphoserine-binding proteins that prevent YAP shuttling between the cytoplasm and nucleus (Giampietro et al., 2015). Hyperphosphorylated YAP localizes to adherent junctions in a trimeric complex with 14-3-3 and α-catenin indicating that YAP functions in the cytoplasm, in the nucleus, and at cell-cell junctions. We suggest that the “decision” of the endothelium to become permeable instead of forming a blood-retinal barrier is primarily dependent on YAP levels in different cell compartments. It is anticipated that conditions that perturb the functional interactions between CTGF and YAP likewise alter YAP cellular localization and vascular permeability.

Taken together, our data showed a crucial role for CTGF in regulating the expression and function of a wide array of extracellular and intracellular factors that are essential for normal vascularization of the retina and the acquisition of a functional vascular barrier. It is conceivable that genes affected by CTGF in the endothelium might be relevant for angiogenesis and barriergenesis in organs other than the retina as well. It also is highly likely that the deregulation of the CTGF network genes is relevant in pathological angiogenesis processes (e.g., diabetic retinopathy, retinopathy of prematurity) characterized by disrupted growth, lack of vessel maturation, defective remodeling, and/or barrier dysfunction. Future studies focused on the regulation and function of the CTGF/YAP angiomodulatory pathway in in vivo models of vascular diseases are warranted.

Limitations of the Study

The transcriptomic differences between WT and mutant CTGF mouse retinas together with previously reported vascular defects associated with loss of function of CTGF targets provided greater insights into the essential role of CTGF in retinal angiogenesis and barriergenesis. Equally important, however, is information about the retinal microvascular ultrastructure in CTGF mutant mouse retina, which is a limitation of this study. Transmission electron or two-photon microscopy is the method of choice to be used in future studies to observe and further examine retinal vessel micromorphology and assess potential loss of EC contiguity, as well as the ultrastructural changes of endothelial TJs. Nevertheless, there are prior ultrastructural analyses showing that dermal capillaries of CTGF-deficient mouse embryos had multiple protrusions as well as ultrastructural defects in microvascular endothelial BM protein assembly (Hall-Glenn et al., 2012). These observations are consistent with our data showing that CTGF deletion reduced the expression of numerous BM proteins (e.g., laminin 4, elastin, fibrillin-2, glypican 5, collagen 4A1, and tenascin-C). In particular, defective expression and deposition of type IV collagen and laminin 4 in CTGF-deficient mice could at least in part, engender ultrastructural disorganization/discontinuity of the capillary BM and breakdown of the vascular barrier as seen in acute and chronic neuropathological settings (Lau et al., 2013). As previously shown by Poschl et al., deletion of type IV collagen α₁ or α₂ subunit gene did not prevent BM formation and assembly, but reduced its stability (Poschl et al., 2004), indicating that type IV collagen is critical for the integrity of the microvasculature wall. Similarly, mice lacking laminin 4, exhibited a discontinuous capillary BM and vascular leakage during the embryonic and neonatal period (Thyboll et al., 2002). Clearly, by targeting the BM protein and growth factor genes, CTGF affects the maturation and barrier function of the developing blood vessels and potentially their force-bearing capabilities during neonatal life.

Resource Availability

Lead Contact

Requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, Brahim Chaqour (bchaqour@downstate.edu).

Materials Availability

All unique/stable reagents generated in this study are available from the Lead Contact with a completed Materials Transfer Agreement and reasonable compensation by requestor for shipping and handling charges.

Data and Code Availability

RNA-seq data are available at the NCBI Gene Expression Omnibus with the series record GSE146900.

Methods

All methods can be found in the accompanying Transparent Methods supplemental file.
