. 2020 May 18;20(10):2862. doi: 10.3390/s20102862

Polarization Beam Splitter Based on Si3N4/SiO2 Horizontal Slot Waveguides for On-Chip High-Power Applications

Yuxi Fang 1,†, Changjing Bao 2,†, Zhonghan Wang 1, Yange Liu 1, Lin Zhang 3, Hao Huang 2, Yongxiong Ren 2, Zhongqi Pan 4, Yang Yue 1,*
PMCID: PMC7287709  PMID: 32443543

Abstract

In this paper, we propose an Si3N4/SiO2 horizontal-slot-waveguide-based polarization beam splitter (PBS) with low nonlinearity for on-chip high-power systems. The coupling length ratio between the quasi-TE and quasi-TM modes (LTE/LTM) was optimized to 2 for an efficient polarization splitting. For the single-slot design, the coupling length of the PBS was 281.5 μm, while the extinction ratios (ER) of the quasi-TM and quasi-TE modes were 23.9 dB and 20.8 dB, respectively. Compared to PBS based on the Si3N4 strip waveguide, the coupling length became 22.6% shorter. The proposed PBSs also had a relatively good fabrication tolerance for an ER of >20 dB. For the multi-slot design, the coupling length of the PBS was 290.3 μm, while the corresponding ER of the two polarizations were 24.0 dB and 21.0 dB, respectively. Furthermore, we investigated the tradeoff between the ER and coupling length for the optimized PBSs with single slot or multiple slots.

Keywords: optical waveguide, silicon photonics, silicon nitride, optical polarization

1. Introduction

Photonic integrated circuit (PIC) has attracted much interest recently due to its fundamental advantages in terms of low power consumption, compact size, and low cost [1,2]. Specifically, silicon nitride (Si3N4) is considered to be a promising platform for PIC, due to its CMOS compatibility [3,4]. Compared to the silicon (Si) waveguide, Si3N4 has the advantages of a smaller roughness-induced scattering loss due to the lower refractive index, larger fabrication tolerance due to the weaker light confinement [5,6,7,8], and lower nonlinear loss induced by two-photon absorption (TPA) in the telecommunication band [9,10,11,12,13]. Thus, the Si3N4 waveguide has been widely considered for the high-power applications, such as nonlinear optics (optical frequency comb generation [14], chip optical parametric oscillators, supercontinuum generation [10]), material processing, laser medicine [15], etc.

Polarization beam splitter (PBS) is widely used to mitigate the polarization randomness problem in photonics systems by controlling the polarization state, thus, ensuring proper functioning [16,17,18,19,20]. PBS has been extensively used in sensor applications, such as polarization navigation sensor [21], photoacoustic remote sensing microscopy [22], distributed vibration sensor [23], magnetic field sensor [24], and fiber-optic gyroscope [25]. Furthermore, integrated PBS is an indispensable component of the transceiver in coherent optical communication system. The function of PBS is to separate the transverse electric (TE) and transverse magnetic (TM) polarization beams into different paths, due to their different propagation constants. Previously, various PBSs with different structures have been demonstrated, such as directional couplers, photonic crystals, multimode interferometers (MMIs), Mach-Zehnder interferometers (MZIs), and subwavelength gratings [16,26,27,28]. Recently, slot waveguide has been implemented into directional couplers for improved polarization-splitting performance [17,18,29,30,31,32,33,34,35]. In the slot waveguide, a low refractive index layer is sandwiched by two high refractive index layers. Due to the discontinuity of the electric field at the high-refractive-index-contrast interfaces, the mode with a polarization normal to the interfaces is significantly enhanced within the slot region. Either vertical-slot or horizontal-slot waveguides have been used for on-chip PBSs. The fabrication process of the vertical-slot-waveguide-based PBS usually introduces large roughness in the vertical interfaces [36]. A horizontal-slot-waveguide-based PBS has smoother interfaces, as it only needs to deposit layers with different materials and then etch the waveguide vertically.

In this study, we investigated the integrated PBS using Si3N4-based, coupled, horizontal slot waveguides that could be used for kW-level peak power on-chip systems. The designed Si3N4-based PBS could have negligible linear and nonlinear loss, and its Kerr nonlinear coefficient was approximately two orders of magnitude less than that of PBS using silicon waveguides. By manipulating the coupling length ratio of the quasi-TE and quasi-TM modes (LTE/LTM) to be around 2, efficient polarization splitting can be realized. First, we proposed and designed the Si3N4-based single-slot waveguide PBS, which had a 281.5-μm coupling length. The corresponding extinction ratios (ER) were 23.9 dB and 20.8 dB at 1550 nm for the quasi-TM and quasi-TE modes, respectively. Compared with the PBS based on Si3N4 strip waveguide, the coupling length becomes 22.6% shorter. Our simulation also showed good fabrication tolerance, the ER maintained >20 dB for the quasi-TM mode with a waveguide width variation of ±20 nm. Additionally, we designed a Si3N4-based multi-slot waveguide PBS with a 290.3-μm coupling length. Its ERs of the quasi-TM and quasi-TE modes were 24.0 dB and 21.0 dB at 1550 nm, respectively. Moreover, the tradeoff between the ER and coupling length for both the single-slot and multi-slot waveguides was also investigated at the end.

2. Concept

Figure 1a shows two basic polarization splitting mechanisms. Type I illustrates that the coupling length of two orthogonal polarizations has a large difference, such as the coupling length ratio (LTE/LTM), which was up to 21 [18]. In this condition, most of the quasi-TE mode remained in the bar port, while a fraction of the quasi-TE mode was still coupled to the cross port. The quasi-TM mode was fully coupled to the cross port. The coupling length of the quasi-TE mode was designed to reach to the integer multiple of the one for the quasi-TM mode in Type II. In such a case, the quasi-TM mode was coupled out and then back to the bar port, while the quasi-TE mode was completely coupled to the cross port. As a result, an efficient polarization splitting was achieved. The schematic of the Si3N4 horizontal-single-slot-waveguide-based PBS is depicted in Figure 1b, which was based on Type II. The quasi-TE and quasi-TM modes had different coupling lengths when propagating along a waveguide. The blue and red lines represented the power transformation of the quasi-TE and quasi-TM mode, respectively.

Figure 1.

Figure 1

Open in a new tab

Schematic of two basic polarization splitting mechanisms (a) and the Si3N4 horizontal-single-slot-waveguide-based polarization beam splitter (PBS) (b).

The cross-section of the proposed Si3N4 horizontal-slot-waveguide-based PBS is also illustrated in Figure 1b. High index material Si3N4 was used for the top and bottom regions, while a low index silicon dioxide (SiO2) was chosen for the middle slot region. The material refractive indices of SiO2 and Si3N4 were obtained according to the Sellmeier equations in our model [37,38]. Hs is the slot thickness, Hu is the upper Si3N4 thickness, Hl is the lower Si3N4 thickness, and d is the spacing between the two slot waveguides. We keep the total height H and the width W of the slot waveguide to 800 nm and 1050 nm, respectively.

Based on the mode-coupling theory, the propagating behavior in the designed PBS could be viewed as the summation of the even and odd modes along the device. The coupling length of two orthogonal polarizations can be expressed as [18]:

LTE = λ/[2*(ne,TE − no,TE)], (1)
LTM = λ/[2*(ne,TM − no,TM)], (2)

where LTE and LTM are the coupling lengths of the quasi-TE and quasi-TM modes, ne,TE, no,TE, ne,TM, and no,TM are the effective refractive indices of the even and odd supermodes of the x and y polarizations, respectively. We calculated the effective indices of the supermodes for the coupled-waveguide structure, using a finite-element mode solver. The electric field distributions of the quasi-TE (ne,TE and no,TE) and quasi-TM (ne,TM and no,TM) modes at the wavelength of 1550 nm are shown in Figure 2a–d.

Figure 2.

Figure 2

Open in a new tab

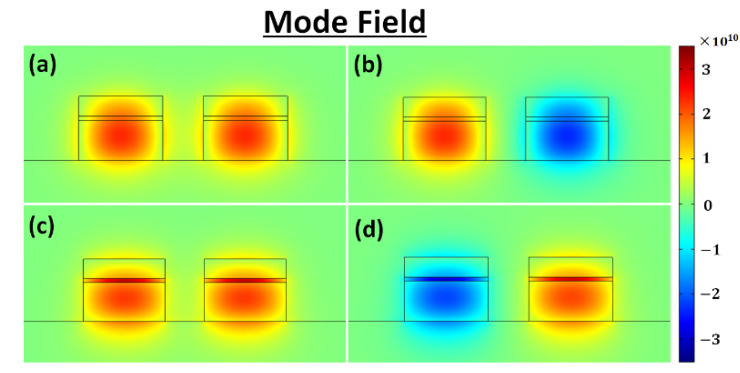

The electric field distributions of (a) the even quasi-transverse electric (TE) mode, (b) the odd quasi-TE mode, (c) the even quasi-TM mode, and (d) the odd quasi-TM mode.

3. Resultant Design of the Polarization Beam Splitter

3.1. Material Characteristics

We obtained the normalized power of the silicon slot waveguide [39] with different input peak power based on Equation (3)

dI/dz = −αI − βTPAI2, (3)

where I is the input peak power, z is the propagation distance, α is the linear loss, and βTPA is the TPA coefficient. As per the literature results, 6.3 dB/cm [36] and 0.01 dB/cm [40,41] were chosen for the linear losses of the Si and Si3N4 slot waveguides, the TPA coefficient βTPA of Si was set to 9.95 × 10−12 m/W [41]. In Figure 3, the normalized power of the silicon slot waveguide decreased rapidly as the increase of the input power to the waveguide due to nonlinear loss process. For high power on-chip applications, kW-level power was used in some experiments [42]. The normalized power only remained 27.8% after 0.1-mm propagation, when the input peak power was up to 1 kW. The dashed black line represented the power evolution in the Si3N4-based slot waveguide. In contrast, the normalized power after the 1-mm Si3N4-based slot waveguide still approached 99.98%. Consequently, compared to silicon horizontal slot waveguide splitter [18], it was more suitable for high power integrated systems.

Figure 3.

Figure 3

Open in a new tab

Normalized power of the inputs to the Si and Si3N4 horizontal slot waveguides.

We used a full-vector model [43] to guarantee an accurate result, which considered the modal distribution of different materials to the overall nonlinear coefficient. Equation (4) was used to characterize the nonlinear coefficient:

γ=2πn—2/λAeff, (4)

where Aeff is the effective mode area, n—2 is the nonlinear refractive index averaged over an inhomogeneous cross-section weighted with respect to field distribution. At 1550 nm, the nonlinear refractive indices of Si, Si3N4, and SiO2 were 4.5 × 10−18 m2/W, 2.4 × 10−19 m2/W, and 2.6 × 10−20 m2/W, respectively [3,44,45]. The Kerr nonlinear coefficient γ of the silicon horizontal slot waveguide splitter [18] is shown in Figure 4a. The nonlinear coefficients of the quasi-TE modes were >68 /W/m, which were bigger than that of the quasi-TM modes. This was because the quasi-TE modes remained mainly in the silicon part, while a large portion of the optical power for the quasi-TM modes resided within the SiO2 slot part. Figure 4b shows the nonlinear coefficient of the modes in the proposed Si3N4 slot-waveguide-based PBS. The corresponding geometric parameters were H = 800 nm, W = 1050 nm, Hs = 50 nm, Hu = 250 nm, and d = 500 nm. We can see that the nonlinear coefficients of the quasi-TE modes were near 0.8 /W/m, the ones of the quasi-TM modes were near 0.6 /W/m. The Kerr nonlinear coefficients γ of the proposed PBS was approximately one percent of the one of the silicon horizontal slot waveguide splitter for the quasi-TE modes. For the quasi-TM modes, γ of the proposed PBS was near 5% of the one for the silicon horizontal slot waveguide splitter. Compared to the silicon horizontal slot waveguide splitter, the proposed Si3N4 slot-waveguide-based PBS had negligible nonlinearity under certain power level, and thus could efficiently separate the polarizations.

Figure 4.

Figure 4

Open in a new tab

Nonlinear coefficient of the Si (a) and Si3N4 (b) horizontal slot waveguide PBS.

3.2. Single-Slot Waveguide Polarization Beam Splitter

We first investigated the coupling length of the quasi-TM mode (LTM) and the coupling length ratio of quasi-TE and TM mode (LTE/LTM) by varying the slot thickness in the single-slot-waveguide-based PBS, as shown in Figure 5a. We found that the coupling length of the quasi-TM mode decreased with the increasing of slot thickness, and the coupling length ratio (LTE/LTM) increased. Here, the waveguide spacing d was 500 nm, and the slot thickness Hs was 50 nm. In this condition, the coupling length of the TM mode was 140.5 μm, and the coupling length ratio of the two polarizations approached to 2, thus, the two orthogonal polarizations could be effectively separated at 1550 nm. Figure 5b depicts the effects of varying the waveguide spacing d. For a PBS with 50-nm slot thickness, LTM increases when d increases from 100 to 900 nm. The coupling becomes weaker for larger waveguide spacing, and thus the coupling length increases. The waveguide spacing d = 500 nm was chosen for the following study.

Figure 5.

Figure 5

Open in a new tab

Coupling length of the quasi-TM mode and the coupling length ratio as a function of (a) the slot thickness Hs (d = 500 nm); and (b) the waveguide spacing d (Hs = 50 nm).

As shown in Figure 6, the normalized power of the quasi-TE and quasi-TM modes in the bar port was a function of propagation distance. When the propagation distance was 281.5 μm, the quasi-TE mode was almost completely coupled to the cross port, the residual output in the bar port was only ~0.4%. Furthermore, when the quasi-TM mode was coupled out and brought back to the bar port, the output remained at 99.22%. The device length L = LTE = 2LTM = 281.5 μm was chosen. Finally, an efficient PBS could be achieved by incorporating the coupled horizontal single-slot waveguides with the parameters of H = 800 nm, W = 1050 nm, Hs = 50 nm, Hu = 250 nm, d = 500 nm, and L = 281.5 μm.

Figure 6.

Figure 6

Open in a new tab

Normalized power exchange of the quasi-TM and quasi-TE modes at the bar port.

Equations (5) and (6) are the general expression of the ERs:

ERbar = 10*Log10[cos2(πz/2LTE)/cos2(πz/2LTM)], (5)
ERcross = 10*Log10[sin2(πz/2LTM)/sin2(πz/2LTE)], (6)

where ERbar and ERcross are the extinction ratios of the bar port and the cross port of the PBS, respectively. These formulas are suitable for both the Type I and Type II polarization splitting mechanisms. Considering L = LTE = 2LTM in our Type II based design, the ERs in Equations (5) and (6) could be further expressed as:

ERTM = 10*Log10[cos2(πz/L)/cos2(πz/2L)], (7)
ERTE = 10*Log10[sin2(πz/2L)/sin2(πz/L)], (8)

where L is the coupling length and z is the propagation distance. In the critical scenario, i.e., the beam propagation distance z = L = LTE = 2LTM, the theoretical values of both ERTM and ERTE from the Equations (7) and (8) equaled to infinite. In practice, the fabrication imperfections from the design target, such as the length ratio of the two waveguides, the spacing between the two waveguides, and the width of the waveguides, resulted in incomplete power transfer and the degradation of the ERTM and ERTE. We defined the bar port as the TM mode port, and the cross port as the quasi-TE mode port. Figure 7a shows the ERs of the proposed Si3N4 horizontal slot waveguide PBS for the quasi-TE and quasi-TM modes, which had a strong wavelength dependence. At the optimized wavelength of 1550 nm, the ERs of the quasi-TM and quasi-TE mode were 23.9 dB and 20.8 dB, respectively. The extinction ratio of the designed Si3N4/SiO2 horizontal-slot-waveguide-based PBS could almost satisfy the practical demand of optical communication systems within the total C-band [46]. The ER of the quasi-TM mode was larger than the one of the quasi-TE mode, as the electric field of the quasi-TE mode was discontinuous at vertical interfaces, the overlap between two waveguides was stronger, and the crosstalk was higher.

Figure 7.

Figure 7

Open in a new tab

Extinction ratio of the quasi-TM mode at the bar port and the quasi-TE mode at the cross port of the proposed Si3N4 horizontal slot (a) and strip (b) waveguide PBS.

Furthermore, we investigated the corresponding Si3N4 strip-waveguide-based PBS and simulated its properties. Based on the same mechanism, efficient polarization splitting could be realized using the coupled Si3N4 strip-waveguide-based PBS. The Kerr nonlinear coefficients γ of the modes in the Si3N4/SiO2 slot waveguide was smaller than the ones in the Si3N4 strip waveguide for both polarizations. The optimized geometric parameters of the Si3N4 strip waveguide was H = 800 nm, W = 1070 nm, and the coupling length L = LTE equaled 363.4 μm, when the corresponding ERs could achieve the values of the proposed PBS, i.e., 25.2 dB for the quasi-TM mode and 22.5 dB for the quasi-TE mode, respectively. Thus, the proposed Si3N4/SiO2 slot-waveguide-based PBS was improved on the properties for both coupling length and nonlinearity. As shown in Figure 7b, the ERs for the Si3N4-strip-waveguide-based PBS basically equaled to the ERs for the slot one in the wavelength range of 1500–1600 nm, which also had a relatively strong wavelength dependence. In comparison, the coupling length of the proposed Si3N4/SiO2 horizontal-slot-waveguide-based PBS was 22.6% shorter. Consequently, the Si3N4/SiO2 horizontal slot waveguide structure could effectively reduce the length of the elements.

We used the finite-difference time-domain method to simulate the modal evolution along the propagation of the proposed PBS. Figure 8 shows the power evolution along the propagation distance for the quasi-TE and quasi-TM modes at 1550 nm. We could observe that the optical power almost transferred from the bar port to the cross port at the coupling length (i.e., LTE) for the quasi-TE mode. Meanwhile, the quasi-TM mode was first transferred to the cross port when the propagation distance equaled to LTM and then came back to the bar port. We could also observe that the coupling length of the quasi-TE polarization was twice as long as the one of the quasi-TM polarization.

Figure 8.

Figure 8

Open in a new tab

The power evolutions of the quasi-TM and quasi-TE modes in the designed PBS at 1550 nm.

We simulated the fabrication tolerance of the proposed Si3N4 horizontal slot-waveguide-based PBS. Taking into account the practical fabrication, the thickness of the slot and the strip thickness of the horizontal waveguide were defined by low-pressure chemical vapor deposition (LPCVD) or plasma-enhanced chemical vapor deposition (PECVD) [40]. These processes could be well controlled. The fabrication error was mainly from the etching process, i.e., the waveguide width was mainly the influence factor of the fabrication tolerance. Here, we defined the ∆w as the width deviation changing from −20 nm to +20 nm. When the waveguide width had an increase of ∆w, the waveguide spacing would decrease by a value of ∆w. As shown in Figure 9a, the ER maintained above 20 dB when ∆w varied from −20 to +20 nm for the quasi-TM mode at 1550 nm. For the quasi-TE mode, the fabrication tolerance was relatively low, and the ER dependence of the width deviation was more sensitive. The quasi-TE mode distribution was x-polarized, so the ER was more sensitive to the geometric parameters along the x-axis, such as the width of the waveguide W. In Figure 9b, we also simulated the maximum ER in the wavelength range of 1500–1600 nm, when the width deviation ∆w changed. The ER mainly fluctuated around the optimized value mentioned above, i.e., 23.9 dB for quasi-TM and 20.8 dB for quasi-TE. The center wavelength of the maximum ER drifted towards the shorter wavelength when the waveguide width increased by ∆w. Conversely, the center wavelength moved to a longer one as the waveguide width was smaller than the design target. Accordingly, we could adjust the waveguide width slightly to realize that the applications of the other central wavelengths in the C-band, without changing any other geometric parameter.

Figure 9.

Figure 9

Open in a new tab

(a) Extinction ratio at 1550 nm of the quasi-TM and quasi-TE mode as a function of the waveguide width deviation Δw; and (b) the maximum extinction ratio in the wavelength range of 1500–1600 nm of the quasi-TM and quasi-TE mode as a function of the waveguide width deviation Δw.

3.3. Multi-Slot Waveguide Polarization Beam Splitter

We also investigated coupled multiple-slotted waveguides for the polarization beam splitting. The schematic of the proposed multi-slot-waveguide-based PBS is shown in Figure 10a. Based on the optimized results of the single-slot waveguide, the multi-slot waveguide maintained the same parameters H = 800 nm, W = 1050 nm, Hu = 250 nm, and d = 500 nm. The slot structure was composed of two SiO2 layers with equal thicknesses, and the middle Si3N4 layer was embedded in between. Here, Hm was the thickness of the middle Si3N4 layer. The electric field distributions of the quasi-TE and quasi-TM modes of the multi-slot Si3N4-based waveguide PBS at the wavelength of 1550 nm are shown in Figure 10b–e.

Figure 10.

Figure 10

Open in a new tab

Schematic cross section (a) and the electric field distributions (b–e) of the multi-slot Si3N4-based waveguide PBS.

In such a multi-slot waveguide, the thickness of the SiO2 and the inserted Si3N4 layers could determine the electromagnetic field distribution. The thicknesses of the two SiO2 slot layers were chosen as Hs = 20 nm, and the thickness of the middle Si3N4 layer was adjusted with a step of 15 nm. With the increase in the middle Si3N4 layer thickness, the power concentration was slightly decreased. The coupling between the two waveguides was, thus, increased. Consequently, the coupling length could be reduced as shown in Figure 11a. The middle Si3N4 layer thickness Hm was chosen to be 25 nm to keep the coupling length ratio of the quasi-TE and quasi-TM modes (LTE/LTM) close to 2. The corresponding coupling length L = LTE equaled to 290.3 μm. Figure 11b shows the ERs of the quasi-TE and quasi-TM modes for the multi-slot-waveguide-based PBS from 1500 to 1600 nm. The ERs of the quasi-TM and quasi-TE modes were 24.0 dB and 21.0 dB at 1550 nm, respectively. We also investigated the fabrication tolerance of the multi-slot-waveguide-based PBS, the ERs were closed to the one based on the single-slot-waveguide for both modes at 1550 nm, as the width deviation ∆w changed from −20 nm to +20 nm. The wavelength dependence of the multi-slot PBS had a similar trend as the one of the single-slot PBS. From the previous research work, multiple slot waveguide could realize a higher confinement factor and power concentration [36,47], and further shorten the coupling length [48]. Compared with the single-slot-waveguide-based PBS, the properties of multi-slot-waveguide-based PBS did not show much improvement through our simulation, under the same overall size of the waveguides, materials, and simulation conditions, except for the number of slot layers.

Figure 11.

Figure 11

Open in a new tab

(a) Coupling length of the quasi-TM mode and the coupling length ratio as a function of the middle Si3N4 layer thickness Hm between the two SiO2 slots; and (b) the extinction ratio of the quasi-TM mode at the bar port and the quasi-TE mode at the cross port for the multi-slot-waveguide-based PBS.

3.4. Tradeoff between the ER and Coupling Length

Figure 12 shows the relationship between the ER and coupling length for the designed PBSs based on the Si3N4 single- and multi-slot waveguide. The square and triangle symbols represent single- and multi-slot-waveguide-based PBSs, respectively. In Table 1, single-slot-waveguide-based PBS with different parameters were used to investigate the polarization splitting effect. The table shows the relatively lower ER in the cross port (quasi-TE mode) at the wavelength of 1550 nm. The PBSs with the structure parameters in the table provide ~2 coupling length ratio (LTE/LTM), and the offset was within 0.5%. In Table 2, we list the different parameters of the multi-slot-waveguide-based PBS, based on similar conditions. One can see that both the single- and multiple-waveguide-based PBS showed a similar trend, such that although a shorter coupling length can be achieved by using smaller waveguide space or adjusting other parameters, the corresponding ER would be worse. In sum, we could obtain a shorter coupling length at the sacrifice of the ERs for both types of PBSs.

Figure 12.

Figure 12

Open in a new tab

The tradeoff between the extinction ratios (ER) and coupling length of single-slot-waveguide-based PBS (square) and multi-slot-waveguide-based PBS (triangle).

Table 1.

Optimized Parameters of the Single-Slot Waveguide-Based PBS.

H
(nm)		 W
(nm)		 Hs
(nm)		 Hu
(nm)		 d
(nm)		 LTE/LTM LTE
(μm)		 ER
(dB)
620 1200 100 260 200 2.0015 54.20 9.38
780 1150 100 410 200 2.0022 59.74 10.12
800 1150 90 410 200 1.9985 61.69 10.29
1200 1200 300 260 200 2.0040 79.48 11.54
840 1100 90 300 300 1.9995 99.75 13.68
950 1100 150 300 350 2.0001 130.14 15.53
1000 1100 150 340 350 1.9991 134.13 15.72
950 1050 150 410 400 1.9974 138.59 16.12
950 1050 120 440 400 1.9995 150.57 16.78
720 1000 90 250 500 1.9963 172.86 18.62
800 1000 90 390 500 2.0001 196.96 18.63
830 1050 90 250 500 2.0027 256.65 20.19
800 1050 50 250 500 2.0035 281.46 20.82
Open in a new tab

Table 2.

Optimized Parameters of the Multi-Slot Waveguide-Based PBS.

H
(nm)		 W
(nm)		 Hs
(nm)		 Hu
(nm)		 Hm
(nm)		 d
(nm)		 LTE/LTM LTE
(μm)		 ER
(dB)
840 1050 100 150 150 500 1.9990 179.29 17.58
840 1050 90 150 150 500 2.0041 193.41 18.12
800 1050 70 50 100 500 1.9966 248.44 19.93
830 1050 25 250 120 500 2.0017 286.89 20.95
Open in a new tab

4. Conclusions

In summary, we presented Si3N4 single- and multi-slot-waveguide-based PBSs. Compared with Si PBS, Si3N4-based devices were more suitable for high-power integrated photonic applications due to its much lower Kerr nonlinearity and negligible nonlinear loss. Furthermore, we analyzed the effect of the geometric parameters and propagation length on the coupling length and ER. The coupling length of the proposed Si3N4/SiO2 horizontal-slot-waveguide-based PBS became 22.6% shorter than the one of coupled Si3N4 strip-waveguide-based PBS. The proposed structure could effectively reduce the length of the elements. The wavelength dependence of the quasi-TM and quasi-TE modes for these two designs were also investigated. The ERs for the quasi-TM and quasi-TE modes could both be >20 dB at 1550 nm for both the single-slot and multi-slot designs. The two designs showed good fabrication tolerance for up to ±20 nm width deviations. Finally, we studied the relationship between the ER and coupling length, and found that one needed to consider the tradeoff when optimizing the device performance or its size. To better serve the needs for different applications in on-chip high-power systems, one might introduce new design to further expand the operating bandwidth of the proposed PBS in the future.

Author Contributions

Conceptualization, Y.Y.; data curation, Y.F. and Z.W.; formal analysis, Y.F., C.B., and Y.Y.; funding acquisition, Y.Y.; investigation, Y.F., C.B., and Z.W., and Y.Y.; methodology, Y.F., C.B., and L.Z., and Y.Y.; project administration, Y.Y.; resources, Y.F. and Y.Y.; software, Y.F., C.B., and L.Z., and Y.Y.; supervision, C.B., Y.L., L.Z., Z.P., and Y.Y.; validation, Y.F. and Z.W.; visualization, Y.F.; writing—original draft, Y.F.; writing—review & editing, Y.F., C.B., Y.L., L.Z., H.H., Y.R., Z.P., and Y.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by the National Key Research and Development Program of China under Grant 2019YFB1803700, Grant 2018YFB0703500, and Grant 2018YFB0504400, in part by the National Natural Science Foundation of China (NSFC), under Grant 11774181 and Grant 61775107, and in part by the Fundamental Research Funds for the Central Universities, Nankai University under Grant 63191511.

Conflicts of Interest

The authors declare no conflicts of interest.
