In Situ X-ray Microscopy Reveals Particle Dynamics in a NiCo Dry Methane Reforming Catalyst under Operating Conditions

Abbas Beheshti Askari †, Mustafa al Samarai †, Bruno Morana ‡, Lukas Tillmann §, Norbert Pfänder †, Aleksandra Wandzilak †, Benjamin Watts ∥, Rachid Belkhou ⊥, Martin Muhler †,§,*, Serena DeBeer †,*
PMCID: PMC7295368  PMID: 32551182

Abstract

graphic file with name cs9b05517_0006.jpg

Herein, we report the synthesis of a γ-Al2O3-supported NiCo catalyst for dry methane reforming (DMR) and study the catalyst using in situ scanning transmission X-ray microscopy (STXM) during the reduction (activation step) and under reaction conditions. During the reduction process, the NiCo alloy particles undergo elemental segregation with Co migrating toward the center of the catalyst particles and Ni migrating to the outer surfaces. Under DMR conditions, the segregated structure is maintained, thus hinting at the importance of this structure to optimal catalytic functions. Finally, the formation of Ni-rich branches on the surface of the particles is observed during DMR, suggesting that the loss of Ni from the outer shell may play a role in the reduced stability and hence catalyst deactivation. These findings provide insights into the morphological and electronic structural changes that occur in a NiCo-based catalyst during DMR. Further, this study emphasizes the need to study catalysts under operating conditions in order to elucidate material dynamics during the reaction.

Keywords: in situ, heterogeneous catalysis, nanoreactor, methane reforming, X-ray spectroscopy, microscopy

Introduction

The emission of greenhouse gases associated with the combustion of fossil fuels is believed to be the main cause of global warming.1,2 Lowering the concentration of these gases is therefore a matter of utmost importance. An attractive approach would be the development of environmentally friendly processes capable of reusing these gases as feedstock for industrial processes. In this context, a reaction that has received much attention is dry methane reforming (DMR).3−5 In this reaction, two major greenhouse gases, methane (CH4) and carbon dioxide (CO2), are converted into hydrogen (H2) and carbon monoxide (CO), otherwise known as syngas. The DMR reaction (eq 1) together with the side reactions (eqs 2–5) proceeding under non-ideal conditions are reported below6−8

graphic file with name cs9b05517_m001.jpg 1
graphic file with name cs9b05517_m002.jpg 2
graphic file with name cs9b05517_m003.jpg 3
graphic file with name cs9b05517_m004.jpg 4
graphic file with name cs9b05517_m005.jpg 5

In the literature, various classes of materials, including noble metals, spinels, hydrotalcites, and supported base metals, have been reported as catalysts for the DMR process.9−11 Among these catalysts, noble metals show the highest activity and stability toward this reaction but are economically not attractive.12 In recent years, various studies focused on the development of late 3d transition metal-based systems as an alternative to costly noble metals for DMR catalysis.9−11,13 Within this context, nickel (Ni)-based catalysts are promising candidates due to their relatively high activity and earth abundance. Nevertheless, the major drawback of monometallic Ni-based catalysts when compared to noble metal-based catalysts is their lower activity and higher susceptibility to deactivation due to coke formation via either methane cracking or the reverse Boudouard reaction.14−19 In order to increase catalyst activity and stability, researchers have implemented various approaches including (i) depositing the catalytic active phase on different support materials,20,21 (ii) reducing the catalyst, particle size,22,23 (iii) developing bimetallic catalysts based on transition metals,24−27 and (iv) transition metal-based core–shell nanoarchitectures.28−30 It has been shown that core-shell systems have the ability to prevent metal sintering and decrease carbon formation, while the production of bimetallic catalysts has been very successful in increasing the catalyst activity, stability, and selectivity. Among 3d transition metals, the addition of cobalt (Co) to Ni-based DMR catalysts results in the highest increase in activity. This has been ascribed to the optimal catalytic performance of the Ni/Co alloy.31,32 Within this context, Zhang et al. investigated NiCo catalyst samples with various Ni and Co loadings and established that a lower Co concentration results in an increased catalytic activity and stability and prevents the coke formation side reaction to a large extent.33 An operando X-ray absorption spectroscopy (XAS) study by Takanabe et al. revealed that Co increases the capacity of CO2 adsorption, which eventually leads to carbon elimination from the catalyst surface.34 Furthermore, in the same study, the presence of a homogeneous NiCo alloy was directly correlated to the DMR activity. This finding was supported by a combined in situ transmission electron microscopy (TEM) and X-ray photoelectron spectroscopy (XPS) study by Bonifacio and co-workers, which revealed that NiCo core–shell particles tend to form a homogeneous alloy at high temperatures (600 °C).35 In addition, an ex situ TEM and in situ XPS study by Carenco et al. revealed that under reducing conditions and low temperatures (270 °C) the morphology of NiCo particles changes into a structure consisting of NiCo alloy shell and a nickel-rich core.36 From these studies and many others reported in the literature,36−40 the formation of a NiCo alloy seems to play a crucial role in optimizing the DMR activity. However, none of these studies were performed at optimal operating temperatures for DMR (>700 °C).34 The differences between the particle morphology at low and high temperatures35,36 suggest that it is necessary to follow the electronic structure and elemental distributions of Co and Ni during both the reductive activation step and under DMR conditions.

In general, the scarce information regarding the role of transition metals in methane reforming catalysis is mainly due to the lack of experimental techniques capable of simultaneously probing the changes in the electronic structure and visualizing the morphology of the active phase under operating conditions. Within this context, scanning transmission X-ray microscopy (STXM) is a promising technique whereby soft X-ray spectroscopy is combined with 2D microscopy. Recently, it has been reported that by employing microfabricated monolithic nanoreactors,41 together with a specifically designed in situ gas-phase setup, the changes in the particle morphology and electronic structure of the catalytic active phase can be imaged and probed under operating conditions.42−44 The specific combination of nanoreactors and an in situ gas-phase setup developed for this study allowed simultaneously operating at temperatures (750 °C) and pressures (3.0 bar) that are higher than those until now reported for in situ STXM studies.44,45 This advancement is key for studying catalysts under industrially relevant conditions. Herein, we first present a synthetic method for a bimetallic alumina-supported NiCo DMR catalyst followed by in situ STXM characterization of the catalyst performed during the reductive activation step and under DMR operating conditions. To the best of our knowledge, this is the first in situ STXM study of a bimetallic DMR catalyst. These data are crucial for the understanding of the catalytic dynamics involved in the reforming of methane and thus are fundamental to the development of catalysts with superior properties.

Experimental Section

Catalyst Synthesis

For the synthesis, cobalt(II) acetate tetrahydrate (>98%, Sigma Aldrich), nickel(II) acetate tetrahydrate (99.998%, Sigma Aldrich), ammonium oxalate monohydrate (98%, Alfa Aesar), methanol (99%, Alfa Aesar), 1-hexanol (99%, Alfa Aesar), and n-hexane 99% gamma alumina catalyst support (surface area of 200 m2/g, Alfa Aesar) were employed.

The NiCoOx/γAl2O3 catalyst was synthesized according to the modified reverse micellar method.46,47 The advantage of this synthesis method is that it enables the production of a bimetallic catalyst with controlled size and elemental ratios incorporating late transition metals. Other methods are mainly focused on the synthesize of small particles with the aim of increasing the activity22,23,48 and limiting coke formation.49,50 In contrast, for STXM characterizations, where the spatial resolution is limited, larger particles are desired. By using the modified micellar method, we successfully produced highly active and stable particles, which have the ideal size for STXM characterizations. The first step in the production of the bimetallic catalyst involved preparing four different mixtures. Herein, 2.3 g of ammonium oxalate monohydrate, 2.0 g of nickel acetate tetrahydrate, and 0.71 g of cobalt acetate tetrahydrate were separately dissolved in 15 mL of water and stirred for 15 min to obtain three different solutions. The fourth mixture was prepared by mixing and stirring 0.9 g of cetyltrimethylammonium bromide, 9 mL of hexanol, and 12.6 mL of hexane for 20 min. This mixture was divided into three equal parts, and each of these was then added to the first three mixtures and stirred for another 20 min. In the last stage, all solutions were added together and stirred for 48 h to obtain the bimetallic catalyst. The produced catalyst was purified by centrifuging at 5500 rpm for 5 min and washed with a mixture of 30 mL of methanol and 30 mL of chloroform. This procedure was followed by centrifugation at 5500 rpm for 10 min and drying at 50 °C for 12 h. To deposit the bimetallic catalyst on a support, 2.5 mL of water was added to the prepared catalyst and 0.8 g of γ-Al2O3 was added to the solution. This was then stirred for 20 min and dried at 90 °C for 12 h. The final phase of this process included calcining the supported catalyst at 400 °C for 10 h in an argon atmosphere. In the study by Fakeeha and Al-Fatesh, it was shown that a low calcination temperature results in a large surface area of Ni-based DMR catalysts.51 This simple method allows the production of a wide variety of catalysts by selecting the desired metal acetates. In addition, the size of the active phase can be tuned by varying the amount of water and metal acetates used in this process. Figure S1 shows the complete synthesis route used in this study to produce the NiCoO/γ-Al2O3 catalyst.

Scanning Transmission Electron Microscopy (STEM) Experiments

For the STEM measurements, a polymer-coated Cu TEM grid was immersed in the dry catalyst powder. The morphology and elemental distribution of the catalyst were imaged by using the Hitachi HD-2700 spherical aberration-corrected STEM. Images were acquired with an acceleration voltage of 200 kV. In addition, energy-dispersive X-ray (EDX) spectra were recorded with an EDAX Octane T Ultra W 200 mm2 SDD attached to the STEM microscope.

Activity Measurements

For the activity measurements, the setup described in the work of Muhler et al. was employed.52 The effluent gas was analyzed using an Agilent 3000 Micro-GC equipped with PLOT-Q and Molsieve 5A PLOT columns and a TCD for quantification. The gases employed for the activity measurements were 10% H2 diluted in N2 (purity, 99.999%), CH4 (purity, 99.995%), CO2 (purity, 99.995%), and N2 (purity, 99.999%).

The first step of the activity experiments involved sieving 50 mg of the supported NiCo catalyst to obtain nanoparticles smaller than 200 μm. Subsequently, these were loaded in the fixed-bed reactor and activated by flowing 10% H2 in N2 (flow rate of 100 mL min–1), for a time of 20 min and with a set temperature of 850 °C. Finally, the activity was measured for 15 h under DMR conditions, that is, by flowing a gas mixture of 7% CH4 and 9.5% CO2 in N2 (flow rate of 490 mL min–1). We note that due to the configuration of the employed setup and more interestingly to the endothermicity of the DMR reaction, causing by itself a cold spot in the center of the fixed-bed reactor, the temperature in the center of the bed deviates from the set temperature.52 Therefore, during our activity measurements, a temperature of 800 °C was set to obtain an approximate temperature of 750 °C at the catalyst.

Temperature-Programmed Reduction (TPR) Measurements

The TPR profile was recorded in a quartz cell filled with 81.9 mg of the calcined catalysts. The sample was heated up to 850 °C with a rate of 6 °C/min in a continuous flow of 4.6% H2 in Ar (purity, 99.99), adding up to a total volume of 84.1 mL min–1. The H2 consumption was determined by using a thermal conductivity analyzer (Hydros 100, Rosemount).

STXM

The STXM measurements for the particle shown in Figure 1 were performed at the PolLux beamline of the Paul Scherrer Institute,53,54 while the particle shown in Figure 2 was measured at the Hermes beamline at SOLEIL synchrotron radiation facility. The spatial resolution of the zone plates was 35 nm for both beamlines. The first stage of the STXM experiment involved measuring the calcined sample. Next, the sample was exposed to reducing conditions (5% H2 in Ar) while gradually increasing the temperature from 25 to 750 °C. During the activation process, the pressure was increased up to 3.0 bar with the aim of accelerating the reduction. Additional measurements performed at 1.5 bar and 500 °C/750 °C showed only minor changes in the particle size and no detectable variations in its morphology (see the Supporting Information Figure S2). Finally, the sample was investigated under DMR  conditions, that is, by flowing a gas mixture of 7% CH4 and 5% CO2 diluted in N2, at a pressure of 1.0 bar, and at temperature of 750 °C.

Figure 1.

Figure 1

Open in a new tab

Elemental composition maps showing the distribution of Ni (in green) and Co (in violet) for (a) freshly calcined particles, (b) following the reduction step at 500 °C under 5% H2 in Ar, where the Ni and Co oxides are reduced, and (c) at 750 °C and under 5% H2 in Ar flow where the Ni and Co Al2O4 are fully reduced. This last image confirms the elemental segregation within the large agglomerates upon full reduction.

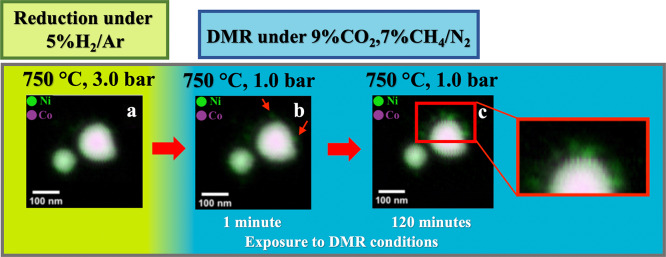

Figure 2.

Figure 2

Open in a new tab

Elemental composition maps of the nanoparticle under study. (a) Acquired after reduction and confirming the elemental segregation within the large agglomerates. (b) Acquired after exposure to DMR conditions for 1 minute and (c) 120 minutes. In (b) the increase of the Ni concentration in certain locations of the surface is visible and indicated with red arrows. In (c) the formation of Ni branches starting form the surface of the nanoparticle is visible and emphasized in the close up.

Results

STEM

STEM images of the calcined sample displayed the formation of large agglomerates consisting of coalesced nanoparticles in the range of 5–20 nm (Figure 3a and Figure S3). In addition, energy-dispersive X-ray spectroscopy (EDX) data showed the distribution of Co (violet) and Ni (green) oxides (Figure 3b–d) on the alumina support (yellow). Moreover, it is shown that both Ni and Co are not homogeneously distributed throughout the large agglomerates, and specific domains with mainly a NiO character are also encountered as determined from X-ray diffraction (XRD) (Figure S4). Furthermore, the metal loadings in atomic % for the NiCoOx/γ-Al2O3 catalyst were predetermined from the bulk EDX analysis and corresponded to 56.4% (oxygen), 1.1% (cobalt), 9.2% (nickel), and 33.3% (aluminum). In addition, the Ni/Co ratio in this sample was close to 9:1 (Figure S5).

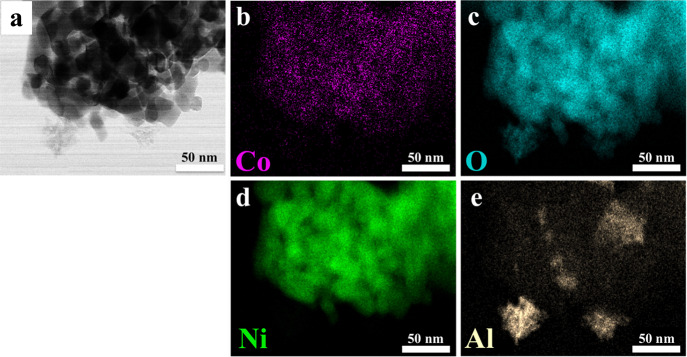

Figure 3.

Figure 3

Open in a new tab

(a) Bright-field STEM image of the catalyst calcinated at 400 °C. (b–e) STEM-EDX elemental mapping images of Co, O, Ni, and Al shown in violet, blue, green, and yellow, respectively. (c) Measured oxygen signal originating from the metal oxides and the alumina.

TPR and Catalytic Activity Tests

Prior to the in situ STXM experiment, the TPR profile and the catalytic activity for the NiCoO/γ-Al2O3 DMR catalyst were measured (Figure S6). The TPR profile shows the presence of two clear reduction peaks and suggests the reduction of metal oxides in the temperature range of 250–500 °C. The first peak at 265 °C is assigned to the reduction of Co3+ species to Co2+, whereas the main peak at 325 °C is assigned to the reduction of Ni2+ and Co2+ to their metallic states.55−58 Furthermore, these data indicate that full reduction of the metal oxides into the metallic state already occurs at temperatures lower than 500 °C. Next, the DMR activity of the NiCoO/γ-Al2O3 catalyst was investigated at a lab scale via a fixed-bed reactor by loading 50 mg of the catalyst particles that were sieved down to <200 μm. In the first stage of the experiment, the catalyst was activated by performing a reduction treatment under 10% H2 in N2 by setting the temperature to 850 °C. The catalyst was then cooled down by setting the temperature to 800 °C, and after switching to the DMR gas mixture (7% CH4 & 9.5% CO2 in N2), the DMR activity was measured on stream for 15 h. The degree of CH4 and CO2 conversion after 2 h stabilized at 86 and 77%, respectively (Figure 4). In addition, the yields for H2 and CO were calculated using eq S1 and corresponded to ∼78 and ∼80%, respectively. The activity of the NiCoO/γ-Al2O3 DMR catalyst in terms of CH4 conversion is of the same order of magnitude as that exhibited by bimetallic NiCo catalysts in the literature (75–90%), which was found to exceed that of monometallic Ni or Co DRM catalysts (<70%).21,35,36 These findings hint to the synergistic effect between Ni and Co in the bimetallic NiCo DMR catalyst. Furthermore, Figure S7 and Table S1 show, respectively, the activity measurement results and corresponding conversion/yield values, after exposing the catalyst to DMR conditions for 15 h.

Figure 4.

Figure 4

Open in a new tab

Activity measurements for the NiCoO/γ-Al2O3 DMR catalyst (conversion/yield fractions during the DMR experiment under 7% CH4 and 9.5% CO2 in N2 and a flow rate of 490 mL min–1). Due to the configuration of the setup and the endothermicity of the DMR reaction, the oven temperature was set to 800 °C to achieve a temperature of ∼750 °C at the center of the bed. Prior to the DMR activity measurements, the catalyst was treated for 30 min under 10% H2 in N2 with a flow rate of 100 mL min–1.

STXM

For the STXM measurements, the X-ray transmission signal of a selected particle was acquired at both Ni (in green) and Co (in violet) L-edges for (I) the freshly calcined sample, (II) during reduction with 5% H2 in Ar, and (III) through the DMR process under 7% CH4 and 9.5% CO2 in N2. Figure S8 illustrates that multiple particles were investigated to confirm the reproducibility of the in situ STXM results. The average lateral dimensions and thicknesses of the selected calcined catalyst particles were in the order of 0.4–1.2 μm and 0.2–0.3 μm, respectively. Each of the spectral elemental images were obtained by subtracting the pre-edge spectral elemental map from that obtained at the L3-edge maximum. The elemental composition maps presented in Figure 1a–c are collected from an identical spot. Furthermore, the corresponding Co and Ni L3-edge XAS spectra are shown in Figure 5. For the sake of comparison, L3-edge XAS spectra of the metallic Ni and Co oxides are also included in Figure 5.

Figure 5.

Figure 5

Open in a new tab

(a) Co L3-edge spectrum of the NiCoO/γ-Al2O3 sample collected under operating conditions. The L3-edge of the calcined catalyst has the same shape and energy position when compared to Co3O4. Under reducing conditions at 500 °C, the Co3O4-like compound is converted into metallic Co. (b) Collection of Ni L3-edge spectra of the fresh catalyst having the same shape and energy position if compared to NiO. Under DMR conditions, both the Ni and Co stay reduced.

In general, the elemental composition maps for the freshly calcined sample (Figure 1a) show a rather inhomogeneous distribution of Ni and Co on the γ-Al2O3 support. This observation is further supported by the individual elemental composition maps of Co and Ni acquired for the same calcined particle (Figure S9). There are, however, some Ni-rich regions in the calcined catalyst, consistent with the corresponding STEM-EDX data (Figure 3). Based on a comparison with reference spectra, the formation of Co3O4 (2xCo3+ Oh and 1xCo2+ Td) and NiO (Ni2+ Oh) species, as a result of the calcination process, is confirmed as reported in other studies.24,59

Next, the catalyst was activated by increasing the temperature stepwise from 25 °C to 750 °C under a continuous 5% H2 in Ar flow. In order to accelerate the reduction process, the pressure was set to 3.0 bar. The corresponding Co and Ni L3-edges are shown in Figure 5 and Figures S10 and S11. At the initiation of the reduction step, the pressure was increased to 3.0 bar to accelerate the reduction process. At 250 °C, the Ni L3-edge remains essentially unaffected, indicating that Ni2+ is still present. However, the Co L3-edge has changed quite significantly both in the multiplet structure and in the average energy. The observed changes are consistent with the reduction of the Co3+ Oh sites to most probably octahedrally coordinated Co2+ oxide. These results are in agreement with the TPR data (Figure S6) and with literature studies, where the partial reduction of Co3O4 was found to occur at a relatively lower temperature compared with the Ni site.60,61 The most prominent changes in the L-edge spectra are observed at 500 °C. At this temperature, the shift in both Co and Ni L3-edges together with the resulting spectral shape indicates the full reduction of the metal oxides to their metallic state. This result is again consistent with the measured TPR profiles (see Figure S6). Furthermore, Figure 1b shows that at 500 °C, the morphology and elemental distribution of the NiCo particle are altered. The formation of voids within the particle can be seen, which may be a result of restructuring upon loss of oxygen from the lattice under reducing conditions.62,63Figure S2 reveals that increasing the reduction pressure to 3.0 bar at 500 °C results in a minor decrease in the particle size.

In the second phase of the reduction process, performed at 750 °C, both the Co and Ni L3-edges remain unchanged relative to the data acquired at 500 °C (Figure 5), thus supporting the full conversion of the metal oxides at 500 °C into their metallic species. However, the elemental composition maps shown in Figure 1c display a rather dramatic change in the elemental distribution of the active phase with Co migrating inward and a Ni-rich shell forming on the surface of the large agglomerate. The elemental composition maps shown in Figure 1 and Figure S12 show that in this step, the formed structure consists of two parts: (I) the surface, made of only Ni, and (II) the core, consisting of both Co and Ni. This demonstrates the increase in surface mobility of Ni and Co at high temperature and under 5%H2 in Ar flow. Figure S2 shows that increasing the pressure from 1.5 to 3.0 bar only slightly influences the particle morphology, with this becoming slightly more spherical. While previous studies have suggested that alloy formation between Ni and Co is key to optimizing the DMR activity and stability,29,37,64,65 for the system under study, we show that elemental segregation to form a Ni-rich surface is involved in the activation of the catalyst. We note that previous in situ XPS studies by Wu et al.37 of a related NiCo catalyst, obtained by the wet impregnation method, indicated that Co migrates inward during the reduction of NiCo. Further they showed that upon the completion of reduction, the surface of the nanoparticle is a 50:50 mixture of Co and Ni.37 However, due to the intrinsic differences between our catalyst and that studied by Wu, such comparisons must be made with caution. Regardless, these results highlight the power of spectromicroscopy for identifying morphological, structural and element distribution changes in nanoparticles during operating conditions.

Finally, under DMR reaction conditions, we focused on another NiCo particle with much smaller dimensions in order to precisely follow the changes in morphology and in the elemental distribution. Herein, elemental composition maps and L3-edge XAS spectra were obtained during the DMR reaction at 750 °C under 7% CH4 and 9.5% CO2 in N2 at (I) 1 minute and (II) 120 min exposure time. The data collected after 1 min exposure to the DMR conditions clearly indicate that the segregated structure is preserved (Figure 2b) and that both Ni and Co remain fully reduced based on the L3-edge spectra (Figure 5). Furthermore, Figure 2a,b reveals that changing the pressure from 3.0 to 1.0 bar does not influence the particle morphology and size. However, a closer inspection of Figure 2b reveals that in for the large NiCo particle, the Ni concentration has increased in certain locations on the surface, as indicated with red arrows. After 120 min under DMR conditions, the Ni and Co are still reduced, as seen from the L-edges but the formation of Ni-rich branches at the surface of the particle is observed (Figure 2c). This unexpected event may be associated with the growth of filamentous carbon on the surface of the catalytically active sites.66,67 This result is consistent with that of Takanabe et al. where it was demonstrated that carbonaceous species are removed at a slower rate on pure Ni surfaces, which ultimately leads to deactivation due to carbon deposition.34

Conclusions

In summary, we have successfully developed a modified route for the controlled synthesis of a NiCo catalyst with high activity and stability toward the DMR reaction. Importantly, the synthesis procedure produced large particles, which are amenable to studies by STXM. In situ STXM measurements show that while in the calcined form, the particles exhibit an inhomogeneous distribution of Ni and Co, and during the reductive activation step at 750 °C (5% H2/Ar), a clear elemental segregation is observed; with Co migrating toward the center of the agglomerated nanoparticles and Ni forming a shell on the outer surface of the particle. The segregated structure is preserved during DMR, suggesting that Ni is the primary active site, while the more readily oxidized Co may serve as an electron donor to Ni during catalysis. The dynamics of morphology and elemental distribution of the nanoparticle highlights a mechanism by which the synergistic interaction between the metals is optimized to maximize catalytic activity and minimize coking.68

This study highlights the ability of in situ STXM to monitor the evolution of particle morphology, elemental distribution, and electronic structure under operating conditions. In this respect, the employed in situ setup represents a major technological advancement, as it enables the types of industrially relevant processes that can be studied with STXM to be greatly expanded. As such, we are convinced that this method development, by providing a means to evaluate catalytic mechanisms and deactivation processes, will enable important advances in the understanding of heterogeneous catalytic processes in general. We thus believe that in the future, in situ STXM will provide important contributions toward knowledge-based catalytic design.

Acknowledgments

The Max Planck Society and the European Research Council, under the European Union’s Seventh Framework Programme (FP/2007-2013) ERC grant agreement no. 615414 (S.D.) and NFFA EU grant (H2020) no. 654360 (R.B.), are acknowledged for funding. The PolLux end station was financed by the German Ministerium für Bildung und Forschung (BMBF) through contracts 05K16WED and 05K19WE2. The authors thank Christian W. Lehmann from the Max-Planck-Institut für Kohlenforschung for supporting the STEM measurements.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acscatal.9b05517.

  • Additional data obtained from STEM, XRD, TPR, activity tests, and STXM elemental composition maps (PDF)

The authors declare no competing financial interest.
