Investigating global gene expression changes in a murine model of cherubism

Abstract

Cherubism is a rare genetic disorder caused primarily by mutations in SH3BP2 resulting in excessive bone resorption and fibrous tissue overgrowth in the lower portions of the face. Bone marrow derived cell cultures derived from a murine model of cherubism display poor osteogenesis and spontaneous osteoclast formation. To develop a deeper understanding for the potential underlying mechanisms contributing to these phenotypes in mice, we compared global gene expression changes in hematopoietic and mesenchymal cell populations between cherubism and wild type mice. In the hematopoietic population, not surprisingly, upregulated genes were significantly enriched for functions related to osteoclastogenesis. However, these upregulated genes were also significantly enriched for functions associated with inflammation including arachidonic acid/prostaglandin signaling, regulators of coagulation and autoinflammation, extracellular matrix remodeling, and chemokine expression. In the mesenchymal population, we observed down regulation of osteoblast and adventitial reticular cell marker genes. Regulators of BMP and Wnt pathway associated genes showed numerous changes in gene expression, likely implicating the down regulation of BMP signaling and possibly the activation of certain Wnt pathways. Analyses of the cherubism derived mesenchymal population also revealed interesting changes in gene expression related to inflammation including the expression of distinct granzymes, chemokines, and sulfo-transferases. These studies reveal complex changes in gene expression elicited from a cherubic mutation in Sh3bp2 that are informative to the mechanisms responding to inflammatory stimuli and repressing osteogenesis. The outcomes of this work are likely to have relevance not only to cherubism, but other inflammatory conditions impacting the skeleton.

1. Introduction

Cherubism is a rare autosomal dominant craniofacial disorder af-fecting pre-pubertal children. It was first described in 1933 as a multilocular cystic dysplasia of the jaw that led to outward bulging of cheek and upward shift of eyes that gave a ‘cherub’ like appearance to these children [1]. Extensive bone resorption, fibrous tissue overgrowth and immune cell invasion in jawbones further characterize the cherubism phenotype [2]. In most cases, the disease is known to self-regress after puberty over a period of several years [3–5]. However, in more ag-gressive cases, surgical interventions are required to restore severe facial deformation and normal functions like eating and breathing. The majority of cherubism cases (80%) are caused by gain-of-function mutations in Src Homology 3-domain binding protein 2 (SH3BP2), which is located on chromosome 4 (4p16.3 region) in humans [6,7].

SH3BP2 is a cytoplasmic adaptor protein that plays an indispensable role in relaying signals from various cell surface molecules to their downstream effectors by assembling stable enzyme-substrate com-plexes. In humans, it is a 561-aa protein that consists of an N-terminal pleckstrin homology (PH) domain, a proline-rich Src Homology 3 (SH3) binding domain and a C-terminal Src Homology 2 (SH2) domain. SH3BP2 has been shown to take part in various cellular processes by its involvement in key signaling pathways, including the Syk and Src family of kinases [8]. Protein levels of SH3BP2 are itself regulated through tankyrase mediated ADP ribosylation followed by RNF146 mediated ubiquitination and proteasomal degradation [9,10]. There is evidence to suggest that cherubism mutations in SH3BP2 lead to dis-ruption in tankyrase binding resulting in overaccumulation of SH3BP2 protein in cells [9]. Consequently, it is generally assumed that SH3BP2 associated signaling pathways are increased, which ultimately leads to the pathology of cherubism. However, why this mechanistic outcome would contribute to a disease that is largely restricted to the craniofacial region remains a mystery.

To better understand the physiological and molecular pathology of cherubism, a mouse model of the disease was generated by knocking-in one of the most common mutations Pro416Arg into Sh3bp2 (Sh3bp2^{KI/ KI}) [11]. While the generation of Sh3bp2^KI/KI mice has not faithfully recapitulated the selective craniofacial aspects of cherubism patients, nonetheless, the animal model has yielded valuable evidence on the dysfunction of Sh3bp2 in certain cell types, such as the heightened activation of inflammatory and RANK signaling pathways that systemically impacts bone resorption [11–13].

One of the unexplained etiologies of cherubism relates to the excessive fibrous tissue overgrowth that occurs, which is analogous to other fibrotic conditions. Consistent with fibrotic tissue, mandibular and maxillary lesions in cherubism patients contain a complex mixture of cell types of hematopoietic and mesenchymal origin, both of which are likely to have roles in perpetuating the fibrotic state. While not of craniofacial origin, adherent bone marrow cultures from long bones contain a rich mixture of hematopoietic and mesenchymal cell types and past work by us has shown that bone marrow cells derived from cherubism mice display poor osteogenesis and spontaneously form osteoclasts [14]. Further, the osteoblasts in these cultures not only fail to mature but typically organize into swirling patterns possibly suggesting the existence of fibrotic mechanisms. Consistent with this thinking, we showed that decreasing TGFβ signaling, a major fibrotic pathway, could decrease osteoclast formation and rescue osteoblast differentiation [14]. Unfortunately, in our hands, anti-TGFβ treatment in cherubism mice did not alleviate bone resorption or overall animal health (data not shown). Therefore, to develop a broader understanding of the mechanisms occurring between hematopoietic and mesenchymal cell lineages, we characterized global gene expression patterns in sorted hematopoietic and mesenchymal cells from day 7 bone marrow cultures derived from femurs using RNA sequencing (RNA-Seq). Here we report our findings from differential expression analyses, which revealed surprising alterations in gene expression both within the hematopoietic and mesenchymal cell lineages that are likely to be relevant not just to cherubism, but to a variety of inflammatory skeletal diseases.

2. Methods

2.1. Reagents

For cell culture, MEM Alpha (12571–063), PBS (10010–023), HEPES 1M (15630–080), 100× Penicillin-Streptomycin (15140122), and Hanks’ balanced salt solution 10× (HBSS) (14185–052) were obtained from Life Technologies. Fetal Bovine Serum (FBS) (S01520) was purchased from Biowest and Accutase (AT104) was purchased from Innovative Cell Technologies.

For cell sorting, FITC conjugated mouse anti-CD45 (130–110-796) and APC conjugated mouse anti-SCA-1 (130–102-833) antibody were bought from Miltenyi Biotec. SUPERase In RNase Inhibitor (20 U/μL) (AM2694) was from ThermoFisher Scientific. UltraPure distilled water (DNase and RNase free) (10977–015) was obtained from Invitrogen by Life Technologies. RNase free BSA (B6917) was obtained from Sigma--Aldrich. RNAprotect cell reagent (76526) was obtained from Qiagen.

For RNA purification, library preparation, and sequencing, Direct-zol RNA Miniprep Plus (R2072) was purchased from Zymo Research. SMARTer Stranded RNA-Seq Kit (634836) and RiboGone-Mammalian (634847) were obtained from Takara Biosciences. Agencourt AMPure XP, 5 mL (A63881) was bought from Beckman Coulter. The sequencing kit, NextSeq® 500/550 High Output Kit v2 (150 cycles) (TG-160–2002), was bought from Illumina. Experion RNA HighSens Analysis Kit (7007105) was purchased from Bio-Rad. High Sensitivity DNA Kit (5067–4626) was obtained from Agilent. Qubit dsDNA HS Assay Kit (Q32851) was bought from ThermoFisher Scientific. NEBNext Library Quant Kit for Illumina (E7630S) was bought from New England Biolabs.

2.2. Animals

Sh3bp2 KI/+ mice were generously provided by Dr. Yasuyoshi Ueki. Col1a1–2.3 EGFP osteoblast reporter mice were generously provided by Dr. David Rowe. Male and female Sh3bp2KI/+ mice were intercrossed with Col1a1–2.3 EGFP mice to generate experimental animals, which were maintained on a C57BL/6 background. Genotyping by PCR for the Sh3bp2 knock-in allele was performed using PCR primers 5′-CCACTA TATGACAATACCTG-3′ and 5′-CATAGTCTTCATCTGAGTCC-3′. Animal studies were carried out in strict accordance with the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health and animal protocols were approved by the Animal Care Committee of the University of Connecticut Health (approved protocols 101060–0518, 101777–0121).

2.3. Primary bone marrow stromal cell cultures

Bone marrow cultures were prepared from 6- to 8-week old mice. Hindlimbs were dissected out and placed in ice cold PBS. Under a cell culture hood, muscle and connective tissues were removed from long bones using a scalpel. Bones were then cut in half to expose the bone marrow cavity and kept wet in cell culture media until all bones were prepared. Long bone halves were vertically inserted with marrow opening facing down in a 1.5 mL microfuge tube containing precut-pipet tips to hold bone pieces. 200 μL of cell culture media was added to each microfuge tube to keep cells wet following centrifugation. Bones were centrifuged at 6000 rpm for 1 min to spin out bone marrow cells. Bone pieces and pipet tips were removed from microfuge tubes under the c ll culture hood with sterile forceps. Cell pellets were resuspended in cell culture media by gentle pipetting. Extra cell culture media (0.5 mL–1 mL) was added to facilitate cell suspension to generate a single cell suspension. Cell suspensions were then filtered through a 70-μm cell strainer. Cells obtained from one mouse were plated in one 10 cm tissue culture dish or one six-well plate with 15 mL of media. On the third day of culture, cells were washed with PBS and re-supple-mented with media.

2.4. Flow cytometry

On day 7 of culture, adherent cells were washed twice with PBS, digested with 5 mL of accutase (Innovative Cell Technologies) for 5 min at 37 °C, gently scraped and pipetted up and down to generate a single cell suspension. 10 mL of PBS was added to dilute accutase. Cells were then centrifuged and resuspended in FACS staining buffer (1× HBSS, 10 mM HEPES, 2% BSA (RNase free), 2 mM EDTA, pH 7.4). Cell surface staining was carried out with anti-Sca1-APC and anti-CD45-FITC according to manufacturer’s recommendations (Miltenyi Biotech). To a small volume of FACS staining buffer, Sytox blue was added to detect and remove dead cells during FACS, and SUPERase In RNase Inhibitor was added to prevent RNA degradation. Sorting was carried out on a Becton-Dickinson FACS-ARIA II (UCH Flow Cytometry Core). Two populations Sca1⁺CD45⁻ (mesenchymal stromal cells) and Sca1⁺CD45⁺ (hematopoietic cells) were collected into RNA protect obtained from Qiagen.

2.5. RNA purification

RNA was isolated from the two sorted cell populations using Zymo Research’s Direct-zol™ RNA Miniprep Plus kit according to manufacturer’s instructions. RNA samples were quantified by NanoDrop 1000 Spectrophotometer (Thermo Scientific) and RNA integrity was assessed by Agilent Bioanalyzer 2100 (Agilent). RNA samples with RNA Integrity Number (RIN) higher than or equal to 8.5 were used for library preparation. Six biological replicates of each group, i.e., WT stromal cells, WT hematopoietic cells, Sh3bp2^KI/KI stromal cells, and Sh3bp2^KI/KI hematopoietic cells were selected for library preparation.

2.6. Library preparation and validation

RNA-Seq libraries were prepared using SMARTer® Stranded RNA-Seq Kit from Clontech Laboratories, Inc. (currently known as Takara Biosciences) according to manufacturer’s instructions. Briefly, ribo-somal RNA (rRNA) was depleted from 100 ng of RNA sample. rRNA depleted samples were then subjected to SMARTer First-strand cDNA synthesis. cDNA was then purified using magnetic bead pull-down. cDNA samples were amplified for 16 cycles to generate RNA-seq libraries. RNA-Seq libraries were purified using magnetic bead pull-down. Quality check and library validation were performed using Agilent 2100 Bioanalyzer and the High Sensitivity DNA Chip from Agilent’s High Sensitivity DNA Kit. Libraries were quantified through qPCR using the NebNext quant kit specifically designed to quantify Illumina NextSeq libraries.

2.7. Sequencing run

Libraries were pooled in batches of 12 and requantified using pi-cogreen dye and reading the fluorescence through Qubit 3.0 Fluorometer. Pooled libraries were denatured prior to the sequencing run. Sequencing was performed on Illumina NextSeq 500 platform using NextSeq 500/550 High Output v2 kit (150 cycles) with 75 bp paired end reads.

2.8. Quality check and RNA-seq data analyses

Quality of the raw sequenced reads was assessed with the help of FastQC software [15]. MultiQC was used to generate cumulative results from FastQC output files. Sickle was used to trim low quality reads and improve the quality of the reads [16]. Reads were then mapped to mouse reference genome (mm10) using STAR [17]. The output files were then counted for reads mapping to each gene using the htseq_-count function from HTseq [18], a python-based framework designed to process high throughput sequencing data. These count files were then subjected to DESeq2 analysis in R/Bioconductor packages [19]. DESeq2 analysis normalized the reads and provided a list of differentially expressed genes (DEGs). The list of DEGs were examined using a variety of web accessible resources including Ingenuity Pathway Analysis software (Qiagen), Gene Ontology (http://geneontology.org; [20,21]), PathVisio (Pathvisio.org; [22]), and Wikipathways [23,24] to identify significant associations and molecular pathways and make predictions regarding upstream regulators. Raw and processed RNA-Seq data was deposited into the Gene Expression Omnibus (GEO) database and can be found using the accession number GSE139421.

2.9. Quantitative RT-PCR gene expression analyses

RNA purification was carried out on FACS sorted day 7 bone marrow stromal cultures according to the manufacturer’s recommendations (Macherey-Nagel and Zymo Research). cDNA was prepared from 500 ng of RNA/sample using the SuperScript II Reverse Transcriptase kit or Protoscript II kit (Life Technologies, NEB). QPCR was carried out using I-Taq Universal SybrGreen Supermix (Bio-Rad) in a Bio-Rad CFX real-time thermocycler. PCR primer sequences used for gene expression analyses and RNA-Seq validation are listed in Supplementary Table 4.

3. Results

Previously, we reported that cultured bone marrow cells derived from a cherubism mouse model (Sh3bp2^KI/KI), in contrast to wild type littermates, displayed defects in osteoblast differentiation while at the same time spontaneously forming osteoclasts [14]. To develop a deeper understanding for the mechanistic differences taking place between cherubism and wild type cells in this culture system, we performed an RNA-Seq study. For this, we decided to separate hematopoietic and mesenchymal cell fractions by FACS on day 7 of culture using the cell surface markers CD45 and SCA1, where CD45⁺, SCA1⁺ defined the hematopoietic population and CD45⁻, Sca1⁺ defined the mesenchymal population (sFig. 1A) [25–28]. At day 7 of culture, the ratio of hematopoietic cells to mesenchymal cells was consistently 1:1 from both wild type and cherubism mice. RNA from six biological replicates were used for library preparation and sequencing. The high quality of RNA sequencing was confirmed using FASTQC software and outputs were merged with the help of MultiQC software (sFig. 1B) [15,29]. An RNASTAR → HTSeq → DESeq2 work flow was used to align, count, and identify differentially expressed genes [17–19]. Normalization and data analyses were carried out to generate a list of differentially expressed genes (DEGs) comparing cherubism to wild type samples for both hematopoietic and mesenchymal cell populations. Further, we examined the expression of known hematopoietic and mesenchymal cell markers within the wild type sample groups to substantiate the enrichment of cell types by FACS (sFig. 2). DEGs reported here had an additional base mean intensity cut off of ≥50 counts and a log₂ fold change ≥ ± 1 with an adjusted p-value > 0.05.

3.1. Differential gene expression in the hematopoietic cell population

Principal component analysis of the hematopoietic population grouped the wild type (blue) and Sh3bp2^KI/KI (red) samples separately indicating differentially expressed gene signatures (Fig. 1A). To ensure no transcriptional bias existed between wild type and Sh3bp2^KI/KI samples, an MA plot was also generated (Fig. 1B). The MA plot showed us that the dataset was appropriately normalized as the mean line (red line) passed through 0 on the y-axis. Thus, the PCA and MA plots gave us confidence that the workflow parameters used to align, count, normalize, and identify differentially expressed genes in the dataset were appropriate.

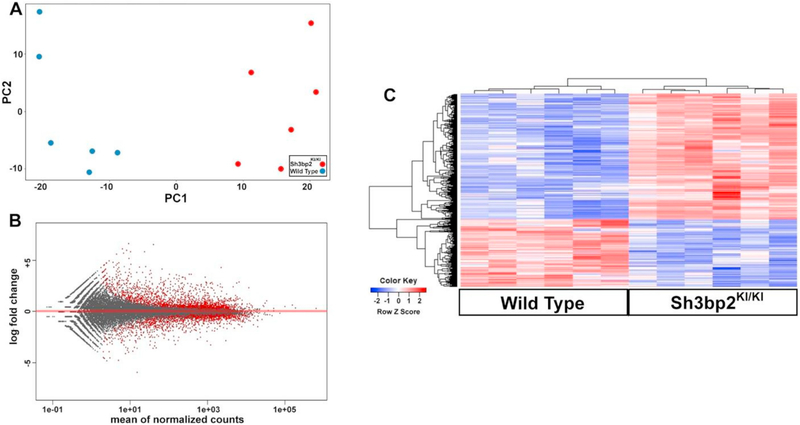

Fig. 1.

Broad comparative analyses of RNAseq outcomes generated from the cherubism and wild type hematopoietic populations. (A) Principal component analysis reveals two distinct groups along the first principle component. (Blue = WT, Red = Cherubism). (B) MA plot indicating proper data normalization. Red dots indicate genes displaying significant differential gene expression. (C) Heatmap view of differential gene expression identifying 299 upregulated genes and 162 downregulated genes. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)

To visualize global gene expression differences, a heatmap was generated based on the above mentioned cutoffs that resulted in a total of 461 differentially expressed genes within the hematopoietic population (Fig. 1C). Of the total differentially expressed genes, 299 were upregulated and 162 were downregulated in the Sh3bp2^KI/KI hematopoietic population. A list of the differentially expressed genes included in the heatmap and those between Log₂ Fold > 1 and < −1 are provided in Supplementary Table 1. To further understand the differentially expressed gene set, we performed gene ontology analyses on both upregulated and downregulated gene sets [30]. Consistent with our previous study, which reported spontaneous osteoclast formation, gene ontology analyses of upregulated genes showed positive regulation of bone resorption and osteoclast differentiation as the highest fold enrichment score (Table 1). Also consistent with other reports detailing an inflammatory phenotype in cherubism [11–13], gene ontology analyses showed enrichment of genes associated with regulation of inflammation and myeloid cell differentiation (Table 1). Gene ontology analyses of downregulated genes indicated that interleukin 2 regulation, lympho-cyte chemotaxis, migration, and negative regulators of cell growth were significantly enriched (Table 2).

Table 1.

GO terms generated from upregulated genes found in the cherubism hematopoietic population.

GO biological process	Fold enrichment	P–valuea
Positive regulation of bone resorption (G0:0045780)	19.51	1.42E-02
Positive regulation of bone remodeling (G0:0046852)	19.51	1.42E-02
Osteoclast differentiation (G0:0030316)	15.96	9.80E-04
Positive regulation of tissue remodeling (G0:0034105)	15.36	7.81E-03
Positive regulation of myeloid leukocyte differentiation (GO:0002763)	13.17	6.86E-04
Tissue remodeling (G0:0048771)	10.47	1.10E-05
Positive regulation of myeloid cell differentiation (GO:0045639)	10.06	3.07E-04
Regulation of myeloid leukocyte differentiation (G0:0002761)	7.2	2.22E-02
Positive regulation of leukocyte differentiation (GO: 1902107)	7.04	8.67E-04
Positive regulation of hemopoiesis (GO: 1903708)	6.49	2.48E-04
Regulation of myeloid cell differentiation (G0:0045637)	5.73	7.88E-03
Extracellular matrix organization (G0:0030198)	4.9	4.10E-02
Extracellular structure organization (G0:0043062)	4.62	3.35E-02
Inflammatory response (G0:0006954)	3.89	7.60E-03

^aGenerated using a Fisher's Exact test and a Bonferroni correction.

Table 2.

GO terms generated from downregulated genes found in the cherubism hematopoietic population.

GO biological process	Fold enrichment	P–valuea
Positive regulation of interleukin-2 production (GO:0032743)	26.19	2.19E-02
Lymphocyte chemotaxis (G0:0048247)	25.79	2.25E-03
Lymphocyte migration (G0:0072676)	18.29	1.42E-02
Regulation of interleukin-2 production (G0:0032663)	17.34	1.89E-02
Negative regulation of developmental growth (G0:0048640)	10.9	9.99E-03
Positive regulation of leukocyte proliferation (G0:0070665)	9.25	3.20E-02
Morphogenesis of a branching epithelium (G0:0061138)	7.86	2.80E-02
Morphogenesis of a branching structure (G0:0001763)	7.47	4.16E-02
Regulation of leukocyte proliferation (G0:0070663)	7.1	1.87E-02
Regulation of peptidyl-tyrosine phosphorylation (G0:0050730)	6.55	3.75E-02
Regulation of leukocyte differentiation (GO: 1902105)	6.47	1.37E-02
Positive regulation of response to external stimulus (G0:0032103)	6.23	1.95E-02
Positive regulation of cell adhesion (G0:0045785)	5.84	1.63E-03

^aGenerated using a Fisher's Exact test and a Bonferroni correction.

To appreciate the identified gene ontology categories, we examined the dataset for genes associated with osteoclast formation and inflammation. Numerous gene markers of osteoclast differentiation were highly upregulated in the hematopoietic dataset (Table 3). These in-cluded, but were not limited to Acp5, the gene that encodes for the well-known osteoclast secreted acid phosphatase best known as TRAP (tar-trate resistant acid phosphatase) [31]. Atp6v0d2, a gene that encodes for a vacuolar ATPase important for extracellular H⁺ transport, but also has a role in osteoclast cell fusion [32]. Calcr, a gene that encodes for a receptor that binds calcitonin, a peptide hormone that down regulates bone resorption [33,34]. Proteases cathepsin k (Ctsk) and MMP9, which are highly expressed in osteoclasts and play a role in bone matrix degradation [35–37]. Dcstamp and Ocstamp are genes that encode for transmembrane proteins that participate in osteoclast fusion [38–40]. Integrin β3 (Itgb3) and Oscar are genes that encode for receptors that bind matrix proteins and provide critical signaling cues for osteoclast differentiation [41,42]. Src is a tyrosine kinase whose function is essential for osteoclast activity [43].

Table 3.

Osteoclast upregulated genes found in the cherubism hematopoietic population.

Gene	Description	Log2 fold change	P-value	Base mean intensitya
Acp5	Acid phosphatase 5, tartrate resistant (TRAP)	2.788	0.00121	5693.97
Atp6v0d2	ATPase, H + transporting, lysosomal VO subunit D2	2.418	2.72E-13	4674.68
Calcr	Calcitonin receptor	2.560	0.002019	103.13
Ctsk	Cathepsin-K	2.338	0.006951	10,651.08
Dcstamp	Dendritic cell-specific transmembrane protein	2.758	3.86e-08	186.59
Itgb3	Integrin beta 3	2.639	1.02e-07	877.13
Mmp9	Matrix metallo-protease 9	2.913	2.90e-05	6047.38
Oscar	Osteoclast-associated receptor	2.722	0.003044	67.56
Ocstamp	Osteoclast stimulatory' transmembrane protein	3.148	2.18e-07	239.88
Src	Protein tyrosine kinase Src	2.824	1.77e-22	877.23

^aValues given in counts.

A variety of genes associated with the regulation of inflammatory processes were also noted in the data set. In particular, genes associated with the production and signaling of certain eicosanoids (sFig. 3). This included Ptges, a gene that encodes for prostaglandin E synthase, which was upregulated Log₂ Fold 2.6 in the Sh3bp2^KI/KI group while the enzyme capable of breaking down prostaglandins, encoded by Hpdg, was downregulated Log₂ Fold −2.9 (Table 4). Cytochrome P450 2s1 (Cyp2s1), which encodes for an enzyme that can metabolize PGG2 and PGH2 into 12-HHT and thromboxane A2 potentially at the expense of making PGE2, was also highly induced (Log₂ Fold 3.33) [44–46]. Ephx2, an epoxide hyrolase that is involved in a different arm of ara-chidondic metabolism can convert EETs into DHETs to regulate inflammation was also upregulated (Log₂ Fold 2.33) [47,48]. Other genes identified in the dataset that may regulate prostglandin signaling or be induced by prostaglandin signaling include annexin A1 (Log₂ Fold 1.03) [49] and Saa3 (Log₂ Fold 3.50) [50]. Interestingly, Annexin A1 and SAA ligands have been shown to bind formyl peptide receptors of which Fpr-1 was shown to be upregulated in the dataset [50,51].

Table 4.

Inflammatory upregulated genes found in the cherubism hematopoietic population.

Gene	Description	Log2 fold change	P-value	Base mean intensitya
Anxal	Annexin A1	1.02	1.29E-16	4996.03
Fprl	Formyl peptide receptor 1	1.59	0.038477	275.73
Saa3	Serum amyloid A 3	3.50	1.30E-06	183.82
Ptges	Prostaglandin E synthase	Z62	3.08E-11	249.83
Hpdg	Hydroxyprostaglandin dehydrogenase 15	−2.90	6.21E-09	979.01
Ptgfrn	Prostaglandin F2 receptor negative regulator	2.36	1.67E-32	819.68
Cyp2sl	Cytochrome P450, family 2, subfamily s, polypeptide 1	3.33	0.000127	221.43
Ephx2	Epoxide hydrolase 2, cytoplasmic	Z33	0.009313	81.45
F10	Coagulation factor X	Z16	3.57E-08	64.10
F2r	Coagulation factor II (thrombin) receptor	Z53	3.97E-05	179.81
Pla2g7	Phospholipase A2, group VII (platelet-activating factor acetylhydrolase, plasma)	1.29	1.01E-12	6942.66
Mefv	Mediterranean fever	2.58	1.58E-13	676.89
NlrplO	NLR family, pyrin domain containing 10	1.04	1.56E-06	62.05
Tnipl	TNFAIP3 interacting protein 1	1.05	6.46E-15	1993.44
C3	Complement component 3	2.09	2.75E-13	1444.77
Chstl	Carbohydrate sulfotransferase 1	1.20	0.000243	62.16
Ecml	Extracellular matrix protein 1	1.06	7.00E-05	1123.96
Ndstl	N-deacetylase/N-sulfotransferase (heparan glucosaminyl) 1	1.05	1.56E-11	1377.85
Rasgrpl	RAS guanyl releasing protein 1	1.21	0.00972	103.50
Cxcl2	Chemokine (C-X-C motif) ligand 2	1.49	0.000147	126.42
Ccl9	Chemokine (C—C motif) ligand 9	1.08	0.007658	2368.56
Hp	Haptoglobin	1.57	0.001678	117.32

^aValues given in counts.

A second group of inflammatory genes were associated with the coagulation cascade. Coagulation factor X (Log₂ Fold 2.16) and Coagulation factor II receptor (F2r; Log₂ Fold 2.53) also known as Par-1 were both highly upregulated. Additionally, two more genes associated with the coagulation cascade Von Willdebrand Factor and Protein C receptor were upregulated, but just below the Log₂Fold cutoff in the dataset. Interestingly, work by others has shown that Activated Protein C can form a complex with Protein C Receptor and F2r to up-regulate target genes Tnfaip3, Birc3, and Sphk1 [52], which were all upregulated in the hematopoietic population, but again just below the Log₂ fold cutoff (sFig. 4).

A third group of inflammatory genes have associations with different autoimflammatory disorders (sFig. 4). Mefv encodes for pyrin (Log₂ Fold 2.58), an intracellular pattern recognition receptor capable of assembling inflammasome complexes [47]. While known for familial Mediterranean fever disease [53], mutations in Mefv have been associated with juvenile idiopathic arthritis, inflammatory bowel disease, Behcet’s disease, ulcerative colitis, Fibromyalgia, rheumatoid arthritis, and ankylosing spondylitis [54]. TNIP1 (Log₂ Fold 1.05) has been implicated by genome wide association studies to be important for psor-iatic arthiritis, systemic sclerosis, systemic lupus erythematosus, and psoriasis [55]. Interestingly, the protein product of Tnip1, whose function is largely anti-inflammatory, can form a complex with Nlrp10 (Log₂ Fold 1.04), which is also upregulated in the dataset and can negatively regulate protein levels of Tnip1 upon infection [56]. Nlrp10^{−/ −} mice have also revealed that it is highly important for establishing an adaptive immune response [57]. Studies on Rasgrp1 (Log₂ Fold 1.21), a guanine nucleotide exchange factor also implicate this gene in systemic lupus erythematosus and pulmonary alveolar proteinosis [58–60].

Finally, the last group of inflammatory genes has associations with hematopoietic cell migration. This group includes genes that encode for enzymes known to modify the extracellular matrix, Chst1 (Log₂ Fold 1.20) and Ndst (Log₂ Fold 1.05) thereby indirectly influencing cell migration and cell signaling. Interestingly, Ndst modification of the extracellular matrix has also been shown to negatively regulate BMP signaling [61] and thus, may impact osteoblast differentiation as well. Additional genes upregulated include chemokines Cxcl2 (Log₂ Fold 1.49) and Ccl9 (Log₂ Fold 1.08). Interesting, Ccl9 also plays a role in osteoclast formation and has been shown to be regulated by TGFβ signaling in myeloid progenitor cells [62,63].

3.2. Differential gene expression in the mesenchymal cell population

The computational analysis of the mesenchymal population was performed in a manner identical to the hematopoietic population de-tailed above. In brief, principal component analysis of the mesenchymal cell population grouped the wild type (blue) and Sh3bp2^KI/KI (red) samples separately indicating differentially expressed gene signatures (Fig. 2A). An MA plot was also generated (Fig. 2B) with the mean line (red line) passed through 0 on the y-axis, indicating that no transcript-tional bias existed between wild-type and Sh3bp2^KI/KI samples. Thus, the PCA and MA plots confirmed that the workflow parameters used to align, count, normalize, and identify differentially expressed genes in the dataset were appropriate.

Fig. 2.

Broad comparative analyses of RNAseq outcomes generated from the cherubism and wild type mesenchymal populations. (A) Principal component analysis reveals two distinct groups along the first principle component. (Blue = WT, Red = Cherubism). (B) MA plot indicating proper data normalization. Red dots indicate genes displaying significant differential gene expression. (C) Heatmap view of differential gene expression identifying 77 upregulated genes and 169 downregulated genes. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)

To visualize global gene expression differences, a heatmap was generated based on the above mentioned cutoffs that resulted in a total of 246 differentially expressed genes within the mesenchymal cell population (Fig. 2C). Of the total differentially expressed genes, 77 genes were upregulated and 169 genes were downregulated. A list of the differentially expressed genes included in the heatmap and those between Log₂ Fold > 1 and < −1 are provided in Supplementary Table 2. To further understand the differentially expressed gene set, we performed gene ontology analyses on both upregulated and downregulated gene sets. Consistent with previous work [14], which reported impaired osteogenesis, gene ontology analyses of the downregulated gene set showed high enrichment scores related to bone mineralization, ossifi-cation, and osteoblast differentiation (Table 5). Additionally, consistent with cherubism mice having an inflammatory phenotype [12,13], gene ontology analyses of upregulated genes showed enrichment of genes associated granzyme mediated apoptotic signaling, proteoglycan synthesis, and chemotaxis (Table 6).

Table 5.

GO terms generated from downregulated genes found in the cherubism mesenchymal population.

GO biological process	Fold enrichment	P–valuea
Bone trabecula morphogenesis (G0:0061430)	25.73	3.56E-04
Animal organ maturation (GCh0048799)	23.47	4.70E-05
Positive regulation of bone mineralization (G0:0030501)	17.15	2.80E-06
Endochondral ossification (G0:0001958)	15.38	2.03E-04
Replacement ossification (G0:0036075)	15.38	2.03E-04
Positive regulation of cartilage development (G0:0061036)	14.86	2.28E-04
Bone mineralization (G0:0030282)	14.54	6.64E-06
Negative regulation of endothelial cell apoptotic process (G0:2000352)	14.38	2.56E-04
Positive regulation of biomineral tissue development (G0:0070169)	14.23	7.43E-06
Positive regulation of osteoblast differentiation (G0:0045669)	11.65	4.30E-06
Regulation of bone mineralization (G0:0030500)	11.43	9.95E-07
Branching involved in blood vessel morphogenesis (G0:0001569)	11.15	6.23E-04

^aGenerated using a Fisher's Exact test and a Bonferroni correction.

Table 6.

GO terms generated from upregulated genes found in the cherubism mesenchymal population.

GO biological process	Fold enrichment	P–valuea
Granzyme-mediated apoptotic signaling pathway (G0:0008626)	91.1	3.08E-07
Proteoglycan biosynthetic process (G0:0030166)	20.88	5.46E-05
Positive regulation of animal organ morphogenesis (G0:0110110)	12.65	5.98E-05
Limb morphogenesis (G0:0035108)	8.95	6.89E-05
Appendage morphogenesis (G0:0035107)	8.95	6.89E-05
Neuron projection guidance (G0:0097485)	8.51	2.28E-05
Chemotaxis (G0:0006935)	7.03	4.99E-08

^aGenerated using a Fisher's Exact test and a Bonferroni correction.

While bone marrow cells were cultured for only seven days and grown under non-osteogenic conditions, examination of genes associated with osteoblast differentiation revealed that most, but not all were downregulated (Table 7, sFig. 5). Most early and intermediate markers of osteogenic differentiation including alkaline phosphatase (Alpl; Log₂ Fold −1.38), osterix (Sp7; Log₂ Fold −1.37), and bone sialoprotein (Ibsp; Log₂ Fold −3.64) were downregulated. Additionally genes with known roles in osteoblast differentiation including osteomodulin (Omd; Log₂ Fold −1.19), parathyroid hormone receptor (Pth1r; Log₂ Fold −1.60), and myocyte enhancer factor 2C (Mef2c; Log₂ Fold −1.06) were also downregulated. Interestingly, Tbx3 (Log₂ Fold 1.22) and Sox11 (Log₂ Fold 1.57), two transcription factors with less defined roles in osteogenesis were up-regulated [64,65].

Table 7.

Osteoblast downregulated genes found in the cherubism mesenchymal population.

Gene	Description	Log2 fold change	P-value	Base mean intensitya
Alpl	Alkaline phosphatase, liver/bone/kidney	−1.38	0.000161	5804.69
SP7	Sp7 transcription factor 7	−1.37	0.000254	960.28
Ibsp	Integrin binding sialoprotein	−3.64	1.11E−05	4817.72
Omd	Osteomodulin	−1.19	0.002718	422.17
Mef2c	Myocyte enhancer factor 2C	−1.06	1.07E−06	1167.64
Tbx3	T−box 3	1.22	6.83E−15	181.12
Soxll	SRY (sex determining region Y)−box 11	1.57	4.31 E−l 2	314.05
Sox6	SRY (sex determining region Y)−box 6	−1.16	5.62E−05	239.61
Pthlr	Parathyroid hormone 1 receptor	−1.60	0.000303	1945.63
Phex	Phosphate regulating endopeptidase homolog, X−linked	−1.51	2.06E−05	39.54

^aValues given in counts.

Mesenchymal bone marrow stromal cells, also referred to as adventitial reticular cells, while retaining osteogenic potential also retain a functional importance to maintaining the hematopoietic stem cell niche as well as regulating their differentiation. In doing so, marrow adventitial reticular cells express a variety of genes crucial for this role including Cxcl12 (Log₂ Fold −1.71), kit ligand (Kitl) (Log₂ Fold −2.19), angiopoietin 1 (Log₂ Fold −1.41) and angiopoietin 4 (Log₂ Fold −1.06), and leptin receptor (Lepr; Log₂Fold −1.15) [66–71]. Interestingly, all of these reticular cell gene markers were downregulated. Work by others has also indicated that many of these adventitial reticular cells serve as important early precursor cells for the osteogenic lineage [72,73]. With this in mind, gremlin 1 (Grem1; Log₂ Fold 2.47), a gene that has been reported as a possible marker for skeletal stem cells was highly upregulated (Table 8, sFig. 6) [74]. Grem1, a known BMP inhibitor [75], can also promote angiogenesis through binding Vegfr2 [76].

Table 8.

Changes in marrow stromal cell gene marker expression found in the cherubism mesenchymal population.

Gene	Description	Log2 fold change	P-value	Base mean intensitya
Greml	Gremlin 1, DAN family BMP antagonist	2.47	1.87E-18	1104.66
Angptl	Angiopoietin 1	−1.41	3.47E-13	1219.34
Angpt4	Angiopoietin 4	−1.06	4.55E-09	1021.87
Lepr	Leptin receptor	−1.15	9.70E-06	666.29
Cxdl2	Chemokine (C-X-C motif) ligand 12	−1.71	1.85E-16	9955.47
Kitl	Kit ligand	−2.19	2.20E-21	1203.63
Cd200	CD200 Antigen	−1.02	0.000718	347.42

^aValues given in counts.

In addition to increased expression of Grem 1 implicating changes in BMP signaling, several other genes associated with the BMP pathway were impacted (sFig. 6). The expression of Bmp2 (Log₂ Fold −2.74), Bmp4 (Log₂ Fold −1.79), Bmp8a (Log₂ Fold −2.11), and Gdf6 (Log₂ Fold −2.69) were all downregulated in the Sh3bp2^KI/KI mesenchymal population. BMPs are well known inducers of osteogenesis [77]. While the significance of GDF6 in joint formation is known, its role in osteogenesis remains less defined. There is evidence to suggest that GDF6 may be anti-osteogenic [78]. However, GDF6 can also heterodimerize with BMPs and therefore may have additional regulatory roles [79]. Genes encoding for secreted BMP inhibitors follistatin (Log₂ Fold −1.24) and chordin-like 1 (Log₂ Fold −1.91) were downregulated, while receptor Bmp1rb (Log₂ Fold 1.26) was upregulated. Taken to-gether, these data suggest that BMP signaling is strongly downregulated (Table 9).

Table 9.

BMP and Wnt pathway gene expression changes in found in the cherubism mesenchymal population.

Gene	Description	Log2 fold change	P-value	Base mean intensitya
Greml	Gremlin 1, DAN family BMP antagonist	2.47	1.87E-18	1104.66
Fst	Follistatin	−1.24	3.47E-06	833.74
Chrdll	Chordin-like 1	−1.91	1.01E-17	238.60
Bmprlb	Bone morphogenetic protein receptor, type IB	1.26	5.11E-05	104.62
Bmp4	Bone morphogenetic protein 4	−1.79	1.45E-08	234.74
Bmp2	Bone morphogenetic protein 2	−2.74	7.80E-16	34.50
Bmp8a	Bone morphogenetic protein 8a	−2.11	5.15E-05	38.59
Gdf6	Growth differentiation factor 6	−2.69	4.26E-07	28.58
Wnt2b	Wingless-type MMTV integration site family, member 2B	1.49	6.46E-07	32.72
Sfrpl	Secreted frizzled-related protein 1	−1.91	5.99E-13	1725.02
Sfrp2	Secreted frizzled-related protein 2	−2.13	2.35E-20	1981.96
Frzb	Frizzled-related protein	−2.03	7.00E-06	31.79
Win	Wnt inhibitory factor 1	−1.83	3.15E-05	35.95
Lgr5	Leucine rich repeat containing G protein coupled receptor 5	−1.65	0.000235	288.12
Rspo3	R-spondin 3	−1.67	5.53E-07	228.73

^aValues given in counts.

The Wnt pathway was another pathway that showed considerable changes in gene expression. Several inhibitors of the Wnt signaling pathway including Sfrp1 (Log₂ Fold −1.91), Sfrp2 (Log₂ Fold −2.13), Frzb (Log₂ Fold −2.03), and Wif (Log₂ Fold −1.83) were downregulated, while Wnt2b (Log₂ Fold 1.49) was upregulated. This possibly suggests that the activity of certain downstream Wnt pathways may be heightened. However, Lrg5 (Log₂ Fold −1.65) and R-spondin 3 (Log₂ Fold −1.67), which have been shown to positively support Wnt signaling were also downregulated [80]. Thus, while our studies clearly detail significant changes in genes associated with Wnt signaling, it will be important to determine how these changes in gene expression impact specific downstream signaling events.

While the majority of genes showing downregulated expression in the Sh3bp2^KI/KI mesenchymal population were associated with osteogenesis, most upregulated genes had associations with inflammation and/or supporting osteoclast formation (Table 10, sFig. 5). Gzmc (Log₂ Fold 2.47), Gzmd (Log₂ Fold 2.2), and Gzme (Log₂ Fold 1.78), belonging to the granzyme family of serine proteases, which are notoriously secreted by immune cells, were highly upregulated in the mesenchymal population. Chemokines Cxcl5 (Log₂ Fold 2.46) and Cxcl1 (Log₂ Fold 1.32), critical for the recruitment of inflammatory cells were also up-regulated. Related to osteoclast formation, there is evidence to suggest Cxcl1 promotes the recruitment of osteoclast precursors while Cxcl5 induces the expression of Rankl (Tnfsf11; Log₂ Fold 1.01) [81,82], which was also upregulated in the mesenchymal cell population. Consistent with what we previously reported [14], OPG, a decoy RANK receptor, was downregulated in the data set, but just below the Log₂fold cutoff. Facilitating the remodeling of heparan sulfate, several members of the 3-O sulfotransferase family were up regulated including Hs3st1 (Log₂ Fold 2.37), Hs3st3a1 (Log₂ Fold 1.77), Hs3st3b1 (Log₂ Fold 1.69). Through the modification of heparan, these enzymes can regulate processes such as coagulation and epithelial to mesenchymal transition [83,84]. Thrombomodulin (Thbd; Log₂ Fold 1.07), which is modestly upregulated has important roles in anti-coagulation and anti-in-flammation through direct binding of thrombin and also through the activation of Protein C [85–87]. F-spondin (Spon1; Log₂ Fold 2.38) a gene highly upregulated in the Sh3bp2^KI/KI mesenchymal population encodes for a protein containing six thrombospondin domains. Interestingly, similar to thrombospondin-1, f-spondin has also been shown to activate latent TGFβ1 and lead to increased synthesis of PGE2 [88]. Finally, while the expression of most genes associated with inflammation were upregulated, Il1rn (Log₂ Fold −2.06), a gene that encodes for Interleukin Receptor 1 Antagonist was strongly downregulated. One of the valued biological effects of bone marrow derived mesenchymal stem cells (MSCs) is that they possess anti-inflammatory and anti-fibrotic properties. There is evidence to suggest that Il1rn expression in MSCs is a major contributor to these anti-inflammatory and anti-fibrotic properties [89]. Thus, strong down regulation of this receptor expression will likely permit stronger inflammatory and fibrotic outcomes.

Table 10.

Inflammation upregulated genes found in the cherubism mesenchymal population.

Gene	Description	Log2 fold change	P-value	Base mean intensitya
Gzmc	Granzyme C	2.47	4.15E-23	91.79
Gzmd	Granzyme D	2.22	3.63E-17	302.52
Gzme	Granzyme E	1.78	9.30E-11	472.76
Cxcl5	Chemokine (C-X-C motif) ligand 5	2.46	1.55E-10	54.14
Cxcll	Chemokine (C-X-C motif) ligand 1	1.32	6.95E-06	46.89
Hs3stl	Heparan sulfate (glucosamine) 3-O-sulfotransferase 1	2.37	1.57E-11	63.17
Hs3st3al	Heparan sulfate (glucosamine) 3-O-sulfotransferase 3A1	1.77	3.60E-10	114.28
Hs3st3bl	Heparan sulfate (glucosamine) 3-O-sulfotransferase 3B1	1.69	1.84E-07	78.05
Qist8	Carbohydrate GY-acetylgalactosamine 4-0) sulfotransferase 8	1.39	0.00223	66.41
Sponl	Spondin 1, (f-spondin) extracellular matrix protein	2.38	1.67E-21	246.00
Thbd	Thrombomodulin	1.07	2.60E-06	223.72
Tnfsfll	Tumor necrosis factor (ligand) superfamily, member 11	1.01	9.43E-06	204.93
nim	Interleukin 1 receptor antagonist	−2.06	1.03E-16	4361.82

^aValues given in counts.

4. Discussion

Past studies from our lab have shown how bone marrow cultures derived from a cherubism mouse model (Sh3bp2^KI/KI mice) displayed defective osteogenesis and spontaneous osteoclast formation [14]. To gain deeper insight into the mechanistic changes that contribute to these alterations in cell differentiation, we performed global gene expression analysis on sorted hematopoietic and mesenchymal cell populations using RNA-Seq. Our findings presented here have yielded some surprising outcomes regarding the identity of specific genes impacted by cherubic mutations in Sh3bp2. Here we discuss the significance of these gene expression changes and speculate on possible links to regulation of inflammation, osteoclast formation, osteoblast differentiation and fibrosis.

It is well established that inflammation remains a core element contributing to cherubism. During the early stages of this disease in patients, the submandibular and cervical lymph nodes are enlarged and within cherubism lesions various immune cell types including giant multinucleated osteoclasts exist [5,90,91]. Studies in mice have gone on to provide evidence that cherubic mutations in Sh3bp2 lead to greater sensitivity to pathogen and damage associated molecular patterns (PAMPS and DAMPS), Rankl stimulation, and homozygous knockin mice systemically have higher levels of TNFα [11,12,92,93]. Consistent with these studies, evaluation of the dataset by Ingenuity Pathway Analysis predicts many of the same inflammatory signaling molecules (Supplementary Table 3). However, examination of the dataset from the hematopoietic population has also drawn our interest to prostaglandin and coagulation signaling pathways, which have known roles in inflammatory processes, but have not been investigated with regard to cherubism. The data set also draws interest towards genes associated with autoinflammatory conditions including MEFV, a gene that encodes for Pyrin, an inflammatory sensing molecule.

Importantly, changes in gene expression associated with inflammation were not exclusive to the hematopoietic population, but also existed within the mesenchymal population. Understanding how the mesenchymal population responds to and participates in inflammatory processes remains a topically understudied area of re-search, yet it is well appreciated that bone marrow derived MSCs retain anti-inflammatory properties [89]. However, given the down regulation of Il1rn, an interleukin 1 receptor antagonist, and hematopoietic stem cell niche regulators Cxcl12 and Kitl and the up regulation in granzymes C, D, and E, it appears that the marrow derived mesenchymal cells derived from cherubism mice have taken on a very different role in regulating immune cell function. The detection of granzyme expression within the mesenchymal population was unexpected. Granzyme expression is generally thought to be restricted to cytotoxic T cells and natural killer cells [94], but certain granzymes genes have been reported to be expressed in non-hematopoietic cell types including marrow stromal cells [95]. In support of our findings, inspection of granzyme C, D, and E expression in the online accessible gene expression portal BioGPS also selectively detects these granzymes in osteoblasts [96].

In cherubism, excessive bone resorption has largely been attributed to the overactivation of osteoclasts. Work by others has shown how myeloid progenitors derived from cherubism mice are more sensitive to both Rankl and TNFα signaling to augment osteoclast formation [11,93]. Our studies have also implicated several additional genes that are likely to enhance the recruitment and development of osteoclasts. Within the hematopoietic population, this includes genes associated with the generation and stability of prostaglandin PGE2. In vitro studies have shown how PGE2 through its receptor EP2 is a potent enhancer of osteoclast formation [97]. Further, Cxcl2 and Ccl9 have also been shown to be involved in the regulation of osteoclast formation [63,98].

Our studies also indicate that gene expression changes within the mesenchymal cell lineage support osteoclast formation. Not only has the expression of Rankl (Tnfsf11) increased, but Cxcl5, a gene shown to positively regulate Rankl expression was also increased [82]. Further, down-regulation of Kitl expression has also been associated with increased osteoclast formation [99] and the gene product of Spon1 has been shown to activate latent TGFβ1 and increase PGE2 synthesis [88], both of which are enhancers of osteoclast formation.

In cherubism, fibrous tissue overgrowth potentially at the expense of osteoblast differentiation is a characteristic of the cherubism phenotype that mechanistically remains poorly understood. Examination of gene expression changes within the mesenchymal population clearly indicated that down-regulation of the BMP signaling pathway was the likely cause for impaired osteoblast differentiation. However, not only was the expression of different BMP ligands downregulated, but Grem1, a known BMP inhibitor was highly upregulated [75]. Interestingly, down-regulation of BMP signaling and up-regulation of Grem1 expression has also been observed in idiopathic pulmonary fibrosis [100]. While mechanistically not understood, evidence in the literature has shown that an inverse relationship exists between BMP and TGFβ signaling pathways. With regard to regulating osteogenesis, BMP active-tion is pro-ostegenic, while TGFβ activation is inhibitory. As men-tioned, the increased expression of Spon1, which can activate latent TGFβ ligands, may be a likely contributor to inhibiting osteogenesis. In support of this thinking, Spon1 deficient mice have increased bone mass with evidence of enhanced BMP signaling [84]. Additionally, the down-regulation of Il1rn may provide a permissive environment for inflammatory cytokines to inhibit osteogenesis and contribute to the profibrotic state [101].

There is also evidence from the hematopoietic population that changes in gene expression may contribute to impaired osteogenesis. Work on Saa3, a gene highly increased within the cherubism hematopoietic population, has been shown to inhibit PTH induced osteogenesis [50]. Also, Ndst1, which participates in the synthesis of heparan sulfate chains, has been shown to negatively regulate BMP signaling [61].

In this study, we have thoroughly examined and discussed the gene expression changes that occurred within the hematopoietic and mesenchymal cell populations derived from bone marrow cultures of cherubism mice. In doing so, this work reveals a much broader network of genes involved in the regulation of inflammation, osteoclast formation, and osteoblast differentiation. To the best of our knowledge, few studies have simultaneously examined gene expression changes within the hematopoietic and mesenchymal cell lineages to gain a deeper collective understanding of the complex interplay that exists among these two cell populations. It is important to emphasize that while this study has utilized a cherubism mouse model, what we have learned from this study is likely to have much broader relevance to a variety of inflammatory skeletal diseases. Certain phenotypic characteristics of cherubism resemble other diseases like Noonan syndrome, neurofi-bromatosis type I, craniofacial cutaneous syndrome, and central giant cell granuloma [102]. Thus, mechanisms identified in this study are likely to have relevance for understanding the cross talk between hematopoietic and mesenchymal cell types for a host of diseases involving fibrotic inflammation and focal areas of bone loss.
