Graph Consistency as a Graduated Property

Abstract

Where graphs are used for modelling and specifying systems, consistency is an important concern. To be a valid model of a system, the graph structure must satisfy a number of constraints. To date, consistency has primarily been viewed as a binary property: a graph either is or is not consistent with respect to a set of graph constraints. This has enabled the definition of notions such as constraint-preserving and constraint-guaranteeing graph transformations. Many practical applications—for example model repair or evolutionary search—implicitly assume a more graduated notion of consistency, but without an explicit formalisation only limited analysis of these applications is possible. In this paper, we introduce an explicit notion of consistency as a graduated property, depending on the number of constraint violations in a graph. We present two new characterisations of transformations (and transformation rules) enabling reasoning about the gradual introduction of consistency: while consistency-sustaining transformations do not decrease the consistency level, consistency-improving transformations strictly reduce the number of constraint violations. We show how these new definitions refine the existing concepts of constraint-preserving and constraint-guaranteeing transformations. To support a static analysis based on our characterisations, we present criteria for deciding which form of consistency ensuring transformations is induced by the application of a transformation rule. We illustrate our contributions in the context of an example from search-based model engineering.

Introduction

Graphs and graph transformations [8] are a good means for system modelling and specification. Graph structures naturally relate to the structures typically found in many (computer) systems and graph transformations provide intuitive tools to specify the semantics of a model or implement refinement and analysis techniques for specifications.

In all of these scenarios, it is important that the graphs used are consistent; that is, that their structures satisfy a set of constraints. Some constraints can be captured by typing graphs over so-called type graphs [8]—these allow capturing basic structural constraints such as which kinds of nodes may be connected to each other. To allow the expression of further constraints, the theory of nested graph constraints has been introduced [11]. A graph is considered consistent if it is correctly typed and satisfies all given constraints. Note that this notion of consistency is binary: a graph either is consistent or it is not consistent. It is impossible to distinguish different degrees of consistency.

In software engineering practice, it is often necessary to live with, and manage, a degree of inconsistency [23]. This requires tools and techniques for identifying, measuring, and correcting inconsistencies. In the field of graph-based specifications, this has led to many practical applications, where a more fine-grained notion of graph consistency is implicitly applied. For example, research in model repair has aimed to automatically produce graph-transformation rules that will gradually improve the consistency of a given graph. Such a rule may not make a graph completely consistent in one transformation step, but performing a sequence of such transformations will eventually produce a consistent graph (e.g., [12, 21, 22, 25]). In the area of search-based model engineering (e.g., [5, 9]), rules are required to be applicable to inconsistent graphs and, at least, not to produce new inconsistencies. In earlier work, we have shown how such rules can be generated at least with regard to multiplicity constraints [5]. However, in all of these works, the notion of “partial” graph consistency remains implicit. Without explicitly formalising this notion, it becomes difficult to reason about the validity of the rules generated or the correctness of the algorithm by which these rules were produced.

In this paper, we introduce a new notion of graph consistency as a graduated property. A graph can be consistent to a degree, depending on the number of constraint violations that occur in the graph. This conceptualisation allows us to introduce two new characterisations of graph transformations: a consistency-sustaining transformation does not decrease the overall consistency level, while a consistency-improving transformation strictly decreases the number of violations in a graph. We lift these characterisations to the level of graph transformation rules, allowing rules to be characterised as consistency sustaining and consistency improving, respectively. We show how these definitions fit with the already established terminology of constraint-preserving and constraint-guaranteeing transformations/rules. Finally, we introduce formal criteria that allow checking whether a given graph-transformation rule is consistency sustaining or consistency improving w.r.t. constraints in specific forms.

Thus, the contributions of our paper are:

1. We present the first formalisation of graph consistency as a graduated property of graphs;

2. We present two novel characterisations of graph transformations and transformation rules with regard to this new definition of graph consistency and show how these refine the existing terminology;

3. We present static analysis techniques for checking whether a graph-transformation rule is consistency sustaining or improving.

The remainder of this paper is structured as follows: We introduce a running example in Sect. 2 before outlining some foundation terminology in Sect. 3. Section 4 introduces our new concepts and Sect. 5 discusses how graph-transformation rules can be statically analysed for these properties. A discussion of related work in Sect. 6 concludes the paper. All proofs are provided in an extended version of this paper [16].

Example

Consider class responsibility assignment (CRA, [4]), a standard problem in object-oriented software analysis. Given is a set of features (methods, fields) with dependencies between them. The goal is to create a set of classes and assign the features to classes so that a certain fitness function is maximized. The fitness function rewards the assignment of dependent features to the same class (cohesion), while punishing dependencies that run between classes (coupling) and solutions with too few classes. Solutions can be expressed as instances of the type graph shown in the left of Fig. 1. For realistic problem instances, an exhaustive enumeration of all solutions to find the optimal one is not feasible.

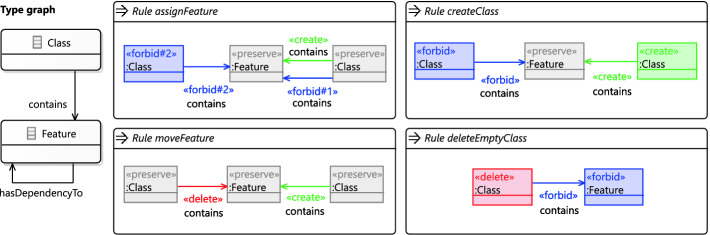

Fig. 1.

Type graph and four mutation rules for the CRA problem.

Recently, a number of works have addressed the CRA problem via a combination of graph transformation and meta-heuristic search techniques, specifically evolutionary algorithms [5, 10, 28]. An evolutionary algorithm uses genetic operators such as cross-over and mutation to find optimal solution candidates in an efficient way. In this paper, we focus on mutation operators, which have been specified using graph transformation rules in these works.

Figure 1 depicts four mutation rules for the CRA problem, taken from the available MDEOptimiser solution [6]. The rules are specified as graph transformation rules [8] in the Henshin notation [1, 29]: Rule elements are tagged as delete, create, preserve or forbid, which denotes them as being included in the LHS, the RHS, in both rule sides, or a NAC. Rule assignFeature assigns a randomly selected as-yet-unassigned feature to a class. Rule createClass creates a class and assigns an as-yet-unassigned feature to it. Rule moveFeature moves a feature between two classes. Rule deleteEmptyClass deletes a class to which no feature is assigned.

Solutions in an optimization problem such as the given one usually need to be consistent with regard to the constraints given by the problem domain. We consider three constraints for the CRA case:

• Every feature is contained in at most one class.

• Every class contains at least one feature.

• If a feature has a dependency to another feature ,

  and is contained in a different class than ,

  then must have a dependency to a feature in the same class.

Constraints and come from Fleck et al.’s formulation of the CRA problem [10]. Constraint can be considered a helper constraint (compare helper objectives [13]) that aims to enhance the efficiency of the search by formulating a constraint with a positive impact to the fitness function: Assigning dependent features to the same class is likely to improve coherence.

Given an arbitrary solution model (valid or invalid), mutations may introduce new violations. For example, applying moveFeature can leave behind an empty class, thus violating . While constraint violations can potentially be removed using repair techniques [12, 22, 25], these can be computationally expensive and may involve strategies that lead to certain regions of the search space being preferred, threatening the efficiency of the search. Instead, it would be desirable to design mutation operators that impact consistency in a positive or at least neutral way. Each application of a mutation rule should contribute to some particular violations being removed, or at least ensure that the degree of consistency does not decrease. Currently, there exists no formal framework for identifying such rules. The established notions of constraint-preserving and constraint-guaranteeing rules [11] assume an already-valid model or a transformation that removes all violations at once; both are infeasible in our scenario.

Preliminaries

Our new contributions are based on typed graph transformation systems following the double-pushout approach [8]. We implicitly assume that all graphs, also the ones occurring in rules and constraints, are typed over a common type graph ; that is, there is a class of graphs typed over . A nested graph constraint [11] is a tree of injective graph morphisms.

Definition 1 ((Nested) graph conditions and constraints)

Given a graph P, a (nested) graph condition over P is defined recursively as follows: true is a graph condition over P and if is an injective morphism and d is a graph condition over C, is a graph condition over P again. If and are graph conditions over P, and are graph conditions over P. A (nested) graph constraint is a condition over the empty graph .

A condition or constraint is called linear if the symbol does not occur, i.e., if it is a (possibly empty) chain of morphisms. The nesting level of a condition c is recursively defined by setting , , , and . Given a graph condition c over P, an injective morphism satisfies c, written , if the following applies: Every morphism satisfies true. The morphism p satisfies a condition of the form if there exists an injective morphism such that and q satisfies d. For Boolean operators, satisfaction is defined as usual. A graph G satisfies a graph constraint c, denoted as , if the empty morphism to G does so. A graph constraint implies a graph constraint , denoted as , if for all graphs G. The constraints are equivalent, denoted as , if and .

In the notation of graph constraints, we drop the domains of the involved morphisms and occurrences of true whenever they can unambiguously be inferred. For example, we write instead of . Moreover, we introduce as an abbreviation for the graph constraint . Further sentential connectives like or can be introduced as abbreviations as usual (which is irrelevant for linear constraints).

We define a normal form for graph conditions that requires that the occurring quantifiers alternate. For every linear condition there is an equivalent condition in this normal form [25, Fact 2].

Definition 2 (Alternating quantifier normal form (ANF))

A linear condition c with is in alternating quantifier normal form (ANF) when the occurring quantifiers alternate, i.e., if c is of the form with and , none of the occurring morphisms is an isomorphism, and the only negation, if any, occurs at the innermost nesting level (i.e., the constraint is allowed to end with false). If a constraint in ANF starts with , it is called existential, otherwise it is called universal.

Lemma 1 (Non-equivalence of constraints in ANF)

Let and be constraints in ANF. Then .

We have since but . Lemma 1 implies that the first quantifier occurring in the ANF of a constraint separates linear constraints into two disjoint classes. This ensures that our definitions in Sect. 4 are meaningful.

Graph transformation is the rule-based modification of graphs. The following definition recalls graph transformation as a double-pushout.

Definition 3 (Rule and transformation)

A plain rule r is defined by with L, K,  and R being graphs connected by two graph inclusions. An application condition ac for p is a condition over L. A rule consists of a plain rule p and an application condition ac over L.

A transformation (step) which applies rule r to a graph G consists of two pushouts as depicted in Fig. 2. Rule r is applicable at the injective morphism called match if and there exists a graph D such that the left square is a pushout. Morphism n is called co-match. Morphisms g and h are called transformation morphisms. The track morphism [24] of a transformation step is the partial morphism defined by for and undefined otherwise.

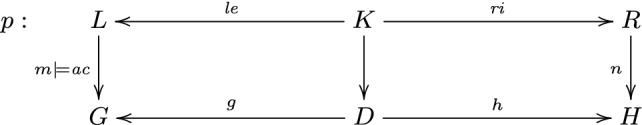

Fig. 2.

Rule application

Obviously, transformations interact with the validity of graph constraints. Two well-studied notions are constraint-guaranteeing and -preserving transformations [11].

Definition 4

(c-guaranteeing and -preserving transformation). Given a constraint c, a transformation is c-guaranteeing if . Such a transformation is c-preserving if . A rule r is c-guaranteeing (c-preserving) if every transformation via r is.

As we will present criteria for consistency sustainment and improvement based on conflicts and dependencies of rules, we recall these notions here as well. Intuitively, a transformation step causes a conflict on another one if it hinders this second one. A transformation step is dependent on another one if it is first enabled by that.

Definition 5 (Conflict)

Let a pair of transformations applying rules be given such that yields transformation morphisms . Transformation pair is conflicting (or causes a conflict on ) if there does not exist a morphism such that and . Rule pair is conflicting if there exists a conflicting transformation pair . If and are both not conflicting, rule pair is called parallel independent.

Definition 6 (Dependency)

Let a sequence of transformations applying rules be given such that yields transformation morphisms . Transformation is dependent on if there does not exist a morphism such that and . Rule is dependent on rule if there exists a transformation sequence such that is dependent on . If is not dependent on and is not dependent on , rule pair is called sequentially independent.

A weak critical sequence is a sequence of transformations such that depends on , and are jointly surjective (where is the co-match of ), and is not required to satisfy ().

As rule in a rule pair will always be plain in this paper, a transformation step can cause a conflict on another one if and only if it deletes an element that the second transformation step matches. Similarly, a transformation step can depend on another one if and only if the first step creates an element that the second matches or deletes an edge that is adjacent to a node the second one deletes.

Consistency-Sustaining and Consistency-improving Rules and Transformations

In this section, we introduce our key new concepts. We do so in three stages, first introducing foundational definitions for partial consistency, followed by a generic definition of consistency sustainment and improvement. Finally, we give stronger definitions for which we will be able to provide a static analysis in Sect. 5.

Partial Consistency

To support the discussion and analysis of rules and transformations that improve graph consistency, but do not produce a fully consistent graph in one step, we introduce the notion of partial consistency. We base this notion on relating the number of constraint violations to the total number of relevant occurrences of a constraint. For the satisfaction of an existential constraint, a single valid occurrence is enough. In contrast, universal constraints require the satisfaction of some sub-constraint for every occurrence. Hence, the resulting notion is binary in the existential case, but graduated in the universal one.

Requiring nesting level is no real restriction as constraints with nesting level 0 are Boolean combinations of true which means they are equivalent to true or false, anyhow. In contrast, restricting to linear constraints actually excludes some interesting cases. We believe that the extension of our definitions and results to also include the non-linear case will be doable. Restricting to the linear case first, however, makes the statements much more accessible and succinct.

Definition 7 (Occurrences and violations)

Let with be a constraint. An occurrence of c in a graph G is an injective morphism , and denotes the number of such occurrences.

If c is universal, its number of relevant occurrences in a graph G, denoted as , is defined as and its number of constraint violations, denoted as , is the number of occurrences p for which .

If c is existential, and if there exists an occurrence such that but otherwise.

Definition 8 (Partial consistency)

Given a graph G and a constraint c, G is consistent w.r.t. c if . The consistency index of G w.r.t. c is defined as

where we set . We say that G is partially consistent w.r.t. c if .

The next proposition makes precise that the consistency index runs between 0 and 1 and indicates the degree of consistency a graph G has w.r.t. a constraint c.

Fact 1 (Consistency index)

Given a graph G and a constraint c, then and if and only if . Consistency implies partial consistency. Moreover, for an existential constraint.

Example 1

Based on Fig. 3, we can express the three informal constraints from Sect. 2 as nested graph constraints. Constraint can be expressed as , constraint becomes , and constraint becomes . Graph G (in the left top corner of Fig. 3) satisfies and . It does not satisfy , since we cannot find an occurrence of for the occurrence of in G where f1 and f2 are mapped to f1 and f3, respectively. Graph G in Fig. 3 has the consistency index 0.5 with regard to , since one violation exists, and two non-violating occurrences are required.

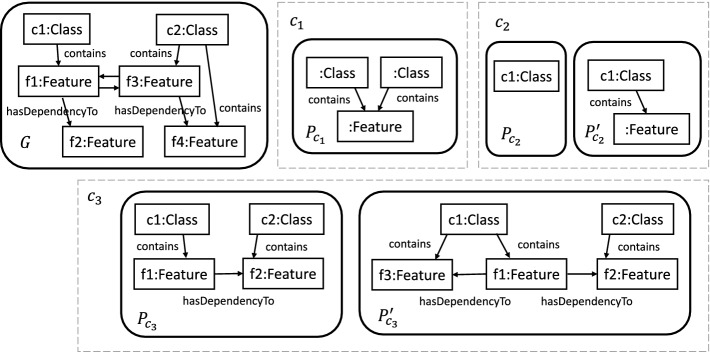

Fig. 3.

Example constraints and graph.

Consistency Sustainment and Improvement

In the remainder of this section, our goal is to introduce the notions of consistency-sustaining and consistency-improving rule applications which refine the established notions of preserving and guaranteeing applications [11].

Definition 9 (Consistency sustainment and improvement)

Given a graph constraint c and a rule r, a transformation is consistency sustaining w.r.t. c if . It is consistency improving if it is consistency sustaining, , and .

The rule r is consistency sustaining if all of its applications are. It is consistency improving if all of its applications are consistency sustaining and there exists a graph with and a consistency-improving transformation . A consistency improving rule is strongly consistency improving if all of its applications to graphs G with are consistency-improving transformations.

In the above definition, we use the number of constraint violations (and not the consistency index) to define improvement to avoid an undesirable side-effect: Defining improvement via a growing consistency index would lead to consistency-improving transformations (w.r.t. a universal constraint) which do not repair existing violations but only create new valid occurrences of the constraint. Hence, there would exist infinitely long transformation sequences where every step increases the consistency index but validity is never restored. Consistency-improving transformations, and therefore strongly consistency improving rules, require that the number of constraint violations strictly decreases in each step. Therefore, using only such transformations and rules, we cannot construct infinite transformation sequences.

Any consistency-improving rule can be turned into a strongly consistency-improving rule if suitable pre-conditions can be added that restrict the applicability of the rule only to those cases where it can actually improve a constraint violation. This links the two forms of consistency-improving rules to their practical applications: in model repair [21, 25] we want to use rules that will only make a change to a graph when there is a violation to be repaired—strongly consistency-improving rules. However, in evolutionary search [5], we want to allow rules to be able to make changes even when there is no need for repair, but to fix violations when they occur; consistency-improving rules are well-suited here as they can be applied even when no constraint violations need fixing.

Direct Consistency Sustainment and Improvement

While the above definitions are easy to state and understand, it turns out that they are inherently difficult to investigate. Comparing numbers of (relevant) occurrences and violations allows for very disparate behavior of consistency-sustaining (-improving) transformations: For example, a transformation is allowed to destroy as many valid occurrences as it repairs violations and is still considered to be consistency sustaining w.r.t. a universal constraint.

Next, we introduce further qualified notions of consistency sustainment and improvement. The idea behind this refinement is to retain the validity of occurrences of a universal constraint: valid occurrences that are preserved by a transformation are to remain valid. In this way, sustainment and improvement become more direct as it is no longer possible to compensate for introduced violations by introducing additional valid occurrences. The notions of (direct) sustainment and improvement are related to one another and also to the already known ones that preserve and guarantee constraints. In Sect. 5 we will show how these stricter definitions allow for static analysis techniques to identify consistency-sustaining and -improving rules.

The following definitions assume a transformation step to be given and relate occurrences of constraints in its start and result graph as depicted in Fig. 4. The existence of a morphism such that the left triangle commutes (and might be defined as ) is equivalent to the tracking morphism being a total morphism when restricted to p(C) which is equivalent to the transformation not destroying the occurrence p.

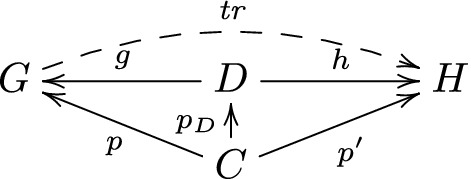

Fig. 4.

Rule application with morphisms from a graph C, occurring in some constraint

Definition 10 (Direct consistency sustainment)

Given a graph constraint c, a transformation via rule r at match m with trace tr (Fig. 4) is directly consistency sustaining w.r.t. c if either c is existential and the transformation is c-preserving or is universal and

A rule r is directly consistency sustaining w.r.t. c if all its applications are.

The first requirement in the definition checks that constraints that were already valid in G are still valid in H, unless their occurrence has been removed; that is, the transformation must not make existing valid occurrences invalid. Note, however, that we do not require that the constraint be satisfied by the same extension, just that there is still a way to satisfy the constraint at that occurrence. The second requirement in the definition checks that every “new” occurrence of the constraint in H satisfies the constraint; that is, the transformation must not introduce fresh violations.

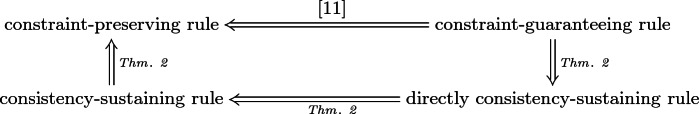

The following theorem relates the new notions of (direct) consistency sustainment to preservation and guarantee of constraints.

Theorem 2

(Sustainment relations). Given a graph constraint c, every c-guaranteeing transformation is directly consistency-sustaining, every directly consistency-sustaining transformation is consistency sustaining, and every consistency-sustaining transformation is c-preserving. The analogous implications hold on the rule level:

The following example illustrates these notions and shows that sustainment is different from constraint guaranteeing or preserving.

Example 2

Table 1 denotes for each rule from the running example if it is consistency sustaining w.r.t. each constraint. Rule createClass is directly consistency sustaining w.r.t. (no double assignments) and (no empty classes), since it cannot assign an already assigned feature or remove existing assignments. However, it is not consistency guaranteeing, since it cannot remove any violation either. Rule moveFeature is consistency sustaining w.r.t , but not directly so, since it can introduce new violations, but only while at the same time removing another violation, leading to a neutral outcome. Starting with the plain version of rule createClass and computing a preserving application condition for constraint according to the construction provided by Habel and Pennemann [11] results in the application condition depicted in Fig. 5. By construction, equipping the plain version of createClass with that application condition results in a consistency-preserving rule. However, whenever applied to an invalid graph, the antecedent of this application condition evaluates to false and, hence, the whole application condition to true. In particular, the rule with this application condition might introduce further violations of and is, thus, not sustaining.

Table 1.

Properties of example rules.

Rule	Consistency sustaining			Consistency improving
assignFeature	+	+	-	-	+	-
createClass	+	+	-	-	-	-
moveFeature	(+)	-	-	-	-	-
deleteEmptyClass	+	+	+	-	+*	-

Legend: + denotes directly, (+) denotes

non-directly, * denotes strongly

Fig. 5.

Generated preserving application condition for createClass w.r.t. constraint . The feature named rf is the one from the LHS of createClass.

Similarly, the direct notion of consistency improvement preserves the validity of already valid occurrences in the case of universal constraints and degenerates to the known concept of constraint-guarantee in the existential case.

Definition 11 (Direct consistency improvement)

Given a graph constraint c, a transformation via rule r at match with trace tr (Fig. 4) is directly consistency improving w.r.t. c if , the transformation is directly consistency sustaining, and either c is existential and the transformation is c-guaranteeing or is universal and

We lift the notion of directly consistency-improving transformations to the level of rules in the same way as in Definition 9. This leads to directly consistency-improving rules and a strong form of directly consistency-improving rules.

(Direct) consistency improvement is related to, but different from constraint guarantee and consistency sustainment as made explicit in the next theorem.

Theorem 3

(Improvement relations). Given a graph constraint c, every directly consistency-improving transformation is a consistency-improving transformation and every consistency-improving transformation is consistency sustaining. Moreover, every c-guaranteeing transformation starting from a graph G that is inconsistent w.r.t. c is a directly consistency-improving transformation. The analogous implications hold on the rule level, provided that there exists a match for the respective rule r in a graph G with :

Example 3

Table 1 denotes for each rule of the running example if it is consistency improving w.r.t. each constraint. For example, the rule deleteEmptyClass is directly strongly consistency improving but not guaranteeing w.r.t. (no empty classes), since it always removes a violation (empty class), but generally not all violations in one step. Rule assignFeature is consistency improving w.r.t. , but not directly so, since it can turn empty classes into non-empty ones, but does not do so in every possible application. Rule createClass is consistency sustaining but not improving w.r.t. , as it cannot reduce the number of empty classes.

Static Analysis for Direct Consistency Sustainment and Improvement

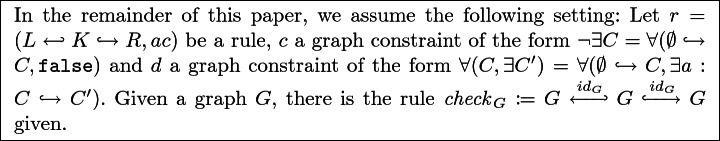

In this section, we consider specific kinds of constraints and present a static analysis technique for direct consistency sustainment and improvement. We present criteria for rules to be directly consistency sustaining or directly consistency improving w.r.t. these kinds of constraint. The restriction to specific kinds of constraint greatly simplifies the presentation; at the end of the section we hint at how our results may generalize to arbitrary universal constraints.

The general idea behind our static analysis technique is to check for validity of a constraint by applying a trivial (non-modifying) rule that just checks for the existence of a graph occurring in the constraint. This allows us to present our analysis technique in the language of conflicts and dependencies which has been developed to characterise the possible interactions between rule applications [8, 24]. As a bonus, since the efficient detection of such conflicts and dependencies has been the focus of recent theoretical and practical research [17, 18], we obtain tool support for an automated analysis based on Henshin.

For the statement of the following results, note that sequential independence of the (non-modifying) rule from r means that r cannot create a new match for C. Similarly, parallel independence of from r means that r cannot destroy a match for . We first state criteria for direct consistency sustainment: If a rule cannot create a new occurrence of C, it is directly consistency sustaining w.r.t. a constraint of the form . If, in addition, it cannot delete an occurrence of , it is directly consistency sustaining w.r.t. a constraint of the form .

Theorem 4

(Criteria for direct consistency sustainment). Rule r is directly consistency sustaining w.r.t. constraint c if and only if is sequentially independent from r. If, in addition, is parallel independent from r, then r is directly consistency sustaining w.r.t. constraint d.

The above criterion is sufficient but not necessary for constraints of the form . For example, it does not take into account the possibility of r creating a new valid occurrence of C. The next proposition strengthens the above theorem by partially remedying this.

Proposition 1

If is parallel independent from r and for every weak critical sequence it holds that there is an injective morphism with , i.e., , then r is directly consistency sustaining w.r.t. constraint d.

For consistency improvement we state criteria on rules as well: If a rule is directly consistency improving w.r.t. a constraint of the form , it is either (1) able to destroy an occurrence of C (deleting a part of it) or (2) to bring about an occurrence of (creating a part of it). In case (2), we can even be more precise: The newly created elements do not stem from C but from the part of without C; this is what the formula in the next theorem expresses. For constraints of the form , condition (1) is the only one that holds.

Theorem 5

(Criteria for direct consistency improvement). If rule r is directly consistency sustaining w.r.t. constraint c, then it is directly consistency improving w.r.t. c if and only if r causes a conflict for . If r is directly consistency improving w.r.t. constraint d, then r causes a conflict for or is sequentially dependent on r in such a way that

where, in this dependency, n is the co-match of the first transformation applying r and is the match for .

The above criterion is not sufficient in case of constraint d. The existing conflicts or dependencies do not ensure that actually an invalid occurrence of C can be deleted or a new occurrence of can be created in such a way that an invalid occurrence of C is “repaired”.

Looking closer to the criteria stated above, we can find some recurring patterns. Table 2 lists the kinds of universal constraints up to nesting level 2 and the corresponding criteria. While we have shown the criteria in the first two rows in Theorems 4 and 5, we conjecture the criteria in the last row of Table 2. To prove generalized theorems for nesting levels , however, is up to future work.

Table 2.

Generalisation of the criteria from Theorems 4 and 5 to universal constraints up to nesting level 2. Here, is short for , denotes dependency of on , denotes causing a conflict for , and crossed out versions denote the respective absence.

Type of constr.	Crit. for direct consist. sust.	Crit. for direct consist. impr.

Example 4

We can use the criteria in Table 2 to semi-automatically reason about consistency sustainment and improvement in our example. To this end, we first apply automated conflict and dependency analysis (CDA, [18]) to the relevant pairs of mutation and check rules. Using the detected conflicts and dependencies, we infer parallel and sequential (in)dependence per definition, as shown in Table 3. For example, since no dependencies between assignFeature and exist, we conclude that these rules are sequentially independent.

Table 3.

Applying the criteria from Table 2 to the example; is short for .

Rule	Consis. sust. (suff. cr.)					Consis. impr. (necc. cr.)
	seq. indep.			par. indep.		par. dep.			seq. dep.
assignFeature	-	+	-	+	+	-	-	-	+	+
createClass	-	-	-	+	+	-	-	-	+	+
moveFeature	-	+	-	-	-	+	-	+	+	+
deleteEmptyClass	+	+	+	+	+	-	+	-	-	-

Consistency Sustainment: Based on Table 3, we find that the sufficient criterion formulated in Theorem 4 is adequate to show direct consistency sustainment in four out of seven positive cases as per Table 1: rule assignFeature with constraint and rule deleteEmptyClass with constraints , and . Moreover, the stronger criterion in Proposition 1 allows to recognize the case of createClass with . Discerning the remaining two positive cases (assignFeature with ; createClass with ) from the five negative ones requires further inspection.

Consistency Improvement: Based on Table 3, our necessary criterion allows to detect the two positive cases in Table 1: rules deleteEmptyClass and assignFeature with constraint . The former is due to parallel dependence, the latter due to sequential dependence (where inspection of the CDA results reveals a critical sequence with a suitable co-match). The criterion is also fulfilled in six negative cases: assignFeature with , createClass with and , and moveFeature with , and . Four negative cases are correctly ruled out by the criterion.

Related Work

In this paper, we introduce a graduated version of a specific logic on graphs, namely of nested graph constraints. Moreover, we focus on the interaction of this graduation with graph transformations. Therefore, we leave a comparison with fuzzy or multi-valued logics (on graphs) to future work. Instead, we focus on works that also investigate the interaction between the validity of nested graph constraints and the application of transformation rules.

Given a graph transformation (sequence) , the validity of graph H can be established with basically three strategies: (1) graph G is already valid and this validity is preserved, (2) graph G is not valid and there is a c-guaranteeing rule applied, and (3) graph G is made valid by a graph transformation (sequence) step-by-step.

Strategies (1) and (2) are supported by the incorporation of constraints in application conditions of rules as presented in [11] for nested graph constraints in general and implemented in Henshin [19]. As the applicability of rules enhanced in that way can be severely restricted, improved constructions have been considered of specific forms of constraints. For constraints of the form , for example, a suitable rule scheme is constructed in [15]. In [2] refactoring rules are checked for the preservation of constraints of nesting level . In [19], two of the present authors also suggested certain simplifications of application conditions; the resulting ones are still constraint-preserving. In [20], we even showed that they result in the logically weakest application condition that is still directly consistency sustaining. However, the result is only shown for negative constraints of nesting level one. A very similar construction of negative application conditions from such negative constraints has very recently been suggested in [3].

Strategy (3) is followed in most of the rule-based graph repair or model repair approaches. In [22], the violation of mainly multiplicity constraints is considered. In [12], Habel and Sandmann derive graph programs from graph constraints of nesting level . In [25], they extend their results to constraints in ANF which end with or constraints of one of the forms or . They also investigate whether a given set of rules allows to repair such a given constraint. In [7] Dyck and Giese present an approach to automatically check whether a transformation sequence yields a graph that is valid w.r.t. specific constraints of nesting level .

Up to now, result graphs of transformations have been considered either valid or invalid w.r.t. to a graph constraint; intermediate consistency grades have not been made explicit. Thereby, c-preserving and c-guaranteeing transformations [11] focus on the full validity of the result graphs. Our newly developed notions of consistency-sustainment and improvement are located properly in between existing kinds of transformations (as proven in Theorems 2 and 3). These new forms of transformations make the gradual improvements in consistency explicit. While a detailed and systematic investigation (applying the static methods developed in this paper) is future work, a first check of the kinds of rules generated and used in [14] (model editing), [22] (model repair), and [5] (search-based model engineering) reveals that—in each case—at least some of them are indeed (directly) consistency-sustaining. We are therefore confident that the current paper formalizes properties of rules that are practically relevant in diverse application contexts. Work on partial graphs as in, e.g. [26], investigates the validity of constraints in families of graphs which is not our focus here and therefore, not further considered.

Stevens in [27] discusses similar challenges in the specific context of bidirectional transformations. Here, consistency is a property of a pair of models (loosely, graphs) rather than between a graph and constraint. In this sense, it may be argued that our formalisation generalises that of [27]. Several concepts are introduced that initially seem to make sense only in the specific context of bidirectional transformations (e.g., the idea of candidates), but may provide inspiration for a further extension of our framework with corresponding concepts.

Conclusions

In this paper, we have introduced a definition of graph consistency as a graduated property, which allows for graphs to be partially consistent w.r.t. a nested graph constraint, inducing a partial ordering between graphs based on the number of constraint violations they contain. Two new forms of transformation can be identified as consistency sustaining and consistency improving, respectively. They are properly located in between the existing notions of constraint-preserving and constraint-guaranteeing transformations. Lifting them to rules, we have presented criteria for determining whether a rule is consistency sustaining or improving w.r.t. a graph constraint. We have demonstrated how these criteria can be applied in the context of a case study from search-based model engineering.

While the propositions we present allow us to check a given rule against a graph constraint, their lifting to a set of constraints is the next step to go. Furthermore, algorithms for constructing consistency-sustaining or -improving rules from a set of constraints are left for future work.
