Efficient Context-Sensitive CFI Enforcement Through a Hardware Monitor

Abstract

Recent works on Control-Flow Integrity (CFI) have mainly focused on Context-Sensitive CFI policies to provide higher security guarantees. They utilize a debugging hardware feature in modern Intel CPUs, Processor Trace (PT), to efficiently collect runtime contextual information. These PT-based CFI mechanisms offload the processing of the collected PT trace and CFI enforcement onto idle cores. However, a processor does not always have idle cores due to the commonly-used multi-threaded applications such as web browsers. In fact, dedicating one or more cores for CFI enforcement reduces the number of available cores for running user programs. Our evaluation with a state-of-the-art CFI mechanism (CFI) shows that the performance overhead of a CFI mechanism can substantially increase (up to 652% on a single-core processor) when there is no idle core for CFI enforcement. To improve the performance of CFI, we propose to leverage a hardware monitor that unlike PT does not incur trace processing overhead. We show that the hardware monitor can be used to efficiently collect program traces (<1% overhead) in their original forms and apply CFI. We prototype the hardware-monitor based CFI on a single-core RISC-V processor. Our analysis show that hardware-monitor based CFI incurs, on average, 43% (up to 277%) performance overhead.

Introduction and Motivation

With the introduction of Data Execution Prevention (DEP) [8], attackers changed their focus from code injection to code-reuse attacks such as Return-Oriented Programming (ROP) [35] and Jump-Oriented Programming (JOP) [12]. Control-Flow Integrity (CFI) [7] is a security defense that aims to prevent these attacks by drastically reducing the allowed code targets for each Indirect Control-Flow Transfers (ICTs). Most CFI mechanisms consist of two phases [10]: an analysis phase and an enforcement phase. The analysis phase generates a statically constructed Control-Flow Graph (CFG), which approximates the allowed code targets for each control-flow transfer. The enforcement phase ensures that all the executed control-flow transfers follow valid paths in the CFG.

The success of a CFI mechanism mainly relies on two metrics: performance and security. Recent works focus on context-sensitive CFI [20, 24, 27, 28] to provide stronger security guarantees than traditional context-insensitive CFI [42, 43]. Context-sensitive CFI mechanisms refine the CFG with additional contextual information. Unfortunately, introducing contextual information requires additional processing time during the enforcement phase; thus, it increases the overall performance overhead of the CFI mechanisms [20, 21].

For efficient context-sensitive CFI enforcement, researchers have repurposed an already deployed hardware feature in modern Intel CPUs, Processor Trace (PT) [34]. PT has been designed for offline debugging and failure diagnosis by capturing runtime target and timing information of ICT instructions (ret and indirect jmp/call) [32]. Although several works [15, 26, 38] used PT in its intended direction, recent works leveraged PT to efficiently collect contextual information for online CFI enforcement [20, 21, 24, 29].

Using PT for CFI enforcement is practical since it already exists in the commodity hardware. However, PT is not an optimal hardware feature for CFI enforcement. Although PT efficiently collects traces (<3% overhead [29]) in the form of encoded packets at the hardware level, the decoding of these packets (trace processing) performed with a software-level decoder is significantly slower than the trace collection [21, 24, 29]. Unfortunately, any PT-based CFI mechanism requires this inefficient trace processing prior to validating ICT targets at enforcement phase. To avoid the additional performance overhead, existing PT-based CFI mechanisms [20, 21, 24, 29] offload the trace processing and ICT validation onto idle cores1. However, commonly used applications (such as web browsers/servers and games) are multi-threaded; thus, the processor will not always have idle cores available for CFI enforcement. In fact, dedicating one or more cores for CFI enforcement reduces the number of available cores for running user applications.

In Fig. 1, we show the performance impact of the number of cores on CFI enforcement by using a state-of-the-art PT-based approach (CFI [24]) for SPEC2006 benchmark suite [23]. The details of the experimental setup are provided in Sect. 4. We evaluate PT-based CFI using four configurations: single-core (1-Core), two-core (2-Core), three-core (3-Core), and eight-core (8-Core). 8-Core and 3-Core configurations incur similar performance overheads since CFI enforcement uses two additional idle cores (one for ICT validation and one for trace processing). 2-Core and 1-Core results clearly show that PT-based CFI significantly impacts the performance of benchmarks if the processor does not have any idle cores. On average, the performance overhead of CFI increases from 23% to 42% from 3-Core to 1-Core. Note that the benchmarks generating more packets show higher degradation in performance since trace processing requires more CPU time for these benchmarks. In the worst case, CFI incurs 652% overhead on 1-Core for h264ref, which is significantly higher than 3-Core overhead (372%).

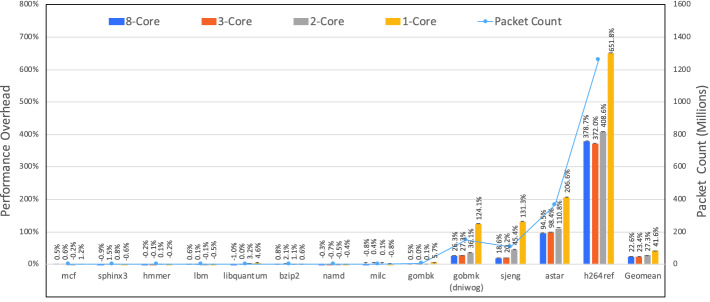

Fig. 1.

Performance overhead (left y-axis) of PT-based CFI for varying number of cores and the packet count (right y-axis) for various SPEC2006 benchmarks. (The depicted performance overhead of some of the benchmarks differs from those reported in the original work [24]. Section 4.1 provides an explanation for this performance variation.)

Based on the insights gained from our measurements, efficient context-sensitive CFI policies should be enforced through a hardware feature which efficiently collects contextual information without requiring trace processing. We show that a programmable hardware monitor (PHMon [19]) with fine-grained configuration capabilities can be used to efficiently implement a state-of-the-art context-sensitive CFI mechanism (CFI [24]) to defend against forward-edge attacks. PHMon incurs only 1% trace collection overhead when collecting the contextual information. Moreover, PHMon does not require trace processing during CFI enforcement as opposed to PT. In addition, we integrate a hardware-based shadow stack [19] into PHMon-based CFI to protect backward-edges as well.

To evaluate our work, we implement a prototype of PHMon-based CFI interfaced with the RISC-V Rocket core [9] on an FPGA. We choose the RISC-V Rocket core since its open-source nature allows us to evaluate our mechanism using an actual implementation rather than merely a simulation. In summary, we make the following contributions:

• We show that the performance impact of the trace processing on CFI becomes substantial if a processor does not have idle cores dedicated to software-level decoding. According to our measurements, a state-of-the-art CFI mechanism (CFI) incurs up to 652% overhead on a single-core processor.

• Based on the insights gained from our measurements, we propose to implement CFI through a hardware monitor (PHMon [19]), which unlike PT does not incur trace processing overhead.

• We evaluate PHMon-based CFI on a single-core RISC-V processor. We demonstrate that PHMon can efficiently collect traces in their original forms with only 1% trace collection overhead on average. PHMon-based CFI incurs 43% performance overhead, on average, to secure forward-edges.

• We show that PHMon-based CFI is compatible with backward-edge CFI solutions by integrating a shadow stack based on a prior work [19]. Integrating shadow stack minimally affects the performance overhead (<1% additional overhead) and allows us to secure both forward and backward edges.

The rest of the paper is organized as follows. Section 2 provides background. Section 3 describes our design and implementation. Section 4 provides our evaluation. We discuss our implementation choices in Sect. 5 and present related work in Sect. 6. Finally, Sect. 7 concludes our work.

Background

In this section, we provide the background on Intel PT [32], PHMon [19], and CFI [24].

Intel PT

PT is a debugging hardware feature in modern Intel CPUs [34]. PT collects Change of Flow Instructions (CoFIs) that cannot be derived statically. Specifically, PT generates three types of packets while encoding the CoFIs: (1) TNT packets to record 1-bit taken or non-taken information for each conditional branch (i.e., jcc), (2) TIP packets to record the target addresses of indirect branches (i.e., indirect jmp/call and ret), and (3) FUP packets for the source addresses of signals and interrupts. PT uses an efficient encoding mechanism while collecting the traces of a program. A software decoder can reconstruct the control-flow of the program using the program binary and the PT packets recorded during the execution. To reduce the number of generated packets, PT can be configured to specify the address range, privilege level, and CR3 (page table pointer) value to be monitored.

PHMon

PHMon [19] is a parallel decoupled monitor interfaced with the RISC-V Rocket processor [9] via Rocket Custom Coprocessor (RoCC). A user can configure PHMon through its software API and monitor the execution of processes. In Fig. 2, we present a simplified overview of PHMon. As the processor executes instructions, PHMon receives the architectural state of the processor for the monitored program in the form of a commit log from the writeback stage of the pipeline. The commit log includes the instruction (inst), the PC (pc_src), the next PC (pc_dst), memory/register address used in the instruction (addr), and the data accessed by the instruction (data). Note that unlike PT, PHMon collects these fields in their original forms and does not require software-decoding.

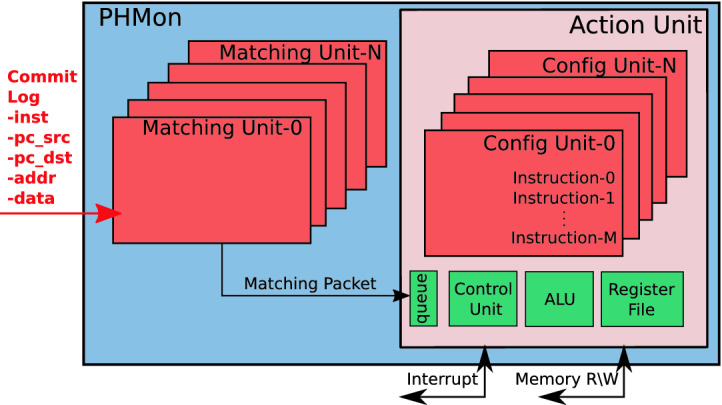

Fig. 2.

A simplified overview of the PHMon [19] architecture: PHMon receives a commit log from a processor. It processes the commit log based on the user-defined rules and performs the follow-up operations such as an interrupt.

The incoming commit log is then provided to the Matching Units (MUs). Each MU applies a set of distinct monitoring rules defined via the software interface of PHMon. The MU checks the commit log to detect the matches based on these rules. For instance, a user can set an MU to detect specific instructions (e.g., ret, jalr) or instructions at specific PC values. Upon detecting a match, an MU sends a matching packet to the Action Unit (AU). The AU consists of a queue, Config Units (CFUs), an Arithmetic and Logical Unit (ALU), a local Register File, and a Control Unit. The AU stores the incoming matching packets in the queue. Each MU is associated with a CFU, where the user-defined instructions are stored for the corresponding match. The AU executes these user-defined instructions through either hardware operations (i.e., ALU or memory read/write operations) or an interrupt handled by the Operating System (OS) running on the RISC-V core.

CFI

Although context-sensitive CFI policies significantly reduce the allowed code targets for each ICT, most of them [20, 27, 40] are unable to provide a unique valid target for each ICT. As an example, we provide a code snippet (inspired by the original work [24]) in Listing 1.1. In this example, the value of the function pointer (func_ptr) is specified by a variable uid that indexes into the array func_ptr_arr. Since the index value (uid) is non-constant and resolves at run-time, most context-sensitive CFI policies identify all array elements (A, B, and C) as valid targets. On the contrary, CFI [24] (a state-of-the-art context-sensitive CFI) ensures that each ICT instruction has one Unique Code Target (UCT) at each step of the program execution. CFI achieves the UCT property by identifying constraining data (c-data) from the program source code and using c-data as context when enforcing CFI. c-data refers to any non-constant operand (uid in the example) of a sensitive instruction, where an instruction is considered sensitive if it is involved in a function pointer calculation (line 3–4 in the example). For efficient CFI enforcement, CFI uses PT when collecting c-data and ICT targets. In Fig. 3, we present the overview of CFI enforcement using PT (PT-based CFI). CFI consists of a compiler (CFI-compiler) and a dynamic monitor (CFI-monitor). The CFI-compiler instruments the program source to identify c-data and generates an instrumented binary. During the execution of the instrumented binary, PT writes the encoded traces into its trace buffer. When the trace buffer reaches capacity, the kernel driver (PT-Driver) copies the trace buffer into a kernel buffer. CFI-monitor obtains the encoded PT trace of the instrumented program from the kernel buffer by signaling PT-Driver, decodes the PT trace in its trace decoder unit, and validates the ICT targets in the points-to analyzer unit.

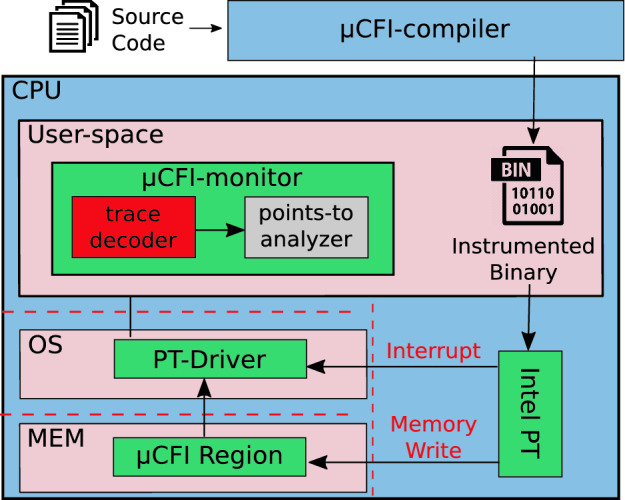

Fig. 3.

CFI [24] design overview: CFI consists of two components: a compiler (CFI-compiler) that instruments the program to identify c-data, and a runtime monitor (CFI-monitor) to validate ICTs.

To guarantee the protection of forward-edges, CFI-monitor requires collecting c-data, the target of indirect calls2, and the target of sensitive rets from the instrumented program. Note that CFI-monitor requires the target value of some of the returns (only sensitive ones) for forward-edge protection since they are involved in the function pointer calculation. More specifically, a return is “sensitive” if its corresponding function contains at least one sensitive instruction. For backward-edge protection, the CFI-compiler instruments the program to implement a software-based shadow stack based on a prior work [16].

PHMon-Based CFI

PHMon-based CFI is a hardware-assisted context-sensitive CFI enforcement. There are two main advantages of leveraging PHMon when enforcing CFI. First, PHMon collects the program traces in their original forms. Therefore, it does not introduce trace processing overhead when enforcing CFI. Second, PHMon offers a variety of configuration capabilities. This feature allows PHMon to easily collect both contextual data and ICT targets.

Design

In Fig. 4, we show the overview of CFI enforcement using PHMon (PHMon-based CFI). First, we explain how we leverage PHMon to protect forward-edges. As a first step, we compile a program with a modified version of the CFI-compiler (detailed in Sect. 3.2) and generate the instrumented binary. Prior to the execution of this binary, PHMon is programmed to collect the required information (i.e., c-data, the target of indirect calls, and the target of sensitive returns) for CFI enforcement. While the processor executes the binary, PHMon collects the commit log through RoCC. Then, PHMon applies the user-defined monitoring rules to the commit log to determine if the commit log includes any information for CFI enforcement. PHMon writes the collected information from the binary into a trace buffer depicted as CFI Region in Fig. 4. Whenever the trace buffer becomes full, PHMon raises an interrupt. Our kernel module (PHMon-Driver) copies the collected trace buffer to a kernel buffer and informs the OS such that the OS can resume the execution of the instrumented binary. The PHMon-Driver is also in charge of providing the collected traces to the CFI-monitor as the CFI-monitor performs the enforcement of the ICT instructions.

Fig. 4.

Design Overview of PHMon-based CFI: PHMon writes the collected program traces into CFI Region and Shadow Stack in memory for forward-edge protection and backward-edge protection, respectively. CFI-monitor fetches the traces via PHMon-Driver and enforces CFI.

We protect backward-edges by implementing a shadow stack. Delshadtehrani et al. [19] already showed that PHMon can be used to implement a shadow stack (PHMon-based shadow stack). Instead of implementing a software-only shadow stack like PT-based CFI, we implement PHMon-based shadow stack in our prototype for completeness. We program PHMon to validate the return targets by monitoring call/ret instructions (details provided in Sect. 3.2). In case of a call instruction, PHMon stores the new return address in a shared memory space (Shadow Stack in Fig. 4). Whenever the function returns, PHMon compares the return address with the one stored in the Shadow Stack to validate the return target.

One of the main differences between protecting forward and backward edges is the enforcement mechanism. For forward-edge protection, PT-based CFI stores the collected packets in trace buffers and provides the buffer content to the software monitor by raising an interrupt. We keep our PHMon-based CFI implementation similar to PT-based CFI to fairly represent the architectural benefit of using PHMon. Specifically, PHMon stores the necessary information in a memory buffer and provides this information to the software monitor by triggering an interrupt. Here, we use PHMon as a trace collection mechanism (similar to PT) by leaving the ICT validation to the software monitor. For a shadow stack, PHMon validates the ICT targets at the hardware level by using a sequence of ALU instructions. Therefore, PHMon validates the ICT targets without requiring a software monitor. Note that we implement the shadow stack to show that our PHMon-based protection mechanism for forward edges is compatible with a backward-edge protection mechanism. The performance benefit of this work arises from the forward-edge protection mechanism.

Implementation

To enforce CFI using PHMon, we applied changes to both the CFI-compiler and CFI-monitor. We used the same front-end IR-level instrumentation (LLVM 3.6) used by the original CFI-compiler [2]. This front-end instrumentation is in charge of identifying c-data. We used our RISC-V back-end instrumentation to collect c-data, indirect call targets, and sensitive return targets (detailed later in this section) using PHMon. At the release of LLVM 3.6, RISC-V was not a supported architecture. Therefore, we used a newer version (LLVM 7.0) for the back-end instrumentation. We removed the code that implements the trace decoder unit (color-coded with red in Fig. 3) from the CFI-monitor since PHMon does not perform any encoding while collecting the traces from the binary. We applied the necessary changes to allow the CFI monitor to communicate with the PHMon-Driver. We used LLVM 7.0 to cross-compile the CFI-monitor [3] for RISC-V. Overall, we aim to minimize the software-level implementation differences between PT-based CFI and PHMon-based CFI, so that we can fairly represent the architectural benefit of using PHMon.

We slightly modified the Linux kernel to support PHMon-based CFI. Since the frequent suspension of the protected program increases the performance overhead, CFI suspends the protected program only at security-sensitive system calls to validate the target of the collected ICTs. Similar to many prior works [13, 20, 24, 40], we modify our kernel to suspend the execution of the protected program at the following security-sensitive system calls: mmap, mremap, remap_file_pages, mprotect, execve, execveat, sendmsg, sendmmsg, sendto, and write.

As we explained in Sect. 2.2, PHMon maintains the incoming match packets in a queue prior to executing the user-defined instructions stored in the CFU. When the queue gets full, an obvious option for PHMon [19] is to stall the fetch stage of the Rocket core’s pipeline until PHMon processes all the packets waiting in the queue. However, this is not the proper way of handling the queue problem for PHMon-based CFI since match packets frequently require an action that should be processed by the processor, i.e., interrupt. Instead of stalling the processor, we modified PHMon to raise an interrupt handled by the OS whenever the queue becomes full. We then perform busy-waiting in the interrupt handler until all the match packets in the queue are processed. To provide full protection against control-flow attacks, in addition to leveraging PHMon for forward-edge protection (PHMon-based CFI), we also use it for backward-edge protection (PHMon-based shadow stack). In total, we program 5 MUs to simultaneously implement PHMon-based CFI and PHMon-based shadow stack. In the rest of this section, we explain about programming PHMon for forward-edge as well as backward-edge protection.

Programming PHMon for Forward-Edge Protection: For CFI forward-edge protection, we use three MUs: one MU for indirect calls, one MU for sensitive returns, and one MU for c-data collection. We use two registers from the Register File of PHMon to store the base address and the current pointer of CFI Region.

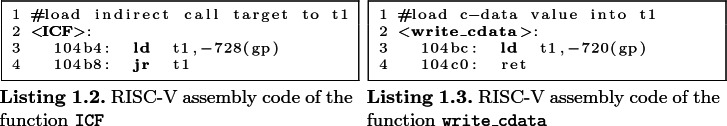

Indirect Calls: To collect indirect call targets with PHMon, we replace each indirect call in the program with an indirect jump to a special function (ICF as shown in Listing 1.2). The ICF loads the indirect call target into a temporary register (t1) from a fixed memory address, and jumps to the target address stored in t1. To obtain the target address during the instrumented binary execution, we use one MU which compares the pc_src of the collected commit log with the PC value of the load instruction (0x104b4 in Listing 1.2) in the ICF. This PC value can be statically obtained by disassembling the binary. Whenever PHMon detects a match, it writes the content of data field of the commit log (this field holds the t1 value) to the trace buffer allocated for CFI.

Sensitive Returns: As explained in Sect. 2, the target address of each sensitive return is required by the CFI-monitor for forward-edge protection. To obtain the target values for sensitive returns, we insert a mv t1,ra instruction before each sensitive return instruction in the application. This instruction copies the return address value to the temporary register t1. PHMon can then simply collect the value of t1. To do this, we use one MU to detect the execution of the mv t1,ra instruction. Whenever the inst value in the incoming commit log matches with the machine code of the mv t1,ra, PHMon writes the content of data field of the commit log (t1 in this case) into the trace buffer allocated for CFI.

c-data Collection: To collect c-data, we instrument the program to call a special write_cdata function as shown in Listing 1.3. The program calls the write_cdata function to send c-data to the CFI-monitor. The write_cdata loads the value of c-data into a temporary register (t1) from a fixed memory address, and immediately returns. We program one MU to monitor the ld instruction in the write_cdata. The MU compares the pc_src value of the incoming commit logs with the PC value of the ld instruction (0x104bc in Listing 1.3). Whenever PHMon detects a match, PHMon writes the content of data field (t1 in this case) into the trace buffer allocated for CFI.

Programming PHMon for Backward-Edge Protection: We implement a shadow stack (similar to original work [19]) using PHMon to demonstrate the compatibility of PHMon-based CFI with backward-edge CFI mechanisms. We use one MU to monitor calls and one MU to monitor returns. We use two registers from the Register File of PHMon to store the base address of the Shadow Stack and the Shadow Stack pointer. We program PHMon to write the original return addresses into a trace buffer (Shadow Stack in Fig. 4) when a call instruction is executed. Upon a return instruction, PHMon pops a value from the shadow stack and compares it with the current return value. PHMon performs the comparison directly on hardware using its ALU unit. In case of a mismatch, PHMon raises an interrupt and the OS terminates the process.

Evaluation

We evaluated our PHMon-based CFI system to answer the following questions:

• (1) What is the execution time overhead of our source code instrumentation to leverage PHMon?

• (2) How much overhead does PHMon incur to collect the program traces?

• (3) How much overhead does PHMon-based CFI incur when protecting forward edges only?

• (4) What is the performance degradation of integrating a backward-edge CFI mechanism into PHMon-based CFI?

Evaluation Framework

To evaluate the performance of PT-based CFI for systems with varying core numbers, we used an Intel(R) Core(TM) i7-8700 CPU @ 3.20 GHz machine running Ubuntu 16.04. The microarchitectural details are provided in Table 1. We run PT-based CFI on four different configurations; 1-Core, 2-Core, 3-Core, and 8-Core. As discussed in Sect. 1, in Fig. 1, we reported the performance overhead of CFI for these four configurations. In addition, we reported the packet count collected by PT for enforcing CFI. We used the open-source CFI-monitor [3], CFI-compiler [2], and CFI-kernel [4]3 repositories. By using these three repositories with no modifications, we successfully reproduced the results (within 1% standard deviation) reported in the original work [24] on an 8-Core processor. However, we observed that CFI-kernel does not suspend the execution of the protected program for three of the security-sensitive system calls (mremap, remap_file_pages, and write) reported in the paper [24]. Hence, we modified CFI-kernel to include these missing system calls. This modification lead to higher performance overhead of some benchmarks (i.e., +9% for sjeng, +84% for astar, and +234% for h264ref) compared to the overheads reported in the original work [24]. In our analysis, we ran each benchmark three times and calculated the average (geometric mean) overhead. The standard deviation in our measurements is less than 1%. We also provide the error bars for each benchmark in Fig. 1.

Table 1.

Microarchitectural details of Intel processor, Rocket core and PHMon.

Intel(R) Core(TM) i7-8700 CPU @ 3.20 GHz
Pipeline	Out-of-order
L1 instruction cache	32 KB, 8-way set-associative
L1 data cache	32 KB, 8-way set-associative
L2 cache	256 KB, 4-way set-associative
L3 cache	12 MB, 16-way set-associative

Rocket Core @ 25 MHz
Pipeline	6-stage, in-order
L1 I cache	16 KB, 4-way set-associative
L1 D cache	16 KB, 4-way set-associative
Register file	31 entries, 64-bit

PHMon
MUs	5
Local Register File	6 entries, 64-bit
Match Queue	1,024 entries, 129-bit
Action Config Table	16 entries

To measure the PHMon-based CFI performance overhead, we compared PHMon-based CFI with the baseline implementation of the Rocket processor. The microarchitectural parameters of Rocket core and PHMon are listed in Table 1. For both experiments, Rocket core includes a 16K L1 instruction cache and a 16K L1 data cache without an L2 or an L3 cache4. Due to the limitation of our FPGA-base evaluation platform, we could run Rocket core with maximum frequency of 25 MHz for both experiments. We modified the open-source PHMon architecture [1] interfaced with the 6-stage in-order RISC-V Rocket processor [9] via RoCC interface. PHMon-based CFI is prototyped on a Xilinx Zynq Zedboard [33], running a modified version of RISC-V Linux (v4.20) kernel. For both experiments, i.e., the baseline and PHMon-based CFI, we setup the Rocket processor with the same configurations including a 16K L1 instruction and data cache. We performed each experiment three times and calculated the average value. All standard deviations were below 1%. To show the stability of our measurements, we include the error bars as well (both in Fig. 5 and 6).

Fig. 5.

Performance overhead (left y-axis) of the instrumented binary (Instru) and trace collection (TC) overhead of PHMon. We use the right y-axis to show the packet count for each benchmark.

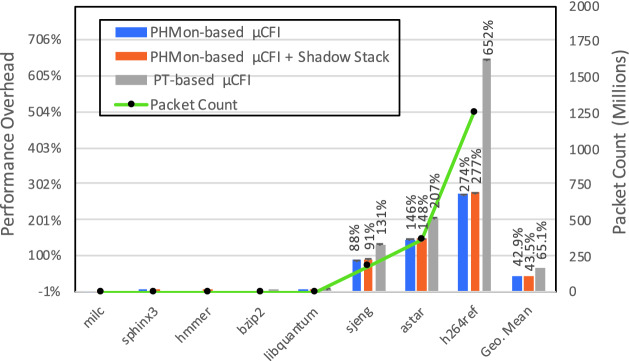

Fig. 6.

Performance overhead of PHMon-based CFI, PHMon-based CFI + Shadow Stack, and PT-based CFI. We use the right y-axis for providing the packet count for each benchmark.

During development, we observed that the CFI-monitor validates the traces much slower than PHMon’s trace collection speed. Hence, the collected traces accumulated in the kernel. Due to the limited available memory in our evaluation framework, the accumulated traces eventually resulted in an out of memory situation for some of the benchmarks. To circumvent this issue when we reach the memory limit, PHMon-Driver suspends the protected program until all the collected traces are processed by the CFI-monitor. Note that this increases the duration that we suspend the process and potentially increases the performance overhead of PHMon-based CFI. In an evaluation framework with more available memory, PHMon-based CFI could outperform our current prototype.

Evaluation Benchmarks

We calculated the runtime overhead of PT-based CFI (Fig. 1) for C/C++ applications using the ‘test’ workload of SPEC2006 benchmark suite [23]. We could not obtain results (similar to original work [24]) for gcc, dealII, povray, omnetpp and xalancbmk since PT loses packets at the hardware level, which manifests as a segmentation fault in the CFI-monitor. Additionally, in our evaluation framework, soplex caused a segmentation fault in the CFI-monitor. We did not include perlbench in our evaluation since this benchmark frequently uses the fork system call. The heavy usage of fork puts more pressure on a single-core compared to an 8-Core; hence, using this benchmark in our evaluation framework misrepresents the performance impact of the trace processing for CFI enforcement. Note that we represent the dniwog input as a separate data point for gobmk since its packet number is drastically higher than the remaining data points.

To evaluate PHMon-based CFI on a Rocket processor, we used 8 out of 12 benchmarks which successfully run with PT-based CFI. Unfortunately, we could not run lbm, namd, and gobmk with a PHMon-based CFI due to RISC-V cross-compilation errors using LLVM 7.0. We could not run mcf and perlbench due to the limited memory on our FPGA. Similarly, sjeng was also too large for our FPGA. However, by reducing the value of TTSize (which controls the size of one of the hashtables in sjeng) to 3000 in sjeng’s source code, we were able to run it with PHMon-based CFI. For a fair evaluation, we also report the overhead of PT-based CFI for sjeng using TTSize=3000 in Fig. 6.

Evaluation Results

Figure 5 depicts the performance impact of the source code instrumentation to collect program traces (instrumentation overhead) using PHMon. We measured the instrumentation overhead of the benchmarks by comparing the execution time of a baseline program with the instrumented program for CFI enforcement. Our results demonstrate that the code instrumentation (Instru in Fig. 5), including our RISC-V back-end passes to transfer c-data and ICT targets to the CFI-monitor, incurs very low performance overhead (1.7% on average). Note that the instrumentation overhead is higher (peak 5%) for the benchmarks generating more packets such as sjeng, astar, and h264ref.

To demonstrate that PHMon can efficiently collect contextual information, we measured the trace collection overhead of PHMon (TC in Fig. 5). To do this, we ran the instrumented benchmarks under the monitoring of PHMon without CFI enforcement. Whenever the trace buffer of PHMon became full, PHMon triggered an interrupt and returned from the interrupt handler without processing the trace buffers. Note that Instru+TC overhead also includes the instrumentation overhead. Our results show that PHMon can efficiently collect program traces (<1% overhead on average and 4% peak). Note that PHMon’s trace collection overhead is maximum of 4% even for benchmarks generating more packets such as sjeng, astar, and h264ref.

Using Fig. 6, we first depict the performance overhead of PHMon-based CFI and PT-based CFI when protecting only the forward-edges. Both PHMon-based and PT-based CFI perform efficiently for benchmarks such as milc, sphinx3, hmmer, bzip2, and libquantum that generate fewer packets. PHMon-based CFI introduces 88%, 146%, and 274% overhead for packet-intensive sjeng, astar, and h264ref benchmarks, respectively. For these benchmarks, PT-based CFI results in 131%, 207%, and 652% performance overhead, respectively. Since PHMon-based CFI does not incur trace processing overhead, its performance bottleneck mainly arises from the ICT validation performed by the CFI-monitor. For PT-based CFI, there is an additional trace processing overhead prior to ICT validation.

In Fig. 6, we also show the full PHMon-based CFI protection overhead. The full protection secures forward-edges and backward-edges with PHMon-based CFI and PHMon-based shadow stack, respectively. Adding the shadow stack increases the performance overhead of PHMon-based CFI by less than 1% on average (peak 3%) and allows us to fully protect the programs against control-flow hijacking attacks.

The original work [19] reports the power and area overhead of PHMon with varying number of MUs. Based on those results, PHMon-based CFI using three MUs incurs 6.5% power and 15.1% area overhead. The full protection requires five MUs, which results in 9.2% power and 18.4% area overhead.

Discussion

In this section, we discuss some of our design choices when implementing CFI using PHMon. We specifically discuss aspects of our source code instrumentation (Sect. 3.2) to protect forward-edges.

When enforcing CFI using PHMon, we aim to minimize the software-level implementation differences with the original PT-based CFI work so that we can fairly represent the architectural benefit of using PHMon. Therefore, similar to PT-based CFI, we collected indirect call targets by redirecting the control-flow to the special function (ICF as shown in Listing 1.2). We initially aimed to replace indirect calls with direct calls to ICF similar to PT-based CFI targeting x86_64. Unfortunately, direct calls in RISC-V can target a limited range (±1 MiB) since the offset is encoded into the operand of the instruction and that operand is only 20 bits. Therefore, we could not replace each indirect call with a direct call in RISC-V, especially for benchmarks with bigger code size, and had to use indirect jumps instead. Unfortunately, we do not provide additional checks to ensure that these indirect jumps are not subverted by an attacker at run-time. However, we could easily avoid these indirect jumps in the binary by instrumenting the code with “custom” instructions. The RISC-V ISA allows adding a custom ISA extension. We could insert a custom instruction that stores the target address of an indirect call in a register before each indirect call instruction. This way, we could obtain indirect call targets without redirecting indirect calls to the ICF using indirect jumps. We redirect indirect calls to ICF using indirect jumps instead of inserting custom instructions to have a similar implementation with PT-based CFI.

We collect c-data by monitoring the ld instruction at a fixed address (see Listing 1.3). We obtain the PC value of ld instruction using a static analysis. Our design choice aligns with PT-based CFI which generates packets only for fixed addresses. To minimize the software-level implementation differences, we implement PHMon-based CFI in a similar way. Unfortunately, this design choice can result in some portability issues. For instance, it can cause problems with randomization mechanisms like ASLR. In fact, this issue could also easily be addressed by inserting a custom instruction that will help us store the constraining data in a register. This way, we could program PHMon to monitor the custom instruction rather than a specific program counter. Since the instruction machine code is the same regardless of the program layout, CFI enforcement would be more portable than our current implementation.

We insert mv t1,ra instruction before each sensitive return to collect the return value using PHMon. We choose the mv t1,ra instruction since none of the SPEC2006 benchmarks contains it when compiled without our back-end pass. We acknowledge that the proper way to collect sensitive return values would be to insert a custom instruction before each sensitive return. For instance, the custom instruction could store the return value in a register. We could program PHMon to monitor this custom instruction and write the content of the register value into memory. This way, we could ensure that the original program does not contain the inserted instruction unless it enforces CFI.

Related Work

Our PHMon-based CFI approach is closely related to works which use hardware support for CFI enforcement. We divide these hardware mechanisms into two categories: the ones already deployed in modern processors, and the new hardware designs proposed for future deployment.

Reusing Deployed Hardware Features

CFI mechanisms that rely on existing hardware features are practical since they can be readily deployed on commodity hardware. Unfortunately, existing hardware features have several drawbacks since the hardware features are not designed with security in mind. Specifically, CFIMon [42] utilizes Branch Trace Store (BTS) [34] to enforce CFI. However, BTS incurs high performance overheads (20–40) [40]. To reduce the overhead, several works [13, 31, 40] use Last Branch Record (LBR) [34] for CFI enforcement. LBR can record the last N executed branches where N can be 4, 8, 16, or 32 depending on the processor model. For instance, kBouncer [31] aims to protect backward-edges from ROP attacks using LBR. kBouncer checks the control flow of the program whenever the program makes a security sensitive system call. ROPecker [13] extended kBouncer’s approach by emulating the potential program execution with the help of a statically generated ROP gadget database. The key idea is to detect ROP gadgets which can possibly be stitched together towards a malicious purpose. Due to LBR’s branch recording capacity, kBouncer and ROPecker are shown to be vulnerable to history flushing attacks [11]. This attack initially cleanses any evidence of the ROP attack in the short-term history and then creates a view of history that the defense will not classify as an attack. Another LBR-based CFI mechanism (PathArmor [40]) raises the bar for history flushing attacks thanks to its context-sensitive CFI policy. PathArmor uses LBR to record the last 16 indirect branches and direct calls as the context. Unfortunately, PathArmor checks less than 0.1% of total returns on NGINX [21] for backward-edge protection because of the LBR’s limited trace recording capability.

CFIGuard [41] overcomes the limited size of LBR by combining it with the Performance Monitoring Unit. CFIGuard raises an interrupt whenever LBR buffer is full. However, triggering an interrupt every 16 branches can significantly increase the performance overhead, especially for CPU-intensive applications. OS-CFI [28] implements an origin sensitive context-sensitive CFI mechanism to reduce the attack surface for C-style indirect calls and C++ virtual calls. For the former, the origin is the most recently updated code location. For the latter, the origin refers to code location where receiving object’s constructor is called. OS-CFI uses Intel MPX for efficiently storing and retrieving the origin of the code pointers. OS-CFI uses inline reference monitors to collect and maintain the contextual information. Since these monitors extensively use memory to store the temporary data for searching hash table, they are vulnerable to race conditions for a short interval. To protect the integrity of inline reference monitors, OS-CFI utilizes the transactional memory (Intel TSX). LMP [25] uses MPX for protecting backward-edges by implementing a shadow stack via program source instrumentation. Unfortunately, Intel MPX is not adopted by industry widely due to the considerable performance overhead and compatibility issues [30]. MPX is not available on future Intel processors [5].

Several researchers also leverage Intel PT for CFI enforcement. PT can record higher number of indirect branches than LBR, which allows researchers to enforce more precise CFI mechanisms. For instance, PT-CFI [22] enforces backward-edge CFI by implementing a shadow stack for the COTS binaries based on the PT traces. Griffin [21] implements three different CFI policies over unmodified binaries and shows the tradeoff between precision and performance. Also, Griffin shows the performance impact of the number of kernel threads on the speed of buffer trace processing and CFI enforcement, which goes up from %8 to %19 on NGINX as we increase the number of threads from one to six. FlowGuard [29] attempts to minimize the performance overhead of PT with its fuzzing-assisted approach. The key idea is to collect program traces prior to the program execution by using a fuzzer and minimize the overhead of expensive software-level decoding of PT. Dynamic analysis-based approaches [20, 24] increase the precision of CFI by obtaining additional information from the program at runtime, but at the expense of introducing higher performance overhead. More specifically, PITTYPAT [20] implements a path-sensitive CFI policy, which verifies the whole executed control path of the program. CFI uses constraining data to provide unique code target for each ICT.

PHMon-based CFI enforces CFI without weakening any security guarantees. As opposed to PT-based CFI, PHMon-based CFI can collect the original form of the data and does not require software-level decoding of collected information when validating control-flows. Also, PHMon-based CFI is not vulnerable to history flushing attacks as opposed to LBR-based CFI mechanisms.

New Hardware Designs

Several works propose new hardware designs to enforce CFI. For instance, HAFIX [17] proposes a fine-grained backward-edge CFI system which confines function returns to active call sites. It assigns unique labels to each function by instrumenting the program source with compiler support and enforces the CFI policy directly on hardware for efficiency. Unfortunately, recent work shows that HAFIX is vulnerable to Back-Call-Site attack [39] and cannot fully protect backward-edges. Also, it is vulnerable to any forward-edge attacks. HCFI [14] can fully protect backward-edges by implementing a shadow stack. Additionally, it implements the forward-edge CFI policy discussed by Abadi et al. [7]. Similar to HAFIX, HCFI also modifies the ISA and introduces new instructions to provide CFI capability to the core. Sullivan et al. [37] enhance HAFIX by supporting forward edge protection. Although both Sullivan et al. [37] and HCFI implement efficient forward-edge CFI policies directly on hardware, unlike CFI, they are still unable to provide a unique target for each ICT and cannot fully protect against forward edge attacks. Intel announced its hardware support for CFI in the form of CET [6]. CET offers strong backward-edge protection with a shadow stack. Unfortunately, the forward-edge policy protection (i.e., Indirect branch tracking) is coarse-grained and vulnerable to advanced attacks such as JOP [12] and COOP [36]. Nile [18] and PHMon [19] offer full protection against backward-edge attacks by implementing a shadow stack with less than 2% performance overhead. However, these two works cannot protect against forward-edge attacks. This work complements PHMon by offering forward-edge protection.

Conclusion

In this work, we show that the hardware features originally designed for debugging on Intel processors are not efficient when used for enforcing CFI. Specifically, Intel PT-based CFI mechanisms put high pressure onto idle cores in processor since they require expensive software-level decoding prior to ICT enforcement. All of these PT-based mechanisms assume that idle cores are readily available for CFI enforcement, which is not necessarily the case considering the multi-threaded nature of common applications. We evaluate the performance impact of the trace processing on PT-based CFI enforcement and show that a state-of-the-art CFI mechanism (CFI) incurs up to 652% overhead on a single-core compared to 372% overhead on a 3-Core processor. When enforcing CFI, we leverage a programmable hardware monitor (PHMon) which does not introduce trace processing overhead unlike PT. Our PHMon-based CFI mechanism incurs 43% performance overhead, on average, to secure forward edges. We also integrate a hardware-based shadow stack to fully secure the program including backward-edges. Adding the shadow stack increases the performance overhead of PHMon-based CFI by less than 1% on average.
