C-Glycosylflavones Alleviate Tau Phosphorylation and Amyloid Neurotoxicity through GSK3β Inhibition

Abstract

Alzheimer’s disease (AD) is the most common brain disorder worldwide. The aberrant tau hyperphosphorylation and accumulation play a critical role in the formation of neurofibrillary tangles highly associated with neuronal dysfunction and cognitive impairment in AD pathogenesis. Glycogen synthase kinase-3β (GSK3β) is a key kinase responsible for tau hyperphosphorylation. Selective inhibition of GSK3β is a promising strategy in AD therapy. Corn silks (CS, Zea mays L.) have been traditionally used as a medicinal herb and recently noted for their potentially cognitive benefits. However, the neuroprotective components of CS and their molecular mechanism have received little attention to date. As part of our efforts screening phytochemicals against a broad panel of kinases targeting AD tauopathy, we found inhibition of GSK3β by CS extracts. Subsequent bioassay-guided fractionation led to the isolation and identification of two 6-C-glycosylflavones, isoorientin (1) and 3’-methoxymaysin (2), with selective inhibition against GSK3β in vitro. Enzyme kinetics and molecular docking studies demonstrated that 1 specifically inhibited GSK3β via an ATP noncompetitive mechanism, acting as a substrate competitive inhibitor of GSK3β. Further in vitro cellular studies demonstrated that 1 effectively attenuated tau phosphorylation mediated by GSK3β, and was neuroprotective against β-amyloid induced tau hyperphosphorylation and neurotoxicity in SH-SY5Y cells. The C-glycosylflavones represent new lead candidates with a novel mechanism of action for the development of AD phytopharmaceuticals.

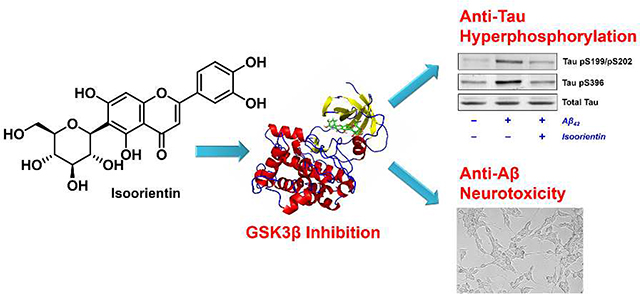

Graphical Abstract

INTRODUCTION

Alzheimer’s disease (AD) is a progressive and irreversible neurodegenerative disease that causes memory loss and cognitive impairment in conjunction with mental and behavior changes. While the exact etiology is still uncertain, the current evidence indicates that the formation of neurofibrillary tangles (NFTs) and β-amyloid (Aβ) plaques accompanied by synaptic dysfunction and neuroinflammation are the molecular characteristics of AD.^1–2 NFTs aggregated by intracellular hyperphosphorylated tau proteins are one of the major hallmarks in the pathology of AD. Tau protein, an important microtubule-associated protein, stabilizes the integrity and functionality of microtubules in the neuronal cytoskeleton, and maintains healthy axonal transport.³ In AD, abnormal phosphorylation of tau attenuates their binding to microtubules in neurons, leading to microtubule destruction and neuronal dysfunction. Self-assembly of dissociated tau results in the formation of neurotoxic paired helical filaments (PHFs) as well as hyperphosphorylated NFTs. This collectively aberrant signaling cascade is thought to contribute to the eventual neuronal cell death and declined cognition, giving rise to the “tau hypothesis of AD”.^4–5

Many tau-protein kinases (TPKs) and microtubule affinity-regulating kinases (MARKs) mediate tau phosphorylation.⁶ Among them, glycogen synthase kinase-3β (GSK3β) is one of the most relevant kinases for aberrant tau phosphorylation in AD. In AD brains, a number of GSK3β phosphorylation sites flanking the microtubule-binding domain of tau protein are typically phosphorylated.^7–8 Abnormal tau phosphorylation by GSK3β undermines the healthy dynamics of tau protein with microtubules. Overactive GSK3β plays a central role in AD pathology, causing neurodegeneration, inflammatory response, toxic Aβ production as well as synaptic deficit.⁸ Therefore, development of GSK3β inhibitors attenuating tau hyperphosphorylation is a promising therapeutic strategy for AD treatment.^9–10

Corn silks (CS) of the food crop maize (Zea mays L.) have been an alternative medicine widely adopted by the Asia-Pacific cultures for the treatment of hyperglycemia, hyperlipidemia, cystitis, prostate disorder and urinary infection.¹¹ Studies have shown that CS extracts are a phytotherapeutic agent with antibiotic, anti-oxidative, anti-inflammatory, anti-diabetic, and anticancer activities.^12–15 Owing to the diverse bioactivities, CS metabolites are of interest to natural product and agricultural chemists. Phytochemical and metabolomic studies revealed that CS is rich in flavonoids, polysaccharides, terpenoids, and steroids. Among them, flavones are particularly abundant and characteristic in maize crops.^{11, 16} It has been proposed that the unique biological properties of CS such as antibiotic, anti-inflammatory and anticancer effects are mainly associated with these flavones. However, there are fewer studies of systematic evaluations of CS-derived flavones for nutraceutical and pharmaceutical applications.

As part of our efforts to look for AD phytopharmaceuticals, we utilized a kinase assay to screen GSK3β and CDK5/p25 inhibitors. Both GSK3β and CDK5/p25 have been implicated in tau hyperphosphorylation.⁷ Interestingly, an extract of CS selectively inhibited GSK3β but not CDK5/p25. Successive bioassay-guided fractionation of this CS extract afforded two known 6-C-glycosylflavones, isoorientin (1) and 3’-methoxymaysin (2). In addition to in silico studies, in vitro enzymatic assays demonstrated an ATP noncompetitive but substrate competitive inhibition by 1 and 2 specific to GSK3β. A whole-cell lysate assay further confirmed that 1 effectively inhibited tau hyperphosphorylation mediated by GSK3β in vitro.

Aβ induces tau hyperphosphorylation and neurotoxicity in human neuroblastoma SH-SY5Y cells, which is a common cell model for AD research.^17–19 While this cellular system remains limited to represent in vivo neuropathology of AD, the inductive effects of exogenous Aβ on SH-SY5Y cells make it possible to study therapeutic interventions involving AD-mimic pathways.^19–21 By implementing this in vitro model, immunoblot and cell viability analyses indicated that 1 and 2 are nontoxic agents, but inhibit cellular GSK3β, and prevent tau hyperphosphorylation and neuronal cytotoxicity from amyloid insult in SH-SY5Y cells.

RESULTS AND DISCUSSION

Isolation and Identification of GSK3β Inhibitory Compounds from Corn Silks

We recently utilized an in vitro universal luminescence-based kinase assay to screen potential GSK3β and CDK5/p25 inhibitors. In this assay, ADP generated from a kinase reaction is chemically converted to ATP, which then couples with luciferase, such that the intensity of signal from the luciferase reaction is proportional to kinase activity. Kinase inhibitors were isolated from CS extracts via the bioassay-guided fractionation (Figure 1). The resulting ethyl acetate (EtOAc) fraction (CS-EA) showed plausible inhibition of GSK3β activity, giving a 42.7% inhibition at a concentration of 100 μg/mL (Table 1). In contrast, no significant inhibition against CDK5/p25 was observed with this fraction at the same concentration (data not shown). LC-QTOF-MS profiling revealed that the EtOAc fraction contained a series of compounds with molecular weights between 480 and 600 amu along with UV maxima at 260 and 350 nm, suggesting the presence of glycosidic flavones.¹² Further bioassay-guided fractionation and HPLC purification of this EtOAc fraction led to the isolation of two 6-C-glycosylflavones, 1 and 2 in over 95% purity as determined by HPLC-UV at 205 nm. Chemical identity of 1 and 2 was determined by NMR spectroscopic comparison with reported data^22–23 in conjunction with ESI-CID-MS/MS analyses.²⁴ The ESI-QTOF-CID-MS/MS analysis of 2 showed an ion at m/z 445.1136 corresponding to [Y₁]⁺, confirming the presence of a rhamnose, while the observed ion [^0,2B]⁺ at m/z 150.6861 indicated a methoxy group at the B-ring of 2 (Figure S1). 1 and 2 showed moderate GSK3β inhibition with an IC₅₀ value of 185 and 288 μM, respectively, whereas they were inactive against CDK5/p25 (IC₅₀ > 15 mM) (Figure 2A).

Figure 1.

Schematic of GSK3β assay guided fractionation of 1 and 2 from a corn silk (CS) Zea mays L. extract. The crude extract was subject to successive partitioning using n-hexane, ethyl acetate (EtOAc), n-butanol and H₂O to yield four primary fractions. The fractions with the most potent GSK3β inhibition were further subject to flash column chromatography on a polyamide column using a step gradient of MeOH in H₂O, affording eight fractions (A-H). Separation of fraction F (CS-EA-F) by HPLC afforded five subfractions, whose GSK3β inhibitory activities were concentrated in subfraction-2 (CS-EA-F-2) and subfraction-3 (CS-EA-F-3). HPLC purification led to the isolation of compound 1 and 2. *Fractions showed > 40% inhibition at 100 μg/mL in the GSK3β kinase assay.

Table 1.

Inhibitory activity of CS extracts against GSK3β

Sample ID	Inhibitory Activity % (± SEM %)
	100 μg/mL
CS-EA	42.7 ± 1.0
CS-EA-F	44.5 ± 2.3
CS-EA-F-1	20.1 ± 1.3
CS-EA-F-2 (Compound 1)	48.4 ± 2.2
CS-EA-F-3 (Compound 2)	41.5 ± 1.4
CS-EA-F-4	32.3 ± 3.0
CS-EA-F-5	16.8 ± 1.3
Staurosporine (reference)	100.9 ± 1.6

Figure 2.

Isoorientin (1) selectively inhibits GSK3β via an ATP noncompetitive mechanism. (A) 1 inhibited GSK3β activity with an IC₅₀ value of 185 ± 25 μM. The IC₅₀ value of 1 to CDK5/p25 was > 15 mM. Results were presented as the percentage of the kinase activity relative to control (5% DMSO vehicle). Inhibition curves were analyzed by non-linear regression. (B) Effect of 1 on the activities of 22 protein kinases. Protein kinases were assayed in the presence of 224 μM 1 or control (5% DMSO vehicle). (C) GSK3β inhibitory kinetics in vitro, when GSK3β substrate GS2 was kept constant at 17 μM. GSK3β activity was determined by increasing concentrations of 1 in the presence of varying ATP concentrations. The lines represented the result of a non-linear regression analysis of the entire data set using a best-fit kinetic model for enzyme inhibition. The analysis showed a noncompetitive inhibition of ATP with a K_i of 210 ± 22 μM, and a K_m of 76 ± 9 μM. (D) Dixon plots of GSK3β activity in the presence of varying concentrations of ATP versus 1. The lines were linear regression plotting of 1/V against concentration of 1 at a given concentration of ATP. Intersecting at the same point on the X axis indicated a noncompetitive inhibition with respect to ATP. Data were means of quadruplicate of each of two independent experiments with ± SEM. *p < 0.05, ^**p < 0.01, ^***p < 0.001, ^****p < 0.0001 relative to control. ISO, isoorientin.

Flavonoids have been reported as potential colloidal aggregators showing promiscuous inhibition of proteins.²⁵ These promiscuous inhibitors aggregate with proteins nonspecifically and promote protein unfolding, which is a common cause of false positives in high-throughput screenings. To investigate if the GSK3β inhibition of 1 was due to this undesired mechanism, 1 was assayed against GSK3β in a kinase buffer containing varying concentrations of Triton X-100 to disrupt possible aggregation.²⁶ Intriguingly, GSK3β inhibition was insensitive to the addition of detergent as the resulting IC₅₀ value of 1 did not significantly change (with 0.01% Triton, IC₅₀, 192 μM) (Figure S2). This observation was consistent with the inhibitory behavior of staurosporine, a well-known GSK3β inhibitor without aggregation (with 0.01% Triton, IC₅₀, 3 nM). Conversely, luteolin, a flavone showing GSK3β inhibition but promoting aggregation,²⁵ decreased the potency by 16-fold with the addition of 0.01% Triton (increased IC₅₀ value from 2 to 32 μM). Structurally, luteolin is the flavone core of 1 without C-glycone. The behavioral difference between luteolin and 1 in the promiscuous inhibition assay suggested that the C-glycosyl group of 1 plays an essential role in GSK3β inhibition. Since ruling out the possibility of promiscuous inhibition, further biological evaluations proceeded with the stronger GSK3β inhibitor 1.

Isoorientin Selectively Inhibits GSK3β in an ATP Noncompetitive Mechanism

To further evaluate the kinase inhibitory selectivity, 1 was assayed on a broad panel of 22 kinases relevant to AD, using the universal kinase assay system. As shown in Figure 2B, 1 effectively inhibited GSK3β (decreased 52.4% kinase activity, p < 0.0001) in vitro at a concentration of 224 μM compared to the control (100% kinase activity). It is interesting that 1 did not significantly inhibit other 18 kinases (p > 0.05) except AKT1, PKC and CK2. Although 1 also showed approximately 30% inhibition against AKT1, PKC and CK2, inhibitory selectivity of GSK3β was the most distinct in this study. Aside from GSK3β it has been reported that CDK5, ERK2, JNK, p38, PKA, AKT, PKC, CAMKII, DAPK, AMPK, and CK1/2 contribute positively to tau hyperphosphorylation in human.⁷ The exceptional selectivity of 1 to GSK3β over the other AD relevant kinases suggested that 1 interacts with GSK3β at an allosteric domain rather than the common conserved ATP-binding pocket.

Enzyme kinetic experiments were then performed to elucidate the underlying mechanism of 1 on GSK3β inhibition. As illustrated in Figure 2C, when concentrations of the GSK3β substrate GS2 (peptide YRRAAVPPSPSLSRHSSPHQ(pS)EDEEE, derived from human muscle glycogen synthase) were held constant at 17 μM, velocities of ATP-ADP conversion at a given concentration of 1 were measured over a period of time. Michealis-Menten kinetic analysis indicated that 1 reduced GSK3β activity (decreased V_max) with an increase of concentration of 1 but not compete with ATP at the active site of GSK3β, for which it remained an unaltered Michaelis constant (K_m, 76 μM). Moreover, a Dixon plot of enzyme kinetics showed a convergence of intersecting lines on horizontal axis that further corroborated the ATP noncompetitive mechanism of 1 with a K_i value of 210 μM (Figure 2D).

GSK3β is a proline-directed serine/threonine kinase ubiquitously expressed in mammals. It plays a pivotal role in regulating various processes of cell signal transduction including glycogen metabolism, gene transcription, protein translation, cytoskeletal stabilization, cell development and apoptosis. In particular, GSK3β is a key regulator mediating neural development in human.²⁷ The normal state of GSK3β regulates the healthy functioning of neurons, whereas elevated activity of GSK3β is implicated in AD pathology.^7–8 Inhibiting levels of GSK3β in an aberrant state is a promising therapeutic strategy for AD treatment. To date, the majority of inhibitors has targeted the highly conserved ATP-binding cavity on GSK3β.⁹ Although GSK3β inhibitors targeting this active site could achieve high potency, the limited selectivity of ATP competitive inhibitors raises concerns about the safety and tolerability of this class of molecules, which remains a major hurdle in AD drug development.¹⁰ Alternatively, seeking ATP noncompetitive inhibitors is a feasible approach to improve inhibitory selectivity, because these inhibitors tend to bind to uniquely folded domains within GSK3β instead of simply blocking ATP entrance.²⁸ In addition, since GSK3β regulates essential cell signaling events, moderate-to-weak inhibition of aberrant GSK3β activity may actually normalize GSK3β functions.²⁹ The efficacy of many ATP noncompetitive GSK3β inhibitors of synthetic and natural origins has been demonstrated in a variety of cellular and animal models. Two of them, Tideglusib (a TDZD compound) and lithium ion, have advanced to Phase II clinical trials, which offers a promising prospect.²⁹ In the present study, because maize is a food crop, it is conceivable that 1 along with its CS-derived C-glycosidic flavones, acting as ATP noncompetitive inhibitors of GSK3β, are safe agents worthy of advanced biological studies.

Isoorientin Exerts Allosteric Inhibition of GSK3β in a Substrate Competitive Mode

Owing to the aforementioned drawbacks of ATP competitive inhibitors of GSK3β, new ATP noncompetitive inhibitors with increased selectivity are of high interest in the development of AD pharmaceuticals targeting tauopathy. Comprehensive mapping and identification of the binding sites of GSK3β by computational simulations has allowed for a better elaboration and evaluation of allosteric kinase inhibitors.²⁸ For example, some complex small-molecules, such as manzamine A³⁰ and peptide L803,²⁹ have been validated as ATP noncompetitive inhibitors with the assistance of molecular modeling.

The interaction of 1 with GSK3β was therefore examined by computational simulation using the X-ray crystallographic structures of GSK3β (PDB code 1PYX and 1Q3D). Protein and ligand structures were prepared as described prior to docking. Using these parameters, the ligand staurosporine, a known ATP competitive inhibitor, was successfully re-docked into the active ATP-binding site of GSK3β, with a RMSD of 0.93 Å compared to its original crystal structure³¹ (Figure 3A and B). Simulation under the same condition revealed that 1 resides within the substrate-binding site of GSK3β, an allosteric cavity immediately near to the ATP-binding pocket (Figure 3C). The C-glycone of 1 makes polar interactions with GSK3β residues Leu88, Gln89, Asp90, Lys94 and Arg96 within the substrate-binding pocket to form hydrogen bonds. The aromatic flavone core of 1 shows hydrophobic interactions with residues Phe67 and Val87, and the 7-hydroxyl oxygen atom at the A-ring of the flavone core shows a hydrogen bond with residue Asn95. In conjunction, interactions of the 3’-hydroxyl oxygen atom at the B-ring of the flavone core with the two Mg²⁺ ions in the magnesium-binding site of GSK3β potentially stabilize these binding interactions. The role of Mg²⁺ cofactors is known to be essential for the GSK3β kinase reaction as they assist the key steps in ATP phosphoryl transfer. Competitive replacement of magnesium by lithium significantly inhibits GSK3β activity.³² In the present study, interactions of 1 with Mg²⁺ may weaken the binding affinity of ATP with GSK3β. Furthermore, residues Phe67, Gln89 and Asn95 within the substrate-binding site of GSK3β are particularly crucial for substrate recognition as mutating any of these amino acids causes the loss of kinase activity.³³ The docking results indicated that interactions of 1 with these key residues in the substrate-binding site of GSK3β may partially explain its inhibitory action and selectivity (IC₅₀, 185 μM). In comparison, 2 (IC₅₀, 288 μM) shows less favorable interactions with Phe67, Gln89 and Asn95, probably due to steric hindrance from the larger C-glycone (Figure 3D). Structural features of both flavone and glycone in 1 favor specific interactions with the substrate-binding pocket of GSK3β, whereas luteolin without C-glycone showed nonspecific inhibition of SK3β (Figure S2). The C-glycosidic moiety putatively acts as a key structural element in 1 for GSK3β specific inhibition and selectivity.

Figure 3.

Isoorientin (1) is a substrate competitive inhibitor of GSK3β. Predicted docking structures of ATP (A), staurosporine (B), 1 (C) and 2 (D) with GSK3β. Surface representation of the ATP-binding site of GSK3β is shown in orange, the substrate-binding site of GSK3β is shown in green. Within substrate-binding site, surface features are shown with acidic residues in red, basic residues in blue, hydrophobic residues in green. Magnesium ions are shown as bright green spheres. The dotted lines represent interactions with magnesium ions and hydrogen bonds with side chain residues of GSK3β. (E) GSK3β inhibitory kinetics in vitro, when ATP was kept constant at 25 μM. GSK3β activity was determined by increasing concentrations of 1 in the presence of varying concentrations of kinase substrate GS2. The lines represented the result of a non-linear regression analysis of the entire data set using a best-fit kinetic model for enzyme inhibition. The analysis showed a competitive inhibition of GS2 with a K_i of 125 ± 13 μM, and a V_max of 0.66 ± 0.02 μM/min. (F) Dixon plots of GSK3β activity in the presence of varying concentrations of GS2 versus 1. The lines were linear regression plotting of 1/V against concentration of 1 at a given concentration of GS2. Intersecting point above the X axis indicated a competitive inhibition with respect to substrate GS2. Data were means of quadruplicate of each of two independent experiments with ± SEM. ISO, isoorientin.

To validate the molecular docking results, we conducted kinetic experiments of GSK3β when ATP concentrations were fixed at 25 μM. At a given concentration of 1, rates of ATP conversion were plotted versus different concentrations of substrate GS2. In this case, Michealis-Menten kinetics and corresponding Dixon plot clearly showed a competitive inhibition mode between GS2 and 1 with a K_i value of 125 μM (Figure 3E and F), indicating that 1 interacts with the substrate-binding site of GSK3β as predicted from the docking postulation. Taken together, the enzymological experiments in silico and in vitro supported an ATP noncompetitive inhibition mechanism by which 1 inhibits GSK3β via allosteric interactions within the substrate-binding pocket.

Isoorientin Inhibits GSK3β-Mediated Tau Hyperphosphorylation in a Whole-Cell Lysate Kinase Assay

Given our hypothesis that 1, being an ATP noncompetitive inhibitor of GSK3β, can alleviate tau hyperphosphorylation, we investigated the potential of 1 against GSK3β-mediated tau phosphorylation. To determine whether the intervention of 1 on tau phosphorylation is ascribed to a direct GSK3β inhibition in an ex vivo matrix, we designed a simple in vitro GSK3β assay to take advantage of a whole-cell lysate of the neuroblastoma SH-SY5Y cells. In this assay, an aliquot of lysate was fortified with exogenous GSK3β (wt/wt 0.25%), and incubated with 1 (112 μM) or LiCl (10 mM) for 2 h, followed by western blotting probed with anti-tau pS199/pS202 and pS396 antibodies. Tau-5 and GSK3β antibodies were also applied to assess the respective total protein levels. It has been reported that phosphorylation sites pS199/pS202 and pS396 on tau are GSK3β specific.⁶ Abnormal tau phosphorylation at these sites impairs microtubule stabilization and neurite outgrowth, which is closely linked to AD.^{6, 34} Western blot results substantiated that overactive GSK3β by introducing exogenous GSK3β significantly increased tau phosphorylation at sites pS199/pS202 and pS396 approximately three fold (p < 0.0001) in comparison to their basal phosphorylation levels (lysate spiked with heat-inactivated GSK3β) (Figure 4). Conversely, treatment of 1 or LiCl showed an apparent attenuation on tau phosphorylation for those specific sites mediated by GSK3β (p < 0.01). Noticeably, the anti-tau phosphorylation potency of 1 at 112 μM was comparable to that of LiCl at 10 mM, which the latter is a weak but specific GSK3β inhibitor (IC₅₀, 2 mM) currently in clinical trials for AD. The encouraging data from the whole-cell lysate kinase assay provided plausible evidence of GSK3β inhibition and its subsequent effect on GSK3β-mediated tau hyperphosphorylation upon treatment with 1.

Figure 4.

Isoorientin (1) attenuates GSK3β mediated tau phosphorylation in a SH-SY5Y whole-cell lysate kinase assay. (A) Cell lysate aliquots were spiked with 0.25% (wt/wt) GSK3β, and incubated with 112 μM 1, 10 mM LiCl or 5% DMSO vehicle in a kinase buffer at 37 ˚C for 2 h. Immunoblot analysis was performed with antibodies against Tau-5, Tau pS199/pS202, pS396 and GSK3β. β-Actin level was used as a protein loading control. (B) Densitometric analysis of western blotting for tau protein levels. Optical densities were normalized to β-actin and fold changes were calculated relative to the control with ± SEM (n = 3). ^####p < 0.0001 relative to inactive GSK3β spiked control; ^**p < 0.01, ^***p < 0.001, ^****p < 0.0001 relative to the active GSK3β spiked control. ISO, isoorientin.

Isoorientin Attenuates Aβ-Induced Tau Hyperphosphorylation in SH-SY5Y Cells

Although in vitro enzymological studies demonstrated the potential of 1 for GSK3β inhibition and anti-tau phosphorylation, additional validations for those effects within a cellular level remain necessary. Growing evidence indicated that Aβ activates GSK3β via PI3K/AKT/GSK3β signaling in AD, thereby causing downstream tau hyperphosphorylation in neurons.^{8, 35} We examined the alleviative effects of 1 on tau hyperphosphorylation in a cell model relevant to AD pathology, in which the cells were administrated with Aβ₄₂. Human neuroblastoma SH-SY5Y cells were used in this research as they possess the functionality and molecular features resembling to human neurons.^18–19 Cellular phosphorylation levels were assessed with antibodies against pS199/pS202 and pS396 on tau protein, while the extent of an inactive form of GSK3β (phosphorylated GSK3β at Ser9) with antibody GSK3β pS9. Those abnormal phosphorylations have been found in AD.^{6, 8} Tau-5 and GSK3β antibodies were used to evaluate the respective total protein expressions.

Figure 5 shows that treatment of SH-SY5Y cells with 10 μM Aβ₄₂ for 72 h increased tau phosphorylation at sites pS199/pS202 and pS396 approximately 3.5 and 2.3 fold, respectively, relative to untreated cells. In contrast, pretreatment of 1 at varying concentrations (28, 112 and 448 μM) to SH-SY5Y cells for 1 h followed by co-incubation with 10 μM Aβ₄₂ for 72 h significantly decreased tau phosphorylation levels at all phosphorylation sites in a dose-dependent manner (p < 0.01) (Figure 5B). Significant alleviative effects of 1 on tau phosphorylation were achieved even at lower doses (e.g., 28 μM).

Figure 5.

Isoorientin (1) attenuates Aβ₄₂ induced tau phosphorylation in SH-SY5Y cells. (A) Cells were pretreated with varying concentrations of 1 or 0.2% DMSO vehicle for 1 h followed by 10 μM Aβ₄₂ treatment and incubated for 72 h. Immunoblot analysis was performed with antibodies against Tau-5, Tau pS199/pS202, Tau pS396, GSK3β, and GSK3β pS9. β-Actin level was used as a protein loading control. (B) Densitometric analysis of western blotting for tau protein levels. (C) Densitometric analysis of western blotting for GSK3β levels. Optical densities were normalized to β-actin and fold changes were calculated relative to the control with ± SEM (n = 3). ^###p < 0.001, ^####p < 0.0001 relative to control; ^**p < 0.01, ^***p < 0.001, ^****p < 0.0001 relative to the 10 μM Aβ₄₂ treatment. ISO, isoorientin.

No significant change was observed in levels of both GSK3β pS9 and total GSK3β in the cells upon treatments (either Aβ₄₂ treatment alone or co-incubation of 1 with Aβ₄₂) compared to untreated cells (p > 0.05) (Figure 5A and C). A downregulating effect of Aβ, in particular the Aβ_25–35 fragment, on an inactive form of GSK3β has been postulated to account for GSK3β activation in certain cell models.^36–37 The results of the present study, however, showed no apparent changes on GSK3β pS9 levels upon treatments, suggesting complexity in GSK3β activation. While the exact mechanism between Aβ₄₂ stimuli and GSK3β activation in SH-SY5Y cells is still unclear, the consequential effect of 1 on anti-tau phosphorylation is putatively from a direct inhibition of GSK3β in the cells (Figure 5).

GSK3β inhibition and anti-tau phosphorylation of 1 were further experimentally supported by co-treatment of 1 with GSK3β specific inhibitors in Aβ₄₂ treated SH-SY5Y cells. LiCl (IC₅₀, 2 mM) and TDZD-8 (IC₅₀, 2 μM) are GSK3β specific inhibitors and have shown a promise for AD treatment.²⁹ We therefore used them as references to compare effects of 1 on anti-tau hyperphosphorylation in the cells. As depicted in Figure 6A, brief pretreatment of 1 (112 μM), LiCl (10 mM) or TDZD-8 (10 μM) to SH-SY5Y cells for 1 h followed by co-incubation with 10 μM Aβ₄₂ for 72 h displayed an expected decrease of tau phosphorylation at sites pS199/pS202 and pS396 (p < 0.001). Notably, when co-treatment of 1 (112 μM) with LiCl (10 mM) to SH-SY5Y cells for 1 h followed by co-incubation with 10 μM Aβ₄₂ for 72 h, an effect against tau phosphorylation for sites pS199/pS202 and pS396 was enhanced in comparison with either 1 or LiCl individual treatment (Figure 6B). Co-treatment of 1 with LiCl could result in a synergistic effect on anti-tau phosphorylation due to their distinct mechanisms of GSK3β inhibition – substrate competition by 1 and Mg²⁺ displacement by Li⁺. On the other hand, TDZD-8 (10 μM) co-treated with 1 (112 μM) did not change the level of anti-tau phosphorylation in comparison with TDZD-8 alone (p > 0.05). This phenomenon can be plausibly explained by the fact that TDZDs are ATP noncompetitive and irreversible inhibitors of GSK3β.³⁸ While X-ray crystallographic structures of GSK3β with TDZDs were not available, computational simulation suggested that TDZDs appear to interact within the substrate-binding site of GSK3β.³⁹ It is possible that the more potent and irreversible inhibitor TDZD-8 (IC₅₀, 2 μM) overperformed 1 during co-treatment (Figure 6A and B). Upon those treatments, little changes in the levels of GSK3β pS9 and total GSK3β were observed by western blot analyses (p > 0.05) (Figure 6C). Nonetheless, the similarity of pharmacological phenomena between 1 and the known GSK3β specific inhibitors, in conjunction with the findings in the whole-cell lysate kinase assay, indeed conferred that 1 is an effective GSK3β inhibitor attenuating aberrant tau phosphorylation in the human cells.

Figure 6.

Isoorientin (1) attenuates Aβ₄₂ induced tau phosphorylation by inhibiting GSK3β in SH-SY5Y cells. (A) Cells were pretreated with individual inhibitor (112 μM for 1; 10 mM for LiCl; 10 μM for TDZD-8) or a combination (1/LiCl or 1/TDZD-8) for 1 h followed by 10 μM Aβ₄₂ treatment and incubated for 72 h. Immunoblot analysis was performed with antibodies against Tau-5, Tau pS199/pS202, Tau pS396, GSK3β, and GSK3β pS9. β-Actin level was used as a protein loading control. (B) Densitometric analysis of western blotting for tau protein levels. (C) Densitometric analysis of western blotting for GSK3β levels. Optical densities were normalized to β-actin and fold changes were calculated relative to the control with ± SEM (n = 3). ^####p < 0.0001 relative to control; ^***p < 0.001, ^****p < 0.0001 relative to the 10 μM Aβ₄₂ treatment. ISO, isoorientin.

Isoorientin Exerts Neuroprotection against Aβ-Induced Cytotoxicity in SH-SY5Y Cells

Finally, we investigated whether 1 exerts neuroprotective effects against Aβ-induced cytotoxicity in human SH-SY5Y cells. Oligomers of Aβ₄₂ can activate GSK3β, resulting in tau hyperphosphorylation and microtubule disassembly within axons of neuron.³⁴ This neurotoxic effect of Aβ₄₂ could consequently lead to the axonal and dendritic impairment followed by neuron cell death.⁴⁰ Such toxic effects were substantiated by a dramatic cell viability reduction after the addition of Aβ₄₂ oligomers in SH-SY5Y cells (Figure 7A). Since Aβ₄₂ at 10 μM inhibited about 50% cell growth in vitro based on cell viability assay, this dose was used in the subsequent experiments. Pretreatment of SH-SY5Y cells with 1 (112 μM) for 1 h followed by co-incubation with 10 μM Aβ₄₂ for 72 h resulted in a neuroprotection against cell viability loss, whose effect was similar to the known GSK3β inhibitors LiCl and TDZD-8 (Figure 7B). Interestingly, co-treatment of 1 (112 μM) with LiCl (10 mM) showed a synergistic neuroprotection, whereas co-treatment with TDZD-8 (10 μM) did not (Figure 7B). Quantitative dose-response measurement of cell viability demonstrated effective inhibitions of 1 to neurotoxic induction by 10 μM Aβ₄₂ with an EC₅₀ value of 47 μM (Figure 7C and D). Remarkably, no cytotoxicity of 1 to SH-SY5Y cells was noted up to a dose of 896 μM (Figure 7E). Instead, the data showed that 1 slightly stimulated cell proliferation. This result suggested that 1 exhibited a good safety margin and tolerability profile. In addition, microscopic observations illustrated apparent neuronal morphological changes of SH-SY5Y cells upon 10 μM Aβ₄₂ treatment, particularly the substantial retraction of axons and dendrites (Figure 8A and B). In contrast, treatment of 1 effectively prevented the differentiated SH-SY5Y cells from Aβ₄₂ intoxication as a large number of healthy cells with extended axons and dendrites were observed (Figure 8C and D). These observations together with the cell viability analysis suggested that 1 exhibits effective anti-Aβ neurotoxicity through protecting cell differentiation and neurite extension, whose functions are highly regulated by tau proteins in neuron.

Figure 7.

Isoorientin (1) alleviates Aβ₄₂ induced neurotoxicity in SH-SY5Y cells. (A) Aβ₄₂ induced neurotoxicity in SH-SY5Y cells. Cells were treated with varying concentrations of Aβ₄₂ or 0.2% DMSO vehicle and incubated for 72 h. Cell viability was determined using the MTX assay. (B) Comparison of neuroprotection of 1, LiCl and TDZD-8 in SH-SY5Y cells. Cells were pretreated with 1 (112 μM), LiCl (10 mM), TDZD-8 (10 μM) or a combination (1/LiCl or 1/TDZD-8) for 1 h followed by 10 μM Aβ₄₂ treatment and incubated for 72 h. (C) Cells were pretreated with varying concentrations of 1 or 0.2% DMSO vehicle for 1 h followed by 10 μM Aβ₄₂ treatment and incubated for 72 h. (D) 1 inhibited neurotoxicity induced by 10 μM Aβ₄₂ with an EC₅₀ value of 47 ± 22 μM. Results were presented as the percentage of the neuroprotective activity relative to control (100%) and 10 μM Aβ₄₂ treatment (0%). Neuroprotection curve was analyzed by non-linear regression. (E) Cytotoxicity assessment of 1 in SH-SY5Y cells. Cells were treated with varying concentrations of 1 or 0.2% DMSO vehicle and incubated for 72 h. Data were means of triplicate of each of two independent experiments with ± SEM. ^####p < 0.0001 relative to vehicle control; *p < 0.05, ^**p < 0.01, ^***p < 0.001, ^****p < 0.0001 relative to the 10 μM Aβ₄₂ treatment. ISO, isoorientin.

Figure 8.

Morphological changes of SH-SY5Y cells after treatment for 72 h. (A) 0.2% DMSO treatment as vehicle control. Differentiated cells with extended axons and dendrites. (B) 10 μM Aβ₄₂ treatment. Impaired and nondifferentiated cells with retracted neurites. (C) Pretreatment of 28 μM 1 followed by 10 μM Aβ₄₂ treatment. Partial differentiated cells with extended neurites. (D) Pretreatment of 448 μM 1 followed by 10 μM Aβ₄₂ treatment. Protected differentiated cells with extended axons and dendrites. Micrographs represent the average morphologic characteristics of cell cultures under a given condition of 4–6 experimental replicates. Scale bar = 100 μm. ISO, isoorientin.

To further verify that C-glycosylflavones in the CS extracts are contributive to neuroprotection, we assayed CS fractions on anti-Aβ neurotoxicity. Those fractions active in the GSK3β assay indeed displayed proportional effects in defense of Aβ-induced cytotoxicity in SH-SY5Y cells (Figure S3). Interestingly, 2, the less potent GSK3β inhibitor, exerted neuroprotection but with a weaker potency compared to 1 (EC₅₀, 154 μM).

6-C-glycosylflavones are a major class of flavones produced in CS via the maysin biosynthetic pathway.⁴¹ These endogenous flavones are well known for their unique activities against corn earworms.^{12, 41} While these C-glycosylflavones have originally evolved in maize plant for chemical defense purposes, it has been postulated that this class of metabolites can exert biological effects on therapeutic targets such as AD-relevant kinases in human on the basis of their chemical characteristics.^42–43 With respect to the chemical structure of C-glycosylflavones, the presence of carbon-linked glycosidic bond makes these compounds more resistant to metabolic hydrolysis, which is distinct from the O-glycosylflavones prevalent in flora. Interestingly, studies reported that CS-derived flavones show neuroprotective activities by inhibiting cholinesterases⁴⁴ and reactive oxygen species⁴⁵ in different enzyme-based or cell-based models. It is also reported that 1 exerts anticancer activity by intervening the PI3K/AKT signaling in human HepG2 cells,^46–47 which the pathway is highly associated with neuronal survival relevant to AD.³⁵ CS-derived flavones including 1 may potentiate a synergistic effect by leveraging multi-activities to gain a maximal neuroprotective profile to tackle AD. Among those activities, anti-tau hyperphosphorylation through GSK3β inhibition by 1 is a key contributor, as supported by the results of the present study.

Flavones are known for their multi-functional actions.^42–43 It has become evident that flavones exerting their neuroprotection are probably due to the interaction with key cellular receptors or enzymes that regulate neuronal apoptosis, survival, differentiation and proliferation.^{42, 48} AD is a complex neurodegeneration involving Aβ neurotoxicity, tau hyperphosphorylation, Ca²⁺ dysregulation, oxidative stress production, neuroinflammation, and synaptic dysfunction.² An anti-AD agent modulating multiple targets and signaling pathways in a disease-relevant context can offer valuable properties in pharmaceutical applications. In the present study, because Aβ₄₂ triggers neurotoxicity through complex pathways in SH-SY5Y cells, the polypharmacological concept^49–50 may explain the slight discrepancy that 1 is more potent in the cellular assay (EC₅₀, 47 μM) than in the GSK3β assay (K_i, 125 μM). While 1 showed selective inhibition to GSK3β among 22 AD-relevant kinases tested, its potential action on multi-targets may be favorable in AD therapies. C-glycosylflavones warrant further investigation as AD phytopharmaceuticals.

CONCLUSION

As of today, four drugs have been approved by the US FDA for AD treatment, while one has been approved by the Chinese FDA. All of them only alleviate short-term cognitive symptoms.⁹ There is a critical demand for new agents with greater efficacy and safety to slow, halt, prevent and ideally reverse AD. The present study emphasized a tau-targeted therapeutic strategy to remedy AD. We screened phytochemicals for potential inhibition of AD-relevant kinases. A tandem approach of bioassay-guided fractionation and LC-MS analysis of CS extracts afforded two 6-C-glycosylflavones (1 and 2) as GSK3β inhibitors. Isoorientin (1) showed moderate potency but notable selectivity and specificity in the kinase assay profile system. In vitro enzymatic and cellular evaluations as well as in silico molecular modeling revealed a putative mechanism of action by which 1 involves in blocking GSK3β via an ATP noncompetitive inhibition to attenuate tau hyperphosphorylation. The results demonstrated the first time that CS-derived C-glycosylflavones are ATP noncompetitive inhibitors of GSK3β. 1 also exerts effective neuroprotection against Aβ-induced cytotoxicity in the human SH-SY5Y cell model, which is plausibly involved in the tau-dependent pathway. 1 can be a potential lead candidate with a good safety margin for AD prevention and treatment. Nevertheless, SAR-based development remains necessary to achieve a better efficacy, bioavailability and blood-brain barrier permeability of C-glycosyl flavonoids. Further assessments of 1 and its analogues in AD animal models must be conducted in order to validate their in vivo effectiveness for toxic tau clearance as well as the cognitive benefits.

METHODS

Chemicals and Reagents

Staurosporine, 4-benzyl-2-methyl-1,2,4-thiadiazolidine-3,5-dione (TDZD-8), lithium chloride (LiCl), luteolin, Triton X-100, protease inhibitor cocktail, and 5-bromo-4-chloro-3-indolyl-phosphate/nitro blue tetrazolium (BCIP/NBT) reagents were from Sigma-Aldrich (Saint Louis, MO, USA). β-Amyloid fragment peptide 1–42 (Aβ₄₂) was from AnaSpec (Fremont, CA, USA). Kinase Selectivity Profiling Assay Kit, ADP-Glo Kinase Assay Kit, and CellTiter 96 AQueous One Solution Cell Proliferation MTX Assay Kit were from Promega (Madison, WI, USA). Antibodies Tau-5, Tau pS199/pS202, Tau pS396, GSK3β, and GSK3β pS9 were from Invitrogen (Camarillo, CA, USA). β-Actin antibody was from GenScript (Piscataway, NJ, USA). Alkaline phosphatase-conjugated secondary antibodies were from Southern Biotech (Birmingham, AL, USA).

General Experimental Procedures

High-resolution mass spectrometric data were obtained on a Bruker maXis Impact nanoLC-QTOF-MS spectrometer in ESI mode. Luminescent measurement was performed on an Agilent Cary Eclipse fluorescence spectrophotometer. Optical absorbance was measured on a Multiskan GO Microplate spectrophotometer. ¹H, ¹³C and 2D NMR data were recorded with a Varian Unity Inova 500 MHz spectrometer. NMR spectra were referenced to the appropriate residual solvent signal (δ_H 2.50, δ_C 39.5 for DMSO-d₆) with chemical shifts reported in δ units (ppm). Microscopic images were observed under a Nikon Diaphot inverted tissue culture microscope with Optronics MicroFire microscope camera.

Collection

Fresh corn silks (CS, Zea mays L.) were collected from the Waimanalo Research Station, University of Hawaii at Manoa, USA. Upon collection, fresh CS sample was immediately lyophilized and stored at −20 °C until extraction.

Extraction and Isolation

A modified protocol of the bioassay-guided fractionation was used.⁵¹ A 90 g portion of lyophilized CS sample was exhaustively extracted with 1000 mL (×5) of CH₂Cl₂:MeOH (v/v 2:1) to yield 45 g of crude extract. This crude extract was subject to successive solvent partitioning using a modified Kupchan method with n-hexane, ethyl acetate (EtOAc), n-butanol and H₂O to yield four fractions of 3.7, 0.9, 4.8 and 34.7 g, respectively. The EtOAc fraction (0.9 g) was further subject to flash column chromatography on a DPA-6S polyamide column (50 g) using a step gradient of 25 (×2), 50 (×2), 75 (×2) and 100% (×2) MeOH in H₂O, affording eight fractions (A-H) of 230.5, 80.0, 40.2, 50.8, 30.5, 70.6, 70.1 and 90.5 mg. GSK3β assay data indicated that the kinase inhibitory activity was concentrated in fraction F (70.6 mg). Separation of fraction F on a reversed-phase HPLC [CSH Fluoro-Phenyl, 150 × 4.6 mm, a linear gradient over 40 min from 10 to 50% acetonitrile in H₂O solvents, flow rate 0.7 mL/min, PDA detection] afforded five subfractions, whose GSK3β inhibitory activities were concentrated in subfraction-2 (CS-EA-F-2; 3.1 mg) and subfraction-3 (CS-EA-F-3; 5.4 mg). Further purification of these two subfractions under the same conditions led to the isolation of 1 (t_R 17.5 min, 2.5 mg, 0.006% yield) and 2 (t_R 23.1 min, 1.2 mg, 0.003% yield) in over 95% purity as determined by HPLC-UV at 205 nm. The identity of 1 and 2 was confirmed by ESI-QTOF-CID-MS/MS analysis and comparison with reported NMR spectroscopic data.

1: light yellow solid; HRESI-TOFMS m/z [M+H]⁺ 449.1085 (calcd for C₂₁H₂₁O₁₁⁺, 449.1078, −1.4 ppm error).

2: light yellow solid; HRESI-TOFMS m/z [M+H]⁺ 591.1711 (calcd for C₂₈H₃₁O₁₄⁺, 591.1708, −0.5 ppm error).

Kinase Luminescent Assay

Kinase inhibition was assessed with the ADP-Glo Kinase Assay.⁵² For screening, 5 ng/μL of kinase was assayed in a reaction containing 50 ng/μL substrate, 40 mM Tris, pH 7.5, 20 mM MgCl₂, 0.1 mg/mL bovine serum albumin (BSA), 50 μM dithiothreitol (DTT), 25 μM ATP, varying concentrations of test samples or 5% dimethyl sulfoxide (DMSO) as vehicle. The reaction mixture was incubated for 1 h at room temperature followed by the addition of the ADP-Glo reagents according to the manufacturer’s protocol. The kinase inhibitor staurosporine was used at 1 μM as a reference control. Each data point was collected in quadruplicate of two independent experiments.

Promiscuous aggregations were assessed with the screening assay in the presence of 0%, 0.001%, 0.01% and 0.05% (v/v) of Triton X-100. Luteolin was used as a reference control for promiscuous inhibition.

To study the kinase kinetics, a reaction solution contained 5 ng/μL kinase, 40 mM Tris, pH 7.5, 20 mM MgCl₂, 0.1 mg/mL BSA, 50 μM DTT, and varying concentrations of ATP or substrate versus test samples. The mixture was incubated for 5, 15, 30 and 60 min at room temperature followed by the addition of the ADP-Glo reagents according to the manufacturer’s protocol.

Molecular Modeling

Compounds of interest were docked using the X-ray crystallographic structures of GSK3β (PDB code 1PYX and 1Q3D)³¹ and AutoDock Vina 1.1.2.⁵³ Water molecules within the crystal structure were removed and polar hydrogens and Gasteiger charges were added using AutoDockTools. Ligands were optimized for their energy and geometry using MMFF94 and AM1 force fields prior to docking. All bonds of ligands were treated as rotatable except for the aromatic, alkenyl, carbonyl bonds and rings. The dimensions of the grid map were 30 × 30 × 30 points with a grid-point spacing of 1 Å. Docking proceeded with an exhaustiveness value of 500 and a maximum output of 100 structures.

Cell Culture

Human neuroblastoma SH-SY5Y cell line (Sigma-Aldrich, Saint Louis, MO, USA) was cultured in DMEM/F12 (v/v 1:1) media supplemented with 2 mM glutamine, 10% heat-inactivated fetal bovine serum (FBS) and 1% antibiotics including penicillin and streptomycin. Cell cultures were incubated at 37 °C in a fully humidified atmosphere containing 5% CO₂.

Whole-Cell Lysate Kinase Assay

SH-SY5Y cells were washed with phosphate buffered saline (PBS) and lysed with phosphate protein extraction buffer (20 mM Na₄P₂O₇, pH 7.4, 115 mM NaCl) containing 1 mM phenylmethanesulfonyl fluoride (PMSF) and a protease inhibitor cocktail. Lysate was diluted with kinase buffer (40 mM Tris, pH 7.5, 20 mM MgCl₂, 50 μM DTT, 400 μM ATP) to afford a concentration of 4 μg/μL of total protein, and split into aliquots. Recombinant human GSK3β was fortified into lysate aliquots to a final concentration of 0.25% (wt/wt) of total protein. A lysate aliquot spiked with heat-inactivated GSK3β was used as a negative control. The fortified lysate aliquots were incubated with test sample or 5% DMSO vehicle at 37 °C for 2 h followed by western blot analysis. The GSK3β inhibitor LiCl was used at 10 mM as a reference control.

Aβ₄₂ Oligomer Preparation

The toxic oligomers of Aβ₄₂ were prepared as described.⁵⁴ Briefly, lyophilized Aβ₄₂ peptide was dissolved in hexafluoroisopropanol, dried under vacuum, and stored at −20 °C. Immediately before using, the peptide residue was reconstituted in DMEM/F12 media to make a stock solution at 0.1 mM and incubated at 4 °C for 24 h to form diffusible oligomers. Aβ₄₂ oligomers at a final concentration of 10 μM were assayed for cell viability

Cell Viability Assay

SH-SY5Y cells were seeded at a density of 3 × 10⁵ cells/mL in a 96-well plate in DMEM/F12 media containing 1% FBS to suppress cell proliferation. Cells were incubated under regular culture conditions for attachment. After 24 h of plating, the cells were pretreated with different concentrations of test samples or the 0.2% DMSO as a vehicle control for 1 h and then co-incubated with 10 μM Aβ₄₂ for 72 h. After the experimental treatment, the cells were subject to a CellTiter 96 AQueous One Solution Cell Proliferation MTX Assay according to the instruction. 1 μM staurosporine was used as a reference control for cytotoxicity, while 10 μM TDZD-8 and 10 mM LiCl were used as reference controls for GSK3β inhibition. Each data point was collected in triplicate of two independent experiments.

Western Blot Analysis

SH-SY5Y cells were seeded at a density of 3 × 10⁵ cells/mL in a 24-well plate in DMEM/F12 media containing 1% FBS. Cells were pretreated with different concentrations of test samples or the 0.2% DMSO vehicle for 1 h followed by co-incubation with 10 μM Aβ₄₂ for 72 h. The cultures were then washed with PBS and lysed with phosphate protein extraction buffer (20 mM Na₄P₂O₇, pH 7.4, 115 mM NaCl) containing 1 mM PMSF and a protease inhibitor cocktail. Concentrations of the harvested proteins were determined by Bradford assay. Equal amounts of total proteins for each sample (10 μg per lane) were resolved by 10% SDS-PAGE and transferred onto PVDF membranes. The membranes were blocked with 5% BSA overnight and hybridized with primary antibodies against Tau-5 (total tau), Tau pS199/pS202, Tau pS396, GSK3β (total GSK3β), GSK3β pS9 or β-actin (loading control) at room temperature for 2 h. After washes, the membranes were incubated with corresponding alkaline phosphatase-conjugated secondary antibodies at room temperature for 1 h, and the immunoreactive bands were detected by the BCIP/NBT reagent. Densitometric analysis was performed on three independent blots per experiment.

Statistical Analysis

Data were presented as mean ± SEM. The data were analyzed by one-way ANOVA with Bonferroni’s multiple comparison test, Tukey’s multiple comparison posthoc test, as well as Student t test. The p values less than 0.05 were considered statistically significant. Analyses were performed using Excel and GraphPad Prism.

ABBREVIATIONS

CS

corn silks

AD

Alzheimer’s disease

Aβ₄₂

β-amyloid fragment peptide 1–42

NFT

neurofibrillary tangle

PHF

paired helical filament

TPK

tau-protein kinase

MARK

microtubule affinity-regulating kinase

GSK3β

glycogen synthase kinase 3 beta

CDK5/p25

cyclin dependent kinase 5 with subunit p25

CDK5/p35

cyclin dependent kinase 5 with subunit p35

ERK2

extracellular signal regulated kinase 2

JNK1

c-Jun N-terminal kinase 1

JNK3

c-Jun N-terminal kinase 3

p38α

p38 mitogen-activated protein kinase 14

p38δ

p38 mitogen-activated protein kinase 13

AKT1

v-akt murine thymoma viral oncogene homolog 1

PKA

protein kinase A

PKC

protein kinase C

p70S6Kβ

p70 ribosomal protein S6 kinase beta

ROCK1

Rho-associated, coiled-coil containing protein kinase 1

RSK2

ribosomal protein S6 kinase 2

PDK1

phosphoinositide-dependent kinase 1

CAMKII

Ca²⁺/calmodulin-dependent protein kinase II

CAMKIV

Ca²⁺/calmodulin-dependent protein kinase IV

DAPK1

death-associated protein kinase 1

AMPK

AMP-activated protein kinase

CK1

casein kinase 1

CK2

casein kinase 2

DNA-PK

DNA-dependent protein kinase

PI3K

phosphoinositide 3-kinase

LC-QTOF-MS

liquid chromatography-quadrupole time-of-flight-mass spectrometry

ESI-CID-MS/MS

electrospray ionization-collision induced dissociation-tandem mass spectrometry

HPLC

high performance liquid chromatography

NMR

nuclear magnetic resonance

SDS-PAGE

sodium dodecyl sulfate-polyacrylamide gel electrophoresis

PDB

protein data bank

SAR

structure-activity relationship
