Current Applications for Nuclear Medicine Imaging in Pulmonary Disease

Abstract

Purpose of Review

The main goal of the article is to familiarize the reader with commonly and uncommonly used nuclear medicine procedures that can significantly contribute to improved patient care. The article presents examples of specific modality utilization in the chest including assessment of lung ventilation and perfusion, imaging options for broad range of infectious and inflammatory processes, and selected aspects of oncologic imaging. In addition, rapidly developing new techniques utilizing molecular imaging are discussed.

Recent Findings

The article describes nuclear medicine imaging modalities including gamma camera, SPECT, PET, and hybrid imaging (SPECT/CT, PET/CT, and PET/MR) in the context of established and emerging clinical applications. Areas of potential future development in nuclear medicine are discussed with emphasis on molecular imaging and implementation of new targeted tracers used in diagnostics and therapeutics (theranostics).

Summary

Nuclear medicine and molecular imaging provide many unique and novel options for the diagnosis and treatment of pulmonary diseases. This article reviews current applications for nuclear medicine and molecular imaging and selected future applications for radiopharmaceuticals and targeted molecular imaging techniques.

Introduction

Imaging plays an important role in lung diseases and is often complimentary to clinical assessment and testing. As opposed to traditional radiography or computed tomography (CT) which provides a static picture at a point in time, nuclear medicine has the ability to visualize dynamic processes over time. Importantly, this modality provides not only morphologic but also pathophysiologic information. This is very important in the lungs, where different diseases may have the same appearance on CT and more specific tests would be valuable. Additionally, molecular imaging techniques can target and track cells, molecules, or antigens over time, demonstrating dynamic cellular processes, for example, immune activation and response.

Traditional nuclear medicine involves capturing gamma rays on a 2-D planar gamma camera. Addition of SPECT (single-photon emission computed tomography) results in improved sensitivity and accuracy. Acquisition of both SPECT and CT further improves accuracy and provides anatomic reference. PET (positron emission tomography) is now routinely acquired with CT (PET/CT), and more recently, PET/MR has become more available. The steady march of PET imaging utilization has proven invaluable in numerous oncologic and non-oncologic diseases.

This article will focus on indications for nuclear medicine and molecular imaging in pulmonary diseases, which can be practically used by a pulmonologist. Selected newer techniques and future directions will be briefly discussed.

Imaging Modalities

Classic nuclear medicine imaging includes planar imaging, most often static; however, continuous (cine) imaging can make an important contribution for specific indications, e.g., flow in lymphatics. The classic design of gamma camera imaging involves detection of gamma radiation emitted by the source (radiotracer in the patient) using a single or multiple NaI(Tl) crystals. SPECT (single-photon emission computed tomography) employs a gamma camera or multiple gamma cameras that rotate around the patient acquiring multiple 2-D images (projections). Subsequently, a tomographic reconstruction algorithm is used to create a 3-D data set. Addition of SPECT to planar images helps to localize the abnormal uptake, improves diagnostic accuracy, and assessment of the disease extent [1, 2]. However, despite this improvement, SPECT does not provide the exact location. CT can be obtained for attenuation correction and anatomical localization resulting in a hybrid imaging: SPECT/CT, which further improves detection of abnormal radiotracer accumulation [3]. Moreover, SPECT/CT improves reader confidence compared with planar imaging [4]. SPECT/CT is superior compared with planar scintigraphy or SPECT alone with multiple established indications and emerging new applications [5, 6]. Importantly, the CT portion of the exam is typically performed as low dose with limited diagnostic qualities to assure a very low radiation exposure. The effective doses from CT portion of SPECT/CT exam were reported as 0.6–2.6 mSv depending of body area imaged [7–9]. For comparison, the average yearly background radiation dose in the USA is 3.1 mSv and the average dose from chest CT is 7 mSv [10].

Molecular imaging combines anatomic and molecular information by employing SPECT, PET, MRI, ultrasound, and optical imaging in combination with specific imaging probes (Table 1). The labeled probes are specific for a target at a molecular level allowing for investigation of a specific cellular pathophysiologic process. Current clinical molecular imaging implements SPECT and PET. SPECT allows simultaneous imaging of multiple different molecular probes with different radiotracers; however, it has lower resolution compared with PET [11]. Newer PET techniques regarding simultaneous imaging of different radiopharmaceuticals are under investigation; however, further research is needed [12]. Additional modalities have been explored in ongoing preclinical research, including contrast-enhanced molecular ultrasound (US) with microbubbles and optical imaging with fluorescent probes. Overall, molecular imaging can provide highly specific information and opens pathways to personalized medicine and therapeutic diagnostics (theranostics).

Table 1.

Selected nuclear medicine and molecular imaging modalities

Modality	Description	Radiotracers	Indications/Examples	Advantages
Gamma camera	Planar whole body and spot imaging, flow/cine.	Gamma-emitting radionuclides (99mTc, 81Tl, 111In, 131I, 123I, etc.).	Main traditional nuclear medicine modality with broad spectrum of indications.	Functional imaging as opposite to traditional anatomic data provided by CT and radiography.
SPECT (single-photon emission computed tomography SPECT/CT)	Tomographic reconstruction algorithm produces 3-D data. Multiplanar reformats can be created.	Gamma-emitting radionuclides can be simply added to planar imaging as needed.	Myocardial perfusion imaging, VQ scan, parathyroid localization	Improved accuracy and lesion localization compared with planar images.
PET (positron emission tomography) PET/CT	Currently almost always in conjunction with CT for attenuation correction and lesion localization	18FDG—nonspecific Multiple newer tracers (Table 1).	Oncologic imaging. Infection/inflammation (FUO, sarcoidosis including cardiac).	Metabolism evaluation (FDG). Targeted molecular imaging (newer tracers). Higher resolution than SPECT.
MRI (PET/MR)	Magnetic Resonance Imaging used in conjunction with PET	PET tracers Gadolinium-based contrast. Ultrasmall superparamagnetic iron oxide particles (USPIOs).	Oncologic imaging, most commonly pelvic malignancies (cervical cancer, prostate cancer), hepatocellular carcinoma.	Superb soft tissue characterization, complimentary anatomic and functional information.
Optical imaging	Fluorescence	Fluorophores and quantum dots.	Preclinical	Limited depth (< 1–2 cm)
	Bioluminescence	Luciferase enzyme.

What Can Be New about the VQ Scan?

Nuclear medicine planar ventilation and perfusion (VQ) scans have served for decades as a foundational pillar of clinical nuclear medicine assessment of suspected pulmonary embolism (PE). Radiolabeled macroaggregated albumin (MAA) is used for the perfusion portion while a variety of inhaled radiopharmaceuticals can be used for ventilation imaging, commonly ^99mTc-DTPA (diethylenetriaminepentaacetic acid), ¹³³Xenon, and Technegas (gas-like ultra-fine technetium-labeled carbon), widely used in Europe. The traditional VQ scan was obtained as 2-D planar images in several planes. Currently, 3-D SPECT or SPECT/CT imaging is often used with improved image quality and accuracy [13]. Traditional interpretation of VQ scan implemented probability assessment based on the PIOPED [14] clinical trial, and the results were reported as either high, intermediate, low, very low, or normal probability. These categories were never well accepted in the clinical community and were at times not helpful in the management of patients with possible pulmonary embolism. There were subsequently several articles attempting to simplify the interpretation of the VQ scan, and today, many centers report the findings the same way as for other modalities: as positive, negative, or indeterminate. Some advocate using SPECT/CT VQ imaging as the most accurate method of pulmonary embolism evaluation, as the CT improves the specificity while maintaining an excellent sensitivity [15]. Modern day SPECT/CT systems can produce a reasonable quality CT at a very low radiation dose, and the CT can help determine if a perfusion defect is due to something other than PE, such as pneumonia.

VQ scan is the preferred imaging modality in chronic thromboembolic pulmonary embolism (CTEPH), for both diagnosis and monitoring after therapy (Fig. 1). Perfusion-only imaging can be used for evaluation of right to left shunt, both pulmonary and cardiac, as well as hepatopulmonary syndrome. Perfusion quantitative imaging is commonly used prior to lung volume reduction surgery in COPD and prior to lung transplantation. In addition, this is used for follow-up after cardiac surgery for certain congenital heart diseases and as a monitoring tool after intervention performed on central pulmonary arteries.

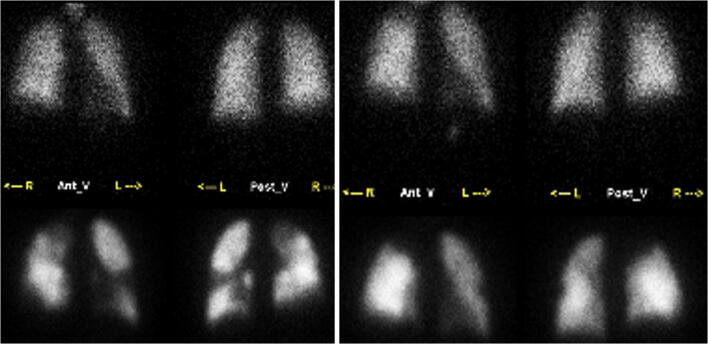

Fig. 1.

V/Q scan in chronic thromboembolic pulmonary embolism (CTEPH). A 27-year-old female with chronic dyspnea, recently found to have pulmonary hypertension. V/Q scan: perfusion images in the upper row and perfusion images in the lower row. Left panel shows multiple bilateral mismatched defects. This study was repeated (not shown) and the defects were unchanged. Findings were consistent with diagnosis of CTEPH. Right panel obtained after embolectomy shows significantly improved perfusion with resolved or decreased perfusion defects

VQ SPECT can help to detect early COPD as the scintigraphic findings correlate with spirometric data and extent of emphysema [16]. Technegas ventilation scintigraphy also shows correlation with spirometry and appears promising in the diagnosis and grading of chronic obstructive pulmonary disease (COPD) [17] as well as monitoring treatment response in asthma [18].

Other indications in ventilation or perfusion lung imaging include:

1. Mucociliary clearance (^99mTc pertechnetate, ^99mTc sulfur colloid, ^99mTc MAA, etc.), e.g., in COPD and asthma.

2. Pulmonary vascular permeability (^99mTc-DTPA)

3. Pneumoconiosis evaluation with ^99mTc MAA and ⁶⁷Ga citrate

4. Bronchopleural fistula detection

5. Bronchiectasis evaluation in children

6. Drug delivery distribution evaluation with SPECT and PET [19]

7. ^99mTc-DTPA aerosol can be used as “screening” in HIV patients if pulmonary infection is suspected and chest radiograph is normal [20]. This is especially useful in pediatric population [21].

Infection/Inflammation Evaluation

⁶⁷Gallium

Indications to use ⁶⁷gallium scintigraphy include detection of pulmonary and mediastinal inflammation/infection, especially opportunistic infection in the immunocompromised patient; a negative scan excludes active Pneumocystis jirovecii pneumonia (PJP) and essentially any pulmonary disease [22]. ⁶⁷Ga can be used for evaluation and follow-up of lymphocytic or granulomatous inflammatory processes, such as sarcoidosis or tuberculosis [23, 24]. It is sensitive for drug-induced pulmonary toxicity (e.g., bleomycin and amiodarone) [25]. It is preferred over WBC scan in a leukopenic patient. For diagnosing discitis/osteomyelitis, it is preferred over labeled leukocytes. ⁶⁷Ga scan is negative in adenocarcinoma, squamous cell carcinoma, histiocytosis, and Kaposi sarcoma (which is positive on a thallium scan), but positive in lymphoma. Diffuse ⁶⁷Ga uptake in lungs is nonspecific, which can be seen in various infectious and inflammatory conditions. Due to long testing time, high frequency of false positive results, relatively high radiation dose, and availability of other modalities (PET/CT), the role of ⁶⁷Ga scintigraphy in clinical practice has been reduced [9, 18].

Labeled Leukocytes in Pulmonary Infections

Leukocytes can be labeled with ¹¹¹indium-oxine (¹¹¹In) or ^99mTc-hexamethylpropyleneamine oxime (HMPAO), depending on specific clinical question and anatomic location. The Society of Nuclear Medicine and Molecular Imaging (SNMMI) guidelines state that WBC imaging can be used for detection of suspected sites of acute inflammation/infection in the febrile patient, patients with granulocytosis, and/or positive blood cultures [26, 27]. Per European Association of Nuclear Medicine (EANM) guidelines [28], labeled WBC scintigraphy may be used to detect, localize, and determine the extent of the process in occult lung infection disorders, as well as fever of unknown origin (FUO), endocarditis, postoperative abscesses, infected central venous catheters, or other vascular devices. Disadvantages of scintigraphy with radiolabeled WBC are the requirement of blood handling for radiopharmaceutical preparation, the longer duration of the procedure compared with ¹⁸F-2-deoxyglucose (FDG) PET/CT, and lower spatial resolution. Labeled leukocyte with SPECT/CT imaging is a sensitive test for detecting lung infection, it can be especially beneficial in immunocompromised patients, and a study by Love et al. showed that absence of focal pulmonary activity had a 99% negative predictive value for excluding pulmonary infection [29]. However, this test is not specific due to possibility of damaged leukocytes accumulation (sequestration) in the lungs, especially on early images. Persistent diffuse uptake in the lung on delayed images may indicate infection or inflammation and is more often seen in heart or renal failure. This may obscure focal lung infections [27]. Atypical lung infections and opportunistic infection, like Pneumocystis jirovecii, as well as sepsis can present with diffuse uptake. Diffuse lung injury of various etiologies can have this appearance, including drug and radiation-related lung injury, ARDS, eosinophilic syndromes, and graft vs host disease. Focal uptake on delayed images can be lobar/segmental or in non-anatomic distribution. Segmental and lobar uptake suggests pneumonia [30], while non-anatomic distribution of uptake suggests technical errors. ^99mTc-HMPAO and ¹¹¹In-oxine label predominantly neutrophils, however, due to affinity to eosinophils, false positive results can occur in disorders with eosinophilic infiltration [31]. Labeled neutrophils can be used to quantify lung neutrophil inflammation in COPD in order to evaluate the efficacy of therapy [32].

Infection/Inflammation Indications in Nuclear Medicine

Fever of Unknown Origin

Despite multiple available diagnostic tests, FUO still remains challenging. Both labeled WBC and FDG PET can be used in FUO [33, 34]. Some authors favor WBC scan over PET/CT as a first study when there is a high pretest probability for infection [35]. However, FDG PET appears superior to other imaging modalities [36, 37].

Sarcoidosis

FDG PET/CT is commonly used for evaluation of sarcoidosis including diagnosis, monitoring of disease activity, and response to therapy (Fig. 2). FDG PET/CT can be especially useful in radiographic stage IV disease with fibrosis because the presence of metabolic activity indicates active disease potentially responsive to therapy. Additionally, PET/CT may show active parenchymal disease in radiographic stages 0 and 1 [38, 39].

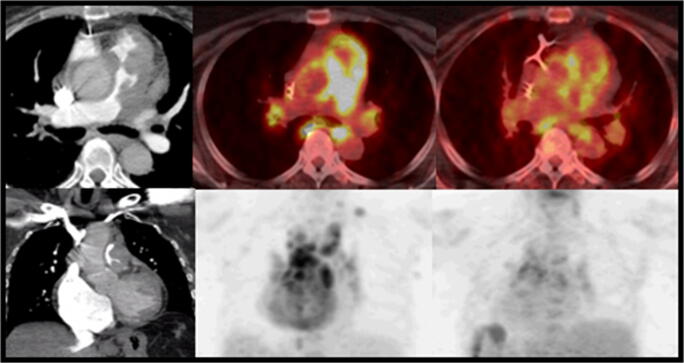

Fig. 2.

Evaluation of sarcoidosis with PET/CT. A 54-year-old female underwent CTA PE (left column) showing mass-like lesion in the main pulmonary artery. FDG PET/CT (middle column) was performed per sarcoid protocol which includes high fat and protein, no carbohydrate diet to suppress normal myocardial glucose uptake. The scan shows extensive hypermetabolic activity in this lesion and mediastinal and hilar lymphadenopathy. Biopsy demonstrated angioinvasive sarcoidosis. Follow-up PET/CT (right column) after therapy shows decreasing metabolic activity consistent with response to therapy

An additional PET radiotracer that can help diagnose sarcoidosis is ¹¹C-methionine used in molecular imaging of amino acid metabolism (Table 2). Because of increased metabolism of amino acids in tumor cells, this agent is useful in tumor imaging. In combination with FDG, this tracer can help to better differentiate inflammation from malignancy [40]. Cardiac PET/MR offers the most comprehensive one-step evaluation of heart involvement and at the same time can assess disease activity throughout the body.

Table 2.

Examples of PET tracers

Tracer	Description of process targeted	Indications	Features
18F-2-deoxyglucose (FDG)	Glucose transporter—accumulation indicates increased metabolic activity in the cells	Broad spectrum of indications, including numerous malignancies, infection/inflammation, metabolic brain imaging	Nonspecific glucose metabolism indicator
18F-Fluorodeoxy-L-thymidine (FLT)	Proliferation marker	Multiple malignancies	Does not accumulate in inflammation; improved accuracy and specificity compared with FDG
L-methyl-C11-methionine	Protein metabolism	Multiple malignancies	Does not accumulate in inflammation; may be more specific and sensitive compared with FDG
68Ga-tetraazacyclododecantetraacetic acid (DOTA) peptides (DOTATOC, DOTANOC, DOTATATE)	Somatostatin analogs	Neuroendocrine tumors (NET) Evaluation of fibrosis	Independent on cellular metabolism. Can be used in conjunction with Lu-177 therapy
18F-dihydroxyphenylalanine (FDOPA)	Amino acid analog	Neuroendocrine tumors, especially medullary thyroid cancer, pheochromocytoma, and paraganglioma	Specific, good tumor to background ratio
18F-fluoromisonidazole (FMISO) 64Cu methylthiosemicarbazone (ATSM)	Tumor hypoxia	Lung cancer Head and neck cancer.	Potential role in radiotherapy planning
11C-Erlotinib	Epidermal growth factor receptor (EGFR) inhibitor	Non-small cell lung carcinoma (NSCLC) Pancreatic cancer	C-11 is cyclotron produced with short half-life which limits its clinical utility
18F-Fluoro-17-β-estradiol (FES)	Estrogen receptor	Breast cancer
11C-Choline 18F-Choline	Choline transporter—phospholipid synthesis Integrates into the cell walls of proliferating cells	Prostate cancer Evaluated for differentiating lung cancer from tuberculosis Parathyroid localization	Marker of rapidly proliferating cells, nonspecific for many tumors
18F-Fluciclovine (Axumin)	Amino acid transporters	Metastatic prostate cancer	Improved visualization of the pelvis and abdomen
64Cu-NOTA-ramucirumab antibody (-RamAb)	Antibody binding to vascular endothelial growth factor receptor-2 (VEGFR-2)	Detection and therapy monitoring of VEGFR-2-positive malignancies	Preclinical

p-SCN-Bn-NOTA 2-S-(4-isothiocyanatobenzyl)-1,4,7-triazacyclononane-1,4,7-triacetic acid

Other Indications for PET/CT in Inflammation and Infection

• Fungal and parasitic infections—disease activity monitoring, e.g., candidiasis, aspergillosis, [41], and echinococcosis [42, 43]

• AIDS-associated opportunistic infections

• Assessment of metabolic activity in tuberculosis lesions

• Cystic fibrosis—disease activity, response to therapy

• Acute lung injury or acute respiratory distress syndrome [44]

PET/CT in Systemic Inflammatory Diseases

Over recent years, there has been growth in PET utilization in systemic infections and inflammation for diagnosis, assessment of disease activity, and therapy monitoring [45, 46]. FDG PET/CT can be used for diagnosis and follow-up in multiple inflammatory conditions including rheumatoid arthritis (RA) [47], polymyalgia rheumatica [48], IgG4-relate disease, large vessel vasculitis [49], and granulomatosis with polyangiitis, adult-onset Still disease [50, 51], spondyloarthritis, chronic osteomyelitis, and multicentric reticulohistiocytosis [52]. Increased FDG uptake in the tracheobronchial tree is a reliable sign of cartilage involvement in relapsing polychondritis [53]. FDG PET/CT can be used for early diagnosis of RPC and follow-up [54, 55]. New specific PET tracers are being developed, for example, α5β1-integrin PET appears to be a promising tool for early diagnosis of RA and therapy monitoring [56].

Future Directions and New Indications

WBC labeling technique is time-consuming and labeling requires handling a patient’s blood. Anti-granulocyte monoclonal antibodies have been developed: whole murine IgG anti-NCA-95 antibody and a Fab′ fragment anti-NCA-90. Besilesomab induces production of human anti-mouse antibodies (HAMA). Sulesomab does not induce HAMA production and is approved in Europe for peripheral musculoskeletal infections [35].

Anti-microbial peptides (AMPs) have been developing rapidly, labeled with either SPECT or PET radiotracers. ^99mTc-labeled antibiotics can be used for specific indications, for example, ^99mTc-ciprofloxacin binds to topoisomerase IV and DNA gyrase expressed by proliferating bacteria and can be used in suspected infections caused Gram-positive, Gram-negative, and anaerobic bacteria [57]. Other antibiotics, such as cephalosporins and fluoroquinolones, ^99mTc-vancomycin, and other anti-microbial peptides, for example, ^99mTc-ubiquicidin (UBI), have been tested in animal and human studies [58, 59]. Recently, new probes have been proposed for the detection of fungal infections, such as ^99mTc-fluconazole. ^99mTc-ethambutol planar and SPECT/CT scintigraphy has been shown to be useful in tuberculosis with high sensitivity and specificity for detection of pulmonary and extrapulmonary disease [60].

Viral infections could be potentially detected with the help of an emerging radiopharmaceutical for PET/CT studies; for example, ¹⁸F-fluoro-5-ethyl-1beta-D-arabinofuranosyluracil (¹⁸F-FEAU) recognizes an enzyme produced by herpes simplex virus [61]. Many new PET radiopharmaceuticals for infection imaging have been tested in preclinical trials with potential to be translated to humans [62].

Multiple molecular probes for fibrosis have been developed, for example, a SPECT/CT agent ^99mTc-CBP1495 [63], fibroblast targeting somatostatin receptor agents (¹¹¹In-octreotide), and numerous ⁶⁸Ga and ⁶⁴Cu-labeled PET agents [64, 65].Currently available techniques can detect established fibrosis; however, there is need to develop tools to improve detection of early disease and monitoring of progression. For example, an ongoing clinical trial evaluates the ability of ⁶⁸Ga-CBP8 probe to detect type I collagen deposition in early IPF and radiation induced fibrosis [64, 66].

Molecular imaging techniques for ischemia-reperfusion injury are being investigated primarily for evaluation of primary graft dysfunction in lung transplant. Dimastromatteo has reported promising results using ^99mTc-cFLFLF SPECT imaging in a murine model [11].

Matrix metalloproteases (MMPs) secreted by inflammatory cells, predominantly macrophages, have been investigated in asthma and chronic obstructive pulmonary disease (COPD). PET and SPECT tracers have been developed aiming for early detection and monitoring of disease activity [17].

Oncologic Indications

PET/CT

The traditional PET radiotracer is a glucose analog ¹⁸F-2-deoxyglucose, which is the most used radiopharmaceutical to date. FDG PET/CT is useful for imaging of inflammation/infection as described above. However, the most common indications for PET/CT chest imaging are the evaluation of a single pulmonary nodule and lung cancer staging. This modality has an established role in lung cancer staging, radiation therapy planning, treatment monitoring, and prognostication. For pulmonary nodules, most physicians are aware of false positive findings on FDG PET in infection and inflammatory processes. However, false negative results occur as well, especially for small nodules (< 8 mm) located in the lower lobes (motion artifact) and ground glass nodules. Additionally, growing nodules can be falsely negative on PET, and for these nodules, further follow-up and/or biopsy is warranted. Development of many new PET radiotracers based on molecular imaging allows for further growth and expansion of this modality. These can be nonspecific, targeting intracellular processes associated with neoplasms (hypoxia, proliferation, angiogenesis, apoptosis, etc.) (Table 2), or highly specific, showing affinity only to a selected antigen on healthy or malignant cells [67, 68]. For example, deoxy-3′-¹⁸fluorothymidine (¹⁸F-FLT) is a marker of proliferation and does not accumulate in inflammatory lesions [67, 68]. Zannetti et al. evaluated ¹⁸F-FLT PET/CT in order to improve selection of patients with lung cancer who may benefit from specific targeted therapies [69]. The second group of newer tracers includes radiolabeled antibodies, peptides, or other ligands. These tracers have been shown to be highly specific and useful in both diagnosis and treatment response assessment. For example, endothelial growth factor (EGF) receptor targeting drugs can be radiolabeled and potentially used as a pretreatment imaging to predict response to therapy [70]. Multiple ongoing trials explore PET role in predicting response to immunotherapy using radiolabeled antibodies, antibody fragments, and small molecules (e.g., ⁸⁹Zr-nivolumab in patients with non-small cell lung cancer) [71, 72]. Overall, PET/CT is playing an important role in development of precision medicine leading to improved therapies and patient outcomes [73].

Neuroendocrine Tumor Imaging

Pulmonary carcinoid (PC) accounts for more than 25% of all carcinoid tumors in the body and 1–2% of all pulmonary neoplasms [74]. They have somatostatin receptors (SSTR) and can be identified on somatostatin analog octreotide scans radiolabeled with indium (¹¹¹In) [75]. Carcinoid tumors with malignant potential show increased FDG uptake on PET/CT due to high metabolic activity. However, utility of FDG PET/CT for staging of pulmonary carcinoid remains controversial [76]. Functional PET/CT imaging targeting SSTR can utilize 68-gallium-radiolabelled tetraazacyclododecantetraacetic acid (DOTA) peptides (DOTATOC, DOTANOC, DOTATATE) and ¹⁸F-dihydroxyphenylalanine (FDOPA). According to the data from 352 patients [77], Ga-DOTA-peptide was superior to FDG (90.0% vs 71.0%) in detection of PC. Management of PC depends on tumor grade and SSTR expression. High uptake of radiolabeled somatostatin analogs (SSAs) and low uptake of ¹⁸F-FDG are considered the functional imaging pattern of low-grade well-differentiated tumors. Conversely, low uptake of radiolabeled SSAs (or ¹⁸F-FDOPA) and high uptake of FDG are representative of high-grade poorly differentiated tumors [78]. Studies suggest that low or no FDG uptake on PET/CT favors more conservative management [79].

PET/MR

MRI provides excellent tissue characterization without using ionizing radiation, but imaging of the lungs is challenging due to low proton density. The development of hybrid PET/MRI provides an opportunity to provide the most comprehensive assessment of malignancy combining functional and anatomic information [80] (Fig. 3). ¹⁹F MR may also allow the measurement of lung inflammation. Emulsified perfluorocarbons are phagocytized by monocytes and macrophages and can be easily detected by using fluorine ¹⁹F MRI. This technique can be potentially used for lung imaging and drug development [81].

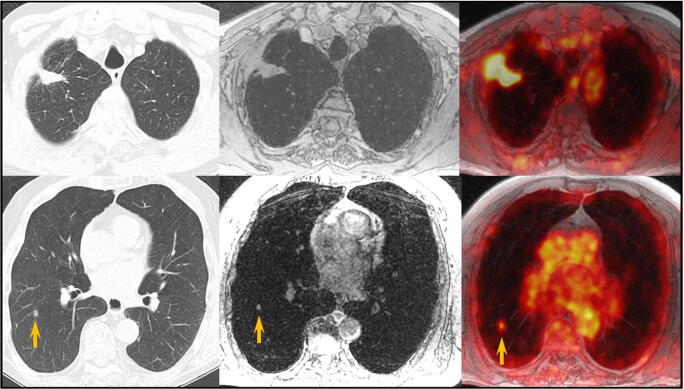

Fig. 3.

PET/MR findings in a patient with lung cancer. A 61-year-old male with right upper lobe cancer treated with radiation therapy. High-resolution CT images (left column) demonstrated decreased size of the mass and a new 6-mm nodule in the right lower lobe. FDG PET/MR was obtained. The MR portion (middle column) remonstrated the RUL mass and RLL nodule. Fused PET and MR images show that the mass was intensely hypermetabolic suspicious for residual/recurrent disease and the nodule was mild to moderately hypermetabolic suspicious for second primary vs metastatic lung cancer

The detection rate of MR for nodules less than 1 cm in diameter is lower compared with diagnostic CT. However, Raad et al. showed that most small non-FDG avid lung nodules missed on PET/MRI either resolved or remained stable on follow-up, suggestive of benignity [82]. Specific sequences allow better visualization of lung parenchyma including pulmonary nodules and consolidations [83]. MRI with diffusion-weighted imaging (DWI) may be considered an alternative to 18F-FDG PET/CT in characterization of pulmonary nodules and NSCLC staging and treatment follow-up [84]. The study by Schaarschmidt et al. evaluated staging differences between PET/MR and PET/CT in 77 patients with non-small cell lung cancer (NSCLC) and demonstrated that both modalities lead to comparable therapeutic decisions [85].

Pleura

FDG PET/CT can be used in differentiating between malignant and benign pleural lesions. The meta-analysis of 11 selected studies by Treglia et al. demonstrated sensitivity of 95% and specificity of 82% [86]. The ability to distinguish malignant from benign pleural effusion is limited [87] with reported sensitivity of 81% and specificity of 74% [88]. However, the study by Yildirim et al. reported high sensitivity, specificity, and accuracy (88.2%, 92.9%, and 90.3%, respectively) for differentiation of malignant mesothelioma from asbestos-related benign pleural disease in a group of 31 patients [89] evaluated by PET/CT. Similarly, Sun et al. reported high sensitivity of 93% for FDG PET/CT in differentiating malignant from benign pleural effusion [90].The recent TARGET trial explores the potential role of FDG PET/CT to target areas of high uptake when performing a CT-guided biopsy [91].

In patients with pleural effusion who are on peritoneal dialysis or who have liver disease (hepatic hydrothorax), ^99mTc MAA or ^99mTc sulfur colloid can be used for assessment because they are not absorbed systemically. If there is communication between the peritoneum and pleural space, lung uptake is usually seen in 10 min. Similarly, patency of drainage and shunt catheters can be assessed, including pleurovenous and peritoneovenous shunts (Fig. 4).

Fig. 4.

Hepatic hydrothorax and shunt evaluation. In patients with pleural effusion who are on peritoneal dialysis or who have liver disease (hepatic hydrothorax), ^99mTc MAA or ^99mTc sulfur colloid can be used for shunt assessment. If there is communication between the peritoneum and pleural space, lung uptake is usually seen in 10 min. Similarly, patency of drainage and shunt catheters can be assessed, including pleurovenous and peritoneovenous shunts. The images demonstrate evaluation in a 16-year-old male with Budd-Chiari syndrome, refractory ascites, and Denver (mesoatrial) shunt who presents with dyspnea. Image A: frontal chest radiograph showing a large pericardial effusion. A pericardial drain was subsequently placed. Images B and C: ^99mTc shunt scintigraphy showing radiotracer in the peritoneal cavity but no progression into the lungs. Tracer accumulation around the heart indicating shunt communication with the pericardial space

Extrapulmonary Indications in the Chest

Vascular Infections

For infectious endocarditis (IE), the labeled leukocyte scan is most valuable in patients with “possible IE” by Duke criteria, when there is a high level of clinical suspicion but negative or indeterminate echocardiographic findings [92, 93]. Radiolabeled WBC SPECT/CT is more specific for the detection of prosthetic valve IE and infectious foci than FDG PET/CT [94]. FDG PET/CT has value in detection of septic emboli and extra-cardiac infection source [95].

Mycotic aneurysms can be difficult to differentiate on CT or MR from non-infectious aneurysms and ¹¹¹In WBC or FDG PET/CT scan can be useful in establishing the diagnosis as well as detecting additional sites of the disease.

Vascular graft imaging with labeled WBCs demonstrates high sensitivity and can be used for detecting, localizing, and defining the extent of infection [96, 97]. However, evaluation in the early postoperative period is limited [98, 99]. A positive scan early in the postoperative period can be secondary to normal endothelialization of the graft or infection.

Cardiovascular implantable electronic device (CIED) infection can be assessed with WBC scintigraphy, especially if SPECT/CT technique is utilized [100]. Based on available data, both WBC SPECT/CT and FDG PET/CT studies may play a role in the diagnosis of CIED infection; however, they are not incorporated in the 2015 European Society of Cardiology guidelines [101–103].

Aspiration

^99mTc-DTPA or ^99mTc sulfur colloid salivagram can be used to help in the diagnosis of aspiration and is more sensitive than the fluoroscopic techniques. Videofluoroscopic evaluation of swallowing (VFES) may fail to identify aspiration in up to 30% of patients, especially saliva aspiration [104–106].

Extramedullary Hematopoiesis

^99mTc sulfur colloid can be used to differentiate this entity from other paraspinal lesions. It may be especially useful in pulmonary extramedullary hematopoiesis which can involve the pleural space, pulmonary parenchyma, and rarely the pulmonary artery [107].

Splenosis

Classic indications for scintigraphic imaging include suspected thoracic splenosis, which may be found after splenic injury. In 75% of patient, splenosis presents as multiple pleura-based nodules; in 25% of patients, a solitary nodule is present. The average time from the event to diagnosis is 21 years [108]. Diagnosis can be established with ^99mTc sulfur colloid scintigraphy, ^99mTc heat-damaged erythrocytes, or ¹¹¹In-labeled platelets (Fig. 5).

Fig. 5.

Evaluation of splenosis. An incidental pleura-based nodule was identified on contrast-enhanced chest CT (arrowhead). Note that the spleen is absent (circle). ^99mTc-labeled sulfur colloid scintigraphy anterior (upper) and posterior (lower) views show tracer accumulation withing the nodule (arrows) consistent with splenic tissue

Thrombus Evaluation

Molecular imaging is used to investigate venous thrombosis [109] including determination of thrombus activity and acuity which may play an important role in patient management. ^99mTc apcitide binds to glycoprotein receptor GPIIb-IIIa on the membrane of activated platelets. This can identify acute deep venous thrombosis (DVT) [110, 111]. This test has been FDA approved, but is not widely used. An additional compound ^99mTc-DI-DD3B6/22-80B3 (^99mTc-DI-80B3 Fab′), a humanized monoclonal Fab′ fragment that binds to D-dimer, showed good safety profile and promising accuracy in phase I and II trials [112, 113]. PET tracers are also under active investigation, for example, ⁶⁴Cu-DOTA fibrin-targeted probes which have been tested in animal models [114].

Theranostics

Theranostics, a combination of therapeutic and diagnostic approaches, is one of the most exciting areas in molecular imaging. This refers to the idea of targeted molecular imaging using radionuclide-labeled molecules not only for imaging but also for therapy delivery. Radionuclides with optimal decay characteristics can serve as delivery system for targeted radiation therapy. Radiation has proven to be a very useful treatment option for different cancers, but it is limited in that its source is external and the treatment affects all the tissue in the radiation field. With theranostics, the source of radiation is internalized targeting specific malignant cells throughout the body including micro-metastatic disease. Locally delivered radiation damages the DNA triggering apoptosis in the targeted cells. Pre-treatment scans and therapy can use the same “carrier”; however, a different radionuclide attached to the carrier can be used for the imaging and therapy. Certain theranostic radiopharmaceutical pairs are already in clinical use; for example, ⁶⁸Ga-DOTATATE/¹⁷⁷Lu-DOTATATE represents the theranostic pair of labeled somatostatin analogs for neuroendocrine cancers where the ⁶⁸Ga-DOTATATE is used for imaging and the ¹⁷⁷Lu-DOTATATE for therapy if the tumors are positive on the ⁶⁸Ga-DOTATATE imaging which confirms they have the somatostatin receptor-2 (SSTR-2).

Additional radiolabeled antibodies appear promising in preclinical and clinical trials. This includes ¹⁷⁷Lu-lilotomab, a CD37 antibody for the treatment of B cell lymphomas and antibodies against fibroblast activation protein [115]. In summary, theranostics has the potential to become personalized precision-based cancer therapeutics.

Heat shock proteins, also known as stress proteins, investigated for oncologic applications, appear to play a role in pathogenesis of pulmonary fibrosis [116]. These are being investigated as potential biomarkers and therapeutic targets in idiopathic pulmonary fibrosis [117].

Conclusions

Nuclear medicine offers many diverse applications for chest imaging. Many routine indications are utilized in daily practice with selected techniques used as problem-solving tools. Molecular imaging is a rapidly developing field with extensive ongoing research and expanding indications. These newer imaging techniques have a substantial impact on the patient management and outcome. In addition, theranostics expands the therapeutic role of nuclear medicine. Nuclear medicine and molecular imaging significantly contribute to the development of targeted therapies and precision medicine leading to improved patient care.
