Abstract
DC railways are characterized by particularly intense arcing caused by pantograph detachment, due to the large current intensity and the general implementation of onboard resonant filters, whose transient response is triggered by electric transients including electric arcs. Electric arc depends on the train speed (the relative speed between the sliding contact over the pantograph and the hot spot on the catenary system), the intensity of the collected pantograph current and the line voltage level. Electric arcs are broadband in nature and can trigger the system transient response dominated by the resonant filter, besides interfering with the operation of onboard equipment (such as for energy conversion and metering).
Keywords: Electric arc, Measurement of electrical quantities, Pantograph, Power quality, Railways, Rolling stock
Specifications table
Subject | Electrical and Electronic Engineering |
Specific subject area | Measurement of electrical quantities, Power Quality |
Type of data | Table Graph Figure Raw data provided |
How data were acquired | Digitized sampled data using a National Instruments data acquisition system located onboard and connected to voltage and current sensors (voltage dividers, open loop Hall effect transducers and Rogowski coils). |
Data format | Raw (sampled waveforms in Matlab .mat binary file, saved also in .txt ASCII file format) analysed (post-processed data in figures) |
Parameters for data collection | Data acquisition and digitization with 50 kSa/s sample rate, 16 bit resolution, streaming to solid state disk. Rolling stock electric quantities at pantograph, filter and braking rheostat sensed with characterized transducers whose uncertainty is included. Trains in commercial service. |
Description of data collection | A train in normal commercial service along a 3 kVdc railway line or 1.5 kVdc metro line was used in Italy and Spain, respectively, with the acquisition system and sensors installed onboard. The acquisition was run for periods of some days after which data were downloaded from the local solid state disk. |
Data source location | 1) Italy 3 kVdc railway system, lines: Susa - Torino, Bardonecchia - Torino, Ivrea - Torino. 2) Spain, Metro de Madrid 1.5 kVdc system, line no. 10B |
Data accessibility | - With the article (for processed data appearing in figures and tables) - In public repository (for raw data): Repository name: Mendeley Data DOI: 10.17632/74nz86wcgy.1 Direct URL to data: https://data.mendeley.com/datasets/74nz86wcgy/1 |
Value of the data
-
•
Recordings of pantograph electrical quantities are difficult to obtain from railway operators for safety and organizational issues, as well as a general data protection concern.
-
•
The dataset may be used for Power Quality studies, analysing the electrical phenomena (e.g. transient harmonics) caused by interaction between the traction supply system and rolling stock of dc railways and metros.
-
•
The dataset may be used to assess transient conducted emissions relevant for interference to railway signalling.
-
•
These selected recordings of electric arcs may be useful also to trim algorithms for electric arc identification and counting.
Data description
The raw data consist of pantograph voltage (vp) and current (ip), onboard filter output voltage (vf) and braking rheostat current (ir) acquired with an autonomous data acquisition system located onboard of a 3 kVdc railway locomotive and a 1.5 kV metro vehicle. The recordings focus on electric arc events occurring at the current collection system recognized within longer recordings lasting for days. The data are organized dividing them between metro (label “MM” = Metro de Madrid) and railway (label “TI” = Trenitalia), and then for the overall operating condition, namely traction (label “t”) and braking (label “b”), for which the behaviour of the arc is opposite, reducing the line voltage with incoming current the former, increasing the line voltage with exiting current. A simplified circuit that indicates where the electrical quantities are located is shown in Fig. 1.
Fig. 1.

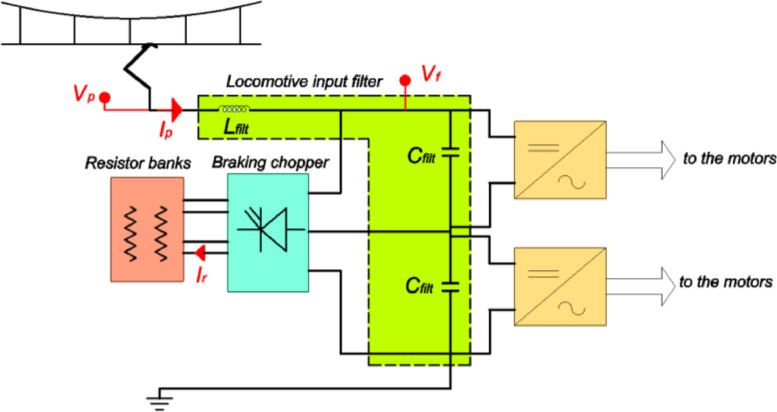

Schematic of line, current collection, onboard filter and power converters with indication of measured quantities.
Data for each electric arc event correspond to a .mat file containing the four measured electrical quantities in double precision format. The same four quantities are also saved in four separate ASCII files with .txt extension; they can be distinguished for the appended name of the electrical variable (e.g. _vf.txt). Some pictures in .tif format are also attached for an immediate graphical representation of the waveforms, zooming on the arc even and following transient response.
The typical waveforms are shown in Fig. 2 to Fig. 5 selected in braking and traction condition occurring in metro and railway, respectively.
Fig. 2.
Waveforms for braking operating condition in 1.5 kV dc metro (file: MM_B_2.tif).
Fig. 5.
Waveforms for traction operating condition in 3 kVdc railway (file: TI_T_3.tif).
A picture of the data acquisition system is shown in Fig. 6.
Fig. 6.
Installation of the DAS and transducers: a) voltage transducer and supply systems for the active sensors and the DAS; b) Rogowski coil for the ir measurement; c) HOP sensor for the ip measurement; d) DAS.
Experimental design, materials, and methods
The recordings of the pantograph voltage (vp), and current (ip), the filter output voltage (vf) across the filter capacitor and braking rheostat current (ir) were taken during several days of tests in Italy (using Trenitalia rolling stock) and Spain (along one line in Metro de Madrid) at the end of 2019 within the international research project MyRailS [1]:
-
•
For Italy the rolling stock was a Bombardier E464 locomotive (n. 041) in normal service conditions running on the following railway lines of Piedmont region all fed at 3 kVdc: Susa-Torino, Bardonecchia - Torino, Ivrea - Torino.
-
•
For Spain the rolling stock was a Hitachi Rail electro-train no. S 9000 with three cars in normal service on the line no. 10B of Metro de Madrid.
The vp and ip waveforms were processed with an algorithm for electric arc recognition, to extract the portions containing significant electric arc events at the pantograph interface that are then reported in this work. The set of four waveforms (vp, ip, vf and ir) for each event allows the interpretation of the dynamics of the onboard electric system during such a major transient. The purpose of the MyRailS Project was to characterize the arc events in terms of their own electrical characteristics, as a source exciting the transient response of the input circuit of the rolling stock and in terms of the impact on power consumptions and energy efficiency.
A high-performance measurement setup was conceived, compatible with the exigency of transportability and ease of installation, as well as the necessary electrical safety and robustness that are required for railway installations and applications.
The data acquisition system (DAS) was built around a National Instrument NI 9239 module and an embedded chassis NI 9034. The NI 9239 features 16 bit data words sampled at 50 kS/s for each channel and can be controlled by a Labview program. The module is interfaced to a GPS synchronization module NI 9467 for general time traceability and for synchronization with the measurements of other DAS in case of network applications.
The electrical quantities are captured using the following transducers:
-
•
For vp and vf: Ultravolt TF SERIES voltage transducer with a 1000:1 probe factor and accuracy of 0.25%.
-
•
For ip: LEM HOP 2000 current transducer with a 2000A/4 V probe factor and accuracy <± 2%.
-
•
For ir: Rogowski coil transducer, characterized by INRiM.
All transducers and the DAS were characterized at INRiM before installation and use.
Some factors with metrological relevance were taken into account when devising and installing the measurement system, besides all the exigencies related to electrical safety:
-
•
Electrical noise on the connection cables and equipment, attenuated by using equipotential metallic frame, low-impedance bonding and filters (shown in Fig. 6) and verified by initial manned acquisition for quantification of noise and offsets, at each new installation.
-
•
Location of sensors was optimized, as for Rogowski coils and LEM HOP sensors, centred on the high-voltage cables branching from the pantograph and rheostat to minimize uncertainty.
The dataset (link shown in Appendix A) consists of a set of electric arc events, each one characterized by a set of time domain waveforms of the said four electrical quantities (vp, ip, vf and ir). These data were extracted from the continuous recordings after having recognized an arc event; the most significant for their characteristics that are commented in the following were selected.
The waveform data can then be processed and analysed in various ways:
-
•
Using Discrete Fourier Transform (DFT) to evaluate the spectral content before, during and after the arc event [2]; due to the transient nature of the electric phenomenon, other spectral analysis methods may be more suitable, such as wavelet packet transform (WPT), joint time-frequency transforms and empirical mode decomposition (EMD), to cite the most widely used approaches.
-
•
Using basic electrical circuit relationships to characterize the behaviour of the circuit and the intensity of the phenomena, such as peak-to-peak variations, rate of rise and rate of fall of transient waveforms, instantaneous impedance, oscillations, etc. [3], [4], [5], [6].
-
•
Considering the instantaneous power terms (obtained by the product of the voltage and current quantities) and evaluating the power flow, power dissipation and in general the impact on power consumption and energy efficiency [7].
For reader's ease and to better describe and characterize the data, the following figures show the typical waveforms and the typical electrical phenomena mentioned above and that can be found in the dataset. Each figure is briefly commented.

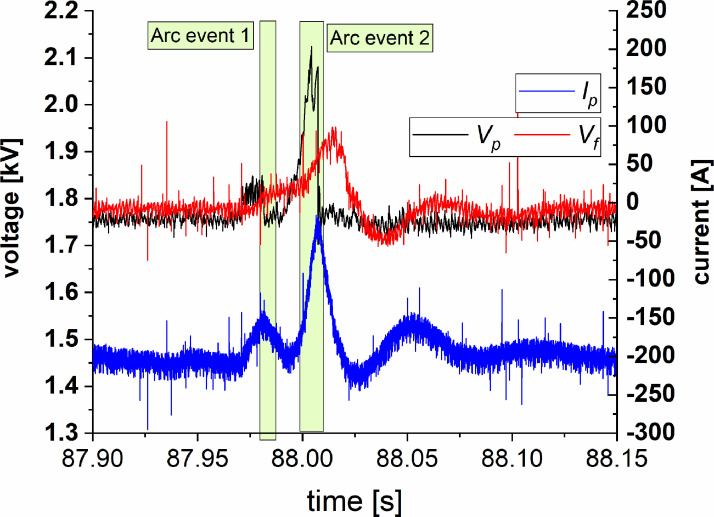

Fig. 2 highlights two arcs close together during a regenerative braking phase. The first event is very small, the overvoltage of vp, caused by the arc resistance, is of only some tens of volts. The second event is stronger, the overvoltage of vp is about 300 V. The otherwise negative current ip oscillates reaching a very small value close to 0 and then it is re-established to the value before the arc.
Fig. 3 shows an arc event during a traction phase. The absorbed current before the event is very low (about 25 A). Due to such a low current a zero current situation is reached following the filter oscillation and this causes the temporary quenching of the arc for about 120 ms.
Fig. 3.
Waveforms for traction operating condition in 1.5 kVdc metro (file: MM_T_1.tif).
Fig. 4 shows an arc event during an electric braking phase. The arc causes an increase of vp up to 4.3 kV, the current reduces from 300 A to zero amps with a consequent quenching. The increase of the voltage vf leads to the increase of the braking chopper duty-cycle, that in turn helps limiting the line voltage increase. All the electrical quantities reach again the steady state through a damped oscillation at about 15 Hz, that is the onboard filter oscillation frequency.
Fig. 4.
Waveforms for braking operating condition in 3 kVdc railway (file: TI_B_2.tif): a) behaviour of vp, vf and ip; b) zoom of the quenching event and the time behaviour of the chopped current ir.

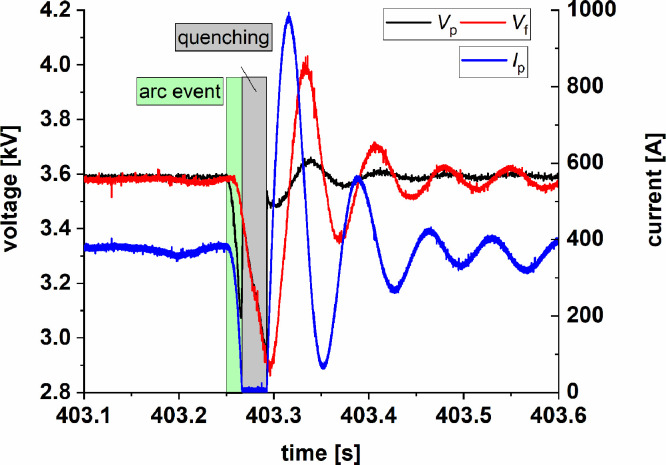

Fig. 5 shows an arc event occurring during a traction phase. The locomotive, before the event was absorbing a current of about 400 A. The arc produces a fast voltage and current reduction with a consequent quenching of the arc for about 25 ms. When the contact pantograph-overhead line is again re-established, the ip reaches again the previous value (400 A) after a strong damped oscillation. In the oscillation, the pantograph current reaches 1 kA.
Appendix A. Supplementary data
Raw data and figures referred in this article can be found online at https://doi.org/10.17632/74nz86wcgy.1
