Abstract
Vehicle classifications with different methods have been applied for many purposes. The data provided in this article is useful for classifying vehicle purposes following the Indonesia toll road tariffs. Indonesia toll road tariff regulations divide vehicles into five groups as follows, group-1, group-2, group-3, group-4, and group-5, respectively. Group-1 is a class of non-truck vehicles, while group-2 to group-5 are classes of truck vehicles. The non-truck class consists of the sedan, pick-up, minibus, bus, MPV, and SUV. Truck classes are grouped based on the number of truck's axles. Group-2 is a class of trucks with two axles, a group-3 truck with three axles, a group-4 truck with four axles, and a group-5 truck with five axles or more. The dataset is categorized into five classes accordingly, which are group-1, group-2, group-3, group-4, and group-5 images. The data made available in this article observes images of vehicles obtained using a smartphone camera. The vehicle images dataset incorporated with deep learning, transfer learning, fine-tuning, and the Residual Neural Network (ResNet) model can yield exceptional results in the classification of vehicles by the number of axles.
Keywords: Dataset, Vehicle image, Deep learning, Classification, Transfer learning, Fine-tuning
Specifications Table
| Subject | Computer Vision and Pattern Recognition |
|---|---|
| Specific subject area | Vehicle Image and Classification |
| Type of data | 2-Dimensional 24-bit RGB Color Image |
| How data were acquired | By taking pictures and videos using a smartphone camera |
| Data format | Raw digital image (.jpg) |
| Parameters for data collection | The vehicles’ left or right side bodies were photographed uprightly to observe the number of wheels wholly. |
| Description of data collection | The vehicle pictures were collected by taking pictures and videos on the road, parking lot, and bus station. Data in the video formats were then converted to still images. |
| Data source location | Jakarta Area, Indonesia |
| Data accessibility | Name of Repository: Mendeley Data Dataset Location: https://data.mendeley.com/datasets/9s33gv3gbt/draft?a=d664b4e6-b18b-4bc9-b5e9-e45363f2bb79 |
| Related research article | A. T. Sasongko and M. Ivan Fanany, "Indonesia Toll Road Vehicle Classification Using Transfer Learning with Pre-trained Resnet Models," 2019 International Seminar on Research of Information Technology and Intelligent Systems (ISRITI), Yogyakarta, Indonesia, 2019, pp. 373–378. https://doi.org/10.1109/ISRITI48646.2019.9034590 [1] |
Value of the data
-
•
This dataset can be used to train deep learning models that can classify, detect and segment vehicles based on the number of wheels or axles since the images show the wheels wholly.
-
•
Researchers interested in classifying, identifying and segmenting vehicles may use this vehicle image data, integrate it with data sets of other sources, and evaluate it for more insight.
-
•
The data is comprehensive, containing five groups of vehicles (non-truck, 2-axle truck, 3-axle truck, 4-axle truck, and 5-axle truck).
-
•
This dataset can be used to develop a new deep learning architecture using transfer learning techniques or modifying the existing one to improve the performance of the vehicle classification.
1. Data description
The vehicle images were gathered by taking pictures and video using a smartphone camera. The data in video formats were then converted to still images utilizing an FFmpeg command-line tool [2]. The data collected include the images of the car, sedan, van, pick-up, bus, minibus, truck, trailer truck, dump truck, garbage truck, and tanker truck. The dataset consists of 1200 images in JPG format with an image width of 512 pixels and various heights. The height varies depending on the size of the object being observed. The images are categorized into five classes, which are non-truck (group-1), 2-axle truck (group-2), 3-axle truck (group-3), 4-axle truck (group-4) and 5-axle or more truck (group-5). The non-truck class consists of the sedan, pick-up, minibus, bus, MPV, and SUV. Truck classes are grouped based on the number of truck's axles. Two-axle trucks are classified as group-2, three-axle trucks as group-3, four-axle trucks as group-4, and five or more axle trucks as a group-5. The number of images in each class is shown in Table 1. The data samples are presented in Fig. 1.
Table 1.
The five vehicle classes and the number of images.
| No | Category | Group | No. of Images |
|---|---|---|---|
| 1 | Non-Truck | 1 | 400 |
| 2 | 2-Axle Truck | 2 | 200 |
| 3 | 3-Axle Truck | 3 | 200 |
| 4 | 4-Axle Truck | 4 | 200 |
| 5 | ≥ 5-Axle Truck | 5 | 200 |
| Total | 1200 | ||
Fig. 1.
Samples of vehicle classification image dataset.
2. Experimental design, materials and methods
The vehicle dataset publicly available generally does not show the wheels wholly. Since the wheels are not clearly seen, it is difficult to count the number of axles. To know the axles, the vehicles’ left or right side bodies were necessarily photographed uprightly so the wheels can be observed thoroughly. The vehicle's axle is a component on which the left and right wheels are mounted. Knowing the wheels enables us to count the axles. The vehicle images dataset was collected by taking pictures and videos using a smartphone camera on the roads, parking lots, and bus stations in the Jakarta area. The smartphone camera specifications are 1280 × 720 pixels (720p) for videos in * .3gp format and 2560 × 1440 pixels for photos in * .jpg format. The data in video formats were then converted to still images using an FFmpeg command-line tool [2]. The dimension of converted images is 1280 × 720 pixels. Next, the original images were cropped around the vehicle object to minimize the background, then resized to 512 pixels wide and various heights to maintain the shape of the object by preserving the aspect ratio - this is useful for proper classification [3]. The conversion of the dataset from the video source to image data is shown in Fig. 2. Object cropping was undertaken manually using Microsoft Picture Manager. The dimension of the cropped object is not fixed, because it depends on the size of the vehicle object on the image derived by the video source. In general, the dimensions of the cropped image are W x H, where W stands for width and H for height. The unessential, unneeded images were deleted. After the refinement of the dataset, the number of vehicle images was reduced to 1200 images. The images are classified into five groups as follows: non-truck (group-1), 2-axle truck (group-2), 3-axle truck (group-3), 4-axle truck (group-4) and 5-axle or more truck (group-5).

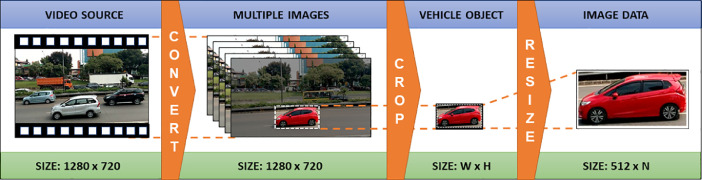

Fig. 2.
Conversion of the dataset from the video source to image data.
Preparation of data is essential for classifying vehicles based on the concept of deep learning. When the dataset is limited, data augmentation strategy is required for multiplying training images in order to increase the accuracy [4]. The data augmentation methods are widely available in the current software framework for deep learning with a real-time image augmentation process [5], for this reason, the augmentation images are not provided in this vehicle dataset.
This dataset was used for deep learning-based vehicle classification by applying the transfer learning strategy and pre-trained ResNet models [1]. When the dataset is on a limited scale, a combination of pre-trained ResNet and transfer learning can speed up the result and gain higher performance compare to the conventional method [6]. Indeed, it improves predictions and exceeds baseline methods. Besides, the results can be significantly improved by applying fine-tuning [4].
Declaration of Competing Interest
The authors declare that they have no known competing financial interests or personal relationships which could have influenced the work reported in this article.
Acknowledgments
This article is funded by “Direktorat Riset dan Pengembangan Universitas Indonesia (Risbang UI)” entitled “Hibah Riset UI 2020 dengan skema Publikasi Terindeks Internasional Doktor (PUTI Doktor 2020)” Nomor: NKB-565/UN2.RST/HKP.05.00/2020. The authors stated that there was no conflict of interest.
Footnotes
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.dib.2020.106061.
Appendix. Supplementary materials
References
- 1.Sasongko A.T., Ivan Fanany M. 2019 2nd Int. Semin. Res. Inf. Technol. Intell. Syst. ISRITI 2019. 2019. Indonesia toll road vehicle classification using transfer learning with pre-trained resnet models; pp. 373–378. [Google Scholar]
- 2.G. Li, “Special treatment of video image based on FFmpeg,” vol. 137, no. Jiaet, pp. 266–271, 2018.
- 3.L. Zheng, Y. Zhao, S. Wang, J. Wang, and Q. Tian, “Good practice in CNN feature transfer,” arXiv:1604.00133, 2016.
- 4.Talo M., Baloglu U.B., Yıldırım Ö., Rajendra Acharya U. Application of deep transfer learning for automated brain abnormality classification using MR images. Cogn. Syst. Res. 2019;54:176–188. [Google Scholar]
- 5.“Keras Data Augmentation.” [Online]. Available:https://keras.io/api/preprocessing/image/. [Accessed: 28-May-2020], 2020.
- 6.Jo S.Y., Ahn N., Lee Y., Kang S. 2018 Int. SoC Des. Conf. 2018. Transfer learning-based vehicle classification; pp. 127–128. [Google Scholar]
