Regulation of the inflammatory cycle by a controllable release hydrogel for eliminating postoperative inflammation after discectomy

Abstract

Surgery is the final choice for most patients with intervertebral disc degeneration (IDD). Operation-caused trauma will cause inflammation in the intervertebral disc. Serious inflammation will cause tissue defects and induce tissue degeneration, IDD recurrence and the occurrence of other diseases. Therefore, we proposed a scheme to treat recurrence after discectomy by inhibiting inflammation with an aspirin (ASP)-loaded hydrogel to restore the mechanical stability of the spine and relieve local inflammation. ASP-liposomes (ASP-Lips) were incorporated into a photocrosslinkable gelatin-methacryloyl (GelMA) via mixing. This material can effectively alleviate inflammation by inhibiting the release of high mobility group box 1 (HMGB1) from the nucleus to the cytoplasm. We further assessed the expression of inflammatory cytokines, such as interleukin 6 (IL-6) and tumor necrosis factor-α (TNF-α), and degeneration-related factors, such as type II collagen (COL-2), Aggrecan, matrix metallopeptidases-3 (MMP-3), MMP-13, a disintegrin and metalloproteinase with thrombospondin motifs-4 (ADAMTS-4) and ADAMTS-5 in rat nucleus pulpous cells. The level of IDD was analyzed through H&E, safranin-O staining and immunohistochemistry in rabbit samples. In vitro, we found that ASP-Lip@GelMA treatment significantly decreased inflammatory cytokines, MMP-3 and -13, and ADAMTS-4 and -5 and up-regulated COL-2 and Aggrecan via the inhibited release of HMGB-1 from the nucleus. In vivo, ASP-Lip@GelMA can effectively inhibit inflammation of local tissue after disc surgery and fill local tissue defects. This composite hydrogel system is a promising way to treat the recurrence of IDD after surgery without persistent complications.

Graphical abstract

Highlights

• •Injectable and photocrosslinkable drug-incorporated composite hydrogels were prepared.
• •Hydrogels with drug-loaded liposomes offer controllable release drug.
• •Composite hydrogel can reduce tissue inflammation caused by operation.
• •Composite hydrogels have shown great promise in preventing postoperative recurrence.

1. Introduction

Low back pain (LBP) is not a fatal condition, but it constitutes a significant global public health problem [1,2]. One study indicated that intervertebral disc degeneration (IDD) is the most common reason for LBP [3]. Current therapies for LBP focus on surgery, which can significantly release nerve compression and attenuate pain caused by the protrusion of the nucleus pulposus (NP) [4]. The trauma of tissue caused by the operation will induce inflammation of local tissue, and serious inflammation will lead to the degeneration, and induce disease recurrence or the occurrence of other diseases [5]. Therefore, it is very necessary to inhibit postoperative inflammation.

Inflammation is an important and complex pathophysiological process. Tumor necrosis factor-α (TNF-α) can upregulate metalloproteinase activity and gene expression, reducing the synthesis of collagen and proteoglycans. Additionally, interleukin (IL)-6 could induce aggregation and activation of immune cells and release inflammatory mediators [6,7]. Recent studies have examined the inflammatory microenvironment. The inflammatory microenvironment mainly refers to inflammatory cells and inflammatory factors, which become essential pathological factors in the occurrence and development of inflammatory diseases. Additionally, under the influence of the inflammatory microenvironment, the reaction time of inflammation differs [8,9]. For example, after discectomy, the inflammatory cycle can be sustained for more than 14 days [7,10]. Furthermore, studies have shown that TNF-α, IL-1β and IL-6 play an important role in the acute phase [7]. The regulator high mobility group box 1 (HMGB1) determines the cycle of chronic inflammation [11,12]. Therefore, controlling the expression of inflammatory factors is very important for the control of postoperative inflammation after discectomy.

Currently, the control of postoperative inflammation mainly depends on oral drugs, such as celecoxib. However, due to the lack of vascular tissue in the intervertebral disc, oral medication alone cannot provide effective concentrations locally, and for some patients, such as those with gastric ulcers and hypertension, there are unavoidable additional side effects [13]. Controllable release of aspirin could decrease potentially side effects and allowed less administration [14]. Other methods, such as physical therapy strengthening and muscle training, are also considered to improve clinical symptoms after surgery, but there is no effective research and clinical effect statistics [4,15]. Therefore, injecting anti-inflammatory functional materials into the defect tissue after discectomy is a feasible strategy to control the inflammation microenvironment locally.

Gelatin modified by methacrylic anhydride (GelMA) hydrogel offers a novel choice as a carrier for controllable release of anti-inflammatory drugs due to its similarity to the natural extracellular matrix and excellent biocompatibility [16,17]. In addition, a photocrosslinking agent to GelMA can be used for local curing and is beneficial for the repair of tissue defects. Liposomes in the hydrogel delivery system could increase the release of hydrophobic drugs and further improve bioavailability, avoid burst drug release, and reduce toxicity and side effects. Meanwhile, GelMA could protect the integrity of liposomes and improve their stability [18,19]. In this study, we designed a photocrosslinkable GelMA hydrogel-based drug delivery system with improved aspirin release, injectability and fixation properties to prevent tissue re-protrusion and degeneration after discectomy. After injection, the composite GelMA drug delivery system could fill the defect and provide the necessary mechanical support after being crosslinked, alleviating the degeneration process aggravated by mechanical changes. The locally released aspirin could inhibit the postoperative inflammatory response of residual tissue and effectively delay the development of degeneration. Finally, aspirin and GelMA have been widely applied and intensively studied, and their safety and reliability have been widely verified, thus supporting the clinical application of the GelMA drug delivery system (see Scheme 1).

Scheme 1.

Composite hydrogel (ASP-Lip@GelMA) for preventing recurrence after partial discectomy.

2. Methods and materials

2.1. Ethics statement

This study was approved by the First Affiliated Hospital of Soochow University Ethics Committee (No. 201903A012). Animal operations, interventions, treatments, and feed were provided in accordance with the guidelines of the animal center of Soochow University, Suzhou, China.

2.2. Reagents and antibodies

Aspirin (ASP), methacrylic anhydride (CAS: 760-93-0) and PI (CAS: 106797-53-9) were purchased from Sigma-Aldrich (St. Louis, USA). Additionally, rabbit anti-rat collagen-2 (COL-2) (ab34712), matrix metalloproteinase-3 (MMP-3) (ab52915), IL-1β (ab9722), TNF-α (ab6671), IL-6 (ab9324) and goat anti-rabbit immunoglobulin G H&L (Alexa Fluor® 488) (ab150077) antibodies were purchased from Abcam (Shanghai, China). β-Actin and DAPI were purchased from Beyotime (Shanghai, China). Lecithin (CAS: 8002-43-5) and cholesterol (CAS: 57-88-5) were purchased from Macklin (Shanghai, China). Gelatin (lot No. 180LB8) was purchased from Rousselot (Angoulême, France).

2.3. Fabrication and characterization of liposomes

ASP-loaded liposomes (ASP-Lips) were fabricated by the film dispersion method, according to previous reports [16,20]. Lipids and ASP were dissolved in chloroform concurrently (50:1, w/w). The solution of these composite materials was to remove the organic solution at a speed of 100 r/min in the rotary vacuum evaporator, and the temperature of the water bath was 30 °C. After gentle evaporation, a homogeneous thin foveolate film formed in the flask. Furthermore, preheated deionized water (DI water) was utilized to hydrate the film with rotation (100 r/min) and heating (30 °C). Subsequently, primary drug-loaded liposomes were generated, and the solution was ultrasonicated and extruded through polycarbonate membranes with different diameters (0.45 μm and 0.22 μm). Then, ASP-loaded liposomes were fabricated. Under the protection of trehalose, these liposomes were lyophilized to produce powdered ASP-Lips.

ZetaSizer (Zen 4003, Malvern Instruments, Ltd, UK) was used to evaluate the properties of the ASP-Lips (the average particle size, zeta potential, and size distribution). In addition, transmission electron microscopy (TEM) (FEI Tecnai G-20) was used to observe the ASP-Lips morphology.

Centrifugal ultrafiltration was used to separate unloaded ASP, and the concentration of the free drug was measured via high-performance liquid chromatography (HPLC) to evaluate the ASP entrapment efficiency. After centrifugation, the sedimented solution was gathered and examined to evaluate the concentration of the unloaded drug by HPLC using the ODS column analysis at room temperature. For ASP, the mobile phase included methyl cyanide and water (250:750 v/v). The flow rate was set to 1.0 mL/min, with a 207-nm detection wavelength. To further observe the drug release behavior of ASP-Lips, the sample was immersed in 50 mL of fresh PBS. Then, at fixed time intervals, the midum was colloected, and HPLC was used to evaluate the concentration of ASP.

2.4. Hydrogel preparation and investigation

2.4.1. The preparation of gelatin-methacryloyl

GelMA was prepared under the previously reported procedure [21]. Twenty grams of gelatin was added to PBS (200 mL) at 60 °C under constant stirring until the gelatin was completely dissolved. Next, 16 mL of methacrylic anhydride was added dropwise to the gelatin within 1 h. After 2 h, 800 mL of preheated PBS was added dropwise within 15 min, followed by continuous stirring to stop the reaction. Afterward, products were sealed in a dialysis bag (MW = 8000–12000) and dialyzed for a week to remove unreacted methacrylic anhydride. After 7 days, the solution was collected from the dialysis bag and heated to 60 °C, and the solution was then filtered through a microporous membrane (220 nm). Finally, the fluid was stored at −80 °C for 12 h and lyophilized to produce GelMA.

2.4.2. Hydrogel preparation

A total of 60 mg of lyophilized ASP-Lips powder was weighed and dissolved in 1 mL of DI water. The precrosslink solution (ASP-Lip@GelMA) was prepared from PI (w/w) and GelMA (20%, w/w). At the same time, 60 mg of the same quality ASP as that contained in the ASP-Lip@GelMA was weighed and dissolved in 1 mL of DI water to prepare the ASP-GelMA precrosslink solution. Then, these solutions were poured into a module. Ultraviolet (UV) lighting at 6.9 mW/cm² was utilized to crosslink the two solutions; for each hydrogel, the lighting process lasted 10 s.

2.4.3. Hydrogel characterization

After freeze-drying, the ASP-Lip@GelMA sample was fixed on the specimen platform. Gold produced by the sputter coater was used to cover the sample, and the samples were observed by SEM. Randomly selected parts of the hydrogel were selected for further analyses of the interaction between the liposomes and the hydrogel.

The mechanical properties of the ASP-GelMA (control group) and ASP-Lip@GelMA were observed by an equivalence force test instrument in compression tests. To evaluate the swelling ability of the hydrogel, the samples were first freeze-dried. Then, the hydrogels were weighed, and this weight was regarded as the original weight (W₀). Afterward, the hydrogels were immersed in PBS. At varying time points, the hydrogels were weighed, and the amount was recorded as W_t. Then, the swelling percentage of the hydrogel was calculated according to the following formula:

$$Swellingpercentage(\%)=\frac{W_t-W_0}{W_0}\times 100\%$$

Moreover, the degradation of hydrogels was also examined in this study. Hydrogels were soaked in PBS at 37 °C for 1 day to achieve the equilibrium swelling state. Then, the original mass (W^’₀) was recorded. The degradation test was performed in collagenase-2 solution (2 U/mL) at 37 °C. At set time points, the remaining masses were regularly recorded as W^'_t, and degradation kinetics were tracked using the degradation formula:

$$\text{Remaining}\text{masses}(\%)=\frac{{{\text{W}}^{\text{'}}}_t}{{{\text{W}}^{\text{'}}}_0}\times 100\%$$

The release behavior of ASP was measured in the ASP-GelMA and ASP-Lip@GelMA groups in vitro. Specifically, ASP-GelMA hydrogel and ASP-Lip@GelMA hydrogel were soaked in the PBS for varying times. Each time, all medium was completely replaced with the fresh PBS. Then, the concentration of ASP in these medium was detected by HPLC-UV.

2.5. Nucleus pulposus cell (NPC) culture

Nucleus pulpous cells were collected from caudal discs 1 to 5 [22]. The nucleus pulposus tissues were digested with collagenase-II (0.5%) for 2 h at 37 °C. Then, the digested tissues were cultured with the F-12 DMEM (Gibco, USA) with 10% fetal bovine serum (Gibco, USA) and 1% antibiotics (Gibco, USA). Incubator parameters were set at 37 °C and 5% carbon dioxide. When cells reached confluence, harvesting was completed using Trypsin- EDTA (0.25%) (Gibco, USA). The NPCs were divided into three experimental groups, as follows: (1) Control: the NPCs were cultured on the GelMA-liposomes (GelMA-Lip) without ASP for 24 h; (2) Vehicle: the NPCs were cultured on the GelMA-Lip without ASP, and the lipopolysaccharides (LPS) (1 μg/mL) was added for 24 h; (3) ASP-Lip@GelMA group: the NPCs were cultured on the ASP-Lip@GelMA, and the LPS (1 μg/mL) was added for 24 h.

2.6. Cell adhesion and viability assay

NPCs (5 × 10⁴ cells/well) were cocultured with different material groups in 48-well plates. Then, the morphology of the NPCs was observed through SEM. NPC viability were measured with the CCK-8 kit (Dojingdo, Japan), and a live-death assay kit (Sigma-Aldrich, USA) was used to observe the influence of the material on NPCs.

2.7. Enzyme-linked immunosorbent assay (ELISA)

IL-6, TNF-α, and HMGB1 concentrations in the cell culture supernatants were measured by the ELISA kit (Shino-Test, Japan; R&D, USA). Briefly, NPCs were pretreated with/without aspirin and incubated with IL-1β (10 ng/mL). Then, culture supernatants were collected and transferred to anti-IL-6-, TNF-α- or HMGB1-coated wells. Secondary polyclonal antibody was added for 2 h, followed by the addition of substrate solution to the reaction for 15 min. Finally, the absorbance (450 nm) was measured using the microplate reader.

2.8. Real-time polymerase chain reaction (RT-PCR)

RNA was extracted from NPCs using TRIzol reagent (Invitrogen, USA). Each reaction volume of PCR amplification was 20 μL, as follows: 1 μL of complementary DNA, 10 μL of Master Mix (Hayward, US), 0.5 μL of each primer and 8 μL of DEPC water. The sequence of primers is shown in Table 1.

Table 1.

The primer sequence of RT-PCR.

Gene name	NCBI ID	Forward primer (5′-3′)	Forward primer (5′-3′)
GAPDH	24383	GCAAGTTCAACGGCACAG	CGCCAGTAGACTCCACGAC
Collagen 2	25412	GAGTGGAAGAGCGGAGACTACTG	CTCCATGTTGCAGAAGACTTTCA
Aggrecan	58968	TACGACGCCATCTGCTACAC	TCGAAGATGGGCTTTGCAGT
MMP-3	171045	TTTGGCCGTCTCTTCCATCC	GCATCGATCTTCTGGACGGT
MMP-13	171052	TCCATCCCGAGACCTCATGT	AGCATCATCATAACTCCACACG
ADAMTS-4	66015	CGTTCCGCTCCTGTAACACT	TTGAAGAGGTCGGTTCGGTG
ADAMTS-5	304135	GCCTGCAAGGGAAATGTGTG	GGCGGAAAGATTTGCCGTTAG

2.9. Western blot assay

Total protein was isolated using RIPA buffer (Beyotime, China). Then, 30 μg of protein was separated by SDS-PAGE and transferred to a polyvinylidene difluoride membrane (Bio-Rad, USA). Following blocking with BSA (5%), the membrane was incubated with the different primary antibodies and β-actin (1:5000) overnight at 4 °C. Then, the samples were washed for 20 min with TBST, followed by secondary antibodies. Last, the bands were added to the electrochemiluminescence reagent (ThermoFisher, USA), and the intensity of the sample bands was quantified with Image Lab 3.0 software (Bio-Rad, USA).

2.10. Immunocytochemical (ICC) staining

NPCs were cultured in 48-well culture slides and fixed in formaldehyde (4 °C) for 10 min. Then, samples were incubated with 5% FBS for 1 h. Next, NPCs were incubated with primary antibodies of COL-2 (1:500) or MMP-3 (1:500) for 16 h. The next day, the NPCs were incubated with the Alexa Fluor 488 (1:1000) secondary antibody for 2 h. Then, the samples were counterstained with DAPI for 20 min.

2.11. Experimental animals

Male Sprague-Dawley (SD) rats (3 months -old, 450 ± 50 g) and male New Zealand white rabbits (1 year -old, 4000 ± 500 g body weight) were purchased from the Experimental Animal Center of Soochow University (Suzhou China).

2.12. Surgical procedures and groups

In this study, four groups were established, which included a normal group (control group), a defect group (vehicle group), an ASP-GelMA treatment group, and an ASP-Lip@GelMA treatment group. All animals were fasted for 12 h and deprived of water for 6 h before anesthetizing them with an intramuscular injection of 2% pentobarbital. The fur of the animals was removed from the dorsal surface. Through the anterolateral approach, we contacted the front of the spine. The IDD model was established by rabbits via disc puncture with an 18G needle at lumbar vertebrae 2–3, 3–4 and 4–5; the defect of the annulus fibrosus was considered established after extirpation of the intervertebral disc [23,24]. After puncturing the annulus fibrosus, the procedures used in previous studies were followed to ensure the defect was established [[25], [26], [27]]. To exclude the effects of individual differences in laboratory animals, we performed the four operations on the same rabbit. We defined the L1-2 rabbits as the control group (normal disc), L2-3 as the vehicle group (degeneration disc), L3-4 as the ASP-Lip@GelMA injection group and L4-5 as the ASP-GelMA injection group. To exclude the influence of the operation, the injected volume was 4 μL, the depth was 5 mm, and the position was the nucleus pulposus center. All injections were performed with a 1 mL injector through an 18G needle, and this did not induce degenerative disc changes.

2.13. In vivo mechanical compression test

Rabbits were selected randomly, overdosed with anesthesia, and executed with pentobarbital sodium. To avoid errors in the mechanical test caused by differences in the anatomical structure, we chose the L2-3 vertebral body as the experimental object. The tooth powder (Boer Chemical, Shanghai) was embedded in the upper and lower ends of the vertebral bodies. Then, they were polished to keep them parallel. Each group (n = 5) was tested in the mechanical testing machine (Hengyi, Shanghai).

2.14. Imaging examination and analysis

After 1 and 2 weeks following initial annulus puncture, 20 rabbits were randomly selected for X-ray and MRI assessments. Lumbar computed radiography (CR) imaging was performed by a Small Animal Digital X-ray Imaging System (SEDECAL, Spain), and MRI tests were performed via a 3.0 T system (Siemens, German).

The radiographic results were analyzed by a PACS system (Neusoft, China) by two independent radiologists. We obtained the value of the disc height index (DHI) according to Lu [28]. The change in DHI was expressed as DHI %. Referring to the modified Thompson classification [29], the T2-weighted MRI images were classified as grade I to grade IV [27].

2.15. Histological and immunohistochemical (IHC) analyses

Excessive pentobarbital sodium anesthesia was used to euthanize the rabbits. Samples were fixed in formalin (10%) for 3 days and decalcified through EDTA (10%) for 40 days. After embedded into the wax, samples were stained with H&E and safranin O - Fast green. Histological grading was performed as described by Masuda [29]. The expression of TNF-α (1:200), IL-1β (1:1000), IL-6 (1:1000), collagen-2 (1:200), and MMP-3 (1:100) in the intervertebral disc tissues was assessed by IHC staining.

2.16. Statistical analysis

In this study, data are expressed as the mean ± standard deviation (SD) or fold change. All of the experiments were conducted at least three times independently. Statistical significance was determined using one-way analysis of variance (ANOVA) with Tukey's post hoc multiple comparisons tests. *P < 0.05 was considered statistically significant.

3. Results

3.1. Composite hydrogel characterization

As the fundamental element of the composite hydrogel system, ASP-Lips were comprehensively investigated (Fig. 1A–D). As shown in Fig. 1A and B, the diameter and zeta potential of ASP-Lips were explored by dynamic light scattering (DLS) and electrophoretic light scattering (ELS). The results indicated that the median diameter of ASP-Lips was approximately 141.8 nm, and the median zeta potential was 11.2 mV. Furthermore, the morphology of ASP-Lips was explored by transmission electron microscopy (TEM), as shown in Fig. 1C. The ASP-Lips exhibited a round appearance and bilayer structure. The liposome loaded with ASP significantly improved the hydrophobicity of the ASP. Within 24 h, the aspirin release was close to 80%, which could improve the local bioavailability of the drug (Fig. 1D). The interaction between ASP-Lips and the GelMA hydrogel network is shown in the schematic diagram in Fig. 1E. The hydrogel exhibited excellent morphological properties (rounded and uniform-sized pores and a thin wall) as observed by scanning electron microscopy (Fig. 1F). Then, a random area with some spherical particles on the surface of the hydrogel was selected, and the diameters of the particles were evaluated. A diameter of 126.3 nm was observed, similar to the diameter of the ASP-Lips (Fig. 1G). Next, 100 pores were randomly selected, and the average diameter was 21.45 ± 10.76 μm (Fig. 1H).

Fig. 1.

Characterization of the hydrogels and ASP-Lips. (A) The ASP-Lips particle size. (B) The zeta potential of ASP-Lips. (C) TEM images of ASP-Lips; scale bar, 100 nm. (D)The release percentage of ASP-Lips. (E) Schematic diagram of the interaction between ASP-Lips and the GelMA hydrogel. (F) SEM images of the hydrogel; scale bar, 200 μm. (G) The magnification of the selected area; scale bar, 500 nm. (H)The pore size distribution.

The process of crosslinking is shown in Fig. 2A and B. After 10 s of UV irradiation, the pre-crosslinking solution formed the composite hydrogel. As shown in Fig. 2C and D, the micro-crosslinking of the liposomes and hydrogel limited the process of water penetration and decreased the rate of composite material degradation. The swelling ratio of the aspirin-loaded liposomes@gelatin-methacryloyl (ASP-Lip@GelMA) ranged from 371.81 ± 2.48% to 384.92 ± 6.64% and was always lower than that of the aspirin-gelatin-methacryloyl (ASP-GelMA), which ranged from 538.53 ± 19.43% to 617.93 ± 78.55% during the 24 to 100-h period (Fig. 2C)(P < 0.05). Similarly, at day 16, the mass of the remaining ASP-GelMA was 0 g. However, the ASP-Lip@GelMA was completely degraded until day 24 and was longer than the ASP-GelMA at 37 °C (Fig. 2D). Controlled ASP release was investigated in ASP-Lip@GelMA and ASP-GelMA. As shown in Fig. 2E, ASP-Lip@GelMA (85.43 ± 2.30%) exhibited a higher cumulative release percentage than ASP-GelMA (68.89 ± 1.14%) (P < 0.05), which is mainly attributable to the improvement in the dispersion of ASP in the ASP-GelMA by the liposomes. In the hydrogel network, nitrogen is likely to form the hydrogen bond on the surface of the liposomes through phosphorus and oxygen, which will enhance the mechanical strength in the composite hydrogel (Fig. 2F–I).

Fig. 2.

Characterization and mechanical examination of the hydrogels. (A) ASP-Lip@GelMA solution. (B) The ASP-Lip@GelMA after photocrosslinking. (C) Mass Swelling curve of ASP-Lip@GelMA and ASP-GelMA. (D) Remaining mass percentage of ASP-Lip@GelMA and ASP-GelMA. (E) The drug release profile of ASP-Lip@GelMA and ASP-GelMA. (F) ASP-Lip@GelMA and ASP-GelMA compression experiments. (G) Resistance force. (H) Percentage of compression. (I) Compression modulus. (*P < 0.05 vs. ASP-GelMA group).

3.2. Cell adhesion and proliferation on the hydrogel

To determine the biological safety of composite hydrogel, we investigated the proliferation of NPCs in different material groups. The results showed that the hydrogel and drug combination did not influence NPC proliferation; moreover, the proliferation in the ASP-Lip@GelMA group was greater than that in the other groups at 1–7 days (Fig. 3A). NPCs were seeded in the different material groups to examine the proliferation capacity. The co-culture results are shown in Fig. 3B. After 1 day, the two material surfaces showed the same level of NPC adhesion. Additionally, there was no significant difference in the materials group compared with the control group. NPC pseudopodia were widely connected with materials and cells, as well as between cells themselves, covering all material surfaces and becoming confluent. Furthermore, we tested the toxicity of the materials via live-dead staining (Fig. 3C). The data showed that there was no effect on cell activity among the different material groups after 5 days.

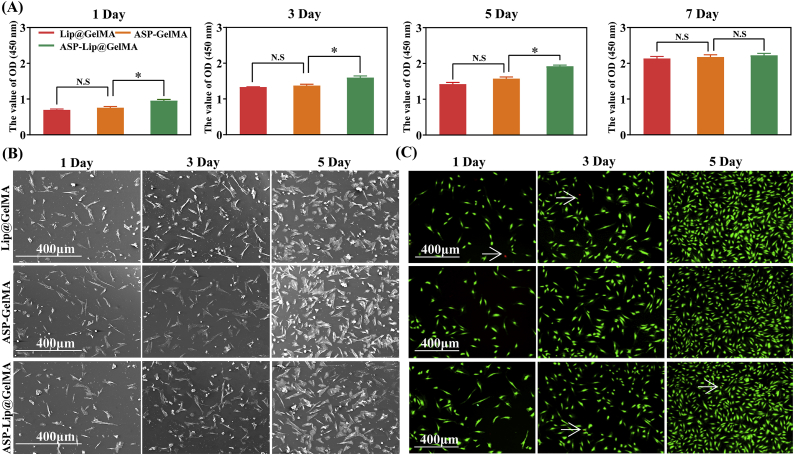

Fig. 3.

Cell adhesion and proliferation of NPCs in the hydrogel. (A) The proliferation of NPCs were cultured on different materials for 1, 3, 5, and 7 days was assessed using a CCK-8 kit. (B) SEM images of cells on the hydrogel after seeding for 1, 3, and 5 days; scale bar, 400 μm. (C) Live−dead staining of cells cultured on the hydrogel for 1, 3, and 5 days. White arrow: dead cell. Green: living cell. Red: dead cell; scale bar, 400 μm (*P < 0.05 vs. ASP-GelMA group; no significant difference is indicated with N.S.).

3.3. Evaluation of the in vitro anti-inflammatory effect of the composite hydrogel

To identify the anti-inflammatory effect of ASP-Lip@GelMA in vitro, we performed an ELISA on NPCs stimulated with IL-1β and cocultured with the test materials. Compared with the control group, the vehivle group (IL-1β-treated) exhibited increased expression levels of TNF-α (~32.91-fold) and interleukin-6 (IL-6) (~4.04-fold; P < 0.05). Additionally, the ASP-Lip@GelMA group showed effective anti-inflammatory effects (TNF-α: ~0.22-fold; IL-6: ~0.34-fold) (P < 0.05).

The RT-PCR results indicated that IL-1β treatment reduced the expression of COL-2 (~0.21-fold) and aggrecan (~0.19-fold) while increasing the expression of MMP-3 (~2.12-fold) and MMP-13 (~3.11-fold) (P < 0.05). Furthermore, compared with the control group, the IL-1β-treated group displayed noticeably increased expression of the ADAMTS-4 (~1.89-fold) and ADAMTS-5 (~2.33-fold) (P < 0.05). Importantly, the process of degeneration was reversed in the ASP-Lip@GelMA group (Fig. 4D–I). The same results were observed with ICC staining. Fig. 4J shows that the loss of collagen-2 was significantly prevented in the ASP-Lip@GelMA group; furthermore collagen-2 distribution around the nucleus was increased in NPCs, while the expression of MMP-3 was significantly inhibited. Additionally, in the ASP-Lip@GelMA group, ASP, which was released into the culture medium, alleviated the progression of degeneration by inhibiting the expression of proinflammatory factors.

Fig. 4.

ASP-Lip@GelMA attenuates inflammation and improves IDD. (A–C) The expression of TNF-α, IL-6 and HMGB1 was assessed. (D–I) RT-PCR results of collagen-2, aggrecan, MMP-3, MMP-13, ADAMTS-4, and ADAMTS-5 expression were obtained. (J) Representative image of immunofluorescence staining of collagen-2 and MMP-3 in NPCs; scale bar, 200 μm. (#P < 0.05 vs. control group, *P < 0.05 vs. vehicle group).

It is worth noting that the HMGB1 expression was significantly increased (~9.31-fold) in the IL-1β-treated group (P < 0.05). The ASP-Lip@GelMA group showed significantly reduced HMGB1 expression (~0.51-fold, P < 0.05; Fig. 4C). To clarify the localization of HMGB1, we separated the nuclear and cytoplasmic fractions. The results showed that the level of HMGB1 in the nucleus decreased (~0.78-fold) after IL-1β treatment, while the level in the cytoplasm increased significantly (~1.47-fold, P < 0.05; Fig. 5A–D). The same results were observed for ICC staining (Fig. 5E). The HMGB1 was concentrated in the nucleus in the control group. Additionally, after IL-1β stimulation, HMGB1 was secreted into the cytoplasm, and its expression in the nucleus decreased.

Fig. 5.

ASP-Lip@GelMA attenuates HMGB1 expression in Cytoplasm. (A, B) WB results of nuclear HMGB1 and (C, D) cytoplasmic HMGB1 levels. (E) Representative image of HMGB1 immunofluorescence staining in NPCs; scale bar, 200 μm (#P < 0.05 vs. control group, *P < 0.05 vs. vehicle group).

3.4. The composite hydrogel material attenuates degeneration after surgery

Exogenous ASP-Lip@GelMA was injected in the rabbit disc defect model by needle puncture. We selected the destruction of the internal structure (in the IDD model) or the protrusion of the nucleus pulposus from the defect as the endpoints of the study. The composite hydrogel showed excellent sealing properties of the defect. Similar to the in vitro results, at the same research endpoint, the composite hydrogel enhanced the mechanical stability of the intervertebral disc compared with the vehicle group (Fig. 6A–E).

Fig. 6.

In vivo compression test. (A) Compression test schematic diagram. (B) The compression results for the control, vehicle, ASP-Lip@GelMA, and ASP-GelMA groups. (C) The resistance force, (D) compression modulus, and (E) percentage of compression were assessed (#P < 0.05 vs. control group, *P < 0.05 vs. vehicle group).

At 7 days after the initial annulus puncture, the vehicle group had a weaker MRI signal than the control group. The grade was 3.60 ± 0.31, and the difference became more obvious at 14 days (4.00 ± 0.30; Fig. 7A and B). ASP-Lip@GelMA treatment efficiently increased the MRI signal intensity and decreased the degeneration grade compared with the vehicle treatment. Throughout the study cycle, the CR imaging showed that a normal DHI% was maintained in the ASP-Lip@GelMA group (from 89.17 ± 11.22% to 84.81 ± 21.52%) compared with the vehicle group (from 75.15 ± 7.92% to 71.17 ± 12.35%) (P < 0.05). However, the intervertebral height still gradually decreased as the degeneration progressed (Fig. 7C and D).

Fig. 7.

Aspirin alleviates IDD in vivo. (A) Representative MRI showing the intervertebral disc signal intensity. (B) MRI grade statistics. (C) Representative X-ray image. (D) DHI %. (#P < 0.05 vs. control group, *P < 0.05 vs. vehicle group).

The H&E staining (Fig. 8A) showed a defect of the annulus fibrosus (AF) and a severe decrease in nucleus pulposus (NP) in the defect group. However, the defect was reduced in the ASP-Lip@GelMA treatment group. The histological grade was 6.33 ± 0.57 in the ASP-Lip@GelMA group and 14.33 ± 3.05 in the vehicle group (P < 0.05; Fig. 8C). In the ASP-GelMA treatment group, there was no significant defect in the AF, and the decrease in the NP was not significantly changed, but it was slightly worse than that in the ASP-Lip@GelMA treatment group. Safranin-O staining results are shown in Fig. 8B. In the control group, the NP was filled with collagen-2, while the vehicle group demonstrated reduced collagen-2 levels and a significant defect area in the nucleus pulposus. The structure within the ASP-Lip@GelMA and ASP-GelMA treatment groups was relatively intact, and the loss of collagen-2 was reduced. The histological grade (Fig. 8D) indicated that the ASP-GelMA (7.23 ± 1.02) and ASP-Lip@GelMA (7.02 ± 2.18) treatment groups had complete tissue, and the grading scores were much lower than those of the vehicle group (14.12 ± 2.08, P < 0.05).

Fig. 8.

Morphological staining in vivo. Representative paraffin sections with (A) H&E and (B) safranin-O staining. (C, D) Histological grades were determined (#P < 0.05 vs. control group, *P < 0.05 vs. vehicle group). Scar bar, 800 μm.

Proinflammatory cytokines play essential roles in IDD. Therefore, we inspected the protective effects of ASP-Lip@GelMA in the rabbit IDD model. Results (Fig. 9AandB) showed higher MMP-3 (~7.47-fold), IL-1β (~2.34-fold), IL-6 (~2.30-fold) and TNF-α (~2.01-fold) expression in the vehicle group, while the ASP-Lip@GelMA group exhibited significantly downregulated expression of these cytokines (P < 0.05). Additionally, compared with the vehicle group, ASP-Lip@GelMA treatment obviously increased the expression of COL-2 (~3.08-fold, P < 0.05). These results indicated that the GelMA hydrogel drug delivery system can inhibit the inflammatory response and improve degeneration in vivo.

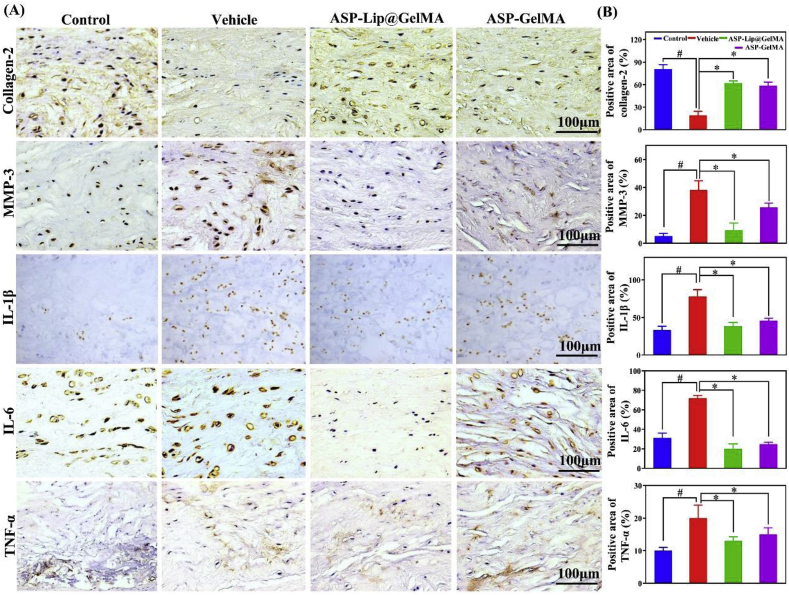

Fig. 9.

IHC staining in vivo. (A) Representative paraffin-embedded section with IHC staining for collagen-2, MMP-3, IL-1β, IL-6 and TNF-α in nucleus pulposus tissue; scale bar, 100 μm. (B) Quantitative statistics for collagen-2, MMP-3, IL-1β, IL-6 and TNF-α staining (#P < 0.05 vs. control group; *P < 0.05 vs. vehicle group).

4. Discussion

One study shows that after lumbar discectomy, some changes of pathogeny, such as biomechanics change, will induce the recurrent lumbar disc herniation (RLDH) and reoperation [30]. Some researchers have reported that this incidence could reach 62% [31]. However, conservative treatment of RLDH remains unclear [30], and the reoperation cost is more than $30,000 [32]. Thus, the prevention of RLDH is an important subject in orthopedics research. This study demonstrated that the controllable release of aspirin from the GelMA hydrogel drug delivery systems attenuated inflammation and improved degeneration. The composite ASP-Lip@GelMA hydrogel sustained the mechanical stability of the local defect.

The most important source of reherniation is inflammation [33]. In inflammation, many inflammatory cells, such as neutrophils and lymphocytes, gather in the tissue to form an inflammatory response and have the functions of secreting corresponding molecular mediators of inflammation, such as IL-1β, IL-6, and TNF-α. Importantly, the increased concentration of inflammatory cytokines was observed in pathological disc tissue; additionally, with the increasing grade of degeneration, the concentration of these cytokines will increase [34,35]. These inflammatory mediators could affect the function of mitochondria and protein synthesis, leading to decreased extracellular matrix synthesis. Additionally, these inflammatory factors will upregulate the expression of MMPs and ADAMTSs, which will further degrade collagen-2 and aggrecan. Furthermore, they will cause a decrease in the extracellular matrix and increased water loss, which will further cause spinal instability [33].

Recently, many studies have examined HMGB1, which can either act as a cytokine itself or function as a potent proinflammatory mediator [12,36,37]. Through active or passive release, HMGB1 could translocate from the nucleus to the cytoplasm and induce inflammation in the extracellular medium [38]. A positive correlation was found in the interaction between HMGB1 and inflammatory cytokines. The same phenomenon has been observed in IDD [36]. Anti-HMGB1 neutralization can attenuate LBP in rats [11]. Thus, there is strong evidence that HMGB1 could be a therapeutic target to attenuate the inflammatory reaction, leading to improved IDD. In the present study, the controlled release of aspirin affected HMGB1 expression and resulted in a decrease in inflammatory cytokine concentration. In our experiment, by inhibiting the migration of HMGB1 from the nucleus to the cytoplasm, we effectively controlled the inflammatory response, which provided a theoretical basis for regulating the inflammatory cycle.

Due to the important pathological role of inflammation in recurrence after discectomy, it is very important to control postoperative inflammation. However, the anatomical characteristics of the nucleus pulposus are not compatible with a single oral drug. Therefore, we designed and developed an injectable and anti-inflammatory hydrogel. GelMA is widely used in tissue engineering and various biomedical applications because GelMA closely resembles the native extracellular matrix of cells and has cell attachment and MMP-responsive peptide motifs. In this research, these advantages of GelMA allow nucleus pulposus cells to normally proliferate and have no adverse effects on cells [39,40]. Furthermore, GelMA can crosslink under the mild crosslinking conditions by a photoinitiator and form a 3D porous structure to carry both aspirin and ASP-Lips. Additionally, the properties, such as biodegradability and mechanical properties, of GelMA are tunable by adjusting the graft ratio of methacrylate. It can be easily combined with other hydrogels, such as alginate, chitosan, and composite PEG hydrogels for different biomedical applications [41,42]. As a self-assembling vesicle structure, the liposome can encapsulate both water-soluble and fat-soluble drugs. However, it is difficult to inject liposomes in localized intervertebral disc tissue because liposomes are in liquid form, which can easily leak from the injected area. In addition, it is difficult to maintain a specific local concentration. However, the porous structure of GelMA can provide space to contain and protect liposomes [18,19]. Additionally, the liposome could improve the dispersion of hydrophobic drugs in the GelMA hydrogel and improve the bioavailability of these hydrophobic drugs. At the same time, the slowed degradation of the ASP-Lip@GelMA further prolonged the drug release time. Importantly, GelMA and liposomes further form micro-crosslinked structures by hydrogen bonding. Our results showed that the ASP-Lip@GelMA exhibited excellent stress resistance to restore local mechanical stability compared with a single hydrogel.

In mechanical experiments, we used compression testing to observe the mechanical properties of hydrogels. Our results showed that ASP-Lip@GelMA could withstand more than 400 kPa pressure, which is close to some physiological conditions [43]. In addition, the spine is composed of the vertebral body and intervertebral disc, and previous studies have determined compressive modulus values ranging from 5 to 35 kPa [[44], [45], [46], [47], [48]]. In this study, the compression modulus of the ASP-Lip@GelMA system was approximately 15 kPa and suitable for injection into the nucleus pulposus. We will further study the application of mechanically enhanced hydrogels in the intervertebral disc and new drug carriers prepared by microfluidic technology in future studies [49].

5. Conclusion

In this study, we synthesized a crosslinked GelMA hydrogel (ASP-Lip@GelMA) with anti-inflammatory characteristics. We found that the loaded-aspirin could be controllably released from the ASP-Lip@GelMA. The released aspirin can fully cover the inflammatory cycle after intervertebral disc surgery to inhibit inflammatory factor expression and attenuate the release of HMGB1, thereby preventing postoperative recurrence of disc herniation. Thus, ASP-Lip@GelMA could be an effective implant after intervertebral discectomy to prevent postoperative recurrence of disc herniation.
