Discovery of a First-in-Class Potent Small Molecule Antagonist against the Adrenomedullin-2 Receptor

Abstract

The hormone adrenomedullin has both physiological and pathological roles in biology. As a potent vasodilator, adrenomedullin is critically important in the regulation of blood pressure, but it also has several roles in disease, of which its actions in cancer are becoming recognized to have clinical importance. Reduced circulating adrenomedullin causes increased blood pressure but also reduces tumor progression, so drugs blocking all effects of adrenomedullin would be unacceptable clinically. However, there are two distinct receptors for adrenomedullin, each comprising the same G protein-coupled receptor (GPCR), the calcitonin receptor-like receptor (CLR), together with a different accessory protein known as a receptor activity-modifying protein (RAMP). The CLR with RAMP2 forms an adrenomedullin-1 receptor, and the CLR with RAMP3 forms an adrenomedullin-2 receptor. Recent research suggests that a selective blockade of adrenomedullin-2 receptors would be therapeutically valuable. Here we describe the design, synthesis, and characterization of potent small-molecule adrenomedullin-2 receptor antagonists with 1000-fold selectivity over the adrenomedullin-1 receptor, although retaining activity against the CGRP receptor. These molecules have clear effects on markers of pancreatic cancer progression in vitro, drug-like pharmacokinetic properties, and inhibit xenograft tumor growth and extend life in a mouse model of pancreatic cancer. Taken together, our data support the promise of a new class of anticancer therapeutics as well as improved understanding of the pharmacology of the adrenomedullin receptors and other GPCR/RAMP heteromers.

Introduction

The development of new therapeutic agents requires insights into the fundamental biology of target systems and the ability to modulate the target in disease without causing deleterious off-target effects elsewhere. Adrenomedullin (AM) is a potent vasodilator which acts to control blood pressure by regulating functions including vasomotor tone¹ and glomerular filtration rate.² Soon after the discovery of the hormone, profound increases in circulating AM were shown to be associated with catastrophic low blood pressure in patients with sepsis, who suffered consequent reduced organ perfusion and, in many instances, death.³⁻⁵ AM is also expressed by most tumors,⁶ leading to high serum AM levels⁷ in patients. AM-mediated actions include increased tumor growth and markers of tumor progression⁸ as well as being implicated in metastatic spread.⁹ As a target in cancer, AM is therefore compromised because reduction in circulating levels or blockade of all its actions would cause hypertension. However, there are two receptors for AM, each a heteromeric complex of the calcitonin receptor-like receptor (CLR, a class B GPCR) to which ligand selectivity is conferred by association with one of the three human receptor activity-modifying proteins (RAMPs)^10,11 (Figure 1a). While RAMPs have previously been studied primarily in the context of class B GPCRs, RAMPs have also been shown to have coevolved with many other GPCR families.^12,13 All three CLR/RAMP complexes have distinct pharmacological and physiological properties which are driven by the subtype of RAMP with which CLR interacts.¹⁴ Specifically, the CLR/RAMP1 heteromer is a receptor for calcitonin gene-related peptide (CGRP), a neuropeptide implicated in pain sensing,¹⁴ and small molecule antagonists of the CGRP receptor have been the subject of considerable research.¹⁵⁻¹⁷ The CLR with RAMP2 forms an AM₁ receptor while the CLR with RAMP3 forms an AM₂ receptor.^11,14,18 While the AM₁ receptor is essential for physiological processes including cardiovascular health,¹⁹ aberrant AM₂ receptor signaling can result in cancer-promoting pathways.^7,20−24 Despite the relatively modest structural differences of the AM receptors, their physiological roles are becoming more distinctly defined.

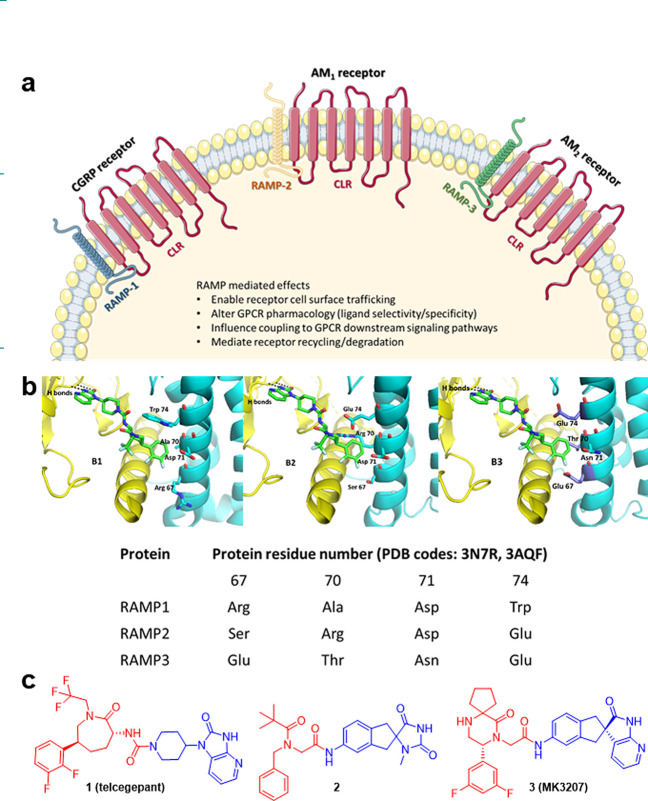

Figure 1.

Cellular role of CLR and RAMP complexes and their interactions with small molecules. (a) Interaction of CLR receptor with a different RAMP leads to three CLR/RAMP receptor complexes with distinct pharmacological and physiological properties. (b) Models of CLR/RAMP complexes with 1 (telcagepant), based on crystal structures of CGRP and AM₁ receptors (PDB codes: 3N7R and 3AQF, respectively). CLR is rendered in yellow and RAMP in cyan in each of CLR/RAMP1 (B1), CLR/RAMP2 (B2), CLR/RAMP3 (B3). RAMP residues (at 1 binding site) that differ across RAMP1/RAMP2/RAMP3 are highlighted and labeled. (c) To design analogues with increased potency against the AM₂ receptor, the CLR binding motifs (blue) were relatively conserved, whereas the RAMP binding motifs (red) were used as scaffolds for basic groups to interact with Glu residues on RAMP3.

In gene knockout mouse studies, deletion of the gene for the AM ligand leads to intrauterine death at midgestation, due to a vascular and lymphatic phenotype known as hydrops fetalis.²⁵ That phenotype is copied exactly by deletion of the CLR, which prevents the formation of both AM₁ and AM₂ receptors.²⁶ Interestingly though, RAMP2 null mice have the same phenotype,²⁷ with the same embryonic lethality, and even heterozygotes exhibit significant pathology due to haploid insufficiency. In stark contrast, RAMP3 null mice are viable and healthy and even have some advantageous phenotypic characteristics¹⁹ some of which may be replicated in humans with single nucleotide polymorphisms in RAMP3.²⁸ Knockout experiments in mice are hard to interpret with precision as RAMPs interact not only with CLR but a number of other receptors including calcitonin receptors (CTR) for which heteromers are amylin receptors. However, until very recently, no agonists or antagonists were available that provided useful discrimination between RAMP2 and RAMP3.²⁹

The published crystal structures of CLR/RAMP1 (CGRP receptor) and CLR/RAMP2 (AM₁ receptor) heteromers bound to truncated peptide antagonists CGRP_27–37 and AM_25–52, respectively, give insights into the association of ligands with CLR/RAMP receptors.^30,31 A hydrophobic patch and a pocket that are separated by the CLR Trp72 shelf (Trp72 bulge)^30,31 are established features. The hydrophobic patch is a region of aromatic residues in CLR: Trp72, Phe92, Phe95, and Tyr124.³⁰ The pocket is larger and incorporates residues of both components: Asp70, Trp72, Gly71, Trp121, Thr122, and Tyr124 of CLR with Trp74, Trp84, and Pro85 in RAMP1 or Arg97, Glu101, Glu105, Phe111, and Pro112 in RAMP2.³⁰ Trp84 in RAMP1 corresponds to the same position as Glu101 in RAMP2. Both residues were previously identified as key residues for CGRP³² and AM³³ function. These data suggest the presence of a β-turn on both CGRP and AM peptides that enables them to occupy their respective binding pockets and modulates interactions with CLR and RAMP residues. More specifically, via its Phe37 phenyl ring, CGRP interacts with CLR residues Gly71 and Trp72 and RAMP1 residue Trp84.³⁰ CGRP binds almost entirely on CLR and makes only one critical contact with RAMP1 extracellular domain (at residue Trp84) which also includes a hydrophobic interaction with CLR residue Phe37.³⁰ Hydrogen bonds are formed between CGRP residue Val32 and the Trp72 bulge of CLR and a main-chain to side-chain connection is made between CGRP Thr30 and CLR loop 3 Asp94 residues.³⁰

Similarly, AM residues Tyr52 and Lys46 interact with residues Arg97, Glu101, and Glu105 on RAMP2.³⁰ An extension of a single helical turn allows AM Lys46 to contact the Trp72 bulge and AM Pro43 and Ala42 to interact with the patch.³⁰ The equivalent residue on RAMP1 (Trp74) is unable to interact with AM.³⁰ This was explained by the absence of a Glu residue at position 74 of RAMP1 that discourages AM interaction.³⁰ The importance of residues Glu101 and Phe111 on RAMP2 was previously shown through mutagenesis studies.³³ Recent studies, including the recently published cryo-EM structures of the whole CGRP, AM₁, and AM₂ receptors, have given a deeper understanding to these receptor complexes and their mechanisms of activation.³⁴⁻³⁶

Small-molecule CGRP receptor antagonists (olcegepant, telcagepant, MK-3207, ubrogepant, and rimegepant) have been developed.³⁷ Some have reached the clinic, notably ubrogepant (Ubrelvy, NCT02828020) and rimegepant (Nurtec ODT, NCT03461757). This indicates the potential for developing selective antagonists for other CLR/RAMP heteromers (the AM₁ and AM₂ receptors) by exploiting the key residue differences between RAMPs.³⁸⁻⁴² Structural relationship studies within the gepant family of CGRP receptor antagonists have identified the presence of three important interactive regions in CLR/RAMP heteromers within the CGRP receptor antagonists—the CLR binding region, the interface region that binds close to the Trp72 bulge, and the CLR/RAMP1 binding region that interacts with the CLR/RAMP-1 hydrophobic patch—that facilitate their binding and selectivity.⁴³

While previous efforts to manipulate the AM receptor function have been to target isolated components of the system—the AM ligand or receptor components (CLR, RAMP2 or RAMP3)—using antibodies or peptide antagonists, we have developed small molecule antagonists that specifically target AM signaling through the AM₂ receptor. Recently, small molecule positive allosteric modulators against CLR-based receptor complexes have been identified, which are not active on other class B GPCRs including the closely related CTR.⁴⁴ Our approach enables AM to continue physiological signaling through AM₁ receptors, decreasing possibilities of side effects resulting from this therapeutic strategy. AM and RAMP3 have been shown to mediate pro-tumoral processes in various cancers,^7,20−23 including pancreatic cancer.^24,45 A recent publication has also shown the involvement of the AM/RAMP3 system (but not AM/RAMP2) in liver metastasis of pancreatic cancer through modification of cancer-associated fibroblasts.⁴⁵ Since pancreatic cancer is currently an unmet clinical need for life-extending therapy, we have selected that as a therapeutic target.

Results and Discussion

Design of Potent Selective Small Molecule AM₂ Receptor Antagonists

As CGRP, AM₁ and AM₂ receptors comprise the same CLR component but a different RAMP, we envisaged that improvements in potency and selectivity toward AM₂ receptors would be gained by exploiting and optimizing specific interactions with RAMP3 that would be unlikely to be replicated with RAMP1 or RAMP2. To design analogues with increased potency against the AM₂ receptor, we inspected the sequences of RAMPs 1, 2, and 3 and their relationship to the binding site for the known small-molecule CGRP receptor antagonists.

Figure 1B1 shows the published structure³⁰ of telcagepant 1 (green), a CGRP receptor antagonist, crystallized in the extracellular domains of the CLR (yellow)/RAMP1 (cyan) heteromer (PDB code: 3N7R). Figures 1B2 and 1B3 show the same structure (1) with RAMP2 and RAMP3 residues changes respectively highlighted. The RAMP3 amino acid residues which differ from the RAMP1 sequence at the small molecule antagonist binding site are highlighted, specifically Glu74 (Trp in RAMP1), Thr70 (Ala in RAMP1), and Glu67 (Arg in RAMP1). We hypothesized that the acidic glutamate residues, which are present in RAMP3 but not RAMP1 provide an opportunity to target RAMP3 by the introduction of basic centers in a small molecule. Furthermore, while Glu74 is common to RAMP2, that protein has a large Arg residue at position 70, which effectively occludes the small molecule antagonist binding site as it exists in CLR/RAMP1 or CLR/RAMP3 receptors. We surmised that introduction of basic centers to small molecule CGRP antagonists could improve interactions with glutamate residues in RAMP3 (AM₂ receptor) without an expectation of potent interactions with RAMP2 (AM₁ receptor).

The majority of CGRP receptor small molecule antagonists showed minimal or no activity against AM₁ and AM₂ receptors.³⁷ However, a search of the literature highlighted two CGRP receptor antagonists with encouraging activity against AM₂ receptor–compounds 3 (MK-3207)⁴⁶ and 2(47) (pIC₅₀ = 6.20 and 5.97 respectively for AM₂ receptor respectively, determined in house). Comparison with the chemical structure of the more selective CGRP antagonist telcagepant (1) allowed us to highlight areas of each molecule which bind to CLR (blue) and RAMP (red) proteins (Figure 1c). In the CGRP receptor antagonist field, the CLR binding motifs have been relatively conserved. That led us to the idea that the close relationship between the CGRP and AM₂ receptors and the combination of these well-established CLR-binders with a headgroup designed to maximize preferential binding to RAMP3 over both RAMP1 and RAMP2 could deliver AM₂ receptor-preferring molecules. To this end, we targeted the red portions in Figure 1c as scaffolds for basic groups to interact with the glutamyl residues on RAMP3.

Identification of Small Molecule AM₂ Receptor Selective/Potent Antagonists

Beginning with 2 (pIC₅₀ = 5.97 for AM₂ and 7.77 for CGRP receptors, Figure 2a), introduction of the CLR binding motif from 3 afforded compound 5 (pIC₅₀ = 6.55 for AM₂ and 8.31 for CGRP receptors, Figure 2a) which showed an increase in potency at both AM₂ and CGRP receptors. Introduction of a benzylic amine into 2 afforded 4 (pIC₅₀ = 6.44 for AM₂ and 6.57 for CGRP receptors, Figure 2a) which showed a similar improvement in potency at the AM₂ receptor as 5 relative to 2 but balanced activity against the CGRP receptor. A combination of these changes led to 6 (pIC₅₀ = 8.31 for AM₂ and 8.09 for CGRP receptors, Figure 2a) and gave the first dramatic improvement in AM₂ activity. Subsequent addition of a small substituent to the benzylic amine led to the discovery of 7 (pIC₅₀ = 9.16 for AM₂ and 8.38 for CGRP receptors, Figure 2a). Compound 7 is the first highly potent and selective AM₂ receptor small molecule antagonist, providing a 1000-fold increase in potency relative to commercially available CGRP antagonists (such as 3). Further analysis showed significant pharmacological differences between the two enantiomeric forms of 7 (racemate), with (R)-enantiomer (8, pIC₅₀ = 9.21 for AM₂ and 9.07 for CGRP receptors, Figure 2a) showing higher affinity than the (S)-enantiomer (9, pIC₅₀ = 7.16 for AM₂ and 7.09 for CGRP receptors, Figure 2a). These hits were then screened against the AM₁ receptor. As we predicted, lead compounds showed significant selectivity (more than 100-fold) for AM₂ and CGRP receptors over the AM₁ receptor (Figure 2a). This selectivity was maintained for other members of the calcitonin family of receptors (CTR, AMY₁, and AMY₃, Figure 2b, Figure S1, and Table S3). We believe the activity profile of our compounds is consistent with the proposed unfavorable steric clash with Arg70 of RAMP2 with tolerance of the conformationally flexible benzylic amine by the CGRP receptor through either ionic interaction with Asp71 or exposure to solvent. To determine if the AM₂ receptor antagonists were able to inhibit AM-induced cAMP production in native cells, 7 and its enantiomers (8 and 9) were tested in a human pancreatic cancer cell line CFPAC-1. Similar to results in the overexpressing cell lines (Figure 2a), 7 (pIC₅₀ = 9.33, Figure 2c), and its (R)-enantiomer (8, pIC₅₀ = 8.96, Figure 2c) were able to inhibit AM-induced cAMP production 100-fold more potently than its (S)-enantiomer (9, pIC₅₀ = 7.02, Figure 2c). In addition to their effect in human cells, AM₂ receptor antagonists were able to inhibit AM-induced cAMP production in other species including mouse and dog (Figure S2). Additionally, lead compounds were tested in a mouse cell line (BMA 178-2 cells) to determine the potential effect of the AM₂ receptor antagonists on host cells in an in vivo tumor model. Interestingly, the activity of lead compounds on mouse cells were 2- to 100-fold less than in human cells (Figure 2c). Modeling showed no obvious residue differences at the key binding site in RAMP3 between the species; however, subtle conformational variations may be the cause of observed differences in potency.

Figure 2.

Activity and selectivity of early lead compound 6, current lead compound 7, and its enantiomers (8 and 9) in CLR/RAMP overexpressing and native (human and mouse) cell lines. (a) Primary screening was performed by measuring the ability of small molecules in inhibiting cAMP production in cell lines overexpressing each receptor complex. Early lead compound 6 was equipotent in inhibiting both CGRP and AM₂ receptors. Current lead compound 7 racemate was the first small molecule antagonist with even modest selectivity for the AM₂ receptor over the CGRP receptor (the difference was significant and 7–10-fold). (R)-enantiomer 8 is 100-fold more potent in inhibiting cAMP in both CGRP and AM₂ receptors, compared to (S)-enantiomer 9. Lead compounds are significantly more selective for CGRP and AM₂ receptors over other members of the calcitonin family of receptors (AM₁, AMY₁, and AMY₃ receptors). Data are from at least three independent experiments and presented as mean ± SEM. Curves are representative and do not include all data points. (b) Graphical representation of results in part a. (c) Activity of current lead compound 7 and its enantiomers (8 and 9) in inhibiting AM-induced cAMP production were also tested in human pancreatic cancer cell line CFPAC-1 and mouse prostate cancer cell line BMA 178-2. The activity of lead compounds on human CFPAC-1 cells were similar to that in overexpressing cells (a,b), whereas the activity on mouse BMA 178-2 were 2- to 100-fold less. ^ap < 0.05 by unpaired t test compared to the pIC₅₀ of each compound on the AM₂ receptor cells.

AM₂ Receptor Antagonists Showed ADME Properties Suitable for Further Optimization as Drug-Like Molecules

In vitro studies on 7 and the more potent single enantiomer 8 were performed in order to characterize their ADME and physicochemical properties (Table 1). Compounds 7 and 8 were determined to be moderately lipophilic with log D_7.4 of 1.58 and 1.59, respectively, and possessed low aqueous solubility at pH 7.4 between 86.3 and 199 μM. Intrinsic clearance (CL_int) via metabolism measured in liver microsomes from human (21–22 μL/min/mg protein), rat (14–16 μL/min/mg protein), and mouse (22 μL/min/mg protein) was at a level low enough to support the use of the compounds in further in vivo pharmacokinetic and efficacy studies. Scaling of human liver microsomes CL_int of 8 using the well-stirred model of hepatic metabolic clearance^48,49 predicted a blood CL of 4.7 mL/min/kg in human, a relatively low fraction of hepatic blood flow (21 mL/min/kg). Compounds 7 and 8 displayed moderate binding to plasma proteins with unbound fractions of 17.6% in rat (7 and 8), 8.7% in mouse (7), and 22.9% (7) and 28.6% (8) in human. The results of these early ADME screening data indicate that compounds 7 and 8 are suitable lead compounds for further optimization as potential drug molecules.

Table 1. ADME Properties of Lead Compound 7 and 8^a.

property		units	species	7	8
molecular weight		Da		525.65	525.65
log D, pH 7.4				1.58	1.59
solubility, pH 7.4		μM		86.3	199
CLint, liver microsomes		μL/min/mg protein	human	20.6 ± 1.3	22.5 ± 0.33
			rat	13.6 ± 1.2	16.4 ± 1.32
			mouse	22 ± 0.9	N.D.
plasma protein binding		% unbound fraction	human	22.9 ± 0.8	26.8 ± 0.4
			rat	17.6 ± 0.3	17.6 ± 0.4
			mouse	8.7 ± 0.9	N.D.
plasma stability t1/2		min	human	>120	N.D.
Caco-2 permeability A:B		cm s–1 × 10–6	human	<0.01	<0.01
Caco-2 permeability B:A		cm s–1 × 10–6	human	9.11 ± 0.62	8.38 ± 0.43
CYP inhibition	1A2	μM	human	>50	>50
	2C9			34.15 ± 1.01	>50
	2C19			26.19 ± 0.5	>50
	2D6			3.64 ± 1.5	1.6 ± 0.15
	3A4			2.35 ± 0.9	7.3 ± 1.2
hERG currents		μM		>30	>30

^ahERG potassium channel currents were determined in quadruplicate, Caco-2 permeability, plasma protein binding, CYP inhibition, and liver microsomal CL_int were determined in triplicate, and solubility, log D, plasma stability, and were determined in duplicate. Data are presented as mean ± SD.

The inhibition profiles of 7 and 8 against several cytochrome P450 enzymes (CYPs) were also determined (Table 1). Both compounds were inhibitors of CYPs 2D6 (IC₅₀ of 7 = 3.64 μM; 8 = 1.60 μM) and 3A4 (IC₅₀ of 7 = 2.35 μM; 8 = 7.3 μM) but were less potent against 1A2 (IC₅₀ > 50 μM), 2C9 (IC₅₀ of 7 = 34.15 μM; 8 > 50 μM), and 2C19 (IC₅₀ of 7 = 26.19 μM; 8 > 50 μM). These data show that compounds 7 and 8 possess modest potency as inhibitors of major drug-metabolizing CYPs and that this chemical series is capable of being optimized for low risk of interaction with drugs metabolized by CYPs. Both compounds were also assessed for inhibition of hERG potassium channel currents as a routine indicator of risk of cardiac arrhythmia resulting from hERG inhibition.⁵⁰ Both were found to have IC₅₀ > 30 μM, indicating low risk.

The pharmacokinetic characteristics of 7 and 8 in rodents were examined following intravenous (i.v.) and oral administration by gavage (p.o.). In rats (Table 2) CL following i.v. administration of 7 (2.66 mg/kg) and 8 (2.0 mg/kg) was similar and high in relation to hepatic blood flow at 73.6 mL/min/kg (7) and 62.6 mL/min/kg (8). The moderate to high volume of distribution of 7 (8.0 L/kg) and 8 (16.8 L/kg) resulted in terminal half-lives of the compounds between 3.0 and 5.2 h. Bioavailability following p.o. administration of 7 (13.3 mg/kg) was only 1%. In vitro permeability data obtained in Caco-2 cell monolayers (Table 1) demonstrated low permeability and high efflux ratios that are consistent with poor absorption in the gut. However, the high CL observed, which indicates high hepatic extraction, would also limit oral bioavailability of 7 and 8.

Table 2. Pharmacokinetic Characteristics of Lead Compounds 7 and 8^a.

dose route	parameter	7	8
Rat Pharmacokinetics
i.v.	dose (mg/kg)	2.66	2.0
	plasma CL (mL/min/kg)	77.0 ± 5.1	65.6 ± 7.4
	Vss (L/kg)	8.0 ± 2.7	16.8 ± 1.7
	terminal t1/2 (h)	3.0 ± 2.0	5.2 ± 0.07
p.o.	dose (mg/kg)	13.3	N.D.
	F (%)	1.0	N.D.
Mouse Pharmacokinetics
i.v.	dose (mg/kg)	2.06	N.D.
	plasma CL (mL/min/kg)	37.8 ± 8.9	N.D.
	Vss (L/kg)	3.2 ± 5.1	N.D.
	terminal t1/2 (h)	1.3 ± 0.2	N.D.
i.p.	dose (mg/kg)	9.46	9.69
	Tmax (h)	0.083–0.25	0.083–0.25
	unbound Cmax (nM)	221 ± 28	273 ± 37
	F (%)	83	N.D.

^aData are presented as mean ± SD for determinations in 3 animals. Bioavailability (F) was calculated from mean AUC according to F = (AUC,p.o./dose,p.o.)/(AUC,i.v./dose,i.v.).

In support of experiments aimed at testing the effects of compounds on tumor growth in mice, comparison of compound exposure following i.v. and intraperitoneal (i.p.) administration of 7 as a solution in 50% PEG E 400 indicated high bioavailability of 83% via the i.p. route at a dose of 9.46 mg/kg (Table 2). T_max was 0.083–0.25 h with a C_max of 1333 ng/mL, equivalent to an unbound plasma concentration of 221 nM (Table 2). Administration of 8 at 9.69 mg/kg via the i.p. route as a solution in 10% DMSO/50% solutol displayed a slightly higher C_max (1647 ng/mL, equivalent to unbound 273 nM, assuming an unbound fraction equal to that of 7), similar t_max (0.083–0.25 h) (Table 2), but shorter half-life of 1.3 h (rat i.v. data, Table 2). While the plasma concentration profiles of the racemic mixture (7) and active enantiomer (8) differed in these experiments (Figure S3), the difference is likely to have resulted from the suspension and solution formulations used, leading to slow and faster absorption, respectively, from the site of injection. Overall, these data demonstrate that concentrations of 7 and 8 can be attained via the i.p. route in mice that are relevant to AM₂ pharmacological potency.

AM₂ Receptor Antagonists Inhibit Pancreatic Tumor Growth In Vitro and In Vivo in Mice

As there are many well-documented pathological functions of AM and the AM₂ receptor in cancer, we used cancer cell and animal models to characterize our lead compounds. A panel of human pancreatic cancer cells (AsPC-1, Capan-2, CFPAC-1, HPAF-II, and Panc10.05) have been shown to express AM, CLR, and RAMPs mRNA (Table S4). Lead AM₂ receptor antagonists were subsequently tested on CFPAC-1 (which expressed AM, CLR, and RAMP3 mRNA) to ascertain their effects on cancer cell viability and apoptosis in vitro. Lead compounds 7 and 8 were both able to decrease pancreatic cancer cell viability by up to 40% and 31%, respectively, after 9 days of daily treatment at 3 μM concentration (Figure 3a, p < 0.05). To control for CGRP receptor-mediated effects, we treated cultures of CFPAC-1 cells with rimegepant, a highly selective CGRP antagonist (pIC₅₀ = <5 for AM₂ and 9.90 for CGRP receptors, Figure S4) and saw no significant reductions in viability (Figure 3a). Compounds 7 and 8 were also able to enhance levels of apoptosis markers (Caspases 3 and 7) in serum-starved pancreatic cancer cells by up to 50% and 104%, respectively, 24 h after treatment with varying concentrations between 3 μM and 100 nM (Figure 3b, p < 0.05).

Figure 3.

Effect of AM₂receptor antagonists on in vitro viability and apoptosis of human pancreatic cancer cell line CFPAC-1 as well as subcutaneous CFPAC-1 tumor growth and survival in BALB/c nude mice. (a) Daily treatment with small molecule AM₂ receptor antagonists significantly decreased viability of CFPAC-1 in a concentration-dependent manner (p < 0.001). Viability was decreased by up to 42% after 6 days when treated with either antagonist, compared to vehicle-treated controls (p < 0.001). Compound 8 had a significantly greater effect in decreasing viability of CFPAC-1, compared to 7 (p < 0.001). Rimegepant did not affect CFPAC-1 viability at tested concentrations (3 and 10 μM). Data are from three independent experiments and presented as mean ± SD. (b) Treatment with various concentrations of small molecule AM₂ receptor antagonists significantly increased apoptosis of serum-starved (stressed) CFPAC-1 by up to 63% after 24 h, compared to vehicle-treated stressed controls (p < 0.001). Data are from three independent experiments and presented as mean ± SD (c,d) Mice were inoculated with CFPAC-1 tumors and first treatment was given on the day of first tumor volume measurement (arrows). Tumor growth rates were significantly reduced in mice treated daily with 7 (c, p < 0.001) or 8 (d, p < 0.01). n = 6–7 (c) or n = 10 (d) mice per group. (e) Kaplan–Meier survival curves showed daily treatment with 20 mg/kg i.p. Compound 8 significantly improved median survival to humane end point compared to vehicle-treated mice (29.5 vs 21 days, p < 0.001). Data presented as percentage of population. n = 10 mice per group. *p < 0.05, ** p < 0.01, *** p < 0.001.

To gain insights into the potential therapeutic index of these AM₂ receptor antagonists, in vivo efficacy studies were conducted. Compounds 7 and 8 (20 mg/kg) or a vehicle control was administrated i.p. once daily, following the inoculation of tumor cells subcutaneously under the skin of the flank of BALB/c nude mice. Tumors were measured twice weekly to monitor the tumor growth and the well-being of the mice was assessed by measuring body weight and assessing appearance and behavior. Both compounds were well tolerated and body weight increases were not significantly different in treatment and vehicle control groups. No adverse effects were observed from administration, and all mice behaved normally during the experiments, exhibiting apparently normal activity, feeding, and inquisitiveness.

Daily administration of 7 (20 mg/kg i.p.) was associated with significant inhibition in pancreatic xenograft tumor growth of 56% at week 5 (p < 0.001, Figure 3c). Similar results were observed upon administration of 8 (20 mg/kg i.p.) in which after 3 weeks of treatment, there was significantly reduced growth of tumors by 44% in the 8-treated group (p < 0.01, Figure 3d). While the experiments were not permitted to continue until the death of the animals from the tumors, we used as a surrogate for lifespan, the time taken for tumors to reach the local welfare regulatory authority (UK Home Office) maximum permitted size, at which the animals were euthanized. By this measure, mice treated with 8 (20 mg/kg i.p.) have increased surrogate survival rates compared with vehicle-treated mice (p < 0.001, Figure 3e) where at 28 days, all the vehicle treated mice had been euthanized but half the 8-treated group were still alive.

AM₂ Receptor Antagonist Inhibits Proliferation, Cancer-Associated Fibroblast Expression and Blood Vasculature in Pancreatic Tumors In Vivo in Mice

To determine the mechanisms for the observed in vivo tumor growth inhibition as a result of AM₂ antagonist treatment, histological analysis was performed on subcutaneous human CFPAC-1 tumors from in vivo mice studies. Daily administration of 7 (20 mg/kg i.p.) was associated with a significant decrease in markers of proliferation (Ki67, p < 0.01, Figure 4a), cancer-associated fibroblasts (alpha smooth muscle actin, αSMA, p < 0.01, Figure 4b) and blood vasculature (CD31, p < 0.05, Figure 4c), compared to vehicle-treated tumors.

Figure 4.

Histological analysis of AM₂ receptor antagonist treatment on in vivo subcutaneous CFPAC-1 tumor growth in BALB/c nude mice. (a–c) Daily treatment with compound 7 (20 mg/kg i.p.) significantly inhibited markers of proliferation (Ki67, p < 0.01), cancer-associated fibroblasts (αSMA, p < 0.01), and blood vasculature (CD31, p < 0.05) in CFPAC-1 subcutaneous tumors. Data are presented as mean ± SD. Representative images of control and AM₂ receptor antagonist-treated tumor sections are shown to the right of graphical data. *p < 0.05, ** p < 0.01.

Here, we show the development and characterization of new potent first-in-class AM₂ receptor antagonists. The compounds we describe have very good selectivity over the AM₁, amylin, and calcitonin receptors. Our best compound to date (compound 7) shows also just under 10-fold selectivity over the CGRP receptor. These molecules will aid understanding and the ability to manipulate this heteromeric receptor system with molecular precision. Specifically, through our structure/knowledge-based drug modeling approach, with its basis on CGRP antagonists and their reported interactions with the CGRP receptor, we have been able to develop the first highly potent and selective AM₂ receptor antagonists. These agents will allow significant new insights into the pharmacology of receptors combining the CLR with the 3 RAMPs, because until now, the CGRP antagonists and anti-CGRP antibodies, less than fully characterized RAMP antibodies, and nonselective peptide antagonists were the only tools available for such research.

Our modeling was based upon the published crystal structures of the CLR/RAMP1 CGRP receptor and the CLR/RAMP2 AM₁ receptor, with and without docked compounds. For our studies, despite the lack of a crystal structure for the CLR/RAMP3 AM₂ receptor, we created a hybrid model combining crystal structure information from the CLR domains of the CGRP and AM₁ receptors with a predicted structure for the RAMP3 domain. The model has been optimized slightly during the course of our work, as a result of hypothesis-testing compound generation to strengthen knowledge over uncertainties around specific domains. However, the model has proven to be of significant value in our design strategy and has allowed us to deliver the molecules that we report here. With the recent publication of cryo-EM structures of the full RAMP/receptor complexes novel sites for antagonism may be identified.^34,35

Chemical synthesis of our compounds has not been completely straightforward, but during the course of our studies, problems have been solved to provide a robust high-yielding synthetic route. The route currently has 18 steps from inexpensive commercially available materials and is scalable to produce kilogram quantities of pure material.

The biological screening assay we have used is based upon inhibition of AM-induced cAMP synthesis in an engineered cell expressing the target receptor (AM₂ receptor for the first screen, and other receptors in response to their specific ligands for selectivity determinations). The major actions of AM are mediated predominantly via cAMP, so that it is unlikely we have missed compounds with effects mediated by other signaling mechanisms.⁵¹

Functional studies of our compounds show consistent effects in a range of cancer model systems and across species (human, mouse, and dog). Native cancer cells exhibit the same pharmacology as our engineered screening cells, with almost identical pIC₅₀ values and the same preferential sensitivity to the stereoisomer 8 over 9. Differences in pharmacology were shown across the species used, with both compounds 7 and 8 showing lower efficacy on mouse and dog cells compared with human cells. However, it is unclear whether the observed pharmacological differences are due to differences between species or receptor expression. The in vitro cancer cell models comprise ways to measure cell viability and apoptosis (programmed cell death), both accepted in vitro markers of antitumor cell activity. The ADME and PK properties of 8 and 7 were found to be suitable for in vivo studies in mice, such that i.p. administration at approximately 10 mg/kg provided unbound plasma concentrations several fold higher than their in vitro AM₂ IC₅₀ values. The effects of 8 (and the racemic mixture 7) in vivo are clear and are associated with what would be valuable likely increases in lifespan if replicated in human clinical patients. As these compounds have only ∼10-fold selectivity over CGRP receptors, it was important to determine whether the effects we saw were due to antagonism of AM₂ or CGRP receptors. Use of the highly selective CGRP antagonist rimegepant (pIC₅₀ = < 5 for AM₂ and 9.90 for CGRP receptors), which is effectively incapable of blocking AM₂ receptors, revealed no inhibition of pancreatic tumor cell viability. Further clarification of this could be achieved by in vitro and in vivo xenograft studies using cells lacking either CGRP or AM₂ receptors and treated with AM₂ antagonists.

One feature of our studies could suggest that effects of AM₂ antagonists in our mouse xenograft studies underestimate benefits in humans. Our compounds are designed to block the human AM₂ receptor, and in the animal models they act on intrinsic signaling in the human tumor cells of the xenografts. However, tumor-secreted AM also acts on host cells in the tumor microenvironment as key RAMP residues in peptide-binding sites are conserved across many species including mouse.³⁰ On mouse cells (responding to AM expressed by the human tumor cells), our compounds are 2- to 100-fold less potent than on human cells. CGRP antagonists have historically shown even lower affinity in other species (including rodent and canine) compared to primates.^52,53 If tumor-host interactions mediated by AM are an important feature of some clinical patient groups, then our compounds could provide more potent inhibitory effects than seen in mice by the increased potency on the human host AM₂ receptors. The lack of detectable side-effects in our studies are consistent with data showing that RAMP3 knockout mice (which are unable to make AM₂ receptors) are viable and healthy,¹⁹ and that in humans, an inactivating single nucleotide polymorphism in the gene for RAMP3 is represented in populations of healthy women.²⁸

The in vitro effects of AM₂ receptor antagonists on cancer cell viability and apoptosis are significant but modest, compared to their potency in cAMP inhibition and the effect on in vivo tumor growth. The data suggest that AM may not be the main driver of cancer cell proliferation or apoptosis evasion, but instead, the creation of a pro-tumoral microenvironment. Models used in drug discovery for oncology all have limitations and provide somewhat simplistic answers to the major question of whether a candidate molecule could work in human clinical disease.

Histological analysis of tumor tissues revealed that the antitumor effects of AM₂ receptor antagonists are not confined to tumor cells, but also stromal components of the tumor microenvironment including cancer-associated fibroblasts and blood vasculature originating from host nontumor cells. This is an important property as 90% of pancreatic tumor mass is composed of fibrous desmoplastic stroma which impedes delivery of therapeutic agents to pancreatic cancer cells within the dense tumor.⁵⁴ Dai and colleagues have shown using in vivo gene knockout techniques that inhibition of the AM-RAMP3 system and activation of the AM-RAMP2 system suppressed pancreatic tumor metastasis resulting from recruitment of cancer-associated fibroblasts.⁴⁵ Additionally, AM has also been shown to mediate desmoplasia in pancreatic cancer by mediating the effect of MYB on pancreatic cancer cells and cancer-associated fibroblasts both in vitro and in vivo.⁵⁵

Taken together, our data exemplify the strength of a rational drug design process to develop specific new antagonist molecules when sufficient structural information exists on targets, and there is access to a strong focused chemical starting point. We anticipate that our lead compounds will be the basis for improved molecules that will prove suitable in increasing understanding of fundamentals of the endocrinology of heteromeric receptors and as drug candidates for clinical development in pancreatic cancer.

Materials and Methods

All reagents, unless otherwise stated, were obtained from commercial sources and used without further purification. Olcegepant, telcagepant, rimegepant, and MK-3207 were purchased from MedChemExpress (MCE) and were reconfirmed for their activity. Details are available in the Supporting Information. Small molecule antagonists were prepared as 2 mM DMSO stocks for cell culture experiments and stored at −20 °C. Based on each cell lines ligand–receptor combination the appropriate unlabeled peptide was used. Human CGRP was obtained from Sigma-Aldrich (SCP0060), rat AMY (rAMY) and human calcitonin (hCTR) were purchased from Bachem (H-9475 and H-2250 respectively), and human AM was purchased from Anaspec (AS-60447).

Compound Synthesis and Characterization

Compounds synthesis and characterization data are included in the Supporting Information page S6.

Modeling and Docking

Modeling and docking information are included in the Supporting Information page S27.

Cell Lines and Culture Conditions

All cell lines were purchased from ATCC, Cell Applications, Inc. or DiscoverX with proof of authentication, unless stated. All cell lines were maintained at 37 °C in a humidified atmosphere with 5% CO₂. Human pancreatic cancer cells CFPAC-1 (ATCC, CRL-1918) were cultured in Dulbecco’s Modified Eagle Medium (DMEM, Thermo Fisher Scientific, 61965-026) containing 10% (v/v) fetal bovine serum (FBS, Thermo Fisher Scientific, 10500-064) and 1% (v/v) penicillin–streptomycin (Sigma-Aldrich, P4333). Canine aortic endothelia (CnAOEC) cells (Cell Applications, Cn304-05) were cultured in Canine EC Growth Medium Kit (Cell Applications, Cn211 K-500). Mouse prostate cancer cells BMA 178-2 were obtained from Dr. Timothy C. Thompson from the University of Texas MD Anderson Cancer Centre.⁵⁶ These cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM, Thermo Fisher Scientific, 61965-026) containing 10% (v/v) fetal bovine serum (FBS, Thermo Fisher Scientific, 10500-064), 1% HEPES, and 1% (v/v) penicillin–streptomycin (Sigma-Aldrich, P4333). CGRP receptor, AM₁ receptor, AM₂ receptor, AMY₁ receptor, AMY₃ receptor, and CTR overexpressing cell lines were obtained from DiscoverX (catalogue numbers, culture, and selection information in Table S5). The RAMP/receptor component expression of these cells was validated in-house (Table S7).

Time-Resolved Fluorescence Resonance Energy Transfer (TR-FRET) cAMP Accumulation

The functional properties of compounds in GPCR/RAMP overexpressing cells (i.e., AM₂, CGRP, AM₁, AMY₁, and AMY₃ cells) as well as in human pancreatic cancer cells (CFPAC-1), in canine aortic endothelia (CnAOEC) cells, and in mouse prostate cancer cells (BMA 178-2) were evaluated for their ability to inhibit cAMP production induced by an EC₅₀ concentration of the maximum agonist activation (concentrations for each overexpressing cell line can be found in Figure S5, Table S6 and Table S8 for the naïve cells). Each compound was tested at 8 full-log concentrations (10^–11 to 10^–5 M) including a negative control (blank). The total cAMP was measured using the TR-FRET LANCE cAMP detection kit (PerkinElmer, AD0264), according to the manufacturer’s directions. Aliquots of frozen cells (2 × 10⁶ each) were thawed and prepared in warm stimulation buffer (1 × HBSS, 5 mM HEPES, 0.5 mM IBMX, and 0.1% BSA). Alexa Fluor antibody (1:100 concentration) was then added to the cell suspension and cells were plated (2500 cells, 6 μL) in a 384-well white opaque microtiter plate (OptiPlates, PerkinElmer, 6007299). Cells were first preincubated with serial dilutions (3 μL) of the antagonists for 30 min at room temperature prior to their stimulation with the EC₅₀ value of agonist (3 μL) for 15 min at room temperature. Subsequently, 12 μL of detection mix (Europium-Chelate streptavidin/biotinylated cAMP) was added to stop the reaction and induce cell lysis. TR-FRET was detected after an hour incubation by an EnSight multimode Plate reader (PerkinElmer) at 320/340 nm excitation and 615/665 nm emission. Data were normalized to agonist only and blank (stimulation buffer only) wells as 0% and 100% cAMP inhibition, respectively.

The final DMSO concentration was below 0.5% and this was kept consistent in all the wells, including agonist alone and blank. The same methodology (including the number of cells) was used for all cell lines. Concentration–response curves were analyzed using a three-parameter logistic curve to determine IC₅₀ values (Graphpad Prism 7 and 8). No further constraints in any parameters of the curves were used.

In Vitro Viability and Apoptosis Assays

RealTime-Glo MT Viability Assay

Cell viability in human pancreatic cancer cells (CFPAC-1) was quantified using RealTime-Glo MT Cell Viability Assay (Promega, G9712). Cells (2000 cells/well) were seeded into 96-well white clear-bottom plates (Corning, 3903) in full serum media overnight before washing and changing to suboptimal media (DMEM + 5% FBS + 1% P/S) containing RealTime-Glo reagents according to Promega protocol. A baseline luminescence read (prior to treatment) was taken using EnSight Multimode Plate Reader (PerkinElmer) after an hour of incubation at 37 °C. Cells were then treated with compounds or vehicle-control (PBS + 0.05% DMSO) daily. Results were normalized to vehicle-treated controls as 100% viable (Graphpad Prism 7 and 8).

Caspase-Glo 3/7 Apoptosis Assay

The effect of the compounds on cell apoptosis in human pancreatic cancer cells (CFPAC-1), was determined using luminescence-based Caspase-Glo 3/7 Assay (Promega, G8093). This end-point assay measures late-stage apoptotic markers—caspases 3 and 7. Cells (2000 cells/well) were seeded into 96-well white clear-bottom plates (Corning, 3903). Cells were then treated for 24 h with compounds (or vehicle-control) diluted in PBS (0.05% DMSO). Caspase-Glo reagent was prepared according to Promega protocol and added to the cells. Each sample was incubate for 30 to 60 min on a plate shaker (550 rpm). Luminescence read was then taken using EnSight Multimode Plate Reader (PerkinElmer) set to 22 °C. Baseline readings (media only) were subtracted from sample luminescence readings. Results were normalized to unstressed controls (optimal growth media) and serum-starved vehicle controls as 0% and 100% apoptosis, respectively (Graphpad Prism 7 and 8).

ADME and Physicochemical Assays

Kinetic Solubility

Compounds initially dissolved at a concentration of 10 mM in DMSO were diluted in 50 mM phosphate buffer (pH 2 or 7.4) to a concentration of 200 μM, followed by vigorous shaking for 24 h at room temperature. Precipitated material was then removed by filtration, and the remaining compound concentration was established using UV absorbance.

Microsomal Stability Assays

The metabolic stability of the compounds was assessed in the presence of human (Corning, 452117), rat (Xenotech, R1000), or mouse (Xenotech, M1000) microsome suspensions in 100 mM potassium phosphate buffer at a protein concentration of 0.5 mg/mL. Ten microliters of a solution of 10 μM of each test compound or positive controls (testosterone, diclofenac, and propafenone) was added into the appropriate wells of 96-well plates (a matrix blank was also included). Then, 80 μL of microsomal suspension was added to the test compound followed by incubation for 10 min at 37 °C. Reactions were initiated by the addition of 10 μL of prewarmed NADPH (β-nicotinamide adenine dinucleotide phosphate), and plates were incubated at 37 °C. Reactions were stopped after 60, 30, 20, 10, 5, and 0 min by the addition of 300 μL/well of cold (4 °C) stop solution (100 ng/mL tolbutamide and 100 ng/mL labetalol). Sample plates were then shaken for 10 min followed by centrifugation at 4000 rpm for 20 min at 4 °C. Rates of decrease in the compound over time were determined using LC–MS/MS, and microsomal intrinsic clearance (CL_int) was then calculated.

Plasma Stability Assays

A known concentration of compound (0.1–1 μM) was incubated in the presence of human (BioIVT, HMPLEDTA2), rat (BioIVT, RATPLEDTA2-M), or mouse (BioIVT, MSE00PLK2M2N) plasma (80% in PBS, pH 7.4) for up to 120 min (0, 5, 15, 30, 60, 120 min). Propantheline bromide was used as reference compound. At the end of each time point the % of the remaining compound concentration compared to time point 0 was determined using LC–MS/MS.

Plasma Protein Binding (PPB) assays

PPB was determined using an equilibrium dialysis assay in which a semipermeable membrane separates two compartments, one of which contains undiluted plasma containing the added test compound (2 μM) and the other containing buffer (dialysis buffer—100 mM sodium phosphate and 150 mM NaCl, pH 7.4 ± 0.1). The system was then incubated at 37 °C until equilibrium was reached (5% CO₂ at 37 ± 1 °C for 4 h, and the amount of test compound in each compartment was then analyzed using LC–MS/MS. The fraction of unbound compound) F_u (was then calculated using the relationship F_u = concentration in buffer/concentration in plasma. Known control compounds, including verapamil and warfarin, were used for assay validation.

Cytochrome P450 (CYP450) Enzymes Inhibition Assays

Five different CYP450 isoforms (1A2, 2C9, 2C19, 2D6, and 3A4) were investigated with CYP450 enzyme inhibition assays. Specific substrates (Table S9) for each isoform were incubated with a range of test compound concentrations (0–50 μM) in the presence of human liver microsomes. At the end of the incubation, the formation of a known metabolite depending on the isoform was monitored using LC–MS/MS. The ability (IC₅₀) of each test compound to inhibit the formation of the metabolites was then measured compared to the vehicle control. Known positive inhibitors of each isoform were also used for assay validation (Table S9).

hERG Channel Test

To evaluate the effects of test compounds on the hERG potassium channels, the automated patch clamp method (QPatch^HTX) was used. CHO cells stably expressing hERG potassium channels (Aviva Biosciences) were used for this test at 75% confluency or more. Before testing, cells were harvested using TrypLE and resuspended in the extracellular solution at room temperature. All solutions used for the electrophysiological recordings are shown in Table S10.

Test compounds and positive control (amitriptyline) were dissolved in 100% DMSO to obtain stock solutions for different test concentrations. Then the stock solutions were further diluted into extracellular solution to achieve final concentrations for testing (final DMSO concentration not more than 0.3%).

Voltage command protocol

From the holding potential of −80 mV, the voltage was first stepped to −50 mV for 80 ms for leak subtraction, and then stepped to +20 mV for 4800 ms to open hERG channels. After that, the voltage was stepped back down to −50 mV for 5000 ms, causing a “rebound” or tail current, which was measured and collected for data analysis. Finally, the voltage was stepped back to the holding potential (−80 mV, 3100 ms). This voltage command protocol was repeated every 15000 ms. This command protocol was performed continuously during the test (vehicle control and test compound).

QPatch^HTX Whole-Cell Recording

hERG QPatch^HTX assay was conducted at room temperature. All protocols were established and performed using QPatch Assay Software 5.6 (Sophion Bioscience). Three additions of 5 μL of the vehicle were applied, followed by 30 runs of voltage protocol for a baseline period. Then the ascending concentrations of each compound were added with three repetitions (5 μL × 3). The exposure of test compound at each concentration was no less than 5 min. Five concentrations (0.37 μM, 1.11 μM, 3.33 μM, 10 μM, and 30 μM) were tested for each compound (minimum two replicates per concentration).

Within each well recording, percent of control values were calculated for each test compound concentration current response based on peak current in the presence of vehicle control. Curve-fitting and IC₅₀ calculations were performed by QPatch Assay Software. If the inhibition obtained at the lowest concentration tested was over 50%, or at the highest concentration tested was less than 50%, we reported the IC₅₀ as less than the lowest concentration, or higher than highest concentration, respectively.

Ethical Statement for In Vivo Studies

All in vivo experiments were performed according to the regulations of the UK Animals (Scientific Procedures) Act 1986 (ASPA) and after the approval of Home Office and local research ethics committees through the granting of project and personal licenses for the studies. Where studies were performed outside of the UK and not directly under those mandatory legal constraints, methodology and conditions were approved before the studies by the National Council for the 3Rs (Reduction, Refinement, and Replacement) and the Wellcome Trust.

Pharmacokinetic (PK) Studies

PK studies were performed in mice and rats using i.v., p.o., and i.p. routes of administration. Each mouse study was performed using three male (7–9 weeks old) CD-1 mice (source: WTLH Laboratory Animal Co. Ltd. or SIPPR-B&K Laboratory Animal Co. Ltd.). Rat PK studies were performed using three male (7–9 weeks old) Sprague-Dawley (SD) rats (source: SLAC Laboratory Animal Co. Ltd. or WTLH Laboratory Animal Co. Ltd.). Compounds were accurately weighed and dissolved in the appropriate volume of vehicle (50% PEG E 400/50% water or 10% DMSO/50% Solutol/40% water). The solution was sonicated in a water bath until a clear solution (i.v and i.p dosing) and uniform suspension (p.o dosing) was obtained, pH adjusted if needed, and sterile filtered prior to administration. For i.v dosing, the compounds were administered via tail vein following the facility’s SOPs. For oral dosing (p.o), compounds were administered by oral gavage. For i.p dosing, the compounds were injected in the animal’s lower right quadrant of the abdomen following the facility’s SOPs. The dose volume was determined by the animals’ body weight collected on the morning of dosing day.

At different time points after administration, approximately 0.25 mL (in rats) and 30 μL (in mice) of blood was collected from each animal (via jugular vein or another suitable vein—in rats via the saphenous vein or in mice, the submandbular vein). At each time point, the animals were restrained and the blood sample was taken using a needle and while observing aseptic precautions. Samples were transferred into ice cold microcentrifuge tubes containing 5 μL of anticoagulant (0.5 M EDTA-K₂). Samples were then centrifuged at 3000g at 4 °C for 15 min. Plasma samples were then collected and stored in polypropylene tubes at −80 °C until quantification by LC–MS/MS analysis. Upon completion of the studies animals were euthanized using CO₂ overdose.

In Vivo Efficacy Models

In these studies, we used 6–7 week old BALB/c nude female mice, with a weight range of 15–20 g. Animals were provided by Envigo Corporation (Cambridgeshire, UK) or Charles River Laboratories (Massachusetts, USA) depending on availability. Each experiment started with 10 mice (experimental units) in each experimental/control group. Subsequent analysis (tumor growth and histology) was only performed in animals in which tumors had established and were palpable within 3 days of implantation. This was in accordance with a power calculation performed to ensure robust statistical analysis by The University of Sheffield Statistical Service. Implanting cells into 10 animals in each group ensured that we had a minimum of 6 mice completing the procedure in all our studies. Where tumors established in more than 6 mice, all were included for data analysis. The animals were housed in individually ventilated cages (IVCs) (with the appropriate bedding and flooring conditions) in environmentally controlled conditions with a 12 h light/dark cycles at ∼26 °C. Mice had access to adequate amount of water and 2018 Teklad Global 18% Protein Rodent Diet containing 1.01% calcium (Harlan Laboratories, UK). The day-to-day care of the animals was carried out by the technicians in the Biological Services (The University of Sheffield, UK). All scientific procedures on animals were carried under UK Home Office Project Licenses (40/3499 or PF61050A3) and Procedure Individual Licenses.

Compound Preparation for In Vivo Studies

Compounds were dissolved in DMSO (Sigma-Aldrich, D4540) and sonicated at 37 °C for 10 min. An appropriate volume of solvent (Kolliphor HS15 (1 part, grams), Kollisolv PEG E 400 (3 parts, mL), and PBS (6 parts, mL)) was then added to yield a 6% DMSO/94% solvent solution. These working stocks (8 mg/mL) were further sonicated at 37 °C for 10 min before storing at −20 °C. To make treatment aliquots, equal amounts of the working stock (or vehicle-control) and solvent were mixed and sonicated at 37 °C for 10 min (4 mg/mL, equivalent to 20 mg/kg, 3% DMSO/97% solvent). Vehicle-control and compounds were sonicated at 37 °C for 10 min prior to i.p. injections (200 μL per mouse).

Cell Preparation and Tumor Inoculation

Cells were prepared according to standard cell culture techniques. Cell pellets were resuspended in 50% PBS/50% Matrigel (Corning, 354234). Matrigel/PBS cell suspension, needles (25G), and syringes (1 mL) were kept on ice before and during tumor inoculation into mice. Cell suspension (100 μL, 5 × 10⁶ cells) was injected subcutaneously into the left flank of 6–7 weeks old female immunodeficient nude athymic mice (BALB/c nude). Once the tumors became palpable (around 100 mm³), mice were randomized into treatment groups. Mice were treated daily by i.p. injection at the same time of day with 20 mg/kg of compound or vehicle-control (200 μL per mouse) until humane end-point. Mice were observed for at least 30 min post-treatment to detect any acute adverse effects. Tumor size and mouse weights were measured twice a week. At the end of each study the animals were euthanized following the appropriate procedures listed in ASPA Act 1986. Vital organs and tumors were stored in 10% neutral-buffered formalin for further histological analysis. The primary experimental outcome was tumor volume with additional measurement of molecular markers in tissue and serum as well as time to humane end point. Blinding was not used for the in vivo studies.

Immunohistochemistry (IHC)

Immunohistochemical detection of CD31 (Dianova, DIA-310), Ki67 (Abcam, ab15580) and αSMA (Abcam, ab124964) was performed in paraffin-embedded tumor sections obtained from the in vivo studies using the ABC system (Vector Laboratories). All stained slides were scanned using Panoramic 250 Flash III slide scanner (3DHISTECH). The specific protocols used can be found in Table S11. Sections were dewaxed in a graded xylene/ethanol series and antigens were retrieved by incubating the slides in Tris-EDTA (TE) buffer (Fisher Scientific) for 20 min using a conventional food steamer (for Ki67) or by incubating the slides in a 95 °C PT module (Thermo Scientific) containing 1× citrate buffer (pH 6) (Abcam) for 25 min (for CD31 and αSMA). Endogenous peroxidase was then blocked by incubating slides in 3% H₂O₂ (Sigma-Aldrich) in distilled H₂O for 30 min at room temperature (RT). Slides were then blocked with 1.5% blocking serum (ABC VECTASTAIN IgG Kit) and incubated with the primary antibody (concentrations can be found in Table S11) at 4 °C overnight (1 h at RT for Ki67). After successive incubations (30 min at RT) with the corresponding biotinylated IgG (Vector Laboratories) and the ABC solution (Vector Laboratories), the peroxidase activity was developed using 3,3′-diaminobenzidine (DAB) (ImmPACT DAB EqV) as a substrate. Slides were counterstained with Gill’s hematoxylin (Merck) for 20 s, dehydrated, and mounted with coverslips using DPX (distyrene, plasticizer and xylene mixture) mounting medium (Sigma-Aldrich).

Immunohistochemistry (IHC) Analysis

QuPath v0.1.2, an open source digital pathology software was used to identify and count the positive cells (brown) in the Ki67 stained sections. The whole tumor sections were selected as regions of interest (ROIs) and the positive cell detection command was performed, using the single threshold option, to distinguish and quantify the brown stained (positive) cells from the negative hematoxylin (blue) stained cells. For the αSMA stained sections ImageJ v1.49 was used for analysis. The tumor sections in entirety were selected as regions of interest (ROIs). Using the color threshold tool, brown DAB (positive) staining was highlighted while all blue hematoxylin (negative) stained sections were excluded. Masks of the highlighted regions were then generated and were used to measure the percentage area of positive staining. Similarly, the same procedure was used for the analysis of CD31 sections; however, only four snapshots (ROIs) per slide were used due to the low intensity of the CD31 staining.

Statistics

For cAMP accumulation studies all data consist of at least three independent experimental repeats. Each independent experimental repeat is performed on a new batch of cells and on a separate date from the previous repeat. Curves shown are representative and do not include all data points. Data points and curves are presented as mean ± SEM, and the significance was defined by unpaired t test. Student’s t test or one-way ANOVA was used to compare between groups of one experimental variable. In experiments for which there are more than one experimental variable, two-way ANOVA was used to analyze individual variables and the interaction between them. Repeated-measures two-way ANOVA was used to analyze time course data and normalized data (e.g., viability and apoptosis data). Posthoc multiple comparisons tests (Dunnett or Tukey) were also used to determine statistical significance of differences. The log-rank test was used to compare Kaplan–Meier survival curves.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsptsci.0c00032.

• Supplementary chemistry including chemical synthesis details, structures for screened compounds and modeling approach; supplemental biology including figures and tables (PDF)

Author Contributions

^# These authors contributed equally to the work. P.A., A.B.A.J., J.-O.Z., M.J.T., K.R.G., P.A.G., J.E.J.M., R.A.P., P.B., P.J.B., N.W., T.M.S., J.P.A.H., and G.O.R. designed research; P.A., A.B.A.J., J.-O.Z., J.E.J.M., N.W., A.P.S., K.J.A.B., J.L.H., and J.I.W. performed research; J.-O.Z., P.B., and P.J.B. contributed new reagents/analytic tools; P.A., A.B.A.J., J.-O.Z., M.J.T., K.R.G., P.A.G., J.E.J.M., R.A.P., P.B., P.J.B., N.W., A.P.S., K.J.A.B., and J.I.W., T.M.S., J.P.A.H., and G.O.R. analyzed data; P.A., A.B.A.J., J.-O.Z., M.J.T., K.R.G., P.A.G., J.E.J.M., R.A.P., P.J.B., T.M.S., J.P.A.H., and G.O.R. wrote the manuscript.

The authors declare the following competing financial interest(s): Results and reagents arising from this study are currently the subject of patent filings. The University of Sheffield is exploring the possibility of commercialising AM2 antagonists as therapeutics. If this occurs, Timothy M. Skerry, Joseph P. A. Harrity, Gareth O. Richards, Paris Avgoustou, Ameera B. A. Jailani, and Jean-Olivier Zirimwabagabo may benefit financially from stock or other rewards for invention. If the research is commercialized, the following may receive payment for work to be performed during the commercialization process: Matthew J. Tozer, Karl R. Gibson, Paul A. Glossop, James E. J. Mills, Roderick A. Porter, Peter J. Bungay.

Notes

Data Availability. All data generated or analyzed during this study are either included in this published article (and its Supporting Information) or are available from the corresponding authors on reasonable request.
