Dioxin-like and non-dioxin-like PCBs differentially regulate the hepatic proteome and modify diet-induced nonalcoholic fatty liver disease severity

Abstract

Polychlorinated biphenyls (PCBs) are persistent organic pollutants associated with metabolic disruption and non-alcoholic fatty liver disease (NAFLD). Based on their ability to activate the aryl hydrocarbon receptor (AhR), PCBs are subdivided into two classes: dioxin-like (DL) and non-dioxin-like (NDL) PCBs. Previously, we demonstrated that NDL PCBs compromised the liver to promote more severe diet-induced NAFLD. Here, the hepatic effects and potential mechanisms (by untargeted liver proteomics) of DL PCBs, NDL PCBs or co-exposure to both in diet-induced NAFLD are investigated. Male C57Bl/6 mice were fed a 42% fat diet and exposed to vehicle control; Aroclor1260 (20 mg/kg, NDL PCB mixture); PCB126 (20 μg/kg, DL PCB congener); or a mixture of Aroclor1260 (20 mg/kg)+PCB126 (20 μg/kg) for 12 weeks. Each exposure was associated with a distinct hepatic proteome. Phenotypic and proteomic analyses revealed increased hepatic inflammation and phosphoprotein signaling disruption by Aroclor1260. PCB126 decreased hepatic inflammation and fibrosis at the molecular level; while altering cytoskeletal remodeling, metal homeostasis, and intermediary/xenobiotic metabolism. PCB126 attenuated Aroclor1260-induced hepatic inflammation but increased hepatic free fatty acids in the co-exposure group. Aroclor1260+PCB126 exposure was strongly associated with multiple epigenetic processes, and these could potentially explain the observed non-additive effects of the exposures on the hepatic proteome. Taken together, the results demonstrated that PCB exposures differentially regulated the hepatic proteome and the histologic severity of diet-induced NAFLD. Future research is warranted to determine the AhR-dependence of the observed effects including metal homeostasis and the epigenetic regulation of gene expression.

Introduction

The pollutants, polychlorinated biphenyls (PCBs), are metabolism-disrupting chemicals associated with non-alcoholic fatty liver disease (NAFLD), obesity, dyslipidemia, diabetes and cardiovascular disease (Raffetti et al. 2018; Rosenbaum et al. 2017; Everett et al. 2011; Cave et al. 2010; Goncharov et al. 2008; Heindel et al. 2017). PCBs were produced during the 1930s-1970s for use in multiple industrial applications (Addison 1983). Although intentional PCB production is banned, their high thermodynamic stability imparting resistance to metabolism and degradation make PCBs persistent organic pollutants. PCBs bio-accumulate in living organisms and exposures increase along trophic levels of the food chain. PCBs have been detected in the serum of 100% American adult participants in the National Health and Nutrition Examination Survey (NHANES) (Cave et al. 2010).

The 209 possible PCB congeners have been generally categorized into two major classes: “coplanar” and “non-coplanar”. Coplanar PCBs (no or one chlorine atom in the ortho-position) including PCB126, potently activate the aryl hydrocarbon receptor (AhR), thereby eliciting a dioxin-like response similar to TCDD, and are known as “dioxin-like” (DL) PCBs (Safe et al. 1985). In contrast, non-coplanar PCBs have two or more chlorine atoms at the ortho-position, conferring a conformation that precludes AhR binding and activation. However, these so-called “non-dioxin-like” (NDL) PCBs activate other xenobiotic receptors, such as the constitutive androstane receptor (CAR) and elicit a phenobarbital-like response (Safe et al. 1985). Commercially, PCBs were sold as mixtures rather than individual congeners. Arclor1260 (60% chlorine by weight) was a first-generation PCB mixture manufactured in Anniston Alabama, by Monsanto. The Anniston Community Health Survey I (ACHS-1) reported a high prevalence of suspected NAFLD associated with PCB congener exposures in Anniston residents (Clair et al. 2018). The PCB congeners that constitute Aroclor1260 are ones that have higher molecular weights and are not easily metabolized; therefore, they tend to bio-accumulate in living organisms including humans. In fact, the PCB composition in Aroclor1260 more closely resembles human bio-accumulation patterns than any other single commercially-produced Aroclor mixture (Wahlang et al. 2014a). Because low-dose Aroclor1260 does not activate either the human or murine AhR, Aroclor1260 has previously been used to model NDL PCB exposures (Wahlang et al. 2014b; Wahlang et al. 2014a; Wahlang et al. 2016).

PCB exposures are associated with NAFLD in human cohort studies and either cause or exacerbate diet-induced NAFLD in animal studies [reviewed in (Wahlang et al. 2019a)]. NAFLD is a broad spectrum of progressive liver disorders ranging from fat accumulation (steatosis), to hepatic inflammation (steatohepatitis), fibrosis, cirrhosis, and hepatocellular carcinoma. NAFLD and its more severe form, non-alcoholic steatohepatitis (NASH) can be due to various etiological factors, such as high caloric intake, lifestyle habits and more recently, environmental chemical exposures. Our group coined the term “toxicant-associated steatohepatitis” (TASH) to reflect the steatohepatitis associated with industrial chemical exposures (Wahlang et al. 2019b). However, recent studies have implicated known PCB receptors such as the AhR, CAR, pregnane-xenobiotic receptor (PXR), and epidermal growth factor receptor (EGFR) in PCB-induced TASH (Wahlang et al. 2019a).

In the liver, AhR activation by TCDD and PCB 126 increased lipid accumulation and led to simple steatosis in short-term, rodent studies (Angrish et al. 2012; Hardesty et al. 2019b). CAR, along with PXR, function as sensors of xenobiotic substances and are primarily involved in detoxification and foreign compound metabolism. However, previous studies from our group and others have shown that NDL PCB-mediated CAR and PXR activation also play a fundamental role in regulating hepatic energy metabolism and may contribute to TASH development (Wahlang et al. 2019a). Like phenobarbital, some PCBs appear to indirectly activate CAR by diminishing EGFR phosphorylation; leading to reduced hepatic phosphoprotein signaling and metabolic disruption in TASH (Hardesty et al. 2017; Hardesty et al. 2019a; Hardesty et al. 2019b). Nonetheless, these studies only evaluated the effects of either DL or NDL PCBs in diet-induced obesity, although both classes of PCBs are concurrently present in the human exposome. We recently developed a new PCB exposure model, by spiking the potent AhR agonist, PCB126, into Aroclor1260 (Hardesty et al. 2019b). This mixture produced different hepatic effects than either Aroclor1260 or PCB126 alone in an acute exposure model (Hardesty et al. 2019b). Therefore, the objective of the current study is to evaluate the modulation of diet-induced NAFLD by several different types of chronic PCB exposures. Similar to our previous model (Hardesty et al. 2019b), these exposures include: low-dose Aroclor1260 (representative NDL PCB mixture), PCB126 (prototypical DL PCB) and Aroclor1260+PCB126 (NDL+DL PCB mixture). Untargeted liver proteomics was performed to elucidate potential mechanisms for observed differences in NAFLD disease severity.

Materials and Methods

Animal studies.

The related animal protocol was ratified by the University of Louisville Institutional Animal Care and Use Committee. Adult male C57BL/6 mice (8 weeks old) were purchased from Jackson Laboratory and distributed into four equal groups (n=10). All mice were fed a high fat diet (HFD, 15.2 %, 42.7 %, and 42.0 % of total calories from protein, carbohydrate, and fat respectively, TekLad TD88137) throughout the study period. At 10 weeks of age, 10 mice in each group were given either corn oil, Aroclor1260 (20 mg/kg), PCB126 (20 μg/kg), or a mixture of Aroclor1260 (20 mg/kg) plus 0.1 %PCB126 (20 μg/kg) via a one-time gavage and followed for 12 weeks (Supplemental Fig. 1). At week 8 post gavage, a glucose tolerance test (GTT) was performed as described previously (Wahlang et al. 2019c). Dual energy X-ray absorptiometry (DEXA) scanning (Lunar PIXImus densitometer, WI) was performed to measure body fat composition before euthanasia. Whole blood for plasma, liver, and fat tissue samples were harvested after euthanasia.

Definition of PCB Doses.

The doses of the different PCBs used in the present study were similar to those used in the acute study (Shi, Jan et al. 2019) and were designed to mimic doses relevant to human exposures. For example, Aroclor1260 at 20 mg/kg was designed to reflect serum PCB levels measured in the highest exposed quartile of the ACHS cohort (Silverstone et al. 2012), while PCB126 at 20 μg/kg (0.1% of Aroclor1260) was designed to mimic the percent of serum PCB126 measured in NHANES 2003-2004, relative to other heavily bio-accumulated PCBs such as PCB153, the congener with the highest reported serum levels in NHANES 2003-2004 (Serdar et al. 2014).

Histological staining.

Liver and pancreas tissues were fixed in 10% Neutral Buffered Formalin (NBF) for 72 hours and embedded in paraffin for routine histological examination. Hematoxylin-eosin (H&E) staining was performed to identify histopathological changes. Chloroacetate esterase (CAE) activity, macrophage accumulation and fibrosis were evaluated by CAE, immunohistochemical and picro sirius red staining respectively, according to the manufacturer’s protocols. Micrographic images were obtained by a high-resolution Olympus digital scanner with an Olympus digital camera (BX41).

Real-time PCR.

Mouse liver and pancreas tissues were homogenized and total RNA was extracted using RNA-STAT 60 reagent according to the manufacturer’s protocol. The purity and quantity of total RNA were measured with a Nanodrop spectrometer (ND-1000, Thermo Fisher Scientific, Wilmington, DE) using ND-1000 V3.8.1 software and cDNA was reverse transcribed from 1 ug RNA using a one-step cDNA synthesis reagent (QScript cDNA Supermix, QuantaBio, Beverly, MA). RT-PCR was performed on the CFX384™ Real-Time System (Biorad, Hercules, CA) using iTaq Universal probe Supermix and Taqman probes as described elsewhere (Wahlang et al. 2019c). The relative mRNA expression was calculated using the comparative 2^−ΔΔCt method and normalized against GAPDH mRNA.

Measurement of hepatic lipids, plasma lipids and cytokines.

Hepatic lipids were extracted by a mixture of chloroform and methanol (2:1) according to a published protocol (Bligh and Dyer 1959). Triglycerides and free fatty acid contents were measured using commercial kits with final values normalized to liver weight. Plasma alanine transaminase (ALT), aspartate transaminase (AST), triglyceride, cholesterol and lipoproteins were quantified with lipid panel plus kits on a Piccolo Xpress Chemistry Analyzer (Abbott Laboratories, IL). Plasma cytokine and adipokine levels were acquired using a customized Milliplex® MAP mouse adipokine Panel on a Luminex® 100 system (Luminex Corp, Austin, TX).

Proteomics Analysis.

Proteins were extracted from liver tissue in RIPA buffer supplemented with protease and phosphatase inhibitors using a bead homogenizer and protein amounts were quantitated by BCA assay. Protein lysates (200 μg) were trypsinized using the modified Filter-Aided Sample Preparation (FASP) method (Wisniewski et al. 2009) and enriched for phosphopeptides by the TiO2-SIMAC-HILIC (TiSH) method (Engholm-Keller and Larsen 2016). Briefly, protein samples were reduced with dithiothreitol, denatured with 8M urea and alkylated with iodoacetamide followed by centrifugation through a high molecular weight cutoff centrifugal filter (Millipore, 10k MWCO). After overnight digestion with sequencing grade Trypsin (Promega), the digested proteins were collected and cleaned with a C18 Proto™ 300 Å Ultra MicroSpin column. Protein digested samples (50 μg) were labeled with tandem mass tag (TMT) TMT10plex™ Isobaric Label Reagent Set (Thermo Fisher, Waltham, MA); samples were then concentrated and desalted with Oasis HLB Extraction cartridges (Waters Corporation, Milford, MA) using a modified protocol for extraction of the digested peptides. (Keshishian et al. 2015). Samples were then subjected to high pH reversed phase separation with fraction concatenation on a Beckman System Gold LC system supplemented with 126 solvent module and 166 detector in tandem with a BioRad Model 2110 Fraction Collector (McDowell et al. 2013). Liquid Chromatography/Mass Spectrometry (LC/MS) was used to measure TMT-Labeled peptides. Briefly, every high pH reversed phase fraction was dissolved in 50 μL solution of the combination of 2% v/v acetonitrile/ 0.1% v/v formic acid and 1 μL of each fraction was analyzed on EASY-nLC 1000 UHPLC system (Thermo Fisher) and an Orbitrap Elite – ETD mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). Proteome Discoverer v2.2.0.388 was used to analyze the raw data collected from the mass spectrometer. Hepatic proteins that had significance abundance were imported into MetaCore software (Clarivate Analytics, Philadelphia, PA) for the following analyses: gene ontology (GO), enrichment by protein function (EPF), and interaction by protein function (IPF).

Statistical analysis and data sharing.

Statistical significance was determined by two-way analysis of variance (ANOVA) using GraphPad Prism version 7.02 for Windows (GraphPad Software Inc., La Jolla, CA, USA). P <0.05 was considered statistically significant. Statistical analysis for the proteome data was analyzed using the R package as described previously (Srivastava et al. 2019). Given the exploratory nature of the study, significantly altered proteins were further filtered using an FDR threshold of 0.2 and proteins exhibiting a fold change of −0.5<log₂FC< 0.5 were rejected to rule out false positives. Proteomics data files were deposited with MassIVE (http://massive.ucsd.edu/) data repository, Center for Computational Mass Spectrometry at the University of California, San Diego and shared with the ProteomeXchange (www.proteomexchange.org).

Results

Effects of PCB exposures on body composition, glucose tolerance and adipokines.

Body weight was measured weekly throughout the 12-week study. There was a gradual increase in body weight in all the four groups from Week 0 to Week 12 (Fig. 1A). However, there were no significant differences in the amount of body weight gain between the groups (Fig. 1B). Body fat composition was measured using both Dexascan and by weighing the harvested epididymal fat (white adipose tissue) content. Although there was no significant difference in overall % fat composition (Supplemental Fig. 2), Aroclor1260 exposure, however, increased white adipose tissue to body weight ratio (Fig. 1C). Additionally, neither Aroclor1260 nor PCB126 affected liver weight to body weight ratio (Fig. 1D) and pancreas weight to body weight ratio in these mice (Supplemental Fig. 2). A glucose tolerance test was performed to examine PCB effects on glucose metabolism; there were no differences between groups for alteration in glucose uptake (Supplemental Fig. 2). PCB effects on plasma lipids and adipo-cytokines were evaluated. The Aroclor1260+PCB126 group significantly decreased plasma cholesterol levels via its interacting Aroclor1260 and PCB126 components. PCB126 exposure decreased triglyceride levels in the Aroclor1260+PCB126 group (Supplemental Table 1). There was no PCB effect on adipokines including adiponectin, leptin and resistin (Supplemental Table 1)

Figure 1. Effects of PCB exposures on body composition.

(A) Body weight (BW) was measured weekly throughout the 12 week study and (B) % change in body weight relative to the initial body weight taken at the beginning of the study was calculated. White adipose tissue (WAT) weight and liver weight (LW) were measured and the (C) WAT/BW and (D) LW/BW ratios were calculated. Values are mean ± SEM; p <0.05, a - Aroclor1260 effect, b - PCB126 effect, c - interaction between Aroclor1260 and PCB126.

Effects of PCB exposure on hepatic steatosis, inflammation, injury and fibrosis.

Hepatic steatosis was assessed using H&E staining of liver sections. All HFD-fed mice developed variable, centrilobular, macro-vesicular steatosis and the different PCB exposures did not exacerbate HFD-induced steatosis (Fig. 2A). Hepatic lipids were measured and PCB exposures had no effect on either hepatic triglyceride or cholesterol levels (Supplemental Fig. 3). However, hepatic free fatty acid levels were significantly increased by the Aroclor1260+PCB126 mixture (Fig. 2B). Histological analyses for liver inflammation were assessed using CAE and F4/80 staining. CAE staining demonstrated that HFD feeding induced neutrophil infiltration in the liver (Fig. 2C); however, Aroclor1260 exposure exacerbated this effect as shown by the number of inflammatory foci counted per field (Fig. 2D). Interestingly, the Aroclor1260+PCB126 group showed a lesser number of inflammatory foci counted per field. Likewise, F4/80 staining demonstrated that the Aroclor 1260 group had increased macrophage infiltration compared to any other group (Fig. 2E). This observation was consistent with hepatic Cd68 gene expression where in Aroclor 1260 increased Cd68 mRNA levels, indicating a hepatic inflammatory state, while this effect was absent with PCB126 exposure (Fig. 2F). Commonly used biomarkers of liver injury, namely plasma ALT and AST levels were measured. Elevated plasma ALT activity levels were only seen with Aroclor 1260 exposure, but not with PCB 126 (Fig. 2G) while PCB126 showed a trend for decreased plasma AST activity levels (Supplemental Fig. 3). Additionally, the Aroclor1260+PCB126 group showed attenuation of Aroclor 1260-elevated plasma ALT levels, suggesting that PCB126 may be protective against liver injury in this model. Fibrosis was assesed by picro sirius red staining of liver sections to detect collagen deposition (Supplemental Fig. 4). While there were no histological differences between groups, PCB126 decreased the hepatic gene expression of collagen (Col1a2) and actin 2 (Acta2), implicating a suppression of pro-fibrotic gene expression in the liver (Supplemental Fig. 4)

Figure 2. Effects of PCB exposures on steatosis and inflammation.

(A) Liver sections were analyzed for steatosis using H&E staining. (B) Hepatic free fatty acid levels were measured using colorimetric assay. (C) Liver sections were analyzed for neutrophil infiltration using CAE staining where red positive cells indicate neutrophil infiltratiion. (D) The CAE positive number per microscopic field were counted. (E) Liver sections were analyzed for macrophage infiltration using F4/80 immunohistochemistry staining and brown positive cells indicate macrophage accumulation. (F) Hepatic CD68 mRNA levels were measured using RT-PCR. (G) Plasma ALT activity levels were measured using the Piccolo Xpress Chemistry Analyzer. Values are mean ± SEM; p <0.05, a - Aroclor1260 effect, b - PCB126 effect, c - interaction between Aroclor1260 and PCB126.

PCB exposures modified expression of AhR and CAR target genes.

Known PCB receptor activation such as AhR and CAR activation was examined. PCB126 exposure caused upregulation of cytochrome P450 1a2 (Cyp1a2), an AhR target gene, indicative of AhR activation. In contrast, the Aroclor1260+PCB126 group showed decreased Cyp1a2 mRNA levels (Fig. 3A). With regards to AhR gene expression, PCB126 alone showed a trend for decreased AhR mRNA levels (Fig. 3B). For CAR activation, the CAR target gene, Cyp2b10, was measured. The Aroclor1260 group showed upregulated Cyp2b10 mRNA levels, indicative of CAR activation (Fig. 3C) while CAR expression was increased in the Aroclor1260+PCB126 groups (Fig. 3D).

Figure 3. Effects of PCB exposures on target gene expression.

Hepatic mRNA expression for the AhR target gene (A) Cyp1a2 and (B) AhR and the CAR target gene target gene Cyp2b10 (C) and (D) CAR (Nr1i3) were measured by RT-PCR. Values are mean ± SEM; p <0.05, a - Aroclor1260 effect, b - PCB126 effect, c - interaction between Aroclor1260 and PCB126.

Effects of PCB exposure on the hepatic proteome.

The various PCB exposures produced distinct hepatic proteomes (Fig. 4). 8,355 unique proteins and their isoforms were detected, corresponding to 4,609 protein groups. Liver protein content was regulated as follows: Aroclor1260 (35 increased and 48 decreased); PCB 126 (158 increased and 238 decreased); and Aroclor1260+PCB126 (144 increased and 257 decreased) (Fig. 4 and Supplemental Table 2). The majority of differentially abundant proteins for each group were unique to that exposure (range 58.7%−63.1%). Of the 401 proteins associated with Aroclor1260+PCB126 exposure, only 5.9% were also associated with Aroclor1260 while only 33.6% were also associated with PCB126. Only 3 proteins were changed in all three PCB exposure groups (BET1-like protein and two isoforms of protein-O-linked-mannose-β−1,4-N-acetylglucosaminyltransferase 2). Clearly, the proteomic changes associated with the Aroclor1260+PCB126 mixture were not the sum of its parts.

Figure 4. Effects of PCB exposures on the hepatic proteome.

Alterations in hepatic proteins are depicted by volcano plots showing significance (y-axis) versus protein fold change (x-axis) for (A) Aroclor1260, (B) PCB126 and (C) Aroclor1260+PCB126. Black denotes unaltered proteins, green denotes significantly altered proteins, red denotes significantly altered protein with (log₂FC >1), blue denotes significantly altered protein with (log₂FC <1). (D) A multi-dimensional scatter (MDS) plot depicting the pattern for protein alterations in the different groups. ExpA - Aroclor1260, ExpB - PCB126, ExpC - Aroclor1260+PCB126. (E) The number of proteins and their isoforms that were altered for the different exposure groups. (F) Venn diagram showing the number of overlapping proteins between the three exposure groups.

EPF analysis was performed to determine the protein classes most impacted by PCBs (Supplemental Table 3). Enzymes were the most affected class (Aroclor1260, z-score=3.63; PCB126, z-score=7.11; Aroclor1260+PCB126, z-score=4.89). Consistent with this observation and the RT-PCR data, the enzyme levels of CYP1A1 and CYP1A2, were higher for PCB126 (CYP1A1: 9.09-fold, p=7.10E-06 and CYP1A2: 5.85-fold, p=3.10E-08) and, to a lesser degree, for Aroclor1260+PCB126 (CYP1A2: 2.39-fold, p=2.39E-08) (Supplemental Table 2). While Aroclor1260 increased hepatocyte injury (by histologic and plasma ALT enzyme activity biomarkers), plasma AST activity was not significantly increased. This could be related to the peculiar proteomic observation that hepatic AST enzyme levels were reduced by PCB exposures (Aroclor1260: 0.64-fold, p=2.18E-03 and PCB126 0.68-fold, p=5.82E-03). Again, consistent with the liver histology, inflammation-associated enzymes and leukocyte markers were increased with Aroclor 1260 (e.g., macrosialin/CD68, 2.26-fold, p=1.85E-04) and decreased with either PCB126 (e.g., myeloperoxidase: 0.51-fold, p= 1.79E-03; α-defensin 20: 0.48 2.90E-02; and the calprotectin component, protein S100-A8: 0.32-fold, p=8.05E-03) or Aroclor1260+PCB126 (e.g., protein S100-A9: 0.62-fold, p=4.35E-02; neutrophil granule protein: 0.58-fold, p=1.17E-02; protein jagunal homolog 1: 0.33-fold, p=1.20E-02; and neutrophil gelatinase-associated lipocalin (0.30-fold, p=2.41E-02) (Supplemental Table 2). EPF revealed that Aroclor1260 altered protein levels of slightly more transcription factors than expected (z-score=1.67), while the other exposures changed fewer than expected. Several nuclear receptors implicated in steatohepatitis were differentially regulated including: peroxisome proliferator-activated receptor alpha (PPARα, Aroclor1260: 0.7-fold, p=1.97E-03), liver X receptor alpha (PCB126: 1.47-fold, p=1.81E-02) and V-erbA-related protein 2 (PCB126: 0.69-fold, p=1.14E-02 and Aroclor1260+PCB126: 0.63-fold, p=2.69E-03). Thus, while each PCB exposure was associated with a distinct proteome, EPF demonstrated that these proteomes were consistent with the observed phenotypes.

Enrichment by GO processes (Fig. 5) revealed that the distinct proteomes associated with PCB126 and Aroclor1260+PCB126 exposures were associated with similar top GO processes, although some differences were apparent. However, the top GO processes associated with Aroclor1260 were unique to that exposure. These findings are again consistent with the histology and phenotyping data. A very limited number of GO processes were enriched by Aroclor1260 including: ‘negative regulation of receptor internalization’; ‘negative regulation of catabolic process’; aspartate catabolic metabolism; and polyadenylation-dependent RNA catabolic processes (Fig. 5). In contrast, hundreds of GO processes were significantly enriched by PCB126 and/or Aroclor1260+PCB126 (data not shown). Both exposures enriched: (i) cellular, metabolic and catabolic processes; (ii) protein metabolism processes; (iii) cellular localization and organization processes; and (iv) the ‘negative regulation of neurotransmitter (acetylcholine) secretion’. These processes, however, were enriched to a greater degree by Aroclor1260+PCB126. In contrast, while both exposures enriched xenobiotic metabolism processes and lipid metabolism processes, these were enriched to a greater degree by PCB126.

Figure 5. PCB effects on gene ontology (GO) processes.

Heatmap showing different processes that were altered by PCB exposures according to the −log(p-value). The processes were obtained by GO analysis enrichment of the different proteins altered by PCB exposures using MetaCore. A - Aroclor1260, B - PCB126, C - Aroclor1260+PCB126.

GO processes related to cytoskeletal remodeling/fibrosis and metal homeostasis were enriched by PCB126 only (Fig. 5). The abundance of several cytoskeletal-associated proteins were markedly increased by PCB126 including: troponin C (120.33-fold, p=1.30E-03); actin α, skeletal muscle (55.47-fold, p=7.38E-03); myosin light chain 3 (33.67-fold, p=1.27E-02); LIM domain-binding protein (15.24-fold, p=7.88E-03), etc. (Supplemental Table 2). However, other cytoskeletal proteins, including type II keratins were differentially regulated by Aroclor 1260 (keratin 5: 0.28=fold, p=2.12E-03) or Aroclor1260+PCB126 (keratin 2: 0.30-fold, p=3.85E-02; keratin 4: 0.62-fold, p=4.19E-02; and keratin 6a: 1.89-fold, p=1.34E-02). While the PCB exposures were not associated with fibrosis at the histologic level, PCB-126 exposures were associated with reduced expression of several pro-fibrogenic genes at the molecular level. Consistent with this observation, PCB126 was associated with reduced abundance of several proteins associated with liver fibrosis including: collagen α−1(IV) chain (0.68-fold, p=2.26E-02); prolyl 4-hydroxylase subunit alpha-1 (0.66-fold, p=1.42E-03); and procollagen-lysine, 2-oxoglutarate 5-dioxygenase 3 (0.47-fold, p=2.28E-02). Multiple proteins associated with metal homeostasis were likewise reduced only by PCB126 including: ferritin light chain 1 (0.64-fold, p=1.44E-02), light chain 2 (0.63-fold, p=1.24E-02), and heavy chain (0.60-fold, p=6.11E-03); and zinc transporter 4 (0.55-fold, p=3.09E-02).

Several GO processes related to the epigenetic mechanisms were enriched only by Aroclor1260+PCB126 (Fig. 5). These included ‘regulation of gene expression, epigenetic’, ‘negative regulation of chromatin silencing’ and ‘histone H3-K27 methylation’. Differentially abundant proteins contributing to these observations included reduced: histone deacetylase 2 (0.68-fold, p=1.13E-02); histones H1.2 (0.63-fold, p=5.98E-04), H1.4 (0.66-fold, p=8.87E-03), H1.5 (0.67-fold, p=2.45E-02) and H1t (0.67-fold, p=1.40E-02); RNA polymerase-associated protein CTR9 homolog (0.60-fold, p=7.64E-04); and exportin 5 (0.66-fold, p=2.07E-02). However, several other epigenetics proteins were reduced by PCB126 and Aroclor1260+PCB126, such as: RNA binding protein 3 (PCB126: 0.68-fold, p=2.64E-03; Aroclor1260+PCB126: 0.69-fold, p=2.78E-03); LIM domain containing protein 1 (PCB126: 0.66-fold, p=6.66E-03; Aroclor1260+PCB126: 0.63-fold, p=2.93E-03); and protein arginine methyltransferase 7 (PCB126: 0.64-fold, p=9.69E-04; Aroclor1260+PCB126: 0.70-fold, p=4.74E-03).

IPF analysis was performed and the top over-connected interactions by z-score, are provided in Fig. 6. Seven unique objects, all protein kinases, were over-connected with Aroclor1260 exposure. These kinases included: the mammalian target of rapamycin (mTOR); the adenylate kinase isoenzyme, mitochondrial (AK3L1); the alternate mitogen-activated protein kinase, p38γ; and protein kinase C α (PKCα). PCB126 and/or Aroclor1260+PCB126 exposures were associated with eighteen over-connected objects (Fig. 6). Eleven of these objects were transcription factors and eight of these were common between the two groups. Shared transcription factors included: protein C-ets-1 (ETS1), SRY-box transcription factor 17 (SOX17), GA binding protein transcription factor subunit α (GABPα); glucocorticoid receptor (GCR); zinc finger protein x-linked (ZFX); neuroblastoma MYC oncogene (N-Myc); and acute myeloid leukemia 1 (AML1). The z-scores were all higher with the Aroclor1260+PCB126 exposure. Unique transcription factors over-connected by PCB126 included zinc finger protein, FOG family member 1 (ZFPM1) and CAR; while cellular oncogene FOS (c-FOS) was uniquely over-connected by Aroclor1260+PCB126. PCB126 exposure was uniquely over-connected with the bradykinin precursor, kininogen 1 (KNG1) and thrombin. Aroclor1260+PCB126 was uniquely over-connected with two enzymes associated with steatohepatitis and liver cancer, protein arginine methyltransferase 1 (PRMT1) and hypoxia associated factor (SART1) (Zhao et al. 2019; Koh et al. 2016).

Figure 6. Effects of PCB exposures on protein function.

Heatmap showing different classes of proteins, for the three exposure groups, obtained from the Interaction by Protein Function analysis using MetaCore and their corresponding z scores.

PCB effects on hepatic intermediary metabolism and plasma profile.

Proteomics analysis revealed that PCBs played a role in dictating intermediary metabolism such as lipid and protein processes. To further validate these findings, hepatic expression of genes involved in a variety of metabolic processes, including lipogenesis, lipid transport and mobilization, fatty acid β-oxidation, glucose and protein metabolism were measured. The expression of genes related to lipogenesis, namely, fatty acid synthase (Fasn), sterol regulatory element-binding protein 1 (Srebf1), stearoyl-CoA desaturase-1 (Scd1) and peroxisome proliferator-activated receptor gamma (Pparg) were measured by RT-PCR. PCB exposure did not alter Fasn or Srebf1 mRNA levels although the PCB126 group demonstrated a trend for decreased Fasn and Srebf1 mRNA levels (Supplemental Fig. 5), consistent with previous findings (Wahlang et al. 2017b; Wahlang et al. 2017a). Similarly, Aroclor1260+PCB126 exposure decreased Scd1 mRNA levels (Fig. 7A), consistent with protein abundance data (0.70-fold, p=1.35E-02, Supplemental Table 2) and a prior study (Hardesty et al. 2019b). The same group also showed increased Pparg gene expression (Fig. 7B). With regards to lipid transport, the hepatic mRNA levels of Cd36 and fatty acid binding protein 1 (Fabp1) were determined. Both Aroclor1260 and PCB126 contributed to the upregulated Cd36 expression in the Aroclor1260+PCB126 mixture (Fig. 7C). There was no significant difference for Fabp1 mRNA levels between groups (Supplemental Fig. 5). In terms of lipid breakdown, the mRNA levels of Pparα, a transcription factor that regulates fatty acid β-oxidation, the Aroclor1260+PCB126 group decreased Pparα levels (Fig. 7D). These results differed from the proteomics data which showed decreased protein abundance only for Aroclor1260. PCB 126 exposure also decreased the expression of the lipolytic gene, patatin-like phospholipase domain-containing protein 3 (Pnpla3, Fig. 7E). In addition, the gene expression of phosphoenolpyruvate carboxykinase 1 (Pck1), a gluconeogenic gene, was measured and found to be decreased with PCB126 exposure (Fig. 7F). Proteomics data demonstrated that PCB126 disrupted the coordination of glycolysis and gluconeogenesis by simultaneously downregulating abundance of hexokinase-3 (0.52-fold, p=2.53E-03), phosphofructokinase (0.61-fold, p=6.53E-03), and glucose-6-phosphatase (0.51-fold, p=1.33E-02). The gene expression of albumin (Alb), a biomarker for protein metabolism was increased in the Aroclor1260+PCB126 group (Fig. 7G). Overall, these results confirm that PCBs differentially altered hepatic intermediary metabolic processes.

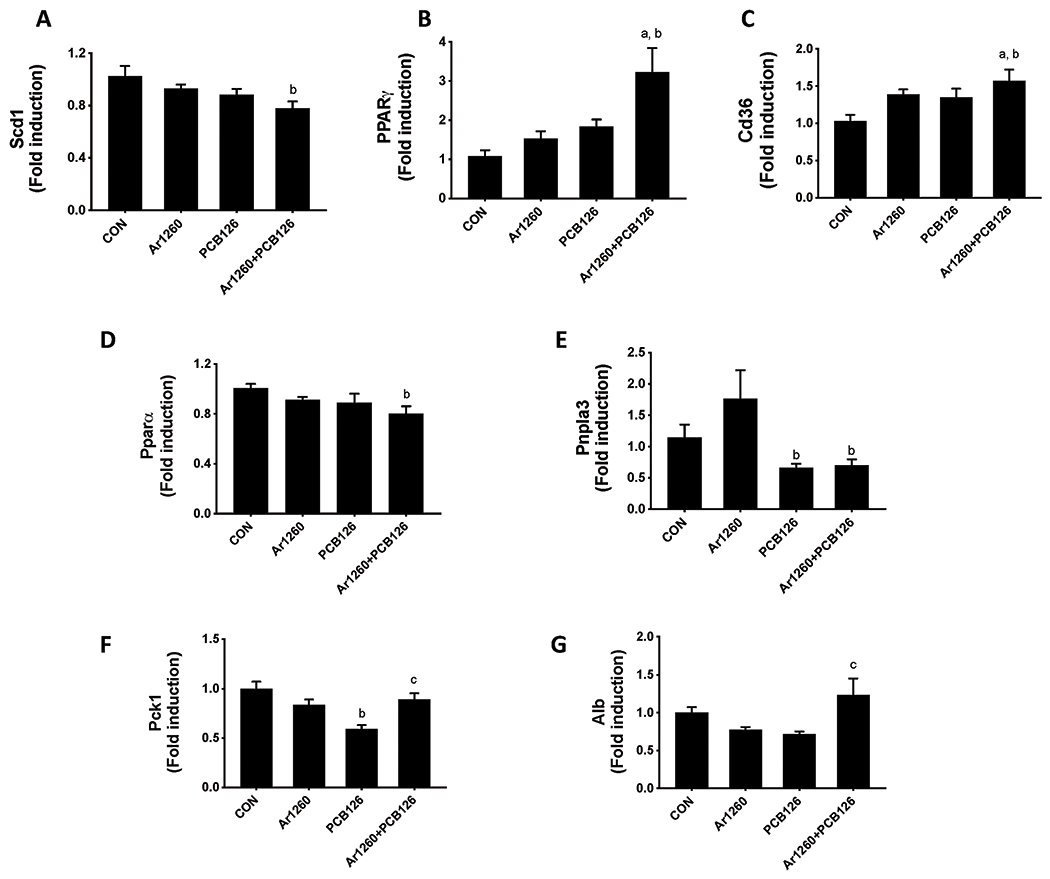

Figure 7. Effects of PCB exposures on genes involved in hepatic energy metabolism.

Hepatic mRNA levels of genes involved in hepatic energy metabolism inlcuding (A) Scd1, (B) Pparg, (C) Cd36, (D) Pparα, (E) Pnpla3, (F) Pck1 and G) Alb were measured by RT-PCR. Values are mean ± SEM; p <0.05, a - Aroclor1260 effect, b - PCB126 effect, c - interaction between Aroclor1260 and PCB126.

Discussion

Polychlorinated biphenyls, including both DL and NDL congeners, are metabolism disrupting chemicals (Heindel et al. 2017). PCBs exposures are associated with obesity-related diseases including: diabetes, dyslipidemia, cardiovascular disease and NAFLD. PCB-related NAFLD mechanisms was recently reviewed (Wahlang et al. 2019a). In animal models fed a healthy diet, DL, but not NDL PCBs, caused hepatic steatosis and NAFLD. In contrast, NDL PCBs exposures compromised the liver, thereby increasing the histologic severity of HFD-induced NAFLD. The NDL PCB exposures variably increased diet-induced hepatic steatosis, inflammation and fibrosis, while interacting with PCB receptors including PXR, CAR and the EGFR (Wahlang et al. 2016; Wahlang et al. 2014b; Hardesty et al. 2019b; Hardesty et al. 2017; Hardesty et al. 2019a; Wahlang et al. 2019b; Hardesty et al. 2018). While humans have simultaneous exposures to both PCB classes, no previously published studies in the literature have systematically evaluated the disease modifying effects of DL PCBs, NDL PCBs, and the more environmentally relevant combination of DL+NDL PCBs in a chronic exposure model of HFD-induced NAFLD. Few to no published data exist on either DL or DL+NDL PCBs in such a model.

Our recently published acute PCB exposure study demonstrated that Aroclor1260, PCB126 and Aroclor1260+PCB126 exposures differentially affected histology and disease mechanisms in liver and related organs in male mice fed a healthy diet (Shi, Jan et al. 2019). Based on the direction of these results, environmental relevance, and knowledge gaps in the literature; the objective of the current study was to elucidate the effects and potential mechanisms of these different PCB exposures in a diet-induced obesity mouse model of NAFLD.

The combination of the phenotyping, histologic and molecular biomarkers demonstrated the following differential PCB effects on metabolic conditions related to HFD-induced obesity. Consistent with prior studies (Wahlang et al. 2019a), Aroclor1260 increased liver inflammation/injury and the white adipose tissue to body weight ratio. PCB126 decreased liver inflammation and fibrosis at the molecular level. PCB126 alone did not increase hepatic free fatty acids and hepatic triglycerides, as reported previously (Shi, Jan et al. 2019). These differences are likely related to differences in duration of exposure or diet. Aroclor1260+PCB126 modulated lipid metabolism such that hepatic free fatty acids were increased while the plasma cholesterol/triglycerides were decreased; and it decreased liver inflammation. The lipid effects were mediated predominantly by the PCB126 component of this mixture as previously reported (Shi, Jan et al. 2019). Therefore, PCB126 co-exposure attenuated Aroclor1260-induced hepatic inflammation despite worsening the disruption of intermediary and xenobiotic metabolism. None of the exposures affected glucose tolerance or adipokines. AhR activation was highest with PCB126 alone; increased to a lesser degree with Aroclor1260+PCB126; and absent with Aroclor1260, consistent with (Shi, Jan et al. 2019). The effects on CAR were complex. Cyp2b10 gene expression was increased by Ar1260; IPF demonstrated enriched CAR interactions with PCB126; and Aroclor1260+PCB126 induced Nr1i3 gene expression. PCBs induced Cyp2b10 gene expression to a lower degree in HFD-fed mice compared to mice fed a low fat diet (Shi, Jan et al. 2019).

Proteomics was performed to elucidate potential mechanisms for the observed differences in metabolic phenotype and TASH severity which were greatest for Aroclor1260 vs. the more similar PCB126 and Aroclor1260+PCB126 exposure groups. The large number of differentially abundant proteins between the PCB exposure groups was surprising. For example, 99.58% of these proteins were not conserved across all three treatment groups. PCB126 and Aroclor1260+PCB126 altered many more proteins than Aroclor1260. However, 79.06% of the proteins altered by either of the latter two treatments were not common to both groups. Despite these differences, PCB126 and Arclor1260+PCB126 shared many top GO processes consistent with the observed similarities in liver histologic phenotype. The observed alterations in cholinergic neurotransmission associated with these exposures is novel and could be mechanistic.

While a number of new putative PCB targets and modes of action in TASH were identified, others were reassuringly consistent with known targets. Aroclor1260 exposure was associated with the ‘negative regulation of receptor internalization’ GO process and over-connected interactions with protein kinases including mTOR, AK3L1, p38γ and PKCα. These findings could be consistent with the decreased EGF-stimulated EGFR internalization with consequent phosphoprotein signaling disruption previously reported for Aroclor1260-associated TASH (Hardesty et al. 2017; Wahlang et al. 2019c; Hardesty et al. 2019b; Hardesty et al. 2019a; Hardesty et al. 2018). These studies reported decreased protein kinase B (Akt)/mTOR and extracellular signal-regulated kinases (ERK) signaling. AK3L1 is a downstream EGFR target which regulates glycolysis, thereby adding a new link between signaling disruption and intermediary metabolism (Jan et al. 2019). Intriguingly, p38γ and PKCα regulate both EGF-dependent ERK signaling (Abera and Kazanietz 2015; Lei et al. 2017; Yin et al. 2017) and NASH (Gonzalez-Teran et al. 2016; Zhou et al. 2019). The potential mechanistic roles of these kinases warrant future investigation in Aroclor1260-associated TASH.

The observed alterations in GO processes related to hepatic metal hemostasis and cytoskeleton for PCB126 could be mechanistic. PCB126-induced metal dysregulation has been described previously (Klaren et al. 2015; Klaren et al. 2018). However, the specific effector proteins identified by the present study (e.g., hepcidin, ferritin, zinc transporter 4, etc.) and the hepcidin-regulating transcription factor, ZFPM1 (Bagu et al. 2013) warrant future investigation. Several cytoskeleton proteins were the most up-regulated proteins by PCB126. The other exposures were associated with altered abundance of keratins 2, 4, 5 or 6a. Cellular localization analysis of a previous hepatic proteomics experiment from our group demonstrated that cytoskeletal-associated proteins were the top enriched cellular location for liver proteins differentially regulated by Aroclor1260 in mice fed a control diet; but this decreased in HFD-fed mice (Hardesty et al. 2019b). Circulating epithelial cell-derived keratin18 was associated with PCB-related TASH in ACHS (Clair et al. 2018). Ethanol-associated alterations of the hepatocyte cytoskeleton may influence the progression of alcohol-related steatohepatitis (Shepard and Tuma 2010). Therefore, the potential mechanistic role of PCB-induced cytoskeletal changes in TASH warrants future investigation. If the observed reduction in hepatic AST protein abundance is confirmed in humans, the utility of circulating AST enzyme activity as a biomarker for PCB-related liver toxicity in environmental epidemiology studies would be reduced. Several GO processes uniquely enriched with Aroclor1260+PCB126 co-exposure were discovered, including the epigenetic regulation of gene expression and the localization of macromolecules including proteins.

IPF analysis of the PCB126 and Aroclor1260+PCB126 exposure groups revealed over-connected interactions with several transcription factors regulating myriad processes involved in the resolution and repair of liver injury including inflammation, stellate cell plasticity and fibrosis, stem cells, proliferation, differentiation, metabolism, and transformation. These transcription factors are new targets for PCB hepatotoxicity in NASH and include: ETS1 (Sizemore et al. 2017; Marcher et al. 2019), SOX17 (Rommelaere et al. 2014; Merino-Azpitarte et al. 2017), GABPα (Niopek et al. 2017; Sizemore et al. 2017), c-FOS (Bakiri et al. 2017), ZFX (Ding et al. 2018), N-Myc (Qin et al. 2018), and AML1 (Marcher et al. 2019). While tumors were not observed in the present study, the identification of oncogenes is not surprising because PCB126 has previously been associated with liver cancer. Although Cyp1a2 message and protein were induced by PCB126 and Aroclor1260+PCB126, MetaCore analyses provided no evidence to support the potential AhR-dependence in any of the identified GO processes. Moreover, IPF analysis did not identify AhR as an over-connected transcription factor. While this could simply be a limitation of the software package, future studies are required to determine the AhR dependence of PCB-related TASH.

Aroclor1260 and PCB126 did not result in either additive hepatotoxicity or additive differential protein abundances in this chronic, diet-induced NAFLD model. Hepatic protein abundance is a function of protein synthesis, degradation and transport into and out of the liver. Epigenetics-related GO processes were enriched in the Aroclor1260+PCB126 exposure group, and this may have influenced the synthesis rates of specific hepatic proteins. The abundance of multiple epigenetics-related proteins was reduced including: histone deacetylase 2; histones H1.2, H1.4, H1.5 and H1t; RNA polymerase-associated protein CTR9 homolog; RNA binding protein 3; LIM domain containing protein 1 and protein arginine methyltransferase 7). The proteins are involved in numerous epigenetics processes including histone acetylation, methylation and microRNAs. IPF demonstrated over-connected interactions with the methyltransferase, PRMT1, and the several transcription factors associated with the epigenetic regulation of gene expression such as ETS1 and GABPα (Sizemore et al. 2017). The abundance of other proteins involved in epigenetics and the regulation of gene expression was altered in the other treatment groups (e.g., the non-canonical poly(A) RNA polymerase PAPD5, Supplemental Table 2) in Aroclor1260). Future studies are required to establish the mechanistic importance of epigenetic mechanisms in the genesis, progression and potential heritability of PCB-related liver diseases.

Although perhaps the most comprehensive analysis of different chronic PCB exposures in an animal model of NAFLD, the present study is not without its limitations. Most notably, while proteins regulating metal homeostasis and epigenetics were implicated, direct measurement of hepatic metals and epigenetic signatures was not performed. While we previously published a proteomics analyses in the high fat diet plus Aroclor1260 TASH model (Hardesty et al. 2019b), the present experiment utilized a different, and potentially more sensitive, proteomics technique (TMT labeling) as well as different analytic procedures. This may limit the comparability of results between studies, and as a result, the MetaCore outcomes may vary. Sex-differences were previously reported for Aroclor1260-induced TASH (Wahlang et al. 2019c), with female mice being more susceptible. Because male mice were utilized in the present study, potential sex differences for PCB126 and Aroclor1260+PCB126 exposures in TASH remain unknown. While Aroclor1260+PCB126 exposures were associated with a pancreatic pathology resembling diabetic exocrine pancreatopathy in an acute model (Hardesty et al. 2019b), the present study did not evaluate pancreatic endpoints because glucose tolerance test was unchanged.

In conclusion, the present study demonstrated the complexity of the hepatic effects of PCB mixtures. DL PCBs, NDL PCBs, and a more environmentally relevant mixture of both types of PCBs differentially modulated the hepatic proteome and the severity of diet-induced NAFLD. Aroclor1260 increased hepatic inflammation and phosphoprotein signaling disruption consistent with prior research. PCB126 decreased hepatic inflammation and fibrosis at the molecular level. Mechanisms including altered cytoskeletal remodeling, metal homeostasis, and disruption of intermediary and xenobiotic metabolism were implicated in PCB126’s mode of action, and all have been previously reported. Neither the histologic nor the proteomic effects of Aroclor1260 and PCB126 were additive in the co-exposure model. PCB126 attenuated Aroclor1260-induced hepatic inflammation but increased hepatic free fatty acids while reducing plasma lipids. The overwhelming majority of differentially regulated hepatic proteins associated with Aroclor1260+PCB126 exposure were not associated with either Aroclor1260 or PCB1260 exposure. Likewise, most proteins associated with either Aroclor1260 or PCB126 exposures were not associated with co-exposure to both. Despite this, many of the top GO processes and over-connected interactions by protein function were common to the PCB126 and Aroclor1260+PCB126 exposure groups. These conserved processes were broadly related to metabolism and cellular organization and localization. A complex web of over-connected transcription factors broadly regulating metabolism; liver injury and inflammation; and liver repair was identified. Aroclor1260+PCB126 exposure was strongly associated with multiple epigenetic processes, and these could potentially explain the observed non-additive effects of the exposures on the hepatic proteome. When compared with our recently published acute study investigating the same PCB exposures, the modifying effect on diet (and possibly duration) on PCB-induced hepatotoxicity is also demonstrated. More data including translational research are required on potential modes of PCB action in NAFLD including: phosphoprotein signaling disruption; abnormal metal homeostasis; cytoskeletal remodeling; and transcriptional reprogramming by epigenetic mechanisms. Likewise, potential sex differences and the AhR-dependence of PCB126’s NAFLD modifying effects warrant future investigation.

Abbreviations:

ACHS

Anniston Community Health Survey

AhR

aryl hydrocarbon receptor

AK3L1

adenylate kinase isoenzyme

Alb

albumin

ALT

alanine transaminase

AML1

acute myeloid leukemia 1

AST

aspartate transaminase

BW

body weight

CAE

chloroacetate esterase

CAR

constitutive androstane receptor

Cd68

cluster of differentiation 68

c-FOS

cellular oncogene FOS

Cyp

cytochrome P450

DL

dioxin-like

EGFR

epidermal growth factor receptor

EPF

enrichment by protein function

ERK

extracellular signal-regulated kinases

ETS1

protein C-ets-1

Fabp1

fatty acid binding protein 1

Fasn

fatty acid synthase

GABPα

GA binding protein transcription factor subunit α

GCR

glucocorticoid receptor

GO

gene ontology

H&E

hematoxylin-eosin

HFD

high fat diet

IPF

interaction by protein function

KNG1

kininogen 1

LW

liver weight

mTOR

mammalian target of rapamycin

NAFLD

non-alcoholic fatty liver disease

NASH

non-alcoholic steatohepatitis

NDL

non-dioxin-like

NHANES

National Health and Nutrition Examination Survey

N-Myc

neuroblastoma MYC oncogene

p38γ

alternate mitogen-activated protein kinase

PCBs

polychlorinated biphenyls

Pck1

phosphoenolpyruvate carboxykinase 1

PKCα

protein kinase C α

Pnpla3

patatin-like phospholipase domain-containing protein 3

Ppara

peroxisome proliferator-activated receptor alpha

Pparg

peroxisome proliferator-activated receptor gamma

PRMT1

protein arginine methyltransferase 1

PXR

pregnane-xenobiotic receptor

SART1

hypoxia associated factor

Scd1

stearoyl-CoA desaturase-1

SOX17

SRY-box transcription factor 17

Srebf1

sterol regulatory element-binding protein 1

TASH

toxicant-associated steatohepatitis

TCDD

tetrachlorodibenzo-p-dioxin

TMT

tandem mass tag

ZFPM1

zinc finger protein, FOG family member 1

ZFX

zinc finger protein x-linked
