Plasmonic Nanocrystal Arrays on Photonic Crystals with Tailored Optical Resonances

Juan Wang †,‡,*, Hai Le-The ‡,§, Theodosios Karamanos ∥, Radius NS Suryadharma ⊥, Albert van den Berg ‡, Pepijn W H Pinkse #, Carsten Rockstuhl ∥,∇, Lingling Shui †,*, Jan C T Eijkel ‡, Loes I Segerink ‡
PMCID: PMC7441488  PMID: 32814417

Abstract

graphic file with name am0c05596_0010.jpg

Hierarchical plasmonic–photonic microspheres (PPMs) with high controllability in their structures and optical properties have been explored toward surface-enhanced Raman spectroscopy. The PPMs consist of gold nanocrystal (AuNC) arrays (3rd-tier) anchored on a hexagonal nanopattern (2nd-tier) assembled from silica nanoparticles (SiO2NPs) where the uniform microsphere backbone is termed the 1st-tier. The PPMs sustain both photonic stop band (PSB) properties, resulting from periodic SiO2NP arrangements of the 2nd-tier, and a surface plasmon resonance (SPR), resulting from AuNC arrays of the 3rd-tier. Thanks to the synergistic effects of the photonic crystal (PC) structure and the AuNC array, the electromagnetic (EM) field in such a multiscale composite structure can tremendously be enhanced at certain wavelengths. These effects are demonstrated by experimentally evaluating the Raman enhancement of benzenethiol (BT) as a probe molecule and are confirmed via numerical simulations. We achieve a maximum SERS enhancement factor of up to ∼108 when the resonances are tailored to coincide with the excitation wavelength by suitable structural modifications.

Keywords: plasmonic−photonic microsphere, photonic stop band, slow light effect, localized surface plasmon resonance, surface-enhanced Raman spectroscopy

1. Introduction

Surface-enhanced Raman spectroscopy (SERS) has attracted increasing attention in both scientific research and practical applications due to its high sensitivity and specificity. It relies on enhancing the Raman signal from molecules close to a supporting SERS-active substrate, mostly made from noble metals. This method allows nondestructive and label-free detection of a wide range of molecules with near single molecule detection limit.1−3 Therefore, it has been applied in various fields such as chemistry, biology, medicine, and environmental science.4,5 The SERS phenomenon is mainly attributed to a combination of an electromagnetic (EM) enhancement (due to the excitation of surface plasmon polaritons, i.e., an excitation where the free electrons in the metal couple resonantly to a driving EM field) with a chemical enhancement (charge transfer (CT) between SERS-active substrates and analyte molecules).3,6,7 Generally, the contribution of the EM enhancement is much stronger than that of the CT enhancement.8 It has been reported that the EM enhancement can be manipulated by tailoring the characteristic dimensions and optical properties of the SERS-active substrates.9 A variety of SERS-active substrates/structures have been fabricated using top–down methods9 (e.g., electron-beam lithography and colloidal lithography), bottom–up methods10,11 (e.g., colloid assembly), or hybrid methods (top–down combined with bottom–up approach)11 to provide and control the localized surface plasmon resonance (LSPR) by varying the geometry of nanostructures (e.g., nanogap size and shape and periodicity), plasmonic resonance frequencies and modes,12 thereby resulting in an enhanced local EM field on demand. Nevertheless, the development of cost-effective, reproducible approaches to fabricate SERS-active substrates with high sensitivity and high enhancement factors (EFs) are still at stake and become an increasingly significant topic with the ultimate goal to eventually achieve near single molecule level detection.13

Noble metals have been mostly used as the base materials for SERS-active substrates (e.g., Au, Ag, and Cu) as they possess unique surface plasmon resonance (SPR) properties upon illumination with incident light.14 Noble metal nanostructures can confine light into small volumes to enhance the local EM field close to their surface. Such greatly enhanced local EM field areas are defined as “hotspots” in SERS-active substrates, as in turn the weak Raman scattering signal is particularly enhanced if the molecules are located in these spatial locations. It has to be reminded that the EM SERS enhancement factor is approximately proportional to the fourth power of the electric field amplitude.15 Many metal SERS-active substrates, such as colloidal metal nanoparticles (e.g., dimers and aggregates), metal nanopatterns, or three-dimensional (3D) plasmonic structures have been reported.16−18 However, either expensive equipment or complex chemical synthesis is required to fabricate these metal nanostructures.

It is worth noting that photonic crystal (PC) structures made from dielectrics have also long been considered for SERS application and not just metals. They are either used as SERS-active substrate themselves19 or serve as a substrate to provide structural support for metal films or metal nanoparticles.20 PC structures consist of a periodic arrangement of materials with alternative permittivities. PC structures can tailor the propagation of light and can improve the light–matter interaction thanks to multiple scattering effects. Particularly, PC structures offer photonic stop bands (PSBs) in certain wavelength regions where the propagation of light along a specific direction is forbidden. Also, close to the edge of the PSB, the group velocity of light can be slowed down.21,22 For example, Qi et al.19 have reported a plasmon-free TiO2 photonic microarray as a SERS-active substrate. They explained the enhanced light–matter interaction by the repeated and multiple light scattering in their PC structures. It has been demonstrated that the SERS enhancement strongly depends on spectral alignment between the PSB and the laser wavelength used in the SERS measurements.19 PC structures with a PSB center near the laser excitation wavelength show lower SERS signal owing to the reduced local density of states. In contrast, PC structures with PSB edges in the proximity of the laser excitation wavelength show higher SERS signal that is explained by the increased local density of states that accompanies the slow light effect.19 In addition, our group has previously reported the fabrication of PC microspheres with metal-covered nanoarrays causing LSRP, which showed a high SERS EF (>107), which we attributed to the high density “hotspots” confined in a single microsphere.11

However, herein, we mainly focus on the enhancement of the EM field by a composite structure, possessing both PSB and LSPR properties, to investigate the Raman enhancement performance. Till now, only a few studies23−25 have shown the fabrication of SERS-active substrates with both LSPR (resulting from the noble metal nanoparticles/2D nanoarrays/3D nanostructures) and PSB properties (resulting from the PC structures) to improve the enhanced EM field synergistically, thereby leading to a further enhanced SERS intensity. EM modeling of a bioinspired PC structure incorporated with Au nanocrystals for enhancing the localized electric field was explored by Zheng et al.26 They showed that the Au-incorporated system can produce a stronger EM field due to the presence of the PC structure. Fränzl et al.25 have reported an SERS-active substrate by covering a one-dimensional PC with ordered metal nanoparticle arrays by electrochemical etching and the nanosphere lithography method, exhibiting a significant interaction of the plasmonic resonance with the PSB. Such an SERS-active substrate leads to a highly confined EM field at the interface between both structures and thus showing a significant enhancement in Raman signal with EFs up to 105. Lee et al.27 have also demonstrated that the SERS behavior of amorphous TiO2–Ag nanoarchitectures depends on the plasmonic–photonic interference coupling where SERS-active units were fabricated by a two-step anodization on a titanium substrate and thermal annealing to obtain silver nanoparticles on top of the titanium dioxide nanotube (TNT) structures. However, there are still ample opportunities to improve the plasmonic–photonic structures for SERS enhancement in a facile and robust manner to render structures with more designability and controllability with respect to the hierarchical structures and the resulting optical properties of both LSPR and PSB.

In this work, a robust and cost-effective approach has been developed to fabricate hierarchical plasmonic–photonic microspheres (PPMs) by combining droplet microfluidics with metal film deposition and thermal annealing. The fabricated PPMs possess both PSB properties, resulting from periodic silica nanoparticle (SiO2NP) arrangements of the 2nd-tier, and SPR properties, resulting from the AuNC arrays of the 3rd-tier. The uniform microsphere backbone is regarded as the 1st-tier. We investigated the SERS sensitivity dependent on the PSB edge of the PC structures by varying the size of the SiO2NPs. We observe a complicated impact of the size of the SiO2NP on the achievable SERS enhancement because (i) the spectral position of the PSB is modified but also (ii) because the size of the SiO2NP affects the geometrical properties of the deposited metallic structures and with that the spectral position of the SPR. The complicated interplay can, nevertheless, be reproduced in dedicated full-wave optical simulations that we perform to provide further insights to the experimental results. We demonstrate the synergistic effect of the multiple scattering of light in the PC structure and the LSPR caused by AuNC arrays as the presence of “hotspots” by tailoring the nanogaps between adjacent AuNCs of the 3rd-tier of the PPMs. An SERS enhancement up to a factor of 108 is experimentally achieved. Additionally, this multilevel hybrid structure has potential in photocatalysis and sensing according to its dual tunability in Bragg mode and plasmonic mode.28,29

2. Results and Discussion

2.1. Fabrication of Hierarchical Plasmonic–Photonic Microspheres

Figure 1 shows the process for fabricating PPMs30 serving as SERS-active substrates. In this process, we combine droplet microfluidics with metal film deposition and thermal annealing. Note that the annealing process in this work is different from our previous work28 where an inert gas of nitrogen (N2) was applied for formation of the AuNC arrays, avoiding surface cross contamination and ensuring the chemical properties. It is of great significance for subsequent molecule immobilization with respect to bioassays. Briefly, photonic crystal microsphere (PMs) were obtained using a microfluidic droplet generator (Figure 1a,b). These PMs possess PSB properties, resulting from the periodic SiO2NP arrangements that offer the required periodically modulated permittivity.31 By tailoring the SiO2NP diameter (dSiO2), the PSB properties are precisely controlled. Depositing a thin layer of a Au film onto the as-prepared PMs (Figure 1c) and annealing them in N2 at 800 °C for 1 h results in PPMs consisting of both the PC structures and well-spaced AuNC arrays (Figure 1d). The surface morphology of the AuNC arrays and the AuNC diameters strongly depend on the thickness of the deposited Au films. The formation of AuNCs is attributed to the dewetting of the Au film deposited onto the surface of SiO2NP arrangements.32 Both the AuNC diameter (dAu) and their edge-to-edge distance (pAu) increase with increasing dSiO2 (Figure S1) where PPMs feature one large AuNC on top and multiple small AuNCs along the rim of each SiO2NP. Subsequent deposition of a second continuous Au film on these as-prepared PPMs leads to a narrowing of the pAu (Figure 1e). This can result in a plasmon coupling effect with near-field EM enhancement, thereby creating high density hotspots.33

Figure 1.

Figure 1

Open in a new tab

Schematic diagrams of the process to fabricate PPMs. (a) Microdroplets generated using a microfluidic droplet generator. (b) PM formed by SiO2NP assembly and evaporation-induced solidification. (c) Au-coated PM. (d) Formation of a PPM by thermal annealing the Au-coated PM. (e) A PPM coated with a second Au layer by sputtering. (Panels (c–e)) Close-up diagram of the corresponding single microsphere.

Figure 2 shows top-view high-resolution scanning electron microscopy (HR-SEM) images of surface morphology of the fabricated PM, PPM, and Au-coated PPM. The PPMs show both well-ordered hexagonal SiO2NP nanopatterns (indicated by the red dashed hexagons) and AuNC arrays either in an irregular pattern with well-distributed small AuNCs (Figure 2b) or in a hexagonal pattern with one large AuNC on the top of each SiO2NP and multiple small ones along the rim of the SiO2NP (Figure 2c). In this work, the nomenclatures of dSiO2x nm@PM, Aun sdSiO2x nm@PPM, and tAu@Aun sm WdSiO2@PPM are used to clearly label the parameters of the obtained PMs, PPMs, and Au-coated PPMs, respectively. The superscript m and subscript n describe the thin Au film sputtering power and duration, x is the SiO2NP diameter, and y is the thickness of the second deposited Au film. The PM (dSiO2200 nm@PM, Figure 2a) consists of SiO2NPs of 200 nm in diameter, whereas the PPM consists of both SiO2NPs of 200 nm in diameter and AuNCs of 29 ± 3 nm (Au5 sdSiO2200 nm@PPM, Figure 2b) or 101 ± 4 nm (Au15 sdSiO2200 nm@PPM, Figure 2c). Coating a second layer of a continuous Au film of 100 nm thickness (tAu = 100 nm) onto the as-prepared PPM (Au15 sdSiO2200 nm@PPM, Figure 2c) results in the Au-coated PPM (tAu@Au15 s200 WdSiO2@PPM, Figure 2d). In this manner, the nanogaps among the adjacent AuNCs can be precisely tailored to achieve an EM field enhancement.

Figure 2.

Figure 2

Open in a new tab

Top-view HR-SEM images (scale bar: 2 μm) of (a) a dSiO2200 nm@PM, (b) a Au5 sdSiO2200 nm@PPM, (c) a Au15 sdSiO2200 nm@PPM, and (d) a tAu@Au15 s200 WdSiO2@PPM and close-up images (scale bar: 200 nm) of their corresponding surface morphologies.

2.2. Optical Properties of Hierarchical Plasmonic–Photonic Microspheres

Figure 3 shows optical microscopy (OM) images in bright-field (BF) and dark-field (DF) illumination modes, and their corresponding reflection spectra of the fabricated PMs and PPMs. The detailed optical reflection spectra measurements are described in the Methods section. The PMs demonstrate PSB properties (solid curves in Figure 3a,b), which can be tailored by varying the dSiO2. Their Bragg diffraction peaks show a red shift from 444 nm (dSiO2200 nm@PM) to 597 nm (dSiO2@PM) and 623 nm (dSiO2280 nm@PM) (BF illumination in Figure 3a) with increasing dSiO2.34 The PSB is clearly visible in these spectra as a local peak that shifts toward longer wavelengths with increasing dSiO2. Side lobes that would appear in a perfect PC structure with a planar interface are not visible because of the spherical shape of the PC structure and possibly also due to presence of defects and disclinations in the fabricated samples. The PPMs possess both PSB properties (resulting from the PC structures) and SPR properties (resulting from the AuNC arrays). Their reflection spectra (dotted curves in Figure 3a,b) show strong dips at approximately 517 nm wavelength, resulting from the AuNC array absorption.35 Note that a broad scattering peak with a low intensity of the PPMs consisting of 200 nm SiO2NPs (Au15 sdSiO2200 nm@PPMs) (black dotted curve in Figure 3b) is observed for which the Bragg diffraction peak (in the blue spectral region/high energy region) is separated from the Au scattering peak (in the red spectral region/low energy region). The scattering peaks from the AuNC arrays on the PPMs consisting of SiO2NPs of 250 and 280 nm in diameter show a red shift and a larger magnitude with increasing the dSiO2 (blue dotted and red dotted curves in Figure 3b). This is attributed to the overlap of the Bragg diffraction from the PC structures and AuNC array scattering. The different behavior with wavelength of the scattering of the AuNC arrays in DF compared to that in BF is noteworthy and not yet completely understood. We attribute the difference to the complex 3D structure of the AuNC arrays favoring specular reflection when illuminated from above compared to the more sideway scattering required for the DF signal.

Figure 3.

Figure 3

Open in a new tab

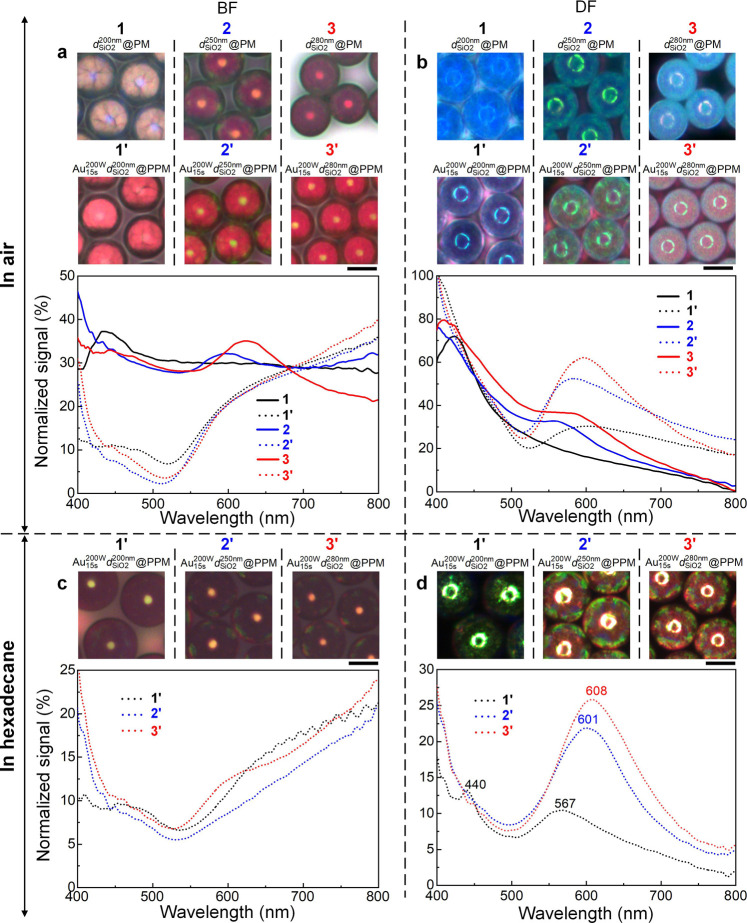

(a, c) BF and (b, d) DF images (scale bar: 10 μm) of PMs (without AuNC arrays) and PPMs (with one large AuNC on each of SiO2NPs and multiple small ones along the rim of SiO2NPs) captured in ambient air (panels (a) and (b)), and hexadecane (panels (c) and (d)) and their corresponding reflection spectra.

Figure 3c,d shows the BF and DF images and their corresponding reflection spectra of these PPMs measured in hexadecane with a refractive index (n) of 1.4 instead of in ambient air (n = 1.0), respectively. We found that these PPMs show similar dips as in air but shift to approximately 530 nm wavelength (Figure 3c) due to the PPMs with the surrounding medium of hexadecane. Similar to the measurements in ambient air, the scattering peaks of the PPMs in hexadecane (Figure 3d) show a red shift accompanied by a larger magnitude with increasing dSiO2NP. This indicates that a red shift of the Bragg diffraction with increasing dSiO2NP can result in an enhanced Au scattering (blue and red dotted curves in Figure 3d). The red shift of the scattering peaks is attributed to an increase in dAu. However, when the Bragg diffraction is in the blue spectral region/high energy region (black dotted curve in Figure 3d), Au scattering shows a broad peak with a low intensity in the red spectral region/low energy region, which is consistent with the spectra measured in ambient air. Hereby, it shows high potential to confine light of a specific wavelength to induce a locally amplified EM field incorporated with AuNC arrays for the SERS application, and this hypothesis will be investigated below.

2.3. Hierarchical PPMs as SERS-Active Substrates

Since the fabricated PPMs possess not only multilevel structures ranging from nanometers to micrometers but also integrated optical properties of both PSB and SPR, their SERS performance was explored using a laser emitting at 632.8 nm for the excitation. Figure 4 shows the Raman spectra of various fabricated SERS-active substrates, including 100 nm Au-coated AuNCs randomly distributed on a silicon (Si) wafer (tAu100 nm@Au15 s@Si, Figure 4a), 100 nm Au-coated PMs (tAu100 nm@dSiO2@PMs, Figure 4b), PPMs (Au15 s200 WdSiO2@PPMs, Figure 4c), and 100 nm Au-coated PPMs (tAu100 nm@Au15 sdSiO2200 nm@PPMs, Figure 4d) and their corresponding top-view HR-SEM images. The Au-coated PPMs (tAu@Au15 s200 WdSiO2@PPMs) shows the highest Raman intensity (EFA = 6.73 × 107 at 1067 cm–1, Table S2) with the dominant Raman active vibrational modes of benzenethiol (BT) molecules.36 Note that the slight shifts of vibration frequencies to higher wavenumbers in comparison with the isolated bulk molecules (Figure S2) can be explained by the chemical interaction between the adsorbed molecules and the underneath supporting SERS-active substrate.37 The calculation of the EFA is shown in the Methods section and the Supporting Information where the subscript A indicates that the area occupied by immobilized molecules was equated to the microscope objective spot area. To be more precise, the enhancement factor was also estimated by calculating the BT-immobilized Au surface area, and denoted as EFAu. The detailed calculation of EFAu is shown in the Supporting Information. It is worth noting that the absence of the 909 cm–1 vibration mode in these SERS-active substrates, compared to the normal Raman spectrum of neat BT (Figure S2), indicates the formation of a monolayer of BT molecules on these SERS-active substrates.15 Furthermore, a three-dimensional (3D) spatial Raman mapping of tAu100 nm@Au15 sdSiO2200 nm@PPM results in a signal distribution along the z axis by manual focusing with a step of 1 μm (Figure S3), suggesting that only the area in focus shows an enhanced signal.

Figure 4.

Figure 4

Open in a new tab

Raman spectra of various SERS-active substrates and their corresponding top-view HR-SEM images. (a) tAu100 nm@Au15 s@Si (scale bars: 1 μm and 200 nm in the close-up image). (b) tAu100 nm@dSiO2@PMs. (c) Au15 s200 WdSiO2@PPMs. (d) tAu100 nm@Au15 sdSiO2200 nm@PPMs. Scale bars represent 100 nm in panels (b), (c), and (d).

Figure 4 shows that hierarchical microspheres improve the Raman signal, compared to the sample with randomly distributed Au-coated AuNCs on a Si substrate (tAu100 nm@Au15 s@Si). Both the PPMs (Au15 s200 WdSiO2@PPMs) and the Au-coated PPMs (tAu100 nm@Au15 sdSiO2200 nm@PPMs) show a higher Raman signal than the Au-coated PMs (tAu@dSiO2200 nm@PMs). The Raman signal of the Au-coated PMs (tAu@dSiO2200 nm@PMs) is caused by the LSPR from high density hotspots and has already been reported in our previous work.11 The 100 nm Au-coated PMs do not offer optimized conditions for producing the amplified EM field caused in these hotspots. The Raman signal of these Au-coated PMs (tAu@dSiO2200 nm@PMs) can be maximized by adjusting the nanogap between adjacent metal-coated nanoparticles (Figure S4). When this distance approaches 2 nm, a much stronger EM field can be obtained.15 However, in this work, we focus on the Raman enhancement of the PPMs with the purpose to exploit the interplay between the PC structure and the AuNC arrays and the possibility to control the LSPR by further Au coating of the AuNC arrays, which can be precisely controlled in one single PPM. Additionally, the Au-coated PPMs (tAu@Au15 s200 WdSiO2@PPMs) show a higher Raman signal than the PPMs without the second Au layer coating (Au15s200WdSiO2@PPMs), indicating the possibility of interplay between the PC structure and the AuNC arrays, which will be further investigated in the following sections. In addition, we should consider the signal contribution from the total Au surface area since Au-coated PPMs have a larger surface area than PPMs without Au film coating. To quantify this contribution, the Au surface areas of Au15 s200 WdSiO2@PPMs and tAu100 nm@Au15 sdSiO2200 nm@PPMs were estimated, obtaining the EFAu (Supporting Information). We found that the EFAu (1.80 × 107) of tAu@Au15 s200 WdSiO2@PPMs is larger than that of Au15 s200 WdSiO2@PPMs with EFAu = 1.20 × 107, which agrees with the variation of EFA between these two structures.

2.4. Effect of the PSBs of PPMs on SERS Signals

Here, we investigate the interaction of the PSBs of PPMs with the laser excitation wavelength and its effect on the SERS performance. Figure 5a shows the Raman spectra of the Au15 s200 WdSiO2@PPMs and their corresponding surface morphologies (close-up HR-SEM images). The Raman signal increases with decreasing dSiO2. One possible reason is that the PC structures play a critical role in the Raman enhancement.19 PC structures have PSB properties characterized by a Bragg diffraction peak (indicating a spectral region in which the light propagation is forbidden in certain direction) and a slow light effect at the edge of the Bragg diffraction peak with a reduced group velocity.38 The sinusoidal standing wave at the blue edge of the Bragg diffraction peak is mainly localized in the low refractive index medium of the PC structures, i.e., in the air voids, whereas at the red edge of the Bragg diffraction peak, the highest amplitude of the standing wave is localized in the high refractive index medium of the PC structures, i.e., in the PC matrix or the matter adsorbed on the PC surface. This implies that adsorbates with a high refractive index confined on the PC structure strongly interact with the light at the red edge region of the Bragg diffraction peak. As discussed above (Figure 3), the Bragg diffraction peaks of the dSiO2250 nm@PMs and the dSiO2@PMs are located near the laser excitation wavelength, which would suppress the light propagation in such structures.19 In contrast, the Bragg diffraction peak of the dSiO2200 nm@PMs is located at 444 nm (black solid curve in Figure 3a) away from the laser excitation wavelength, so the excitation wavelength cannot be suppressed. Also, the reflection spectrum of the Au15sdSiO2200 nm@PPMs under the DF illumination (black dotted curve in Figure 3b) showed AuNCs scattering located at approximately 600 nm in air. On the other hand, the Au15 sdSiO2250 nm@PPMs and Au15 sdSiO2280 nm@PPMs both showed coexistence and mutual enhancement of both Bragg diffraction of PC structures and scattering of AuNC arrays near the excitation wavelength (blue dotted and red dotted curves in Figure 3b,d), which suppresses the light propagation confined in the PPM structures. As a result, we expect that the Au15 sdSiO2200 nm@PPMs have higher Raman intensity than the Au15sdSiO2250 nm@PPMs and the Au15 sdSiO2280 nm@PPMs. It should be noted however that the increase in pAu caused by the increasing dSiO2 (dashed curves in Figure 5d and Figure S1) in this case could possibly lead to a decrease in the Raman signal.

Figure 5.

Figure 5

Open in a new tab

Raman spectra of various PPMs featuring (a) one large AuNC and (b) multiple small AuNCs on top of each SiO2NP and their corresponding top-view HR-SEM images (scale bars: 200 nm). (c) Average EFA (1067 cm–1) of PPMs as a function of the dSiO2. The error bars were obtained from 10 spectra captured randomly on different microspheres and different locations on each microsphere. (d) dAu (diameter) and pAu (gap) of the AuNCs as a function of the dSiO2, obtained by measuring 20 different diameters and nanogap distances on a single microsphere. Error bars in panels (c) and (d) represent the standard deviation.

To further study the effect of the PC structures on the Raman signals, PPMs featuring a high density of hotspots with a relatively equivalent dAu and pAu are investigated (Figure 5b and solid curves in Figure 5d). These PPMs are fabricated by sputtering a very thin Au film at 200 W for 5 s on the as-prepared PMs followed by a dewetting process at 800 °C for 1 h in N2 environment. The Raman signals of these PPMs (Au5 s200 WdSiO2@PPM, Au5 s200 WdSiO2@PPM, and Au5 s200 WdSiO2@PPM) significantly decrease with increasing dSiO2 (Figure 5b), which is consistent with the Raman intensity change of the previously used PPMs (Figure 5a,c). The enhancement factors (EFA) of these structures are a function of dSiO2, as shown in Figure 5c, whereby the tendency agrees well with EFAu presented in Table S3. We attribute the fact that the EFAu of Au15 s200 WdSiO2@PPM is larger than the corresponding EFA to the fact that the estimated Au surface area is smaller than the used microscope objective spot (calculation details are shown in the Supporting Information). In summary, we found indications that when the PSBs of PPMs are spectrally located near the laser excitation wavelength used in the SERS experiments, the light–matter interaction is suppressed and the Raman signal is decreased. This agrees with a previous study19 and is confirmed by the experimental results.

Additionally, Au-coated monolayers of SiO2NPs with different diameters were investigated to further confirm the PSB effect of PPMs on the Raman enhancement (Figure S6). It was found that the Raman signal is not substantially affected by the size of the SiO2NPs. This can be clearly seen in Figure S6 where the Raman intensity at 1067 cm–1 as a function of SiO2NP diameter is shown. We would like to note that the monolayer of SiO2NPs serves as a platform to provide geometrical support for the metallic structures on top but that the exact geometrical dimension in the present regime does not noticeably affect the specific properties of the samples. Furthermore, compared to the PPMs, the Raman signals of the monolayers of close-packed SiO2NPs of different diameters were all lower than those of Au15 s200 WdSiO2@PPM but higher than those of Au15 s200 WdSiO2@PPM and Au15 s200 WdSiO2@PPM. This suggests that the PSBs resulting from the photonic crystals play a role in the localized amplified EM field.

2.5. Synergistic Effect of the Tunable LSPR and PSB on the SERS Signals

The Raman performance of PPMs coated with a layer of the Au film is investigated for different Au thicknesses (tAu) (Figure 6). The nanogaps between the adjacent nanoparticles can be adjusted by controlling the tAu, which can further enhance the localized EM field by the formation of hotspots. We found a significant change in the obtained Raman signals with an increase in tAu. As tAu increased from 0 to 300 nm, a change of surface morphology results in the increase of dAu and decrease of pAu at the same time (close-up HR-SEM images in Figure 6a–f and h), which facilitates the formation of hotspots. The Raman signal of Au-coated tAuy nmAu15 sdSiO2200 nm@PPMs with different coating thicknesses y are always higher than that of the uncoated Au15 sdSiO2200 nm@PPMs with the one coated with 100 nm Au film (tAu@Au15 s200 WdSiO2@PPM) reaching the highest signal. We attribute this to the synergistic effect of the PSB properties with the near-field plasmon coupling at the hotspots. We hypothesize that the Raman intensity of tAu150 nm@Au15 sdSiO2200nm@PPMs is decreased with respect to the PPMs with 100 nm Au coating because the increased Au film started to bury the initial SiO2NP lattices, leaving only the AuNC arrays. The light interaction in the PC structures then weakened while another type of PC structure featuring AuNC arrays is formed where the thick Au film behaves like a mirror with high reflection. Figure S7 shows the corresponding optical properties of Au-coated PPMs under the BF and DF illumination modes, respectively. It is obvious to see that the samples show a dip approximately at 480 nm caused by a layer of Au film with increasing tAu, especially when tAu ≥ 200 nm (Figure S7b). The Raman enhancement of the tAu@Au15 s200 WdSiO2@PPMs then mainly results from the AuNC arrays due to the LSPR occurred in these nanogaps among adjacent Au-coated AuNCs. With further increasing tAu, the Raman intensity increases again, reaching a second maximum for tAu200 nm@Au15 sdSiO2200 nm@PPMs, and then again decreases with further increasing the tAu. For tAu ≥ 200 nm, the hexagonal SiO2NP nanopatterns are completely covered by the corresponding AuNC arrays so that the Raman enhancement only resulted from the LSPR of the hotspots. The distance of the nanogaps remains relatively stable (HR-SEM images in Figure 6c–f and h), but the density of nanogaps decreases as the nanogaps partly joined together (e.g., tAu = 300 nm), decreasing the surface roughness and resulting in a reduced number of hotspots with decreased Raman signal. Summarizing, we found that the Au-coated PPM with 100 nm Au film thickness (tAu@Au15 s200 WdSiO2@PPM) shows the highest Raman intensity. We attribute this to the synergistic effect of the PC structures with the LSPR by hotspot formation. The LSPR-induced amplified EM then dominates the PC structure with increasing tAu of the Au-coated PPMs.

Figure 6.

Figure 6

Open in a new tab

Close-up HR-SEM images (scale bars: 100 nm) of Au15 s200 WdSiO2@PPMs covered with an Au film of different thicknesses (tAu) (a) 0, (b) 100, (c) 150, (d) 200, (e) 250, and (f) 300 nm and their corresponding Raman spectra. (g) Raman signal at 1067 cm–1 as a function of tAu. The error bars were obtained from 10 spectra captured randomly on different microspheres and different locations on each microsphere. (h) dAu and pAu as a function of tAu, obtained by measuring 20 different diameters and nanogap distances on a single microsphere. Error bars in panels (g) and (h) represent the standard deviation.

To more precisely determine the maximal synergistic effect of the PC structure and the LSPR of Au-coated PPMs, the Raman performance of PPMs with a continuous Au film in the range of 0–100 nm is studied. It was found that the EFA reaches a maximum of 108 when tAu = 60 nm and then decreases again with increasing tAu (Figure 7a,b). This confirms the hypothesis formulated in the previous section that the amplified EM field raised by the nanogaps between the adjacent AuNCs does not play the dominant role in the explanation of the Raman enhancement. Rather, it is the interplay of field enhancement caused by the PC structures and LSPR. We also found that the EFA of Au-coated PPMs is approximately three times larger than the EFAu (listed in Table S4), which we attribute to the Au surface area being larger than the planar surface area on the same projected area (the area of the used microscope objective). However, both the EFA and EFAu follow the same tendency when varying the Au thickness tAu. Figure 7c shows the cross-sectional view HR-SEM image of tAu60 nm@Au15 sdSiO2200 nm@PPM. Figure 7d shows the dAu and pAu varying with tAu.

Figure 7.

Figure 7

Open in a new tab

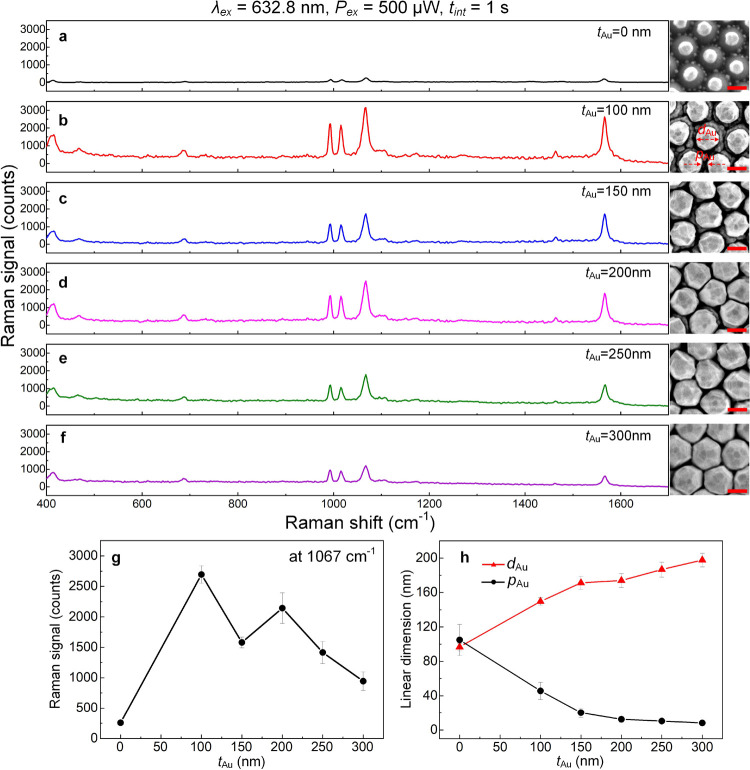

Au-coated PPMs with different tAu values. (a) Raman spectra and (b) their corresponding Raman intensity at 1067 cm–1 as a function of tAu. The error bars were obtained from 10 spectra captured randomly on different microspheres and different locations per microsphere. Insets are the corresponding HR-SEM top-view images. Scale bar: 200 nm. (c) Cross-sectional HR-SEM images of Au-coated PPMs (tAu60 nm@Au15 sdSiO2200 nm@PPM). (d) dAu and pAu as a function of tAu, obtained by measuring 20 different diameters and nanogap distances on a single microsphere. Error bars in panels (b) and (d) indicate the standard deviation.

In addition, the uniformity and reproducibility have also been investigated for the hybrid microspheres tAu60 nm@Au15 sdSiO2200 nm@PPM with the results shown in Figure S8. SERS spectra were collected from five different microspheres with six different locations per microsphere (Figure S8a). We furthermore investigated the intensity distribution at 1067 cm–1, collected from 20 different microspheres and 20 locations per microsphere of tAu@Au15 s200 WdSiO2@PPM (Figure S8b) and found a relative standard deviation (RSD) of 12%, demonstrating that the hybrid PPMs can be fabricated with high reproducibility and relative uniformity. Additionally, these hybrid PPMs show potential application in the sensing field, as demonstrated by the small Raman cross-sectional molecule detection using l-methionine (Figure S9).

It remains to be mentioned that an unambiguous assignment of which of the effects causes the observed SERS enhancement is not that obvious. To clear the misunderstanding, we want to indicate these possible effects in a list:

  • The spectral alignment of the PSB relative to the excitation wavelength is important due to the aforementioned slow light effect and the localization of the EM field in either the high or the low refractive index region.

  • The spectral alignment of the PSB relative to the excitation wavelength also affects the amount of back-reflected light and its phase. Considering that the molecules are deposited in a tiny layer above the structure, a fraction of the light that experiences multiple scatterings inside the PC structures is finally back-reflected where it interferes with the illumination. This interference can be either constructive or destructive. This leads to a lowering or enhancement of the local EM field in specific spatial regions. Depending on its alignment with the molecular layer, the SERS signal is enhanced differently.

  • Finally, any modification of the PC structure that serves as the backbone for the plasmonic structure changes the geometry of the metallic constituents and with that the exact spectral position of the plasmonic resonances. If the spectral position of the LSPR is in agreement with the wavelength that matters in the SERS process, the signal gets tremendously enhanced.

Even though the disentanglement of the impact of all parameters is too complex and beyond the scope of the present work, we perform full-wave optical simulations of selected structures to discuss the importance of different effects and to verify the experimental findings.

2.6. Full-Wave Numerical Simulations

Figure 8 shows the numerical simulation results of the local electric field of SERS-active substrates with different relevant geometries. First, we consider a pure photonic microstructure that consists of a hexagonal lattice of SiO2NPs (dSiO2200 nm@PM, Figure 8a). For numerical simulation convenience, the periodicity is chosen to be slightly larger than the SiO2NP diameter (210 nm), which should not affect the conclusion to be drawn. The PC structure is finite and made of 20 layers of SiO2NPs. It is illuminated at normal incidence with linearly polarized plane wave oscillating at a wavelength of 632.8 nm according to the experimental condition. The amplitude of the electric field is shown in some selected central cross section, and we concentrate on the spatial region directly above the PC structure. We furthermore consider a PPM structure (Au15 sdSiO2200 nm@PPM, Figure 8b) where the same PC structure is decorated with AuNCs with diameters of 100 nm. Finally, an Au-coated PPM (tAu@Au15 sdSiO2200 nm@PPM, Figure 8c) is shown. It consists of a crescent type metallic capping, on top of which a metallic AuNC resides. The color scales represent the normalized amplitude of the electric field |E| with respect to the amplitude of the incoming electric field |E0|. Details of the electric field simulations are given in the Methods section.

Figure 8.

Figure 8

Open in a new tab

Cross sections of the simulated electric field distribution on different structures. The color bars represent |E|/|E0|. (a) Pure PM, dSiO2200 nm@PM. (b) PPM, Au15 sdSiO2200 nm@PPM. (c) Au-coated PPM, tAu@Au15 sdSiO2200 nm@PPM. (panels (a–c)) The diameter of constituent SiO2NP is 200 nm, and the AuNC is 100 nm in diameter. Please note that in all figures, the spatial location that we show is on top of an extended PC structure consisting of 20 layers of a hexagonal lattice of SiO2NPs. The periodicity of 210 nm is chosen. The green lines indicate the outline of the SiO2NPs, AuNCs, and Au shells.

We found that the maximum enhancement of the local electric field is obtained with the Au-coated PPM (Figure 8c), which is in line with our experimental results (Figure 7). This suggests that the presence of nanogaps between the AuNCs and the Au shell and in between the shell-coated SiO2NPs causes LSPR at the excitation wavelength as used in the SERS experiments, which is mainly responsible for the Raman enhancement. When considering only an isolated AuNC on top of the PC structure, the enhancement is much weaker (Figure 8b). We do see some field enhancement (amplitude enhanced by a factor of 4). Also, the PC structure alone offers a local enhancement in some spatial regions that is a factor of 2. This corresponds in good approximation to the value that one would expect at most for a perfect reflector. The illumination is back-reflected and interferes with the incident field in some spatial region, so the total amplitudes can double or can be suppressed. Also, we are operating the PC structure at a wavelength longer than the wavelength of its PSB. The period of the structure is smaller than the wavelength, and the PC structure offers only a zeroth-diffraction order. The amplitude of this zeroth-diffraction order gets strongly affected by multiple scattering effects, but it cannot be tremendously enhanced. However, this back-reflected zeroth-diffraction order excites the plasmonic structure as well where it gets further enhanced. It is that combined action that explains the excellent performance of the suggested structure. So, we exploit not only the plasmonic field due to the excitation with the actual illumination but also the back-reflected field from the PSB structure, adding to the excitation of the plasmonic field and further enhancing the local electric field. As the SERS signal is proportional to the fourth power of the electric field amplitude, this additional field translates to a much higher SERS signal.

In addition, we investigate the effect of the PC structure of Au-coated PPMs on the electric field with varying dSiO2 (Figure S10a–c). The simulated results agree with our experimentally determined Raman enhancement (Figure S10d), further confirming that the PC structure can improve the Raman signal according to their enhanced light–matter interaction due to the multiple scattering in combination with the plasmonic effect these samples sustain. Herein, the simulated EFs are determined as |E|4/|E0|4 at the spatial location where the electric field is the highest.39 Experimental EFs are obtained by the corresponding sample measurements with the maximum Raman signal enhancement. The deviation of the EFs between the simulated and experimentally determined ones is mainly attributed to the imperfection of the PC structures, which can cause differences between the simulated electric field and the real produced electric field. Also, of course, molecules are not just situated in the hotspot but also in other spatial regions. There they contribute as well to the Raman signal. However, it should be noted that the estimated EF according to the simulations is not the spatial average. This could be another point to cause the estimated EF larger than the experimental EF. Nevertheless, the theoretically predicted functional dependency and particularly the conclusion on the most optimal sample agree with the experimental findings.

3. Conclusions

Hierarchical plasmonic–photonic microspheres consisting of the PC structure of close-packed colloids and well-spaced AuNC arrays have been successfully fabricated by using a robust and cost-effective approach with high throughput, designability, and reproducibility. The fabricated PPMs possess both PSB properties resulting from the periodic SiO2NP arrangements and LSPR resulting from the Au-coated AuNC arrays. The multilevel structures and optical properties of these fabricated PPMs can be adjusted by tailoring the size of the building blocks and the nanogaps among adjacent AuNCs and thus achieving a synergistic interaction of PSB and LSPR. Moreover, the Raman performance of these PPMs has been evaluated by detection of the chemisorbed monolayer of BT molecules on these fabricated SERS-active units. The obtained enhancement factor is on the order of magnitude of 108 for the 1067 cm–1 of the thiol–Au bond vibration. Among these PPMs, the tAu60 nm@Au15 sdSiO2200 nm@PPMs show the highest EFA of 1.04 × 108 caused by the synergistic interaction of multiple scattering confined in the PC structures and the LSPR of Au-coated AuNC arrays. As a result, microscale SERS-active units can be prepared in a scalable and controllable way, which would widen and improve wearable sensing devices in the future.

4. Methods

4.1. Fabrication of Hierarchical PPMs

PMs consisted of well-ordered SiO2NPs were fabricated using a droplet-based microfluidic platform (Figure 1a).40 The SiO2NPs with different diameters (200 ± 10, 250 ± 10, and 280 ± 10 nm) were purchased from the Nanjing Rainbow company (Nanjing, China). These PMs (Figure 1b) were then used as templates for manufacturing PPMs via the Au thin film deposition (Figure 1c) and thermal annealing (Figure 1d). The sputtering of Au films was conducted in an ion-beam sputtering system (home-built T’COathy system, MESA+, the Netherlands) at 200 W and 6.6 × 10–3 mbar. The thermal annealing process was conducted in a tube furnace (Nabertherm, Nabertherm GmbH, Germany) in a N2 environment at atmospheric pressure. Sputtering the second Au film onto the as-prepared PMs and PPMs can further modify their structures and optical properties (Figure 1e).

4.2. Reflection Measurements

A monolayer of fabricated microspheres was patterned on a piece of clean silicon wafer. The reflection spectra and corresponding OM images were measured on the pre-patterned samples in the BF and DF illumination modes, using a microscope with a 20×/0.4 NA objective integrated with a white light source (100 W tungsten xenon lamp) with a light spot size around 1.1 mm in diameter and an Ocean Optics HR4000 visible fiber optic spectrometer. The reflected light was collected by the same objective and passed through a multimode fiber (QP450–1-XSR, Ocean Optics) to the spectrometer with an integrated detector (HR4000, Ocean Optics). A clean silicon wafer without any patterns was used as 100% reflection in BF mode. The observed intensities of samples from the microscope are normalized to the intensity as observed with a clean piece of silicon wafer without any patterns. The used microscope uses a higher illumination intensity in the DF mode than that in the BF mode. The fabricated samples were measured both in ambient air and hexadecane.

4.3. SEM Characterization

A HR-SEM (GeminiSEM 500, Carl Zeiss Microscopy GmbH) was used to characterize the surface topology of the fabricated hierarchical microspheres at acceleration voltages ranging from 0.7 to 2 kV with different detectors: secondary electron detector (SE2) or in-lens detector.

4.4. SERS Measurements

Prior to the measurements of Raman spectra, all prepared substrates were immersed into the BT solution (10 mM) in ethanol overnight followed by gently rinsing with dehydrated ethanol and passively drying at room temperature. A confocal Raman microscope (Alpha300R, Witech GmbH) consisted of a TE-cooled charge-coupled device (CCD) camera (DU970P-BV, Andor Technology, Belfast, Northern Ireland) at −60 °C and a He–Ne laser (Pmax = 24 mW and λex = 632.8 nm), and a UHTS300 spectrometer (f/4300 mm FL, and grating of 600 lines mm–1) was used to collect the Raman spectra. All measurements were performed by using a 100×/0.9 NA microscope objective and a He–Ne excitation laser of 632.8 nm wavelength. Raman spectra of chemisorbed BT on the fabricated SERS-active substrates were measured in ambient air with an excitation laser power of 500 μW (measured at the entrance of the microscope objective), an integration time (tint) of 1 s, and 10 times accumulation. Whereas, the Raman mapping measurements were conducted with an excitation laser power of 500 μW, an integration time of 1 s, and one-time accumulation. The collected Raman signal was presented in CCD counts. Spatial imaging was performed over 10 × 10 μm2 area with 40 lines and 50 measurements per line, yielding a total of 2000 measurements per scanned image. Particularly, as the SERS-active unit was in 3D, the spatial imaging along the z axis was collected in every step of 1 μm by manual focusing.

4.5. Calculation of EFs

EFs were calculated by using the equation EF = (ISERS/IBulk) × (NBulk/NSERS, where ISERS and IBulk are the intensities of the same band of the Raman signal from the analytical molecules on a SERS-active unit and on the pure bulk analyte, respectively, and NSERS and NBulk are the number of the analytical molecules probed on the SERS-active unit and on the pure bulk analyte, respectively. The number of chemisorbed BT molecules probed on the SERS-active unit is estimated by NSERS = AsDBT. DBT is the surface density of BT molecules chemisorbed on an Au(111) surface41 and equals 3.3 × 1018 molecules·m–2. As is the surface area of molecules immobilized. Here, either the area of the used microscope objective spot (1 μm in diameter) or the Au surface area of each structure was used to estimate As and thus EFA and EFAu can be obtained. More details on NSERS is described in the Supporting Information. The number of bulk BT molecules in the confocal volume (VCV) of the conventional Raman measurements is estimated by NBulk = NAMBT–1ρBTVcv ≈ 3.56 × 1010 molecules, where NA = 6.02 × 1023 molecules mol–1, MBT = 110.18 g mol–1 is the BT molecular weight, ρBT is the molecule density, and VCV ≈ 6.03 × 10–18 m3 is the experimentally determined confocal volume of the measurement system. The collection volume is dependent on the excitation diameter and the effective probe depth of the laser excitation. The effective probe depth (hobj) was obtained by adjusting the substrate stage out of the laser focus plane till the disappearance of the peak intensity with a step of 1 μm and recording the characteristic silicon peak value at 934 cm–1 by using a laser excitation wavelength of 632.8 nm and a 100×, 0.9 NA microscope objective. Then, an hobj value of 7.68 μm was obtained in this experiment.

In this work, the Raman band at 1067 cm–1 was chosen to estimate the EFs. The integrated intensity of the conventional Raman spectrum from a neat BT solution in a seal glass vial was approximately 0.55 counts (λex = 632.8 nm, Pex = 500 μW, 10 times accumulation, and tint = 1 s). Details of the estimation of the Raman intensity of the neat BT solution are given in the Supporting Information. The average integrated intensity of the SERS measurement was 4142 counts from the SERS-active unit of tAu60 nm@Au15 sdSiO2200 nm@PPM, and the average EFA was approximately 1.04 × 108.

4.6. Details of Full-Wave Numerical Simulations

The electric fields of different structures were simulated using CST Microwave Studio (Computer Simulation Technology: Microwave Studio, Darmstadt, Germany, 2018). The PM is represented by a hexagonal array of SiO2NPs with 20 layers (the structure used in Figure 8a). Then, a hexagonally well-spaced AuNC pattern anchoring on the top of the pure photonic structure was used to represent PPM (the structure used in Figure 8b). Also, the Au-coated PPM is modeled by introducing the other layer of the thin Au film before anchoring a hexagonal AuNC pattern on the pure photonic structure, as shown in Figure 8c. The maximum thickness of the Au shell is dSiO2NP/8. All of the structures used for investigation of the electric field were illuminated by a normal incident plane wave, and the resulting electric field distribution were collected near the interface between the plasmonic nanoparticle arrays and the PC structures, where the largest values of the electric field are expected. All absolute values of the collected electric field were normalized with the ones of a vacuum-filed simulation, i.e., the magnitude of the incident plane wave. The simulated EF can be approximately expressed by (|E|/|E0|)4 where |E| is the localized electric field and |E0| is an incident plane wave magnitude used for normalization. In this work, the maximum electric field value |Emax| is used for |E|, and thus the resulting EF is the maximum evaluation for the respective simulation. We also simulated the electric fields of Au-coated PPMs with varying dSiO2 to investigate the effect of the PC structure on the Raman performance, as presented in Figure S9.

Acknowledgments

We appreciate the financial support from the National Key Research & Development Program of China (2016YFB0401502); Special Fund Project of Science and Technology Application in Guangdong (2017B020240002); Science and Technology Program of Guangzhou (no. 2019050001); Pioneers in Healthcare voucher (project Ischemia on chip) of the University of Twente, MST and ZGT in the Netherlands; the Oversea study of Guangzhou Elite Project support in China; and NWA Startup Quantum NanoKeys grant (40017607); and the Alexander von Humboldt Foundation and the German Science Foundation (Cluster 3D Matter Made to Order (EXC-2082/1–390761711)).

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsami.0c05596.

  • EF calculation, neat BT Raman spectra, spatial Raman mapping Raman spectra of Au-coated PMs with varying Au film thickness, Raman spectra and optical microscopy and HR-SEM images of Au-coated monolayer of SiO2NPs, reflection spectra of Au-coated PPMs, uniformity and reproducibility of PPMs, and Raman spectra of l-methionine and simulated electric field distribution of Au-coated PPMs with varying dSiO2 (PDF)

Author Contributions

J.W., L.S., J.C.T.E., and L.I.S. designed research. J.W. performed research. H.L.-T. contributed to the Au sputtering. J.W. and P.W.H.P. performed the optical analysis and interpretation of the optical data. T.K., C.R., and R.N.S.S. performed the simulation. All authors contributed to writing the paper.

The authors declare no competing financial interest.
