A Human-Immune-System mouse model for COVID-19 research (DRAGA mouse: HLA-A2.HLA-DR4.Rag1KO.IL-2Rγc KO.NOD)

Abstract

The current SARS-CoV-2 pandemic is accompanied by high morbidity and mortality rates, and there is a compelling need for effective vaccines and therapeutic agents to lessen the severity of COVID-19 disease. Appropriate animal models are essential for testing of vaccines and therapeutics and for mechanistic studies of infection and the host response. The Spike (S) protein of SARS-COV-2 has a high affinity for the human ACE2 receptor, which is expressed on multiple cell types including alveolar epithelial and vascular endothelial cells. Wild-type mice are not susceptible to developing coronavirus-mediated diseases. Accordingly, several human (h)ACE2 transgenic mouse models have been developed for coronavirus research. However, these mice have failed to closely mimic important aspects of the human immunopathological responses to SARS-CoV-2. We report herein that DRAGA (HLA-A2.HLA-DR4.Rag1KO.IL-2Rγc KO.NOD) mice infused with human hematopoietic stem cells from cord blood reconstitute a fully functional human immune system, as well as engraft human epithelial and endothelial cells, sustain SARS-CoV-2 infection, and develop severe COVID-19-like symptoms. In pilot experiments, infected mice developed parenchymal and epithelial lung infiltrations with granzyme B⁺ and perforin⁺ CD8⁺ T cells and alveolar CD61⁺ microthrombi, mimicking human immunopathological responses to SARS-CoV-2. We propose the DRAGA mouse as a novel pre-clinical tool for studying COVID-19 immunopathology and human immune responses to SARS-CoV-2, including events leading to the cytokine storm and coagulopathies, as well as for testing of candidate vaccines and therapeutics.

INTRODUCTION

Infection with Severe Acute Respiratory Syndrome-coronavirus-2 (SARS-CoV-2), the highly transmissible pathogen responsible for the ongoing pandemic COVID-19 disease, results in outcomes ranging from asymptomatic or mild disease to severe pneumonia/acute respiratory distress syndrome (ARDS) in the human population^1–4. Many severe COVID-19 patients also experience a hyper-inflammatory response (“cytokine storm”)⁵ combined with a dysregulated coagulation system that subsequently leads to a variety of extrapulmonary manifestations. The thrombotic complications observed in COVID-19 include several unusual features that differ from disseminated intravascular coagulation (DIC), e.g. elevated fibrinogen and fibrin D-dimer, hyperreactive platelets, and formation of microthrombi in multiple organs, but without the consumption of coagulation factors that typically accompany other severe inflammatory conditions such as sepsis^6–17.

Appropriate, clinically relevant animal models are required to evaluate mechanisms of pathogenesis and as platforms for rapid testing of vaccines and potential therapeutics. SARS-CoV-2 fuses with and enters host cells following engagement of its surface spike (S) protein with human angiotensin-converting enzyme 2 (hACE2)^18,19, which is expressed on multiple tissues, notably including the lung alveolar epithelium and vascular endothelium, and also in the liver, colon, esophagus, small intestine, duodenum, kidney, brain, and tongue^20–22. A number of investigators are currently setting up animal models susceptible to SARS-CoV-2 infection such as mice, ferrets, hamsters, rats, and monkeys^23–27, but earlier studies have indicated that, due to species differences, these models cannot recapitulate key aspects of the human anti-viral, immune, and pathological responses to coronaviruses²⁸.

The SARS-CoV-1 and SARS-CoV-2 S proteins bind to human ACE2 with higher affinity than to ACE2 receptors in mice and other potential animal models²⁹. Consistent with this, infection with these coronaviruses does not result in severe disease in wild-type mice. Several non-HIS mouse strains transgenic (Tg) for human ACE2 have been generated to date. The human cytokeratin 18 (K18)-hACE2 Tg mouse known as B6.Cg-Tg(K18-ACE2)2Prlmn/J, developed in 2006 by McCay et al., expresses hACE2 in the lungs, liver, kidney, colon, and brain^21,30, showing a particular tropism for brain infection by SARS-CoV-1 and fatal disease following infection^{21,28,31–36}.This Tg mouse challenged with SARS-CoV-2 showed high viral titers in the lung and lung pathology but exhibited variable clinical symptoms³⁷. Similar results were reported by exogenous delivery of human ACE2 with a replication-deficient adenovirus (Ad5-hACE2) in BALB/c and C57BL/6 mice³⁸.

The hepatocyte nuclear factor-3/forkhead homologue 4 (HFH4)-ACE2 Tg mice known as B6JCg-Tg (FOXJ1-ACE2) 1Rba/Mmnc were generated in 2016 by Menachery et al. to provide airway-targeted overexpression of hACE2, and they also express hACE2 in the brain, liver kidney, and GI tract³⁹. These mice were generated to assess possible infection and transmission of the Wuhan Institute of Virology (WIV1)-CoV virus, a SARS-like coronavirus found to replicate in horseshoe bats³⁹. However, these Tg mice showed more attenuated SARS-COV-1 infection compared to WIV1-CoV infection. Another Tg mouse expressing hACE2 was generated recently by Sun et al. using CRISPR/Cas9 technology, which can be infected i.n. with SARS-CoV-2, sustain high viral loads, and develop pneumonia⁴⁰, although fatalities were not observed in initial studies of this model. Overall, these murine models transgenic for hACE2 expression driven under various promoters have shown different tropisms, viral loads, and pathologies following infection with SARS-CoV-1 and other coronaviruses^28,36,41,42.

In order to study mechanisms of viral entry and of human immune responses to SARS-CoV-2, and to assess potential vaccines and therapeutics, a humanized animal model permissive for SARS-CoV-2 infection and showing similar pathology to COVID-19 in humans would be of great benefit. In particular, mouse strains reconstituted with a Human Immune System (HIS) that are permissible for SARS-CoV-2 infection and that show human-like pathology would be highly appealing models. Several HIS-mouse strains have been generated, but many have fallen short in mimicking the human immune system with high fidelity due to limitations. These include poor engraftment of hematopoietic stem cells, inefficient human cell expansion and homeostasis, insufficient numbers of reconstituted human T or B cells, sub-optimal B cell development, lack of immunoglobulin class switching, acute/chronic GVHD, and lack of HLA class I and/or II restriction^43–47. Furthermore, restrictions on the use of human fetal tissue for research has focused attention on alternative appropriate donor cell sources, such as umbilical cord blood.

We have generated a HIS-humanized mouse strain devoid of many of the above limitations: the DRAGA mouse (HLA-DR4. HLA-A2.1. IL-2Rγc KO. RAG KO. NOD)^48,49. These mice are HIS-reconstituted after irradiation and infusion with hematopoietic stem cells (HSC) from HLA-matched umbilical cord blood. These mice lack the murine immune system while expressing a long-lived functional HIS. We have previously demonstrated that they respond vigorously by specific T and B cell responses to infection or immunization with various pathogens including malaria protozoans, HIV, ZIKA, Scrub Typhus, and Influenza type A heterosubtypes^50–55. We also reported recently that they engraft human endothelial cells (EDs) in the liver⁵⁰ and both epithelial and endothelial cells in their lungs⁵⁵.

Herein, we demonstrate that the HIS-DRAGA mouse naturally reconstitutes human ACE2-expressing epithelial cells (ECs) and EDs in the lungs. Importantly, these mice sustained i.n. infection with SARS-COV-2 virus, developing mild to severe COVID-19 disease, including fatal outcomes. We propose that DRAGA mice are an excellent and convenient model for studies of SARS-CoV-2 infection, SARS COVID-19 immunopathology and human immune responses to the virus, including early events leading to cytokine storm and coagulopathies, and for testing of potential vaccines and therapeutics.

RESULTS

HIS-reconstituted DRAGA mice express human ACE2 in lung epithelial and endothelial cells

Both murine ACE2 (mACE2) and human ACE2 (hACE2) mRNA expression were detected in the lungs of HIS-DRAGA mice by RT-PCR (Fig. 1). To detect hACE2 protein, immunoprecipitation (IP) experiments were carried out using a recombinant SARS-CoV-2 S1 protein Receptor Binding Domain(RBD)-mouse Fcγ2a chimeric protein (S1-RBD-mFcγ2a), which is expected to bind hACE2 much more effectively than mACE2⁵⁶, and rat anti-mouse IgG2a-magnetic beads. Immunoprecipitation (IP) experiments were carried out using homogenates from (a) lungs from HIS-reconstituted DRAGA mice; (b) non-reconstituted DRAGA mice (negative control); and (c) commercially obtained human hung tissue (positive control). ELISA assays measuring binding of the immunoprecipitates to S1-RBD-mFcγ2a indicated that hACE2 was expressed in HIS-DRAGA lungs, albeit at average levels that were ~18X less than in human lungs. No hACE2 was detected by ELISA in immunoprecipitates from non-HIS-reconstituted DRAGA lungs. These results confirmed that hACE2 mRNA, as well as hACE2 protein, are expressed in the lungs of HIS-reconstituted DRAGA mice.

Figure 1. Detection of human ACE2 mRNA expression in the lungs of HIS-humanized DRAGA mice.

Upper row, PCR amplicons of hACE2 from the lungs of four HIS-humanized DRAGA mice and three non HIS-humanized DRAGA mice as controls (all non-infected). Positive control was human lung mRNA (Sigma-Aldrich). Lower row (quality control RNA), the PCR amplicons of mACE2 from the lungs of mice in the upper row, as amplified with murine specific primers. NC, negative control (primers alone). As expected, the HIS-DRAGA mice express both murine ACE2 and human ACE2 derived from engrafted human cells.

Lung sections from HIS-reconstituted and non-reconstituted DRAGA mice were probed by immunofluorescence microscopy with S1-RBD-mFcγ2a followed by a goat anti-mouse IgG-FITC conjugate to detect hACE2. The images revealed an uneven distribution of fluorescent-labeled cells on the alveolar and bronchiolar outer layers (Fig. 2A), while no staining was detected in lungs of non-reconstituted (control) mice (Fig. 2B). Co-staining with an anti-hCD326-PE conjugate (as a marker for human lung ECs) revealed co-localization of the S1-RBD-mFcγ2 bound hACE2 receptor with CD326⁺ lung epithelial cells, indicating that hACE2 is expressed on human epithelial cells in the lungs of HIS-reconstituted mice, but not in lungs from non-HIS (control) mice (Fig. 3). In aggregate, these results demonstrated that lungs from HIS-DRAGA mice are reconstituted with human epithelial cells expressing hACE2.

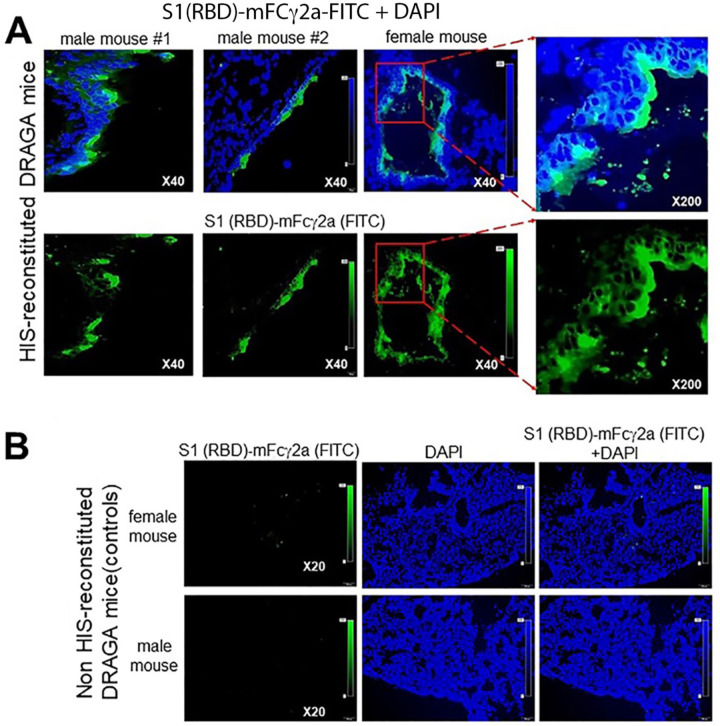

Figure 2. Expression of hACE2 receptor in the lungs of HIS-DRAGA mice.

Panel A, hACE2 protein expression on the outer layer of alveoli, as indicated by the binding of the S1 (RBD)-mFcγ2a chimera to OCT-frozen lung sections from two HIS-reconstituted DRAGA male mice and a female mouse. S1 (RBD)-mFcγ2a binding was revealed with a goat anti-mouse IgG-FITC conjugate (green color). Shown are overlapped images of S1 (RBD)-mFcγ2a binding and DAPI (cell nuclei, blue color), and enlargements of the outer layer of alveolar areas expressing the hACE2 protein (red squares). Panel B, The same staining protocol for OCT-frozen lung sections from two non-HIS-reconstituted DRAGA mice (one female and one male) showed no binding of S1(RBD)-mFcγ2a, reflecting the expected lack of hACE2 expression in these mice.

Figure 3. Co-localization of hACE2 receptor with alveolar epithelial cells of HIS-DRAGA mice.

Panels A&B, co-localization of hACE2 receptors with the hCD326⁺ epithelial layer of alveoli was revealed by staining with the S1(RBD)-mFcγ2a chimera followed by a goat anti-mouse IgG-FITC conjugate (green) and co-stained with recombinant human anti-hCD326-PE to OCT-frozen lung sections from two HIS-reconstituted DRAGA mice. Also shown are enlargements of the outer layer of alveoli expressing the hACE2 protein on hCD326⁺ ECs (yellow squares). Panel C, lack of binding of S1 (RBD)-mFcγ2a and the anti-hCD326 antibody to a lung section from a non-HIS-reconstituted DRAGA mouse indicates its expected lack of human ACE2 expression and the lack of human epithelial cells.

DRAGA mice can sustain SARS-CoV-2 infection

Having found that hACE2 is expressed in the lungs of HIS-reconstituted DRAGA mice, we questioned whether these mice are permissive for SARS COV-2 infection. In a pilot experiment, three HIS-DRAGA mice were infected by the intranasal (i.n.) route with 2.8 × 10³ (1 female mouse) or 2.8 × 10⁴ pfu (1 male + 1 female mouse) of SARS-CoV-2 live virions in 50 μl saline, 25 μl in each nostril. The male mouse infected with the low dose succumbed to the infection after 24 hours, while both female mice sustained the infection, showing an abrupt loss in body weight, ruff fur, hunched back, and reduced mobility starting 1 day post-infection (dpi). The surviving mouse infected with the low dose of virus regained its original weight and mobility at 10 dpi, while the surviving mouse infected with the high dose was still 10% below its original weight at 14 dpi (Fig. 4). ELISA assays carried out using serum samples at day 0 and at 14 dpi from the two surviving mice indicated that only the mouse infected with the high dose elicited S1 (RBD)-specific human IgM antibodies in sera (titer = 100) by 14 dpi (Supplemental data).

Figure 4. Dynamics of body mass changes in HIS-DRAGA mice infected with SARS-CoV-2 virus.

Shown are daily monitored body weights of a HIS-DRAGA female (F#1) mouse infected i.n. with a low dose of SARS-CoV-2 virus (2.8×10³ pfu), a female mouse (F#2) infected i.n. with a high dose of virus (2.8×10⁴ pfu), and a male mouse infected i.n. with a low dose of virus (2.8×10³ pfu). The male mouse succumbed 24 hours post-infection and the two surviving female mice were sacrificed at 14 dpi.

SARS-CoV-2 infected HIS-DRAGA mice display human-like lung immunopathology

Lung sections from the two HIS-DRAGA survivors of SARS-CoV-2 infection were further analyzed to characterize pathological changes. As in recent reports based on human autopsies^57–59, the H&E and Mason-trichrome staining of lung sections showed heavy parenchymal infiltrates around the large bronchioles and at peripheral areas of the lungs, as well as hCD45⁺ cells and human (CD3⁺) T cells dispersed throughout the lung parenchyma, which were more pronounced in the mouse infected with the high dose of virus (Fig. 5). Interestingly, some of the human CD3⁺ T-cell infiltrates appeared to be fairly organized, such those described in the epithelial lung niches of severely-infected mice and humans with influenza viruses^60–64 (Fig. 5E). Further analysis revealed that hCD8⁺ T cells, and to a lesser extent the hCD4⁺ T cells, were clustered into the alveolar EC niches and able to egress into the alveolar air space (Fig. 6). Indeed, the alveolar epithelial layer containing large clusters of CD8⁺ T cells was identified by immunofluorescence using an anti-human CD326 antibody (a human lung epithelial cell marker)⁶⁵ (Fig. 7). The CD8⁺ T cells sequestered in CD326⁺ lung epithelial niches also stained positive for CD103, indicating they were T resident cells (Fig. 8), as well as for perforin and granzyme B, indicating their potential cytotoxic activity (Fig. 9).

Figure 5. Human immune cell infiltrates in the lungs of SARS-CoV-2 infected HIS-DRAGA mice.

Panel A, paraffin-embedded lung sections from HIS-DRAGA mouse F#2 infected i.n. with high dose of virus (2.8×10⁴ pfu) stained with H&E and Mason-Trichrome. Shown are healthy areas and heavily infiltrated areas of the lung parenchyma and around a terminal bronchiole (H&E staining, black arrow). Shown are the epithelial outer layer of the bronchiole (red color), and deposition of collagen fibers (blue color). Panels B & C, Paraffin-embedded lung sections from HIS-DRAGA mouse F#2 infected with high dose of virus (2.8×10⁴ pfu) showing heavily infiltrated lung tissue with hCD45⁺ cells and human T cells, respectively. Panels D & E, Paraffin-embedded lung sections from HIS-DRAGA mouse F#1 infected with a low dose of virus (2.8×10³ pfu) showing lightly infiltrated lung tissue with hCD45⁺ cells and human T cells, respectively. Of note, the human T cells of mouse F#1 which regained its body weight at 10 dpi, appear to be sequestered within a lung epithelial niche (panel E).

Figure 6. Human T-cell infiltrates in the lungs of a SARS-CoV-2 infected HIS-DRAGA mice.

Panel A, paraffin-embedded lung section from the HIS-DRAGA mouse F#1 infected with a low virus dose (2.8×10³ pfu, two right panels) which regained its body weight 10 days post-infection. Shown is a large number of hCD8⁺ T cells sequestered within the alveolar epithelial niches, and enlargement of the epithelial niche (yellow square) containing hCD8⁺ T cells that egress into the alveolar air space. Panel B, lung section from the same mouse showing CD4⁺ T cells sequestered in a lung epithelial niche.

Figure 7. Sequestration of CD8⁺ T cells in the lung epithelial niches of a HIS-DRAGA mouse infected with a low dose of SARS-CoV-2 virus.

Paraffin-embedded lung section from the HIS-DRAGA female mice infected with a high and low dose, respectively, of SARS-CoV-2 virus were co-stained for CD326 as a marker of lung epithelial cells and/or for hCD8⁺ T cells using specific fluorescent-labeled antibody conjugates. Panel A, A large cluster of hCD3⁺ T cells sequestered in the CD326⁺ lung epithelial niche of the female mouse infected with a low viral dose (2.8×10³ pfu), which regained the body mass by 10 dpi. Panel B, A few scattered hCD3⁺ T cells co-localized with the CD326⁺ lung epithelia in the HIS-DRAGA female mouse infected with a high viral dose (2.8×10⁴ pfu), which did not regain the body mass by 14 dpi. Also shown are enlargements of the CD3⁺ T-cell clusters in the alveolar epithelia.

Figure 8. CD8⁺ T cells sequestered in lung epithelial niches of SARS-CoV-2 infected HIS-DRAGA mice express the CD103 marker of T-cell residency.

Shown are representative paraffin-embedded lung sections from HIS-DRAGA mouse F#1 infected with a low virus dose (2.8×10³ pfu) that have been double stained for hCD8 and hCD103. Yellow arrowheads in the enlargements show CD103⁺ CD8⁺ T resident cells egressing from epithelial niches into the alveolar air space.

Figure 9. Cytotoxic hCD8⁺ T cells in the lungs of a SARS-CoV-2 infected HIS-DRAGA mouse.

Panel A, paraffin-embedded lung section from the HIS-DRAGA mouse F#1 infected with a low virus dose (2.8×10³ pfu, two right panels), which regained its body weight at 10 dpi. Shown are hCD8⁺ perforin-secreting T cells sequestered in lung epithelial niches, and two enlarged areas of the lung epithelial niches (Yellow Square). Panel B, A lung section from the same mouse showing a large number of hCD8⁺ granzyme B-secreting T cells that egressed from the lung epithelial niches into the alveolar air space.

Coagulopathies including microthrombi in the lung, sometimes termed “immunothrombi” due to their association with the hyperinflammatory response, are a feature of severe COVID-19 disease in humans^6,66. The lungs of the mouse that survived infection with the high viral dose showed clusters of intra-alveolar mouse CD61⁺ (platelet glycoprotein IIIa) cells (Fig. 10A), and Mason-Trichrome staining revealed intra-alveolar microthrombi and parenchymal hemorrhagic areas (Fig. 10B). Together, these data show immunopathological events in lungs of HIS-DRAGA mice infected with SARS-Cov-2 similar to those seen in autopsy samples from patients with severe COVID-19 disease.

Figure 10. Intra-alveolar hemorrhagic events in the lungs of a SARS-CoV-2 infected HIS-DRAGA mouse.

Panel A, paraffin-embedded lung section from the HIS-DRAGA mouse F#2 infected with high dose of virus (2.8×10⁴ pfu) showing intra-alveolar murine CD61⁺ cells (enlargement, yellow square). Panel B, lung section from the same mouse showing multiple intra-alveolar micro thrombi (left two panels, black arrows) and a large intra-alveolar hemorrhagic area (enlargement, Yellow square).

DISCUSSION

There is a critical need for appropriate animal models to study SARS-CoV-2 infection and immunopathological responses²³. The HIS-DRAGA mouse offers compelling advantages as a pre-clinical tool for SARS-COVID-19 research and for efficient and informative testing of vaccines and potential therapeutics. This mouse is reconstituted from human umbilical cord blood, expresses a long-lived, fully functional human immune system, and importantly also reconstitutes human endothelial cells, epithelial cells and hepatocytes^44,46,50,55. In this pilot study, we have demonstrated that HIS-DRAGA mice express hACE2, the primary receptor for SARS-CoV-2, on engrafted human epithelial cells in the lungs (Fig. 3) and on human endothelial cells in the liver and kidneys (Fig. 11). Notably, we have also demonstrated that they are readily infected via the i.n. route with non-mouse-adapted SARS-CoV-2, sustaining the infection for at least 14 days, and that they can develop severe human-like lung immunopathology, including T-cell infiltrates, alveolar damage and microthrombi. As in recent analyses of human autopsy samples from COVID-19 patients^57–59, the lung infiltrates of infected DRAGA mice were intra-parenchymal, relatively diffuse, and grouped around terminal bronchioles and at the periphery.

Figure 11. Expression of hACE2 on liver and kidney endothelial cells of HIS-DRAGA mice.

Panel A, hACE2 expression in the livers of a HIS-DRAGA male (left panels) and female (right panels) mouse, as revealed by S1(RBD)-Fcγ2a + goat anti-mouse IgG-FITC (green color). DAPI co-stain (blue color) shows the cell nuclei. Lower left and right panels: same mice as in the upper panels, showing the lack of hACE2 expression (in adjacent liver sections) when stained with DAPI + secondary antibody (goat anti-mouse IgG-FITC) alone. Panel B, a representative kidney section from a HIS-DRAGA mouse stained with S1(RBD)-Fcγ2a + goat anti-mouse IgG-FITC (left panel) + anti-human CD31-Alexa Fluor 594 (endothelial cell marker, center panel). These images are superimposed in the right-most panel, showing co-localization of hACE2 with endothelial cells.

The female mouse (F#2) that was infected with a high dose of virus (2.8×104 pfu) and did not recover its body mass showed a high titer of S1 (RBD)-specific human IgM antibodies at 14 dpi. We expect that the additional groups of infected HIS-DRAGA mice (e.g., 15 mice currently being infected at Bioqual, Inc.) will develop IgG at later time points (i.e., >21 dpi), similar to HIS-DRAGA mice immunized with an S1-RBD protein construct (manuscript in preparation). In contrast, the female mouse #F1 who recovered the body mass showed no detectable S1 (RBD)-specific human antibodies at 14 dpi, but several granzyme B and perforin positive clusters of human lung-resident CD103+CD8+ T cells in the CD326+ alveolar epithelia at 14 dpi (Figs. 8 & 9), indicating cytotoxic activity. This raises a question that needs to be further addressed, namely, if an early IgM antibody or a lung-resident CD8+ T-cell cytotoxic response to the virus, or a synergistic effect of both IgM and CD8+ T-cell responses can efficiently clear the SARS-CoV-2 infection. The presence of CD4⁺ and CD8⁺ T cells reactive to the ORF-1 and NP proteins of SARS-CoV-2 virus in convalescent COVID 19 patients has been reported recently⁶⁷. The lung infiltrations of SARS-CoV-2 infected HIS-DRAGA mice contained large numbers of T cells, particularly CD8⁺ T cells, many of which were clustered in the lung epithelial niches and stained positive for granzyme and perforin. Lung-resident CD8⁺ T cells are developed in mice, monkeys, and humans after a primary viral respiratory infection at the frontline of lung epithelial mucosa^60–64, where they provide efficient cross-protection against secondary exposures to the virus^68–70. However, exploring the function of lung-resident CD8⁺ T cells in COVID 19 patients during the infection or those exiting the disease is not feasible, as human studies are restricted to in vitro analyses of lungs collected from cadavers.

The lungs of the surviving infected mice had clusters of cells staining positive for CD61, consistent with the presence of platelets and microthrombi in the alveolar air space, and also mimicking, at least in part, the hemorrhagic areas seen in human lung autopsy samples. Mason-Trichrome staining revealed collagen and fibrin depositions in several areas of the lung. Collagen deposition has been observed in patients with massive destruction of lung tissue following a severe cytokine storm; these are referred to as pulmonary sequels, and they are built during repair of lung tissue damage, late after severe lung infections with upper and lower respiratory viruses⁷¹. The infected HIS-DRAGA survivors were sacrificed relatively early after infection (at 14 dpi), in order to evaluate lung pathology. We are now carrying out longer-term studies of 30 infected HIS-DRAGA mice, and is possible that further evidence of collagen sequels and/or fibrin deposition will become apparent at later time points.

This study has several limitations, including analysis of only two mice so far that survived SARS-CoV-2 infection for at least 14 days (although this experiment established lethal and sub-lethal viral doses now being employed in further experiments) and the resulting inability to yet compare tissues from multiple mice. Follow-on studies that are now in progress (analyzing 30 infected mice) will further characterize pathological changes in lungs and other organs of infected HIS-DRAGA mice. Their responses to vaccines and various therapeutics are also of intense interest. The ability to analyze physiological responses as well as tissues harvested from these HIS-mice following initial infections and subsequent challenges with SARS-CoV-2 should allow efficient preclinical testing of vaccines and proposed therapeutics.
