Hexane-1,2,5,6-tetrol as a Versatile and Biobased Building Block for the Synthesis of Sustainable (Chiral) Crystalline Mesoporous Polyboronates

Mario De bruyn †,§,*, Paolo Cuello-Penaloza †, Melissa Cendejas ‡, Ive Hermans ‡, Jiayue He †, Siddarth H Krishna †, David M Lynn †, James A Dumesic †, George W Huber †, Bert M Weckhuysen §
PMCID: PMC7493417  PMID: 32953280

Abstract

graphic file with name sc9b02772_0008.jpg

We report on the synthesis and characterization of novel mesoporous chiral polyboronates obtained by condensation of (R,S)/(S,S)-hexane-1,2,5,6-tetrol (HT) with simple aromatic diboronic acids (e.g., 1,3-benzenediboronic acid) (BDB). HT is a cellulose-derived building block comprising two 1,2-diol structures linked by a flexible ethane bridge. It typically consists of two diastereomers one of which [(S,R)-HT] can be made chirally pure. Boronic acids are abundantly available due to their importance in Suzuki–Miyaura coupling reactions. They are generally considered nontoxic and easy to synthesize. Reactive dissolution of generally sparingly soluble HT with BDB, in only a small amount of solvent, yields the mesoporous HT/polyboronate materials by spontaneous precipitation from the reaction mixture. The 3D nature of HT/polyboronate materials results from the entanglement of individual 1D polymeric chains. The obtained BET surface areas (SAs) and pore volumes (PVs) depend strongly on HT’s diastereomeric excess and the meta/para orientation of the boronic acids on the phenyl ring. This suggests a strong influence of the curvature(s) of the 1D polymeric chains on the final materials’ properties. Maximum SA and PV values are respectively 90 m2 g–1 and 0.44 mL g–1. Variably sized mesopores, spanning mainly the 5–50 nm range, are evidenced. The obtained pore volumes rival the ones of some covalent organic frameworks (COFs), yet they are obtained in a less expensive and more benign fashion. Moreover, currently no COFs have been reported with pore diameters in excess of 5 nm. In addition, chiral boron-based COFs have presently not been reported. Scanning electron microscopy reveals the presence of micrometer-sized particles, consisting of aggregates of plates, forming channels and cell-like structures. X-ray diffraction shows the crystalline nature of the material, which depends on the nature of the aromatic diboronic acids and, in the specific case of 1,4-benzenediboronic acid, also on the applied diastereomeric excess in HT.

Keywords: Boronates, Mesoporous, Chiral, Polymers, Cellulose

Short abstract

Facile condensation of cellulose-derived (chiral) hexane-1,2,5,6-tetrol with low cost nontoxic boronates yields sustainable mesoporous polyboronates demonstrating the influence of chirality on structural properties.

Introduction

Mesoporous materials have attracted significant attention as their wide pores (2–50 nm) allow for improved diffusion and accessibility, favoring applications as diverse as, controlled drug release, chromatography, adsorbents, electrodes, solar cells, and heterogeneous catalysis.1,2 Exemplary are (non)siliceous mesoporous oxides, periodic mesoporous organic silicas (PMOs), mesoporous carbons, hyperconjugated porous polymers, and some metal–organic frameworks.3−7 Often the introduction of mesopores in a material is linked to the use of (supra)molecular templates such as surfactants, but also other techniques are known like dealumination/desiliciation, nanoassemblies, and local associations of helices, among others.1,8

Boronate ester polymers (BEP) and their tendency to form hierarchical supramolecular structures have been widely reported in the literature.9 However, few micro/mesoporous materials have been reported based on 1D polymeric boronate esters containing backbones not involving heteroatoms (e.g., nitrogen, sulfur). Exemplary are the flowerlike micro/mesoporous microparticles made by the condensation of 1,4-benzenediboronic acid (1,4-BDB) with pentaerythritol (PE). These materials have a specific surface area of 184 m2 g–1 (BET), yet no data on pore volume and pore size has been published.10,11 Notably, the functionalization of these materials with Au or Pd nanoparticles allowed for (chemoselective) catalytic reduction reactions.10,11 Mixing diboronic acid with a chiral indacene-type bis(1,2-diol) gave trimeric microporous cages with surface areas (SAs) of 491 and 582 m2 g–1.12 Hierarchical structures using dative B–N bonds have also been reported.9,13 A relative recent addition are the covalent 2D/3D organic frameworks (COFs). These are micro/mesoporous materials where rigid building blocks, often with a specific geometry and/or symmetry, are interconnected through covalent bonds forming 2D/3D rigid crystalline porous structures.14 Most typically, the boron-based COFs employ catechol building blocks. To date no COF has been reported with a pore diameter larger than 5 nm. In addition, only a few chiral COFs are known, typically using chiral pyrrolidine and tartaric acid derivatives as the linking or pendant groups.15 Presently, no chiral boron-based COFs have been reported.

Very recently a novel COF class was introduced where helical polymers are interwoven at regular intervals by means of copper complexes.16 Demetalation of this structure (named COF-505) was shown to retain its morphology, at the expense of a certain decrease in crystallinity.16 Most importantly, owing to the large flexibility of the 1D threads in demetalated COF-505, a 10-fold increase of its elasticity was observed.17 Besides weaving, entanglement in porous frameworks can also be achieved by the interpenetration of 2D/3D frameworks or interlocking of rings.17

In spite of the high surface areas and pore volumes, and the related plethora of potential and promising applications, the commercial use of mesoporous materials is still quite a challenge due to their chemical instability, expensive synthesis approaches, and nonstraightforward processability.18 The cost of the extended linkers, which is especially relevant for COFs and MOFs, is another major concern with, for instance, only two commercialized MOFs employing linkers with more than one phenyl ring.19

Recently, we have reported on the sustainable synthesis of hexane-1,2,5,6-tetrol (HT) in which two 1,2-diol moieties are joined by a flexible ethane bridge.20 HT is derived from cellulose in 3–4 steps many of which involve heterogeneous catalysts. In successive order these comprise (Figure 1) the following list:

  • (1)

    Conventional/microwave pyrolysis of (waste) cellulosic polysaccharides.21−23

  • (2)

    Hydrogenation of levoglucosenone to levoglucosanol over dihydrolevoglucosenone with heterogeneous Pd catalysts (one or two steps).24,25 It is noteworthy that presently a joint venture between the Australian Circa Company and the Norwegian multinational Norskeskog is running a fully operational 50 tonnes/year prototype plant in Tasmania.26

  • (3)

    Combined one pot hydrogenation/hydrolysis of levoglucosanol (one step).20

Figure 1.

Figure 1

Open in a new tab

Overview figure synthesis of (S,S)/(S,R)-hexane-1,2,5,6-tetrol from (waste) cellulosic feedstocks.

HT is typically obtained as a mixture of two diastereomers notably (S,R)-HT (mesomer) and (S,S)-HT. Boronic acids are abundantly available due to their importance in Suzuki–Miyaura coupling reactions.27,28 They are generally considered nontoxic and are easy to synthesize.27,29

Here we report on the synthesis of a novel porous organic polymer obtained by reactive dissolution of sparingly soluble HT with simple benzenediboronic acids (BDB) and concomitant precipitation of the mesoporous HT polyboronate. The reaction is conducted at RT and requires no special reaction conditions such as vacuum, inert atmosphere, or controlled water removal. It is shown that the properties of the resulting mesoporous polymers are largely determined by the chirality of HT and the meta/para orientation of the boronic acids on the phenyl ring. Thereby HT’s chirality is likely inducing coiling of the polymer chain, allowing for interweaving of the polymeric chains. These materials are crystalline and in spite of their lower surface areas (30–90 m2 g–1) display mesopore volumes up to 0.441 mL g–1. Scheme 1A provides a visual of the potential polymeric chains indicative of their stereocenters and points of potential molecular rotation. Hereafter these materials are denoted as “HT/polyboronates” or more specifically using the HT/1,x-BDB/solvent formalism.

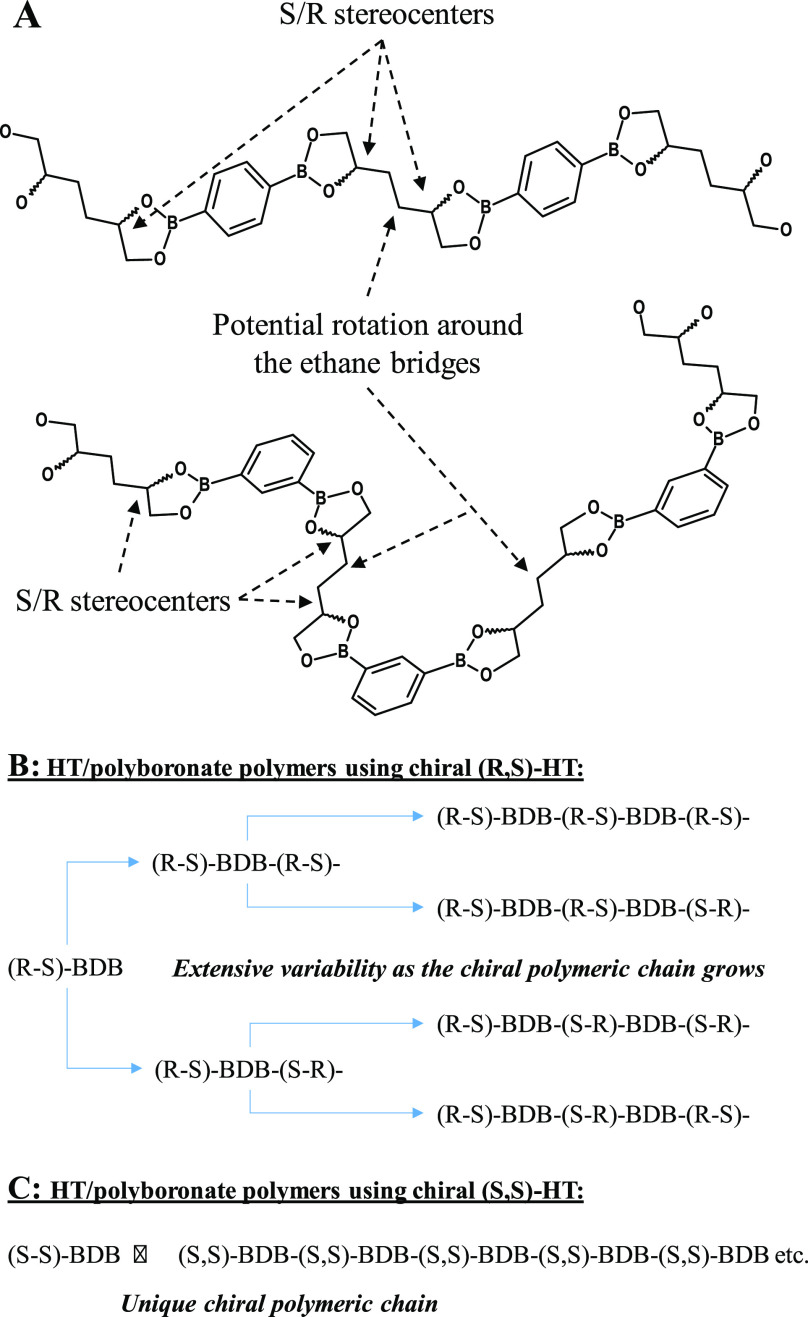

Scheme 1. (A) Schematic Visualization of Two Different HT (hexane-1,2,5,6-tetrol)-BDB (1,4- or 1,3-Benzenediboronic Acid) Polymeric Chains with Indication of the Stereocenters and Points of Potential Rotation of the Molecular Chains, (B) Illustrative Variability of the Growing Polymeric Chain When Incorporating Chirally Pure (R,S)-HT [Shown as (R-S)], and (C) Unique Chiral Polymer When Constructing the Polymeric Chain from (S,S)-HT [Shown as (S–S)].

Scheme 1

Open in a new tab

Results and Discussion

Table 1 lists the obtained specific surface areas (SAs) and pore volumes (PVs) as a function of the type of diboronic acid used, the applied solvent, and HT’s diastereomeric excess. It is found that the meta orientation of the diboronic acids on the phenyl ring (1,3-BDB) gives higher SA and PV values compared to the para orientation of the diboronic acids (1,4-BDB) (Table 1, entries a/b). This suggests for a distinct influence of the curvature of the polymeric chain. Interestingly, the use of 4,4′-biphenyldiboronic acid (4,4′-BPDB) led to quasi similar results as obtained with 1,3-BDB (Table 1, entry c). This can be rationalized by the nonplanarity of biphenyl units and the consequent absence of p–p stacking of the aromatic rings. The use of acetone or CH2Cl2 as the reaction solvents gives higher SAs and PVs than when THF or AcCN are used (Table 1 entries d–g). Additionally, the SA and PV values benefit also from higher reaction volumes (Table 1, entries d, h, and i).

Table 1. Survey of the Specific Surface Areas and Specific Pore Volumes for a Range of HT (Hexane-1,2,5,6-tetrol) Containing Polyboronate Esters.

entry component 1 component 2 solvent spec surface area (m2 g–1) BET spec pore volume (mL g–1)
a HT 38% 1 < 2 1,4-BDB THF 42 0.227
b HT 38% 1 < 2 1,3-BDB THF 65.8 0.408
c HT 38% 1 < 2 4,4′-BPDB THF 64.5 0.359
d HT 38% 1 > 2 1,3-BDB THF 60.5 0.315
e HT 38% 1 > 2 1,3-BDB CH2Cl2 74.0 0.397
f HT 38% 1 > 2 1,3-BDB AcCN 61.2 0.290
g HT 38% 1 > 2 1,3-BDB acetone 67.2 0.440
h HT 38% 1 > 2 1,3-BDB THF 5 mL 49.1 0.289
i HT 38% 1 > 2 1,3-BDB THF 45 mL 62.8 0.407
j HT 38% 1 < 2 1,3-BDB acetone 51.3 0.271
k HT 98% 1 > 2 1,3-BDB THF 80.7 0.412
l HT 98% 1 > 2 1,4-BDB THF 32.8 0.148
m HT 98% 1 > 2 1,3-BDB acetone 87.3 0.441
Open in a new tab
a

Unless otherwise stated, the used solvent volume is 15 mL; 1 = (S,R)-HT and 2 = (S,S)-HT; the 38% and 98% refer to diastereomeric excesses (d.e.).

Partial enrichment of (S,R)-HT over (S,S)-HT was described in a previous publication.20 Specific crystallization of the (S,R)-HT diastereomer was achieved from hot 1,4-dioxane, allowing for the evaluation of HT’s chirality on the properties of the HT/polyboronates. Unfortunately, it has presently not been found possible to crystallize/purify (S,S)-HT. It is noteworthy that (S,R)-HT is a mesomer, making that it displays no net chirality on its own but does so effectively in a polymeric setting. Given that (S,R)-HT can build into the polymeric chain as (S,R) or (R,S), substantial variability in the curvature of the polymeric chain is likely present (Scheme 1B/C). Actual and distinct influences of the diastereomeric (S,R)/(S,S) ratio in HT on the properties of the materials are observable:

  • (A)

    In using 38% d.e. (S,R)-HT, higher SA and PV are obtained then when 38% d.e. (S,S)-HT is used (Table 1, entries g vs j).

  • (B)

    Elevating the d.e. in (S,R)-HT from 38 to 98% is found to increase both the SA and PV by around 30% for HT/1,3-BDB/THF (Table 1, entries k ↔ d). In the case of HT/1,3-BDB/acetone, only an SA increase of 30% is observed with an already high PV (Table 1, entries m vs g).

  • (C)

    Using diastereomerically pure (S,R)-HT magnifies the effect of the meta/para orientation of BDB on the spread in SA and PV (Table 1, entries a, b, k, and l).

It is noteworthy that no cooperative stereochemical effect occurs as hydrolysis of the formed HT/polyboronates does not reveal a preferential incorporation of one of the HT diastereomers. Irrespective the nature of the HT/polyboronates, the obtained SA and PV values correlate to a certain degree (Figure S1_A).

In terms of yield, reactions between HT with 38% d.e. (1 > 2 or 1 < 2) and 1,4-BDB typically give between 65 and 75% yield of the solid HT/1,4-BDB polyboronate product. This is 73–85% of the theoretical yield which is 88.6% given the loss of two waters molecules during the condensation of HT and BDB. Reactions between HT with 38% d.e. (1 > 2 or 1 < 2) and 1,3-BDB typically give between 55 and 65% yield of the solid HT/1,3-BDB polyboronate product. This is 62–73% of the theoretical yield. Reactions using pure HT (i.e., > 98% d.e.) are with 26–30% much lower yielding, and this irrespective of the HT diastereomer and the BDB nature.

As shown in Figure 2A, the N2 physisorption isotherms display a type IV isotherm and an H3 hysteresis. The latter is indicative of aggregates of platelike particles forming slitlike pores.30 This is reminiscent of the pentaerythrithol/1,4-BDB (PE/1,4-BDB) material reported by Fujiwara et al. and Matsushima et al.10,11 with the difference that the N2 adsorption is fully reversible, strengthening our claim on mesoporous materials. Larger variably sized mesopores, spanning mainly the 5–50 nm ⌀ range, are evidenced (Figure 2B). The sharp peak at 3.7 nm is an artifact relating to forced closure of the sorption hysteresis.31 As can be inferred from Figure 2B, the pore size distribution is solvent dependent with the use of acetone leading to a larger mean pore diameter than when THF is used.

Figure 2.

Figure 2

Open in a new tab

N2 adsorption isotherms (A) and pore size distributions (B) for HT (hexane-1,2,5,6-tetrol)-1,3-BDB (1,3-benzenediboronic acid) made with four different solvents.

The here reported maximal PV of 0.44 mL g–1 is comparable to the one reported for the [MeOAc]50-H2P (0.42 mL g–1) COF yet obtained in a less expensive and more benign fashion than the COF.32 The marked difference in SA between the HT/polyboronates and the latter COF material (90 vs 754 m2 g–1) relates to the much larger pore diameters of the materials reported here (⌀ 5–50 nm) vis-à-vis the one for the above stated COF (⌀ 1.8 nm).

SEM analysis of 98% d.e. (R,S)-HT/1,4-BDB/THF (Figure 3A series), 98% d.e. (R,S)-HT/1,3-BDB/THF (Figure 3B series), and 98% d.e. (R,S)-HT/1,3-BDB/acetone (Figure 3C series) reveals the following:

  • Micrometer-sized particles (Figure 3A1/B1/C1).

  • Aggregates of plates for 98% d.e. (R,S)-HT/1,4-BDB/THF (Figure 3A2/A3).

  • A more pronounced pore structure when 1,3-BDB is used over 1,4-BDB (Figure 3B1/B2). Here the plate aggregates form channels and cell-like structures. Interestingly, some of the observed plate-like structures seem to have delaminated which may have contributed positively to the observed enhanced porosity (Figure 3B3).

  • Using acetone as the reaction solvent yields equally a highly porous structure yet with a substantially different fine-structure (on the micrometer level) than observed when THF is used (Figure 3B2/B3 vs Figure 3C2/C3).

Figure 3.

Figure 3

Open in a new tab

Scanning electron microscopy (SEM) images of 98% d.e. (R,S)-HT/1,4-BDB/THF (parts A1, A2, A3), 98% d.e. (R,S)-HT/1,3-BDB/THF (parts B1, B2, B3), and 98% d.e. (R,S)-HT/1,3-BDB/acetone (parts C1 C2 C3).

Overall the dimensions of the irregular voids between the platelets, as channels or cell-like structures, are in the tens of nanometers and thus consistent with the N2 physisorption results and the appearance of an H3 hysteresis in the N2 physisorption experiments. In spite of the high melting temperatures of the HT/polyboronates (∼600 K), TEM imaging was found impossible due to melting of the materials under the electron beam. XRD revealed a degree of crystallinity in all HT/polyboronates with the nature of the BDB (length, substitution pattern) affecting markedly the appearance of the different XRD patterns (Figure 4). Given the characteristic H3 hysteresis loop in the N2 physisorption experiments and the absence of order in the SEM images (Figure 3), we assume that the observed crystallinity reflects some ordering in the pore wall structure. The nature of the used solvent has no effect on the crystallinity (Figure S2). The diastereoselectivity of HT affects the crystallinity only in the case of the 1,4-BDB linker (Figure 5).

Figure 4.

Figure 4

Open in a new tab

X-ray diffractograms (XRD) of (A) HT/1,4-BDB, (B) HT/1,3-BDB, and (C) HT/4,4′-BPDB; no background subtraction.

Figure 5.

Figure 5

Open in a new tab

X-ray diffractograms (XRD) of HT/1,3-BDB (A 38% HT d.e.; B 98% HT d.e.) and HT/1,4-BDB (C 38% HT d.e.; D 98% HT d.e.); PHT = chirally pure HT.

The (S,R)-HT/1,4-BDB and (S,R)-HT/1,3-BDB polyboronates were characterized by 13C CP-MAS and 11B spin echo MAS NMR, and the results are shown in Figure 6. Analytical simulations of the 11B spectra confirmed the existence of only one type of boron species, and this is irrespective of the nature of the BDB unit. (Figure 6B/D, red curve). FT-IR spectroscopy further confirmed the presence of boronate esters with characteristic vibrational peaks in the 1320–1300 cm–1 (B–O stretch) and 690–650 cm–1 (characteristic boronate ester peak33) spectral ranges (Figure S3_A).11,34 In addition, FT-IR spectroscopy revealed the clear absence of OH groups (3500–3000 cm–1), characteristic for the residual presence of HT or incomplete boronate ester formation in the synthesized HT/polyboronates (Figures S3_B/C).

Figure 6.

Figure 6

Open in a new tab

13C CP-MAS NMR of (A) (S,R)-HT/1,4-BDB and (C) (S,R)-HT/1,3-BDB; 11B spin echo MAS NMR of (B) (S,R)-HT/1,4-BDB and (D) (S,R)-HT/1,3-BDB; * = spinning sideband.

Conclusions

A range of new crystalline (chiral) mesoporous materials were obtained by the facile and benign condensation of (chiral), biobased hexane-1,2,5,6-tetrol (HT) and simple aromatic diboronic acids. The so formed mesoporous HT/polyboronates are obtained by spontaneous precipitation from the reaction mixture, not requiring an extensive workup procedure. HT is easily accessible from cellulose and chiral pure (R,S)-HT is straightforward to crystallize. The applied simple diboronic acids are abundantly available due to their commercial use in Miyaura–Suzuki reactions, easy to synthesize, and generally considered nontoxic.35−37 The low cost of these materials is ultimately considered to benefit potential commercial applications. The reported materials show an appreciable pore volume of up to 0.44 mL g–1, rivalling the pore volumes of some reported COF materials yet obtained in a less expensive way. Importantly, presently no COF has been reported with pore diameters in excess of 5 nm. The (R,S)-HT (98% d.e.)/polyboronate represents a first example of a chiral mesoporous polyboronate. The high pore volume and the larger pore sizes of 5–50 nm offer great potential to the incorporation of enzymes or as supports to immobilize catalysts to convert bulkier substrates. The meta/para orientation of the boronic acids on the phenyl ring was shown to influence the obtainable surface areas and pore volumes. Uniquely, a distinct influence of HT’s chirality (its d.e. value) on the materials’ properties was evidenced. Future work will focus on testing these new materials toward a wide range of different applications, thereby hopefully demonstrating its potential as a valuable material.

Acknowledgments

M.D.b. acknowledges the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 701028 (EU Marie Curie Global Fellowship). Tony Duncan (Circa) is thanked for the generous provision of Cyrene from which HT is prepared. The authors gratefully acknowledge the use of facilities and instrumentation supported by NSF through the University of Wisconsin Materials Research Science and Engineering Center (DMR-1720415). Special thanks go to Richard Noll (University of Wisconsin) for his assistance with SEM imaging.

Supporting Information Available

The Supporting Information is available free of charge on the ACS Publications website at DOI: 10.1021/acssuschemeng.9b02772.

  • Experimental procedures, additional X-ray diffractograms, and FT-IR spectra (PDF)

European Union’s Horizon 2020 research and innovation program under grant agreement No. 701028 (EU Marie Curie Global Fellowship).

The authors declare no competing financial interest.
