Immune-Modulatory Alginate Protects Mesenchymal Stem Cells for Sustained Delivery of Reparative Factors to Ischemic Myocardium

Abstract

Paracrine factors secreted by mesenchymal stem cells (MSCs) have been previously shown to improve cardiac function following acute myocardial infarction (MI). However, cell therapy activates the innate immune response, leading to the rapid elimination of transplanted cells and only short-term therapeutic delivery. Herein, we describe a new strategy to deliver sustained paracrine-mediated MSC therapy to ischemic myocardium. Using an immune evasive, small molecule modified alginate, we encapsulated rat MSC cells in a core-shell hydrogel capsule and implanted them in the pericardial sac of post-MI rats. Encapsulated cells allowed diffusion of reparative paracrine factors at levels similar to non-encapsulated cells in vitro. Encapsulation enabled sustained cell survival with localization over the heart for 2 weeks. The effect of the experimental group on ventricular function and fibrosis was compared blank (cell free) capsules and unencapsulated MSCs injected into infarcted myocardium. MSC capsules improved post-MI ventricular function ~2.5x greater than MSC injection. After 4 weeks, post-MI fibrosis was reduced ~2/3 with MSC capsules, but unchanged with MSC injection. MSC encapsulation with alginate core-shell capsules sustain cell survival and potentiates efficacy of therapy.

Graphical Abstract

Immune modulatory alginate encapsulation platform can be used in the pericardial space to provide enhanced therapeutic efficacy to the heart.

1. Introduction

Preservation and restoration of ventricular function are the primary goals for heart failure therapies. Cellular therapy, the introduction of autologous or allogenic cells into ischemic or infarcted myocardium, has produced encouraging pre-clinical improvements in ventricular function.^{1, 2} However, clinical studies have yielded modest and inconsistent results, questioning therapeutic utility.^{3, 4} Although it was initially believed that cell therapy would improve heart function by transplanted cell differentiation into cardiomyocytes, the primary therapeutic benefit is now believed to be paracrine-mediated myocardial repair.^{5, 6} Mesenchymal stem cells (MSCs) release potent angiogenic, mitogenic, and anti-fibrotic factors and are available through allogenic sources for practical clinical application.⁷ Consequently, MSCs have been studied in randomized clinical trials for the treatment of myocardial ischemia with noted improvements in ventricular function and remodeling associated with heart failure.^{8, 9}

The optimal delivery method for cellular therapy to the heart remains undetermined, with intravenous injection, catheter-directed intracoronary delivery and direct intramyocardial injection as techniques utilized in most prior studies.¹⁰ Pericardial delivery of cell therapy, through percutaneous pericardial injection or deposition during cardiac surgery, represents a promising method to deliver reparative proteins to the heart.^11–13 However, as fewer than 1% of cells survive hours after implantation, poor cell survival represents a continuing limitation, regardless of cell type or delivery strategy.^14–19 Epicardial placement removes the transplanted cells from the hostile ischemic and inflamed environment of a myocardial infarction (MI), but may still permit paracrine mediated repair.

Strategies to improve cell survival beyond a few days are paramount to improve reproducibility and efficacy of therapy for successful clinical translation.²⁰ Encapsulation of cells with biomaterials holds promise to improve cell viability, with prior groups utilizing alginate, polyethylene glycol, and hyaluronic acid to fabricate cellular gels or patches.^21–23 We have previously developed a novel immune modulatory alginate (triazole-(triazole-thiomorpholine dioxide [TMTD] alginate) for cell encapsulation which significantly reduces foreign body response and pericapsular fibrotic overgrowth while permitting diffusion of nutrients and cytokines.^{24, 25} The thiomorpholine functional group preferentially localizes to the capsule surface and significantly reduces macrophage adherence and subsequent activation.²⁶ We have previously demonstrated preserved survival and function of TMTD alginate-encapsulated islet cells for over 6 months in the peritoneal cavity of immune competent rodents and non-human primates.^{24, 25, 27}

We hypothesize that TMTD alginate can be utilized to create MSC capsules that can be implanted in the pericardial sac, with sustained cell survival and delivery of reparative paracrine factors to improve ventricular function. In this study, we fabricated TMTD alginate-MSC capsules and verified sustained paracrine factor production in vitro. We then demonstrated sustained survival and pericardial localization in vivo. Finally, we evaluated efficacy in a clinically relevant post-infarct rat model. Our studies suggest that our immune modulatory alginate encapsulation platform can be used in the pericardial space to provide enhanced therapeutic efficacy to the heart.

2. Materials and Methods

2.1. Study Overview and Experimental Design

In this study, we first designed and fabricated TMTD alginate 1.5mm microcapsules with 30,000 MSCs per capsules. Viability and elution of paracrine growth factors (Vascular Endothelial Growth Factor [VEGF]; andrenomedullin [ADM]; and Hepatocyte Growth Factor [HGF]) from MSC cell capsules were verified in-vitro over 14 days using enzyme-linked immune-sorbent assays (ELISA) (Cat# ERVEGFA, ThermoFisher Scientific, Cat# 50–150-1296, Biomatik Corporation, Cat# EKU10058, Biomatik Corporation). MSC capsules were then implanted in the pericardium of Sprague Dawley rats (n=3) overlying the right and left ventricles. Capsule localization was verified with In-Vivo Imaging System (IVIS) and retrieved capsules were verified for viability after 14 days. Finally, MSC capsules were implanted in rats following acute MI by ligation of the left anterior descending (LAD) coronary artery. Efficacy of MSC capsules was assessed by echocardiography and histology over 28 days after MI and compared against blank capsule controls and MSC intramyocardial injection (n=4–5/group). For this study, all rats were male Sprague Dawley (175–199g, 44–48 days, Envigo). Rat MSCs were utilized for in-vitro characterization and in-vivo efficacy after MI.

2.2. Materials

MSCs were purchased from AS One International, Inc. (Cat# RASMX-01001) Green-Fluorescent Protein (GFP) expressing MSCs (AS One International, Inc. Cat# #RASMX-01101) were also utilized for validation of sustained survival 14 days after implantation. In addition, we engineered wild type rat MSCs with Firefly Luciferase (F-LUC) using lenti-viral transfection (VectorBuilder) for IVIS image localization. Cell culture reagents were purchased from Thermo-Fisher Scientific. SLG20 alginate was purchased from Pronova. Syringe pumps, co-axial needles, and voltage generators were purchased from Harvard Apparatus, Ramé-Hart, and Gamma High Voltage. D-Luciferin was purchased from Perkin Elmer. Calcein AM and Calcein AM Violet live cell stains were purchased from Thermo-Fisher Scientific (Cat# C3099 & C34858). Ethidium Homodimer-1 was purchased from Thermo-Fisher Scientfici (Cat# E1169). VEGF, HGF, and ADM ELISA kits were purchased from Fisher, and Biomatik Corporation. Unless otherwise noted, all chemicals are from Sigma Aldrich, USA and used without any further purification. MSC’s were cultured in Dulbecco’s Modified Eagle Medium (DMEM/F-12), supplemented with 10% Embryonic Stem Cell Fetal Bovine Serum, and 1% Anti-Anti. Cells were maintained at 37C in a 5% CO2 atmosphere.

Sprague Dawley rats (175–199g, 44–48 days) were purchased from Envigo and maintained under standard housing conditions. All animals were treated and cared for in compliance with the Guide for Care and Use of Laboratory Animals published by the National Institutes of Health (NIH publication 86–23, revised 1996). The protocol was approved by the Institutional Animal Care and Use Committees.

2.3. Synthesis of TMTD

4-Propargylthiomorpholine 1,1-Dioxide (1 eq.) was added to a 250 mL round bottom flask and dissolved in methanol:water mixture (5:1). Consequently, Tris[(1-benzyl-1H-1,2,3-triazol-4-yl)methyl]amine (0.25 eq.), Triethylamine (0.25 eq.), and copper iodide (0.1 eq.) was added. The reaction mixture was purged with argon for 15 mins and cooled to 0°C following which 11-azido-3,6,9-trioxaundecan-1-amine (1 eq., 6.30 g, 28.86 mmol) was added. The reaction mixture was stirred at room temperature for 15 mins and afterward heated to 55°C for overnight. The reactions was cooled to room temperature and filtered through celite to remove any insoluble portion. The filtrate was dried using rotavap under reduced pressure with silica. The crude reaction was then purified by liquid chromatography with dichloromethane: ultra (22% MeOH in DCM with 3% NH₄OH) mixture 0% to 40% on a 120 gm ISCO silica column and further characterized with ESI mass and NMR mass spectroscopy.

NMR:¹H (600 MHz; CDCl₃): 2.87 (2H, s, NH₂-CH₂-CH₂-O), 3.05 (8H, m, N-CH₂-CH₂-S), 3.51 (2H, t, J=5.2Hz, NH₂-CH₂), 3.61 (8H, m, PEG) 3.81 (2H, s, Thiomorpholine-CH₂-Triazole), 3.89 (2H, t, J=5.2Hz, N-CH₂-CH₂-O), 4.55 (t, 2H, J=5.2, N-CH₂-CH₂-O), 7.69 (1H, s, triazole)

¹³C (600 MHz; CDCl₃): 41.74 (NH₂-CH₂), 50.42 (N-CH₂), 50.56 (N-CH₂ Thiomorpholine) 51.52 (S-CH₂ Thiomorpholine) 52.2 (Thiomorpholine-CH₂-Triazole), 69.54–73.14 (m, PEG), 124.10 (CH triazole), 143.32 (C triazole)

ESI MS: [M+H⁺] = 392.1939

2.4. Synthesis of TMTD modified UPVLVG alginate

In a round bottom flask, 2g (1eq) of UPVLVG (BP-1903–04; Novamatrix) was dissolved in water (75 mL). Then TMTD small molecule (3.99 g, 10.20 mmol, 1eq) was dissolved in water under vortexing. The pH of TMTD solution is adjusted to 7.4 using HCl. The TMTD aqueous solution is then slowly added to the UPVLVG solution under stirring condition. Subsequently a solution of (4-(4,6-dimethoxy-1,3,5-triazin-2-yl)-4-methyl-morpholinium chloride) (DMTMM, 0.5 eq.) was added dropwise to the mixture of UPVLVG and TMTD. The reaction was heated to 55°C and stirred for overnight. The solution was filtered through a cyano-silica gel and dialyzed in a 40cm long 10–12K pretreated dialysis tubing in a beaker using saline (2 days) and milli-Q water (3 days). The dialyzed solution was frozen in −80 degrees Celsius and lyophilized until dry.

NMR: 1H (600 MHz; D₂O): 3.07 (4H, s, N-CH₂-CH₂-S), 3.17–3.40 (m, alginate protons), 3.46 (4H, s, N-CH₂-CH₂-S), 3.50–3.70 (16H, m, ethoxy), 3.7–5.2 (m, alginate protons), 8.08 (1H, s, triazole)

Elemental: C: 35.67%, H: 4.34%, N: 5.08%, O: 33.50%. By elemental analysis data there is 16.0% modification of the starting alginate

2.5. Preparation of alginates for encapsulation

SLG20 alginate, used for the core of the core-shell hydrogels, was purchased from PRONOVA. It was dissolved in 0.8% saline at 1.4% weight/volume. SLG100 was prepared at 3% weight/volume in 0.8% saline. It was then blended with TMTD small molecule alginate prepared in section 2.5 above, using a 70:30 ratio of TMTD:SLG100.

2.6. Cell Preparation

In order to suspend cells in alginate, cells that had reached 70–90% confluency were removed of supernatant and washed with 5ml’s of DPBS. Washing solution was aspirated and followed by 5ml’s Trpysin EDTA to disperse the cell layer. Cells were incubated for 3 minutes, then observed under a microscope to ensure detachment. 7 mL’s of complete growth medium were added to the flask to stop the EDTA reaction. The cell suspension was transferred to a 50ml conical tube and centrifuged for 5 minutes at 250G. The supernatant was aspirated, and the pellet was broken. The cells were washed 3 times with Ca2+ free Krebs solution and then centrifuged again. After centrifugation, the buffer was aspirated and the desired volume of SLG20 alginate was added to the cells and pulled up by a 5ml luerlock syringe.

2.7. Core-shell Capsule Synthesis

Following alginate and cell preparation, hydrogels were synthesized using a two fluid co-axial electrostatic spraying device which consisted of two syringe pumps and a voltage generator. Each of the pumps held a syringe, one containing SLG20 alginate with the cell suspension, and the other containing modified TMTD/SLG100 alginate. The syringes were connected using a co-axial needle that was suspended over a 1:4 barium chloride : mannitol crosslinking bath. The bath was supplemented with 0.65% Tween20. The pumps were set to run at 5ml/hour and 6ml/hour for the core and shell respectively. Capsule size was maintained using a voltage of ~5.6kV. Capsules incubated in the crosslinking bath for 15 minutes and were subsequently washed three times with HEPES buffer, followed by three times with complete media. Capsules were aliquoted into 1.5mLs and stored at room temperature overnight. Prior to implant, samples were washed with 0.9% sterile saline. Unmodified control capsules were made using SLG20 alginate in the core and shell.

2.8. Viability testing


Following encapsulation, capsules were distributed into a 96 well plate at a density of 1 capsule per well. On days 1, 7, 14, and 28 capsules were washed with Ca+ KREBS and stained using 50ul of live/dead stock solution containing 20ul of 2μM Calcein AM and 40ul of 4μM EthD-1 in 8mL DPBS. The capsules were incubated for 20 minutes at 37C following which, capsules were washed with PBS and fixed using 4% PFA for imaging. Capsules were imaged under a fluorescence microscope at 4x magnification, in the TexRed, GFP, and Transmitted channels. Images were processed in Adobe Photoshop.

2.9. Enzyme-linked immunosorbent assay

Cells from each group were grown up into T-150 flasks in DMEM media with 10% Embryonic Stem Cell-FBS, 1%AntiAnti. At confluency, culture media was aspirated and 10ml TrypLE was added. Cells were incubated for 3 minutes at 37°C in a 5% CO2 humidified atmosphere. Once the cell layer was dispersed, 10ml’s complete media was added to stop the reaction. The cell suspension was transferred to a 50ml conical tube and centrifuged at 250xg for 5 minutes. The supernatant was aspirated and cells were re-suspended in 1ml complete media. 10ul of the cell suspension was mixed with 10ul of trypanblue, and cell concentration was counted using a Countess™ hemocytometer. The volume required to achieve a concentration of 10,000 cells per well was calculated based on the concentration of live cells in the sample. That volume was transferred into 8 wells of a 96 well plate. Of the remaining cell suspension volume, 10 million cells were resuspended in 1ml alginate to be synthesized into core shell capsules as described below. Once fabricated, capsules were plated in 8 wells of a 96 well plate at a density of 1 capsule per well. All samples were incubated at 37 degrees Celsius in a 5% CO2 humidified atmosphere. Media was changed regularly. At 24 hours and 30 days after plating, supernatant was collected from each well and frozen at −20C. ELISA’s for VEGFA, HGF, and adrenomedullin were purchased from Thermo Scientific. Frozen samples were thawed and run on the kits according to protocols provided. All samples were run with an n=5.

2.10. Capsule Implantation & Experiment MI Model

Animals were anesthetized with inhalational isoflurane in 100% O₂ (5.0% induction; 2.5% maintenance). Endotracheal intubation was performed and the animals ventilated with positive-pressure ventilation. A left lateral thoracotomy was performed. The pericardial sac was identified and a small portion opened sharply exposing the left ventricle at the intended LAD ligation site. For animals that underwent MI, the LAD was identified and ligated with a 7–0 poly-propylene suture (Ethicon, Somerville, New Jersey) 1–2 mm from its origin.²⁸ Visual confirmation of infarction was noted by edema and discoloration of the anterior LV wall. MSC or blank cell capsules were then deposited on a sterile surgical towel and then deposited in the pericardial space on the epicardial surface of the right and left ventricle with surgical forceps. For each animal 1.5mL of capsules were deposited. For animals in the MSC injection group, 0.2 cc (4×10⁶ cells per rat) were injected into the left ventricle myocardium in the infarct zone using a 27 gauge syringe. Cells were injected obliquely and the needle was not withdrawn for 10 seconds to minimize chance for cell leakage. The chest was then sutured closed in layers and the animals were extubated and allowed to recover.

2.11. In Vivo Imaging System Imaging (IVIS)

In-vivo MSC capsule localization was performed with IVIS (IVIS Lumina II, Perkin Elmer) using engineered F-LUC+ MSC cell capsules. Rats were anesthetized using 3.5% isoflurane and 1.5L/min Oxygen in an induction chamber. Once fully sedated, the chest was shaved and an intra-peritoneal injection of 100mg/kg of 15mg/ml D-luciferin in saline. The rat was then imaged at 20, 40, and 60 minutes in field of View in D, binning set to 8, with an F stop set to 2 and manual subject height set to 1.70cm. The exposure times selected were 60, 1, 5, and 15 seconds.

2.12. Echocardiography

Echocardiography was performed under light anesthesia with 3% isoflurane using a FujiFilm Visualsonics Vevo 2100 Imaging System (VisualSonics, Canada). Echocardiography was conducted 3 days prior to surgery, 4 days after, and 4 weeks after infarct induction and capsule implant. Parasternal short-axis images were obtained at the level of papillary muscles and imaged using motion mode (M-Mode). Images were then analyzed by a blinded investigator. The formula (LVEDV − LVESV/LVEDV) ×100% was used to calculate the ejection fraction (EF). The change in EF from post-infarct to study termination was calculated as: [(EF at day 28 after surgery) – (EF at day 3 after surgery)] / (EF at day 3 after surgery).

2.13. Capsule Retrieval and Histologic examination

At experiment termination, rats were anesthetized, and their chests were opened. The heart pericardial sac and both pleural spaces were widely opened. Capsules were identified and explanted. Retrieved capsules were rinsed in saline and examined under fluorescence microscopy. Images were processed in Adobe Photoshop (Adobe Inc., San Jose, California). For post-infarct subjects, animals were exsanguinated under deep anesthesia by an incision made in the inferior vena cava while beating hearts were perfused with 10mL’s of phosphate buffered saline (PBS pH 7.2) and fixed in a 4% paraformaldehyde solution. Each excised heart was cut transversally, and two slices (2–3 mm) were obtained, each above or below the transverse centerline of the infarct region. Tissues were then embedded in paraffin and cut into twelve 5μm thick sections at 500μm intervals. Six sections per animal was mounted on the glass slide and stained with Masson-Trichrome where fibrotic area stains blue and non-fibrotic region stains red. Cytation 5 Cell imaging Multi-mode Reader (BioTek instruments) at 10X magnification was used to obtain digital photographs of histological sections. All sections were quantified using ImageJ software version 1.52 (National Institutes of Health, Bethesda, Maryland). The percent of the LV wall area with fibrosis was calculated using: (total blue pixels from all sections) / (total blue plus red pixels from all sections) x 100.

2.14. Statistical Analysis

Results were plotted as mean +/− SEM. ELISA data samples passed normality test with an alpha=0.05 using a Shapiro Wilk test. ELISAs statistics were run using a two tailed unpaired t-test with welches correction with an f test to compare variances. For statistical analysis of efficacy studies including % LVEF and delta LVEF a generalized estimating equation (GEE) was utilized to confirm change in EF over the three timepoints for each group and a, 2way ANOVA with Holm-Sidak’s multiple comparisons test was used. For statistical analysis of histology quantification, ordinary one-way ANOVA and Holm-Sidak’s multiple comparisons test was used.

3. Results and Discussion

3.1. Fabrication and characterization of encapsulated MSC’s

Immune-evasive alginate TMTD was prepared as previously described (Fig. 1a & b). ^{25, 27} NMR and Mass spec show successful synthesis of TMTD alginate (methods 2.3–2.4). Core-shell hydrogel micro capsules were fabricated using a biocompatible alginate polymer through electrostatic spraying (Fig. 1c). TMTD alginate was dissolved in 0.8% saline and subsequently blended with SLG100. This modified alginate was used as the shell. SLG20 alginate was also dissolved in 0.8% saline and used for the core. Using a syringe pump and co-axial needle, spherical gels were formed and dropped into a 100mM barium chloride bath and ionically crosslinked. Capsules maintained an approximate diameter of 1.5mm (Fig. 2a). The hydrogels can be placed in the pericardial sac and used in the acute myocardial infarct space (Fig. 1d)

Fig.1.

(a) Chemical schematic of TMTD small molecule synthesis and (b) TMTD small molecule modified alginate. (c) Schematic of electrostatic spraying mechanism used for encapsulation of MSCs into core shell capsules and (d) application of the platform in an acute myocardial infarct model.

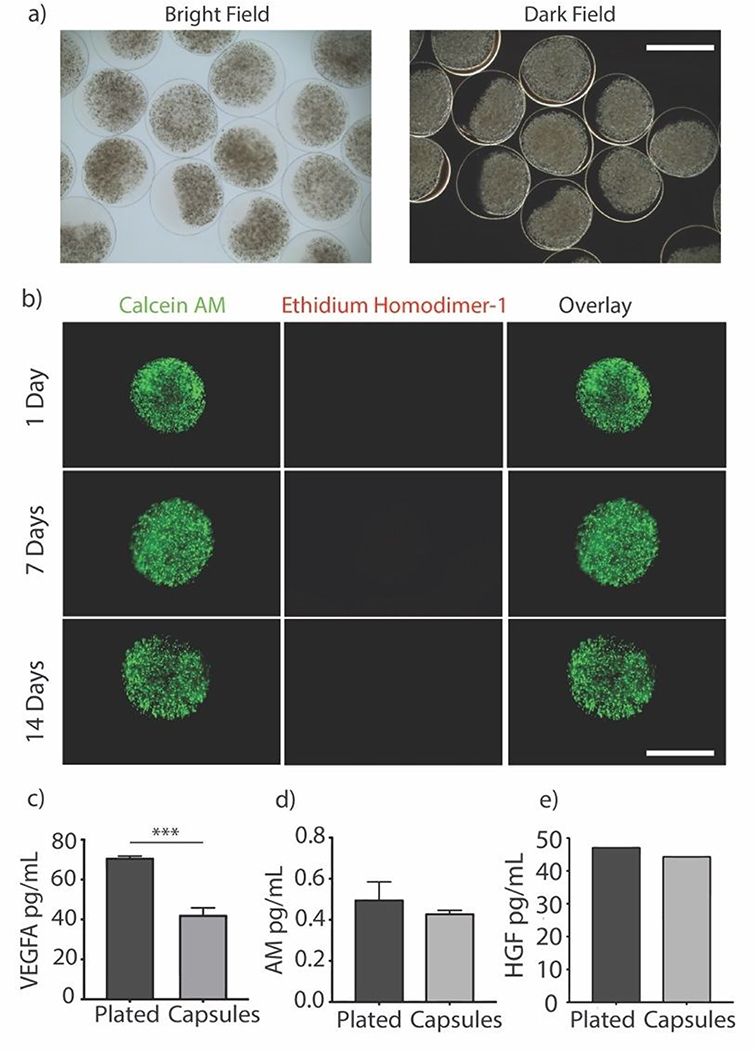

Fig. 2.

(a) Representative bright and dark field images of encapsulated MSCs showing the transparent shell, scale bar is 2000um. (b) Representative images of encapsulated MSCs stained with Calcein AM (Live) and Ethidium homodimer (Dead) over the span of 2 weeks shows cells remain viable over time, scale bar is 1000um. (c, d, & e) Concentrations of secreted paracrine factors measured in supernatant after 24 hours. Groups compare plated (un-encapsulated) and TMTD-Encapsulated MSCs. (VEGFA; p=0.0009, AM; p=0.1156, HGF; p=0.7058) (n=5)

‏Rat MSCs were encapsulated in the alginate hydrogels at a concentration of 10e6 cells per mL of SLG20 (~40,000 cells per capsule). The formed hydrogel is porous and allows for the inward diffusion of nutrients to enable cell viability, as well as outward diffusion of soluble factors secreted by MSCs. In vitro, encapsulated MSCs were maintained in complete DMEM and viability was assessed via live/dead staining. MSCs exhibited high viability in vitro over the course of two weeks (Fig. 2b). The amount of VEGF released by encapsulated MSCs over a 24-hour period was lower than non-encapsulated plated cells (70.85 +/− 0.89 v 42.25 +/− 3.55; p<0.01), likely due to the negative charge of the alginate surface slowing diffusion of the positively charged VEGF molecule (Fig. 2c). However, a substantial amount of VEGF was still able to diffuse out of the hydrogel spheres.²⁷ In contrast, no difference was observed between encapsulated MSCs and non-encapsulated plated cells in the release of ADM (0.49 +/− 0.086 vs 0.43 +/− 0.015; p=0.12) or HGF (47.24 +/− 0.002 vs 44.48 +/− 0.002; p=0.71) over 24 hours (Fig. 2d–e).

While it was initially assumed that the benefit of cell therapy resulted from trans-differentiation of transplanted cells into functioning cardiomyocytes, extensive subsequent work has shown that few cells do trans-differentiate and insufficient to account for the structural and functional improvements in cardiac function.^{29, 30} The observed therapeutic benefits have been attributed to the release of a variety of cytokines and growth factors, including angiogenic VEGF, cardioprotective HGF, and anti-fibrotic ADM.^{31, 32} This has led to a shift from a trans-differentiation mechanism to a paracrine mediated mechanism as the principal therapeutic benefit of cell therapy.⁶

While the diffusion of a positively charged molecule such as VEGF could potentially be impaired by the negative charge of the alginate surface, a substantial amount of VEGF was still able to diffuse out of the hydrogel spheres.²⁷ Similarly, in vitro elution of HGF, and AM were measured and comparable to non-encapsulated cells. (Figure 1E–G). Thus, above results demonstrating that elution of paracrine factors was not meaningfully impaired by encapsulation, meet a critical prerequisite for therapeutic effects in this application.

3.2. in vivo biocompatibility, viability and localization of alginate MSC capsules in non-ischemic rats

MSCs encapsulated in TMTD modified alginate were implanted in the pericardial space on the epicardial surface of non-ischemic rats to validate in-vivo viability and capsule localization. Photographs were collected during and 2 weeks following implantation of the capsules on the epicardial surface of the ventricles within the pericardial space via a left thoracotomy (Fig. 3a–c). Capsules demonstrated sufficient physical integrity for handling with surgical forceps for positioning. F-Luc MSCs were implanted in a rat and tracked through a longitudinal imaging study using a luminescence based in vivo imaging system (IVIS) for 14 days (Fig. 3d). MSC capsules remained viable and localized in the left lower chest overlying the heart. In a separate group of non-ischemic rats, GFP+ MSC capsules were implanted in the pericardial space and retrieved after 14 days. Explanted retrieved capsules were translucent, with minimal peri-capsular tissue overgrowth. Viability was confirmed using Live/Dead staining (Fig. 3c and 3e). In contrast, explanted unmodified control capsules had extensive pericapsular formation and fibrotic overgrowth after 2 weeks (Supplementary Fig. 1), which would block sustained delivery of paracrine factors and resulted in encapsulated cell death. For this reason, we did not include an unmodified capsule group in our experimental cohorts.

Fig.3.

(a & b) Representative photos of encapsulated MSC’s placed in the pericardial sac at the time of implant and (c) at two-week explant. In all photos, black arrows point to capsules. (d) IVIS luminescent images of encapsulated MSCs expressing firefly luciferase imaged at 4, 7, and 14 days post implant. Color scale Min=1.00e4 Max=1.00e6 (Radiance p/sec/cm2/sr). (e) Representative images of encapsulated MSCs explanted from the pericardial sac after 2 weeks, stained with Calcein AM (Live) and Ethidium homodimer (Dead), scale bar is 1000um (e).

Stem cell therapy for heart failure has demonstrated promise, however poor transplanted cell retention remains a critical limitation.^{1, 3} A variety of natural and synthetic biomaterials have been utilized to enhance stem cell survival and engraftment.^33–36 Alginate is a versatile hydrogel for biomedical application and cell encapsulation. The core shell design of the capsules enables diffusion of nutrients, yet blocks host antibodies and immune cells, to sustain cell survival.

These findings demonstrate that fabricated TMTD-alginate MSC capsules placed in the post-MI pericardial space maintain high cell viability over 14 days in-vitro (Fig. 1d) and in-vivo (Fig. 2d–e) with minimal peri-capsular overgrowth. In contrast, prior studies with hydrogels or epicardial patches demonstrated 80% major cell loss within 6 days in vitro and nearly 100% loss within 7 days in vivo.^{21, 36, 37}

3.3. Therapeutic Efficacy of Encapsulated MSCs in ischemic rats

Encapsulated MSCs were implanted following acute MI and compared to blank capsule control and MSC intramyocardial injection over 28 days with serial echocardiography (Fig. 4a). In all subjects, the anterior left ventricular wall became hypokinetic and demonstrated a wall motion abnormality (Fig. 4b). Furthermore, EF decreased with infarction in all rats. (Fig. 4c). At 28 days, blank capsule (control) rats demonstrated no change in EF (43 +/− 3.24 vs 45 +/− 2.96; p=0.6914). MSC injection rats demonstrated improvement in EF (51 vs 60; p=0.0092). MSC capsules demonstrated improvement in EF (46 vs 64; p= 0.0046) and a greater degree of improvement compared to MSC injection (41% vs 16%; p<0.05) (Fig. 4d).

Fig. 4.

(a) Schematic of the study timeline and endpoint. (b) Representative M-mode echocardiograph images of the papillary muscle 4 days post infarct and 28 days post infarct (n=4–5). (c)Left ventricular ejection fraction (LVEF) measurements 1 day prior to infarct, 4 days after, and 28 days (terminal) after acute myocardial infarction (n=4–5). (d) Delta LVEF plotted to show the improvement in ejection fraction from 4 days post MI to 28 days post MI (terminal) for each group (n=4–5). % Change was calculated using the formula [(LVEF 28 day (terminal) - LVEF 4-day post-MI)/LVEF 4-day post-MI] *100. All data are presented as mean +/− SEM. *P<0.05, **P<0.01, ****P <0.0001.

Explanted hearts were sectioned and stained with Masson’s trichrome in order to assess fibrosis (Fig. 5a). Rats in the blank capsule (control) and MSC injection groups demonstrated fibrosis of 9% ± 2% and 11% ± 2% of the left ventricle respectively (p=0.40). Rats in the MSC capsule group had decreased fibrosis (3% ± 0.5%) compared to blank (p=0.021) and MSC injection groups (p=0.0092) (Fig. 5b).

Fig. 5.

(a) Representative Masson’s Trichrome-stained myocardial sections 28 days after myocardial infarction and treatment administration. Blue depicts scar tissue, red illustrates viable myocardium. Magnified images of the infarcted region are portrayed below, scale bar is 1250um. (b) Quantitative analysis of the % fibrosis 28 days post-MI. All data are presented as the Mean +/− SEM. Ordinary one-way ANOVA and Holm-Sidak’s multiple comparisons test was used.

Thus, MSC encapsulation with TMTD-alginate led to a greater therapeutic benefit after MI when compared to blank capsules (negative control) and direct intramyocardial MSC injection (positive control) over 28 days. Both MSC injection and capsules improved LV EF, however MSC capsules led to a greater improvement in LV EF (41% vs 16%). There was no change in post-MI fibrosis with MSC injection relative to controls, while in MSC capsule animals fibrosis was reduced to 1/3 of that seen in controls. This therapeutic advantage is likely secondary to prolonged cell survival, which enables sustained delivery of reparative paracrine factors.

The optimal route for cell therapy (intravenous, intracoronary, direct intramyocardial, or pericardial) has not been determined. Both acute MI and chronic ischemia are associated with inflammation, which may exacerbate cell death and blunt therapeutic benefits of cell therapy.³⁸ The hostile environment of the myocardium with inflammation and hypoxia may ultimately limit intramyocardial delivery. Pericardial delivery allows for therapeutics to be adjacent to the injured tissue without directly encountering the activated inflammatory cells. This route is especially appealing for delivery of reparative proteins and factors provided sufficient diffusion occurs. Lovich and colleagues demonstrated that epicardial delivery leads to rapid diffusion of drugs throughout the myocardium, with 500x increase in potency compared to systemic delivery.^{39, 40} Whyte and colleagues recently reported the utility of pericardial MSC delivery to improve cardiac function over a 4 week period.¹³ This innovative strategy, however, required weekly cellular injection into the epicardial reservoir to achieve efficacy. Use of MSC capsules allows for sustained reparative factor delivery without repeated cell administration.

This strategy also has significant potential for clinical translation. Alginate biomaterials are highly biocompatible and have been injected in the myocardium of heart failure patients in a randomized clinical trial, with favorable safety.[⁴¹] Alginate cell capsules can be delivered to the epicardium via transcatheter pericardial installation as demonstrated in a pilot porcine study (Supplementary Fig. 2), catheter instillation or following cardiac surgery.¹¹ Furthermore, this platform can be utilized with alternative cell types or engineered cells designed for targeted delivery of specific reparative factors.²⁶

Conclusions

In summary, we have demonstrated fabrication and in-vivo therapeutic application of TMTD-alginate MSC capsules for improvement of ventricular functioning and remodelling in a post-MI rat model. MSC capsules demonstrated sustained cell survival and superior therapeutic efficacy to MSC injection. Combined, our results demonstrate that this approach could facilitate treatment of MI. Furthermore, this biomaterial cell therapy strategy can be utilized to deliver a range of therapeutic factors to the heart.
