Adsorption of Nitrogen Dioxide in a Redox-Active Vanadium Metal–Organic Framework Material

Abstract

Nitrogen dioxide (NO₂) is a toxic air pollutant, and efficient abatement technologies are important to mitigate the many associated health and environmental problems. Here, we report the reactive adsorption of NO₂ in a redox−active metal–organic framework (MOF), MFM-300(V). Adsorption of NO₂ induces the oxidation of V(III) to V(IV) centers in MFM-300(V), and this is accompanied by the reduction of adsorbed NO₂ to NO and the release of water via deprotonation of the framework hydroxyl groups, as confirmed by synchrotron X-ray diffraction and various experimental techniques. The efficient packing of {NO₂·N₂O₄}_∞ chains in the pores of MFM-300(V^IV) results in a high isothermal NO₂ uptake of 13.0 mmol g^–1 at 298 K and 1.0 bar and is retained for multiple adsorption–desorption cycles. This work will inspire the design of redox-active sorbents that exhibit reductive adsorption of NO₂ for the elimination of air pollutants.

Improving air quality is an important global issue. NO₂ remains a key outdoor air pollutant, with road transport being a major cause, particularly in areas with high population.¹ With increasingly stringent emission standards for vehicles being issued by the World Health Organization (WHO) and other local environmental agencies,² refinements and improvements to the existing selective-catalytic-reduction (SCR) systems are required urgently to deliver closer-to-zero emissions of NO₂. While SCR is based on the reduction of NO_x by ammonia or urea at elevated temperatures in the presence of a precious-metal-based catalyst, physio-sorption of gases in porous materials is a well-established method to remove gaseous species. Activated carbons have been long known to remove toxic gases,³ but these often suffer from low adsorption capacity of NO₂ and/or rapid structural degradation.⁴

Metal–organic frameworks (MOFs) show great potential for gas adsorption and storage, and this is attributed to their large surface area and pore functionalities.⁵ Systems incorporating a redox active metal center are of particular interest in gas separation⁶ and catalysis.⁷ However, adsorption of NO₂ in MOFs remains largely unexplored,⁸ and reported studies are based upon breakthrough experiments using gas streams containing NO₂ at ppm levels. In most of these cases, the MOF and MOF-containing composites undergo irreversible structural degradation on adsorption of NO₂. Infrared spectroscopy has been used to characterize the species that are formed upon contacting the surface with highly reactive NO₂.⁹⁻¹⁴ Additionally, MOFs have also been explored as new sensing materials for NO₂ detection with high sensitivity and selectivity.¹⁵ Reversible adsorption isotherms for pure NO₂ have been measured with MOFs in only two cases, namely with MFM-300(Al)¹⁶ and MFM-520(Zn).¹⁷ Both materials are highly structurally robust and remain intact throughout the isothermal measurements.

Here we report the reactive adsorption of NO₂ in a redox-active MOF, MFM-300(V) [V₂(OH)₂(C₁₆H₆O₈)]. MFM-300(V) is redox active, and both V^III and V^IV forms, MFM-300(V^III) and MFM-300(V^IV), can be obtained as pure phase materials.¹⁸ Oxidation of turquoise MFM-300(V^III) leads to conversion of the bridging hydroxyl groups to bridging oxo groups in brown MFM-300(V^IV) (Figure 1a,b). The adsorption and binding of CO₂¹⁸ and hydrocarbons¹⁹ exhibit notable differences in these two materials with MFM-300(V^III) showing higher adsorption uptakes owing to strong hydrogen bonding between substrate molecules and the bridging hydroxyl group.

Figure 1.

Views along the a-axis of the [VO₆]_∞ chain in (a) MFM-300(V^III) and (b) MFM-300(V^IV) as determined by high-resolution SPXRD data at 298 K. The proton of the bridging hydroxyl group in MFM-300(V^III) is highlighted in purple. Views along the c-axis of the (c) RS and (d) LS models showing the packing of guest molecules. Host–guest interactions are enlarged in (e) and (f) for the RS and LS model, respectively. (g) Extended chain structure of {N₂O₄·NO₂}_∞ in the LS model. V, green; O, red; C, gray; H, white; N of NO₂, deep blue; N of N₂O₄, light blue.

We introduced NO₂ gas into MFM-300(V^III) and collected a series of high-resolution synchrotron X-ray powder diffraction (SPXRD) data. The first three data sets, noted as rapid scan (RS, RS-1, RS-2; ∼8 min for each scan), were collected immediately after loading of NO₂; the final data set, noted as long scan (LS; ∼1.5 h), was collected after adsorption had reached equilibrium, as evidenced by the lack of changes in subsequent SPXRD patterns. Rietveld refinement has allowed the determination of binding domains of adsorbed NO₂ molecules and captured key structural changes of the host framework for these models. In the RS model of MFM-300(V)·(NO₂)_1.67, which represents the kinetically favorable state (Figure 1 c, e), only NO₂ was observed and anchored to the pore interior primarily through the hydrogen bonding interaction with the bridging hydroxyl group of the vanadium chain [O^NO₂···H^hydroxyl = 2.33(2) Å]. The bound NO₂ molecule is additionaly stabilized by 8-fold supramolecular interactions with the aromatic ligand of the framework [O^NO₂···H^aromatic = 3.01(4)–3.59(4) Å; N^NO₂···C^aromatic = 3.37(2)–3.76(2) Å]. Unlike NO₂@MFM-300(Al),¹⁶ which shows coadsorption and settlement of monomers and dimers of NO₂ (ratio of ∼1.0:0.9) in the pores, NO₂@MFM-300(V^III) shows only monomers of NO₂ initially with no N₂O₄ dimers in the pores. The framework of MFM-300(V^III) [V–O = 1.969(3), 2.005(3), 2.026(4) Å (each appears twice); ∠VO(H)V = 125.6(3)°] is intact in the RS model, and bond valence sum (BVS) calcuations confirm an oxidation state of 3.1 for the V center. The structure of RS-1 [MFM-300(V)·(NO₂)_1.66] is very similar to that of the RS model.

In the RS-2 model MFM-300(V)·(NO₂)_1.28·(N₂O₄)_1.23, we observed an increase of the oxidation state of the vanadium centers and dimerization of NO₂ molecules in the pore; the overall structure is similar to that of the equilibriated LS model, which is described now in detail. Upon reaching equilibrium for adsorption of NO₂ in the LS model for MFM-300(V)·(NO₂)_1.60·(N₂O₄)_1.53, the coordination environment of the V center changes [V–O = 1.831(1), 1.991(2), 2.056(3)Å (each appears twice); ∠VOV = 136.2(1)°], and BVS calculations confirm the increase of valence of the V centers to 3.7 (Figure 1d). Thus, host–guest charge transfer has occurred via the hydrogen bonds of bridging vanadium hydroxyls, which are deprotonated to bridging oxo groups to accommodate oxidation of the V centers in the LS model. This has been confirmed further by the disappearance of the −OH stretching band at 3627 cm^–1 in the FTIR spectrum of the MFM-300(V) on adsorption of NO₂ (Figure 2e). The change in oxidation state of V in MFM-300(V) has also been confirmed by in situ EPR spectroscopy where an intense signal centered at g = 1.955 (9.8743 GHz) with a peak-to-peak line width of ca. 75 G appears on adsorption of NO₂ (Figure 2f), consistent with the formation of d¹ V^IV centers.¹⁸ This implies that MFM-300(V^III) has undergone redox reaction and the proton of the bridging hydroxyl group is removed upon contacting NO₂, yielding weakly adsorbed NO and H₂O that are readily displaced by further molecules of NO₂. This was confirmed by breakthrough experiments (see below). Interestingly, in contrast to the RS model, 66% of adsorbed NO₂ molecules in the LS model form N₂O₄ dimers, which are stabilized in the pores of MFM-300(V^IV) by intermolecular dipole and supramolecular interactions with the aromatic ligands (Figure 1f). This results in a different overall packing of NO₂ and N₂O₄ molecules inside the pores of MFM-300(V^IV) compared to that in NO₂@MFM-300(Al).¹⁶ In the LS model, N₂O₄ dimers reside closer to the pore wall while the residual NO₂ monomer is situated more toward the pore center. The host–guest distances [N^N₂O₄···C^aromatic = 3.34(3)–3.97(2) Å; O^N₂O₄···H^aromatic = 2.14(4)–3.86(4) Å] are longer in NO₂@MFM-300(V^IV) than in NO₂@MFM-300(Al)¹⁶ [3.11(3) Å and 2.62(5)–3.40(5) Å, respectively], indicating an overall weaker host–guest interaction. Alternating dimers and monomers form a 1-D helical chain of {N₂O₄·NO₂}_∞ running down the pore of the structure along the c-axis (Figure 1g). The arrangement of these guest molecules is more compact [N^NO₂···O^N₂O₄ and O^NO₂···N^N₂O₄ distances of 3.10(2)–3.54(3) Å] than in NO₂@MFM-300(Al) [3.33(3)–3.75(3) Å], suggesting that the reduced host–guest interaction in NO₂@MFM-300(V^IV) is compensated by the stronger guest–guest interactions to give efficient packing of NO₂.

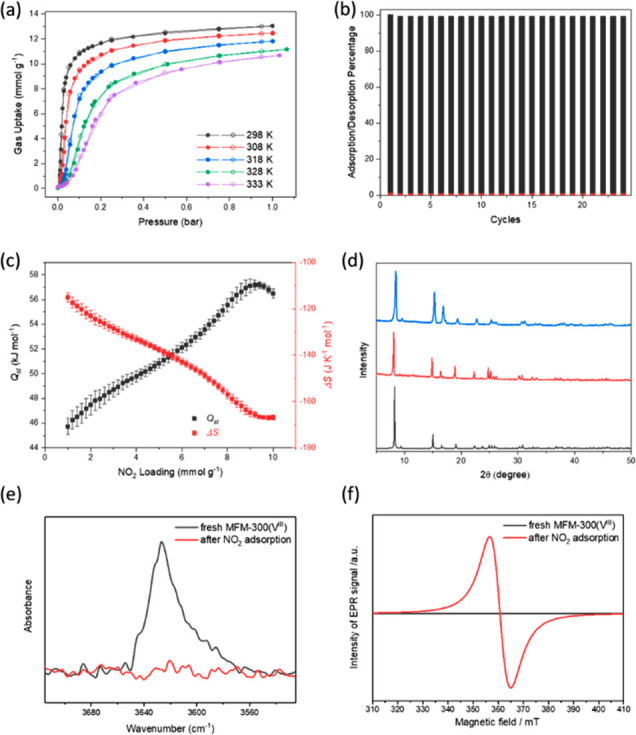

Figure 2.

(a) Isotherms for NO₂ uptake in MFM-300(V^IV) at 298–333 K (adsorption and desorption are marked with solid and open symbols, respectively). (b) Cyclic adsorption–desorption of NO₂ in MFM-300(V^IV) at 298 K between 0 and 0.5 bar. Red bars show the residual NO₂ in the MOF on pressure-swing desorption. (c) Variation of Q_st and ΔS for NO₂ uptake in MFM-300(V^IV). (d) PXRD patterns of MFM-300(V): simulated (black), as-synthesized (red), and after adsorption and desorption of NO₂ (blue). Comparison of (e) FTIR spectra and (f) X-band (9.87 GHz) EPR spectra of the freshly activated MFM-300(V^III) and same sample after adsorption and desorption of NO₂ at 298 K.

Gravimetric isotherms for uptake of pure NO₂ in MFM-300(V^III) were measured at various temperatures (298–333 K) between 0 and 1.0 bar. All isotherms shown in Figure 2a were measured with the same batch of sample, following the sequence of 298 K, 308 K, 318 K, 328 K, and 333 K. This means that although the sample loaded into the instrument was MFM-300(V^III), after initial contact with NO₂ the follow-on isotherms are measuring uptake in MFM-300(V^IV), as confirmed by SPXRD results. The NO₂ uptake of MFM-300(V^IV) at 298 K and 1.0 bar is 13.0 mmol g^–1 (equivalent to 2.98 NO₂/V), which is in good agreement with the LS model and similar to MFM-300(Al) (14.1 mmol g^–1 or 2.92 NO₂/Al) under the same conditions. Despite the redox host-to-guest charge transfer, the uptake is fully reversible, and no hysteresis was observed at any temperature. The isothermal uptakes decreased with increasing temperature along the entire pressure range, and the isosteric heats of adsorption (Q_st) increase from 46 kJ mol^–1 steadily to 58 kJ mol^–1 (Figure 2c), consistent with the presence of strong guest–guest interactions on increased NO₂ loading into MFM-300(V^IV). Compared with NO₂@MFM-300(Al),¹⁶ a more negative entropy of adsorption (ΔS) at higher NO₂ loading was observed for MFM-300(V^IV), indicating a higher degree of ordering of the N₂O₄/NO₂ molecules in the pore, in excellent agreement with the crystallographic study. The same MFM-300(V^IV) sample was then tested across 24 further adsorption–desorption cycles at 298 K, confirming the excellent regeneration of the MOF and no loss of NO₂ uptake (Figure 2b). The crystallinity of MFM-300(V) was retained after all isotherm and cycling measurements (Figure 2d).

Although the initial and the repeated isotherms for NO₂ in MFM-300(V) at 298 K showed equal uptakes at 1.0 bar, when examined more closely, a clear difference of NO₂ uptake can be observed in the low pressure region between these two isotherms. Negligible uptake of NO₂ was recorded in fresh MFM-300(V^III) below 10 mbar, whereas once oxidized to MFM-300(V^IV) a prominent NO₂ uptake of 1.1 mmol g^–1 at 10 mbar was observed (Figure S7). We speculated that when NO₂ is contacted with a fresh sample MFM-300(V^III), the V center is oxidized and NO₂ is then converted to a poorly adsorbing gaseous species, thus leading to the observed low uptake at low pressures. Whereas for the repeated isotherm at 298 K, MFM-300(V^IV) cannot convert further NO₂ and a notable adsorption of 1.1 mmol g^–1 was observed at 10 mbar. This hypothesis was validated by dynamic breakthrough experiments, where a 900 ppm of NO₂ balanced flow in He was passed through a glass tubular reactor packed with freshly activated MFM-300(V^III) at 298 K at a total flow rate of 50 mL min^–1. The potential exhaust gaseous products (NO₂, NO, N₂O, N₂, H₂O, CO₂) at the outlet of the fixed-bed were monitored throughout the experiment. After the flow was initiated, a change in the color of the sample from turquoise to brown was clearly observed, starting from the inlet side of the fixed-bed, and this border moved with the gas flow until the entire bed turned brown (Figure 3). This is consistent with the full oxidation of MFM-300(V^III) to MFM-300(V^IV). Significantly, NO is almost immediately detected after the NO₂ flow was initiated. Thus, upon contact with MFM-300(V^III), NO₂ is reduced to NO, which has a much weaker interaction with the framework and is thus readily desorbed and passes rapidly through the fixed bed as confirmed in the dynamic adsorption experiment with NO (Figure S8). This redox reaction is also accompanied by the production of water, which is gradually displaced by molecules of NO₂ and is observed at the outlet after NO owing to its stronger interaction with the framework. Finally, NO₂ is eluted, while the NO concentration returns to near zero, confirming the completion of the redox reaction at MFM-300(V) and the saturation of the fixed-bed by adsorption of NO₂. Throughout the experiment, no other nitrogen-containing species was detected. The breakthrough experiment demonstrates the ability of MFM-300(V) for the dynamic adsorption and reduction of NO₂ even at ppm-level concentrations.

Figure 3.

(a) Time-resolved photos of the glass reactor packed with MFM-300(V^III) during breakthrough experiment of the NO₂ (900 ppm) in He at 298 K and 1.0 bar showing the color change of sorbent. (b) Breakthrough profiles of species at the outlet of the fixed-bed.

In summary, MFM-300(V^III) exhibits redox conversion to MFM-300(V^IV) on adsorption of NO₂, which is converted to NO. MFM-300(V^IV) shows high capacity and excellent reversibility for NO₂ adsorption suggesting future directions for the development of efficient redox-active sorbent materials to realize adsorptive reduction of NO₂ into nonharmful species.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/jacs.0c06414.

• Synthesis procedures, characterization, and additional analysis of crystal structures and adsorption results (PDF)

• Crystal data of MFM-300(V)(NO₂)_1.67 (CIF)

• Crystal data of MFM-300(V)·(NO₂)_1.66 (CIF)

• Crystal data of MFM-300(V)·(NO₂)_1.28·(N₂O₄)_1.23 (CIF)

• Crystal data of MFM-300(V)·(NO₂)_1.60·(N₂O₄)_1.53 (CIF)

The authors declare no competing financial interest.

Notes

Crystal data of MFM-300(V)(NO₂)_1.67 and MFM-300(V)·(NO₂)_1.60·(N₂O₄)_1.53 are deposited at Cambridge Crystallographic Data Centre (CCDC 1996818–1996819).
