Pharmacological Characterization of Low-to-Moderate Affinity Opioid Receptor Agonists and Brain Imaging with ¹⁸F-Labeled Derivatives in Rats

Abstract

The 3,4-dichloro-N-(1-(dimethylamino)cyclohexyl)methyl benzamide scaffold was studied as a template for ¹⁸F-positron emission tomography (¹⁸F-PET) radiotracer development emphasizing sensitivity to changes in opioid receptor (OR) occupancy over high affinity. Agonist potency, binding affinity, and relevant pharmacological parameters of 15 candidates were investigated. Two promising compounds 3b and 3e with μ-OR (MOR) selective agonist activity in the moderate range (EC₅₀ = 1–100 nM) were subjected to ¹⁸F-fluorination, autoradiography, and small-animal PET imaging. Radioligands [¹⁸F]3b and [¹⁸F]3e were obtained in activity yields of 21 ± 5 and 23 ± 4% and molar activities of 25–40 and 200–300 GBq/μmol, respectively. Displaceable binding matching MOR distribution in the brain was confirmed by imaging. Radioligands showed a rapid pharmacokinetic profile; however, metabolite-corrected, blood-based modeling was required for data analysis. Observed BP_ND was low, although treatment with naloxone leads to a marked decrease in specific binding, confirming the discovery of a new template for ¹⁸F-labeled OR-agonist PET ligands.

Introduction

Opioid receptors (ORs) are G-protein-coupled receptors (GPCR) of some prominence in quantitative imaging studies. Because opioid signaling is implicated in a variety of central precipitations of behavior and disease, the study of ORs, specifically, μ (MOR), δ (DOR), and κ (KOR), is of interest in the scientific context of decision making, addiction, and pain processing.^1,2 These subtypes share a common amino acid sequence but vary widely in both their endogeneous and exogeneous ligands and their individual physiological functions. Although OR binding sites are expressed throughout the human brain, few regions show a distinct predominance of a single subtype. The highest fractions of expression of any subtype are found in the substantia nigra (66% KOR) and the thalamus (67% MOR), reflecting the need for a subtype-selective radioligand with sufficient binding selectivity in vivo when attempting to study the function and role of a single OR in the brain.¹⁻⁷ In recent years, a new interest in OR radioligands developed, for example, because of an opioid abuse crisis. The limited availability, toxicity, and short half-life of [¹¹C]carfentanil, which is the only MOR-selective positron emission tomography (PET) ligand in use, prompted us to explore an alternative path.⁵⁻⁸ Our approach was motivated by ongoing discussions on the mechanism of displacement of the PET ligand from the OR receptor by endogeneous ligands and drug molecules.⁷⁻⁹

In fact, imaging OR occupancy by various agonist ligands has been difficult, and it is generally accepted that antagonists are not fit for the purpose. Although these have the principal advantage of being less prone to cause undesired pharmacodynamic effects and toxicity, antagonists bind to both activated (G-protein bound) and nonactivated (unbound) receptors, which leads to a very limited sensitivity in changes to the activated receptor population. Agonist binding, in particular, [¹¹C]carfentanil binding, in PET studies has been found to be considerably more sensitive to changes in OR availability.⁵⁻⁹

However, high binding affinity of [¹¹C]carfentanil (0.03–0.08 nM) results in a high binding potential which has been shown to reflect cell surface receptor expression, not competition with other agonists.⁹ Moreover, the ligand is potent enough to induce pharmacodynamic effects at the dose level of PET, leading to a change in receptor density by internalization. OR receptor internalization upon stimulation by endogeneous agonists reduces [¹¹C]carfentanil binding; however, internalization is not induced by all agonists. For example, morphine and oxycodone do not cause internalization, whereas fentanyl, DAMGO, and endogeneous opioids do, although all of these are full agonists.⁹⁻¹² The dose limit for the highly potent [¹¹C]carfentanil is 0.1 μg/kg, and even at such a low dose, patients may experience pharmacodynamic effects of OR activation.^6,9−13 This is not ideal when considering PET as a noninvasive method and problematic when combined with the implications of quantifying receptor availability with a ligand that has an effect on the system to be observed at the administered dose. In addition, the most striking issue in the context is that imaging OR occupancy in subjects under the influence of OR agonists with such a potent ligand is prohibitive because of an additional pharmacodynamic effect leading to overactivation, acute toxicity, respiratory depression, and possibly death.⁵⁻¹⁰ Although radiolabeled low-to-moderate affinity OR agonists with moderate potency would not suffer from the toxicity and lack sensitivity to displacement, such ligands have never been fully characterized for PET. High affinity necessitates extensive imaging sessions (3–4 h)⁶ but is assumed to be crucial for OR agonist PET; however, this has never been proven.

Last but not least, the lack of subtype selectivity as an inherent property of semisynthetic opioid ligands sourced from the morphinan or orvinol scaffolds. PET ligands derived from these scaffolds retain the lack of discrimination between different OR subtypes showing near identical affinities in all receptors, thereby confounding studies of single-receptor subtypes in normal function and disease.^14,15

Inspired by a revised radioligand design paradigm emphasizing the competition model for signal displacement and occupancy measurements, more rapid equilibration of binding, and fast clearance,^7,8,15 we have turned our attention to moderate-affinity, low-molecular-weight opioid agonists. The benzamide AH-7921, 3,4-dichloro-N-(1-(dimethylamino)cyclohexyl)benzamide, 3a was successfully investigated previously. Herein, the structure is utilized as a template for the development of fluorinated analogues.^8,15

(Figure 1) The aim of the present study is to provide an alternative OR agonist PET ligand, which permits straightforward quantification of MOR availability in rodents within 60 min postinjection (p.i.) and facilitates occupancy measurements in patients under the influence of therapeutic opioid agonist doses.

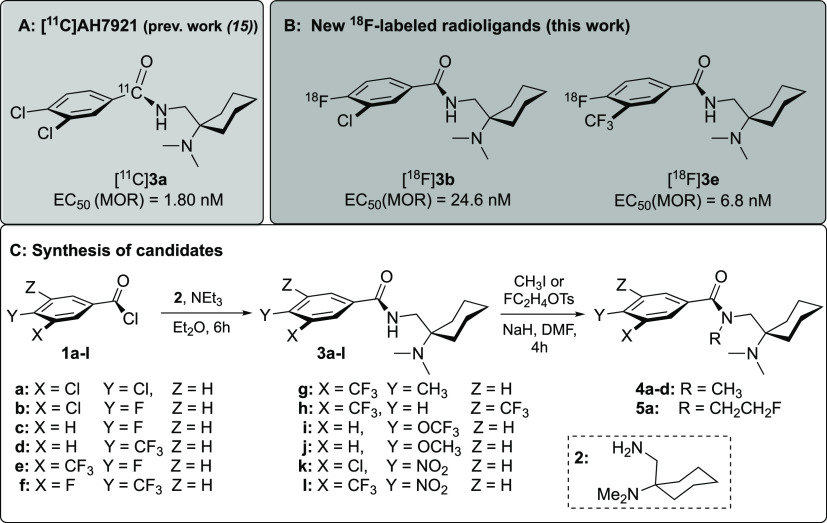

Figure 1.

Chemical structure of the ¹¹C-labeled analogue of lead 3a(8) (A) and newly developed ¹⁸F-labeled candidate PET ligands [¹⁸F]3b and [¹⁸F]3e (B) and the general course of the syntheses of the compounds under study starting from the primary amine [1-(N,N-dimethylamino)-cyclohex-1-yl]methylamine (2) and various substituted benzoyl chlorides 1a-l to get the nonradioactive fluoro-substituted reference compounds and the nitro precursors (C).

The radioligand [¹¹C]3a (Figure 1A) showed a promising performance in rodent PET studies;⁸ however, an ¹⁸F-labeled derivative fulfilling the above-mentioned criteria, including fast pharmacokinetics and kinetics and high in vivo selectivity in favor of the MOR, together with the benefit of a longer half-life would add value to the portfolio of already existing opioid ligands for PET.

Results and Discussion

Chemistry

In previous studies, we demonstrated that the radioligand [¹¹C]3a showed a promising performance in rodent PET studies.¹⁵ However, given the low yield and short half-life of [¹¹C]3a, an ¹⁸F-labeled radioligand would be more desirable. Although the parent structure 3a does not contain any native fluorine atoms, we chose it as a design template for novel OR ligands within a molecular weight range of 280–380 g/mol. Emphasis was put on permeative properties within the required thresholds for passive diffusion into the brain.¹⁶ A concise synthetic strategy was exploited to furnish ¹⁸F-fluorinated analogues backed with an intrinsic selectivity profile of the scaffold in favor of the MOR. Fifteen analogues (3a–j, 4a–d, and 5a) were designed by introduction of fluorine at the phenyl moiety of the benzamide in para and/or meta position. The para position is activated for nucleophilic aromatic substitution with [¹⁸F]fluoride which bodes well for ¹⁸F-for-NO₂ substitution starting from nitro precursors 3k or 3l. Besides the introduction of fluorine in para position, the chloro substituent was retained in meta position of the lead compound in 3b and substituted with the isosteric trifluoromethyl group in compound 3e (Figure 1B). The series of ligands was obtained in one step via Schotten–Baumann condensation of the commercially available benzoyl chlorides 1a-l with [1-(N,N-dimethylamino)-cyclohex-1-yl]methylamine (2), obtained as described previously (Figure 1C).¹⁵ Besides the introduction of sites for ¹⁸F-radiolabeling, we aimed to maintain the lipophilicity (log D_7.4) and topographical polar surface area (tPSA) of the compounds under study within the range of established brain imaging agents and below the thresholds associated with adverse effects on brain uptake.^16,17 To simplify the task, threshold values were defined using data from an array of 12 compounds, six opioids and six nonopioid PET radiotracers. We found that log P values vary between 3 and 4 for a large proportion of the radioligands and that tPSA barely exceeded a value of 60 Å. Consequently, these values were set as upper thresholds for the present study. With these criteria in mind, we designed a set of ligands to explore modifications in the chemical space in close proximity to the lead 3a.¹⁸ This narrow frame without major deviations from both weight and structure was used to emphasize effects of fluorination in a structure–activity relationship focused on agonist potency and binding affinity. New derivatives (3a–l, 4a–d, and 5a) were obtained in yields of 56–79% with a purity of >97% and tested for receptor binding, agonist activity, and basic pharmacological properties. The results are shown in Table 1 and Figure 2.

Table 1. Receptor Binding Affinities of Compounds 3a–j and 4a–d^a.

^aReceptor binding affinities derived from radioligand competition binding experiments performed in triplicate using membranes of HEK 293T cells transiently expressing the human OR subtypes.

^bK_i values represent the mean of two independent experiments ±SD, each performed in triplicate.

^cK_i values ± SEM taken from ref (18).

^dK_i values represent the mean of three to four independent experiments ±SEM, each performed in triplicate.

Figure 2.

Chemical structure, agonist potency at hDOR, hKOR, and hMOR receptors, tPSA, and octanol/water partition coefficients (clog P and tPSA values were calculated with ChemBioDraw 13.0 and log D_7.4 values were experimentally determined for all candidate ligands under study). DAMGO (MOR, EC₅₀ = 0.91 nM), [D-Ala2]-deltorphine (DOR, EC₅₀ = 0.25 nM), and U50,488 (KOR, EC₅₀ = 3.2 nM) were included as references.

Receptor Binding Studies and Determination of Agonist Potency

The receptor binding affinities of synthesized compounds toward the DOR, KOR, and MOR subtypes were studied using transiently transfected human embryonic kidney (HEK) 293T cells using [³H]diprenorphine as the radioligand (Table 1), following the procedure as described previously.^18,20 DAMGO [MOR, K_i = 25 ± 4.4 nM (n = 9); DOR, K_i = 1000 ± 150 nM (n = 6); KOR, K_i = 4200 ± 1200 nM (n = 6)), Leu-Enk (MOR, K_i = 160 ± 30 nM (n = 9); DOR, K_i = 6.8 ± 0.58 nM (n = 6); KOR, K_i = 15,000 ± 1200 nM (n = 6)] and naloxone [MOR, K_i = 3.3 ± 0.33 nM (n = 18); DOR, K_i = 56 ± 4.6 nM (n = 18); KOR, K_i = 16 ± 3.9 nM (n = 10)] were included as references. The potency of the compounds was determined in Chinese hamster ovary (CHO) cells stably transfected with the DOR, KOR, and MOR by measuring the agonist-mediated inhibition of intracellular cAMP response (Figure 2), using references deltorphin (DOR), U50488 (KOR), and DAMGO (MOR).

Regarding structural aspects, the OR binding affinity and the agonist activity of the compounds were sensitive to both substitutions on the benzoyl residue (at positions X and Y) and methylation of the benzamide nitrogen. In general, a large substituent, such as chlorine, or its isostere trifluoromethyl in para position of the phenyl ring is crucial to retain the MOR binding affinity, as can be seen by comparison of 3a with 3b and 3c with 3d, and N-methylation clearly reduced the binding affinity by a factor of 5 or more (4a–d and 5a; Table 1 and Figure 2). Compared to the lead compound 3a, fluoro-for-chloro substitution in 3b reduced the affinity for the MOR by a factor of 5 (Table 1) and the potency for the MOR by a factor of 14 (Figure 2). This trend continues when both chloro substituents were displaced by lighter elements, such as H or F, as in the case of 3c (Table 1 and Figure 2). Apparently, a sizeable, nonpolar substituent, such as Cl, CF₃, or CH₃, in para position of the benzoyl moiety is required to maintain maximum agonist potency for the MOR. With the trifluoromethyl group in para position (3d), even without the meta-chloro substituent, MOR affinity and potency were similar to those of lead 3a. Interestingly, the introduction of a meta-fluoro substituent (see 3f) further increased the receptor binding affinities (Table 1) and efficacies (Figure 2); however, a pronounced DOR activation and only low MOR-over-DOR selectivity were observed for 3f.

When introducing the CF₃ group in meta position (X in Figure 1) of the benzene ring in lieu of a chloride, the receptor binding affinity to the MOR (Table 1) and the efficacy (Figure 2) were no longer strongly influenced by the substituent in para position (Y in Figure 1) such that fluoro (3e), hydrogen (3h), and methyl (3g) were equally tolerated by the MOR, resulting in affinities (K_i = 25–240 nM) and potencies (EC₅₀ = 1–8 nM) that were very similar to those of the lead 3a (Table 1, Figure 2). In comparison with the lead 3a, a pronounced decrease in affinity to all receptors was observed when the para-chloro substituent was replaced by electron-donating groups such as OCF₃ or OCH₃ as in compounds 3i and 3j, demonstrating the involvement of electronic effects. To sum up, substitution of Cl for F or CF₃-isosteres retained the binding affinity and potency, while electron-donating or less-electronegative substituents had a negative influence on potency and subtype selectivity.

Noteworthy, the K_i values obtained by receptor binding experiments using the antagonist radioligand [³H]diprenorphine were in the three-digit nanomolar range owing to a bias of the assay also seen for agonist references. This apparently low binding affinity was ascribed to the fact that the tested agonists have high binding affinity to the activated receptor conformation and low affinity to the nonactivated receptor state, whereas the antagonist radioligand [³H]diprenorphine binds with equal affinity to both high- and low-affinity binding states of the receptor. The MOR-transfected HEK cells did not express the G-protein-coupled, active receptor, which binds the agonist ligand, in sufficient density, for example, because of the medium employed.^8−11,21 Because of the excess nonactivated receptor state, the agonist test compounds do not show a major displacement of the antagonist radioligand at low concentration. At high concentration, the test compound effect can be ascribed to low affinity binding to the nonactivated receptor state, as expected for OR agonists. Using the same HEK cells, but [¹⁸F]3b (0.4 nM) instead of [³H]diprenorphine as the radioligand, we observed 32% diminished binding in the presence of naloxone (0.4 nM) and 33% diminished binding in the presence of 3k (1 μM); however, the determination of K_d/B_max was not possible, apparently because of the low concentration of represented receptors with an activated receptor state. It is a well-known phenomenon that OR antagonist binding is not very sensitive to agonist competition; however, agonist binding is exceptionally sensitive to antagonist displacement even for high-affinity agonist ligands.^5−8,15,22 Ultimately, we can only conclude that the ligands have a lower affinity to the nonactivated state which leads to displacement of the majority of the antagonist radioligands at high concentration.

Within the series of compounds, the para position appears to be more relevant for MOR activity, whereas the 3-chloro substituent positively influences DOR and KOR activation and, thereby, selectivity. This trend is persistent throughout the series. Despite the structural modification, almost all ligands retain selective agonism for the MOR over the KOR and DOR with nanomolar potency (Figure 2). Interestingly, alkylation leads to a drop in binding affinity and agonist activity of about 1 order of magnitude at the MOR, which negatively impacts the selectivity over the other subtypes in most cases. The two para-fluoro derivatives 3b and 3e, with chloro- and trifluoromethyl substituents in meta position, respectively, resulted in an increased affinity and potency when compared to the nonsubstituted derivatives and display the desired moderate binding affinity for the MOR with a K_i value of 560 nM for 3b and 160 nM for 3e (Table 1). Because the compounds show a moderate potency for the MOR with a single-to-two-digit nanomolar EC₅₀ value together with an adequate subtype selectivity (Figure 2) and easy accessibility of the corresponding para-nitro precursors (3k and 3l), 3b and 3e were selected from the series for ¹⁸F-labeling and further in vitro and in vivo studies were carried out.

In Vitro Autoradiography

Before proceeding toward the radiosynthesis and in vivo evaluation of [¹⁸F]3b and [¹⁸F]3e in animals, we aimed at testing the MOR selectivity and the binding affinity of both compounds using rat brain tissue sections. For this, in vitro autoradiography (AR) experiments were performed, and concentration-dependent inhibition of binding of both 3b and 3e against [³H]DAMGO, an MOR-selective agonist, and [³H]naloxone as an antagonist radioligand was determined. Transverse sections of Sprague–Dawley rat brain were incubated at nine different concentrations of 3b and 3e using constant amounts of both the radioligands (c([³H]DAMGO) = 4 nM and c([³H]naloxone) = 2 nM) in separate experiments. The inhibition of radioligand binding in three MOR-rich brain regions (thalamus, striatum, and presubiculum) was studied, and IC₅₀ curves were obtained (Supporting Information, Figure S19).

A considerable reduction in the binding of both radioligands by 3b and 3e is observed in the thalamus, striatum, and presubiculum, in the presence of ascending concentrations of the test compounds. In comparison, a negligible effect is seen in the cerebellum, which is known to have negligible OR expression. As shown in the AR images (Figure 3a–h), at 1 μM concentration of both ligands, inhibition of binding is near quantitative in [³H]DAMGO images (Figure 3a–d) compared to the [³H]naloxone at the same concentration (Figure 3e–h), where some dispersed binding is visible. This could be explained by a lower sensitivity of the antagonist ligand (naloxone) to agonist (3b and 3e) competition, as has also been shown in earlier studies.⁵⁻⁸ AR images obtained in the presence of 3 μM diprenorphine were used to define the nonspecific binding of the radioligands, which was at a similar level to the binding observed in the presence of 1 μM 3b and 3e. Although a drop in radioligand binding (about −20%) was consistently observed at low nM concentration between 1 and 10 nM, curve fits did not converge for a two-site binding model, either owing to variability of the AR binding between replicates or because of the lack of lower concentrations (0.3 or 0.1 nM). The observed drop may represent binding to the activated receptor which makes up for a minority of the MOR expression. The near complete displacement of both radioligands from the nonactivated receptor representing the majority of MOR protein at high concentration of 3b or 3e concentrations would imply that the test compounds bind with high affinity to the active MOR state present in low concentration (1–10 nM, 20% displacement) and with low affinity to the excess nonactivated state (near complete displacement at 1000 nM).

Figure 3.

AR images obtained with [³H]DAMGO: (a) in the absence of 3b (4 nM radioligand only, control), (b) direct comparison between the control (on right) and in the presence of 3b (1 μM) on the left, (c) in the absence of 3e (4 nM radioligand only, control), (d) direct comparison between the control (on right) and in the presence of 3e (1 μM) on the left and with [³H]naloxone: (e) in the absence of 3b (2 nM radioligand only, control), (f) direct comparison between the control (on left) and in the presence of 3b (1 μM) on the right, (g) in the absence of 3e (2 nM radioligand only, control), and (h) direct comparison between the control (on left) and in the presence of 3e (1 μM) on the right. Str = striatum; Thl = thalamus; Ps = presubiculum.

A comparison of IC₅₀ and K_i values obtained by receptor binding studies using rat brain AR of the lead compound 3a against both 3b and 3e are presented in Table 2.

Table 2. Direct Comparison between Inhibition Constant (K_i) and IC₅₀ Values for 3b and 3e.

	3b				3e
	[3H]naloxone		[3H]DAMGO		[3H]naloxone		[3H]DAMGO
region	IC50/nM	Ki/nM	IC50/nM	Ki/nM	IC50/nM	Ki/nM	IC50/nM	Ki/nM
thalamus	831	86	1455	79	485	50	888	48
striatum	887	84	1238	62	250	24	812	40
presubiculum	1080	137	1890	128	286	37	829	58

Because 3b and 3e revealed adequate MOR-selective binding and agonist activity in vitro, we proceeded with radiolabeling of 3b and 3e with ¹⁸F and evaluated the radioligands in rat by ex vivo AR and in vivo small-animal PET.

Radiosynthesis of [¹⁸F]3b

The radiosynthesis of [¹⁸F]3b started with the nitro precursor 3k, which underwent cryptate-mediated nucleophilic substitution with n.c.a. [¹⁸F]fluoride (Scheme 1). The reaction conditions were optimized by methodological variation of reaction parameters to preserve the radiochemical yield (RCY) and product quality (see the Supporting Information). Using the optimized reaction conditions (DMF as a solvent and 8 min reaction time at 150 °C), [¹⁸F]3b was obtained in a reproducible RCY of 75 ± 3.5%. After high-performance liquid chromatography (HPLC) purification and formulation in a total synthesis time of 75 min, [¹⁸F]3b was obtained in 21 ± 5% RCY and a radiochemical purity of >98%. In order to avoid overloading of the HPLC column, only 3.5 mg of the labeling precursor was used as a compromise between RCY and the efficient purification of the reaction mixture. The molar radioactivity of [¹⁸F]3b at the end of synthesis ranged from 10 to 18 GBq/μmol (n = 4; Erlangen lab) or 25 to 40 GBq/μmol (n = 5; Oslo lab).

Scheme 1. Reaction Scheme for Radiosynthesis of [¹⁸F]3b and [¹⁸F]3e.

Radiosynthesis of [¹⁸F]3e

When [¹⁸F]3e was prepared using the conditions developed for [¹⁸F]3b, a high amount of nonradioactive reference compound 3e (54 μg, 157 nmol/mL) was observed in the reaction mixtures. Because [¹⁸F]3e was synthesized through direct nucleophilic radiofluorination of 3-trifluoro-4-nitro-N-(1-(dimethylamino)cyclohexyl)methyl benzamide, 3l, we surmised that the fluoride ion was released from the trifluoromethyl group in 3l. Control experiments confirmed that degradation of 3l resulted in the release of nonradioactive fluoride during labeling. This was then mitigated by optimization of temperature and time, and [¹⁸F]3e was obtained in a nondecay-corrected RCY of 23 ± 4 (n = 6) at 75 °C for 3 min, in a molar radioactivity of 250–300 GBq/μmol with a chemical and radiochemical purity of >97%.

In Vitro and in Vivo Stability of [¹⁸F]3b and [¹⁸F]3e

The stability of [¹⁸F]3b and [¹⁸F]3b was assayed in formulation. Through periodic analysis of the radiotracer formulation with radio-HPLC and radio thin-layer chromatography (radio-TLC), both [¹⁸F]3b and [¹⁸F]3e were found stable in formulation over a period of 7 h after the end of synthesis (see the Supporting Information). It was observed that the products are stable for up to 7 h with radiochemical purities of >98 and >95%, respectively. The stability of both radiotracers was also evaluated in vitro in plasma, and no degradation products were found within 3 h (Figure 4). The radioligand remained intact in rat blood in vitro (>95% intact parent compound after 2 h of incubation). This indicates that the radiotracer is not sensible to amide bond cleavage by hydrolase enzymes present in blood. It can be concluded that metabolite determination in rat plasma is not impaired by degradation of the radioligand in blood samples.

Figure 4.

In vitro stability of [¹⁸F]3b determined by radio-HPLC in human serum (a) and rat plasma (b) and [¹⁸F]3e in human serum (c) and rat plasma (d) at different time points.

Administration of [¹⁸F]3b and [¹⁸F]3e in rats revealed that 21 ± 7% of [¹⁸F]3b and 16 ± 5% of [¹⁸F]3e were found intact in blood at 45 min p.i. (see Figure 5A for [¹⁸F]3b and Figure 5E for [¹⁸F]3e). The arterial blood of four rats was analyzed at different time points after intravenous injection of the radioligands in separate experiments. The blood samples were processed and analyzed by radio-HPLC to determine the fraction of the intact radiotracer in plasma at different time points. A major portion of radiometabolites observed in both radiotracers were mostly hydrophilic (Figure 5C,G), except one additional metabolite peak which eluted after the parent compound in [¹⁸F]3e. The observed hydrophilic radiometabolites are in good accordance with the metabolism of the lead compound AH-7921 in urine, as has been published recently.²² However, the reported metabolism of AH-7921 suggested the presence of the N-desmethyl metabolites of [¹⁸F]3b and [¹⁸F]3e, which were difficult to separate from the intact radioligand, as demonstrated by HPLC (Supporting Information, Figure S18). Additionally, the time course of degradation of the radiotracers was determined by radio-HPLC analysis of the plasma samples from rats that were taken at different time points after tracer injection.^7,13 A nonlinear curve fit of the measured data was applied to the plasma activity curve to determine the metabolite-corrected plasma input function of the radiotracers (Figure 5B,F). No polar radiometabolites were detected in brain tissue up to a time point of 45 min p.i. for [¹⁸F]3b (Figure 5D), whereas radiometabolite brain uptake was observed for [¹⁸F]3e (Figure 5H), resulting in undefined distribution and troublesome quantification of the true signal of [¹⁸F]3e in the brain.

Figure 5.

In vivo stability in rats and metabolite correction of the plasma concentration of [¹⁸F]3b (A–D) and [¹⁸F]3e (E,F): intact [¹⁸F]3b in plasma (A), total and metabolite-corrected plasma input for [¹⁸F]3b (B), plasma metabolite profile of [¹⁸F]3b at 45 min p.i. (C), brain metabolite profile of [¹⁸F]3b at 45 min p.i. (D), intact [¹⁸F]3e in plasma (E), total and metabolite-corrected plasma input for [¹⁸F]3e (F), plasma metabolite profile of [¹⁸F]3e at 45 min p.i. (G), and brain metabolite profile of [¹⁸F]3e at 45 min p.i. (H); radio-HPLC fractions containing metabolites are shown in red, and fractions containing the intact tracer are shown in green.

Ex Vivo AR and PET Imaging Studies

With the formulated radiotracers at hand, we proceeded with ex vivo AR and in vivo imaging studies for the quantification of the MOR in rats by PET. For ex vivo AR, two rats were injected with 10–12 MBq of either [¹⁸F]3b or [¹⁸F]3e and sacrificed at 45 min p.i. The brains were harvested and sliced to obtain the coronal sections for AR studies. Consecutive sections from the animals were obtained and stained to make the anatomy of each section visible. Ex vivo AR images clearly showed uptake of both radiotracers in regions known to express the MOR, such as the pyramidal cell layers of the hippocampus and the amygdala and the endopiriform nucleus (Figure 6).²³ The single rat that was coinjected with [¹⁸F]3b and naloxone (1 mg/kg) showed slightly decreased tracer uptake in MOR-rich brain regions, such as in the amygdala (approximately 20%), suggesting MOR-specific brain uptake of [¹⁸F]3b (Figure 6B). However, the competition of naloxone with the radioligand [¹⁸F]3b was not pronounced; this may have been due to the different brain uptake kinetics of naloxone and [¹⁸F]3b such that the effective concentration of naloxone in the brain when coinjected was not sufficient to achieve competition at this time point.

Figure 6.

Ex vivo AR of coronal rat brain slices at 45 min p.i. of [¹⁸F]3b and [¹⁸F]3b coinjected with naloxone (1 mg/kg): (A). HE staining of the corresponding rat brain slices and reference brain region diagrams from the rat brain atlas by Paxinos and Watson²³ are shown for comparison. Analysis of rat brain AR from a single experiment, comparing the injection of [¹⁸F]3b alone with the coinjection of [¹⁸F]3b/naloxone (B). Values are shown as mean ± SD (CC = corpus callosum (n = 27 vs n = 16), HC-L = left hippocampus (n = 13 vs n = 7), HC-R = right hippocampus (n = 13 vs n = 7), AMY = amygdala (n = 13 vs n = 7); *P < 0.05, **P < 0.0001, ns = not significant).

In vivo PET imaging, following well-known terms and methods,²³⁻²⁶ of Sprague–Dawley rats revealed high integral brain uptake of up to 1.2 %ID/g [¹⁸F]3b in the time frame of 5–10 min p.i (Figure 7C), confirming the prediction of adequate brain uptake by the in vitro data on lipophilicity and polarity of 3b. The PET images showed uptake of [¹⁸F]3b in OR-rich brain regions (Figure 7A), such as the striatum, thalamus, and cingulate cortex. Following coinjection (n = 2) and pretreatment (n = 2), with naloxone (1 mg/kg) 10 min prior to injection of [¹⁸F]3b for blocking of OR availability, the binding potential of [¹⁸F]3b was diminished in the thalamus region of interest (ROI) by 47 and 73%, respectively (Figures 7B and S50). In PET scans of rats, radioactivity in MOR-rich regions decreased less rapidly compared to the curve of the cerebellum, which is low in the MOR, up to 30 min p.i (Figure 7C). At the end of a 45 min scan, a mere 31% of the initial activity concentration is measured. In contrast, maximum radioactivity concentration of [¹⁸F]3b in the thalamic region of 1% ID/mL is reached after 10 min during baseline scans (Figure 7C). It remains higher than that of the cerebellum until 30 min p.i., when increasing built-up of a radiometabolite in the cerebellum confounds its use as a reference region (Figure 7D). Nonetheless, model curves obtained via reference input kinetic modeling produced good fits of the experimentally obtained time activity curves for the baseline and block (Figure S50). For baseline scans, a BP_ND value of 0.185 ± 0.025 was obtained using the simplified reference tissue model 2 (SRTM2) in pmod 3.8. Coinjection of 1 mg/kg naloxone reduced the BP_ND to 0.08 ± 0.029, whereas pretreatment for 10 min p.i. using the same dose reduced the BP_ND to 0.05 ± 0.01 (Supporting Information).

Figure 7.

μPET image of a rat brain at 10–30 min p.i. of [¹⁸F]3b in coronal (A, left), sagittal (A, middle), and transversal projection (A, right) in comparison with the μPET image of a rat brain after naloxone pretreatment (1 mg/kg, 10 min before the PET scan) at 10–30 min p.i. of [¹⁸F]3b in coronal (B, left), sagittal (B, middle), and transversal projection (B, right). Time–activity curves (TACs) for different OR-rich brain regions (STR = striatum; THL = thalamus; CTX = cingulate cortex) and the OR-negative region (CER = cerebellum) after injection of [¹⁸F]3b in rats (n = 2–4) (C, values are shown as mean ± SD). Comparison of measured brain uptake values of [¹⁸F]3b with calculated values derived from the two-tissue-compartment model in the thalamus under baseline conditions of one representative animal (D, note: increasing built-up of cerebellum uptake due to a radioactive metabolite).

Although the BP_ND is sensitive to competition with naloxone, it is lower than that of [¹¹C]carfentanil, and this can be ascribed to the low affinity of the radioligand; maximal BP_ND achievable with the high affinity ligand [¹¹C]carfentanil is about 10–20 times higher, which is in line with about 10-fold to 20-fold higher K_d. The parent 3a has a K_d of 1.8 nM, whereas carfentanil lies in the range of 0.03–0.08 nM.^6−8,15

Summed PET images of [¹⁸F]3b in early frames, for example, 10–30 min, showed binding patterns in good accordance with the pattern observed for [¹¹C]3a.⁸ We were pleased to observe close similarity of the regional distribution of [¹⁸F]3b in the PET image (Figure 8A) compared with the reported in vitro AR using [³H]DAMGO (Figure 8B).⁴ Using [¹⁸F]3b, even the uptake in individual cortical laminae expressing MOR (Figure 8A) was resolved. As hypothesized in the ligand design, the PET data indicated rapid uptake of the radioligand into the brain peaking at 5 min p.i., in conjunction with a steady washout over 45 min and some retention of activity in MOR-rich domains of the central nervous system. An MOR-dominated pattern of radioligand binding and considerable retention in the corresponding brain regions was observed, albeit with moderate contrast between regions. When analyzing late time frames after 60 min, the radioactivity distribution pattern of [¹⁸F]3b was biased toward cortical and cerebellar uptake, as illustrated by ascending time–activity curves of these regions (Figure 7, lower right). This phenomenon was ascribed to the presence of radioactive metabolites of [¹⁸F]3b in the brain, irreversibly binding to structures in the cerebellum and the cortex.

Figure 8.

Direct comparison between the μPET image of [¹⁸F]3b (A) and previously published in vitro AR image in coronal view (B, from Mansour A et al.,⁴ with permission from the society of neuroscience). Plasma metabolite concentration over time in comparison to that of the thalamus and cerebellum (C); plot of measured vs calculated TAC values for the thalamus (D).

Kinetic analysis of the PET data was also attempted to quantify binding of [¹⁸F]3b in the rat brain.^7−10,13 When the two-tissue compartment model was used, excellent fits were obtained for blood and plasma input of the intact tracer in the thalamus (Figure 8C,D). Nonetheless, high plasma metabolite concentration was apparent, peaking 16 min p.i. The metabolite appeared to enter the brain and accumulated in the cerebellum and cortex. This uptake was not affected by pretreatment with the OR antagonist, indicating binding to a non-OR binding site.

In scans lasting up to 60 min p.i., a plot of the measured vs the modeled values gives inclines of 0.94 for thalamus and 0.93 for caudate putamen (Figure 8D), which translates into a slight underestimation of the binding potential in the two-tissue compartment model. Nonetheless, model curves obtained via reference input kinetic modeling produced good fits of the experimentally obtained time activity curves for the baseline and block (Figure S50). For baseline scans, a BP_ND value of 0.185 ± 0.025 was obtained using the simplified reference tissue model 2 (SRTM2) in pmod 3.8. Coinjection of 1 mg/kg naloxone reduced the BP_ND to 0.08 ± 0.029 (minus 57%), whereas naloxone pretreatment 10 min before radiotracer administration using the same dose reduced the BP_ND to 0.05 ± 0.01 (minus 73%) (Supporting Information). These results are in line with displacements published in the literature.^8,21 Although somewhat decent fits were obtained for some animals using SRTM2 up to 40 min p.i., inclusion of later time points (post 40 min) into reference tissue modeling did not lead to any useful results, owing to the absence of a reference region without interfering uptake of radioactivity. We, hence, separated the plasma metabolite from the intact tracer and attempted to model the uptake of the radiometabolite. Indeed, we found that the metabolite adhered to an irreversible kinetic profile, which explains the continuous uptake during the entire length of the PET scan.

For in vivo PET imaging with [¹⁸F]3e, the radioligand was administered as a bolus injection to Sprague–Dawley rats via the tail vein, and PET data were recorded for up to 120 min. Reconstructed imaging data were coregistered to an anatomical atlas of the rat brain normalized to MNI space to draw the ROIs. The radioactivity concentrations in different regions of the brain, for example, thalamus and cerebellum, were extracted to obtain the time–activity curves (Figure 9B). The time–activity curves show a rapid brain uptake of about 0.75% ID/mL in brain regions within 5 min of [¹⁸F]3e injection (Figure 9B). Activity concentrations in the thalamus, cingulate cortex, and other regions rich in MOR equilibrate within 10 min p.i., after which a steady washout is observed in most key regions. In late time frames (50–60 min p.i.), increasingly high radioactivity concentration was observed in the cerebellum and cortex because of the presence of an irreversibly binding radioactive metabolite. However, summed images between 10 and 40 min p.i. clearly mirror the MOR distribution, as shown in Figure 9A. Unfortunately, we had to exclude [¹⁸F]3e from further study because of the presence of lipophilic radiometabolites in brain tissue throughout the scan.

Figure 9.

μPET image of a rat brain at 10–30 min p.i. of [¹⁸F]3e in coronal (left), horizontal (middle), and transversal projection (right) under baseline conditions (A) and the time–activity curve of one rat scanned for 120 min p.i. (B).

Conclusions

A series of novel MOR-selective analogues based on the benzamide scaffold AH-7921 were designed to accommodate convenient sites for direct nucleophilic radiofluorination. Compounds were tested for agonist binding and potency toward the human DOR, KOR, and MOR. Two potential candidates from the series were selected and scrutinized for their potential as PET radiotracers for the efficient and rapid quantification of the MOR in living subjects.

Compounds [¹⁸F]3b and [¹⁸F]3e were synthesized via an automated process and prepared in a sterile formulation using a straightforward methodology available in numerous other PET centers. The radioligands were obtained in sufficient RCY and quality for routine application, and no adverse degradation of the compound was observed in blood plasma or in formulation. Receptor binding studies demonstrated moderate affinity of the radioligands, which translates into fast biokinetics in vivo. In vitro receptor activation studies indicated high selectivity for the MOR compared to other potential targets, and pronounced receptor activation, characteristic for agonistic effects on the receptor, was detected for all three OR subtypes when expressed in CHO-K1 cells. The in vivo evaluation of [¹⁸F]3b and [¹⁸F]3e showed a regional brain distribution in accordance with the OR distribution in the rat brain. However, quantification of BP_ND was complicated by a very rapid washout, and only low BP_ND was obtained, paired with brain penetrating, irreversibly binding the radiometabolite. Although the radiometabolite adheres to an irreversible kinetic profile and continuously piles up in the brain during the entire length of the PET scan, blocking of [¹⁸F]3b binding was possible and the quantification of PET data was feasible using the metabolite-corrected blood input function. However, on the other hand, quantification of [¹⁸F]3e was not devoid of troubles because of the high radioactivity concentration in the brain confounding with the true tracer uptake. On the basis of our findings, we conclude that 3a may provide a suitable scaffold for development of ¹⁸F-labeled OR PET radiotracers with a fast kinetic profile for the in vivo imaging and quantification of the MOR in preclinical PET imaging studies.

Experimental Section

General

Standard solvents and reagents used in the experiments described herein were procured from Sigma-Aldrich (Sigma-Aldrich AS, Norway) in analytical quality unless specified otherwise. The starting material 3-chloro-4-nitrobenzoyl chloride was purchased from FCH (FCH group, Chernigove, Ukraine). Solid-phase extraction cartridges were purchased from VWR (VWR International, Darmstadt, Germany).

Nuclear magnetic resonance spectra were recorded on a Bruker AVII 400 NMR instrument (Bruker ASX Nordic AB). Chemical shifts (δ) for ¹H (400 MHz) and ¹³C (100 MH) resonances are reported in parts per million (ppm), relative to the solvent signal (CDCl₃ δ = 7.223 ppm), downfield from a theoretical tetramethylsilane signal (TMS, δ = 0 ppm). Mass spectrometry was conducted on a Q-Tof-2 mass analyzer (Micromass, Q-Tof-2TM) using an ESI ion source in the positive mode. IR spectra were obtained using a Bruker Vertex 70 dual-channel spectrometer (Bruker ASX Nordic AB), and values are expressed in wavenumbers ν (in cm^–1).

HPLC analysis of compound purity and quality control was conducted on a Hewlett-Packard 1100 HPLC system (Matriks AS, Agilent Technologies, Oslo, Norway) consisting of a quaternary pump, variable wavelength diode array detector, and a Raytest Gina star radioactivity detector (Raytest GmBH, Straubenhardt, Germany) using GABI-star software (Raytest) for instrument control, data acquisition, and processing. Three HPLC methods were developed. For determination of purity and stability of the formulated radiotracer, a Luna C18(2) column (Phenomenex; 5 μm, 100 Å, 250 mm × 4.6 mm) with an isocratic mixture of MeCN–phosphate buffer (50 mM, pH7; 3:7 )was used at a flow rate of 1.8 mL/min. Alternatively, an HS-F5 column (Supelco; 5 μm, 100 Å, 250 mm × 4.6 mm) and an isocratic mixture of MeCN–formate buffer (0.1 M, pH 7; 85:15) at 1.0 mL/min flow rate were used. For determination of radiometabolites, a Kromasil C8 column (100 Å; 250 mm × 4.6 mm) in gradient elution using 20–53.3% MeCN (0.1% TFA) in water (0.1% TFA) for 25 min, 53.3–80% MeCN (0.1% TFA) in water (0.1% TFA) for 4 min, 80–100% MeCN (0.1% TFA) in water (0.1% TFA) for 1 min, and ending to 100% MeCN (0.1% TFA) for 4 min. UV signals were detected at a wavelength of 254 nm. Purity of all tested compounds was >95%, as determined by HPLC UV detection at 254 nm wavelength. Radio-TLC was conducted on silica gel 60 F₂₅₄-coated aluminum TLC plates (Merck KGaA, Darmstadt, Germany) using hexanes–ethyl acetate–Et₃N, 7:3:1. Radio-TLC plates were analyzed using a Raytest miniGita radio-TLC scanner (Raytest GmBH, Straubenhardt Germany). All other radioactivity measurements during labeling experiments and radiotracer productions were performed using an Atomlab 300 dose calibrator (Biodex Medical Systems).

Chemistry

General Procedure for the Preparation of Compounds 3a–l

A 50 mL oven-dried round bottom flask was charged with [1-(N,N-dimethylamino)-cyclohex-1-yl]methylamine hydrochloride (2, 115 mg, 0.5 mmol) in diethyl ether, Et₂O (20 mL). Triethylamine, NEt₃ (101.2 mg, 1 mmol), was added, and reaction contents were stirred for 15 min. Benzoyl chlorides 1a–l (0.5 mmol, 1 equiv) in Et₂O (2 mL) were added dropwise and allowed to react for 6 h at room temperature. The reaction was quenched with aqueous ammonium hydroxide, NH₄OH (30% in water, 10 mL), and partitioned between Et₂O and NH₄OH(aq). Organic extracts were combined, dried over anhydrous sodium sulfate (Na₂SO₄), and concentrated to dryness in vacuo. The residue products were purified by silica gel (SiO₂) column chromatography using EtOAc–hexane–Et₃N (40:55:5 v/v/v).

3,4-Dichloro-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3a)

Colorless solid (71%), R_f = 0.28 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.80 (d, J = 2.0 Hz, ArH, 1H), 7.52 (dd, J = 8.3, 2.0 Hz, ArH, 1H), 7.43 (d, J = 8.3 Hz, ArH, 1H), 6.91 (br s, N–H 1H), 3.46 (d, J = 4.6 Hz, N–CH₂, 2H), 2.21 (s, N–CH₃, 6H), 1.66–1.01 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 165.0, 135.3, 134.6, 132.7, 130.3, 129.0, 125.9, 57.3, 40.4, 37.3, 28.0, 25.7, 22.2; IR (KBr) ν (in cm^–1): 3323 (N–H stretch), 3092, 2987, 2926, 2853, 2813, 2780, 1633, 1555, 1457, 1308, 1246; HR-MS (ESI) m/z: calcd for C₁₆H₂₂Cl₂N₂O, 328.1109; found, 329.1197 (M + H)⁺; HPLC by UV (254); >98%.

3-Chloro-4-fluoro-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3b)

Off-white solid (64%), R_f = 0.25 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.85 (dd, J = 7.0, 2.2 Hz, ArH, 1H), 7.65 (ddd, J = 8.5, 4.5, 2.2 Hz, ArH, 1H), 7.19 (t, J = 8.6 Hz, ArH, 1H), 6.97 (br s, 1H), 3.53 (d, J = 4.5 Hz, N–CH₂, 2H), 2.28 (s, N–CH₃, 6H), 1.71–1.01 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 164.9, 159.6 (d, ¹J_CF = −259 Hz), 131.9 (d, ⁴J_CF = 3.6 Hz), 129.7, 126.8 (d, ³J_CF = 8.1 Hz), 121.2 (d, ²J_CF = 17.4 Hz), 116.3 (d, ²J_CF = 21.6 Hz), 77.1, 57.6, 40.7, 37.6, 28.3, 26.0, 22.4; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −111.17 (s, 1F); IR (KBr) ν (in cm^–1): 3327 (N–H stretching), 3088, 2931, 2852, 2819, 2785, 1641, 1551, 1495, 1316, 1249; HR-MS (ESI) m/z: calcd for C₁₆H₂₂ClFN₂O, 312.1405; found, 313.1490 (M + H)⁺; HPLC by UV (254); >98%.

4-Fluoro-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3c)

Off-white solid (79.4%), R_f = 0.20 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl3): δ (in ppm) 7.84–7.75 (m, ArH, 2H), 7.13–7.06 (m, ArH, 2H), 6.95 (br s, 1H), 3.53 (d, J = 4.6 Hz, N–CH₂, 2H), 2.28 (s, N–CH₃, 6H), 1.70–1.06 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 166.4, 164.8 (d, ¹J_CF = −250 Hz), 131.2 (d, ⁴J_CF = 3 Hz), 129.3 (d, ³J_CF = 8.8 Hz), 115.5 (d, ²J_CF = 21.7 Hz), 57.7, 40.6, 37.6, 28.3, 26.0, 22.5; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −108.97 (s, 1F), IR (KBr) ν (in cm^–1): 3318 (N–H stretching), 2984, 2942, 2853, 2820, 2783, 1632, 1594, 1556, 1454, 1374, 1348, 1233, 1161; HR-MS (ESI) m/z: calcd for C₁₆H₂₃FN₂O, 278.1794; found, 279.1870 (M + H)⁺; HPLC by UV (254); >97%.

4-(Trifluoromethyl)-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3d)

Pale yellow solid (72.3%), R_f = 0.27 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.82 (d, J = 8.0 Hz, ArH, 2H), 7.62 (d, J = 8.0 Hz, ArH, 2H), 7.02 (br s, 1H), 3.49 (d, J = 4.4 Hz, N–CH₂, 2H), 2.22 (s, N–CH₃, 6H), 1.67–1.01 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 166.2, 138.4, 133.1 (q, ²J_CF = 32 Hz), 127.5, 125.6 (q, ³J_C–CF3 = 3.8 Hz), 124.0 (d, ¹J_CF = −270 Hz), 57.7, 40.7, 37.6, 28.3, 26.0, 22.5; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −62.94 (s, 3F); IR (KBr) ν (in cm^–1): 3259, 2981, 2926, 2847, 1639, 1560, 1459, 1428, 1335, 1238, 1163, 1120, 1072; HR-MS (+ESI) m/z: calcd for C₁₇H₂₃F₃N₂O, 328.1762; found, 329.1833 (M + H)⁺; HPLC by UV (254); 98%.

4-Fluoro-3-(trifluoromethyl)-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3e)

Pale yellow solid (59.3%), R_f = 0.21 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.07 (dd, J = 6.8, 2.0 Hz, ArH, 1H), 7.94 (ddd, J = 8.1, 4.6, 2.3 Hz, ArH, 1H), 7.26 (t, J = 9.2 Hz, ArH, 2H), 7.02 (br s, 1H), 3.55 (d, J = 4.5 Hz, N–CH₂, 2H), 2.29 (s, N–CH₃, 6H), 1.74–1.33 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 165.1, 161.4 (d, ¹J_CF = −261 Hz), 132.6 (d, ³J_C–CF3 = 9 Hz), 131.4 (d, ⁴J_CF = 4 Hz), 126.8 (m), 122.3 (d, ¹J_CF–CF3 = −272 Hz), 118.7 (dd, ²J_CF = 33 and 13 Hz), 117.2 (d, ²J_CF = 21 Hz), 57.7, 40.7, 37.6, 28.2, 26.0, 22.4; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −110.38 (q, J_F–CF3 = 12.7 Hz, 1F), −61.57 (d, J_CF3–F = 12.7 Hz, 3F); IR (KBr) ν (in cm^–1): 3328 (N–H stretching), 3076, 2987, 2934, 2855, 2788, 1645, 1556, 1507, 1455, 1421; HR-MS (ESI) m/z: calcd for C₁₇H₂₂F₄N₂O, 346.1668; found, 347.1756 (M + H)⁺; HPLC by UV (254); >98%.

3-Fluoro-4-(trifluoromethyl)-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3f)

Pale yellow solid (58.6%), R_f = 0.27 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.07 (dd, J = 6.8, 2.0 Hz, ArH, 1H), 7.94 (ddd, J = 8.1, 4.6, 2.3 Hz, ArH, 1H), 7.26 (t, J = 9.2 Hz, ArH, 2H), 7.02 (br s, 1H), 3.55 (d, J = 4.5 Hz, N–CH₂, 2H), 2.29 (s, N–CH₃, 6H), 1.74–1.33 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 165.1, 161.4 (d, ¹J_CF = −261 Hz), 132.6 (d, ³J_C–CF3 = 9 Hz), 131.4 (d, ⁴J_CF = 4 Hz), 126.8 (m), 122.3 (d, ¹J_CF–CF3 = −272 Hz), 118.7 (dd, ²J_CF = 33 and 13 Hz), 117.2 (d, ²J_CF = 21 Hz), 57.7, 40.7, 37.6, 28.2, 26.0, 22.4; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −110.38 (q, J_F–CF3 = 12.7 Hz, 1F), −61.57 (d, J_CF3–F = 12.7 Hz, 3F); IR (KBr) ν (in cm^–1): 3328 (N–H stretching), 3076, 2987, 2934, 2855, 2788, 1645, 1556, 1507, 1455, 1421; HR-MS (+ESI) m/z: calcd for C₁₇H₂₂F₄N₂O, 346.1668; found, 347.1756 (M + H)⁺; HPLC by UV (254); >98%.

3-(Trifluoromethyl)-N-{[1-(dimethylamino)cyclohexyl]methyl}-4-methylbenzamide (3g)

Off-white solid (64.8%), R_f = 0.26 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.04 (s, ArH, 1H), 7.79 (d, J = 7.8 Hz, ArH, 1H), 7.35 (d, J = 7.9 Hz, ArH, 1H), 7.02 (br s, 1H), 3.54 (d, J = 4.6 Hz, N–CH₂, 2H), 2.52 (s, ArCH₃, 3H), 2.28 (s, N–CH₃, 6H), 1.70–1.06 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 166.2, 140.1, 132.9, 132.2, 129.9, 129.1 (t,¹J_CF = 30 Hz), 124.9 (q, ³J_CF = 5.7 Hz), 57.6, 40.6, 37.6, 28.3, 26.0, 22.5, 19.5; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −61.90 (S, 3F); IR (KBr) ν (in cm^–1): 3251 (N–H stretching), 3089, 2942, 2852, 2825, 2784, 1645, 1555, 1502, 1455, 1429, 1424; HR-MS (ESI) m/z: calcd for C₁₈H₂₅F₃N₂O, 342.1919; found, 343.2005 (M + H)⁺; HPLC by UV (254); >98%.

3,5-Bis(trifluoromethyl)-N-{[1-(dimethylamino)cyclohexyl]methyl}benzamide (3h)

Pale yellow solid (68.8%), R_f = 0.39 (EtOAc–hexanes–Et₃N; 40:55:5), ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.19 (s, ArH, 2H), 7.98 (s, ArH, 1H), 7.19 (br s, 1H), 3.57 (d, J = 4.4 Hz, N–CH₂, 2H), 2.29 (s, N–CH₃, 6H), 1.72–1.07 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 164.6, 137.2, 132.3 (q, ²J_CF = 34 Hz), 127.4, 124.8 (p, ³J_CF = 4 Hz), 124.4, 121.7, 57.7, 40.9, 37.6, 28.2, 26.0, 22.5; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −62.90 (s, 6F); IR (KBr) ν (in cm^–1): 3322 (N–H stretching), 3098, 2934, 2854, 2822, 2780, 1643, 1561, 1456, 1370, 1331, 1283, 1184; HR-MS (ESI) m/z: calcd for C₁₈H₂₂F₆N₂O, 396.1636; found, 397.1701 (M + H)⁺; HPLC by UV (254); >98%.

N-{[1-(Dimethylamino)cyclohexyl]methyl}-4-(trifluoromethoxy)benzamide (3i)

Off-white solid (57.4%). R_f = 0.26 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl3): δ (in ppm) 7.86–7.78 (m, ArH, 2H), 7.26 (d, J = 8.1 Hz, ArH, 2H), 7.03 (br s, 1H), 3.54 (d, J = 4.6 Hz, N–CH₂, 2H), 2.27 (s, N–CH₃, 6H), 1.70–1.06 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 166.2, 151.3, 133.5, 128.9, 121.0 (d, ¹J_CF = −259 Hz), 120.7, 57.7, 40.6, 37.6, 28.2, 26.0, 22.4; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −57.7 (s, 3F); IR (KBr) ν (in cm^–1): 3261 (N–H stretching), 3095, 2926, 2857, 2826, 2786, 1636, 1559, 1506, 1460, 1431, 1307, 1217, 1109; HR-MS (ESI) m/z: calcd for C₁₇H₂₃F₃N₂O₂, 344.1712; found, 345.1690 (M + H)⁺; HPLC by UV (254); >98%.

N-{[1-(Dimethylamino)cyclohexyl]methyl}-4-methoxybenzamide (3j)

Colorless solid (73%), R_f = 0.23 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.78–7.72 (m, ArH, 2H), 6.94–6.89 (m, ArH, 2H), 3.84 (s, O–CH₃, 3H), 3.53 (d, J = 4.6 Hz, N–CH₂, 2H), 2.28 (s, N–CH₃, 6H), 1.67–1.09 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 167.0, 162.0, 128.8, 127.4, 113.7, 57.7, 55.5, 40.5, 37.6, 28.3, 26.1, 22.4; IR (KBr) ν (in cm^–1): 3360 (N–H stretching), 2930, 2851, 2776, 1640, 1607, 1555, 1510, 1457; HR-MS (ESI): m/z: calcd for C₁₇H₂₈N₂O_2, 290.1994; found, 291.2074 (M + H) ⁺; HPLC by UV (254); >91%.

3-Chloro-N-{[1-(dimethylamino)cyclohexyl]methyl}-4-nitrobenzamide (3k)

Yellow solid (63.6%), R_f = 0.20 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.96 (d, J = 1.5 Hz, ArH, 1H), 7.94–7.89 (m, ArH, 1H), 7.76 (dd, J = 8.3, 1.4 Hz, ArH, 1H), 7.15 (br s, 1H), 3.55 (d, J = 4.4 Hz, N–CH₂, 2H), 2.28 (s, N–CH₃, 6H), 1.70–1.09 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 163.9, 149.1, 139.2, 130.6, 127.3, 125.8, 125.4, 57.4, 40.6, 37.3, 27.9, 25.6, 22.2; IR (KBr) ν (in cm^–1): 3384 (N–H stretching), 3084, 3000, 2934, 2865, 2798, 1669, 1545, 1500, 1478, 1377, 1290; HR-MS (ESI) m/z: calcd for C₁₆H₂₂ClN₃O₃, 339.1350; found, 340.1435 (M + H)⁺; HPLC by UV (254); >98%.

3-(Trifluoromethyl)-N-{[1-(dimethylamino)cyclohexyl]methyl}-4-nitro-benzamide (3l)

Yellow solid (56.3%), R_f = 0.25 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.26–8.25 (m, ArH, 1H), 8.05 (dd, J = 8.3, 1.8 Hz, ArH, 1H), 7.94–7.91 (m, ArH, 1H), 7.24 (br s, 1H), 3.57 (d, J = 4.3 Hz, N–CH₂, 2H), 2.29 (s, N–CH₃, 6H), 1.72–1.08 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 164.0, 139.1, 131.4, 127.4 (q, ³J_CF = 5 Hz), 125.4, 124.0 (t, ¹J_C–CF3 = 34 Hz), 120.0, 57.7, 40.9, 37.6, 28.2, 25.9, 22.5; ¹⁹F NMR (283 MHz, CDCl₃): δ (in ppm) −60.1 (s, 3F); IR (KBr) ν (in cm^–1): 3372 (N–H stretching), 3079, 3010, 2938, 2858, 2804, 1672, 1539, 1494, 1463, 1366, 1288; HR-MS (ESI) m/z: calcd for C₁₇H₂₂F₃N₃O₃, 373.3762; found, 374.3815 (M + H)⁺; HPLC by UV (254); >98%.

General Procedure for the Preparation of Compounds 4a–d and 5a by N-alkylation

N-alkylation of benzamides was achieved as follows: To a solution of 3a–d (0.3 mmol) in dry dimethylformamide, DMF (3 mL), sodium hydride, NaH (21.6 mg, 0.9 mmol), was added, and the reaction mixture was allowed to stir for 30 min until the liberation of hydrogen ceased. Methyl iodide or 2-fluoroethyl tosylate (for 5a) (0.6 mmol, 2 equiv) dissolved in 1 mL of DMF was added dropwise, and the mixture was stirred for 4 h at room temperature. Excess DMF was evaporated, and the residue was treated with aqueous NH₄OH (30% in water, 10 mL). The crude product was extracted with Et₂O (3 × 15 mL) and purified by silica gel column chromatography using EtOAc–hexane–Et₃N, 30:65:0.5.

3,4-Dichloro-N-{[1-(dimethylamino)cyclohexyl]methyl}-N-methylbenzamide (4a)

Colorless solid (56.2%), R_f = 0.41 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.51–7.46 (m, ArH, 2H), 7.24 (dd, J = 8.3, 1.9 Hz, ArH, 1H), 3.56 (s, N–CH₂, 2H), 3.02 (s, RC(O)N–CH₃, 3H), 2.36 (s, N–CH₃, 6H), 1.90–1.13 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 170.2, 137.0, 133.8, 132.9, 130.6, 129.1, 126.4, 77.4, 77.3, 77.1, 76.8, 59.6, 50.3, 41.7, 37.4, 32.7, 26.1, 21.2; IR (KBr) ν (in cm^–1): 2942, 2851, 2817, 2774, 1642, 1591, 1459, 1430, 1377, 1336, 1276, 1197; HR-MS (ESI) m/z: calcd for C₁₇H₂₄Cl₂N₂O, 342.1266; found, 343.1349 (M + H)⁺; HPLC by UV (254); >97%.

3-Chloro-N-{[1-(dimethylamino)cyclohexyl]methyl}-4-fluoro-N-methylbenzamide (4b)

Colorless solid (61.7%), R_f = 0.41 (EtOAc–hexanes–Et₃N; 40:55:0.5); ¹H NMR (400 MHz, CDCl3): δ (in ppm) 7.47 (dd, J = 7.0, 2.0 Hz, ArH, 1H), 7.30 (ddd, J = 8.1, 4.5, 1.9 Hz, ArH, 1H), 7.17 (t, J = 8.6 Hz, ArH, 1H), 3.56 (s, N–CH₂, 2H), 3.03 (s, RC(O)N–CH₃, 3H), 2.36 (s, N–CH₃, 6H), 1.86–1.24 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 170.3, 158.7 (d, ¹J_CF = −251 Hz), 134.2 (d, ⁴J_CF = 3.6 Hz), 129.8, 127.3 (d, ³J_CF = 8 Hz), 121.4 (d, ²J_CF = 18 Hz), 116.7 (d, ²J_CF = 21 Hz), 59.6, 50.4, 41.8, 37.4, 32.8, 26.2, 21.2; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −113.17 (s, 1F); IR (KBr) ν (in cm^–1): 2945, 2904, 2855, 2768, 1649, 1499, 1474, 1430, 1392, 1335, 1275, 1149; HR-MS (ESI) m/z: calcd for C₁₇H₂₄ClFN₂O, 326.1561; found, 327.1631 (M + H)⁺; HPLC by UV (254); >97%.

N-{[1-(Dimethylamino)cyclohexyl]methyl}-4-fluoro-N-methylbenzamide (4c)

Colorless solid (73%), R_f = 0.53 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.44–7.40 (m, ArH, 2H), 7.11–7.06 (m, ArH, 2H), 3.58 (s, N–CH₂, 2H), 3.03 (s, RC(O)N–CH₃, 3H), 2.36 (s, N–CH₃, 6H), 1.92–1.27 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 171.8, 163.4 (d, ¹J_CF = −250 Hz), 133.2 (d, ⁴J_CF = 3.6 Hz), 129.3 (d, ³J_CF = 8 Hz), 115.5 (d, ²J_CF = 22 Hz), 59.6, 50.3, 42.0, 37.4, 32.8, 26.2, 21.2; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −110.74 (s, 1F); IR (KBr) ν (in cm^–1): 2933, 2907, 2847, 2775, 1607, 1513, 1466, 1429, 1395, 1337, 1286, 1196; HR-MS (+ESI) m/z: calcd for C₁₇H₂₅FN₂O, 292.1951; found, 293.2022 (M + H)⁺; HPLC by UV (254); >98%.

N-{[1-(Dimethylamino)cyclohexyl]methyl}-N-methyl-4-(trifluoromethyl)benzamide (4d)

Off-white solid (76.3%), R_f = 0.48 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl3): δ (in ppm) 7.67 (d, J = 8.1 Hz, ArH, 2H), 7.51 (d, J = 8.0 Hz, ArH, 2H), 3.59 (s, N–CH₂, 2H), 3.00 (s, RC(O)N–CH₃, 3H), 2.37 (s, N–CH₃, 6H), 1.95–1.25 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 171.2, 140.8, 131.5 (q, ²J_CF = 32 Hz), 127.3, 125.6 (m), 123.9 (d, ¹J_CF = −270 Hz), 59.6, 50.2, 41.6, 37.4, 32.8, 26.2, 21.2; ¹⁹F NMR (377 MHz, CDCl₃): δ (in ppm) −62.84 (s, 3F); IR (KBr) ν (in cm^–1): 3064, 2936, 2852, 2821, 2780, 1630, 1577, 1461, 1431, 1376, 1284, 1184, 1131, 1080; HR-MS (ESI) m/z: calcd for C₁₈H₂₅F₃N₂O, 342.1919; found, 343.1993 (M + H)⁺; HPLC by UV (254); >98%.

3,4-Dichloro-N-{[1-(dimethylamino)cyclohexyl]methyl}-N-(2-fluoroethyl)benzamide (5a)

Yellow oil (21.3%), R_f = 0.33 (EtOAc–hexanes–Et₃N; 40:55:5); ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 7.52–7.47 (m, ArH, 2H), 7.22 (dd, J = 8.2, 1.8 Hz, ArH, 1H), 4.69 (dt, J = 4.1 Hz, J_HF = 48 Hz, F–CH₂, 2H), 4.40 (dt, J = 4.1 Hz, J_HF = 21 Hz, 1H), 2.28 (s, N–CH₃, 6H), 1.68–1.20 (m, CH₂, 10H); ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 156.3, 134.0, 132.9, 131.6, 130.4, 130.3, 127.5, 81.8 (d, ¹J_CF = 169 Hz), 64.6 (d, ²J_CF = 20 Hz), 57.9, 51.5, 38.1, 32.4, 26.2, 21.5; IR (KBr) ν (in cm^–1): 2931, 2854, 2820, 2779, 1667, 1590, 1467, 1379, 1281, 1245; HR-MS (ESI) m/z: calcd for C₁₈H₂₅Cl₂FN₂O, 374.1328; found, 375.1409 (M + H)⁺; HPLC by UV (254); >97%.

Synthesis of tert-Butyl(1-cyanocyclohex-1-yl-N-methyl)carbamate

To 1-(methylamino) cyclohexane-1-carbonitrile (0.5 g, 3.6 mmol) in DCM (2.5 mL) was added Boc₂O (2.36 g, 10.8 mmol) and left to stir for 5 days until NMR confirmed complete consumption of the starting material. The majority of solvents were removed under reduced pressure (50 mbar, 40 °C, 1 h), and the crude product was purified via flash column chromatography using 0–20% EtOAc in hexanes to yield tert-butyl(1-cyanocyclohex-1-yl-N-methyl)carbamate as white solids in 90% (774 mg, 3.24 mmol).¹H NMR (400 MHz, CDCl₃): δ (in ppm) 2.92 (s, N–CH₃, 3H), 2.39–2.30 (m, CH₂, 2H), 1.85–1.62 (m, CH₂, 8H), 1.51 (s, C(CH₃)₃, 9H). MS (ESI): 261.157 [M + Na]⁺. HR-MS (ESI): m/z: calcd for C₁₃H₂₂N₂NaO₂⁺, 261.1573, found 261.1574 [M + Na]⁺.

tert-Butyl(1-{[4-fluoro-3-(trifluoromethyl)benzamido]methyl}cyclohexyl)(methyl)carbamate

Orange oil, 41% yield (88 mg, 0.20 mmol). ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.49 (s, ArH, 1H), 8.18 (dd, J = 6.8, 2.3 Hz, ArH, 1H), 8.11 (ddd, J = 8.6, 4.7, 2.3 Hz, ArH, 1H), 7.22 (d, J = 9.2 Hz, 1H), 3.50 (d, J = 4.1 Hz, N–CH₂, 2H), 2.86 (s, N–CH₃, 3H), 2.62–2.34 (m, CH₂, 2H), 1.70–1.58 (m, CH₂, 3H), 1.57 (s, CH₂, 1H), 1.50 (d, J = 12.1 Hz, CH₂, 2H), 1.45 (s, C(CH₃)₃, 9H), 1.37 (d, J = 8.3 Hz, CH₂, 3H). ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 164.9, 158.6, 133.0 (d, J³ = 9 Hz), 130.7 (d, J³ = 4 Hz), 126.5 (q, J = 2 Hz), 117.0 (d, J² = 21 Hz), 80.4, 59.5, 48.7, 33.9, 31.3, 28.3, 25.7, 22.0. ¹⁹F NMR (376 MHz, CDCl₃): δ (in ppm) −61.55 (d, J = 12.8 Hz), −110.35 (q, J = 12.8 Hz). MS (ESI): m/z: 455.193 [M + Na]⁺. HR-MS (ESI, MeOH) m/z: calcd for C₂₁H₂₈F₄N₂O₃⁺, 455.1928, found 455.1928 [M + Na]⁺.

3-Trifluoromethyl-4-fluoro-N-{[1-(methylamino)cyclohex-1-yl]methyl}benzamide

To tert-butyl (1-{[4-fluoro-2-(trifluoromethyl)benzamido]methyl}cyclohexyl) (methyl)carbamate (44 mg, 0.10 mmol) dissolved in DCM (5 mL), TFA (0.4 mL) was added dropwise over 5 min. After 30 min, the mixture was concentrated to dryness. The residue was taken up in K₂CO₃ and extracted with EtOAc (3 × 15 mL) at pH 12–14. The combined organic portions were washed with brine, dried over Na₂SO₄, and then evaporated to dryness to afford a yield of 73% (24.8 mg, 0.07 mmol) as an orange oil. ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.07 (dd, J = 6.8, 2.3 Hz, ArH, 1H), 7.97 (ddd, J = 8.6, 4.7, 2.3 Hz, ArH, 1H), 7.23 (d, J = 9.2 Hz, ArH, 1H), 7.03 (s, NH, 1H), 3.33 (d, J = 4.7 Hz, N–CH₂, 2H), 2.27 (s, N–CH₃, 3H), 1.53 (dd, J = 9.5, 3.4 Hz, CH₂, 5H), 1.42 (dd, J = 8.9, 4.5 Hz, CH₂, 5H). ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 165.2 (s), 161.5 (dq, J_C–F¹ = 260 Hz, J = 2 Hz), 132.8 (d, J_C–F³ = 9 Hz), 131.5 (d, J⁴ = 4 Hz), 126.8 (dq, J³ = 5 Hz, J³ = 2 Hz), 122.3 (dq, J_C–F3¹ = 272 Hz, J = 1 Hz), 118.8 (dq, J² = 34 Hz, J² = 15 Hz), 117.2 (d, J_C–F² = 20 Hz), 53.7 (s), 44.3 (s), 33.3 (s), 27.3 (s), 25.9 (s), 21.7 (s). ¹⁹F NMR (376 MHz, CDCl₃): δ (in ppm) −61.55 (d, J = 12.8 Hz), −110.35 (q, J = 12.8 Hz). MS (ESI): m/z: 333.158 [M + H]⁺. HR-MS (ESI) m/z: calcd for C₁₆H₂₁F₄N₂O⁺, 333.1585, found 333.1585 [M + H]⁺. HPLC by UV (254); >95%.

tert-Butyl{1-[(3-chloro-4-fluorobenzamido)methyl]cyclohex-1-yl}methyl)carbamate

It was obtained as a colorless solid in 17% yield (52.1 mg, 0.13 mmol). ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.25 (s, ArH, 1H), 7.95 (dd, J = 7.0, 2.2 Hz, ArH, 1H), 7.77 (ddd, J = 8.6, 4.5, 2.2 Hz, ArH, 1H), 7.15 (t, J = 8.6 Hz, NH, 1H), 3.48 (d, J = 4.2 Hz, N–CH₂, 2H) (methanol), 2.84 (s, N–CH₃, 3H), 2.54–2.43 (m, CH₂, 2H), 1.65–1.55 (m, CH₂, 3H), 1.46 (s, C(CH₃)₃, 9H), 1.44–1.29 (m, CH₂, 7H). ¹³C NMR (100 MHz, CDCl₃): δ (in ppm) 165.3, 160.1 (d, J¹ = 254 Hz), 131.6 (d, J³ = 4 Hz), 130.07, 127.5 (d, J³ = 8 Hz), 121.5 (d, J² = 18 Hz), 116.6 (d, J² = 22 Hz), 80.45, 59.73, 48.78 (methanol), 34.17, 31.42, 28.62, 28.58, 28.54, 25.87, 22.09. ¹⁹F NMR (376 MHz, CDCl₃): δ (in ppm) −111.41. MS (ESI): m/z: 421.166 [M + Na]⁺. HR-MS (ESI) m/z: calcd for C₂₀H₂₈ClFN₂NaO₃⁺, 421.1665, found 421.1665 [M + Na]⁺.

3-Chloro-4-fluoro-N-{[1-(methylamino)cyclohex-1-yl]methyl}benzamide

It was obtained as an orange oil in 41% yield (16 mg, 0.05 mmol). ¹H NMR (400 MHz, CDCl₃): δ (in ppm) 8.01 (dd, J = 7.0, 2.3 Hz, ArH, 1H), 7.82 (ddd, J = 8.6, 4.5, 2.3 Hz, ArH, 1H), 7.41 (s, ArH, 1H), 7.16 (t, J = 8.6 Hz, NH, 1H), 3.54 (d, J = 5.2 Hz, N–CH₂, 2H), 2.42 (s, N–CH₃, 3H), 1.61 (d, J = 6.1 Hz, CH₂, 4H), 1.55 (dq, J = 9.4, 5.3, 4.7 Hz, CH₂, 4H), 1.45 (s, CH₂, 2H). ¹³C NMR (101 MHz, CDCl₃): δ (in ppm) 165.7 (s), 160.1 (d, J_C–F¹ = 254 Hz), 131.5 (d, J³ = 4 Hz), 130.46 (s), 127.6 (d, J³ = 8 Hz), 121.6 (d, J² = 18 Hz), 116.7 (d, J² = 22 Hz), 57.1, 42.7, 32.2, 26.8, 25.4, 21.6. ¹⁹F NMR (376 MHz, CDCl₃): δ (in ppm) −110.77. MS (ESI, MeOH) m/z: 299.132. HR-MS (ESI) m/z: calcd for C₁₅H₂₁ClFN₂O⁺, 299.1321, found 299.1321 [M + H]⁺. HPLC by UV (254); >95%.

Lipophilicity (log D_7.4)²⁷

The determination of log D_7.4 values was performed by HPLC analysis based on two calibration curves, which were conducted from 27 reference compounds with known log P values and correlation of measured log k′ values to the known log P values. The first calibration curve was determined for reference compounds with log P values in the range 0–4.0, using a Chromolith endcapped RP-18e (100 × 4.6 mm) as a stationary phase and methanol–phosphate buffer (50 mM, pH 7.4) (1:1, v/v) as a mobile phase with a flow rate of 1 mL/min. The second calibration curve was determined for reference compounds with log P values in the range 4.0–5.5, using a Chromolith endcapped RP-18 (100 × 4.6 mm) and MeOH–phosphate buffer (50 mM, pH 7.4) (3:1, v/v) as a mobile phase with a flow rate of 2 mL/min. The mean retention time of each reference compound (10 μg/mL in methanol/water 3:1) was analyzed in triplicate by HPLC. The linear correlation between the capacity factor (log k) and log P values (R² = 0.9) was used to calculate log D_7.4 values from the HPLC analysis of test compounds 3a–l.

In Vitro OR Binding Studies

Affinities of the test compounds toward the human ORs DOR, KOR, and μOR, were determined as described previously.^18,19,28 In brief, competition binding experiments were performed with membranes from HEK293T cells transiently transfected with the receptor of interest using the Mirus TransIT-293 transfection reagent (Peqlab, Erlangen, Germany) or a solution of linear polyethyleneimine in phosphate-buffered saline (PBS), as described previously.^18,19,23 Binding affinities were determined using the radioligand [³H]diprenorphine (Biotrend, Cologne, Germany) at concentrations of 0.3 nM (DOR and KOR) and 0.2–0.3 nM (MOR) and homogenates at 3–14 μg/well protein (DOR), 4–5 μg/well (KOR), and 2–10 μg/well (MOR). Binding properties of the homogenates were determined with K_d (DOR) = 0.15 ± 0 nM, K_d (KOR) = 0.067 ± 0.003 nM, and K_d (MOR) = 0.072 ± 0.011 nM and B_max (DOR) = 2600 ± 980 fmol/mg, B_max (KOR) = 3000 ± 0 fmol/mg, and B_max (MOR) = 2500 ± 570 fmol/mg. Nonspecific binding was determined in the presence of naloxone (10 μM for DOR, KOR, and MOR). Protein concentration was established by the method of Lowry using bovine serum albumin as the standard. Data analysis of the competition binding curves from the radioligand displacement experiments was performed by nonlinear regression analysis when applying the algorithms of the program PRISM 6.0 (GraphPad, San Diego, CA, USA). IC₅₀ values were derived from each competition binding curve and were transformed into the corresponding K_i values by applying the equation of Cheng and Prusoff. Mean K_i values are the results of two to four individual experiments, each performed in triplicate.

In Vitro OR Potency

Division-arrested CHO–K1 cells stably expressing the G_i/o-protein-coupled human delta, kappa, and mu ORs were obtained from Cambridge Bioscience (Cambridge, UK) and plated on 384 well plates. Test compounds were assayed for agonist-mediated inhibition of intracellular cAMP response using the HitHunter cAMP kit (DiscoveRx). Eleven concentrations of each test compound were incubated in the presence of forskolin (10 μM) and 3-isobutyl-1-methylxanthine (IBMX, 0.5 mM) for 20 min at 37 °C. Intracellular cAMP levels were read out by measuring a beta-galactosidase-dependent chemiluminescent signal. The reference agonists deltorphin (DOR), U50488 (KOR), and DAMGO (MOR) were included. The nonselective OR antagonist naloxone was included as a negative control. When a pronounced dose-dependent receptor activation was detected, the potency of the agonist (EC₅₀/nM) was determined. Assays were run in quadruplicate (two independent duplicates) unless a variability >2% was observed.

In Vitro Rat Brain AR

Competitive binding experiments were performed with both 3b and 3e against the antagonist radioligand [³H]naloxone (A_s = 2.59 GBq/μmol, 70 Ci/mmol) and the agonist radioligand [³H]DAMGO (A_s = 1.98 GBq/μmol; 53.7 Ci/mmol) on rat brain tissue slices using AR. At the day before the preparation of brain slices, the frozen brains of Sprague–Dawley rats (>400g) were taken out from −80 °C and stored at −20 °C overnight. Transaxial sections (20 μm thickness) were prepared using a Cryostar NX70 microtome (Fisher Scientific AS, Norway) and mounted on Superfrost slides (VWR AS, Oslo, Norway). The sections are stored at −80 °C until the day of incubation. The sections were warmed to room temperature (22 °C) to be used for [³H]DAMGO AR and preincubated in Tris buffer (50 mM, pH = 7.4) containing NaCl (0.9%) for 30 min at room temperature (22 °C), while preincubation for [³H]naloxone AR sections was performed in PBS. The incubation with the radioligands [³H]DAMGO (4 nM) and [³H]naloxone (2 nM) was carried out in Tris (50 mM, pH = 7.4) and PBS (25 mM, pH = 7.4), respectively, in the presence of 3000, 1000, 300, 100, 30, 10, and 1 nM of 3b and 3e for 60 min at 22 °C. The nonspecific binding was determined at each concentration using diprenorphine (1 μM). The sections were washed with ice cold buffers (Tris for [³H]DAMGO AR and PBS for [³H]naloxone AR) for 4 min (3×) following a rapid dip in ice cold deionized water. The sections were dried and exposed to a Fuji BAS TR imaging screen (GE Healthcare Norway AS, Oslo, Norway) for 4 weeks. The screen was analyzed by a high-resolution storage phosphor screen reader (Duerr CR-35 bio, Duerr GmbH, Germany). The inhibition of radioligand binding in three MOR-rich brain regions (thalamus, striatum, and presubiculum) was evaluated by drawing ROIs and quantification of radioactivity signal using AIDA image analysis software (Raytest GmbH, Straubenhardt, Germany). Manual thresholding was used to draw the regions on the first section. Initial regions were copied into the adjacent sections and adjusted according to the anatomy of the rat brain ROIs.

Radiosyntheses

Radiosynthesis of [¹⁸F]3b

In general, a typical batch of 5–10 GBq [¹⁸F]fluoride ions was produced using the ¹⁸O(p,n)¹⁸F nuclear reaction via proton bombardment of an enriched H₂¹⁸O liquid target on a GEHC PETtrace 800 cyclotron (NMS AS, Rikshospitalet, Oslo, Norge). The target water containing the [¹⁸F]fluoride ion was passed through a Waters SepPak light QMA cartridge that was preconditioned with 1 M potassium carbonate solution (5 mL) and water (10 mL). Potassium carbonate, K₂CO₃ (5 mg, 0.036 mmol) in water (200 μL), and crypt-222 (10 mg, 0.027 mmol, 99%) in acetonitrile (400 μL) were used to elute the [¹⁸F]fluoride ion from the cartridge into a V-bottomed reaction vessel. The vial was heated to 130 °C for 10 min under a stream of argon. Two cycles of addition evaporation of anhydrous MeCN (0.6 mL) were performed with 5 min of heating in each cycle. The temperature was increased to 150 °C, precursor 3k (3.5 mg, 10 μmol) in anhydrous DMF (0.6 mL) was added, and labeling was performed at 150 °C for 8 min. The reaction mixture was diluted with H₂O (3 mL) and passed through the first C18 cartridge that was preconditioned with EtOH (5 mL). C₁₈ was rinsed with H₂O (5 mL), and the retained product was eluted into a second vial using acetonitrile (0.7 mL). The product fraction was diluted with 0.7 mL of KH₂PO₄ (50 mM, pH 7), mixed well, and injected into the semipreparative HPLC equipped with a Luna c18(2) (250 × 10 mm), and separation of [¹⁸F]3b from the reaction mixture was achieved using a mixture of MeCN–KH₂PO₄ (50 mM, pH 7; 3:7) at a flow rate of 8 mL/min. The HPLC fraction containing [¹⁸F]3b was collected in a 100 mL collection flask, diluted with water (50 mL), and loaded on the second c18 to trap the product over it. Water (10 mL) was passed through the C18 afterward, and retained [¹⁸F]3b was eluted with Et₂O (0.7 mL) into a glass vial. Et₂O was dried under the stream of nitrogen at 40 °C for 3 min, and the product was formulated with EtOH (>10%) in physiological saline (3 mL in total) followed by sterile filtering with a 0.22 μm filter (Merck) in a noncorrected RCY of 21 ± 5% (n = 5) and radiochemical and chemical purity of >97%.

QC of [¹⁸F]3b

Radiochemical purity of [¹⁸F]3b was determined by a radio-TLC scanner (Raytest) using SiO₂ F254 TLC plates as the stationary phase and EtOAc–hexanes–Et₃N (65:30:5) as the mobile phase. Chemical and radiochemical purity was analyzed on an analytical HPLC equipped with a Luna C18(2) (250 × 4.6 mm) column using MeCN–KH₂PO₄ (50 mM, pH 7; 2:3) at a flow rate of 1.8 mL/min. The QC chromatograms of both radio-TLC and HPLC are shown in Figures S1 and S2. Concentration and molar activity of the final product were determined by HPLC analysis of the formulated radiotracer considering the calibration curve of the reference samples with the known concentration (nmol/mL) and calculating the cold mass from the area of the UV peak corresponding to the retention time of the reference compound.

Stability of [¹⁸F]3b in the Final Formulation

A sample (2 μL) was spotted on silica gel 60 F₂₅₄-coated aluminum TLC plates (Merck KgAA, Darmstadt, Germany) at 1,2,3,5, and 7 h to confirm the stability of [¹⁸F]3b in the final formulation using the radio-TLC procedure described above. It was observed that the product is stable for up to 7 h with a radiochemical purity of >98%. In order to support the TLC results and to check the chemical purity, 10 μL of the sample was injected in HPLC at 1,3,5, and 7 h using a Phenomenex Luna C18 (2) column (5 μm; 100 Å; 250 mm × 4.6 mm) and isocratic mixture of MeCN–phosphate buffer (0.1 M, pH 7; 30:70) at a flow rate of 1.8 mL/min.

Radiosynthesis of [¹⁸F]3e

Because high amounts of nonradioactive reference compound 3e (54 μg, 157 nmol/mL) were obtained when [¹⁸F]3e was synthesized using the conditions developed for radiosynthesis of [¹⁸F]3b, new radiolabeling conditions were developed for the synthesis of [¹⁸F]3e as follows. A batch of 5–10 GBq [¹⁸F]fluoride was extracted from target water with crypt-222 (10 mg, 27 μmol) and K₂CO₃ (5 mg, 36 μmol) in MeCN–H₂O (4:1, 0.6 mL) and dried using two cycles of MeCN (0.6 mL) at 130 °C for a total time period of 20 min. The temperature of the reactor was then decreased to 75 °C, and NO₂-to-¹⁸ F substitution was achieved by the addition of 3l (3.5 mg, 10 μmol) in anhydrous DMF (0.6 mL) at 75 °C for 3 min. The reaction mixture was diluted with H₂O (3.5 mL) and passed through the first C₁₈ cartridge. The cartridge was rinsed with H₂O (5 mL), and the product [¹⁸F]3e was eluted into a second vial using acetonitrile (0.7 mL). The product fraction was then diluted with 0.7 mL of NH₄HCO₂ (0.1 M, pH 7), mixed thoroughly, and injected into the semipreparative high-performance liquid chromatograph equipped with an HS-F5 column (250 × 10 mm) using the MeCN–NH₄HCO₂ (0.1 M, pH 7; 9:1) mixture at an isocratic flow rate of 5 mL/min. The HPLC fraction containing [¹⁸F]3e was collected in a 100 mL collection flask and loaded on the second C₁₈ cartridge after diluting with water (50 mL). H₂O (10 mL) was passed through the C₁₈ afterward, and retained [¹⁸F]3e was eluted into a clean glass vial using Et₂O (0.7 mL). Et₂O was dried under a stream of nitrogen at 40 °C for 3 min, and the product was formulated with EtOH (>10%) in physiological saline (2.0 mL), followed by filtering with a 0.22 μm filter in a noncorrected RCY of 23 ± 4% (n = 5) and a radiochemical and chemical purity of >97%.

QC of [¹⁸F]3e

Radiochemical purity of the formulated product was determined by radio-TLC using SiO₂ F₂₅₄ TLC plates as a stationary phase and EtOAc–hexanes–Et₃N (65:30:5) as a mobile phase. Chemical and radiochemical quantification was performed on an analytical high-performance liquid chromatograph equipped with HS-F5 (250 × 4.6 mm) using MeCN–NH₄HCO₂ (9:1; 0.1 M, pH 7) with a flow rate of 1.0 mL/min. The QC result of the final product is shown in Figure S12. The molar activity and the amount of substance in the final formulation were determined by HPLC using the calibration curve obtained after injecting the reference 3e with known concentrations (nmol/mL), as shown in Figure S13.

Stability of [¹⁸F]3e in the Final Formulation

The stability of [¹⁸F]3e was determined by radio-TLC and radio-HPLC using the analytical conditions described above. The samples were taken from the final formulation and analyzed at 1, 3, 5, and 7 h to determine the stability of [¹⁸F]3e at room temperature. See the Supporting Information.

HPLC analysis of the Desmethyl Analogue of 3b

Considering the reported metabolism of AH-7921 (3a), we assumed that the observed radioactive and more hydrophilic metabolites of [¹⁸F]3b in blood could be ascribed to demethylation. Therefore, we synthesized the desmethyl analogue of 3b and analyzed the compound by HPLC. Figure S19 shows the HPL chromatogram of a mixture of compound 3b (shown in green) and its desmethylated analogue (in red). The HPL chromatogram revealed that [¹⁸F]3b and its desmethyl analogue have a very similar retention time.

In Vitro Stability²⁷

The stability of both [¹⁸F]3b and [¹⁸F]3e was determined in human serum (Li-Heparin; Merck Biochrom, Darmstadt) and rat plasma (Li-Heparin; collected from male Sprague–Dawley rat blood samples). An aliquot of the radiotracer (5–10 MBq) was added to 200 μL of human serum or rat plasma and incubated at 37 °C. Aliquots of 15 μL were taken after 5, 10, 15, 30, 45, 60, 120, and 180 min and quenched in aqueous TFA (10%, 100 μL). The samples were centrifuged (20,000g, 2 min), and the supernatants were analyzed by radio-HPLC (Chromolith performance RP-18e, 100 × 4.6 mm; flow rate: 4 mL/min; solvent A: water (0.1% TFA); solvent B: acetonitrile (0.1% TFA); gradient: 10–90% B in A in 8 min).

Animal Experiments

All experiments were approved by the local animal protection authorities (Government of Central Franconia, Germany, no. 55.2 2532-2-618–14) and performed at the FAU in accordance with the relevant institutional guidelines and EU regulations. Ten to thirteen week-old female CD Sprague–Dawley rats (220–300 g; strain code: 001, Charles River) were used for animal experiments.

In Vivo Metabolism

The right femoral artery of two rats per radiotracer was cannulated to allow for arterial blood sampling. Blood samples (150 μL) were taken at 2, 5, 10, 30, and 45 min p.i. of [¹⁸F]3b or [¹⁸F]3e. Samples were collected in Li-heparinized Microvettes (100 LH, Sarstedt) and centrifuged (2000g, 5 min). Supernatant plasma (50 μL) was quenched in 50 μL of 10% aqueous TFA and centrifuged (20,000g, 5 min). An aliquot (10 μL) of the supernatant was analyzed in the γ-counter (Wallac Wizard), and 50 μL of the supernatant from each radiotracer was analyzed by radio-HPLC using the Kromasil C8 column (100 Å; 250 × 4.6 mm) in gradient elution; 20–53.3% MeCN (0.1% TFA) in water (0.1% TFA) for 25 min, 53.3–80% MeCN (0.1% TFA) in water (0.1% TFA) for 4 min, 80–100% MeCN (0.1% TFA) in water (0.1% TFA) for 1 min, and ending to 100% MeCN (0.1% TFA) for 4 min. The HPLC eluate was collected in fractions of 1.5 mL, and the fractions were analyzed in the γ-counter (Wallac Wizard). For each point of time, the percentage of the intact radiotracer was calculated as the sum of counts in fractions containing the intact radiotracer divided by the sum of counts in all fractions containing the metabolite or intact radiotracer. The function describing the amount of intact radiotracer was fitted using the “one-phase decay” model in GraphPad Prism. One rat per radiotracer was sacrificed by decapitation under isoflurane anesthesia, and the brain was harvested for metabolite studies. The cerebellum and cortex were separated from the rest of the brain, weighed, and analyzed in the γ-counter (Wallac Wizard). The three fractions were homogenized separately by grinding under 10% aqueous TFA (3 mL/g tissue) in a glass tissue homogenizer for 5 min. The supernatant layer was transferred to a centrifuge tube, centrifuged (20,000g, 5 min), and analyzed by radio-HPLC as described above for the blood samples.

Arterial Blood Sampling and Plasma Input Function

The right femoral artery of one rat per radiotracer was cannulated to allow for arterial blood sampling. Blood samples of 30 μL were taken every 10 s for the first 2 min p.i. of [¹⁸F]3b and [¹⁸F]3e at 150 and 180 s and then at 5, 10, 20, 30, 60, and 90 min. Samples were collected in Li-heparinized Microvettes (100 LH, Sarstedt), centrifuged (2000g, 5 min), weighed, and analyzed using a γ-counter (Wallac Wizard). An aliquot (10 μL) of the supernatant plasma was transferred to a test tube and counted as a reference. Values were corrected for decay, calculated as %ID/g, and corrected for metabolites by considering the graph describing the amount of intact radiotracer over time. The plasma input function was fitted using the “two-phase decay” model in GraphPad Prism.

Ex Vivo AR

Two rats per radiotracer were sacrificed at 45 min p.i. of [¹⁸F]3b and [¹⁸F]3e by decapitation under isoflurane anesthesia, and the brain was excised and subsequently frozen in hexane/dry ice bath (−70 °C). Coronal rat brain slices (14 μm) were prepared on a cryostat microtome (HM 500-O, Microm, Walldorf, Germany) and thaw-mounted on adhesive glass slides (Histobond, Marienfeld, Lauda-Königshofen, Germany). Slides were carefully dried in a stream of warm air and finally placed on a phosphor imaging plate (Fuji Imaging Plate BAS-IP SR 2025 E, Fujifilm, Düsseldorf) overnight prior to readout on the autoradiograph (HD-CR-35 Bio, Dürr NDT, Germany) and analysis with AIDA image analysis software (Elysia-raytest, Straubenhardt, Germany).

Histology

The brain tissue slices (15 μm) for staining with hematoxylin/eosin (HE) were fixated in ice cold acetone for 20 min. Slices were transferred to hematoxylin solution (modified according to Gill; Merck Millipore, Darmstadt) for 3 min and dipped in 0.1% aqueous HCl for 2 s. Differentiation was performed in running water for 3 min followed by incubation in eosin-Y (0.5%, alcoholic; Merck Millipore) for 5 min. Differentiation was again carried out in running water for 30 s. Dehydration of slices was performed using an ascending series of ethanol 70% (v/v) (2 × 4 s), ethanol 96% (v/v) (2 × 2 min), and xylene (2 × 5 min). Finally, slices were embedded in Entellan (Merck Millipore) and covered with glass slides.

In Vivo PET Imaging

Dynamic small-animal PET scans were performed on an Inveon microPET scanner (Siemens Healthcare, Erlangen, Germany). Female Sprague–Dawley rats (220–280 g, 10–13 weeks of age) were intravenously injected into the tail vein with [¹⁸F]3b or [¹⁸F]3e (10–28 MBq) under isoflurane anesthesia (4–5%). Depending on the parallel or subsequent experimental procedures, dynamic emission recordings were acquired at 0–120 min (n = 1), 0–90 min (including arterial blood sampling, n = 1), or 0–45 min (including subsequent ex vivo AR and determination of radioactive metabolites in vivo, n = 2). For displacement studies of [¹⁸F]3b, rats were coinjected with the radioligand and naloxone (1 mg/kg, n = 2). Dynamic emission images were corrected for decay and attenuation, and MAP (iterative maximum a posteriori) images were reconstructed using the built-in software of the PET scanner. The time frames for the image reconstruction were set to 0–120 min: 10 × 12 s, 3 × 60 s, 5 × 300 s, 9 × 600 s; 0–90 min: 10 × 12 s, 3 × 60 s, 5 × 300 s, 6 × 600 s; and 0–45 min: 12 × 10 s, 3 × 60 s, 8 × 300 s. Evaluation of the MAP images was conducted using the software Amide (A Medical Image Data Examiner, GNU General Public License, version 1.0.4) for visual control.

PET Image Data Analysis

The software PMOD 3.8 (Pmod Technologies LLC, Zurich, Switzerland) was used for PET data analysis. For each rat, early frames (0–2 min) were summed into static images. These images were warped into MNI space using nonlinear coregistration functions provided by the software combined with an FDG image. The transformation obtained was applied to the original, dynamic PET data set. After visual inspection, ROIs drawn on the MRI template were copied into the PET data. Time–activity curves were extracted for representative, large regions and used for kinetic analysis in conjunction with the metabolite-corrected plasma activity curves. Built-in kinetic models were applied to fit the time–activity curves based on either plasma or reference tissue (cerebellum) input and obtain quantitative measures of radiotracer kinetics.

Glossary

Abbreviations

AR

autoradiography

BP_ND

nondisplaceable binding potential

CHO

Chinese hamster ovary

DAMGO

H-Tyr-d-Ala-Gly-N-MePhe-Gly-ol

DOR

δ-opioid receptor

EOB

end of bombardment

GPCR

G-protein-coupled receptor

HEK

human embryonic kidney

KOR

κ-opioid receptor

MOR

μ-opioid receptor

OR

opioid receptor

PET

positron emission tomography
