Fulvic acid increases forage legume growth inducing preferential up-regulation of nodulation and signalling-related genes

Fulvic acid treatment increases yield and nodulation in Medicago sativa, in glasshouse and field experiments. De novo transcriptome analysis shows the up-regulation of early nodulation genes in response to fulvic acid.

Abstract

The use of potential biostimulants is of broad interest in plant science for improving yields. The application of a humic derivative called fulvic acid (FA) may improve forage crop production. FA is an uncharacterized mixture of chemicals and, although it has been reported to increase growth parameters in many species including legumes, its mode of action remains unclear. Previous studies of the action of FA have lacked appropriate controls, and few have included field trials. Here we report yield increases due to FA application in three European Medicago sativa cultivars, in studies which include the appropriate nutritional controls which hitherto have not been used. No significant growth stimulation was seen after FA treatment in grass species in this study at the treatment rate tested. Direct application to bacteria increased Rhizobium growth and, in M. sativa trials, root nodulation was stimulated. RNA transcriptional analysis of FA-treated plants revealed up-regulation of many important early nodulation signalling genes after only 3 d. Experiments in plate, glasshouse, and field environments showed yield increases, providing substantial evidence for the use of FA to benefit M. sativa forage production.

Introduction

Forage grasslands represent 26% of global land area and 70% of agricultural land (FAO and IFIF, 2010). In temperate climates, forage crops are cultivated and these are usually grasses (Poaceae) or herbaceous legumes (Fabaceae). The globally important legume lucerne or alfalfa (Medicago sativa) is of prominence in temperate forage production. For forage growers, increasing the crop’s yield is a primary focus, and new management practices to maintain or increase growth with lower nitrogen (N) inputs are needed. The application of a humic substance- (HS) derived biostimulant called fulvic acid (FA) may improve forage crop production.

Extractable HS fractions are considered to be key soil components, and their complex composition may be responsible for facilitating many complex chemical reactions in soil systems (Sutton and Sposito, 2005; Canellas et al., 2010; Trevisan et al., 2010a; Lamar et al., 2013). Identification of the specific effects of HS requires the use of well-structured, specific methods. Research on FA is often limited by chemical characterization and frequently uses samples which are not easily replicable, because their source is not unique (Pandeya et al., 1998). This makes designing appropriate controls for experiments difficult. Many studies often rely on a ‘no application’ or ‘water treatment’ as controls to determine the potential biostimulant effect of FA on a plant (Calvo et al., 2014). In the model plant Arabidopsis thaliana and many cereal crops, HS has been shown to have effects on plant growth including increased root growth, improved nutrient uptake and yield under stress and control conditions, and enhanced access to metals (Pandeya et al., 1998; Zhimang et al., 2001; Pinto et al., 2004; Dobbss et al., 2007; García et al., 2012; Vaccaro et al., 2015; Zhang et al., 2015; Bezuglova et al., 2017). A study of particular importance to forage crops is that of the legumes, soybean (Glycine max), peanut (Arachis hypogaea), and clover (Trifolium vesiculosum) (Tan and Tantiwiramanond, 1983). This study showed that a sand growth medium supplemented with FA reduced the number of nodules whilst increasing the nodule weight in a dose-dependent manner. Application of HS to Pisum sativum also increased root nodulation and mycorrhizal colonization (Maji et al., 2017). If such increases were able to improve N fixation in legumes, then this could increase the N storage of the vegetative tissue and perhaps the protein content. The important forage crop M. sativa has been found to increase in vegetative biomass after FA application but with variable responses (Little et al., 2013, 2014). Another study linked bulk soluble HS fractions to increased biomass of M. sativa and, moreover, nodulation with stimulated Sinorhizobium growth, but this study did not include nutritional controls and compared HS application with no addition (Xu et al., 2018). Studies using various HSs including FAs have been carried out in other important legumes and forage grasses (Verlinden et al., 2010; Aydin et al., 2012; Traversa et al., 2014; Daneshvar Hakimi Maibodi et al., 2015; Chang et al., 2016); however, again, no nutritional controls were used. Clearly, more detailed studies are required to fully assess the effect of FA on forage crops.

In recent years, RNA-sequencing (RNA-seq) has transformed from an exclusive tool used in discrete studies (Wang et al., 2009; Marguerat and Bähler, 2010) to a critical technique accessible for many projects to investigate phenotypic changes occurring in specific conditions (Costa-Silva et al., 2017). Changes in transcriptional expression in plants following stimulus, stress, or treatment can reveal the downstream signalling and metabolic changes that cause a phenotype. RNA-seq is an incredibly robust and sensitive tool (Mortazavi et al., 2008; ‘t Hoen et al., 2008; Martin et al., 2013; Conesa et al., 2016), providing a wealth of data that can provide an understanding of the underlying mechanisms underpinning a specific treatment.

Although a potential link between HS application and increased biomass and legume root nodulation has been demonstrated, the mechanism for the condition remains unknown. Previous studies have suggested wide-ranging modes of action for this biostimulant, including a hormone-like response by plants following HS addition (Nardi et al., 1994; Russell et al., 2006; Trevisan et al., 2010a, b; Canellas and Olivares, 2014), but there is a lack of transcriptional evidence to support this idea. Therefore, we have investigated the transcriptional changes that may occur in plants following FA treatment in both shoot and root tissues using RNA-seq analysis.

Two commercial FA formulations were tested in a range of important temperate forage crops including legumes, with M. sativa cultivars showing a stimulatory response to the application. In order to include appropriate nutritional controls for FA, chemical analyses of the commercial products were carried out. Treatments were first assessed in the glasshouse and controlled-environment room to establish growth effects on crops, and in M. sativa to establish a nodulation phenotype. Transcriptional changes were investigated for one FA treatment compared with its nutritional control, with de novo assembly and annotation of RNA-seq data, designed to provide evidence for the mode of action of FA linked to yield increases. Field trials were implemented at UK forage grower sites with applications and management using industry standard practices. The aim was to identify if a change in management practice including FA treatments can increase yield in forage cultivation under conventional farming methods.

Materials and methods

Chemical analysis

Two FA materials were acquired, VitaLink Fulvic (sourced from Holland Hydroponics & Horticulture, UK) and MPXA (F.A.R.M. Co., California, USA). These were termed VFA and MFA for subsequent work. The soluble dry weight of each FA was determined, and the elemental composition of solutions for total N, C, and trace elements was measured using inductively coupled plasma-optical emission spectrometry (ICP-OES) and inductively coupled plasma mass spectrometry (ICP-MS), performed for VFA at Computational and Analytical Sciences, Rothamsted Research, Harpenden, UK and for MFA at Biological Services, UEA, Norwich, UK. Samples (0.01 g ml^–1) were analysed by GC-MS [Agilent GC-MS Single Quad Mass Spectrometer (7890/5977), Agilent Technologies, California, USA] and run information was as follows: samples were derivatized with MSTFA (Sigma-Aldrich 394866) on an Ultra 2 column (19091B-102; length 25 m, internal diameter 0.2 mm, film 0.33 μm; Agilent Technologies); carrier gas hydrogen at a constant flow of 1.2 ml min^–1; inlet temperature 250 °C; injection volume 1 µl; injection mode split—splitless (30:1); oven temperature initial temperature 170 °C with ramp 10 °C min^–1 to 300 °C and hold at 300 °C for 5 min, with equilibration time 0.5 min and auxiliary temperature 250 °C; acquisition mode, SCAN between 50 m/z and 800 m/z. Data were acquired with Agilent Masshunter Qualitative Analysis (B.07.00), and peaks were identified with the NIST Atomic Spectra database (v14, National Institute of Standards and Technology, Maryland, USA) (Smith et al., 2005; Guijas et al., 2018; Linstrom and Mallard, 2018). Samples were run with standards to confirm contents. Data from this analysis are given in the Supplementary data at JXB online: ICP in Supplementary Tables S1 and S2; and GC-MS in Supplementary Figs S1 and S2. Data were used to produce elemental controls for FAs to use in plant and microbial assays, called VC for VFA and MC for MFA, as listed in Supplementary Tables S3 and S4.

NMR was carried out to elucidate the type and ratio of functional groups present in FAs. ¹H-decoupled ¹H-¹³C cross-polarization (CP) and CP single pulse (CPSP) solid-state NMR experiments were performed at 20 °C using a 7.05 T Bruker Avance III spectrometer equipped with a 4 mm triple resonance probe operating at frequencies of 300.1 MHz (¹H) and 75.5 MHz (¹³C). Each sample was packed into a zirconia rotor, sealed using a kel-f drive cap, and spun at 12 kHz. A CP contact time of 1 ms and relaxation delay of 5 s were employed, with 90° pulses of 3.5 µs and 4.5 µs used for ¹H and ¹³C, respectively. All spectra were referenced with respect to TMS (Sigma-Aldrich, 87920). Peak areas were obtained from the CPSP experiments (i.e. containing both rigid and mobile components) using the automatic integration tool of TopSpin 3.6.1. Subsequently, they were normalized to relative areas and grouped into different functional groups according to the expected chemical shift regions for soil organic matter (Mathers and Xu, 2003; Mathers et al., 2007): alkyl C (0–50 ppm), methoxyl C (50–60 ppm), carbohydrate C (60–90 ppm), di-O-alkyl C (90–110 ppm), aryl C (110–142 ppm), phenolic C (142–160 ppm), and carbonyl C (160–200 ppm). Data from NMR analysis are available in Supplementary Figs S3 and S4.

Plant growth conditions

Three cultivars of M. sativa were tested: cv. Daisy (DLF Forage Seeds, DK), cv. Luzelle [Oliver Seeds Ltd (bred by INRA/Agri-Obtentions, FR, 1993)], and cv. Gea (DLF Forage Seeds, DK). The forage grass Lolium perenne cv. AberMagic (bred by IBERS-ABY-S562-2016) was also included.

Medicago sativa seeds were scarified prior to sterilization with concentrated H₂SO₄ followed by six washes with sterilized deionized water (dH₂O). Seeds were then sterilized with a 10% (v/v) sodium hypochlorite solution containing 0.05% (v/v) Triton X-100 (X100) followed by six dH₂O washes. The final wash included nystatin 5 µg ml^–1 (Sigma-Aldrich N6261) and amoxicillin 50 µg ml^–1 (Sigma-Aldrich A8523), and was filter sterilized to reduce fungal or bacterial contamination. The seeds were imbibed in this solution at 30±1 rpm for 2 h at 4 °C, and the wash was replaced for a repeat imbibing period. Lolium perenne seeds were surface sterilized with 70% ethanol. All seeds were washed in dH₂O and plated on water agar [3 g of agar (AGA03, Formedium Ltd Norfolk, UK) in 200 ml of dH₂O]. Seeds plates were vernalized for 2 d at 4–6 °C before being transferred to a controlled-environment room with temperature at 23 °C and photoperiod of 16 h light (90 µmol m^–2 s^–1)/18 h dark. Plants were germinated before transplantation to a glasshouse.

Additional vegetative growth experiments (larger screen and plate environment)

The details of two additional vegetative yield experiments with FA treatment are available in the Supplementary data. For all growth experiments, FA or elemental controls were applied at the FA manufacturer’s recommended rate (1% in distilled water, 10 ml applied to the pot soil surface). This dosage rate was also used in the field trials and is therefore agriculturally relevant. First, a full screen of forage crops grown in the glasshouse was undertaken for VFA and MFA in comparison with dH₂O only (Supplementary Fig. S5). Secondly, an M. sativa cv. Daisy screen on plates (without transfer to soil), both with and without inoculation with Sinorhizobium meliloti was undertaken (see Supplementary Fig. S6)

Counts of Sinorhizobium colony-forming units (CFU)

Sinorhizobium meliloti 1021, kindly provided by Anne Edwards (Metabolic Biology, John Innes Centre), was pre-incubated in 100 ml of TY medium for 2 d at 28 °C shaking at 200 rpm to full cell density (OD_{600 nm} ~2.5), and then diluted for exponentially growing cultures to inoculate flasks for OD_{600 nm}=0.1. Treatment flasks of 100 ml of TY were set up as follows: NA, no addition; dH₂O, 10 ml of dH₂O; VFA/MFA, 10 ml of autoclaved 10% VFA or 5% MFA; VC/MC, 10 ml of 10% VC or 5% MC. Flasks were inoculated with 10 μl of the strain and incubated at 28 °C. At time points of 0, 1, 2, 3, and 4 d, dilutions from treatment flasks of 10^–1 to 10^–10 were taken in triplicate and 10 μl of diluted samples was spotted onto TY agar plates. Plates were incubated at 28 °C for 1 d until single colonies had formed in a dilution of ~20–200. Rhizobial cell density was calculated for dilution factor and total volume of culture. The whole experiment was repeated in triplicate.

Statistical analyses

Statistical analyses of measurements across triplicate experiments were calculated in Excel® 2016, with Student’s t-test for one-tailed distribution with homoscedastic data run between VFA/VC and MFA/MC; P-value denoted with * <0.05, ** <0.01, and *** <0.001. Significance between treatments was shown with letters using one-way ANOVA with Tukey testing in GenStat® 18th Edition (VSN International). Graphs were designed in RStudio.

RNA-seq plant material

Seeds of M. sativa cv. Daisy were sterilized and sown in full seed trays (36×22×6 cm) containing Church farm soil at a rate of 20 kg ha^–1. Trays were watered every 3–4 d, and at day 12 were treated with autoclaved 1% VFA or 1% VC to the soil at the base of the plant; VFA was compared in transcriptome analysis with VC due to it large response in both greenhouse and field trials. Plants were sampled for RNA at days 12 and 15, referred to as day 0 and day 3, respectively, in subsequent analysis. For each sample, 10 biological replicates were pooled, with shoot and root tissue separated to provide three experimental replicates from three trays. Tissue was immediately frozen in liquid N₂ and stored at –80 °C.

RNA extraction and sequencing

Total RNA was extracted using the TRI Reagent (Sigma-Aldrich, 93289) method with phase separation using 1-bromo-3-chloropropane and precipitation with 400 μl of isopropanol and 400 μl of of high salt precipitation solution: 0.8 M sodium citrate and 1.2 M NaCl. After incubation for 5 min at ~23–26 °C, and centrifugation at 12 000 g at 4 °C for 15 min, the pellet was washed with 1.5 ml of 70% (v/v) ethanol. Samples were air-dried for 5 min, and contaminated DNA was removed using the RNase-Free DNase Set (QIAGEN Ltd 79254).

Samples were purified using the RNeasy MinElute Cleanup Kit (QIAGEN Ltd, 74204) and initial quality was checked (Supplementary Table S5). Samples were diluted to 50–500 ng μl^–1.

Library construction [poly(A) mRNA] and sequencing were performed by Novogene (HK) Company Ltd (Hong Kong) using the Next® Ultra™ RNA Library Prep Kit (New England BioLabs Inc., E7530L) and sequenced on one lane of a HiSeq™ 2000 (Illumina, HWI-ST1276) in high output mode using 150 bp paired-end reads and V2 chemistry; the sequencing quality check is shown in Supplementary Table S6.

Read alignment and differential expression analysis

De novo transcriptome assembly was performed with Trinity (Grabherr et al., 2011), which used all samples generated. A total of 630 599 transcripts were preliminarily identified, including isoforms (Supplementary Table S7). BUSCO (Kriventseva et al., 2015) was run to check benchmarking of the assembly using Universal Single-Copy Orthologs. Kallisto (Bray et al., 2016) was used to align the assembly which is less subjective than ballgown mapping, providing both transcripts per million (TPM) and reads per kilobase million (RPKM) for subsequent analysis.

Differential gene expression was determined for shoot and root tissue independently using Degust (Powell, 2015) with all read alignments. Tissue samples were grouped into treatment and time point. Transcripts with both an absolute log fold change (FC) of 0.585 (1.5× FC) and a false discovery rate- (FDR) adjusted P-value (q-value) <0.05 were considered as differentially expressed (DE) (Supplementary Fig. S7). For every grouping of tissue samples, all three experimental replicates were required to fit these criteria, thus ensuring a very high benchmark. Differential expression was checked using the voom/Limma method (Law et al., 2014) for logFC between treatments (VC and VFA) at both time points (0 d and 3 d). Differential expression was then checked for individual treatments between time points. To eliminate any differences caused by random chance or plant development changes over the 3 d time scale, transcripts that were DE based on VFA treatment alone were calculated by subtracting 0VC versus 0VFA and 0VC versus 3VC from 0VFA versus 3VFA (Supplementary Table S8).

Gene Ontology (GO) term identification, functional annotation, and enrichment testing

Root DE transcripts were imported into the Blast2GO v1.4.4 program pipeline (Conesa et al., 2005; Gotz et al., 2008) as FASTA contigs for functional annotation. DE transcripts were checked against NCBI’s non-redundant NR database (Pruitt et al., 2005) with a BLAST expectation value cut-off of 1.0E^–3, and hits excepted for no more than 20 sequences. Mapping was run with the EMBL-EBI InterPro library (Mitchell et al., 2019) using amino acid mapping (Carbon et al., 2009) with all families, domains, sites, and repeats available tested. Annotation of mapped results was run using Gene Ontology Annotation Version 2019 (Ashburner et al., 2000; The Gene Ontology Consortium, 2019) with the strict parameters: annotation cut-off of 55; GO weight of 5 only; E-value-Hit-Factor restricted to 1.0E^–6; Hit filter set to 500; and Evidence Codes weighted from 0.5 to 1 depending on depth of evidence (default software parameters). The inbuilt statistical wizard in Blast2GO was used to generate distribution graphs for sequences and hit species, shown in Supplementary Fig. S8. To quality-check, a manual BLAST algorithm was performed (Altschul et al., 1990, 1997; Camacho et al., 2009) with the NCBI database (Benson et al., 2005, 2013; Zaretskaya et al., 2008; NCBI Resource Coordinators, 2016) of the 20 most significantly up- or down-regulated genes. Any genes lacking a GO annotation through InterPro were checked for annotation in QuickGO (Binns et al., 2009) and UniProt (UniProt Consortium, 2018) and added to the analysis; functional annotations can be found in Supplementary Table S9, with a graph representing the top 20 biological process GO terms shown in Supplementary Fig. S9.

To test for enrichment of different categories of de novo M. sativa DE transcripts relative to all expressed transcripts found in M. truncatula (as the closest relative), the PANTHER Classification System v14.1 was used (Thomas et al., 2003; Mi et al., 2010). GO-Slim graphs were generated for molecular function, biological process, and protein class, and then an over-representation test was performed using Fisher’s exact test (Thomas et al., 2006); see Supplementary Table S10.

Following RNA-seq root analysis, quantitative reverse transcription–PCR (qRT–PCR) was used to measure expression of a subset of DE transcripts. A subset of seven genes was chosen to confirm with qRT–PCR. Primers were designed for genes using available M. truncatula sequences, and primers calculated to have 90–115% efficiencies were used in qRT–PCR.

Root RNA underwent cDNA synthesis using SuperScript™ II Reverse Transcriptase (Invitrogen™ 18064022, Life Technologies Ltd) with oligo(dT) (Invitrogen™ 18418012, Life Technologies Ltd), and qRT–PCR was performed with SYBR® Green JumpStart Taq ReadyMix (Sigma-Aldrich); details can be found in Supplementary Table S11. Expression of the genes of interest was calculated using the arithmetic mean Ct according to analysis with the 2^–ΔCT method (Livak and Schmittgen, 2001) using the reference gene ACTIN2, as expression variance was comparable across all samples. Mean relative expression was calculated for experimental replicates and compared with RPKM logFC of DE transcripts.

Field trials

To assess if yield increases in M. sativa from VFA found in both plate and glasshouse experiments were applicable to growers, field trials were carried out over the 2017 and 2018 growing seasons. In 2017, trials were performed at Dengie Crops Ltd (Southminster, Essex, UK) with cvs Daisy and Fado. In 2018, the trials were at both Blankney Estates Ltd (Blankney, Lincolnshire, UK) and A Poucher and Sons (Bardney Dairies) Ltd (Market Rasan, Lincolnshire, UK) with the cvs Daisy and Gea, respectively.

Treatments to be tested were NA, dH₂O, 1% VFA, and 1% VC. The individual experimental design of each plot is shown in Supplementary Fig. S10. Each trial contained 4–6 plots per treatment of areas 4–10 m² with buffer zones between plots. As in the glasshouse trials, treatments were applied and, at 21 d post-treatment, samples were taken for vegetative biomass measurements using a randomized 625 cm² area. Samples were also taken for protein and chlorophyll for 2018 trial plots and analysis carried out at British Chlorophyll Company Limited (Blankney Estates, Navenby, UK); protein was detected using the Kjeldahl method, and chlorophyll using a Soxhlet extraction (Supplementary Fig. S11).

Results and discussion

Analysis of FAs found varying chemical composition

FAs were analysed for their elemental content using a range of techniques, with results shown in Supplementary Tables S1 and S2 and Supplementary Figs S1–S4. The data show that the two FAs have very different compositions, despite being based on similar starting material and following the same extraction process. ¹H-¹³C CPSP/MAS NMR experiments were carried out for the simultaneous quantification of mobile and immobile components of soils Supplementary Figs S3, S4), as it has been previously shown to be a powerful NMR methodology for the routine analysis of soils in the solid state. MFA showed a predominant presence of alkyl groups (~75%), followed by carbonyl (~16%), carbohydrate (~6%), and methoxyl (~3%) components (Supplementary Fig. S3). On the other hand, VFA is mostly made up of carbohydrates (~80%) and a small proportion of alkyl (~8%) components; it also contains some carbonyl (~7%), phenolic (~2%), and aryl (~2%) groups (Supplementary Fig. S4). Controlling the inorganic contents of FAs in elemental controls was most feasible (as shown in Supplementary Table S3 and S4), and with the organic contents compensated for with biologically available C in the form of sucrose. Controlling these contents where possible was imperative in determining an effect in plant assays and, by including nutritional controls, we can begin to determine if FAs are acting through a specific pathway with one or two active ingredients or as a nutritional additive. The lack of such controls in previous work may be the reason for the range of responses reported and perhaps for the plant hormone-like stimulatory response after HS application (Nardi et al., 1994; Russell et al., 2006; Trevisan et al., 2010a, b; Canellas and Olivares, 2014). Changes such as altered root architecture and uptake may be a nutritional effect. More recently, the standardization of HS analysis has been advocated, including the separation of C-containing groups (Lamar et al., 2013; Zherebker et al., 2018). Therefore, control solutions for plants and microbes were produced based on elemental analysis for MFA and VFA, termed MC and VC, respectively; a description is found in Supplementary Tables S3 and S4. Additional controls, as used in other studies, included dH₂O and no application (NA).

Fulvic acid increased growth of Medicago sativa and was not a nutritional effect

Biomass yield assays in glasshouse conditions were carried out with M. sativa cultivars using applications of MFA and VFA alongside control solutions MC, VC, NA, and dH₂O. Figure 1 shows vegetative biomass measurements recorded in three independent experiments for cvs Daisy, Luzelle, and Gea, alongside the grass L. perenne cv. AberMagic. Both cvs Daisy and Luzelle showed significantly increased vegetative growth after 3 weeks of FA treatment when compared with controls; cv. Gea also showed higher growth yields, but this increase was not statistically significant. This may be due to more interexperimental variation (as shown in individual sample points) due to the different time period when cv. Gea was tested during colder months in the glasshouse, with more rapid temperature fluctuations. The results in Fig. 1 demonstrate how application of FA can increase vegetative yield at very low concentration. This information supports existing indications of a potential yield effect of HS in M. sativa and similar forage legumes (Tan and Tantiwiramanond, 1983; Little et al., 2013, 2014; Xu et al., 2018). Figure 1 also shows how the grass species L. perenne did not have increased vegetative biomass from FA application. Importantly, comparing the nutritional controls with dH₂O treatments shows there was no significant nutritional component to the effect of FA application (see Fig. 1). Moreover, as shown in Supplementary Fig. S5 where FAs are tested with a larger screen of forage species, one can see how vegetative yield increases are found in legume species and not grasses when compared with dH₂O only.

Fig. 1.

Vegetative biomass of Medicago cultivars and Lolium following treatment with fulvic acids or controls. Treatments were applied to seedlings at 7 d post-germination, and vegetative yields (DW in mg) were assessed at 21 d post-treatment. Treatments were: NA in dark grey; dH₂O in grey; 0.5% MFA in blue; 0.5% MC in light blue; 1% VFA in orange; 1% VC in yellow. Three cultivars of Medicago were tested, cvs Daisy (a), Luzelle (b), and Gea (c). One cultivar of Lolium was tested, cv. AberMagic (d). Individual seedling biomass was measured for three independent experiments, as shown in black data points (Exp. 1=circles, Exp. 2=triangles, Exp. 3=squares). Box plots show variation across experiments. Multiple comparisons between treatments were conducted using a one-way ANOVA Tukey test shown with letters, and one-tailed Student’s t-tests were calculated for FAs and their controls, with P-value significance indicated on the left of the graphs.

Fulvic acid application caused an increased number of pink nodules

Yield in legumes is known to be affected by the degree of root nodulation by symbiosis with Rhizobium, including Sinorhizobium. The numbers of nodules were investigated in cvs Daisy and Luzelle, with counts performed on plants grown in both FA and control conditions. Figure 2 shows a representative visual scoring of cv. Daisy nodules for each treatment. This includes labelling of early stage initiating nodules (EINs), established white nodules (WNs), or mature pink nodules (PNs). Only WNs and PNs are included in counts.

Fig. 2.

Medicago sativa cv. Daisy nodules following treatment with fulvic acids or controls. Treatments were applied to seedlings at 7 d post-germination and photographs were taken at 21 d post-treatment. Treatments were: 1. NA in dark grey; 2. dH₂O in grey; 3. 0.5% MFA in blue; 4. 0.5% MC in light blue; 5. 1% VFA in orange; 6. 1% VC in yellow. Nodules are indicated as either early initiating nodules (EIN), white nodules (WN), or pink nodules (PN). Only white and pink nodules were counted as true nodules for this analysis. Scale included is 1 mm.

Total counts are shown in Fig. 3, with results from three coded experiments, alongside the percentage of pink nodules. In MFA and VFA treatments, mean total nodule number was only slightly increased (not significantly), but the number of PNs at 21 d was significantly increased compared with all other treatments. The pink colour of large PNs is indicative that Rhizobium are actively fixing N within the nodule, caused by the presence of leghaemoglobin (A. Liu et al., 2018). Therefore, FA treatment may affect the rate of N fixation and thus increase plant vegetative growth. In addition, testing of M. sativa on sterile agar plates with FA application alongside control treatments showed that the significant vegetative growth increase was found only when plates were inoculated with the S. meliloti strain. Plate experiment phenotypes of vegetative biomass, nodule number, and root biomass of cv. Daisy showed that increases of the former two are specific to Rhizobium inoculation (Supplementary Fig. S6).

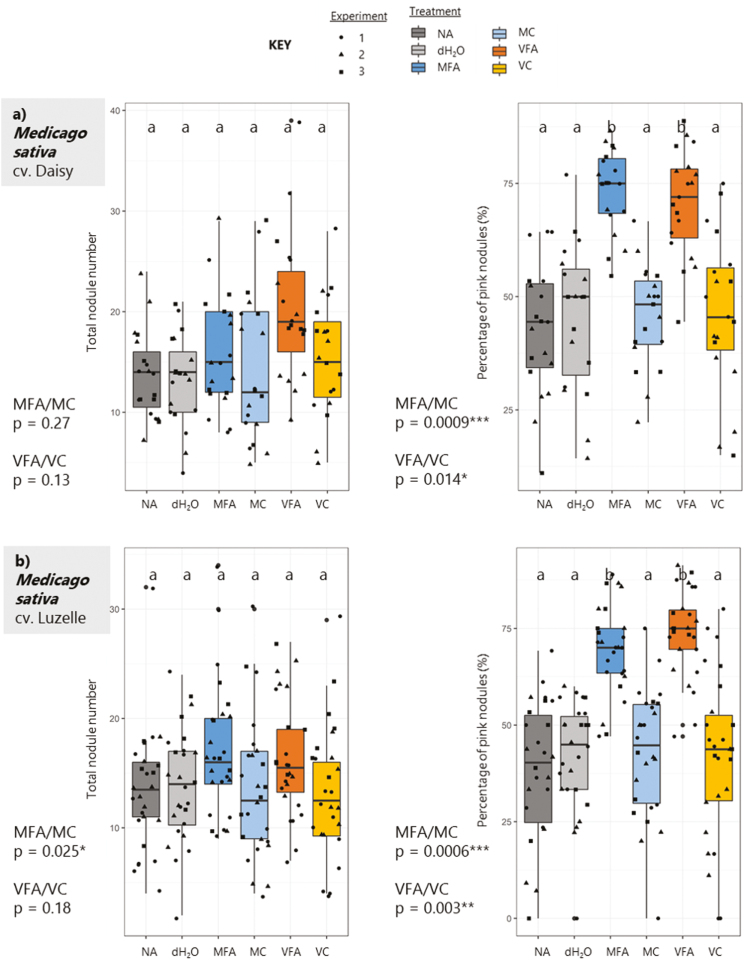

Fig. 3.

Nodulation counts of two Medicago sativa cultivars following treatment with fulvic acids or controls. Treatments were applied to seedlings at 7 d post-germination and nodules were counted at 21 d post-treatment. Treatments were: NA in dark grey; dH₂O in grey; 0.5% MFA in blue; 0.5% MC in light blue; 1% VFA in orange; 1% VC in yellow. Two cultivars of Medicago were tested, cv. Daisy (a) and cv. Luzelle (b). Individual seedling nodules were counted for three independent experiments, as shown in black data points (Exp. 1=circles, Exp. 2=triangles, Exp. 3=squares). Box plots show variation across experiments. Multiple comparisons between treatments were conducted using a one-way ANOVA Tukey test shown with letters, and one-tailed Student’s t-tests were calculated for FAs and their controls, with P-value significance indicated on the left of the graphs.

It is possible that FAs may also directly influence N-fixing bacteria such as Sinorhizobium. This has been reported in other studies (Little et al., 2014; Xu et al., 2018); however, these studies did not include nutritional controls. Improved symbiotic association of leguminous crops with Rhizobium is important with the current emphasis on growing more leguminous crops globally, due to their N-fixing activity (Lüscher et al., 2014; Preissel et al., 2015; Foyer et al., 2016; Iannetta et al., 2016; Reckling et al., 2016). For example, the fixing of atmospheric N₂ in legume/grass pastures has been estimated as 13–682 kg N ha^–1 year^–1 (Ledgard and Steele, 1992). Medicago sativa itself has been estimated to fix up to 350 kg N ha^–1 year^–1, providing an N fixation rate of 0.021×vegetative dry matter+16.9 (R²=0.91) (Carlsson and Huss-Danell, 2003), regardless of soil status or geographic location. Increased vegetative growth in M. sativa due to improved symbiosis with Rhizobium could have implications for the yields of other cultivated legumes.

Microbial growth is affected by fulvic acid

To determine if FAs affect growth of S. meliloti in the absence of plants, microbial growth in liquid culture was tested. Cultures of FAs or controls inoculated with S. meliloti were grown over 4 d with cell density tested using the standard microbial technique of CFU counts. The mean cell density results of three independent experiments are shown in Fig. 4. No effect of FAs on cell density was found at 0–1 d. At 2 d, both FA-treated cultures had a higher cell density than their nutritional controls; MFA measured 6.56×10⁹ compared with MC at 4.07×10⁹; VFA measured 6.81×10⁹ compared with VC at 4.26×10⁹. By 3 d, the MFA-treated culture did not differ in its cell density from any controls. Conversely, VFA had a significantly higher cell density of 1.88×10¹⁰. These results indicate that adding FAs to liquid cultures can increase growth of S. meliloti, with a similar result demonstrated in a study comparing the presence of a HS substance with no addition (Xu et al., 2018). Furthermore, the effect of FAs on increasing microbial cell growth without the presence of a plant interaction agrees with other published studies; HS addition has been shown to increase growth of Bradyrhizobium liaoningense in liquid culture (Guo Gao et al., 2015) and increase general microbial population growth in soil microbial cells (Visser, 1985). In contrast, a study of Candida utilis found no growth change with HS application, so the response may be specific to certain taxa (McLoughlin and Küster, 1972). It is possible that FA is able to affect the growth of other soil microbial populations which may also increase plant vegetative yields. This may include other important Rhizobium species for Medicago relatives, but, moreover, species of Streptomyces, Bacillus, and arbuscular mycorrhiza fungi (Schirawski and Perlin, 2018). Comparing the nutritional controls (MC and VC) with distilled water treatments (dH₂O) showed that there was no significant nutritional component to the effect of FA application (see Fig. 4).

Fig. 4.

Effects of fulvic acid on the growth of Sinorhizobium meliloti in culture, compared with controls. TY cultures containing treatments as follows were inoculated with S. meliloti: NA in dark grey; dH₂O in grey; 0.5% MFA in blue; 0.5% MC in light blue; 1% VFA in orange; 1% VC in yellow. Average colony-forming unit (CFU) counts were obtained from triplicate samples on days 0–4 of incubation with shaking at 220 rpm at 28 °C. Average counts for three separate experiments (three individual experimental replicates (on separate days), each with three technical replicates) were calculated and are shown above with the SD. Multiple comparisons between treatments were conducted using a one-way ANOVA Tukey test shown with letters.

RNA-seq demonstrates high levels of transcriptional changes in roots following FA treatment after 3 d

Transcriptional changes were investigated using RNA-seq for M. sativa shoot and root tissues treated with either VFA or its nutritional control VC, on the day of treatment (day 0) or 3 d after the treatment (day 3). DE transcripts were analysed with de novo transcriptome assembly, performed to negate for initial bias of other reference alignment such as M. truncatula in subsequent analysis. De novo transcriptome assembly was successful for building a scaffold, shown in Supplementary Table S7, with similar alignment rates of all transcripts for available M. truncatula references (data not shown).

DE transcripts for VFA and VC between the two time points were investigated, with transcripts requiring both an absolute log FC of 0.585 (1.5×FC) and an FDR-adjusted P-value (q-value) <0.05; Supplementary Fig. S7 shows those between day 0 and day 3 for VFA application in root samples. Figure 5 shows the number of up-regulated (+) and down-regulated (–) DE transcripts in shoots and roots of M. sativa following VFA and/or VC treatment. This result reveals that most DE transcripts (1705 up-regulated and 241 down-regulated) for VFA treatment occurred in the root tissue. This is compared with 140 up-regulated and 209 down-regulated DE transcripts in the shoot. This study shows that FA as VFA can induce substantial transcriptional changes in M. sativa after only 3 d, with the root showing far higher numbers of DE transcripts than shoots.

Fig. 5.

Differentially expressed transcripts in Medicago sativa shoot and root tissue with treatments of either VFA (orange) or VC (yellow). RNA-seq was carried out on whole shoot and root RNA samples taken on the day of treatment (day 0) or 3 d after treatment (day 3). Transcripts from de novo transcriptome assembly with both an absolute log fold change of 0.585 (1.5×FC) and a false discovery rate- (FDR) adjusted P-value (q-value) <0.05 were considered as differentially expressed (DE); DE transcripts significantly expressed between treatments at day 0 were removed to negate for false positives due to experimental variance. The Venn diagram shows up-regulated (+) and down-regulated (–) DE transcripts for both treatments between day 0 and day 3, including those which are shared (overlapping region). This difference in DE transcript number is emphasized by differing sizes of the circles in the plot.

Further analysis of DE transcripts can be found in the Supplementary data, with descriptions of BLAST results and analysis of both tissue types, and functional annotation of GO terms and enrichment testing of root samples only. Most DE isoforms had homologues in closely related legume species (Supplementary Fig. S8a). Many successful BLAST hits were recorded for each transcript sequence (Supplementary Fig. S8b), with significant hits in most having an extremely low E-value close to zero (Supplementary Fig. S8c). Following annotation, the GO terms in Supplementary Table S9 and Supplementary Fig. S9 demonstrated that root FA-induced transcriptional changes are wide ranging for biological process. There are high GO term hits for processes affected by VFA treatment including those regulating transcription and translation, and those associated with oxidation–reduction, metabolism, and transport. The GO analysis provided evidence that VFA very quickly affects crucial pathways in both C and N metabolism, as well as cell wall modification. This rapid transcriptional effect is likely to induce the later yield effect in vegetative tissue. There was an indication of changes in responses to defence, stress, and bacteria. These may be linked to response to symbiotic bacteria such as S. meliloti; at this developmental stage, nodulation can begin to be established, and it is well documented that important nodulation genes and factors are associated with defence responses through their evolution and function (Kouchi et al., 2004; Lohar et al., 2006; Libault et al., 2010; Chen et al., 2017; Clúa et al., 2018).

Enrichment testing shown in Supplementary Table S10 further provides evidence that VFA particularly up-regulated biological processes associated with N metabolism, similar to findings in Supplementary Fig. S9. Changes in N metabolism in the roots of legume species are associated with increases in nodulation signalling during initiation of symbiosis (A. Liu et al., 2018). The quick response in transcription in the roots suggests why there is a larger biomass increase after VFA treatment, probably through stimulated N supply to the legume via nodules or uptake by the roots. Responses to bacteria were enriched, providing further evidence from GO analysis that an effect on nodulation initiation may be the cause of such a change. Moreover, other important processes required for new root development and nodule growth showed enrichment, including cell wall biogenesis and organization. Molecular function testing showed enrichment in root nutrient transporter activity following VFA treatment, as well as enrichment of serine hydrolase activity, which has wide-ranging catalytic activity in plants (Kaschani et al., 2012; Mindrebo et al., 2016).

Transcriptome analysis shows preferential enrichment of nodulation regulation and signalling-related genes

The genes identified from the above analysis in the root which were significantly induced following VFA treatment were noted to overlap considerably with those in studies of early initiation of nodulation in legumes (El Yahyaoui et al., 2004; Kouchi et al., 2004; Moreau et al., 2011; Hayashi et al., 2012; O’Rourke et al., 2013; Alves-Carvalho et al., 2015; Larrainzar et al., 2015; Kant et al., 2016). To further investigate this, DE transcripts were compared with those which have been categorized as specific early symbiotic root nodulation genes in M. truncatula by Roux et al. (2014). In that study, laser-capture microdissection of roots and nodules was coupled with RNA-seq (Roux et al., 2014). This provided a robust list of genes induced at various stages of nodulation especially in early initiation. Table 1 details those DE transcripts up-regulated in the root following VFA treatment which are early genes required for the signalling and regulation of nodulation; annotations are available for many of these. These included an array of transcription factors and domains including Myb/SANT-like DNA-binding domain protein, AP2-like ethylene-responsive transcription factor, and zinc finger MYM-type protein 1-like; AP2/ERF transcription factors are known to control nodule number and differentiation (Middleton et al., 2007; Vernie et al., 2008;Wang et al., 2010; Peng et al., 2017). Many leucine-rich repeat receptor-like kinases (LRR RLKs) and other receptor kinases were found to be highly enriched, for example LysM domain receptor-like kinase; many LRR RLKs including CLAVATA protein homologues signal root development and nodulation induction (Krusell et al., 2002; Schnabel et al., 2005; Oka-Kira and Kawaguchi, 2006; Mortier et al., 2010; Lim et al., 2011; Reid et al., 2011), and LysM-type receptor-like kinases perceive early Rhizobium signals (Amor et al., 2003; Limpens et al., 2003; Madsen et al., 2003; Radutoiu et al., 2003; Knogge and Scheel, 2006; Indrasumunar et al., 2011; Popp and Ott, 2011; Kawaharada et al., 2015; Zipfel and Oldroyd, 2017).

Table 1.

Enriched DE transcripts in VFA roots which are putatively classed as highly preferential nodulation regulatory genes and nodule-associated signalling-related genes as in Roux et al. (2014)

Gene/protein ID	Description	Annotation	logFC	q-value
XP_024635034	Myb/SANT-like DNA-binding domain protein	TF MYB	5.35	1.90E-06
PNX91228	Putative CC-NBS-LRR resistance protein	LRR	4.98	1.23E-11
ABD33274, AES59362, RHN77255	RALF-like protein	Calcium/lipid binding	4.74	4.63E-06
RIA81513	Calnexin	Calcium/lipid binding	4.67	6.36E-09
RHN49201	Wall-associated receptor kinase-like 20	RLK	4.60	3.35E-05
KEH36571, RHN72042	CLAVATA3/ESR (CLE)-related protein	Ser/Thr protein kinase	4.36	2.44E-07
KEH28705, RHN58556	Putative LRR-domain, L domain-containing protein	LRR	4.29	6.43E-05
XP_003612592, AES95550, RHN54652	RING-H2 finger protein ATL52-like	TF ZnFg C2H2	4.28	1.63–75
XP_024641562	AP2-like ethylene-responsive transcription factor	TF AP2/ERF	4.08	1.74-04
XP_003594815, AES65066, RHN73104	COBRA-like protein 7	COBRA	4.00	1.78E-07
XP_003598348, AES68599, RHN65475	F-box protein interaction domain protein	F‐box protein	3.75	4.90E-07
AES76072, AES76110, RHN52304	NDR1/HIN1-like protein 10	NHL	3.67	2.52E-04
RHN60433	Disease resistance protein (TIR-NBS-LRR class)	LRR RLK	3.64	7.66E-06
XP_013443270, KEH17295, RHN51739	Cytokinin hydroxylase-like	CK activated	3.60	6.29E-06
XP_013466350, KEH40391, RHN77806	Receptor-like protein kinase	RLK	3.55	4.72E-06
XP_003604023, AES74274	COBRA-like protein 1	COBRA	3.53	7.35E-07
RGB31681	Calcium-binding protein	Calcium/lipid binding	3.49	1.84E-06
RHN72504	Probable inactive receptor kinase At2g26730	RLK	3.42	1.32E-05
XP_003613167, AES96125, RHN55010	l -tryptophan-pyruvate aminotransferase 1	TAA1‐like	3.39	2.54E-04
AES69839	LRR-P-loop containing nucleoside triphosphate hydrolase	LRR	3.32	7.54E-06
AES91737	F-box/kelch-repeat protein	F-box protein	3.32	6.92E-06
XP_024637477	Disease resistance protein (TIR-NBS-LRR class)	LRR	3.24	1.65E-05
EXX59026	WD40 repeat-like protein	TF WD	3.22	1.01E-04
XP_024631685, RHN72543	Mitogen-activated protein kinase kinase kinase 18-like	STY	3.14	2.55E-05
ABD28520	Protein RRP6-like 2	CK activated	3.09	9.33E-05
XP_013451548, KEH25576, RHN50766	Ankyrin repeat/protein kinase domain-containing protein 1	TF ERF	3.06	2.97E-05
AES95938	Disease resistance protein (TIR-NBS-LRR class), putative	LRR RLK	3.01	1.91E-05
RZB96753	Probable LRR receptor-like Ser/Thr-protein kinase	LRR RLK	2.99	5.78E-05
KHN26259	Zinc finger MYM-type protein 1-like	TF Zn finger	2.95	1.31E-04
XP_013451184, KEH25223, RHN50327	Protein NSP-interacting kinase 1	NSP	2.94	3.50E-05
RHN42361	Kinase RLK-Pelle-WAK-LRK10L-1 family	RLK	2.89	1.29E-04
RIA84146	Ca 2+ :H + antiporter	Calcium/lipid binding	2.87	8.02E-05
AES60803	F-box plant-like protein	F-box protein	2.78	1.71E-04
XP_013457946, KEH31977, RHN63702	Putative LRR-containing protein	LRR RLK	2.78	1.60E-04
RIA97789	ARM repeat-containing protein	E3 ligase	2.72	2.11E-04
XP_013445632	G-type lectin S-receptor-like Ser/Thr-protein kinase	Ser/Thr protein kinase	2.71	1.84E-04
AES73438	Plant regulator RWP-RK	NLP	2.70	1.87E-04
KEH38435	Rpp4C3	CK activated	2.69	1.22E-04
RIA81779	YIF1-domain-containing protein	TF AP2/ERF	2.69	1.26E-04
AES61923, RHN81250	C3HC4-type RING zinc finger protein	TF Zn finger	2.68	1.90E-04
XP_024633471.1	LysM domain receptor-like kinase 3	LysM receptor kinase	2.68	1.41E-04
XP_024625794	Putative receptor-like protein kinase	RLK	2.66	4.17E-05
RHN81081	Proline-rich protein 1-like	PRP	2.63	5.03E-05
PF04909	Nodulin-6	NIP	2.56	2.00E-04
XP_003615114, AES98072, RHN56135	Nodulin-26	NIP	2.56	6.80E-05
XP_013450575, RHN49450	L-type lectin-domain containing receptor kinase IX.1-like	RLK	2.49	5.82E-05
XP_013462891, KEH36925, RHN72571	Chitin elicitor receptor kinase 1-like	LysM receptor kinase	2.48	9.25E-06
XP_003601076.1, AES71327	Nodulation-signalling pathway 2 protein	NSP	2.11	1.43E-05
XP_024641514, AES76606, RHN52721	Putative NF-X1-type zinc finger protein NFXL1-like protein	NFX1-type zinc finger	1.75	1.68E-05
XP_013460228, KEH34259, RHN67624	Non-specific phospholipase	Phospholipase A2	1.52	4.71E-06
XP_024625319	U-box domain-containing protein 33 isoform X1	MtPUB	1.37	1.14E-04
XP_003631134, AET05610, RHN43936	Probable inactive receptor kinase At1g48480	Kinase	1.15	1.75E-04
XP_003616008, AES98966, RHN56723	CBL-interacting serine/threonine-protein kinase 11	Calcium binding, Ser/Thr protein kinase	1.04	1.40E-04
RHN48771	NDR1/HIN1-like protein 1	NHL	0.88	3.71E-05

The table includes a description of the protein, available gene/protein IDs, the annotation type, log fold change (logFC), and q-value for each DE transcript.

Genes required in bacteria- and hormone-induced plant responses were found to be up-regulated, for example NDR1/HIN1-like protein 10, protein RRP6-like 2, and cytokinin hydroxylase-like transcripts; an increase of Pathogenesis-related proteins can be induced in early symbiotic infection, before adequate Rhizobium suppression, rather than being in relation to a pathogen response (Kouchi et al., 2004; Lohar et al., 2006; Libault et al., 2010; Nakagawa et al., 2011; Popp and Ott, 2011; Oldroyd, 2013; Clúa et al., 2018). Important chitin regulatory genes are also detected to be changed in their expression by VFA treatment. This may affect lipochitooligosaccharide recognition as the key signal in initiating legume–Rhizobium symbiosis (Dénarié et al., 1996; Reddy et al., 1998; Liang et al., 2014; Muñoz et al., 2014; Bozsoki et al., 2017).

Finally, many nodulation-specific genes were enriched such as nodulation-signaling pathway (NSP) proteins, NSP-interacting kinases, and nodulins; nodulin is crucial in early nodule development (Legocki and Verma, 1980; Scheres et al., 1990; van de Wiel et al., 1990; Kouchi and Hata, 1993; Rivers et al., 1997; Gamas et al., 1998; Mathis et al., 1999; Becker et al., 2001; Marsh et al., 2007; Kant et al., 2016; Roberts and Routray, 2017; Y.-C. Liu et al., 2018) including in M. sativa (Fang and Hirsch, 1998; Cheng et al., 2000; Pringle and Dickstein, 2004; Lafuente et al., 2010).

The increase in transcription of these genes upon VFA treatment is a strong indication that this HS is associated with inducing early nodulation in M. sativa. The effect could be by influencing the plant itself in its response to symbiosis, for example a priming effect of VFA for subsequently inducing infection by the symbiont (Berg et al., 1989; Harris et al., 2005; Alimadadi et al., 2010). FA may be able to change the C:N metabolic balance of the plant and thus impact on the regulatory mechanisms of promoting symbiotic nodulation processes (Libault, 2014), or the effect could be a consequence of the treatment on the symbiont causing a nodule number increase. VFA may contain a specific nutritional aid, not adequately controlled for in VC application, which boosts symbiotic Sinorhizobium growth in soil and thus makes nodulation happen more rapidly (Singleton and Tavares, 1986; Thies et al., 1991). Similarly, VFA may decrease the inhibitory role of N in soil on nodulation and thus also encourage nodulation to occur with the symbiont and plant (Beauchamp et al., 2001; Zeijl et al., 2018, preprint). This is unlikely to be due to the low N content of the soil used in testing, but should be considered.

Vegetative growth effect was recorded in independent field trials

Figure 6 shows a comparison of the vegetative biomass of M. sativa cultivars in independent field trials following treatment with an FA or controls, in order to check if the FA treatment effect on M. sativa in glasshouse experiments could be demonstrated in the field. Over 2 years, four trials were conducted at three dedicated forage crop cultivation farms. Trial plots treatments were one of NA, dH₂O, VFA, or VC at early establishment of M. sativa (April–June). These plots were grown in accordance with site standard management practices for UK forage crop cultivation. Prior to the first harvest of the season (May–July), vegetative biomass was recorded for a sample from each treatment plot, shown in Fig. 6 for each experiment. Although different cultivars were tested at the various sites, for each experiment VFA-treated plots had increased vegetative biomass. This increased growth compared with NA or VC was 135–165%, which is only slightly lower than measurements from glasshouse experiments of 167–185%. The biomass increased for all vegetative tissues, both shoot and leaf.

Fig. 6.

Vegetative biomass of Medicago sativa cultivars in independent field trials following treatment with a fulvic acid or controls. Treatments were applied to field plots at the beginning of establishment, and vegetative yields were assessed before the first cut of the growing season; an area of 625 cm² was sampled and total vegetative tissue was dried for biomass (in g). Treatments were: no addition (NA in dark grey); deionized water (dH₂O in grey); 1% VFA (VFA in orange); and 1% VC (VC in yellow). Three trials of four cultivars were run over 2 years. In 2017, trials were performed at Dengie Crops Ltd (Southminster, Essex) with four plots per treatment of both cvs Daisy and Fado. In 2018, the trials were at both Blankney Estates Ltd (Blankney, Lincolnshire) and A Poucher and Sons (Bardney Dairies) Ltd (Market Rasan, Lincolnshire) with six plots per treatment of cvs Daisy and Gea, respectively. Individual plot samples are shown in black data points as indicated, and boxplots are for individual cultivar trials. Relative average increase in yield of VFA-treated plots compared with NA is shown as a percentage above the graph to the nearest 5%.

The nutritional content of M. sativa tissue from each treatment plot was also assessed for the 2018 trials. The results of one 2018 trial are shown in Supplementary Fig. S11 with samples of total vegetative biomass measurements, total chlorophyll, and total protein of samples. Although there was a significant difference in vegetative biomass, no significant difference in nutritional content was shown across any treatment. The other 2018 trial had similar results, with NA, dH₂O, VFA, and VC plots having an average chlorophyll and total protein content as follows; 2.91% and 17.87%; 2.61% and 17.96%; 2.83% and 18.21%; and 2.63% and 17.97%. These measurements show that the yield effect of VFA treatment on M. sativa is not linked to changes in tissue nutritional content. The enhanced vegetative growth from nodule stimulation did not result in increased protein storage. It is possible that FA and other HS treatments in other studies may replicate C-containing exudates usually released by plants to aid in symbiosis initiation, which in turn stimulates activity of Rhizobium. This increases nodulation signalling which encourages symbiosis, and results in higher nodule activity, and thus yield is increased.

It has been suggested that HS have a crucial active ingredient or ‘hormone’, such as an auxin-like molecule (Nardi et al., 1994, 2002; Russell et al., 2006; Canellas et al., 2010; Trevisan et al., 2010a, b). However, based on the analysis in this study, no such auxin-like molecule was detected, and both commercial applications were found to be different from one another. It is possible that past studies lacking nutritional controls may have given auxin-like growth stimulation, as the plants may have been subjected to suboptimal nutritional supply before treatment and growth effects after application could be interpreted as due to a hormonal stimulus. Although FA did promote growth in legumes. the response may be complicated by the mixture of many compounds in the product. By performing a chemical fractionation of FAs, it may be possible to find several common components with synergistic effects on nodulation.

In conclusion, we have demonstrated a specific stimulatory effect of FA treatment on the early stages of nodulation in M. sativa in both the glasshouse and the field. The FA treatment significantly enhanced biomass production and may be relevant for other legume crops.
