Loading applied on osseointegrated implant by transtibial bone-anchored prostheses during daily activities: Preliminary characterization of prosthetic feet

INTRODUCTION

Transtibial bone-anchored prostheses: Potential fitting option

Recent studies confirmed that osseointegrated implants enabling attachment of bone-anchored prosthesis (BAP) have the potential to provide significant clinical benefits to individuals with transfemoral amputation, particularly those who could not be fitted acceptably with socket-suspended prostheses (e.g., non-prosthetic users).^1–5 Risks of loosening and recurrent superficial and deep infections as well as breakage of implant parts are deemed acceptable by treating teams, although there are yet to be satisfactorily resolved.^{3, 5–10} Provision of transfemoral BAP appeared cost effective compared to socket-suspended prostheses from a governmental perspective.^11–13

These promising outcomes have encouraged developments of innovative surgical procedures to treat more frequent, but possibly more complex, case-mixes including transtibial with amputation (TTA).^{14, 15} For instance, a surgical procedure combining total 4 knee replacement and insertion of press-fit osseointegrated implant was created to enable attachment of BAP for TTAs with short residuum.¹⁵

Little is known about the clinical outcomes of surgical direct skeletal attachment specific to TTA, particularly the benefits (e.g., function, health-related quality life, cost effectiveness) and safety (e.g., loosening, infection, breakage of components).^{6, 15–17} Nonetheless, in all cases, the control of infection during the lifetime of these patients is paramount to prevent the undesirable setback of a transfemoral amputation that will significantly further decrease their quality of life.¹⁸ The clinical success of these procedures relies strongly on the generation and sustainability of sufficient osseointegration around the implanted part during postoperative rehabilitation (e.g., progressive load bearing exercises) and daily activities (e.g., regular and challenging loads), respectively.^{10, 19}

Prosthetic loading profile: Importance of characterization

It is commonly accepted that osseointegration is, in part or in whole, achieved proportionally to the loading regimen transmitted to the implant by BAP overtime.^20–24 Knowledge of the loading regimen is particularly critical for TTA fitted with BAP because the loading is directly translated from the ground to the implant via a single foot unit in contrast with transfemoral BAP requiring an additional knee unit.^25–30 An understanding of the loading regimen could be achieved through a so-called characterization of loading profile defined as a process of identifying and reporting specific loading variables prone to affect bone/implant interface. By definition, individual loading variables are affected by a combination of intrinsic factors associated with choice and alignment of foot and ankle units as well as extrinsic factors including the actual usage of the prosthesis during daily living, as illustrated in Figure 1.³¹

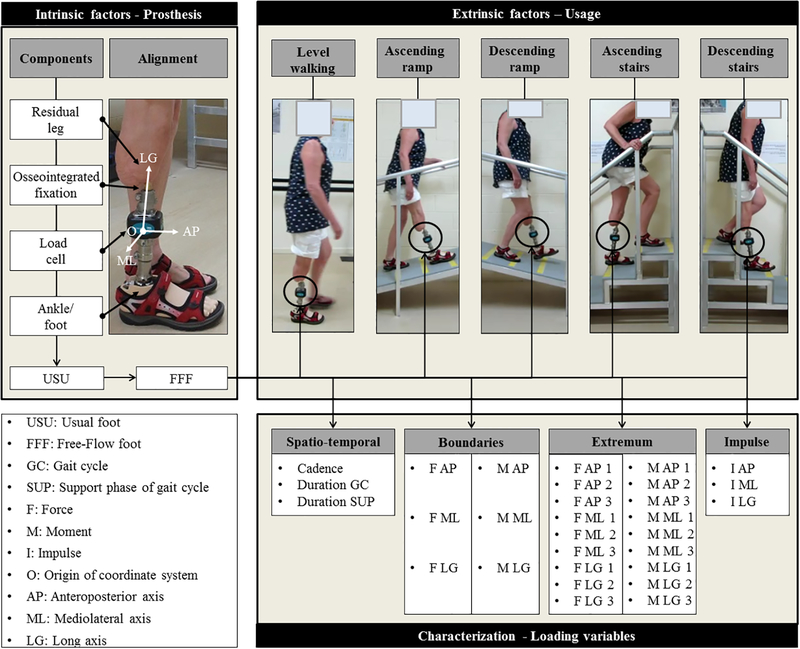

Figure 1.

Overview of list of spatiotemporal characteristics, loading boundaries (e.g., minimum, maximum, absolute maximum), local extremum (e.g., onset, magnitude) and impulse variables considered to characterize prosthetic loading regimen depending on the combination of intrinsic factors including instrumented bone-anchored prosthesis fitted with usual (USU) and Free-Flow (FFF) feet and extrinsic factors related to usage during standardized daily activity for participant 3.

Clearly, prosthetic feet fitted in transtibial BAP play a critical role in osseointegration in particular and clinical outcomes at large.^{32, 33} They are the sole loading components fitted by prosthetists (e.g., choice, alignment) and subjected to cost-benefit analysis by funders (e.g., end-users, reimbursement bodies).¹² The choice of this component is typically based on clinical experience of the prosthetist who considers altogether manufacturer’s and provider’s instructions, strength of osseointegration, functional outcomes, lifestyle, and cost.^{12, 13, 34, 35} Prosthetists could select a foot unit with a broad range of designs. Some are with or without anthropomorphic characteristics presenting a moment of resistance to dorsiflexion versus angle of dorsiflexion diagram with nonlinear convex and concave shape as defined in Pitkin et al. (2010) and reported in previous studies, respectively.^36–42

Extraction of loading data: Limitations of fixed equipment

One way to characterize the loading profile of transtibial BAP with a specific design is to rely on typical inverse dynamics equations providing comprehensive dynamics and kinematics information responsible for prosthetic and sound ankle, knee, and hip joint kinetics.^43–50 However, this approach requires fixed equipment placed in delimited space. Ground reaction forces and moments are collected using floor-mounted force plates while linear and angular position of lower-limb segments within a calibrated preset volume are captured using 3D motion analysis system.^{43, 44, 51, 52} Instrumentation of walkways as well as stairs and ramps is possible but tedious and often costly. Number of steps considered is limited by the number of force plates and cameras. The sole contact of each foot on a force plate required for valid dynamic measurements is commonly achieved through personalized arrangement of the starting point and/or force plates positioning to avoid targeting and/or repetitive recording of invalid trials.^43–45 Finally, inverse dynamics calculations are potentially sensitive to accurate extraction of inertial characteristics of prosthetic components.⁵³ Altogether, the extraction of the loading profile using this approach is resource intensive and partially realistic.

Portable kinetic system: Solution for ecological assessments

Alternatively, loading profile of transtibial BAP fitted with a given foot can be characterized using direct kinetic measurements relying on portable triaxial transducers embedded in the prosthesis.^{26, 27, 29, 31, 44, 46, 51, 52, 54–70} This method has been used in previous studies involving case series of TTAs fitted with socket-suspended prostheses that reported force versus moment in various planes during several walking activities (e.g., walking and turning round a circle) to compare prosthetic feet, determine the effect of anteroposterior alignment perturbations on rollover and predict intrasocket pressures.^25–27

Previous direct measurements of loading applied on osseointegrated implants were also performed during rehabilitation program (e.g., static load bearing, use of walking aids), standardized (e.g., walking, ascending and descending stairs and ramps) and unscripted daily activities (e.g., open environment) as well as a fall but only for small cohorts of individuals fitted with transfemoral BAP.^{31, 44, 51, 52, 58–70} A single-case study suggested ways to characterize the specific loading contribution of transfemoral BAP fitted with mechanical and microprocessor-controlled knees units.³¹

One of the typical limitations of these direct measurements was that explanations about the causes of the sole loading profile extracted were limited by the lack of complementary kinematic information. However, this method could allow prosthetic care providers to assess an unlimited number of steps and activities, making loading information extracted possibly somewhat more ecological and, therefore, more realistic.^{59, 60}

Transtibial BAP loading: Need for characterization

In summary, there is a body of literature demonstrating the benefits of using direct kinetic measurements to assess BAP loading but there is little evidence showing the ability of these measurements to differentiate loading profile associated with particular components, let alone feet units. Information currently available can only partially assist in the development of comprehensive loading characterization of transtibial BAP capable to back up prosthetics fitting choices. One can logically assume that the methodological principles underlying the collection, analysis, and reporting of loading profile laid out in studies focusing on transfemoral BAP should be fairly applicable to the characterization of loading applied on implant of TTAs fitted with BAP. However, this work is yet to be achieved.

Altogether, there is a need to establish a specific characterization of forces and moments applied on the three axes of osseointegrated implant of TTAs relying on state-of-the-art wireless compact triaxial transducer capable of conducting ecological kinetic assessments of ambulation that is relevant to engineers, clinicians, and biomechanists for better evidence-based design, fitting, and assessments of transtibial BAP.

Objectives

The ultimate aim of this work was to improve the understanding of the actual daily loading regimen applied on osseointegrated implant of TTAs fitted with BAP.

The main purpose of this observational case series study was to present a comprehensive characterization of prosthetic loading profile susceptible to reflecting the effect of various foot units on osseointegrated implant of three individuals with unilateral TTA during daily activities.

The specific objectives were:

1. To present the primary outcome corresponding to prosthetic loading data (i.e., three axial forces and moments) as well as secondary outcomes including a total of up to 390 variables comprising a set of three temporal characteristics, 36 loading boundaries, onset and magnitude of a maximum of 18 local extremum, and three impulse variables for each of the five standardized daily activities (i.e., straight level walking, ascending and descending stairs and ramp) while fitted with instrumented BAPs, with a particular emphasis on variability.

2. To compare these prosthetic loading characteristics when participants were fitted with two instrumented BAPs each including load cell, their own connectors, pylon and footwear as well as (A) their usual foot units (i.e., RUSH, Trias, Triton) and (B) an anthropomorphic foot (i.e., Free-Flow Foot) using a set threshold to differentiate characteristics above minimum clinically important difference.

3. To suggest a comprehensive and specific, but yet transferable, characterization of loading profile of BAP fitted to TTAs build upon the extraction of variables the most sensitive to prosthetic feet.

MATERIALS AND METHODS

Participants

This study involved all Queensland-based individuals with unilateral TTA fitted with a BAP using a so-called arm-length recruitment strategy applied by local prosthetists. No exclusion criteria were applied for gender, age, weight and height, or level of activity. The specific inclusion criterion included (A) having circa six centimeters clearance between the percutaneous part of the implant and ankle joint to fit the load cell as well as (B) being fully rehabilitated for at least 18 months, (C) capable of walking 200 m independently with BAP and (D) free of pain and infection at the time of recording. Human research ethics approval was received from the Queensland University of Technology. Written consent was obtained from all participants.

Apparatus

The load applied on the implant was measured while participants used two instrumented prostheses including their own usual (USU) and Free-Flow (FFF) foot successively. It should be highlighted that FFF developed by WillowWood, Sterling, OH, has anthropomorphic design featuring a cam-rolling mechanism replicating resistance to dorsiflexion of concave shape seen in anatomical ankle. This is in a contrast with other prostheses with rigid ankles characterized as non-anthropomorphic.³⁷

The instrumented prostheses included personal footwear, either USU or FFF foot, a pylon, a load cell attached with pyramidal adaptors, and a connector clipped onto percutaneous part of press-fit osseointegrated implant (Figure 1).

A qualified prosthetist (CPO) with over 30 years of experience, including several years working with BAP, handled all aspects of prosthesis fitting.

The loading applied on the implant was measured using a triaxial portable kinetic system (e.g., iPecsLab, RTC, US) set at 200 Hz including a load cell sending loading data wirelessly to a receiver connected to a laptop nearby. The three components of forces and moments were measured with previously established accuracy better than 1 N and 1 Nm, respectively.^{31, 49,58–60} The prosthetist aligned the coordinate system of load cell so that its vertical axis was coaxial with the long (LG) axis of the implant and the other axes corresponded to the anatomical anteroposterior (AP) and mediolateral (ML) directions of the implant (Figure 1). Forces acting along the AP, ML, and LG axes were denoted as FAP (anterior was positive), FML (lateral was positive), and FLG (compression was positive), respectively. Moments about the three axes were denoted as MAP (lateral rotation was positive), MML (anterior rotation was positive) and MLG (external rotation was positive), respectively.

Recording

First, the prosthetist assembled the instrumented prosthesis with the load cell and selected foot as described above. Then, the prosthetists proceed to dynamic alignment of each prosthesis replicating as closely as possible to the bespoke participants’ original alignment. Participants acclimated for approximately 15 min with prosthesis before assessment to ensure minimum confidence and comfort. Next, participants were asked to perform between three and five trials of five standardized daily activities including straight-line level walking (5 – 10 m walkway), ascending and descending ramp (2.5 m, 13.7 degree incline), and stairs (3 stairs, 20 cm height, 24.5 cm deep, 100 cm wide) following protocol previously used for individuals with transfemoral amputation (Figure 1).^{31, 59, 60} Participants were instructed to complete each activity at a self-selected comfortable pace as well as to use handrails and take sufficient rest between trials to avoid fatigue if needed. Finally, the prosthesis was removed to allow load cell bench top calibration post recording with dynamic alignment (i.e., zero-offset).

Processing

The primary outcomes corresponding to the series of raw forces and moments were imported and processed in a customized Matlab software program (The MathWorks Inc., MA, USA) as detailed previously.^{31, 58–60, 64, 70} The load data were offset according to the magnitude of the load recorded during calibration. The first and last strides recorded for each trial were removed to avoid considering gait initiation and termination, respectively. Heel contact and toe-off events were selected manually using FLG. Datasets were time-normalized from 0 to 100 throughout the gait cycle (GC) or support phases (SUP) to facilitate averaging of trials and reporting of events and extremum in percentage of GC (%GC) or SUP (%SUP), respectively. Forces and moments for each gait cycle (GC) were normalized from 0 to 100 to facilitate averaging of trials and reporting of events in percentage of GC (%GC). Forces and moments data were also expressed as percentage of bodyweight (%BW and %BWm) to facilitate group averaging, respectively.

Characterization

The secondary outcomes constituting the basic characterization of a prosthetic foot loading involved up to 75 variables for a given activity or 390 variables for all activities, as represented in Figure 1, including a series of:

• Three spatiotemporal characteristics per activity including the cadence in strides per minute for a given trial as well as the duration of GC in seconds and the support phases in %GC. These characteristics are surrogate measurements of the functional outcomes that can be readily compared with other symptomatic or able-bodied populations.⁶⁴

• A total of 36 loading boundaries per activity corresponding to magnitude of minimum and maximum as well as the absolute maximum of the three components of forces expressed in %BW and N as well as moments expressed in %BWm and Nm for all gait cycles considered without consideration for the time of occurrence. This information is necessary to determine to which extent the actual loading applied relates to the loading tolerances of generic (e.g., foot) and specific (e.g., implant, connector, protective device) BAP components.

• Up to 18 loading local extremum per activity including up to three extremum for each of the three components of forces and moments as described previously.^{31, 58–61} An extrema was defined as a point of inflection between loading slopes occurring consistently over successive GC for a given activity across all participants. Each extrema was detected semi-automatically by searching the maximum or minimum loading magnitude within a set time window selected manually. Extremum detected for each GC were described by a time of occurrence or onset expressed in percentage of support phase (%SUP) as well as a magnitude normalized by bodyweight (%BW or %BWm). Both onset and magnitude of extremum are necessary to develop subsequent automated pattern recognition of daily activities loading. Furthermore, particular discrete information at a point of time during the support phase (e.g., push off) extracted from continuous loading profile generated by a foot with unique design could be associated with regional osseointegration around implant.^{21, 22}

• Three impulse variables per activity expressed in %BWs were determined using conventional trapezoid method to integrate the area under of the three bodyweight normalized components of the force–time curves for each support phase. The impulse can be used as a clinical indicator reflecting the loading regimen that is useful to determine prosthesis usage and estimate components fatigue.^{31, 59, 60}

Comparative analysis

Only the average and one standard deviation of each secondary outcome for a given prosthesis will be presented here. Supplement individual data will be presented in a subsequent a Data-in-Brief publication.

The variability of a dataset was determined using the percentage of variation (PV= absolute [[standard deviation / mean] x100]). We considered that PV inferior or superior to 20% indicated a low and high variability, respectively.

The difference between feet for each of the secondary outcome was determined with FFF minus USU. Therefore, a positive and negative difference for a variable indicated that FFF was algebraically larger or smaller than USU, respectively. We determined whether differences are clinically meaningful by comparing it to a predetermined threshold. We considered that a difference superior and inferior to 10% was above and below a minimum clinically important difference (MCID), respectively. This threshold could appear low compared to other studies comparing prosthetic knee units suggesting that an MCID of 20% might be relevant.⁷¹ We believe a lower threshold is justified in the particular case of individuals with TTAs fitted with BAP given their increase proprioception due to osseoperception provided by osseointegrated implant.⁷² A lower threshold also contributed to a more conservative appraisal of differences in loading profiles between feet and discrimination of most sensitive variables.

RESULTS

The demographic, amputation and prosthetic information for the two males and one female who participated in the study between May and July 2017 were summarized in Table 1. The usual prostheses included a RUSH foot (RUSH, US) and running shoes, Trias 1C30 (Otto Bock, US) and running shoes as well as Triton - Vertical shock 1C6 (Otto Bock, US) for participants 1, 2 and 3, respectively. Only P2 used a foot recommended for transfemoral BAP prostheses fitted to screw-type fixation.⁷³ Their surgical procedure creating the direct skeletal attachment involved a total knee replacement and implantation of press-fit osseointegrated implant.¹⁵ All participants were active with an overall fairly high ambulatory capacity.

Table 1.

Individual (P1, P2, P3) and grouped (All) demographics and amputation information as well as components of the usual prosthesis. M: Male, F: Female, L: Left, R: Right, OI: osseointegration, %LoL: percentage of length of sound leg.

		Participants			Overall
		1	2	3	Mean	SD
Demographics
Gender	(M/F)	M	M	F	-	-
Age	(Yrs)	37.63	68.77	67.00	57.80	17.49
Height	(m)	1.92	1.78	1.58	1.76	0.17
Mass	(kg)	109.12	81.74	59.52	83.46	24.84
BMI	(kg/m2)	29.080	25.123	23.293	25.832	2.958
Amputation
Cause	(txt)	Other	Trauma	Trauma	-	-
Side	(L/R)	R	R	L	-	-
Time since amputation	(Yrs)	9.42	4.66	32.42	15.50	14.85
Time since OI	(Yrs)	1.58	1.83	2.98	2.13	0.75
Length of leg	(cm)	46.94	42.67	37.28	42.30	4.84
Length of residuum	(cm)	12.42	9.38	11.52	11.11	1.56
Length of residuum	(%LoL)	26.46	21.98	30.90	26.45	4.46
Usual prosthesis
Brand		RUSH	Otto Bock	Otto Bock	-	-
Model		RUSH foot	Trias	Triton	-	-
Footwear		Running shoes	Running shoes	Sandals	-	-

A total of 319 GCs were analyzed, including 150 and 169 with USU and FFF feet, respectively. An overview of the mean and standard deviation pattern of the load applied on implant fitted with both feet during the support phase of walking, ascending and descending ramp and stairs are presented in Figures 2, 3, 4, 5 and 6, respectively. The characterization of the loading profile applied with each foot involved comparing 100 variables as detailed below.

Figure 2.

Mean and standard deviation of the load applied on osseointegrated implant by bone-anchored prosthesis fitted with usual (USU) and Free-Flow (FFF) feet during the support phase of walking.

Figure 3.

Mean and standard deviation of the load applied on osseointegrated implant by bone-anchored prosthesis fitted with usual (USU) and Free-Flow (FFF) feet during the support phase of ascending ramp.

Figure 4.

Mean and standard deviation of the load applied on osseointegrated implant by bone-anchored prosthesis fitted with usual (USU) and Free-Flow (FFF) feet during the support phase of descending ramp.

Figure 5.

Mean and standard deviation of the load applied on osseointegrated implant by bone-anchored prosthesis fitted usual (USU) and Free-Flow (FFF) feet during the support phase of ascending stairs.

Figure 6.

Mean and standard deviation of the load applied on osseointegrated implant by bone-anchored prosthesis fitted usual (USU) and Free-Flow (FFF) feet during the support phase of descending stairs.

Spatiotemporal characteristics

As presented in Table 2, 11 (73%) and 13 (87%) out of the 15 spatiotemporal characteristics considered for all activities showed a low variability with the USU and FFF feet, respectively. Only 3 (20%) characteristics were above MCID including the duration of GC during ascending ramp and both stairs activities.

Table 2.

Mean and standard deviation of spatiotemporal characteristics including cadence, duration of gait cycle (GC) and support phases while using usual (USU) and Free-Flow (FFF) feet during activities of daily living. H: High PV, L: Low PV, A: Above MCID, B: Below MCID.

		Level walking		Ascending ramp		Descending ramp		Ascending stairs		Descending stairs
USU
Cadence	(Strides/min)	50±7	L	40±10	H	47±4	L	34±9	H	19±4	H
Gait cycle	(s)	1.24±0.13	L	1.77±0.32	L	1.31±0.13	L	1.94±0.44	H	1.78±0.32	L
Support	(%GC)	64±3	L	66±4	L	65±5	L	59±3	L	65±6	L
FFF
Cadence	(Strides/min)	49±6	L	39±7	L	48±5	L	34±9	H	20±3	L
Gait cycle	(s)	1.30±0.13	L	1.59±0.25	L	1.26±0.13	L	1.70±0.43	H	1.54±0.26	L
Support	(%GC)	64±3	L	65±4	L	62±3	L	59±8	L	63±5	L
Difference
Cadence	(Strides/min)	−1	B	−1	B	1	B	1	B	1	B
Gait cycle	(s)	0.059	B	−0.181	A	−0.049	B	−0.239	A	−0.237	A
Support	(%GC)	0	B	−1	B	−3	B	0	B	−2	B

Loading boundaries

As detailed in Table 3, the loading boundaries across all participants and activities ranged between −20 %BW and 48 %BW or −215 N and 451 N on FAP, −9 %BW and 17 %BW or −75 N and 179 N on FML, −24 %BW and 112 %BW or −252 N and 1,179 N on FLG, −2 %BWm and 1 %BWm or −24 Nm and 11 Nm on MAP, −4 %BWm and 13 %BWm or −45 Nm and 141 Nm on MML, −1 %BWm and 1 %BWm or −9 Nm and 13 Nm on MLG. The largest difference in loading between both feet across all axes and activities were 17 %BW and 155.67 N for forces as well as 3 %BWm and 38.08 Nm for the moments.

Table 3.

Loading boundaries including minimum (Min) and maximum (Max) magnitude of forces (F) expressed in %BW and N, and moments (M) expressed in %BWm and Nm, on the anteroposterior (AP), mediolateral (ML), and long (LG) axes of the implant fitted with usual (USU) and Free-Flow (FFF) feet during activities of daily living.

			Level walking		Ascending ramp		Descending ramp		Ascending stairs		Descending stairs
			Min	Max	Min	Max	Min	Max	Min	Max	Min	Max
USU
F	AP	(%BW)	−16	39	−12	40	−20	48	−15	42	−17	33
F	ML	(%BW)	−8	14	−4	12	−6	12	−5	15	−9	17
F	LG	(%BW)	−12	111	−11	110	−22	109	−21	106	−11	112
M	AP	(%BWm)	−1.91	0.80	−1.51	0.78	−2.20	0.45	−0.84	1.39	−1.53	0.68
M	ML	(%BWm)	−3.01	9.78	−0.73	13.17	−4.25	5.23	−0.70	10.46	−2.36	8.03
M	LG	(%BWm)	−0.80	0.82	−0.63	0.87	−0.66	0.52	−1.01	0.89	−0.76	1.18
F	AP	(N)	−107.75	344.96	−66.42	425.92	−214.58	383.37	−84.77	450.96	−96.25	311.56
F	ML	(N)	−63.93	152.15	−32.19	128.35	−46.99	133.76	−38.89	162.73	−74.84	179.10
F	LG	(N)	−96.08	1,129.25	−60.73	1,109.52	−175.22	1,170.03	−118.59	1,133.99	−60.35	1,070.45
M	AP	(Nm)	−19.60	8.56	−8.54	8.37	−23.54	4.79	−6.76	9.55	−9.01	7.30
M	ML	(Nm)	−26.23	104.64	−7.85	140.95	−45.49	42.68	−5.53	111.94	−13.37	85.95
M	LG	(Nm)	−8.52	8.75	−5.01	9.33	−7.01	4.26	−8.13	9.50	−6.10	12.59
FFF
F	AP	(%BW)	−13	41	−10	48	−15	48	−14	39	−11	39
F	ML	(%BW)	−8	14	−4	14	−6	14	−5	13	−9	16
F	LG	(%BW)	−24	107	−6	109	−22	110	−3	107	−13	107
M	AP	(%BWm)	−1.77	1.11	−2.05	0.46	−1.89	0.34	−1.14	1.31	−1.47	1.38
M	ML	(%BWm)	−3.23	8.22	−0.81	12.02	−3.72	5.23	−0.72	7.59	−1.23	6.49
M	LG	(%BWm)	−0.54	0.69	−0.55	1.08	−0.55	0.62	−0.75	1.19	−0.97	0.90
F	AP	(N)	−80.06	329.36	−54.04	386.60	−137.04	383.37	−80.55	312.89	−64.72	314.31
F	ML	(N)	−66.25	152.52	−34.75	148.01	−46.99	150.37	−36.75	143.76	−71.68	169.28
F	LG	(N)	−251.75	1,091.39	−59.06	1,103.56	−175.22	1,178.84	−28.02	1,141.42	−107.35	1,074.47
M	AP	(Nm)	−15.92	8.91	−11.63	4.75	−20.19	3.53	−8.37	10.49	−15.72	11.01
M	ML	(Nm)	−25.82	72.23	−6.46	102.87	−38.48	52.78	−4.39	81.29	−9.42	67.35
M	LG	(Nm)	−5.83	5.86	−4.37	11.56	−5.86	6.69	−7.32	9.54	−7.76	9.67
Difference
F	AP	(%BW)	3	2	2	9	5	0	1	−3	6	6
F	ML	(%BW)	0	0	0	2	0	2	0	−2	0	−1
F	LG	(%BW)	−12	−4	4	−1	0	1	17	1	−3	−5
M	AP	(%BWm)	0.15	0.31	−0.54	−0.32	0.31	−0.11	−0.29	−0.08	0.06	0.70
M	ML	(%BWm)	−0.22	−1.55	−0.07	−1.15	0.53	0.00	−0.03	−2.86	1.13	−1.53
M	LG	(%BWm)	0.25	−0.13	0.08	0.21	0.11	0.10	0.26	0.30	−0.21	−0.27
F	AP	(N)	27.69	−15.60	12.39	−39.32	77.55	0.00	4.22	−138.07	31.53	2.75
F	ML	(N)	−2.32	0.37	−2.56	19.66	0.00	16.61	2.14	−18.97	3.15	−9.82
F	LG	(N)	−155.67	−37.86	1.67	−5.95	0.00	8.81	90.57	7.43	−46.99	4.02
M	AP	(Nm)	3.68	0.34	−3.09	−3.62	3.35	−1.26	−1.62	0.94	−6.71	3.71
M	ML	(Nm)	0.41	−32.41	1.39	−38.08	7.00	10.09	1.15	−30.65	3.95	−18.60
M	LG	(Nm)	2.69	−2.89	0.65	2.23	1.15	2.43	0.82	0.04	−1.66	−2.92

Local extremum

A total of 34 out of 90 potential local extremum across all activities were extracted as they occurred consistently for all participants (i.e., FAP1, FAP2, FML1, FLG1, MAP1, MML1, MML2, MLG1, MLG2), including 7 for level walking, ascending and descending ramps as well as 8 and 5 for ascending and descending stairs, respectively.

Onsets presented in Table 4 showed low variability for 11 (32%) and 8 (24%) extremum with USU and FFF feet, respectively. The difference of onset was above MCID for 15 (44%) extremum including 3 (9%), 4 (12%), 3 (9%), 4 (12%) and 1 (3%) during walking, ascending and descending ramp and stairs, respectively.

Table 4.

Mean and standard deviation of onset expressed in percentage of the support phase of local extremum of forces and moments on the anteroposterior (AP), mediolateral (ML) and long (LG) axes of the implant fitted with usual (USU) and Free-Flow (FFF) feet during activities of daily living. H: High PV, L: Low PV, A: Above MCID, B: Below MCID.

		Level walking		Ascending ramp		Descending ramp		Ascending stairs		Descending stairs
USU
F	AP1	12.99±6.97	H	-	-	-	-	-	-	-	-
F	AP2	83.23±7.42	L	75.12±18.13	H	29.04±15.60	H	40.92±30.22	H	78.06±12.31	L
F	ML1	39.77±15.47	H	35.82±15.94	H	65.08±15.86	H	37.85±19.26	H	52.71±15.61	H
F	LG1	43.40±18.57	H	59.65±20.91	H	52.69±13.68	H	75.62±14.16	L	40.76±17.05	H
M	AP1	93.94±12.79	L	73.82±20.38	H	58.69±19.18	H	80.46±22.53	H	52.65±29.61	H
M	ML1	13.06±4.43	H	3.24±2.36	H	47.58±20.87	H	7.23±10.45	H	73.47±13.20	L
M	ML2	76.38±6.99	L	74.29±11.02	L	89.58±11.73	L	81.23±6.19	L	-	-
M	LG1	-	-	68.82±13.65	L	87.54±15.17	L	15.15±11.34	H	-	-
M	LG2	-	-	-	-	-	-	71.15±25.55	H	-	-
FFF
F	AP1	15.11±9.62	H	-	-	-	-	-	-	-	-
F	AP2	80.09±5.68	L	67.06±20.49	H	20.09±13.20	H	48.83±26.96	H	71.00±15.40	H
F	ML1	43.41±20.85	H	40.39±17.14	H	61.77±23.19	H	41.39±17.40	H	51.16±20.75	H
F	LG1	45.68±19.78	H	63.11±18.32	H	46.43±19.88	H	71.44±15.25	H	42.21±21.27	H
M	AP1	72.30±20.02	H	64.06±15.86	H	63.89±25.10	H	60.11±28.41	H	34.21±35.11	H
M	ML1	11.50±3.68	H	2.83±1.50	H	26.51±10.93	H	5.83±11.56	H	70.74±13.73	L
M	ML2	76.95±7.00	L	76.33±5.82	L	88.17±11.81	L	80.39±4.03	L	-	-
M	LG1	-	-	68.44±12.28	L	87.43±11.84	L	27.67±15.77	H	-	-
M	LG2	-	-	-	-	-	-	77.22±17.72	H	-	-
Difference
F	AP1	2.12	A	-	-	-	-	-	-	-	-
F	AP2	−3.14	B	−8.06	A	−8.95	A	7.91	A	−7.06	B
F	ML1	3.64	B	4.57	A	−3.31	B	3.54	B	−1.55	B
F	LG1	2.27	B	3.46	B	−6.26	A	−4.17	B	1.45	B
M	AP1	−21.64	A	−9.77	A	5.19	B	−20.35	A	−18.44	A
M	ML1	−1.56	A	−0.40	A	−21.06	A	−1.40	A	−2.73	B
M	ML2	0.57	B	2.04	B	−1.41	B	−0.84	B	-	-
M	LG1	-	-	−0.38	B	−0.11	B	12.51	A	-	-
M	LG2	-	-	-	-	-	-	6.07	B	-	-

Magnitudes presented in Table 5 showed low variability for 8 (24%) and 7 (21%) extremum with USU and FFF feet, respectively. The difference of magnitude was above MCID for 16 (47%) extremum including 3 (9%), 4 (12%), 3 (9%), 4 (12%) and 1 (3%) 16 during walking, ascending, and descending ramp and stairs, respectively. The loading with FFF increased above MCID for FAP1, MAP1 and MML1 during walking, FAP2 and MML1 during ascending ramp, FAP2, MAP1, MML1 and MLG1 during descending ramp as well as FAP2 during descending stairs. The loading with FFF decreased above MCID for MAP1 and MML2 during ascending ramp, MML2 during descending ramp, FML1, MML1, MML2, MLG1 during ascending stairs as well as MAP1 during descending stairs.

Table 5.

Mean and standard deviation of magnitude of local extremum of forces in %BW and moments in %BWm on the anteroposterior (AP), mediolateral (ML) and long (LG) axes of the implant fitted with usual (USU) and Free-Flow (FFF) feet during activities of daily living. H: High PV, L: Low PV, A: Above MCID, B: Below MCID.

		Level walking		Ascending ramp		Descending ramp		Ascending stairs		Descending stairs
USU
F	AP1	−9.65±4.85	H	-	-	-	-	-	-	-	-
F	AP2	22.07±10.15	H	21.83±13.87	H	−13.56±5.40	H	27.23±11.86	H	13.78±11.24	H
F	ML1	8.22±2.53	H	7.06±3.27	H	7.87±2.54	H	9.18±4.09	H	7.89±3.96	H
F	LG1	102.05±4.36	L	100.10±5.92	L	98.28±13.22	L	97.53±4.90	L	100.25±8.78	L
M	AP1	0.11±0.27	H	−0.90±0.65	H	−1.33±0.57	H	0.68±0.57	H	0.99±0.52	H
M	ML1	−2.00±0.49	H	−0.10±0.35	H	−3.53±0.63	L	0.03±0.44	H	3.65±2.73	H
M	ML2	7.94±0.78	L	10.99±0.91	L	1.91±1.99	H	7.89±1.85	H	-	-
M	LG1	-	-	0.55±0.22	H	0.22±0.10	H	−0.34±0.29	H	-	-
M	LG2	-	-	-	-	-	-	0.41±0.34	H	-	-
FFF
F	AP1	−7.49±3.92	H	-	-	-	-	-	-	-	-
F	AP2	22.87±8.69	H	28.26±11.33	H	−9.03±5.34	H	26.58±11.95	H	19.31±12.45	H
F	ML1	8.23±3.20	H	7.19±4.02	H	7.09±3.25	H	7.15±3.40	H	7.76±4.38	H
F	LG1	99.69±4.60	L	100.20±5.15	L	98.26±9.74	L	98.50±4.77	L	97.92±9.24	L
M	AP1	0.90±0.56	H	−1.01±0.73	H	−0.81±0.65	H	0.66±0.45	H	0.68±0.55	H
M	ML1	−1.63±0.37	H	−0.01±0.18	H	−2.61±0.88	H	−0.10±0.25	H	3.98±1.98	H
M	ML2	7.19±0.70	L	9.86±1.44	L	1.46±1.82	H	5.72±1.76	H	-	-
M	LG1	-	-	0.51±0.31	H	0.26±0.14	H	−0.44±0.18	H	-	-
M	LG2	-	-	-	-	-	-	0.44±0.35	H	-	-
Difference
F	AP1	2.16	A	-	-	-	-	-	-	-	-
F	AP2	0.80	B	6.43	A	4.53	A	−0.65	B	5.53	A
F	ML1	0.01	B	0.14	B	−0.78	B	−2.04	A	−0.14	B
F	LG1	−2.35	B	0.10	B	−0.03	B	0.97	B	−2.33	B
M	AP1	0.79	A	−0.12	A	0.52	A	−0.01	B	−0.32	A
M	ML1	0.36	A	0.09	A	0.92	A	−0.13	A	0.33	B
M	ML2	−0.75	B	−1.13	A	−0.45	A	−2.17	A	-	-
M	LG1	-	-	−0.04	B	0.04	A	−0.11	A	-	-
M	LG2	-	-	-	-	-	-	0.04	B	-	-

Impulse

As presented in Table 6, 2 (13%) and 3 (20%) out of the 15 impulse variables considered for all activities showed a low variability for the USU and FFF feet, respectively. A total of 7 (47%) variables were above MCID including increase and decrease of IAP during ascending and descending ramp, decrease of IML during ramps and stairs activities, and decrease of ILG during ascending stairs, respectively.

Table 6.

Mean and standard deviation of impulse on the anteroposterior (IAP), mediolateral (IML) and long (ILG) axes expressed in %BWs during support phase while using usual (USU) and Free-Flow (FFF) feet during activities of daily living. H: High PV, L: Low PV, A: Above MCID, B: Below MCID.

		Level walking		Ascending ramp		Descending ramp		Ascending stairs		Descending stairs
USU
I	AP	9.91±3.83	H	13.45±7.59	H	9.48±3.25	H	16.87±7.09	H	8.77±3.39	H
I	ML	3.79±1.69	H	4.67±1.81	H	3.92±1.63	H	5.90±3.01	H	4.17±2.77	H
I	LG	57.12±5.91	L	76.63±19.27	H	56.76±12.65	H	78.22±23.45	H	54.48±10.15	L
FFF
I	AP	8.98±3.59	H	16.86±4.97	H	7.79±3.77	H	15.66±6.28	H	9.33±5.76	H
I	ML	3.84±1.46	H	4.03±3.01	H	3.26±2.11	H	3.80±2.73	H	3.64±2.32	H
I	LG	58.25±6.32	L	69.77±16.79	H	52.20±10.60	H	64.19±11.81	L	51.57±9.12	L
Difference
I	AP	−0.931	B	3.416	A	−1.687	A	−1.213	B	0.562	B
I	ML	0.056	B	−0.641	A	−0.663	A	−2.097	A	−0.523	A
I	LG	1.130	B	−6.859	B	−4.567	B	−14.030	A	−2.918	B

DISCUSSION

Outcomes

Firstly, this study provided some information about the loading profile applied on implant by transtibial BAP fitted with two types of prosthetic feet (e.g., variability, differences).

The variability of the secondary outcomes with either foot followed a trend previously demonstrated for transfemoral BAP showing low variability in spatiotemporal characteristics and high variability in both onset and magnitude of local extremum and impulse.^{31, 59, 60, 64} The variability in onset and magnitude of extremum seemed to be higher during walking and stairs activities, as well as descending ramp with FFF compared to USU, respectively. However, the variability in impulse was similar for both feet but lower with FFF during ascending stairs.

The magnitude of the load using either foot was also within an expected range based on previous direct measurements of loading applied on implant of transfemoral BAP. The loading boundaries were comparable for both feet in all activities. Participants applied up to 48 %BW, 17 %BW and 112 %BW on the FAP, FML, and FLG, as well as 2.20 %BWm, 13.17 %BWm and 1.19%BWm around the MAP, MML, and MLG of the implant.

Interestingly, the differences in onset and magnitude of extremum between feet appeared inconsistently decreased and/or increased below and/or above MCID across activities except for LLG1, MAP1 and MML1. LLG1 was the only extrema consistently below MCID for all activities. MAP1 and MML1 were the most frequently above MCID across all activities except for the onset during descending ramps and stairs and for the magnitude during ascending and descending stairs, respectively. The differences in impulse between feet was also inconsistently decreased and/or increased above and/or below MCID across activities.

Differences in loading extremum and impulse between USU and FFF can only be minimally attributed to spatiotemporal characteristics since the cadence and duration of the gait cycles were comparable for both feet while performing each activity. Therefore, these differences could be possibly explained by the combination of short acclimation with FFF and, more importantly, the specific mechanical contribution of specific feet inherent to non-anthropomorphic (USU) and anthropomorphic (FFF) designs.

Secondly, this study provided some insights into the creation of specific and comprehensive characterization of loading profile of prosthetic feet for transtibial BAP.

Results highlighted some limitations of visual observations and possibly basic assessments (e.g., pedometers) of spatiotemporal characteristics alone as they were the least sensitive to differences in foot design. It is difficult to ascertain if an expert can visually discriminate differences in loading. Hence, these results confirmed the benefits for prosthetic care providers to rely on complementary direct loading measurements providing individualized insight into impact of components.

Furthermore, this study confirmed that a loading characterization could rely on portable triaxial load cell for ecological, but standardized, assessment of daily activities as demonstrated previously.^{31, 51, 58–60, 64, 66} Results showed that assessing straight level walking alone might only partially reflect the actual loading regimen applied on implant during daily life given that most maximum loading occurred during other activities, particularly ascending ramp. More practically, this study indicated that at least nine extremum (i.e., FAP1, FAP2, FML1, MAP1, MAP2, MML1, MML2, MLG1, and MLG2) might be sufficient to show not only the differences between feet constructs but also particular loading effects of a specific foot design.

Limitations

This study involved a limited number of participants but altogether representing 42% of existing population of TTA fitted with press-fit implant worldwide. The shortcomings in the recording of the loading data included the individualized positioning of the load cell in relation to the implant depending on individual length of residuum, the short staircase, the short acclimation time with FFF, the range of ankle units considered in the USU group and lack of blinding of components.³³ The analysis relied on educated choices of thresholds to appreciate low variability (PV<20%) and clinical differences (MCID<10%). Furthermore, the interpretation was limited by the lack of assessment of confounders associated with spatial gait characteristics (e.g., walking base, step and stride length), as well as dynamics (e.g., ground and handrail reaction forces), kinematics (e.g., trunk bending, knee range of movement), and kinetics (e.g., prosthesis ankle stiffness, knees and hips joint power) information as well as participants’ subjective feedback (e.g., comfort score).

Generalization

The generalization of loading data must be considered carefully giving the typical intrinsic shortcoming of a case series study and limitations listed above. Nonetheless, this study provided an initial benchmark of kinetic data of a small cohort but yet representative of current existing population of TTAs fitted with BAP. The difference in loading extremum showed between participants fitted with different feet confirmed both the benefits of individualized assessments when looking at loading effects of specific components and the need to consider participants fitted with homogenous component’s design while conducting observational cohort studies, if possible.

More generalizable are the methodological contributions listed above for a comprehensive recording, analysis and reporting the prosthetic loading characteristics. Indeed, this information should be considered and, possibly, educate the design of subsequent studies focusing on characterization of kinetics data for TTA fitted with BAP (e.g., purchase of equipment, environment and duration of recording, software development for analysis). For example, proper consideration to the relevant number of extremum might noticeably reduce computing time, particularly when detected manually.

Future studies

The proposed characterization will facilitate future longitudinal studies comparing prostheses constructs (e.g., components, alignment, anthropomorphicity) for a larger cohort of individuals with TTA fitted with a BAP or even a socket-suspended prosthesis. This will provide further information and, eventually, a better understanding of intra- and inter-variability between participants, attachments, components, and activities.

Opportunities for cross-sectional studies are endless, particularly for the ones associating the proposed characterization with complementary mechanical (e.g., dynamics, kinematics, kinetics characteristics), physiological (e.g., electromyography of residuum muscles, metabolic energy consumption), and participant’s experience (e.g., comfort score, MCID threshold) data. Establishing how prosthetic loading with different ankle stiffness profile participates in the development of osseointegration over time will be particularly valuable.

CONCLUSIONS

An attempt to develop a comprehensive characterization of loading profile of bone-anchored prosthesis fitted to individuals with transtibial amputation was shared for the first time. This work was an initial effort toward laying out characterization principles for kinetic analysis while providing initial benchmark of ecological loading data.

Altogether, this study should be considered as a steppingstone for prosthetic care providers responsible for addressing the ever-increasing demand for stronger evidence-based fitting of components to justify cost-benefit of clinical decision-making and subsequent prescription choices for the growing population of individuals with transtibial amputation fitted osseointegrated implants worldwide.
