Synthesis and crystal structure of peptide dimethyl biphenyl hybrid C₅₂H₆₀N₆O₁₀·0.25H₂O

The crystal structure of the title compound shows a disorder of the methyl and meth­oxy­carbonyl groups of one alanine residue. Compared to previously reported peptide biphenyl hybrids, the backbone torsion angles are different.

Abstract

The synthesis and crystal structure of peptide 6,6′-dimethyl biphenyl hybrid are described. The title compound was synthesized by reaction between 6,6′-dimethyl-[1,1′-biphen­yl]-2,2′-dicarbonyl dichloride in CH₂Cl₂, amine HN–proline–phenyl­alanine–alanine–COOMe and Et₃N at 273 K under N₂ atmosphere and characterized by single-crystal X-ray diffraction. The asymmetric unit contains one peptide mol­ecule and a quarter of a water mol­ecule. A disorder of a methyl and meth­oxy­carbonyl group of one alanine residue is observed with occupancy ratio 0.502 (6):0.498 (6). The structure is consolidated by intra- and inter­molecular hydrogen bonds.

Chemical context

Since the first application in 1922 of peptides in the treatment of diabetes with insulin (Banting et al., 1922 ▸), the chemistry of peptides has become a very important domain in the search of new therapeutic drugs. From 2011 to 2018, the global market of drugs has increased from US $ 14.1 to 24.4 billion. With more than 140 peptides in clinical trials, the number of peptide-based drugs is expected to grow significantly (Fosgerau et al., 2015 ▸). Despite their tremendous potential, applications of peptides for pharmaceutical purposes are limited by their instability toward enzymatic systems, short half-life, rapid renal clearance, and formulation challenges (Otvos et al., 2014 ▸). These problems can be overcome by modifying the linear peptide to enhance the stability and therefore the selectivity and affinity. The biphenyl structure is present in numerous pharmaceuticals and bioactive compounds, as illustrated by the glycopeptide anti­biotic vancomycin, the proteasome inhibitor TMC-95A (Kaiser et al., 2004 ▸) and aryl­omycins (Schimana et al., 2002 ▸). A statistical analysis of NMR data indicates that compounds containing the biphenyl structure can bind a wide range of proteins with high levels of specificity (Hajduk et al., 2000 ▸). Coupling of a small protein chain to the biphenyl structure is a strategy to create a new family of peptidomimetic compounds, which can be used in medicinal chemistry because of its specific conformation and its particular hydrogen-bonding inter­actions.

The synthesis and biological activity as calpain inhibitor of peptide–biphenyl hybrids type I have been reported by Montero and Mann (Montero et al., 2004a ▸,b ▸; Mann et al., 2002 ▸). Amine et al. (2002 ▸) synthesized a bis amido–copper(II) complex from N-containing tetra­dentate ligands having two amido groups with a biphenyl skeleton, which is used as a DNA cleaving agent. Recently, we have reported crystallographic studies of a peptide-biphenyl hybrid A (Fig. 1 ▸) with tripeptide Pro–Phe–Ala (Le et al., 2020 ▸).

Figure 1.

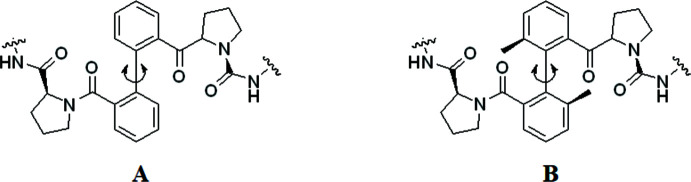

Peptide–biphenyl hybrids A and B.

We report herein the synthesis and crystallographic study of a peptide-2,2′-biphenyl B (Fig. 1 ▸) with the introduction of two methyl groups at the 6-6′ positions to prevent free rotation around the central ar­yl–aryl bond.

Structural commentary

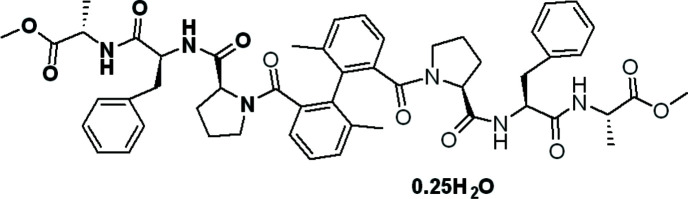

The compound dimethyl 2,2′-[((2S,2′S)-2,2′-{[(2S,2′S)-1,1′-(6,6′-dimethyl-[1,1′-biphen­yl]-2,2′-dicarbon­yl)bis­(pyrrolidine-1,2-diyl-2-carbon­yl)]bis­(aza­nedi­yl)}bis­(3-phenyl­propano­yl))bis­(aza­nedi­yl)](2S,2′S)-dipropionate (Fig. 2 ▸) crystallizes in the monoclinic space group C2 with one mol­ecule of peptide biphenyl hybrid accompanied by a quarter of a water mol­ecule in the asymmetric unit. Two methyl groups have been introduced to the biphenyl rings at the 6,6′ position in order to limit the rotation of the two central phenyl rings in solution. In the solid state, the dihedral angle between biphenyl rings C20–C25 and C27-C32 is 73.8 (3)°. However, this value is similar to that of a previous compound not bearing the methyl groups (C₅₀H₅₆N₆O₁₀·0.5H₂O; Le et al., 2020 ▸). A disorder of a methyl and meth­oxy­carbonyl group of alanine is observed in the crystal structure and was refined with an occupancy ratio of 0.502 (6):0.498 (6).

Figure 2.

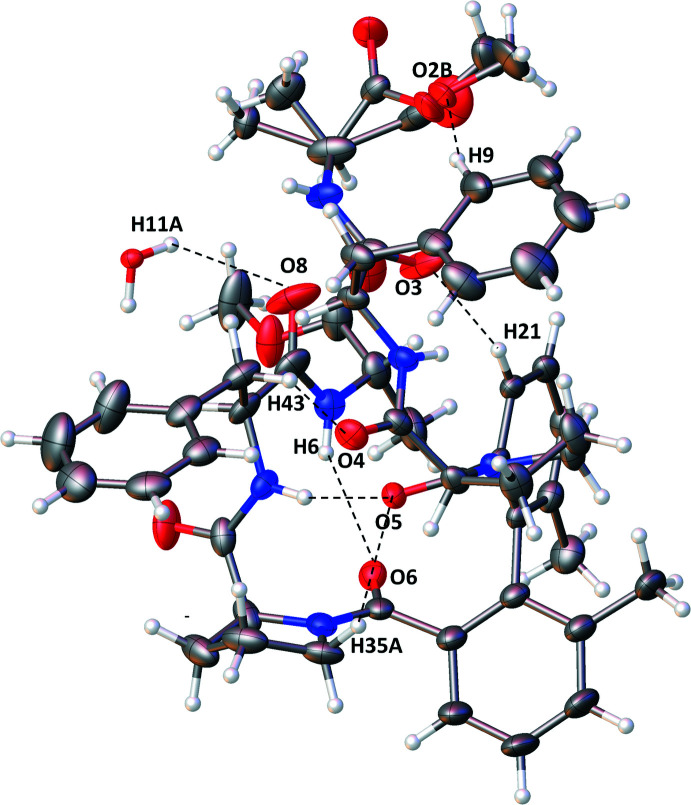

A view of the mol­ecular structure of the title compound showing displacement ellipsoids drawn at the 50% probability level and hydrogen bonds (dashed lines) within the asymmetric unit. H atoms are shown as small circles of arbitrary radii.

The backbone conformation of the two tripeptide fragments is characterized by the torsion angles ω, φ, ψ (see Table 1 ▸). The torsion angles φ and ψ of amino acids Ala1, Ala2, Phe2 correspond with the usual α-helix (right-handed) region of the Ramachandran plot, and only the torsion angles of amino acid Phe1 fall into the corresponding type β-sheet Ramachandran plot region. For both prolines, the related torsion angles lie in the α region of the Ramachandran plot for proline.

Table 1. Backbone torsion angles ω, φ, ψ (°) for the two tripeptide fragments.

C20—C19—N3—C15	178.3 (2)	C32—C34—N4—C38	−164.6 (2)
C19—N3—C15—C14	−73.4 (3)	C34—N4—C38—C39	−69.1 (3)
N3—C15—C14—N2	−17.5 (3)	N4—C38—C39—N5	−14.4 (4)
C15—C14—N2—C6	176.5 (2)	C38—C39—N5—C40	−177.2 (2)
C14—N2—C6—C5	−163.0 (2)	C39—N5—C40—C48	−106.8 (3)
N2—C6—C5—N1	171.4 (2)	N5—C40—C48—N6	18.6 (3)
C6—C5—N1—C3	−174.8 (3)	C40—C48—N6—C49	179.1 (2)
C5—N1—C3—C2B	−58.0 (5)	C48—N6—C49—C51	−60.9 (3)
N1—C3—C2B—O2B	−39.6 (13)	N6—C49—C51—O9	−35.0 (4)

There are six intra­molecular hydrogen bonds formed in the structure of the title compound (Table 2 ▸). Two hydrogen bonds are formed between the NH and CO groups with H⋯O distances of 2.07 Å for N5—H5 ⋯O5 and 2.42 Å for N6—H6⋯O6. The latter value is noticeably longer than the values observed (from 2.04 to 2.29 Å) in other reported peptides (Ranganathan et al., 1997 ▸; Le et al., 2020 ▸). Four other intra­molecular bonds are formed between CH and CO groups with distances from 2.35 to 2.59 Å.

Table 2. Hydrogen-bond geometry (Å, °).

Cg3 and Cg5 are the centroids of the C8–C13 and C27–C32 rings, respectively.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N5—H5⋯O5	0.88	2.07	2.923 (3)	162
N6—H6⋯O6	0.88	2.42	3.233 (3)	154
C9—H9⋯O2B	0.95	2.35	3.270 (18)	164
C21—H21⋯O3	0.95	2.44	3.352 (4)	161
C35—H35A⋯O5	0.99	2.51	3.171 (4)	124
C43—H43⋯O4	0.95	2.59	3.443 (4)	149
N1—H1⋯O4i	0.88	2.01	2.865 (3)	163
C1B—H1BB⋯O10ii	0.98	2.46	2.913 (16)	108
C30—H30⋯O8iii	0.95	2.46	3.222 (4)	137
C35—H35⋯O7iv	0.99	2.39	3.228 (4)	142
C52—H52B⋯O10v	0.98	2.60	3.559 (5)	166
O11—H11A⋯O8	0.87	2.48	3.136 (6)	133
C13—H13⋯O11vi	0.95	2.52	3.155 (7)	124
C36—H36B⋯Cg3vi	0.99	2.94	3.845 (4)	152
C4A—H4AC⋯Cg5vii	1.05 (8)	2.93 (7)	3.770 (8)	135 (5)

Symmetry codes: (i) ; (ii) ; (iii) ; (iv) ; (v) ; (vi) ; (vii) .

Supra­molecular features

In the crystal, the packing is characterized by N—H⋯O, O—H⋯O and C—H⋯O hydrogen bonding (see Table 2, Fig. 3 ▸ ▸). The strongest inter­molecular inter­action is formed between NH and CO groups of two neighboring peptide residues [N1—H1⋯O4ⁱ, with d = 2.01 Å; symmetry code: (i)  − x,  + y, 1 − z]. Furthermore, there are six additional hydrogen bonds linking the mol­ecules. Two contacts are established between the water mol­ecule and two tripeptides (O11—H11A⋯O8; C13— H13⋯O11). Four C—H⋯O=C contacts with H⋯O distances ranging from 2.39 to 2.60 Å further consolidate the crystal packing. In addition, the mol­ecules are linked by two inter­molecular C—H ⋯π inter­actions, one between a proline H atom and the phenyl ring of a phenyl­alanine residue, the other between a H atom of the disordered methyl group and a phenyl ring of the central biphenyl fragment.

Figure 3.

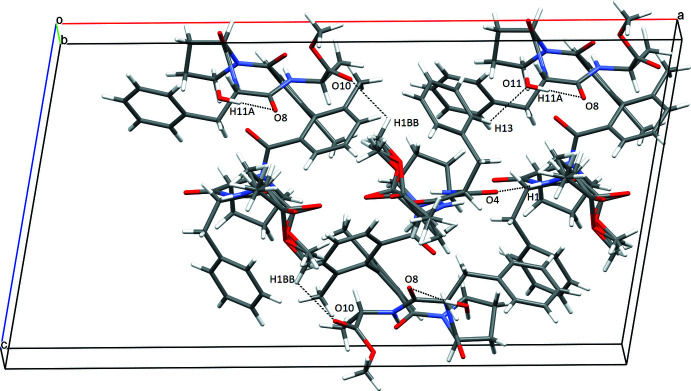

Crystal packing of the title compound, indicating some inter­molecular hydrogen bonds (dashed lines).

Database survey

A search of the Cambridge Structural Database (version 5.41 with update of March 2020; Groom et al., 2016 ▸) for peptide–dimethyl biphenyl hybrids was conducted. There are seven dimethyl biphenyl hybrid structures with only one amino acid, including JITYET (Linden & Rippert, 2018a ▸), JITZEU (Linden & Rippert, 2018b ▸), JITYOD (Linden & Rippert, 2018c ▸), NOSPUG & NOSQAN (Weigand & Feigel, 1998 ▸), PITSUJ (Linden et al., 2018d ▸) and NIKJOI (Samadi et al., 2013 ▸). For these structures the dihedral angles between the dimethyl biphenyl rings varies from 82.0 to 95.8^o, larger than the corresponding angle of the title compound.

Synthesis and crystallization

To a round-bottom flask was added 6,6′-dimethyl-[1,1′-biphen­yl]-2,2′-di­carb­oxy­lic acid (1 eq.) and SOCl₂ (3 eq.) respectively under a nitro­gen atmosphere. The mixture was heated under reflux for 4 h and was then evaporated under vacuum. The acid chloride was used in the next step without further purification.

To a round-bottom flask was added amine HN–proline–phenyl­alanine–alanine–COOMe (1 eq.), Et₃N (2 eq.) and anhydrous CH₂Cl₂ (50mL). To this solution was added a solution of (6,6′-dimethyl-[1,1′-biphen­yl]-2,2′-dicarbonyl dichloride in CH₂Cl₂ at 273 K under an N₂ atmosphere. After completion of the reaction, the mixture was washed with 1 N HCl solution, water and a solution of brine, respectively. The organic phase was dried over Na₂SO₄, filtered and evaporated under reduced pressure. The crude product was then purified by flash chromatography (AcOEt/hexane 3:2) to give a white solid (60% yield). The compound was recrystallized by slow evaporation in methanol to give crystals suitable for X-ray diffraction.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3 ▸. The methyl and meth­oxy­carbonyl groups of alanine show two conformations with refined occupancy factors converging to 0.502 (6) and 0.498 (6). Geometrical restraints were applied to the disordered atoms. H atoms were placed at calculated positions (C—H = 0.95–1.08 Å and N—H = 0.88 Å), with isotropic displacement parameters U _iso(H) = 1.5U _eq(C) for methyl H atoms and 1.2U _eq(C,N) for all other H atoms. The solvent water mol­ecule is disordered and was refined with a site occupation factor fixed to 0.25. The H atoms of the water mol­ecule were located in difference-Fourier maps and refined in riding-model approximation with U _iso(H) = 1.5U _eq(O).

Table 3. Experimental details.

Crystal data
Chemical formula	C52H60N6O10·0.25H2O
M r	933.56
Crystal system, space group	Monoclinic, C2
Temperature (K)	100
a, b, c (Å)	27.505 (3), 12.3814 (12), 14.6346 (14)
β (°)	99.999 (3)
V (Å3)	4908.2 (8)
Z	4
Radiation type	Mo Kα
μ (mm−1)	0.09
Crystal size (mm)	0.3 × 0.2 × 0.1
Data collection
Diffractometer	Bruker D8 Quest CMOS
Absorption correction	Multi-scan (SADABS-; Bruker, 2013 ▸)
T min, T max	0.713, 0.745
No. of measured, independent and observed [I > 2σ(I)] reflections	84318, 9371, 7959
R int	0.062
(sin θ/λ)max (Å−1)	0.611
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.038, 0.086, 1.06
No. of reflections	9371
No. of parameters	693
No. of restraints	4
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρmax, Δρmin (e Å−3)	0.28, −0.16
Absolute structure	Flack x determined using 3323 quotients [(I +)−(I −)]/[(I +)+(I −)] (Parsons et al., 2013 ▸)
Absolute structure parameter	−0.1 (3)

Computer programs: APEX22 and SAINT (Bruker, 2013 ▸), SHELXT (Sheldrick, 2015a ▸), SHELXL (Sheldrick, 2015b ▸) and OLEX2 (Dolomanov et al., 2009 ▸).

Supplementary Material

CCDC reference: 2026794

Additional supporting information: crystallographic information; 3D view; checkCIF report
