Structures of three disubstituted [13]-macro­di­lac­tones reveal effects of substitution on macrocycle conformation

The synthesis and crystal structures of three new disubstituted [13]-macrodilactones, trans-4,8-dimethyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione, cis-4-(4-bromo­phen­yl)-13-methyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione, and trans-11-methyl-4-phenyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione are reported and their conformations are put in the context of other [13]-macrodilactone structures reported previously, showing that the number, location, and relative disposition of groups attached at the termini of planar units of the [13]-macrodilactones subtly influence their aspect ratios.

Abstract

The synthesis and crystal structures of three new disubstituted [13]-macro­di­lactones, namely, trans-4,8-dimethyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione, C₁₃H₂₀O₄, I, cis-4-(4-bromo­phen­yl)-13-methyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione C₁₈H₂₁BrO₄, II, and trans-11-methyl-4-phenyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione, C₁₈H₂₂O₄, III, are reported and their conformations are put in the context of other [13]-macrodilactone structures reported previously. Together, they show that the number, location, and relative disposition of groups attached at the termini of planar units of the [13]-macrodilactones subtly influence their aspect ratios.

Chemical context

Macrocyclic rings adopt particular conformations by balancing the contributions of multiple, local domain features. We have studied the synthesis, structure, and function of a specific family of macrocycles, the [13]-macrodilactones. These macrocycles, which are made more rigid by ester and alkene planar units, minimize transannular inter­actions of substit­uents at stereogenic centers along their backbone. The overall effect of the number of atoms in the ring, the planar units, and the stereogenic centers promotes the adoption of a conformation that contains an element of planar chirality.

The modularity of macrocycles lends to their attractiveness as scaffolds for the development of new bioactive compounds (Whitty et al., 2017 ▸; Yudin, 2015 ▸; Driggers et al., 2008 ▸). Macrocycles have mini-domains of a few atoms that can influence the conformation of the ring, modulate rigidity/flexibility, and tune their physicochemical and biochemical properties (Whitty et al., 2016 ▸; Larsen et al., 2015 ▸). For the [13]-macrodilactone motif exemplified by trans-4,8-dimethyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione I in Fig. 1 ▸, two four-atom ester units (C13/O1/C2/C3 and C8/C9/O10/C11) are linked via a central carbon (C12) and one trans-2-butenyl moiety (atoms C4–C7). By virtue of the planarity of the multi-atom units, the ring is significantly stiffened compared to a saturated thirteen-membered ring. The conformation, which is informally referred to as the ‘ribbon’ conformation, arises from a balance between the number of atoms that make up the ring and the nature of the planar units that reduce its flexibility. There is a planar chirality associated with the macrocycle (only the R-configured plane, pR, form is shown for I) that arises from the asymmetry around the alkene unit as it orients itself perpendicular to the mean plane of the macrocycle. The planar chirality of the [13]-macrodilactones is directly analogous to that of E-cyclo­octene (Fyvie & Peczuh, 2008a ▸,b ▸; Eliel & Wilen, 1994 ▸). Viewed from above (parallel to the alkene), the ribbon appears roughly triangular (Fig. 1 ▸ c, top), with a long axis and a short axis.

Figure 1.

Ribbon motif of [13]-macrodilactones. (a) Structure and number of [13]-macrodilactones using compound I as an illustration. (b) Schematic of the ring showing the three planar units: two esters (brown) and alkene (blue). Key atoms at the termini of the planar units are marked with asterisks. (c) Mol­ecular structure of I from X-ray data.

Here we report on the synthesis and solid-state structural characterization of [13]-macrodilactones I, II, and III. These new structures, along with eight more previously reported [13]-macrodilactone structures, are analyzed to assess how substitution at specific atoms of the backbone influences the conformation.

Structural commentary

Each of the new structures has two stereogenic centers. The synthetic routes were not stereoselective, and the products were isolated as racemates. Consequently, each compound crystallized as a racemate. The stereogenic centers of compounds I, II, and III seen in Fig. 2 ▸ establish only the relative stereochemistry observed in the asymmetric unit for each one. The only common feature of I, II, and III is the [13]-macrodilactone core. All bond distances and angles are in the expected ranges and unexceptional. A more in depth analysis of mol­ecular aspect ratios can be found in the Database survey.

Figure 2.

The mol­ecular structures of I, II, and III with 50% displacement ellipsoid probability levels. Note that the structures here are of the pS-configured planar chirality.

Database survey

A survey of the Cambridge Structural Database (CSD) yielded a total of 17 structures of [13]-macrodilactones, counting the three new structures reported here (Table 1 ▸). Of these structures, 11 share the same fundamental ribbon conformation described earlier. Comparison of their structures in light of their substitution patterns along the macrocyclic backbone revealed subtle differences in their conformations. Aspect ratio, defined as the ratio of the C12-to-centroid of C5 and C6 (length, or long-axis) and the C2-to-C9 carbonyl carbon distance (width, or short-axis) of the macrocyclic ring, was our metric to express the changes in conformation. By virtue of the cyclic structure, compression along one axis leads to expansion along the complementary one, and vice versa, affecting the aspect. Note that structure e (Fig. 3 ▸) is of the unsubstituted [13]-macrodilactone, containing no pendant groups along its backbone; it represents a reference point for comparisons amongst the other substituted macrocycles.

Table 1. Substitution patterns and refcodes for [13]-macrodilactones.

Cpd. = compound identifier in Fig. 3 ▸, Conf. = conformer adopted in the crystal structure and Subs. = substituted positions on [13]-macrodilactone.

Entry	Cpd.	Conf.	Subs.	cis/trans	Refcode	Citation
1	a	ribbon	11,13	trans	URILEO	Ma & Peczuh (2013 ▸)
2	b	ribbon	11 (mono)	–	KOHLAV	Fyvie & Peczuh (2008a ▸)
3	c	ribbon	3 (mono)	–	XUFKOA	Magpusao, Rutledgeet al. (2015 ▸)
4	–	ribbon	D-gluco	trans	XOCWIW	Fyvie & Peczuh (2008b ▸)
5	d	ribbon	3,8	trans	XUFLAN	Magpusao, Rutledge et al. (2016 ▸)
6	e	ribbon	–	–	IJEHAI	Magpusao, Rutledge et al. (2016 ▸)
7	f	ribbon	3,11	cis	IJEHOW	Magpusao, Rutledge et al. (2016 ▸)
8	g	ribbon	4,13	cis	II	This work (CCDC 1944827)
9	h	ribbon	4,8	trans	I	This work (CCDC 1944826)
10	i	ribbon	4 (mono)	–	ECOYED	Rutledge, Hamlin et al. (2017 ▸)
11	j	ribbon	3,13	trans	IJEHEM	Magpusao, Rutledge et al. (2016 ▸)
10	–	other	4 (mono)	–	ECOYED
12	–	other	11,13	cis	URILAK	Ma & Peczuh (2013 ▸)
3	c	other	3 (mono)	–	XUFKOA
13	–	other	11,13	cis	URILAK	Ma & Peczuh (2013 ▸)
14	–	other	3,11	trans	IJEHUC	Magpusao, Rutledge et al. (2016 ▸)
15	k	ribbon	4,11	trans	III	This work (CCDC 1944828)
16	–	other	3,8	cis	XUFKUG	Magpusao, Rutledge et al. (2016 ▸)
17	–	other	8,11	cis	IJEHIQ	Magpusao, Rutledge et al. (2016 ▸)

Figure 3.

Length, width, and aspect ratios of pS-configured [13]-macrodilactones in the ribbon conformation. The inset shows the distances measured in the macrocycles. All error bars are shown to 3σ, but some are smaller than the marker chosen to represent the point. The boxes highlight data from compounds I (h), II (g), and III (k) in this report. All distances are shown in Å.

Subtle differences in the aspect ratios of the [13]-macrodilactones depicted in Fig. 3 ▸ were attributed to the location and number but not size of groups attached to the ring, which we found remarkable. For example, the positioning of a single substituted atom affected the aspect ratio as exemplified by b, c, and i. Trends for di-substituted [13]-macrodilactones separated into two groups. In the first group are the ‘symmetrical’ di-substituted compounds: trans-11,13- (a), trans −3,8- (d), and trans-4,8- (h, compound I). The trend for this group largely follows that in the monosubstituted series. That is, the aspect ratio increased slightly when substitutions were made on either end of the ester units but decreased upon substitution at the allylic carbons. The second group of di-substituted macrocycles is a catch-all that collects compounds where the substituted carbons are either on the same side of the ring relative to its long-axis [cis-4,13- (g, compound II) and trans-3,13 (j)] or opposite sides [cis-3,11 (f) and trans-4,11 (k, compound III)]. These compounds pit substitutions at a site (C11/13) that stretches the long-axis with sites that either also extend (C3/C8) or compress (C4/C7) it. A clear rationale to explain relationships between these substitution patterns and their aspect ratios was not apparent. One observation was that any substitution at the allylic positions tended to compress the aspect ratios of all the [13]-macrodilactones. Aspect ratios ranged from 1.16 on the low end (q, compound III) to 1.32 (a) on the high end. That represents a 14% change in aspect ratio linked only to the number and location of substituted carbons along the backbone of the [13]-macrodilactone structure.

Computational analysis of conformations

To ascertain whether the solid-state structures were representative of their local minimum-energy conformations, gas-phase computational optimizations were performed on the new [13]-macrodilactones I–III and also compounds a and e in Fig. 3 ▸. The pR conformers from the X-ray data were optimized via DFT using the Schrödinger Maestro application Jaguar (Bochevarov et al., 2013 ▸). Four different levels of theory, chosen because of their large number of basis functions and their inclusion of bromine orbitals, were used with the calculation, B3LYD-D3/CC-PVDC, M06-2X-D3/CC-PVDZ, B3LYD-D3/LACVP**, and M06-2X-D3/LACVP**. B3LYD-D3 was chosen because of its widespread use and M06-2X-D3 was chosen for its ability to accurately describe non-covalent inter­actions within the macrocycles (Grimme, 2011 ▸). Single point energy calculations were run on both the conformer from the crystallographic data and the conformer optimized at the B3LYD-D3/CC-PVDC level of theory. RMSD values comparing the 13 non-hydrogen atoms of the macrocycle ring were calculated comparing crystallographic structure and DFT-optimized conformers (Fig. 4 ▸). Values that express the average RMSD across the different DFT calculations ranged from 0.055 to 0.251 Å (Table S3 in the supporting information). The low values suggest that [13]-macrodilactones do not significantly change their conformations upon optimization.

Figure 4.

Overlays of crystallographic (green) and the DFT-optimized (black) structures for compounds a, f, g (II), h (I), and k (III).

Supra­molecular features

The crystal structures of I, II and III were searched for non-bonded inter­actions that may influence the measurements reported in Fig. 2 ▸. The program Mercury (Macrae, et al., 2020 ▸) highlighted close contacts, which are defined as less than or equal to the sum of the van der Waals radii of atom pairs (Rowland et al., 1996 ▸). In I, a contact of 3.188 (4) Å between the carbonyl oxygen O17 and methyl­ene carbon C11 in the mol­ecule generated by the c-glide operation was identified. Mol­ecules associated with this contact line up along [001]. In II, a Br⋯Br contact of 3.6466 (2) Å was identified where Br1 is near the crystallographic 2₁ screw axis. Sequential applications of this symmetry operation generate a zigzag pattern of Br⋯Br contacts along [010]. In III, a contact of 3.386 (4) Å between C3 and the para carbon, C18, of the pendant phenyl ring is generated by the the 2₁ screw axis and repeats along [001]. These distances fall well within what is observed in other solid state structures and no attractive inter­actions were found in I, II, or III (see Figures S1 to S7 in the supporting information).

Synthesis and crystallization

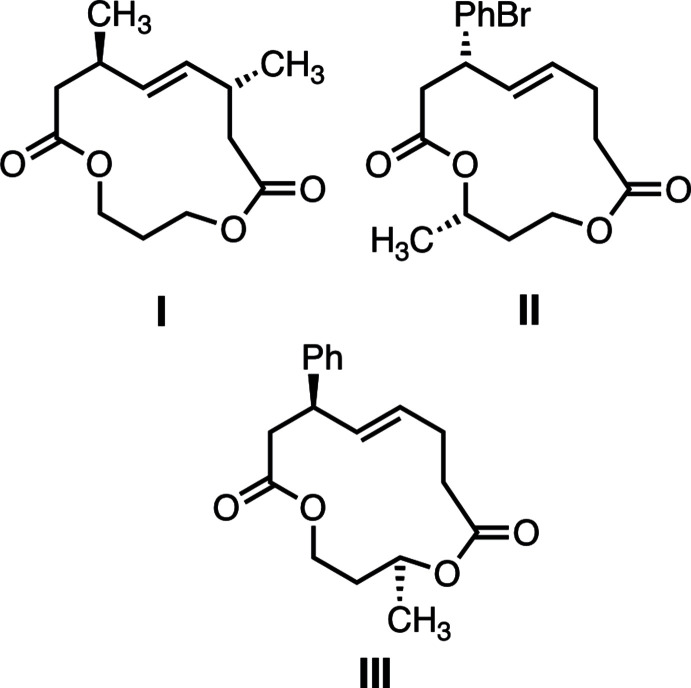

As shown in Fig. 5 ▸, [13]-macrodilactones I, II, and III were prepared by an established synthetic route that entailed sequential acyl­ation reactions, followed by macrocyclization via ring closing metathesis (RCM) (Magpusao et al., 2015 ▸, 2016 ▸). Because the syntheses were not stereo-controlled and each of the new compounds contained two stereogenic centers, two diastereomeric products (each racemic) arose for each macrocycle. The diastereomers of I, II, and III in Fig. 4 ▸ are the ones that gave rise to the ‘ribbon’ conformers presented herein. See the supporting information for additional details on the synthesis of compounds I–III. Single crystals of the compounds were prepared by slow diffusion of hexane vapor into ethyl acetate:hexa­nes solutions of the compounds.

Figure 5.

Synthesis of macrocycles I–III.

General

3-Bromo-phenyl-4-pentenoic acid, 3-phenyl-4-pentenoic acid and mono­acyl­ated 3-methyl-3-hy­droxy­propyl-4-pent­en­oate were prepared as previously described (Magpusao et al., 2015 ▸). Unless stated otherwise, all acyl­ations were conducted at 273 K and allowed to warm to room temperature over 12 h. Reactions were monitored using TLC. Spots on TLC plates were visualized with UV light and p-anisaldehyde or ceric ammonium molybdate (CAM) stains. Chromatography was performed on silica gel and solvent systems were based on the R _f values. ¹H NMR spectra were referenced to CDCl₃ proton (δ H 7.27 ppm) and ¹³C NMR to the CDCl₃ carbon (δ C 77.2 ppm).

1,3-Di-(3-methyl-4-penteno­yloxy)-propane

Into a 25 mL round-bottom flask were added di­cyclo­hexyl­carbodi­imide (DCC) (1.08 eq.), N,N-di­methyl­amino­pyridine (DMAP) (0.3 eq.) and di­chloro­methane (DCM) (7mL) and the solution was cooled to 273 K under nitro­gen. Then 3-methyl-4-pentenoic acid (1.0 eq.) was added and the mixture stirred at the same temperature for 30 minutes until a white suspension formed. A solution of 1,3-butane­diol (0.5 eq.) in DCM (3 mL) was then added and the mixture was stirred overnight at room temperature. After completion of the reaction, the mixture was filtered through a short pad of celite, rinsed with DCM, and solvent from the filtrates was removed under reduced pressure. The residue was then dissolved in cold ether to precipitate excess di­cyclo­hexyl urea (DCU), filtered through a pad of celite, and rinsed with additional ether. Ether from the combined filtrates was removed under reduced pressure and the residue was purified by column chromatography (10:90 EtOAc:Hex) to give a clear colorless oil (43%). R _f 0.47 (10:90 EtOAc:Hex); ¹H NMR (CDCl₃) 400 MHz δ 5.73 (ddd, J = 17.2, 10.2, 7.3 Hz, 2H), 4.96 (dd, J = 22.3, 17.2 Hz, 4H), 4.13 (dd, J = 6.33, 6.33 Hz, 4H), 2.65 (s, J = 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0 Hz, 2H), 2.29 (dddd or dq, J = 22.1, 14.8, 14.8, 14.8 Hz, 4H), 1.94 (dddd or dq, J = 12.5, 6.2, 6.2, 6.2 Hz, 2H), 1.03 (d, J = 6.6 Hz, 6H); ¹³C NMR (CDCl₃) 100 MHz δ 172.4, 142.5, 113.5, 61.0, 41.4, 34.6, 28.2, 19.9; TOF HRMS (DART) m/z calculated for C₁₅H₂₄O₄ [MH]⁺ calculated 269.1753, found 269.1749.

Sequential acyl­ation method

To a 25 mL round-bottom flask was added DCM (7 mL), di­cyclo­hexyl­carbodi­imide (DCC) (1.08 eq.) and N,N-di­methyl­amino­pyridine (DMAP) (0.3 eq.) and the mixture was cooled to 273 K. 4-Pentenoic acid (1.0 eq.) was added and the mixture was stirred at the same temperature for 30 min until a white suspension was observed. Then, 1,3-propane­diol or 1,3-butane­diol (1.0 eq.) in DCM (3 mL) was added and the mixture was stirred overnight at room temperature. After completion of the reaction, the mixture was filtered through a short pad of celite, rinsed with DCM and solvent from the filtrates was removed under reduced pressure. The residue was then dissolved in cold ether to precipitate excess DCU, filtered through a pad of celite, and rinsed with additional ether. The crude residue was purified by silica gel column chromatography (15:85 EtOAc:Hex) to give the mono­acyl­ated product. The same procedure, where the mono-acyl­ated alcohol was used in place of the diol, was then followed for the second acyl­ation.

1-[3-(p-Bromo­phen­yl)-4-penteno­yloxy]-1-methyl­propyl-4-pentenoate

Synthesis followed the sequential acyl­ation method above to give the compound in 70% yield as a colorless oil. R _f 0.56 (hexa­nes: EtOAc 80:20); ¹H NMR (CDCl₃) 400 MHz δ 7.42 (d, J = 8.31 Hz, 2H), 7.09 (d, J = 8.3 Hz, 2H), 5.93 (dddd, J = 16.8, 10.3, 6.5, 1.7 Hz, 1H), 5.8 (m, 1H), 5.01 (m, 5H), 4.02 (m, 2H), 3.81 (ddd, J = 7.5, 7.5, 7.5 Hz, 1H), 2.73 (m, 1H), 2.64 (ddd, J = 15.3, 7.9, 0 Hz, 1H) 2.38 (m, 4H), 1.81 (m, 2H), 1.17 (d, J = 6.3 Hz, 2H), 1.12 (d, J = 6.3 Hz, 1H); ¹³C NMR (CDCl₃) 100 MHz δ 173.1, 171.2, 141.5, 139.9, 136.8, 131.8, 129.6, 120.8, 115.7, 115.4, 68.3, 60.7, 45.3, 40.4, 34.9, 33.7, 29.0, 20.1.

3-(3-Phenyl-4-penteno­yloxy)-1-methyl­propyl-4-pentenoate

The synthesis followed the sequential acyl­ation method above to give the compound in 74% yield as a yellow oil. R _f 0.22 (hexa­nes: EtOAc 95:5); ¹H NMR (CDCl₃) 400 MHz δ 7.32 (m, 2H), 7.21 (m, 3H), 5.98 (ddd, J = 18.2, 10.14, 7.8 Hz, 1H), 5.81 (m, 1H), 5.0 (m, 5H), 4.21 (m, 2H), 3.86 [ddd (or dt), J = 7.4, 7.4, 7.4 Hz, 1H], 2.80 (dd, J = 15.1, 8.12 Hz, 1H), 2.70 (dd, J = 15.1, 7.4 Hz, 1H), 2.40 (m, 4H), 1.78 (m, 2H) 1.21 (d, 3H, J = 5.6 Hz); ¹³C NMR (CDCl₃) 100 MHz δ 172.6, 171.8, 142.5, 140.4, 136.8, 128.7, 127.7, 126.8, 115.7, 115.0, 67.9, 60.9, 45.7, 40.3, 34.9, 33.9, 29.0, 20.2.

General RCM Method

Under an atmosphere of nitro­gen, Grubbs’ second-generation catalyst (0.10 eq.) was added to a solution of the diene in sufficient toluene so that the [diene] ≤ 10 mM. The mixture was heated to 383 K for 18 h. When the reaction was complete, the toluene was removed under reduced pressure to give a residue that was purified by column chromatography.

trans-4,8-Dimethyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-dione (I)

Followed the general method of RCM in 21% overall yield (3:2 cis:trans) as a white solid. Compound I is the trans isomer; R _f 0.45 (hexa­nes: EtOAc 80:20) (higher R _f, trans); ¹HNMR (CDCl₃) 400 MHz δ 5.80 (dd, J = 5.9, 2.6 Hz, 2H), 4.43 (ddd, J = 11.1, 8.8, 6.8 Hz, 2H), 3.91 (dd, J = 4.0, 4.0 Hz, 1H), 3.88 (dd, J = 4.0, 4.0 Hz, 1H), 2.61 (m, 2H), 2.30 (dd, J = 13.4, 3.2 Hz, 2H), 2.11 (dd, J = 12.7, 12.7 Hz, 2H), 2.00 (dddd, J = 9.5, 9.5, 4.0, 4.0 Hz, 2H), 1.03 (d, J = 6.9 Hz, 6H); ¹³C NMR (CDCl₃) 100 MHz δ 173.2, 134.3, 59.8, 42.5, 35.9, 25.6, 21.6; TOF HRMS (DART) m/z [M+H]⁺ calculated for C₁₃H₂₁O₄, calculated 241.1440, found 241.1440.

cis-4-Phenyl-13-methyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-di­one (II)

Followed the general method of RCM in overall 44% yield (2:3 cis:trans). Compound II is the cis isomer and was isolated as a white solid. m.p. 370–374 K; R _f 0.46 (hexa­nes: EtOAc 80:20) (higher R _f, cis); ¹H NMR (CDCl₃) 400 MHz δ 7.43 (d, J = 8.5 Hz, 2H), 7.10 (d, J = 8.5 Hz, 2H), 5.59 (ddd, J = 15.0, 8.7, 5.4 Hz, 1H), 5.44 (dd, J = 15.2, 9.0 Hz, 1H), 5.11 (m, 1H), 4.35 (ddd, J = 11.9, 11.9, 3.7 Hz, 1H), 3.95 (ddd, J = 11.3, 5.2, 2.4 Hz, 1H), 3.81 (ddd, J = 8.3, 8.3, 8.3 Hz, 1H), 2.55 (m, 2H), 2.32 (m, 4H), 2.04 (m, 1H), 1.81 (dddd or ddt, J = 14.6, 6.0, 3.3, 3.3 Hz, 1H), 1.30 (d, J = 6.2 Hz, 3H); ¹³C NMR (CDCl₃) 100 MHz δ 174.0, 171.7, 142.2, 133.2, 132.0, 130.3, 129.0, 67.5, 60.5, 45.5, 41.5, 34.5, 33.5, 29.0, 20.7.

trans-4-Phenyl-11-methyl-1,10-dioxa­cyclo­tridec-5-ene-2,9-di­one (III)

Followed the general method of RCM in 89% overall yield 2:3 cis:trans). Compound III is the trans isomer, a yellow solid. m.p 359–362 K; R _f 0.45 (hexa­nes: EtOAc 80:20) (higher R _f, trans); ¹H NMR (CDCl₃) 400 MHz δ 7.33 (m, 2H), 7.24 (m, 3H), 5.59 (dd, J = 15.5, 8.5 Hz, 1H), 5.53 (ddd, J = 15.9, 8.7, 5.1 Hz, 1H), 5.14 (m, 1H), 4.35 (ddd, J = 14.9, 11.4, 3.5 Hz, 1H), 3.94 (ddd, J = 12.4, 7.3, 1.3 Hz, 1H), 3.74 (ddd, J = 11.9, 8.8, 3.8, 1H), 2.61 (dd, J = 12.9, 12.9 Hz, 1H), 2.56 (dd, J = 12.6, 4.0 Hz, 1H), 2.42 (m, 2H), 2.29 (m, 1H), 2.20 (m, 1H), 2.1 (dddd, J = 18.6, 9.5, 5.7, 4.1 Hz, 1H), 1.8 (m, 1H), 1.31 (d, J = 6.19 Hz, 3H); ¹³C NMR (CDCl₃) 100 MHz δ 173.0, 172.9, 143.3, 134.5, 129.0, 128.9, 127.1, 126.9, 66.8, 60.6, 47.1, 41.9, 34.3, 33.4, 28.1, 20.7.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2 ▸. For all three structures, no evidence of disorder was found and no special restraints or constraints were required to achieve a stable refinement model. The hydrogen atoms were first found in the difference map, then generated geometrically and refined as riding atoms with C—H distances = 0.95–0.99 Å and U _iso(H) = 1.2U _eq(C) for CH and CH₂ groups and U _iso(H) = 1.5U _eq(C) for CH₃ groups.

Table 2. Experimental details.

	(I)	(II)	(III)
Crystal data
Chemical formula	C13H20O4	C18H21BrO4	C18H22O4
M r	240.29	381.26	302.35
Crystal system, space group	Monoclinic, P21/c	Monoclinic, P21/n	Orthorhombic, P n a21
Temperature (K)	93	93	93
a, b, c (Å)	8.0547 (6), 18.7875 (14), 8.9660 (7)	15.3128 (3), 5.55594 (11), 20.5689 (4)	11.2952 (8), 20.9595 (15), 6.6840 (5)
α, β, γ (°)	90, 102.530 (6), 90	90, 95.7658 (18), 90	90, 90, 90
V (Å3)	1324.49 (18)	1741.08 (6)	1582.4 (2)
Z	4	4	4
Radiation type	Mo Kα	Cu Kα	Mo Kα
μ (mm−1)	0.09	3.37	0.09
Crystal size (mm)	0.18 × 0.17 × 0.16	0.20 × 0.19 × 0.10	0.32 × 0.20 × 0.20
Data collection
Diffractometer	Rigaku Mercury275R CCD	Rigaku Saturn 944+ CCD	Rigaku Mercury275R CCD
Absorption correction	Multi-scan (REQAB; Jacobson, 1998 ▸)	Multi-scan (CrysAlis PRO; Rigaku OD, 2015 ▸)	Multi-scan (REQAB; Jacobson, 1998 ▸)
T min, T max	0.705, 1.000	0.823, 1.000	0.815, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	17742, 2341, 1835	59208, 3075, 3000	26669, 3664, 3410
R int	0.131	0.040	0.045
(sin θ/λ)max (Å−1)	0.595	0.596	0.653
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.085, 0.230, 1.09	0.027, 0.062, 1.10	0.050, 0.128, 1.15
No. of reflections	2341	3075	3664
No. of parameters	156	209	201
No. of restraints	0	0	1
H-atom treatment	H-atom parameters constrained	H-atom parameters constrained	H-atom parameters constrained
Δρmax, Δρmin (e Å−3)	0.53, −0.27	0.51, −0.52	0.26, −0.20
Absolute structure	–	–	Flack x determined using 1473 quotients [(I +)−(I −)]/[(I +)+(I −)] (Parsons et al., 2013 ▸)
Absolute structure parameter	–	–	0.4 (5)

Computer programs: CrystalClear-SM Expert (Rigaku, 2011 ▸), CrysAlis PRO (Rigaku OD, 2015 ▸), SHELXT2014/5 (Sheldrick, 2015a ▸), SHELXL2014/7 and SHELXL2013/2 (Sheldrick, 2015b ▸), OLEX2 (Dolomanov et al., 2009 ▸) and CIFTAB2014/2 (Sheldrick, 2014 ▸).

Supplementary Material

CCDC references: 1944828, 1944827, 1944826

Additional supporting information: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

trans-4,8-Dimethyl-1,10-dioxacyclotridec-5-ene-2,9-dione (I) . Crystal data

C13H20O4	F(000) = 520
Mr = 240.29	Dx = 1.205 Mg m−3
Monoclinic, P21/c	Mo Kα radiation, λ = 0.71073 Å
a = 8.0547 (6) Å	Cell parameters from 687 reflections
b = 18.7875 (14) Å	θ = 2.2–27.9°
c = 8.9660 (7) Å	µ = 0.09 mm−1
β = 102.530 (6)°	T = 93 K
V = 1324.49 (18) Å3	Prism, colorless
Z = 4	0.18 × 0.17 × 0.16 mm

trans-4,8-Dimethyl-1,10-dioxacyclotridec-5-ene-2,9-dione (I) . Data collection

Rigaku Mercury275R CCD diffractometer	2341 independent reflections
Radiation source: Sealed Tube	1835 reflections with I > 2σ(I)
Detector resolution: 6.8 pixels mm-1	Rint = 0.131
ω scans	θmax = 25.0°, θmin = 2.2°
Absorption correction: multi-scan (REQAB; Jacobson, 1998)	h = −9→9
Tmin = 0.705, Tmax = 1.000	k = −22→22
17742 measured reflections	l = −10→10

trans-4,8-Dimethyl-1,10-dioxacyclotridec-5-ene-2,9-dione (I) . Refinement

Refinement on F2	Primary atom site location: dual
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.085	Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.230	H-atom parameters constrained
S = 1.09	w = 1/[σ2(Fo2) + (0.1386P)2 + 0.4739P] where P = (Fo2 + 2Fc2)/3
2341 reflections	(Δ/σ)max < 0.001
156 parameters	Δρmax = 0.53 e Å−3
0 restraints	Δρmin = −0.27 e Å−3

trans-4,8-Dimethyl-1,10-dioxacyclotridec-5-ene-2,9-dione (I) . Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > 2sigma(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger. The hydrogen atoms were first found in the difference map, then generated geometrically and refined as riding atoms with C-H distances = 0.95 - 0.99 angstroms and Uiso(H) = 1.2 times Ueq(C) for CH and CH2 groups and Uiso(H) = 1.5 times Ueq(C) for CH3 groups.

trans-4,8-Dimethyl-1,10-dioxacyclotridec-5-ene-2,9-dione (I) . Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
O1	0.5209 (3)	0.33574 (11)	0.6049 (2)	0.0443 (6)
O10	0.8844 (3)	0.38480 (10)	0.5944 (2)	0.0426 (6)
O14	0.3382 (3)	0.42433 (13)	0.5285 (3)	0.0583 (7)
O17	0.9157 (3)	0.31352 (11)	0.4047 (2)	0.0441 (6)
C2	0.3918 (4)	0.36655 (17)	0.5079 (3)	0.0419 (7)
C3	0.3224 (4)	0.32154 (16)	0.3709 (3)	0.0409 (7)
H3A	0.2054	0.3064	0.3736	0.049*
H3B	0.3932	0.2782	0.3740	0.049*
C4	0.3199 (4)	0.36195 (15)	0.2221 (3)	0.0387 (7)
H4	0.2743	0.4108	0.2317	0.046*
C5	0.4992 (3)	0.36868 (15)	0.1969 (3)	0.0378 (7)
H5	0.5469	0.3282	0.1584	0.045*
C6	0.5933 (4)	0.42558 (15)	0.2237 (3)	0.0372 (7)
H6	0.5432	0.4665	0.2580	0.045*
C7	0.7736 (4)	0.43256 (15)	0.2055 (3)	0.0384 (7)
H7	0.8039	0.3891	0.1526	0.046*
C8	0.8940 (4)	0.43846 (15)	0.3605 (3)	0.0401 (7)
H8A	1.0097	0.4494	0.3460	0.048*
H8B	0.8573	0.4784	0.4179	0.048*
C9	0.8998 (3)	0.37194 (15)	0.4516 (3)	0.0369 (7)
C11	0.8732 (4)	0.32312 (17)	0.6890 (3)	0.0450 (8)
H11A	0.9884	0.3077	0.7422	0.054*
H11B	0.8174	0.2832	0.6252	0.054*
C12	0.7703 (4)	0.34428 (18)	0.8036 (3)	0.0464 (8)
H12A	0.7449	0.3013	0.8584	0.056*
H12B	0.8387	0.3768	0.8797	0.056*
C13	0.6064 (4)	0.38033 (17)	0.7309 (3)	0.0460 (8)
H13A	0.5341	0.3861	0.8064	0.055*
H13B	0.6293	0.4280	0.6928	0.055*
C15	0.2026 (4)	0.32451 (17)	0.0917 (4)	0.0468 (8)
H15A	0.2431	0.2758	0.0830	0.070*
H15B	0.2010	0.3503	−0.0037	0.070*
H15C	0.0874	0.3231	0.1109	0.070*
C16	0.7922 (4)	0.49735 (17)	0.1094 (4)	0.0498 (8)
H16A	0.7628	0.5403	0.1602	0.075*
H16B	0.7159	0.4928	0.0087	0.075*
H16C	0.9100	0.5008	0.0974	0.075*
