Efficacy and safety of paravertebral block versus intercostal nerve block in thoracic surgery and breast surgery: A systematic review and meta-analysis

Sheng Huan; Youming Deng; Jia Wang; Yihao Ji; Guoping Yin

doi:10.1371/journal.pone.0237363

. 2020 Oct 5;15(10):e0237363. doi: 10.1371/journal.pone.0237363

Efficacy and safety of paravertebral block versus intercostal nerve block in thoracic surgery and breast surgery: A systematic review and meta-analysis

Sheng Huan ¹, Youming Deng ², Jia Wang ², Yihao Ji ^1,³, Guoping Yin ^2,^*

Editor: Ehab Farag⁴

PMCID: PMC7535861 PMID: 33017425

Abstract

Objective

To evaluate the analgesic efficacy and safety of paravertebral block (PVB) versus intercostal nerve block (INB) in thoracic surgery and breast surgery.

Methods

The PubMed, Web of Science, Embase and the Cochrane Library were searched up to February 2020 for all available randomized controlled trials (RCTs) that evaluated the analgesic efficacy and safety of PVB compared with INB after thoracic surgery and breast surgery. For binary variables, odds ratio (OR) and 95% confidence interval (CI) was used. For continuous variables, weighted mean difference (WMD) and 95% confidence interval (CI) were used. RevMan5. 3 and Stata/MP 14.0 were used for performing the meta-analysis.

Results

A total of 9 trials including 440 patients (PVB block:222 patients; INB: 218 patients) met the inclusion criteria. In the primary outcome, there was no significant differences between the two groups with respect to postoperative visual analogue scale (VAS) at 1h (Std. MD = -0. 20; 95% CI = -1. 11to 0. 71; P = 0. 66), 2h (Std. MD = -0. 71; 95% CI = -2. 32to 0. 91; P = 0. 39), 24h (Std. MD = -0. 36; 95% CI = -0. 73 to -0. 00; P = 0. 05) and 48h (Std. MD = -0. 04; 95% CI = -0. 20 to 0. 11; P = 0. 57). However, there was significant difference in VAS of non Chinese subgroup at 1h (Std. MD = 0. 33; 95% CI = 0. 25to 0. 41; P<0. 00001) and VAS of Chinese subgroup at 24h (Std. MD = -0.32; 95% CI = -0.49 to-0.14; P = 0.0003). In the secondary outcome, the analysis also showed no significant difference between the groups according to the rates of postoperative nausea and vomit (OR = 0. 63; 95% CI = 0. 38 to 1. 03; P = 0. 06) and the rates of postoperative additional analgesia (OR = 0. 57; 95% CI = 0. 21 to 1. 55; P = 0. 27). There was significant difference in postoperative consumption of morphine (Std. MD = -14. 57; 95% CI = -26. 63 to -0.25; P = 0. 02).

Conclusion

Compared with INB, PVB can provide better analgesia efficacy and cause lower consumption of morphine after thoracic surgery and breast surgery.

Introduction

No matter thoracic surgery or breast surgery, postoperative analgesia has always been the focus of attention of anesthesiologists. Postoperative pain without good treatment may cause complications such as unhealing wound, respiratory inhibition, hemodynamic disorder, anxiety and fidgety, leading to prolonged stay of hospital and difficulty of recovery of patients [1–3]. PVB and INB have been popular methods of postoperative analgesia in the recent years because of the popular use of ultrasound [4]. Compared with the traditional standard of epidural analgesia, it has the advantages of less effect on respiratory or circulation system and less postoperative complications such as epidural hematomas and irreversible neurological disorder [5–6], which can also be applied to patients with coagulation dysfunction.

On the one hand, PVB has a long history. The first PVB was performed by Hugo sellheim in 1905 [7]. thoracic paravertebral space is a potential cavity on both sides of the vertebral body, which is wedge-shaped. The medial wall is composed of vertebral body, intervertebral disc and outer opening of intervertebral foramen; the anterior wall is composed of parietal pleura and intrathoracic fascia; the posterior wall is composed of rib, intercostal muscle and intercostal fascia, transverse process and superior costal transverse process ligament [8]. Each thoracic paravertebral space is not directly connected, but when injected in the near middle part, the local anesthetics can spread cranially and caudally through loose connective tissue [9]. A minority of the injected local anaesthetic can spread laterally to the intercostal space and to the epidural space [10].

On the other hand, INB is also used by many anesthesiologists for postoperative analgesia in thoracic surgery. Anatomically, The intercostal space is the continuation of thoracic paravertebral space to the outside. The intercostal nerve and its accompanying intercostal artery and vein run between the intercostal innermost muscle and the intercostal innermost muscle along the lower edge of the rib. Posterior to the angle of rib, intercostal nerve divided into collateral and lateral cutaneous branches which run into the intercostal muscles and was divided into anterior and posterior branches [11, 12]. The location signs of INB under ultrasound were intercostal muscle, intercostal innermost muscle and pleura.

More and more published studies compared PVB with INB in terms of the VAS and complications [13–21]. But these articles were not well-integrated and the results of them have been found contradictory and unconvincing. For example, some of these studies thought the analgesic effect of PVB is similar with INB but the other did not think so. We had therefore conducted a systematic review and meta-analysis to assess the efficacy and safety of PVB and INB.

Methods

The meta-analysis was performed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement issued in 2009 [22].

Search strategy

We searched PubMed, Web of Science databases, Embase and the Cochrane Library (up to February 9, 2020) to identify relevant articles. The search terms included the following: “paravertebral block”, “intercostal nerve block”, “thoracic surgery”, “thoracoscopic surgery” “thoracotomy” “mastectomy” “breast surgery”. Appropriate adjustments were made when searching the database. We also checked the references of all the included articles to identify additional relevant studies. There was no restriction of language.

Inclusion criteria

The inclusion criteria of the study was listed as follows: ① the study design was RCT ② the subjects were patients undergoing thoracotomy surgery or thoracoscopic surgery or breast surgery. ③ the comparison was between PVB and INB ④ the conclusion of the study included at least one of the primary or secondary outcomes mentioned below.

Exclusion criteria

The exclusion criteria of the study was listed as follows: ① the types of articles were review, case report, experiment of animal, comments, letter and vitro studies. ② the type of the surgery was not thoracic surgery or breast surgery ③ PVB or INB was not mentioned.

When there were several articles with similar contents and data, we choosed the article with most detailed information for our analysis. No limitation of minimum sample sizes were set for exclusion criteria in this analysis. The debate were resolved by discussion of authors.

Data extraction

The characteristics and outcomes from each included study were checked and extracted by two reviewers (Sheng Huan and Yihao Ji) independently as follows: last name of the first author, publication year, number of patients, age, body mass index, American Society of Anesthesiologists (ASA, I/II/III), operation, intervention groups, details of the interventions.

The primary outcome was VAS at rest recorded 1, 2, 12, 24 hours after surgery. The secondary outcomes included rate of postoperative nausea and vomiting (PONV), rate of additional analgesia and the postoperative consumption of morphine.

Quality assessment

Two authors (Sheng Huan and Yihao Ji) independently completed the assessment of the quality of reviewed studies according to the Cochrane Collaboration Risk of Bias Tool for randomized controlled trials [23]. Disagreement or discrepancies were resolved by discussion with the third author (Guoping Yin). Quality assessment of 9 included studies was shown in Fig 1.

Statistical treatment

We used RevMan software (version 5. 3. 5) and Stata/MP (version 14.0) to perform this meta-analysis. For binary variables, odds ratio (OR) and 95% confidence interval (CI) were used. For continuous variables, weighted mean difference (WMD) and 95% confidence interval (CI) were used. Statistical heterogeneity was estimated using the I² test, which was considered present when I²>50% or P<0. 05, and then and the fixed-effects model was used. If not, the randomized-effects model was used and we then performed sensitivity analysis and subgroup analysis to find out the sources of heterogeneity. Publication bias was performed for every analysis using Egger’s test which is shown in the additional file named as Supplementary Information 1. When the P value <0. 05, the difference between groups was considered statistically significant.

After finishing the whole article, it was reviewed and examined again by the two authors (Youming Deng and Jia Wang), who put forward many valuable suggestions. Then one author (Sheng Huan) made further modifications to the article.

Results

Identification of eligible studies characteristics of the studies

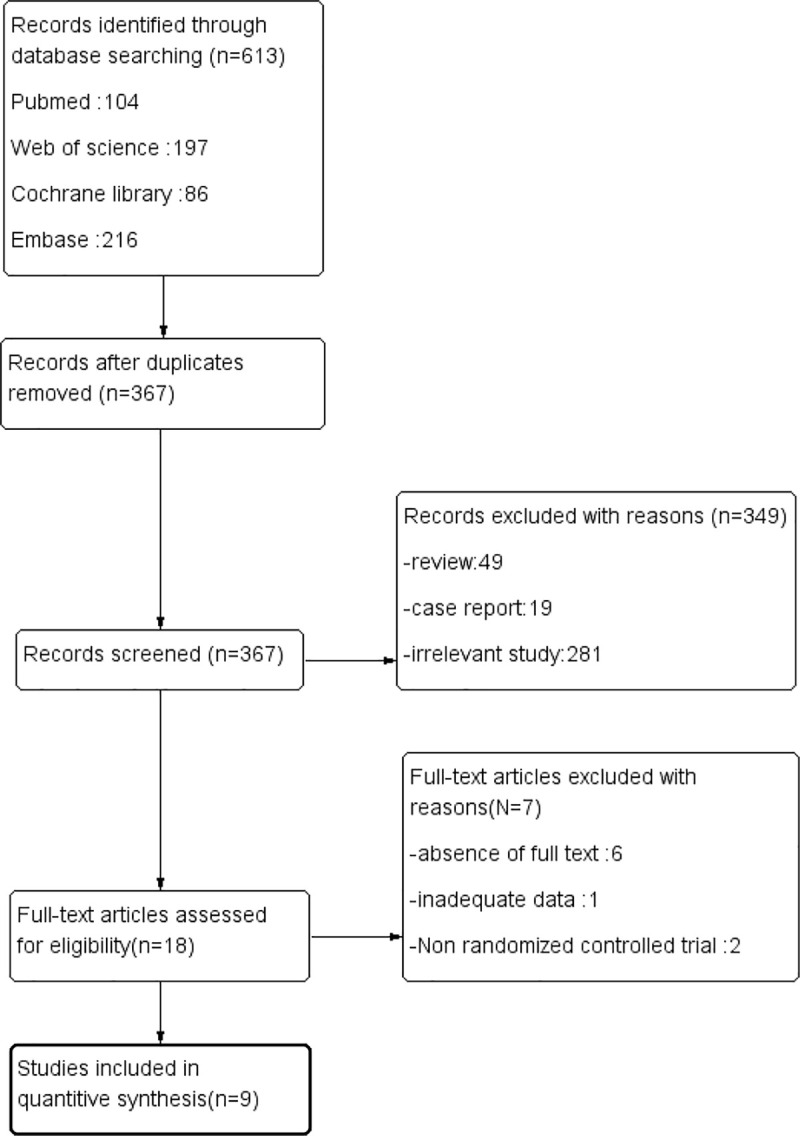

A total of 613 records were identified by the initial search. After removing the duplicates, there were still 367 unique articles remaining. Then, we reviewed all the remaining abstracts finding that only 18 studies met the inclusion criteria. One of these studies was ruled out due to incomplete data and 6 of them was excluded because of absence of full text. In addition, two studies which are not RCTs were also excluded. Finally, the remaining 9 studies [13–21] were included in our systematic review and meta-analysis. The strategy of the research and the process of the selection were shown in the flow diagram of Fig 2.

Characteristics of the studies

The characteristics of the studies included were shown in Table 1. All the included trials were published from 1995 to 2020 which enrolled a total of 440 patients, including 222 patients in the PVB group and 218 in the INB group. In some included studies, we cannot contact with the authors to get access to the primary data and we have therefore used some software tools to get the relevant data. The data of VAS at rest of study Perttunen (1995) [21] was presented with the form of mean, maximum and minimum values instead of mean and standard deviation. Therefore, we referred to a statistical method to estimate the variance data [24]. Two studies Mogahed (2019) and Wu (2018) [15, 16] presented the mean and standard deviation of VAS at rest in the form of graphs, so we analysed it with a digitizing software named Engauge Digitizer to get the data. The detailed characteristics of the included studies (9 RCTs) were presented in the file named as Supplementary Information 1.

Table 1. Characteristics of included randomized controlled studies (Data presented as mean ± standard deviation).

	Paravertebral block					Intercostal nerve block
Study	Number	Age	Body mass index	ASA (I/II/III)	Methods	Number	Age	Body mass index	ASA (I/II/III)	Methods	surgery
Vlassakovc.2020	10	54±11	27.1±4.4	(0/8/2)	PVB was given under ultrasound-guidance with 2.5mg/kg ropivacaineprior to surgery combined with intravenous and general anesthesia.	10	47±15	28.7±6.1	(1/8/1)	INB was given under ultrasound-guidance with 2.5mg/kg ropivacaine prior to surgery combined with intravenous and general anesthesia.	Breast surgery
Chen.2020	24	51.6±104	22.9±2.6	(9/15/0)	After anesthesia induction, a single anesthesiologist performed PVB at T5-T7 levels under ultrasound guidance using 20 ml of 0.375% ropivacaine.	24	58.2±7.8	23.5±2.4	(9/15/0)	After anesthesia induction, a single anesthesiologist performed ICNB at T4-T9 levels under ultrasound guidance using 20 ml of 0.375% ropivacaine.	Thoracoscopic surgery
Mogahed.2019	35	43.54±10.51	27.77±1.80	(0/24/11)	Patients received a single-shot PVB at the T4 level with 5 mL of 1% lidocaine before induction of the GA.	35	43.97±9.29	27.54±9.74	(0/23/12)	Patients received thoracoscopic intercostal block infiltration after induction of anaesthesia from the third to the eighth INB, in addition to intrathoracic vagal block.	Non-Intubated Uniportal
Mogahed.2019	35	43.54±10.51	27.77±1.80	(0/24/11)		35	43.97±9.29	27.54±9.74	(0/23/12)		Video-Assisted Thoracoscopic Surgery
Wu.2019	34	58.2±7.8	/	(2/23/9)	Patients received a total of 0.3ml/kg of a mixture containing 0.5% ropivacaine and 1/200000 epinephrine after placement of needles for either a single thoracic PVB under ultrasound.	32	56.5±8.3	/	(6/20/6)	Patients received a total of 0.3ml/kg of a mixture containing 0.5% ropivacaine and 1/200000 epinephrine after placement of needles for two individual ICNBs under ultrasound.	Thoracoscopic surgery
Kadomatsu.2018	26	67.9±8.2	23.3±3.9	/	After catheter placement, a single dose of 20ml 0.375% ropivacaine for thoracic PVB before surgery combined with intravenous and general anesthesia.	24	65.4±11.1	21.9±3.4	/	After catheter placement, a single dose of 10ml 0.375% ropivacaine for INB before surgery combined with intravenous and general anesthesia.	Video-assisted thoracic surgery
Hutchins.2018	23	62.09±8.85	27.1±5.26	(1/11/11)	3-to-5 mL of 1.5% lidocaine with epinephrine 1:200,000 was injected under ultrasound guidance at T5/6 or T6/7 level before the catheter was placed.	25	59.00±12.43	28.08±4.94	(1/6/18)	They injected over the surgical site and chest tube dermatomes, which consisted of 5-to-7 dermatomes (T3-9) depending on the incisions and chest tube placement. The local anesthetic used for INB was either 0.25% or 0.5% plain bupivacaine.	Video-Assisted Thoracoscopic Surgery
Chen.2014	30	53±8	23±5	(8/12/0)	Before anesthesia induction, a anesthesiologist performed PVB at T4-T7 levels under ultrasound guidance using 20 ml of 0.375% ropivacaine.	30	56±9	24±3	(6/14/0)	Before induction of general anesthesia, the INB was performed from parietal pleura to intercostal nerve at five levels with 25ml of 0.375% ropivacaine.	Thoracoscopic Surgery
Ouerghi.2008	23	47±13	/	(0/15/8)	During chest closure, patients received PVB with two bolus of 0.25% bupivacaine up to 10 ml and then a catheter was placed with continuous postoperative infusion of 0.25% bupivacaïne, at a rate of 0.1ml/Kg/h.	23	44±15	/	(0/14/9)	During chest closure, patients received INB with two bolus of 0.25% bupivacaine up to 10 ml and then a catheter was placed with continuous postoperative infusion of 0.25% bupivacaïne, at a rate of 0.1ml/Kg/h.	Pulmonary resection with elective posterolateral thoracotomy
Perttunen 1995	15	/	/	(3/7/5)	Patients in the PVB groups received a bolus dose of 0.25% bupivacaine according to the height of the patient before wound closure and a continuous infusion of 0.25% bupivacaine 8 ml/h.	15	/	/	(2/12/1)	Before wound closure at the end of operation the surgeon performed intrathoracic unilateral INB (T3–7) with a total of 16 ml of 0.5%bupivacaine.	Thoracotomy

Open in a new tab

Publication bias

We evaluated the publication bias using Egger’s test and found that there is no publication bias existing in our meta-analysis. The result was shown in the additional file named as S1 Appendix.

Primary outcome

Primary outcome: VAS at rest at the first 1 h

Four trials [15, 16, 19, 21] reported the VAS at rest at the first 1 h and we used the random-effect model to analysis the outcome of them. The results showed that compared to INB, PVB resulted in no significantly difference in VAS at rest at the first 1 h (Std. MD = -0. 20; 95% CI = -1. 11to 0. 71; P = 0. 66) with significant heterogeneity among the studies (I² = 98%, heterogeneity P<0.00001) (Fig 3).

Fig 3 — Outcome: VAS at rest at the first 1 h.

The sensitivity analyses conducted by us found that after omitting one study by turns, significant heterogeneity was still present among the trials. Then we perform the subgroup analysis to investigate that whether the VAS at rest at the first 1 h was influenced by the subjects of different countries. In the 4 trials, subjects of 2 studies Wu (2018) and Chen (2014) [16, 19] were Chinese and they were classified in the subgroup 1 showing no significantly difference in VAS at rest at the first 1 h (Std. MD = -0. 75; 95% CI = -1.83 to 0. 34; P = 0.18) with significant heterogeneity among the studies (I² = 97%, heterogeneity P<. 00001). At the same time, the other two studies Mogahed (2019) and Perttunen (1995) [15, 21] both including non-Chinese patients was classified in subgroup2, which showed a significantly decrease in VAS at rest at the first 1 h in people accepting PVB (Std. MD = 0. 33; 95% CI = 0. 25to 0. 41; P<0. 00001) with no heterogeneity among the studies (I² = 0%, heterogeneity P = 0. 51) (Fig 4).

Fig 4 — Outcome: VAS at rest at the first 1 h.

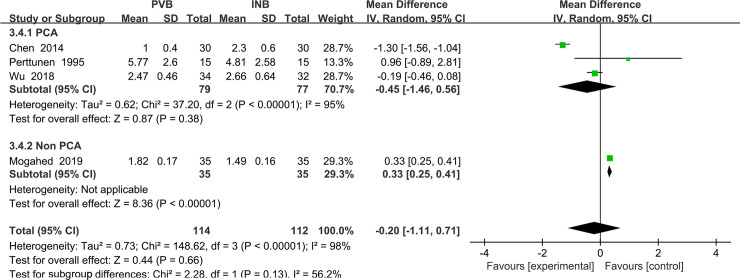

We also performed the subgroup analysis to investigate that whether the VAS at rest at the first 1 h was influenced by the use of Patient controlled analgesia (PCA) consisting of opioid drug. However, after excluding the study Mogahed (2019) [15], the heterogeneity was still very significant (I² = 98%, heterogeneity P<0.00001) and there is no significant difference between PVB and INB (Std. MD = 0.45; 95% CI = -1.46to 0. 56; P = 0.38) (Fig 5).

Fig 5 — Outcome: VAS at rest at the first 1 h.

Primary outcome: VAS at rest at the first 2 h

Four trials [16, 17, 19, 21] reported the VAS at rest at the first 1 h and we used the random-effect model to analysis the outcome of them. The results showed that compared to INB, PVB resulted in no significantly difference in VAS at rest at the first 2 h (Std. MD = -0. 71; 95% CI = -2. 32to 0. 91; P = 0. 39) with significant heterogeneity among the studies (I² = 86%, heterogeneity P = 0. 0009) (Fig 6).

Fig 6 — Outcome: VAS at rest at the first 2 h.

The sensitivity analyses conducted by us found that after omitting one study by turns, significant heterogeneity was still present among the trials. Then we performed the subgroup analysis to investigate that whether the VAS at rest at the first 1 h was influenced by the different nationalities of subjects. In the 4 trials, subjects of 2 studies Wu (2018) and Chen (2014) [16, 19] were Chinese and they were classified in the subgroup1 showing no significantly difference in VAS at rest at the first 1 h (Std. MD = -1.02; 95% CI = -2.74 to 0.69; P = 0.24) with significant heterogeneity among the studies (I² = 99%, heterogeneity P<. 00001). At the same time, the other two studies both including non-Chinese patients Kadomatsu (2018) and Perttunen (1995) [17, 21] was classified in subgroup2, which also showed no significantly difference in VAS at rest at the first 2 h in people accepting PVB (Std. MD = 0.04; 95% CI = -1. 57to 1.66; P = 0. 96) with significant heterogeneity among the studies (I² = 59%, heterogeneity P = 0. 12) (Fig 7).

Fig 7 — Outcome: VAS at rest at the first 2 h.

We also performed the subgroup analysis to investigate that whether the VAS at rest at the first 2 h was influenced by the use of opioid drug or non steroidal anti-inflammatory drugs (NSAIDs). However, after excluding the trail using NSAIDs Kadomatsu (2018) [17], the heterogeneity was still very significant (I² = 97%, heterogeneity P<0. 00001) and there was no significant difference between Opioid drug subgroup and NSAIDs subgroup (Std. MD = -0.51; 95% CI = -2.00to 0.97; P = 0.50) (Fig 8).

Fig 8 — Outcome: VAS at rest at the first 2 h.

Primary outcome: VAS at rest at the first 24 h

We used the random-effect model to analysis the outcome of VAS at rest at the first 24 h in four trials [16, 17, 19, 21]. The results showed that compared to INB, PVB resulted in no significantly difference in VAS at rest at 24 h (Std. MD = -0. 36; 95% CI = -0. 73to -0. 00; P = 0. 05) with significant heterogeneity among the studies (I² = 56%, heterogeneity P = 0. 08) (Fig 9).

Fig 9 — Outcome: VAS at rest at the first 24 h.

Because the result of P value given by Review Manage only had two decimal places, we then used Stata/MP 14.0 to analysis the outcome again and find that there is no significant difference between PVB and INB (P = 0.063) (Fig 10).

Fig 10 — Outcome: VAS at rest at the first 24 h.

After conducting the sensitivity analysis, we found that when we excluded the study Chen (2014) [19], no heterogeneity was present among the remaining studies (I² = 0%). However, the exclusion of the study Chen (2014) [19] did not materially alter the difference VAS at rest at the 24h between PVB and INB (MD = -0. 18; 95% CI: −0. 39 to -0. 02, P = 0. 08) (Fig 11).

Fig 11 — Outcome after exclusion of the study Chen (2014): VAS at rest at the first 24 h.

We performed the subgroup analysis to investigate whether the VAS at rest at the first 24 h was influenced by the different nationalities of subjects enrolled in our analysis. In the 4 trials, subjects of 2 studies Wu (2018) and Chen (2014) [16, 19] included were Chinese and they were classified in the subgroup1, which resulted in significantly decreased in VAS at rest at the first 1 h in patients accepting PVB (Std. MD = -0.32; 95% CI = -0.49 to-0.14; P = 0.0003) with significant heterogeneity among the studies (I² = 80%, heterogeneity P = 0.03). At the same time, the other two studies Kadomatsu (2018) and Perttunen (1995) [17, 21] both included non-Chinese patients and they were classified in the subgroup2, showing no significantly difference in VAS at rest at the 24h (Std. MD = -0.29; 95% CI = -1. 32 to 0.74; P = 0. 58) with significant heterogeneity among the studies. (I² = 47%, heterogeneity P = 0. 17) (Fig 12).

Fig 12 — Outcome: VAS at rest at the first 24 h.

We also performed the subgroup analysis to investigate that whether the VAS at rest at the first 2 h was influenced by the use of opioid drug or NSAIDs. However, after excluding the study using NSAIDs Kadomatsu (2018) [17], the heterogeneity was still very significant (I² = 67%, heterogeneity P = 0.05) and there was no significant difference between Opioid drug and NSAIDs and INB (Std. MD = -0.32; 95% CI = -0.72 to 0.08; P = 0.11) (Fig 13).

Fig 13 — Outcome: VAS at rest at the first 24 h.

Primary outcome: VAS at rest at the first 48 h

We used the random-effect model to analysis the outcome of VAS at rest at 48 h. The results showed that compared to INB group, PVB resulted in no significantly difference in VAS at rest at the first 48h (Std. MD = -0. 04; 95% CI = -0. 20to 0. 11; P = 0. 57) without significant heterogeneity among the studies (I² = 0%, heterogeneity P = 0. 64) (Fig 14).

Fig 14 — Outcome: VAS at rest at the first 48 h.

Although there was no heterogeneity in above analysis, we still performed the subgroup analysis to investigate that whether the VAS at rest at 48h was influenced by the use of opioid drug or NSAIDs. After excluding the study using NSAIDs Kadomatsu (2018) [17], there was also no heterogeneity in the subgroup (I² = 0%, heterogeneity P = 0.44) and there was no significant difference between Opioid drug and NSAIDs and INB (Std. MD = -0.05; 95% CI = -0.20 to 0.11; P = 0.56) (Fig 15).

Fig 15 — Outcome: VAS at rest at the first 48 h.

Secondary outcome

Meta-analysis of rates of postoperative nausea and vomit

The results of our analysis were shown in Fig 2. Data of PONV were given in six trials Chen (2020), Wu (2018), Kadomatsu (2018), Hutchins (2017), Chen (2014) and Perttunen (1995) [14, 16–19, 21]. All in all, the rates of PONV in the PVB and INB groups were 26.5% and 36.2%, respectively. There is no significant difference in PONV between PVB and INB (OR = 0. 63; 95% CI = 0. 38 to 1. 03; P = 0. 06), and no evidence of high heterogeneity was found among the included studies (I² = 20%; P = 0. 28) (Fig 16).

Fig 16 — Outcome: Rates of postoperative nausea and vomiting.

Meta-analysis of rates of postoperative additional analgesia

The results of our analysis were shown in Fig 2. Data of postoperative additional analgesia was given in two trials Chen (2014) and Kadomatsu (2018) [14, 17]. All in all, the rates of postoperative additional analgesia in the PVB and INB groups were13. 3% and 18. 1%, respectively. There was no significant difference in rates of postoperative additional analgesia between PVB with INB (OR = 0. 57; 95% CI = 0. 21 to 1. 55; P = 0. 27), and no evidence of high heterogeneity was found among the included studies (I² = 0%; P = 0. 36) (Fig 17).

Fig 17 — Outcome: Rates of postoperative nausea and vomiting.

Meta-analysis of postoperative use of morphine in 48h

We used the random-effect model to analysis the outcome of postoperative use of morphine in three trials Hutchins (2017), Perttunen (1995) and Ouerghi (2008) [18, 20, 21]. The results showed that compared to INB, PVB can result in a significantly decrease in postoperative morphine (Std. MD = -14. 57; 95% CI = -26. 63 to -0.25; P = 0. 02), without significant heterogeneity among the studies (I² = 56%, heterogeneity P = 0. 10) (Fig 18).

Fig 18 — Outcome: Postoperative use of morphine.

Discussion

Summary of evidence

Compared with other common surgery, thoracic surgery has higher incidence of postoperative pain. In the past, thoracic epidural anesthesia was the gold standard for postoperative analgesia after thoracic surgery and breast surgery [25, 26]. However, in recent years, due to the improvement of technique such as ultrasound-guided paravertebral block, anterior serratus block, intercostal nerve block and so on, epidural analgesia has been gradually replaced [27, 28]. Many studies have shown that PVB or INB has similar analgesic effect with epidural analgesia while having less complication and better postoperative rehabilitation [29]. At the same time, they can provide satisfactory depth of anesthesia during the surgical without causing significant fluctuation of hemodynamic [21, 25, 30]. This meta-analysis of RCTs between PVB and INB showed that for patients undergoing thoracic surgery or breast surgery, no significant difference was found in VAS for most of time, rate of postoperative PONV and rate of postoperative additional analgesic. However, VAS of non Chinese group at 1h and VAS of Chinese group at 24h showed significant difference in our analysis, which mean PVB can provide better analgesic effect. At the same time, the consumption of morphine of PVB group in 48h is lower than that of the INB group with significant difference.

In most of the RCTs included, the authors reported postoperative pain scores, of which some were used in the form of NRS instead of VAS resulting in our relatively small sample size. The postoperative analgesia of a single PVB after thoracoscopic surgery can last from 6 to 48 hours [31], so we evaluated the VAS at 1, 2, 24, and 48 hours after surgery. In our included studies, there was a difference in the VAS at rest at 48 hours after operation reported by Kadomatsu et.al [17] and in the VAS at rest at 1hour and 2 hour after operation reported by Chen et.al [19]. In addition, some studies have also reported VAS on coughing or exercising. The VAS on coughing at 8 hours after surgery between PVB and INB reported in Chen et.al [14] had significant difference. There was also a significant difference in the VAS on coughing at 24hours and 48 hours after operation reported by Ouerghi et.al [20] and the VAS on coughing at 1hour and 2 hour after operation reported by Chen et.al [19], and the other studies included did not find any differences in the VAS on coughing in each period of time.

Our meta-analysis’s results were consistent with the results of some included studies proving that PVB may provide a slightly better analgesic effect, especially at 1h in non Chinese subgroup and 24h in Chinese subgroup. Although an hour after surgery is often the most painful time, Chinese patients usually lacked a clear understanding of postoperative analgesia and believed that pain is an inevitable result of surgery [32], which may be the reason of significant difference of VAS at 1h in non Chinese group. Two studies [16, 19] in VAS at 24h of Chinese subgroup both performed a single nerve block before operation rather than continuous nerve block used in non Chinese subgroup, which may lead to decreased duration of nerve block and significant differences in the analgesic effect between PVB and INB at 24 hours in Chinese subgroup.

Regarding the use of postoperative opioid, the included studies have shown contradictory conclusions. Hutchins et al. [18] found that in the interval from 24 to 48 hours, the use of morphine in the PVB group was significantly reduced compared with INB group, which may be related to the incomplete analgesic effect of INB and the narrow space around the intercostal nerves. Wu et al. [16] and Ouerghi et al. [20] also got similar conclusion. Our meta-analysis’s results were consistent with the results of most included studies that compared with INB, PVB can significantly decreased the postoperative use of morphine. We have proved that the analgesic effect of PVB is better than INB, which lead to lower demand of morphine. In addition, Perttunen et.al [21] found that bupivacaine concentrations were higher of INB group than that of PVB group at 2h after the surgery while from 6 h after the surgery, bupivacaine concentrations of INB group were significantly lower than that of PVB groups. We think the rich blood flow besides intercostal nerve which led to the rapid absorption of local anesthetics may also cause the significant difference in analgesia and more use of morphine. It was worth noting that although the local anesthetic is absorbed quickly, the concentration would not exceed the threshold of poisoning under the condition of conventional dose [33].

All the included trials also showed no significant difference in the number of patients needing additional analgesics or emergency analgesics, which proved that the analgesic effect of PVB and INB meets the needs of the majority of people.

Although PVB can provide better analgesia efficacy and cause lower consumption of morphine after thoracic surgery and breast surgery. PVB had another advantage that a single injection of PVB can cover 3–6 dermatomal levels [34], while INB required multisegmental block. However, it was also necessary to be vigilant that local anesthetics in thoracic segments can spread to the neck and block the high sympathetic nerve chain, which may cause Horner syndrome.

In terms of postoperative complications, many studies have shown that the two methods have few postoperative complications. The most common complication was PONV, but there was no significant difference between the two groups. The PVB group had a slightly lower incidence of PONV than the INB group, which may be caused by a lower consumption of morphine. Nausea and vomiting were mostly caused by Vagal excitation, hypotension, stomach fullness, and use of opioids. PVB and INB did not affect the vagus and have less influence on hemodynamics than epidural anesthesia, so the incidence of vomiting was relatively lower.

This analysis did not compared the other complications in detail and only explained them as follows in the discussion because they were too rare to see in our included studies. One study found that the routine use of a single-injection, transverse, in-plane ultrasound-guided technique for PVB in patients undergoing mastectomy was associated with very few complications [35]. Our included studies have also showed that the incidence of pneumothorax, hemorrhage caused by punctured blood vessels, and local anesthetic poisoning have greatly decreased due to proper manipulation and help of ultrasound. Except for two studies [14, 21] reporting the discovery of hematomas, the rest of the studies did not even find a case of such complication. Therefore, we have to conclude that ultrasound-guided PVB and INB were very safe measures of analgesia. Interestingly, the visual score of INB has also been proven to be significantly higher than PVB [13], which may be because the intercostal nerve was shallow and the rib, pleura and muscles were well-defined. At the same time, this study also found that the length of needle insertion in the INB group was longer than that of PVB group, because the lager space between adjacent ribs allows the tip of puncture needle to reach the position better and provide better visual scoring and manipulation space.

Arrhythmia was another common complication after thoracic surgery. However, we did not conduct a meta-analysis of this indicator because there was too little data to be included. Pain may be regarded as an inducement of arrhythmia all the time. Wu [16] found that PVB group had a higher incidence of supraventricular tachycardia and atrial fibrillation than INB group. And there were significant differences between the two groups, which may be related to the better operative analgesia of PVB. However, the causes of arrhythmia were various, and it may also be caused by increased right ventricular preload, hyperadrenergic conditions, and an imbalance of the autonomic nervous system in the form of sympathetic tone [36]. In terms of the use of β blockers after surgery, PVB group had also decreased significantly. We had reason to believe that it was a better choice to perform PVB for patients with cardiac dysfunction especially arrhythmia.

Postoperative respiratory depression was also mostly caused by pain. In addition to making patients unwilling to inhale deeply, reducing the tidal volume, and increasing respiratory rate, it may also inhibit cough reflexes. Postoperative analgesia after surgery was an effective measure to prevent respiratory depression, atelectasis, and lung infections [37, 38]. In our included studies, only one study found several cases of respiratory depression [21], and the rest of the studies did not report such implications. We thought that this condition was also caused by poor postoperative analgesia and non ultrasound-guided puncture. It was also possible that the patients’ own coexisting cardiac dysfunction and increased blood concentration of ropivacaine caused hypoxic pulmonary vasoconstriction leading to respiratory depression. Except for the study performed by Ouerghi et.al [20] finding that FEV1 of PVB group was significantly higher than that of INB group at 48th hours after surgery, the difference of FEV1 between the two groups was not found at any time. One literature once reported that VAS was a related factor for postoperative FEV1 changes [37], which can explain the above-mentioned difference of FEV1.

Finally, the incidence of central nervous system complications such as dizziness, drowsiness, and delirium were very low. Pruritus and rash were rare to see and no case of urine retention or hypotension was found.

Heterogeneity

In our meta-analysis, the heterogeneities associated with VAS at first 1h and 2h were relatively high. After performing the sensitivity analysis and subgroup analysis, heterogeneity in non Chinese subgroups decreased significantly while heterogeneity in non Chinese groups was still significant. In terms of VAS at first 12h, we performed sensitivity analysis and found that when excluding the study of Chen [19], no heterogeneity was present among the other studies. We therefore believed that heterogeneity resulted from different sensitivity of people in different countries to pain and difference between single block and continuous block.

In most of the studies, opioid drug or NSAIDs in PCA combined with nerve block were used for postoperative analgesia. Although PVB and INB were the main analgesic factors within 48 hours after surgery, we still worried that opioids or NSAIDs were the sources of heterogeneity. We therefore did some subgroup analysis to discuss this, but the results showed that whether to give painkiller or not and the type of painkiller were not the reason for the high heterogeneity of VAS after surgery.

We thought there were several reasons that could explain the previously significant heterogeneity. Firstly, the anesthesia method of Wu [16] was non-intubated anesthesia combined with general intravenous anesthesia and nerve block. The rest of the included experiments were general anesthesia with endotracheal intubation. Secondly, the concentration of anesthetic drugs was different. For example, the concentration of ropivacaine was 0. 2%, 0. 375% or 0. 5% in different included studies. In some experiments, 1/200000 adrenaline was also added to the local anesthetic. Thirdly, difference between single block and continuous block and whether to place postoperative catheters also had a significant impact on the anesthetic effect. Fourthly, the procedures of thoracic surgery were different. For example, thoracotomy surgery was more traumatic than thoracoscopy surgery and may cause more adverse reactions in which postoperative analgesia may be more demanded. Fifthly, another possible reason was that some of the included RCTs provided the median, range, and the first and third quartiles for these outcomes. Transformation of these data to sample means and standard deviation for meta-analysis may have introduced errors, thus causing heterogeneity between studies.

Limitation

This study has several limitations as follows. Firstly, Although we used sensitivity analysis and subgroup analysis to decrease the heterogeneity, significant heterogeneity still existed in some of the subgroups. Secondly, many included studies only presented data of nausea and vomiting but not other common complications (hemorrhage, arrhythmia, postoperative respiratory etc.). Only two studies compared rate of arrhythmia between PVB and INB. We therefore could not give a comprehensive evaluation of postoperative safety between them. Finally, the sample size of the studies we have included was smaller compared with other meta-analysis, which may weaken our conclusion. Large samples and multicenter RCTs should be performed for further discussion.

Conclusion

In our meta-analysis, PVB and INB had no significant difference in the incidence of postoperative additional analgesia and the rate of postoperative PONV. Moreover, PVB can lead to decrease in postoperative use of morphine. In terms of analgesic effect, VAS of non Chinese subgroup at 1 h and Chinese subgroup at 24 h of PVB was significantly lower than that of INB, which means PVB can provide better postoperative analgesia than INB. In some included studies, PVB had a lower incidence of postoperative arrhythmias and a better recovery of FEV1, which can be used as a preferred method in patients with cardiopulmonary diseases in thoracic surgery or breast surgery.

On the whole, PVB was a more secure and effective method for postoperative analgesia.

Supporting information

S1 Appendix. Search strategy.

(DOCX)

Click here for additional data file.^{(12.4KB, docx)}

S2 Appendix. Egger's test.

(DOCX)

Click here for additional data file.^{(80.1KB, docx)}

S3 Appendix. PRISMA checklist.

(DOC)

Click here for additional data file.^{(67.5KB, doc)}

Data Availability

All relevant data are within the manuscript and its Supporting Information files.

Funding Statement

The author(s) received no specific funding for this work.

References

1.Beaussier M, Genty T, Lescot T, Aissou M. Influence of pain on postoperative ventilatory disturbances. Management and expected benefits. Annales francaises d'anesthesie et de reanimation. 2014;33(7–8):484–6. Epub 2014/08/30. 10.1016/j.annfar.2014.07.005 . [DOI] [PubMed] [Google Scholar]
2.Bignami E, Castella A, Pota V, Saglietti F, Scognamiglio A, Trumello C, et al. Perioperative pain management in cardiac surgery: a systematic review. Minerva anestesiologica. 2018;84(4):488–503. Epub 2017/10/14. 10.23736/S0375-9393.17.12142-5 . [DOI] [PubMed] [Google Scholar]
3.Kehlet H, Jensen TS, Woolf CJ. Persistent postsurgical pain: risk factors and prevention. Lancet (London, England). 2006;367(9522):1618–25. Epub 2006/05/16. 10.1016/s0140-6736(06)68700-x . [DOI] [PubMed] [Google Scholar]
4.Chin KJ. Thoracic wall blocks: From paravertebral to retrolaminar to serratus to erector spinae and back again—A review of evidence. Best practice & research Clinical anaesthesiology. 2019;33(1):67–77. Epub 2019/07/06. 10.1016/j.bpa.2019.02.003 . [DOI] [PubMed] [Google Scholar]
5.Yeung JH, Gates S, Naidu BV, Wilson MJ, Gao Smith F. Paravertebral block versus thoracic epidural for patients undergoing thoracotomy. The Cochrane database of systematic reviews. 2016;2(2):Cd009121. Epub 2016/02/22. 10.1002/14651858.CD009121.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]
6.Kosiński S, Fryźlewicz E, Wiłkojć M, Ćmiel A, Zieliński M. Comparison of continuous epidural block and continuous paravertebral block in postoperative analgaesia after video-assisted thoracoscopic surgery lobectomy: a randomised, non-inferiority trial. Anaesthesiology intensive therapy. 2016;48(5):280–7. Epub 2016/12/22. 10.5603/AIT.2016.0059 . [DOI] [PubMed] [Google Scholar]
7.Vogt A. Review about ultrasounds in paravertebral blocks. European Journal of Pain Supplements. 2011;5(S2):489–94. 10.1016/j.eujps.2011.08.043 [DOI] [Google Scholar]
8.Krediet AC, Moayeri N, van Geffen GJ, Bruhn J, Renes S, Bigeleisen PE, et al. Different Approaches to Ultrasound-guided Thoracic Paravertebral Block: An Illustrated Review. Anesthesiology. 2015;123(2):459–74. Epub 2015/06/18. 10.1097/ALN.0000000000000747 . [DOI] [PubMed] [Google Scholar]
9.Albokrinov AA, Fesenko UA. Spread of dye after single thoracolumbar paravertebral injection in infants. A cadaveric study. European journal of anaesthesiology. 2014;31(6):305–9. Epub 2014/03/19. 10.1097/EJA.0000000000000071 . [DOI] [PubMed] [Google Scholar]
10.Richardson J, Lönnqvist PA, Naja Z. Bilateral thoracic paravertebral block: potential and practice. British journal of anaesthesia. 2011;106(2):164–71. Epub 2011/01/15. 10.1093/bja/aeq378 . [DOI] [PubMed] [Google Scholar]
11.Mayes J, Davison E, Panahi P, Patten D, Eljelani F, Womack J, et al. An anatomical evaluation of the serratus anterior plane block. Anaesthesia. 2016;71(9):1064–9. Epub 2016/07/22. 10.1111/anae.13549 . [DOI] [PubMed] [Google Scholar]
12.Court C, Vialle R, Lepeintre JF, Tadié M. The thoracoabdominal intercostal nerves: an anatomical study for their use in neurotization. Surgical and radiologic anatomy: SRA. 2005;27(1):8–14. Epub 2004/08/19. 10.1007/s00276-004-0281-8 . [DOI] [PubMed] [Google Scholar]
13.Vlassakov K, Vafai A, Ende D, Patton ME, Kapoor S, Chowdhury A, et al. A prospective, randomized comparison of ultrasonographic visualization of proximal intercostal block vs paravertebral block. BMC anesthesiology. 2020;20(1):13 Epub 2020/01/11. 10.1186/s12871-020-0929-x [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Chen N, Qiao Q, Chen R, Xu Q, Zhang Y, Tian Y. The effect of ultrasound-guided intercostal nerve block, single-injection erector spinae plane block and multiple-injection paravertebral block on postoperative analgesia in thoracoscopic surgery: A randomized, double-blinded, clinical trial. Journal of clinical anesthesia. 2020;59:106–11. Epub 2019/07/23. 10.1016/j.jclinane.2019.07.002 . [DOI] [PubMed] [Google Scholar]
15.Mogahed MM, Elkahwagy MS. Paravertebral Block Versus Intercostal Nerve Block in Non-Intubated Uniportal Video-Assisted Thoracoscopic Surgery: A Randomised Controlled Trial. Heart, lung & circulation. 2020;29(5):800–7. Epub 2019/05/31. 10.1016/j.hlc.2019.04.013 . [DOI] [PubMed] [Google Scholar]
16.Wu C, Ma W, Cen Q, Cai Q, Wang J, Cao Y. A comparison of the incidence of supraventricular arrhythmias between thoracic paravertebral and intercostal nerve blocks in patients undergoing thoracoscopic surgery: A randomised trial. European journal of anaesthesiology. 2018;35(10):792–8. Epub 2018/05/31. 10.1097/EJA.0000000000000837 . [DOI] [PubMed] [Google Scholar]
17.Kadomatsu Y, Mori S, Ueno H, Uchiyama M, Wakai K. Comparison of the analgesic effects of modified continuous intercostal block and paravertebral block under surgeon's direct vision after video-assisted thoracic surgery: a randomized clinical trial. General thoracic and cardiovascular surgery. 2018;66(7):425–31. Epub 2018/05/10. 10.1007/s11748-018-0936-8 . [DOI] [PubMed] [Google Scholar]
18.Hutchins J, Sanchez J, Andrade R, Podgaetz E, Wang Q, Sikka R. Ultrasound-Guided Paravertebral Catheter Versus Intercostal Blocks for Postoperative Pain Control in Video-Assisted Thoracoscopic Surgery: A Prospective Randomized Trial. Journal of cardiothoracic and vascular anesthesia. 2017;31(2):458–63. Epub 2016/11/05. 10.1053/j.jvca.2016.08.010 . [DOI] [PubMed] [Google Scholar]
19.Chen JH, Zhang YX, Ping LI, Fan ZY, Institute. Effect of thoracic paravertebral block and intercostal nerve block on postoperative analgesia in patientsundergoing video-assisted thoracoscopic surgery. Journal of Clinical Anesthesiology. 2014;30(5):444–7. [Google Scholar]
20.Ouerghi Frikha, Mestiri Smati, MS Mebazaa. A prospective, randomised comparison of continuous paravertebral block and continuous intercostal nerve block for post-thoracotomy pain. Southern African Journal of Anaesthesia and Analgesia. 2008. [Google Scholar]
21.Perttunen K, Nilsson E, Heinonen J, Hirvisalo EL, Salo JA, Kalso E. Extradural, paravertebral and intercostal nerve blocks for post-thoracotomy pain. British journal of anaesthesia. 1995;75(5):541–7. Epub 1995/11/01. 10.1093/bja/75.5.541 . [DOI] [PubMed] [Google Scholar]
22.Sinha R, Gurwara AK, Gupta SC. Laparoscopic cholecystectomy under spinal anesthesia: a study of 3492 patients. Journal of laparoendoscopic & advanced surgical techniques Part A. 2009;19(3):323–7. Epub 2009/06/16. 10.1089/lap.2008.0393 . [DOI] [PubMed] [Google Scholar]
23.Higgins JP, Altman DG, Gøtzsche PC, Jüni P, Moher D, Oxman AD, et al. The Cochrane Collaboration's tool for assessing risk of bias in randomised trials. BMJ (Clinical research ed). 2011;343:d5928 Epub 2011/10/20. 10.1136/bmj.d5928 . [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Hozo SP, Djulbegovic B, Hozo I. Estimating the mean and variance from the median, range, and the size of a sample. BMC medical research methodology. 2005;5:13 Epub 2005/04/21. 10.1186/1471-2288-5-13 [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Manion SC, Brennan TJ. Thoracic epidural analgesia and acute pain management. Anesthesiology. 2011;115(1):181–8. Epub 2011/05/25. 10.1097/ALN.0b013e318220847c . [DOI] [PubMed] [Google Scholar]
26.Listing H, Pöpping D. [Pro: Epidural Analgesia Remains the Gold Standard for Abdominal and Thoracic Surgery]. Anasthesiologie, Intensivmedizin, Notfallmedizin, Schmerztherapie: AINS. 2018;53(4):237–44. Epub 2018/05/10. 10.1055/s-0043-104668 Pub [DOI] [PubMed] [Google Scholar]
27.Jack JM, McLellan E, Versyck B, Englesakis MF, Chin KJ. The role of serratus anterior plane and pectoral nerves blocks in cardiac surgery, thoracic surgery and trauma: a qualitative systematic review. Anaesthesia. 2020. Epub 2020/02/18. 10.1111/anae.15000 . [DOI] [PubMed] [Google Scholar]
28.Sinha A, Carli F. The role of regional anaesthesia in patient outcome: thoracic and abdominal surgeries. Techniques in Regional Anesthesia & Pain Management. 2008;12(4):0–193.Med 10.1055/s-0043-104668 . [DOI] [PubMed] [Google Scholar]
29.Romero A, Garcia JE, Joshi GP. The state of the art in preventing postthoracotomy pain. Seminars in thoracic and cardiovascular surgery. 2013;25(2):116–24. Epub 2013/11/13. 10.1053/j.semtcvs.2013.04.002 . [DOI] [PubMed] [Google Scholar]
30.Wang ML, Hung MH, Chan KC, Chen JS, Cheng YJ. Intraoperative multiple intercostal nerve blocks exert anesthetic-sparing effect: A retrospective study on the effect-site concentration of propofol infusion in nonintubated thoracoscopic surgery. Acta anaesthesiologica Taiwanica: official journal of the Taiwan Society of Anesthesiologists. 2016;54(3):77–80. Epub 2016/08/28. 10.1016/j.aat.2016.07.001 . [DOI] [PubMed] [Google Scholar]
31.Hill SE, Keller RA, Stafford-Smith M, Grichnik K, White WD, D'Amico TA, et al. Efficacy of single-dose, multilevel paravertebral nerve blockade for analgesia after thoracoscopic procedures. Anesthesiology. 2006;104(5):1047–53. Epub 2006/04/29. 10.1097/00000542-200605000-00022 . [DOI] [PubMed] [Google Scholar]
32.Wang H, Li S, Liang N, Liu W, Liu H, Liu H. Postoperative pain experiences in Chinese adult patients after thoracotomy and video-assisted thoracic surgery. Journal of clinical nursing. 2017;26(17–18):2744–54. Epub 2017/03/03. 10.1111/jocn.13789 . [DOI] [PubMed] [Google Scholar]
33.Behnke H, Worthmann F, Cornelissen J, Kahl M, Wulf H. Plasma concentration of ropivacaine after intercostal blocks for video-assisted thoracic surgery. British journal of anaesthesia. 2002;89(2):251–3. Epub 2002/10/16. 10.1093/bja/aef185 . [DOI] [PubMed] [Google Scholar]
34.Naja ZM, El-Rajab M, Al-Tannir MA, Ziade FM, Tayara K, Younes F, et al. Thoracic paravertebral block: influence of the number of injections. Regional anesthesia and pain medicine. 2006;31(3):196–201. Epub 2006/05/17. 10.1016/j.rapm.2005.12.004 . [DOI] [PubMed] [Google Scholar]
35.Pace MM, Sharma B, Anderson-Dam J, Fleischmann K, Warren L, Stefanovich P. Ultrasound-Guided Thoracic Paravertebral Blockade: A Retrospective Study of the Incidence of Complications. Anesthesia and analgesia. 2016;122(4):1186–91. Epub 2016/01/13. 10.1213/ANE.0000000000001117 . [DOI] [PubMed] [Google Scholar]
36.Amar D, Zhang H, Miodownik S, Kadish AH. Competing autonomic mechanisms precede the onset of postoperative atrial fibrillation. Journal of the American College of Cardiology. 2003;42(7):1262–8. Epub 2003/10/03. 10.1016/s0735-1097(03)00955-0 . [DOI] [PubMed] [Google Scholar]
37.Ballantyne JC, Carr DB, deFerranti S, Suarez T, Lau J, Chalmers TC, et al. The comparative effects of postoperative analgesic therapies on pulmonary outcome: cumulative meta-analyses of randomized, controlled trials. Anesthesia and analgesia. 1998;86(3):598–612. Epub 1998/03/12. 10.1097/00000539-199803000-00032 . [DOI] [PubMed] [Google Scholar]
38.Taylor R, Massey S, Stuart-Smith K. Postoperative analgesia in video-assisted thoracoscopy: the role of intercostal blockade. Journal of cardiothoracic and vascular anesthesia. 2004;18(3):317–21. Epub 2004/07/03. 10.1053/j.jvca.2004.03.012 . [DOI] [PubMed] [Google Scholar]

PLoS One. doi: 10.1371/journal.pone.0237363.r001

Decision Letter 0

Ehab Farag

26 Jun 2020

PONE-D-20-13360

Efficacy and safety of paravertebral block versus intercostal nerve block in Thoracic surgery or Breast surgery: a systematic review and meta-analysis

PLOS ONE

Dear Dr. Sheng Huan

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

I would appreciate if you make a careful attention to the reviewer's comments specially the statistical ones.

Please ensure that your decision is justified on PLOS ONE’s publication criteria and not, for example, on novelty or perceived impact.

Please submit your revised manuscript by Aug 10 2020 11:59PM. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: http://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols

We look forward to receiving your revised manuscript.

Kind regards,

Ehab Farag, MD FRCA FASA

Academic Editor

PLOS ONE

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2. At this time, we ask that you please provide the full search strategy and search terms for at least one database used as Supplementary Information.

3. Please provide the results of the Egger's test used to assess publication bias in the meta-analysis as a separate Figure in the manuscript.

4. We suggest you thoroughly copyedit your manuscript for language usage, spelling, and grammar. If you do not know anyone who can help you do this, you may wish to consider employing a professional scientific editing service.

Whilst you may use any professional scientific editing service of your choice, PLOS has partnered with both American Journal Experts (AJE) and Editage to provide discounted services to PLOS authors. Both organizations have experience helping authors meet PLOS guidelines and can provide language editing, translation, manuscript formatting, and figure formatting to ensure your manuscript meets our submission guidelines. To take advantage of our partnership with AJE, visit the AJE website (http://learn.aje.com/plos/) for a 15% discount off AJE services. To take advantage of our partnership with Editage, visit the Editage website (www.editage.com) and enter referral code PLOSEDIT for a 15% discount off Editage services. If the PLOS editorial team finds any language issues in text that either AJE or Editage has edited, the service provider will re-edit the text for free.

Upon resubmission, please provide the following:

The name of the colleague or the details of the professional service that edited your manuscript
A copy of your manuscript showing your changes by either highlighting them or using track changes (uploaded as a *supporting information* file)
A clean copy of the edited manuscript (uploaded as the new *manuscript* file)

5. Thank you for stating the following financial disclosure:

'No'

At this time, please address the following queries:

Please clarify the sources of funding (financial or material support) for your study. List the grants or organizations that supported your study, including funding received from your institution.
State what role the funders took in the study. If the funders had no role in your study, please state: “The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.”
If any authors received a salary from any of your funders, please state which authors and which funders.
If you did not receive any funding for this study, please state: “The authors received no specific funding for this work.”

Please include your amended statements within your cover letter; we will change the online submission form on your behalf.

6. Please include your tables as part of your main manuscript and remove the individual files. Please note that supplementary tables (should remain/ be uploaded) as separate "supporting information" files

7. Please include captions for your Supporting Information files at the end of your manuscript, and update any in-text citations to match accordingly. Please see our Supporting Information guidelines for more information: http://journals.plos.org/plosone/s/supporting-information.

Additional Editor Comments (if provided):

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Partly

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: No

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: No

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: The authors conducted a meta-analysis on the efficacy and safety of paravertebral block vs. intercostal nerve block in Thoracic surgery or breast surgery. A total of 10 randomized trials were included and VAS pain score were assessed as the primary outcome.

Major Issue

1. The authors included RCTs for the meta-analysis, however, ref 19, Perez Herrero (2016). presented a prospective observational study which should not be included in the analysis.

2. When assessing the efficacy of the blocks, the authors compared VAS pain scores in the primary analysis, and postoperative additional analgesia/postoperative use of morphine in the secondary outcomes. As opioid strategy greatly (additional analgesia allowed yes/no, additional analgesia standardized yes/no) affects pain scores, the authors should describe the opioid strategy of each study before comparing the pain score. The authors should also explore whether opioid strategy could be the source of heterogeneity. As an example, ref 16 reported no difference in pain score but significant difference in Sufentanil consumption while ref 18 reported no difference in both pain score and opioid consumption within the first 24 hours.

Minor issues

1. The authors included 9 studies from 2008-2020 and 1 study from 1995. One of the concerns is whether there are improvements in the technique of the blocks that make the 1995 one less comparable and less valuable as a reference.

2. For all the forest plots, Experimental vs. Control is very confusing. Please directly label PVB, INB.

3. The authors should check for spelling and grammar errors. For example “trials” was misspelled as “trails”, “Can not” should be spelled as “cannot”.

4. When p-values is exactly 0.05, report P-values in 3 decimal points to show significance/nonsignificance.

5. When referring to trials in the result, use author name and year of the trial instead of reference number. It’s hard to know what trial [20] is without pulling down to the reference list.

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2020 Oct 5;15(10):e0237363. doi: 10.1371/journal.pone.0237363.r002

Author response to Decision Letter 0

20 Jul 2020

Dear Editors:

I am very grateful to you for giving me an opportunity of major revision, and I also cherish this chance. In view of your questions, my team and I have made a lot of efforts to improve our articles to meet your requirements during the past few days. The following is the reply to your suggestions.

Response to Journal Requirements:

1.We have tried our best to revise the manuscript to meet PLOS ONE's style requirements, including those for file naming. However, we hope the editor could review it again because we can't guarantee that the revised manuscript will fully meet the requirements of the journal.

We didn't find the specific font requirements, so we changed the font format of the article to Times New Roman. Due to many changes in the format, we did not show it in the revised manuscript with track changes. For the format of the figures, we refer to the previous articles and modify them. All the figures in our analysis are inserted into the manuscript. In addition, we also convert these images to TIF format and upload them separately in a separate folder.

We put the table of characteristics, research strategy, PRISMA checklist and results of egger's test at the end of the article in the form of supporting information because they take up too much space in the manuscript and make it look bloated.

We use Endnote to list references and try our best to make them conform to the standard. If we have meet your standard in these terms, please point out the errors and we will correct them in the subsequent revision.

There are so many small mistakes in our original manuscript that we can't express them all in the Revised Manuscript with Track Changes, so please forgive us that we haven't modified and marked on it too much.

2.We have provided the search strategy and search terms for database used as Supplementary Information 2. We do not have other researching tools, so we can not fully retrieve some unpublished literature.

3.We've performed the published bias test and the results of the Egger's test used to assess publication bias in the meta-analysis as Supplementary Information 3.

4.We have copyedited our manuscript for language usage, spelling, and grammar again and again with the help of two chief doctors. We didn't give the article to AJE directly for polishing, because I was just a graduate student and didn't have a fixed income. If the editor thinks that there are no missing items in the method and conclusion of my revised article, but there are still some mistakes in writing, we can ask AJE company to polish the revised manuscript before we submit our manuscript next time.

5.We can confirm that The authors received no specific funding for this work. In fact, all the expenses of the article, including the layout fee, are borne by me personally.

Response to Major Issue

1. By reviewing the literature we included, we confirmed that Perez Herrero (2016) was a prospective study and does not meet the criteria of randomized controlled trials. We have therefore eliminated Perez Herrero (2016), and revised the number of included documents, total number of people, reference number, flow chart, Risk of bias graph and results of meta-analysis. But we can't show this in the Revised Manuscript with Track Changes, so we only show it in the new manuscript.

2.As for what you said that opioids used in PCA may affect the VAS of patients after operation, I have several different opinions.

First, because of the severe trauma of thoracic surgery, PCA is the choice of analgesia in almost all the included studies. Most of the studies we included compared the analgesic effects of PCA plus PVB and PCA plus INB, which also confirmed my view that the use of PCA and opioids was inevitable. We have reasons to think that PCA is the source of heterogeneity, but we can not believe that PCA affects the reliability of experimental results and conclusions. If the use of opioids after surgery affects the comparison of analgesic effects between PVB and INB, all similar studies comparing the analgesic effect of measures of nerve block will all be considered to be unreliable because they do not control the variables, that is, the addition of opioids after operation. The object of clinical study is patients rather than animals, so we can't control all the other variables and only compare the analgesic effect of PVB and INB.

Second, I reviewed the relevant literature【1-3,5,7,8】finding that compared with simple administration of postoperative opioids or NSAIDs, the pain of patients with additional PVB or INB is significantly relieved, especially in these thoracic surgery or breast surgery. We have reasons to believe that PVB and INB are the more important analgesic factors than opioids after operation. These literatures have proved that at different measurement time nerve block plus PCA can provide a better analgesia. One of these studies【1】even found that single-dose PVB combined with PCA still had better analgesic effect even at 72 hours after surgery, not to mention the analgesic effect of continuous PVB combined with PCA. If PCA is the main analgesic factor, PCA's analgesic efficacy would be enough to cover nerve block so that there would be no difference in the results of the literature mentioned above, which is obviously inconsistent with the actual conclusion. As mentioned in one study【6】, the efficacy of epidural anesthesia is better than that of INB at the level of and two levels above and below the thoracotomy, so epidural analgesia combined with INB has no significant improvement on postoperative pain. In fact, nerve block alone is enough for most people. A study 【4】found that PVB alone has better analgesic effect than PCA. Its pain scores of PVB group is all lower than 2.0.

Third, we conducted a subgroup analysis to discuss whether the use of opioids after surgery might be the source of heterogeneity, but the conclusion shows that opioids are not the cause of high heterogeneity of VAS. On the contrary, we found that the heterogeneity may come from other aspects. Differences in pain tolerance of people in different countries and differences between single block and continuous block may be the source of heterogeneity.

In summary, we believe that VAS after surgery is the result of the joint action of nerve block and PCA, and we do not think that opioids or non steroidal anti-inflammatory drugs affect the effect of nerve block. In fact, of the five studies finally included in the VAS discussion, three used opioids after surgery, one used non steroidal anti-inflammatory drugs, and one did not indicate whether to use analgesics. We can talk about whether nerve block can reduce the use of these painkillers or whether the use of opioids after surgery might be the source of heterogeneity, but we can't think that the experiment didn't control the variables of analgesia because of the combination of painkillers.

Response to Minor Issue

1.We reviewed the article of perttunen K (1995). In their research, the experimental design and specific operation were very rigorous. As far as PVB and INB were concerned, these two techniques have not developed much since 1995 except that they are performed more accurately under the guidance of ultrasound. At the same time, we have noticed that PVB is performed by surgeons placing catheters beside the sympathetic trunk before the end of thoracotomy, with the accuracy even better than that under the guidance of ultrasound; and INB is also performed by surgeons with local anesthetics before the intercostal incision is closed, so there is no doubt about its accuracy.

2.We have replaced the “experience” and “control” in the forest plot with the label “PVB” and “INB”, which is more intuitive and clear, and easy for editors and readers to read.

3.This article has been repeatedly checked and copyedited by us to ensure that errors of language usage , grammatical and spelling are kept to a minimum. In addition, some medical proper terms may be out of the way which were gotten by looking up dictionaries. If there are some mistakes that we haven't found, please inform us directly without hesitation. We will try our best to correct them before the next submission.

4.We cannot give a result with a p value in 3 decimal points with Review Manage because the result of P value given by it only has two decimal points, we then use Stata/MP 14.0 to analysis the outcome again and find that there is no significant difference between PVB and INB (P=0.063).

5.You suggested that we use the names and years of the authors rather than the serial numbers of the references in the result. Although this is helpful for reading, I checked some meta-analysis literatures published by PLOS One during recent years and found that no other meta-analysis did so. I changed the format of my article according to your requirements, but I'm not sure if this will compound the format requirements of PLOS One journal. I hope you can consult with the editor and give us the response.

Finally, I would like to extend my sincere wishes to the editor and the reviewer for a healthy life and a smooth career.

1. Li XL, Zhang Y, Dai T, Wan L, Ding GN. The effects of preoperative single-dose thoracic paravertebral block on acute and chronic pain after thoracotomy: A randomized, controlled, double-blind trial. Medicine. 2018;97(24):e11181. Epub 2018/06/15. doi: 10.1097/md.0000000000011181. PubMed PMID: 29901652; PubMed Central PMCID: PMCPMC6023649.

2. Vogt A, Stieger DS, Theurillat C, Curatolo M. Single-injection thoracic paravertebral block for postoperative pain treatment after thoracoscopic surgery. British journal of anaesthesia. 2005;95(6):816-21. Epub 2005/10/04. doi: 10.1093/bja/aei250. PubMed PMID: 16199417.

3. Gacio MF, Lousame AM, Pereira S, Castro C, Santos J. Paravertebral block for management of acute postoperative pain and intercostobrachial neuralgia in major breast surgery. Brazilian journal of anesthesiology (Elsevier). 2016;66(5):475-84. Epub 2016/09/04. doi: 10.1016/j.bjane.2015.02.007. PubMed PMID: 27591461.

4. Fallatah S, Mousa WF. Multiple levels paravertebral block versus morphine patient-controlled analgesia for postoperative analgesia following breast cancer surgery with unilateral lumpectomy, and axillary lymph nodes dissection. Saudi journal of anaesthesia. 2016;10(1):13-7. Epub 2016/03/10. doi: 10.4103/1658-354x.169468. PubMed PMID: 26955304; PubMed Central PMCID: PMCPMC4760034.

5. Fortier S, Hanna HA, Bernard A, Girard C. Comparison between systemic analgesia, continuous wound catheter analgesia and continuous thoracic paravertebral block: a randomised, controlled trial of postthoracotomy pain management. European journal of anaesthesiology. 2012;29(11):524-30. Epub 2012/08/24. doi: 10.1097/EJA.0b013e328357e5a1. PubMed PMID: 22914044.

6. Ranganathan P, Tadvi A, Jiwnani S, Karimundackal G, Pramesh CS. A randomised evaluation of intercostal block as an adjunct to epidural analgesia for post-thoracotomy pain. Indian journal of anaesthesia. 2020;64(4):280-5. Epub 2020/06/04. doi: 10.4103/ija.IJA_714_19. PubMed PMID: 32489201; PubMed Central PMCID: PMCPMC7259421.

7. Lukosiene L, Rugyte DC, Macas A, Kalibatiene L, Malcius D, Barauskas V. Postoperative pain management in pediatric patients undergoing minimally invasive repair of pectus excavatum: the role of intercostal block. Journal of pediatric surgery. 2013;48(12):2425-30. Epub 2013/12/10. doi: 10.1016/j.jpedsurg.2013.08.016. PubMed PMID: 24314181.

8. Barr AM, Tutungi E, Almeida AA. Parasternal intercostal block with ropivacaine for pain management after cardiac surgery: a double-blind, randomized, controlled trial. Journal of cardiothoracic and vascular anesthesia. 2007;21(4):547-53. Epub 2007/08/07. doi: 10.1053/j.jvca.2006.09.003. PubMed PMID: 17678782.

Yours sincerely

Sheng Huan

Attachment

Submitted filename: Response to Reviewers.docx

Click here for additional data file.^{(21.1KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0237363.r003

Decision Letter 1

Ehab Farag

24 Jul 2020

Efficacy and safety of paravertebral block versus intercostal nerve block in Thoracic surgery and Breast surgery : A systematic review and meta-analysis

PONE-D-20-13360R1

Dear Dr. Huan,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Ehab Farag, MD FRCA FASA

Academic Editor

PLOS ONE

Additional Editor Comments (optional):

Reviewers' comments:

Dear Dr. Shen Huan Thank you for submitting the revised manuscript. It is my pleasure to accept the manuscript for publication in PLOS ONE. Sincerely Ehab Farag MD FRCA FASA

PLoS One. doi: 10.1371/journal.pone.0237363.r004

Acceptance letter

Ehab Farag

31 Aug 2020

PONE-D-20-13360R1

Efficacy and safety of paravertebral block versus intercostal nerve block in Thoracic surgery and Breast surgery : A systematic review and meta-analysis

Dear Dr. Huan:

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

If we can help with anything else, please email us at plosone@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Ehab Farag

Academic Editor

PLOS ONE

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Appendix. Search strategy.

(DOCX)

Click here for additional data file.^{(12.4KB, docx)}

S2 Appendix. Egger's test.

(DOCX)

Click here for additional data file.^{(80.1KB, docx)}

S3 Appendix. PRISMA checklist.

(DOC)

Click here for additional data file.^{(67.5KB, doc)}

Attachment

Submitted filename: Response to Reviewers.docx

Click here for additional data file.^{(21.1KB, docx)}

Data Availability Statement

All relevant data are within the manuscript and its Supporting Information files.

[pone.0237363.ref001] 1.Beaussier M, Genty T, Lescot T, Aissou M. Influence of pain on postoperative ventilatory disturbances. Management and expected benefits. Annales francaises d'anesthesie et de reanimation. 2014;33(7–8):484–6. Epub 2014/08/30. 10.1016/j.annfar.2014.07.005 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref002] 2.Bignami E, Castella A, Pota V, Saglietti F, Scognamiglio A, Trumello C, et al. Perioperative pain management in cardiac surgery: a systematic review. Minerva anestesiologica. 2018;84(4):488–503. Epub 2017/10/14. 10.23736/S0375-9393.17.12142-5 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref003] 3.Kehlet H, Jensen TS, Woolf CJ. Persistent postsurgical pain: risk factors and prevention. Lancet (London, England). 2006;367(9522):1618–25. Epub 2006/05/16. 10.1016/s0140-6736(06)68700-x . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref004] 4.Chin KJ. Thoracic wall blocks: From paravertebral to retrolaminar to serratus to erector spinae and back again—A review of evidence. Best practice & research Clinical anaesthesiology. 2019;33(1):67–77. Epub 2019/07/06. 10.1016/j.bpa.2019.02.003 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref005] 5.Yeung JH, Gates S, Naidu BV, Wilson MJ, Gao Smith F. Paravertebral block versus thoracic epidural for patients undergoing thoracotomy. The Cochrane database of systematic reviews. 2016;2(2):Cd009121. Epub 2016/02/22. 10.1002/14651858.CD009121.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0237363.ref006] 6.Kosiński S, Fryźlewicz E, Wiłkojć M, Ćmiel A, Zieliński M. Comparison of continuous epidural block and continuous paravertebral block in postoperative analgaesia after video-assisted thoracoscopic surgery lobectomy: a randomised, non-inferiority trial. Anaesthesiology intensive therapy. 2016;48(5):280–7. Epub 2016/12/22. 10.5603/AIT.2016.0059 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref007] 7.Vogt A. Review about ultrasounds in paravertebral blocks. European Journal of Pain Supplements. 2011;5(S2):489–94. 10.1016/j.eujps.2011.08.043 [DOI] [Google Scholar]

[pone.0237363.ref008] 8.Krediet AC, Moayeri N, van Geffen GJ, Bruhn J, Renes S, Bigeleisen PE, et al. Different Approaches to Ultrasound-guided Thoracic Paravertebral Block: An Illustrated Review. Anesthesiology. 2015;123(2):459–74. Epub 2015/06/18. 10.1097/ALN.0000000000000747 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref009] 9.Albokrinov AA, Fesenko UA. Spread of dye after single thoracolumbar paravertebral injection in infants. A cadaveric study. European journal of anaesthesiology. 2014;31(6):305–9. Epub 2014/03/19. 10.1097/EJA.0000000000000071 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref010] 10.Richardson J, Lönnqvist PA, Naja Z. Bilateral thoracic paravertebral block: potential and practice. British journal of anaesthesia. 2011;106(2):164–71. Epub 2011/01/15. 10.1093/bja/aeq378 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref011] 11.Mayes J, Davison E, Panahi P, Patten D, Eljelani F, Womack J, et al. An anatomical evaluation of the serratus anterior plane block. Anaesthesia. 2016;71(9):1064–9. Epub 2016/07/22. 10.1111/anae.13549 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref012] 12.Court C, Vialle R, Lepeintre JF, Tadié M. The thoracoabdominal intercostal nerves: an anatomical study for their use in neurotization. Surgical and radiologic anatomy: SRA. 2005;27(1):8–14. Epub 2004/08/19. 10.1007/s00276-004-0281-8 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref013] 13.Vlassakov K, Vafai A, Ende D, Patton ME, Kapoor S, Chowdhury A, et al. A prospective, randomized comparison of ultrasonographic visualization of proximal intercostal block vs paravertebral block. BMC anesthesiology. 2020;20(1):13 Epub 2020/01/11. 10.1186/s12871-020-0929-x [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0237363.ref014] 14.Chen N, Qiao Q, Chen R, Xu Q, Zhang Y, Tian Y. The effect of ultrasound-guided intercostal nerve block, single-injection erector spinae plane block and multiple-injection paravertebral block on postoperative analgesia in thoracoscopic surgery: A randomized, double-blinded, clinical trial. Journal of clinical anesthesia. 2020;59:106–11. Epub 2019/07/23. 10.1016/j.jclinane.2019.07.002 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref015] 15.Mogahed MM, Elkahwagy MS. Paravertebral Block Versus Intercostal Nerve Block in Non-Intubated Uniportal Video-Assisted Thoracoscopic Surgery: A Randomised Controlled Trial. Heart, lung & circulation. 2020;29(5):800–7. Epub 2019/05/31. 10.1016/j.hlc.2019.04.013 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref016] 16.Wu C, Ma W, Cen Q, Cai Q, Wang J, Cao Y. A comparison of the incidence of supraventricular arrhythmias between thoracic paravertebral and intercostal nerve blocks in patients undergoing thoracoscopic surgery: A randomised trial. European journal of anaesthesiology. 2018;35(10):792–8. Epub 2018/05/31. 10.1097/EJA.0000000000000837 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref017] 17.Kadomatsu Y, Mori S, Ueno H, Uchiyama M, Wakai K. Comparison of the analgesic effects of modified continuous intercostal block and paravertebral block under surgeon's direct vision after video-assisted thoracic surgery: a randomized clinical trial. General thoracic and cardiovascular surgery. 2018;66(7):425–31. Epub 2018/05/10. 10.1007/s11748-018-0936-8 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref018] 18.Hutchins J, Sanchez J, Andrade R, Podgaetz E, Wang Q, Sikka R. Ultrasound-Guided Paravertebral Catheter Versus Intercostal Blocks for Postoperative Pain Control in Video-Assisted Thoracoscopic Surgery: A Prospective Randomized Trial. Journal of cardiothoracic and vascular anesthesia. 2017;31(2):458–63. Epub 2016/11/05. 10.1053/j.jvca.2016.08.010 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref019] 19.Chen JH, Zhang YX, Ping LI, Fan ZY, Institute. Effect of thoracic paravertebral block and intercostal nerve block on postoperative analgesia in patientsundergoing video-assisted thoracoscopic surgery. Journal of Clinical Anesthesiology. 2014;30(5):444–7. [Google Scholar]

[pone.0237363.ref020] 20.Ouerghi Frikha, Mestiri Smati, MS Mebazaa. A prospective, randomised comparison of continuous paravertebral block and continuous intercostal nerve block for post-thoracotomy pain. Southern African Journal of Anaesthesia and Analgesia. 2008. [Google Scholar]

[pone.0237363.ref021] 21.Perttunen K, Nilsson E, Heinonen J, Hirvisalo EL, Salo JA, Kalso E. Extradural, paravertebral and intercostal nerve blocks for post-thoracotomy pain. British journal of anaesthesia. 1995;75(5):541–7. Epub 1995/11/01. 10.1093/bja/75.5.541 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref022] 22.Sinha R, Gurwara AK, Gupta SC. Laparoscopic cholecystectomy under spinal anesthesia: a study of 3492 patients. Journal of laparoendoscopic & advanced surgical techniques Part A. 2009;19(3):323–7. Epub 2009/06/16. 10.1089/lap.2008.0393 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref023] 23.Higgins JP, Altman DG, Gøtzsche PC, Jüni P, Moher D, Oxman AD, et al. The Cochrane Collaboration's tool for assessing risk of bias in randomised trials. BMJ (Clinical research ed). 2011;343:d5928 Epub 2011/10/20. 10.1136/bmj.d5928 . [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0237363.ref024] 24.Hozo SP, Djulbegovic B, Hozo I. Estimating the mean and variance from the median, range, and the size of a sample. BMC medical research methodology. 2005;5:13 Epub 2005/04/21. 10.1186/1471-2288-5-13 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0237363.ref025] 25.Manion SC, Brennan TJ. Thoracic epidural analgesia and acute pain management. Anesthesiology. 2011;115(1):181–8. Epub 2011/05/25. 10.1097/ALN.0b013e318220847c . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref026] 26.Listing H, Pöpping D. [Pro: Epidural Analgesia Remains the Gold Standard for Abdominal and Thoracic Surgery]. Anasthesiologie, Intensivmedizin, Notfallmedizin, Schmerztherapie: AINS. 2018;53(4):237–44. Epub 2018/05/10. 10.1055/s-0043-104668 Pub [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref027] 27.Jack JM, McLellan E, Versyck B, Englesakis MF, Chin KJ. The role of serratus anterior plane and pectoral nerves blocks in cardiac surgery, thoracic surgery and trauma: a qualitative systematic review. Anaesthesia. 2020. Epub 2020/02/18. 10.1111/anae.15000 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref028] 28.Sinha A, Carli F. The role of regional anaesthesia in patient outcome: thoracic and abdominal surgeries. Techniques in Regional Anesthesia & Pain Management. 2008;12(4):0–193.Med 10.1055/s-0043-104668 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref029] 29.Romero A, Garcia JE, Joshi GP. The state of the art in preventing postthoracotomy pain. Seminars in thoracic and cardiovascular surgery. 2013;25(2):116–24. Epub 2013/11/13. 10.1053/j.semtcvs.2013.04.002 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref030] 30.Wang ML, Hung MH, Chan KC, Chen JS, Cheng YJ. Intraoperative multiple intercostal nerve blocks exert anesthetic-sparing effect: A retrospective study on the effect-site concentration of propofol infusion in nonintubated thoracoscopic surgery. Acta anaesthesiologica Taiwanica: official journal of the Taiwan Society of Anesthesiologists. 2016;54(3):77–80. Epub 2016/08/28. 10.1016/j.aat.2016.07.001 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref031] 31.Hill SE, Keller RA, Stafford-Smith M, Grichnik K, White WD, D'Amico TA, et al. Efficacy of single-dose, multilevel paravertebral nerve blockade for analgesia after thoracoscopic procedures. Anesthesiology. 2006;104(5):1047–53. Epub 2006/04/29. 10.1097/00000542-200605000-00022 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref032] 32.Wang H, Li S, Liang N, Liu W, Liu H, Liu H. Postoperative pain experiences in Chinese adult patients after thoracotomy and video-assisted thoracic surgery. Journal of clinical nursing. 2017;26(17–18):2744–54. Epub 2017/03/03. 10.1111/jocn.13789 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref033] 33.Behnke H, Worthmann F, Cornelissen J, Kahl M, Wulf H. Plasma concentration of ropivacaine after intercostal blocks for video-assisted thoracic surgery. British journal of anaesthesia. 2002;89(2):251–3. Epub 2002/10/16. 10.1093/bja/aef185 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref034] 34.Naja ZM, El-Rajab M, Al-Tannir MA, Ziade FM, Tayara K, Younes F, et al. Thoracic paravertebral block: influence of the number of injections. Regional anesthesia and pain medicine. 2006;31(3):196–201. Epub 2006/05/17. 10.1016/j.rapm.2005.12.004 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref035] 35.Pace MM, Sharma B, Anderson-Dam J, Fleischmann K, Warren L, Stefanovich P. Ultrasound-Guided Thoracic Paravertebral Blockade: A Retrospective Study of the Incidence of Complications. Anesthesia and analgesia. 2016;122(4):1186–91. Epub 2016/01/13. 10.1213/ANE.0000000000001117 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref036] 36.Amar D, Zhang H, Miodownik S, Kadish AH. Competing autonomic mechanisms precede the onset of postoperative atrial fibrillation. Journal of the American College of Cardiology. 2003;42(7):1262–8. Epub 2003/10/03. 10.1016/s0735-1097(03)00955-0 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref037] 37.Ballantyne JC, Carr DB, deFerranti S, Suarez T, Lau J, Chalmers TC, et al. The comparative effects of postoperative analgesic therapies on pulmonary outcome: cumulative meta-analyses of randomized, controlled trials. Anesthesia and analgesia. 1998;86(3):598–612. Epub 1998/03/12. 10.1097/00000539-199803000-00032 . [DOI] [PubMed] [Google Scholar]

[pone.0237363.ref038] 38.Taylor R, Massey S, Stuart-Smith K. Postoperative analgesia in video-assisted thoracoscopy: the role of intercostal blockade. Journal of cardiothoracic and vascular anesthesia. 2004;18(3):317–21. Epub 2004/07/03. 10.1053/j.jvca.2004.03.012 . [DOI] [PubMed] [Google Scholar]

PERMALINK

Efficacy and safety of paravertebral block versus intercostal nerve block in thoracic surgery and breast surgery: A systematic review and meta-analysis

Sheng Huan

Youming Deng

Jia Wang

Yihao Ji

Guoping Yin

Roles

Abstract

Objective

Methods

Results

Conclusion

Introduction

Methods

Search strategy

Inclusion criteria

Exclusion criteria

Data extraction

Quality assessment

Fig 1. Risk of bias summary for the included studies.

Statistical treatment

Results

Identification of eligible studies characteristics of the studies

Fig 2. The search, inclusion and exclusion of the studies.

Characteristics of the studies

Table 1. Characteristics of included randomized controlled studies (Data presented as mean ± standard deviation).

Publication bias

Primary outcome

Primary outcome: VAS at rest at the first 1 h

Fig 3. Forest plot of comparison: PVB VS INB.

Fig 4. Subgroup analysis of comparison: Chinese VS non Chinese.

Fig 5. Subgroup analysis of comparison: PCA VS non PCA.

Primary outcome: VAS at rest at the first 2 h

Fig 6. Forest plot of comparison: PVB VS INB.

Fig 7. Subgroup analysis of comparison: Chinese VS non Chinese.

Fig 8. Subgroup analysis of comparison: Opioids drug VS NSAIDs.

Primary outcome: VAS at rest at the first 24 h

Fig 9. Forest plot of comparison: PVB VS INB.

Fig 10. Comparison: PVB vs INB.

Fig 11. Forest plot of comparison: PVB VS INB.

Fig 12. Subgroup analysis of comparison: Chinese VS non Chinese.

Fig 13. Subgroup analysis of comparison: Opioids drug VS NSAIDs.

Primary outcome: VAS at rest at the first 48 h

Fig 14. Forest plot of comparison: PVB VS INB.

Fig 15. Subgroup analysis of comparison: Opioids drug VS NSAIDs.

Secondary outcome

Meta-analysis of rates of postoperative nausea and vomit

Fig 16. Forest plot of comparison: PVB VS INB.

Meta-analysis of rates of postoperative additional analgesia

Fig 17. Forest plot of comparison: PVB VS INB.

Meta-analysis of postoperative use of morphine in 48h

Fig 18. Forest plot of comparison: PVB VS INB.

Discussion

Summary of evidence

Heterogeneity

Limitation

Conclusion

Supporting information

Data Availability

Funding Statement

References

Decision Letter 0

Ehab Farag

Roles

Author response to Decision Letter 0

Decision Letter 1

Ehab Farag

Roles

Acceptance letter

Ehab Farag

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles
