Labyrinthitis and Labyrinthitis Ossificans - A case report and review of the literature

Abstract

Labyrinthitis most commonly results from an infectious and less commonly from an inflammatory process of the inner ear, but it can be associated with temporal bone trauma, hemorrhage, or tumor. This inflammation (regardless of the etiology) disrupts the transmission of sensory information from the ear to the brain. Labyrinthitis ossificans is the pathological ossification of the membranous labyrinthine spaces in response to an insult to the inner ear involving membranous labyrinth or the endosteum of the otic capsule. Herein, we present a case of a 67-year-old female with progressive bilateral sensorineural hearing loss and positional vertigo.

CASE REPORT

A 67-year-old female, who had a history of Diabetes mellites type 2 presented with progressive bilateral sensorineural hearing loss (left much worse than right) and positional vertigo. The patient developed right ear infection with sudden severe right sided hearing loss with no reported history of meningitis. Multiple studies including Audiograms, tympanograms and Electronystagmography were performed along with imaging to aid with diagnosis.

The 64 slice Siemens CT demonstrated varying degrees of ossification with sclerosis, involving the cochlea, semicircular canals and vestibule on the left side. The Siemens 1.5 Tesla MRI images demonstrated loss of normal fluid signal in the left inner ear and post contrast enhancement of the labyrinth involving right inner ear. These findings were compatible with LO on the left and labyrinthitis on the right side. The dense ossification in the left cochlea was contraindication for implant and hence, the patient tried intratympanic dexamethasone injection on the right side, with little symptom relief.

The patient was treated with cochlear implantation on the right side.

DISCUSSION

Etiology & Demographics

Labyrinthitis

The most common cause of Labyrinthitis are the infections of the inner ear, which are usually viral or bacterial. Other less common causes that result in labyrinthitis include inflammatory process of the inner ear, temporal bone trauma, hemorrhage and tumors. In most cases, labyrinthitis is caused by a viral infection. Labyrinthitis often follows common illnesses such as a cold or flu. The other most common viruses known to cause labyrinthitis include herpes, measles, mumps and rubella to name a few. The bacterial infections of the middle ear which are fairly common in children can spread to inner ear and cause labyrinthitis. In chronic middle ear infection, the bacteria may enter the inner ear through the oval or round windows, through the bone or as a result of injury to the head or ear. The labyrinth injury as a sequel to infection and/or otic capsule trauma with subsequent ossification can result in hearing loss. The infections can reach inner ear through blood flow (hematogenic), through middle ear (tympanogenic) or through meninges (meningogenic) [1,3,5]. Ossification is typically unilateral but can be bilateral and can be found 3–4 months after bacterial meningitis and/or trauma. Labyrinthitis can occurs in all age groups but is more common in 30 to 50-year old. Females are slightly more susceptible than males, at a ratio of 1.5:1.

Clinical Presentation

The patients usually present with irreversible hearing loss, vertigo and vomiting. The symptoms are often precipitated by sudden movements. Although the early stages are mild, they can be associated with dizziness, difficulties with balance, visual disturbance or hearing impairment. The patients can also experience dizziness of any degree either during acute infectious condition or during disease development.

Our patient had a prior history of sensorineural hearing loss on the left side secondary to Labyrinthitis Ossificans. During current presentation, the patient presented with positional vertigo and right-sided hearing loss. No history of meningitis.

Pathophysiology

Regardless of etiology, LO pathogenesis involves acute inflammation as an initial stage, followed by a stage characterized by proliferation of fibroblasts and fibrosis which results in labyrinth ossification. In cases of infection, bacteria or virus are present in the peri-lymphatic spaces causing acute inflammation. Post-traumatic labyrinthitis develops from subsequent inflammation, which can be usually seen in the setting of otic capsule trauma caused by temporal bone fractures and/or tumors[1,3,5].

Imaging Findings

CT

CT shows high-density bone deposition within the membranous labyrinth. LO may present with sclerosis, irregularities or obliteration of the cochlea, semicircular canals or vestibule with different degrees of involvement. CT is specific but has a lower sensitivity with respect to MRI.

It has a spectrum with:

• mild LO: hazy increase in density within fluid spaces of the membranous labyrinth.

• moderate LO: Intermittent ossifications within fluid spaces of the membranous labyrinth.

• severe LO: membranous labyrinth is completely obliterated by bone replacing fluid spaces.

MRI

Loss of normal fluid signal in the inner ear.

T2

Ossifications may show low-intensity foci within high signal fluid of inner ear.

Post Contrast

Enhancement on MRI is seen in the early acute/subacute stage when there is inflammation-related hypervascularity.

Treatment & Prognosis

Currently there are a range of treatment options for labyrinthitis ossificans. Cochlear implantation is an effective treatment for sensorineural hearing loss. However, ossification of the membranous labyrinth can make electrode implantation difficult, which in turn may either complicate or preclude cochlear implantation. A cochlear implant is an electronic device that can partially restore hearing. It can be an option for people with severe hearing loss from inner-ear damage and for those with limited benefit from hearing aids[3,4,5,6].

Differential Diagnosis

The differential diagnosis includes cochlear aplasia or labyrinthine aplasia. In labyrinthitis ossificans, the shape/contour of the labyrinth is preserved. However, labyrinthine aplasia is characterized by bilateral absence of differentiated inner ear structures. Another differential includes otosclerosis, which is an osteodystrophy of the Otic capsule, which involves the oval window and stapes in “fenestral” subtype and extends to involve cochlea in “retro-fenestral” subtype. This results in conductive, mixed or sensorineural hearing loss, often in 2nd to 4th decades of life. While otosclerosis results in demineralization/hypodensity of otic capsule; LO shows ossification of the membranous labyrinth [2,4].

TEACHING POINT

Labyrinthitis ossificans is ossification of the inner ear structures. Patients present with profound irreversible hearing loss. LO can be diagnosed definitively on imaging with CT, which shows ossification of the membranous labyrinth, and can be suggested on MRI, which shows loss of normal fluid signal in the inner ear. In the acute/subacute stage of labyrinthitis without ossification, MRI shows enhancement of the membranous labyrinth. Imaging findings are important for treatment guidance (selection of appropriate patients for cochlear implantation) and for prognostication.

Figure 1.

67 year old female with a history of relapsing polychondritis in bilateral external ears and Diabetes mellitus Type −2 presented with progressive bilateral sensorineural hearing loss (left much worse than right) and positional vertigo.

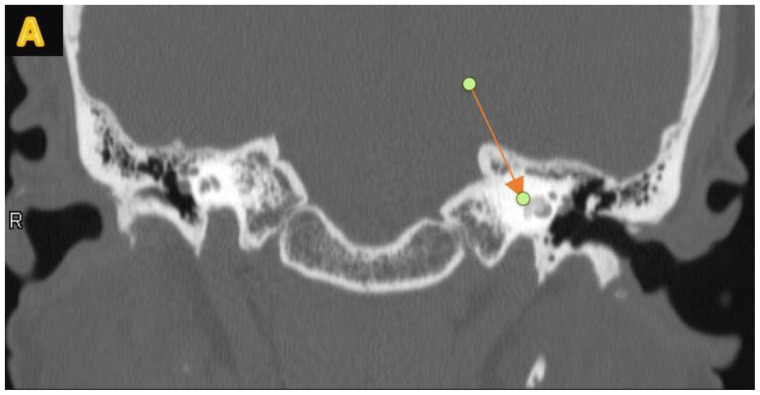

Findings: Axial (A, B and C) images of temporal bones. Image A demonstrates high-density bone deposition within the left cochlea (orange arrow). Image B demonstrates high-density bone deposition within the left cochlea (orange arrow) and left vestibule (blue arrow) of the membranous labyrinth. These findings are consistent with labyrinthitis ossificans. Image C demonstrates a normal appearing right membranous labyrinth (green arrow).

Technique: Helically acquired, non-contrast 64 slice Siemens CT of bilateral temporal bones with 0.6 mm thin images in axial plane. FOV is 15.4 cm.

Figure 2.

67 year old female with a history of relapsing polychondritis in bilateral external ears and DM-2 presented with progressive bilateral sensorineural hearing loss (left much worse than right) and positional vertigo[3,6].

Findings: Coronal reconstructed images of temporal bones (Fig. A). Image A demonstrates high-density bone deposition within the left cochlea (orange arrow). The findings are consistent with left labyrinthitis ossificans. The right membranous labyrinth is unremarkable.

Technique: Helically acquired, non-contrast 64 slice Siemens CT of bilateral temporal bones with 0.3 mm thin image reconstruction in coronal plane. FOV is 15.4 cm.

Figure 3.

67 year of female with a history of relapsing polychondritis in bilateral external ears and Diabetes mellites type-2 presented with progressive bilateral sensorineural hearing loss (left much worse than right) and positional vertigo[2,3,4,6].

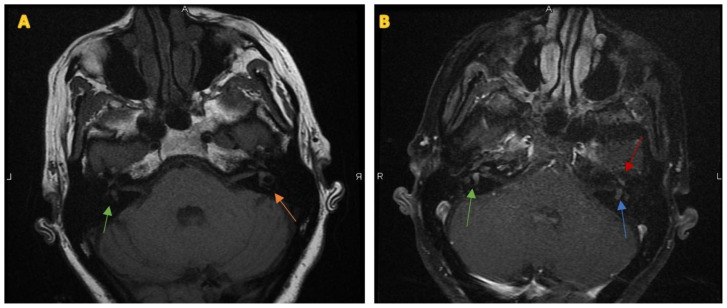

Findings: Axial T1 pre contrast (A) demonstrates no obvious abnormality. Green arrow shows right membranous labyrinth and the orange arrow shows left membranous labyrinth. Axial T1 post contrast (B) demonstrates enhancement of the vestibules bilaterally, right vestibule (green arrow) greater than left vestibule (blue arrow), and in the right cochlea (red arrow).

Technique: Siemens 1.5 Tesla MRI scanner. Axial T1 pre contrast (A) and axial T1 post contrast (B). 3mm thick images through bilateral IACs. 20 cc of IV Multihance was administered. Both sequences have FOV of 18 cm. For T1, TR is 500 and TE is 16. For T1 post contrast, TR is 416 and TE is 22.

Figure 4.

67 year old female with a history of relapsing polychondritis in bilateral external ears and DM-2 presented with progressive bilateral sensorineural hearing loss (left much worse than right) and positional vertigo.

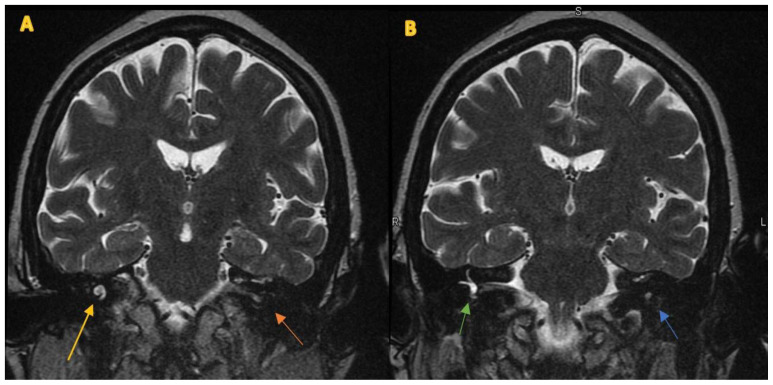

Findings: Coronal T2 (Fig. A and B) images through bilateral IACs. Fig A demonstrates low signal within the left cochlea (orange arrow) and fluid signal in the right cochlea (yellow arrow). Fig B demonstrates low signal within left vestibule (blue arrow) and fluid signal in the right vestibule (green arrow).

Technique: Siemens 1.5 Tesla MRI scanner. 3mm thick T2 coronal images (Fig. A and B) through bilateral IACs. FOV is 18 cm. TR is 5600 and TE is 113.

Figure 5.

67 year old female with a history of relapsing polychondritis in bilateral external ears and DM-2 presented with progressive bilateral sensorineural hearing loss (left much worse than right) and positional vertigo.

Findings: Coronal T1-weighted post contrast images (Fig. A and B) through bilateral IACs. Image A demonstrates enhancement within the right cochlea (yellow arrow) while the left cochlea (orange arrow) is not well seen. Image B demonstrates enhancement within bilateral vestibules and semicircular canals, severe on the right (green arrow) and moderate on the left (blue arrow).

Technique: Siemens 1.5 Tesla MRI scanner. 20 cc of IV Multihance was administered. Coronal T1 post contrast (Fig. A and B) 3mm thick images through bilateral IACs. FOV is 18 cm. TR is 583 and TE is 22.

Table 1.

Summary table for Labyrinthitis Ossificans

Etiology	More commonly infectious and inflammatory, and less commonly trauma, tumors, hemorrhage, vascular obstruction of labyrinthine artery, surgical insult, and/or autoimmune inner ear disease.
Incidence	The reported incidence of hearing loss following meningitis ranges from 6–37%, with an estimated 5% suffering from profound deafness. As many as 80% of patients with profound postmeningitic deafness have some degree of labyrinthine ossification. Complete ossification is associated with a poor prognosis for residual hearing.
Age predilection	It occurs in all age groups but is more common in 30 to 50-year old.
Gender ratio	Females are 1.5 times more susceptible than males.
Risk factors	Meningitis, Autoimmune disorders, Trauma, and/or surgical intervention.
Treatments	Cochlear implantation is an effective treatment option for sensorineural hearing loss. However, ossification of the membranous labyrinth can make electrode implantation difficult, which in turn may either complicate or preclude cochlear implantation, which can sometimes be overcome by various complex surgical techniques.
Prognosis	Labyrinthitis Ossificans may either complicate or preclude cochlear implantation because ossification limits the surgical placement of electrodes, and dense ossification may be a contraindication for implant.
Findings on imaging	CT: ossification with sclerosis, irregularities or obliteration of the cochlea, semicircular canals, or vestibule with different degrees of involvement. MRI: Loss of normal fluid signal in the inner ear. Enhancement on MRI is seen in the early acute/subacute stage when there is inflammation-related hypervascularity.

Table 2.

Differential diagnosis table for Labyrinthitis Ossificans

	CT	MRI
Labyrinthitis Ossificans	May present with sclerosis, irregularities or obliteration of the cochlea; semicircular canals or vestibule with different degrees of involvement.	T2 may show Loss of normal fluid signal in the inner ear. T1 w/contrast enhancement on MRI is seen in the early acute/subacute stage when there is inflammation-related hypervascularity.
Cochlear aplasia or Labyrinthine aplasia or absence of differentiated inner ear structures.	Hypoplasia of the petrous temporal bone; hypoplastic and sclerotic petrous apex may mimic LO.	Hypoplasia of the petrous temporal bone; hypoplastic and sclerotic petrous apex may mimic LO.
Otosclerosis	Demineralized hypodense fenestral spongiotic foci of otosclerosis are better seen on axial HRCT.	Has a limited role. In retrofenestral otosclerosis, T1 with contrast enhancement may be demonstrated. Increased T2 signal may also be present.

ABBREVIATIONS

DM-2

Diabetes mellites type 2

FOV

Field of View

HRCT

High resolution Computed Tomography

IV

Intravenous

LO

Labyrinthitis ossificans

MRI

Magnetic Resonance Imaging

YOF

year old female
