B-box transcription factor 28 regulates flowering by interacting with constans

Yin Liu; Guang Lin; Chunmei Yin; Yuda Fang

doi:10.1038/s41598-020-74445-7

. 2020 Oct 20;10:17789. doi: 10.1038/s41598-020-74445-7

B-box transcription factor 28 regulates flowering by interacting with constans

Yin Liu ^1,², Guang Lin ², Chunmei Yin ¹, Yuda Fang ^1,^2,^✉

PMCID: PMC7575571 PMID: 33082412

Abstract

B-box transcription factors (BBXs) are important regulators of flowering, photomorphogenesis, shade-avoidance, abiotic and biotic stresses and plant hormonal pathways. In Arabidopsis, 32 BBX proteins have been identified and classified into five groups based on their structural domains. Little is known about the fifth group members (BBX26–BBX32) and the detailed molecular mechanisms relevant to their functions. Here we identified B-box transcription factor 28 (BBX28) that interacts with Constans (CO), a transcriptional activator of Flowering Locus T (FT). Overexpressing BBX28 leads to late flowering with dramatically decreased FT transcription, and bbx28 deficient mutant displays a weak early flowering phenotype under long days (LD), indicating that BBX28 plays a negative and redundant role in flowering under LD. Additionally, the interaction between BBX28 and CO decreases the recruitment of CO to FT locus without affecting the transcriptional activation activity of CO. Moreover, the N-terminal cysteines, especially those within the B-box domain, are indispensable for the heterodimerization between BBX28 and CO and activation of CO on FT transcription. Genetic evidences show that the later flowering caused by BBX28 overexpression is compromised by CO ectopic expression. Collectively, these results supported that BBX28 functions with CO and FT to negatively regulate Arabidopsis flowering, in which the N-terminal conserved cysteines of BBX28 might play a central role.

Subject terms: Cell biology, Developmental biology, Plant sciences

Introduction

Flowering is an essential biological process for the transition from vegetative to reproductive stage in responses to internal and external signals¹. Five main pathways have been identified in flowering regulation, including vernalization, autonomous, photoperiodic, gibberellin and age pathways². Ambient temperature, sugar, histone modifications, small RNAs and chromatin loops also play roles in flowering regulation^2,3. Constans (CO)-Flowering Locus T (FT) is the central module in photoperiodic pathway⁴. CO, the first member of B-box transcription factors (BBX1), binds to the CORE1 and CORE2 motifs of FT promoter to activate its expression⁵. FT interacts with bZIP transcription factor FD to promote the expressions of floral identity genes and induce floral meristem formation⁶.

The transcriptional and post-translational regulations of CO ensure the precise protein level of CO during the day-night and the correct time of FT expression under long day (LD) condition to induce photoperiodic flowering^4,7. At the post-translational level, the stability and activity of CO protein are regulated by multiple CO-interacting proteins^4,7. Two RING-finger E3 ubiquitin ligases Constitutive Photomorphogenic 1 (COP1) and High Expression of Osmotically Responsive Genes 1 (HOS1) mediate the degradation of CO at night and in the morning respectively^8,9. Photoreceptors Phytochrome B (PHYB) and Zeitlupe (ZTL) destabilize CO in the morning while Phytochrome A (PHYA), Cryptochromes (CRYs) and Flavin-Binding, Kelch Repeat F-box1 (FKF1) stabilize CO in the afternoon under LD^10–13. The interaction between Nucleoporin 96 (Nup 96) and HOS1 and their mutual stabilization form a novel repressive module to gate CO protein level in Arabidopsis under LD¹⁴. GIGANTEA (GI) plays a pivotal regulation on the timing stabilization of CO by altering FKF1-ZTL interaction¹⁵. Other CO-interacting proteins, including BBX19, microProtein 1a (miP1a, or BBX30) and miP1b (or BBX31), Target of EAT1 (TOE1), TOE2, Nuclear Factor Y (NF-Y) transcription factors, Della protein RGA, Botrytis Susceptible 1 Interactor (BOI), Vascular Plant One-Zinc Finger 1 (VOZ1), VOZ2 and immunophilin FKBP12, regulate flowering by affecting CO transcriptional activity or DNA binding ability^16–23. Pseudo Response Regulator (PRR) proteins regulate both CO transcription and CO protein stabilization, increasing the recruitment of CO to FT promoter²⁴. CRY2-interacting bHLH1(CIB1), CO and CRY2 form a complex through physical interaction between CIB1 and CO to regulate FT expression and CRY2-dependent flowering²⁵. Long Hypocotyl in FAR-RED 1 (HFR1) interacts with CO and Phytochrome-Interacting Factor 7 (PIF7) to repress early flowering under the shaded environment²⁶.

B-box transcription factors are a class of zinc finger binding proteins, which contain one or two B-box domains in the N-terminus and sometimes a CCT (CONTANS, CO-like and TOC1) domain in the C-terminus^27,28. Based on the numbers of B-box domains and the existence of CCT domain, the 32 B-box proteins in Arabidopsis are classified into five groups. BBX26-BBX32 belong to the fifth group, which contains only one B-box domain in the N-terminus but no CCT domain in the C-terminus²⁷. BBX1 (CO) and many other B-box proteins were known to regulate flowering in CO-dependent or independent manners²⁷. The suppression of flowering by BBX4 (COL3) depends on the BBX32-BBX4 interaction which contributes to the targeting of BBX4 to FT promoter to inhibit FT expression^29,30. Overexpressing BBX6 causes early flowering by increasing the transcripts of FT and SUPPRESSOR OF OVEREXPRESSION OF CO 1 (SOC1) but not CO under short day (SD) condition³¹. Overexpression of BBX7 delays flowering under LD through decreasing CO, FT and SOC1 mRNA levels³². BBX19 decreases FT transcript level and represses flowering under LD¹⁶. BBX24 (SALT TOLERANCE, STO) promotes flowering under both SD and LD conditions by reducing FLOWERING LOCUS C (FLC), FT and SOC1 expressions³³. BBX30 and BBX31 interact with CO and TOPLESS (TPL) to suppress FT expression¹⁹. BBX32 interacts with EMBRYONIC FLOWER 1 (EMF1) to regulate flowering³⁴. Heading date 1(Hd1), OsBBX5, OsBBX14, OsBBX27 or OsCOL9 in rice play positive or negative roles in flowering under LD or SD conditions^35–39. Chrysanthemum BBX8 and BBX13 were reported to regulate flowering^40,41. At the cellular level, CO and BBX4 colocalize with Constitutive Photomorphogenic 1 (COP1) in photobodies through interaction with COP1^9,30.

In this study, we identified a new CO-interacting protein BBX28 and revealed that BBX28 functions through its N-terminal cysteine-mediated heterodimerization with CO to weaken the role of CO in transcriptional regulation of FT to negatively regulate Arabidopsis flowering.

Results

BBX28 negatively regulates flowering

To uncover the biological functions of BBX28 in addition to its role in the regulation of photomorphogenesis⁴², we obtained a bbx28 mutant with a T-DNA insertion in the first exon without a detectable BBX28 transcript level (Fig. S1a,b), and two independent transgenic lines overexpressing BBX28 fused to yellow fluorescent protein (YFP) under the control of a CaMV 35S promoter in wild type (Col-0) (BBX28OE, 35S-BBX28-YFP/Col-0; lines 1# and 4#) (Fig. S1b), while Col-0 and plants overexpressing YFP (YFPOE, 35S-YFP/Col-0) were used as controls. When these plants were grown under LD, bbx28 mutant flowered two days earlier with one rosette leaf less than Col-0, while BBX28OE lines showed severely late flowering phenotype, with about twenty days later and ten more rosette leaves than Col-0 (Fig. 1a–c). As the two independent BBX28-overexpressing lines display similar phenotypes (Fig. 1a–c), we used BBX28OE-1# for further analysis.

We crossed BBX28OE with bbx28 mutant to obtain BBX28OE/bbx28 plants. We found that BBX28OE/bbx28 plants flowered similarly to BBX28OE plants (Fig. S1c–e). The weak phenotype of bbx28 mutant might be due to the functional redundancies of Arabidopsis group V BBX proteins in flowering regulation (Fig. S1f).

To map the functional domains of BBX28 in flowering repression, we constructed N-terminal (BBX28NT, 1–112 aa) and C-terminal (BBX28CT, 113–223 aa) truncations of BBX28 based on their protein domains predicted by SMART (https://smart.embl-heidelberg.de/), which revealed a B-box domain (1–46 aa) in the N-terminus and two low-complexity regions in the C-terminus of BBX28 (Fig. S1g). We generated transgenic plants overexpressing BBX28NT or BBX28CT in Col-0 (BBX28NTOE, 35S-BBX28NT-YFP/Col-0; BBX28CTOE, 35S-BBX28CT-YFP/Col-0) (Fig. S1h). We found that BBX28NTOE lines showed severely late flowering, with about twenty days later and ten more rosette leaves than Col-0. In contrast, BBX28CTOE and YFPOE lines displayed similar flowering phenotypes to Col-0 (Fig. 1d–f), suggesting a specific role of BBX28NT in the flowering regulation.

BBX28 decreases FT transcription

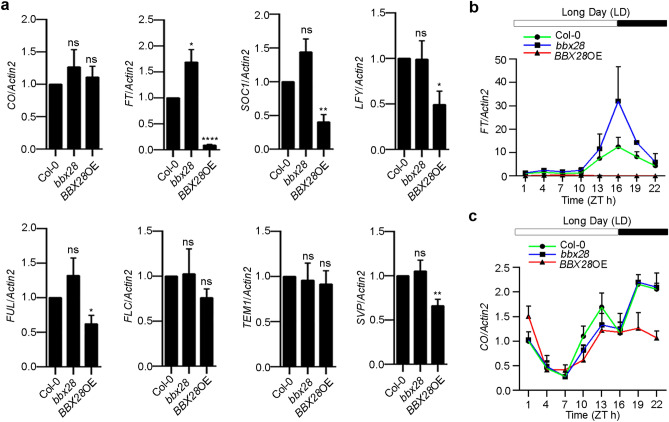

To reveal genes involved in the negative role of BBX28 in regulating flowering, we tested the transcript levels of key genes involved in photoperiodic flowering, floral identity and FT transcription, including CO, FT, SOC1, LEAFY (LFY), FRUITFUL (FUL), TEMPRANILLO 1 (TEM1), FLC and SHOT VEGETATIVE PHASE (SVP)¹⁶, in 7-day-old LD-grown Col-0, bbx28 and BBX28OE plants. Quantitative real-time PCR (qRT-PCR) of seedlings collected at zeitgeber time (ZT) 4 showed that FT transcript level reduced most significantly in BBX28OE, followed by SOC1, LFY, FUL and SVP, while CO, TEM1 and FLC transcript levels remained unchanged (Fig. 2a).

As the expressions of CO and FT show rhythmic patterns during 24 h of a day in flowering pathway⁴, we tested whether the diurnal expression profiles of FT and CO are affected by BBX28. To this end, 7-day-old Col-0, bbx28 and BBX28OE seedlings grown under LD were harvested with an interval of three hours from dawn up to a 24 h-period. We found that FT transcript level was greatly decreased by BBX28 with more dramatically in late afternoon and dark (Fig. 2b). Interestingly, CO transcription was not affected by BBX28 during the day but decreased about half in BBX28OE plants after dusk (Fig. 2c).

BBX28 interacts with CO through its N-terminus

Since FT is the direct target of CO, the reduction of FT transcript level by BBX28 encouraged us to test whether BBX28 interacts with CO. Co-localization analyses revealed that BBX28 and BBX28NT but not BBX28CT co-localized with CO in photobodies (Fig. 3a). We performed NoTS assay⁴³ to test the interaction between BBX28 and CO in vivo. We found that CO was successfully recruited to the periphery of nucleolus by Nuc2-BBX28 but not Nuc2-mCherry (Fig. 3b), indicating that BBX28 interacts with CO in nuclei in vivo. LUC complementation imaging and yeast two-hybrid interaction assays also supported the interaction between BBX28 and CO through BBX28NT (Fig. 3c,d). The in vivo interaction between BBX28 and CO was further confirmed by Co-IP as CO was detected in BBX28-YFP-immunoprecipitated samples but not in the control (Figs. 3e; S2a). To study whether the B-box domain within N-terminus of BBX28 mediates its interaction with CO, BBX28 B-box (1–46aa) and BBX28NT with a deletion of the B-box domain (BBX28NTΔB-box, 47–112aa) were constructed (Fig. S2b). Yeast two-hybrids showed that the B-box domain but not BBX28NTΔB-box interacts with CO (Fig. S2c), suggesting a central role of B-box domain in mediating the interaction between BBX28 and CO.

BBX28 inhibits CO targeting to FT locus without affecting the transcriptional activation activity of CO

To investigate the functional links among BBX28, CO and FT, we first compared the expression patterns among BBX28, CO and FT. Transgenic plants expressing GUS driven by the BBX28 promoter in wild type (pBBX28-GUS/Col-0) were generated and GUS staining showed that the expression pattern of BBX28 is similar to those of CO and FT^44,45, with higher levels in vascular tissues (Fig. 4a). Dual-LUC assays (Fig. S3a) showed that the FT expression level was increased by CO but decreased by BBX28 (Fig. 4b), indicating a negative effect of BBX28 on FT transcription. Since CO activates FT transcription and BBX28 interacts with CO (Figs. 3 and 4b), we co-expressed BBX28 and CO and performed Dual-LUC assays to test the effect of coexpressing BBX28 and CO on FT expression. The results indicated that the FT transcript level was reduced upon co-expressing BBX28 and CO (Fig. 4b,c). Moreover, BBX28NT but not BBX28CT displayed a similar effect on FT transcription to that of full-length BBX28 upon co-expressing with CO (Fig. 4c).

It was known that CO binds to FT promoter to activate its expression^5,17. We asked whether BBX28 affects the DNA binding ability of CO to FT locus. Plants overexpressing CO (COOE; 35S-CO-YFP/Col-0) were crossed with BBX28OE line (BBX28OE; 35S-BBX28-3 × FLAG-mCherry/Col-0) to obtain CO and BBX28 co-expressing lines (BBX28OE × COOE). The line 1#, 3#, and 5# of BBX28OE × COOE were generated by crossing BBX28OE-2# with line 1#, 2#, and 6# of COOE respectively (Fig. S3b,c). COOE-2# and BBX28OE × COOE-3#, having a similar CO protein level which excluded the potential effects of different CO levels on our analysis (Fig. S3d), were selected for chromatin immunoprecipitation (ChIP)-qPCR assay. The level of CO recruited to the transcription start site of FT (FT2 fragment) was much more than that to other fragments of FT in COOE plants, exhibiting enrichment over four folds compared to the non-immune control (NIC) (Figs. 4d, S3e). When CO was co-expressed with BBX28, the level of CO targeted to FT2 fragment decreased to less than two folds compared to NIC (Fig. 4d), indicating that BBX28 decreases the recruitment of CO to FT locus.

Next we tested whether BBX28 affects the transcriptional activation activity of CO (Fig. S3f). The expression of LUC (LUC/REN ratio) increased in Gal4BD-CO-YFP and Gal4BD-VP16-YFP (Fig. S3g), consistent with the previous report⁵. When Gal4BD-CO-YFP was co-expressed with BBX28 or TOE1, a positive control which was shown to repress the transcriptional activation of CO¹⁸, we found that the transcriptional activation activity of CO was not affected by BBX28 while inhibited obviously by TOE1 (Fig. 4e). Without Gal4BD-CO-YFP, BBX28 and TOE1 had no effects on the reporter LUC (Fig. S3h). Together, these results indicated that BBX28 does not affect the transcriptional activation activity of CO.

BBX28 N-terminal cysteines mediate heterodimerization between BBX28 and CO and affect the activation of CO on FT transcription

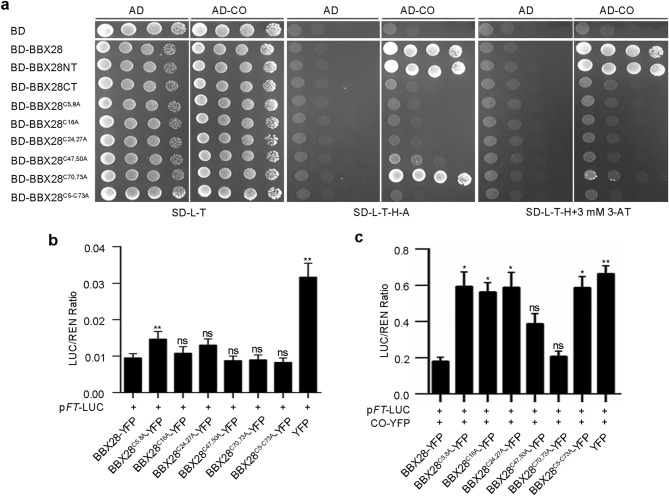

As BBX28 interacts with CO through its N-terminus (Fig. 3), we then asked whether the conserved cysteines in N-terminal domain (Fig. S4a) play a role in BBX28-CO interaction. We found that mutations of BBX28 N-terminal cysteines greatly blocked BBX28-CO interaction with BBX28^C5,8A, BBX28^C16A and BBX28^C24,27A displaying more obvious blocking effects, followed by BBX28^C47,50A and BBX28^C70,73A (Fig. 5a). Consistently, the co-localization signals in photobodies between CO and BBX28^C5,8A or BBX28^C16A decreased significantly, followed by BBX28^C24,27A, BBX28^C47,50A and BBX28^C70,73A mutants. BBX28^C5–C73A with all nine conserved cysteines mutated diffused in the nucleus without photobodies formed when co-expressing with CO (Fig. S4b,c). These results indicated that the N-terminal cysteines are essential for BBX28-CO interaction and C5, C8, C16, C24 and C27 sites located in the B-box domain (1–46aa) are more important. As BBX28 and CO (BBX1) both belong to BBX proteins, we concluded that BBX28 N-terminal cysteines mediated its heterodimerzation with CO.

To test whether these cysteines affect FT transcription, Dual-LUC assays showed that BBX28 cysteine mutations did not change the effects of BBX28 on FT expression, except BBX28^C5,8A mutation with less than one-fold increase (Fig. 5b). When those mutations were co-expressed with CO, BBX28^C5,8A, BBX28^C16A, BBX28^C24,27A and BBX28^C5–73A mutations, which affect the interaction between BBX28 and CO (Fig. 5a; Fig. S4b,c), largely restored FT expression (Fig. 5c), supporting that these cysteines play an inhibitory role in the activation of CO on FT transcription, possibly by affecting the heterodimerization between BBX28 and CO.

BBX28 genetically regulates flowering through CO and FT

To test the genetic relationships among BBX28, CO and FT, we first generated bbx28co-9 double mutant by crossing bbx28 with co-9 mutant and analyzed their flowering phenotypes under LD. We found bbx28co-9 double mutant delayed flowering similarly to co-9 single mutant (Fig. S5a–c). As the early flowering phenotype of bbx28 is weak (Fig. 1) while co mutant (co-9) displays severe late flowering (Fig. S5a–c), we then tested the genetic relationship between BBX28 and CO through analyzing the flowering phenotypes of plants overexpressing BBX28 (BBX28OE), CO (COOE) or BBX28 and CO (BBX28OE × COOE). The line 1#, 3#, and 5# of BBX28OE × COOE were generated by crossing BBX28OE-2# with line 1#, 2#, and 6# of COOE respectively, and the transcript levels of CO and BBX28 were confirmed by qRT-PCRs (Fig. S3b,c). We found that BBX28OE × COOE-5# flowered early with about twelve days earlier and five rosette leaves less than Col-0, similar to COOE-6# plants (Fig. 6a–c); BBX28OE × COOE-1# flowered early with about eleven days earlier and four rosette leaves less than Col-0, similar to COOE-1# plants (Fig. S5d–f); BBX28OE × COOE-3# flowered early with about ten days earlier and four rosette leaves less than Col-0, similar to COOE-2# plants (Fig. S5g–i), indicating the later flowering caused by BBX28 overexpression was compromised by CO overexpression. BBX28OE × COOE plants flowered no later than COOE plants, which might be due to that the high levels of CO transcripts in both genotypes, resulting in a saturated level of FT transcript for promoting flowering. Moreover, FT transcripts were much less in BBX28OE × COOE plants than that in COOE plants (Fig. 6d), although the CO transcript and CO protein levels were comparable in BBX28OE × COOE plants and corresponding COOE plants (Fig. S3b,d), supporting a negative effect of BBX28 on CO function in vivo. In addition, FT mRNA level changed in accordance with CO transcript level in BBX28OE × COOE plants (1#, 3# and 5#) (Figs. 6d, S3b). BBX28OE × COOE-3# showed the highest CO transcript level, followed by BBX28OE × COOE (1# and 5#) (Fig. S3b), accordantly, the FT transcript level displayed similar patterns to CO, with highest in BBX28OE × COOE-3#, followed by BBX28OE × COOE (1# and 5#) (Fig. 6d). Together, these results suggested that BBX28 delays flowering in a CO and FT-dependent manner.

Discussion

The CO-FT module is the major determinant to regulate flowering in response to day length. In this study, we identified a new CO-interacting protein BBX28 which belongs to the Group V B-box transcription factors (BBX26–BBX32). We further dissected a specific role of N-terminal domain of BBX28 in the negative regulation of flowering.

In the light signaling pathways, it was shown that some components function through their different protein domains intelligently. The C-terminal domains of CRY1 and CRY2 (CCT1 and CCT2) interact with COP1 and mediate their signaling responses to light activation. The N-terminal domain of CRY1 (CNT1) mediates its constitutive dimerization, which is required for the light activation of CCT1 activity^46,47. COP1 is a central switch for light signaling transduction. The nuclear localization signals (NLSs) of COP1 reside in its central core domain while the N-terminal portion acts as the major determinant for its cytoplasmic distribution. The coiled-coil domain of COP1 mediates its homodimerization and the C-terminal WD40 domain interact with multiple transcription factors or photoreceptors for protein degradation^48–50. Our results showed that the N-terminus of BBX28 mediates its interaction with CO and affects the recruitment of CO to FT locus, resulting in reduction of FT transcription with delayed flowering under LD (Figs. 3, 4 and 6). The late flowering phenotype is relieved when BBX28 N-terminus is deleted (Figs. 1d–f, 4c), supporting specific roles of the regulatory protein domains in the light signaling transduction.

The protein interactions, such as BBX19-CO, BBX32-BBX4 and BBX21-HY5, indicated heterodimer formation among BBXs or between BBX and non-BBX proteins^16,27,29,51. Arabidopsis BBX32 (AtBBX32) interacted with soybean BBX62 (GmBBX62) through the N-terminal B-box region of BBX32⁵². Those data suggest the B-box domain plays an essential and conservative role in heterodimerization, but the detailed molecular mechanism for the functioning of BBX domain is still not fully revealed. In this study, the interaction between BBX28 and CO (BBX1) provided another evidence to support heterodimerization of BBX proteins (Fig. 3). In addition, we further showed that several conserved cysteines in the N-terminus of BBX28, particularly those within the B-box domain, are essential for BBX28-CO interaction and the activation of CO on FT transcription (Fig. 5). The structural basis for the role of heterodimerization between BBX28 and CO under light/dark condition in flowering regulation will be of great interest to be investigated in the future.

The evolutionary and structural relationships of BBX proteins have been investigated in many plant species, from algae to monocots and dicots, by the phylogenetic approach⁵³. Heading date 1(Hd1), the ortholog of CO in rice, activates flowering under SD while delays flowering time under LD³⁵. OsBBX27 (or OsCO3) and OsBBX5 (or OsCOL4) are negative regulators in plant flowering regulation^36,37. Overexpressing OsBBX14 or OsCOL9 under both SD and LD delayed the heading date in rice by inhibiting the expressions of florigen genes^38,39. CmBBX8, a presumed chrysanthemum homolog of Arabidopsis BBX8 (AtBBX8), accelerated flowering by directly targeting CmFLT1, a floral inducer gene⁴⁰. However, CmBBX13 acted as a flowering repressor independently of the photoperiodic pathway⁴¹. Here we found overexpressing BBX28 delays flowering under LD through CO and FT (Figs. 1 and 6, S5). The delayed flowering of BBX28OE × COOE plants is comparable to that of COOE plants and the accordant dose curve of CO and FT transcript levels in BBX28 and CO co-overexpressing plants (Figs. 6d, S3b) supported that BBX28 functions in flowering through CO and FT. Therefore, a new flowering regulator, BBX28, was identified in this study.

BBX28 was known to negatively regulate photomorphogenesis by interacting with ELONGATED HYPOCOTYL 5 (HY5) and interfering with the activity of HY5 in its downstream target gene expression. Besides, COP1 interacts with BBX28 and mediates its protein degradation in darkness via the 26S proteasome, demonstrating key roles of BBX28 in COP1-HY5 axis to maintain proper HY5 activity and normal photomorphogenic development⁴². We showed that BBX28 interacts with CO and decreases the recruitment of CO to FT promoter and weakens the activation of CO on FT transcription. The BBX28-HY5 axis in photomorphogenesis and BBX28-CO-FT axis in flowering regulation indicated that BBX28 plays roles in two different light signaling pathways through diverse interacting proteins to regulate downstream gene expression. It was shown that COP1 interacts with BBX28 and CO and mediates their degradations in darkness^9,42. The co-localizations of these three proteins in photobodies suggested that BBX28, COP1 and CO may act in the same complex (Fig. S6a). Genetic analyses indicated that the negative role of BBX28 in flowering is CO-dependent under LD (Figs. 6, S5). CO was shown to act genetically downstream of COP1 to regulate flowering⁹. It is therefore of interest to study if and how BBX28 affects COP1-mediated CO degradation in flowering when these three proteins interact with each other. Additionally, we found CO transcription was not affected by BBX28 during the day but decreased about half in BBX28OE plants after dusk (Fig. 2c). It is also of interest to explore the relationship between BBX28 and CO at the transcriptional level.

We proposed a working model for BBX28 in flowering regulation (Fig. S6b). CO binds to FT promoter to activate FT transcription. The interaction between N-terminus of BBX28 and CO decreases the recruitment of CO to FT locus. The N-terminal cysteines play an indispensable role in BBX28-CO heterodimerization and activation of CO on FT transcription. In wild type (WT/Col-0), the balance between BBX28 and CO maintains precise FT expression, which leads to normal flowering. When BBX28 is over-expressed (BBX28OE), the recruitment of CO on FT locus is decreased by the overdosed BBX28 protein, resulting in a significant reduction of FT transcript which delays flowering under LD. Considering the similar protein structures of B-box transcription factors, the working model of BBX28 presented here might be applied to other BBX proteins in some degree. In addition, as BBX proteins have roles not only in flowering regulation, but also in photomorphogenesis, shade-avoidance response, abiotic and biotic stresses and plant hormonal pathways²⁷, it is therefore of interest to study if and how the working model of BBX28 applies to those signaling pathways.

Methods

Plant materials and growth conditions

Arabidopsis thaliana ecotype Columbia-0 (Col-0) was used as the wild type for all experiments. The T-DNA insertion mutants of bbx28 (SAIL_828_G11) and co (co-9, SAIL_24_H04) were obtained from the Arabidopsis Biological Resource Center (ABRC), and the homozygous lines were identified by PCR using the primers listed in Table S1. The seeds were surface sterilized and plated on Murashige and Skoog (MS) plates. After stratification for 4 days in dark at 4 °C, the plates were transferred to the growth chambers at 22 °C with different light conditions based on experimental requirements. The long day (LD) condition was 16 h light/8 h dark.

Yeast two-hybrid assays

Yeast two-hybrid interaction assays were performed according to the Yeastmaker Yeast Transformation System 2 User Manual (Clontech). The full lengths of CDS, truncated fragments or mutated sequences of genes of interest were subcloned into pGADT7 or pGBKT7, respectively. The constructs were then co-transformed into yeast (AH109) according to the user manual. The yeast cells containing the bait and the prey constructs were grown on selective plates (SD-Leu-Trp, SD-Leu-Trp-His, SD-Leu-Trp-His-Ala and SD-Leu-Trp-His + 3-AT) for analysis. The concentration of 3-AT was 3 mM or 10 mM.

Microscopy

Tobacco (N. tabacum) leaves were used for transient expression assays. The constructs were introduced into Agrobacterium tumefaciens strain GV3101 by electroporation and infiltrated into tobacco leaves with an injection syringe. 48 h later, the infiltrated tobacco leaf disks were subjected to microcopy analyses as described previously. Image stacks of nuclei were subjected to deconvolution by using softWoRx software (Applied Precision)^54–56. Co-localization or Nucleolus-tethering System (NoTS) assays were performed as previously described⁴³.

Firefly luciferase (LUC) complementation imaging assays

The firefly luciferase (LUC) complementation imaging assay was performed as previously described⁵⁷. BBX28, BBX28NT (1–112 amino acids, aa), BBX28CT (113–223 aa) and CO were fused with the N- or C-terminal fragment of LUC (NLuc and CLuc) respectively. The fused plasmids were introduced into GV3101 by electroporation and then co-infiltrated into tobacco (N. benthamiana) leaves with an injection syringe. 48 h later, the infiltrated leaves were injected with 100 mM luciferin (Sango, dissolved in water) and the luciferase signals were detected by the PMCapture software (Version 1.00) of a Chemiluminescence Imaging System (Tanon 5500, Shanghai, China).

Co-immunoprecipitation (Co-IP) assays

The plasmid pairs for BBX28-CO interaction assays were co-infiltrated into tobacco (N. benthamiana) leaves. 48 h later, the leaves were collected and ground into good powder in liquid nitrogen for nuclear protein extraction. Samples were re-suspended in 20 ml CLB1 (50 mM HEPES, pH7.5, 150 mM NaCl, 1 mM EDTA, 0.04% (v/v) β-mercaptoethanol, 1% (v/v) Triton X-100, 10% (v/v) glycerol, 1 × Cocktail) and incubated at 4℃ for 30 min. The suspensions were filtrated through a double layer of Miracloth (Millipore) twice and centrifuged at 3000×g for 20 min at 4 ℃. The pellets were washed twice with 1 ml CLB2 (50 mM HEPES, pH7.5, 150 mM NaCl, 1 mM EDTA, 1% (v/v) Triton X-100, 10% (v/v) glycerol, 1 × Cocktail) and re-suspended in 200 µl CLB2 added with 20 µl 10% (w/v) SDS. The suspensions were sonicated five times and centrifuged at 12,000×g for 10 min at 4 °C. Another 1.8 ml CLB2 buffer was added for resuspension. The nuclear proteins were incubated with 50 µl Anti-GFP mAb-Magnetic Beads (MBL) at 4℃ for 4 h with rotation. The beads were washed 5 times with washing buffer (50 mM HEPES, pH7.5, 150 mM NaCl, 10% (v/v) glycerol, 0.1% (v/v) TritonX-100, 1 mM EDTA, 1 × Cocktail). The proteins were released by boiling at 100 °C for 5 min and subjected to Western blotting assays with anti-GFP (Abmart; M20004) and anti-mCherry (Abcam; ab67453) antibodies. Blotting signals were detected by the PMCapture software (Version 1.00) of a Chemiluminescence Imaging System (Tanon 5500, Shanghai, China).

Transgenic plants

The constructs were introduced into GV3101 by electroporation and transformed into Col-0 by the floral-dip method⁵⁸. To obtain transgenic plants in different mutant backgrounds, the plants in Col-0 background were crossed with mutants and the backgrounds were identified by PCRs. Primers used were shown in Table S1.

Site-direct mutagenesis

Site-direct mutagenesis was generated by the two-step overlap PCR. We designed a pair of mutant primers by artificially changing the base sequences of interest. When introducing cysteine to alanine (Cys-to-Ala) substitutions, we changed the bases to GCC. Then PCRs were performed by using the wild type forward primer and mutated reverse primer or the mutated forward primer and wild type reverse primer. The same amounts of the purified PCR products were mixed and used as the template for final PCR, which was performed by using the wild type forward and reverse primers. The site-direct mutagenesis was confirmed by sequencing. Primers used were shown in Table S1.

Flowering time and rosette leaf counting

After surface sterilization and stratification for 4 days in dark at 4 °C, the seeds on plates were transferred to the growth chambers at 22 °C under LD (16 h light/8 h dark) for 7 days. Then the seedlings were transferred from the plates to the soil and grown in the greenhouse at 22 °C under LD. The flowering times and rosette leaf numbers were recorded when plants start bolting.

Quantitative real-time PCR

Expression analyses were performed by quantitative real-time PCR (qRT-PCR) as described previously⁴³. Total RNAs were extracted from 7-day-old seedlings under the LD condition using the RNeasy Plant Mini Kit (Qiagen). RNAs (about 1 µg) were used as templates for reverse transcription using ReverTra Ace qPCR RT Master Mix with gDNA Remove Kit (Toyobo) according to the manufacturer’s instruction. The cDNAs were then diluted and used as templates for qPCR using SYBR Premix Ex Taq (TliRNaseH Plus) in a Bio-Rad CFX96 real-time system. All PCRs were performed by preincubation for 2 min at 95 °C, followed by 50 cycles of denaturation at 95 °C for 20 s, annealing at 56 °C for 30 s, and extension at 72 °C for 30 s. Each reaction was repeated three times. Data were captured and analyzed by Bio-Rad CFX Manager software (Version 2.1) (Bio-Rad). Actin2 (At3g18780) was used for data normalization. Primers used for qRT-PCR were listed in Table S1.

Protein extraction and immunoblot assays

For total proteins of plants or seedlings grown under different conditions were extracted by extraction buffer (50 mM Tris–HCl, pH7.5, 150 mM NaCl, 10 mM MgCl2, 5 mM EDTA, 10% (v/v) Glycerol, 0.6 mM PMSF, 1 × Cocktail, Roche) (200 µl extraction buffer for about 50 µl powder). Lysed proteins were placed on ice for 20 min and mixed several times. Then proteins were centrifuged at 14,000×g for 10 min at 4 °C. The supernatants were transformed to new tubes and 5 × SDS-PAGE loading buffer (250mMTris-HCl, pH 6.8, 10% (w/v) SDS, 0.5% (w/v) BPB, 50% (v/v) Glycerol, 5% (v/v) β-mercaptoethanol) was added. Samples were boiled at 100 °C for 5 min and subjected to SDS-PAGE for Western blotting assays. Blotting signals were detected by the PMCapture software (Version 1.00) of a Chemiluminescence Imaging System (Tanon 5500, Shanghai, China).

Dual-luciferase (dual-LUC) assay

The Dual-LUC assay was performed as described previously⁵⁹. The FT promoter (1800 bp) was subcloned into pGreenII 0800-LUC vector (a kind gift from Prof. Hongtao Liu) as the reporter and full-length of BBX28 CDS, BBX28 truncates or point mutations and full-length of CO CDS were subcloned into pCambia131-35S-N1-YFP⁵⁴ as the effectors. pCambia131-35S-YFP (YFP) was used as the control effector. The reporter construct was introduced into the GV3101 harboring pSoup-P19. The effecter constructs were introduced into GV3101. The cells were harvested when grown to OD600 = 0.8–1.0 and washed once and then resuspended by sterilized water to OD600 = 0.8. The reporter and the effecter were mixed together at 1:2 ratio for co-infiltration of the tobacco leaves. For assays containing two effectors, the reporter and effectors were mixed together at 1:2:2 ratio. The control and the experimental samples were infiltrated into the same tobacco leaf and more than three independent leaves were served as technical replicates. 48 h later, the tobacco leaf disks in the infiltrated areas were collected by a puncher with 1.1 cm in diameter for protein extraction. Extracted proteins were subject to Dual-LUC assays by the Dual-Luciferase Reporter Assay System (Promega E1910) with GloMax 20/20 Luminometer software (version 1.10) (Promega).

The samples were ground in liquid nitrogen in 1.5 ml EP tubes and extracted by 100 µl 1 × Passive Lysis Buffer (5 ×), incubated on ice for 15 min and mixed several times for efficient lysis. The extracted proteins were centrifuged at 14,000×g for 10 min at 4 °C and supernatants were transformed into new tubes. 8 µl supernatant was transformed to a new tube and 40 µl luciferase assay buffer was added and mixed for recording the LUC value. Then 40 µl Stop&Glo buffer was added and mixed for recording the REN value. The LUC/REN ratios were calculated. Data from the luminometer were exported by the GloMax Spreadsheet Interfacer (Promega).

Chromatin immunoprecipitation (ChIP) assay

ChIP assay was performed as previously described⁶⁰. 1 g 12-day-old seedlings of COOE-2# (35S-CO-YFP/Col-0) and BBX28OE × COOE-3# (35S-BBX28-3 × FLAG-mCherry/Col-0 × 35S-CO-YFP/Col-0) were harvested at ZT12 under LD and cross-linked twice in fixing buffer (0.4 M Sucrose, 10 mM Tris–HCl, pH8.0, 1 mM EDTA, 1% Formaldehyde) for 10 min by vacuum infiltration. The cross-linking was terminated by the addition of 2.5 M Glycine and vacuum infiltration for 5 min. The samples were ground into good powder, then the nuclei and chromatin were isolated as described in IP assays. 5 µg anti-GFP antibody (Abcam) was incubated with 20 µl Protein A + G magnetic ChIP beads (Millipore) at 4 °C for 3–5 h following by the addition of extracted chromatins and incubated at 4 °C overnight. Then the beads were washed by low salt washing buffer (50 mM HEPES, pH7.5, 1 mM EDTA, 150 mM NaCl), high salt washing buffer (50 mM HEPES, pH7.5, 1 mM EDTA, 500 mM NaCl), LiCl wash buffer (10 mM Tris–HCl, pH8.0, 1 mM EDTA, 0.25 M LiCl, 0.5%(v/v) NP-40) and TE buffer (10 mM Tris–HCl, pH8.0, 1 mM EDTA) and eluted with elution buffer (1% SDS, 0.1 M NaHCO₃). After overnight reverse cross-linking, DNA was purified and dissolved in 30 µl water. Four fragments (FT1, FT2, FT3 and FT4) of FT locus were used for ChIP qRT-PCR assay¹⁷. Data were captured and analyzed by Bio-Rad CFX Manager software (Version 2.1) (Bio-Rad). The ChIP results were reported by fold enrichment way using 2^−△△Ct method⁶¹. GFP-IP signal relative to corresponding nonimmune control (NIC; no GFP antibody) signal was normalized by FT4. Primers used were listed in Table S1.

Transcriptional activity assay

The transcriptional activity assay was performed as previously described with some modifications⁶². The original plasmids were a kind gift from prof. Zhukuan Cheng’s lab. The construct 35S’-5 × Gal4-TATA-LUC-Nos was used as the reporter and CaMV35S-Ω-Gal4BD-Nos as the effecter. Gal4BD-VP16 was the positive control and pTRL was the internal reference. The 35S’-5 × Gal4-TATA fragment was amplified by the KpnI-35S’-F and KpnI-TATA-R primers using 35S’-5 × Gal4-TATA-LUC-Nos as the template and subcloned into pGreenII 0800-LUC vector to generate pGreenII 0800-35S’-5 × Gal4-TATA-LUC plasmid. The Gal4BD sequence was amplified by BamHI-Gal4BD-F and BamHI-Gal4BD-R primers using CaMV35S-Ω-Gal4BD-Nos as the template and subcloned into pCambia131-35S-N1-YFP to generate pCambia131-35S-Gal4BD-N1-YFP. To construct different effectors, the coding sequences of different genes were subcloned into pCambia131-35S-Gal4BD-N1-YFP plasmid. For the positive control (pCambia131-35S-Gal4BD-VP16-YFP), the VP16 sequence was amplified by SpeI-VP16-F and SpeI-VP16-R primers using Gal4BD-VP16 as the template and subcloned into pCambia131-35S-Gal4BD-N1-YFP. Then constructs of the reporter and effectors were introduced into GV3101 harboring pSoup-P19 or GV3101 and co-infiltrated into tobacco (N. benthamiana) leaves for Dual-LUC assay by the Dual-Luciferase Reporter Assay System (Promega E1910) with GloMax 20/20 Luminometer software (version 1.10) (Promega) to analyze the transcriptional activities. Data from the luminometer were exported by the GloMax Spreadsheet Interface software (Promega).

Histochemical GUS staining

The promoter of BBX28 (2004 bp) was subcloned into pBI101.1-GUS vector and transformed into Col-0 to generate pBBX28-GUS/Col-0 transgenic plants. 10-day-old LD grown seedlings were soaked in GUS staining buffer (1 mg/ml 5-bromo-4-chloro-3-indolyl-beta-D-glucuronic acid cyclohexylammonium salt (X-Gluc), 50 mM Na₃PO₄ (pH7.0), 0.1% (v/v) Triton X-100, 2 mM K₄Fe (CN)₆·3H₂O, 2 mM K₃Fe (CN)₆ and 10 mM EDTA) at 37 °C overnight in darkness. 75% ethanol was used to remove chlorophyll for imaging.

Statistical analyses

For quantitative real-time PCR, flowering time and rosette leaf counting, Dual-LUC assay and transcriptional activity assay, the differences between samples were analyzed by student’s t-test. For all analyses, statistical significance was set as ****p < 0.0001, ***p < 0.001, **p < 0.01, *p < 0.05, and ns (not significant).

Supplementary information

Supplementary Information.^{(1.4MB, pdf)}

Acknowledgements

We gratefully acknowledge the Arabidopsis Biological Resource Center for sending seeds of lines used in this study. We thank Prof. Hongtao Liu and Prof. Zhukuan Cheng for the kind plasmids. We also thank Prof. Fang’s lab members for suggestions on the manuscript writing. This work was supported by National Science Foundation of China (31871230 to Y.F.).

Author contributions

Y.L. and Y.F. designed the experiments. Y.L. performed most of experiments, G.L., and C.Y. assisted in experiments. Y.L., C.Y., G.L. and Y.F. wrote the manuscript. All authors reviewed the manuscript.

Data availability

All necessary data generated or analyzed during the present study are included in this published article and its Supplementary Information files.

Competing interests

The authors declare no competing interests.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

is available for this paper at 10.1038/s41598-020-74445-7.

References

1.Srikanth A, Schmid M. Regulation of flowering time: all roads lead to Rome. Cell. Mol. Life Sci. 2011;68:2013–2037. doi: 10.1007/s00018-011-0673-y. [DOI] [PMC free article] [PubMed] [Google Scholar]
2.Fornara F, de Montaigu A, Coupland G. SnapShot: control of flowering in Arabidopsis. Cell. 2010;141:550. doi: 10.1016/j.cell.2010.04.024. [DOI] [PubMed] [Google Scholar]
3.Zhang H, et al. The effects of Arabidopsis genome duplication on the chromatin organization and transcriptional regulation. Nucleic Acids Res. 2019;47:7857–7869. doi: 10.1093/nar/gkz511. [DOI] [PMC free article] [PubMed] [Google Scholar]
4.Shim JS, Kubota A, Imaizumi T. Circadian clock and photoperiodic flowering in Arabidopsis: CONSTANS is a hub for signal integration. Plant Physiol. 2017;173:5–15. doi: 10.1104/pp.16.01327. [DOI] [PMC free article] [PubMed] [Google Scholar]
5.Tiwari SB, et al. The flowering time regulator CONSTANS is recruited to the FLOWERING LOCUS T promoter via a unique cis-element. New Phytol. 2010;187:57–66. doi: 10.1111/j.1469-8137.2010.03251.x. [DOI] [PubMed] [Google Scholar]
6.Abe M, et al. FD, a bZIP protein mediating signals from the floral pathway integrator FT at the shoot apex. Science. 2005;309:1052–1056. doi: 10.1126/science.1115983. [DOI] [PubMed] [Google Scholar]
7.Shim JS, Imaizumi T. Circadian clock and photoperiodic response in Arabidopsis: from seasonal flowering to redox homeostasis. Biochemistry. 2015;54:157–170. doi: 10.1021/bi500922q. [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Lazaro A, Valverde F, Pineiro M, Jarillo JA. The Arabidopsis E3 ubiquitin ligase HOS1 negatively regulates CONSTANS abundance in the photoperiodic control of flowering. Plant Cell. 2012;24:982–999. doi: 10.1105/tpc.110.081885. [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Liu LJ, et al. COP1-mediated ubiquitination of CONSTANS is implicated in cryptochrome regulation of flowering in Arabidopsis. Plant Cell. 2008;20:292–306. doi: 10.1105/tpc.107.057281. [DOI] [PMC free article] [PubMed] [Google Scholar]
10.Lazaro A, Mouriz A, Pineiro M, Jarillo JA. Red light-mediated degradation of CONSTANS by the E3 ubiquitin ligase HOS1 regulates photoperiodic flowering in Arabidopsis. Plant Cell. 2015;27:2437–2454. doi: 10.1105/tpc.15.00529. [DOI] [PMC free article] [PubMed] [Google Scholar]
11.Song YH, et al. Distinct roles of FKF1, Gigantea, and zeitlupe proteins in the regulation of constans stability in Arabidopsis photoperiodic flowering. Proc. Natl. Acad. Sci. USA. 2014;111:17672–17677. doi: 10.1073/pnas.1415375111. [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Valverde F, et al. Photoreceptor regulation of CONSTANS protein in photoperiodic flowering. Science. 2004;303:1003–1006. doi: 10.1126/science.1091761. [DOI] [PubMed] [Google Scholar]
13.Zuo Z, Liu H, Liu B, Liu X, Lin C. Blue light-dependent interaction of CRY2 with SPA1 regulates COP1 activity and floral initiation in Arabidopsis. Curr. Biol. 2011;21:841–847. doi: 10.1016/j.cub.2011.03.048. [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Cheng Z, et al. Nup96 and HOS1 are mutually stabilized and gate CONSTANS protein level, conferring long-day photoperiodic flowering regulation in Arabidopsis. Plant Cell. 2019;32:374–391. doi: 10.1105/tpc.19.00661. [DOI] [PMC free article] [PubMed] [Google Scholar]
15.Hwang DY, et al. GIGANTEA regulates the timing stabilization of CONSTANS by altering the interaction between FKF1 and ZEITLUPE. Mol. Cells. 2019;42:693–701. doi: 10.14348/molcells.2019.0199. [DOI] [PMC free article] [PubMed] [Google Scholar]
16.Wang CQ, Guthrie C, Sarmast MK, Dehesh K. BBX19 interacts with CONSTANS to repress FLOWERING LOCUS T transcription, defining a flowering time checkpoint in Arabidopsis. Plant Cell. 2014;26:3589–3602. doi: 10.1105/tpc.114.130252. [DOI] [PMC free article] [PubMed] [Google Scholar]
17.Nguyen KT, Park J, Park E, Lee I, Choi G. The Arabidopsis RING domain protein BOI inhibits flowering via CO-dependent and CO-independent mechanisms. Mol. Plant. 2015;8:1725–1736. doi: 10.1016/j.molp.2015.08.005. [DOI] [PubMed] [Google Scholar]
18.Zhang B, Wang L, Zeng L, Zhang C, Ma H. Arabidopsis TOE proteins convey a photoperiodic signal to antagonize CONSTANS and regulate flowering time. Genes Dev. 2015;29:975–987. doi: 10.1101/gad.251520.114. [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Graeff M, et al. Microprotein-mediated recruitment of CONSTANS into a TOPLESS trimeric complex represses flowering in Arabidopsis. PLoS Genet. 2016;12:e1005959. doi: 10.1371/journal.pgen.1005959. [DOI] [PMC free article] [PubMed] [Google Scholar]
20.Xu F, et al. DELLA proteins physically interact with CONSTANS to regulate flowering under long days in Arabidopsis. FEBS Lett. 2016;590:541–549. doi: 10.1002/1873-3468.12076. [DOI] [PubMed] [Google Scholar]
21.Cao S, et al. A distal CCAAT/NUCLEAR FACTOR Y complex promotes chromatin looping at the FLOWERING LOCUS T promoter and regulates the timing of flowering in Arabidopsis. Plant Cell. 2014;26:1009–1017. doi: 10.1105/tpc.113.120352. [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Kumar S, Choudhary P, Gupta M, Nath U. VASCULAR PLANT ONE-ZINC FINGER1 (VOZ1) and VOZ2 interact with CONSTANS and promote photoperiodic flowering transition. Plant Physiol. 2018;176:2917–2930. doi: 10.1104/pp.17.01562. [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Serrano-Bueno G, et al. CONSTANS-FKBP12 interaction contributes to modulation of photoperiodic flowering in Arabidopsis. Plant J. 2019;101:1287–1302. doi: 10.1111/tpj.14590. [DOI] [PubMed] [Google Scholar]
24.Hayama R, et al. PSEUDO RESPONSE REGULATORs stabilize CONSTANS protein to promote flowering in response to day length. EMBO J. 2017;36:904–918. doi: 10.15252/embj.201693907. [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Liu Y, et al. CIB1 and CO interact to mediate CRY2-dependent regulation of flowering. EMBO Rep. 2018;19:10. doi: 10.15252/embr.201845762. [DOI] [PMC free article] [PubMed] [Google Scholar]
26.Zhang R, Yang C, Jiang Y, Li L. A PIF7-CONSTANS-centered molecular regulatory network underlying shade-accelerated flowering. Mol. Plant. 2019;12:1587–1597. doi: 10.1016/j.molp.2019.09.007. [DOI] [PubMed] [Google Scholar]
27.Gangappa SN, Botto JF. The BBX family of plant transcription factors. Trends Plant Sci. 2014;19:460–470. doi: 10.1016/j.tplants.2014.01.010. [DOI] [PubMed] [Google Scholar]
28.Song Z, Bian Y, Liu J, Sun Y, Xu D. B-box proteins: pivotal players in light-mediated development in plants. J. Integr. Plant Biol. 2020;62:1293–1302. doi: 10.1111/jipb.12935. [DOI] [PubMed] [Google Scholar]
29.Tripathi P, Carvallo M, Hamilton EE, Preuss S, Kay SA. Arabidopsis B-BOX32 interacts with CONSTANS-LIKE3 to regulate flowering. Proc. Natl. Acad. Sci. USA. 2017;114:172–177. doi: 10.1073/pnas.1616459114. [DOI] [PMC free article] [PubMed] [Google Scholar]
30.Datta S, Hettiarachchi GH, Deng XW, Holm M. Arabidopsis CONSTANS-LIKE3 is a positive regulator of red light signaling and root growth. Plant Cell. 2006;18:70–84. doi: 10.1105/tpc.105.038182. [DOI] [PMC free article] [PubMed] [Google Scholar]
31.Hassidim M, Harir Y, Yakir E, Kron I, Green RM. Over-expression of CONSTANS-LIKE 5 can induce flowering in short-day grown Arabidopsis. Planta. 2009;230:481–491. doi: 10.1007/s00425-009-0958-7. [DOI] [PubMed] [Google Scholar]
32.Cheng XF, Wang ZY. Overexpression of COL9, a CONSTANS-LIKE gene, delays flowering by reducing expression of CO and FT in Arabidopsis thaliana. Plant J. 2005;43:758–768. doi: 10.1111/j.1365-313X.2005.02491.x. [DOI] [PubMed] [Google Scholar]
33.Li F, et al. The B-box family gene STO (BBX24) in Arabidopsis thaliana regulates flowering time in different pathways. PLoS ONE. 2014;9:e87544. doi: 10.1371/journal.pone.0087544. [DOI] [PMC free article] [PubMed] [Google Scholar]
34.Park HY, et al. EMF1 interacts with EIP1, EIP6 or EIP9 involved in the regulation of flowering time in Arabidopsis. Plant Cell Physiol. 2011;52:1376–1388. doi: 10.1093/pcp/pcr084. [DOI] [PubMed] [Google Scholar]
35.Yano M, et al. Hd1, a major photoperiod sensitivity quantitative trait locus in rice, is closely related to the Arabidopsis flowering time gene CONSTANS. Plant Cell. 2000;12:2473–2484. doi: 10.1105/tpc.12.12.2473. [DOI] [PMC free article] [PubMed] [Google Scholar]
36.Kim SK, et al. OsCO3, a CONSTANS-LIKE gene, controls flowering by negatively regulating the expression of FT-like genes under SD conditions in rice. Planta. 2008;228:355–365. doi: 10.1007/s00425-008-0742-0. [DOI] [PubMed] [Google Scholar]
37.Lee YS, et al. OsCOL4 is a constitutive flowering repressor upstream of Ehd1 and downstream of OsphyB. Plant J. 2010;63:18–30. doi: 10.1111/j.1365-313X.2010.04226.x. [DOI] [PubMed] [Google Scholar]
38.Bai B, et al. OsBBX14 delays heading date by repressing florigen gene expression under long and short-day conditions in rice. Plant Sci. 2016;247:25–34. doi: 10.1016/j.plantsci.2016.02.017. [DOI] [PubMed] [Google Scholar]
39.Liu H, et al. CONSTANS-like 9 (COL9) delays the flowering time in Oryza sativa by repressing the Ehd1 pathway. Biochem. Biophys. Res. Commun. 2016;479:173–178. doi: 10.1016/j.bbrc.2016.09.013. [DOI] [PubMed] [Google Scholar]
40.Wang L, et al. CmBBX8 accelerating flowering by targeting CmFTL1 directly in summer chrysanthemum. Plant Biotechnol. J. 2019;18:1562–1572. doi: 10.1111/pbi.13322. [DOI] [PMC free article] [PubMed] [Google Scholar]
41.Ping Q, et al. The heterologous expression in Arabidopsis thaliana of a chrysanthemum gene encoding the BBX family transcription factor CmBBX13 delays flowering. Plant Physiol. Biochem. 2019;144:480–487. doi: 10.1016/j.plaphy.2019.10.019. [DOI] [PubMed] [Google Scholar]
42.Lin F, et al. B-BOX DOMAIN PROTEIN28 negatively regulates photomorphogenesis by repressing the activity of transcription factor HY5 and undergoes COP1-mediated degradation. Plant Cell. 2018;30:2006–2019. doi: 10.1105/tpc.18.00226. [DOI] [PMC free article] [PubMed] [Google Scholar]
43.Liu Y, Liu Q, Yan Q, Shi L, Fang Y. Nucleolus-tethering system (NoTS) reveals that assembly of photobodies follows a self-organization model. Mol. Biol. Cell. 2014;25:1366–1373. doi: 10.1091/mbc.E13-09-0527. [DOI] [PMC free article] [PubMed] [Google Scholar]
44.An H, et al. CONSTANS acts in the phloem to regulate a systemic signal that induces photoperiodic flowering of Arabidopsis. Development. 2004;131:3615–3626. doi: 10.1242/dev.01231. [DOI] [PubMed] [Google Scholar]
45.Kumar SV. Transcription factor PIF4 controls the thermosensory activation of flowering. Nature. 2012;484(7393):242–245. doi: 10.1038/nature10928. [DOI] [PMC free article] [PubMed] [Google Scholar]
46.Sang Y, et al. N-terminal domain-mediated homodimerization is required for photoreceptor activity of Arabidopsis CRYPTOCHROME 1. Plant Cell. 2005;17:1569–1584. doi: 10.1105/tpc.104.029645. [DOI] [PMC free article] [PubMed] [Google Scholar]
47.Yang HQ, et al. The C termini of Arabidopsis cryptochromes mediate a constitutive light response. Cell. 2000;103:815–827. doi: 10.1016/s0092-8674(00)00184-7. [DOI] [PubMed] [Google Scholar]
48.Holm M, Deng XW. Structural organization and interactions of COP1, a light-regulated developmental switch. Plant Mol. Biol. 1999;41:151–158. doi: 10.1023/a:1006324115086. [DOI] [PubMed] [Google Scholar]
49.Stacey MG, Hicks SN, von Arnim AG. Discrete domains mediate the light-responsive nuclear and cytoplasmic localization of Arabidopsis COP1. Plant Cell. 1999;11:349–364. doi: 10.1105/tpc.11.3.349. [DOI] [PMC free article] [PubMed] [Google Scholar]
50.Lau OS, Deng XW. The photomorphogenic repressors COP1 and DET1: 20 years later. Trends Plant. Sci. 2012;17:584–593. doi: 10.1016/j.tplants.2012.05.004. [DOI] [PubMed] [Google Scholar]
51.Holtan HE, et al. BBX32, an Arabidopsis B-Box protein, functions in light signaling by suppressing HY5-regulated gene expression and interacting with STH2/BBX21. Plant Physiol. 2011;156:2109–2123. doi: 10.1104/pp.111.177139. [DOI] [PMC free article] [PubMed] [Google Scholar]
52.Qi Q, et al. Involvement of the N-terminal B-box domain of Arabidopsis BBX32 protein in interaction with soybean BBX62 protein. J. Biol. Chem. 2012;287:31482–31493. doi: 10.1074/jbc.M112.346940. [DOI] [PMC free article] [PubMed] [Google Scholar]
53.Crocco CD, Botto JF. BBX proteins in green plants: insights into their evolution, structure, feature and functional diversification. Gene. 2013;531:44–52. doi: 10.1016/j.gene.2013.08.037. [DOI] [PubMed] [Google Scholar]
54.Fang Y, Spector DL. Identification of nuclear dicing bodies containing proteins for microRNA biogenesis in living Arabidopsis plants. Curr. Biol. 2007;17:818–823. doi: 10.1016/j.cub.2007.04.005. [DOI] [PMC free article] [PubMed] [Google Scholar]
55.Fang Y, Spector DL. Live cell imaging of plants. Cold Spring Harb. Protoc. 2010;2010:68. doi: 10.1101/pdb.top68. [DOI] [PubMed] [Google Scholar]
56.Shi L, Wang J, Hong F, Spector DL, Fang Y. Four amino acids guide the assembly or disassembly of Arabidopsis histone H33-containing nucleosomes. Proc Natl Acad Sci USA. 2011;108:10574–10578. doi: 10.1073/pnas.1017882108. [DOI] [PMC free article] [PubMed] [Google Scholar]
57.Chen H, et al. Firefly luciferase complementation imaging assay for protein–protein interactions in plants. Plant Physiol. 2008;146:368–376. doi: 10.1104/pp.107.111740. [DOI] [PMC free article] [PubMed] [Google Scholar]
58.Clough SJ, Bent AF. Floral dip: a simplified method for agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998;16:735–743. doi: 10.1046/j.1365-313x.1998.00343.x. [DOI] [PubMed] [Google Scholar]
59.Liu H, et al. Photoexcited CRY2 interacts with CIB1 to regulate transcription and floral initiation in Arabidopsis. Science. 2008;322:1535–1539. doi: 10.1126/science.1163927. [DOI] [PubMed] [Google Scholar]
60.Saleh A, Alvarez-Venegas R, Avramova Z. An efficient chromatin immunoprecipitation (ChIP) protocol for studying histone modifications in Arabidopsis plants. Nat. Protoc. 2008;3:1018–1025. doi: 10.1038/nprot.2008.66. [DOI] [PubMed] [Google Scholar]
61.Gnesutta N, et al. CONSTANS imparts DNA sequence specificity to the histone fold NF-YB/NF-YC dimer. Plant Cell. 2017;29:1516–1532. doi: 10.1105/tpc.16.00864. [DOI] [PMC free article] [PubMed] [Google Scholar]
62.Wu X, Tang D, Li M, Wang K, Cheng Z. Loose Plant Architecture1, an INDETERMINATE DOMAIN protein involved in shoot gravitropism, regulates plant architecture in rice. Plant Physiol. 2013;161:317–329. doi: 10.1104/pp.112.208496. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary Information.^{(1.4MB, pdf)}

Data Availability Statement

All necessary data generated or analyzed during the present study are included in this published article and its Supplementary Information files.

[CR1] 1.Srikanth A, Schmid M. Regulation of flowering time: all roads lead to Rome. Cell. Mol. Life Sci. 2011;68:2013–2037. doi: 10.1007/s00018-011-0673-y. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR2] 2.Fornara F, de Montaigu A, Coupland G. SnapShot: control of flowering in Arabidopsis. Cell. 2010;141:550. doi: 10.1016/j.cell.2010.04.024. [DOI] [PubMed] [Google Scholar]

[CR3] 3.Zhang H, et al. The effects of Arabidopsis genome duplication on the chromatin organization and transcriptional regulation. Nucleic Acids Res. 2019;47:7857–7869. doi: 10.1093/nar/gkz511. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR4] 4.Shim JS, Kubota A, Imaizumi T. Circadian clock and photoperiodic flowering in Arabidopsis: CONSTANS is a hub for signal integration. Plant Physiol. 2017;173:5–15. doi: 10.1104/pp.16.01327. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR5] 5.Tiwari SB, et al. The flowering time regulator CONSTANS is recruited to the FLOWERING LOCUS T promoter via a unique cis-element. New Phytol. 2010;187:57–66. doi: 10.1111/j.1469-8137.2010.03251.x. [DOI] [PubMed] [Google Scholar]

[CR6] 6.Abe M, et al. FD, a bZIP protein mediating signals from the floral pathway integrator FT at the shoot apex. Science. 2005;309:1052–1056. doi: 10.1126/science.1115983. [DOI] [PubMed] [Google Scholar]

[CR7] 7.Shim JS, Imaizumi T. Circadian clock and photoperiodic response in Arabidopsis: from seasonal flowering to redox homeostasis. Biochemistry. 2015;54:157–170. doi: 10.1021/bi500922q. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR8] 8.Lazaro A, Valverde F, Pineiro M, Jarillo JA. The Arabidopsis E3 ubiquitin ligase HOS1 negatively regulates CONSTANS abundance in the photoperiodic control of flowering. Plant Cell. 2012;24:982–999. doi: 10.1105/tpc.110.081885. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR9] 9.Liu LJ, et al. COP1-mediated ubiquitination of CONSTANS is implicated in cryptochrome regulation of flowering in Arabidopsis. Plant Cell. 2008;20:292–306. doi: 10.1105/tpc.107.057281. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR10] 10.Lazaro A, Mouriz A, Pineiro M, Jarillo JA. Red light-mediated degradation of CONSTANS by the E3 ubiquitin ligase HOS1 regulates photoperiodic flowering in Arabidopsis. Plant Cell. 2015;27:2437–2454. doi: 10.1105/tpc.15.00529. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR11] 11.Song YH, et al. Distinct roles of FKF1, Gigantea, and zeitlupe proteins in the regulation of constans stability in Arabidopsis photoperiodic flowering. Proc. Natl. Acad. Sci. USA. 2014;111:17672–17677. doi: 10.1073/pnas.1415375111. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR12] 12.Valverde F, et al. Photoreceptor regulation of CONSTANS protein in photoperiodic flowering. Science. 2004;303:1003–1006. doi: 10.1126/science.1091761. [DOI] [PubMed] [Google Scholar]

[CR13] 13.Zuo Z, Liu H, Liu B, Liu X, Lin C. Blue light-dependent interaction of CRY2 with SPA1 regulates COP1 activity and floral initiation in Arabidopsis. Curr. Biol. 2011;21:841–847. doi: 10.1016/j.cub.2011.03.048. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR14] 14.Cheng Z, et al. Nup96 and HOS1 are mutually stabilized and gate CONSTANS protein level, conferring long-day photoperiodic flowering regulation in Arabidopsis. Plant Cell. 2019;32:374–391. doi: 10.1105/tpc.19.00661. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR15] 15.Hwang DY, et al. GIGANTEA regulates the timing stabilization of CONSTANS by altering the interaction between FKF1 and ZEITLUPE. Mol. Cells. 2019;42:693–701. doi: 10.14348/molcells.2019.0199. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR16] 16.Wang CQ, Guthrie C, Sarmast MK, Dehesh K. BBX19 interacts with CONSTANS to repress FLOWERING LOCUS T transcription, defining a flowering time checkpoint in Arabidopsis. Plant Cell. 2014;26:3589–3602. doi: 10.1105/tpc.114.130252. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR17] 17.Nguyen KT, Park J, Park E, Lee I, Choi G. The Arabidopsis RING domain protein BOI inhibits flowering via CO-dependent and CO-independent mechanisms. Mol. Plant. 2015;8:1725–1736. doi: 10.1016/j.molp.2015.08.005. [DOI] [PubMed] [Google Scholar]

[CR18] 18.Zhang B, Wang L, Zeng L, Zhang C, Ma H. Arabidopsis TOE proteins convey a photoperiodic signal to antagonize CONSTANS and regulate flowering time. Genes Dev. 2015;29:975–987. doi: 10.1101/gad.251520.114. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR19] 19.Graeff M, et al. Microprotein-mediated recruitment of CONSTANS into a TOPLESS trimeric complex represses flowering in Arabidopsis. PLoS Genet. 2016;12:e1005959. doi: 10.1371/journal.pgen.1005959. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR20] 20.Xu F, et al. DELLA proteins physically interact with CONSTANS to regulate flowering under long days in Arabidopsis. FEBS Lett. 2016;590:541–549. doi: 10.1002/1873-3468.12076. [DOI] [PubMed] [Google Scholar]

[CR21] 21.Cao S, et al. A distal CCAAT/NUCLEAR FACTOR Y complex promotes chromatin looping at the FLOWERING LOCUS T promoter and regulates the timing of flowering in Arabidopsis. Plant Cell. 2014;26:1009–1017. doi: 10.1105/tpc.113.120352. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR22] 22.Kumar S, Choudhary P, Gupta M, Nath U. VASCULAR PLANT ONE-ZINC FINGER1 (VOZ1) and VOZ2 interact with CONSTANS and promote photoperiodic flowering transition. Plant Physiol. 2018;176:2917–2930. doi: 10.1104/pp.17.01562. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR23] 23.Serrano-Bueno G, et al. CONSTANS-FKBP12 interaction contributes to modulation of photoperiodic flowering in Arabidopsis. Plant J. 2019;101:1287–1302. doi: 10.1111/tpj.14590. [DOI] [PubMed] [Google Scholar]

[CR24] 24.Hayama R, et al. PSEUDO RESPONSE REGULATORs stabilize CONSTANS protein to promote flowering in response to day length. EMBO J. 2017;36:904–918. doi: 10.15252/embj.201693907. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR25] 25.Liu Y, et al. CIB1 and CO interact to mediate CRY2-dependent regulation of flowering. EMBO Rep. 2018;19:10. doi: 10.15252/embr.201845762. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR26] 26.Zhang R, Yang C, Jiang Y, Li L. A PIF7-CONSTANS-centered molecular regulatory network underlying shade-accelerated flowering. Mol. Plant. 2019;12:1587–1597. doi: 10.1016/j.molp.2019.09.007. [DOI] [PubMed] [Google Scholar]

[CR27] 27.Gangappa SN, Botto JF. The BBX family of plant transcription factors. Trends Plant Sci. 2014;19:460–470. doi: 10.1016/j.tplants.2014.01.010. [DOI] [PubMed] [Google Scholar]

[CR28] 28.Song Z, Bian Y, Liu J, Sun Y, Xu D. B-box proteins: pivotal players in light-mediated development in plants. J. Integr. Plant Biol. 2020;62:1293–1302. doi: 10.1111/jipb.12935. [DOI] [PubMed] [Google Scholar]

[CR29] 29.Tripathi P, Carvallo M, Hamilton EE, Preuss S, Kay SA. Arabidopsis B-BOX32 interacts with CONSTANS-LIKE3 to regulate flowering. Proc. Natl. Acad. Sci. USA. 2017;114:172–177. doi: 10.1073/pnas.1616459114. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR30] 30.Datta S, Hettiarachchi GH, Deng XW, Holm M. Arabidopsis CONSTANS-LIKE3 is a positive regulator of red light signaling and root growth. Plant Cell. 2006;18:70–84. doi: 10.1105/tpc.105.038182. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR31] 31.Hassidim M, Harir Y, Yakir E, Kron I, Green RM. Over-expression of CONSTANS-LIKE 5 can induce flowering in short-day grown Arabidopsis. Planta. 2009;230:481–491. doi: 10.1007/s00425-009-0958-7. [DOI] [PubMed] [Google Scholar]

[CR32] 32.Cheng XF, Wang ZY. Overexpression of COL9, a CONSTANS-LIKE gene, delays flowering by reducing expression of CO and FT in Arabidopsis thaliana. Plant J. 2005;43:758–768. doi: 10.1111/j.1365-313X.2005.02491.x. [DOI] [PubMed] [Google Scholar]

[CR33] 33.Li F, et al. The B-box family gene STO (BBX24) in Arabidopsis thaliana regulates flowering time in different pathways. PLoS ONE. 2014;9:e87544. doi: 10.1371/journal.pone.0087544. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR34] 34.Park HY, et al. EMF1 interacts with EIP1, EIP6 or EIP9 involved in the regulation of flowering time in Arabidopsis. Plant Cell Physiol. 2011;52:1376–1388. doi: 10.1093/pcp/pcr084. [DOI] [PubMed] [Google Scholar]

[CR35] 35.Yano M, et al. Hd1, a major photoperiod sensitivity quantitative trait locus in rice, is closely related to the Arabidopsis flowering time gene CONSTANS. Plant Cell. 2000;12:2473–2484. doi: 10.1105/tpc.12.12.2473. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR36] 36.Kim SK, et al. OsCO3, a CONSTANS-LIKE gene, controls flowering by negatively regulating the expression of FT-like genes under SD conditions in rice. Planta. 2008;228:355–365. doi: 10.1007/s00425-008-0742-0. [DOI] [PubMed] [Google Scholar]

[CR37] 37.Lee YS, et al. OsCOL4 is a constitutive flowering repressor upstream of Ehd1 and downstream of OsphyB. Plant J. 2010;63:18–30. doi: 10.1111/j.1365-313X.2010.04226.x. [DOI] [PubMed] [Google Scholar]

[CR38] 38.Bai B, et al. OsBBX14 delays heading date by repressing florigen gene expression under long and short-day conditions in rice. Plant Sci. 2016;247:25–34. doi: 10.1016/j.plantsci.2016.02.017. [DOI] [PubMed] [Google Scholar]

[CR39] 39.Liu H, et al. CONSTANS-like 9 (COL9) delays the flowering time in Oryza sativa by repressing the Ehd1 pathway. Biochem. Biophys. Res. Commun. 2016;479:173–178. doi: 10.1016/j.bbrc.2016.09.013. [DOI] [PubMed] [Google Scholar]

[CR40] 40.Wang L, et al. CmBBX8 accelerating flowering by targeting CmFTL1 directly in summer chrysanthemum. Plant Biotechnol. J. 2019;18:1562–1572. doi: 10.1111/pbi.13322. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR41] 41.Ping Q, et al. The heterologous expression in Arabidopsis thaliana of a chrysanthemum gene encoding the BBX family transcription factor CmBBX13 delays flowering. Plant Physiol. Biochem. 2019;144:480–487. doi: 10.1016/j.plaphy.2019.10.019. [DOI] [PubMed] [Google Scholar]

[CR42] 42.Lin F, et al. B-BOX DOMAIN PROTEIN28 negatively regulates photomorphogenesis by repressing the activity of transcription factor HY5 and undergoes COP1-mediated degradation. Plant Cell. 2018;30:2006–2019. doi: 10.1105/tpc.18.00226. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR43] 43.Liu Y, Liu Q, Yan Q, Shi L, Fang Y. Nucleolus-tethering system (NoTS) reveals that assembly of photobodies follows a self-organization model. Mol. Biol. Cell. 2014;25:1366–1373. doi: 10.1091/mbc.E13-09-0527. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR44] 44.An H, et al. CONSTANS acts in the phloem to regulate a systemic signal that induces photoperiodic flowering of Arabidopsis. Development. 2004;131:3615–3626. doi: 10.1242/dev.01231. [DOI] [PubMed] [Google Scholar]

[CR45] 45.Kumar SV. Transcription factor PIF4 controls the thermosensory activation of flowering. Nature. 2012;484(7393):242–245. doi: 10.1038/nature10928. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR46] 46.Sang Y, et al. N-terminal domain-mediated homodimerization is required for photoreceptor activity of Arabidopsis CRYPTOCHROME 1. Plant Cell. 2005;17:1569–1584. doi: 10.1105/tpc.104.029645. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR47] 47.Yang HQ, et al. The C termini of Arabidopsis cryptochromes mediate a constitutive light response. Cell. 2000;103:815–827. doi: 10.1016/s0092-8674(00)00184-7. [DOI] [PubMed] [Google Scholar]

[CR48] 48.Holm M, Deng XW. Structural organization and interactions of COP1, a light-regulated developmental switch. Plant Mol. Biol. 1999;41:151–158. doi: 10.1023/a:1006324115086. [DOI] [PubMed] [Google Scholar]

[CR49] 49.Stacey MG, Hicks SN, von Arnim AG. Discrete domains mediate the light-responsive nuclear and cytoplasmic localization of Arabidopsis COP1. Plant Cell. 1999;11:349–364. doi: 10.1105/tpc.11.3.349. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR50] 50.Lau OS, Deng XW. The photomorphogenic repressors COP1 and DET1: 20 years later. Trends Plant. Sci. 2012;17:584–593. doi: 10.1016/j.tplants.2012.05.004. [DOI] [PubMed] [Google Scholar]

[CR51] 51.Holtan HE, et al. BBX32, an Arabidopsis B-Box protein, functions in light signaling by suppressing HY5-regulated gene expression and interacting with STH2/BBX21. Plant Physiol. 2011;156:2109–2123. doi: 10.1104/pp.111.177139. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR52] 52.Qi Q, et al. Involvement of the N-terminal B-box domain of Arabidopsis BBX32 protein in interaction with soybean BBX62 protein. J. Biol. Chem. 2012;287:31482–31493. doi: 10.1074/jbc.M112.346940. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR53] 53.Crocco CD, Botto JF. BBX proteins in green plants: insights into their evolution, structure, feature and functional diversification. Gene. 2013;531:44–52. doi: 10.1016/j.gene.2013.08.037. [DOI] [PubMed] [Google Scholar]

[CR54] 54.Fang Y, Spector DL. Identification of nuclear dicing bodies containing proteins for microRNA biogenesis in living Arabidopsis plants. Curr. Biol. 2007;17:818–823. doi: 10.1016/j.cub.2007.04.005. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR55] 55.Fang Y, Spector DL. Live cell imaging of plants. Cold Spring Harb. Protoc. 2010;2010:68. doi: 10.1101/pdb.top68. [DOI] [PubMed] [Google Scholar]

[CR56] 56.Shi L, Wang J, Hong F, Spector DL, Fang Y. Four amino acids guide the assembly or disassembly of Arabidopsis histone H33-containing nucleosomes. Proc Natl Acad Sci USA. 2011;108:10574–10578. doi: 10.1073/pnas.1017882108. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR57] 57.Chen H, et al. Firefly luciferase complementation imaging assay for protein–protein interactions in plants. Plant Physiol. 2008;146:368–376. doi: 10.1104/pp.107.111740. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR58] 58.Clough SJ, Bent AF. Floral dip: a simplified method for agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998;16:735–743. doi: 10.1046/j.1365-313x.1998.00343.x. [DOI] [PubMed] [Google Scholar]

[CR59] 59.Liu H, et al. Photoexcited CRY2 interacts with CIB1 to regulate transcription and floral initiation in Arabidopsis. Science. 2008;322:1535–1539. doi: 10.1126/science.1163927. [DOI] [PubMed] [Google Scholar]

[CR60] 60.Saleh A, Alvarez-Venegas R, Avramova Z. An efficient chromatin immunoprecipitation (ChIP) protocol for studying histone modifications in Arabidopsis plants. Nat. Protoc. 2008;3:1018–1025. doi: 10.1038/nprot.2008.66. [DOI] [PubMed] [Google Scholar]

[CR61] 61.Gnesutta N, et al. CONSTANS imparts DNA sequence specificity to the histone fold NF-YB/NF-YC dimer. Plant Cell. 2017;29:1516–1532. doi: 10.1105/tpc.16.00864. [DOI] [PMC free article] [PubMed] [Google Scholar]

[CR62] 62.Wu X, Tang D, Li M, Wang K, Cheng Z. Loose Plant Architecture1, an INDETERMINATE DOMAIN protein involved in shoot gravitropism, regulates plant architecture in rice. Plant Physiol. 2013;161:317–329. doi: 10.1104/pp.112.208496. [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

B-box transcription factor 28 regulates flowering by interacting with constans

Yin Liu

Guang Lin

Chunmei Yin

Yuda Fang

Abstract

Introduction

Results

BBX28 negatively regulates flowering

Figure 1.

BBX28 decreases FT transcription

Figure 2.

BBX28 interacts with CO through its N-terminus

Figure 3.

BBX28 inhibits CO targeting to FT locus without affecting the transcriptional activation activity of CO

Figure 4.

BBX28 N-terminal cysteines mediate heterodimerization between BBX28 and CO and affect the activation of CO on FT transcription

Figure 5.

BBX28 genetically regulates flowering through CO and FT

Figure 6.

Discussion

Methods

Plant materials and growth conditions

Yeast two-hybrid assays

Microscopy

Firefly luciferase (LUC) complementation imaging assays

Co-immunoprecipitation (Co-IP) assays

Transgenic plants

Site-direct mutagenesis

Flowering time and rosette leaf counting

Quantitative real-time PCR

Protein extraction and immunoblot assays

Dual-luciferase (dual-LUC) assay

Chromatin immunoprecipitation (ChIP) assay

Transcriptional activity assay

Histochemical GUS staining

Statistical analyses

Supplementary information

Acknowledgements

Author contributions

Data availability

Competing interests

Footnotes

Supplementary information

References

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
