Cryo-nanoscale chromosome imaging—future prospects

Mohammed Yusuf 1,2,✉, Safana Farooq 2, Ian Robinson 1,3, El-Nasir Lalani 2
PMCID: PMC7575669  PMID: 33006727

Abstract

The high-order structure of mitotic chromosomes remains to be fully elucidated. How nucleosomes compact at various structural levels into a condensed mitotic chromosome is unclear. Cryogenic preservation and imaging have been applied for over three decades, keeping biological structures close to the native in vivo state. Despite being extensively utilized, this field is still wide open for mitotic chromosome research. In this review, we focus specifically on cryogenic efforts for determining the mitotic nanoscale chromatin structures. We describe vitrification methods, current status, and applications of advanced cryo-microscopy including future tools required for resolving the native architecture of these fascinating structures that hold the instructions to life.

Keywords: Mitotic, Chromosome, Chromatin, Nanoscale, Cryo, Freezing, Microscopy

Introduction

Chromosomes were first discovered over a century ago with microscopy having been applied for decades to image these fascinating structures that hold the instructions for life. The basic building block of mitotic chromosomes is chromatin, the DNA-protein complex composed of discrete nucleosomes, which can be thought of as the “atoms” of the chromosome structure. To date, our understanding of how these nucleosomes are organized into highly compact chromosomes so-called the ‘high-order structure’ is largely unknown (Yusuf et al. 2019). Nucleosome compaction and de-compaction play an essential role in packaging DNA during vital biological processes including transcription, gene expression, DNA replication, faithful separation, and repair (Dixon et al. 2016; Ramachandran and Henikoff 2016). The most compact state of chromatin occurs in the mitotic state of the cell cycle, in which chromosomes condense before cell division and then segregate into daughter cells after significant conformational changes (Liang et al. 2015). This mechanism involves the formation of chromatin loops that tether the axial structure of the chromosome (Batty and Gerlich 2019). For understanding how chromatin is organized into mitotic chromosomes, chromosome conformation capture that includes Hi-C (Hsieh et al. 2016; Naumova et al. 2013) and direct imaging (Flors and Earnshaw 2011; Lakadamyali and Cosma 2015) has been applied.

A range of imaging technologies have been applied for nanoscale elucidation of chromatin at various compaction states ranging from the 2-nm-thick DNA fiber to the compact mitotic chromosome (Flors and Earnshaw 2011). Advanced microscopy using X-rays revealed the nucleosome’s crystal structure consisting of DNA (145–147 bp) wrapped approximately 1.65 times around eight histone proteins (core histone octamer composed of H2A, H2B, H3, and H4) (Davey et al. 2002; Luger et al. 1997). This nucleosome-histone octamer exhibits a 11 nm diameter bead on a string-like structure observed by electron microscopy (EM) in vitro, (Olins and Olins 1974). The tetra nucleosome structure has also been resolved using X-rays (Schalch et al. 2005), EM (Ekundayo et al. 2017), and cryo-EM (Song et al. 2014). Further, this 11-nm bead on a string-like structure gives rise to the controversial high-order 30-nm structure that is the most debated topic in the field (Krietenstein and Rando 2020; Yusuf et al. 2019) with many models proposed (Bendandi et al. 2020; Ohno et al. 2018; Yusuf et al. 2019). Cryo-EM has shown an interdigitated one-start solenoid model displaying 30-nm fibers (Robinson et al. 2006) whereas other cryo studies do not favor this structure (Studer et al. 2008). Apart from nucleosomes being the building blocks, the overall mitotic chromosome compaction is dependent on numerous proteins with over 158 been identified (Ohta et al. 2010), which include the non-histone scaffold proteins such as cohesion, condensin, and topoisomerases (Beseda et al. 2020). The various stages of chromatin structure condensation are partly understood with several factors implicated (Antonin and Neumann 2016; Beseda et al. 2020; Swedlow and Hirano 2003; Woodcock and Ghosh 2010).

Imaging chromatin structures close to the native state at nanoscopic resolution is vital for understanding the architecture of these compact and complex structures. In this review, we summarize our current knowledge of higher-order mitotic chromosome structure from chemically preserved samples. We then focus on the need of cryo technology for mitotic chromatin nanoscale structure determination. We highlight vitrification methods including cryo microscopy studies used for unraveling the high-order structure of intact mitotic chromosomes. Further, we discuss current limitations and the future need for cryo technology for elucidating the high-order hierarchy of these fascinating structures.

Lessons from fixed chromosome samples

To unravel the nanoscale chromatin structure, advanced microscopy has been applied, revolutionizing our understanding of chromosome structure (Lakadamyali and Cosma 2015). Even though useful structural information was provided, these studies heavily relied on preserving/fixing samples using harsh chemicals, mainly aldehydes, dehydration steps, and staining. Such harsh conditions influence the native sample configuration and hence what is observed is a reproducible artifact not the actual native state (Al-Amoudi et al. 2004; Li et al. 2017). These chemically preserved chromosome samples have been imaged using different ultra-high-resolution microscopes that are mentioned below and summarized in Table 1.

Table 1.

Comparison of microscopy studies that used chemical preservation for investigating chromatin structure

Microscope Species Cell type Isolated chromosomes or intact cells Staining Findings Publication
STED Human HeLa Intact cells mEGFP-CAP-H2 Condensin II subunit CAP-H2 protein enriched around longitudinal chromatid axis Walther and Ellenberg (2018)
SPDM (SMLM) Human HeLa Isolated Hoechst 33342 Density maps displaying a mean localization accuracy around 14 nm Szczurek et al. (2014)
PLM (SMLM) Human HeLa Isolated Auto fluorescence Nucleotide density variation in chromatids and fragile site like features Dong et al. (2016)
SIM Human HeLa Isolated anti-Topo Iiα, antihistone H3, anti-hCAP-E, anti-KIF4A Two main lateral strands with a twisted axial distribution of scaffold proteins (FIB included) Poonperm et al. (2015)
PALM Drosophila Embryo Cell H2AvD-EGFP 70-nm filamentous blocks composed of stripes of 35-nm sub-filaments Matsuda et al. (2010)
SEM Human B lymphocyte Isolated Platinum-based dye Globule chromatin size between 15 and 30 nm, with characteristic diameter of around 20 nm Shemilt et al. (2014)
SBFSEM Human B lymphocyte Isolated Platinum blue Internal structural cavities seen using MAA samples only Yusuf et al. (2014)
SBFSEM Human B lymphocyte Inside cells Platinum blue Porous network structure on chromosome arms with 50 nm resolution in 3D Chen et al. (2017)
FIBSEM Barley Seeds –Hordeum vulgare Isolated Platinum blue immunogold labeled for phosphorylated histone H3

Parallel fibrils seen at centromere and extended cavities on chromosome arms

Strong labeling in the pericentric regions with a signal at the centromere

 Schroeder-Reiter et al. (2009)
TEM Human Primary human small airway epithelial and U2OS cells Intact cells DRAQ5 followed by osmium tetroxide Chromatin forms flexible chains with diameters between 5 and 24 nm Ou et al. (2017)
TEM Human HeLa Isolated Ionic liquid anti-CAP-E, Fluoronanogold CAP-E observed at central axis in each chromatid and diffused in arms displaying helical structure Phengchat et al. (2019)
AFM AFM Lymphocytes B-ALL-1 Isolated Giemsa and metal staining Structure of chromatid arm not uniform. Ridges and grooves seen that correspond to G-positive and G-negative bands Ushiki and Hoshi (2008)
X-ray Human B lymphocyte Isolated Platinum blue Internal fibrous ultrastructures observed Yan et al. (2016)
X-ray Human HeLa Isolated - Chromosome axial structure determined using both 2D and 3D Nishino et al. (2009)
Open in a new tab

NIH3T3 immortalized mouse embryonic fibroblast cell line, SMLM single-molecule localization microscopy, STED stimulated emission depletion, SPDM spectral position determination microscopy, PLM photon localization microscopy, SIM structured illumination microscopy, PALM photoactivated localization microscopy, SEM scanning electron microscopy, SBFSEM 3D serial block face SEM, FIBSEM focused ion beam SEM, TEM transmission electron microscopy, AFM atomic force microscopy, HeLa human epithelial cells, U2OS human osteosarcoma cells, B-ALL-1 B cell acute lymphoblastic leukemia

Super resolution microscopy (SRM), an advanced fluorescence imaging method, provides high resolution (~ 10 to 30-nm) (Galbraith and Galbraith 2011; Schermelleh et al. 2019; Xu and Liu 2019) and has been extensively used for interphase chromatin structures (Fang et al. 2018; Otterstrom et al. 2019). SRM to lesser extent has been explored for unraveling mitotic chromatin structures. Stimulated emission depletion (STED) SRM on fixed HeLa cells showed sub-chromosomal localization of immuno-stained condensin II subunit CAP-H2 protein along the length of mitotic chromosomes being enriched mainly around the longitudinal chromatid axis (Walther and Ellenberg 2018). Three-dimensional structured illumination microscopy (3D-SIM) together with focused ion beam (FIB) milling EM done on HeLa cells showed distribution of chromosome scaffold proteins condensins and topoisomerase IIα having two main lateral strands twisted around each other within the chromatid axis (Poonperm et al. 2015).

Single-molecule localization microscopy (SMLM) using a modified spectral position determination microscopy (SPDM) approach displayed a mean localization accuracy around 14 nm from high-quality DNA density maps of mitotic HeLa chromosomes after staining with Hoechst 33342 (Szczurek et al. 2014). DNA single-molecule photo-activated localization microscopy (PALM) showed sub 20-nm structure resolution in unstained HeLa chromosomes with nucleotide density variations and fine features on chromatids (Dong et al. 2016). PALM revealed ∼ 70-nm structures composed of 35-nm stripes on Drosophila mitotic chromosomes after labeling with H2AvD-EGFP, a histone H2A variant (Matsuda et al. 2010).

EM is a contrast imaging method that provides detail at high resolution (Kourkoutis et al. 2012). Scanning electron microscopy (SEM) has provided surface information on B lymphocyte chromosomes showing chromatin fibers ranging between 25 and 35-nm diameters (Shemilt et al. 2014). Often, a nucleoplasm layer is seen on the surface of the chromosomes that hinder high-resolution chromatin substructure determination (Shemilt et al. 2014). This has been overcome by applying 3D serial block face SEM (SBFSEM) that embeds the sample into resin followed by automated diamond knife sectioning providing or resulting in nanoscale resolution of B lymphocyte chromosomes that were isolated (Yusuf et al. 2014) and within a prophase nucleus (Chen et al. 2017). This study showed porous network structures on chromosomes with sister chromatids having conserved diameters of around 765-nm (Chen et al. 2017). An alternative method to SBFSEM is focused ion beam SEM (FIBSEM) that uses an ion beam for sectioning and has provided structural information of barley chromosomes (Schroeder-Reiter et al. 2009). Centromeres displayed parallel fibrils whereas both chromosome arms (p and q) showed extended cavities also known as chromomeres (Schroeder-Reiter et al. 2009).

Transmission electron microscopy (TEM) provides angstrom resolution but is not suitable for studying intact mitotic chromosomes due to their thickness (Yusuf et al. 2019). ChromEM tomography (ChromEMT) a multitilt EM tomography and a labeling method showed irregular disordered chains of nucleosomes with 5 and 24-nm diameters, indicating that the 10-nm fiber is heterogeneous (Ou et al. 2017). A helical structure composed of chromatin loops was detected when the CAP-E protein, a condensin subunit, was labeled with gold nanoparticles after the chromosome was isolated by FIB and imaged using ET (Phengchat et al. 2019).

Atomic force microscopy (AFM) provides atomic resolution with surface topology information and has been applied for determining chromosomal detailed structures and reviewed in detail elsewhere (Kalle and Strappe 2012). Giemsa (G) banded chromosomes displayed ridges and grooves corresponding to heterochromatin (dark) and euchromatin (light) bands, respectively. This technique revealed highly twisted chromatin fiber loops with stronger compaction in the ridged regions than grooved. Additionally, granular and/or fibrous 50–60-nm structures were also seen on the surface (Ushiki and Hoshi 2008).

Mitotic chromosomes have also been imaged at nanoscale resolution using X-rays that can penetrate the sample with no sectioning needed (Yan et al. 2016) as they have a shorter wavelength (Cervantes 2016). A pioneering hard X-ray diffraction study displayed 30-nm and 120-nm structures in 2D and 3D, respectively, of unstained intact mitotic chromosomes (Nishino et al. 2009).

Cryo preservation and imaging of mitotic chromosomes

Imaging biological samples near-native state is achieved after vitrifying the biological sample in amorphous ice, known as cryopreservation, cryofixation, or cryo-immobilization. This allows instant fixation of all molecules present in the sample that remain at the set position displaying a true representation of the sample at the given point of freezing (temperature below − 140 °C with freezing that should occur rapidly within microseconds at high rates (~ 104  °C/s or higher). Ice crystal growth is prevented in this procedure allowing macromolecule immobilization and allowing the specimen to be in an amorphous (close to native) state (Lučić et al. 2013).

The cryo-electron tomography (cryo-ET) known as the 2016 “Method of the Year” (Doerr 2017) was awarded the 2017 Nobel Prize for cryo-EM development including determination of high-resolution biomolecule structures in solution (Cressey and Callaway 2017). Cryo-ET provides 3D position of the sample inside cells at ∼ 4-nm resolution (Gan and Jensen 2012). Both cryo-EM and cryo-ET have enhanced our understanding in resolving atomic structures of the nucleosome (Chua et al. 2016; Zhou et al. 2019a) and interphase chromatin organization, (Eltsov et al. 2008; Fussner et al. 2012; Zhou et al. 2019b), respectively. The number of microscopy studies on mitotic nanoscale structure under cryo conditions has been limited (Fig. 1).

Fig. 1.

Fig. 1

Open in a new tab

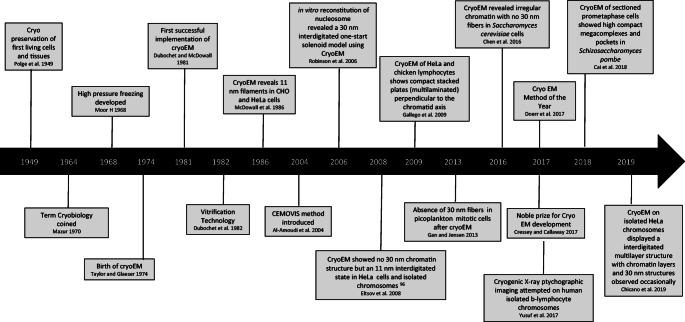

Timeline. Key events in the development of cryo preservation methods and imaging of mitotic nanoscale chromatin structures

Cryo-EM/ET cannot be applied directly for mitotic chromosome imaging as this technology requires the thickness of the sample to be below 1 μM (Henderson et al. 2007). Therefore, the cryoelectron microscopy of vitreous section (CEMOVIS) method (Al-Amoudi et al. 2004) has proven critical for mitotic chromosomes where thicker biological samples after freezing can be cryosectioned using cryo-ultramicrotomy. The CEMOVIS method after 100–150-nm sections has been applied directly on unstained Chinese hamster ovary (CHO) and HeLa cells with 11-nm chromatin filaments (McDowall et al. 1986). A total of 30-nm fibers were not seen in 40-nm cryosections of chromosomes within mitotic HeLa cells, instead highly disordered and interdigitated structures were visualized (Eltsov et al. 2008). Compact stacked multilaminated plates were seen after applying Cryo-EM on HeLa and chicken lymphocyte cells that orientated perpendicular to the chromatid axis (Gállego et al. 2009). A recent 3D cryoTEM study that used HeLa cells showed that frozen hydrated DNA is densely packed, forming stacked sheets of chromatin, is planar, and forms multilaminar plates that are stabilized by interactions between nucleosomes. Having a 13-nm thickness between the two layers (single layer 7.5-nm) implicated that nucleosomes in the layers interdigitate. Together with small angle X-ray scattering (SAXS) data, a chromosome model was proposed composed of stacked chromatin layers positioned perpendicular to the axis of the chromosome (Chicano et al. 2019).

Mitotic chromatin in frozen-hydrated Schizosaccharomyces pombe displayed megacomplexes and pockets, showing more compaction at the oligo-nucleosome than the di-nucleosome level compared with interphase chromatin (Cai et al. 2018). Mitotic chromatin organization showed no evidence of 30-nm fibers in budding yeast Saccharomyces cerevisiae (Chen et al. 2016) and picoplankton (Gan et al. 2013). An X-ray cryo-ptychography experiment has been attempted on human chromosomes but required more work in optimizing the setup before any concrete conclusion could be made (Yusuf et al. 2017).

What next? Is there a need for Cryo?

Even though cryo imaging has proven useful for numerous chromatin-based studies including complexes, it has not been fully exploited for intact mitotic chromosome investigation. Freezing of chromosomes can be achieved using the different vitrification methods that include plunge freezing into liquid ethane or propane (samples below 1 μm), slam freezing (samples up to 10 μm thickness), and high pressure freezing (thicker volume samples above 200 μm). However, chemical preservation or freeze substitution (uses organic solvents (acetone or methanol) at low temperatures (approx. − 78° to − 90 °C and placed into resin after staining and sectioned at room temperature before imaging)) will be the only option if the microscope of choice does not have cryo capability for sample cooling during imaging. These procedures are technically challenging, time consuming, can cause artifacts, and are costly. Current high-throughput structure determination has been prevented due to several limitations that include (i) thickness of the compact mitotic chromosomes; (ii) challenging cryo sample preparation steps, handling, and preservation; (iii) powerful nanometer cryo imaging microscopes with sufficient resolution; and (iv) computational tools for image acquisition and detailed processing.

The number of studies done on mitotic chromosomes has not been fully exploited using cryo technology. However, we are now witnessing an increase in the number of studies (see Fig. 1) using advanced cryo technologies that recapitulate the close to native state of mitotic chromatin structure. The CEMOVIS method (Al-Amoudi et al. 2004) is so far the widely explored on mitotic chromosomes (see timeline). No interspecies structural variation was observed for the presence of the 30-nm chromatin structure apart from one study that occasionally showed this on HeLa chromosomes (Chicano et al. 2019). HeLa is a cancer cell line (Mirabelli et al. 2019) and has been widely used for determining human nanoscale chromatin structures in both chemical preserved (Table 1) and cryo studies (Fig. 1). HeLa cells are extremely complex and heterogeneous and display abnormal karyotypes (Macville et al. 1999) that can add to the variability reported in current imaging studies and may not represent the ‘true picture’.

We are now witnessing various imaging approaches that are enhancing our knowledge in cryo imaging of biological samples but are yet to be explored for mitotic chromosomes. SBFSEM does not yet have a cryogenic stage for the instrument; therefore, the samples have to be imaged at room temperature after resin embedding (Yusuf et al. 2014). Therefore, freeze substitution of chromosomes after high pressure freezing and SBFSEM would be a positive way forward (Yusuf et al. 2016). Alternatively, cryo-FIB that has full cryo capability (Schertel et al. 2013) would be useful providing close to native state imaging and is yet to be experimented directly on vitrified chromosomes. Another potential method that needs exploring is stochastic optical reconstruction microscopy (STORM) SRM under cryogenic conditions as this allowed 12-nm resolution to be achieved on bacterial cells using a low-cost super-hemispherical solid immersion lens (superSIL) (Bateman et al. 2019; Wang et al. 2019).

A combination of microcopy approaches is also being used and looks promising (Schertel et al. 2013). 3D correlative light-electron microscopy (CLEM) performed using light and SBFSEM has been performed to understand the role of Ki-67 in metaphase chromosomes at ultra-structural resolution (Booth et al. 2016). This correlative technology using with 3D SIM, SMLM, and FIB-SEM has been applied on mammalian cells after combining vitreous freezing and is known as cryoCLEM (Yusuf et al. 2016). This SRM combined with FIBSEM may serve useful for DNA/protein structural interactions on mitotic chromosomes.

As cryo preservation only allows a snapshot of a biological process at a single time point, therefore it is key to trace dynamic chromatin movement in vivo. SRM using PALM and tracking of live cells has shown ∼ 140 nm and ∼ 200 nm mitotic chromatin domain that were suggested to be retained throughout the cell cycle (Nozaki et al. 2017). Furthermore, new microfluidic-based technology allows direct correlation of live imaging and room temperature electron microscopy with millisecond time resolution after the sample is cryofixed (Fuest et al. 2018). Recently, this technology has been combined with cryo-FIB to prepare frozen hydrated electron transparent sections for cryo-ET (Fuest et al. 2019). This powerful 4D high-resolution space-time correlative light and electron microscopy (st-CLEM) method is useful but needs to be explored on mitotic chromosomes. The use of DNA painting that allows blinking after binding of short dye-labeled (‘imager’) oligonucleotides to their complementary target (‘docking’) strands is serving useful for chromosome nanoscale SRM imaging (Nir et al. 2018; Schnitzbauer et al. 2017).

The future of chromosome imaging without doubt is moving towards full cryogenic settings that will be crucial for answering fundamental biological questions in the chromosome field. We must consider mitotic chromatin complexity from current studies (Fig. 1; Table 1) considering variations in different organisms, developmental stages including pluripotency and epigenetic states, cell types (undifferentiated vs differentiated), cell cycle stages (interphase vs metaphase), chromosome types ((sub)metacentric/acrocentric), compaction states (g-bands), e.g., heterochromatin vs euchromatin and telomeres/centromeres. Furthermore, cryo imaging has been performed both on isolated chromosomes and on chromosomes inside a cell after performing the CEMOVIS/cryo-EM method (Fig. 1) indicating no major structural variability seen so far and this would have to be carefully considered for future studies. Powerful and affordable 3D cryo-microscopes with nanoscale resolution together with faster image processing tools, correct sample, and labeling choice will be essential for unraveling nucleosome-nucleosome with other protein/DNA interactions. Overall, this would assist in identifying disease-specific signatures relating to genome disorganization especially in cancer where chromosomal aberrations take place.
