Abstract
In 2016, comparisons of activity measurements of 18F and 64Cu using the Transfer Instrument of the International Reference System (SIRTI) took place at the National Institute of Standards and Technology (NIST, USA). This is the first SIRTI comparison for 64Cu. Ampoules containing about 27 kBq of 18F and 100 kBq of 64Cu solutions were measured in the SIRTI for about 5 and 1.5 half-lives, respectively. The NIST standardized the activity in the ampoules by ionization chamber measurements traceable to 4π(LS)β−γ anticoincidence measurements. The comparisons, identifiers BIPM.RI(II)-K4.F-18 and BIPM.RI(II)-K4.Cu-64, are linked to the corresponding BIPM.RI(II)-K1.F-18 and BIPM.RI(II)-K1.Cu-64 comparisons and degrees of equivalence with the respective key comparison reference values have been evaluated. The NIST replaces its earlier degree of equivalence for 18F obtained in the frame of the CCRI(II)-K3.F-18 comparison in 2001.
1. Introduction
Radionuclides are essential for nuclear medicine where short-lived (often much less than one day) radionuclides are used, particularly for imaging. The use of nuclear medicine is increasing with the accessibility of these radionuclides which are consequently of great interest to the National Metrology Institutes (NMIs) in terms of standardization and SI traceability. However, sending ampoules of short-lived radioactive material to the Bureau International des Poids et Mesures (BIPM) for measurement in the International Reference System (SIR) [1] is only practicable for the NMIs that are based in Europe. Consequently, to extend the utility of the SIR and enable other NMIs to participate, a transfer instrument (SIRTI) has been developed at the BIPM with the support of the Consultative Committee for Ionizing Radiation CCRI(II) Transfer Instrument Working Group [2].
The BIPM ongoing K4 comparisons of activity measurements of 18F (half-life T1/2 = 1.8288 h; u = 0.0003 h [3])1 and of 64Cu (half-life of 12.7004(20) h [4]) are based on the SIRTI, a well-type NaI(Tl) crystal calibrated against the SIR, which is moved to each participating laboratory. The stability of the system is monitored using a 94Nb reference source (half-life of 20 300(1 600) years [5]) from the Joint Research Centre of the European Commission (JRC, Geel), which also contains the 93mNb isotope. The 18F or 64Cu count rate above a low-energy threshold, defined by the 93mNb x-ray peak at 16.6 keV, is measured relative to the 94Nb count rate above the same threshold. Once the threshold is set, a brass liner is placed in the well to suppress the 93mNb contribution to the 94Nb stability measurements. It should be noted that the uncertainty associated with the 94Nb decay correction is negligible. The 18F or 64Cu SIR ampoule is placed in the detector well in a PVC (polyvinyl chloride) liner to stop the β+ particles while minimizing the production of bremsstrahlung. No extrapolation to zero energy is carried out as all the measurements are made with the same threshold setting. The live-time technique using the MTR2 module from the Laboratoire National d’Essais – Laboratoire National Henri Becquerel, France (LNE-LNHB) [6] is used to correct for dead-time losses, taking into account the width of the oscillator pulses. The standard uncertainty associated with the live-time correction, due to the effect of finite frequency of the oscillator, is negligible.
Similarly to the SIR, a SIRTI equivalent activity AE is deduced from the 18F or 64Cu and the 94Nb counting results and the 18F or 64Cu activity measured by the NMI: AE is inversely proportional to the detection efficiency, i.e. AE is the activity of the source measured by the participant divided by the 18F or 64Cu count rate in the SIRTI relative to the 94Nb count rate. The possible presence of impurity in the solution should be accounted for using γ-spectrometry measurements carried out by the NMI.
The present K4 comparisons are linked to the corresponding BIPM.RI(II)-K1 comparisons through the calibration of the SIRTI against the SIR at the BIPM and, consequently, the degrees of equivalence with the K1 key comparison reference value (KCRV) can be evaluated. The K4 18F comparison results based on primary measurements carried out by the NMI, or ionization chamber measurements traceable to primary 18F measurements made within one year prior to the K4 comparison, are eligible for inclusion in the KCRV.
The protocol [7] and previous comparison results for the BIPM.RI(II)-K4 comparisons are available in the key comparison database of the CIPM (International Committee on Weights and Measures) Mutual Recognition Arrangement [8]. Publications concerning the details of the SIRTI and its calibration against the SIR can be found elsewhere [9, 10].
2. Participants
As detailed in the protocol, participation in the BIPM.RI(II)-K4 comparisons mainly concerns member states that are located geographically far from the BIPM and that have developed a primary measurement method for the radionuclide of concern. However, at the time of the comparison, the National Metrology Institute (NMI) may decide for convenience to use a secondary method, for example a calibrated ionization chamber. In this case, the traceability of the calibration needs to be clearly identified.
The present comparisons took place at the National Institute of Standards and Technology (NIST), USA, in May 2016, who used an ionization chamber calibrated by the 4π(LS)β−γ anticoincidence method nine months and two months prior to the comparison of the 18F and 64Cu solutions, respectively.
3. The SIRTI at the NIST
The reproducibility and stability of the SIRTI at the NIST were checked by measuring the count rate produced by the reference 94Nb source No. 1, the threshold position (defined by the 93mNb x-ray peak), the background count rate, the frequency of the oscillator No. 1 for the live-time correction and the room temperature as shown in Figure 1. The plots shown in the Figure represent the differences from the values indicated in the figure caption, using the appropriate units, as given, for each quantity measured.

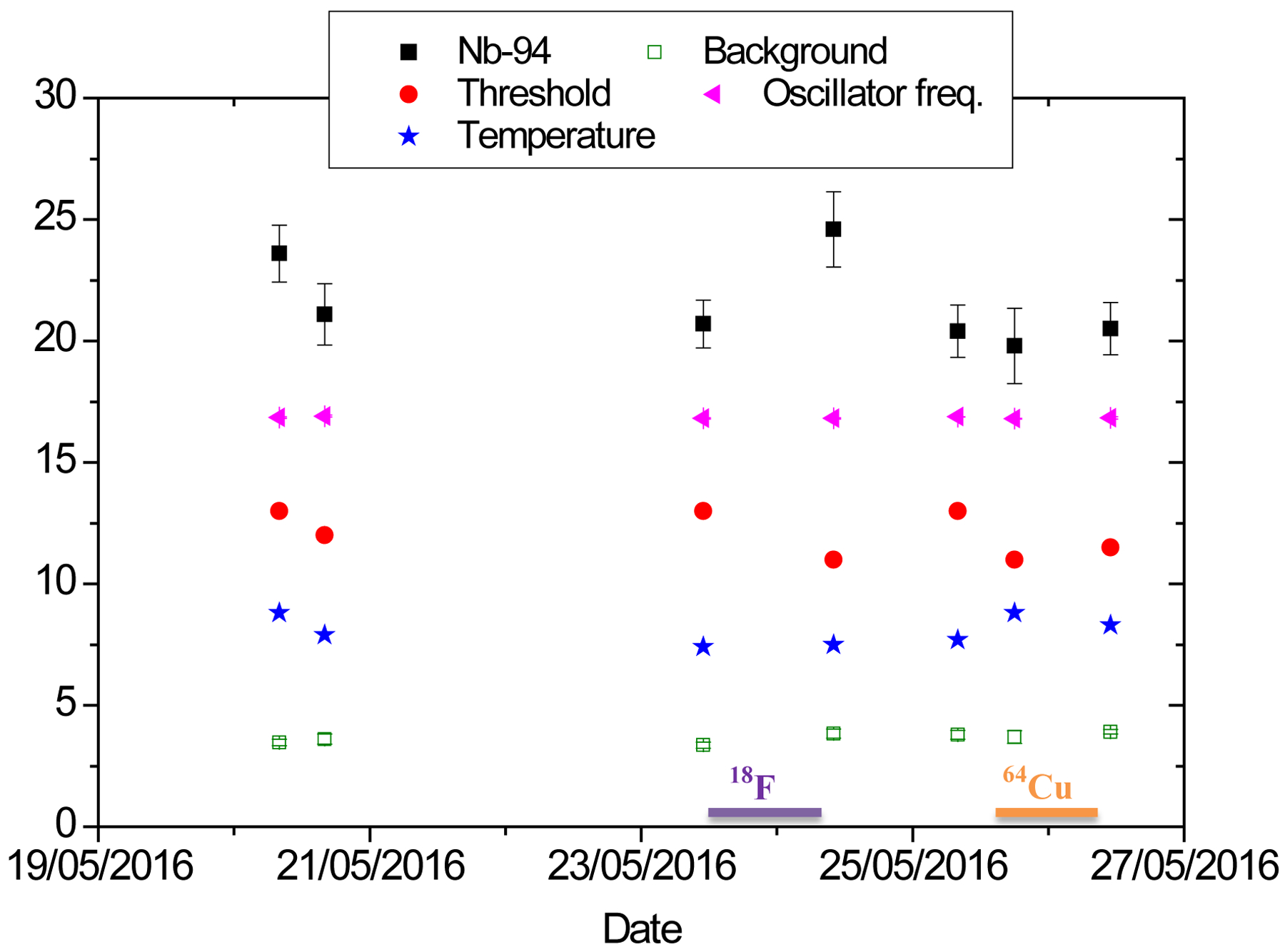

Figure 1:
Fluctuation of the SIRTI at the NIST. Black squares: 94Nb No.1 count rate / s−1 above 8470 s−1; triangles: frequency of the oscillator No.1 / Hz above 999 985 Hz; circles: threshold position / channel above 85 channels; stars: room temperature / °C above 15 °C; open squares: background count rate / s−1 above 20 s−1. Statistical uncertainty (k = 1) for the Nb source, background and oscillator counts are shown (in some cases the uncertainties are not visible in the plot as they hidden by the character printed for the data point).
The SIRTI was stable during the comparison, with some fluctuation in the 94Nb count rate uncorrelated with the threshold position. The background was very stable and about a factor three lower than the background observed at the BIPM. Individual 94Nb results were used to normalize the 18F and 64Cu count rates. The mean 94Nb No. 1 count rate, corrected for live-time, background, and decay, measured at the NIST was 8491.3(6) s−1, which slightly differs from the weighted mean since the set-up of the system in March 2007, 8492.82(23) s−1 and this is taken into account in the uncertainty evaluation of the comparison result. Finally, the 94Nb count rate was checked on the return of the SIRTI to the BIPM after the NIST comparison, giving a value of 8490.8(14) s−1 in agreement with the measurements carried out at the NIST.
4. The 18F and 64Cu solutions standardized at the NIST
The 18F and 64Cu solutions measured in the SIRTI are described in Table 1, including any impurities, when present, as identified by the laboratory. Two SIR ampoules were prepared from each solution for measurement in the SIRTI. The density and volume of the solutions in the ampoules conformed to the K4 protocol requirements. No drops of solution were observed in the ampoules which had been centrifuged.
Table 1:
Characteristics of the solutions measured in the SIRTI
Radionuclide | Solvent / mol dm−3 | Carrier / μg g−1 | Density at 20 °C / g cm−3 | Ampoule number | Mass / g | Impurity* |
---|---|---|---|---|---|---|
18F (FDG) | water | - | 1.00 | 1 | 3.565 96 | - |
2 | 3.62207 | - | ||||
64Cu | HCl / 0.1 | Cu2+ / 15.8 | 1.00 | 1 | 3.568 29 |
56Co: 3.15(19) × 10−8 57Co: 9.58(48) × l0−7 58Co: 2.82(3l) × 10−7 |
2 | 3.578 64 |
Ratio of the impurity activity to the main radionuclide activity at the reference date
The 18F and 64Cu activities in the SIRTI ampoules were deduced from the measurement at the NIST of each master solution in a well-type ionization chamber (IC) and a dilution factor of 44.70(2) and 47.02(3), respectively. The IC had been calibrated for 18F and 64Cu, nine months and two months respectively prior to the K4 comparison, by the 4π(LS)β-γ coincidence method (LTAC). The 18F LTAC measurements, carried out in August, 2015, were consistent with the most recent NIST standard [18], and differed by 4 % from the earlier NIST standards [19]. The 64Cu LTAC measurements are described in detail in a manuscript being prepared for publication [20].
The measurement results are summarized in Tables 2 and 3 while the uncertainty budgets of the NIST primary measurements are given in appendix 2.
Table 2:
The 18F and 64Cu standardizations by the NIST
Radionuclide | Measurement method ACRONYM* | Activity conc. / kBq g−1 | Standard uncert. / kBq g−1 | Reference date YYYY-MM-DD | Half-life used by the NMI / h |
---|---|---|---|---|---|
18F | IC calibrated 4P-IC-GR-00-00-00 in August 2015 by 4π(LS)β-γ anticoinc. (lTAC) 4P-LS-BP-NA-GR-AC | 7.500 | 0.030 | 2016-05-23 17:00 UTC | 1.828 90(23) |
64Cu | IC calibrated 4P-IC-GR-00-00-00 in March 2016 by 4π(LS)β-γ anticoinc. (lTAC) 4P-LS-BP-NA-GR-AC | 28.96 | 0.17 | 2016-05-25 17:00 UTC | 12.7004(20) |
See appendix 1
Table 3:
The NIST uncertainty budgets for the IC activity measurement of the 18F and 64Cu ampoules (May 2016)
Uncertainty contributions due to | Evaluation method | 18F | 64Cu | ||
---|---|---|---|---|---|
Relative std uncert. × 104 | Comments | Relative std uncert. × 104 | Comments | ||
Ampoule to RRS2 ratio | A | 2 | Average std deviation, 90 meas. of 18F, 108 meas. of RRS 50 | 2 | Average std deviation, 82 or 90 meas. of 64Cu on each of the two ampoules, 108 meas. of RRS 50 |
Activity estimation | A | 0.5 | Std deviation of the estimation in each of two ampoules | 0.5 | Std deviation of the estimation in each of two ampoules |
RRS ratio, 1000 to 50 | B | 7 | Uncertainty attending the ratio between RRS 1000, used in the calib. of the IC, and RRS 50, used in this meas. | - | Not required; both the calibration and this meas. used RRS 50. |
Weighing | B | 7 | Mass of solution in the ampoules | 7 | Mass of solution in the ampoules |
Dilution factor | B | 5 | 6 | ||
Background | A | 0.09* | 228 measurements | 0.09* | 142 measurements |
Decay correction | B | 0.4 | From uncert. for 18F half-life | 0.l | From uncert. for 64Cu half-life |
Calibration factor of IC (see appendix 2) | B | 38 | Calibration by LTAC in August 2015 | 58 | Calibration by LTAC in March 2016 |
Impurities | B | - | 0.0l | ||
Relative combined std uncertainty | 40 | 59 |
Included in the first uncertainty component (ampoule to RRS ratio)
5. The 18F and 64Cu measurements in the SIRTI at the NIST
The maximum live-time corrected count rate in the NaI(Tl) was 15 000 s−1, which conforms to the limit of 20 000 s−1 set in the protocol [7]. In addition, a relative standard uncertainty of 2 × 10−4 and 2.5 × 10−4 for 18F and 64Cu respectively, was added to take account of a possible drift in the SIRTI at high count rate [9]. The time of each SIRTI measurement was obtained from the manual synchronization of the SIRTI laptop with another computer connected to a local NTP time server. An additional relative standard uncertainty of 1 × 10−4 has been included for 18F to take account of a 1 s uncertainty in the measurement time.
In principle, the live-time correction should be modified to take into account the decaying count rate [11]. In the present experiments, the duration of the measurements made at high rate has been limited to 400 s and 1000 s for 18F and 64Cu respectively, so that the relative effect of decay on the live-time correction is less than one part in 104.
Two ampoules of each of the 18F and 64Cu solutions were measured alternatively for 5 and 1.5 half-lives, respectively, and the results are shown in Figures 2a and 2b. The last 14 measurements shown in Figure 2a were not used for the comparison as the count rate in the SIRTI was lower than 1000 s−1. The reduced chi-squared values evaluated for these series of measurements are 1.14 and 0.78 for 18F and 64Cu, respectively, showing that the data are consistent. The absence of significant trend confirms the stability and adequate live-time correction of the SIRTI, as well as the absence of significant impurity in the solutions.
Figure 2a:
The 18F measurement results in the SIRTI at the NIST. The uncertainty of the 18F activity concentration, which is constant over all the measurements, is not included in the uncertainty bars shown on the graph. The last 14 measurements were not used in the analysis. See text.
Figure 2b:
As for Figure 2a, but for the 64Cu. All measurements were used in the analysis.
The uncertainty budgets for the SIRTI measurements of the 18F and 64Cu ampoules are given in Table 4a and 4b. As the decay scheme of 64Cu is similar to the one of 18F, no further Monte-Carlo simulations were carried out for 64Cu and the results obtained for 18F were used in the uncertainty evaluation. Further details are given in reference [9].
Table 4a:
Uncertainty budgets for the SIRTI measurement of the 18F ampoules
Uncertainty contributions due to | Comments | Evaluation method | Relative standard uncert. × 104 |
---|---|---|---|
18F to 94Nb meas. ratio including live-time, background, decay corrections and threshold setting | Standard uncertainty of the weighted mean of 33 measurements, taking into account the correlation due to the 18F half-life | A | 2.4 |
Long-term stability of the SIRTI | Weighted standard deviation of 85 series, each series consisting of 10 measurements | A | 0.3 |
Nb-l bias from the mean since 2007 | Relative difference from the mean | B | 1.8 |
Effect of decay on the live-time correction | Maximum measurement duration evaluated from [12] | B | < l |
SIRTI drift at high count rate | Mean possible drift over all 18F measurements at the NIST. | B | 2 |
Ampoule dimensions | From the IRMM report [13] and sensitivity coefficients from Monte-Carlo simulations | B | 2* |
Ampoule filling height | Solution volume is 3.6(l) cm3; sensitivity coefficients from Monte-Carlo simulations | B | 2* |
Solution density | Between l g/cm3 and l.0l g/cm3 as requested in the protocol; sensitivity coefficients from Monte-Carlo simulations | B | 0.7 |
Measurement time | l s uncertainty | B | l |
Relative combined standard uncertainty | 3.9 |
Included in the type A uncertainty of the measurements of two ampoules of 18F
Table 4b:
Uncertainty budgets for the SIRTI measurement of the 64Cu ampoules
Uncertainty contributions due to | Comments | Evaluation method | Relative standard uncert. × 104 |
---|---|---|---|
64Cu to 94Nb meas. ratio meas. including live-time, background, decay corrections and threshold setting | Standard uncertainty of the weighted mean of 54 measurements, taking into account the correlation due to the 64Cu half-life | A | l.2 |
Long-term stability of the SIRTI | Weighted standard deviation of 85 series, each series consisting of 10 measurements | A | 0.3 |
Nb-l bias from the mean since 2007 | Relative difference from the mean | B | 1.8 |
Effect of decay on the live-time correction | Maximum measurement duration evaluated from [12] | B | < l |
SIRTI drift at high count rate | Mean possible drift over all 99mTc measurements at the NIST. | B | 2.5 |
Ampoule dimensions | From the IRMM report [13] and sensitivity coefficients from Monte-Carlo simulations | B | 2* |
Ampoule filling height | Solution volume is 3.6(l) cm3; sensitivity coefficients from Monte-Carlo simulations | B | 2 |
Solution density | Between l g/cm3 and l.0l g/cm3 as requested in the protocol; sensitivity coefficients from Monte-Carlo simulations | B | 0.7 |
Impurities | Negligible effect on the SIRTI measurements | B | 0 |
Relative combined standard uncertainty | 4.2 |
Included in the type A uncertainty of the measurements of two ampoules of 64Cu
6. Comparison results and degrees of equivalence
The weighted mean and uncertainty of all the measured AE values is calculated taking into account correlations. The standard uncertainty u(AE) is obtained by adding in quadrature the SIRTI combined uncertainty from Tables 4a and 4b and the uncertainty stated by the participant for the 18F and 64Cu measurements (see Table 2). The correlation between the NIST and the BIPM due to the use of the same 64Cu half-life is negligible in view of the small contribution of this half-life to the combined uncertainty of the measurements.
The K4 comparison results are given in Table 5 as well as the linked results Ae in the corresponding BIPM.RI(II)-K1 comparisons which were obtained by multiplying AE by the linking factors L = 1495.1(18) for 18F and 1482.2(25) for 64Cu. The 64Cu linking factor has been obtained recently through the measurement of 64Cu ampoules from the CNRS/CEMHTI (Orléans, in 2015) and the NPL (Teddington, in 2016) in both the SIRTI and the SIR. The solutions probably contained small amounts of 67Cu giving rise to impurity corrections to the SIRTI measurements of a few parts in 1000 at the end of about 35 hours of measurements. The linking factors obtained are 1479.1(18) and 1483.8(15), for the CNRS and NPL solutions respectively, giving a weighted mean result of 1482.2(25) taking correlations into account [10].
Table 5:
BIPM.RI(II)-K4. comparison results and link to the BIPM.RI(II)-K1 comparisons
Radionuclide | Measurement method ACRONYM* | Solution volume (calculated) /cm3 |
AE/kBq | u(AE)/kBq | Linked Ae/kBq | u(Ae)/kBq |
---|---|---|---|---|---|---|
18F | IC calibrated 4P-IC-GR-00-00-00 in August 2015 by 4π(LS)β-γ anticoinc. (LTAC) 4P-LS-BP-NA-GR-AC | 3.57 and 3.62 | 10.228 | 0.041 | 15 291 | 64 |
64Cu | IC calibrated 4P-IC-GR-00-00-00 in March 2016 by 4π(LS)β-γ anticoinc. (lTAC) 4P-LS-BP-NA-GR-AC | 3.57 and 3.58 | 54.34 | 0.32 | 80 540 | 500 |
See appendix 1
Every participant in the K4 comparison is entitled to have one result included in the key comparison database (KCDB) as long as the laboratory is a signatory or designated institute listed in the CIPM MRA. Normally, the most recent result is the one included. Any participant may withdraw its result only if all the participants agree.
The KCRVs for 18F and 64Cu have been defined in the frame of the BIPM.RI(II)-K1.F-18 and BIPM.RI(II)-K1.Cu-64 comparisons using direct contributions to the SIR, and are equal to 15 276(24) kBq [14] and 80 990(340) kBq [15], respectively.
The degree of equivalence of a particular NMI, i, with the KCRV is expressed as the difference Di with respect to the KCRV
(1) |
and the expanded uncertainty (k = 2) of this difference, Ui, known as the equivalence uncertainty, hence
(2) |
taking correlations into account as appropriate [16].
The degree of equivalence between any pair of NMIs, i and j, is expressed as the difference Dij in their results
(3) |
and the expanded uncertainty of this difference Uij where
(4) |
where any obvious correlations between the NMIs (such as a traceable calibration) are subtracted using the covariance u(Aei, Aej), as is the correlation coming from the link of the SIRTI to the SIR. The covariance between two participants in the K4 comparison is given by
(5) |
where uL is the standard uncertainty of the linking factor L given above. However, the CCRI decided in 2011 that these pair-wise degrees of equivalence no longer need to be published as long as the methodology is explained.
Tables 6a and 6b show the matrices of the degrees of equivalence with the KCRV as they will appear in the KCDB. It should be noted that for consistency within the KCDB, a simplified level of nomenclature is used with Aei replaced by xi. The introductory text is that agreed for the comparison. The graph of the degrees of equivalence with respect to the KCRV (identified as xR in the KCDB), is shown in Figure 3a and Figure 3b. The graphical representation indicates in part the degree of equivalence between the NMIs but obviously does not take into account the correlations between the different NMIs.

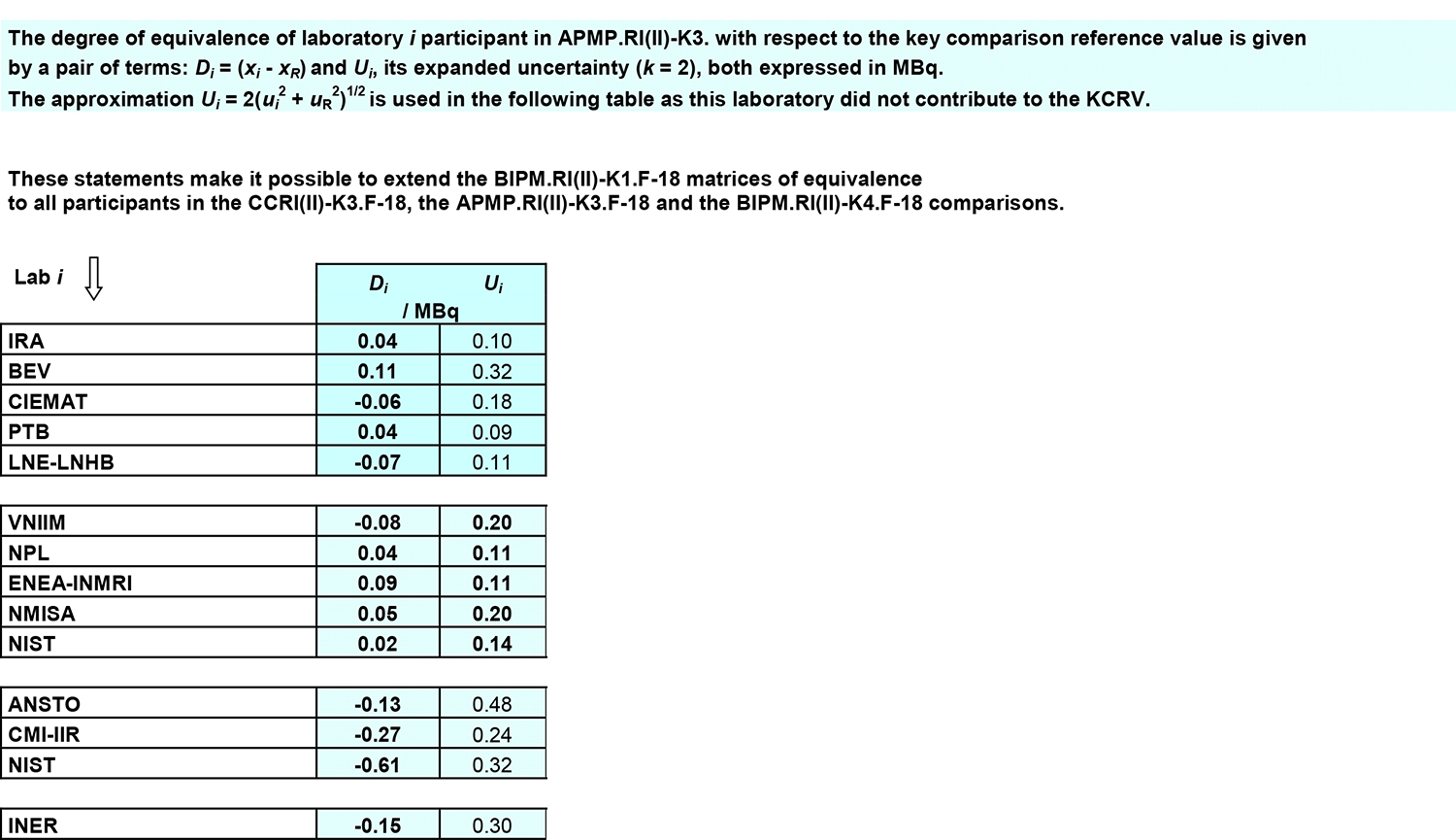

Table 6a.
Introductory text and table of degrees of equivalence for 18F
![]() |
![]() |
Table 6b.
Table of degrees of equivalence and introductory text for 64Cu
![]() |
![]() |
Figure 3a. Graph of degrees of equivalence with the KCRV for 18F.
(as it appears in Appendix B of the MRA)
N.B. The right-hand axis gives approximate relative values only
Figure 3b. Graph of degrees of equivalence with the KCRV for 64Cu.
(as it appears in Appendix B of the MRA)
N.B. The right-hand axis gives approximate relative values only
With the present comparison, the NIST updated its degree of equivalence for the activity measurement of 18F. A shift of +4.1 % is observed when comparing with the earlier degree of equivalence in the CCRI(II)-K3.F-18 comparison in 2001 [17]. This confirms independently the change of 4.0 % observed by the NIST in its 18F primary measurements in 2014 [18].
Conclusion
In 2016, the NIST (USA) hosted the SIRTI to participate in the BIPM ongoing key comparison for activity measurement of 18F (BIPM.RI(II)-K4.F-18) and was the first participant in the BIPM.RI(II)-K4.Cu-64 comparison. These K4 comparisons are linked to the corresponding BIPM.RI(II)-K1.F-18 and BIPM.RI(II)-K1.Cu-64 comparisons and degrees of equivalence with the respective key comparison reference values defined in the frame of the K1 comparisons have been evaluated. The NIST greatly improves its earlier degree of equivalence for 18F obtained in the frame of the CCRI(II)-K3.F-18 comparison in 2001. The NIST linked result in the BIPM.RI(II)-K1.Cu-64 comparison agrees with the KCRV, indicating that the SIRTI was linked to the SIR successfully. The degrees of equivalence have been approved by the CCRI(II) and are published in the BIPM key comparison database.
Other results may be added when other NMIs contribute with 18F and 64Cu activity measurements to the K4 or K1 comparisons or take part in other linked Regional Metrology Organization comparisons. It should be noted that the final data in this paper, while correct at the time of publication, will become out-of-date as NMIs make new comparisons. The formal results under the CIPM MRA [7] are those available in the KCDB.
Appendix 1. Acronyms used to identify different measurement methods
Each acronym has six components, geometry-detector (1)-radiation (1)-detector (2)-radiation (2)-mode. When a component is unknown, ?? is used and when it is not applicable 00 is used.
Geometry | acronym | Detector | acronym |
---|---|---|---|
4π | 4P | proportional counter | PC |
defined solid angle | SA | press. prop. counter | PP |
2π | 2P | liquid scintillation counting | LS |
undefined solid angle | UA | NaI(Tl) | NA |
Ge(HP) | GH | ||
Ge(Li) | GL | ||
Si(Li) | SL | ||
CsI(Tl) | CS | ||
ionization chamber | IC | ||
grid ionization chamber | GC | ||
Cerenkov light detector | LC | ||
calorimeter | CA | ||
solid plastic scintillator | SP | ||
PIPS detector | PS | ||
Radiation | acronym | Mode | acronym |
positron | PO | efficiency tracing | ET |
beta particle | BP | internal gas counting | IG |
Auger electron | AE | CIEMAT/NIST | CN |
conversion electron | CE | sum counting | SC |
mixed electrons | ME | coincidence | CO |
bremsstrahlung | BS | anti-coincidence | AC |
gamma rays | GR | coincidence counting with efficiency tracing | CT |
X - rays | XR | anti-coincidence counting with efficiency tracing | AT |
photons (x + γ) | PH | triple-to-double coincidence ratio counting | TD |
alpha - particle | AP | selective sampling | SS |
mixture of various radiations | MX | high efficiency | HE |
Examples
Method | acronym |
---|---|
4π(PC)β–γ-coincidence counting | 4P-PC-BP-NA-GR-CO |
4π (PPC) β–γ-coincidence counting eff. trac. | 4P-PP-MX-NA-GR-CT |
defined solid angle a-particle counting with a PIPS detector | SA-PS-AP-00-00-00 |
4π(PPC)AX-γ (Ge(HP))-anticoincidence counting | 4P-PP-MX-GH-GR-AC |
4π CsI-β,AX,γ counting | 4P-CS-MX-00–00-HE |
calibrated IC | 4P-IC-GR-00-00-00 |
internal gas counting | 4P-PC-BP-00-00-IG |
Appendix 2. Uncertainty budgets for the NIST primary measurements of 18F (August 2015) and 64Cu (March 2016)
4P-LS-BP-NA-GR-AC
Uncertainty contributions due to | Evaluation method | Relative standard uncert. × 104 | Comments | |
---|---|---|---|---|
18F | 64Cu | |||
Counting statistics | A | 9 | 12 | Counting statistics: Typical standard deviation of the mean for repeated activity determinations (N = 7 or 57 for 18F; N = 45 to 102 for 64Cu) on a single source on a single measurement run (averaged over 2 sources for 18F; average of 4 runs with 3 sources; one source measured on two occasions, with recovered activity consistent to 0.03 % for 64Cu) |
Between source variance | A | 0.3 | 34 | Standard deviation on the activities determined for multiple sources |
Model uncertainty | B | 28 | 32 | Estimated by combining the typical difference on the activities recovered with a linear and a quadratic extrapolation (0.27 % for 18F; 0.32 % for 64Cu) with the standard deviation of intercept values obtained with different gamma gates for 18F or the standard deviation on the activity recovered from a linear extrapolation using domains of N = 7 to 12 efficiency points (0.06 %) for 64Cu. |
Mass determinations | B | 5 | 5 | |
Live time | B | 10 | 10 | Estimated based on previous work |
Background | B | 3 | 10 | Estimated by propagating the standard deviation of the mean for repeated (N = 10) measurements of the matched blank |
Impurities | B | 0 | 6 | Based on HPGe measurements and estimates for LS efficiency |
Half-life | B | 8 | 2 | From DDEP, T1/2(18F) = 1.82890(23) h; T1/2(64Cu) = 12.7004(20) h |
β+ branching ratio | B | 20 | From DDEP, 0.9686(19) | |
Relative combined standard uncertainty | 38 | 51 |
Footnotes
Hereafter, the last digits of the standard uncertainties are given in parenthesis.
Radium Reference Source
References
- [1].Ratel G, 2007, The Système International de Référence and its application in key comparisons, Metrologia 44(4), S7–S16. [Google Scholar]
- [2].Remit of the CCRI(II) Transfer Instrument Working Group, 2009, CCRI(II) working document CCRI(II)/09–15.
- [3].Bé M-M, Chisté V, Dulieu C, Browne E, Chechev V, Kuzmenko N, Helmer R, Nichols A, Schönfeld E, Dersch R, 2004, Table of radionuclides, Monographie BIPM-5, volume 1. [Google Scholar]
- [4].Bé M-M, Helmer R, 2011, Decay Data Evaluation Project working group, www.nucleide.org/DDEP_WG/DDEPdata.htm.
- [5].NUDAT2.5, National Nuclear Data Center, Brookhaven National Laboratory, based on ENSDF and the Nuclear Wallet Cards.
- [6].Bouchard J, 2000, Appl. Radiat. Isot 52, 441–446. [DOI] [PubMed] [Google Scholar]
- [7].SIR Transfer Instrument. Protocol for the ongoing comparisons on site at the NMIs, BIPM.RI(II)-K4. Published on the CIPM MRA KCDB website. [Google Scholar]
- [8].CIPM MRA: Mutual recognition of national measurement standards and of calibration and measurement certificates issued by national metrology institutes, International Committee for Weights and Measures, 1999, 45 pp. http://www.bipm.org/pdf/mra.pdf. [Google Scholar]
- [9].Michotte C et al. , The SIRTI, a new tool developed at the BIPM for comparing activity measurements of short-lived radionuclides world-wide, Rapport BIPM-2013/02. [Google Scholar]
- [10].Michotte C et al. , Calibration of the SIRTI against the SIR and trial comparison of 18F and 99mTc at the NPL. In preparation. [Google Scholar]
- [11].Baerg AP et al. , 1976, Live-timed anti-coincidence counting with extending dead-time circuitry, Metrologia 12, 77–80. [Google Scholar]
- [12].Fitzgerald R, 2016, Corrections for the combined effects of decay and dead time in live-timed counting of short-lived radionuclides, Appl. Radiat. Isot 109, 335–340. [DOI] [PMC free article] [PubMed] [Google Scholar]
- [13].Sibbens G, 1991, A comparison of NIST/SIR-, NPL-, and CBNM 5 ml ampoules, GE/R/RN/14/91, CEC-JRC Central Bureau for Nuclear Measurements, Belgium. [Google Scholar]
- [14].Michotte C et al. , 2016, Update of the BIPM comparison BIPM.RI(II)-K1.F-18 of activity measurements of the radionuclide 18F to include the 2010 result of the LNE-LNHB (France). Metrologia, 53, Tech Suppl, 06004. [Google Scholar]
- [15].Michotte C, et al. , 2013, Update of the BIPM comparison BIPM.RI(II)-K1.Cu-64 of activity measurements of the radionuclide 64Cu to include the 2009 results of the CMI–IIR (Czech Rep.) and the NPL (UK), the 2010 result of the LNE–LNHB (France) and the 2011 result of the ENEA–INMRI (Italy). Metrologia, 50, Tech Suppl 06021. [Google Scholar]
- [16].Pommé S, Keightley J, 2015, Determination of a reference value and its uncertainty through a power-moderated mean, Metrologia, 52(3), S200–S212. [Google Scholar]
- [17].Ratel G, Michotte C and Woods MJ, 2005, Comparisons CCRI(II)-K3.F-18 and APMP.RI(II)-K3.F-18 of activity measurements of the radionuclide 18F and links to the key comparison reference value of the BIPM.RI(II)-K1.F-18 comparison. Metrologia, 42, Tech. Suppl, 06007. [Google Scholar]
- [18].Fitzgerald R, et al. , 2014, A new NIST primary standardization of 18F. Appl. Radiat. Isot, 85, 77–84. [DOI] [PubMed] [Google Scholar]
- [19].Bergeron DE, et al. , 2014, A Review of NIST Primary Activity Standards for 18F: 1982 to 2013. Journal of Research of the National Institute of Standards and Technology, 119, 371–396. [DOI] [PMC free article] [PubMed] [Google Scholar]
- [20].Bergeron DE et al. , 2017, Standardization of 64Cu activity. In preparation. [DOI] [PMC free article] [PubMed] [Google Scholar]
