. 2020 Oct 31;20:468. doi: 10.1186/s12872-020-01754-0

Atrial matrix remodeling in atrial fibrillation patients with aortic stenosis

Mariana Fragão-Marques 1,2,✉, I Miranda 1, D Martins 1, I Barroso 2,4, C Mendes 1, A Pereira-Neves 3, I Falcão-Pires 1, A Leite-Moreira 1
PMCID: PMC7603735  PMID: 33129260

Abstract

Background

This study aimed to evaluate atrium extracellular matrix remodeling in atrial fibrillation (AF) patients with severe aortic stenosis, through histological fibrosis quantification and extracellular matrix gene expression analysis, as well as serum quantification of selected protein targets.

Methods

A posthoc analysis of a prospective study was performed in a cohort of aortic stenosis patients. Between 2014 and 2019, 56 patients with severe aortic stenosis submitted to aortic valve replacement surgery in a tertiary hospital were selected.

Results

Fibrosis was significantly increased in the AF group when compared to sinus rhythm (SR) patients (p = 0.024). Moreover, cardiomyocyte area was significantly higher in AF patients versus SR patients (p = 0.008). Conversely, collagen III gene expression was increased in AF patients (p = 0.038). TIMP1 was less expressed in the atria of AF patients. MMP16/TIMP4 ratio was significantly decreased in AF patients (p = 0.006). TIMP1 (p = 0.004) and TIMP2 (p = 0.012) were significantly increased in the serum of AF patients. Aortic valve maximum (p = 0.0159) and mean (p = 0.031) gradients demonstrated a negative association with serum TIMP1.

Conclusions

Atrial fibrillation patients with severe aortic stenosis present increased atrial fibrosis and collagen type III synthesis, with extracellular matrix remodelling demonstrated by a decrease in the MMP16/TIMP4 ratio, along with an increased serum TIMP1 and TIMP2 proteins.

Keywords: Atrial fibrillation, Aortic stenosis, Fibrosis, Atrial remodeling, Biomarkers

Background

Atrial fibrillation (AF) is the most common cardiac arrhythmia with adverse clinical outcomes and diverse pathophysiological background [1]. AF affects approximately 20.9 million men and 12.6 million women worldwide, representing a 1.5-fold and two-fold increase in all-cause mortality, respectively [2].

Aortic stenosis is the most prevalent valvular disease, with aortic valve replacement (AVR) surgery remaining the gold standard treatment for severe symptomatic aortic stenosis, improving both quality of life and overall survival [3]. Owing to ageing demographics, aortic stenosis has been increasing over the past decades, presenting an AF prevalence of 35.6% in a multicentre prospective registry of aortic stenosis patients [4, 5]. However, the pathophysiology of AF in aortic stenosis is poorly understood. AF pathophysiology begins with ectopic firing and re-entry, which depend on several mechanisms: (1) ion channel dysfunction; (2) Ca2+-handling abnormalities; (3) structural remodelling; (4) autonomic neural dysregulation. Regarding ion channel dysfunction, cardiomyocytes return to their resting potential after depolarization through an equilibrium between If (pacemaker) and Ik1 (inward rectifier k+) currents, which might be dysfunctional in AF. In addition, early afterdepolarizations (EADs) and delayed afterdepolarizations (DADs), most likely related to Ca2+-handling abnormalities, may contribute significantly to AF pathogenesis [6]. Structural and electrical remodelling is core to most forms of AF, particularly in the more permanent ones [7]. Concerning structural remodelling, atrial fibrosis is key and alters cardiomyocyte electrical coupling due to misplacing and changing the structure of connexins, thus inducing fragmented electrical conduction [8]. Evidence suggests atrial remodeling is associated with disease occurrence and progression, which involves specific molecular markers of fibrosis such as Tissue Inhibitor of Metalloproteinase (TIMP) 1, Matrix Metalloproteinase (MMP) 9 and Collagen type 1 Carboxy-terminal Peptide (CICP), with diverse contributions according to different AF subtypes [1]. These biomarkers appear to increase with higher arrhythmia burden [1]. Increased afterload is associated with AF and myocardial fibrosis [5] and while TIMP-1 has been reported to increase, MMP1 was shown to decrease in AF patients’ serum [9]. Conversely, atrium TIMP-4 in AF patients with rheumatic heart disease was lower when compared with Sinus Rhythm (SR) patients, while MMP-2, type I, and type II collagen were increased in the AF group [10].

This is the first study aimed to characterize atrial fibrosis in AF patients with aortic stenosis submitted to AVR surgery, as well as evaluate the gene expression profile of several extracellular matrix proteins and quantify differentially expressed targets in the serum of AF patients.

Methods

This study aimed to evaluate atrium extracellular matrix remodeling in AF patients with severe aortic stenosis, through histological fibrosis quantification and extracellular matrix gene expression analysis of an array of genes: collagen I and III, TIMP 1, TIMP2, TIMP4, MMP 2, MMP9, MMP16, and TGF-β1. Serum quantification of target extracellular matrix proteins was performed to establish potential AF biomarkers (TIMP1 and TIMP2).

Study design

This study represents a posthoc analysis of a prospective study on a cohort of aortic stenosis patients. Between 2014 and 2019, 56 patients with severe aortic stenosis submitted to AVR surgery in a tertiary hospital were selected. Their baseline clinical and echocardiography data were recorded, and serum and atrium samples were collected. Reoperations and emergent cases were excluded, as well as patients with severe aortic regurgitation. The recruited patients were then grouped according to their cardiac rhythm status: AF or SR (N = 15 and N = 42, respectively) (see below).

The investigation conforms with the principles outlined in the Declaration of Helsinki. The protocol was approved by the institution’s ethics committee and data confidentiality was assured. All participants gave written informed consent.

Data collection

Chronic Kidney Disease was considered when baseline creatinine levels exceeded 1.5 mg/dL. New York Heart Association (NYHA) functional classification was used to characterize heart failure symptoms. Coronary Artery Disease (CAD) was considered when previous myocardial infarction was reported and/or invasive coronary angiography reported stenosis > 50%. Cerebrovascular disease was defined based on a history of stroke or transitory ischemic attack or a reported stenosis > 50% on carotid doppler ultrasonography. Smoking was considered when patients reported being active smokers or past smokers within less than a year of cessation. Patients underwent an echocardiographic evaluation performed by experienced operators up to 6 months before surgery. Cardiac chamber dimensions and volumes were measured as recommended and systolic function was accessed by evaluation of left ventricular ejection fraction, using the modified Simpson rule from biplane 4 and 2 chamber views [11]. Reduced ejection fraction was considered below 40%, according to the European Society of Cardiology guidelines [12] Left atrium enlargement was considered when left atrium diameter was equal or superior to 40 mm.

As previously mentioned, patients were divided into SR and AF groups. All patients had an electrocardiogram (EKG) performed up to 6 months prior to surgery and AF was defined according to international guidelines as absolutely irregular RR intervals and no discernible, distinct P waves, with an episode lasting at least 30 s being the threshold for diagnostic purposes [2]. Definitions of paroxysmal, persistent, long-standing persistent or permanent AF followed the European Society of Cardiology guidelines. Two patients presented with paroxysmal AF (13.3%), 8 with permanent AF (53.3%) and 5 with persistent AF (33.3%) [2].

Biopsy and serum sample collection

During surgery, an atrium appendix myocardial biopsy was collected, and the sample was either immediately fixed in formalin (formalin solution, neutral buffered, 10%) and processed for histological analysis or flash-frozen in liquid nitrogen and stored at -80ºC for posterior gene expression analysis. Whole blood samples were collected at the same timepoint and immediately centrifuged at 3000 rpm for 10 min; serum was stored at – 80 °C for further Enzyme-Linked ImmunoSorbent Assay (ELISA).

Histomorphometric quantification

All samples were processed using Leica Histocore Pearl automatic processor. A total of 29 (SR N = 19, AF N = 10) and 18 patients (SR N = 13, AF = 5) were used to assess fibrosis and cardiomyocyte cross-sectional area, respectively. Paraffin inclusion was performed in Leica Histocore Arcardia Embedding System. Sections of 3 µm were cut and stained with hematoxylin–eosin (Harris hematoxylin and alcoholic eosin) for assessing cardiomyocyte cross-sectional area using Leitz Wetzlar-Dialux 20 microscopy and coupled camera (Olympus XC30). At least 60 cardiomyocytes were counted using the 250 × amplification; fibrosis was assessed using 3 µm atrial sections stained with Red Sirius and quantification was performed with Image-Pro Plus in 8 fields per sample using the 100 × amplification (results presented as percentage of the total area of each section).

Gene expression analysis

A total of 19 patients (SR N = 11, AF N = 8) were evaluated for the gene expression of several extracellular matrix proteins: collagen I and III, TIMP1, TIMP2, TIMP4, MMP2, MMP9, MMP16 and Transforming Growth Factor β1 (TGF-β1). RNA extraction was performed using a TRIzol protocol following the manufacturer's instructions. Briefly, tissue cells were disrupted in TRIizol reagent using 1.4 mm beads (Minilys, Bertin). After adding chloroform and centrifugation at 14,000 rpm, at 4 °C, for 15 min, RNA was extracted and precipitated in isopropanol. RNA was washed in 70% ethanol and resuspended in Tris 10 mM. RNA concentration and integrity were assessed both in the Nanodrop and by electrophoresis. cDNA (100 ng/µL) was synthesized using the SensiFAST™ cDNA Synthesis Kit (Bioline). Reactions were performed in a Bio-Rad T100 thermal cycler using the following protocol: 10 min of primer annealing at 25 °C followed by reverse transcription for 15 min at 42 °C, followed by 5 min at 85 °C to inactivate reverse transcriptase. Quantitative polymerase chain reaction (qPCR) reactions were run in triplicate in 10 µL containing the following: 1 µL sample cDNA, 5 µL 2 × SensiFAST™ SYBR Hi-ROX Mix (Bioline), and 0.4 µL primers. RT-qPCR reactions were performed using the PikoReal™ Real-Time PCR System (Thermo Scientific™) using the following protocol: polymerase was activated for 3 min at 95 °C followed by 40 cycles of denaturation for 15 s at 95 °C, annealing for 30 s at 60 °C, and extension for 30 s at 72 °C. Thereafter, melting curve analysis from 65 to 95 °C in 0,5 °C increments was performed. Prior to gene expression quantification using the 2−ΔCT method, PCR efficiency of each gene including the internal control gene (18s RNA) was determined and it was assured that they were identical. Primer sequences are presented in Table 1.

Table 1.

Primers used in this study

Primer name Primer sequences (5′ to 3′)
HsCOL1A1_F1 CTCTGGTCCTCGTGGTCT
HsCOL1A1_R1 CCCCATCATCTCCATTCTTTCC
HsCOL3A1_F1 GGTGCTAATGGTGCTCCT
HsCOL3A1_R1 TCCTTGCCATCTTCGCCTTT
HsMMP2_F TTGGTGGGAACTCAGAAGGT
HsMMP2_R GTCATCATCGTAGTTGGCTGTG
HsMMP9_F CTGCCACTTCCCCTTCATC
HsMMP9_R GGTCGTCGGTGTCGTAGT
HsMMP16_F TGACCCCAGAATGTCAGTGC
HsMMP16_R GGGGCTTCTTCATCCAGTCAA
HsTIMP1_F CTGTTGGCTGTGAGGAATGC
HsTIMP1_R AGGTGACGGGACTGGAAG
HsTIMP2_F GAGCACCACCCAGAAGAAG
HsTIMP2_R CAGTCCATCCAGAGGCAC
HsTIMP4_F GACCCTGCTGACACTGAAAA
HsTIMP4_R CTTCTGGCTGTTGGCTTCTA
HsTGFB1_F GAAGAACTGCTGCGTGCG
HsTGFB1_R GTGTCCAGGCTCCAAATGT
Hs18s_F2 GACTCAACACGGGAAACCTC
Hs18s_R2 CCAGACAAATCGCTCCACC
Open in a new tab

Primer name and respective base-pair sequence

Target gene expression was normalized to the 18S gene. Initial mRNA expression data were logarithm transformed using the 2−ΔCT method [13].

Serum quantification

After gene expression analysis, a total of 24 patients (SR N = 17, AF N = 7) were selected for assessing serum quantification of proteins whose genes were shown to be increased by reverse transcription (RT)-PCR in AF patients (TIMP1 and 2, see below). ELISA assays were performed following the manufacturer’s instructions (Abcam, ab187394 Human TIMP-1 SimpleStep ELISA Kit, and ab100653 TIMP2 Human ELISA kit).

Statistical analysis

IBM SPSS Statistics version 25 was used for all statistical analyses. Categorical variables were presented as percentages and continuous variables as mean and standard deviation (sd). Categorical variables were analysed using the Chi-squared test or Fisher’s exact test when appropriate and continuous variables were analysed with a t-test for independent samples. Linear regression was performed to correlate continuous variables and results are presented as β coefficients, 95% confidence intervals (CI), and p values. Statistical significance was considered when p < 0.05.

Results

Patient demographics

Participants had a mean age of 70.85 ± 10.00 years, with males representing 49.2% of patients. The most common comorbidity was hypertension, representing 64.4% of patients, while 20.3% had type 2 diabetes mellitus. Smoking habits were present in 8.5% of participants, although there was no chronic kidney disease in this cohort. Only 2 patients had a previous acute myocardial infarction (3.4%), though 15.3% revealed coronary artery disease on coronary angiography. Moreover, 2 patients had a history of cerebrovascular disease (3.4%). Symptoms of heart failure (NYHA > I) were present in 55.9% of patients, with NYHA class II being the most prevalent stage (54.2%); 15.3% of patients suffered from angina, while only 5.1% had complaints of syncope or lipothymia. Solely one patient had decreased left ventricular ejection fraction. Nonetheless, 64.4% had increased left atrium diameter. Aortic valve stenosis was severe, with a mean aortic valve maximum gradient of 83.04 ± 20.47 mmHg, an aortic valve mean gradient of 51.32 ± 12.36 mmHg and an aortic valve area of 0.76 ± 0.16 cm2.

Concerning SR and AF patient subgroups, AF patients were older (AF 75.47 ± 7.71 vs SR 68.98 ± 10.23 years, p = 0.023). There were no other differences between groups regarding demographics, comorbidities, and echocardiographic data (Table 2).

Table 2.

Patient demographics

Variable [n (%)] SR (N = 42) AF (N = 15) p value
Age, years [mean ± SD] 68.98 ± 10.23 75.47 ± 7.71 0.023
Gender (male) 21 (50.0) 8 (47.1) 0.838
Smoking 5 (11.9) 0 (0) 0.308
Diabetes mellitus (type 2) 7 (16.7) 5 (29.4) 0.299
Hypertension 28 (66.7) 10 (62.5) 0.765
Previous AMI 2 (4.8) 0 (0) 1.000
Coronary artery disease 7 (17.1) 2 (12.5) 1.000
Cerebrovascular disease 1 (2.4) 1 (6.3) 0.479
NYHA class > I 23 (63.9) 10 (66.7) 0.850
Angina 5 (13.9) 4 (28.6) 0.245
Syncope/lipothymia 2 (5.6) 1 (7.1) 1.000
Ejection fraction 0 (0) 1 (7.1) 0.280
Left atrium dilation 26 (81.3) 12 (92.3) 0.654
AoV MaxG, mmHg [mean ± SD] 84.90 ± 20.23 78.93 ± 21.14 0.371
AoV MeanG, mmHg [mean ± SD] 52.36 ± 11.95 48.86 ± 13.41 0.380
Aov area, cm2 [mean ± SD] 0.76 ± 0.16 0.75 ± 0.15 0.784
Open in a new tab

AMI acute myocardial infarction, NYHA New York Heart Association Functional Capacity Classification, AoV aortic valve, MaxG maximum gradient

Atrial fibrillation

Histomorphometric analysis

Fibrosis was significantly increased in the AF group when compared to SR patients, with a mean ± SD percent fibrosis of 38 ± 6% and 25 ± 2%, respectively (p = 0.024). Moreover, cardiomyocyte area was significantly higher in AF patients versus SR patients—334.1 ± 18.31 µm2 versus 289.3 ± 6.18 µm2 (p = 0.008) (Fig. 1).

Fig. 1.

Fig. 1

Open in a new tab

a Fibrosis quantification by Sirius red stain—data and representative images of both AF and SR patient subgroups. b Cardiomyocyte area quantification by hematoxylin–eosin stain—data and representative images of AF and SR patients. *p > 0.05

Extracellular matrix gene expression analysis

Collagen gene expression was evaluated to explore the differences in fibrosis observed through histologic examination. Atrial expression of collagen I was similar between groups (2−ΔCT): AF 2.86 × 10–5 ± 7.03 × 10–6 versus SR 1.67 × 10–5 ± 4.71 × 10–6 (p = 0.176). Conversely, collagen III gene expression was increased in AF patients: 1.46 × 10–4 ± 2.62 × 10–5 versus 8.39 × 10–5 ± 1.11 × 10–5 (p = 0.038). The collagen ratio I/III was, nonetheless, similar between AF and SR patients: 0.24 ± 0.05 versus 0.23 ± 0.06 (p = 0.928). Data is depicted in Fig. 2.

Fig. 2.

Fig. 2

Open in a new tab

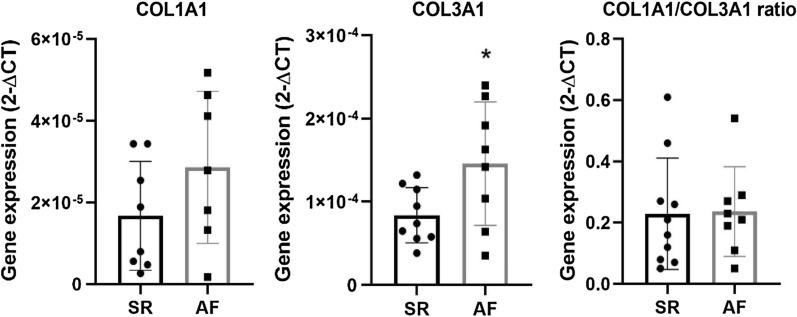

Atrial gene expression of collagen type I, type III and respective ratio in both SR and AF patients. *p < 0.05

A further analysis on extracellular matrix genes was performed, with several MMPs and TIMPs tested for their atrial expression. MMP2 expression analysis showed no differences between groups: AF 1.42 × 10–4 ± 2.35 × 10–5 versus SR 1.59 × 10–4 ± 1.40 × 10 −5 (p = 0.536). MMP9 and MMP16 were similar between patients, showing no differential atrial expression: 1.27 × 10–6 ± 2.77 × 10–7 versus 1.57 × 10–6 ± 3.25 × 10–7 (p = 0.509) and 4.35 × 10–6 ± 7.08 × 10–7 versus 5.86 × 10–6 ± 6.66 × 10–7 (p = 0.141), respectively. In addition, TGFβ1 gene expression analysis was similar between patient groups: 4.65 × 10–5 ± 5.75 × 10–6 versus 5.96 × 10–5 ± 1.01 × 10–5 (p = 0.291) (Fig. 3). On the other hand, TIMP1 was less expressed in the atria of AF patients: 3.69 × 10–4 ± 5.82 × 10–5 versus 5.72 × 10–4 ± 7.41 × 10–5 (p = 0.052). TIMP2 presented similar results, demonstrating a significantly decreased expression in the AF group: 2.37 × 10–4 ± 3.04 × 10–5 versus 3.75 × 10–4 ± 4.37 × 10–5 (p = 0.026). Conversely, TIMP4 did not show differences between patients: 3.88 × 10–5 ± 1.17 × 10–5 versus 2.17 × 10–5 ± 4.06 × 10–6 (p = 0.167) (Fig. 4).

Fig. 3.

Fig. 3

Open in a new tab

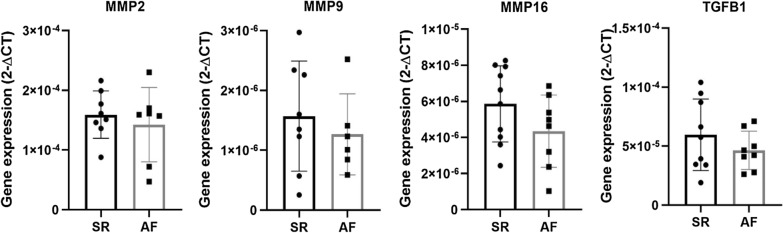

Atrial gene expression of MMP2, MMP9, MMP16 and TGFβ in both SR and AF patients

Fig. 4.

Fig. 4

Open in a new tab

Atrial gene expression of TIMP1, TIMP2 and TIMP4 in both SR and AF patients. *p < 0.05

Moreover, well recognized ratios such as MMP2/TIMP1, MMP2/TIMP2 and MMP9/TIMP1 were tested for their relationship with AF. MMP2/TIMP1 did not present differences between groups, with a ratio of 0.35 ± 0.07 in AF patients and 0.26 ± 0.03 in SR patients (p = 0.201). Likewise, both the MMP2/TIMP2 and MMP9/TIMP1 ratios were similar between groups—0.68 ± 0.09 versus 0.53 ± 0.04 (p = 0.123) and 3.53 × 10–3 ± 9.30 × 10–4 versus 2.10 × 10–3 ± 3.02 × 10–4 (p = 0.128). (Fig. 5). MMP2/TIMP4 and MMP16/TIMP4 ratios were also tested, with the former demonstrating a tendency towards significance (3.87 ± 1.22 vs 7.96 ± 1.58, p = 0.063), while the latter was significantly decreased in AF patients (0.07 ± 0.02 vs 0.24 ± 0.05, p = 0.006).

Fig. 5.

Fig. 5

Open in a new tab

Atrial gene expression of MMP2/TIMP1, MMP2/TIMP2, MMP9/TIMP1, MMP2/TIMP4 and MM16/TIMP4 ratios in both SR and AF patients. **p < 0.001

Serum TIMP1 and TIMP2

The counterpart proteins to the altered gene expression in AF patients (TIMP1 and TIMP2, p = 0.052 and p = 0.026, respectively) were quantified in the serum of both AF and SR patient groups. TIMP1 was significantly increased in the serum of AF patients: AF 6472.0 ± 958.9 pg/mL versus SR 3612.0 ± 385.4 pg/mL (p = 0.004). Similarly, TIMP2 was increased in the AF patient group: 144.2 ± 30.6 pg/mL versus 93.4 ± 5.7 pg/mL (p = 0.012) (Fig. 6).

Fig. 6.

Fig. 6

Open in a new tab

Serum TIMP1 and TIMP2 proteins in both SR and AF patients. *p < 0.05

Aortic stenosis severity

The severity of aortic stenosis was evaluated through aortic valve maximum and mean gradients, as well as aortic valve area. These predictors were correlated with histological parameters and extracellular matrix gene expression and serum proteins. Results are presented in Table 3.

Table 3.

Linear regressions comparing aortic stenosis severity with extracellular matrix remodeling

Variable B coefficient 95% CI p value
AoMaxG
Cardiomyocyte Area 0.089 [− 0.069 to 0.248] 0.250
Fibrosis − 8.431 [− 184.602 to 167.741] 0.920
COL1A1 − 493,530.998 [− 929322.424 to − 57739] 0.029
COL3A1 − 106,482.445 [− 240598.920 to 27,634.031] 0.110
COL1A1/3A1 Ratio − 88.731 [− 165.756 to − 11.706] 0.027
MMP2 − 27,782.426 [− 170179.428 to 114,614.396] 0.680
MMP9 − 595,526.093 [− 1429715.173 to 238,662.988] 0.147
MMP16 1,691,707.088 [− 3869174.848 to 7,252,589.024] 0.523
TIMP1 14,457.016 [− 7526.012 to 36,440.044] 0.179
TIMP2 5262.861 [− 85597.990 to 96,123.712] 0.902
TIMP4 − 47,199.665 [− 445150.640 to 350,751.311 0.799
MMP2/TIMP1 Ratio − 79.725 [− 159.870 to 0.419] 0.051
MMP2/TIMP2 Ratio − 30.903 [− 94.861 to 33.056] 0.316
MMP9/TIMP1 Ratio − 330.433 [− 732.257 to 71.391] 0.099
MMP2/TIMP4 Ratio − 0.345 [− 2.205 to 1.516] 0.691
MMP16/TIMP4 Ratio 7.394 [− 69.324 to 84.111] 0.836
Serum TIMP1 − 0.004 [− 0.006 to − 0.001] 0.015
Serum TIMP2 0.028 [− 0.235 to 0.292] 0.822
AoMG
Cardiomyocyte Area 0.038 [− 0.059 to 0.135] 0.421
Fibrosis 9.331 [− 93.022 to 111.684] 0.850
COL1A1 − 248,924.745 [− 492536.116 to − 5313.373] 0.046
COL3A1 − 55,243.442 [− 128681.989 to 18,195.105] 0.128
COL1A1/3A1 Ratio − 44.441 [− 87.659 to − 1.224] 0.045
MMP2 − 8256.311 [− 85857.707 to 69,345.085] 0.822
MMP9 − 273,834.048 [− 737776.442 to 190,108.346] 0.225
MMP16 1,163,548.388 [− 1821928.808 to 4,149,025.584] 0.415
TIMP1 9237.603 [− 2320.881 to 20,796.086] 0.108
TIMP2 8692.535 [− 40342.265 to 57,727.334] 0.708
TIMP4 − 20,738.463 [− 241638.087 to 200,161.161] 0.840
MMP2/TIMP1 Ratio − 44.416 [− 87.457 to − 1.375] 0.044
MMP2/TIMP2 Ratio − 20.424 [− 54.401 to 13.554] 0.217
MMP9/TIMP1 Ratio − 157.431 [− 381.331 to 66.470] 0.153
MMP2/TIMP4 Ratio − 0.215 [− 1.244 to 0.815] 0.655
MMP16/TIMP4 Ratio 0.796 [− 41.824 to 43.416] 0.968
Serum TIMP1 − 0.002 [− 0.004 to − 0.0002] 0.031
Serum TIMP2 0.002 [− 0.166 to 0.169] 0.983
AVA
Cardiomyocyte Area − 0.001 [− 0.002 to − 2.6E−5] 0.043
Fibrosis − 0.628 [− 1.749 to 0.493] 0.251
COL1A1 4045.908 [564.094 to 7527.721] 0.026
COL3A1 999.124 [− 42.261 to 2040.509] 0.059
COL1A1/3A1 Ratio 0.684 [0.050 to 1.319] 0.037
MMP2 31.793 [− 1153.160 to 1216.745] 0.954
MMP9 2748.383 [− 4536.323 to 10,033.089] 0.427
MMP16 − 16,518.724 [− 64280.280 to 31,242.833] 0.466
TIMP1 − 65.689 [− 255.398 to 124.020] 0.465
TIMP2 − 118.969 [− 861.135 to 623.197] 0.733
TIMP4 − 1791.725 [− 4921.305 to 1337.855] 0.231
MMP2/TIMP1 Ratio 0.089 [− 0.678 to 0.855] 0.806
MMP2/TIMP2 Ratio 0.309 [− 0.225 to 0.843] 0.231
MMP9/TIMP1 Ratio 1.551 [− 2.011 to 5.114] 0.361
MMP2/TIMP4 Ratio 0.009 [− 0.006 to 0.023] 0.200
MMP16/TIMP4 Ratio 0.281 [− 0.326 to 0.889] 0.326
Serum TIMP1 8.697E−6 [2.4E−5 to 4.1E−5] 0.577
Serum TIMP2 − 0.001 [− 0.004 to 0.001] 0.303
Open in a new tab

Results in bold represent p < 0.05

AoMaxG aortic valve maximum gradient, AoMG aortic valve mean gradient, AVA aortic valve area, CI confidence interval, MMP matrix metalloproteinase, TIMP tissue inhibitor of metalloproteinase

Histomorphometric analysis

Neither the aortic valve maximum gradient (p = 0.920 and p = 0.250) nor its mean gradient (p = 0.850 and p = 0.421) correlated with fibrosis or atrial cardiomyocyte size, respectively. However, aortic valve area was negatively correlated with cardiomyocyte area—B coefficient [95% CI] − 0.001 [− 0.002 to − 2.6 × 10–5], p = 0.043 (Fig. 7). In addition, fibrosis was not correlated with aortic valve area (p = 0.251).

Fig. 7.

Fig. 7

Open in a new tab

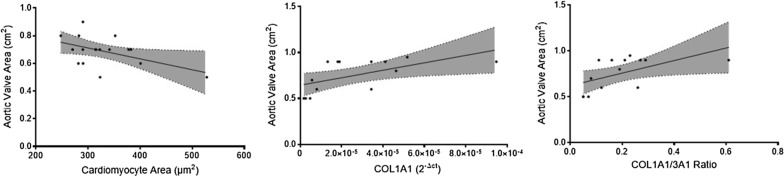

Linear regression between Aortic Valve Area and atrial cardiomyocyte area and collagen type I and III gene expression. (All p < 0.05)

Extracellular matrix gene expression analysis

Aortic valve maximum gradient was inversely correlated with the expression of COL1A1 gene (B − 493,531.00 [− 929322.42 to − 57,739.00], p = 0.029), as well as the COL1A1/3A1 gene expression ratio (B − 88.73 [− 165.76 to − 11.71], p = 0.027). (Fig. 8) Furthermore, MMP2/TIMP1 ratio presented a tendency towards significance, with a B coefficient of − 79.73 [− 159.87 to 0.42], p = 0.051. The remaining extracellular genes were not correlated with aortic valve maximum gradient (Table 3).

Fig. 8.

Fig. 8

Open in a new tab

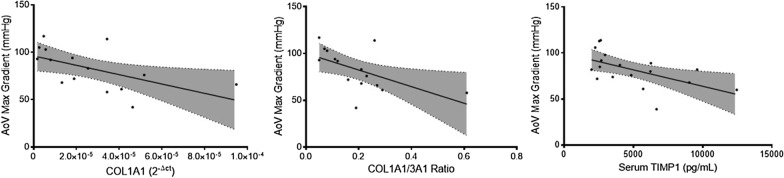

Linear regression between aortic valve maximum gradient and collagen type I gene expression, collagen type I/III ratio gene expression and serum TIMP1 protein levels. (All p < 0.05)

Similarly, aortic valve mean gradient was negatively correlated with COL1A1 expression (B − 248,924.75 [− 492536.12 to − 5313.37], p = 0.046), COL1A1/3A1 ratio (B − 44.44 [− 87.66 to − 1.22], p = 0.045) and MMP2/TIMP1 ratio (B − 44.42 [− 87.46 to − 1.38], p = 0.044). (Fig. 9) Other matrix genes remained similar regardless of aortic valve mean gradient (Table 3).

Fig. 9.

Fig. 9

Open in a new tab

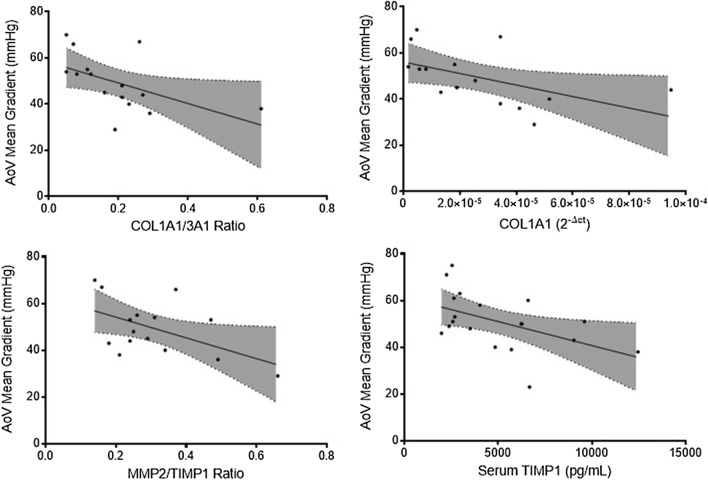

Linear regression involving aortic valve mean gradient and collagen type I gene, collagen type I/III ratio gene expression, MMP2/TIMP1 gene expression ratio and serum TIMP1 protein quantification. (All p < 0.05)

Additionally, aortic valve area presented a positive correlation with the gene expression of COL1A1 (B 4045.91 [564.09–7527.72], p = 0.026) and COL1A1/3A1 ratio (B 0.68 [0.05–1.32], p = 0.037) (Fig. 7), although other extracellular matrix genes presented no relation with valve area (Table 3).

Serum TIMP1 and TIMP2

Aortic valve maximum gradient demonstrated a negative association with serum TIMP1, with a B coefficient of − 0.004 [− 0.006 to − 0.001], p = 0.015. (Fig. 8) Likewise, aortic valve mean gradient was negatively correlated with serum TIMP1—B − 0.002 [− 0.004 to − 0.0002], p = 0.031. (Fig. 9) No other associations were observed regarding aortic valve function and serum TIMP1 and TIMP2 (Table 3).

Discussion

This is the first study evaluating atrial remodelling in aortic stenosis patients with chronic AF, both fibrosis quantification and target extracellular matrix protein gene expression analysis. AF patients were older, had increased cardiomyocyte area and atrial fibrosis on histologic quantification, increased collagen type III gene expression, as well as decreased TIMP1 and TIMP2 gene expression. Moreover, MMP16/TIMP4 ratio was decreased in AF patients. Serum TIMP1 and TIMP2 proteins were both increased in the AF patient subgroup.

Aortic stenosis patients with AF were older than their SR counterparts. Age is the most common and consistently described risk factor for AF, regardless of the cardiovascular disease background [4, 14]. Patients with AF had increased fibrosis, as demonstrated by histology sections, as well as increased cardiomyocyte size, suggested by the higher cell area. There is extensive evidence on the role of atrial fibrosis in sustaining the arrhythmia [15], although studies on aortic stenosis are scarce. Studies on animal models with increased afterload but absent hypertension suggest atrial remodeling increases AF inducibility through atrial myocardium fibrosis [16]. On the other hand, fibrosis evaluated by cardiac magnetic resonance imaging suggests a correlation with atrial fibrillation in hypertrophic cardiomyopathy [17]. Aortic stenosis causes pressure overload in both the ventricle and atrium, thus stimulating fibroblast proliferation which leads to cardiac fibrosis [18]. Fibroblast-cardiomyocyte coupling might slow conduction, therefore promoting re-entrance mechanisms, as well as enhance phase 4 depolarization, inducing ectopic impulse generation [19]. This cell-to-cell interaction depends on the degree of coupling, the number of coupled fibroblasts to each cardiomyocyte, and the relative size of cardiomyocytes versus fibroblasts [20]. Furthermore, the increased cardiomyocyte cell area in AF patients might correspond to a glycogen accumulation, with depletion of contractile material, as demonstrated in a study of sustained AF in goats with a substantial proportion of atrial myocytes with marked ultrastructure changes, including loss of myofibrils and accumulation of glycogen [21]. Studies on dogs with mitral valve stenosis have reported atrial cardiomyocyte hypertrophy with decreased myofibrils [21, 22]. Despite the absence of studies on aortic stenosis patients, it has been reported similar degenerative cardiomyocyte changes in patients submitted to cardiac surgery, which correlate with atrial size and pressure, along with diastolic dysfunction [23].

In addition to the increase in atrial fibrosis in histology sections, mRNA expression of collagen type III was higher in AF patients, although collagen I and collagen I/III ratio did not present differences between groups. Zhang et al. reported an increase in atrial mRNA expression of collagen I and III in AF patients with rheumatic heart disease [24]. Likewise, Cao et al. reported a similar increase in patients with permanent AF undergoing valvular replacement [25]. Conversely, Yoshihara et al. found a decrease in mRNA expression of both collagen type I and III in patients with AF submitted to Kosakai's modified maze procedure [26]. The present study focused on AF patients with aortic stenosis submitted to valve replacement, which could explain the isolated increase in type III collagen gene expression between patient groups.

Regarding atrial extracellular matrix gene expression, TGF-β1 was similar between groups. TGFβ1 is an established positive regulator of cardiac fibrosis [27], is upregulated in AF patients with mitral valve disease submitted to valve replacement, and [28] postoperative AF in patients submitted to myocardial revascularization [29]. Nevertheless, studies on aortic stenosis are scarce. MMP2, MMP9, and MMP16 showed no statistically significant differences between AF and SR patient subgroups. However, TIMP1 and TIMP2 were decreased in AF (p = 0.052 and p = 0.026, respectively), with no differences in gene expression for TIMP4. Regarding MMP/TIMP ratios, MMP2/TIMP1, MMP2/TIMP2, and MMP9/TIMP1 were similar in AF participants when compared to their SR counterparts. Conversely, MMP2/TIMP4 demonstrated a tendency towards significance, being decreased in AF patients, while MMP16/TIMP4 was significantly lower in this patient subgroup. Extracellular matrix remodeling is induced by collagen digestion through MMPs with tightly opposing inhibitors (TIMPs) [30]. Findings vary according to experimental conditions, target extracellular matrix proteins, type of cardiovascular disease, and AF progression [1]. Polyakova et al. found increased atrial expression of MMP2, MMP9, and TIMP1, although no differences in TIMP4, in AF patients submitted to a mini-Maze procedure [31]. Conversely, there were no differences in MMP9 atrial expression in AF patients with heart failure with reduced ejection fraction [32]. Despite a similar expression of TIMP4 between groups, MMP2/TIMP4 and MMP16/TIMP4 ratios demonstrated a decrease in AF patients. MMP2/TIMP4 ratio has been reported to be increased in heart failure induced by occlusion of the left coronary artery in spontaneously hypertensive rats [33]. Additionally, Wetzl et al. found a correlation between MMP2/TIMP4 ratio and mean pulmonary arterial pressure, pulmonary vascular resistance, estimated glomerular filtration rate, and tricuspid annular plane systolic excursion. Remarkably, MMP16/TIMP4 was overwhelmingly decreased in AF patients. This is the first study that suggests MMP16/TIMP4 as a marker of disease, specifically, a marker of chronic AF in aortic stenosis patients. Furthermore, although a significantly decreased atrial gene expression (TIMP1 and TIMP2) was observed, AF patients’ serum TIMP1 and TIMP2 proteins were significantly increased. This might represent a downregulation of expression when considering increased protein levels. The increase in matrix inhibitors when comparing with proteolytic enzymes (decreased MMP/TIMP ratios) may explain the collagen accumulation seen by histology, in addition to the increased mRNA collagen type III expression.

Concerning aortic stenosis severity, Aortic Valve Maximum and Mean Gradients were negatively correlated with collagen type I gene expression, collagen type I/III ratio, and serum TIMP1 protein levels. Additionally, MMP2/TIMP1 ratio was inversely correlated with aortic valve mean gradient. Aortic valve area was positively correlated with collagen type I gene expression and collagen type I/III ratio. Moreover, aortic valve area was negatively associated with cardiomyocyte cell area. Although the classical aortic valve stenosis severity definition remains dependent on transthoracic echocardiography and its parameters, such as maximal aortic velocity (severe, > 4 m/s), mean pressure gradient (severe, > 40 mmHg) and aortic valve area (severe, > 1 cm2), the interplay between comorbidities and aortic stenosis risk of progression remains incompletely understood [34, 35]. AF in aortic stenosis is associated with lower maximum and mean pressure gradients, which could lead to a misclassification of disease severity, since AF represents an independent risk factor for adverse outcomes, including all-cause mortality [36]. The obstruction caused by aortic stenosis leads to pressure overload and, ultimately, to ventricular hypertrophy and cardiac fibrosis [37]. Azevedo et al. found the amount of myocardial fibrosis is associated with all-cause mortality after aortic valve replacement in patients with severe aortic stenosis, indicating tissue fibrosis could be a marker of disease severity [38]. Overall, our results indicate an adverse remodelling in patients with lower maximum and mean pressure gradients, which can be explained by the presence of AF in this cohort. AF patients have worse remodelling and lower gradients, thus patients with more collagen deposition will be those with, apparently, less severe stenosis. However, a higher degree of fibrosis is associated with worse outcomes. Our results suggest several matrix proteins which could be implicated in disease severity besides histological fibrosis. Serum TIMP1 could be a marker of adverse outcomes in aortic stenosis, in addition to conventional echocardiography.

This study indicates an atrial matrix remodeling in aortic stenosis patients with chronic AF submitted to valve replacement while suggesting TIMP1 and TIMP2 as biomarkers of disease, readily available with peripheral blood sampling. MMP16/TIMP4 ratio is increased in AF and potentially a novel marker of this arrhythmia. Although the number of patients analysed is relatively low and thus further studies on chronic AF are needed, this is the first study on atrial matrix remodelling in aortic stenosis patients with atrial fibrillation.

Conclusions

Atrial fibrillation patients with severe aortic stenosis present increased atrial fibrosis and collagen type III synthesis, with extracellular matrix remodelling demonstrated by a decrease in the MMP16/TIMP4 ratio, along with an increased serum TIMP1 and TIMP2 proteins. TIMP1 could be a marker of adverse outcomes in aortic stenosis, in addition to conventional echocardiography.

Acknowledgements

Not applicable.

Abbreviations

AF

Atrial fibrillation

AVR

Aortic valve replacement

CAD

Coronary artery disease

CICP

Collagen type 1 carboxy-terminal peptide

DAD

Delayed afterdepolarizations

EKG

Electrocardiogram

ELISA

Enzyme-linked immunosorbent assay

MMP

Matrix metalloproteinase

NYHA

New York Heart Association

qPCR

Quantitative polymerase chain reaction

RT-PCR

Reverse transcription polymerase chain reaction

SR

Sinus rhythm

TGF-β1

Transforming growth factor β1

TIMP

Tissue inhibitor of metalloproteinase

Authors’ contributions

MFM performed PCR, ELISA, histological and statistical analysis, collected the data, designed and wrote the article. IM performed PCR analysis and wrote the article. DM performed PCR analysis and reviewed the article. IB performed ELISA analysis and reviewed the article. CM performed the histological analysis and reviewed the article. APN wrote the article. IFP designed the study and reviewed the article. ALM designed the study and reviewed the article. All Authors read and approved the manuscript.

Funding

This study was supported by the Cardiovascular R&D Center, financed by national funds through FCT—Fundação para a Ciência e Tecnologia, I.P., under the scope of the projects UID/IC/00051/2019 and UIDP/00051/2020, and Fundo Europeu de Desenvolvimento Regional (FEDER) through Compete 2020 – Programa Operacional Competitividade E Internacionalização (POCI), the project DOCNET (Norte-01-0145-FEDER-000003), supported by Norte Portugal regional operational programme (Norte 2020), under the Portugal 2020 partnership agreement, through the European Regional Development Fund (ERDF), the project NETDIAMOND (POCI-01-0145-FEDER-016385), supported by European Structural And Investment Funds, Lisbon’s regional operational program 2020.

Availability of data and materials

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.

Ethics approval and consent to participate

The investigation conforms with the principles outlined in the Declaration of Helsinki. The protocol was approved by the institution’s ethics committee (“Comissão de Ética para a Saúde do Centro Hospitalar de São João/Faculdade de Medicina da Universidade do Porto”, Approval Number 35.17). Data confidentiality was assured. All participants gave written informed consent.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interest.

Footnotes

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  • 1.Xintarakou A, Tzeis S, Psarras S, Asvestas D, Vardas P. Atrial fibrosis as a dominant factor for the development of atrial fibrillation: facts and gaps. Europace. 2020;22:342–351. doi: 10.1093/europace/euaa009. [DOI] [PubMed] [Google Scholar]
  • 2.Kirchhof P, Benussi S, Kotecha D, Ahlsson A, Atar D, Casadei B, et al. ESC guidelines for the management of atrial fibrillation developed in collaboration with EACTS. Eur Heart J. 2016;37:2893–2962. doi: 10.1093/eurheartj/ehw210. [DOI] [PubMed] [Google Scholar]
  • 3.Ferrari E, Tozzi P, Hurni M, Ruchat P, Stumpe F, von Segesser LK. Primary isolated aortic valve surgery in octogenarians. Eur J Cardio-Thorac Surg. 2010;38:128–133. doi: 10.1016/j.ejcts.2010.01.049. [DOI] [PubMed] [Google Scholar]
  • 4.Yilmaz MB, Erbay AR, Balci M, Guray Y, Cihan G, Guray U, et al. Atrial natriuretic peptide predicts impaired atrial remodeling and occurrence of late postoperative atrial fibrillation after surgery for symptomatic aortic stenosis. Cardiology. 2006;105:207–212. doi: 10.1159/000091641. [DOI] [PubMed] [Google Scholar]
  • 5.Tarantini G, Mojoli M, Windecker S, Wendler O, Lefèvre T, Saia F, et al. Prevalence and impact of atrial fibrillation in patients with severe aortic stenosis undergoing transcatheter aortic valve replacement an analysis from the SOURCE XT prospective multicenter registry. JACC Cardiovasc Interv. 2016 doi: 10.1016/j.jcin.2016.01.037. [DOI] [PubMed] [Google Scholar]
  • 6.Li N, Chiang DY, Wang S, Wang Q, Sun L, Voigt N, et al. Ryanodine receptor-mediated calcium leak drives progressive development of an atrial fibrillation substrate in a transgenic mouse model. Circulation. 2014;129:1276–1285. doi: 10.1161/CIRCULATIONAHA.113.006611. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Iwasaki Y, Nishida K, Kato T, Nattel S. Atrial fibrillation pathophysiology. Circulation. 2011;124:2264–2274. doi: 10.1161/CIRCULATIONAHA.111.019893. [DOI] [PubMed] [Google Scholar]
  • 8.Spach MS, Boineau JP. Microfibrosis produces electrical load variations due to loss of side- to-side cell connections: a major mechanism of structural heart disease arrhythmias. PACE Pacing Clin Electrophysiol. 1997;20:397–413. doi: 10.1111/j.1540-8159.1997.tb06199.x. [DOI] [PubMed] [Google Scholar]
  • 9.Kallergis EM, Manios EG, Kanoupakis EM, Mavrakis HE, Arfanakis DA, Maliaraki NE, et al. Extracellular matrix alterations in patients with paroxysmal and persistent atrial fibrillation. Biochemical assessment of collagen type-I turnover. J Am Coll Cardiol. 2008;52:211–5. doi: 10.1016/j.jacc.2008.03.045. [DOI] [PubMed] [Google Scholar]
  • 10.Sun Y, Huang ZY, Wang ZH, Li CP, Meng XL, Zhang YJ, et al. TGF-β1 and TIMP-4 regulate atrial fibrosis in atrial fibrillation secondary to rheumatic heart disease. Mol Cell Biochem. 2015;406:131–138. doi: 10.1007/s11010-015-2431-1. [DOI] [PubMed] [Google Scholar]
  • 11.Lang RM, Badano LP, Mor-Avi V, Afilalo J, Armstrong A, Ernande L, et al. Recommendations for cardiac chamber quantification by echocardiography in adults: an update from the American society of echocardiography and the European association of cardiovascular imaging. Eur Heart J Cardiovasc Imaging. 2015;16:233–271. doi: 10.1093/ehjci/jev014. [DOI] [PubMed] [Google Scholar]
  • 12.2016 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure|European Heart Journal|Oxford Academic n.d. https://academic.oup.com/eurheartj/article/37/27/2129/1748921. Accessed 21 May 2020.
  • 13.Hua R, Adamczyk A, Robbins C, Ray G, Rose RA. Distinct patterns of constitutive phosphodiesterase activity in mouse sinoatrial node and atrial myocardium. PLoS One. 2012 doi: 10.1371/journal.pone.0047652. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Nortamo S, Ukkola O, Lepojärvi S, Kenttä T, Kiviniemi A, Junttila J, et al. Association of sST2 and hs-CRP levels with new-onset atrial fibrillation in coronary artery disease. Int J Cardiol. 2017;248:173–178. doi: 10.1016/j.ijcard.2017.07.022. [DOI] [PubMed] [Google Scholar]
  • 15.Zahid S, Cochet H, Boyle PM, Schwarz EL, Whyte KN, Vigmond EJ, et al. Patient-derived models link re-entrant driver localization in atrial fibrillation to fibrosis spatial pattern. Cardiovasc Res. 2016 doi: 10.1093/cvr/cvw073. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Kim S-J, Choisy SCM, Barman P, Zhang H, Hancox JC, Jones SA, et al. Atrial remodeling and the substrate for atrial fibrillation in rat hearts with elevated afterload. Circ Arrhythmia Electrophysiol. 2011;4:761–769. doi: 10.1161/CIRCEP.111.964783. [DOI] [PubMed] [Google Scholar]
  • 17.Pujadas S, Vidal-Perez R, Hidalgo A, Leta R, Carreras F, Barros A, et al. Correlation between myocardial fibrosis and the occurrence of atrial fibrillation in hypertrophic cardiomyopathy: a cardiac magnetic resonance imaging study. Eur J Radiol. 2010 doi: 10.1016/j.ejrad.2009.12.012. [DOI] [PubMed] [Google Scholar]
  • 18.Hansen ML, Dahl JS, Scott Argraves W, Irmukhamedov A, Rasmussen LM. Aortic valve stenosis and atrial fibrillation influence plasma fibulin-1 levels in patients treated with coronary bypass surgery. Cardiology. 2013;126:202–206. doi: 10.1159/000354217. [DOI] [PubMed] [Google Scholar]
  • 19.Zlochiver S, Muñoz V, Vikstrom KL, Taffet SM, Berenfeld O, Jalife J. Electrotonic myofibroblast-to-myocyte coupling increases propensity to reentrant arrhythmias in two-dimensional cardiac monolayers. Biophys J. 2008;95:4469–4480. doi: 10.1529/biophysj.108.136473. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.MacCannell KA, Bazzazi H, Chilton L, Shibukawa Y, Clark RB, Giles WR. A mathematical model of electrotonic interactions between ventricular myocytes and fibroblasts. Biophys J. 2007;92:4121–4132. doi: 10.1529/biophysj.106.101410. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Ausma J, Wijffels M, Thoné F, Wouters L, Allessie M, Borgers M. Structural changes of atrial myocardium due to sustained atrial fibrillation in the goat. Circulation. 1997;96:3157–3163. doi: 10.1161/01.CIR.96.9.3157. [DOI] [PubMed] [Google Scholar]
  • 22.Boyden PA, Tilley LP, Pham TD, Liu SK, Fenoglio JJ, Wit AL. Effects of left atrial enlargement on atrial transmembrane potentials and structure in dogs with mitral valve fibrosis. Am J Cardiol. 1982;49:1896–1908. doi: 10.1016/0002-9149(82)90208-9. [DOI] [PubMed] [Google Scholar]
  • 23.Luc M-R, Albert A, Pham TD, Hordof A, Fenoglio JJ, Malm JR, et al. The relationship of human atrial cellular electrophysiology to clinical function and ultrastructure. n.d. [DOI] [PubMed]
  • 24.Zhang YJ, Ma N, Su F, Liu H, Mei J. Increased TRPM6 expression in atrial fibrillation patients contribute to atrial fibrosis. Exp Mol Pathol. 2015;98:486–490. doi: 10.1016/j.yexmp.2015.03.025. [DOI] [PubMed] [Google Scholar]
  • 25.Cao H, Xue L, Wu Y, Ma H, Chen L, Wang X, et al. Natriuretic peptides and right atrial fibrosis in patients with paroxysmal versus persistent atrial fibrillation. Peptides. 2010;31:1531–1539. doi: 10.1016/j.peptides.2010.04.019. [DOI] [PubMed] [Google Scholar]
  • 26.Yoshihara F, Nishikimi T, Sasako Y, Hino J, Kobayashi J, Minatoya K, et al. Plasma atrial natriuretic peptide concentration inversely correlates with left atrial collagen volume fraction in patients with atrial fibrillation: plasma ANP as a possible biochemical marker to predict the outcome of the maze procedure. J Am Coll Cardiol. 2002;39:288–294. doi: 10.1016/S0735-1097(01)01719-3. [DOI] [PubMed] [Google Scholar]
  • 27.Pellman J, Sheikh F. Atrial fibrillation: mechanisms, therapeutics, and future directions. Compr Physiol. 2015;5:649–665. doi: 10.1002/cphy.c140047. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Li Y, Jian Z, Yang ZY, Chen L, Wang XF, Ma RY, et al. Increased expression of connective tissue growth factor and transforming growth factor-beta-1 in atrial myocardium of patients with chronic atrial fibrillation. Cardiology. 2013;124:233–240. doi: 10.1159/000347126. [DOI] [PubMed] [Google Scholar]
  • 29.Rahmutula D, Marcus GM, Wilson EE, Ding C-H, Xiao Y, Paquet AC, et al. Molecular basis of selective atrial fibrosis due to overexpression of transforming growth factor-b1. Cardiovasc Res. 2013 doi: 10.1093/cvr/cvt074. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Nattel S. Molecular and cellular mechanisms of atrial fibrosis in atrial fibrillation. JACC Clin Electrophysiol. 2017;3:425–435. doi: 10.1016/j.jacep.2017.03.002. [DOI] [PubMed] [Google Scholar]
  • 31.Polyakova V, Miyagawa S, Szalay Z, Risteli J, Kostin S. Atrial extracellular matrix remodelling in patients with atrial fibrillation. J Cell Mol Med. 2008;12:189–208. doi: 10.1111/j.1582-4934.2008.00219.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Molina CE, Abu-Taha IH, Wang Q, Roselló-Díez E, Kamler M, Nattel S, et al. Profibrotic, electrical, and calcium-handling remodeling of the atria in heart failure patients with and without atrial fibrillation. Front Physiol. 2018 doi: 10.3389/fphys.2018.01383. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Seeland U, Kouchi I, Zolk O, Itter G, Linz W, Böhm M. Effect of ramipril and furosemide treatment on interstitial remodeling in post-infarction heart failure rat hearts. J Mol Cell Cardiol. 2002;34:151–163. doi: 10.1006/jmcc.2001.1497. [DOI] [PubMed] [Google Scholar]
  • 34.Baumgartner H, Hung J, Bermejo J, Chambers JB, Edvardsen T, Goldstein S, et al. Recommendations on the echocardiographic assessment of aortic valve stenosis: a focused update from the European Association of Cardiovascular Imaging and the American Society of Echocardiography. J Am Soc Echocardiogr. 2017;30:372–392. doi: 10.1016/j.echo.2017.02.009. [DOI] [PubMed] [Google Scholar]
  • 35.Donal E, Dweck MR, Galli E. Definition of severe aortic stenosis: ‘Awise man points at themoon, the fool looks at the finger’ (Chinese proverb) Eur Heart J Cardiovasc Imaging. 2020;744:6. doi: 10.1093/ehjci/jeaa087. [DOI] [PubMed] [Google Scholar]
  • 36.Burup Kristensen C, Jensen JS, Sogaard P, Carstensen HG, Mogelvang R. Atrial fibrillation in aortic stenosis—echocardiographic assessment and prognostic importance. Cardiovasc Ultrasound. 2012;10:38. doi: 10.1186/1476-7120-10-38. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Galat A, Guellich A, Bodez D, Lipskaia L, Moutereau S, Bergoend E, et al. Causes and consequences of cardiac fibrosis in patients referred for surgical aortic valve replacement. ESC Heart Fail. 2019;6:649–657. doi: 10.1002/ehf2.12451. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Azevedo CF, Nigri M, Higuchi ML, Pomerantzeff PM, Spina GS, Sampaio RO, et al. Prognostic significance of myocardial fibrosis quantification by histopathology and magnetic resonance imaging in patients with severe aortic valve disease. J Am Coll Cardiol. 2010;56:278–287. doi: 10.1016/j.jacc.2009.12.074. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.

Articles from BMC Cardiovascular Disorders are provided here courtesy of BMC

RESOURCES
