Network Pharmacology-Based Study on the Mechanism of Scutellariae Radix for Hepatocellular Carcinoma Treatment

Qian Wang 1,2,3, Yan Liang 1, Can Peng 1,2,3, Peng Jiang 4,✉
PMCID: PMC7607277  PMID: 33163086

Abstract

Hepatocellular carcinoma (HCC) is a malignant tumor without effective therapeutic drugs for most patients in advanced stages. Scutellariae Radix (SR) is a well-known anti-inflammatory and anticarcinogenic herbal medicine. However, the mechanism of SR against HCC remains to be clarified. In the present study, network pharmacology was utilized to characterize the mechanism of SR on HCC. The active components of SR and their targets were collected from the traditional Chinese medicine systems pharmacology database and the traditional Chinese medicine integrated database. HCC-related targets were acquired from the liver cancer databases OncoDB.HCC and Liverome. The gene ontology and the Kyoto Encyclopedia of Genes and Genomes pathway were analyzed using the Database for Annotation, Visualization, and Integrated Discovery. Component-component target and protein-protein interaction networks were set up. A total of 143 components of SR were identified, and 37 of them were considered as candidate active components. Fifty targets corresponding to 29 components of SR were mapped with targets of HCC. Functional enrichment analysis indicated that SR exerted an antihepatocarcinoma effect by regulating pathways in cancer, hepatitis B, viral carcinogenesis, and PI3K-Akt signaling. The holistic approach of network pharmacology can provide novel insights into the mechanistic study and therapeutic drug development of SR for HCC treatment.

1. Introduction

Hepatocellular carcinoma (HCC) is the fifth most common and lethal malignancy in the world [1]. It is a complex disease closely linked to chronic viral infection, carcinogenesis of toxins, and cirrhosis induced by fatty liver disease or alcohol abuse and genetic factors [2]. Several common therapeutic options for HCC are currently considered, including surgical resection, local ablation, transarterial chemoembolization, liver transplantation, and systemic treatment with sorafenib [3]. Sorafenib is a kinase inhibitor drug approved for the treatment of primary kidney cancer, advanced primary liver cancer, FLT3 internal tandem duplication (FLT3-ITD) positive acute myeloid leukemia (AML), and radioactive iodine resistant advanced thyroid carcinoma. However, a majority of patients with HCC are diagnosed at advanced stages, and the only feasible treatment for these patients is sorafenib [4]. Furthermore, less than 20% of patients respond well to sorafenib that often causes serious adverse reactions [5]. Therefore, more effective alternative therapies with low toxicity should be developed to improve the overall survival of patients with HCC.

Chinese herbal medicine (CHM) has been used clinically for thousands of years. With advanced scientific evaluation in basic research and clinical trials [6], CHM is recognized as a treasure house for alternative anticancer drug development [7]. Extensive research has shown that some specific herbs and natural compounds can effectively inhibit cell proliferation, interfere with tumor progression, and block tumor metastasis [8, 9]. Scutellariae Radix (SR) is the root of plant Scutellaria baicalensis Georgi (Lamiaceae). SR is a well-known anti-inflammatory and anticarcinogenic herbal medicine [10, 11], which can prevent and treat liver injuries caused by hepatitis and liver cancer. SR has certain components, such as baicalin and baicalein, which show an evident antitumor effect on hepatocarcinoma [12–14]. However, the mechanism of antitumor action of SR against HCC is still unclear.

As an emerging discipline in modern CHM pharmacological research, network pharmacology has been successfully undertaken to screen active components and reveal the pharmacodynamic mechanisms of CHM [15]. In contrast to Western medicine based on one drug and one target, CHM exerts its pharmacological action as a whole through multicomponents and multitargets. With the holistic perspective of CHM, network pharmacology intends to investigate the effects of drugs on disease at a holistic level [16]. It changes the research strategy from the existing “one drug, one target” mode to the emerging “one drug, network targets” mode [17] or “multicomponents, network targets” mode [18]. This approach is feasible for investigating the mechanisms of the effect of CHMs and their synergistic actions in cancer treatment [19]. To the best of our knowledge, only two network pharmacology reports are associated with SR, i.e., SR against diabetes mellitus [20] and baicalein on HCC [17]. However, network pharmacology evaluation has yet to be performed to determine the molecular mechanism of SR for HCC treatment.

The present study applies computer simulation and bioinformatic data mining to build a pharmacological network of SR for HCC treatment and search for the candidate bioactive components, protein targets, and pathways. Network pharmacology provides a potent and promising approach for the application and development of CHM to HCC therapy (Figure 1).

Figure 1.

Figure 1

Open in a new tab

Flowchart of designed analysis in Scutellariae Radix against hepatocellular carcinoma.

2. Methods

2.1. Active Components in SR

All herbal medicinal ingredients of SR were obtained from the traditional Chinese medicine systems pharmacology database (TCMSP; http://tcmspw.com/tcmsp.php) [21], which is a unique analysis platform of systems pharmacology contributing to drug discovery from herbal medicines. The candidate active components of SR were obtained on the basis of the criteria of drug likeness (DL) of ≥0.18 and oral bioavailability (OB) of ≥30%, which are the principal properties to determine the drug ability of compounds.

2.2. Prediction of Drug Targets for SR

The human protein targets of the active components of SR were obtained from the traditional Chinese medicine integrated database (TCMID), http://www.megabionet.org/tcmid/) and the TCMSP database [21]. The TCMID database is a comprehensive database to offer a reference and build bridges between traditional Chinese medicine and current medicine. The gene symbol names were further clarified with their UniProt ID from the UniProtKB database (http://www.uniprot.org), which is a unique protein database partially revised by experts.

2.3. Candidate Targets of SR for HCC Treatment

HCC-related genes were retrieved from Liverome (http://liverome.kobic.re.kr/index.php) [22] and OncoDB.HCC (http://oncodb.hcc.ibms.sinica.edu.tw) [23], which are two liver cancer-related databases. The drug targets of the candidate active components of SR were mapped to HCC-related targets to obtain the candidate targets of SR for HCC treatment. The network between the components and corresponding targets was constructed and visualized using the Cytoscape software 3.7.2 (http://www.cytoscape.org/).

2.4. Protein-Protein Interaction Network Construction and Analysis

The candidate targets of SR for HCC treatment were imported into the STRING database (Version 11.0) [24] (https://string-db.org/) to construct a protein-protein interaction (PPI) network. The criteria settings were set as follows: high confidence score >0.7 and max number of interactors ≤60. Then, the results were imported into the Cytoscape software for visualization and further analysis. Network Analyzer [25], a Cytoscape plugin, was used to analyze the important network parameters of nodes and edges for constructing the PPI network of core targets.

2.5. Gene Ontology and Pathway Enrichment Analysis

The gene ontology (GO) and the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment were analyzed using DAVID [26] 6.8 (http://david.abcc.ncifcrf.gov). DAVID is an online functional annotation database to understand the biological meaning of a large list of genes. The results of GO and KEGG pathway analyses were visualized with GraphPad Prism 7.0 and OmicShare platform (https://www.omicshare.com/), respectively. The compound-target-signaling pathway network was comprehensively constructed using Cytoscape 3.7.2.

3. Results

3.1. Active Components of SR

A total of 143 components of SR were retrieved from the TCMSP database; among them, 37 components conformed to the screening standards of the DL index ≥ 0.18 and OB ≥ 30%. These 37 components were chosen as candidate active components, and the properties of the active components are shown in Table 1.

Table 1.

Information of the candidate bioactive components of Scutellariae Radix.

Molecule ID Molecule name MW OB (%) DL Herb
MOL000073 Ent-epicatechin 290.29 48.96 0.24 Scutellariae Radix
MOL000173 Wogonin 284.28 30.68 0.23 Scutellariae Radix
MOL000228 (2R)-7-hydroxy-5-methoxy-2-phenylchroman-4-one 270.30 55.23 0.20 Scutellariae Radix
MOL000358 Beta-sitosterol 414.79 36.91 0.75 Scutellariae Radix
MOL000359 Sitosterol 414.79 36.91 0.75 Scutellariae Radix
MOL000449 Stigmasterol 412.77 43.83 0.76 Scutellariae Radix
MOL000525 Norwogonin 270.25 39.40 0.21 Scutellariae Radix
MOL000552 5,2′-Dihydroxy-6,7,8-trimethoxyflavone 344.34 31.71 0.35 Scutellariae Radix
MOL001458 Coptisine 320.34 30.67 0.86 Scutellariae Radix
MOL001490 bis[(2S)-2-ethylhexyl] benzene-1,2-dicarboxylate 390.62 43.59 0.35 Scutellariae Radix
MOL001506 Supraene 410.80 33.55 0.42 Scutellariae Radix
MOL001689 Acacetin 284.28 34.97 0.24 Scutellariae Radix
MOL002714 Baicalein 270.25 33.52 0.21 Scutellariae Radix
MOL002879 Diop 390.62 43.59 0.39 Scutellariae Radix
MOL002897 Epiberberine 336.39 43.09 0.78 Scutellariae Radix
MOL002908 5,8,2′-Trihydroxy-7-methoxyflavone 300.28 37.01 0.27 Scutellariae Radix
MOL002909 5,7,2,5-Tetrahydroxy-8,6-dimethoxyflavone 376.34 33.82 0.45 Scutellariae Radix
MOL002910 Carthamidin 288.27 41.15 0.24 Scutellariae Radix
MOL002911 2,6,2′,4′-Tetrahydroxy-6′-methoxychaleone 302.30 69.04 0.22 Scutellariae Radix
MOL002913 Dihydrobaicalin_qt 272.27 40.04 0.21 Scutellariae Radix
MOL002914 Eriodyctiol (flavanone) 288.27 41.35 0.24 Scutellariae Radix
MOL002915 Salvigenin 328.34 49.07 0.33 Scutellariae Radix
MOL002917 5,2′,6′-Trihydroxy-7,8-dimethoxyflavone 330.31 45.05 0.33 Scutellariae Radix
MOL002925 5,7,2′,6′-Tetrahydroxyflavone 286.25 37.01 0.24 Scutellariae Radix
MOL002926 Dihydrooroxylin A 286.30 38.72 0.23 Scutellariae Radix
MOL002927 Skullcapflavone II 374.37 69.51 0.44 Scutellariae Radix
MOL002928 Oroxylin A 284.28 41.37 0.23 Scutellariae Radix
MOL002932 Panicolin 314.31 76.26 0.29 Scutellariae Radix
MOL002933 5,7,4′-Trihydroxy-8-methoxyflavone 300.28 36.56 0.27 Scutellariae Radix
MOL002934 Neobaicalein 374.37 104.34 0.44 Scutellariae Radix
MOL002937 Dihydrooroxylin 286.30 66.06 0.23 Scutellariae Radix
MOL008206 Moslosooflavone 298.31 44.09 0.25 Scutellariae Radix
MOL010415 11,13-Eicosadienoic acid, methyl ester 322.59 39.28 0.23 Scutellariae Radix
MOL012245 5,7,4′-Trihydroxy-6-methoxyflavanone 302.30 36.63 0.27 Scutellariae Radix
MOL012246 5,7,4′-Trihydroxy-8-methoxyflavanone 302.30 74.24 0.26 Scutellariae Radix
MOL012266 Rivularin 344.34 37.94 0.37 Scutellariae Radix
MOL002776 Baicalin 446.39 40.12 0.75 Scutellariae Radix
Open in a new tab

3.2. Prediction of the Drug Targets of SR

A total of 797 protein targets corresponding to the 37 candidate active components were obtained from the TCMID and TCMSP databases. A total of 291 targets and 506 targets were derived from the TCMSP and TCMID databases, respectively. The detailed information is shown in Supplementary Table S1. After the overlaps were removed, 368 protein targets were acquired for further analysis.

3.3. Candidate Targets of SR against HCC

A total of 566 HCC-related targets were obtained from OncoDB.HCC and Liverome databases. The detailed information of HCC-related targets is displayed in Supplementary Table S2. The targets of each candidate active component were mapped to HCC-related targets. After aggregation, 50 targets of 29 active components were acquired as candidate targets of SR for HCC treatment. The information of these 50 candidate targets is presented in Supplementary Table S3. The component-component target network of SR for HCC treatment was established (Figure 2), and it comprised 79 nodes (50 for candidate protein targets and 29 for potential active components). Of the 29 active components, 3 components, namely, wogonin (degree = 32), oroxylin A (degree = 12), and baicalein (degree = 11), and multiple HCC targets exerted high degree levels. Of the 50 protein targets, 3 that were linked to more components showed high degree levels, such as prostaglandin endoperoxide synthase 2 (PTGS2; degree = 28), heat shock protein HSP 90-alpha (HSP90AA1; degree = 25), and androgen receptor (AR; degree = 17). These candidate targets with a high degree might play an essential role in the treatment network of SR for HCC treatment.

Figure 2.

Figure 2

Open in a new tab

Compound-compound target network of Scutellariae Radix in the treatment of hepatocellular carcinoma. Red ellipse represents candidate active compounds and blue diamond represents potential protein targets.

3.4. PPI Network Construction and Analysis

A PPI network was built to predict and illuminate the relationship between the candidate protein targets and other human proteins, with 110 nodes (50 candidate protein targets and 60 other human proteins that interacted closely with candidate protein targets) and 738 edges (Figure 3). The degree of nodes ranged from 1 to 53, and the mean degree was 13.906. The core targets (hub genes) were nodes whose degree was ≥27.812. The PPI network of the core targets was constructed (Figure 4). These targets included candidate protein targets such as cellular tumor antigen p53 (TP53), cyclin D1 (CCND1), myc protooncogene protein (MYC), vascular endothelial growth factor A (VEGFA), catenin beta-1 (CTNNB1), transforming protein RhoA (RHOA), cyclin-A2 (CCNA2), AR, and HSP90AA1, and human other targets including cyclin-dependent kinase 2 (CDK2), cadherin-1 (CDH1), cyclin-dependent kinase 1 (CDK1), E1A binding protein P300 (EP300), and transcription factor AP-1 (JUN).

Figure 3.

Figure 3

Open in a new tab

Protein-protein interaction network of the compound targets of Scutellariae Radix in the treatment of hepatocellular carcinoma. Diamond represents compound target and round rectangle represents human other protein.

Figure 4.

Figure 4

Open in a new tab

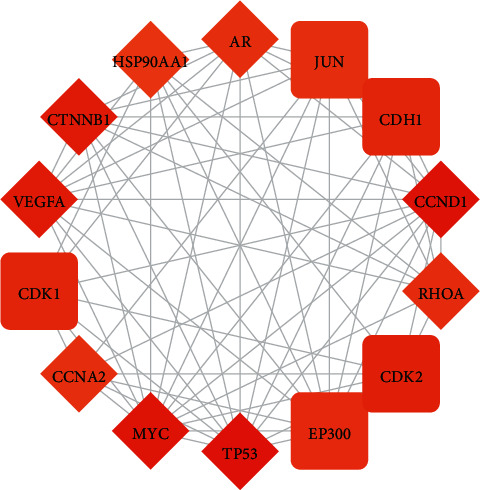

Hub targets of Scutellariae Radix in the treatment of hepatocellular carcinoma. Diamond represents compound target and round rectangle represents human other protein.

3.5. GO and KEGG Enrichment Analysis of Candidate Targets

The GO and KEGG pathways of the associated targets were analyzed using the DAVID 6.8 platform to identify the biological function and signaling pathways of 50 candidate targets of SR for HCC treatment. A total of 131 biological process (BP) terms, 23 cellular component (CC) terms, and 35 molecular function (MF) terms met the screening criteria of count ≥ 2 and P ≤ 0.05. The detailed information of GO terms is listed in Supplementary Table S4. The top 10 remarkably enriched terms in BP, CC, and MF classification are presented in Figure 5. In the light of false discovery rate (FDR) < 0.05, 13 GO terms, including 5 BP, 6 CC, and 2 MF terms, were found, suggesting that SR might regulate fibroblast proliferation and nitric oxide biosynthetic process via the serine-type endopeptidase activity and protein complex binding in the cytosol, extracellular region, and extracellular exosomes to produce the treatment action on HCC. The KEGG pathway analysis of 50 candidate targets was performed using the DAVID platform. A total of 59 pathways were distinctly enriched (P < 0.05), and the detailed information is listed in Supplementary Table S4. With the screening criteria of P < 0.01 and FDR < 0.01, top 15 remarkably enriched pathways were obtained (Figure 6). The following pathways were primarily enriched: biochemical substances involved with cancer (proteoglycans and microRNAs); pathways in cancer; human diseases associated with cancer (colorectal cancer, bladder cancer, prostate cancer, chronic myeloid leukemia, small cell lung cancer, and melanoma); diseases linked to virus infection (hepatitis B, viral carcinogenesis, and human. T-cell leukemia virus type I infection); and signal transduction pathways (PI3K-Akt, estrogen, and thyroid hormone signaling pathways).

Figure 5.

Figure 5

Open in a new tab

Gene ontology analyses of the therapeutic target genes of Scutellariae Radix in the treatment of hepatocellular carcinoma. (a) Biological process (BP), (b) cellular component (CC), and (c) molecular function (MF).

Figure 6.

Figure 6

Open in a new tab

KEGG pathway enrichment analyses of therapeutic target genes of Scutellariae Radix in the treatment of hepatocellular carcinoma.

3.6. Integrated Network Construction

Medicine plays a pharmacological role through an integrative molecular interaction network [27]. In our research, a compound-target-pathway network of SR for HCC treatment was constructed (Figure 7). This network was made up of 94 nodes (29 for components, 50 for targets, and 15 for pathways). This integrative network indicated that the antitumor effect of SR on HCC might be attributed to the active components (wogonin, oroxylin A, and baicalein) acting on candidate protein targets (PTGS2, HSP90AA1, AR, TP53, GTPase KRas (KRAS), phosphatidylinositol 4,5-bisphosphate 3-kinase catalytic subunit gamma isoform (PIK3CG), and CCND1) that regulate key pathways (pathways in cancer, proteoglycans or microRNAs in cancer, hepatitis B, and PI3K-Akt signaling pathway) to affect the survival of HCC cells.

Figure 7.

Figure 7

Open in a new tab

Compound-target-signaling pathway network of Scutellariae Radix on hepatocellular carcinoma. Red ellipse stands for candidate active compound, blue diamond stands for compound target, and purple hexagon stands for pathway.

4. Discussion

HCC is a disease with high mortality but without effective drugs for most patients. Herbal medicine has been used to treat human diseases for thousands of years and considered a real treasure source for drug development. Network pharmacology is a new discipline associated with pharmacy, medical science, computer science, and bioinformatics. It provides a platform related to the concept of systems biology, which is suitable for CHM research [28]. Therefore, new drug information should be developed through drug-target-disease network analysis.

Herbal medicine is a complex system composed of multiple compounds. The compounds with suitable pharmacokinetic properties (OB ≥ 30% and DL index ≥ 0.18) were thought to be potential bioactive compounds. The targets of these potential bioactive components were mapped with HCC targets to acquire the targets of SR for HCC treatment. The compound-compound target network was constructed to explore which components of SR act on their corresponding targets to treat HCC. These results revealed that wogonin, oroxylin A, and baicalein were three components with high degrees, and they were consistent with previous findings [29], which suggested that wogonin, oroxylin A, baicalein, and their glucuronide/sulfate-conjugated metabolites were the main active components in the liver and tumors. In general, baicalein is one of the most significant components of SR and has been developed into a new drug to treat hepatitis in clinical settings. Reviews [30] and network pharmacology [17] studies on the action of baicalein against HCC have been reported. Baicalein decreased the expression of AKT, beta-catenin (CTNNB1), and cyclin D1 (CCND1), leading to the cell cycle arrest [31] and inhibiting the proliferation of HCC cells by suppressing the PI3K-Akt pathway [32]. By comparison, fewer studies on oroxylin A and wogonin have been performed. Notably, about 34%–63% of baicalin was methylated to oroxylin A in various organs during absorption. Oroxylin A triggered the apoptosis of HCC cell line HepG2 by inactivating AKT signaling [33] or regulating glucose metabolism [34]. Wogonin can regulate the activation of hepatic stellate cells and their apoptosis to attenuate liver fibrosis, which is an important pathological process in the progression of liver cancer [35]. Wogonin inhibits the cell cycle progression and migration [36] and induces the apoptosis of HCC cells [37]. It is an attractive new anticancer and antihepatitis B virus [38] drug candidate and is being developed with other drugs as a targeted therapy for HCC [39, 40]. The major active components, including wogonin, oroxylin A, and baicalein, in SR can inhibit the proliferation of HCC cells by regulating the PI3K-Akt signaling pathway [32, 33]. Oroxylin A and wogonin have a synergistic effect when they are combined with 5-fluorouracil in HCC cells [41–43]. PTGS2, HSP90AA1, and AR were the top three high-degree targets. PTGS2 can serve as one of the biomarkers on account of aberrant methylation for the precise treatment of HCC [44]. Notably, ketoconazole is regarded as a potential therapeutic choice for HCC treatment by acting on PTGS2 [45]. HSP90AA1 is a candidate diagnostic and prognostic biomarker for HCC [46]. HSP90 can promote glycolysis and attenuate the apoptosis of HCC cells by affecting pyruvate kinase M2 [47]. AR has been considered in relation to the pathogenesis of HCC, which is a male-dominant cancer. A high mRNA of AR is frequently involved with a better survival of HCC [48].

The compound-compound target network indicated the potential direct protein targets. The PPI network revealed the relationship between the candidate targets and other human targets and suggested the change in potential biological functions through the PPI. With topology analysis, the core targets, including candidate protein targets and human other targets, were found. The degree of the nodes suggested their significance and the relation with other nodes. The core targets were the nodes whose degree was more than twice the mean degree of the nodes in the PPI network. These targets included candidate protein targets (TP53, CCND1, MYC, VEGFA, CTNNB1, RHOA, CCNA2, AR, and HSP90AA1) and human other targets (CDK2, CDH1, CDK1, EP300, and JUN). The mutation of TP53 (cellular tumor antigen p53) and CCND1 (G1/S-specific cyclin-D1), serving as tumor suppressors associated with cell cycle regulation, is regarded as drivers of HCC development [49]. VEGFA, a growth factor active in angiogenesis and endothelial cell growth, can increase endothelial cell proliferation and reduce the apoptosis of blood vessels. Myc protooncogene protein is a transcription factor that promotes VEGFA production and subsequent angiogenesis. The transforming protein RhoA is a small GTPase that is frequently upregulated in HCC linked to poor prognosis [50]. CDK1 and CDK2 play an essential role in the regulation of the cell cycle with multiple interphase cyclins. CCNA2 interferes with the G1/S and G2/M phases of the cell cycle by activating CDK1 and CDK2. EP300, acting as a histone acetyltransferase, regulates transcription via chromatin remodeling and is related to the poor prognosis of HCC [51]. JUN function as a transcription factor specifically increased in HBV-related HCC [52]. In summary, these targets are mostly involved with the cell proliferation, metastasis, and survival of patients with HCC.

GO function annotation was performed to acquire the biological information from BP, CC, and MF aspects. BP, CC, and MF, respectively, display a series of events produced by the orderly combination of molecules, cellular localization, and molecular activity of the target proteins. In this study, BP involved events such as responses to drugs or estradiol, regulation of fibroblast proliferation, regulation of nitric oxide biosynthesis, and mammary gland alveolus development. CC indicated that these candidate targets were mainly localized in the extracellular region and the protein complex. MF showed a serine-type endopeptidase activity and protein complex binding. The KEGG pathway is a set of pathway maps depicting our understanding on molecular interactions and relationship networks. The results of the KEGG pathway enrichment showed that the candidate targets were remarkably enriched on pathways in cancer, hepatitis B, viral carcinogenesis, PI3K-Akt signaling pathway, and so on. Twenty-two targets were enriched in pathways in cancer (Figure 8), which contained AR signaling pathway, PI3K-Akt signaling pathway, MAPK signaling pathway, estrogen signaling pathway, p53 signaling pathway, and cell cycle. Among these targets, TP53, KRAS, MYC, and CCND1 were the vital targets existing in the crosstalk with other signaling pathways that regulate the cycle, proliferation, and apoptosis of cancer cells. Moreover, the AR and estrogen signaling pathways indicated the significant role of hormones in HCC, as HCC occurs in men more often than it does in women. Hepatitis B is a predominant reason leading to HCC, and the therapeutic effect of SR on HCC may be associated with its antiviral effect. Thirteen potential targets were enriched in the PI3K-Akt signaling pathway, which plays a crucial role in the occurrence and development of HCC [53].

Figure 8.

Figure 8

Open in a new tab

Pathways in cancer regulated by Scutellariae Radix on hepatocellular carcinoma.

Network pharmacology is an essential field providing a vital approach for ascertaining novel targets for rational drug discovery. Different from conventional drug discovery approaches which are commonly based on specific targeting of single proteins, network pharmacology focuses on drug targets concerning myriads of proteins involved in a disease. Network pharmacology helps to build pragmatic network models and predict drug targets on the basis of public databases. Additionally, it also facilitates the establishment of drug-target-disease network models using bioinformatics and high-throughput screening. The application of network pharmacology for the design of potent anticancer drug combinations has been demonstrated [54]. Therefore, network pharmacology approaches may revolutionize future drug discovery and development.

5. Conclusion

In the current study, network pharmacology was applied to characterize the mechanism of SR for HCC treatment. Integrated compound-target-pathway network analysis displayed the candidate active components (such as wogonin, oroxylin A, and baicalein) exerted their antitumor effect by regulating pathways in cancer, hepatitis B, viral carcinogenesis, PI3K-Akt signaling, and so on. This holistic approach can provide novel insights into the mechanistic study and therapeutic drug development of herbal medicine on HCC.

Acknowledgments

This work was funded by the National Natural Science Foundation of China (nos. 81803826 and 81803832).

Data Availability

The data used to support the findings of this study are included within the article and the supplementary materials.

Conflicts of Interest

The authors declare that there are no conflicts of interest.

Authors' Contributions

Peng Jiang designed the research. Qian Wang analyzed the data and wrote the paper. Yan Liang and Can Peng helped to write the revised manuscript. All authors read and approved the submitted version.

Supplementary Materials

Supplementary Materials

Supplementary Table S1: targets of candidate active components in Scutellariae Radix. Supplementary Table S2: the detailed information of 566 HCC-related human genes. Supplementary Table S3: candidate targets of Scutellariae Radix against HCC. Supplementary Table S4: results of GO and KEGG pathway analysis using DAVID database.

Click here for additional data file. (121.1KB, zip)

References

  • 1.Frizziero M., McNamara M. G., Lamarca A., Pihlak R., Kurup R., Hubner R. A. Current translational and clinical challenges in advanced hepatocellular carcinoma. Current Medicinal Chemistry. 2020;27(29):4789–4805. doi: 10.2174/0929867327666200422143847. [DOI] [PubMed] [Google Scholar]
  • 2.Global Burden of Disease Liver Cancer C., Akinyemiju T., Abera S. The burden of primary liver cancer and underlying etiologies from 1990 to 2015 at the global, regional, and national level: results from the global burden of disease study 2015. JAMA Oncology. 2017;3(12):1683–1691. doi: 10.1001/jamaoncol.2017.3055. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Llovet J. M., Villanueva A., Lachenmayer A., Finn R. S. Erratum: advances in targeted therapies for hepatocellular carcinoma in the genomic era. Nature Reviews Clinical Oncology. 2015;12(8):p. 436. doi: 10.1038/nrclinonc.2015.121. [DOI] [PubMed] [Google Scholar]
  • 4.Mazzoccoli G., Miele L., Oben J., Grieco A., Vinciguerra M. Biology, epidemiology, clinical aspects of hepatocellular carcinoma and the role of sorafenib. Current Drug Targets. 2016;17(7):783–799. doi: 10.2174/1389450117666151209120831. [DOI] [PubMed] [Google Scholar]
  • 5.Li Y., Gao Z.-H., Qu X.-J. The adverse effects of sorafenib in patients with advanced cancers. Basic & Clinical Pharmacology & Toxicology. 2015;116(3):216–221. doi: 10.1111/bcpt.12365. [DOI] [PubMed] [Google Scholar]
  • 6.Yang Z., Liao X., Lu Y. Add-on therapy with traditional Chinese medicine improves outcomes and reduces adverse events in hepatocellular carcinoma: a meta-analysis of randomized controlled trials. Evidence-Based Complementary and Alternative Medicine. 2017;2017 doi: 10.1155/2017/3428253.3428253 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Wang C.-Y., Bai X.-Y., Wang C.-H. Traditional Chinese medicine: a treasured natural resource of anticancer drug research and development. The American Journal of Chinese Medicine. 2014;42(03):543–559. doi: 10.1142/s0192415x14500359. [DOI] [PubMed] [Google Scholar]
  • 8.Zhang Y., Liang Y., He C. Anticancer activities and mechanisms of heat-clearing and detoxicating traditional Chinese herbal medicine. Chinese Medicine. 2017;12:p. 20. doi: 10.1186/s13020-017-0140-2. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Yan Z., Lai Z., Lin J. Anticancer properties of traditional Chinese medicine. Combinatorial Chemistry & High Throughput Screening. 2017;20(5):423–429. doi: 10.2174/1386207320666170116141818. [DOI] [PubMed] [Google Scholar]
  • 10.Choi B.-B., Choi J. H., Park S.-R., Kim J.-Y., Hong J.-W., Kim G.-C. Scutellariae radixInduces apoptosis in chemoresistant SCC-25 human tongue squamous carcinoma cells. The American Journal of Chinese Medicine. 2015;43(01):167–181. doi: 10.1142/s0192415x15500111. [DOI] [PubMed] [Google Scholar]
  • 11.Liu J., Wang H., Wang J., et al. Total flavonoid aglycones extract in Radix Scutellariae induces cross-regulation between autophagy and apoptosis in pancreatic cancer cells. Journal of Ethnopharmacology. 2019;235:133–140. doi: 10.1016/j.jep.2019.02.005. [DOI] [PubMed] [Google Scholar]
  • 12.Wang Y., Yin S., Zhou Y., et al. Dual-function of baicalin in nsPEFs-treated hepatocytes and hepatocellular carcinoma cells for different death pathway and mitochondrial response. International Journal of Medical Sciences. 2019;16(9):1271–1282. doi: 10.7150/ijms.34876. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Chiu Y.-W., Lin T.-H., Huang W.-S., et al. Baicalein inhibits the migration and invasive properties of human hepatoma cells. Toxicology and Applied Pharmacology. 2011;255(3):316–326. doi: 10.1016/j.taap.2011.07.008. [DOI] [PubMed] [Google Scholar]
  • 14.Ke M., Zhang Z., Xu B. Baicalein and baicalin promote antitumor immunity by suppressing PD-L1 expression in hepatocellular carcinoma cells. International Immunopharmacology. 2019;75 doi: 10.1016/j.intimp.2019.105824.105824 [DOI] [PubMed] [Google Scholar]
  • 15.Li S., Zhang B. Traditional Chinese medicine network pharmacology: theory, methodology and application. Chinese Journal of Natural Medicines. 2013;11(2):110–120. doi: 10.1016/s1875-5364(13)60037-0. [DOI] [PubMed] [Google Scholar]
  • 16.Zhou Z., Chen B., Chen S. Applications of network pharmacology in traditional Chinese medicine research. Evidence-Based Complementary and Alternative Medicine. 2020;2020 doi: 10.1155/2020/1646905.1646905 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Ma C., Xu T., Sun X. Network pharmacology and bioinformatics approach reveals the therapeutic mechanism of action of baicalein in hepatocellular carcinoma. Evidence-Based Complementary and Alternative Medicine. 2019;2019 doi: 10.1155/2019/7518374.7518374 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Gong B., Kao Y., Zhang C., Sun F., Zhao H. Systematic investigation of Scutellariae barbatae herba for treating hepatocellular carcinoma based on network pharmacology. Evidence-Based Complementary and Alternative Medicine. 2018;2018 doi: 10.1155/2018/4365739.4365739 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Huang J., Guo W., Cheung F., Tan H.-Y., Wang N., Feng Y. Integrating network pharmacology and experimental models to investigate the efficacy of coptidis and scutellaria containing huanglian jiedu decoction on hepatocellular carcinoma. The American Journal of Chinese Medicine. 2020;48(01):161–182. doi: 10.1142/s0192415x20500093. [DOI] [PubMed] [Google Scholar]
  • 20.Kim B. Y., Song K. H., Lim C. Y., Cho S. I. Therapeutic properties of scutellaria baicalensis in DB/DB mice evaluated using connectivity map and network pharmacology. Scientific Reports. 2017;7:p. 41711. doi: 10.1038/srep41711. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Ru J., Li P., Wang J. TCMSP: a database of systems pharmacology for drug discovery from herbal medicines. Journal of Cheminformatics. 2014;6:p. 13. doi: 10.1186/1758-2946-6-13. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Lee L., Wang K., Li G. Liverome: a curated database of liver cancer-related gene signatures with self-contained context information. BMC Genomics. 2011;12(3):p. S3. doi: 10.1186/1471-2164-12-s3-s3. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Su C.-T., Chen C.-Y., Hsu C.-M., Chen D. S., Chen P. J., Jou Y. S. iPDA: integrated protein disorder analyzer. Nucleic Acids Research. 2007;35:W465–W472. doi: 10.1093/nar/gkl845. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Szklarczyk D., Morris J. H., Cook H., et al. The STRING database in 2017: quality-controlled protein-protein association networks, made broadly accessible. Nucleic Acids Research. 2017;45(D1):D362–D368. doi: 10.1093/nar/gkw937. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.de Jong H., Geiselmann J., Hernandez C., Page M. Genetic network analyzer: qualitative simulation of genetic regulatory networks. Bioinformatics. 2003;19(3):336–344. doi: 10.1093/bioinformatics/btf851. [DOI] [PubMed] [Google Scholar]
  • 26.Huang D. W., Sherman B. T., Lempicki R. A. Systematic and integrative analysis of large gene lists using DAVID bioinformatics resources. Nature Protocols. 2009;4(1):44–57. doi: 10.1038/nprot.2008.211. [DOI] [PubMed] [Google Scholar]
  • 27.Kumar A., Butler B. M., Kumar S., Ozkan S. B. Integration of structural dynamics and molecular evolution via protein interaction networks: a new era in genomic medicine. Current Opinion in Structural Biology. 2015;35:135–142. doi: 10.1016/j.sbi.2015.11.002. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Yang M., Chen J. L., Xu L. W., Ji G. Navigating traditional Chinese medicine network pharmacology and computational tools. Evidence-Based Complementary and Alternative Medicine. 2013;2013 doi: 10.1155/2013/731969.731969 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Lu Q.-Y., Zhang L., Moro A., et al. Detection of baicalin metabolites baicalein and oroxylin-a in mouse pancreas and pancreatic xenografts. Pancreas. 2012;41(4):571–576. doi: 10.1097/mpa.0b013e318232e130. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Bie B., Sun J., Guo Y., et al. Baicalein: a review of its anti-cancer effects and mechanisms in Hepatocellular Carcinoma. Biomedicine & Pharmacotherapy. 2017;93:1285–1291. doi: 10.1016/j.biopha.2017.07.068. [DOI] [PubMed] [Google Scholar]
  • 31.Zheng Y.-H., Yin L.-H., Grahn T. H. M., Ye A.-F., Zhao Y.-R., Zhang Q.-Y. Anticancer effects of baicalein on hepatocellular carcinoma cells. Phytotherapy Research. 2014;28(9):1342–1348. doi: 10.1002/ptr.5135. [DOI] [PubMed] [Google Scholar]
  • 32.Bie B., Sun J., Li J., et al. Baicalein, a natural anti-cancer compound, alters microrna expression profiles in bel-7402 human hepatocellular carcinoma cells. Cellular Physiology and Biochemistry. 2017;41(4):1519–1531. doi: 10.1159/000470815. [DOI] [PubMed] [Google Scholar]
  • 33.Xu M., Lu N., Sun Z., et al. Activation of the unfolded protein response contributed to the selective cytotoxicity of oroxylin A in human hepatocellular carcinoma HepG2 cells. Toxicology Letters. 2012;212(2):113–125. doi: 10.1016/j.toxlet.2012.05.008. [DOI] [PubMed] [Google Scholar]
  • 34.Dai Q., Yin Y., Liu W., et al. Two p53-related metabolic regulators, TIGAR and SCO2, contribute to oroxylin A-mediated glucose metabolism in human hepatoma HepG2 cells. The International Journal of Biochemistry & Cell Biology. 2013;45(7):1468–1478. doi: 10.1016/j.biocel.2013.04.015. [DOI] [PubMed] [Google Scholar]
  • 35.Du X. S., Li H. D., Yang X. J. Wogonin attenuates liver fibrosis via regulating hepatic stellate cell activation and apoptosis. International Immunopharmacology. 2019;75 doi: 10.1016/j.intimp.2019.05.056.105671 [DOI] [PubMed] [Google Scholar]
  • 36.Hong M., Cheng H., Song L. Wogonin suppresses the activity of matrix metalloproteinase-9 and inhibits migration and invasion in human hepatocellular carcinoma. Molecules. 2018;23(2) doi: 10.3390/molecules23020384. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Hong M., Almutairi M. M., Li S., Li J. Wogonin inhibits cell cycle progression by activating the glycogen synthase kinase-3 beta in hepatocellular carcinoma. Phytomedicine. 2020;68 doi: 10.1016/j.phymed.2020.153174.153174 [DOI] [PubMed] [Google Scholar]
  • 38.Guo Q., Zhao L., You Q., et al. Anti-hepatitis B virus activity of wogonin in vitro and in vivo. Antiviral Research. 2007;74(1):16–24. doi: 10.1016/j.antiviral.2007.01.002. [DOI] [PubMed] [Google Scholar]
  • 39.Tian J., Wang L., Wang L., Ke X. A wogonin-loaded glycyrrhetinic acid-modified liposome for hepatic targeting with anti-tumor effects. Drug Delivery. 2014;21(7):553–559. doi: 10.3109/10717544.2013.853850. [DOI] [PubMed] [Google Scholar]
  • 40.Rong L.-W., Wang R.-X., Zheng X.-L., et al. Combination of wogonin and sorafenib effectively kills human hepatocellular carcinoma cells through apoptosis potentiation and autophagy inhibition. Oncology Letters. 2017;13(6):5028–5034. doi: 10.3892/ol.2017.6059. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 41.Zhao L., Chen Z., Wang J., et al. Synergistic effect of 5-fluorouracil and the flavanoid oroxylin A on HepG2 human hepatocellular carcinoma and on H22 transplanted mice. Cancer Chemotherapy and Pharmacology. 2010;65(3):481–489. doi: 10.1007/s00280-009-1053-2. [DOI] [PubMed] [Google Scholar]
  • 42.Zhao L., Sha Y.-Y., Zhao Q., et al. Enhanced 5-fluorouracil cytotoxicity in high COX-2 expressing hepatocellular carcinoma cells by wogonin via the PI3K/Akt pathway. Biochemistry and Cell Biology. 2013;91(4):221–229. doi: 10.1139/bcb-2012-0077. [DOI] [PubMed] [Google Scholar]
  • 43.Xu M., Lu N., Zhang H., et al. Wogonin induced cytotoxicity in human hepatocellular carcinoma cells by activation of unfolded protein response and inactivation of AKT. Hepatology Research. 2013;43(8):890–905. doi: 10.1111/hepr.12036. [DOI] [PubMed] [Google Scholar]
  • 44.Sang L., Wang X.-M., Xu D.-Y., Zhao W.-J. Bioinformatics analysis of aberrantly methylated-differentially expressed genes and pathways in hepatocellular carcinoma. World Journal of Gastroenterology. 2018;24(24):2605–2616. doi: 10.3748/wjg.v24.i24.2605. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 45.Chen H.-N., Chen Y., Zhou Z.-G., Wei Y., Huang C. A novel role for ketoconazole in hepatocellular carcinoma treatment: linking PTGS2 to mitophagy machinery. Autophagy. 2019;15(4):733–734. doi: 10.1080/15548627.2019.1569934. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 46.Chen W., Li G., Peng J., Dai W., Su Q., He Y. Transcriptomic analysis reveals that heat shock protein 90α is a potential diagnostic and prognostic biomarker for cancer. European Journal of Cancer Prevention. 2019;29(4):357–364. doi: 10.1097/cej.0000000000000549. [DOI] [PubMed] [Google Scholar]
  • 47.Xu Q., Tu J., Dou C. HSP90 promotes cell glycolysis, proliferation and inhibits apoptosis by regulating PKM2 abundance via Thr-328 phosphorylation in hepatocellular carcinoma. Molecular Cancer. 2017;16(1):p. 178. doi: 10.1186/s12943-017-0748-y. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 48.Hu C., Fang D., Xu H., Wang Q., Xia H. The androgen receptor expression and association with patient’s survival in different cancers. Genomics. 2020;112(2):1926–1940. doi: 10.1016/j.ygeno.2019.11.005. [DOI] [PubMed] [Google Scholar]
  • 49.Lombardo D., Saitta C., Giosa D. Frequency of somatic mutations in TERT promoter, TP53 and CTNNB1 genes in patients with hepatocellular carcinoma from Southern Italy. Oncology Letters. 2020;19(3):2368–2374. doi: 10.3892/ol.2020.11332. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 50.Bai Y., Xie F., Miao F., et al. The diagnostic and prognostic role of RhoA in hepatocellular carcinoma. Aging. 2019;11(14):5158–5172. doi: 10.18632/aging.102110. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 51.Tsang F. H., Law C. T., Tang T. C., et al. Aberrant super-enhancer landscape in human hepatocellular carcinoma. Hepatology (Baltimore, Md.) 2019;69(6):2502–2517. doi: 10.1002/hep.30544. [DOI] [PubMed] [Google Scholar]
  • 52.Trierweiler C., Hockenjos B., Zatloukal K., et al. The transcription factor c-JUN/AP-1 promotes HBV-related liver tumorigenesis in mice. Cell Death & Differentiation. 2016;23(4):576–582. doi: 10.1038/cdd.2015.121. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 53.Dimri M., Satyanarayana A. Molecular signaling pathways and therapeutic targets in hepatocellular carcinoma. Cancers. 2020;12(2) doi: 10.3390/cancers12020491. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 54.Azmi A. S., Wang Z., Philip P. A., Mohammad R. M., Sarkar F. H. Proof of concept: network and systems biology approaches aid in the discovery of potent anticancer drug combinations. Molecular Cancer Therapeutics. 2010;9(12):3137–3144. doi: 10.1158/1535-7163.mct-10-0642. [DOI] [PMC free article] [PubMed] [Google Scholar]
