Targeted Therapy of Cognitive Deficits in Fragile X Syndrome

Abstract

Breaking an impasse in finding mechanism-based therapies of neuropsychiatric disorders requires a strategic shift towards alleviating individual symptoms. Here we present a symptom and circuit-specific approach to rescue deficits of reward learning in Fmr1 knockout mice, a model of Fragile X syndrome (FXS), the most common monogenetic cause of inherited mental disability and autism. We use high-throughput, ecologically-relevant automated tests of cognition and social behavior to assess effectiveness of the circuit-targeted injections of designer nanoparticles, loaded with TIMP metalloproteinase inhibitor 1 protein (TIMP-1). Further, to investigate the impact of our therapeutic strategy on neuronal plasticity we perform long-term potentiation recordings and high-resolution electron microscopy. We show that central amygdala-targeted delivery of TIMP-1 designer nanoparticles reverses impaired cognition in Fmr1 knockouts, while having no impact on deficits of social behavior, hence corroborating symptom-specificity of the proposed approach. Moreover, we elucidate the neural correlates of the highly specific behavioral rescue by showing that the applied therapeutic intervention restores functional synaptic plasticity and ultrastructure of neurons in the central amygdala. Thus, we present a targeted, symptom-specific and mechanism-based strategy to remedy cognitive deficits in Fragile X syndrome.

Introduction

Contemporary psychiatry struggles with proposing effective, mechanism/neuronal circuit-based therapies of neurodevelopmental disorders [1]. The major problem to be solved is the heterogeneity of symptoms displayed by people with the same diagnosis. Even in diseases of a well-known genetic origin, such as Fragile X Syndrome (FXS) resulting from the loss of function mutations of FMR1 gene, symptoms vary from patient to patient [2–5]. Thus, it is crucial to be able to treat particular deficits, rather than elusive FXS phenotype as a whole. To accelerate the search for effective treatments, a shift of focus towards appreciation of the individual phenotype is needed. Such approach is recommended by the National Institute of Mental Health in the current Research Domain Criteria (RDoC) framework [6]. Here we propose a symptom- and neuronal circuit-specific, a mechanism-based strategy to rescue cognitive deficits in a well-validated mouse model of FXS, the Fmr1 knock-out mice (KO).

FXS is the most common monogenetic cause of inherited mental disability and autism, with a wide range of symptoms in cognitive and social domains [2]. FXS patients and Fmr1 KO animals lack a fully functional copy of Fmr1 gene. This leads to the deficiency of its product, the FMRP protein, a key translation suppressor of numerous synaptic molecules, resulting in their upregulation. One of the upregulated proteins is matrix metalloproteinase-9 (MMP-9) [7], a locally translated enzyme, involved in the activity-dependent reorganization of the dendritic spine architecture necessary for memory formation and learning [8–13]. The critical role of MMP-9 hyperactivity in the manifestation of FXS symptoms [14, 15] sparked several attempts to regulate enzyme’s levels in both, Fmr1 KO animals and FXS patients [16–21]. Among the most promising were the crossing of the Fmr1 KO and the Mmp9 KO mice [22] and treatment trials with minocycline, a wide spectrum antibiotic that unselectively inhibits MMP-9 expression and activity [15, 23, 24]. Importantly, some clinical trials have reported that minocycline has beneficial effects on reducing symptoms in FXS subjects [25–28]. Although described attempts show that inhibition of overly active MMP-9 is a promising strategy for alleviating FXS symptoms, long term minocycline treatment has pernicious side effects [29–31] and thus cannot be considered a conceivable permanent treatment.

The convergence of progress in targeted inhibition of matrix metalloproteinases [32–34] and automated behavioral testing, which enables a reliable, high-throughput assessment of FXS phenotypes, has raised a possibility of evaluating such new therapeutic strategies. Here we combine a designer tissue inhibitor of metalloproteinases (TIMP-1) delivery system with long-term potentiation (LTP) experiments, and high-resolution electron microscopy, to test the effects of the treatment at the level of functional neuronal circuit. TIMP-1 is an enzyme inhibiting the activity of matrix metalloproteinases, i.a. MMP-9 and disintegrin-metalloproteinases [35–38]. The former determines its key role in regulation of the extracellular matrix composition and function [33, 34]. Here we use the TIMP-1-loaded designer nanoparticles to evoke the non-selective MMP-9 inhibition, resembling that resulting from the minocycline treatment, however, limited to a particular neuronal circuit and thus of a targeted character. Further, we elucidate how this symptom- and circuit-specific approach, aimed at the relevant molecular mechanism, constitutes an advance in rescuing FXS phenotypes.

Our approach combines the innovative phenotype assessment with a pharmacological intervention of a translational potential, the use of designer nanoparticles (NPs). Indeed, targeted nanoparticles are already considered a promising tool in diagnosis and treatment of cancer [39–42] and some autoimmune diseases [43–46]. Here we use NPs to selectively deliver TIMP-1 into the central amygdala (CeA), where the protein is then gradually released from the polymer over several days, thus mimicking prolonged drug delivery. As shown by Chaturvedi at al., over 50% of the inhibitor load is released after 5 days from its delivery. Then TIMP-1 cumulative release plateaus on day 8th at around 70% and is sustained at this level for the next two weeks[34]. Due to employment of fully automated behavioral testing we are able to design protocols measuring cognition and social interaction narrowed to that period. Finally, the NP’s are fluorescently tagged with FITC allowing for the precise verification of the drug-release site.

We show that local, CeA-restricted, release of TIMP-1 not only ameliorates severe deficits of reward learning in Fmr1 KOs, but also normalizes the circuit physiology, ultrastructure of synapses and dendritic spines. Our intervention restores functional neuronal plasticity and synaptic morphology within the CeA. As previously shown, abnormal activity of MMP-9 in the CeA selectively disrupts cognitive abilities based on reward learning [47]. Moreover, it was discovered that the basolateral-CeA circuits play a critical role in promoting appetitive behavior [48]. Notably, applied therapeutic strategy has no impact on impaired social behavior, corroborating symptom-specificity of the proposed approach.

Materials and Methods

For a more detailed description of the Materials and Methods please see Supplementary Information.

Animals

Animals were treated in accordance with the ethical standards of the European Union (directive no. 2010/63/UE) and Polish regulations. All experimental procedures were pre-approved by the Local Ethics Committee. Fmr1 KO mice of the FVB strain (FVB.129P-Fmr1^tm1Rbd/J) and respective littermate controls were bred at the Animal House of the Nencki Institute of Experimental Biology, Poland. Since male Fmr1 KOs showed high levels of aggression females were used in all experiments. Mice were 2-months-old at the beginning of the experimental procedures. The number of animals used in particular experiments is reported in the figures’ descriptions. For details on housing conditions and electronic tagging protocol please refer to the Supplementary Information.

Poly(DL-lactide-co-glycolide) nanoparticles containing TIMP-1 or BSA

To deliver TIMP-1, a non-selective endogenous MMP-9 inhibitor, to the CeA, we used poly(DL-lactide-co-glycolide) (PLGA) nanoparticles (NPs, 19,20). NPs gradually release TIMP-1 in the tissue, reducing MMP-9 activity for at least several days [34]. As described by Chaturvedi et. al. multiple emulsion and solvent evaporations were applied for synthesis of TIMP-1 or BSA-loaded (control conditions) PLGA NPs (MW 45,000–75,000; copolymer ratio, 50:50; Sigma-Aldrich). 5 ml dichloromethane was used to dissolve 100 mg of PLGA (50:50) and 4 mg of dimethyl tartaric acid (Sigma-Aldrich). To facilitate the release of TIMP-1 or BSA encapsulated in the NPs dimethyl tartaric acid was used. One mg of TIMP-1 or 1 mg of BSA (Sigma-Aldrich) was dissolved in 500 μl of MiliQ water and BSA was used to stabilize the encapsulated enzyme and prevent it from interfacial inactivation. FITC was encapsulated in NPs along with the respective proteins to localize the injection site after the NPs had been delivered to the brain. Next, to make a primary emulsion, a probe sonicator was used to emulsify the protein solution in to dichloromethane containing PLGA. This primary emulsion was further emulsified in 20 ml of 1% polyvinyl alcohol (on average MW 30,000–70,000; Sigma-Aldrich) in MiliQ water. To evaporate dichloromethane, the solution was stirred in RT o/n. Afterwards NPs were collected by centrifugation at 10,000×g and washed three times with MiliQ water. To obtain a ready-to-use solution, NPs were dissolved in PBS and stored at 4° C.

Stereotaxic surgeries

We delivered NPs into the CeA (coordinates AP: −1.1 mm; LM: ±2.6 mm; DV: −5.3 mm) bilaterally with a Nanofil 26G beveled needle. After surgery, mice were placed in the home cages and singly-housed for the next 48-72 h, before being returned to their experimental cohort. For more details of this protocol please see Supplementary Information.

In-situ zymography

Five days after surgeries brain slices from Fmr1 KO and WT mice were first pre-incubated in water at 37°C for 100 min, and then overlaid with a fluorogenic substrate DQ™-gelatin (Thermo Fisher, United States) diluted 1:100 in the buffer supplied by the manufacturer. DQ gelatin was used to detect MMP-9 activity in vitro with high sensitivity. Upon proteolytic digestion, bright green fluorescence revealed MMP-9 gelatinase activity. Finally, the slides were washed with PBS, dried overnight and mounted (Fluoromount-G, SouthernBiotech, United States), and subsequently imaged under the Nikon Eclipse Ni microscope. Fluorescence intensity was measured in ImageJ software. For more details of this protocol please see Supplementary Information.

Detection of MMP-9 activity with a A580 MMP Substrate 1

Five days after surgery mice were anesthetized with isoflurane and decapitated. The brains were removed and sliced using a Leica VT1200s vibratome in 4°C artificial cerebrospinal fluid (ACSF) of the following composition (in mM): 119 NaCl, 2.5 KCl, 2 MgSO₄, 2 CaCl₂, 1.25 NaH₂PO₄, 26 NaHCO₃, 10 D-glucose equilibrated with 95% O₂/5% CO₂ gas composition. 150-μm-thick coronal slices containing CeA were collected and incubated for 30 min in ACSF with A580 MMP Substrate 1 (1 μg/ml, Anaspec) at RT. A580 MMP Substrate 1 is a small synthetic peptide (QXL 570 - KPLA - Nva - Dap(5 - TAMRA) - AR - NH2) in which fluorescence emission is blocked by the intramolecular quenching (from TAMRA to QXL). When the peptide is cleaved by MMP2/9, intramolecular FRET is disrupted, causing emission of fluorescence following excitation at 545 nm. After incubation with biosensor, the slices were washed in ACSF and fixed in 4% PFA for 3 hours and washed 3x in PBS, mounted on slides and covered with Fluoromount-G with DAPI (Invitrogen). Regions of interest, that is square-shaped areas of approx. 120x120 μm inside of the central amygdala were imaged as z-stacks with 63x oil objective on ZEISS Spinning DISC confocal microscope (488nm channel to localize sites of the NPs injections as tagged with FITC, and 555nm channel for the signal of A580 MMP Substrate 1) and subjected to the analysis. Image analysis was performed with ImageJ. The threshold settings were normalized to the background of each image individually. The signal area was measured based on maximum intensity projection of z-stacks [49].

High throughput, automated and ecologically-relevant behavioral testing

Cognitive assessment - reward learning

Fmr1 KO and WT animals injected with the NPs releasing TIMP-1 or BSA were subjected to a 15-day IntelliCage protocol during which they were continuously housed in the system in cohorts of 7-12 mice. During that time animals had unconstrained and unlimited access to all the conditioning units placed in the corners of the IntelliCage apparatus. The protocol was divided in two parts separated by a 3-day period of surgery and recovery. First, animals were adapted to the experimental environment during a ‘simple adaptation’ phase (4 days), ‘nosepoke adaptation’ phase (2 days), and ‘preparatory place learning’ phase (3 days). At this time all drinking bottles contained tap water. During ‘simple adaptation’, doors in all conditioning units (corners) were open and access to water was unrestricted. During the following ‘nosepoke adaptation’, all doors were closed by default and opened when an animal put its snout (nosepoke response) into one of the two holes on the operant learning chamber’s walls. The door remained open as long as the animal kept its snout in the hole, regardless of drinking behavior. During ‘preparatory place learning’, access to drinking bottles was restricted to a single conditioning unit. A chamber with access to water was assigned randomly, with no more than 3 mice drinking from the same conditioning unit. Such design has been shown to limit social modulation of learning [50]. Additionally, due to the design of the entrances (a short tube-shaped corridors, approx. 4cm in diameter) only one animal was able to get into the conditional unit at a time. Since only 3 mice from the tested groups were assigned to be able to obtain the reward by nosepoking in each of the units and they could enter them whenever they were free over the course of the entire day-light cycle for 5 subsequent days the competition for the resources was practically nonexistent.

Next, animals were subjected to the stereotaxic surgery during which TIMP-1- or BSA-loaded NPs were bilaterally injected into the CA. After surgery animals were singly-housed for 72 hours to ensure recovery. Afterwards, mice were put back into the same IntelliCage where they were housed onwards. First, mice were subjected to the one-day of ‘preparatory place learning’, to ensure they were able to successfully find the corner with access to water. This phase was followed by reward learning (5 days) starting at the beginning of the TIMP-1 or BSA release (5 days after surgery). The mice then had a choice between nosepoking to the bottle containing tap water or to the bottle containing the reward (10% sucrose solution) placed behind 2 opposite doors in a given conditioning chamber. Correct response was defined as a percentage of nosepokes made to the bottle containing the reward as the first choice after entering the conditioning unit. To avoid potential influence of side-bias on learning, the reward was always placed in the hole less frequently nosepoked into during the preceding 24h, when both bottles still contained water. Such procedure excludes the possibility that animals performed the instrumental responses habitually, rather than because they were driven by the reward. Additionally, we measured an increase (%) in undirected nosepoking (a proportion of the nosepokes performed within the first 24h after the reward was introduced into the experimental environment to the nosepokes performed during the preceding 24h period), as a parameter reflecting difficulty in learning reward location. Further, for the control purposes we recorded a total number of nosepokes, visits (activity), and liquid consumption.

Two replications of the experiment were performed in TIMP-1-treated Fmr1 KO and TIMP-1-treated WT littermate mice. 3 replications were performed in control (BSA-treated) Fmr1 KO and WT littermate mice due to the lower success rate of bilateral CeA targeting. The final number of animals successfully injected and tested were as follows: 8 Fmr1 KO injected with TIMP-1, 7 Fmr1 KO injected with BSAs, 8 WT injected with TIMP-1 and 8 WT mice injected with BSA.

Social behavior

2 days after the stereotaxic surgery cohorts of 7-12 Fmr1 KO and WT animals injected with NPs releasing TIMP-1 or BSA were subjected to the 72-hour Eco-HAB testing protocols divided into an adaptation phase (48 h) and social behavior testing (24 h, approach to social odor and in-cohort sociability) [51]. The testing phase started at the beginning of the peak protein release (5 days after surgery). Access to food and water was unrestricted. During all phases of the experiment mice could freely explore all compartments. During the test of social behavior, olfactory stimuli - bedding from the cage of an unfamiliar mouse of the same strain, sex and age (novel social scent) or fresh bedding (novel non-social scent) were presented in a randomized manner. The opposite testing compartments, in which the olfactory stimuli were placed behind the perforated partitions, were chosen randomly during the first iteration of each experiment and then switched in all the subsequent replications to avoid the influence of place bias on the interpretation of the results.

Social approach was assessed as the ratio of approach to social vs. non-social odor during the first hour after the introduction of the stimulus. The duration of the measurement was chosen based on the activity level of the investigated mouse strain, as previously described [51]. Additionally, in-cohort sociability was assessed during the 24h testing period. In-cohort sociability reflects a tendency to voluntarily spend time with conspecifics. As previously described [51], the value of in-cohort sociability was calculated as a total time each pair of mice spent together minus the time that animals spent jointly, due to their individual preferences for occupying certain spaces within the Eco-HAB. For algorithms allowing for the calculation of both sociability measures in Eco-HAB see [51]. Two replications of the experiment were performed in each experimental group: TIMP-1-treated Fmr1 KOs, TIMP-1-treated WT littermates, control (BSA-treated) Fmr1 KOs, and control (BSA-treated) WT littermates. The final number of animals successfully injected and tested were as follows: 6 Fmr1 KOs injected with TIMP-1, 6 Fmr1 KOs injected with BSA, 5 WTs injected with TIMP-1 and 8 WTs injected with BSA.

Electrophysiological recordings

Experiments were performed 5 days after surgery in 2.5-3.5-month-old mice injected with FITC-conjugated NP’s containing TIMP-1. Field excitatory postsynaptic potentials (fEPSPs) were recorded from the medial part of CeA using a glass pipette filled with 20 mMNaCl (impendence 1.0–3.0 MΩ). To evoke fEPSPs, test pulses at 0.033 Hz, 0.1 ms were delivered to the basal amygdala (BA) with bipolar metal electrodes (FHC, USA). The intensity of test stimulus was adjusted to obtain fEPSP with amplitude that amounted to a half of the maximum response. After at least 15 min of stable baseline recording, a theta burst protocol (TBS) was used to evoke LTP. Three trains of stimuli were applied every 5 min. One train was composed of five sequences of pulses separated by 1 s. Each sequence consisted of five bursts of stimuli at 5 Hz. The bursts consisted of eight pulses at 100 Hz. Basic synaptic transmission, presented as the IO curves, was calculated based on the data obtained as follows. We applied 16 subsequent stimuli of increasing intensity, up to the maximum stimulus value (1mA). Notably, the extracellular recording system used (ISO-FLEX A.M.P.I.) is equipped with a nonlinear stimulus isolator, and thus does not allow for setting up a precise intensity of particular stimuli delivered, hence the x axis in the graphs is labeled with stimuli numbers.

LTP recordings conducted in Fmr1 KO mice: TIMP-1 group, 7 animals, n=9 slices; CTRL group 7 animals, n=11 slices. LTP recordings conducted in WT mice: TIMP-1 group, 6 animals, n=7 slices; CTRL group, 8 animals, n=9 slices, recording from 1 additional slice was unsuccessful. Basic synaptic transmission (input-output curves) in Fmr1 KO mice: TIMP-1 group, 7 animals, n=7 slices, recordings from two additional slices were unsuccessful; CTRL group, 7 animals, n=11 slices. Basic synaptic transmission in WT mice: TIMP-1 group, 6 animals, n=7 slices; CTRL group, 8 animals, n=10 slices).

Serial block-face scanning electron microscopy (SBF-SEM)

5 days after stereotaxic surgery Fmr1 KO and WT mice injected with FITC-conjugated NP’s containing TIMP-1 (n=3 per group) and control animals (n=3 per group) were anesthetized, perfused and brains were isolated. CeA-containing tissue cubes (identified in accordance with the Paxinos and Franklin’s Mouse Brain Atlas) were further stained and imaged with a use of SBF-SEM Sigma VP 3View electron microscope. Image stacks were reconstructed and analyzed with Reconstruct v.1.1.0.1 (30,31). 4 cubic samples were imaged per animal (vol. 100 μm, 12 samples per group). We calculated the number of synapses and dendritic spines. Synapses were defined as post-synaptic densities (PSDs). Additionally, we calculated shafts, synapses without any dendritic spine structure. Dendritic spines were defined as morphologically mature (mushroom-shaped) or immature (filopodial or stubby). Spines containing 2 and more PSDs or connecting to 2 or more presynaptic bulbs were defined as multi-innervated.

Statistical analysis

Statistical analyses of data were performed with GraphPad Prism8 software. Normality of data distributions was assessed with D’Agostino-Pearson omnibus normality test or Shapiro-Wilk normality test. When appropriate, group comparisons were analyzed using repeated-measures ANOVA or Student’s 2-tailed t-test for independent samples. Datasets that did not meet the criteria for parametric analyses were compared with the 2-tailed Mann-Whitney U-Test. All statistics for the serial block-face scanning electron microscopy data were calculated across mice. To compare performance in reward learning to chance level (50%), the 2-tailed Wilcoxon signed-rank test was used. Chi-squared tests were performed to compare distributions of singly- and multi-innervated dendritic spines. The criterion for statistical significance was a probability level of p<0.05. The specific statistical tests used and legends for presented p values, as well as n values are included in the figures captions, both main and supplementary ones.

Results

Central amygdala-targeted TIMP-1 treatment rescues cognitive but not social deficits in Fmr1 KO mice

Fmr1 KO mice display MMP-9 upregulation in several brain structures [7–9, 11, 15], a characteristic that is thought to be directly related to their behavioral and cognitive impairments [22–24, 54–57]. The effect is also present in their CeA (Fig. S1), the brain structure whose function is indispensable for the proper reward learning [47, 48]. We show that both elevated MMP-9 activity in the CeA (Fig. S1) and the resulting cognitive deficits (Fig. S3) are alleviated by the targeted injection of the designer nanoparticles (NPs), releasing tissue inhibitor of matrix metalloproteinases-1 (TIMP-1), an endogenous, non-selective MMP-9 inhibitor. To verify symptom-specificity of our approach we also investigated the potential effect of the treatment on social deficits. In all experiments under control conditions, animals were injected with NPs containing the Bovine Serum Albumin (BSA), which has no effect on MMP-9 activity or animal behavior [47, 58–61]. NPs were designed to gradually release TIMP-1 or BSA (as a control) from the polymer over several days, thus mimicking prolonged drug delivery, with over 50% of the inhibitor load being delivered 5 days after the infusion [33, 34].

To reliably assess cognitive and social deficits of Fmr1 KOs and the effect of the proposed therapeutic strategy we employed fully automated and ecologically-relevant assays of mouse behavior; IntelliCage system to measure cognition, and Eco-HAB to evaluate sociability. Both systems measure spontaneous, voluntary behavior and assert high data reproducibility due to automation and fully standardized conditions [51, 62]. They enabled us to design protocols measuring cognition and social behavior narrowed to the TIMP-1 release period. Prior to the experiments group-housed mice were subcutaneously injected with RFID chips allowing for the individual assessment of their behavior over the course of several-day-long testing protocols. After adaptation to the respective experimental environments Fmr1 KO and WT animals were stereotactically injected with the FITC-tagged NPs containing TIMP-1 or BSA, bilaterally into the CeA. Following recovery, animals were re-introduced to the respective experimental environment and underwent assessment of either reward learning (IntelliCage) or social abilities (Eco-HAB).

To measure the reduction of the MMP-9 activity in the CeA’s of the TIMP-1-treated animals at the time equivalent to that of behavioral testing we used in-situ zymography illustrated with the confocal microscopy (x63) images. We show the depletion of the MMP-9 activity on the level of extracellular matrix surrounding the membranes of the cells within the CeA, that further translates to the same effect observed on the level of the entire brain structure (Fig. S1). However, although, in-situ zymography is considered the most reliable method allowing for measuring MMP-9 activity with high specificity, its resolution is not equally satisfactory. Thus, we decided to perform identical series of experiments with a tool allowing for higher precision in localizing MMP-9 activity sites within the matrix surrounding cellular membranes, that is a small peptide biomarker (A580, Mw: 1769, Anaspec). This approach also clearly supports the notion that delivery of the TIMP-1 NPs into the CeA of both, Fmr1 KO and WT animals, significantly depletes the activity of MMP-9 after 5 days from the injection into the animals’ brains, as compared to the vehicle (BSA-loaded), control NPs (Fig. S2).

Reward learning

To investigate the effects of TIMP-1 treatment on cognition of Fmr1 KO and control WT mice, we subjected them to a fully automated behavioral assessment in the IntelliCage system [47, 62]. IntelliCage is a spacious experimental cage housing up to 16 individually tagged mice. It is equipped with four conditioning units located in the corners of the cage. Each animal is identified by the readout of a radio frequency identification (RFID) electronic chip, which allows to program individual-specific experimental settings. IntelliCage system simultaneously records multiple parameters of mouse behavior, i.a. nosepokes, representing seeking behavior [47, 63]. In our protocol, mice first learned that water was accessible by nosepoking in each of the two holes located on the two different walls of each conditioning unit (Fig. 1b). Then access was limited to one conditioning unit per animal (max. 3 mice per corner, [50, 47, 62, 63]) to minimize the effects of social learning. In the subsequent 5-days-long reward learning phase, mice had access to water in one of the holes and to reward (10% sucrose solution) in the other [47, 64]. IntelliCage simultaneously records multiple parameters of mouse behavior. In this context it allowed for distinguishing between reward learning and reward palatability. The first reflected the rate at which animals gain the ability to efficiently obtain the reward, here measured as the number of instrumental responses (i.e. nosepoking into the appropriate hole upon entering the reward-containing conditioning unit, displayed as % of correct choices). The latter, evaluated the consumption of the reward, measured with the number of licks (indicating the amount of 10% sucrose solution drunk by each animal). Notably, once animals were successful in finding the reward there was no limit on its consumption, which enabled us to clearly differentiate between learning-dependent instrumental responses and reward-preference-dependent consumption. Additionally, the system reports locomotor activity and thus allows to control for its potential influence on learning. Performance was defined as a percentage of correct choices (nosepokes to the bottle containing sucrose) made immediately after entering the corner and measured over 5 days of training [47].

Fig. 1. TIMP-1 release in the CeA rescues cognitive but not social deficits in Fmr1 KO mice.

(a) Mice were injected with the nanoparticles (NPs) releasing TIMP-1, an endogenous inhibitor of metalloproteinases; in the control condition animals were injected with the NPs releasing inactive protein, BSA (vehicle). Top left panel shows an example of the FITC-tagged NPs distribution in the CeA (x2). Experimental timeline highlights the peak of TIMP-1 release. (b) A schematic of the automated cognitive assessment in the IntelliCage system; during reward learning task the animals had to discriminate between bottles containing either sweetened (reward) or tap water (neutral stimulus). To assess reward learning we measured the percentage of visits that began with a correct response (choice of the bottle with sweetened water). (c) Impaired learning of the Fmr1 KO mice is fully rescued by the injection of NPs gradually releasing TIMP-1 to the CeA; corresponding performance of the WT controls (data as in D) shown in the background in light blue for comparison (TIMP-1 n=8; vehicle n=7). (d) TIMP-1 treatment impairs reward learning of control animals (TIMP-1 n=8; vehicle n=8). (e) Social abilities of the mice injected with the NPs releasing TIMP-1 to the CeA as tested in the Eco-HAB system. Approach to novel social stimulus (f) and in-cohort sociability (g) are unaffected in either of the groups, socially impaired Fmr1 KOs or WT controls (Fmr1 KO TIMP-1 n=6, vehicle n=6; WT TIMP-1 n=5; vehicle n=8). Dots and bars represent actual data, while dashed lines serve to guide the eye. Data are mean values and error bars represent SEM, ^# p<0.1, * p<0.05, ** p<0.01 (c, d - Wilcoxon signed-rank test, performance compared to chance level represented by the horizontal dashed line; f - Mann-Whitney U-test; g – KS test). CeA – central amygdala, BL - basolateral amygdala.

As optimal MMP-9 activity in the CeA is indispensable for the proper reward processing [47], reward learning is grossly impaired in Fmr1 KOs (Fig. 1c, Fig. S3a, b). Moreover, during first 12h after reward introduction they present increased undirected nosepoking (reward seeking) [47, 64], further reflecting their poor learning capacity (Fig. S3b). These cognitive deficits are fully rescued by the targeted TIMP-1 treatment in the CeA (Fig. 1c, Fig. S4e).

In contrast, similar to previously shown data [47], injection of TIMP-1 in the CeA of the WT mice impairs their cognitive abilities (Fig. 1d), further confirming that optimal level of metalloproteinases activity is indispensable for reward learning. To exclude the possibility that the differences in reward learning were caused by different locomotion or reward palatability we compared activity (no. of visits to all corners) and reward consumption (no. of tube lickings and increase in licks when 10% sucrose was presented) in BSA- and TIMP-1-treated mice of both genotypes and found no differences (Fig. S4a, b, c, d; Fig. S6).

Social behavior

Mice were tested in Eco-HAB for 72h, protocol consisted of adaptation (48 h) and social behavior testing (24 h). During all phases of the experiment groups of 7 to 12 mice could freely explore all Eco-HAB compartments. During the test of social behavior, olfactory stimuli - bedding soaked with a scent of an unfamiliar mouse of the same strain, sex and age (novel social scent) or fresh bedding (novel non-social scent) were presented. Olfactory stimuli were placed behind the perforated partitions of the opposite testing compartments. Social approach was measured as a ratio of approach to social vs. non-social scents. In-cohort sociability, reflecting the tendency of mice for spending time together, was assessed during the 24h testing period.

Notably, injection of TIMP-1 releasing NPs to the CeA affected neither approach to social odor nor time voluntarily spent with cagemates, aspects of sociability we have previously showed [51] to be severely impaired in Fmr1 KOs (Fig. 1f, g). Similarly, there was no impact of the treatment on social behavior of the WT mice (Fig. 1f, g), thus corroborating symptom-specificity of our approach.

Targeted TIMP-1 treatment normalizes impaired synaptic plasticity and morphology in the central amygdala of Fmr1 KO mice

To test functional neuronal plasticity of the circuit, we measured long-term potentiation (LTP) at the basal amygdala-CeA pathway and observed that both the magnitude and stability of LTP are impaired in Fmr1 KO mice (Fig. 2a, Fig. S3c). Injection of NPs releasing TIMP-1 to the CeA rescues those LTP deficits in Fmr1 KOs (Fig. 2a), while having a detrimental effect on the LTP stability in the WT mice (Fig. 2b), mirroring the effects observed in reward learning experiments. These adverse effects of TIMP-1 in WTs corroborate our earlier findings [65]. Notably, treatment does not influence the properties of basic synaptic transmission in either of the genotypes (Fig. 2c, d, Fig. S7), highlighting that proposed strategy selectively targets plasticity, rather than basic synaptic function.

Fig. 2. TIMP-1 release in the CeA normalizes impaired functional synaptic plasticity of Fmr1 KO mice.

Long term potentiation was induced at the basal amygdala – central amygdala (BA-CeA) pathway. (a) Impaired LTP of Fmr1 KO mice is fully rescued by the injection of the TIMP-1 releasing NPs (TIMP-1 group, 7 animals, n=9 slices; CTRL group 7 animals, n=11 slices). (b) TIMP-1 treatment in WT mice results in LTP instability (TIMP-1 group, 6 animals, n=7 slices; CTRL group, 8 animals, n=9 slices). (c, d) There are no differences in the basic synaptic transmission properties (input-output curves) between genotypes or treatments (Fmr1 KO TIMP-1 group, 7 animals, n=7 slices; Fmr1 KO CTRL group, 7 animals, n=11 slices; WT TIMP-1 group, 6 animals, n=7 slices; WT CTRL group, 8 animals, n=10 slices). Data are mean values and error bars represent SEM, *** p<0.001 (Two-way RM ANOVA, a - F (1,18) = 20.41, p=0.0003; b - F (1, 14) = 4.896, p=0.0440; c - F (1, 16) = 0.9620, p=0.3413; d - F (1, 15) = 0.2618, p=0.6164). Examples of fEPSP traces recorded 10 min before (black) and 15/90 min after (gray) induction of the LTP. Scale bars = 0.2 mV and 5ms.

Further, the ultrastructure of the CeA is significantly altered in Fmr1 KO mice (Fig. 3). The Fmr1 KOs show significantly elevated number of synapses (Fig. 3 a). Moreover, CeA neurons in the Fmr1 KOs have the elevated number of immature spines (Fig. S5b), synaptic shafts (Fig. S5c), and multi-innervated spines (Fig. S5 b-d, Fig. 3 d-i). However, in contrast to the findings from other brain structures [66, 67], the overall number of dendritic spines, and the number of mature spines in particular, is not different in the CeA of Fmr1 KO and WT mice (Fig. 3 b, c; Fig. S5a).

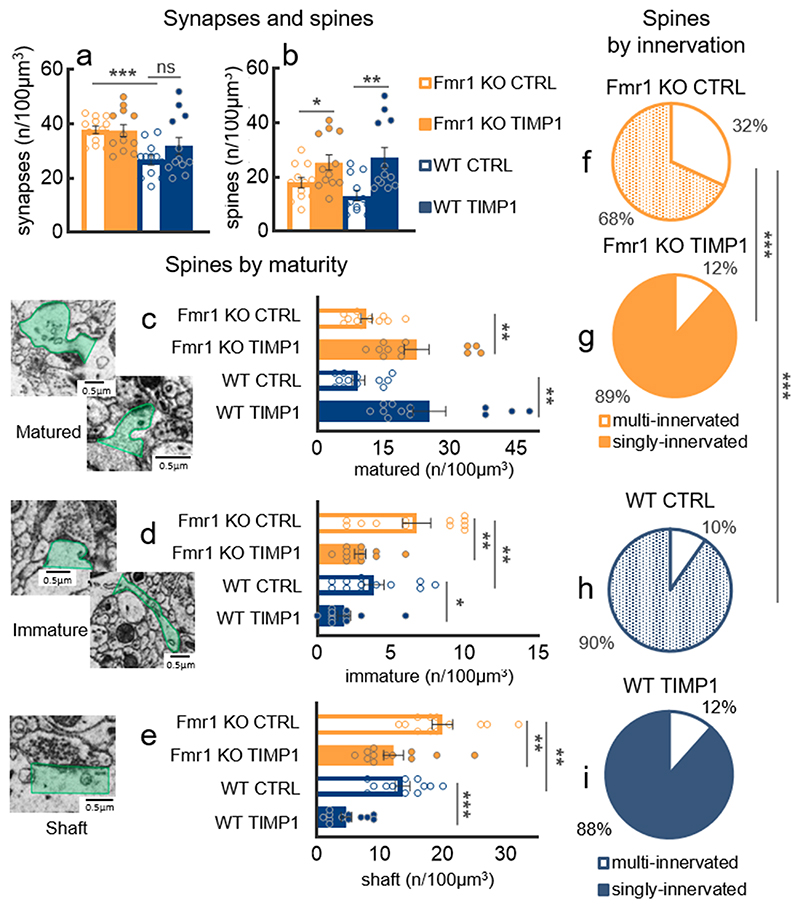

Fig. 3. TIMP-1 release in the CeA normalizes synaptic morphology of Fmr1 KO mice.

(a) The overall number of synapses, elevated in Fmr1 KO mice, is not changed by the TIMP-1 treatment in either controls or mutants. (b) The number of dendritic spines, which does not differ in Fmr1 KO and WT mice, increases after TIMP-1 injection in both groups. (c) Similarly, the number of matured spines, identical in Fmr1 KOs and WTs, increases due to the TIMP-1 treatment. In contrast, in TIMP-1-treated Fmr1 KO mice the elevated number of (d) immature spines and (e) shaft synapses, decreases to the level observed in WTs. Gradual release of TIMP-1 also reduces the number of immature spines and shafts in WT mice. (f, g) The TIMP-1 treatment restores the proportion of the multi- to singly-innervated spines in Fmr1 KO mice to that observed in WT animals (h) and does not influence proportion of multi- to singly-innervated spines in WT mice (i). 12 cubic samples imaged per group (3 per each animal); Fmr1 KO TIMP-1, n=3, CTRL, n=3; WT TIMP-1, n=3, CTRL, n=3. Data are mean values and error bars represent SEM, * p<0.05, ** p<0.01, *** p<0.001 (a, b, c, d, e – t-test for independent samples, Mann-Whitney U-test; f, g, h, i - chi-squared test).

We show that the targeted TIMP-1 treatment in Fmr1 KOs normalizes a majority of the ultrastructural alterations in the CeA (Fig. 3). Specifically, TIMP-1 treatment lowers the number of immature spines and synaptic shafts to the control level (Fig. 3d, e). Coherently, it also restores the proportion of multi- to singly-innervated spines ([68], Fig. S5d) to that observed in the WT animals (Fig. 3f-h). The only parameter natively differing the Fmr1 KOs from the WTs that is unchanged by the treatment is the overall number of synapses (Fig. 3a). On the other hand, the ultrastructure characteristics that do not differ between the genotypes, that is the overall number of dendritic spines and the number of mature spines, are increased by the TIMP-1 treatment in Fmr1 KOs (Fig 3b, c).

Notably, TIMP-1 treatment in the WT animals results in similarly elevated levels of all dendritic spines and mature spines (Fig 3b, c). Moreover, as is observed in the Fmr1 KOs, the treatment also causes a significant reduction in the number of immature spines and synaptic shafts (Fig. 3d, e) and does not change the overall number of synapses (Fig 3a). However, the application of TIMP-1 treatment in the WT mice has no effect on the proportion of multi- to singly-innervated spines (Fig. 3h, i).

In summary, with an exception of the overall number of synapses, targeted TIMP-1 treatment in the CeA of Fmr1 KO mice normalizes all the ultrastructure parameters (no. of immature spines, shafts, and proportion of multi- to singly-innervated spines) that previously deviated from the WT levels.

Discussion

We show that the CeA-targeted TIMP-1 treatment, regulating synaptically overtranslated MMP-9 in Fmr1 KO mice [7, 54], selectively rescues their cognitive impairments, while having no impact on the social deficits. The behavioral rescue is accompanied, and possibly caused, by the normalization of neuronal plasticity and synaptic ultrastructure of the CeA. Thus, we present a symptom- and circuit-specific approach, aimed at a particular molecular mechanism. Our results provide an insight into the molecular and neural mechanism of FXS pathophysiology, showing a causal link between TIMP-1-dependent neuronal plasticity in the CeA and cognitive deficits observed in that syndrome. The results also point to the therapeutic potential of the treatment, which can be tailored to the individual needs of FXS patients who exhibit different symptoms.Since TIMP-1 treatment resulting in subtle depletion of MMP-9 activity in Fmr1 KOs caused a clear cognitive boost, while having an opposite effect in the WT animals, better understanding of TIMP-1 dose-dependency is needed to expedite translational efforts. Notably, the previously reported differences in MMP-9 levels under varying experimental conditions measured with gel zymography [33, 34, 55] were often more pronounced than our findings based on in-situ zymography, highlighting the dissimilarity of these two methods. The use of the in-situ zymography enabled us to accurately measure MMP-9 activity within the CeA, whose precise extraction for the purposes of gel zymography poses methodological challenges. However, the downside of this approach is the unfeasibility of relating the MMP-9 level to the activity of MMP-2. Thus, to solidify the conclusions drawn on the basis of zymography data, we employed a small peptide MMP-9 biomarker allowing for higher precision in localizing the enzyme’s activity within the matrix surrounding cellular membranes. The results obtained with both methods confirm the effectiveness of TIMP-1 in regulating MMP-9 activity in situ in the timeframe used for the assessment of behavioral phenotype rescue. However, more studies are needed to determine the optimal dosage, concentration, pharmacodynamics and protein release profiles of the TIMP-1-loaded designer nanoparticles in situ.

Even though some argue that TIMP-1 plays a dominant role in the inhibition of MMP-9, as does TIMP-2 in case of MMP-2 [69–72], the overall consensus in the field is that it is a non-selective metalloproteinases inhibitor and thus cannot be used to target activity of MMP-9 exclusively. Overall, the proteins from the TIMP family (TIMP-1 to -4) selectively inhibit different MMPs and members of the families Disintegrin and Metalloproteinase (ADAM) and Disintegrin and Metalloproteinase with Thrombospondin motifs (ADAMTS) [38, 73, 74]. Among them TIMP-1 is the most restrictive in its inhibitory range and has been shown to regulate most notably activity of the two gelatinases, MMP-2 and MMP-9, binding particularly strongly to the latter and its inactive form, pro-MMP-9 [75].

At the same time, numerous studies have shown that the overexpression of MMP-9, rather than MMP-2, plays a critical role in the manifestation of the symptoms characteristic to the Fmr1 phenotype. Indeed, normalizing its levels leads to the amelioration of the behavioral and molecular deficits therein [14–16, 18–28]. Further, the cognitive disfunction related to reward learning we targeted with our therapeutic approach have been previously shown to depend specifically on the proper level of MMP-9 in the central amygdala [47]. For those reasons we argue, that even though one needs to consider that the applied TIMP-1 treatment may to some extent influence also the activity of MMP-2, such effects would not be critical for the amelioration of the symptoms in the Fmr1 KO animals, especially in the context previously shown to be heavily dependent on the optimal levels of MMP-9. Additionally, to our knowledge there exists no other molecular tool that would allow for a more precise local targeting of MMP-9 activity than TIMP-1 designer NPs.

Moreover, the methods we used to measure MMP-9 activity are similarly burdened with non-specificity issue as both A580 MMP Substrate 1 and in-situ zymography may detect the activity of both MMP-2 and MMP-9. However, for the reasons mentioned in the previous paragraphs we consider them sufficient to draw conclusions focusing on the MMP-9 in the context of the Fmr1 KO phenotype, as based on the numerous animal and human studies.

Taken together, even though the specificity of TIMP-1 inhibitory activity as well as specificity of A580 MMP Substrate 1 and in-situ zymography remain a problem, we argue that focus of this work on MMP-9 in the context of the Fmr1 KO phenotype and reward learning is justified.

The evidence of TIMP-1-dependent facilitation of dendritic spine maturation and rescue of impaired LTP in Fmr1 KOs, points to the fact that there exists a range of MMP-9 activity optimal for the proper synaptic plasticity, a notion coherent with previous studies [76]. However, there remain some notable gaps in our understanding of those processes. Notably, Wang et al. [76] showed that in hippocampus increased MMP-9 activity alone is sufficient to potentiate synapses and enlarge dendritic spines. At the same time, our data from WT animals with TIMP-1-depleted MMP-9 activity in the CeA shows the expected opposite effect only in respect to the synapse potentiation, without a decrease in the size of the dendritic spines. Thus, more studies are needed to investigate a relationship between MMP-9 levels and dendritic spine maturation. Further, previous studies have shown that changing MMP-9 activity may alter long term plasticity without having any impact on other physiology measures, such as basic synaptic transmission or short time plasticity. For example, it has been shown that a non-selective MMP-9 inhibitor (GM6001) caused disruption of L-LTP without inducing changes in either short-term plasticity (measured as a paired-pulse ratio, PPF), or basic synaptic transmission [77]. The same authors showed that the L-LTP in brain slices obtained from the MMP-9 KO mice was destabilized, while basic synaptic transmission and PPF remained unchanged [77]. Our results showing that the TIMP-1 delivery to the CeA rescues the LTP in Fmr1 KO animals without affecting basic synaptic transmission are in line with those discoveries.

In line with a rescue of impaired LTP in Fmr1 KOs, it was also reported that an MMP-9 inhibitor (GM6001) increased maturation of dendritic spines and improved LTP in brain slices obtained from rats overexpressing MMP-9, animals with significant deficits in the LTP [78]. Interestingly, we have also found that a very slight increase in MMP-9 activity in the CeA of WTs reinforces motivation for sugar water ([79], in review). A similar motivational boost was also reported in the alcohol-consuming MMP-9 knock-out animals with CeA-restricted exogenous expression of the enzyme [80], which further solidifies the notion that a fine balance of the enzyme activity is needed for the correct reward processing.

Although the TIMP-1 treatment had significant impact on learning, circuit physiology and spine morphology in all tested animals, it did not influence the number of synapses that was significantly higher in Fmr1 KO mice. Moreover, in both Fmr1 KO and WT animals TIMP-1 delivery into the CeA resulted in an increase in the number of the dendritic spines, which is usually regarded as an important neural correlate of learning and memory. As the effects of TIMP-1 treatment on behavioral performance and LTP in WT and Fmr1 KOs animals differed, the data point out a more complex relationship between spine formation in the CeA and reward discrimination. We argue, that neural processes underlying reward learning are less dependent on the number of all the dendritic spines than on the right balance between the specific types of spines and other ultrastructure characteristics. This may include the number of the immature spines that are available for maturation and thus memory formation, and the number of synaptic shafts, which is critical for the function of the brain structures such as CeA, predominantly composed of inhibitory neurons. It is noteworthy, that both those measures were normalized to the WT control level after TIMP-1 treatment in Fmr1 KOs, and markedly disrupted in the TIMP-1-treated WT animals, which points to their crucial role in the reward learning and LTP formation. This line of reasoning is in agreement with the previously described hypothesis of the optimal amount of the MMP-9 activity in the CeA necessary for the proper reward learning. Importantly, based on the performed experiments we only know that at the time of the LTP induction the level of all dendritic spines was higher in the TIMP-1-treated animals than in the respective control groups. However, we did not test if and how the induction of LTP influences maturation of the spines in TIMP-1-treated mice of both genotypes, and thus we are unable to tell if the usually observed phenomenon was absent in the TIMP-1-treated WT mice, who displayed impaired LTP and learning.

It was previously shown that Fmr1 KO mice have a significantly elevated number of multi-innervated spines, which leads to the increased glutamate currents and hyperexcitability of neurons [81]. The multi-innervated spines are considered a basis of memory formation, engaging mechanisms alternative, and to some degree independent, from the classic synapse strengthening related to LTP [82]. Notably, it is argued that this mechanism of memory formation may be mobilized especially when LTP is blocked [68, 82, 83]. Additionally, it was shown that injecting animals with a blocker preventing changes in multi-innervation, disrupted memory formation only in old animals, in whom the mechanism was a major factor enabling learning [82]. Our data suggest that a similar mechanism may be at play in Fmr1 KO mice treated with TIMP-1. Specifically, delivery of the MMP-9 inhibitor rescues BLA-CeA LTP and at the same time reduces the number of multi-innervated spines to the control levels. On the other hand, the same treatment in the WT mice, which have markedly lower levels of MMP-9, disrupts the LTP without increasing the number of the multi-innervated spines; which may stem from the fact that the disruption of LTP leads to the elevated multi-innervation only under specific circumstances and on a yet not fully understood time course, as suggested by the previous findings of Aziz et al. [82].

The lack of impact of the TIMP-1 treatment in the amygdala on social behavior might be considered unexpected. Although studies show that CeA circuits are crucial for choosing a context-appropriate reaction based on the information obtained via social interaction [84], engagement of MMP-dependent circuits within the CeA in social interaction has not been studied earlier. It is plausible that other, MMP-independent, mechanisms in the CeA are involved in social behaviors.

Moreover, the discoveries of Kim et al. indicate the diverse involvement of the neural circuits in the medial (CeM) and lateral (CeL) parts of CeA in reward processing [48]. Since the presented research examined the effects of the TIMP-1 delivery into the CeA without differentiating its medial and lateral parts the follow-up studies are needed to better understand the role of MMP-9 activity in those specific substructures in reward-motivated learning.

As we studied behavioral phenotypes in a social context in which males often become aggressive, we focused our studies on females. Importantly, earlier works show that behavioral impairments in Fmr1 KOs are either equally pervasive in both sexes [85], or even more intense in females in terms of the typically autistic repetitive behaviors [86]. Additionally, as previously shown [51], Fmr1 KO females display severe deficits in both cognition and social behavior, making them a suitable model to investigate the symptom-specific approach. Focusing on females whose autistic phenotype has been only rarely investigated offers an additional value. Such studies are highly needed in the face of the growing evidence that ASD and related mental disabilities are severely underdiagnosed in females [87–92]. Similarly, the problem of female underrepresentation in the phenotyping of the animal models of autism is a serious limitation of this research area. Ours findings are a scarce example of research investigating experimental therapeutic approach to autistic phenotype conducted in female subjects.

As of yet, in spite of billions of dollars being spent on research on neurodevelopmental disorders, scientists and clinicians have been struggling to propose effective targeted therapies [1]. Notably, in multiple cases phenotype rescue in the animal models has not been translated into effective treatment in patients. In the case of the FX patients application of minocycline, a drug repeatedly shown to normalize both, MMP-9 levels and behavioral performance in mice [15, 23, 24], turned only partially effective in improving cognitive function and only mildly helped in alleviating anxiety-related symptoms [93, 25, 94, 27]. Thus, the results reported here may not be of immediate clinical use, especially in face of the fact that FMRP protein regulates translation of over four hundred different mRNA in humans, and thus its disfunction influences multiple molecular pathways. However, we argue that since levels of MMP-9 and its role in different brain structures are very diverse, the application of the targeted approach, allowing for regulating multiple neural circuits crucial for a specific function (e.g. in the context of learning not only amygdala but also hippocampus, prefrontal cortex, nucleus accumbens, etc.), without influencing the off-target circuitry, may indeed be the key to success in regulating behavior.

Our research illustrates an innovative framework for evaluating mechanism-based treatments allowing to curtail problems notorious in assessment of new therapies, namely, low data replicability, species-inadequate assessment of phenotype and lack of accounting for individual differences in symptoms. Specifically, to assess effectiveness of the TIMP-1-based targeted therapy we employ fully automated and ecologically-relevant assays of mouse behavior; such systems mimic most important features of murine ecological niche and thus allow for measuring behaviors relevant for surviving and thriving under naturalistic conditions. Assessed behaviors are voluntary and unconstrained by time limits. Importantly, automated tests also assert high reproducibility of behavioral data due to the automation, standardized conditions and lack of human involvement in the process of testing. Moreover, they are computer-controlled and designed for evaluating behavior of individually-tagged, group-housed subjects, which eliminates confounding results related to social isolation [50, 62]. Thus, we present research exemplifying how combining cutting-edge methods in behavioral research and pharmacology leads to the efficient discovery of the symptom-, circuit- and mechanism-specific therapy, which can be further reliably tested in pre-clinical trials.
