Doublet microtubule inner junction protein FAP20 recruits tubulin to the microtubule lattice

Summary

Doublet microtubules of eukaryotic cilia and flagella are made up of a complete A- and an incomplete B-tubule that are fused together. Of the two fusion points, the outer junction is made of tripartite tubulin connections, while the inner junction contains non-tubulin elements. The latter includes flagellar-associated protein 20 (FAP20) and Parkin co-regulated gene protein (PACRG) that together link the A- and B-tubule at the inner junction. While structures of doublet microtubules reveal molecular details, their assembly is poorly understood. In this study, we purified recombinant FAP20 and characterized its effects on microtubule dynamics. We use in vitro reconstitution and cryo-electron microscopy to show that FAP20 recruits free tubulin to the existing microtubule lattice. Our cryo-electron microscopy reconstruction of microtubule:FAP20:tubulin complex reveals the mode of tubulin recruitment by FAP20 onto microtubules, providing insights into assembly steps of B-tubule closure during doublet microtubule formation.

Graphical abstract.

Introduction

Biological motility of eukaryotes mediated by cilia and flagella beating involves dynein-based sliding of axonemal doublet microtubules, which are conserved across organisms from unicellular ciliates and flagellates to multicellular eukaryotes.^1–3 Defects in assembly of the doublet microtubule are associated with structural deformities and impairment of ciliary function implicated in many ciliopathies.^4,5 The doublet microtubules are made of a 13-protofilament A-tubule, which resembles cytoplasmic microtubules and an additional, semi-circular B-tubule (with 10 protofilaments) fused to the A-tubule.⁶ Advances in cryo-electron microscopy (cryo-EM) and tomography have led to determination of several structures of an intact doublet microtubule from cilia/flagella.^7–12 These models have revealed intricate details about the doublet microtubule architecture, various microtubule inner proteins decorating the A- and B-tubule as well as the outer and inner junctions between the A- and B-tubule. The outer junction is entirely mediated by tubulin components that form a tripartite lateral interaction between A- and B-tubule protofilaments.^7,8,11,13 The assembly of outer junction has been demonstrated in vitro in presence of excess salts as well as in the absence of tubulin carboxy-terminal tails.^14,15 However, the partially assembled B-tubule in this intermediate does not fuse with the A-tubule and presumably requires proteins of the inner junction to form the complete doublet microtubule.^1,7 The doublet microtubule inner junction had long been suspected to be mediated via non-tubulin subunits¹ and the components were later identified from high-resolution structures.^7,8 An alternating set of flagellar-associated protein 20 (FAP20) and Parkin co-regulated gene (PACRG) protein units forms the core of the inner junction^7,8,16 and recent high-resolution cryo-EM structures reveal additional protein subunits such as FAP45, 52, 106, 126, and 276 further strengthening the inner junction.⁷

Mutational studies in Chlamydomonas reveal that although PACRG and FAP20 proteins are not essential for the formation of flagella, their null mutants show abnormalities in the structure of axonemes (absence of beak structures and inner dynein arms) and severe defects in motility of the organisms.^16–18 Similar effects are also observed in the case of depletion of a homolog of FAP20 in Paramecium, known as Bug22.¹⁹ Bug22 mutants in Drosophila show abnormalities associated with ciliopathies, neuronal defects, and impairment of sperm differentiation.²⁰ FAP20 plays an important role in motile cilia function in zebrafish with body curvature and cardiac or gut symmetry defects in the FAP20 null and knockdown mutants.²¹ Recently, advances in genome sequencing and analysis have helped identify mutations in FAP20 gene linked to inherited retinal dystrophies in human patients.^21,22

Interestingly, overlapping roles for both FAP20 and PACRG have been revealed in non-motile ciliary functions of behavioral learning, locomotion, lifespan, and size determination in C. elegans with structural defects (incomplete B-tubules and ruptured inner junctions) in the axonemes of the mutants.^21,23 The absence of either PACRG or FAP20 causes slower sliding velocities with respect to dynein in Chlamydomonas but the effect on the double mutant is not cumulative.¹⁶ These observations suggest that PACRG and FAP20 play a role in the later stages of the inner junction assembly and contribute toward maintaining the structural integrity and functional aspects of the axoneme. So far, in vitro studies of inner junction proteins have been limited to experiments with recombinant PACRG co-purified with meiosis expressed gene 1 product (MEIG1),^24,25 and there is little biochemical evidence to show the direct role of FAP20 in doublet formation and maintenance. To address this, we have purified a recombinant version of FAP20 and characterized its biochemical properties toward microtubules using in vitro reconstitution studies. Our studies with light and electron microscopy show that FAP20 recruits tubulin to the microtubule lattice independent of GTP. The reconstitution of FAP20 binding to a growing microtubule allowed us to identify flexible interactions in the microtubule:FAP20:tubulin complex and propose a model for inner junction assembly.

Results

FAP20 binding stabilizes the microtubule lattice

The properties of FAP20 binding to microtubules in vitro have not been reported so far, and to study this, we cloned, expressed, and purified a recombinant version of full-length FAP20 from Chlamydomonas reinhardtii by nickel-histidine affinity chromatography (See STAR Methods for details, Figure S1A). First, we performed co-pelleting assays with purified FAP20 and microtubules polymerized from goat brain tubulin in the presence of different nucleotides (Figures S1B and S1C). We found that FAP20 binds to all the microtubules in vitro, suggesting that FAP20 is insensitive to minor lattice perturbations due to different nucleotide states²⁶ (Figure S1C). To confirm the interaction of FAP20 with microtubules, we performed cryo-EM experiments using purified FAP20 and GMPCPP-stabilized microtubules. The micrographs showed microtubules with projections of hair-like structures on the surface corresponding to bound FAP20 (Figure S1D).

To assess whether FAP20 affects microtubule growth and stability, we then carried out microtubule growth assays in the presence of FAP20 (See STAR Methods for details, Figure 1A, Videos S1 and S2). From the kymograph analysis of total internal reflection fluorescence (TIRF) images, we found that at concentrations of 0.05, 0.25, and 0.5 μM, FAP20 did not induce any significant effect on the growth rate and growth length of the microtubules (Figures 1B, 1C, S2A, and S2B). However, the growth rates and growth lengths of microtubules increased significantly in the presence of 2.5 and 5 μM FAP20. The microtubule growth rates in the absence and presence of 2.5 and 5 μM FAP20 were 0.54, 0.89, and 0.88 μm min⁻¹, respectively (Figure 1B). The microtubule growth lengths recorded were 2.93 μm in the absence of FAP20, 6.00 and 6.32 μm in the presence of 2.5 and 5 μM FAP20, respectively (Figure 1C). Another striking observation apparent from the kymographs was the reduced number of catastrophe events as the concentration of FAP20 was increased in the microtubule growth assays (Figure 1A). Quantification of the frequency of catastrophe events showed a marked decrease in a concentration-dependent manner. In the absence of FAP20, and with 0.05 and 0.25 μM FAP20, 80.4%, 68.3%, and 54.66% of the analyzed microtubules exhibited regular catastrophe events, respectively (Figures 1D and S2C). At higher concentrations of FAP20 (2.5 and 5 μM), almost no catastrophe events could be observed leading to the formation of long microtubules (Figures 1A, 1D, and S2D). Thus, the recombinant FAP20 protein makes stabilizing interactions with the microtubule lattice increasing the growth rate, reducing the number of catastrophe events, and eventually preserving the growing microtubule.

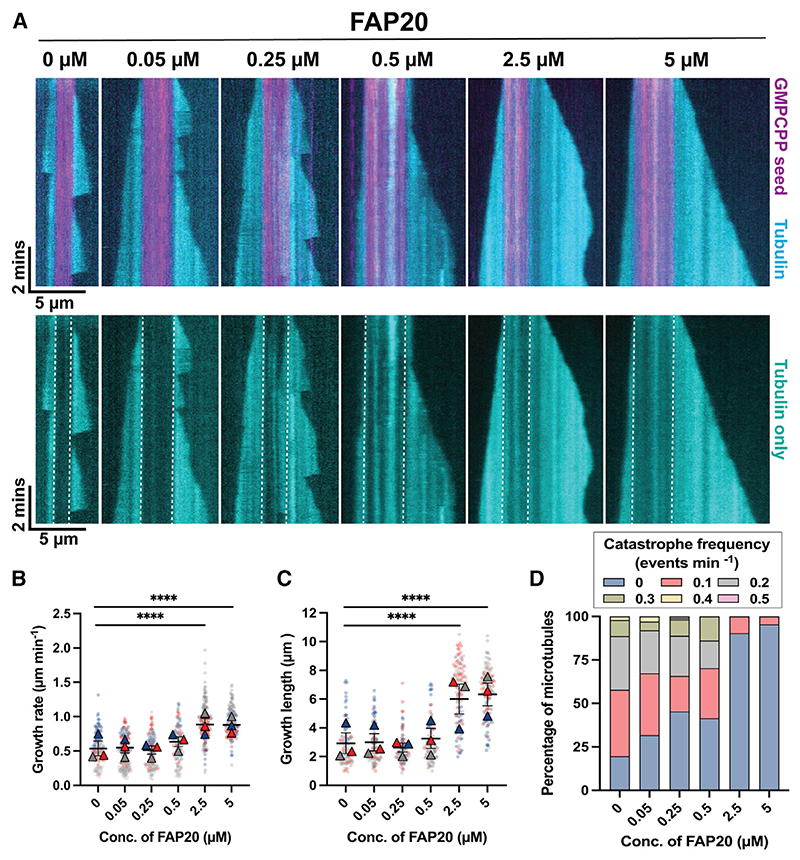

Figure 1. Microtubule dynamics in the presence of FAP20.

(A) Representative kymographs showing microtubule dynamics in the presence of different concentrations of FAP20. The upper panels show an overlay of the GMPCPP seed channel (magenta) and Cy5-labelled tubulin channel (cyan). Lower panels show the corresponding Cy5-labelled tubulin channel only. Dotted white lines in the lower panels denote the ends of GMPCPP-stabilized seeds.

(B and C) SuperPlots of microtubule plus-end growth rates and growth lengths in the presence of 10 μM tubulin and increasing concentrations of FAP20, as indicated. Average values from three independent experiments are shown as colored triangles and individual values from each experimental set are shown as circles in their respective muted colors. Error bars represent the standard error of the mean from three independent experiments. (N = 135: 0 μM FAP20, 130: 0.05 μM FAP20, 137: 0.25 μM FAP20, 118: 0.5 μM FAP20, 164: 2.5 μM FAP20, 150: 5 μM FAP20 for growth rate measurements and N = 97: 0 μM FAP20,101: 0.05 μM FAP20, 108: 0.25 μM FAP20, 94: 0.5 μM FAP20, 125: 2.5 μM FAP20, 110: 5 μM FAP20 for growth length measurements. ****p < 0.0001, Kruskal-Wallis test followed by Dunn’s multiple comparisons test).

(D) Frequency plot showing the percentage of microtubules undergoing different catastrophe frequencies at each FAP20 concentration. Data are obtained from three individual experiments (N = 97: 0 μM FAP20, 101: 0.05 μM FAP20, 108: 0.25 μM FAP20, 94: 0.5 μM FAP20, 125: 2.5 μM FAP20, 110: 5 μM FAP20). For individual values see Figure S2 and Data S1.

FAP20 recruits free tubulin to microtubule lattice

In our microtubule growth assays, we observed fluorescence signal from Cy5-labelled free tubulin accumulating at the existing microtubule lattice, both GMMPCP seeds as well as the newly polymerized microtubules (Figure 2A and Video S1). The tubulin accumulation on the existing microtubule lattice appeared sparse at 0.25 and 0.5 μM FAP20 and more pronounced at 2.5 and 5 μM FAP20 concentrations used in the assay (Figures 1A, Videos S1, and S2). We reasoned that FAP20 promotes the lateral association of free tubulin dimers to the microtubule lattice and investigated the role of GTP in this phenomenon. Under the same conditions without GTP, similar Cy5-labelled free tubulin accumulation was observed (Figure 2B and Video S3) suggesting that the FAP20 protein is the basic unit that links the microtubule lattice to the soluble tubulin dimer. While we observed different patterns of tubulin association with the GMPCPP seeds in presence of GTP (Figures S3A–S3C), the pattern of arrangement was found to be regular and continuous in the case of tubulin recruitment by 5 μM FAP20 when no GTP was present (Figures S3D and S3E).

Figure 2. FAP20-mediated recruitment of tubulin to the microtubule lattice.

(A) Representative TIRF images of GTP microtubules grown from GMPCPP seeds (magenta) in the presence of 10 μM tubulin (cyan) with and without 5 μM FAP20 at different time points, as indicated.

(B) Representative TIRF images of GMPCPP seeds (magenta) in the presence of 10 μM tubulin (cyan) with and without 5 μM FAP20 in the absence of GTP at different time points, as indicated.

(C) Mean fluorescence intensity of Cy5-labelled free tubulin along the GMPCPP seed with time for 10 min in the presence of 10 μM tubulin (light blue), +GTP (pink), +5 μM FAP20 (dark blue), and +5 μM FAP20 with GTP (red). Error bars represent the standard error of mean for values combined from three independent experiments.

(D) Fluorescence intensity line scans of Cy5-labelled free tubulin along the length of a microtubule in the presence of 10 μM tubulin (pink) and GTP, + 5 μM FAP20 without GTP (dark blue), +0.5 μM FAP20 with GTP (red, dashed line), + 5 μM FAP20 with GTP (red) at the end of 10 min. The vertical black lines in each curve represent the ends of the GMPCPP seeds for the respective experiments.

(E) Differences in final (T = 10 min) and initial (T = 0 min) normalized fluorescence intensity of Cy5-labelled free tubulin recruited per length (μm) of GMPCPP seed are shown in presence of 10 μM tubulin (light blue), +GTP (pink), +5 μM FAP20 (dark blue), and +5 μM FAP20 with GTP (red). Values from each experimental set are represented as different symbols and error bars represent the standard error of mean for values combined from three independent experiments (N = 5 for each experiment).

To gain further understanding of the tubulin recruitment pattern, we measured the fluorescence signal associated with bound tubulin dimers over time (Figure 2C) and the length of the microtubule (Figure 2D). We observed a uniform increase in tubulin recruitment over time on the GMPCPP-stabilized seeds, with increased recruitment in the presence of GTP compared to its absence (Figure 2C). This effect was also evident from intensity analysis over the length of the microtubule, where we observed a several fold increase in fluorescence intensity represented by the area under the curve corresponding to the GMPCPP seed only in the presence of GTP (Figure 2D). Here, the tubulin recruitment on existing microtubules showed a graded response ranging from sparse tubulin recruitment at 0.25 and 0.5 μM FAP20 concentrations to the entire length of GMPCPP seed being covered with free tubulin (Cy5-labelled tubulin fluorescence) at 5 μM FAP20 (Figures 2D, S3F, S3G, Videos S1, and S2). Quantification of the difference between initial and final normalized intensities of recruited tubulin to the GMPCPP seed in the presence of 5 μM FAP20 showed a large distribution of values (Figure 2E) suggesting no directed pattern of recruitment in the presence of GTP. The FAP20-mediated tubulin recruitment occurs rapidly as the reaction is set up and the initial stages could not be captured using TIRF imaging (Figures 2A, 2B, Videos S1, and S2). This is particularly evident in the absence of GTP, where the difference in normalized fluorescence intensities between the initial and final time points of the assay is negligible as compared to in the presence of GTP (Figure 2E). The tubulin recruitment saturates almost immediately in the absence of GTP, while in its presence the recruited tubulin dimers act as nucleation points for a steady-state lateral association. In summary, our TIRF imaging experiments have uncovered a unique property of FAP20, where it mediates binding of a tubulin dimer to the microtubule lattice in a GTP-independent manner.

FAP20 mediates flexible interaction of microtubule lattice with tubulin dimers as well as protofilaments

We next performed cryo-EM analysis to understand the FAP20-mediated tubulin recruitment onto the microtubule lattice. Samples were prepared by adapting the steps derived from our TIRF assay on transmission electron microscopy grids, which were then imaged in an electron microscope (See STAR Methods for details). In the absence of FAP20, we observed undecorated GMPCPP microtubules with a diameter between 25 and 30 nm (Figure 3A). In the presence of GTP and FAP20, we observed microtubule-like structures with twice the diameter ~50 nm (Figure 3B), indicating tubulin accumulation as observed in the TIRF images (Figure 2A). Analysis of the raw and filtered images as well as the power spectra suggests the presence of additional layers of protofilaments associated with each other on a conventional microtubule lattice structure (Figure S4A). Attempts to obtain a consensus high-resolution 3D reconstruction of this structure failed due to the heterogeneity of the sample and the complexity of the arrangement in the higher-order structure (Figure S4B). However, a low-resolution structure could be determined, which shows multiple stacks of protofilaments with a hollow center similar to the diameter of a conventional microtubule (Figure S4B).

Figure 3. Ultrastructural analysis of FAP20-mediated tubulin recruitment.

(A–C) Representative cryo-electron micrographs showing GMPCPP microtubules (A), +FAP20 and 10 μM tubulin with GTP (B), and +FAP20 and 10 μM tubulin (C). Inset: Zoomed in version of a section of microtubule outlined by a white box in the micrographs. Right: Longitudinal sections of a single microtubule segment with their Fourier filtered images to highlight the differences.

(D) Line scan plot of intensity distribution along the decorated region of microtubule+FAP20 and tubulin selected by the red dotted line in (C).

(E) Straightened segments of micrographs showing heterogeneous FAP20+tubulin ring/spiral formation along the microtubule lattice in the absence of GTP.

To obtain a more homogeneous sample, we then turned our attention to FAP20-mediated tubulin recruitment in the absence of GTP. In the absence of GTP, the electron micrographs showed the presence of the microtubule lattice (20–30 nm) decorated with rings and/or spirals (Figure 3C). From the line scan analysis of the filtered images (Figure 3D) and the layer lines in the power spectra of the helical segments (Figure S4A), a 10–11 nm regular interval of ring/spiral structures could be observed. Since the in vitro reconstitution system contains only microtubule, free tubulin, and FAP20, and the TIRF images show tubulin recruitment on existing microtubule lattice, we deduce that the rings/spirals observed here are higher-order structures composed of microtubule, FAP20, and tubulin dimers. The interaction between FAP20, tubulin dimers, and microtubule, however, appears to be flexible as the rings/spirals were found at different angles with respect to the microtubule axis and the vertical spacing between the rings/spirals, depending on the region analyzed might actually range around 11 nm (Figure 3E). Hence, we conclude that FAP20 mediates flexible interactions between the microtubule lattice and tubulin dimers in the absence of GTP. This association is retained with protofilaments when GTP is added to the sample.

Comparison of cryo-EM reconstruction of microtubule-FAP20-tubulin complex with doublet inner junction suggests conformational changes in assembly pathway

From the TIRF experiments and electron micrographs, the microtubule:FAP20:tubulin structure (in the absence of GTP) appeared to be less heterogeneous compared to microtubule: FAP20:tubulin:GTP complex (Figures 2E, 3B and 3C). Therefore, we attempted 3D reconstruction of microtubule:FAP20:tubulin complex to deduce its architecture and possible molecular interactions (See STAR Methods for details and Figure S5A). A low-resolution C1 reconstruction of the complex revealed that it is made up of three concentric layers (Figures 4A, S5B and Table 1). Our microtubule co-pelleting and cryo-EM experiments with purified FAP20 and microtubules demonstrated that FAP20 binds directly to the microtubule lattice. Further, our in vitro reconstitution TIRF and cryo-EM experiments unequivocally show the recruitment of tubulin by FAP20. Therefore in our 3D reconstruction, we assigned the innermost layer as microtubule, the intermediate layer as FAP20 bound to microtubule lattice, and the outermost rings as recruited tubulin (Figure 4A). Our 3D reconstruction is comparable to previously determined structures of similar microtubule-MAP-tubulin complexes^28–30 that have ring-like structures featuring tubulin dimers (Figure 4A). To improve the resolution of the complex, we performed signal subtraction for the different layers and refined them individually (Figure S5A). While refinement of the microtubule lattice yielded a 3D reconstruction with sufficient distinction between alpha- and beta-tubulins, the particles with subtraction focused on the FAP20 layer and outer tubulin layer did not yield EM maps with defined structures for the intermediate layer and outer rings/spirals (FAP20 and tubulin dimer unit), possibly because of heterogeneity and flexibility in these layers (Figure S5A). In particular, the FAP20 layer was very poorly resolved and did not yield any discernible features that could aid in fitting the model of FAP20 obtained from cryo-EM studies on the isolated doublet.^7,8 While the reconstructed maps corresponding to the outermost layer could accommodate only tubulin dimers with no additional space for FAP20, at this resolution, we cannot completely exclude the presence of FAP20 in this layer (Figure 4B). The horizontal protofilament along the ring/spiral showed a better fit into the density compared to the vertical alignment of tubulin dimers along the microtubule axis (Figure 4B). However, due to the highly heterogeneous nature of this layer (Figure 3E), the exact position, orientation, and interaction between tubulin dimers within the layer could not be accurately modeled.

Figure 4. Cryo-EM map and 3D reconstruction of microtubule: FAP20: tubulin complex.

(A) Surface representation of C1 reconstruction of microtubule: FAP20: tubulin complex obtained in the absence of GTP is shown in gray. Left: Cross section of the 3D reconstruction showing three concentric layers, representing the 14 protofilament microtubule (inner), FAP20 (middle), and tubulin dimers (outer). Right: Lateral views of the 3D reconstruction rotated by 180° along the vertical axis of the microtubule to show the rings/spirals of FAP20: tubulin complex and absence of break in the rings/spirals corresponding to the microtubule seam.

(B) Vertical versus horizontal protofilament arrangement model of tubulin dimers in the electron density map of microtubule:FAP20:tubulin complex from (A). Cartoon representations of atomic models of alpha- and beta-tubulin (obtained from AlphaFold2 prediction) are shown in green and blue, respectively. Height of a tubulin dimer and the approximate vertical distance of a tubulin spiral are indicated.

(C) Cross section of 3D reconstruction of microtubule:FAP20:tubulin complex from (A) shown in the top left corner with a zoomed in version out-lined in black. The electron density map corresponding to three protofilaments of the microtubule (inner) layer was fitted with three repeats of a model of FAP20 (red) bound to tubulin dimer (green/blue) obtained from AlphaFold2 prediction. The distance between the microtubule and outer tubulin layer is indicated with a double-sided arrow.

Table 1. Data collection statistics.

Name	C1 reconstruction of microtubule: FAP20: tubulin complex (without GTP)
Microscope	Titan Krios G3-X-FEG
Voltage	300 kV
Detector and mode	Falcon III detector and linear mode
Pixel size (Å)	1.78
Defocus range (μm)	−2.0 to −3.2
Software used	EPU
Total electron dose (electrons/Å2)	39.55
Dose rate (electrons/pixel/s)	62.5
Exposure time (s)	2
Frames per movie	20
Number of micrographs	1467
Initial number of particles	56145
Final number of particles	24621
Resolution (Å)a	11.6
EMDB ID	EMD-34836

^aResolution corresponding to gold-standard Fourier shell correlation (FSC) value of 0.143 between half maps.

In order to obtain a composite model of the microtubule:-FAP20:tubulin interaction, we attempted AlphaFold2^31,32 multimer-based structure prediction of complex of FAP20 and tubulin dimer and compared the predicted models with structures of the fully assembled doublet determined by cryo-EM. The AlphaFold2 model of FAP20 bound to a tubulin dimer showed high confidence (pTM+ipTM = 0.91) and was similar to the interaction of FAP20 with alpha-tubulin from A1 protofilament in the atomic models of the doublet (Figures S5C and S5D). The distinct spacing of FAP20-mediated tubulin rings in the structure, high confidence values (pTM+ipTM between 0.89 and 0.91) for top 5 models obtained from AlphaFold 2 (Figure S5D), and buried surface area (865.2 Ų) suggest binding of FAP20 to alpha-tubulin in the microtubule lattice (similar to A1 protofilament in the doublet microtubule). We fit the tubulin part of the model of FAP20 bound to the tubulin dimer (from AlphaFold2) in the electron density map (C1 reconstruction) of the microtubule (Figure 4C). Examination of the model and map revealed that the distance between the microtubule lattice and outer layer was 6 nm with no strong linking connections in the electron density map between the FAP20 and the microtubule or tubulin layers, indicating high flexibility of the interactions. The predicted atomic model of FAP20 associated with the fitted tubulin dimer aligned with the map corresponding to the FAP20 layer but showed space to accommodate a modified version of FAP20 or another molecule of FAP20 between the microtubule and outer tubulin layers. The interaction between FAP20 and tubulin dimers of the outer helix could not be analyzed due to insufficient resolution of the density to accurately fit the tubulin dimers. However, analysis of other interfaces of FAP20 with tubulin including that in the B-tubule in the doublet structure (PDB ID: 6u42⁸) and in C2 microtubule of the ciliary central pair (PDB ID:7SOM²⁷) gave low values of buried surface areas (FAP20: alpha-tubulin-135.2 Ų, FAP20: beta-tubulin-262.4 Ų in doublet, and FAP20: beta-tubulin-184.7 Ų in central pair) suggesting weak interactions between FAP20 and tubulin dimers of the outer helix. Hence, this structure might represent an intermediate in the formation of the inner junction which upon interaction with other proteins is stabilized to form the connection observed in the doublet microtubule.

In summary, we have purified FAP20 and characterized its interaction with microtubules and tubulin dimers. Using biochemistry, TIRF, and electron microscopy imaging, we thus conclude that FAP20 mediates flexible interactions between microtubule and tubulin dimers possibly by undergoing conformational changes or oligomerization.

Discussion

The architecture of the doublet microtubule inner junction is fundamentally different from that of the outer junction and is chiefly composed of FAP20 and PACRG repeating units connecting the B-tubule to the A-tubule.¹⁶ Previous studies on the inner junction have involved analysis of isolated doublet microtubules,^7,8 Chlamydomonas FAP20 and PACRG mutants,^16,17 and purified recombinant PACRG in complex with MEIG1²⁵; however, the properties of FAP20 have remained largely uncharacterized. In this study, we recombinantly purified FAP20 and characterized its role in mediating the inner junction connections using TIRF and electron microscopy. Microtubule growth and dynamic assays in the presence of FAP20 revealed an increase in microtubule growth rate and length at high concentrations along with a stark reduction in the frequency of observed catastrophe events. Similar stabilizing lattice interactions are often observed in case of microtubule inner proteins (MIPs) associated with the doublet microtubules. Chlamydomonas mutants of MIPs, FAP45, and FAP52 show higher depolymerization rates of the B-tubule compared to the wild type.³³ Turbidity studies with recombinant FAP85, a MIP associated with the A-tubule, show reduced microtubule depolymerization rates at lower temperatures.³⁴ Since FAP20 binds uniformly over the microtubule lattice in vitro, we conclude that this mode of microtubule polymer protection is unique to FAP20 among the microtubule doublet-associated proteins that have been characterized so far.

In addition to the microtubule stabilizing role of FAP20, our experiments revealed another salient property of FAP20, where it recruits free tubulin to the existing microtubule polymer. Based on the cryo-EM structure of the ciliary doublet,⁸ 1 FAP20 molecule binds to one helical turn of the doublet (13 + 10 tubulin dimers) leading to a stoichiometry of approximately 1 FAP20 per 23 tubulin dimers. While the observed tubulin recruitment in our assays is most striking at concentrations of 2.5 and 5 μM FAP20, it is also evident at lower concentrations of 0.25 and 0.5 μM FAP20 (Figure 1A). The lower concentration range of 0.25 and 0.5 μM FAP20 corresponds to stoichiometric ratios of 1 FAP20 per 40 and 20 tubulin dimers, respectively, demonstrating the physiological relevance of our reconstitution studies. Recruitment of free tubulin to the existing polymer has been reported in the microtubule repair mechanism and occurs without the aid of any microtubule-associated proteins (MAPs).³⁵ PACRG-mediated tubulin recruitment has also been reported recently and the tubulin has been shown to accumulate as distinct puncta at comparable concentrations.²⁵ In our dynamic assays, FAP20-mediated tubulin recruitment along the GMPCPP seed gives a speckled appearance at concentrations of 0.25 and 0.5 μM FAP20 and a more thorough coating of the microtubule lattice at 2.5 and 5 μM concentrations of FAP20 (Figures 2A, 2D, S3F, S3G, Videos S1, and S2). The concentration of tubulin used in our assay (10 μM) eliminates any tubulin quenching effect due to its lateral association and an overall increase in growth rate and length of microtubules is observed at concentrations of 2.5 and 5 μM FAP20 (Figures 1B, 1C, and S2D).

Through cryo-EM studies, we further show that FAP20 mediates flexible interactions with tubulin dimers in the absence of GTP as well as larger assemblies of protofilaments when GTP is added (Figures 3B and 3C). The conformational heterogeneity observed in the cryo-EM 3D reconstructions can also be attributed to the different modes of tubulin binding that FAP20 adopts at the inner junction of A- and B-tubule of doublet microtubules and C2 microtubule of the central pair of ciliary apparatus.^8,27 The higher-order structure of microtubule:FAP20:tubulin obtained in the presence of GTP appears similar to the “double walled microtubules” nucleated in the presence of polycations, peptides, or histones.^36,37 In the presence of GTP, the microtubule:FAP20:tubulin complex acts as a nucleation point for the addition of more protofilaments or polymerization of tubulin dimers leading to the formation of puncta or thick higher-order structures manifesting in a steady increase of fluorescence along the GMPCPP seed over time (Figures 2C, Videos S1, and S2). The tubulin rings/spirals connected by FAP20 to the microtubule lattice obtained in the absence of GTP resemble similar tubulin dimer decorations in the microtubule structures determined in complex with depolymerizing kinesin-13, Ska1, and APC proteins.^28–30 The periodicity of FAP20 interaction with the microtubule lattice as evident by the spacing between the FAP20-tubulin rings/spirals was found to be around 11 nm which is slightly higher than the 8 nm periodicity of FAP20 binding in the doublet microtubule.^7,8,16 This difference can be attributed to a stagger of tubulin dimers in the outer ring as compared to the vertical axis of the microtubule due to FAP20 binding flexibly to alpha-tubulin leading to different helical symmetries for the microtubule and outer ring (Figure 4B). In contrast, kinesin-13 binds between alpha- and beta-tubulin and the spirals formed of kinesin-13 and tubulin follow the helical path of the tubulin heterodimer in the microtubule lattice.^29,38 FAP20 mutations were identified in human patients with inherited retinal dystrophy cluster in the binding site of FAP20 with alpha-tubulin further highlighting the importance of this interaction.²¹

While the absence of FAP20 affects the beak structures in axonemes, it does not appear to be critical for other associated structures of the axoneme such as radial spokes, outer and inner dynein arms, and the dynein regulatory complex.¹⁷ High-resolution structures of the doublet microtubule suggest that FAP20 interacts with many inner junction proteins including PACRG, FAP52, FAP276, FAP106, FAP126, and FAP45.^7,8 Extensive comparative analysis of expression patterns of these interacting proteins is lacking but studies point toward the relative independence of FAP20 expression. FAP52 mutants do not show a decrease in levels of FAP20 or PACRG⁷ and reports have shown reduced levels of PACRG and Rib72 in FAP20 mutants,¹⁷ but not vice versa,¹⁶ suggesting their recruitment to be sequential steps in a pathway. Since mutants of FAP20 or PACRG do not have incomplete B-tubules,¹⁶ it is likely that both these proteins play a role in the later stages of the doublet microtubule assembly after it has been initiated by the other proteins.³³ However, the absence of FAP20 in Chlamydomonas leads to flaying of isolated axonemes upon the addition of ATP, indicating its importance in the stability of axonemes.¹⁷

Although more studies are required to identify the sequence of ciliary proteins and intermediate steps in organizing the doublet microtubule, based on the previously described inferences, we provide a basic model of assembly of the inner junction (Figure 5). The assembly of the B-tubule is initiated at the outer junction and stabilized by multiple proteins.^7,11,15 As the B-tubule extends from the A-tubule, several MIPs lining the B-tubule and ribbon of the doublet (FAP52, FAP276, FAP106, FAP126, and FAP45) act synergistically via tubulin posttranslational modifications and aid in addition of requisite protofilaments for reaching the inner junction site.^7,8,13 Mutations in these proteins are associated with ciliary defects in structure and function,^39–42 emphasizing their role in cilia formation and maintenance. Upon a regulatory cue at this stage, FAP20, PACRG, possibly MEIG1, and similar such proteins depending on the organism might bind in different combinations to the partial doublet structure; it is still not clear if FAP20 and PACRG exist as or form heterodimers.^7,16,25 Although we cannot rule out the role of a marker protein (between A13 and A1) such as FAP276 or tubulin posttranslational modifications at the carboxy-termini of B-tubules in recruiting FAP20 and PACRG to the inner junction,⁷ our TIRF microscopy and structural data suggest that FAP20 is capable of binding to the entire microtubule surface and not a single protofilament. This FAP20 binding, however, is stochastic and transient and can be cooperatively stabilized by PACRG or another accessory protein. At places along the inner junction where both FAP20 and PACRG make secure interactions between the A- and B-tubule, a stable intermediate is formed (Figure 5) which then propagates along the junction stabilizing it. Further studies with purified FAP20 and PACRG will be needed to show the combined effects of their binding and tubulin recruitment to the microtubule lattice. Finally, while higher resolution structures of in vitro reconstituted complexes at different stages of doublet assembly will be required to understand and validate the assembly mechanism in detail, the purification and reconstitution experiments with FAP20 in this study lay the foundation and provide a step closer towards polymerizing doublet microtubules in vitro.

Figure 5. Model for assembly of inner junction and closure of doublet microtubule.

Schematic model illustrating the steps of formation of the inner junction. Cross sections are shown on the top with the corresponding lateral views depicted below. Partial stabilization of B-tubule with proteins implicated in vital contacts at the inner junction (left) followed by the stochastic formation of a nascent inner junction in the presence of FAP20 and PACRG along the joining points of B- and A-tubule (middle) and finally the propagation of this stable inner junction segment along the longitudinal axis leading to the formation of the complete inner junction and the closure of B-tubule of the doublet microtubule (right). Density maps generated using the doublet microtubule model (PDB: 6u42⁸) in chimera are depicted as a surface representation with alpha- and beta-tubulins from the A-tubule shown in green and blue, respectively, FAP20, PACRG, and MEIG1 in red, yellow, and brown, respectively, and alpha- and beta-tubulin from the B-tubule in light and dark gray, respectively. The proteins of the inner junction portrayed here include FAP45 (pink), FAP52 (peach), FAP106 (light green), FAP126 (beige), FAP276 (light blue), and RIB72 (salmon). The different possible combinations of FAP20, PACRG, and MEIG1 interactions along the microtubule lattice are shown in white dashed circles/ovals, while the stable inner junction segment is outlined in a white dashed rectangle.
