. Author manuscript; available in PMC: 2025 Jan 1.
Published in final edited form as: New Phytol. 2024 May 27;243(2):811–819. doi: 10.1111/nph.19862

HYBRIDEXPRESS: an R/Bioconductor package for comparative transcriptomic analyses of hybrids and their progenitors

Fabricio Almeida-Silva 1,2,#, Lucas Prost-Boxoen 1,2,3,#, Yves Van de Peer 1,2,4,5,*
PMCID: PMC7616114  EMSID: EMS196788  PMID: 38798271

Summary

  • Hybridization, the process of crossing individuals from diverse genetic backgrounds, plays a pivotal role in evolution, biological invasiveness, and crop breeding.

  • At the transcriptional level, hybridization often leads to complex non-additive effects, presenting challenges for understanding its consequences. Although standard transcriptomic analyses exist to compare hybrids to their progenitors, such analyses have not been implemented in a software package, hindering reproducibility.

  • We introduce HybridExpress, an R/Bioconductor package designed to facilitate the analysis, visualization, and comparison of gene expression patterns in hybrid triplets (hybrids and their progenitors). HybridExpress provides users with a user-friendly and comprehensive workflow that includes all standard comparative analyses steps, including data normalization, calculation of midparent expression values, sample clustering, expression-based gene classification into categories and classes, and overrepresentation analysis for functional terms.

  • We illustrate the utility of HybridExpress through comparative transcriptomic analyses of cotton allopolyploidization and rice root trait heterosis. HybridExpress is designed to streamline comparative transcriptomic studies of hybrid triplets, advancing our understanding of evolutionary dynamics in allopolyploids, and enhancing plant breeding strategies. HybridExpress is freely accessible from Bioconductor (https://bioconductor.org/packages/HybridExpress) and its source code is available on GitHub (https://github.com/almeidasilvaf/HybridExpress).

Keywords: gene expression, transcriptomic shock, allopolyploidy, hybrid vigor, expression-level dominance

Introduction

Hybrids result from crossing individuals from different species, subspecies, or genetic lineages. Hybridization plays a crucial role in evolution (Abbott et al., 2013; Taylor & Larson, 2019), biological invasiveness (Ellstrand & Schierenbeck, 2000), and crop breeding through heterosis (Fu et al., 2014; Labroo et al., 2021). Hybrids, whether homoploid or allopolyploid, combine two distinct genomes and their associated regulatory networks in a single nucleus, resulting in potential incompatibilities (Landry et al., 2007; Maheshwari & Barbash, 2011; Sloan et al., 2023), complex cis and trans regulatory changes (Wittkopp et al., 2004), (epi)genomic changes (Baack & Rieseberg, 2007; Greaves et al., 2015), and phenotypic novelties (Dittrich-Reed & Fitzpatrick, 2013). Hybridization can also lead to complex and unpredictable alterations of transcriptional regulation, a phenomenon known as “transcriptomic shock” (Hegarty et al., 2006; Buggs et al., 2011).

Comparative transcriptomics studies of hybrid triplets (i.e., hybrids and their parent species) have provided novel insights on changes in transcriptional regulation following genome merging. These transcriptomic responses typically manifest as non-additive expression patterns in hybrids, such as expression-level dominance (i.e., expression in the hybrid mimics that of one of its progenitors) and transgressive up- and down-regulation (i.e., expression is higher or lower in the hybrid relative to both progenitors) (Osborn et al., 2003; Adams et al., 2003; Otto, 2003; Adams & Wendel, 2005; Chen, 2007; Yoo et al., 2013, 2014). Such changes have been documented in several plant species, including maize (Guo et al., 2004, 2006; Auger et al., 2005; Stupar et al., 2008), rice (Wei et al., 2009; He et al., 2010), cotton (Rapp et al., 2009; Flagel & Wendel, 2010), Arabidopsis sp. (Wang et al., 2006), Monkeyflower (Edger et al., 2017), and Senecio sp. (Hegarty et al., 2008), as well as in animals, such as insects (Wittkopp et al., 2004; Wang et al., 2015) and fish (Gao et al., 2013; Li et al., 2018). Many factors can influence the transcriptomic changes in hybrids, including species-specific characteristics, the nature of the cross, environmental conditions (Bardil et al., 2011; Shimizu-Inatsugi et al., 2017), and tissue specificity (Li et al., 2014, 2020).

To increase our understanding of the transcriptome-level effects of hybridization, methods for comparing, analyzing, and visualizing gene expression patterns in hybrids have been developed and standardized. These methods include normalization techniques to account for differences in biomass (for polyploids) and library size (Visger et al., 2019; Coate, 2023), and the classification of genes in classes and categories based on their expression patterns (Hegarty et al., 2006; Flagel et al., 2008; Hovav et al., 2008; Rapp et al., 2009). Notably, Rapp et al. (2009) were, to our knowledge, pioneers in introducing a twelve-category classification for gene expression, which has since become a standard approach in comparative transcriptomics of hybrid triplets (see, for examples, Bardil et al., 2011; Chagué et al., 2010; Chelaifa et al., 2010; Wu et al., 2018; Yoo et al., 2013). However, these methods have not been implemented in a user-friendly software package, which poses a challenge for novice bioinformaticians, and hinders reproducibility and efficiency.

Here, we present HybridExpress, an R/Bioconductor package that provides a comprehensive and user-friendly framework to analyze, visualize, and compare gene expression patterns in hybrid triplets. From gene expression data, HybridExpress allows users to normalize data, calculate midparent expression values, explore sample clustering, classify genes into expression-based categories and classes (as per Rapp et al., 2009), and perform overrepresentation analysis for functional terms. By applying HybridExpress to real data sets, we demonstrate how the package can be used to better understand the transcriptomic effects of allopolyploidization in cotton and root trait heterosis in rice. HybridExpress will likely be a central resource in comparative transcriptomic analyses of hybrid triplets, from evolutionary applications to plant breeding, providing researchers with ideas and hypotheses to be tested in follow-up investigations.

Materials and Methods

Implementation

For seamless integration with other Bioconductor packages, input data for HybridExpress are either base R or core Bioconductor S4 classes (e.g., SummarizedExperiment objects for quantitative data and associated metadata) (Morgan et al., 2023). For increased efficiency, functions that perform operations on large sets (e.g., overrepresentation analyses) can be parallelized using the back-ends provided by the BiocParallel package (Morgan et al., 2014).

Calculating (in silico) midparent expression values

Midparent expression values are typically used as a reference point to test for genetic additivity, and deviations from midparent values are interpreted as resulting from non-additive effects (Gianinetti, 2013). By default, HybridExpress creates in silico samples with midparent values by calculating the mean expression of sample pairs containing a sample from each parent. Users can also calculate the weighted mean of sample pairs, which can help account for differences in ploidy levels in newly synthesized polyploids (Gianinetti, 2013).

Data normalization

By default, HybridExpress normalizes count data by library size using size factors estimated with the ‘median of ratios’ method implemented in the DESeq2 package (Anders & Huber, 2010; Love et al., 2014). This technique corrects for differences in sequencing depth across samples, and it assumes equal amounts of mRNA per cell between conditions (Evans et al., 2018). However, when this assumption is violated (e.g., when comparing individuals with different ploidy levels and, hence, different cell sizes and/or biomass/genome ratio), users can also normalize data with spike-in controls that aim at correcting for differences in cell size and units of biomass per genome (Evans et al., 2018; Coate, 2023).

Exploratory data analysis

To help users detect potential issues in sample grouping (e.g., batch effects and high heterogeneity), graphical functions are available to easily create heatmaps of hierarchically clustered samples (from pairwise correlations), and principal component analysis plots. For both analyses, expression data are filtered to include only the top N genes with the highest variances to reduce noise. Then, a variance-stabilizing transformation is applied to remove the mean-variance relationship typically observed in RNA-seq count data. All figures generated with HybridExpress are publication-ready, and they can be further customized with the ggplot2/grid plotting system (Wickham, 2011).

Identification of differentially expressed genes (DEGs)

Differentially expressed genes are detected using the DESeq2 algorithm (Love et al., 2014) on four contrasts: parent 2 versus parent 1; hybrid versus parent 1; hybrid versus parent 2; and hybrid versus midparent value. The function get_deg_list() returns gene-wise test statistics for each contrast, and the function get_deg_counts() summarizes results in a table with frequencies (absolute and relative) of up- and down-regulated genes per contrast. Frequencies of DEGs in all contrasts can be summarized in a single figure with the function plot_expression_triangle(), which creates a DEG triangle commonly used in publications (Rapp et al., 2009).

Expression-based gene classification

From the gene-wise test statistics (i.e., fold changes and adjusted P-values for all DEGs in each contrast) returned by get_deg_list(), the function expression_partitioning() can be used to classify genes into one of the twelve expression-based categories proposed by Rapp et al. (2009). Besides, since many of such categories display biologically redundant information, genes can be further grouped into five major classes, namely: i. transgressive up-regulation; ii. transgressive down-regulation; iii. additivity; iv. expression-level dominance towards parent 1; and expression-level dominance towards parent 2. Results can be graphically summarized in publication-ready figures with the functions plot_expression_partitions() and plot_partition_frequencies().

Functional analyses

Overrepresented functional terms (e.g., biological processes or metabolic pathways) among expression-based classes and categories can be identified with the ora() function. Functional annotation for the ora() function can be passed as a two-column data frame with genes and the functional terms associated with them, giving users the flexibility to use functional annotation from any database, as well as custom annotation (e.g., experimentally validated genes).

Benchmark data sets

Data for benchmarks 1 and 2 were obtained from Dong et al. (2022) and Zhai et al. (2013), respectively. In the first benchmark data set, authors investigated the transcriptomic responses to modest salinity stress in two allotetraploid cotton species (Gossypium hirsutum and G. mustelinum, AD genome) relative to their model diploid progenitors (A and D genomes). For each species, three biological replicates of 2-week-old seedlings were obtained in control and stress conditions. In the second benchmark data set, authors sequenced the root transcriptomes of the super-hybrid rice (Oryza sativa) variety Xieyou 9308 and its parents (lines R9308 and Xieqingzao B) during heading and tillering stages, with two replicates for each line and stage. The goal of the study was to understand the transcriptomic basis of heterosis (i.e., superior performance of hybrids compared to parents) in root traits. Functional annotation (Gene Ontology, InterPro domains, and MapMan pathways) for the cotton and rice genomes were obtained from PLAZA Dicots 5.0 and PLAZA Monocots 5.0, respectively (Van Bel et al., 2022).

Results and Discussion

Use case 1: transcriptional responses to salt stress in allopolyploid cotton species

We used HybridExpress to perform comparative transcriptomic analyses in two allotetraploid cotton species (Gossypium hirsutum and G. mustelinum, hereafter referred to as ‘AD1’ and ‘AD4’, respectively) relative to their diploid progenitors (A2 and D5) under moderate salinity stress (see Materials and Methods for details). We processed the original count matrix to remove lowly expressed genes (sum of counts <10), include midparent expression values, and normalize data by library size. Principal component analyses revealed that samples grouped well by species and treatment, but an outlier was detected and removed from further analyses (Fig. 1A and 1B). Importantly, such outlier was also detected in the original publication, highlighting that results are consistent (Dong et al., 2022). Principal component 1, which describes most of the variation (42.3% and 47.2% for AD1 and AD4, respectively), separates samples by species, and it shows that both allopolyploids are closer to the A2 parent than to the D5 parent (Fig. 1A and 1B).

Fig. 1. Sample grouping and frequencies of differentially expressed genes (DEGs) between species pairs for allopolyploid cotton (see text for details).

Fig. 1

Open in a new tab

A-B. Principal component analysis of samples for the hybrid triplet including genomes AD1 (Gossypium hirsutum) and AD4 (Gossypium mustelinum). Figures were created with the pca_plot() function. Samples group well by species and conditions, but one outlier (sample D5_CK2) can be detected. Both allotetraploids are closer to the A2 parent than to the D5 parent. C-F. Expression triangle plot showing the frequencies of DEGs for each pairwise species pair, with midparent value (in silico) in the center, for AD1 (control and stress) and AD4 (control and stress). Figures were created with the plot_expression_triangle() function. Figures show that the number of DEGs in allotetraploids relative to the D5 parent is greater than the number of DEGs relative to the A2 parent, indicating expression-level dominance towards A2. However, the dominance is greatly reduced under salt stress.

We further identified differentially expressed genes (DEGs) between species pairs for each triplet and condition. For both allotetraploids, the number of DEGs relative to the D5 parent is greater than the number of DEGs relative to the A2 parent, indicating an expression-level dominance (ELD) towards A2. However, the difference in number of DEGs is reduced upon salt stress (Fig. 1C to 1F), suggesting that the stress condition disrupts ELD. When exploring the overlap of DEGs in allotetraploids relative to both parents in control and stress conditions, we found many shared DEGs relative to both parents and conditions (N = 2187 and 2693 for AD1 and AD4, respectively) (Fig. 2A and 2B). Besides, most DEGs relative to the D5 parent are shared between control and stress conditions, while DEGs relative to the A2 parent are mostly specific to each condition (Fig. 2A and 2B).

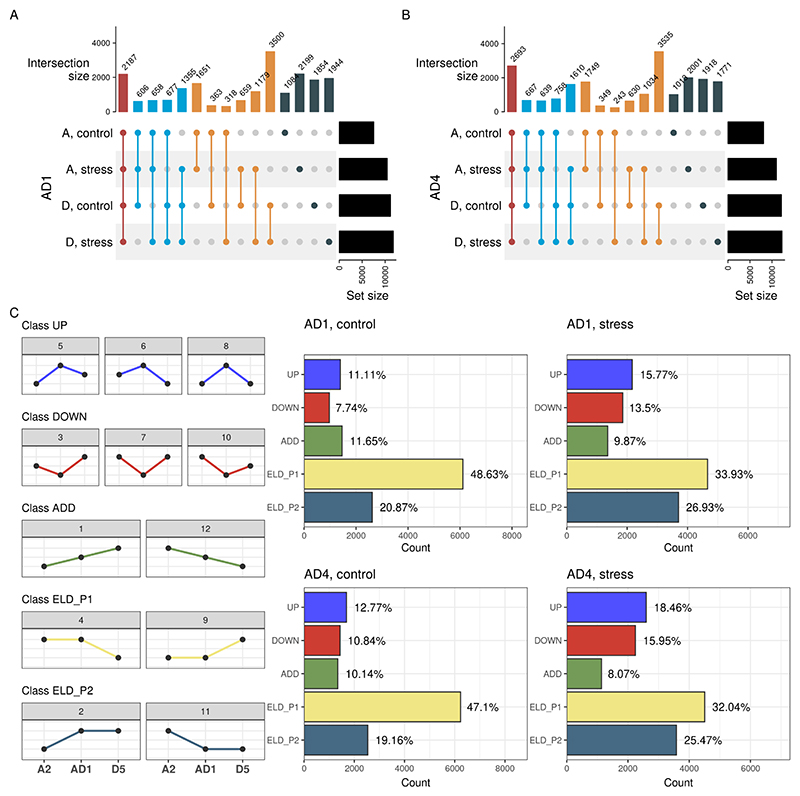

Fig. 2. Patterns of shared DEGs in cotton allotetraploids, and expression-based partitioning of genes in classes.

Fig. 2

Open in a new tab

A-B. UpSet plots showing the overlaps of DEGs in the allotetraploids relative to both parents in control and stress conditions. Different colors indicate different overlap sizes (i.e., shared by all four sets, three sets, two sets, and set-specific DEGs). C. Frequency of genes per expression-based class for AD1 (control and stress) and AD4 (control and stress). Line plots on the left are schemes to visually exemplify what the expression patterns of genes in each class and category look like. Most genes display expression-level dominance towards parent 1 (A2), but the dominance is greatly reduced upon stress.

To better understand global expression patterns in allotetraploids relative to their parents, we classified genes into expression-based classes and calculated the frequency of genes in each class. For both tetraploids, we observed that most genes display ELD towards the A2 parent in control and stress conditions, but such bias towards the A2 parent is greatly reduced under salt stress (Fig. 2C). This finding is in line with what we observed based on the number of DEGs alone (Fig. 1C to 1F), providing strong evidence for a salt stress-mediated disruption of ELD. Genes displaying ELD towards the A2 parent were associated with photosynthesis, ribosome biogenesis, RNA modifications, and circadian rhythm, while those displaying ELD towards the D5 parent were associated with phenylpropanoid biosynthesis, and regulation of defense response (e.g., ERF and WRKY transcription factors) (Supplementary Table S1). Under salt stress, genes displaying transgressive up-regulation were involved in abscisic acid binding, response to salicylic acid, and redox metabolism. Genes displaying transgressive down-regulation under salt stress were involved in cell wall organization, such as cellulose synthases, galacturonan metabolism, and endoglucanases.

Considering the spatiotemporal dynamics of transcriptional regulation, the effects of allopolyploidization at the transcriptional level are likely to vary in different conditions, tissues, and species. While Flagel & Wendel (2010) observed biased expression towards the D genome in petal transcriptomes of five natural Gossypium allotetraploids, we observed biased expression towards the A genome in seedlings, suggesting that tissue-specific transcriptional programs play a role in expression-level dominance. This finding highlights the importance of more fine-grained analyses of expression changes in different tissues to understand tissue-specific regulatory mechanisms, as demonstrated in allopolyploid Capsella bursa-pastoris (Kryvokhyzha et al., 2019). Besides, while we observed reduced ELD under salt stress, Dong et al., (2022) found that salt stress increased homoeolog expression bias (i.e., preferential expression of one homoeolog relative to the other), highlighting that expression-level dominance (or genome expression dominance) and homoeolog expression bias are different phenomena (Grover et al., 2012). Collectively, our findings indicate how HybridExpress can help understand the transcriptomic effect of allopolyploidization, while further analyses not included in HybridExpress (e.g., allele-specific expression) can provide complementary insights.

Use case 2: heterosis in rice root traits

To understand the transcriptomic basis of heterosis in root traits in rice (Oryza sativa ssp. japonica), we compared transcriptomes of the super-hybrid rice variety Xieyou 9308 (hereafter referred to as ‘F1’) with its parents (lines R9308 and Xieqingzao B, hereafter referred to as ‘P1’ and ‘P2’) at heading and tillering stages (see Materials and Methods for details). As we did for the cotton data set, we filtered out lowly expressed genes (sum of counts <10), calculated midparent expression values, and normalized data by library size. Principal component analyses revealed that samples from the same line clustered together as expected, but a large within-group variance was observed for hybrid samples at tillering stage (Fig. 3A and 3B). Interestingly, the hybrid line was closer to P1 at the heading stage, but closer to P2 at the tillering stage, suggesting a shift in ELD at different developmental stages (Fig. 3A and 3B).

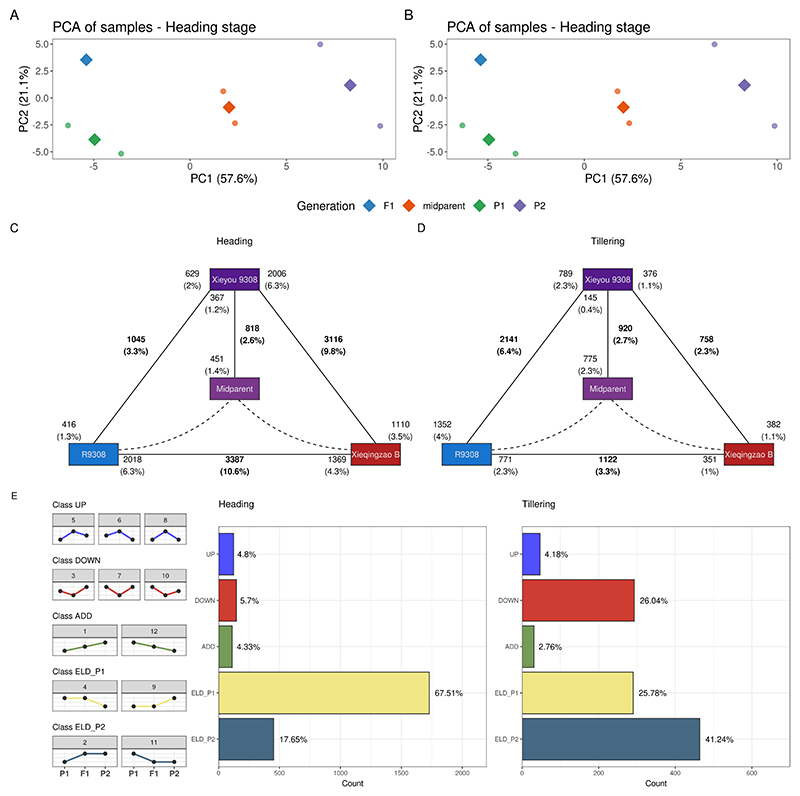

Fig. 3. Comparative analyses of rice root transcriptomes in a hybrid triplet displaying heterosis of root traits.

Fig. 3

Open in a new tab

A-B. Principal component analysis of samples at heading and tillering stages. Figures were created with the pca_plot() function. The hybrid line is closer to P1 (line R9308) at the heading stage, but closer to P2 (line Xieqingzao B) at the tillering stage. C-D. Expression triangle plots showing the frequencies of DEGs for each pairwise combination of lines, with midparent values (in silico) in the center, at heading and tillering stages. Figures were created with the plot_expression_triangle() function. Figures show that the number of DEGs in the hybrid relative to P2 is greater at the heading stage, while the opposite trend is observed at the tillering stage. E. Frequency of genes per expression-based class at heading and tillering stages. Most genes display expression-level dominance towards P1 at the heading stage, while most genes display expression-level dominance towards P2 at the tillering stage, indicating a shift in dominance between developmental conditions.

Next, we identified DEGs between pairwise combinations of lines during both developmental stages. We found a greater number of DEGs relative to P2 at the heading stage, but the opposite trend at the tillering stage, again suggesting a developmental stage-mediated shift in ELD (Fig. 3C and 3D). To validate such a shift, we classified genes in expression-based classes and calculated the frequency of genes per class in both developmental stages. Most of the genes (67.51%) displayed ELD towards P1 at the heading stage, while most of the genes (41.24%) displayed ELD towards P2 at the tillering stage (Fig. 3E). However, a large but smaller fraction of the genes also displayed transgressive down-regulation and ELD towards P1 at the tillering stage (Fig. 3E). Genes displaying transgressive down-regulation were associated with flavone biosynthesis, redox metabolism, MYB transcription factors, and CASP-like proteins 1U (Supplementary Table S2). Genes displaying ELD towards P1 at heading stage were enriched in aquaporins and diacylglycerol kinases, while genes displaying ELD towards P2 at tillering stage were associated with apoptosis-activating factors, gibberellin biosynthesis, and terpene synthases. Collectively, our findings provide strong support for a developmental stage-mediated shift in genomic expression dominance in this rice hybrid triplet.

Changes in gene expression have been linked to heterosis in many plant traits, such as seed germination and plant height in maize (Birdseye et al., 2021; Wan et al., 2022), yield in rice (Sun et al., 2023), and nicotine biosynthesis in Nicotiana tabacum (Tian et al., 2018). However, such changes in transcriptional programs can (and possibly will) vary in a spatiotemporal scale, resulting in tissue- or condition-specific changes in the strength of heterosis (Ko et al., 2016; Yang et al., 2021). For instance, Zhai et al. (2013) demonstrated that heterosis in root traits (e.g., root-to-shoot ratio and root dry weight) is stronger during the tillering stage, which is in line with the more dramatic non-additive transcriptomic effects we observed in this stage. In particular, the large frequencies of genes displaying expression-level dominance and transgressive down-regulation at the tillering stage compared to the heading stage could explain the stronger heterotic effects at the phenotypic level, highlighting the potential of HybridExpress in understanding the molecular mechanisms underlying trait heterosis.

Conclusion

In this study, we described HybridExpress, an R/Bioconductor package that provides researchers with a comprehensive and easy-to-use framework for comparative transcriptomic analyses of hybrids relative to their progenitors. Features included in HybridExpress allow users to perform a complete comparative transcriptomics workflow, including data processing, identification of differentially expressed genes, expression-based classification of genes, and functional analyses. Benchmarks demonstrated how HybridExpress can be used to better understand the transcriptomic effects of allopolyploidization and heterosis. While results obtained with HybridExpress can help understand the significance of hybridization for evolution and crop breeding, we encourage users to investigate results further with follow-up analyses that are not within the scope of HybridExpress, such as exploring allele-specific expression patterns, and investigating structural variations in the genome that could be linked to changes in expression.

Supplementary Material

Supplementary tables

Acknowledgements

YVdP acknowledges funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation program (No. 833522). YVdP and FA-S acknowledge funding from Ghent University (Methusalem funding, BOF.MET.2021.0005.01). LP-B acknowledges Fonds Wetenschappelijk Onderzoek (FWO, 11H0426N) of Flanders for a PhD scholarship.

Footnotes

Competing interests

None declared.

Author contributions

FA-S, LP-B, and YVdP conceived the ideas and designed the methodology. FA-S and LP-B collected the data. FA-S analyzed the data. FA-S, LP-B, and YVdP led the writing of the manuscript. All authors contributed critically to the drafts and gave final approval for publication.

Data availability

To ensure full reproducibility, all code and data used in this manuscript are available in a GitHub repository at https://github.com/almeidasilvaf/HybridExpress_paper, and an online Quarto book with executed code chunks and output are available at https://almeidasilvaf.github.io/HybridExpress_paper/.

References

  1. Abbott R, Albach D, Ansell S, Arntzen JW, Baird SJE, Bierne N, Boughman J, Brelsford A, Buerkle CA, Buggs R, et al. Hybridization and speciation. Journal of Evolutionary Biology. 2013;26:229–246. doi: 10.1111/j.1420-9101.2012.02599.x. [DOI] [PubMed] [Google Scholar]
  2. Adams KL, Cronn R, Percifield R, Wendel JF. Genes duplicated by polyploidy show unequal contributions to the transcriptome and organ-specific reciprocal silencing. Proceedings of the National Academy of Sciences of the United States of America. 2003;100:4649–4654. doi: 10.1073/pnas.0630618100. [DOI] [PMC free article] [PubMed] [Google Scholar]
  3. Adams K, Wendel J. Novel patterns of gene expression in polyploid plants. Trends in Genetics. 2005;21:539–543. doi: 10.1016/j.tig.2005.07.009. [DOI] [PubMed] [Google Scholar]
  4. Anders S, Huber W. Differential expression analysis for sequence count data. Nature Precedings. 2010:1. doi: 10.1186/gb-2010-11-10-r106. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Auger DL, Gray AD, Ream TS, Kato A, Coe EH, Jr, Birchler JA. Nonadditive Gene Expression in Diploid and Triploid Hybrids of Maize. Genetics. 2005;169:389–397. doi: 10.1534/genetics.104.032987. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Baack EJ, Rieseberg LH. A genomic view of introgression and hybrid speciation. Current Opinion in Genetics & Development. 2007;17:513–518. doi: 10.1016/j.gde.2007.09.001. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. Bardil A, de Almeida JD, Combes MC, Lashermes P, Bertrand B. Genomic expression dominance in the natural allopolyploid Coffea arabica is massively affected by growth temperature. New Phytologist. 2011;192:760–774. doi: 10.1111/j.1469-8137.2011.03833.x. [DOI] [PubMed] [Google Scholar]
  8. Birdseye D, De Boer LA, Bai H, Zhou P, Shen Z, Schmelz EA, Springer NM, Briggs SP. Plant height heterosis is quantitatively associated with expression levels of plastid ribosomal proteins. Proceedings of the National Academy of Sciences. 2021;118:e2109332118. doi: 10.1073/pnas.2109332118. [DOI] [PMC free article] [PubMed] [Google Scholar]
  9. Buggs RJA, Zhang L, Miles N, Tate JA, Gao L, Wei W, Schnable PS, Barbazuk WB, Soltis PS, Soltis DE. Transcriptomic Shock Generates Evolutionary Novelty in a Newly Formed, Natural Allopolyploid Plant. Current Biology. 2011;21:551–556. doi: 10.1016/j.cub.2011.02.016. [DOI] [PubMed] [Google Scholar]
  10. Chagué V, Just J, Mestiri I, Balzergue S, Tanguy A-M, Huneau C, Huteau V, Belcram H, Coriton O, Jahier J, et al. Genome-wide gene expression changes in genetically stable synthetic and natural wheat allohexaploids. New Phytologist. 2010;187:1181–1194. doi: 10.1111/j.1469-8137.2010.03339.x. [DOI] [PubMed] [Google Scholar]
  11. Chelaifa H, Monnier A, Ainouche M. Transcriptomic changes following recent natural hybridization and allopolyploidy in the salt marsh species Spartina × townsendii and Spartina anglica (Poaceae) New Phytologist. 2010;186:161–174. doi: 10.1111/j.1469-8137.2010.03179.x. [DOI] [PubMed] [Google Scholar]
  12. Chen ZJ. Genetic and Epigenetic Mechanisms for Gene Expression and Phenotypic Variation in Plant Polyploids. Annual Review of Plant Biology. 2007;58:377–406. doi: 10.1146/annurev.arplant.58.032806.103835. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Coate JE. In: Methods in Molecular Biology Polyploidy: Methods and Protocols. Van de Peer Y, editor. Springer US; New York, NY: 2023. Beyond Transcript Concentrations: Quantifying Polyploid Expression Responses per Biomass, per Genome, and per Cell with RNA-Seq; pp. 227–250. [DOI] [PubMed] [Google Scholar]
  14. Dittrich-Reed DR, Fitzpatrick BM. Transgressive Hybrids as Hopeful Monsters. Evolutionary Biology. 2013;40:310–315. doi: 10.1007/s11692-012-9209-0. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Dong Y, Hu G, Grover CE, Miller ER, Zhu S, Wendel JF. Parental legacy versus regulatory innovation in salt stress responsiveness of allopolyploid cotton ( Gossypium ) species. The Plant Journal. 2022;111:872–887. doi: 10.1111/tpj.15863. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Edger PP, Smith R, McKain MR, Cooley AM, Vallejo-Marin M, Yuan Y, Bewick AJ, Ji L, Platts AE, Bowman MJ, et al. Subgenome Dominance in an Interspecific Hybrid, Synthetic Allopolyploid, and a 140-Year-Old Naturally Established Neo-Allopolyploid Monkeyflower. The Plant Cell. 2017;29:2150–2167. doi: 10.1105/tpc.17.00010. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Ellstrand NC, Schierenbeck KA. Hybridization as a stimulus for the evolution of invasiveness in plants? Proceedings of the National Academy of Sciences. 2000;97:7043–7050. doi: 10.1073/pnas.97.13.7043. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Evans C, Hardin J, Stoebel DM. Selecting between-sample RNA-Seq normalization methods from the perspective of their assumptions. Briefings in bioinformatics. 2018;19:776–792. doi: 10.1093/bib/bbx008. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Flagel L, Udall J, Nettleton D, Wendel J. Duplicate gene expression in allopolyploid Gossypiumreveals two temporally distinct phases of expression evolution. BMC Biology. 2008;6:16. doi: 10.1186/1741-7007-6-16. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Flagel LE, Wendel JF. Evolutionary rate variation, genomic dominance and duplicate gene expression evolution during allotetraploid cotton speciation. New Phytologist. 2010;186:184–193. doi: 10.1111/j.1469-8137.2009.03107.x. [DOI] [PubMed] [Google Scholar]
  21. Fu D, Xiao M, Hayward A, Fu Y, Liu G, Jiang G, Zhang H. Utilization of crop heterosis: a review. Euphytica. 2014;197:161–173. [Google Scholar]
  22. Gao Y, Zhang H, Gao Q, Wang L, Zhang F, Siva VS, Zhou Z, Song L, Zhang S. Transcriptome Analysis of Artificial Hybrid Pufferfish Jiyan-1 and Its Parental Species: Implications for Pufferfish Heterosis. PLOS ONE. 2013;8:e58453. doi: 10.1371/journal.pone.0058453. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Gianinetti A. A criticism of the value of midparent in polyploidization. Journal of experimental botany. 2013;64:4119–4129. doi: 10.1093/jxb/ert263. [DOI] [PubMed] [Google Scholar]
  24. Greaves IK, Gonzalez-Bayon R, Wang L, Zhu A, Liu P-C, Groszmann M, Peacock WJ, Dennis ES. Epigenetic Changes in Hybrids. Plant Physiology. 2015;168:1197–1205. doi: 10.1104/pp.15.00231. [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Grover CE, Gallagher JP, Szadkowski EP, Yoo MJ, Flagel LE, Wendel JF. Homoeolog expression bias and expression level dominance in allopolyploids. New Phytologist. 2012;196:966–971. doi: 10.1111/j.1469-8137.2012.04365.x. [DOI] [PubMed] [Google Scholar]
  26. Guo M, Rupe MA, Yang X, Crasta O, Zinselmeier C, Smith OS, Bowen B. Genome-wide transcript analysis of maize hybrids: allelic additive gene expression and yield heterosis. Theoretical and Applied Genetics. 2006;113:831–845. doi: 10.1007/s00122-006-0335-x. [DOI] [PubMed] [Google Scholar]
  27. Guo M, Rupe MA, Zinselmeier C, Habben J, Bowen BA, Smith OS. Allelic Variation of Gene Expression in Maize Hybrids[W] The Plant Cell. 2004;16:1707–1716. doi: 10.1105/tpc.022087. [DOI] [PMC free article] [PubMed] [Google Scholar]
  28. He G, Zhu X, Elling AA, Chen L, Wang X, Guo L, Liang M, He H, Zhang H, Chen F, et al. Global Epigenetic and Transcriptional Trends among Two Rice Subspecies and Their Reciprocal Hybrids. The Plant Cell. 2010;22:17–33. doi: 10.1105/tpc.109.072041. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Hegarty MJ, Barker GL, Brennan AC, Edwards KJ, Abbott RJ, Hiscock SJ. Changes to gene expression associated with hybrid speciation in plants: further insights from transcriptomic studies in Senecio. Philosophical Transactions of the Royal Society B: Biological Sciences. 2008;363:3055–3069. doi: 10.1098/rstb.2008.0080. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Hegarty MJ, Barker GL, Wilson ID, Abbott RJ, Edwards KJ, Hiscock SJ. Transcriptome Shock after Interspecific Hybridization in Senecio Is Ameliorated by Genome Duplication. Current Biology. 2006;16:1652–1659. doi: 10.1016/j.cub.2006.06.071. [DOI] [PubMed] [Google Scholar]
  31. Hovav R, Udall JA, Chaudhary B, Rapp R, Flagel L, Wendel JF. Partitioned expression of duplicated genes during development and evolution of a single cell in a polyploid plant. Proceedings of the National Academy of Sciences of the United States of America. 2008;105:6191–6195. doi: 10.1073/pnas.0711569105. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Ko DK, Rohozinski D, Song Q, Taylor SH, Juenger TE, Harmon FG, Chen ZJ. Temporal shift of circadian-mediated gene expression and carbon fixation contributes to biomass heterosis in maize hybrids. PLoS genetics. 2016;12:e1006197. doi: 10.1371/journal.pgen.1006197. [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Kryvokhyzha D, Milesi P, Duan T, Orsucci M, Wright SI, Glemin S, Lascoux M. Towards the new normal: transcriptomic convergence and genomic legacy of the two subgenomes of an allopolyploid weed (Capsella bursa-pastoris) PLoS genetics. 2019;15:e1008131. doi: 10.1371/journal.pgen.1008131. [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Labroo MR, Studer AJ, Rutkoski JE. Heterosis and Hybrid Crop Breeding: A Multidisciplinary Review. Frontiers in Genetics. 2021;12 doi: 10.3389/fgene.2021.643761. [DOI] [PMC free article] [PubMed] [Google Scholar]
  35. Landry CR, Hartl DL, Ranz JM. Genome clashes in hybrids: insights from gene expression. Heredity. 2007;99:483–493. doi: 10.1038/sj.hdy.6801045. [DOI] [PubMed] [Google Scholar]
  36. Li W, Liu J, Tan H, Luo L, Cui J, Hu J, Wang S, Liu Q, Hu F, Tang C, et al. Asymmetric expression patterns reveal a strong maternal effect and dosage compensation in polyploid hybrid fish. BMC Genomics. 2018;19:517. doi: 10.1186/s12864-018-4883-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Li A, Liu D, Wu J, Zhao X, Hao M, Geng S, Yan J, Jiang X, Zhang L, Wu J, et al. mRNA and Small RNA Transcriptomes Reveal Insights into Dynamic Homoeolog Regulation of Allopolyploid Heterosis in Nascent Hexaploid Wheat. The Plant Cell. 2014;26:1878–1900. doi: 10.1105/tpc.114.124388. [DOI] [PMC free article] [PubMed] [Google Scholar]
  38. Li M, Wang R, Wu X, Wang J. Homoeolog expression bias and expression level dominance (ELD) in four tissues of natural allotetraploid Brassica napus. BMC Genomics. 2020;21:330. doi: 10.1186/s12864-020-6747-1. [DOI] [PMC free article] [PubMed] [Google Scholar]
  39. Love MI, Huber W, Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biology. 2014;15:550. doi: 10.1186/s13059-014-0550-8. [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. Maheshwari S, Barbash DA. The Genetics of Hybrid Incompatibilities. Annual Review of Genetics. 2011;45:331–355. doi: 10.1146/annurev-genet-110410-132514. [DOI] [PubMed] [Google Scholar]
  41. Morgan M, Obenchain V, Hester J, Pagès H. SummarizedExperiment: SummarizedExperiment container. 2023.
  42. Morgan M, Obenchain V, Lang M, Thompson R, Turaga N. BiocParallel: Bioconductor facilities for parallel evaluation. R package version. 2014;1 [Google Scholar]
  43. Osborn TC, Chris Pires J, Birchler A, Auger DL, Jeffery Chen Z, Lee H-S, Comai L, Madlung A, Doerge RW, Colot V, et al. Understanding mechanisms of novel gene expression in polyploids. Trends in Genetics. 2003;19:141–147. doi: 10.1016/s0168-9525(03)00015-5. [DOI] [PubMed] [Google Scholar]
  44. Otto SP. In polyploids, one plus one does not equal two. Trends in Ecology & Evolution. 2003;18:431–433. [Google Scholar]
  45. Rapp RA, Udall JA, Wendel JF. Genomic expression dominance in allopolyploids. BMC Biology. 2009;7:18. doi: 10.1186/1741-7007-7-18. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. Shimizu-Inatsugi R, Terada A, Hirose K, Kudoh H, Sese J, Shimizu KK. Plant adaptive radiation mediated by polyploid plasticity in transcriptomes. Molecular Ecology. 2017;26:193–207. doi: 10.1111/mec.13738. [DOI] [PubMed] [Google Scholar]
  47. Sloan DB, Warren JM, Williams AM, Kuster SA, Forsythe ES. Incompatibility and Interchangeability in Molecular Evolution. Genome Biology and Evolution. 2023;15:evac184. doi: 10.1093/gbe/evac184. [DOI] [PMC free article] [PubMed] [Google Scholar]
  48. Stupar RM, Gardiner JM, Oldre AG, Haun WJ, Chandler VL, Springer NM. Gene expression analyses in maize inbreds and hybrids with varying levels of heterosis. BMC Plant Biology. 2008;8:33. doi: 10.1186/1471-2229-8-33. [DOI] [PMC free article] [PubMed] [Google Scholar]
  49. Sun Z, Peng J, Lv Q, Ding J, Chen S, Duan M, He Q, Wu J, Tian Y, Yu D. Dissecting the genetic basis of heterosis in elite super-hybrid rice. Plant Physiology. 2023;192:307–325. doi: 10.1093/plphys/kiad078. [DOI] [PMC free article] [PubMed] [Google Scholar]
  50. Taylor SA, Larson EL. Insights from genomes into the evolutionary importance and prevalence of hybridization in nature. Nature Ecology & Evolution. 2019;3:170–177. doi: 10.1038/s41559-018-0777-y. [DOI] [PubMed] [Google Scholar]
  51. Tian M, Nie Q, Li Z, Zhang J, Liu Y, Long Y, Wang Z, Wang G, Liu R. Transcriptomic analysis reveals overdominance playing a critical role in nicotine heterosis in Nicotiana tabacum L. BMC Plant Biology. 2018;18:48. doi: 10.1186/s12870-018-1257-x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  52. Van Bel M, Silvestri F, Weitz EM, Kreft L, Botzki A, Coppens F, Vandepoele K. PLAZA 5.0: extending the scope and power of comparative and functional genomics in plants. Nucleic Acids Research. 2022;50:1468–1474. doi: 10.1093/nar/gkab1024. [DOI] [PMC free article] [PubMed] [Google Scholar]
  53. Visger CJ, Wong GK, Zhang Y, Soltis PS, Soltis DE. Divergent gene expression levels between diploid and autotetraploid Tolmiea relative to the total transcriptome, the cell, and biomass. American Journal of Botany. 2019;106:280–291. doi: 10.1002/ajb2.1239. [DOI] [PubMed] [Google Scholar]
  54. Wan J, Wang Q, Zhao J, Zhang X, Guo Z, Hu D, Meng S, Lin Y, Qiu X, Mu L, et al. Gene expression variation explains maize seed germination heterosis. BMC Plant Biology. 2022;22:301. doi: 10.1186/s12870-022-03690-x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  55. Wang H, Fang Y, Wang L, Zhu W, Ji H, Wang H, Xu S, Sima Y. Heterosis and differential gene expression in hybrids and parents in Bombyx mori by digital gene expression profiling. Scientific Reports. 2015;5:8750. doi: 10.1038/srep08750. [DOI] [PMC free article] [PubMed] [Google Scholar]
  56. Wang J, Tian L, Lee H-S, Wei NE, Jiang H, Watson B, Madlung A, Osborn TC, Doerge RW, Comai L, et al. Genomewide Nonadditive Gene Regulation in Arabidopsis Allotetraploids. Genetics. 2006;172:507–517. doi: 10.1534/genetics.105.047894. [DOI] [PMC free article] [PubMed] [Google Scholar]
  57. Wei G, Tao Y, Liu G, Chen C, Luo R, Xia H, Gan Q, Zeng H, Lu Z, Han Y, et al. A transcriptomic analysis of superhybrid rice LYP9 and its parents. Proceedings of the National Academy of Sciences. 2009;106:7695–7701. doi: 10.1073/pnas.0902340106. [DOI] [PMC free article] [PubMed] [Google Scholar]
  58. Wickham H. ggplot2. WIREs Computational Statistics. 2011;3:180–185. [Google Scholar]
  59. Wittkopp PJ, Haerum BK, Clark AG. Evolutionary changes in cis and trans gene regulation. Nature. 2004;430:85–88. doi: 10.1038/nature02698. [DOI] [PubMed] [Google Scholar]
  60. Wu J, Lin L, Xu M, Chen P, Liu D, Sun Q, Ran L, Wang Y. Homoeolog expression bias and expression level dominance in resynthesized allopolyploid Brassica napus. BMC Genomics. 2018;19:586. doi: 10.1186/s12864-018-4966-5. [DOI] [PMC free article] [PubMed] [Google Scholar]
  61. Yang L, Liu P, Wang X, Jia A, Ren D, Tang Y, Tang Y, Deng XW, He G. A central circadian oscillator confers defense heterosis in hybrids without growth vigor costs. Nature communications. 2021;12:2317. doi: 10.1038/s41467-021-22268-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
  62. Yoo M-J, Liu X, Pires JC, Soltis PS, Soltis DE. Nonadditive Gene Expression in Polyploids. Annual Review of Genetics. 2014;48:485–517. doi: 10.1146/annurev-genet-120213-092159. [DOI] [PubMed] [Google Scholar]
  63. Yoo M-J, Szadkowski E, Wendel JF. Homoeolog expression bias and expression level dominance in allopolyploid cotton. Heredity. 2013;110:171–180. doi: 10.1038/hdy.2012.94. [DOI] [PMC free article] [PubMed] [Google Scholar]
  64. Zhai R, Feng Y, Wang H, Zhan X, Shen X, Wu W, Zhang Y, Chen D, Dai G, Yang Z, et al. Transcriptome analysis of rice root heterosis by RNA-Seq. BMC Genomics. 2013;14:19. doi: 10.1186/1471-2164-14-19. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary tables
EMS196788-supplement-Supplementary_tables.xlsx (54.6KB, xlsx)

Data Availability Statement

To ensure full reproducibility, all code and data used in this manuscript are available in a GitHub repository at https://github.com/almeidasilvaf/HybridExpress_paper, and an online Quarto book with executed code chunks and output are available at https://almeidasilvaf.github.io/HybridExpress_paper/.
