Topology of shallow-water waves on a rotating sphere

Abstract

Topological properties of the spectrum of shallow-water waves on a rotating spherical body are established. Particular attention is paid to spectral flow, i.e. the modes whose frequencies transit between the Rossby and inertia–gravity wavebands as the zonal wavenumber is varied. Organising the modes according to the number of zeros of their meridional velocity, we conclude that the net number of modes transiting between the shallow-water wavebands on the sphere is null, in contrast to the Matsuno spectrum. This difference can be explained by a miscount of zeros under the β-plane approximation. We corroborate this result with the analysis of Delplace et al. (Science, vol. 358, 2017, pp. 1075–1077) by showing that the curved metric discloses a pair of degeneracy points in the Weyl symbol of the wave operator, non-existent under the β-plane approximation, each of them bearing a Chern number of −1.

1. Introduction

The rotating shallow-water model is certainly one of the most significant for modelling two-dimensional large-scale fluid motions in the ocean, the atmosphere and even stellar media (Gill 1982; Gilman 2000; Zaqarashvili, Oliver & Ballester 2009; Vallis 2017; Zeitlin 2018; Zaqarashvili et al. 2021). It was originally introduced by Laplace in 1775 to address the problem of the dynamical response of the oceans to the tidal forces generated by the Moon. The strength of this model relies on the fact that it focuses mainly on the effects of the Coriolis force, produced by the solid-body rotation of a planet or star at rate Ω, on the dynamics of surface waves, without losing much generality. Owing to the curvature of the surface, these Coriolis effects, i.e. the projection of the Coriolis term −2Ω × v on the surface (with v the fluid velocity field on this surface), naturally depend on the latitude θ, more specifically on the normal component of 2Ω, called the Coriolis parameter, which is

$$f=2\Omega \text{sin}(\theta )$$ (1.1)

for a spherical body. A hundred years after the work of Laplace, Lord Kelvin used this model (free of tidal forcing) to compute the normal-mode oscillations of a local plane, assuming a constant Coriolis parameter f (Thomson 1880). He exhibited different kinds of plane-wave solutions, namely the surface gravity (Poincaré) modes, the geostrophic modes (for which the flow is stationary as the pressure gradient is exactly balanced by the Coriolis force) and coastal Kelvin modes which exist only in the presence of a boundary and propagate in one direction. However, this f -plane approximation is not relevant at the equator, where the parameter f vanishes, thus virtually cancelling the Coriolis effects within the frame of this approximation. Rossby bypassed this problem by introducing the so-called β-plane approximation, which amounts to assuming locally linear variation of the Coriolis parameter f with latitude (Rossby 1939). This simple approximation led to a qualitatively accurate understanding of many previously observed phenomena in geophysical fluid dynamics, such as the western intensification of wind-driven currents (Stommel 1948; Munk & Carrier 1950), the oscillations of mid-latitude jets (Rossby 1948) or the equatorial trapping of gravity waves. Using this approximation at the equator with constant β = df /dy, where y is the meridional distance from the equator, Matsuno computed the spectrum of equatorial waves of the shallow-water model (Matsuno 1966). This spectrum has a discrete set of low-frequency planetary (Rossby) waves and inertia–gravity waves, plus two branches of modes transiting from the first to the second as the zonal wavenumber k goes from negative to positive values, namely the Yanai (or mixed Rossby–gravity) and equatorial Kelvin modes.

However, the equatorial β-plane approximation used by Matsuno (1966) and Delplace, Marston & Venaille (2017) (and many other studies of geophysical fluid dynamics) is limited in the sense that it only accounts for the curvature of the surface in the variation of the Coriolis parameter, at linear order, and not in the metric. It thus ignores the existence of the poles, and generates a spectrum of solutions defined on the unbounded domain across the equator, which seems paradoxical. Nevertheless, the solutions are accurate as long as they remain trapped around the equator, in the so-called Yoshida waveguide (Yoshida 1960; Matsuno 1966), where the linear approximation holds. The trapping length, called the equatorial radius of deformation, is given by

$$L_{eq}=\sqrt{\frac{c}{\beta }},$$ (1.2)

where c is the speed of surface waves without rotation. Length L_eq thus needs to be much smaller than R, the radius of the planet. This condition is satisfied for fast-rotating planets, compared with the time scale of propagation of the waves at their surface. For the first baroclinic mode (i.e. the fastest one) in the equatorial ocean on Earth, the equatorial radius of deformation is approximately 300 km (see e.g. Vallis 2017, p. 304), so the β-plane approximation is quite accurate in this context. However, when it comes to global oscillations of larger scales, both the curved metric and the actual sine variation of f with latitude must be taken into account. Moreover, the quantisation of the zonal wavenumber k cannot be ignored, especially when the wavelength is not small compared with the radius R. The full spectrum of shallow-water waves on a sphere is a peculiar problem, as the sphere is an unbounded but finite domain. The eigenvalue problem has no exact solution in the general case; however, it has been extensively investigated through a variety of analytic approaches (e.g. Margules 1892; Hough 1898; Longuet-Higgins 1968; Bridger & Stevens 1980; Müller & O’Brien 1995; Dellar 2011; Paldor 2015), and the frequencies and wavefunctions can be well approximated with analytical expressions in the different asymptotic regimes. In particular, in the regime L_{eq ≪} R (hereafter referred to as the Matsuno limit), the spectrum of equatorial shallow-water waves is well approximated by Matsuno’s spectrum and thus clearly exhibits two branches of modes with eastward group velocity transiting through the frequency gap between the different wavebands. (In the rest of the paper, we will refer to the different groups of shallow-water modes as wavebands. There are three wavebands in the shallow-water model: the Rossby waveband and two equivalent inertia–gravity wavebands.) In contrast, those branches seem to be absent from the frequency spectrum in the other limit (see figure 1), i.e. when Ω is small compared with c/R, hereafter referred to as the Margules limit (Margules 1892). One would think that these branches somehow disappear as L_eq and R become comparable; however, there is no analytical solution of the eigenvalue problem in this intermediate situation to show exactly how.

Figure 1.

Dimensionless frequencies of the shallow-water model on a rotating sphere for two values of the parameter ϵ = c/ΩR, namely (a) ϵ = 0.01 (strong rotation) and (b) ϵ = 10 (weak rotation), as a function of the azimuthal wavenumber m ∈ ℤ, computed with Dedalus (Vasil et al. 2019) (see Appendix A for numerical methods). In (a) the Matsuno limit (ϵ ≪ 1), two distinct branches of frequencies transit through the gap between Rossby and inertia–gravity waves, whereas in (b) the Margules limit (ϵ ≪ 1) these are clearly separated by an unfilled frequency gap. Note that the frequency axes in this figure are in logarithmic scale, as well as in figure 4, in order to visually appreciate the transition between the Matsuno and Margules regimes. All the other frequency plots in the article are displayed in linear scale.

Alternatively, a few years ago, the presence of these two transiting branches in the spectrum of shallow-water waves on the unbounded β-plane was interpreted as a manifestation of an underlying topological property. Indeed, after noticing the strong resemblance of this +2 spectral flow of modes with the topologically protected modes crossing the gap in certain insulating materials, Delplace et al. (2017) applied the same arguments used in condensed matter physics to define topological integers associated with this spectral flow, the Chern numbers or topological charges. These integers characterise the phase singularities of Kelvin’s plane-wave solutions, which are computed for constant f and thus require only the diagonalisation of a 3-by-3 matrix. Nevertheless, they happen to be equal to the number of modes gained by the associated wavebands in the more elaborated β-plane model. This counter-intuitive result, which connects the topological properties of Kelvin’s f -plane modes to a spectral property of Matsuno’s β-plane spectrum, is a consequence of the more general index theorem (Delplace 2022; Faure 2023; Qin & Fu 2023). It has been applied to predict the conditions of existence and number of modes transiting across the frequency gap in a variety of models from a great variety of domains (Wang et al. 2009; Khanikaev et al. 2015; Nash et al. 2015; Shankar, Bowick & Marchetti 2017; Souslov et al. 2017; Perrot, Delplace & Venaille 2019; Parker et al. 2020; Venaille & Delplace 2021; Leclerc et al. 2022; Perez, Delplace & Venaille 2022; Qin & Fu 2023).

This paper intends to shed a new light on the loss of gapless Kelvin and Yanai modes on a sphere, not with exact analytical resolution but by combining the study of the structure of modes with spectral topology. This analysis relies on numerous previous works in which topology brought new insights into wave properties in geophysical and astrophysical media (Delplace et al. 2017; Perrot et al. 2019; Venaille & Delplace 2021; Leclerc et al. 2022; Perez 2022; Perez et al. 2022). In the first part, we introduce the equations of the rotating shallow-water model on a sphere, and the relevant dimensionless parameters that characterise it. We recall the asymptotic solutions in both Matsuno and Margules limits. In the second part, we discuss the concept of modal flow and show that the latter is equal to zero for the spectrum of shallow-water waves on a rotating sphere, whereas it is equal to +2 on the unbounded β-plane. In the third part, we provide a topological interpretation of this result. We compute the Chern numbers, which are associated with the points where the symbol of the wave operator has multiple eigenvalues. We show that the metric term induces degeneracy points of non-zero Chern numbers, in addition to that reported by Delplace et al. (2017). This analysis reconciles the bulk–interface correspondence established by Delplace et al. on the unbounded β-plane with the disappearance of the equatorial spectral flow in spherical geometry.

2. The linearised shallow-water model on a rotating sphere

2.1. Linearised equations

We consider the linearised shallow-water equations of an inviscid fluid layer on top of a sphere of radius R, rigidly rotating with constant rate Ω (figure 2). The fluid is initially at rest in the rotating frame. Besides, assuming that the gravity g at the surface is such that g ≫ RΩ², we ignore centrifugal effects. Therefore, the rest state is that of a quiet layer of constant depth h₀. Denoting the perturbed fields with a prime, we define v = v′(x, t) and h = h₀ + h′ (x, t) as the two-component velocity and height of the fluid, respectively, both functions of time t and position x on the sphere. The linearised shallow-water equations can be conveniently expressed in terms of rescaled perturbation fields, i.e. $\tilde{\mathit{v}}=\sqrt{h_0}{\mathit{v}}^{\prime }=\tilde{u}{\mathit{e}}_{\varphi }+\tilde{\mathit{v}}{\mathit{e}}_{\theta }$ and $\tilde{h}=\sqrt{g}{h}^{\prime }$, as

$$\frac{\partial \tilde{\mathit{v}}}{\partial t}=-c\nabla \tilde{h}-f\times \tilde{\mathit{v}},$$ (2.1a)

$$\frac{\partial \tilde{h}}{\partial t}=-c\nabla \cdot \tilde{\mathit{v}},$$ (2.1b)

where $c=\sqrt{g{h}_0}$ is the constant phase speed and f = (2Ω · e_z)e_z is the projection of 2Ω on the local unit vector e_z normal to the surface (traditional Coriolis parameter). Since none of the parameters appearing in (2.1) depend on time or longitude, the rotating sphere acts as a waveguide trapping zonally propagating waves in the meridional direction. We can thus expand any perturbation on the set of Fourier modes X(θ) exp(i(mϕ − ωt)), where X is any of the three dependent variables of (2.1), (ϕ, θ) the longitudinal and latitudinal coordinates, respectively, and (m, ω) the azimuthal wavenumber and frequency associated with the Fourier mode, which corresponds to the solutions of

$$\omega \tilde{\mathit{v}}=-\text{i}c\nabla \tilde{h}-\mathbf{\text{i}}\mathit{f}\times \tilde{\mathit{v}},$$ (2.2a)

$$\omega \tilde{h}=-\text{i}c\nabla \cdot \tilde{\mathit{v}}.$$ (2.2b)

Figure 2.

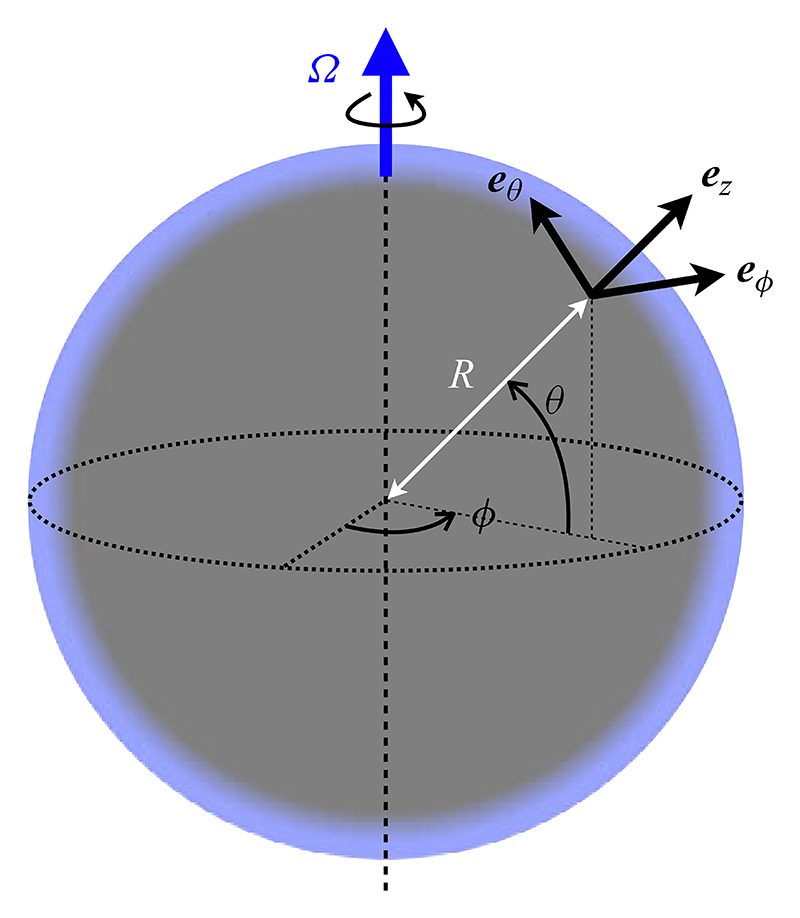

Geometry of the rotating shallow-water model on a sphere. The spherical coordinates and associated unit vectors are different from the usual ones, θ being the latitude instead of the colatitude.

The core of the discussion of this article is the metric term that arises from the divergence operator ∇· in (2.2b), owing to the geometrical curvature of the surface. This point is discussed in § 4.

2.2. Lamb parameter and asymptotic solutions

If one rather considers the dimensionless frequency ω/Ω, the eigenvalue problem (2.2) depends only on one dimensionless parameter:

$$ϵ=\frac{c}{R\Omega }.$$ (2.3)

The quantity 2/ϵ is sometimes called the Lamb parameter (Müller & O’Brien 1995), not to be confused with the Lamb frequency used in asteroseismology (Aerts, Christensen-Dalsgaard & Kurtz 2010). The quantity 1/ϵ gives the traversal time of a gravity wave over the spherical body in planetary days. Equations (2.2) in dimensionless units are

$$(\omega /\Omega )\tilde{v}=-\text{i}ϵ\tilde{\nabla }\tilde{h}-2\text{i}\text{sin}(\theta )e_z\times \tilde{v},$$ (2.4a)

$$(\omega /\Omega )\tilde{h}=-\text{i}ϵ\tilde{\nabla }\cdot \tilde{\mathit{v}},$$ (2.4b)

where $\tilde{\nabla }=R\nabla$ is the gradient operator on the unit sphere. The parameter ϵ naturally appears in asymptotic expansions to compute the approximate spectrum of shallow-water waves (Müller & O’Brien 1995; Paldor 2015) or their ray paths (Longuet-Higgins 1965) on the sphere. One can expect to asymptotically recover the Matsuno spectrum as ϵ → 0. Indeed, expression (1.2) yields $L_{eq}/R=\sqrt{ϵ/2}$ for the equatorial radius of deformation, which means that, for small ϵ, the wavefunctions are equatorially trapped with angular spreading of order $\sqrt{ϵ}$, thus recovering the Cartesian β-plane approximation made by Matsuno. In this limit, the solutions of (2.2) are appropriately described with Hermite polynomials, which are exact solutions on the unbounded β-plane (see § 3.1).

Conversely, for larger values of ϵ, the solutions are expected to spread away from the equator and eventually over the whole sphere. In the limit ϵ ≫ 1, sometimes called the Margules limit (Müller & O’Brien 1995), there are two kinds of eigenvalues, originally found by Margules (1892) and Hough (1898), that we recall here:

• (i)Those such that ω = O(c/R). One recovers the non-rotating shallow-water equations from (2.2). The wavefunctions are those of the Laplacian operator on a prolate spheroid, i.e. the prolate spheroidal wavefunctions (Zaqarashvili et al. 2009), and we have $R\omega /c\simeq \sqrt{\ell (\ell +1)}-m/ϵ$ (see e.g. Müller, Kelly & O’brien 1994; Müller & O’Brien 1995) with non-zero integers 𝓁 and |m| ≤ ℓ. These are global surface gravity oscillations on the sphere, perturbed by a small Coriolis term. For these solutions, the number of zeros of $\tilde{v}$ on the open interval] − π/2, π/2[ is given by p = 𝓁 − |m|+ 1 (Müller & O’Brien 1995).
• (ii)
  Those such that ω = O(Ω). These are quasi-geostrophic planetary (Rossby) modes. From (2.2), it is straightforward to check that they obey $|\tilde{\nabla }\cdot {\mathit{v}}^{\prime }|=O(|{\mathit{v}}^{\prime }|/{ϵ}^2)$, i.e. that these modes have asymptotically divergence-free velocity. Eliminating the other variables from (2.2a), we end up with a second-order differential equation for $V={\text{cos}}^{\frac{3}{2}}(\theta )\tilde{\mathit{v}}$:

  $$-\frac{{\text{d}}^{2}V}{\text{d}{\theta }^2}+\left[\left(m^2-\frac{1}{4}\right){\tan }^2(\theta )+\left(m^2-\frac{1}{2}+\frac{2m\Omega }{\omega }\right)\right]V=0.$$ (2.5)
  Solutions of (2.5) are provided for instance by Taşeli (2003). They yield

  $$\frac{\omega }{\Omega }=\frac{-2m}{m^2+(2p+1)\left|m\right|+p(p+1)}(\text{with}p=0,1,2,\dots ),$$ (2.6)

  where the index p indicates the number of zeros of the meridional velocity $\tilde{v}$ in the open interval] −π/2, π/2[. In the Margules limit, the largest Rossby frequency is thus ω = Ω, for m = −1 and p = 0. The Rossby modes with p = 0 constitute the westward Yanai modes (Paldor et al. 2018). Expression (2.6), which is exact for any azimuthal wavenumber m in the Margules limit ϵ ≫ 1, is the same as (3.2c) obtained by Müller & O’Brien (1995) through a covariant formulation of the wave equations (2.1). Figure 3 provides a comparison of expression (2.6) with numerical simulations, demonstrating the convergence of the Rossby waveband towards the Margules limit as ϵ increases.

Figure 3.

Comparison between expression (2.6) (black triangles) and numerically computed Rossby frequencies for ϵ = 5. The red circles are obtained by projecting (2.2) on Dedalus’ curvilinear spectral basis (Vasil et al. 2019), whereas the blue circles are computed from the problem (4.1) on] − π/2, π/2[, not necessarily with integer values of m, projecting the wavefunctions on the basis of Chebyshev polynomials (Burns et al. 2020) (see Appendix A). The accuracy between the numerically converged frequencies for ϵ = 5 and the Margules asymptotic formula (2.6) is approximately 0.4 %.

There is a large frequency gap between these two wavebands, in which the Kelvin and Yanai modes of the Matsuno spectrum are absent (see figure 1).

2.3. Matsuno and Margules limits on planets and stars

As far as the shallow-water model is valid, the Matsuno regime is common to most fast-rotating planets, but also stars like brown dwarfs (Tan & Showman 2020). Observations of the δ Scuti star Rasalhague allows one to estimate ϵ ≃ 0.36 (Monnier et al. 2010). Atmospheres of exoplanets cover a large range of values of ϵ (see e.g. Showman, Cho & Menou 2010, table 1), as well as the atmosphere of Earth, for which there is a variety of values of ϵ depending on the type of waves considered (Müller & O’Brien 1995; Shamir et al. 2023). For instance, the measurements of Kelvin and Rossby–Haurwitz waves in the atmosphere of Venus presented by Del Genio & Rossow (1990) lead to the estimation ϵ ≃ 0.9, whereas ϵ ≈ 70 for the atmospheric waves considered by Showman et al. (2010). On Earth, equatorial Kelvin waves have been detected in both the equatorial ocean (Johnson & Mc Phaden 1993; Sprintall et al. 2000) and atmosphere (Kiladis et al. 2009), and their implication for a variety of geophysical phenomena (e.g. the El Niño event and the Madden–Julian Oscillation) is well understood. The first baroclinic modes (the fastest ones) are such that c ≃ 2m s⁻¹ in the equatorial ocean, thus ϵ ≃ 4.3 × 10⁻³, and c ≃ 25 m s⁻¹ in the atmosphere, thus ϵ ≃ 5.4 × 10⁻² (see Vallis 2017, p. 304). However, the barotropic modes in the terrestrial atmosphere propagate at phase speed c ≃ 300 m s⁻¹, which corresponds to ϵ ≃ 0.65. This value is consistent with the data studied by Sakazaki & Hamilton (2020). Surface motions on giant planets of our solar system are the subject of many recent works (Menou & Rauscher 2009; Showman et al. 2010, 2018; Gavriel & Kaspi 2021). Atmospheric waves on Jupiter and Saturn are mostly in the Matsuno regime. For instance, eastward-propagating motions strongly localised at the equator on Jupiter have been interpreted as Kelvin waves (Legarreta et al. 2016), which is consistent with the estimation ϵ ≃1.4 × 10⁻⁴.

2.4. Opening of a spectral gap as ϵ increases

In the Margules limit (ϵ ≫ 1), the minimal inertia–gravity frequency is equal to $\sqrt{2}c/R$ and the maximum Rossby frequency is Ω, which yields a frequency gap of width $\Omega (\sqrt{2}ϵ-1)$ in which there is no mode. Conversely, in the Matsuno limit (ϵ ≪ 1), the frequency gap between Rossby and inertia–gravity modes is filled with the Yanai and Kelvin modes. However, talking about a frequency gap and branches of modes is abusive in this situation. Indeed, contrary to the zonal wavenumber k of zonally propagating waves on the unbounded β-plane, the azimuthal wavenumber m is not a continuous parameter, since it only takes discrete integer values. Therefore the spectrum (m, ω) does not consist of continuous branches but rather a discrete set of points, which means that, strictly speaking, there are frequency gaps between any allowed values of ω. Nevertheless, the equatorial Yanai and Kelvin modes define a clear connection between the Rossby and inertia–gravity wavebands on the unbounded β-plane, which is still visible in the shallow-water spectrum on a sphere with small ϵ, even if m takes discrete values (see figures 1 and 4). Such a connection in the spectrum is referred to as spectral flow, which is usually defined for a continuous spectral parameter such as k in unbounded flow models (Delplace et al. 2017; Shankar et al. 2017; Perrot et al. 2019; Parker et al. 2020; Venaille & Delplace 2021; Leclerc et al. 2022; Perez et al. 2022; Zhu, Li & Marston 2023). The purpose of the following section is to extend the concept of spectral flow in the present situation, i.e. with a discrete wavenumber m, and show that the net number of modes gained by the inertia–gravity waveband, when those modes are naturally labelled by the zeros of their meridional velocity, is actually zero for any value of ϵ, even if there are transiting frequencies for small ϵ (see figure 4).

Figure 4.

Numerically computed frequencies ω for (a–f) increasing values of ϵ and |m| ≤ 20. These converged values are obtained by projecting (2.2) on a basis of spin-weighted harmonics, a spectral method implemented in the Dedalus solver (Vasil et al. 2019) (see Appendix A). While for small ϵ two distinguishable spectral branches, the Yanai and Kelvin modes, transit through the gap between Rossby and gravity modes, these branches progressively break down and a clear gap opens up, separating Rossby and gravity frequencies.

3. Modal flow and zeros of the meridional velocity

To this day, equations (2.2) do not have an exact solution for arbitrary values of ϵ, although good approximations have been found in certain limits, especially in short wavelength ranges (Longuet-Higgins 1968; Paldor 2015), or for special values of ω and ϵ (Müller & O’Brien 1995). In this study, we are interested in the transition between the Matsuno and Margules limits, i.e. the evolution of modes and frequencies for finite values of ϵ. For this reason, the analysis of this section is mostly based on numerical integration of (2.2), with the spectral solver Dedalus (Vasil et al. 2019). The point of this section is the following: the Matsuno spectrum, i.e. the frequencies ω of zonally propagating equatorial waves on the unbounded β-plane, consists of a discrete set of continuous functions of the zonal wavenumber k, or spectral branches. These branches can be indexed by the number of zeros of the meridional velocity $\tilde{v}(\theta )$. For shallow-water waves on a sphere, however, the modes and frequencies depart from Matsuno’s solutions as ϵ increases, wavefunctions spread away from the equator and new zeros of $\tilde{v}(\theta )$ appear at non-zero latitudes, modifying the natural order of mode branches established by Matsuno. This affects the conclusion regarding the very concept of spectral flow in this model, which must be replaced by a more accurate notion that we name the modal flow.

3.1. Reminder: the Matsuno spectrum and wavefunctions

The shallow-water equations for equatorial waves on the unbounded β-plane are the same as (2.2), only with Cartesian coordinates instead of spherical ones (x is the zonal coordinate pointing eastward and y is the meridional coordinate pointing northward, with y = 0 defining the equator), and f = βy. Once again, we focus on plane waves propagating in the zonal direction, i.e. solutions in the form X (y) exp(i(kx − ωt)), where the wavenumber k can take continuous values. As explained in the introduction, this model captures the physics of equatorial waves in the limit of small ϵ. The solutions found by Matsuno (1966) obey the dispersion relation

$$\frac{{\omega }^2}{c^2}-k^2-\frac{\beta k}{\omega }-\frac{\beta }{c}(2p+1)=0(\text{with}p=-1,0,1,2,\dots ),$$ (3.1)

and the corresponding wavefunctions for the meridional velocity are given by

$$\begin{array}{c}\tilde{v}(y)\propto H_p\left(y\sqrt{\frac{\beta }{c}}\right)\text{exp}\left(-\frac{\beta }{2c}{y}^2\right)\text{for}p\ge 0,\\ \tilde{v}(y)=0\text{for}p=-1,\end{array}\}$$ (3.2)

with the Hermite polynomials H_p. As depicted in figure 5, the dispersion relation (3.1) can be represented by a discrete set of continuous branches in (k, ω), each indexed by the integer p. For p ≥ 0, this index is equal to the number of zeros of $\tilde{v}$ = 0 in the meridional direction y. Branches with p ≥ 1 are the Rossby and inertia–gravity modes. The branches p = 0 and p = −1 are those of the Yanai and Kelvin modes, respectively. The Kelvin modes are purely zonal, i.e. with $\tilde{v}=0.$ The dispersion relation (3.1) formally associates Kelvin modes with the index p = −1 and, even though it does not make sense in terms of number of zeros of $\tilde{v}$(y), it is convenient to keep this index −1 in mind. It is also worth noticing that, for p = 0, (3.1) admits an additional solution ω= −ck. This solution corresponds to a diverging mode on the unbounded β-plane, and thus it is discarded as it is not physically acceptable.

Figure 5.

The Matsuno spectrum and wavefunctions for equatorial shallow-water waves on the unbounded β-plane (Matsuno 1966). (a) Plot of the dispersion relation (3.1), showing the branches −1 ≤ p ≤ 3 for positive frequencies. The Yanai and Kelvin branches transit across the frequency gap between the Rossby and inertia–gravity wavebands as k increases. (b) Amplitude of the meridional velocity in the y direction, given by expression (3.2). The branch index p is equal to the number of zeros of $\tilde{v}(y)$.

3.2. Zeros of the meridional velocity

The +2 spectral flow studied by Delplace et al. (2017) corresponds to the Yanai and Kelvin modes, which transit from the Rossby waveband to the inertia–gravity waveband as k increases. Beyond the fact that these modes form continuous curves in (k, ω), what identifies each of them is the number of zeros of the meridional velocity in the y direction, as previously shown. Generally speaking, it is straightforward to define the spectral flow of an eigenvalue problem if there is a continuous parameter such as the zonal wavenumber k, because the spectrum thus consists of continuous branches. However, if the spectral parameter takes discrete values, one must find an alternative way to count the number of modes gained or lost by a waveband as this spectral parameter is swept. For shallow-water waves on a rotating sphere, the azimuthal wavenumber m is a discrete parameter; nevertheless we will extrapolate the relation existing between the spectral flow of inertia–gravity waves and the number of zeros of $\tilde{v}$ for the unbounded β-plane model. In other words, we will adopt the number of zeros of $\tilde{v}(\theta )$ on the open interval] − π/2, + π/2[ as an ordering parameter for the modes of the problem (2.2) (see figure 6). In fact, many works on the spectrum of shallow-water waves associate or label modes according to the number of zeros of their meridional velocity (Hough 1898; Longuet-Higgins 1968; Iga 1995; Müller & O’Brien 1995; Paldor et al. 2018). In the Matsuno spectrum, at negative k, there are modes with no zero of $\tilde{v}$ in the Rossby waveband but not in the inertia–gravity waveband, whereas there are modes with no zero in the inertia–gravity waveband at positive k. Connecting them together forms the spectral flow of Yanai modes, which transits between the Rossby and inertia–gravity wavebands as k increases. To clarify, in the rest of the paper, we employ the term modal branch to refer to modes with the same number of zeros of $\tilde{v}(\theta )$ on the open interval] −π/2, π/2[, as m varies, and say that there is a modal flow when such a modal branch transits between the Rossby and inertia–gravity wavebands. In contrast, the terms spectral branch and spectral flow are used to refer to the continuous curves formed by the frequencies, which is a well-defined concept only if the spectral parameter is continuous, strictly speaking. Spectral and modal branches of the Matsuno spectrum are the same (see figure 5). In the shallow-water spectrum on the sphere, the spectral parameter m is not continuous, yet one can argue that there is a spectral flow of frequencies in the Matsuno limit (see figures 1 and 4), but not in the Margules limit.

Figure 6.

(a–f) Numerically calculated frequencies of (2.2) (red circles). The modes with the same number of zeros of $\tilde{v}(\theta )$ are connected by dashed blue curves, which have no physical meaning. The number of zeros is indicated on the curves. For small ϵ, the modal branches display an abrupt jump right before m = 0. As ϵ increases, the spectrum progressively loses its east–west asymmetry and the spectral flow collapses.

As shown in the previous section, for small ϵ, the ratio between the equatorial radius of deformation and the sphere’s radius is of order $\sqrt{ϵ}$, which implies that the wavefunctions spread across the whole sphere even for moderate values of ϵ, and thus the modes experience the discrepancy with the unbounded β-plane. The spreading of all the wavefunctions reveals additional zeros of $\tilde{v}$ at non-zero latitude, which are virtually invisible when ϵ is too small and the modes are strongly trapped at the equator. In fact, all modes with positive phase speed (i.e. positive m, considering only the positive frequencies) have two additional zeros at opposite latitudes (see figures 7 and 8), compared with the same modes of the unbounded β-plane. However, the zeros of Rossby modes, which propagate westward, are unchanged. In other words, the index p of the Matsuno modes propagating eastward is increased by +2 in spherical geometry. In particular, Yanai modes with negative m have p = 0 meridional zeros and p = 2 zeros for positive m. Similarly, in contrast to the unbounded β-plane, Kelvin modes have a non-zero meridional velocity which cancels once at the equator, i.e. p = 1 = − 1 + 2. This +2 jump in the number of zeros, which was already discussed by Müller & O’Brien (1995), is illustrated in figure 6.

Figure 7.

Meridional velocity $\text{Re}\left(\tilde{v}(\theta ){\text{e}}^{\text{i}m\varphi }\right)$ of modes for ϵ = 0.2 and m = −2, +1, computed with Dedalus (red, positive values; blue, negative values). Mode A is a Rossby mode, B and F are Yanai modes, E is a Kelvin mode and C, D, G and H are inertia–gravity modes. On the left, modes are connected by dashed blue curves according to number of zeros of $\tilde{v}(\theta )$ on] − π/2, π/2[. Modes F, G and H have zeros at high latitude, which are not visible on the plot since the wavefunctions vanish away from the equator (see Appendix A). Dashed black lines indicate the zeros of $\tilde{v}(\theta )$, and the meridional lines of zeros correspond to the term e^imφ with m ≠ 0 for travelling waves.

Figure 8.

Same modes as figure 7, for ϵ = 2. The wavefunctions are more spread in latitude and extend up to the poles, clearly revealing zeros at high latitudes. The meridional velocity of a Yanai mode has no zero for negative m (B), but changes sign at two opposite latitudes for positive m (F), contrary to the Yanai mode computed by Matsuno on the equatorial β-plane. Generally speaking, the meridional velocity of modes with eastward phase speed has two more zeros, compared with Matsuno’s wavefunctions. Similarly, Kelvin modes (E) have zero meridional velocity on the unbounded β-plane, which is not true on the sphere. Note that the north–south symmetry of the wavefunctions is preserved on the sphere, which implies the parity of these additional zeros. This point is discussed in Appendix B.

To conclude this section, we have shown that the net modal flow of shallow-water waves, equal to +2 on the unbounded β-plane, is null on the sphere. This is evident for large ϵ since the spectrum displays a strong east–west symmetry, i.e. the frequencies ω and wavefunctions are nearly the same for m and −m. As ϵ becomes smaller, the spectrum loses this east–west symmetry, displays an apparent spectral flow of frequencies but the net modal flow remains zero. At small ϵ, the spectrum resembles the Matsuno one as there are Kelvin and Yanai modes transiting across the gap for increasing wavenumber m. However, the Yanai modes do not form a modal branch because the eastward ones have two more zeros than the westward ones. In the present case, the nullity of this modal flow can be surprising regarding the bulk–interface correspondence established by Delplace et al. (2017), Tauber, Delplace & Venaille (2019) and Delplace (2022), which states that the number of transiting modes of the Matsuno spectrum is equal to a robust topological charge +2 at the equator. In the following we show that the nullity of the net modal flow is actually in agreement with the index theorem, as the Chern numbers of the shallow-water spectrum on the sphere add up to zero, in contrast to the unbounded β-plane.

4. Topology of the shallow-water model on a sphere

Identifying modes with the number of zeros of their $\tilde{v}$ wavefunction, we showed that the net modal flow of shallow-water waves on a sphere is null, while it is +2 for the unbounded β-plane. Many studies (Faure & Zhilinskii 2000; Delplace et al. 2017; Perrot et al. 2019; Parker et al. 2020; Fu & Qin 2021; Venaille & Delplace 2021; Delplace 2022; Leclerc et al. 2022; Perez et al. 2022) showed that, when the frequencies ω can be expressed as the eigenvalues of a Hermitian differential wave operator ℋ, the number of modes gained by a waveband as the spectral parameter increases is equal to a topological invariant characterising the Weyl symbol H of the operator ℋ, in virtue of the index theorem (Faure 2023). As demonstrated for instance by Delplace et al. (2017), Faure (2023), Delplace (2022) and Venaille et al. (2023), the presence of +2 transiting equatorial modes on the unbounded β-plane is ensured by a +2 Chern number characterising the degeneracy point of the symbol at f = 0. More precisely, the Yanai and Kelvin branches constitute a footprint, in the spectrum of ℋ, of a degeneracy point of its symbol bearing a Chern number of +2. In light of the discussion of § 3, the aim of this section is to show that the previous conclusions can be inferred with the index theorem, as accounting for the spherical metric reveals new degeneracy points of the symbol of the wave operator, in addition to the unique degeneracy point of the problem on the unbounded β-plane. We demonstrate that these additional degeneracy points bear topological charges which compensate the +2 Chern number of the equatorial degeneracy point, thus making the eigenbands of the symbol have zero total Chern numbers, which justifies the absence of transiting modes and the breaking of Yanai and Kelvin mode branches on the sphere for large ϵ.

4.1. Hermitian form, analogy with topographic shallow-water waves

In order to apply the index theorem, we first need to express (2.2) in the form ℋX= ωX, where ℋ is a Hermitian differential wave operator and the complex vector X contains the three dependent variables $\tilde{u}(\theta ),\tilde{v}(\theta )$ and $\tilde{h}(\theta )$. To do this, we introduce the rescaled fields $u=\sqrt{\text{cos}(\theta )}\tilde{u},v=\sqrt{\text{cos}(\theta )}\tilde{v}$ and $\eta =\sqrt{\text{cos}(\theta )}\tilde{h}$. Equation (2.2) can thus be recast in the form of a matrix eigenvalue equation:

$$\omega \left(\begin{array}{l}u\hfill \\ v\hfill \\ \eta \hfill \end{array}\right)=\left(\begin{array}{ccc}0& \text{i}f(\theta )& \frac{c}{R}\frac{m}{\text{cos}\theta }\\ -\text{i}f(\theta )& 0& -\text{i}\frac{c}{R}\frac{\text{d}}{\text{d}\theta }-\text{i}{\beta }_g(\theta )\\ \frac{c}{R}\frac{m}{\text{cos}\theta }& -\text{i}\frac{c}{R}\frac{\text{d}}{\text{d}\theta }+\text{i}{\beta }_g(\theta )& 0\end{array}\right)\left(\begin{array}{l}u\hfill \\ v\hfill \\ \eta \hfill \end{array}\right)=\mathscr{H}\left(\begin{array}{l}u\hfill \\ v\hfill \\ \eta \hfill \end{array}\right),$$ (4.1)

with the Coriolis parameter f = 2Ω sin(θ) and a metric β-term:

$${\beta }_g=\frac{c}{2R}\text{tan}(\theta ).$$ (4.2)

The problem is that of identifying the eigenvalues of the wave operator ℋ, the 3-by-3 matrix of differential operators appearing in the right-hand side of (4.1). It is a Hermitian matrix operator for the canonical scalar product of complex vector functions of θ (see Appendix C). In consequence, unsurprisingly, the spectrum of shallow-water waves on the sphere is purely real. We now introduce the Weyl symbol of the wave operator ℋ:

$$\mathit{\text{H}}=\left(\begin{array}{ccc}0& \text{i}f& M\\ -\text{i}f& 0& K_{\theta }-\text{i}{\beta }_g\\ M& K_{\theta }+\text{i}{\beta }_g& 0\end{array}\right),$$ (4.3)

where we have also defined M = cm/ (R cos θ), and K_θ the symbol of the Hermitian differential operator −id/dθ times c/R, which is therefore a real quantity (see Hall 2013, Theorem 13.8). Generally speaking, the symbol of a wave operator, which is obtained via the Wigner transform (see Appendix C), provides a local representation of the wave equations in phase space (see e.g. Littlejohn & Flynn 1991; Onuki 2020; Perez, Delplace & Venaille 2021; Venaille et al. 2023). It extends the Fourier transform to systems of wave equations with non-constant coefficients. In the present case, the symbol H represents quasi-local dispersion and polarisation relations of shallow-water waves on a sphere. Here H is a continuous matrix function of the conjugated variables θ, K_θ and m. To be clear, m must be an integer so that the wavefunctions of ℋ are regular on the sphere, but we can formally consider the symbol H as a continuous function of m or M. In the context of this paper, we introduce it in order to apply the index theorem, following Faure (2023), i.e. we investigate the topological properties of the degeneracy points of H. This theorem relates the Chern numbers of these degeneracy points to the number and direction of transiting modes of the wave operator ℋ, which can be interpreted as the spectral footprint of a degeneracy point of non-zero Chern number in the quasi-local dispersion relations. The symbol (4.3) is a generalisation of that studied by Delplace et al. (2017) for the unbounded β-plane: indeed, in the Matsuno limit, β_g/f ≈ ϵ/4 ≪ 1 in the Yoshida waveguide, and thus the metric term β^g can be dropped, as far as equatorially trapped waves are concerned.

A recent paper (Ageev & Iliasov 2024) erroneously states that the shallow-water wave operator on the sphere is non-Hermitian and admits complex eigenvalues, which is not true since this system is linearly stable in the absence of a background flow. The mistake originates from using the Fourier transform (which is not possible since the coefficients of ℋ vary with θ) on the wave operator, instead of the more relevant Wigner transform. It is known that the Wigner transform must include additional terms on curved manifolds (Gneiting, Fischer & Hornberger 2013), which yields a Hermitian symbol in this case. Moreover, the equivalence between the respective Hermiticity of an operator and its symbol is a known property (Hall 2013), and the symbol (4.3) is Hermitian as we used an appropriate rescaling of the variables, implying the Hermiticity of the operator ℋ for the canonical scalar product. Besides, we point out that the topological properties that are presented in the following section do not depend on the choice of θ (and thus its conjugated symbol K_θ) as coordinate to express the differential operator ℋ and its symbol. Indeed, one would obtain the same symbol H using any alternative coordinate x = F(θ), as long as the fields are appropriately rescaled so as to preserve the Hermiticity of ℋ (see Appendix C).

We also point out that (4.1) is formally equivalent to the shallow-water model in planar geometry with varying topography, whose transiting modes were investigated by Venaille & Delplace (2021). The metric term β_g plays the exact same role as the topographic parameter β_t, although Venaille & Delplace (2021) only considered an f -plane. In other words, the metric β-term is mathematically analogous to topography in flat metric. Actually, one could consider together the effect of a curved metric (spherical or oblate for rapidly rotating celestial bodies, for instance) with a topography h₀(θ) varying with latitude (thus the velocity $c=\sqrt{g{h}_0}$ is also a function of latitude). It can be shown that the symbol of this problem is the same as (4.3), with a total β-term that is the sum of β_g and β_t. For the spherical metric with topography, this adds up to β_total = (c/2R) (tan θ − d ln c/dθ). We will not be considering a varying topography, as we focus on the curved metric. However, we bring to the analysis of Venaille & Delplace (2021) the case of varying f and the additional geometric/topographic term with latitude, which was already addressed by Perez (2022) (part 3.5.1), in the context of the equatorial channel.

4.2. Degeneracy points of the symbol and their Chern numbers

Let us now determine the topological properties of the matrix H of expression (4.3). As a function of (m, K_θ, θ) and a 3-by-3 Hermitian matrix, H has generically three eigenvalues which are real-valued functions defined over the parameter space (m, K_θ, θ). These are referred to as eigenbands in the following, denoted λ_n with n = − 1, 0, + 1 for increasing eigenvalues. It is important to understand that these eigenvalues are not the same as the frequencies ω, i.e. the eigenvalues of the operator ℋ as defined in (4.1).

The fields in (2.1) are real-valued. As such, we have $\overline{\mathit{\mathscr{H}}(m)}=-\mathit{\mathscr{H}}(-m)$, where the overline stands for the complex conjugation of all coefficients of ℋ. Consequently, the spectrum of ℋ is completely symmetric under the inversion (m, ω) → (− m, −ω). In the same way, all eigenvalues of H verify

$${\lambda }_{-n}\left(m,K_{\theta },\theta \right)=-{\lambda }_{+n}\left(-m,-K_{\theta },\theta \right),$$ (4.4)

for any band index n = − 1, 0, +1. Therefore, it is sufficient to consider only the positive frequencies ω of ℋ, and the eigenbands n = 0 (quasi-local representation of Rossby waves) and n = + 1 (quasi-local representation of inertia–gravity waves) of H. For this reason, even though a given degeneracy point of H has three Chern numbers (one for each eigenband n = −1, 0, +1), we mostly consider the n = +1 one and simply refer to it as Chern number (without mentioning the band index). The characteristic polynomial of the matrix H reads as

$$X^3-\left(M^2+K_{\theta }^2+f^2+{\beta }_g^2\right)X-2f{\beta }_{g}M.$$ (4.5)

The polynomial (4.5) has a multiple root, i.e. H has a degenerated eigenvalue (λ₀ = λ₊₁ and/or λ₀ = λ₋₁), if and only if

$${\beta }_g=\pm f,$$ (4.6)

as computed by Venaille & Delplace (2021) for the topographic shallow-water model. The degenerated positive eigenvalue (λ₀ = λ₊₁) is equal to |f|, and the corresponding degeneracy points in parameter space are those such that β_g(θ) = ±f (θ), M = ∓ |f| and K_θ = 0. Now the modal flow of ℋ for an eigenband n, i.e. the number of modes gained by the Rossby (for n = 0) or the inertia–gravity (for n = +1) waveband as m goes from−∞ to +∞, is constrained by the presence of at least one of these degeneracy points in the real system, and the value of this modal flow is given by the Chern number (a negative Chern number corresponds to a net loss of modes as m increases) held by this degeneracy point for the band n of the symbol (Delplace et al. 2017; Perez 2022; Faure 2023). Since f and β_g have the same sign (negative in the southern hemisphere and positive in the northern one), the problem amounts to solving c tan(θ)/2R = 2Ω sin(θ), which yields

$$\theta =0\text{or}\text{cos}(\theta )=\frac{ϵ}{4}.$$ (4.7)

Therefore one can distinguish two situations, as illustrated in figure 9:

• (i)
  If ϵ < 4, there are three latitudes at which a degeneracy between the eigenvalues of the symbol occurs, one at the equator (threefold since all three eigenvalues of H are degenerated there) and two (twofold) degeneracy points near the poles, at opposite latitude. As ϵ increases, these get closer to the equator, where they eventually merge with the equatorial degeneracy point for ϵ = 4. The value of m at the non-equatorial degeneracy points for the positive eigenbands is

  $$m_c=-\frac{1}{2}\sqrt{1-{\left(\frac{ϵ}{4}\right)}^2}ϵ]-1/2,0[.$$ (4.8)
• (ii)If ϵ ≥ 4, there is a unique degeneracy point at the equator. This can be seen as a threshold in the competition between two different β-effects, the traditional one owing to the variation of f with latitude, which tends to trap waves at the equator, and the geometric one, which conversely tends to spread the wavefunctions away from it, over the whole sphere.

Figure 9.

Phase diagram of H, inspired by Haldane (1988). The coloured curves represent the trajectory of (β^g, f) as θ goes from −π/2 to + π/2. Matrix H has a degenerated eigenvalue when f = ± β_g (dashed lines), thus splitting the parameter space (β_g, f) into four areas, each of which is characterised by an integer 0, −1 or +.The Chern number C₊₁ (coloured discs) of a degeneracy point (black circles) involving the eigenband n = +1 is given by their difference as θ increases past the degeneracy point. (b) If ϵ < 4, the equatorial degeneracy point has C ₊₁ = +2, the same as in Delplace et al. (2017), and there are two additional mid-latitude degeneracy points with C₊₁ = −1. (a) As ϵ increases and reaches 4, they merge with the equatorial degeneracy point, which still exists for ϵ > 4 and has zero Chern number. (c) The symbol of shallow-water waves on the unbounded β-plane is obtained by taking β_g = 0 and f = βy in (4.3), which yields the unique degeneracy point of Chern number +2 studied by Delplace et al. (2017).

Each of these degeneracy points can be assigned a set of Chern numbers, one for each eigenband involved in the degeneracy (see Appendix D). Again, two situations can be distinguished:

• (i)For ϵ < 4, the equatorial threefold degeneracy point has a set of Chern numbers (C ₋₁, C₀, C₊₁) = (−2, 0, +2) for the three eigenbands (n = −1, 0, +1) of H, which are all degenerated. This is the result of Delplace et al. (2017) for the β-plane shallow-water model, and it still holds with the contribution of the spherical metric, as long as ϵ < 4. The other twofold non-equatorial degeneracy points bear Chern numbers (C₀, C₊₁) = (+1, −1) (for the positive-eigenband degeneracies) and (C₋₁, C₀) = (+1, −1) (for the negative-eigenband degeneracies). Note that, for small ϵ, the latter are pushed towards the poles, which are then discarded by Matsuno’s β-plane approximation. This is why the β-plane shallow-water model does not have them accounted for. These negatively charged degeneracy points also appear at wavenumber m = m_c ∈] − 1/2, 0[, given by expression (4.8), which is why their footprint is appreciable in the form of a jump of the modal branches right before m reaches 0 (see figures 6 and 7).
• (ii)For ϵ ≥ 4, all degeneracy points merge at the equator – and their respective Chern numbers add up – into a unique threefold degeneracy point which is topologically neutral, i.e. of zero Chern numbers: (C_{− 1}, C₀, C₊₁) = (0, 0, 0). In the spectrum of the wave operator, this fusion manifests as a symmetrisation of the modes between positive and negative m, whereas the east–west asymmetry of the spectrum is appreciable for small ϵ, when the degeneracy points are separated.

In conclusion, the metric term β_g generates systematic degeneracy points whose Chern numbers compensate that of the equatorial degeneracy point. For small ϵ, these degeneracy points are located near the poles and bear Chern number of −1 for the eigenband n = +1, and for ϵ ≥ 4 there is a unique degeneracy point at the equator whose Chern numbers are 0. The eigenbands of H thus have zero total Chern numbers, which confirms that the net number of modes gained by the inertia–gravity waveband as m is swept from −∞ to +∞ is zero, in virtue of the index theorem. As explained in § 3, there is a direct correspondence between this mode imbalance and the evolution of the number of zeros of $\tilde{v}$ for waves on the unbounded β-plane. While the same correspondence can only be inferred by extrapolation for waves on the rotating sphere, we showed here that the absence of modal flow is in agreement with the predictions of topology. For the unbounded β-plane, Venaille et al. (2023) provide a formal proof of the equality between the modal flow (i.e. the difference in number of positive-frequency inertia–gravity modes between the two limits k → +∞ and k → −∞) and the Chern number of the symbol’s degeneracy point at the equator, based on geometric Wentzel–Kramers–Brillouin analysis of the waves in both limits. This study, which provides an alternative point of view to the index theorem, could also be extended here to demonstrate the nullity of this mode imbalance on a sphere, with the wavenumber m instead of k.

4.3. Collapse of the spectral flow

For ϵ < 4, one could expect that each of the degeneracy points exhibited in § 4.2 should be associated with its own branch of modes, two of them localised near the equator, transiting from the Rossby waveband to the inertia–gravity waveband as m increases (corresponding to the +2 topological charge at the equator), and two localised near the latitudes ±θ such that cos θ = ϵ/4, transiting from the inertia–gravity waveband to the Rossby waveband as m increases (corresponding to the −1 charges). However, there is no footprint of the modes transiting from the inertia–gravity waveband to the Rossby waveband, and this happens for two reasons:

• (i)Although the index theorem applies individually for each degeneracy point of the symbol, the resulting spectral flows are visible only in a semi-classical limit (Faure 2023), i.e. as long as the transiting modes are well separated in phase space (Jezequel & Delplace 2023). In the case of shallow-water waves on a rotating sphere, the semi-classical limit in question corresponds to ϵ ≪ 1. Indeed, the equatorial waves spread up to the poles even for moderate values of ϵ (ϵ ∼ 1), which means that the modes corresponding to the opposite spectral flows overlap and hybridise, thus manifesting an avoided crossing between their respective spectral branches (see e.g. the cases studied by Kaufman et al. (1999) and Perez (2022), part 3.5.1), which is precisely why the spectral flow of frequencies collapses as ϵ increases.
• (ii)Even for ϵ ≪ 1 the modes of negative spectral flow are not visible in the spectrum. We showed in § 4.2 that these are expected to be localised near the poles, as are the corresponding degeneracy points of the symbol, and transit around m ≈ − 1/2. These modes are the spherical counterpart of Matsuno’s spurious solutions (for ω = − ck), or coastal Kelvin waves in the equatorial channel (Paldor 2015; Venaille & Delplace 2021; Perez 2022), if the edges of the channel were moved up to the poles. Owing to the spherical geometry, the dispersion relation of coastal Kelvin modes propagating along a longitudinal wall at latitude θ is ω = − cm/R cos θ. Therefore, the slope of the branches formed by these hypothetical polar modes is large, and they do not appear in the spectrum for integer values of the wavenumber m since they transit around m ≈ −1/2. For small ϵ, the strong east–west asymmetry is the manifestation of these opposite topological charges being separated, the gap-crossing Kelvin and Yanai frequencies are the footprint of the +2 topological charge at the equator, while the abrupt +2 modal jump happening between m = −1 and m = 0 (see figure 6) is the footprint of the degeneracy points of charges −1 located near the poles.

5. Concluding remarks

The goal of this work is to investigate the topological properties of the shallow-water spectrum on a rotating sphere. In particular, we aimed at answering the following questions: how do the results of Delplace et al. (2017), which were established using the β-plane approximation, extend to the spherical case? What does topology tell us about the transition between the Matsuno and Margules limits? Both regimes have been extensively investigated, and the corresponding solutions can be well approximated; however, there is no analytic solution for arbitrary values of ϵ. In the Matsuno limit (ϵ ≪ 1 or large Lamb parameter), there seems to be a continuous spectral connection between the Rossby and inertia–gravity modes, which is embodied by the Yanai and Kelvin modes, whose frequencies cross the gap as m increases (see figure 1). This spectral feature is reminiscent of the Matsuno spectrum on the unbounded β-plane, for which the connection with topological invariant is well established (Delplace et al. 2017; Delplace 2022; Faure 2023; Venaille et al. 2023). In the Margules limit (large ϵ or small Lamb parameter), this gapless connection progressively breaks down. All the inertia–gravity modes plus the positive-phase-speed Yanai (with m ≥ 0) and Kelvin (with m ≥ 1) modes move up to values ω = O(c/R), while the largest Yanai frequency (m = −1) remains smaller than Ω (see (2.6) with n = 0 and figure 4), thus separating the spectrum into two distinct wavebands with an open frequency gap.

For small ϵ, the frequencies of shallow-water waves on a sphere and those of the Matsuno spectrum on the unbounded β-plane are nearly identical; however, the $\tilde{v}$ component of the modes of positive (eastward) phase speed has two more zeros located at opposite latitudes. The latter being close to the poles, they are not captured by the β-plane approximation. Modes on the sphere have been extensively studied, in particular the Yanai modes (Garfinkel et al. 2017; Paldor et al. 2018). Nevertheless, to our knowledge, the existence of these additional zeros is usually not discussed in the geophysical literature. Yet they are consistent with the evolution of the shallow-water spectrum as ϵ varies continuously. To explain why, let us consider a mode with wavenumber m and frequency ω, for a large value of ϵ (Margules limit). The number p of zeros of $\tilde{v}(\theta )$ is established by the classification given in § 2.2. The inertia–gravity modes are essentially those of the Laplacian on the sphere, which are insensitive to the sign of m. As ϵ continuously decreases, the effect of rotation becomes stronger and the spectrum progressively loses this east–west symmetry. For the mode picked in the large ϵ regime, its frequency ω and the wavefunction $\tilde{v}$ change as well in a continuous manner. However, the number p cannot change as the structure of $\tilde{v}$ is governed by a generalised Sturm–Liouville problem (see the arguments of Iga (1995)), whose eigenvalue equation is the spherical generalisation of Matsuno’s equation ((3.3) of Müller & O’Brien (1995) is given for the perturbation of potential vorticity, which is proportional to cos (θ) $\tilde{v}$). When decreasing ϵ, the frequencies of the eastward modes decrease faster than those of the westward ones, leading to a dislocation (or +2 branch jump) in the spectrum. This dislocation eventually results in the spectral flow of Yanai and Kelvin modes in the small-ϵ (Matsuno) limit. In the Matsuno limit on a sphere, this spectral flow is thus obtained as a continuous deformation of the Margules spectrum with no spectral flow. It arises from the isolated +2 topological charge at the equator, whereas the opposite topological charges near the poles generate invisible modes with opposite spectral flow, which manifest in the spectrum through the change in number of $\tilde{v}$ zeros of Yanai modes as m changes sign. In other words, this spectral flow is not a modal flow, since the westward and eastward Yanai modes do not constitute a single modal branch. In contrast, the shallow-water spectrum on the unbounded β-plane arises from a single non-zero topological charge, because there is no such way to continuously deform it into a spectrum with no modal flow, as the parameters β and c can be absorbed in the definition of length and time units, and thus do not affect the shape of the spectrum discussed in § 3.1. Conversely, for waves on a sphere, both R and the Rossby radius of deformation c/2Ω deeply affect the shape of the solutions, and their ratio defines the effective equatorial trapping of waves.

We then highlighted furthermore this distinction between the unbounded β-plane and the sphere by investigating the topology of the symbol of the shallow-water model on the sphere. We showed that the shallow-water eigenbands on the sphere have zero total Chern numbers, in contrast to the eigenbands on the unbounded β-plane. Consequently, in virtue of the index theorem, there is no net modal flow of modes in the spectrum. Precisely, we found that when ϵ becomes higher than 4, several degeneracy points merge into a unique, topologically neutral degeneracy point at the equator. This manifests in the shallow-water spectrum as the loss of east–west asymmetry and the complete collapse of the spectral flow of equatorial Yanai and Kelvin waves. However, for ϵ < 4, the symbol of the wave operator on the sphere has several charged degeneracy points: an equatorial one with non-zero Chern numbers, which is reminiscent of the unbounded β-plane (Delplace et al. 2017), plus two others (considering the positive eigenbands n = 0, +1) with opposite charges. As discussed in § 4.3, the spectral footprint of the former are the Yanai and Kelvin waves, whose transiting frequencies are characteristic of the east–west asymmetry at small ϵ, and that of the latter is the +2 modal jump, i.e. the fact that opposite topological charges of the symbol lead, for small ϵ, to a spectral flow that is not a modal flow.

This work joins recent efforts towards the comprehension of how topology applies in the spectral properties of continuous physical systems on curved surfaces (Shankar et al. 2017; Green et al. 2020; Finnigan, Kargarian & Efimkin 2022; Li & Efimkin 2023; Ageev & Iliasov 2024), a subject that still lacks a unified framework. In that sense, we stress the importance of the Weyl symbol and the spectral parameter. With this study, we have shown that the shallow-water model on a rotating sphere has a counter-intuitive topology that is either neutral (all Chern numbers are null for ϵ ≥ 4) or polar in the sense that it has several degeneracy points of non-zero Chern numbers which sum to zero (for ϵ < 4), whereas its β-plane counterpart in unbounded flat geometry has a unique, topologically charged degeneracy point. Besides, we demonstrated a peculiar situation, in which different degeneracy points (with different multiplicity) merge and yield a unique degeneracy point which is topologically neutral, yet without the gap opening afterward. This situation is not usual in topological physics. Further investigation is necessary to better understand the spectral properties of continuous systems on curved surfaces, and the manifestation of topology in their dynamics.
