Orthosteric and Allosteric Activation of Human 5-HT₃A Receptors

Abstract

The serotonin type 3 receptor (5-HT₃) is a ligand-gated ion channel that converts the binding of the neurotransmitter serotonin (5-HT) into a transient cation current that mediates fast excitatory responses in peripheral and central nervous systems. Information regarding the activation and modulation of the human 5-HT₃ type A receptor has been based only on macroscopic current measurements because of its low ion conductance. By constructing a high-conductance human 5-HT₃A receptor, we here revealed mechanistic information regarding the orthosteric activation by 5-HT and by the partial agonist tryptamine, and the allosteric activation by the terpenoids, carvacrol, and thymol. Terpenoids potentiated macroscopic currents elicited by the orthosteric agonist and directly elicited currents with slow-rising phases and submaximal amplitudes. At the single-channel level, activation by orthosteric and allosteric agonists appeared as openings in quick succession (bursts) that showed no ligand concentration dependence. Bursts were grouped into long-duration clusters in the presence of 5-HT and even longer in the presence of terpenoids, whereas they remained isolated in the presence of tryptamine. Kinetic analysis revealed that allosteric and orthosteric activation mechanisms can be described by the same scheme that includes transitions of the agonist-bound receptor to closed intermediate states before opening (priming). Reduced priming explained the partial agonism of tryptamine; however, equilibrium constants for gating and priming were similar for 5-HT and terpenoid activation. Thus, our kinetic analysis revealed that terpenoids are efficacious agonists for 5-HT₃A receptors. These findings not only extend our knowledge about the human 5-HT₃A molecular function but also provide novel insights into the mechanisms of action of allosteric ligands, which are of increasing interest as therapeutic drugs in all the superfamily.

Significance

The serotonin type 3 receptor (5-HT₃) is a ligand-gated ion channel that converts the binding of serotonin into a cationic current, thus mediating fast excitatory responses in peripheral and central nervous systems. Natural compounds, such as terpenoids, modulate receptor activity by binding to different (allosteric) sites. The mechanism of allosteric activation remains unknown, despite the therapeutic importance of allosteric ligands. By combining expression of human 5-HT₃A receptors with single-channel recordings and kinetic modeling we revealed new mechanistic information regarding allosteric activation by two terpenoid natural compounds, carvacrol and thymol, and determined how this mechanism relates to that elicited by serotonin. The understanding of how drugs and natural compounds acting from different sites modify receptor molecular function contributes to drug design.

Introduction

Serotonin type 3 receptor (5-HT₃) is a ligand-gated ion channel that belongs to the Cys-loop receptor family along with nicotinic, glycine, and GABA receptors. They are homopentameric or heteropentameric receptors that contain an extracellular domain, which carries the agonist binding sites at subunit interfaces; a transmembrane domain, which comprises the pore and it is formed by four α-helices of each subunit (TM1–TM4), with TM2 segments forming the walls of the ion channel; and an intracellular domain, which is formed by the intracellular loop between TM3 and TM4 of each subunit and is implicated in trafficking, modulation, and ion conductance (1, 2, 3).

Human 5-HT₃ receptors are located in the peripheral and enteric nervous systems, in which they play a role in peristalsis, gut motility, and in several sympathetic, parasympathetic, and sensory functions. They are also found in many areas of the central nervous system, with roles in a variety of functions including emesis, cognition, and anxiety (4).

Five human 5-HT₃ subunits (5HT3A–E) have been identified to date (5, 6, 7). The 5HT3A subunit is the only one that can form homomeric receptors (5-HT₃A) (8,9), whereas 5HT3B–E subunits form heteromeric receptors by assembling with the 5HT3A subunit (5,6,10, 11, 12). The subunit composition and stoichiometry of native receptors remain mostly unknown.

Native homomeric 5-HT₃A receptors have a very low ion channel conductance that has prevented the detection of single-channel openings (1,8). The combined mutations of three residues in the intracellular domain increase the ion channel conductance, allowing single-channel events to be detected under the cell-attached patch-clamp configuration (1,13,14). Thus, this high-conductance receptor model (5-HT₃A_HC) is a valuable tool to study in detail mechanisms of receptor activation and modulation. Taking advantage of the high-conductance receptor, we have previously generated models that describe the kinetics of activation by full and partial orthosteric agonists (14,15), and of inhibition by negative allosteric modulators of the mouse 5-HT₃A receptor (16). The kinetic analysis of the mouse 5-HT₃A receptor showed that two or three agonist binding sites have to be occupied for maximal response and proposed the existence of intermediate preactivated closed states (14,17). Intermediate preactivated closed states have been first described in glycine and nicotinic receptors. It has been proposed that the efficacy of an agonist is mainly determined by its ability to change the receptor conformation from a closed state to these preactivated states (14,15,18, 19, 20).

In human health, 5-HT₃ competitive antagonists, like granisetron, alosetron, ondansetron, and palanosetron, are used to alleviate gastrointestinal symptoms associated with chemotherapy, anesthesia, and irritable bowel syndrome (4,21). They are also considered as promising therapy for the treatment of other disorders like schizophrenia, depression, anxiety, addictions, cognitive disfunction, and eating disorders (4,22).

In addition to the orthosteric ligands, several compounds have been reported to allosterically modulate 5-HT₃A function. They can act as negative allosteric modulators of 5-HT₃ receptors, such as alkaloids (23), steroids (24), cannabinoids (25), and terpenes (26,27); as positive allosteric modulators (PAMs), like alcohol (28), 5-hydroxyindole (29), and 5-chloroindole (30); and as ago-PAMs, which are capable of activating in the absence of an orthosteric agonist and potentiating in its presence, like the terpenoids carvacrol and thymol (31,32).

Terpenoids act as allosteric modulators of 5-HT₃A receptors by binding probably to a transmembrane site. Whereas some of them act as negative modulators, like menthol, citronellol, and boldine (26,27,32,33), others, like carvacrol and thymol, act as ago-PAMs (31,32). This information shows how drugs with high structural similarities can exert divergent effects on the same receptor, reinforcing the idea that subtle structural modifications can result in multiple different pharmacological effects.

Allosteric ligands have attracted high attention as promising therapeutic and research tools because they show higher specificity and cover a wider range of effects compared to orthosteric ligands, and, in the case of allosteric modulators lacking agonist activities, their effects follow the temporal activity exerted by the natural endogenous neurotransmitter (34). Thus, the elucidation of sites and mechanisms of action of allosteric compounds is of intense research interest.

During the last years, important efforts have been made toward the elucidation of the structural and mechanistic bases of activation of Cys-loop receptors, which have provided insights into the processes involved in neurotransmitter activation via the orthosteric sites (19,35, 36, 37). In contrast, the molecular mechanism underlying the allosteric activation remains an enigma.

Information of the molecular function of human 5-HT₃A receptor has lagged behind because of its low conductance. To overcome this gap, we here constructed the high-conductance form of the human 5-HT₃A receptor and explored by macroscopic current and single-channel recordings the activation kinetics by orthosteric agonists, full (5-HT) and partial (tryptamine), as well as the kinetics of activation and modulation by the allosteric ligands carvacrol and thymol.

Our results show the first microscopic description of the allosteric activation and modulation of the human 5-HT₃A receptor and remark the differences and similarities with the activation through the neurotransmitter binding sites. This study enhances the importance of single-channel recordings for a deep understanding of drug action in ligand-gated ion channels. Overall, we here provide novel, to our knowledge, insights into the molecular function of human 5-HT₃A and, in particular, into the mechanisms of activation and modulation by allosteric ligands, which are of interest as potential therapeutic drugs in all the superfamily.

Materials and Methods

Materials

All compounds were obtained from Sigma-Aldrich (St Louis, MO). Carvacrol (5-isopropyl-2-methylphenol) and thymol (2-isopropyl-5-methylphenol) were prepared as stock solutions in DMSO (300 mM) and stored at −20°C, followed by dilution in buffer at the concentration required for the experiment. Final DMSO concentration was <1% in all cases. Serotonin (3-(2-aminoethyl)-5-hydroxyindole hydrochloride) and tryptamine (3-(2-aminoethyl)indole hydrochloride) solutions were prepared in buffer.

Expression of high-conductance 5-HT₃A receptors

The high-conductance form of the human serotonin type 3A receptor (5-HT₃A_HC) was obtained by mutating three arginine residues (R432, R436, and R440) responsible for the low conductance to glutamine, aspartic acid, and alanine as described before for the mouse 5-HT₃A receptor (14,38). Point mutations were carried out using the Quik Change Kit (Stratagene, La Jolla, CA) and were confirmed by sequencing. BOSC23 cells, derived from HEK 293 cells, were transfected with the high-conductance form of 5HT3A subunit cDNA (5HT3A_HC) and a plasmid-encoding green fluorescent protein to allow identification of transfected cells (14,38).

Patch-clamp recordings

Single-channel currents were recorded in the cell-attached configuration at 20°C. The bath and pipette solutions contained 142 mM KCl, 5.4 mM NaCl, 0.2 mM CaCl₂, and 10 mM HEPES (pH 7.4). Agonists were added to the pipette solution. Single-channel currents were recorded using an Axopatch 200B patch-clamp amplifier (Molecular Devices, San Jose, CA), digitized at 200 kHz and low-pass filtered at a cutoff frequency of 10 kHz using a computer interface Instrutech ITC-18 (HEKA Instruments, Holliston, MA). Single-channel events were idealized by the half amplitude threshold criterion using the program QuB 2.0.0.28 (QuB suite, www.qub.buffalo.edu; State University of New York, Buffalo, NY) with digital low-pass filter at 9 kHz. The open and closed durations were estimated from the idealized recordings by the maximal interval likelihood (MIL) function in QuB with a dead time of 0.03 ms, which is the interval duration below which events cannot be resolved (39,40). Therefore, only events longer than the dead time were used to construct the duration histograms. This analysis was performed on the basis of a kinetic model whose probability density function curves properly described the corresponding histograms after the maximal likelihood criteria. Bursts and clusters of channel openings were identified as a series of closely separated openings (more than five) preceded and followed by closings longer than a critical duration. Clusters corresponded to the longest-duration stretches of successive openings originated from the same receptor molecule. They were composed by shorter episodes of successive openings called bursts. The critical duration was obtained by the point at which the exponential component that described the longer closings within bursts (or clusters) intersected the following component, thus minimizing the fraction of misclassified closed events (41). For defining clusters, the critical duration was taken as the point of intersection between the third and fourth closed component and its value was ∼10–20 ms. For bursts, the critical closed duration was defined between the second and third component and was ∼0.5–1.0 ms. A 10–20 time increase in the critical time for defining clusters did not affect the mean cluster duration, indicating that clusters were well defined. For tryptamine, only isolated bursts were clearly defined. A 10–20 time increase in the critical time for burst resolution did not affect the mean burst duration, indicating that bursts were separated by longer closed periods and that clusters could not be distinguished.

The corresponding critical closed duration was used as a terminator in QuB to chop the recording and create a list of bursts or clusters. Cluster duration, burst duration, and open probability within clusters and within bursts were plotted and clustered using the K-Means algorithm to define the corresponding mean values.

Macroscopic currents were recorded in the whole-cell configuration. The pipette solution contained 134 mM KCl, 5 mM EGTA, 1 mM MgCl₂, and 10 mM HEPES (pH 7.3). The extracellular solution (ECS) contained 150 mM NaCl, 0.5 mM CaCl₂, 10 mM HEPES (pH 7.4). For generating serotonin and tryptamine dose-response curves, 1.4-s pulses of ECS containing different concentrations of each agonist were applied. For carvacrol and thymol, the agonist pulse was extended up to 8 s because of their slower rising phase. The solution exchange time was estimated by the open pipette method as described before (42). This method consists in applying a pulse of 50% diluted ECS to an open patch pipette, which produces a sudden change in the current measured by the patch-clamp amplifier. After proper adjustment of the electrode position, the current jump in our system varied between 0.1 and 1 ms.

Macroscopic currents were acquired by WinWCP V5.3.7 (Strathclyde Institute of Pharmacy & Biomedical Sciences, Glasgow, UK), filtered at 5 kHz, digitized at 20 kHz, and analyzed using Clampfit 10.4 (Molecular Devices, San Jose, CA). Each current represents the average from three to five individual traces obtained from the same seal. The rise time corresponds to the time taken by the current to increase from 10 to 90% of its maximal value (t_10–90%). For 5-HT-activated currents, decays were fitted by a double exponential function according to the equation:

$$I_{\left(\text{t}\right)}=I_{\text{fast}}\left[\text{exp}\left(-\text{t}/{\tau }_{\text{fast}}\right)\right]+I_{\text{slow}}\left[\text{exp}\left(-\text{t}/{\tau }_{\text{slow}}\right)\right]+I_{\infty }$$

in which I₀ and I_∞ are peak and the steady-state current values, respectively, and τ are the decay time constants.

EC₅₀ values were obtained by fitting dose-response curves with the Hill equation.

Single-channel kinetic analysis

For kinetic modeling, clusters or bursts were selected on the basis of their distribution of mean duration and open probability (14,15). The resulting open and closed intervals, from single patches at different ligand concentrations, were analyzed according to a kinetic scheme using the MIL algorithm from the QuB Software (39,40) (QuB suite, www.qub.buffalo.edu; State University of New York, Buffalo, NY) as described before (14,15). The model and the estimated rates were accepted if the resulting probability density functions correctly described the experimental open- and closed-duration histograms.

Statistical analysis

Data were presented as mean ± SD. Statistical comparisons were performed with the Student’s t-test. Statistically significant differences were established at p-values <0.05.

Results

Activation of the human 5-HT₃A_HC receptor by orthosteric and allosteric ligands at the macroscopic level

The human 5-HT₃A receptor channel has a very low ion conductance that impairs the detection of single-channel openings from cell-attached patches (1). To overcome this limitation, we mutated three residues at the intracellular domain to yield the high-conductance form of the human 5-HT₃A receptor (5-HT₃A_HC), as previously described for the mouse 5-HT₃A receptor (14, 15, 16). To characterize the macroscopic activation properties, whole-cell currents were recorded from BOSC23 cells transfected with the human 5HT3A_HC subunit cDNA. Rapid application to the cells of a saturating 5-HT concentration (100 μM) elicited macroscopic currents that decayed during the pulse of agonist application (Fig. 1, A and C). The rise time measured from the t_10–90%, was 10 ± 4 ms and decays were fitted by two exponential components, with time constants of 92 ± 20 and 1100 ± 900 ms (n = 5). These values were similar to those of wild-type 5-HT₃A receptor currents elicited by 100 μM 5-HT (t_10–90% of 16 ± 6 ms and decay time constants of 120 ± 50 and 700 ± 400 ms (n = 5)). The concentration-response curve for the high-conductance 5-HT₃A resulted in an EC₅₀-value of 2.6 ± 0.1 μM (R² = 0.99, Fig. 1 B), similar to that previously reported for the wild-type human 5-HT₃A receptor (EC₅₀ = 1–2 μM) (12,31).

Figure 1.

Macroscopic currents from human 5-HT₃A_HC receptors elicited by orthosteric and allosteric agonists. (A) Typical macroscopic currents elicited by 5-HT (black currents), and compared to those elicited by tryptamine, carvacrol, or thymol (gray currents) in the same cell at the indicated concentrations. The holding potential is −50 mV. (B) Dose-response curves for the 5-HT₃A_HC receptor. Current amplitudes were normalized to those of 100 μM 5-HT-elicited currents. Data points are the mean values ± SD from three cells for each condition. (C) Typical whole-cell currents obtained at the different agonist concentrations.

We also explored macroscopic activation of human 5-HT₃A_HC receptor by tryptamine, which is a partial agonist of mouse and human 5-HT₃A receptor (15,43). Compared to 5-HT, tryptamine-elicited currents showed a slower activation phase (Fig. 1, A and C) and did not decay during the time of agonist application (1.4 s). The rise time obtained at a saturating concentration of tryptamine (1 mM), measured from the t_10–90%, was 200 ± 100 ms (Fig. 1 A). The dose-response curve showed an EC₅₀ of 197 ± 50 μM and a maximal response of 27 ± 3% compared to that elicited by 100 μM 5-HT (R² = 0.98), indicating that tryptamine is a very weak agonist for the human 5-HT₃A_HC receptor (Fig. 1 B). These values were in line with those reported for the wild-type human 5-HT₃A receptor (EC₅₀ of 100–200 μM and ∼27% of maximal response (43)). Thus, our macroscopic characterization indicates that the high-conductance receptor behaves similarly to the wild-type 5-HT₃A receptor.

Carvacrol and thymol are two phenolic monoterpenes that have been macroscopically characterized as allosteric partial agonists and positive allosteric modulators of the human 5-HT₃A receptor (ago-PAMs) (31,32). We recorded macroscopic currents elicited by these ligands at a concentration range from 1 μM to 1 mM (Fig. 1, B and C). Terpenoid concentrations higher than 1 mM produced membrane instability and could not be evaluated. The profiles of macroscopic responses were similar for both agonists but different to those elicited by 5-HT. At all carvacrol and thymol concentrations, including at saturating concentrations, currents decayed slower than in the presence of 5-HT (Fig. 1 A), and full desensitization was not achieved during the time of agonist application (12 s) (Fig. 1 C). Currents elicited by saturating concentrations of carvacrol or thymol showed significantly slower activation phases with respect to that observed with 5-HT, with rise times (t_10–90%) of 2280 ± 810 ms for 1 mM carvacrol (n = 4) and 4850 ± 750 ms for 1 mM thymol (n = 5) (Fig. 1 A). Concentration-response curves obtained for carvacrol and thymol showed higher EC₅₀-values (62 ± 2 and 117 ± 30 μM, respectively; R² = 0.98) and smaller maximal responses (84 ± 1 and 84 ± 8%, respectively) than those obtained by 5-HT (Fig. 1 B). These results were in close agreement with reports for the human wild-type 5-HT₃A receptor, showing EC₅₀ and maximal responses of ∼20 μM and ∼70%, and ∼50 μM and ∼80% for carvacrol and thymol, respectively (31).

These results revealed that the allosteric and orthosteric macroscopic activation of 5-HT₃A_HC is indistinguishable from that of the wild-type receptor and that the high-conductance receptor is, therefore, a good model for studying activation at the single-channel level.

Potentiation of the human 5-HT₃A_HC receptor by carvacrol and thymol at the macroscopic level

To investigate the action of carvacrol and thymol as positive allosteric modulators of the human 5-HT₃A_HC, we recorded whole-cell currents activated by 50 μM tryptamine, a concentration close to the EC₂₀-value, with and without 10 μM carvacrol or 20 μM thymol, which correspond to concentrations close to their EC₁₀-values (Figs. 1 and 2). When 50 μM tryptamine was applied alone, typical responses showing slow activation and slow decay phases were detected, whereas application of thymol or carvacrol at these low concentrations elicited very small or negligible currents (Fig. 2 A). However, application of 50 μM tryptamine together with carvacrol (10 μM) or thymol (20 μM) produced marked potentiation of the macroscopic currents. For both compounds, peak currents increased ∼3-fold with respect to those elicited by tryptamine alone from the same cell (Fig. 2 B).

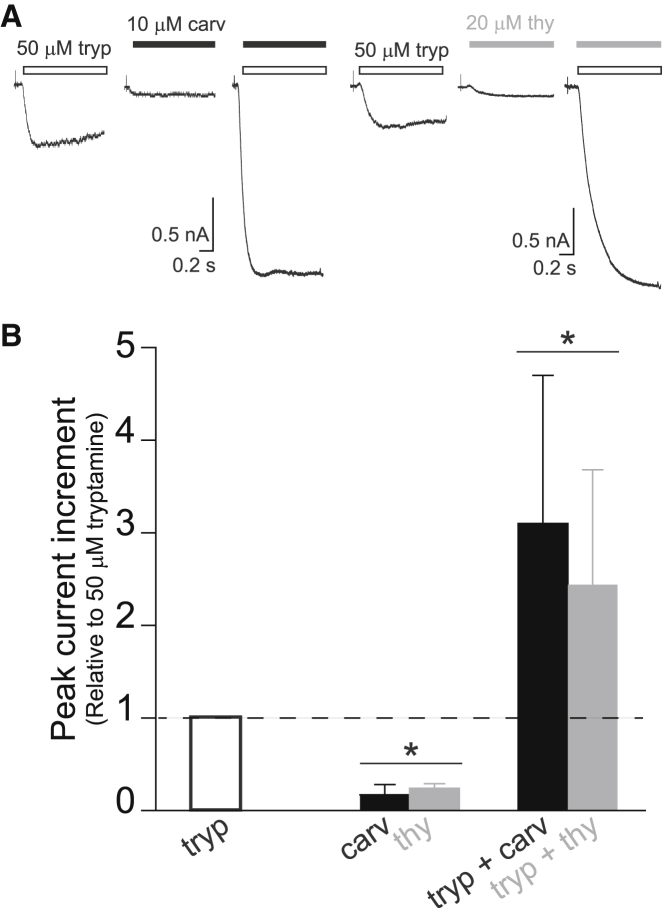

Figure 2.

Potentiation of tryptamine-elicited currents by carvacrol and thymol. (A) Typical whole-cell currents elicited by rapid application of 50 μM tryptamine (white), 10 μM carvacrol (black), 20 μM thymol (gray), tryptamine + carvacrol, and tryptamine + thymol. The holding potential is −50 mV. (B) Increase of the peak of tryptamine-elicited currents by carvacrol (10 μM) or thymol (20 μM). Currents were elicited under the conditions shown in (A). Peak currents were normalized to those obtained with tryptamine in the same cell. The values correspond to the mean ± SD of 24 recordings for tryptamine, 4 for carvacrol, 3 for thymol, 12 for tryptamine + carvacrol, and 5 for tryptamine + thymol. ^∗p < 0.001 with respect to tryptamine.

These results confirm that, in addition to their function as agonists, carvacrol and thymol act as positive allosteric modulators for the high-conductance form of human 5-HT₃A receptor and that the potentiating effect is evidenced at lower concentrations than the agonistic effect.

Single-channel activation of human 5-HT₃A_HC receptor by orthosteric agonists

Taking advantage of the high-conductance form of the human 5-HT₃A receptor, we explored the activation profile at the single-channel level.

At all 5-HT concentrations (1–30 μM), activation appeared as opening events of 4.5 ± 0.4 pA (−70 mV of membrane potential) in quick succession, forming bursts of high-open probability that, in turn, appeared grouped in well-defined long activation episodes named as clusters (Fig. 3; Fig. S1). Each cluster corresponds to the activation episode of a single receptor molecule that recovers from long-lived desensitization (See Materials and Methods for burst and cluster definitions). At 1 μM 5-HT, single-channel activity was observed as clusters of ∼290 ms with high-open probability (P_open ∼0.94) (Fig. 3; Table 1). Clusters were composed by shorter stretches, called bursts, with mean durations of ∼130 ms, which were defined as opening events in quick succession separated by closings briefer than 1 ms (See Materials and Methods, Fig. 3; Table 1). Open-time histograms were described by three distinct components whose durations were ∼0.05, 0.40, and 23 ms (Fig. 3; Table 1).

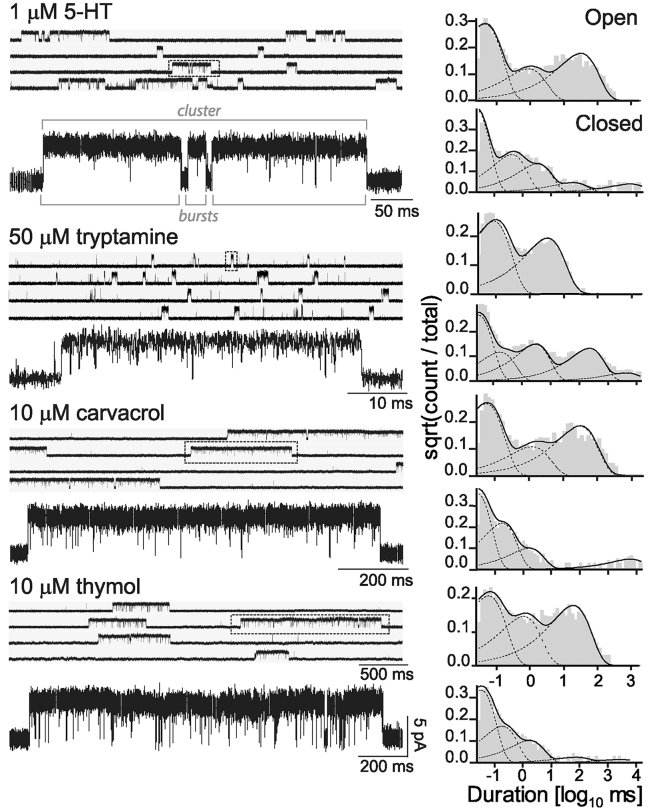

Figure 3.

Single-channel currents evoked by 5-HT, tryptamine, carvacrol,or thymol. Shown is the typical single-channel traces obtained in the cell-attached configuration at −70 mV membrane potential. The filter is 9 kHz. Channel openings are shown as upward deflections. The stretch of openings that form a cluster, and the bursts within the cluster are indicated for 5-HT. In all channel traces, one cluster (for 5-HT, carvacrol and thymol) and one burst (for tryptamine) are marked in a box and shown below at a higher time resolution. At the right, representative open- and closed-duration histograms obtained from the analysis of the whole recording are shown for each condition.

Table 1.

Single-Channel Parameters of Human 5-HT₃A_HC Receptors

Ligand	[μM]	τOL (ms) (Rel. Area)	τOI (ms) (Rel. Area)	τOB (ms) (Rel. Area)	τCB (ms) (Rel. Area)	τCI (ms) (Rel. Area)	τCL (ms) (Rel. Area)	Burst (ms) (Popen)	Cluster (ms) (Popen)	n
5-HT
	1	23 ± 6	0.40 ± 0.14	0.05 ± 0.01	0.02 ± 0.01	0.18 ± 0.10	2.6 ± 1.0	136 ± 54	287 ± 123	13
		(0.49 ± 0.19)	(0.20 ± 0.06)	(0.40 ± 0.20)	(0.46 ± 0.19)	(0.24 ± 0.12)	(0.30 ± 0.16)	(0.99 ± 0.01)	(0.94 ± 0.05)
	5	13 ± 4	0.20 ± 0.05	0.05 ± 0.01	0.03 ± 0.01	0.17 ± 0.04	1.7 ± 0.3	90 ± 34	221 ± 83	5
		(0.57 ± 0.08)	(0.14 ± 0.11)	(0.28 ± 0.06)	(0.42 ± 0.06)	(0.24 ± 0.07)	(0.22 ± 0.04)	(0.99 ± 0.01)	(0.91 ± 0.04)
	10	8.8 ± 2.4	0.17 ± 0.06	0.05 ± 0.01	0.03 ± 0.01	0.22 ± 0.13	2.2 ± 0.9	94 ± 53	246 ± 131	4
		(0.58 ± 0.09)	(0.11 ± 0.07)	(0.32 ± 0.10)	(0.43 ± 0.15)	(0.27 ± 0.11)	(0.21 ± 0.05)	(0.98 ± 0.01)	(0.89 ± 0.04)
	30	4.8 ± 0.6	0.24 ± 0.19	0.05 ± 0.02	0.03 ± 0.01	0.26 ± 0.16	2.2 ± 1.5	38 ± 10	98 ± 50	10
		(0.51 ± 0.10)	(0.17 ± 0.14)	(0.39 ± 0.10)	(0.37 ± 0.12)	(0.32 ± 0.08)	(0.27 ± 0.13)	(0.97 ± 0.01)	(0.78 ± 0.07)
Tryptamine
	10	6.9 ± 1.0	0.06 ± 0.03	—	0.03 ± 0.01	0.09 ± 0.01	—	29 ± 17	—	3
		(0.67 ± 0.28)	(0.33 ± 0.28)	—	(0.41 ± 0.26)	(0.12 ± 0.03)	—	(0.99 ± 0.01)	—
	20	5.5 ± 2.1	0.05 ± 0.02	—	0.03 ± 0.01	0.11 ± 0.06	—	62 ± 33	—	4
		(0.80 ± 0.23)	(0.09 ± 0.04)	—	(0.69 ± 0.22)	(0.10 ± 0.08)	—	(0.99 ± 0.01)	—
	50	3.2 ± 1.2	0.08 ± 0.03	—	0.03 ± 0.01	0.23 ± 0.10	—	26 ± 10	—	10
		(0.75 ± 0.12)	(0.21 ± 0.07)	—	(0.70 ± 0.13)	(0.21 ± 0.09)	—	(0.99 ± 0.01)	—
	100	1.7 ± 0.1	0.07 ± 0.01	—	0.04 ± 0.01	0.26 ± 0.07	—	30 ± 9	—	5
		(0.82 ± 0.17)	(0.18 ± 0.17)	—	(0.73 ± 0.16)	(0.05 ± 0.01)	—	(0.98 ± 0.01)	—
Carvacrol
	5	25 ± 5	0.90 ± 0.50	0.02 ± 0.01	0.02 ± 0.01	0.16 ± 0.08	1.2 ± 0.4	437 ± 133	2542 ± 998	3
		(0.59 ± 0.27)	(0.29 ± 0.30)	(0.10 ± 0.09)	(0.69 ± 0.16)	(0.21 ± 0.10)	(0.09 ± 0.07)	(0.99 ± 0.01)	(0.94 ± 0.02)
	10	38 ± 11	2.2 ± 1.8	0.09 ± 0.05	0.02 ± 0.01	0.12 ± 0.09	1.4 ± 0.9	472 ± 163	1734 ± 910	8
		(0.47 ± 0.20)	(0.26 ± 0.13)	(0.27 ± 0.17)	(0.54 ± 0.11)	(0.34 ± 0.10)	(0.09 ± 0.05)	(0.99 ± 0.01)	(0.98 ± 0.02)
	20	31 ± 17	1.2 ± 1.1	0.05 ± 0.02	0.02 ± 0.01	0.19 ± 0.12	1.2 ± 0.3	397 ± 16	3615 ± 1563	4
		(0.66 ± 0.09)	(0.19 ± 0.11)	(0.20 ± 0.04)	(0.51 ± 0.10)	(0.24 ± 0.08)	(0.23 ± 0.04)	(0.99 ± 0.01)	(0.96 ± 0.02)
	50	31 ± 12	3.0 ± 1.6	0.12 ± 0.04	0.03 ± 0.01	0.08 ± 0.03	1.0 ± 0.7	477 ± 57	1013 ± 367	4
		(0.44 ± 0.16)	(0.29 ± 0.18)	(0.28 ± 0.05)	(0.44 ± 0.22)	(0.49 ± 0.25)	(0.06 ± 0.04)	(0.99 ± 0.01)	(0.99 ± 0.01)
Thymol
	5	34 ± 8	1.6 ± 1.1	0.07 ± 0.06	0.02 ± 0.01	0.14 ± 0.03	1.9 ± 0.7	392 ± 200	1539 ± 771	4
		(0.58 ± 0.22)	(0.32 ± 0.16)	(0.09 ± 0.03)	(0.70 ± 0.12)	(0.14 ± 0.07)	(0.14 ± 0.07)	(0.99 ± 0.01)	(0.99 ± 0.01)
	10	17 ± 2	2.2 ± 0.8	0.12 ± 0.07	0.03 ± 0.01	0.19 ± 0.14	0.9 ± 0.3	110 ± 80	1226 ± 459	3
		(0.27 ± 0.19)	(0.47 ± 0.03)	(0.27 ± 13)	(0.60 ± 0.27)	(0.27 ± 0.14)	(0.15 ± 0.10)	(0.99 ± 0.01)	(0.97 ± 0.02)
	20	34 ± 14	0.60 ± 0.40	0.05 ± 0.02	0.04 ± 0.01	0.25 ± 0.11	2.1 ± 1.6	313 ± 51	1761 ± 495	5
		(0.32 ± 0.14)	(0.30 ± 0.16)	(0.43 ± 0.18)	(0.43 ± 0.23)	(0.46 ± 0.07)	(0.08 ± 0.03)	(0.99 ± 0.01)	(0.98 ± 0.01)
	50	45 ± 12	1.3 ± 0.7	0.06 ± 0.02	0.02 ± 0.01	0.13 ± 0.06	2.2 ± 1.5	546 ± 247	1215 ± 184	3
		(0.32 ± 0.12)	(0.23 ± 0.09)	(0.44 ± 0.19)	(0.39 ± 0.12)	(0.43 ± 0.06)	(0.13 ± 0.06)	(0.98 ± 0.01)	(0.97 ± 0.01)
	100	39 ± 15	1.9 ± 1.5	0.11 ± 0.02	0.02 ± 0.01	0.13 ± 0.03	1.9 ± 1.3	531 ± 139	1581 ± 803	6
		(0.54 ± 0.13)	(0.32 ± 0.13)	(0.14 ± 0.03)	(0.66 ± 0.22)	(0.28 ± 0.17)	(0.08 ± 0.06)	(0.99 ± 0.01)	(0.98 ± 0.01)
Tryptamine	50
Carvacrol	10
		4.4 ± 1.1a,b	0.07 ± 0.02	—	0.03 ± 0.01	0.18 ± 0.08	1.4 ± 0.9	232 ± 151	1861 ± 890c,d	6
		(0.83 ± 0.11)	(0.16 ± 0.11)	—	(0.77 ± 0.17)	(0.18 ± 0.14)	(0.04 ± 0.02)	(0.97 ± 0.01)	(0.96 ± 0.02)
Tryptamine	50
Thymol	10
		2.7 ± 0.1a,e	0.20 ± 0.16	—	0.04 ± 0.01	0.31 ± 0.11	1.7 ± 0.7	120 ± 100	560 ± 445c,f	3
		(0.72 ± 0.04)	(0.28 ± 0.03)	—	(0.79 ± 0.11)	(0.13 ± 0.06)	(0.06 ± 0.05)	(0.96 ± 0.01)	(0.94 ± 0.02)

Single-channel currents were recorded at −70 mV in the presence of the ligands at the indicated concentrations. τ_OB, τ_OI, and τ_OL, and τ_CB, τ_CI, and τ_CL correspond to the mean durations of the brief, intermediate, and long components of open- and closed-time distributions, respectively. Burst duration, cluster duration, and P_open were obtained by the K-Means algorithm in QuB after chopping the recording on the base of the corresponding critical time as described in Materials and Methods. P_open corresponds to the open probability within a cluster. n is the number of recordings for each condition. rel, relative.

^ap > 0.05 with respect to tryptamine.

^bp < 0.01 with respect to carvacrol.

^cp < 0.01 with respect to tryptamine.

^dp > 0.05 with respect to carvacrol.

^ep < 0.01 with respect to thymol.

^fp > 0.05 with respect to thymol. The data correspond to the mean ± SD.

At high 5-HT concentrations, a reduction in the duration of the slowest open component was observed (Table 1), probably because of the open-channel blockade (14). To describe this effect, we used the linear open-channel blockade scheme (44) and plotted the inverse of the open durations against agonist concentrations to obtain the corresponding forward blocking constant (k_+b) (Fig. S2). The obtained k_+b-value was 5.5 × 10⁶ M⁻¹ s⁻¹ (R² = 0.98), similar to that observed for the mouse 5-HT₃A_HC receptor (14).

Closed-time distributions were described by five to six components, the three briefest corresponding to closings within clusters (Fig. 3; Table 1). The mean duration values of the intracluster closings were constant from 1 to 30 μM 5-HT concentration range (Fig. S3; Table 1), indicating no agonist concentration dependence in the single-channel activation profile as reported before for the mouse 5-HT₃A_HC receptor (14,15).

Compared to 5-HT, activation by tryptamine (10–100 μM) appeared mainly as short bursts that did not coalesce into long-duration clusters (Fig. 3). Visual inspection of the long recordings showed very few clusters. From 10 to 100 μM tryptamine, single-channel events appeared mainly as openings in quick succession grouped in high-P_open bursts of ∼30–60 ms (Table 1). The open-time histograms were described by only two components, the duration of the slowest open component being of ∼6 ms at concentrations below 20 μM tryptamine (Table 1). Bursts were defined by a critical closed time of 0.8 ms, resulting in the mean durations described in Table 1, and they showed no significant agonist concentration dependence. To discard that bursts did not coalesce into longer clusters as in 5-HT activation, we also chopped the recordings with a 10- to 20-fold increased critical time (8–18 ms), similar to that used for calculating the mean cluster duration of 5-HT activated channels. Comparison of the mean cluster durations thus determined for all tryptamine concentrations (40 ± 28, 85 ± 23, 42 ± 14, and 42 ± 11 ms for 10, 20, 50, and 100 μM tryptamine, respectively) showed no statistically significant differences with the mean burst durations shown in Table 1 (p > 0.05 for all tryptamine concentrations), thus confirming that bursts appeared mostly isolated and discarding the presence of long clusters.

As for 5-HT, a reduction in the duration of the longest open component was observed with the increase in tryptamine concentration, which could be because of the open-channel blockade. The k_+b-value obtained as described above was 4.9 × 10⁶ M⁻¹ s⁻¹ (R² = 0.98), similar to that observed for 5-HT (Fig. S2). Closed-time histograms were described by four to five components (Fig. 3), and the mean durations of the two briefest closed components are shown in Table 1. Thus, the main differences of the single-channel pattern in the presence of tryptamine with respect to that in the presence of 5-HT are reduced open durations and lack of long-duration clusters.

Single-channel activation by allosteric ligands

In the presence of different concentrations of carvacrol (5–50 μM) or thymol (5–100 μM) and in the absence of 5-HT, single-channel activity appeared as opening events with amplitudes similar to those of 5-HT elicited openings, which were grouped into long clusters as in the 5-HT activation pattern (Fig. 3).

Open-time histograms were fitted by three components that showed no agonist concentration dependence (Fig. 3; Table 1). At 5 μM, the mean durations of the open components were ∼0.02, ∼0.9, and ∼25 ms for carvacrol, and ∼0.07, ∼1.6, and ∼34 ms for thymol, which are in the same order as those of 5-HT activation (Table 1). Closed-time histograms were described by five to six components in which the three briefest components correspond to closings within clusters (Fig. 3; Table 1). Cluster durations and P_open within clusters were constant at all tested concentrations. Interestingly, clusters elicited by the allosteric agonists were ∼6- to 10-fold longer than those observed with 5-HT (∼2500 and ∼1500 ms at 5 μM carvacrol and thymol, respectively) (Fig. 3; Table 1).

Thus, although the macroscopic profiles show that thymol and carvacrol behave as partial agonists of the human 5-HT₃A receptor, the single-channel pattern of the allosteric activation is more similar to that of 5-HT than to that of a genuine orthosteric partial agonist as tryptamine. In the presence of the allosteric agonists, 5-HT₃A_HC receptors activate in high-P_open long-duration clusters, which were markedly different to those elicited by tryptamine. Moreover, the mean durations of the activation episodes were significantly more prolonged for the allosteric ligands than for 5-HT.

Single-channel potentiation of the human 5-HT₃A_HC receptor by carvacrol and thymol

To evaluate potentiation by carvacrol and thymol, we recorded single-channel events elicited by tryptamine in the presence or absence of the terpenoids (Fig. 4). We used tryptamine as the agonist because we hypothesized that an increase in duration due to potentiation would be more clearly detected in tryptamine-elicited bursts than in 5-HT-elicited clusters, thus allowing a better distinction between activation and modulation processes.

Figure 4.

Single-channel activity of tryptamine-elicited channels in the presence of carvacrol or thymol. The typical single-channel traces obtained in the cell-attached configuration at −70 mV membrane potential in the presence of tryptamine alone or together with carvacrol or thymol at the indicated concentrations are shown. Typical open- and closed-time histograms are shown. The filter is 9 kHz. Channel openings are shown as upward deflections.

We activated receptors by 50 μM of tryptamine in the presence of 10 μM of carvacrol or 10 μM of thymol. The recordings showed that channel activity appeared as long clusters of high P_open, whose values were similar to those in the presence of each allosteric agonist alone (Fig. 4; Table 1). However, for both conditions (tryptamine + carvacrol and tryptamine + thymol), open-time histograms were described by the same number of components and similar mean durations to those obtained in the presence of tryptamine alone (Fig. 4; Table 1). The appearance of longer clusters in the presence of terpenoids may be due to reduced desensitization due to their PAM action, a mechanism of action that has been described for PAMs of other Cys-loop receptors (34).

The reason why this mixed pattern occurs, showing brief openings as those elicited by tryptamine and long clusters as those elicited by carvacrol or thymol, remains unclear. One interesting and plausible explanation is that the open duration is mainly governed by the orthosteric agonist (tryptamine), whereas the cluster duration is mainly governed by the allosteric modulator (carvacrol or thymol). Alternatively, tryptamine may mainly act as an open-channel blocker when combined with terpenoids, thus inducing a reduction of the open duration of terpenoid-elicited events.

Kinetic modeling for activation by orthosteric and allosteric ligands

To generate a kinetic model that describes allosteric activation of the human 5-HT₃A receptor, we performed single-channel kinetic analysis. The study was carried out with bursts (for tryptamine) and clusters (for 5-HT and terpenoids) because they provide information of dwell times in open and closed states of a single receptor molecule (see Materials and Methods).

As described above, single-channel activity elicited by 5-HT or allosteric ligands occurred as long-duration clusters composed by bursts separated by interburst/intracluster closings, which correspond to the third component of the closed-time histogram. In contrast, in the presence of tryptamine mainly isolated bursts were detected.

Considering the fact that the single-channel pattern of human 5-HT₃A is qualitatively similar to that of the mouse receptor (15), we took advantage of our previous kinetic model generated for the orthosteric activation of the mouse 5-HT₃A receptor to describe the human 5-HT₃A receptor activation (scheme 1 in Fig. 5).

Figure 5.

Kinetic analysis for 5-HT₃A_HC receptor activated by the different agonists. Schemes used for kinetic analysis of clusters (scheme 1, A) or bursts (scheme 2, B). Kinetic analysis was restricted to clusters for 5-HT (C), carvacrol (E), or thymol (F), or to bursts for tryptamine (D). Scheme 1 shows an interburst/intracluster closed state (state C), three preopen closed states (C₁, C₂ and C₃), three open states (O₁, O₂ and O₃) and a blocked state B. Scheme 2 is a subset of scheme 1 restricted to bursts. The experimental open- and closed-duration histograms from selected clusters or bursts at different agonist concentrations are shown with the theoretical curves superimposed (resulting from fitting the corresponding scheme to the data).

Because of the lack of 5-HT concentration dependence of clusters, it was possible to infer that they correspond to activation episodes of receptors that have reached the most favorable occupation state (C), which was previously proposed to be three binding sites (14,15,45). Therefore, scheme 1 is a subset of a complete activation scheme because it does not contain the agonist association and dissociation steps (15). Scheme 1 involves three open states, which were well detected from single-channel recordings, and includes three preopen-closed states (C_1, C₂, and C₃), from which channel opening is allowed. The ability to make the transition to these states (priming) has been associated to the efficacy of the agonists on nicotinic and glycine receptors (19,46).

We first fitted the scheme 1 to clusters obtained from single-channel recordings in the presence of a range of 5-HT concentrations using the MIL algorithm from the QuB Software (see Materials and Methods). Because a reduction in open-time duration was observed with the increase in 5-HT concentration due to open-channel blockade, we connected a block state to the longest-duration open state (B, Fig. 5) and fitted the scheme to a set of single-channel recordings obtained at different agonist concentrations. Although the model includes four closed states, only three intracluster closings were distinguished from the closed-time histograms probably because of the overlap of their durations. Also, we have previously shown for the mouse 5-HT₃A receptor that four closed states were required to adequately describe the combined single-channel and macroscopic data (15). The theoretical curves, resulting from fitting the kinetic scheme to the global data set by the maximal likelihood method, well described the experimental open-time and closed-time histograms (Fig. 5 C). The estimated rates and constants, shown in Table 2, indicated that: 1) the closed state C (in scheme 1) can be associated to dwell times in closed states between bursts and within clusters (Table 2; (15)), 2) the opening rate from the three-primed receptor is the fastest (β₃, Table 2), and 3) the gating equilibrium constant increases with priming (θ₃ > θ₂ > θ₁) (Table 2).

Table 2.

Kinetic Parameters of Allosteric and Orthosteric 5-HT₃A_HC Activation

		5-HT	Tryptamine	Carvacrol	Thymol
γ1	[s−1]	352 ± 17	—	1120 ± 45	343 ± 20
δ1	[s−1]	419 ± 35	—	2362 ± 159	759 ± 63
γ2	[s−1]	920 ± 45	6035 ± 262	2092 ± 96	1708 ± 73
δ2	[s−1]	5430 ± 304	6484 ± 519	5160 ± 255	4565 ± 222
γ3	[s−1]	4230 ± 300	10,100 ± 639	15,700 ± 786	13,800 ± 655
δ3	[s−1]	6244 ± 245	6161 ± 533	11,000 ± 794	13,900 ± 1,260
β1	[s−1]	1601 ± 83	—	7126 ± 321	5191 ± 215
α1	[s−1]	30,000 ± 1056	—	21,100 ± 650	23,300 ± 969
β2	[s−1]	8070 ± 340	28,300 ± 2490	17,300 ± 760	28,700 ± 1292
α2	[s−1]	9291 ± 341	9541 ± 741	1416 ± 86	1397 ± 96
β3	[s−1]	38,400 ± 1080	45,100 ± 1887	53,800 ± 2260	71,100 ± 4280
α3	[s−1]	165 ± 5	379 ± 21	99 ± 4	145 ± 11
P1		0.84 ± 0.08	—	0.47 ± 0.04	0.45 ± 0.05
P2		0.17 ± 0.01	0.93 ± 0.08	0.41 ± 0.03	0.37 ± 0.02
P3		0.68 ± 0.05	1.6 ± 0.2	1.4 ± 0.1	1.0 ± 0.1
θ1		0.05 ± 0.01	—	0.34 ± 0.02	0.22 ± 0.01
θ2		0.87 ± 0.05	2.9 ± 0.4	12 ± 1	21 ± 2
θ3		233 ± 10	119 ± 8	543 ± 32	490 ± 47
k+B	[M−1 s−1] × 106	6.8 ± 0.3	8.2 ± 0.2	—	—
k−B	[s−1]	27,800 ± 1078	26,900 ± 438	—	—

Rates are expressed in s⁻¹. Kinetics parameters were obtained from clusters using scheme 1 (5-HT, carvacrol, and thymol) or from bursts using scheme 2 (tryptamine). The rates are expressed as mean ± SE for three different patches for each condition. The equilibrium constants are P (γ/δ) for priming and θ (β/α) for gating.

Scheme 1 could not describe tryptamine activation because only two open states were detected, and activation occurred as isolated bursts. Because the interburst/intracluster closings (C in scheme 1) were associated to the first priming step, we used a subset version of scheme 1 lacking this transition (scheme 2 in Fig. 5 B) and containing only two open states. The scheme also considered that the longest-duration open state is the most likely to be blocked by the agonist, similar to that observed for 5-HT. This scheme well described the experimental open and closed-duration histograms (Fig. 5 D). In line with our previous observations for the mouse 5-HT₃A receptor (15), the main difference of tryptamine activation respect to 5-HT activation was the lack of information about the first priming step. This difference may arise from the fact that the longer closings corresponding to this state (C in scheme 1, Fig. 5 A) cannot be distinguished from our single-channel recordings because they overlap with closed times corresponding to independent activation episodes. The results also showed slightly reduced stability of the longest-duration open state compared to 5-HT (α₃, Table 2). Thus, reduced priming and, to a lesser extent, decreased open stability explains the weak agonist activity of tryptamine.

We finally determined the kinetics of 5-HT₃A_HC channels activated by the allosteric agonists. Because the activation profile was very similar to that of 5-HT, we used scheme 1 to perform kinetic analysis, but we did not include the blockade because this was not evidenced at the range of concentrations used (Fig. S2; Table 1). For allosteric activation, scheme 1 well described the experimental open and closed-time histograms for both compounds (Fig. 5, E and F). The kinetic analysis revealed similar priming equilibrium constants (P) and increased gating equilibrium constants (θ₁, θ₂, and θ₃) with respect to 5-HT activation (Table 2), indicating higher efficacy.

Thus, the kinetic analysis suggests that the mechanism of activation by both orthosteric and allosteric binding sites requires preopen-closed states from which the receptor can open. Compared to 5-HT activation, the main difference is the slightly greater gating equilibrium constant (θ) for both allosteric agonists and reduced priming for tryptamine, which is in line with our previous report (15). Among ligands, the analysis revealed that 1) the equilibrium constants for the second and third priming transitions were similar among the different agonists (P₂ and P₃ in Table 2), 2) the gating equilibrium constant increased with priming for all ligands (θ₃ > θ₂ > θ₁), and 3) the gating equilibrium constant for the most stable open state (θ₃) is slightly different for the different agonists (tryptamine < 5-HT < carv≈thy).

Discussion

We here defined the mechanistic bases underlying differences between orthosteric and allosteric activation and potentiation in the least explored Cys-loop receptor, the human 5-HT₃A receptor.

The fact that Cys-loop receptors are important drug targets for a great number of disorders has prompted attention to deciphering the mechanisms of drug modulation. Pharmacological modulation can be achieved through both orthosteric and allosteric sites, resulting in a great spectrum of chemical structures, sites, and mechanisms. Several ago-PAMs of Cys-loop receptors are established therapeutic drugs, such as the anesthetic pentobarbital acting at GABA receptors (47), and the anthelmintic ivermectin acting at the invertebrate glutamate-activated chloride channels (48). The discovery of allosteric ligands of 5-HT₃A receptors for clinical applications has lagged behind compared to that of other Cys-loop receptors. However, compounds acting as negative allosteric modulators have been proposed as drugs or lead structures for reducing chemotherapy-induced nausea and vomiting (26,49). Also, compounds acting as allosteric agonists have been shown to induce antinociception (50). Thus, our study provides novel, to our knowledge, useful information to advance in this relatively unexplored area.

Electrophysiological and structural studies have provided information regarding mechanisms of activation through orthosteric sites, identified structures, and proposed pathways involved (36,45,51,52). However, mechanisms of allosteric activation remain less understood and have not been addressed at all in 5-HT₃ receptors.

For 5-HT₃A, activation at the single-channel level can only be studied using the high-conductance, triple-mutant receptor because its low-channel amplitude does not allow detection of opening events from cell-attached patches. We here showed that the macroscopic activation properties of the human high-conductance receptor are similar to those of the wild-type receptor. Moreover, single-channel studies of the chimeric receptor containing α7 sequence in the extracellular domain and 5-HT₃A in the transmembrane domain (α7-5HT₃A) (53), and the α7 nicotinic receptor (54) have demonstrated that the mutations of the three residues change conductance but do not affect single-channel kinetics of the receptors. Thus, our high-conductance form of the human 5-HT₃A receptor is a valid model for defining kinetics.

The single-channel activity of the high-conductance form of the human 5-HT₃A receptor has not been described before. We found that channel amplitude is similar to that of the high-conductance mouse 5-HT₃A receptor and its single-channel activation pattern also maintains the main features of that of the mouse receptor: long clusters, high P_open within clusters and no agonist concentration dependence (14). A main feature of 5-HT₃A receptor activation is that the increase in 5-HT concentration from 1 to 10 μM increases the macroscopic response from ∼25 to ∼85%, whereas it does not affect the single-channel pattern, which, in turn, shows the same clusters of ∼300 ms and P_open of ∼0.9 at the 10-fold concentration range. These findings indicate that clusters do not include agonist association and dissociation steps. Thus, the observed agonist concentration dependence of the macroscopic responses may be due to the increase in the frequency of individual clusters with agonist concentration. A similar behavior has been reported for other Cys-loop receptors (55, 56, 57).

We found that the same model proposed for the mouse 5-HT₃A (15) well described the experimental data of the human type receptor elicited by the full agonist 5-HT and the partial agonist tryptamine as well as for allosteric ligands.

As we used clusters to define kinetics, our model does not include binding steps. This model includes preactivated states (primed states); the ability to make the transition to these states (priming) has been associated to the efficacy of other Cys-loop receptors (18,19). Interestingly, a preactive state was suggested by cryo-electron microscopy of the full length 5-HT₃A (35).

The kinetic analysis for 5-HT activation revealed similar priming equilibrium constants between mouse and human receptors (P₁, P₂, and P₃ were ∼0.5, ∼0.6, and ∼0.5 for mouse, and 0.8, 0.2, and 0.7 for human) (Table 2; (15)). However, with respect to the mouse receptor, the human receptor showed smaller gating equilibrium constants, which were about one order of magnitude lower (θ₁, θ₂, and θ₃ were ∼0.05, ∼0.9, and ∼230 for human, and ∼0.2, ∼3, and ∼1800 for mouse, respectively) (Table 2; (15)).

As allosteric agonists, we used terpenoids that are monocyclic phenolic compounds present in essential oils from aromatic plants widely used in traditional medicine (58). At the molecular level, they exert multiple effects throughout the Cys-loop receptor family in both vertebrates and invertebrates, including activation, potentiation, and inhibition (59,60). In 5-HT₃A receptors, terpenoids have been shown to act as either ago-PAMs or allosteric inhibitors. In particular, by macroscopic current recordings it was shown that carvacrol and thymol act as partial agonists and potentiators of 5-HT₃A receptors (31). Docking and functional studies have proposed that the binding site of thymol is located in an intersubunit cavity in the transmembrane region (31).

Our results confirmed that carvacrol and thymol macroscopically behave as agonists with lower efficacy than 5-HT because currents show submaximal amplitudes and significantly slower rising phases. However, macroscopic current recordings for ligand-gated ion channels cannot separate binding from gating steps and do not consider other mechanisms, such as open-channel block, that can result in reduced maximal responses (61). In contrast, at the microscopic level, we found that terpenoids activate 5-HT₃A receptors even more efficaciously than 5-HT, which is evidenced by similar equilibrium constants for priming (P₁, P₂, and P₃) and higher for gating (θ₁, θ₂, and θ₃). Also, single-channel kinetic analysis revealed that activation can be described by a similar mechanism as that of orthosteric activation. Moreover, the kinetic scheme is different to that in the presence of tryptamine, which is a genuine partial agonist, for which it was not possible to estimate the value of P₁ and θ₁. Thus, this study enhances the importance of single-channel kinetic studies for understanding drug action on ligand-gated ion channels.

We analyzed possible explanations for the apparent discrepancy of terpenoid activity between the macroscopic level (submaximal and slower responses) and the single-channel level (long-duration and high-P_open clusters). It is known that open-channel blockade elicited by the agonist at high concentrations may reduce the maximal macroscopic responses (61). This mechanism has explained the low efficacy of 2-methyl-5-hydroxytryptamine for mouse 5-HT₃A receptors (15). However, we did not detect a clear reduction in open duration, cluster duration, and P_open within clusters at high carvacrol or thymol concentrations, indicating no channel blockade and, therefore, we can discard blockade as mediating submaximal macroscopic responses.

Also, the formation of primed, intermediate states from which channel opening rapidly occurs was similar for 5-HT and terpenoids, but was different for the orthosteric partial agonist, tryptamine. Thus, slow priming can explain the reduced efficacy observed at the macroscopic level for tryptamine but not for terpenoids (15,18,19).

The possibility of describing the activation by allosteric agonists by the same mechanism as that for orthosteric agonists led us to inquire if allosteric ligands also elicit structural changes at the binding site. Structural and computational studies in Cys-loop receptors suggested that the C-loop, which is one of the three loops that form the principal face of the binding site, adopts an opened-up, uncapped conformation in the absence of agonist and it closes to cap the agonist, an event associated with priming and channel opening. Orthosteric partial agonists produce incomplete closure in line with their reduced priming (19,56,62, 63, 64, 65, 66, 67). There is no experimental information regarding closing of the C-loop by allosteric agonists. However, computational studies using a homology model of the α7 nicotinic receptor showed that an allosteric agonist affected the conformational freedom of C-loop and produced channel activation by a cross-talk between the allosteric and the orthosteric sites (68). Moreover, a study using a Gaussian method model in 23 proteins demonstrated that the motions of allosteric sites are highly correlated with the motions of orthosteric sites (69). Thus, it may be possible that despite binding to the transmembrane site, terpenoids allosterically induce the closing of the C-loop located at the extracellular domain.

Another possible explanation for the discrepancy between macroscopic and microscopic observations is the accessibility of terpenoids to the allosteric binding sites through the membrane, which probably leads to the slow-rising phase of macroscopic currents, as determined for the allosteric activation by ivermectin of glutamate-activated chloride channels (70). Experimental and computational studies have shown that thymol and carvacrol incorporate into the lipid membrane in a saturable manner and that thymol in water solution tends to self-aggregate when the concentration increases over a critical value (31,71, 72, 73, 74). In addition, the number of allosteric sites required for activation may differ from that of orthosteric sites, as previously determined for allosteric agonists of GABA receptors (75). Thus, maximal saturation of the allosteric sites may not occur under the conditions used for whole-cell recordings, but it may occur during the longer, steady-state, single-channel current measurements.

Overall, our findings showed the first single-channel characterization of the activation of the human 5-HT₃A receptor by allosteric ligands, which are of increasing interest as research and therapeutic tools for all the Cys-loop receptor family.

Author Contributions

J.C. and C.B. designed the work. C.F., N.R.A., A.M.D., and J.C. performed experiments. C.F., N.R.A., A.M.D., J.C., and C.B. analyzed data. J.C. and C.B. wrote the article.

Editor: Andrew Plested.
