The γ-Protocadherins Regulate the Survival of GABAergic Interneurons during Developmental Cell Death

Abstract

Inhibitory interneurons integrate into developing circuits in specific ratios and distributions. In the neocortex, inhibitory network formation occurs concurrently with the apoptotic elimination of a third of GABAergic interneurons. The cell surface molecules that select interneurons to survive or die are unknown. Here, we report that members of the clustered Protocadherins (cPCDHs) control GABAergic interneuron survival during developmentally-regulated cell death. Conditional deletion of the gene cluster encoding the γ-Protocadherins (Pcdhgs) from developing GABAergic neurons in mice of either sex causes a severe loss of inhibitory populations in multiple brain regions and results in neurologic deficits such as seizures. By focusing on the neocortex and the cerebellar cortex, we demonstrate that reductions of inhibitory interneurons result from elevated apoptosis during the critical postnatal period of programmed cell death (PCD). By contrast, cortical interneuron (cIN) populations are not affected by removal of Pcdhgs from pyramidal neurons or glial cells. Interneuron loss correlates with reduced AKT signaling in Pcdhg mutant interneurons, and is rescued by genetic blockade of the pro-apoptotic factor BAX. Together, these findings identify the PCDHGs as pro-survival transmembrane proteins that select inhibitory interneurons for survival and modulate the extent of PCD. We propose that the PCDHGs contribute to the formation of balanced inhibitory networks by controlling the size of GABAergic interneuron populations in the developing brain.

SIGNIFICANCE STATEMENT A pivotal step for establishing appropriate excitatory-inhibitory ratios is adjustment of neuronal populations by cell death. In the mouse neocortex, a third of GABAergic interneurons are eliminated by BAX-dependent apoptosis during the first postnatal week. Interneuron cell death is modulated by neural activity and pro-survival pathways but the cell-surface molecules that select interneurons for survival or death are unknown. We demonstrate that members of the cadherin superfamily, the clustered γ-Protocadherins (PCDHGs), regulate the survival of inhibitory interneurons and the balance of cell death. Deletion of the Pcdhgs in mice causes inhibitory interneuron loss in the cortex and cerebellum, and leads to motor deficits and seizures. Our findings provide a molecular basis for controlling inhibitory interneuron population size during circuit formation.

Introduction

The optimal function of neuronal networks is dependent on establishing appropriate densities of GABA-releasing interneurons that provide specialized forms of synaptic inhibition to shape principal neuron firing and network synchronization. One mechanism that adjusts neuron population sizes is programmed cell death (PCD). The importance of PCD for inhibitory interneurons was demonstrated recently in the mouse neocortex, where 30–40% of GABAergic interneurons are eliminated between postnatal day (P)5 and P10 (Southwell et al., 2012). Cortical interneuron (cIN) apoptosis occurs on the heels of pyramidal PCD through the BAX-dependent intrinsic pathway and affects the major cIN classes deriving from the ganglionic eminences (Verney et al., 2000; Southwell et al., 2012; Blanquie et al., 2017; Denaxa et al., 2018; Priya et al., 2018; Wong et al., 2018).

The final determination of interneuron population sizes requires pro-survival factors to control the extent of PCD. Neural activity is one factor that influences PCD in the cortex by modulating pro-survival pathways such as PI3K/AKT and Calcineurin/NFAT (Hardingham et al., 2002; Wagner-Golbs and Luhmann, 2012; Priya et al., 2018; Wong et al., 2018) and suppressing pro-apoptotic effectors (Heck et al., 2008; Léveillé et al., 2010; Golbs et al., 2011). Blocking cIN activity by NMDA antagonists or chemogenetic approaches accentuates cIN apoptotic loss while depolarization increases the number of surviving interneurons (Wang et al., 2017; Denaxa et al., 2018; Priya et al., 2018). However, the influence of activity is cIN class specific (Priya et al., 2018), and cell-intrinsic or population-intrinsic factors also contribute to cIN survival (Southwell et al., 2012). Life-or-death decisions among developing GABAergic interneurons are regulated by multiple interactions but the molecules that mediate them are unknown.

A major regulator of interneuron survival in the spinal cord and retina are the clustered Protocadherins (cPCDHs; Wang et al., 2002; Weiner et al., 2005; Lefebvre et al., 2008; Prasad et al., 2008). In mice, the cPCDHs comprise 58 cadherin-related transmembrane molecules encoded by three tandemly-arranged gene clusters, Pcdh-α (Pcdha), Pcdh-β (Pcdhb), and Pcdh-γ (Pcdhg; Wu and Maniatis, 1999). Noted for their immense cell surface diversity and homophilic selectivity (Thu et al., 2014; Mountoufaris et al., 2018), the cPCDHs play diverse roles in neurite patterning such as arborization and self-avoidance (Katori et al., 2009; Garrett et al., 2012; Lefebvre et al., 2012; Molumby et al., 2016; Chen et al., 2017a; Lefebvre, 2017; Mountoufaris et al., 2017; Ing-Esteves et al., 2018). The cPCDHs also have an essential but cell type-specific role in regulating developmental, BAX-dependent PCD. Constitutive Pcdh-γ mutants die at birth from massive apoptosis in the hindbrain and spinal cord (Wang et al., 2002; Weiner et al., 2005). Conditional Pcdhg mutant retinas and spinal cords exhibit a disproportionate loss of interneurons to apoptosis (Lefebvre et al., 2008; Prasad et al., 2008). While sensory neurons and principal motor neurons are spared, retinal ganglion cells are affected, suggesting that PCDHG-dependent survival is not exclusive to interneurons. Of the 22 Pcdhgs, retinal and spinal interneuron survival requires the three C-type Pcdhgc3-c5 (Chen et al., 2012), and as shown recently, the single Pcdhgc4 gene is essential (Garrett et al., 2019). While Pcdha and Pcdhb mutant mice exhibit little to no cell loss, neuronal death phenotypes are profoundly exacerbated in double Pcdha; Pcdhg mutant retinas and triple cPcdh knock-out spinal cords, revealing complex redundancy (Hasegawa et al., 2016; Ing-Esteves et al., 2018). The pro-survival and pro-death pathways regulated by the cPCDHs are unknown.

In the brain, the cPcdhs are dispensable for the survival of principal neuron populations such as cortical pyramidal neurons, Purkinje cells, and serotonergic projection neurons (Katori et al., 2009; Garrett et al., 2012; Lefebvre et al., 2012; Chen et al., 2017a). Using conditional Pcdhg mice and GABAergic Cre drivers, we asked whether the PCDHGs regulate inhibitory interneuron survival. Focusing on interneuron populations in the cortex and cerebellum, we demonstrate that the PCDHGs mediate a pro-survival mechanism that modulates AKT signaling for the specific control of inhibitory interneuron survival during developmentally-regulated cell death.

Materials and Methods

Mouse strains

Mouse lines used in this study have been described previously. The Pcdhg ^fcon3 conditional allele contains loxP sequences that flank the third constant exon and generates a functionally null allele following Cre recombination (Lefebvre et al., 2008; Prasad et al., 2008). The Gad2-ires-cre knock-in line (JAX #028867) co-expresses Cre with Gad2/GAD65 in developing GABAergic neurons and a small percentage of cortical astrocytes (Taniguchi et al., 2011; Taniguchi, 2014). Constitutive and conditional floxed Bax alleles were used for the cerebellar and neocortical studies, respectively (constitutive Bax^tm1Sjk, JAX #002994; floxed Bax^tm2Sjk, JAX #006329; Knudson et al., 1995; Takeuchi et al., 2005). In contrast to the available Bax^tm2Sjk Bak1^tm1Thsn mice, the knock-out Bak allele was not maintained with Bax ^f/f for this study. The following lines were used: Emx1-ires-cre (JAX #005628; Gorski et al., 2002); Nkx2.1-cre BAC transgenic (JAX #008661; Xu et al., 2008); PV-ires-cre (Pvalbtm1(cre)^Arbr/J; JAX #017320; Hippenmeyer et al., 2005); the Cre reporter line Ai14-Rosa26^lsl-tdTomato (herein referred to as Ai14-TdTomato; JAX #007914; Madisen et al., 2010). Mice were maintained on a C57/B6J background. Wild-type and/or heterozygous Pcdhg; Cre-positive siblings of either sex were selected for the control cohorts. As cortical cIN densities did not differ between wild-type and heterozygous siblings, data were pooled as controls, as indicated in the text. Animals were coded to blind the investigators of the genotypes.

Animal experiments were performed in accordance with the Canadian Council on Animal Care Guidelines for Use of Animals in Research and Laboratory Animal Care under protocols approved by The Centre for Phenogenomics Animal Care Committee and the Laboratory of Animal Services Animal Use and Care Committee at the Hospital for Sick Children (Toronto, Canada).

Electroencephalogram (EEG) studies

Animals were anesthetized using isoflurane (4% in O₂ for induction and 1.5–2% in O₂ for maintenance) in a stereotaxic apparatus, where they were given 1 ml of 0.9% saline and 5 mg/kg Anafen for analgesia. Ten- to 12-week-old mice were implanted with a two-tungsten microelectrode with polyimide tubing, with one probe placed into the frontal cortical regions and the reference electrode in the parietal cortex (wire diameter, 125 µm; length, 400 µm, MicroProbes). Electrodes were secured using cyanoacrylate (Krazy Glue) and Ortho-Jet acrylic (Central Dental Ltd.). All animals had a minimum postoperative recovery period of 3 d before recordings. EEG activity was recorded in freely-moving animals for 90 min using a Grass amplifier and software (Grass Instruments) and monitored by a videorecorder. Mice were placed in warm Plexiglas chambers (Harvard Apparatus) for 1-h acclimation period (Joshi et al., 2018). Brains were harvested to verify electrode placement. EEG recordings were obtained and analyzed from the bandwidth of 1-Hz low-frequency filter (LFF) and 70-Hz high-frequency filter (HFF) and with the 60-Hz notch filter “ON.” For Racine scale assessment with EEG confirmation, video episodes lasting 25 min during which animals exhibited extended immobility were selected. The number and time lengths of seizure episodes were quantified and assessed by a modified Racine scale: (1) stiffness and rigid posturing; (2) head nodding and tilting; (3) partial forelimb clonus; (4) whole body seizures; (5) motor convulsions, including falling, forelimb clonus and jumping (Racine, 1972; Kim et al., 2019).

Slice preparation and electrophysiology

Acute coronal cortical slices (300 µm) containing visual cortex were prepared from P13–P15 Pcdhg^{WT or Het}; Gad2-Cre; Ai14-TdTomato and Pcdhg^f/f;Gad2-Cre; Ai14-TdTomato littermates of either sex. After decapitation the brain was placed into ice-cold cutting solution containing the following: 87 mm NaCl, 75 mm sucrose, 2.5 mm KCl, 10 mm glucose, 1.25 mm NaH₂PO₄, 2 mm Na-pyruvate, 3 mm myo-inositol, 0.5 mm ascorbic acid, 26 mm NaHCO₃, 7 mm MgCl₂, and 0.1 mm CaCl₂ (pH 7.4) and sliced on a vibratome (VT1200S, Leica). Slices were transferred into a holding chamber containing the cutting solution, incubated for 30 min at 35°C then stored at room temperature until use. For electrophysiology experiments, slices were continuously perfused (2 ml/min) at room temperature with artificial cerebrospinal fluid containing the following: 125 mm NaCl, 2.5 mm KCl, 10 mm glucose, 1.25 mm NaH₂PO₄, 2 mm Na-pyruvate, 3 mm myo-inositol, 0.5 mm ascorbic acid, 26 mm NaHCO₃, 1 mm MgCl₂, and 2 mm CaCl₂ (pH 7.4). All extracellular solutions were oxygenated with 95% O₂ and 5% CO₂. Layer V cINs were visualized by an upright microscope (Axio Examiner, Carl Zeiss) equipped with a CCD monochrome video camera (IR-1000, DAGE-MTI) and identified by their localization in Layer V and TdTomato expression. TdTomato was excited using a mercury-lamp (X-cite 120PC, EXFO Photonic Solution Inc.) and an appropriate filter set (BP545/25ex, FT570 beam splitter, BP605/70em). Cells with swollen somata and blebs on their processes were discarded. Electrophysiology data were sampled (50 kHz) and low-pass filtered (4 kHz four-pole Bessel filter) by a Multiclamp 700B dual channel amplifier (Molecular Devices). For whole-cell current-clamp recordings 4- to 5-MΩ pipettes were pulled (PP-830, Narishige) from borosilicate glass with filament (WPI) and filled with the following: 122 mm K-gluconate, 8 mm KCl, 0.5 mm EGTA, 10 mm HEPES, 1 mm MgCl₂, 2 mm Na-ATP, 0.5 mm Na-GTP, 10 mm phosphocreatine di(tris) salt, and 0.12 mm Alexa Fluor 488 hydrazide, pH adjusted to 7.3 with KOH. After forming >1 GΩ resistance seal in cell-attached configuration, we broke the patch membrane and kept the neurons at −70 mV. Voltages were not corrected for liquid junction potential. Series resistances were <25 MΩ and compensated by the bridge balance circuitry in current-clamp recordings. Cells requiring holding current >−150 pA at −70 mV were discarded. The resting membrane potential (Vrest) was tested in I = 0 configuration. Intrinsic excitability was tested by 600-ms-long current steps between 200 and +500 pA with 50-pA increments in the presence of AMPA-receptor, NMDA-receptor, and GABA_a-receptor blockers (AP-5, 50 μm; NBQX, 10 μm; picrotoxin, 100 μm, respectively). Input resistance (Rin) was quantified using a small hyperpolarizing step (−50 pA). Data were analyzed offline by pCLAMP 10 software package (Molecular Devices, RRID:SCR_011323) and Excel (Microsoft).

Magnetic resonance imaging (MRI)

Mice were transcardially perfused and fixed with 4% paraformaldehyde (PFA) containing 2 mm Prohance, and brains were prepared as described previously (Allemang-Grand et al., 2017). A 7.0-Tesla MRI scanner (Agilent Ince.) was used to acquire all images, as described previously (Lerch et al., 2011; Cahill et al., 2012; de Guzman et al., 2016). To detect volume differences throughout the brain, we used the following parameters for the MRI scan that produce images with 0.040-mm isotropic voxels: T2-weighted, 3-D fast spin-echo sequence with a cylindrical acquisition of k-space, a TR of 350 ms, and TEs of 12 ms per echo for six echoes, field-of-view equaled to 20 × 20 × 25 mm³, and matrix size equaled to 504 × 504 × 630. Deformation-based morphometry (DBM) was used to register the images and analyze the volume differences following linear and nonlinear analyses using mni_autoreg tools and ANTS (advanced normalization tools; Avants et al., 2008, 2011). Scans were resampled with the appropriate transform and averaged to create a population atlas representing the average anatomy of the study sample. The result of the registration is to have all images deformed into alignment with each other in an unbiased fashion, and to model how the deformation fields relate to genotype (Lerch et al., 2008). Significant regional volume differences are calculated by warping a preexisting classified MRI atlas onto the population atlas, and allowing for assessment of 182 different segmented structures (Dorr et al., 2008; Steadman et al., 2014). Multiple comparisons were controlled for using the false discovery rate (FDR; Genovese et al., 2002).

Spatial gene expression correlates of brain volume changes

We employed the adult and developing mouse brain in situ hybridization datasets from the Allen Institute's Mouse Brain Atlas and the Developing Mouse Brain Atlas (Lein et al., 2007; Sunkin et al., 2013). Data describing the spatial expression of Gad2 mRNA were acquired at embryonic day (E)18.5 and P56 in terms of “gene expression energy,” which defines the sum of the expressed gene pixel intensities in a given brain region divided by the total number of pixels in that region. In the case of the E18.5 data, the Allen Institute's REST API was queried to mine regional expression energy data for brain regions described in their Developing Mouse Brain Atlas ontology (ontology ID = 12). Regional developmental expression of Gad2 was mapped to each voxel on an adult brain template [Common Coordinate Framework version 3 (CCFv3); Wang et al., 2020] using segmentations of the mouse brain atlas. In the case of P56 data, ISH data already aligned to the CCFv3 template by the Allen Institute were directly acquired. To allow for comparisons with the MRI data, ANTs was used to register the CCFv3 template (over which the expression data are defined) to the MRI template (over which the volume changes are defined), thus allowing for comparisons of volume change to gene expression. To determine the association between volume loss and Gad2 expression at E18.5 and P56 (as a reflection of knock-in Cre activity), we computed volume changes for each region using RMINC package for R (Team, 2018) and ran linear models independently for each region, modeling the regional volume as a function of genotype, resulting in a t statistic for each region. Finally, for the E18.5 and P56 separately, we determined the association between Gad2 expression and volume change by using a linear model to predict the t statistic (volume change) for each region from the ISH expression level of that region.

Histology

Mice were either anesthetized by hypothermia (P5 or younger), with an overdose of sodium pentobarbital (>P6 and older) or under isofluorane (4% in O₂ for induction; 1.5–2% in O₂ for maintenance), and transcardially perfused with cold PBS followed by 4% PFA. Brains were postfixed in 4% PFA overnight or for 2 h at 4°C, and then rinsed and stored in PBS with 0.06% sodium azide. Postnatal brains were cryopreserved in 30% sucrose, embedded and frozen in OCT cryopreservation agent (Tissue-Tek), and coronal sections were collected at 20 µm using a Cryostat microtome. To prepared floating coronal sections from >P28 animals, brains were cryopreserved in 30% sucrose and cryosectioned at 35 µm. Sagittal cerebellar sections were prepared at 75 μm using a vibratome, or at 25–35 µm using a cryostat.

Slides with postnatal cryosections were incubated successively with blocking solution (0.3% Triton X-100, 5% normal donkey serum in PBS) and primary antibodies (overnight at 4°C). Floating brain slices were rinsed with 0.5% PBS-Triton X-100 and incubated in the blocking solution (8% NDS in PBS) for 1.5 h at room temperature, then with primary antibodies for 48–72 h at 4°C. After 3 × 10 min washes in PBS, sections were incubated for 2 h at room temperature with Alexa Fluor-conjugated secondary antibodies (Thermo Fisher Scientific or Jackson ImmunoResearch). Nuclei were labeled with DAPI, or neuronal somata were stained with NeuroTrace 435/455 Blue Fluorescent Nissl (Thermo Fisher Scientific). Tissue was mounted and cover-slipped using Fluoromount-G (Southern Biotech) or Dako Mounting Medium (Agilent Technologies,).

The primary antibodies used for this study are: goat anti-PV (1:2000, Swant, RRID:AB_2650496); rabbit anti-somatostatin (SST; 1:1000, Peninsula Laboratories, RRID:AB_518614); mouse anti-Reelin (1:1500, Millipore, RRID:AB_2179313), mouse anti-Gad67 (1:1000, Millipore, RRID:AB_2278725), rabbit anti-Vasoactive intestinal peptide (VIP; 1:1000, Immunostar, RRID:AB_572270); rabbit anti-calbindin (1:5000, Swant, RRID:AB_2721225); chicken anti-RFP (1:1500, Millipore, RRID:AB_91496); rabbit anti-RFP/DsRed (1:2000, Rockland, RRID:AB_2209751); rabbit anti-cleaved Caspase-3 (1:300, Cell Signaling Technology, RRID:AB_2341188); rabbit anti-cleaved Caspase-9 (1:500, Cell Signaling Technology, RRID:AB_2073476); rabbit anti-FoxO3a (1:750, Cell Signaling Technologies, RRID:AB_836876).

Cell counting

For all quantifications, slides were coded and counts were performed with the examiner blind to the genotype. Immunofluorescence samples were imaged using a Leica SP8 confocal microscope. Confocal images were analyzed as a z-stack or rendered into maximum projections using LasX (Leica; RRID:SCR_013673) or Fiji software (RRID:SCR_002285; Schindelin et al., 2012).

Stereology

Sections from selected brain regions were imaged [globus pallidus (GP); basolateral amygdala (BLA); somatosensory cortex, S1BF; and primary visual cortex (V1). A section sampling fraction (ssf) for each region was determined, with the first section randomly selected for an unbiased series of sections. After calculating the total area of the region, the optical dissector method was used to select points within the region at 5× magnification, and observed at a 63× magnification to obtain optical z-stack images from each region. Cell counts were collected from z-stack images at a thickness of 1.8 µm, for a total of ∼32 µm, and 1024 × 1024 pixels. A guard zone of 3.6 µm at each superficial portion of the slice was selected to prevent bias because of oversaturation or cutting artefacts. Total PV+ cell numbers for each region were estimated using the optical fractionator method (Mayhew and Gundersen, 1996). For the S1BF (bregma +0.38 to −1.94 mm), the ssf = 1/6, the counting frame was set at 49.50 × 49.50 µm and the grid size was 171.17 × 171.17 µm. For the GP [bregma + 0.02 mm to −1.70 mm], the ssf = 1/4, the counting frame was set at 39.96 × 39.96 µm, and the grid size was 237.45 × 237.45 µm. For the BLA [bregma −0.58 to −2.06 mm], the ssf = 1/6, the counting frame was set at 49.50 × 49.50 µm, and the grid size was 158 × 158 µm. For the V1, the ssf = 1/7, the counting frame was set at 43.20 × 43.20 µm, and the grid size was 132 × 132 µm.

Quantifications of cINs

Composite images spanning the primary somatosensory cortex (SIBF) were acquired by stitching a grid of 9–12 confocal images with 20×/0.75 NA objective and 1.8 μm z-step size. Cell counts for PV+, SST+, Reelin+, VIP+ classes were obtained within a specified region of interest (ROI; width, 1380 μm × height, spanning Layers I–VI) and containing a maximum projection with 18 μm z-depth. Cortical layers were determined with DAPI counterstaining and cell counts were subdivided into Layers I–III, IV, and V–VI, using ImageJ/Fiji and the Cell Counter plug-in. Areas of total and layer-specific ROIs were measured using ImageJ. Density was calculated as counts divided by the area of the maximum projection.

For counts of migrating interneurons, coronal cryosections of E14.5 embryonic brains were collected from Pcdhg^WT or Pcdhg^Het and from Pcdhg^f/f Gad2-Cre; Ai14-TdTomato littermates. Confocal images were collected (20×, glycerol, 1.2 μm z-step) and an ROI (∼50,000 μm²) spanning the entire cortex in the middle of the tangential migratory stream was analyzed. Manual counts of TdTomato+ cells from maximum projection images were completed using ImageJ. Cell counts were divided by the ROI area and reported as cells/mm².

For counts of Gad2-Cre; tdTomato-labeled interneurons through development, stitched images of barrel cortex were taken at 40×/1.4 NA. Using Imaris (BitPlane), images were segmented by cortical layers and ROIs were drawn based on DAPI staining to delineate cortical plate, Layer V, Layer VI in P2–P5 animals, or Layers II/III, IV, V–VI in P8–P14 animals. The ROIs were extended in the z-axis to generate a 15-μm-thick volume. This surface was used to mask the tdTomato channel, followed by spot detection on the tdTomato mask (estimated spot diameter of 8–12 μm). Detected spots were manually validated to count only those spots with corresponding DAPI and tdTomato signals. For older time points, astrocytes were manually excluded based on morphology. To obtain a cell density value, the number of tdTomato+ spots was divided by the total volume of the masking surface for each layer, or summed across layers. A minimum of four ROIs per layer, per animal, and three mutant (Pcdhg^f/f; Gad2-Cre; Ai14-TdTomato) and three control (Pcdhg^WT or Pcdhg^Het; Gad2-Cre; Ai14-TdTomato) genotypes were analyzed. For apoptotic counts, P7 coronal sections spanning the somatosensory to visual cortical regions were stained simultaneously for cleaved Caspase-3 and Caspase-9, and the TdTomato+/CC3/9+ signals were counted in the entire cortical sections.

Quantification of cerebellar molecular layer interneurons (MLIs)

For measurements of parvalbumin (PV)+ interneuron and calbindin+ Purkinje cell number at maturity, 276 × 276 µm ROIs were sampled in folia 5 and 6. PV+ interneurons in the molecular layer were counted in three ROIs per cerebellar sagittal section, and the average was reported per section. Each counting frame consisted of one inclusion and one exclusion edge, and cells were counted if found entirely within the counting frame or overlapping with the inclusion edge but not the exclusion edge. For measurements of TdTomato+ MLIs during development, composite images spanning the entire folia 5 were obtained and cells were counted within the molecular layer. Two sections were counted per animal, and two imaging planes were counted per section. The average was reported per animal. For apoptotic MLI counts, combined cleaved Caspase-3+ and Caspase-9+ signals overlapping with TdTomato were counted within the molecular across all cerebellar folia of 35-µm-thick sections. The total area of the molecular layer was measured using the Fiji measurement tool, and Caspase-3+/9+ cells were divided by the area of the maximum projection to calculate the number of apoptotic cells/mm².

Image analysis

Fluorescence intensity of FoxO3A immunostaining was analyzed using the surface detection algorithm in Imaris (BitPlane, RRID:SCR_007370) to segment the tdTomato+ cells of interest in each image, followed by segmentation of DAPI-labeled nuclear surfaces. The FoxO3A+ channel was masked using both of these surfaces to segment cytosolic and nuclear compartments, and the ratio of nuclear to cytoplasmic fluorescence intensity was obtained to report the proportional FoxO3A subcellular localization.

Single molecule fluorescence in situ hybridization (smFISH)

HCR amplification-based smFISH was performed following previous methods (Choi et al., 2010; Moffitt et al., 2016; Moffitt and Zhuang, 2016). P7 WT cortex was sectioned at 16 μm onto 12-mm silane-treated coverslips. Primary probe hybridization targeting the Pcdhg constant region was performed at 2 nm probe concentration in HCR hybridization buffer (Molecular Instruments) at 37°C overnight; 4% polyacrylamide gels were cast for tissue clearing according to previous descriptions (Moffitt et al., 2016; Moffitt and Zhuang, 2016). Gels incubated for 30 min at 4°C, before gelation at 37°C for 2 h. Tissue clearing occurred overnight at 37°C in clearing digestion buffer (Moffitt et al., 2016; Moffitt and Zhuang, 2016). HCR amplification occurred at room temperature for 12 h.

Immunoprecipitation and Western blotting from FACS-sorted cINs

TdTomato-expressing cells were isolated by FACS from Pcdhg ^f; Gad2-cre;Ai14-tdTomato mice at P7. Cortical cell dissociation was conducted as described for analytical flow cytometry experiments with the following modifications. After dissociation, 1 ml of the cell suspension was layered onto 4 ml of 22% Percoll (Sigma P1644)+PBS and spun at 400 × g, 4°C, for 10 min without centrifuge brakes engaged. The supernatant was removed, cells resuspended in 500 μl 2% HI-FBS + PBS (ThermoFisher), and passed through a 40-μm cell strainer. DAPI was added as a viability marker (Thermo Fisher Scientific, RRID:AB_2629482; 5 μm). Using a Beckman Coulter MoFlo Astrios VBYR cell sorter, an approximately equal number of TdTomato-expressing cells were collected from each genotype. Isolated cells were pelleted (400 × g, 4°C) and resuspended in 100 μl lysis buffer (ThermoFisher 87 787) containing protease (ThermoFisher A32955) and phosphatase inhibitors (ThermoFisher 78 442). Lysis cocktail was incubated on ice in the dark for 20 min with intermittent vortexing. To remove debris, lysates were spun at 13,000 × g, 4°C, for 10 min. Supernatant was aliquoted, flash frozen and stored at −80°C. PanAKT was immunoprecipitated from the lysate using the rabbit anti-mouse AKT antibody (1:1000; Cell Signaling Technologies, RRID:AB_915783) and the PierceTM Classic Magnetic IP/Co-IP kit (ThermoFisher 88804). The IP product was then run on a Western blotting and probed using both the rabbit anti-mouse panAKT (1:1000) and phospho-AKT (Ser473, 1:1000, Cell Signaling Technologies, RRID:AB_2315049) antibodies, using LI-COR blocking buffer (LIC0927-70 001). FACS-isolated SVZ cells were included as positive controls. IgG raised in rabbit was used as an isotype control (Cell Signaling Technologies, RRID:AB_1031062). To visualize bands, the LI-COR IRDye 800CW (LIC-926–32 211) and FC Odyssey imaging system were used. Band size was determined using the PageRuler Plus prestained ladder (LI-COR 26 619).

Analytical flow cytometry

Population specific flow cytometric analysis of pAKT immunoreactivity in TdTomato-expressing cINs was conducted using Pcdhg^f; Gad2-cre; Ai14-tdTomato transgenic mice at P7. Brains from two Pcdhg ^f/f and control heterozygous Pcdhg^+/f littermates were included in each experimental replicate. To dissociate cells, neocortical tissue was dissected in ice-cold Ca²⁺/Mg²⁺-free HBSS containing: 10 mm HEPES, 1 mm Na-pyruvate, and 0.1% D-glucose. Tissue was cut into ∼2-mm² pieces and transferred to 4-ml ice-cold Hibernate A (ThermoFisher, catalog #A1247501) containing 1× B27^TM supplement. With no prior enzymatic digestion, tissue was triturated using a series of blunt tip stainless steel needles of descending gauge: 25, 22, 18 g 4× passages each (McMaster-Carr Supply, catalog #75165A687, #75165A683, #75165A676). Cells were filtered through a 70-μm nylon mesh cell strainer, pelleted by centrifugation at 400 × g, and suspended in 5-ml ice-cold PBS + 4% PFA for 20 min. Fixed cells were washed twice in 10 ml PBS, permeabilized in 500-μl 0.3% Triton X-100 PBS + 2% BSA for 5 min, and incubated for 30 min in the primary + secondary antibody solution: 2% BSA-PBS + rabbit anti-mouse phospho-AKT (Ser473) antibody (1:50, Cell Signaling Technologies RRID:AB_2315049), goat anti-rabbit Alexa Fluor 488 secondary antibody (1:1000 ThermoFisher, RRID:AB_2633280), and PureBlu Hoechst 33 342 nuclear dye (Bio-Rad, catalog #135-1304). Cells were washed twice in PBS to remove excess antibody, resuspended in 500-μl PBS, and passed through a 40-μm nylon mesh cell strainer. Flow cytometry was conducted using a Becton-Dickinson LSRII-CFI, VBGR analyzer and data processed using FlowJo software v10.6.1. Approximately 10,000–15,000 TdTomato+ events were recorded in each flow analysis. Specificity controls included: unlabeled TdTomato+ cells and TdTomato+ cells + 2°-antibody/Hoechst 33342.

Statistical analyses

Statistical analyses were performed in GraphPad Prism. Means of two groups were compared using the two-tailed unpaired t test on condition of equivalent variances and normality or with the Mann–Whitney non-parametric U test. Means of multiple samples were compared using one-way ANOVA and post hoc Tukey's or Holm–Sidak's multiple comparison tests. Other statistical tests are specified in figure legends.

Results

GABAergic-specific deletion of pcdhgs in mice causes neurologic deficits

To investigate the role of the PCDHGs in inhibitory neuron development, conditional Pcdhg^f mice were crossed to the Gad2-ires-Cre line to delete the Pcdhgs (Fig. 1A) from broad classes of differentiating GABAergic cells during embryonic development (Taniguchi et al., 2011; Taniguchi, 2014). Homozygous Pcdhg^f/f; Gad2-ires-Cre mutant offspring (herein referred to as Pcdhg GcKO) were viable but displayed pronounced growth and neurologic deficits within the first postnatal weeks. By P28, Pcdhg GcKO mutants were on average 30% smaller in body weight than wild-type littermates (16.6 g compared with 10.8 g, N = 15 animals per genotype, p = 0.00009, unpaired t test; Fig. 1B). Juvenile Pcdhg GcKO mice exhibited forelimb and hindlimb clasping on tail suspension, a neurologic phenotype that occurred with 100% penetrance (Fig. 1C).

Figure 1.

Mice with pan-GABAergic deletion of Pcdhgs exhibit neurologic deficits and seizures. A, Schematic of the LoxP-targeted Pcdhg locus, Pcdhg^fcon3. Distinct PCDHG isoforms are assembled by splicing one of 22 variable exons, encoding the extracellular and transmembrane (TM) regions unique to each isoform, to three constant exons encoding the intracellular constant region (ICR) shared by all 22 PCDHGs. B, Weights of control Pcdhg^WT; Gad2-Cre (black) and Pcdhg^f/f; Gad2-Cre (herein referred to Pcdhg GcKO, red) mice; Data points show mean ± SEM *p < 0.05, ***p < 0.001. C, left, P28 WT sibling. Right, Pcdhg GcKO mutant displays forelimb and hindlimb clasping. D, Total time immobile of four Pcdhg GcKO mice recorded by EEG and video during 25-min sessions (left, percent time immobile) was analyzed and categorized as seizure events according to the Racine scale, and reported as percent length and events. E, Examples of EEG waveforms of cortical baseline activities recorded with bipolar electrodes in WT and Pcdhg GcKO mice (N = 4 per genotype).

We observed that Pcdhg GcKO mutant mice exhibited spontaneous, convulsive seizures. Cortical EEG recordings were combined with video to monitor wild-type sibling and Pcdhg GcKO mutant mice (three months of age, N = 4 animals per genotype). Periods of extended immobility were identified and assessed for behavioral seizures using a modified Racine scale (Racine, 1972; Kim et al., 2019). During these periods (immobile 59 ±3% SEM of recorded time; N = 4 animals), Pcdhg GcKO mutant exhibited seizure symptoms and convulsive behaviors, including stiff posturing (scale 1), nodding and forelimb clonus (scale 2, 3), and in a few severe instances, continuous whole-body seizures (scale 4; Fig. 1D). Analysis of simultaneous EEG recordings of baseline cortical activities revealed abnormal bursting and epileptiform discharges during seizure episodes in all mutant Pcdhg GcKO animals but not in wild type (Fig. 1E). The neurologic impairments exhibited by Pcdhg GcKO mutants indicate severe defects in the development or function of the GABAergic circuitry in the brain.

GABAergic Pcdhg mutants display reductions in brain volume and GABAergic populations

Juvenile Pcdhg GcKO mutants developed smaller brains. To locate the anatomic phenotypes, Pcdhg GcKO brains were analyzed ex vivo by MRI. The total brain volumes of Pcdhg GcKO mutants were reduced by 20.5% compared with Pcdhg^WT; Gad2-Cre control littermates (N = 12 animals per genotype; p < 0.00001, unpaired t test; Fig. 2A). To identify structure-specific differences, the brains were segmented into 182 structures and measured as percent volume differences from control. Although Pcdhg GcKO mice are smaller, region-specific reductions were detected across the brain, indicating that volume changes vary independently from body size (Fig. 2B). The most profoundly affected structures include the GP, the bed nucleus of stria terminalis and the superior colliculus (Fig. 2C), regions that contain high proportions of GABAergic interneuron and projection neurons (Kudo et al., 2012; Saunders et al., 2016; Villalobos et al., 2018; Whyland et al., 2020). Volume changes were less severe in neocortical areas and the amygdala, which proportionally contain fewer GABAergic neurons (Ehrlich et al., 2009; Sahara et al., 2012; Fig. 2C). To test the association between structure-specific reductions and GABAergic neuron content, we projected onto the MRI volume measurements the spatial patterns of Gad2 mRNA expression using the Allen Institute's Mouse Brain in situ hybridization atlases (E18.5 and P56; Lein et al., 2007; Sunkin et al., 2013). Structure-specific volume changes in Pcdhg GcKO brains negatively correlated with spatial Gad2 expression from the E18.5 (t statistic = −4.10, p = 0.00014; Fig. 2D) and P56 atlases (t = −3.55, p = 0.00048, linear model). Therefore, structures with higher Gad2-positive spatial content, and by extension Cre activity, are associated with greater volume reductions in Pcdhg GcKO mutants.

Figure 2.

Pcdhg GcKO mutants have reduced brain volumes and PV-expressing populations. A, MRI quantification of absolute brain volumes of Pcdhg^WT (control, black) and Pcdhg GcKO (red) mutants at P28. Data show mean volume ± SEM from 12 animals per genotype; p < 0.00001, unpaired Student's t test. B, Coronal examples of whole-brain MRI data highlight regional reductions in Pcdhg GcKO brains, expressed as percent reduction from control brains. Regions coded in blue are significantly reduced in volume compared with the mean whole-brain reduction (−20.4%) and those coded in red-yellow are less severely affected, with significance exceeding FDR threshold at p = 0.05. C, Volumes of selected regions of control (black) and Pcdhg GcKO (red) brains. D, MRI volume changes are negatively correlated with spatial E18.5 Gad2 mRNA expression obtained from the Allen Brain Institute Developing Mouse Brain ISH dataset (t statistic = −4.10, p = 0.000144). Each point corresponds to a segmented brain structure, and plotted for volume changes computed from MRI measurements and spatial Gad2 gene expression. E, left, Quantifications of PV-expressing (PV+) cells in the Pcdhg GcKO GP (p = 0.0087), BLA (p = 0.0042), somatosensory cortex SIBF Layer IV (p = 0.011), V1 Layer IV (p = 0.016), and Gad2-Cre; Ai14-TdTomato-labeled neurons in SIBF Layer IV (p = 0.00002; all three to four animals per genotype). Right, Quantifications of PV+ MLIs (p < 0.00001) and Purkinje cells (PCs; p = 0.08) at P25 (five to seven animals per genotype) and at P75 (three animals per genotype). Bars show means from Pcdhg GcKO mice normalized as percentage from control counts, with % SEM, unpaired t test. F, G, Inverted immunofluorescence images of PV-expressing (PV+) cells in GP (F) and visual cortex (G) in control and Pcdhg GcKO mice. H, left, Immunostaining of PV+ MLIs (green) and PV+/calbindin+ PCs in cerebellar cortex. Right, Soma labeling by NeuroTrace. MLI density (white arrow) is reduced but PC density is unchanged (yellow arrow) in Pcdhg GcKO cerebella. *p < 0.05, **p < 0.01, ***p < 0.001. Scale bars: 500 μm (F), 200 μm (G), and 25 μm (H).

To determine whether the anatomic changes result from GABAergic neuron loss, we quantified cells marked by PV Parvalbumin (PV) in select regions. We began with the GP externus, where PV+ cells comprise ∼55% of the total population and are primarily GABAergic projection neurons that target cortical and subcortical structures (Hernández et al., 2015). In the Pcdhg GcKO GP, PV+ neurons are reduced by 40.7% compared with Pcdhg^WT littermates (N = 4 animals per genotype, p = 0.0087, unpaired t test; Fig. 2E,F). Interneuronal PV+ populations are also reduced in Pcdhg GcKO mutants, including those in the BLA (−53.7%, p = 0.0042, unpaired t test), and in the primary visual and somatosensory barrel cortex (−57.5%, p = 0.0042 and −45.4%, p = 0.0031, respectively; unpaired t test; Fig. 2E,G). Pcdhg deletion leads to loss of cells rather than loss of PV expression, because interneurons labeled by the Ai14-TdTomato Cre reporter in Layer IV of the somatosensory cortex are reduced by 61.5% in Pcdhg GcKO mutants compared with control (p = 0.005, unpaired t test, three animals per genotype; Fig. 2E). Similarly, in the Pcdhg GcKO cerebellar cortex, numbers of PV+ MLIs were reduced at P25 (−36.5%, p < 0.00001, unpaired t test; five to seven animals per genotype) and did not decline further. PV+ Purkinje cells, which are GABAergic projection neurons, did not differ in Pcdhg GcKO (Fig. 2E,H), consistent with our previous finding that Purkinje-specific Pcdhg deletion does not affect Purkinje cell number (Lefebvre et al., 2012). Altogether, these results demonstrate a cell type-specific role for the PCDHGs in mediating PV+ GABAergic population size in multiple brain regions.

The PCDHGs are required for cortical GABAergic interneuron survival during developmentally-regulated cell death

The interneuron loss we observed across hindbrain, midbrain, and forebrain structures of Pcdhg GcKO brains raises interesting parallels to Bax-dependent interneuron cell death in early postnatal Pcdhg mutant retina and spinal cord (Lefebvre et al., 2008; Prasad et al., 2008). To test for a role in regulating GABAergic interneuron survival in the brain, we focused on the cortical inhibitory interneurons (cINs) which comprise developmentally and molecularly well-characterized subpopulations. During the first postnatal week, 20–40% of cINs belonging to the cardinal classes deriving from the medial ganglionic eminence (MGE) and caudal ganglionic eminence (CGE) are eliminated by PCD (Southwell et al., 2012; Denaxa et al., 2018; Priya et al., 2018; Wong et al., 2018). Building on the observation of PV+ cIN loss in Pcdhg GcKO (Fig. 2E), we tested whether the Pcdhgs are required in broad or specific classes of cINs in the somatosensory cortex. We quantified the two cardinal MGE-derived classes that express PV or Somatostatin (SST+), and the two CGE-derived classes that are defined by VIP+ or by Reelin+/SST– expression in Layer I (Fig. 3A; Rudy et al., 2011). The densities of these four classes were significantly decreased in Pcdhg GcKO compared with Pcdhg^WT controls (Reelin+/SST– LI–III p = 0.0073, Mann–Whitney; Vasoactive intestinal peptide LII–III, IV, V–VI counts F_(1,12) = 8.5, p = 0.013, two-way ANOVA; PV+ LII–III, IV, V–VI counts, F_(1,12) = 49.2, p = 0.000014, two-way ANOVA; SST+ LII–III, IV, V–VI counts F_(1,12) = 316.5, p < 0.000001, two-way ANOVA; N = 4 sections per animal, three animals per genotype; Fig. 3B–F). There was no accumulation of cINs in particular cortical layers relative to others, indicating that laminar migration and type-specific distributions are intact in Pcdhg GcKO mutants (χ² of layer distribution: VIP+ p = 0.69; PV+ p = 0.84; SST+ p = 0.84; Fig. 3D–F). Moreover, we did not detect dose-dependent differences in cIN densities between wild-type and heterozygous animals (PV+: Pcdhg^+/+; Gad2-Cre 143.8 ± 5.7 vs Pcdhg+/−; Gad2-Cre 144.2 ± 10.4 cells/mm², p = 0.97; SST+: Pcdhg^WT 108.6 ± 4.2 vs Pcdhg^Het 103.1 ± 4.6 cells/mm², p = 0.40; Reelin+: Pcdhg^WT 96.0 ± 2.9 vs Pcdhg^Het 92.13 ± 1.6 cells/mm², p = 0.30; four to seven animals, unpaired t test with Welch's correction).

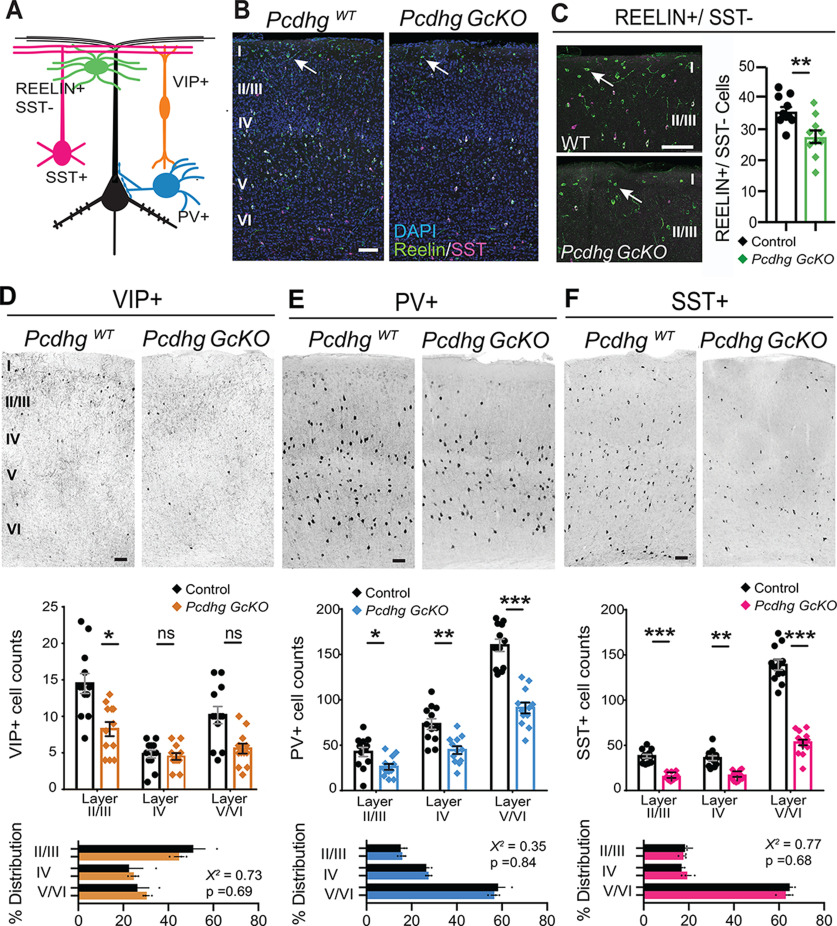

Figure 3.

Cardinal classes of cortical GABAergic interneurons are reduced in Pcdhg GcKO mutants. A, Schematic depicting cortical pyramidal neuron (black) and markers used to distinguish four interneuron (cIN) types. B–F, Coronal sections through somatosensory cortex (SSC; SIBF) and quantifications of cIN types at P28 of Pcdhg^WT and Pcdhg GcKO animals. Scatter bar plots summarize data, mean ± SEM from 12 sections, three animals per genotype. B, Immunostaining for Reelin (green) and SST (magenta) marks Reelin+/SST– population residing in Layer I (white arrow). C, Labeling and quantification of Reelin+/SST– cINs in defined area from Layers I–III; p = 0.0073 Mann–Whitney (MW) U test. D, Inverted immunofluorescence image (top), quantifications of immunolabeled cells (middle), and layer-specific distribution as a percentage of the total population (bottom). VIP-expressing cINs. Layers II–III: p = 0.016; IV: p = 0.99; V–VI: p = 0.30, two-way ANOVA with Sidak's multiple comparisons. χ² of layer distribution, p = 0.69. E, PV-expressing cINs. Layers II–III: p = 0.028; IV: p = 0.0029; V–VI: p = 0.000026, two-way ANOVA with Sidak's multiple comparisons. χ², p = 0.84. F, SST-expressing cINs. Layers II–III: p = 0.00025; IV: p = 0.0017; V–VI: p < 0.00001, two-way ANOVA with Sidak's multiple comparisons. χ², p = 0.68; *p < 0.05, **p < 0.01, ***p < 0.001. Scale bars: 100 μm.

Next, we disentangled other potential developmental roles for the Pcdhgs that might affect cIN number. Gad2-Cre recombination activity is detected in the embryonic ganglionic eminence, including in the subventricular and mantle zones known to contain postmitotic immature Gad2-expressing neurons (Stühmer et al., 2002; Chen et al., 2017b), and along interneuron migratory paths (E14.5; Fig. 4A). The density of migrating cINs labeled by TdTomato in Pcdhg GcKO embryos was similar to control littermates at E14.5 (Pcdhg^{WT or Het} 1208 ± 53.2; Pcdhg GcKO 1220 ± 45.0 TdTom+ cells/mm², p = 0.87, unpaired t test, three animals per group; Fig. 4A). We also tested whether cIN loss is associated with functional deficits in intrinsic excitability by performing whole-cell current-clamp recordings of Layer V cINs at P13–P15. Compared with control, the aggregate of Pcdhg GcKO cINs did not differ in Vrest, Rin, and spike number to incremental current injections (Fig. 4B). Therefore, the loss of cINs in Pcdhg GcKO mutants does not result from migration or gross intrinsic excitability defects.

Figure 4.

Deletion of the Pcdhgs does not affect cIN migration or intrinsic membrane properties. A, Coronal sections of E14.5 embryonic Pcdhg^{WT or Het} and Pcdhg ^f/f Gad2-Cre; Ai14-TdTomato brains. Top, TdTomato+ Cre reporter labeling (red) confirms Gad2-Cre recombination in the subventricular and mantle zones in the ganglionic eminence, presumptive striatum, and along the interneuron migratory stream. Bottom, Insets from top panels show migratory streams of cINs. MZ, marginal zone. CP, cortical plate. IZ, intermediate zone. SVZ, subventrical zone. B, Quantifications of TdTomato+ migratory interneurons in boxed ROIs, as shown in A. Scatter bar plots summarize data from three animals per genotype, mean ± SEM p = 0.67, unpaired t test. C, Representative traces show the voltage responses of TdTomato+ Layer V interneurons in the visual cortex (cIN) in Pcdhg^{WT or Het} and Pcdhg GcKO; Ai14-TdTomato mice (upper traces) following current injection (lower traces). All experiments were performed in slices prepared from P13–P15 mice and in the presence of AMPA-receptor, NMDA-receptor, and GABAa-receptor blockers (AP-5, 50 μm, NBQX, 10 μm, picrotoxin, 100 μm, respectively). D, Summary plots of the Vrest (left panel, Vrest: control, n = 14 cells/8 animals; Pcdhg GcKO, n = 15 cells/10 animals; p = 0.8412, df = 27, unpaired t test); Rin (middle panel, Rin: control, n = 15 cells/8 animals; Pcdhg GcKO, n = 16 cells/10 animals; p = 0.9709, df = 29, unpaired t test,); and action potential firing frequencies, showing no significant differences between the control and Pcdhg GcKO mice (right panel, AP firing: control, n = 15 cells/8 animals; Pcdhg GcKO, n = 16 cells/10 animals; +50–500 pA current steps, p = 0.7405–0.8609; Mann–Whitney test). Data summarize mean ± SEM. Scale bar: 200 μm.

We performed a series of tests to determine whether the PCDHGs specifically regulate cIN survival during the postnatal wave of PCD. First, we confirmed that Pcdhg mRNA is expressed by GABAergic marker Gad1 mRNA-positive cINs in postnatal cortex at P7, corresponding to the peak of cIN PCD (Fig. 5A). To test whether cIN loss in Pcdhg GcKO mutants results from accentuated PCD, we quantified cINs in Pcdhg^Het control and Pcdhg GcKO; Gad2-Cre; Ai14-TdTomato cortices from P2 through P14 (N = 3 animals per genotype). In both control and Pcdhg GcKO mutants, densities of TdTomato-labeled cINs declined along a time course consistent with cIN PCD (Southwell et al., 2012; Wong et al., 2018; Fig. 5B–D). cIN densities in Pcdhg GcKO mutants were initially comparable to controls at P5 (84,315 ± 2418 in control vs 88,315 ± 2418 in Pcdhg^GcKO, p = 0.66, Mann–Whitney) but declined to a greater extent in Pcdhg GcKO mutants by P8 (reduced by 27.1% in Pcdhg GcKO compared with controls; 66,304 ± 2136 vs 48,320 ± 1683 cells/mm³, p = 0.000005, Mann–Whitney; Fig. 5B,D). At P2, we observed a modest but statistically significant increase in cIN density in Pcdhg GcKO mutants (13.8% increase compared with P2 controls, p = 0.028; Mann–Whitney; Fig. 5B), which might reflect a trend in reduced cortical volumes (11.9% reduction; 0.0052 ± 0.00017 mm³ mean ROI volumes for controls vs 0.0046 ± 0.00029 mm³ ROIs for Pcdhg GcKO, p = 0.08, unpaired t test). Quantification of apoptotic TdTomato+ cINs simultaneously marked by cleaved Caspase-3 and Caspase-9 confirmed a complementary increase in apoptosis in Pcdhg GcKO cortex at P7 (Fig. 5E; control, 18 ± 1.0; Pcdhg GcKO, 24 ± 1.5 CC3/9+ cells, p = 0.009, Mann–Whitney). Thus, the excess postnatal loss of cINs in Pcdhg GcKO mutants is associated with accentuated cell death.

Figure 5.

cIN loss in Pcdhg GcKO mutants is the result of accentuated developmental cell death. A, FISH of Gad1 mRNA (magenta) and Pcdhg mRNA encoding constant exons common to all Pcdhg isoforms (green) in P7 SSC cortex. Right, Inset shows Pcdhg expression in Gad1+ (arrow) and in Gad1- cells (arrowhead). B, Quantification of cIN density in somatosensory cortex (SSC) through development in Pcdhg^{WT or Het} control (gray) and Pcdhg GcKO (red). cINs are marked by Gad2-Cre; Ai14-TdTomato. Box plots (with minimum and maximum values) show data from 12 sections, three animals per genotype. P2, p = 0.028; P5, p = 0.66; P8, p < 0.00001; P10, p = 0.0003; P14, p < 0.00001, Mann–Whitney U test. C, Coronal section of control and Pcdhg GcKO SSC at P2 and P10 with labeling of nuclei (DAPI, cyan) and TdTomato+ cINs (red). Inverted fluorescent images of TdTomato+ cINs are on right. D, Graphs show data of TdTomato+ cIN densities from B, normalized to densities at P2 for control (black) and Pcdhg GcKO (red). P2, p > 0.99; P5, p = 0.096; P8, p = 0.001; P10, p = 0.0027; P14, p = 0.00097, Mann–Whitney U test. E, top, Apoptotic TdTomato+ cINs (red) co-labeled with cleaved Caspase-3 and Caspase-9 (CC3/9 green; white arrows). Bottom, Quantifications of TdTomato/CC3/9+ cells in P7 cortical sections. Box plots show data from 31 sections, three animals per genotype; p = 0.00095, Mann–Whitney U test. F, top left, Onset of PV-Cre activity occurs after the peak of cIN PCD. Bottom left, PV+ densities in SSC at P28 are indistinguishable between control (gray bars) and Pcdhg ^f/f; PV-Cre animals (white). Bars show mean ± SEM from three animals per genotype. p = 0.46, unpaired t test. Right, Coronal sections with PV+ labeling of SSC of control and Pcdhg ^f/f; PV-Cre animals; *p < 0.05, **p < 0.01, ***p < 0.001. Scale bars: 50 μm (A), 100 μm (C–E), and 200 μm (F).

To test whether the pro-survival requirement for the PCDHGs is temporally restricted to PCD, Pcdhgs were deleted from cINs using PV-Cre, which has an onset of expression in maturing PV+ cINs after the first postnatal week (Lazarus et al., 2015). In this experiment in which the Pcdhg genes remain intact during peak PCD, the PV+ cell densities in the cortex of Pcdhg^f/f; PV-Cre animals were indistinguishable from control (Pcdhg^f/+ 160.6 ± 5.1 vs Pcdhg^f/f 169.9 ± 10.1 cells/mm², three animals per genotype, p = 0.46, unpaired t test; Fig. 5F).

In a final test to show that regulation of cIN number by the PCDHGs is specific to PCD rather than other degenerative processes, we tested whether cIN loss in Pcdhg GcKO mutants occurs through the BAX-dependent apoptotic pathway. In constitutive or conditional Bax mutant mice, genetic blockade of apoptosis prevents the natural elimination of cINs (Southwell et al., 2012; Priya et al., 2018; Wong et al., 2018). If excess cIN loss in Pcdhg GcKO cortex results from the overactivation of apoptosis, then the cINs destined to die in Pcdhg GcKO; Bax double mutants (Pcdhg^f/f; Bax ^f/f; Gad2-Cre) would be preserved and result in greater numbers of mature cINs. Indeed, the PV+ and Reelin+ cIN populations in Pcdhg GcKO; Bax GcKO double mutant animals were not only restored compared with Pcdhg GcKO single mutants but were also indistinguishable from control Pcdhg^Het; Bax GcKO siblings (PV+: 59.5 ± 2.4 cells/mm² in Pcdhg GcKO vs 119.7 ± 8.7 in Pcdhg GcKO; Bax GcKO vs 126.1 ± 8.8 in Pcdhg⁺; Bax GcKO, p = 0.00004 and p = 0.52, respectively; Reelin+ across all layers: 104.0 ± 4.8 cells/mm² in Pcdhg GcKO vs 181.4 ± 9.0 in Pcdhg GcKO; Bax GcKO vs 174.6 ± 8.7 in Pcdhg⁺; Bax GcKO, p = 0.00002 and p = 0.47, respectively; CGE Reelin+/SST– in LI–III: 47.9 ± 4.4 cells/mm² in Pcdhg GcKO vs 104.9 ± 6.6 in Pcdhg GcKO; Bax GcKO vs 101.6 ± 7.3 in Pcdhg⁺; Bax GcKO, p = 0.00007 and p = 0.67, respectively; Holm–Sidak's multiple comparisons, three to four animals per genotype; Fig. 6A,B). Together, these multiple lines of evidence establish an essential role for the PCDHGs to promote cIN survival during the postnatal period of PCD.

Figure 6.

Genetic blockade of apoptosis by Bax deletion rescues cIN loss in Pcdhg GcKO mutants. A, Immunostaining for PV+ (magenta) and Reelin+ (green) cINs in S1BF of P28 Pcdhg control Gad2-Cre; Bax⁺ (WT or Het), Pcdhg control Gad2-Cre;Bax^f/f; Pcdhg ^f/f;Gad2-Cre; Bax⁺ mutant; and Pcdhg ^f/f;Gad2-Cre;Bax ^f/f double mutant animals. Inverted images of PV+ in center, and Reelin+ on right. Reelin labels CGE-derived Reelin+/SST– in LI–III, and MGE-derived cINs that overlap with SST+ in LII–LVI. B, Quantifications of total PV+ and Reelin+ cINs across layers, and Reelin+/SST– in LI–III. Scatter bar plots show data, mean ± SEM, from three to four three to four animals per genotype. One-way ANOVA, PV+: F = 24.8 p = 0.00002. Reelin+: F = 30.5 p < 0.00001. Reelin+/SST–: F = 30.9 p = 0.00002 Holm–Sidak's pairwise comparisons: Pcdhg⁺;Gad2-Cre;Bax⁺ versus Pcdhg⁺;Gad2-Cre;Bax^f/f: PV+ p = 0.018; Reelin+ p = 0.0059; LI–III R+/SST– p = 0.0019. Pcdhg ^f/f;Gad2-Cre; Bax⁺ versus Pcdhg ^f/f;Gad2-Cre;Bax ^f/f: PV+ p = 0.00004; Reelin+, p = 0.00002; LI–III R+/SST– p = 0.00007. Pcdhg⁺;Gad2-Cre;Bax^f/f versus Pcdhg ^f/f;Gad2-Cre;Bax ^f/f: PV+ p = 0.52; Reelin+ p = 0.47; LI–III R+/SST– p = 0.67, *p <0.05, **p < 0.01, ***p < 0.001. Scale bars: 200 μm.

Pro-survival phospho-AKT levels are diminished in pcdhg mutant GABAergic interneurons during PCD

Whether developing neurons survive or die is determined by the balance of intracellular signals that suppress or initiate the apoptotic cascade (Pfisterer and Khodosevich, 2017; Hollville et al., 2019). The intracellular signals activated downstream of PCDHGs that promote survival of rodent neurons remain unknown. We focused on the serine-threonine kinase AKT pathway, which was recently implicated in cIN PCD. Phospho-AKT (Ser473) levels transiently increase during the peak of cIN death, and conditional deletion of PTEN, an AKT pathway antagonist, results in increased cIN density (Wong et al., 2018). Differences in phospho-AKT levels between control Pcdhg^Het and Pcdhg GcKO cortical lysates could not be distinguished by standard Western blottings. To discriminate cIN-specific changes, Western blottings were performed on dissociated TdTomato-labeled cINs isolated by FACS. In cIN-enriched P7 lysates, phospho-AKT levels were detectably lower in Pcdhg GcKO samples (Fig. 7A,B) but quantifications were hampered by the low amounts of material obtained. We used quantitative flow cytometry to measure phospho-AKT levels in dissociated cINs labeled by Gad2-Cre; Ai14-TdTomato (Fig. 7A,C). Across similar numbers of mutant and control TdTomato+ cellular events (∼10 000), the phospho-AKT fluorescence detected among Pcdhg GcKO cINs was significantly reduced compared with the control cIN population (mean % pAKT+/TdTomato+ events among Pcdhg GcKO cINs = 65.3 ± 1.4% compared with control, 95.4 ± 3.2%; six brains per genotype, p = 0.0008, unpaired t test; Fig. 7C).

Figure 7.

Akt-FoxO3A signaling is diminished in Pcdhg GcKO mutants. A, Schematic of experimental design for FACS-immunoblot (data in B) and flow cytometry analysis (data in C) of pAKT signals in cINs dissociated from P7 cortices. B, Immunoblots of AKT (top) and pAKT-Ser473 (middle; bottom, overexposure) following AKT-mediated immunoprecipitation of FACS-sorted Gad2-Cre; TdTomato+ cortical cells isolated from P7 Pcdhg^Het and Pcdhg GcKO brains. Positive control is a validated sample. Two animals per genotype. Equal numbers of TdTomato+ cells from FACS were assayed. Sup, supernatant. C, Cytometric measure of pAKT-immunolabeled Tdtomato+ cortical cells isolated from Pcdhg GcKO (red) and heterozygous Pcdhg control (blue). Left, pAKT+ (530-A) versus TdTom+ (575-A) events from GcKO and Het samples. Black box = pAKT+ event gate; black dots = isotype control. Middle, Distribution of pAKT+ events TdTom+ population; black line = pAKT+ event gate. Mean TdTom+ events: 9949.6 ± 310.4, Het = 10 115 ± 368.7; p = 0.75. Mean pAKT+ events: GcKO = 6502 ± 138, Het = 9650.3 ± 321; p = 0.0008, from three independent experiments. Right, pAKT+ events plotted as percentage of TdTom+ cell population. p = 0.0046, unpaired t test; six brains per genotype. D, Schematic of AKT-dependent inhibition of FoxO3A translocation from cytoplasmic (top) to nuclear (bottom) compartments. E, Immunostaining of P7 cortex shows translocation of FoxO3A (green) in Gad2Cre-TdTomato+ cINs (red) from a predominantly cytoplasmic localization in control (top, yellow arrowheads) to nuclear enrichment in Pcdhg GcKO mutants (bottom, yellow arrows). Right, High magnification of inset. F, Cumulative distribution plot of nuclear to cytoplasmic ratios of FoxO3A fluorescence intensities quantified in control (black) and Pcdhg GcKO (red) TdTomato+ cINs across Layers II–VI. N = 3 animals per genotype, p < 0.00001, KS test; **p < 0.01, ***p < 0.001. Scale bar: 25 μm.

One mechanism by which AKT is anti-apoptotic is through phosphorylation and cytoplasmic retention of the FoxO transcription factors, and prevention of FoxO-mediated transcription of targets such as pro-apoptotic BH3 members Puma and Bim (Gilley et al., 2003; Ambacher et al., 2012). We predicted that diminished AKT signaling in Pcdhg GcKO cINs would result in increased FoxO3A translocation to the nucleus (Fig. 7D). We compared FoxO3A activity during PCD by quantifying the ratios of nuclear (active) and cytoplasmic (inactive) FoxO3A accumulation by immunofluorescence. At P7–P8, FoxO3A was noticeably enriched in the cytoplasm of TdTomato-labeled cINs in control. In the Pcdhg GcKO cortex, FoxO3A signal is higher in the nucleus, as confirmed by the increased nuclear-to-cytoplasmic ratio of FoxO3A+ fluorescence [p < 0.00001, Kolmogorov–Smirnov (KS) test; Fig. 7E,F]. The altered activity states of AKT pathway components in Pcdhg mutant cINs provide new candidates to link the PCDHGs and intracellular signaling cascades that promote neuronal survival.

cIN survival is not dependent on pcdhg expression in other cortical populations

As a large family of transmembrane molecules with homophilic binding properties, the PCDHGs might mediate cIN survival through cell-cell interactions. We asked whether cIN survival genetically requires Pcdhg expression in their afferent/target populations in the cortex: pyramidal neurons, glia, and other cIN subpopulations. Pcdhg^f mice were crossed to Emx1-Cre to delete the Pcdhgs from forebrain progenitors that give rise to pyramidal cells and glia, but spare the Pcdhg genes in the ganglionic eminence-derived cINs (Fig. 8A). Deletion of Pcdhgs in this model does not affect pyramidal cell survival (Garrett et al., 2012). The densities of mature PV+, SST+ and Reelin+/SST– cIN populations were similar in Pcdhg^f/f; Emx1-Cre mutants to control (Fig. 8B–D). Therefore, Pcdhgs are not required in pyramidal and glial cell populations to modulate cIN survival.

Figure 8.

cIN survival does not require the Pcdhgs in other cortical populations. A–E, Test for Pcdhgs in pyramidal population: Emx1-Cre deletes Pcdhgs from pyramidal and glial cells, leaving the Pcdhgs intact in cINs. B, Inverted fluorescent image of PV+ cINs in control and Pcdhg ^f/f;Emx1-Cre mutants at P28. C, Quantifications show that PV+ (p = 0.89, unpaired t test) and SST+ cINs (p = 0.29) are not significantly different (ns) in Pcdhg ^f/f;Emx1-Cre mutants compared with control. D, Inverted image of Layer I CGE-Reelin+ cINs in control and Pcdhg ^f/f;Emx1-Cre mutants. E, Quantifications of Reelin+/SST– cINs in Layers I–III in control and Pcdhg ^f/f;Emx1-Cre mutants (shaded green). Data in C, E show mean ± SEM from three to four animals per genotype, p = 0.78, unpaired t test. F–I, Test for non-autonomous role in CGE-derived Reelin+/SST– (green), using Nkx2.1-Cre to delete Pcdhg^f/f from MGE-derived PV+ (blue) and SST+ (pink) cINs. G, Inverted fluorescent images of TdTomato+ (left) and PV+ (right) cINs of control and Pcdhg ^f/f;Nkx2.1Cre; Ai14-TdTomato animals. H, Quantifications of MGE-derived Tomato+ (p = 0.00019), PV+ (p = 0.0097), and SST+ (p = 0.00005, unpaired t test) populations in control (gray bar) and Pcdhg ^f/f;Nkx2.1-Cre mutants (outlined bar). I, Quantifications of CGE-derived Reelin+/SST– cINs (green) in Layers I–III (p = 0.58) and Layers V–VI (p = 0.93, unpaired t test); and VIP+ cINs (orange) in Layers I–IV (p = 0.20) and Layers V–VI (p = 0.52, unpaired t test). Data in H, I show mean ± SEM from three to four animals per genotype; **p < 0.01, ***p < 0.001. Scale bars: 200 μm.

A compensatory relationship has been proposed between MGE-derived and CGE-derived cINs, in which MGE-cIN reductions are coupled to increased survival of CGE-derived 5HTR3+/Reelin+ interneurons, particularly in the deeper layers (Denaxa et al., 2018). Moreover, VIP+ interneurons synaptically target PV+ and SST+ interneurons (Pi et al., 2013). To test whether the PCDHGs influence the survival of CGE-cIN non-autonomously, we used Nkx2.1-Cre to delete Pcdhgs from the MGE lineage (Fig. 8F). Similar to ablation with Gad2-Cre, the early postnatal densities of control and Pcdhg^f/f; Nkx2.1-Cre;Ai14-TdTomato mutant populations are initially similar at P2 (1006 cells/mm² ± 76.5 cells in Pcdhg^{WT or Het};Nkx2.1-Cre controls vs 1122 cells/mm² ± 70.9 cells in Pcdhg^f/f;Nkx2.1-Cre mutants; N = 4 sections per animal, three to four animals per genotype; p = 0.40 Mann–Whitney). This finding is consistent with a parallel report showing that the generation and migration of MGE-derived cINs are unaffected in Pcdhg^f/f;Nkx2.1-Cre mutants (Mancia Leon et al., 2020). By P28, the Cre-ablated TdTomato+, SST+, and PV+ populations are reduced in Pcdhg^f/f; Nkx2.1-Cre mutants compared with control (TdTomato+: −43.1%, p = 0.00019; SST+: −45.7%, p = 0.00005; PV+: −25.5%, p = 0.00019, unpaired t test from three to four animals per genotype; Fig. 8G,H). However, densities of CGE-derived Reelin+/SST– and VIP+ cINs in the upper and lower layers are unaffected (Fig. 8I). Thus, the sizes of the Pcdhg⁺-expressing CGE populations are not influenced by non-autonomous effects from Pcdhg-deficient MGE-cINs.

PCDHGs regulate a similar program of interneuron survival in the cerebellar cortex

Finally, we addressed whether the PCDHG pro-survival role extends to GABAergic interneuron populations in other brain regions. We focused on the cerebellar MLIs which are reduced in Pcdhg GcKO mutants (Fig. 2E). MLIs originate from a Ptf1a-expressing GABAergic lineage in the ventricular zone of the cerebellar primordium (Hoshino et al., 2005). Developmental apoptosis spans from P5 to P15, and occurs during proliferation and settling of Pax2+ MLIs in the molecular layer (Yamanaka et al., 2004; Sergaki et al., 2017). We confirmed Gad2-Cre recombination in MLIs in the postnatal cerebellar cortex with Ai14-TdTomato (Fig. 9A), and quantified them through during development. Similar to forebrain cIN populations, MLI densities in Pcdhg GcKO animals are initially similar to control but are significantly reduced by P15 (−22.9%, p = 0.000014, unpaired t test; Fig. 9A,B). As the thickness of the molecular layer increases nearly fivefold in this timeframe (Yamanaka et al., 2004), we compared changes in MLI populations by normalizing to the number of Purkinje cells, which are established in a monoplanar arrangement by P6 (Fujita et al., 2012). In Pcdhg controls, MLI populations decline from P11 to P25 (one-way ANOVA, F_(9,29) = 57.42; Pcdhg^{WT or Het} P11 vs P25, p = 0.00075, Tukey's pairwise comparison). MLIs in Pcdhg GcKO mutants follow a similar pattern of elimination (p = 0.00006, post hoc Tukey) but are lost to a greater extent by P15 (Fig. 9C).

Figure 9.

Pcdhgs promote the survival of GABAergic cerebellar interneurons during PCD. A, MLIs labeled by Gad2-Cre; Ai14-TdTomato in control and Pcdhg GcKO cerebellar cortex at P7 (top) and P15 (bottom). Numbers of MLIs (yellow arrows) increase postnatally in the molecular layer (ML). TdTomato+ soma of Purkinje cells are located in the Purkinje cell layer (PCL). B, Quantification of MLIs in the ML in control (gray) and Pcdhg GcKO mutants (red), marked by TdTomato (P5, P7, P15), or PAX2+ and PV+ (P11, P25). Bars show data, mean ± SEM from three to five animals per genotypes (two for P15 GcKO). P5 p = 0.98; P7 p = 0.48; P11 p = 0.1; P15 p = 0.021; P15, p = 0.008, Mann–Whitney U test. C, MLI density over time, represented by MLI counts normalized by the numbers of PCs. P5 p = 0.34; P7 p = 0.67; P11 p = 0.35; P15 p = 0.04; P25, p < 0.00001, unpaired t test with Welch's correction. D, Left, Immunostaining of TdTomato+ MLIs (red) with anti-CC3 and anti-CC9 (cyan) in control and Pcdhg GcKO cerebellar cortex at P10. Right, Quantifications of CC3/9+/TdTomato+ MLIs. Box plots show data from eight sections per animal, four animals per Pcdhg control or GcKO group; p < 0.00001, Mann–Whitney U test. E, PV-Cre;Ai14-TdTomato recombination pattern at P12 shows TdTomato+ MLIs (magenta, yellow filled arrowhead) co-labeled with anti-PV (green) in the lower ML, and TdTomato-negative MLIs in the upper ML (yellow outline arrowhead). F, Quantifications of cerebellar PV+/NT+ interneurons in Pcdhg PV-Cre animals. Bars show data, mean ± SEM from three animals per genotypes p = 0.31, unpaired t test with Welch's correction. G, MLIs marked by PV (magenta) and NeuroTrace (green) from P35 Pcdhg;Gad2-Cre animals crossed to constitutive BaxKO allele. H, Quantifications of PV+/NT+ MLIs in the ML. Bars show mean ± SEM and counts from four animals per genotype. ANOVA, F = 27.3 p = 0.000012. Post hoc Tukey's pairwise comparison tests: Pcdhg⁺;Gad2-Cre;Bax⁺ versus Pcdhg⁺;Gad2-Cre;BaxKO: p = 0.04. Pcdhg ^f/f;Gad2-Cre;Bax⁺ versus Pcdhg ^f/f;Gad2-Cre;BaxKO: p = 0.000022. Pcdhg⁺;Gad2-Cre;BaxKO versus Pcdhg ^f/f;Gad2-Cre;BaxKO: p = 0.99, *p < 0.05, **p < 0.01, ***p < 0.001. Scale bars: 50 μm (A, D, G) and 25 μm (F).

Similar to cINs, declining MLI populations in Pcdhg GcKO mutants coincide with enhanced apoptosis (control, 4.1 ± 0.3; Pcdhg GcKO, 12.6 ± 0.7 CC3/9+ cells/mm², p < 0.00001, Mann–Whitney; Fig. 9D). To test whether the Pcdhgs are required during the wave of PCD, we used PV-Cre which is active in MLIs at a later postnatal stage, as confirmed by the expression of Ai14-TdTomato in MLIs that reach their final position and begin to express PV (Simat et al., 2007; Fig. 9E). MLI densities are unaffected in Pcdhg ^f/f; PV-Cre mutants (Fig. 9F), further supporting a requirement for the Pcdhgs during the critical period of PCD. Moreover, naturally-occurring MLI death in control and elevated MLI death in Pcdhg GcKO cerebella are Bax dependent (Fig. 9G,H). MLI densities are increased in constitutive Bax KO animals compared with wild type and are indistinguishable in Pcdhg GcKO; Bax KO double mutants compared with Pcdhg⁺; Bax KO siblings (Pcdhg⁺; Bax⁺, 78.8 ± 4.7 cells/0.1 mm² vs Pcdhg⁺; Bax KO, 98.2 ± 3.7, p = 0.04; Pcdhg GcKO; Bax⁺, 51.3 ± 4.3 vs Pcdhg GcKO; Bax KO, 97.0 ± 3.7, p = 0.00002; Pcdhg⁺; Bax KO vs Pcdhg GcKO; Bax KO p = 0.99, Tukey pairwise comparisons, four animals per genotype; Fig. 9G,H). Altogether, our findings demonstrate that the PCDHGs promote the survival of two unrelated GABAergic interneuron populations during postnatal PCD. We propose that the PCDHGs act broadly to control survival and final interneuron numbers for multiple populations in the brain.

Discussion

The pruning of interneuron populations by developmental cell death is critical for establishing balanced excitatory-inhibitory ratios. Recent studies have identified the extent, timing and activity-dependent factors that modulate cIN PCD (Wong and Marín, 2019). A major gap was identification of cell surface molecules that select cINs for survival in ways perhaps analogous to neurotrophin receptors in the PNS. In this study, we identified the PCDHGs as essential regulators of cIN survival that balance the extent of PCD. During the postnatal period when 20–40% of cINs are naturally eliminated (Southwell et al., 2012; Priya et al., 2018), a further 30–50% of the population is lost on Pcdhg deletion because of elevated apoptosis. Both natural and Pcdhg-deficient cIN loss are mitigated by conditional deletion of Bax, illustrating the pro-survival role for the PCDHGs in the PCD pathway. Although Gad2-Cre is active in small numbers of astrocytes, we confirmed the specificity of cIN death to Pcdhg loss-of-function in GABAergic neurons with the Nkx2.1-Cre and Emx1-Cre lines. Our findings are supported by a complementary study, which also demonstrates that, unlike the essential role for the Pcdhg cluster, the Pcdh-α and Pcdh-β clusters are dispensable for cIN survival (Mancia Leon et al., 2020). By extending the survival role to cerebellar interneurons, our study indicates a broad role for the PCDHGs in controlling the size of GABAergic interneuron populations in the developing brain.

The PCDHGs mediate a pro-survival mechanism for GABAergic interneuron PCD

The period of cIN PCD is intrinsically-determined, as heterochronically grafted cINs undergo apoptosis according to their intrinsic PCD timing rather than of the host (Southwell et al., 2012). In spinal cord, excess interneuronal death in Pcdhg mutants also follows the exquisite, cell type-specific ordering of PCD (Prasad et al., 2008). Thus, the PCDHGs regulate the extent but not the timing of interneuron PCD. The wave of MGE-derived cIN PCD slightly precedes that of the CGE-cINs (Priya et al., 2018), suggesting that cIN susceptibility to cell death is tuned to birth date and cell type. Soon after, the pro-apoptotic machinery is likely downregulated to terminate the wave of PCD (Hollville et al., 2019) and to stabilize final cIN populations for circuit maturation. The intrinsic programs that determine the PCD timeline and responses to pro-survival or pro-death signals remain unknown.

We propose that the PCDHGs promote cIN survival through modulation of AKT signaling, which is elevated during the peak of PCD (Wong et al., 2018). The PI3K-AKT pathway regulates neuronal survival through multiple anti-apoptotic and pro-survival actions (Brunet et al., 2001). One link between diminished AKT signaling and increased apoptosis in Pcdhg GcKO cINs is the translocation of FOXO3A, which upregulates expression of pro-apoptotic factors such as Puma and Bim (Li et al., 2009; Ambacher et al., 2012). PI3K-AKT promote cortical and hippocampal neuron survival by integrating numerous upstream signals, including trophic factors, spontaneous depolarization and synaptic transmission, and intracellular calcium signaling (Hardingham et al., 2002; Heck et al., 2008; Léveillé et al., 2010; Golbs et al., 2011; Murase et al., 2011; Wagner-Golbs and Luhmann, 2012). Neural activity influences cIN survival in a class-specific manner (Denaxa et al., 2018; Priya et al., 2018), while the PCDHGs function in all classes examined. Whether the PCDHGs intersect with activity-dependent mechanisms remains to be determined. One possibility is that PCDHG-dependent and activity-dependent signals converge onto PI3K-AKT or Ca2+-calcineurin-NFAT pathways (Priya et al., 2018).

How do the PCDHGs transduce pro-survival AKT signaling at the membrane? One pro-apoptotic candidate is PTEN, which negatively regulates PI3K and is required for cIN PCD (Wong et al., 2018). A pro-survival candidate is PDK1, which positively regulates AKT by phosphorylation. Interneuron-specific ablation of PDK1 also results in enhanced cIN loss (Wei et al., 2020). PYK2 and FAK are negatively regulated by the cPCDHs in pyramidal neuron migration and arborization (Garrett et al., 2012; Fan et al., 2018), and overexpression of PYK2 induces apoptosis in chick spinal cord (Chen et al., 2009). All PCDHG isoforms share an identical cytoplasmic terminus but bear unique juxtamembrane domains; both domains regulate trafficking (Fernández-Monreal et al., 2009; O'Leary et al., 2011; Shonubi et al., 2015).

Which PCDHG-dependent interactions promote cIN survival?

The purpose of cIN PCD is presumed to numerically or functionally match inhibitory interneurons to the excitatory pyramidal populations. Given that increasing the activity or numbers of pyramidal neurons expands the surviving cIN population (Wong et al., 2018), one attractive hypothesis is that the cPCDHs mediate homophilic, cell-cell interactions between cINs and pyramidal neurons. In the simplest test of this scenario, we ruled out a requirement for Pcdhgs in pyramidal neurons for cIN survival. This aligns with findings in retina where synaptic targeting are not prerequisites for survival (Lefebvre et al., 2008), although the PCDHGs influence both synaptic contacts and survival in the spinal cord (Weiner et al., 2005). Our results do not account for potential redundancy among the cPCDHs.

A second possibility is that the PCDHGs mediate interactions between cINs to enhance the electrical coupling or GABAergic assemblies that emerge during the first postnatal week (Minlebaev et al., 2011; Pangratz-Fuehrer and Hestrin, 2011; Modol et al., 2020). The abnormal network activities observed in the hippocampus and spinal cord of cPcdh mutants suggest roles in patterning network topology (Hasegawa et al., 2017; Asai et al., 2020). Network activities that influence cIN survival are dependent on GABAergic signaling onto pyramidal neurons leading to cIN death (Duan et al., 2020). Mechanistic investigations are needed to understand how selective interactions mediated by the PCDHGs, and by cell adhesion molecules in other systems (DSCAMS, Dpr/DIPs; Li et al., 2015; Xu et al., 2018), modulate cell death to control interneuron network size and activities during circuit formation.

The PCDHGs mediate a pro-survival program for interneurons throughout the developing CNS

The unique requirement for the Pcdhgs in cIN survival (Mancia Leon et al., 2020) is consistent with studies in retina and spinal cord (Hasegawa et al., 2016; Ing-Esteves et al., 2018). There, GABAergic and glutamatergic interneuron populations are reduced by roughly half in Pcdhg mutants (Wang et al., 2002; Lefebvre et al., 2008; Prasad et al., 2008). Of the 22 Pcdhgs, deletion of the three Pcdhgc3, Pcdhgc4, and Pcdhgc5 genes recapitulates the cell death phenotypes in retina, spinal cord (Chen et al., 2012) and among cINs (Mancia Leon et al., 2020). As revealed by CRISPR-induced deletions across the Pcdhg cluster, Pcdhgc4 alone is essential for spinal and retinal neuron survival (Garrett et al., 2019). However, the remaining cPcdhs contribute to survival, albeit with partial redundancy, because removal of Pcdha and/or Pcdhb in addition to Pcdhg augments interneuron loss to 80–95% (Hasegawa et al., 2016; Ing-Esteves et al., 2018). Whether the surviving cINs in Pcdhg mutants are also dependent on PCDHAs and PCDHBs remains to be tested. Alternatively, cIN subpopulations might be regulated by other survival pathways, or be refractory to PCD altogether. Similar cooperative survival roles are also observed between neurotrophins/Trks in the PNS. For instance, survival of sympathetic ganglia is exclusively dependent on NGF-TrkA and deletion of either gene causes a complete neuronal loss. By contrast, loss of sensory ganglionic subpopulations is additive with deletion of multiple ligands or receptors (Huang and Reichardt, 2001). Interestingly, GDNF receptors RET and GFR1a promote cerebellar interneuron survival during PCD (Sergaki et al., 2017), raising the possibility of co-signaling between cPCDHs and RET (Schalm et al., 2010). Delineating interneuron-specific cPCDH roles in survival requires mapping isoform-specific expression and functions, including PCDHGC4-specific actions.

Although sensory and principal neurons are largely unaffected in Pcdhg mutants (Wang et al., 2002; Garrett et al., 2012; Lefebvre et al., 2012), PCDHG-dependent survival is not exclusive to interneurons. The exception to date are the retinal ganglion cells (Lefebvre et al., 2008). The volume reductions of GABAergic neuron-rich regions in Pcdhg GcKO brains suggest a role in the survival of GABAergic projection populations, such as those in the GP which undergo PCD (Waters et al., 1994). In the hypothalamus, increased developmental apoptosis in Pcdhg mutants occurs in regions containing glutamatergic and GABAergic projection neurons (Su et al., 2010).

In conclusion, the PCDHGs provide a molecular basis for controlling the size of GABAergic interneuron populations. The neurologic deficits and spontaneous seizures displayed by Pcdhg GcKO mutants underscore the importance of PCDHGs for development of excitatory-inhibitory balance and circuit function. The cortical epileptiform activities might be explained by cIN loss or reduced GABA neurotransmission, as in other models of developmental interneuron deficits (Cobos et al., 2005; Lin et al., 2018). Hindlimb clasping likely results from GABAergic deficits in multiple circuits controlling sensorimotor function (Lalonde and Strazielle, 2011). Additional experiments are needed to determine whether dysregulation of excitation-inhibition in different interneuron populations underlie circuit phenotypes in Pcdhg GcKO mice. Interneuron deficiency (Kataoka et al., 2010; Lewis et al., 2012), and variants and dysregulated expression of the human cPCDH gene clusters are associated with neurodevelopmental and psychiatric disorders, including Autism spectrum disorder, Tourette's, Down's, and schizophrenia (Iossifov et al., 2012; Anitha et al., 2013; El Hajj et al., 2016; Shao et al., 2019; Vadodaria et al., 2019). These findings have relevance for understanding the developmental basis of inhibitory deficits in human disorders.
