Toward Tailoring Chemistry of Silica-Based Phase Change Materials for Thermal Energy Storage

Summary

Efficient thermal energy harvesting using phase change materials (PCMs) has great potential for thermal energy storage and thermal management applications. Benefiting from these merits of pore structure diversity, convenient controllability, and excellent thermophysical stability, SiO₂-based composite PCMs have comparatively shown more promising prospect. In this regard, the microstructure-thermal property correlation of SiO₂-based composite PCMs is still unclear despite the significant achievements in structural design. To enrich the fundamental understanding on the correlations between the microstructure and the thermal properties, we systematically summarize the state-of-the-art advances in SiO₂-based composite PCMs for tuning thermal energy storage from the perspective of tailoring chemistry strategies. In this review, the tailoring chemistry influences of surface functional groups, pore sizes, dopants, single shell, and hybrid shells on the thermal properties of SiO₂-based composite PCMs are systematically summarized and discussed. This review aims to provide in-depth insights into the correlation between structural designs and thermal properties, thus showing better guides on the tailor-made construction of high-performance SiO₂-based composite PCMs. Finally, the current challenges and future recommendations for the tailoring chemistry are also highlighted.

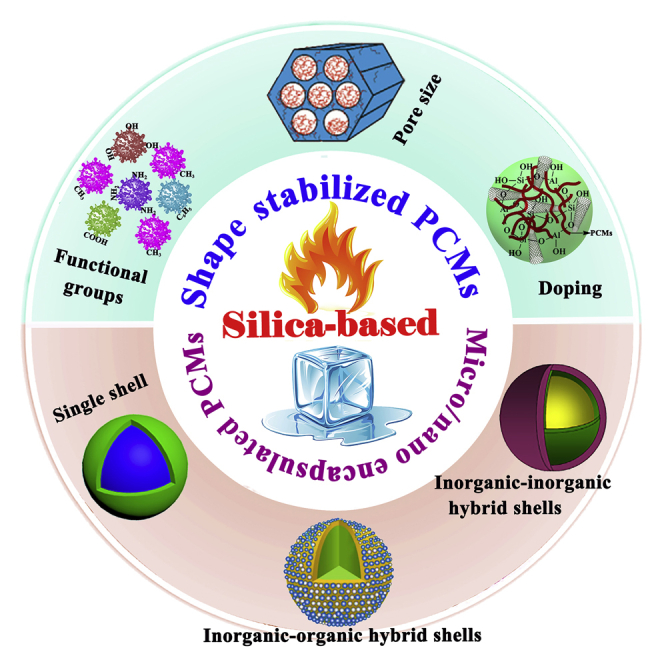

Graphical Abstract

Applied Chemistry; Materials Chemistry; Thermal Property; Materials Design

Introduction

To promote sustainable development and alleviate environmental pollution, large-scale development and utilization of renewable energy has recently received tremendous attentions, such as solar energy, wind energy, biomass energy, hydropower energy, geothermal energy, and tidal energy (Chen et al., 2020c; Neill et al., 2018; Shchukina et al., 2018; Tong et al., 2019; Yuan et al., 2020). However, these energy sources vary with the period of generation. Hence, they are not sufficient to shoulder the responsibility for solving the entire energy needs in the future. As a low-grade energy source, thermal energy is considered as one of the most abundant forms of energy and the basis for many domestic industrial applications. However, the discontinuous supply and awful waste of thermal energy normally reduce the energy utilization efficiency and cause a gap between energy demand and supply in time and space. To improve the thermal energy utilization efficiency and bridge the gap, thermal energy storage techniques (thermochemical energy storage (TCS), sensible heat storage (SHS), and latent heat storage [LHS]) have been extensively explored since the last century (Gao et al., 2018; Huang et al., 2019; Li et al., 2019; Pielichowska and Pielichowski, 2014; Umair et al., 2019; Yang et al., 2019c; Yu et al., 2019).

Among thermal energy storage techniques, TCS has the highest thermal energy density, which is around 5 to 10 times higher than SHS and LHS (Pardo et al., 2014; Shchukina et al., 2018). TCS can be captured through reversible thermochemical reactions. TCS reactions must have a constant conversion efficiency without the reduced energy storage capacity for a long time. Despite the advances and its potential in high-temperature applications, TCS still has long-term stability issue. Therefore, now TCS is primarily tested on a laboratory scale. Conversely, SHS has been developed to an industrial level. SHS refers to heat that can be detected (“sensed”) with the change of temperature, which depends on the specific heat capacity of SHS materials. Comparatively, SHS is the easiest and most developed form of thermal storage. However, SHS has the disadvantages of low thermal energy density and thermal energy loss at any temperature. LHS, also known as phase change thermal storage, achieves thermal storage and release during the phase transformation process of phase change materials (PCMs) (Tu et al., 2019; Yang et al., 2019d). Compared with TCS and SHS, LHS based on PCMs is particularly attractive owing to its high thermal energy storage density, nearly constant temperature, and operational simplicity, which can remedy current increasing needs of energy management and energy efficiency (Aftab et al., 2018; Du et al., 2018; Liu et al., 2015; Luan et al., 2016; Yang et al., 2019b). LHS has reached the scale of the pilot plant. In the past century, LHS has been extensively utilized in off-peak electricity storage system, building energy conservation, industrial waste heat recovery, battery thermal management, and smart wearable clothing, etc. (Chen et al., 2018b; Hu, 2020; Huang et al., 2017; Jiang et al., 2018; Lv et al., 2020a, 2020b; Saffari et al., 2018; Saxena et al., 2019; Xiao et al., 2020). According to the chemical compositions, PCMs are divided into organic PCMs, inorganic PCMs, and eutectic PCMs. To date, organic PCMs have been extensively developed in recent years due to large energy storage density, chemical stability, little phase separation, and supercooling degree (Atinafu et al., 2018a, 2018b; Chen et al., 2019a, 2019c, 2019d; Fredi et al., 2017, 2019b, 2018; Li et al., 2018a; Sharma et al., 2015; Tang et al., 2018).

However, pristine PCMs have leakage issue during the solid-liquid phase change process, which seriously hinders their widespread utilization. The best solution is to prepare composite PCMs by packaging PCMs into supporting materials (Chen et al., 2020a; Lin et al., 2018b; Qureshi et al., 2018). To date, the most popular is carbon supporting materials, especially graphene and carbon nanotubes (CNTs) materials (Aftab et al., 2019; Cao et al., 2019; Hu et al., 2020; Qian et al., 2018; Shin et al., 2016; Song et al., 2019; Tang et al., 2019; Wang et al., 2019b; Wu et al., 2019; Xue et al., 2019; Zhang et al., 2019a, 2019b, 2019d; Zhang and Liu, 2019). Undoubtedly, highly thermally conductive carbon materials can accelerate thermal transfer and boost the charging/discharging rates of composite PCMs. In this regard, several reviews have been presented (Chen et al., 2020b; Huang et al., 2019; Ibrahim et al., 2017; Lin et al., 2018b; Tong et al., 2019; Wu et al., 2019; Yang et al., 2019a; Yu et al., 2019). Considering large-scale practical applications of composite PCMs, there are some negative factors in graphene- and CNT-based composite PCMs, such as complex preparation process, low yield, and high cost. These shortcomings have severely hindered their talent display in the fields of practical thermal management. In addition, it is also worth mentioning that composite PCMs may require a low thermal conductivity according to different application scenarios. For instance, PCMs with low thermal conductivity can be used in building architecture, biological thermotherapy, and high technology (like infrared stealth). Ma et al. (2019) prepared the wallboard containing microencapsulated PCMs composed of binary cores and acrylate-based copolymer shells showing excellent thermal insulation performance. Chen et al. (2020a) prepared 3D freestanding flexible CNT sponge-based PCMs with a low thermal conductivity for high-performance thermotherapy of allergic rhinitis. Lyu et al. (2019) prepared nanofibrous Kevlar aerogel-based composite PCMs with a low thermal conductivity for highly efficient infrared stealth.

Benefiting from pore structure diversity, convenient controllability, and excellent thermophysical stability, SiO₂-based composite PCMs have shown greater prospects in practical applications. Pristine SiO₂-based composite PCMs usually have relatively low thermal conductivity, and doping highly thermally conductive additives can improve the thermal conductivity of SiO₂-based composite PCMs. Therefore, SiO₂-based composite PCMs can achieve low or high thermal conductivity. Herein, to guide the tailor-made construction of high-performance SiO₂-based composite PCMs, state-of-the-art advances in SiO₂-based composite PCMs are provided for thermal energy storage from the perspective of tailoring chemistry strategies. In this review, the influences of surface functional groups, pore sizes, dopants, single shell, and hybrid shells on the thermal performances of SiO₂-based composite PCMs (Figure 1) are systematically summarized and discussed, aiming to provide in-depth insights into the relationships between structural designs and thermal properties and a better guide on the construction of high-performance SiO₂-based composite PCMs. Finally, the current challenges and future research directions are also highlighted. This review can contribute a small force to promote the large-scale practical applications of SiO₂-based composite PCMs in the thermal management systems.

Figure 1.

Tailoring Chemistry Strategies of Silica-Based Composite PCMs for Thermal Energy Storage

Classification and Package of PCMs

Classification of PCMs

PCMs can reversibly utilize latent heat to realize thermal energy storage and release during the phase change process (Li et al., 2018b; Zhang et al., 2019c). PCMs are divided into organic PCMs, inorganic PCMs, and eutectic PCMs according to the chemical compositions (Figure 2) (Wu et al., 2020). Eutectic PCMs are a blend of inorganic and organic PCMs. Compared with inorganic PCMs, organic PCMs have advantages of high LHS density, wide phase transition temperature, no phase separation, little supercooling degree, and low density. The working principle of organic PCMs is as follows: when the solid organic PCMs are subjected to heat, they store thermal energy in the form of sensible heat in the initial stage. With the accumulation of heat, the temperature gradually rises until the melting temperature of organic PCMs is reached. At this moment, solid organic PCMs start melting, undergo phase transition process, and thermal energy is stored in the form of latent heat of fusion until the thermal energy is completely stored into PCMs. During phase transition process, the temperature of organic PCMs remains substantially unchanged. With the further accumulation of heat, thermal energy is stored again in the form of sensible heat. The cooling process is similar to the heating process.

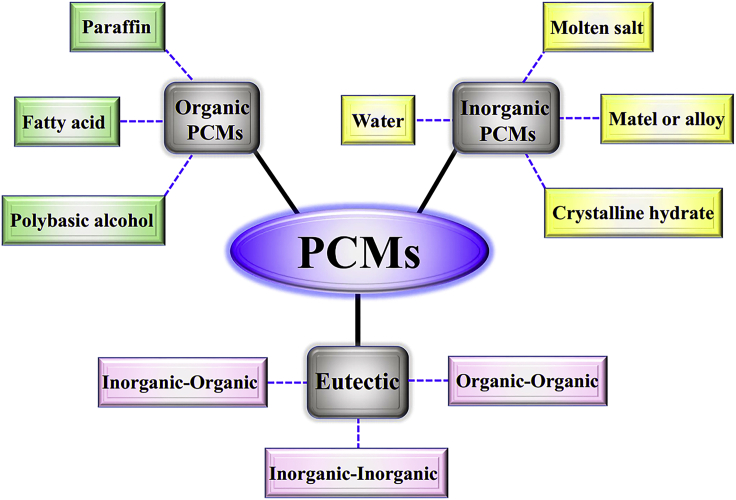

Figure 2.

Classification of PCMs Based on Chemical Compositions

Package of PCMs

In practical applications, the leakage issue of pristine PCMs during the solid-liquid phase change process seriously hinders their widespread utilizations. The best solution is to prepare composite PCMs by packaging PCMs into supporting materials. Currently, the two most popular packaging strategies are porous package (shape-stabilized PCMs) (Grosu et al., 2020; Huang et al., 2019; Lu et al., 2019; Shen et al., 2019; Zhang et al., 2020b) and core-shell package (micro/nano-encapsulated PCMs) (Alehosseini and Jafari, 2019; Erdem and Gürbüz, 2019; Kakar et al., 2019; Xia et al., 2020), as shown in Figure 3. In the composite PCMs, PCMs are working substances for thermal energy storage and supporting materials are employed to restrict the flow of liquid PCMs. Generally, the thermal performances of composite PCMs are between those of solid-solid PCMs and solid-liquid PCMs. In general, shape-stabilized PCMs are usually prepared using two-step method: porous supporting materials are first constructed, and then melted PCMs are impregnated into the porous supporting materials via pore-induced capillary force and surface tension (Gao et al., 2018). Micro/nano-encapsulated PCMs are usually prepared using one-step method: PCMs and raw shell materials are simultaneously mixed in a pot to prepare core-shell structural capsules (Jamekhorshid et al., 2014). In this review, SiO₂-based composite PCMs are classified into porous shape-stabilized SiO₂-based composite PCMs (referred to as porous SiO₂-based composite PCMs) and micro/nano-encapsulated SiO₂-based composite PCMs.

Figure 3.

Packaging Strategies of PCMs

(A) Porous package. Adapted with permission from (Gao et al., 2018). Copyright 2018, Elsevier.

(B) Core-shell package. Adapted with permission from (Shen et al., 2019). Copyright 2019, Elsevier.

Silica-Based Composite PCMs for Thermal Energy Storage

Among numerous composite PCMs, SiO₂ supporting materials have attracted tremendous attention due to their unique pore structure, high adsorption capacity, desirable thermal conductivity, thermochemical stability, non-flammability, ecofriendly nature, and low cost (Li et al., 2013; Zhang et al., 2019e; Zhu et al., 2019). In this review, according to the microstructure of SiO₂, SiO₂-based composite PCMs are divided into two categories: porous SiO₂-based composite PCMs and micro/nano-encapsulated SiO₂-based composite PCMs. In the section on porous SiO₂-based composite PCMs, the influences of functional group types, pore size, and doping additives on the thermal properties of composite PCMs are systematically reviewed. In micro/nano-encapsulated SiO₂-based composite PCMs section, the influences of single shell and hybrid shells on the thermal properties of composite PCMs are systematically reviewed. In general, single SiO₂ shell is unable to satisfy some special functional requirements. In contrast, hybrid SiO₂ shells (including SiO₂-organic shells and SiO₂-inorganic shells) usually harvest the enhanced thermal performances or novel special functions. The corresponding comparison data are summarized in Table 1. These systematic analyses aim to provide profound theoretical and experimental bases for the construction of high-performance SiO₂-based composite PCMs.

Table 1.

Summary of SiO₂-Based Composite PCMs for Thermal Energy Storage

Supporting Materials	Type of PCMs	Loading Content (wt%)	Melting Point (°C)	Freezing Point (°C)	Melting Enthalpy (J/g)	Decline Ratio of Melting Enthalpy	Freezing Enthalpy (J/g)	Decline Ratio of Freezing Enthalpy	Thermal Conductivity (W/mK)	Ref.
SiO2	PEG4000	80	57.2	39.0	129.6	15.4%	118.3	13.9%	–	(Min et al., 2015)
SiO2	PEG6000	66	57.8	43.5	114.8	12.3%	104.6	11.5%	0.61	(Liu et al., 2017b)
SiO2	Paraffin	45	43.7	38.7	113.3	2.7%	112.0	4.3%	0.13	(Qu et al., 2020)
SiO2	Myristic acid	65	54.7	46.9	92.0	23.2%	86.0	32.9%	0.37	(Chen et al., 2018a)
SiO2	Stearic acid	70	71.5	62.4	135.3	16.2%	133.5	15.7%	0.56	(Fan et al., 2017)
SiO2	Na2HPO4·12H2O/Na2SO4·10H2O	70	28.5	–	67.5	–	–	–	–	(Wu and Wang, 2015)
SiO2	Sodium acetate trihydrate-urea	80	43.5	36.1	164.0	14.7%	–	–	–	(Fu et al., 2019)
SiO2	Sodium acetate trihydrate-urea	75	43.3	34.6	155.2	13.9%	–	–	–	(Fu et al., 2019)
SiO2	Sodium acetate trihydrate-urea	70	35.8	31.2	151.6	9.9%	–	–	–	(Fu et al., 2019)
SiO2	Sodium acetate trihydrate-urea	65	34.4	28.6	136.5	12.7%	–	–	–	(Fu et al., 2019)
Sn2+/SiO2	PEG6000	66	57.9	44.0	114.7	12.4%	104.1	11.9%	0.77	(Liu et al., 2017b)
Ag/Sn2+/SiO2	PEG6000	66	58.0	44.3	113.9	13.0%	103.8	12.2%	0.84	(Liu et al., 2017b)
Diatomite	Galactitol hexa myristate	52	44.9	44.3	83.8	6.8%	81.1	7.5%	0.19	(Sarı and Biçer, 2012)
Diatomite/Ag	PEG4000	63	59.5	41.0	111.3	2.0%	102.4	1.3%	–	(Qian et al., 2015b)
Diatomite/Ag	PEG4000	63	59.8	39.5	110.7	2.5%	103.3	0.3%	0.82	(Qian et al., 2015b)
SBA-15	Stearic acid	–	69.1	66.7	69.8	–	68.1	–	–	(Kadoono and Ogura, 2014)
MCM-41	Paraffin	50	26.0	20.0	68.0	19.0%	50.0	33.8%	–	(Zhang et al., 2018b)
MCM-41	Paraffin	55	26.5	23.0	80.0	13.4%	71.0	14.5%	–	(Zhang et al., 2018b)
MCM-41	Paraffin	60	25.5	22.0	95.0	5.8%	70.0	22.7%	–	(Zhang et al., 2018b)
HO-MCM-41-OH	PEG2000	60	–	–	0	–	0	–	–	(Wang et al., 2016b)
NH2-MCM-41-CH3	PEG2000	60	–	–	79.6	14.4%	70.9	15.6%	–	(Wang et al., 2016b)
MCF	Lauric acid	80	42.4	41.3	110.5	16.8%	110.3	15.6%	–	(Mitran et al., 2015)
MCF	Lauric acid	83	42.3	41.2	123.7	10.2%	118.8	12.4%	–	(Mitran et al., 2015)
MCF	Lauric acid	86	41.9	41.0	123.6	13.4%	120.2	14.5%	–	(Mitran et al., 2015)
SiO2/TiO2	Paraffin	40	29.0	–	93.7	0.6%	–	–	–	(Li et al., 2018c)
SiO2/β-AlN	PEG1000	–	60.9	44.8	137.7	–	117.6	–	0.52	(Wang et al., 2009)
SiO2/Al2O3	PEG6000	–	57.1	42.0	123.8	–	126.4	–	0.44	(Tang et al., 2014b)
SiO2/melamine	Paraffin	98.8	–	–	179.9	–	169.5	–	0.22	(Shi and Zhou, 2019)
SiO2/carbon fiber	PEG6000	–	57.5	34.8	142.6	–	154.4	–	0.45	(Liu et al., 2018b)
SiO2/expanded graphite	n-Hexadecane	73	20.3	17.9	147.6	0.1%	145.1	1.7%	–	(Fang et al., 2010)
SiO2/graphene oxide	Stearic acid	–	68.5	64.4	134.4	–	132.5	–	0.28	(Lin et al., 2019)
SiO2/polystyrene	n-Tetradecane	–	2.1	0.4	83.4	–	79.4	–	0.40	(Fu et al., 2017)
SiO2/Fe3O4	n-Eicosane	–	37.5	30.8	172.5	–	170.9	–	–	(Qian et al., 2019)
SiO2/SnO2	PEG600	52	3.1	2.6	58.8	0%	55.5	0.8%	0.71	(Hussain et al., 2018)
SiO2/TiC/polymethyl methacrylate	n-Octadecane	–	24.3	14.9	93.0	–	94.2	–	–	(Wang et al., 2018b)

Porous Silica-Based Composite PCMs

Mesoporous SiO₂, as a favorable class of supporting materials for the preparation of shape-stabilized composite PCMs, has attracted much attention due to its high specific surface area (Min et al., 2015; Qian et al., 2016), large pore volume (Feng et al., 2011; Kadoono and Ogura, 2014), adjustable pore size distribution (Hu et al., 2009; Johari, 2009), excellent chemical stability (Qian et al., 2015a; Zhang et al., 2013) and strong adsorption ability (Qian et al., 2015a; Wang et al., 2016b). Numerous studies have confirmed that mesoporous SiO₂ has apparent influences on the phase transition behaviors of PCMs, such as latent heat and phase change temperature. This is because the movement of liquid PCMs confined in a narrow nanoporous space of SiO₂ with special functional groups is limited. As a result, the phase change behaviors of the confined PCMs are quite different from the phase change behaviors of PCMs in the free state (Feng et al., 2011; Hu et al., 2009; Zhang et al., 2007). In addition, traditional porous SiO₂-based composite PCMs have relatively low thermal conductivity and poor light-thermal conversion. Herein, the influences of functional group types, pore size, and doped additives on the thermal properties of porous SiO₂-based composite PCMs are systematically analyzed.

Tailoring Chemistry of Functional Groups

In the porous SiO₂-based composite PCMs, functional group types of PCMs and SiO₂ both have significant effects on the phase change behaviors of PCMs. To clarify the phase change mechanisms of different PCMs confined in SiO₂, Liu et al. (2017a) introduced three types of PCMs into mesoporous silica (MS), including octodecane (OCC) with -CH₃, octadecanol (OCO) with –OH, and stearic acid (SA) with -COOH (Figure 4A). Differential scanning calorimetry (DSC) results indicate that there are no endothermic and exothermic peaks in the SA/MS composite PCMs when SA is less than 30 wt %. The same phenomenon also emerges in OCC/MS and OCO/MS composite PCMs when OCC and OCO are less than 30 and 60 wt %, respectively. Namely, the latent heat values are zero during the phase change process. Interestingly, the latent heat starts to appear and gradually increases along with the increase of PCM content when PCMs exceed the limit of the “special mass fraction.” However, the latent heat of composite PCMs is much lower than theoretical value. Moreover, the melting temperature decreases, whereas the solidification temperature of composite PCMs increases with the increase of SiO₂. The corresponding mechanisms are as follows: the movement of PCM molecules confined in mesoporous SiO₂ is strongly restricted and the liquid molecules could not crystallize even at a low temperature when the content of PCMs is below the critical level. When the mass fraction of PCMs is higher than the critical level, the crystallization process emerges due to the newly emerging free-moving PCM molecules in SiO₂.

Figure 4.

Tailoring Chemistry of Functional Groups

(A) Preparation scheme of various composite PCMs. Adapted with permission from (Qian et al., 2017). Copyright 2017, American Chemical Society.

(B) Schematic representation of mesopores with different functional groups.

(C) Volume fractions for the non-melting layer and nanoconfined phase. Adapted with permission from (Matei et al., 2019). Copyright 2019, Elsevier.

(D) Typical force-extension curves on the surfaces of SiO₂-NH₂, SiO₂-OH, SiO₂-NH₂, and SiO₂-OH.

(E) Scanning electron microscopic (SEM) and transmission electron microscopic (TEM) images of HO-SBA-15-OH.

(F) X-ray diffraction (XRD) patterns.

(G) DSC curves. Adapted with permission from (Wang et al., 2016b). Copyright 2016, Elsevier.

In the porous SiO₂-based composite PCMs, a non-melting interface layer is usually formed between PCMs and SiO₂. This non-melting interface layer severely reduces the available pore volume, thereby reducing the thermal energy storage density of PCMs (Matei et al., 2019). A straightforward method for regulating the thermal performances of porous SiO₂-based composite PCMs is the functionalization of SiO₂ with different functional groups. Matei et al. (2019) studied the functionalization (methyl, phenyl, amino, and carboxylic acid groups) of mesoporous SiO₂ for engineering the non-melting layer and enhancing the thermal energy storage of SA/SiO₂ composite PCMs (Figure 4B). The experimental results (Figure 4C) indicate that methyl and phenyl groups are present inside the non-melting layer, and the non-melting layer volume is similar to the unfunctionalized SiO₂. In contrast, carboxylic acid functionalization markedly reduces the non-melting layer volume because carboxyl groups easily form hydrogen-bonded dimers, thereby obtaining the highest nanoconfined latent heat of 34.5 J/g. This increased nanoconfined latent heat is 15% higher than unfunctionalized SiO₂. As a result, the total latent heat of carboxylic acid-functionalized SiO₂-based composite PCMs is up to 130 J/g. Therefore, the appropriate surface functionalization of SiO₂ can actively suppress the non-melting layer formation and improve the heat storage potential of SiO₂-based composite PCMs.

In addition to the small molecular PCMs, polymeric PCMs (such as polyethylene glycol [PEG]) confined in SiO₂ also have a certain volume of non-melting layer or even complete non-melting layer (Wang et al., 2016b). To reduce the non-melting layer volume and arouse the phase transition behaviors of the nanoconfined PEG in the channels of SiO₂, our group (Wang et al., 2016b) functionalized SBA-15 (Santa Barbara Amorphous) with different functional groups (-NH₂ and -CH₃) on the inner and outer surfaces. The results indicate that functional group species on the inner and outer surface of SBA-15 significantly affect the phase transition behaviors of PEG molecules confined in SBA-15 (Figures 4E–4G). Typical force-extension curves indicate that PEG chains exhibit a loop structure in the amino-modified SBA-15, whereas a train structure in the hydroxyl-modified SBA-15 (Figure 4D). These results indicate that the modified methyl groups on the outer surface of SBA-15 are conducive to preventing the leakage of PEG molecules due to the repulsive interaction of the outer methyl groups (Geisler et al., 2010). Therefore, the stronger hydrogen bonds between PEG molecular chains and OH-silicon surface are adverse to the stretching of PEG chains because OH-silicon surface can provide more adsorption sites for PEG molecules than NH₂-silicon surface (Rudner et al., 2005; Wang et al., 2012, 2014a). Moreover, after 50 heating/cooling cycles of PEG/NH₂-SBA-15-CH₃, their phase change temperature and latent heat are also similar to those of the original composite PCMs, and no obvious leakage of PEG is observed, indicating that the modified NH₂-SBA-15-CH₃ is a good supporting material for PEG stabilization.

Similarly, Feng et al. (2020) also functionalized MCM-41 (Mobil Composition of Matter) with different functional groups (-NH₂ and -OH). Surprisingly, the resultant PEG/MCM-41-OH composite PCMs have no phase transition behavior even at a maximum loading of 70 wt %, while PEG/MCM-41-NH₂ composite PCMs have excellent thermal properties. The latent heat of PEG/MCM-41-NH₂ is 58.76 J/g even at 30 wt % loading. Molecular dynamics simulations (Figures 5A–5E) are used to clarify the mechanism: -NH₂ can reduce the host-guest hydrogen bonding interactions compared with the stronger hydrogen bonding interactions between -OH and PEG molecules. Therefore, amino-functionalized MCM-41 is conducive to the crystallization of PEG molecules. It can be concluded that the interactions between PCMs and mesoporous SiO₂ can be regulated to affect the loading content and phase change behavior of PCMs in mesoporous SiO₂ through surface modification strategy. This surface modification strategy can be extended to other nanopore-based composite PCMs.

Figure 5.

Tailoring Chemistry of Functional Groups

(A) Structural model of MCM-41-OH.

(B) Structural model of MCM-41-NH₂.

(C) Distribution of PEG atoms in MCM-41.

(D) Extension angle of PEG molecules in MCM-41.

(E) Molecular dynamics simulation of PEG molecules in MCM-4. Adapted with permission from (Feng et al., 2020). Copyright 2020, Elsevier.

(F) Preparation scheme of SiO₂ aerogel-based composite PCMs. Adapted with permission from (Li et al., 2020). Copyright 2020, Elsevier.

(G) Schematic of hydrophobic interaction of SiO₂ aerogel. Adapted with permission from (Gao et al., 2019). Copyright 2019, Elsevier.

Recently, porous SiO₂ aerogel-based composite PCMs have been studied due to the robust mechanical strength, light weight, and adjustable physical and chemical properties (Chen et al., 2019b; Shi et al., 2018; Wu et al., 2018). However, SiO₂ aerogel has a drawback of hydrophilicity, thereby resulting in a poor impregnation of PCMs especially for organic PCMs (Gurav et al., 2010; Sun et al., 2013; Xiangfa et al., 2012). To overcome this disadvantage, Huang et al. (2015) prepared hydrophobic SiO₂ aerogel by replacing Si-OH with Si-CH₃. Based on the hydrophobicity of SiO₂ aerogel, organic hydrophobic PCMs (palmitic acid and octadecanol) are infiltrated into SiO₂ aerogel using vacuum infusion. The resultant octadecanol/SiO₂ aerogel composite PCMs have the highest latent heat of 153.71 J/g. Moreover, the hydrophobicity-modified SiO₂ aerogel shows good thermal stability at high temperature. Liu et al. (2020) also prepared hydrophobic monolithic octadecanol/SiO₂ aerogel composite PCMs with high latent heat (127.73 J/g), low thermal conductivity (0.12 W/mK), good hydrophobicity (contact angle of 124°), large compressive strength (11 MPa), and superior thermal cycling stability (Figure 5F). Similarly, Gao et al. (2019) prepared hydrophobic monolithic paraffin/SiO₂ aerogel composite PCMs. During the preparation process, CH₃-rich trimethylmethoxysilane molecules effectively transform SiO₂ clusters from a rigid network structure with high cross-linking degree to a flexible network structure with low cross-linking degree. Such unique SiO₂ cluster not only enhances the flexibility of silicone rubber but also exhibits good hydrophobicity of 140°. The excellent hydrophobicity (140°) is ascribed to the synergistic effect between the surface -CH₃ groups (Figure 5G) and rough surface of SiO₂ aerogel (Nadargi et al., 2009; Yun et al., 2014). The resultant paraffin/SiO₂ aerogel composite PCMs integrate high loading content (70 wt %), large latent heat (122.7 J/g), and outstanding thermal stability (∼400°C). These monolithic porous SiO₂ aerogel-based composite PCMs could satisfy large-scope-specific requirements and could be directly utilized in the thermal insulation and thermal protection device due to the synergistic effect between high latent heat and low thermal conductivity of composite PCMs.

Tailoring Chemistry of Pore Sizes

In addition to the surface functional groups, pore sizes have also great influence on the thermal performances of silica-based composite PCMs (Feng et al., 2011; Kadoono and Ogura, 2014). To clarify the corresponding mechanisms, Zhang et al. (2018b) prepared three kinds of SiO₂ supporting materials (MCM-41, EP-diatomite, and LJ-diatomite) with different pore sizes for the encapsulation of paraffin (Figure 6A). MCM-41 has an ordered mesoporous structure with an average pore size of 2.56 nm and a relatively narrow pore size distribution. EP-diatomite has a hierarchical structure with an average pore size of 5.78 nm. LJ-diatomite has a hierarchical structure with an average pore size of 5.65 nm (Figure 6C). After paraffin was infiltrated into different SiO₂ supports, the result SiO₂-based composite PCMs have different thermal properties (Figure 6B). Especially, the free movement of paraffin molecules confined in MCM-41 is strong restricted because the pore size (2.56 nm) of MCM-41 is similar to the length (2.40 nm) of paraffin molecules. The interference of MCM-41 without interconnectivity with the crystallization limits the crystal alignment of paraffin molecules. As a result, the regularities of crystalline regions are reduced and the non-melting layer is increased, thereby reducing the crystallinity of paraffin in MCM-41. In contrast, for EP-diatomite and LJ-diatomite, the natural hierarchical larger pore is rather complex with interconnected and easy-to-access active sites. Therefore, the movement of paraffin molecules in EP-diatomite and LJ-diatomite is relatively free, thereby obtaining a relatively high crystallinity.

Figure 6.

Tailoring Chemistry of Pore Sizes

(A) Preparation scheme of MCM-41.

(B) Preparation scheme of SiO₂-based composite PCMs and schematic orientation of paraffin molecules in SiO₂.

(C) SEM images of MCM-41, EP-diatomite, and LJ-diatomite. Adapted with permission from (Zhang et al., 2018b). Copyright 2018, Elsevier.

Nomura et al. (2015) studied the effect of different pore sizes of SiO₂ on the thermal property of octadecane. The crystallinity and latent heat of the resultant SiO₂/octadecane composite PCMs are increased from 51.6% to 83.6% and from 98.5 J/g to 101 J/g with the increase of the pore size from 11.6 to 50  nm, respectively (Figure 7A). This is due to the formation of a non-melting interface layer in the tiny pore size, thereby reducing the radius of octadecane during the interfacial interactions (Zhang et al., 2018b). In addition, the hydrogen bonding between PCMs and SiO₂ can adjust the strength of the interfacial interactions, and thus affect the phase change behaviors. Wang et al. (2015) also systematically studied the influence of different pore sizes of SiO₂ on the thermal property of hexadecane, including SBA-15 (7.8 and 17.2 nm), controlled porous glass (CPG) (8.1 and 300 nm), carbon-coated SBA-15 (C-SBA-15, 15.6 nm), and KIT-6 (8.6 nm), as shown in Figure 7B. Surprisingly, hexadecane exhibits an only triclinic phase in CPG (300 nm), whereas hexadecane exhibits a stable or metastable rotator phase RI or RII in other SiO₂ (7.8–17.2 nm). These results indicate that the stabilization of the rotators is better in smaller pore (<20 nm) or with stronger pore surface interaction due to the substantial involvement of interface energy.

Figure 7.

Tailoring Chemistry of Pore Sizes

(A) Latent heat comparison in different pore sizes. Adapted with permission from (Nomura et al., 2015). Copyright 2015, Elsevier.

(B) Scheme of polymorphism of hexadecane in SBA-15, CPG, C-SBA-15, and KIT-6. Adapted with permission from (Wang et al., 2015). Copyright 2015, American Chemical Society.

(C) Scheme of different mesoporous materials (MCM-41, SBA-15, and MCF) and DSC curves.

(D) N₂ adsorption-desorption isotherms for MCF0.5, MCF1, and LA1-MCF0.5.

(E) Thermal performances of SBA-15-, MCF0.5-, and MCF1-based composite PCMs. Adapted with permission from (Mitran et al., 2015). Copyright 2015, American Chemical Society.

Similarly, Mitran et al. (2015) investigated the effect of different mesoporous SiO₂ (MCM-41 with 2.8 nm, SBA-15 with 6.3 nm, and two disordered mesocellular foams [MCF] with 27–34.9 nm spherical pore connected by 10.4- to 14.9-nm window) on the thermal properties of composite PCMs (Figure 7C). The results indicate that MCF-based composite PCMs have dual temperatures due to two melting or crystallization processes of lauric acid (LA) in the voids and on the external of SiO₂, respectively. To construct theoretical model of nanoconfined LA, the authors measured the specific surface area, pore volume, and pore size distribution of pristine silica. The BET (Brunner-Emmett-Teller) test (Figure 7D) reveals that LA molecules are preferentially adsorbed on the smaller window pore surface. These experimental results are in good agreement with the theoretical results (Figure 7E). DSC results illustrate that two melting peaks at 41.9°C and 31.7°C are detected in LA6-MCF0.5, corresponding the fusion heat of 104.8 and 17.1 J/g, respectively. Similarly, two crystallized peaks at 41.0°C and 14.0°C are detected in LA6-MCF0.5, corresponding to the solidification heat of 105.8 and 17.1 J/g, respectively.

Tailoring Chemistry of Dopants

In general, traditional SiO₂-based composite PCMs have relatively low thermal conductivity (Manoj Kumar et al., 2020). For instance, Ranjbar et al. (2020) prepared n-heptadecane-SiO₂ composite PCMs with a thermal conductivity of 0.28 W/mK for indoor temperature regulation in the buildings. To enhance the thermal conductivity, metal (Qian et al., 2015b), metal oxide (Tang et al., 2014b), and carbon materials (Tang et al., 2014a) are usually introduced into SiO₂-based composite PCMs. For instance, considering the high conductivity of Ag nanoparticles (AgNPs), Qian et al. (2015b) prepared AgNPs-decorated diatomite-based composite PCMs (Figures 8A and 8B). However, the pores of raw diatomite are usually blocked by several impurities, thereby reducing its porosity. To enlarge its pore size and specific surface area, a facile alkali-leaching method is used in this study. As a result, the large pore size is increased and the micropore size is reduced, thereby enlarging the specific surface area. The pore size distribution shows a similar narrow range of 5–10 nm. The spherical AgNPs with a diameter ranging from 3 to 10 nm are uniformly decorated onto diatomite (Figures 8C and 8D). After PEG is infiltrated into AgNPs-decorated diatomite, the maximum loading content of PEG is 63 wt %, which is 31% higher than that of the raw diatomite. The latent heat of PEG/diatomite/Ag is as high as 111.3 J/g, which is very close to the theoretical value of 113.6 J/g. The thermal conductivity of PEG/diatomite/Ag with 7.2 wt % Ag is 0.82 W/mK, which is 127% higher than that of PEG/diatomite (Figure 8A). Moreover, the supercooling degree of PEG/diatomite/Ag is reduced by 16.3% compared with pristine PEG due to the doped AgNPs. The composite PCMs also exhibit excellent thermal and chemical stability even after 200 melting/freezing cycles.

Figure 8.

Tailoring Chemistry of Dopants

(A) Preparation scheme of AgNPs-decorated diatomite.

(B) Preparation scheme of composite PCMs.

(C) TEM image of PEG/AgNPs-decorated diatomite composite PCMs.

(D) Energy-dispersive spectrometer (EDS) analysis of AgNPs-decorated diatomite. Adapted with permission from (Qian et al., 2015b). Copyright 2015, Royal Society of Chemistry.

Similar to Ag doping for the thermal conductivity enhancement of PEG/SiO₂ composite PCMs, Tang et al. (2012) in situ doped Cu into PEG/SiO₂ via in situ chemical reduction of the metal salt solution using an ultrasound-assisted sol-gel method (Figure 9A). The latent heat of PEG/SiO₂/Cu composite PCMs with 2.1 wt % Cu is 110 J/g, and the corresponding thermal conductivity is enhanced by 38.1% compared with pristine PEG. To further enhance the thermal conductivity of PEG/SiO₂ composite PCMs, Tang et al. (2014b) in situ doped Al₂O₃ into PEG/SiO₂ using an ultrasound-assisted sol-gel method (Figure 9B). The latent heat of PEG/SiO₂/Al₂O₃ composite PCMs with 3.3 wt % Al₂O₃ is 124 J/g, and the corresponding thermal conductivity is enhanced by 46.5% compared with pristine PEG. However, the enhancement effect of thermal conductivity for PEG/SiO₂ using doped Al₂O₃ and Cu is still very limited. To dramatically improve the thermal conductivity of PEG/SiO₂ composite PCMs, Liu et al. (2018b) in situ doped carbon fiber (CF) into PEG/SiO₂ through a sol-gel process. As a result, the latent heat of PEG/SiO₂/CF composite PCMs with 3 wt % CF is 142.6 J/g, and the corresponding thermal conductivity is enhanced by 164.7% compared with pristine PEG. Moreover, the thermal stability of PEG/SiO₂/CF composite PCMs is greatly improved to 340°C. Attractively, CF-doped PEG/SiO₂ composite PCMs exhibit high absorbability at almost all UV-visible wavebands. High light absorption endows PEG/SiO₂/CF composite PCMs high light-thermal energy conversion efficiency.

Figure 9.

Tailoring Chemistry of Dopants

(A) Doped Cu for thermal conductivity enhancement of PEG/SiO₂. Adapted with permission from (Tang et al., 2012). Copyright 2012, Elsevier.

(B) Doped Al₂O₃ for thermal conductivity enhancement of PEG/SiO₂. Adapted with permission from (Tang et al., 2014b). Copyright 2014, Elsevier.

(C) Doped CNTs for thermal conductivity enhancement of PEG/SiO₂.

(D) Scheme of light-thermal energy conversion and storage. Adapted with permission from (Tang et al., 2014a). Copyright 2014, Elsevier.

(E) Scheme of the hydrophilic-to-hydrophobic surface modification and carbonization process.

(F) Temperature-time curves of PCMs-impregnated compact block, carbonized PCMs-impregnated compact block, and PCMs-impregnated carbon compact block. Adapted with permission from (Huang et al., 2015). Copyright 2015, Royal Society of Chemistry.

In addition to the enhancement of thermal performances of SiO₂-based composite PCMs, advanced multifunctions also need to be developed. Based on this idea, Tang et al. (2017) in situ doped titanium black (Ti₄O₇) into PEG/SiO₂ using acid and alkali catalytic sol-gel method for light-thermal conversion and storage. Similarly, they introduced multiwall carbon nanotubes (MWCNTs) into PEG/SiO₂ using an ultrasound-assisted sol-gel method for light-thermal conversion and storage (Figures 9C and 9D) (Tang et al., 2014a). The thermal conductivity of PEG/SiO₂/MWCNTs is 0.46 W/mK, which is enhanced by 53.1% compared with pristine PEG. Importantly, the doped MWCNTs serve as an effective photon capturer and molecular heater of light-thermal energy conversion. Therefore, the resultant PEG/SiO₂/MWCNTs composite PCMs can realize highly efficient light-thermal energy conversion and storage (91.8%). Huang et al. (2015) carbonized the treated SiO₂ aerogel to get a hydrophobic framework with a blackened surface (Figure 9E). As a result, only the carbonized PCMs-impregnated SiO₂ aerogel exhibits superior light-thermal energy conversion and storage, compared with un-carbonized PCMs-impregnated block and PCMs-impregnated carbon block under the same solar illumination (Figure 9F). This carbonization strategy can significantly improve the thermal energy storage and release response to optimize the solar energy utilization allocation.

In summary, functional group types and pore sizes and doped additives have obvious influences on the thermophysical properties of porous SiO₂-based composite PCMs, such as latent heat, phase change temperature, thermal conductivity, and light-thermal conversion efficiency. The main reason is that the thermal movement behaviors of liquid PCMs molecules confined in the nanoporous space of SiO₂ are different from bulk PCMs in the free state. Therefore, not all porous SiO₂ is suitable for the encapsulation of PCMs. Although porous SiO₂-based composite PCMs have made great progress in the thermal energy storage and thermal conductivity regulation, more efforts are still needed to study how to further improve the comprehensive thermophysical properties of porous SiO₂-based composite PCMs. Regretfully, to date, what kind of porous SiO₂ is more suitable for the encapsulation PCMs is still inconclusive. This big challenge needs to be overcame experimentally and theoretically in the future.

Micro/Nano-encapsulated Silica-Based Composite PCMs

In addition to the aforementioned porous SiO₂ for the encapsulation of PCMs, microencapsulation and nanoencapsulation of PCMs are also considered as important packaging technologies and have been well developed in recent years (Jamekhorshid et al., 2014; Zhao and Zhang, 2011). By encapsulating PCMs into hermetically sealed mini containers, the resultant microencapsulated PCMs (MicroPCMs) and nanoencapsulated PCMs (NEPCMs) composed of PCM cores and supporting shells not only can maintain their macroscopic solid form during the solid-liquid phase change processes but also can provide enhanced performances or novel functions (Giro-Paloma et al., 2016). In terms of MicroPCMs and NEPCMs, selecting shell materials is of great importance (Fu et al., 2017; Wang et al., 2016a). According to chemical compositions, the supporting shells are classified into organic shells and inorganic shells. Traditionally, PCMs could be encapsulated into different organic shells through in situ polymerization (Su et al., 2006), interfacial polymerization (Cho et al., 2002), and suspension polymerization methods (Taguchi et al., 2007). These organic shells materials mainly include polystyrene (Sánchez et al., 2007), poly(methyl methacrylate) (Taguchi et al., 2007), melamine formaldehyde resin (Su et al., 2006) and polyuria formaldehyde resin (Brown et al., 2003).

However, MicroPCMs and NEPCMs with organic shells usually have some disadvantages, such as low thermal conductivity, low mechanical strength, serious supercooling, poor thermal and chemical stability, high flammability, and short lifespan (Delgado et al., 2012; Hyun et al., 2014). In this case, the encapsulation of PCMs into inorganic shells is booming. Undoubtedly, inorganic shells usually have much higher thermal conductivity, higher rigidity and mechanical strength, higher thermal and chemical stability, lower supercoiling and flammability, and longer lifespan compared with organic shells (Delgado et al., 2012; Qiu et al., 2015). Comparatively, SiO₂ is one of the most widely used organic shells due to its easy preparation and low cost. Moreover, it can be used for the encapsulation of water-soluble PCMs (Pethurajan et al., 2018; Wu et al., 2014, 2015) and oil-soluble PCMs (Zhu et al., 2015, 2016). The corresponding MicroPCMs and NEPCMs with inorganic SiO₂ shells are usually prepared through in situ polymerization or interfacial polycondensation in the sol-gel process (He et al., 2014; Liang et al., 2015; Zhang et al., 2011). However, single SiO₂ shell is usually unable to satisfy some special performance requirements. Therefore, hybrid shells containing SiO₂ shell and organic shells or other inorganic shells with some specific functions are good choices. They usually endure the enhanced performances or novel functions of MicroPCMs and NEPCMs, such as electromagnetic shielding (Jiang et al., 2014), electrochemical energy storage (Xu et al., 2018), and superhydrophobic (Sun et al., 2019), magnetic (Qian et al., 2019), fluorescent (Liu et al., 2018a), photocatalytic (Liu et al., 2018a) and antibacterial functions (Zhang et al., 2016). In this section, SiO₂-based MicroPCMs and NEPCMs with single shell and hybrid shells are systematically reviewed.

Tailoring Chemistry of Single Shell

Unlike inorganic PCMs with serious supercooling issue, organic PCMs generally do not suffer from serious supercooling. However, organic PCMs tend to supercool due to the lack of nuclei when they are encapsulated inside phase change capsules (Zahir et al., 2019). Undoubtedly, high supercooling degree will result in a low thermal response of composite PCMs and hinders their applications in advanced technological fields of precise temperature control. To solve this problem, Liu et al. (2019a) designed nanoencapsulated n-eicosane/SiO₂ using a self-templating strategy (Figure 10). The resultant NEPCMs exhibit superior thermal performances (high thermal storage capability of 99%, high shape stability, and thermal stability). High thermal storage capability indicates that this specific hierarchical nanostructure (internal meso-SiO₂ core and the external SiO₂ shell) can barely inhibit the crystallization of n-eicosane encapsulated in SiO₂. The thermal conductivity of NEPCMs is as high as 1.17 W/mK, whereas pristine n-eicosane has only 0.15 W/mK. This enhanced thermal conductivity is attributed to their internal meso-SiO₂ core and the external SiO₂ shell. This specific hierarchical structure can promote the thermal response and thermal transfer of NEPCMs during the heating and cooling processes. More importantly, the supercooling degree of NEPCMs has only 5.88°C (a decline rate of 24.5%) due to the abundant nucleation sites. This distinct decline rate is much higher than most of the reported microencapsulated n-eicosane (Belessiotis et al., 2018; Geng et al., 2016; He et al., 2015; Li et al., 2015; Liang et al., 2015; Liu et al., 2019b; Ma et al., 2018; Zhang et al., 2015). This unique core-shell structured NEPCMs design strategy provides convincing evidences for effective suppression of the supercooling degree of PCMs.

Figure 10.

Tailoring Chemistry of Single Shell

Preparation Scheme of n-Eicosane/SiO₂ MicroPCMs. Adapted with permission from (Liu et al., 2019a). Copyright 2019, Elsevier.

In addition to nanoencapsulated PCMs, Fredi et al. (2019a) prepared docosane-organosilica microcapsules and studied how the confinements affect the microstructural and thermal properties of the microcapsules. Li et al. (2013) prepared microencapsulated paraffin/SiO₂ through in situ emulsion interfacial hydrolysis and polycondensation (Figure 11A). The latent heat of MicroPCMs is only 45.5 J/g. Şahan and Paksoy (2018) prepared microencapsulated SA/SiO₂ using emulsion polymerization, in situ emulsion interfacial hydrolysis and polycondensation methods (Figure 11B). Scanning electron microscopic images show that MicroPCMs are uniformly distributed in the poly-methyl methacrylate matrix and maintain their spherical structure. However, the resultant MicroPCMs have only a latent heat of 5.0 J/g with an encapsulation efficiency of 10 wt %. To further enhance the thermal performances of MicroPCMs, Lin et al. (2019) prepared (graphene oxide) GO-modified SiO₂ shell by a sol-gel method and self-assembly process. The thermal conductivity of MicroPCMs is increased by 75% compared with pristine SA. The enhanced thermal conductivity is attributed to the synergistic effect between SiO₂ and GO. In addition, the synergistic effect between SiO₂ and GO can also reduce the supercooling degree of MicroPCMs. In addition to small molecule PCMs, Li et al. (2020) prepared polymer PEG/SiO₂ MicroPCMs (Figures 11C) with a latent heat of 164.9 J/g with a loading fraction of 97 wt %, which is very close to the pristine PEG's value (178.6 J/g).

Figure 11.

Tailoring Chemistry of Single Shell

(A) Preparation scheme of microencapsulated PCMs. Adapted with permission from (Li et al., 2013). Copyright 2013, American Chemical Society.

(B) Preparation scheme of microencapsulated PCMs. Adapted with permission from (Şahan and Paksoy, 2018). Copyright 2018, Elsevier.

(C) Preparation scheme of microencapsulated PCMs. Adapted with permission from (Li et al., 2020). Copyright 2020, Elsevier.

(D) Preparation scheme of microencapsulated PCMs.

(E) TEM images of microencapsulated PCMs.

(F) Selected area electron diffraction (SAED) pattern of microencapsulated PCMs.

(G) DSC curves of microencapsulated PCMs after 30 heating-cooling cycles. Adapted with permission from (Liu et al., 2019c). Copyright 2019, Elsevier.

Compared with organic PCMs, inorganic hydrated salts have many advantages, such as high thermal energy storage density, non-flammable, non-toxic, and low cost (Lin et al., 2018a; Milian et al., 2017; Mohamed et al., 2017). Liu et al. (2019c) designed sodium phosphate dodecahydrate (DSP)/SiO₂ MicroPCMs through interfacial polymerization and sol-gel method without any extra initiators (Figures 11D). In this MicroPCMs, crystalline Na₂HPO₄·12H₂O serves as the core, and tetraethoxysilane (TEOS) and (3-aminopropyl) triethoxysilane (APTES) serve as the SiO₂ precursors (Figures 11E and 11F). Reaction temperature and time would significantly affect the encapsulation efficiency of the MicroPCMs. When the core/shell ratio was 4:1, the resultant MicroPCMs have the highest encapsulation efficiency of 75.3 wt %, the highest melting enthalpy of 177.0 J/g, and the highest thermal conductivity of 0.50 W/mK. It is noteworthy that larger loading content of DSP core and more compact SiO₂ shell would result in a higher thermal conductivity of MicroPCMs because more voids in MicroPCMs are filled with hydrated salts with high thermal conductivity. In addition, the phase change enthalpies of the Na₂HPO₄·12H₂O/SiO₂ microcapsule after the 30th thermal cycle are still close to that of the microcapsule experiencing the 1st thermal cycle, indicating its good thermal reliability (Figure 11G).

In addition to conventional thermal energy storage function of MicroPCMs or NEPCMs, the introduced diverse inorganic materials with some specified physical or chemical functions can impart advanced other functions to the resultant MicroPCMs or NEPCMs. For instance, the incorporation of magnetic inorganic materials into MicroPCMs or NEPCMs can integrate electromagnetic shielding function. This is because magnetic materials can dissipate electromagnetic energy owing to the eddy current loss and magnetic loss caused by electromagnetic microwaves (Wang et al., 2013, 2014b). Based on this design idea, Jiang et al. (2016) developed dual-functional magnetic MicroPCMs containing PEG/Fe₃O₄ core and SiO₂ shell for the thermal regulating PI (polyimide) films and electromagnetic shielding (Figures 12A–12C). The magnetic MicroPCMs were prepared by reverse-phase interface polycondensation. The resultant magnetic MicroPCMs not only achieve high energy storage efficiency (98%) but also show a superparamagnetic nature. To confirm the electromagnetic shielding function, PI/magnetic MicroPCMs hybrid films with good interfacial adhesion and homogeneity were prepared by casting the poly(amic acid)/magnetic MicroPCMs mixtures onto glass plates followed by thermal imidization. Thermal gravimetric analyzer (TGA) and differential thermal analysis (DTA) curves indicate that the thermal stability of magnetic MicroPCMs is high enough for the hybrid films to endure the thermal imidization (Figure 12D). Interestingly, the hybrid films show slight magnetic hysteresis in the magnetic hysteresis traces (Figure 12E) compared with magnetic MicroPCMs because polyimide prevents the free rotation of easy magnetization axis of Fe₃O₄ nanoparticles (Sun et al., 2012; Zhang et al., 2015). Moreover, the reflection losses of hybrid films exhibit broadband and frequency-independent characteristics with a minimum absorption of 11.7 dB at 225 MHz and a maximum absorption of 41.2 dB at 1.29 GHz (Figure 12F), indicating that the hybrid films have a high electromagnetic shielding efficiency in the specified frequency bands. Evidently, Fe₃O₄ nanoparticles make a unique contribution to the electromagnetic shielding of the hybrid films. The electromagnetic shielding mechanism of the hybrid films is attributed to the magnetic loss derived from Fe₃O₄ nanoparticles (Bayat et al., 2014). The dual-functional PI-based hybrid films show potential applications for the manufacture of electronic devices with anti-interference and thermal regulation effectiveness.

Figure 12.

Tailoring Chemistry of Single Shell

(A) Preparation scheme of the magnetic MicroPCMs.

(B) SEM image of the magnetic MicroPCMs.

(C) Digital photographs of the aqueous suspension containing magnetic MicroPCMs before and after application of a magnetic field.

(D) TGA and DTA curves of pure PEG and magnetic MicroPCMs.

(E) Magnetic hysteresis loops of the PI/magnetic MicroPCMs hybrid films.

(F) Reflection loss as a function of test frequency for PI/magnetic MicroPCMs hybrid films. Adapted with permission from (Jiang et al., 2016). Copyright 2016, Elsevier.

Tailoring Chemistry of Hybrid Shells

Inorganic-Organic Hybrid Shells

Currently, MicroPCMs and NEPCMs with organic shells have been widely studied due to the excellent sealing tightness and structural flexibility. However, most of organic shells usually release poisonous gas in the application, thus causing environmental and health problems. Moreover, organic shells usually have low mechanical strength, low thermal conductivity, and flammability (Delgado et al., 2012; Hyun et al., 2014). Therefore, some attempts have recently been taken to encapsulate PCMs using appropriate inorganic shells because inorganic shell materials have much higher mechanical strength, rigidity, and thermal conductivity compared with organic shell materials (Delgado et al., 2012; Qiu et al., 2015). However, single inorganic shell has some disadvantages, such as poorer endurance and thermal stress (Jiang et al., 2014; Zhang et al., 2015). Therefore, to integrate the advantages of both organic and inorganic shell materials, organic-inorganic hybrid shell is a good solution. For instance, Wang et al. (2018b) prepared MicroPCMs containing n-octadecane core and polymer-SiO₂/TiC hybrid shell via a pickering emulsion polymerization method (Figure 13A). It can be found that hybrid shell has much smaller and more homogeneous size, which is adjustable through altering the particle concentration. The supercooling degree of MicroPCMs can also be effectively reduced by the addition of SiO₂ and TiC nanoparticles, which might be due to the increased thermal conductivity of MicroPCMs (Figure 13B).

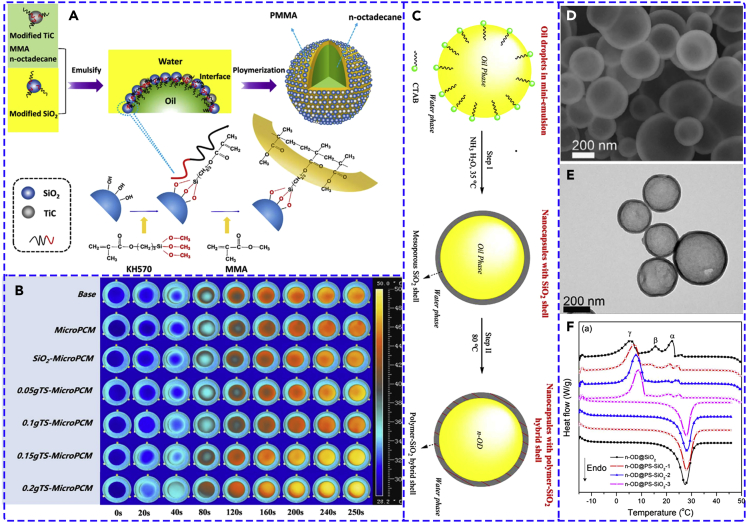

Figure 13.

Tailoring Chemistry of Hybrid Shells

(A) Preparation scheme of MicroPCMs with polymer-SiO₂/TiC hybrid shell.

(B) Thermal infrared images of MicroPCMs. Adapted with permission from (Wang et al., 2018b). Copyright 2018, Elsevier.

(C) Preparation scheme of nanoencapsulated n-octadecane with polymer-SiO₂ hybrid shell.

(D) SEM image of nanoencapsulated n-octadecane.

(E) TEM image of nanoencapsulated n-octadecane.

(F) DSC curves of the NEPCMs. Adapted with permission from (Zhu et al., 2018). Copyright 2018, Elsevier.

To further enhance the thermophysical performances, Fu et al. (2017) prepared one kind of NEPCMs with organic/inorganic hybrid shell via in situ miniemulsion polymerization of small droplets and sol-gel reaction of tetraethoxysilane. SiO₂ nanoparticles undergo hydrophobic modification. In the NEPCMs, polystyrene (PS) and SiO₂ serve as hybrid shell and n-tetradecane serves as core. The melting temperature and solidification temperature of NEPCMs are 2.13°C and 0.39°C, respectively. The fusion enthalpy and solidification enthalpy of NEPCMs are 83.38 and 79.37 J/g, respectively. These thermal results indicate that the resultant NEPCMs has a high thermal energy storage capacity in the low-temperature environment. It is noteworthy that SiO₂/PS hybrid shell can enhance the thermal stability and thermal conductivity (0.40 W/mK) of NEPCMs because SiO₂ particles are closely deposited on the PS shell. Similarly, Zhu et al. (2018) fabricated NEPCMs containing n-octadecane core and polymer-SiO₂ hybrid shell through interfacial hydrolysis-polycondensation of alkoxy silanes and radical polymerization of vinyl monomers (Figures 13C–13E). The polymer species have large effect on the supercooling degree of NEPCMs (Figure 13F). In addition to the enhanced thermal reliability, the compressive load at yield of NEPCMs is remarkably increased from 14.7 to 65.0 μN due to the particular design of poly(hydroxylethyl methacrylate)-SiO₂ hybrid shell.

Inorganic-Inorganic Hybrid Shells

In addition to organic-inorganic hybrid shell, inorganic-inorganic hybrid shell can also achieve unexpected performance enhancement or new functions. Li et al. (2018c) prepared MicroPCMs containing paraffin core and SiO₂/TiO₂ hybrid shell via a sol-gel method. The thermal conductivity of MicroPCMs is 11.63% higher than that of pristine paraffin. The latent heat of MicroPCMs is only decreased by 6.58% after 1,000 heating/cooling cycles. To further enhance the thermal conductivity, He et al. (2020) prepared NEPCMs containing D-mannitol core and SiO₂/GO hybrid shell via a sol-gel method. The resultant NEPCMs exhibit a high latent heat of 216.7 J/g. The thermal conductivity of NEPCMs is increased by 128.6% compared with pristine D-mannitol. To develop new functions of MicroPCMs, Zhang et al. (2018a) designed MicroPCMs containing paraffin core and SiO₂/Ti₄O₇ hybrid shell via a sol-gel method for light-thermal conversion and storage. The thermal conductivity of MicroPCMs is as high as 1.32 W/mK, which is improved by 334.87% compared with pristine paraffin. More importantly, MicroPCMs with 3 wt % Ti₄O₇ exhibit a high light-thermal conversion efficiency of 85.36% due to the outstanding optical absorption property of Ti₄O₇.

Xu et al. (2018) developed bifunctional MicroPCMs containing n-docosane core and MnO₂/SiO₂ hybrid shell via interfacial polycondensation and template-directed self-assembly for thermal and electrical energy storage. The nanoflake-like MnO₂ layer was constructed on the surface of SiO₂ shell. The resultant MicroPCMs exhibit a high latent heat of 175 J/g with an encapsulation efficiency of 63 wt %. Importantly, MicroPCMs exhibit a higher specific capacitance (312.2 F/g) than traditional MnO₂/SiO₂ solid particles (Hou et al., 2017; Munaiah et al., 2013; Yang et al., 2013; Zhang et al., 2014) when the operation temperature is higher than 45°C. This enhanced specific capacitance is attributed to the in situ thermal management of the n-docosane core. Moreover, MicroPCMs exhibit a superior long-term cycling stability with a high capacitance retention of 94.7% after 1,000 charging/discharging cycles due to the MnO₂ layer. Similarly, Hussain et al., (2018) developed bifunctional NEPCMs containing eutectic oleic acid (OA)-PEG core and SnO₂/SiO₂ hybrid shell via in situ emulsion interfacial hydrolysis and polycondensation for thermal and electrical energy storage (Figure 14A). The mild-flower-like SnO₂ layer was uniformly formed on the surface of SiO₂ shell. The resultant NEPCMs exhibit a melting temperature of 3.11°C and a latent heat of 58.79 J/g with an encapsulation efficiency of 52 wt %. The thermal conductivity and electrical conductivity of NEPCMs are 0.71 W/mK and 1.08 × 10⁻⁷ S/cm, respectively. The yield load and hardness of NEPCMs are 89.7 μN and 4.7 GPa, respectively. Importantly, NEPCMs exhibit a specific capacitance of 59.2 F/g. Therefore, these bifunctional MicroPCMs or NEPCMs are good candidates as electrode materials for supercapacitors and Li-ions battery cells.

Figure 14.

Tailoring Chemistry of Hybrid Shells

(A) Preparation scheme of OA-PEG/SiO₂/SnO₂ NEPCMs. Adapted with permission from (Hussain et al., 2018). Copyright 2018, Elsevier.

(B) Scheme of synthetic route and formation mechanisms of the microencapsulated n-docosane with a ower-like ZnO/SiO₂ hybrid shell.

(C) SEM of as-synthesized microcapsules.

(D) SEM of the microcapsules with a ower-like ZnO/SiO₂ shell.

(E) TEM of the microcapsules with a ower-like ZnO/SiO₂ shell.

(F) Plots of phase change parameters as a function of heating/cooling cycle number for the microcapsules with a flower-like ZnO/SiO₂ shell. Adapted with permission from (Sun et al., 2019). Copyright 2019, Elsevier.

In addition to thermal energy storage and electrochemical energy storage, Sun et al. (2019) further developed a novel type of bifunctional MicroPCMs containing n-docosane core and ZnO/SiO₂ hybrid shell through emulsion-templated interfacial polycondensation for thermal energy storage and superhydrophobic effectiveness (Figure 14B). The flower-like ZnO layer was formed on the surface of SiO₂ shell (Figures 14C–14E). The resultant MicroPCMs exhibit a high latent heat of 139 J/g with an encapsulation efficiency of 79.6 wt %, high phase change reliability, and long-term heating/cooling durability (Figure 14F). Importantly, MicroPCMs exhibit a superhydrophobic surface with a large water contact angle of 159.7° due to the formation of low-surface-energy aliphatic acid coating on the surface of ZnO layer, whereas ZnO layer cannot support superhydrophobicity of MicroPCMs due to large number of hydrophilic hydroxyl groups on the surface of ZnO layer. It is also worth noting that an adaptable aliphatic acid coating is very significant for the superhydrophobic surface of MicroPCMs and that excessive aliphatic acid may reduce the surface hydrophobicity of MicroPCMs. Therefore, these bifunctional MicroPCMs show a great application potential in thermal energy storage, self-cleaning, and antifouling coatings.

Although Fe₃O₄ nanoparticles have excellent magnetic property, they are easily oxidized and tend to aggregate together (Jiang et al., 2014). Considering these issues, Jiang et al. (2014) designed a novel type of bifunctional MicroPCMs containing n-eicosane core and Fe₃O₄/SiO₂ hybrid shell through interfacial polycondensation for thermal energy storage and magnetic effectiveness (Figures 15A and 15B). The SiO₂ shell can effectively protect the magnetic Fe₃O₄ domain from oxidation and aggregation. The resultant MicroPCMs exhibit a high latent heat of 170.2 J/g and high thermal reliability and stability due to the compact Fe₃O₄/SiO₂ hybrid shell. Importantly, MicroPCMs exhibit a superparamagnetism with extremely low magnetic retentivity and coercivity. The magnetization saturation of MicroPCMs is 3.42 emu/g (Figure 15C). This good magnetic performance can make the magnetic MicroPCMs respond quickly to the applied external magnetic field, and thus guarantee that they are subjected to rapid magnetic manipulation in practical applications. Moreover, the supercooling degree of MicroPCMs is suppressed effectively compared with pristine n-eicosane. This is because the nucleation barrier for n-eicosane core is reduced due to the heterogeneous nucleation of inner shell. Similarly, Qian et al., (2019) also designed magnetic MicroPCMs containing n-eicosane core and Fe₃O₄/SiO₂ hybrid shell using a sol-gel method (Figure 15D). The resultant magnetic MicroPCMs exhibit a high latent heat of 170.9 J/g and saturation magnetization of 3.70 emu/g. These bifunctional magnetic MicroPCMs can be considered as the intelligent coatings for temperature regulation, anti-radiation, anti-jamming, and electromagnetic-infrared double shielding.

Figure 15.

Tailoring Chemistry of Hybrid Shells

(A) Preparation scheme of the magnetic MicroPCMs with n-eicosane core and Fe3O4/SiO2 hybrid shell.

(B) SEM image of the magnetic MicroPCMs.

(C) Magnetic hysteresis loops of the magnetic MicroPCMs. Adapted with permission from (Jiang et al., 2014). Copyright 2014, Elsevier.

(D) Preparation scheme of MicroPCMs with n-eicosane core and Fe₃O₄/SiO₂ hybrid shell on wood surface. Adapted with permission from (Qian et al., 2019). Copyright 2019, Elsevier.

CdS, a semiconductor-type photocatalyst, not only has photocatalytic activity but also has fluorescent feature (Kaur et al., 2019; Ma et al., 2020b; Wang et al., 2019a; Zhen et al., 2018). Considering the dual features of CdS, Liu et al. (2018a) prepared one novel type of MicroPCMs containing n-eicosane core and SiO₂/CdS hybrid shell for solar photocatalysis and fluorescence emission (Figure 16A). First, the inner n-eicosane/SiO₂ was fabricated through the interfacial polycondensation of SiO₂ precursors, in which cetyltrimethylammonium bromide conducted the self-assembly of SiO₂ precursors. Then, the outer CdS layer was constructed on the surface of n-eicosane/SiO₂ MicroPCMs using an in situ precipitation method (Chai et al., 2015; Kosmulski and Science, 2002). Transmission electron microscopic images (Figures 16B and 16C) clearly exhibit the perfect core-double shell structure of MicroPCMs with a particle size ranging from 2 to 4 μm. TGA and DTA curves (Figure 16D) indicate that the maximum-rate pyrolysis temperatures of n-eicosane/SiO₂ and n-eicosane/SiO₂/CdS microcapsules are both improved due to the encapsulation of rigid inorganic shell. The thermal infrared images indicate that the resultant MicroPCMs have a good thermoregulatory capability. More importantly, CdS is a semiconductor-type photocatalyst and can be activated by visible light. Therefore, the n-eicosane/SiO₂/CdS exhibit a high photocatalytic activity (90%) of methylene blue under the natural sunlight illumination (Figure 16E). It is worth noting that the photocatalytic effectiveness strongly depends on the amount of CdS in the shell (Sudha and Sivakumar, 2015; Xu and Schoonen, 2000). Moreover, the n-eicosane/SiO₂/CdS also exhibit a fluorescent function (Figure 16F) due to the presence of outer CdS layer (Sudha and Sivakumar, 2015).

Figure 16.

Tailoring Chemistry of Hybrid Shells

(A) Preparation scheme of n-eicosane/SiO₂/CdS MicroPCMs.

(B) TEM image of n-eicosane/SiO₂ MicroPCMs.

(C) TEM image of n-eicosane/SiO₂/CdS MicroPCMs.

(D) TGA and DTA curves of MicroPCMs.

(E) Degradation rate plots of MicroPCMs.

(F) Photoluminescence emission spectra of MicroPCMs. Adapted with permission from (Liu et al., 2018a). Copyright 2018, Elsevier.

As is well known, silver (Ag) is a high electrically conductive metal with superior photocatalytic and antibacterial activity (Ma et al., 2020a; Panchal et al., 2020; Zhang et al., 2020a). Considering these features of silver, Zhang et al. (2016) developed a novel type of multifunctional MicroPCMs containing n-eicosane core and Ag/SiO₂ hybrid shell through interfacial polycondensation and silver reduction (Figure 17A). The resultant MicroPCMs have a perfect silver outer layer when the reaction time for reducing and depositing silver ions is set to 20 h. In addition to high LHS (155 J/g) and good thermal regulation capability, MicroPCMs have also a high electrical conductivity of 130 Ω·m. Therefore, the multifunctional MicroPCMs can be considered as conductive coatings to achieve anti-interference and cooling functions for central processing units and various memory chips. More importantly, MicroPCMs have high antimicrobial activities (Figures 17B–17F) against Bacillus subtilis (95.9%) and Staphylococcus aureus (99.1%) at a contact time of 4 h due to the perfect silver outer layer. Similarly, Wang et al. (2018a) also developed multifunctional MicroPCMs containing n-octadecane core and Ag/SiO₂ hybrid shell (Figure 17G). The resultant MicroPCMs also exhibit excellent thermoregulation and bactericidal properties, especially for Staphylococcus aureus. Benefiting from good sterilization and thermal regulation functions, MicroPCMs can also satisfy the special requirement for the multifunctional surgical bandages that need both antibacterial and cooling effects on the wounds to promote their healing (Nischala et al., 2011).

Figure 17.

Tailoring Chemistry of Hybrid Shells

(A) Preparation scheme of multifunctional MicroPCMs with n-eicosane core and Ag/SiO₂ hybrid shell.

(B) UV-visible spectra of MicroPCMs at different reaction time.

(C) Plots of the survival rates of different bacteria for MicroPCMs.

(D) Optical photographs of the Petri dishes loading Escherichia coli at different contact time.

(E) Optical photographs of the Petri dishes loading Staphylococcus aureus at different contact time.

(F) Optical photographs of the Petri dishes loading Bacillus subtilis at different contact time. Adapted with permission from (Zhang et al., 2016). Copyright 2016, Elsevier.

(G) Preparation scheme of Ag/SiO₂-MicroPCMs. Adapted with permission from (Wang et al., 2018a). Copyright 2018, Elsevier.

In summary, MicroPCMs and NEPCMs with single SiO₂ shell usually exhibit relatively insufficient thermal performances and lack some advanced new functions., whereas MicroPCMs and NEPCMs with hybrid shells (SiO₂-organic hybrid shell and SiO₂-inorganic hybrid shell) can effectively solve the aforementioned shortcomings. They usually exhibit better thermal performances and many new functions (including electromagnetic shielding, electrochemical energy storage, and superhydrophobic, magnetic, fluorescent, photocatalytic, and antibacterial functions). To further satisfy special function requirements in some special application scenarios, MicroPCMs and NEPCMs with more advanced functions need to be further developed in the future.

Conclusions and Future Prospects

This review provides state-of-the-art advances in SiO₂-based composite PCMs for thermal energy storage from the perspective of tailoring chemistry strategies. In this review, SiO₂-based composite PCMs are classified into porous shape-stabilized and micro/nano-encapsulated SiO₂-based composite PCMs according to the microstructures of SiO₂. In SiO₂-based composite PCMs, PCMs can complete heat storage and heat release by undergoing phase change, and SiO₂-based supporting materials can hinder the flow of liquid PCMs, thus maintaining solid state on a macroscopic scale. However, not all porous SiO₂ materials and SiO₂ microcapsules are suitable for the infiltration of PCMs. Because the physicochemical properties of SiO₂, including surface functional groups, pore sizes, dopants, single shell, and hybrid shells, inevitably influence the thermal performances and other functions of composite PCMs, including heat latent, phase change temperature, thermal conductivity, thermal stability, and shape stability. Especially, when SiO₂ is in the nanoscale, the resultant composite PCMs are much different from the bulk PCMs. Therefore, this review systematically summarizes and discusses the influences of surface functional groups, pore sizes, dopants, single shell, and hybrid shells on the thermal performances of SiO₂-based composite PCMs, aiming to provide in-depth insights into the relationships between structural designs and thermal properties and a better guide on the tailor-made construction of high-performance SiO₂-based composite PCMs.

In terms of porous SiO₂-based shape-stabilized composite PCMs, micropores generally stimulate stronger nanoconfinement effects on the thermophysical properties of PCMs in the molecular dynamics. The stronger nanoconfinement effects might significantly reduce the thermal energy storage density and latent heat of PCMs; even the latent heat is zero. However, relatively large macropores are usually insufficient to adsorb PCMs owing to the weak physical interactions between PCMs and macropores. Therefore, high thermal energy storage density is usually not available in the relatively large macropores. In addition, different surface functional groups of SiO₂ have significant effects on the thermal properties of composite PCMs. Suitable functional groups can significantly improve the thermal properties of SiO₂-based composite PCMs. On the contrary, unsuitable functional groups will reduce the thermal properties of SiO₂-based composite PCMs or even loss of thermal performances. In terms of micro/nano-encapsulated SiO₂-based composite PCMs, single SiO₂ shell is usually unable to satisfy some special functional requirements, whereas hybrid shells containing SiO₂ shell and organic shells or other inorganic shells with some specific functions can endure the enhanced thermal properties or novel functions of micro/nano-encapsulated SiO₂-based composite PCMs, such as electromagnetic shielding, electrochemical energy storage, and superhydrophobic, magnetic, fluorescent, photocatalytic, and antibacterial functions.

Although numerous significant advancements have been made in SiO₂-based composite PCMs, more efforts are still required to further regulate their thermophysical performances. Many promising aspects and challenges are worth further investigating and conquering on the development of high-performance SiO₂-based composite PCMs in the future. (1) Mutual matching relationships between functional group types of SiO₂ and different PCMs need further clarifications. (2) The mechanisms of the influences of different modified pores on the thermal properties of PCMs infiltrated in porous SiO₂ need more systematic explanations, including pores size, pore distribution, and pore shape. (3) Multi-scale investigation on thermal energy storage and thermal conductivity of SiO₂-based composite PCMs should be conducted based on theoretical, numerical, and experimental methods. (4) Thermal properties of porous SiO₂-based shape-stabilized composite PCMs should be further improved. (5) High-performance micro/nano-encapsulated SiO₂-based composite PCMs with other hybrid shells should be further developed. (6) Current researches mainly focus on SiO₂-based organic composite PCMs. Therefore, SiO₂-based inorganic composite PCMs need more researches and the corresponding supercooling degree should be further reduced. (7) Sol-gel method is a common way to prepare SiO₂-based composite PCMs, but the cost of raw materials is high. In this regard, natural SiO₂ serving as the supporting material is a more economical way to obtain SiO₂-based composite PCMs, such as diatomite. Preparation efficiency and cost should be considered to satisfy the demands of industrial applications. (8) Multifunctional SiO₂-based composite PCMs should be designed and optimized to satisfy the specific application requirements, including mechanical, optical, electrical, magnetic, and biological properties, etc., which is a very promising research topic in the future.
