Developmental Modulation of Root Cell Wall Architecture Confers Resistance to an Oomycete Pathogen

Summary

The cell wall is the primary interface between plant cells and their immediate environment and must balance multiple functionalities, including the regulation of growth, the entry of beneficial microbes, and protection against pathogens. Here, we demonstrate how API, a SCAR2 protein component of the SCAR/WAVE complex, controls the root cell wall architecture important for pathogenic oomycete and symbiotic bacterial interactions in legumes. A mutation in API results in root resistance to the pathogen Phytophthora palmivora and colonization defects by symbiotic rhizobia. Although api mutant plants do not exhibit significant overall growth and development defects, their root cells display delayed actin and endomembrane trafficking dynamics and selectively secrete less of the cell wall polysaccharide xyloglucan. Changes associated with a loss of API establish a cell wall architecture with altered biochemical properties that hinder P. palmivora infection progress. Thus, developmental stage-dependent modifications of the cell wall, driven by SCAR/WAVE, are important in balancing cell wall developmental functions and microbial invasion.

Graphical Abstract

Highlights

• •The SCAR protein API controls actin and endomembrane trafficking dynamics
• •SCAR proteins of several plant species can support symbiosis and pathogen infection
• •A mutation in API affects specific biochemical properties of plant cell walls
• •An altered wall architecture results in root resistance to Phytophthora palmivora

Subtly altered plant cell walls can be decisive for disease. Gavrin et al. show that the Medicago SCAR/WAVE complex protein API controls actin cytoskeleton dynamics in roots. Local changes associated with a loss of API establish a cell wall architecture with altered biochemical properties that hinder infection progress by an oomycete pathogen.

Introduction

The cell wall protects plant cells from microbial invasion while maintaining properties enabling growth and development. Cell wall structures and modifications, such as the waxy cuticle and lignification, provide mechanical barriers for entry attempts [1]. Additionally, reinforcement of the cell wall through the deposition of carbohydrates results in the formation of papilla structures at attempted penetration sites [2]. Despite these measures, adapted pathogens have evolved strategies to ensure their passage through the cell wall. This raises the important question to what extent selective plant cell wall architecture changes can result in pathogen resistance while maintaining other biologically important properties, such as normal growth [3].

Phytophthora palmivora belongs to a genus of aggressive hemibiotrophic pathogens causing diseases in many important tropical crops [4]. P. palmivora has a wide host spectrum and is able to infect root and leaf tissues of several plant species, ranging from liverworts [5] to monocotyledonous flowering plants [6] and including legumes widely used in symbiosis research [7]. During root infection, mobile P. palmivora zoospores accumulate just above the root cap [8], where they encyst and form germ tubes with terminal appressoria to penetrate the subapical root epidermis and rapidly colonize the root cortex. Entry is facilitated in part through localized secretion of plant-cell-wall-degrading enzymes [9]. In the cortex, P. palmivora grows mostly intercellularly and projects short specialized hyphae, termed haustoria, through the walls of individual living root cells, resulting in the invagination of their protoplast. This is followed by a necrotrophic stage, characterized by host tissue necrosis and the formation of sporangia, which release new zoospores for further infection [10]. Unlike pathogenic interactions where cell wall modifications may block microbial entry, symbiotic interactions rely on cell wall remodeling to guide microbial entry and facilitate the establishment of nutrient exchange interfaces [11]. Rhizobia infection of roots of model legumes, such as Medicago truncatula and Lotus japonicus, occurs via host-driven tubular tip-growing structures known as infection threads (ITs). These tubular structures are initiated within curled root hairs following a two-step process, which involves localized host cell wall remodeling before IT polar tip growth initiates and progresses along the root hair length [12]. Mutational analyses in M. truncatula and L. japonicus have revealed that targeted secretion of cell wall polysaccharides, local degradation of plant cell walls, and cytoskeleton rearrangements are required for normal initiation and progression of ITs [13, 14, 15, 16, 17, 18, 19].

Plant cell wall biosynthesis relies on cellular secretory processes and the cytoskeleton. Major structural components of the primary walls are cellulose, hemicelluloses, and pectins. The polysaccharides, remodeling proteins, and some biosynthetic machinery that generate the cell walls are delivered through endomembrane trafficking [20, 21]. Cellulose is synthesized at the plasma membrane by a membrane-deployed cellulose synthase complex, whereas hemicelluloses and pectins are synthesized in the Golgi by sequential modification of the side chains in the various Golgi cisternae. The transport of synthesized polysaccharides to the plasma membrane is generally considered to be mediated by the default exocytosis pathway [22]. Xyloglucan is the most abundant hemicellulose in the primary cell wall of angiosperms, where it binds to cellulose microfibers and may link them together [23]. Furthermore, xyloglucan is secreted by root cells into the surrounding soil, where it acts as an efficient soil aggregator [24].

Deposition of pectins and hemicelluloses at the cell wall is largely dependent on the dynamics of the actin cytoskeleton, which at a whole-cell spatial scale dictates the patterns of intracellular transport and secretion [22]. Therefore, actin filaments directly affect plant cell wall establishment and remodeling. The formation and maintenance of the actin network is largely dependent on actin-binding proteins and actin filament nucleators. In plants, formins and ARP2/3 (actin-related protein 2/3) are two important actin filament nucleators, which confer actin filament branching. The ARP2/3 complex, in its active conformation, nucleates actin filaments from the sides of an existing filament and initiates a daughter filament at a 70° angle [25]. Plant ARP2/3 activation relies solely on the heteromeric five-subunit SCAR/WAVE (suppressor of cyclic AMP [cAMP] Receptor/Wiskott-Aldrich syndrome protein-family Verprolin homologous protein) regulatory complex [26]. The SCAR/WAVE complex contributes to diverse processes and aspects of plant development, including asymmetric cell divisions and cell morphology [27, 28], trichome architecture, plant cell adhesive properties [29], root rigidity, cell-cell junction [30], and rhizobial infection thread progression [15, 16, 18].

SCAR proteins constitute core elements of the SCAR/WAVE complex. Their N-terminal SCAR homology domain (SHD) appears to regulate protein stability and their assembly into the SCAR/WAVE complex [31], although their C-terminal WCA/VCA (WA) domain is sufficient for ARP2/3 activation [32]. Arabidopsis encodes four SCARs, each with a similar domain organization [33]. Mutations in AtSCAR2 are sufficient to cause a mild distorted trichome phenotype [29, 34]. The overlapping expression patterns of the four Arabidopsis SCAR genes and the relatively weak phenotypes of scar2 mutant lines suggest potential functional redundancy among respective family members [35]. Although a role for SCAR/WAVE proteins has been reported in the context of plant symbiosis [16] and in pathogenic interactions in animals [36], their importance for plant-pathogen interactions has not been addressed.

To identify genetic components commonly required for the accommodation of pathogenic and symbiotic microbes, we carried out root oomycete infection assays on M. truncatula mutant seedlings affected in rhizobia-root colonization. We demonstrate that the Medicago API gene, as well as its L. japonicus and Arabidopsis orthologs, can control cell wall properties required for efficient Medicago root entry by the oomycete pathogen P. palmivora. API encodes a SCAR2 protein, a subunit of the plant SCAR/WAVE actin regulatory complex. Quantitative resistance to P. palmivora is likely attributable to a modified plant cell wall architecture, rather than an altered defense response transcriptome. We demonstrated impaired actin and endomembrane trafficking dynamics in api mutants, resulting in the distortion of secreted cell wall remodeling factors. This leads to changes in biochemical properties of root cell walls that likely impair pathogen root entry without affecting overall plant growth. Our work demonstrates that alterations in the cell wall architecture of specific root cells contribute to disease resistance during a compatible interaction without compromising root growth, offering a potential route to quantitative root resistance against Phytophthora.

Results

Plants Mutated in the SCAR2 Gene API Are Compromised in Root Entry of a Pathogenic Oomycete

When surveying mutants impaired in symbiosis [10] for their ability to resist pathogen infection, we found that seedling roots carrying the api (altered nodule primordia invasion) mutation [37] displayed significantly reduced disease symptoms upon infection with P. palmivora zoospores. Visual symptoms, pathogen biomass, and defense gene activation were reduced in the api mutant (Figures 1A–1C). Microscopic inspection revealed that P. palmivora infections were hindered at the root entry stage and infectious intraradical hyphae were shorter and less frequent in api compared to wild type (Figures 1D–1G). Reduced penetration was not isolate specific and was consistently observed with both the P. palmivora AJ-td strain from Indonesia as well as with LILI-td originating from Colombia, which also formed haustoria in api mutants (Figure S1A). At 4 days post inoculation (dpi), P. palmivora LILI-td produced significantly less sporangia on api mutants compared to wild type (Figures 1H and 1I). Taken together, these results indicate that the api mutant is compromised in P. palmivora colonization and sporulation.

Figure 1.

The M. truncatula api Mutant Is Resistant to Root Cellular Entry of the Pathogenic Oomycete P. palmivora

(A) Visual disease symptoms of API (wild-type) and api seedlings after root tip infection with P. palmivora AJ-td zoospores at 72 h post-inoculation (hpi). Red arrowheads mark the extent of infection symptoms toward hypocotyl (green arrowhead); scale bars, 1 cm.

(B) Scoring of visual disease symptom extent (symptom length/seedling length) of API (n = 58) and api (n = 48) plants inoculated with P. palmivora AJ-td at 72 hpi (error bars represent SEM; t test: ^∗∗∗p < 0.001).

(C) Quantification of the plant immunity marker MtGERMIN and P. palmivora biomass marker PpEf1α at 16 hpi by qRT-PCR using the 2^−ΔCp method and MtH3l as a reference gene (error bars represent SEM; n = 3, t test: ^∗p < 0.05).

(D) Epifluorescence microscopy of API and api seedlings at 12 hpi with P. palmivora AJ-td. Arrowheads indicate infections with intraradical growing hyphae. Asterisks indicate infections limited to the epidermis cell; scale bars, 100 μm. See also Figure S1A.

(E) Average length of all P. palmivora AJ-td intraradical hyphae per seedling at 12 hpi (seedlings analyzed: n = 10 per genotype; error bars represent SD; t test: ^∗∗p < 0.01).

(F) Total amount of infections at the stage of the epidermis cell penetration per seedling at 12 hpi (seedlings analyzed: n = 10 per genotype; error bars represent SD; t test: ^∗∗p < 0.01).

(G) Total amount of infections with intraradical hyphae per seedling at 12 hpi (seedlings analyzed: n = 10 per genotype; error bars represent SD; t test: ^∗∗p < 0.01).

(H) Epifluorescence microscopy of API and api seedlings at 4 dpi with P. palmivora LILI-td. Scale bars, 150 μm.

(I) Total amount of sporangia per seedling at 4 dpi (seedlings analyzed: n = 25 per genotype; error bars represent SD; t test: ^∗∗∗p < 0.001).

See also Figures S1 and S2.

The api mutant was initially reported as rhizobia-infection defective, resulting in the frequent development of non-invaded underdeveloped nodule primordia with large infection pockets and a reduced root hair length phenotype [37]. We confirmed the rhizobia-infection defective phenotype of api using fluorescently labeled Sinorhizobium meliloti bacteria. Overall, in our conditions, we found that 70% of api nodules are non-invaded outgrowths where bacteria accumulated in micro-colonies between cells of the root nodule primordia (Figure 2A).

Figure 2.

SCAR2-Related Proteins of Different Plant Species Can Support Rhizobia and P. palmivora Infection

(A) Microscopy of API and api nodules at 18 days post-inoculation (dpi) with GFP-expressing Sinorhizobium meliloti 2011 (plants analyzed: n = 20 per genotype; scale bars, 150 μm).

(B) Epifluorescence microscopy of root nodules in api hairy roots expressing Ub10:dsRed, Ub:LjSCARN, and Ub3:AtSCAR2. Asterisks indicate fully developed bacteria-filled nodules at 18 dpi; arrowheads indicate non-invaded outgrowths with arrested infection foci on top (green fluorescence); scale bars, 1 mm. See also Figure S3D.

(C) Quantification of the P. palmivora AJ-td biomass marker PpEf1α in wild-type L. japonicus Gifu and scarn-1 mutant by qRT-PCR using the 2^−ΔCp method and LjUBQ as a reference gene (error bars represent SD; biological replicates n = 3; t test: ^∗p < 0.05).

(D) Quantification of the P. palmivora LILI-YKDel biomass marker PpEf1α in API and api transgenic roots expressing 35S:GFP (controls) and api roots expressing Ub3:AtSCAR2 by qRT-PCR using the 2^−ΔCp method and MtUBQ as a reference gene (error bars represent SD; biological replicates n = 5; t test: ^∗p < 0.05).

See also Figures S2 and S3E.

To identify the genetic basis of the observed cell entry phenotypes, we combined Illumina sequencing of DNA from wild-type and mutant genotypes with transcriptome expression analyses (Data S1A). The previously genetically mapped target interval [37] was further narrowed down (Figure S1B). We identified a G2324A mutation in the SCAR2 protein-encoding gene MtrunA17_Chr4g0004861 (Medtr4g013235) that results in an early stop codon (Figure S1C). Transcript levels of MtrunA17_Chr4g0004861were attenuated in the mutant in both Affymetrix microarray data and quantitative reverse transcriptase PCR (qRT-PCR) analysis (Data S1A; Figure S2D). The gene encoded by MtrunA17_Chr4g0004861 was termed API in accordance with the previously described genetic locus [37]. In SCAR/WAVE complex mutants, leaf trichomes and overall development are frequently altered [15, 29, 38]. By contrast, we did not observe any changes in overall development, seed production, or trichomes between wild-type and api mutants besides the reduced root hair length (Figures S1E–S1H), and previously reported leaf chlorosis and reduced root growth were attributed to a reduced nitrogen fixing ability [37]. Microscopic investigation of sectioned and toluidine-blue-stained roots suggests that api mutants overall display a normal cellular architecture. In only 4 of 30 investigated roots, we observed small groups of cells with altered organization, which, however, did not impact on overall root development (Figures S1I–S1P).

Expression of the API gene in transgenic roots of api under Ubiquitin 3 (Ub3) promoter or a 3.5-kb upstream sequence restored root hair length, wild-type frequencies of bacterial-colonized nodules, and full susceptibility to P. palmivora root infection as measured by pathogen biomass, respectively (Figures S2A–S2I). To obtain independent evidence for the role of API in P. palmivora infection, we used a hairpin RNAi construct targeting the 3′ UTR of MtrunA17_Chr4g0004861 (hpAPI) to attenuate API transcript levels in wild-type roots. Roots expressing the hpAPI construct displayed the shorter root hair phenotype (Figures S2J and S2K), in contrast to control roots expressing a construct targeting the non-existent uidA gene (hpuidA). We further confirmed that hpAPI-expressing transgenic roots infected with P. palmivora showed a significant reduction in API transcripts concomitantly with a reduction of P. palmivora biomass markers (Figure S2L). Taken together, the data demonstrate that the SCAR2 protein API is required for efficient colonization of M. truncatula by the filamentous pathogen P. palmivora and symbiotic rhizobia and api plants do not display altered overall plant development.

SCAR2 Functionality Is Maintained in Different Plant Species

API belongs to a small family of SCAR-related proteins found across plant species (Figure S3A). The L. japonicus API ortholog LjSCARN has been proposed to function in nodulation [16]. However, when expressed under ubiquitin- or epidermis-specific EXPA7 promoter [39] in roots of composite plants, SCARN can complement all M. truncatula api mutant root phenotypes (Figures 2B, S3B, and S3C), suggesting that SCARN’s functionality is not restricted to root nodulation but is also involved in an oomycete pathogen interaction. In support, L. japonicus scarn-1 mutants were also more resistant to P. palmivora root infection (Figure 2C). Furthermore, ubiquitin-promoter-driven expression of AtSCAR2, the closest homolog of API from Arabidopsis, was also able to complement all api mutant phenotypes (Figures 2B, 2D, S3D, and S3E). Therefore, SCAR2-related proteins of different plant species can support rhizobia and P. palmivora infection in M. truncatula as well as in L. japonicus.

API and Its Homologs Are More Strongly Expressed in Root Meristems and Nodule Primordia Tissues

We investigated the expression patterns of API and its close homologs HAPI1 (homolog of API 1) and HAPI2 in transgenic roots of Medicago composite plants by examining the activity of transcriptional 2-kb-promoter fusions to GUS (β-glucuronidase) or a nuclear localized mTFP (monomeric teal fluorescent protein) and by employing qRT-PCR. GUS activity was mainly detectable in the meristematic root tip region, in root hairs, and in dividing cells of nodule primordia (Figures 3A and 3F). The mTFP reporter confirmed this expression in the root tips and nodule primordia (Figures 3C and 3E) as well as in root epidermal cells and root hairs (Figures 3B and 3D). At that stage, we could not detect significantly elevated levels of GUS activity associated with infection thread progression or at sites of P. palmivora infection. Instead, GUS and mTFP signals appeared weaker in pathogen-infected roots (Figures 3E and 3F). However, qRT-PCR did not show a statistically significant reduction. API transcript levels remained unaltered during P. palmivora infection (Figure 3G) but increased over time during nodule primordia development (Figure 3H). HAPI1 and HAPI2 showed similar expression patterns in infected and non-infected roots as well as in young developing nodule primordia (Figures 3G, 3H, and S4). In the api mutant background, we did not detect compensating higher transcript levels of HAPI1 and HAPI2 (Figure 3G). Together, these data suggest that Medicago SCAR genes are not induced upon early P. palmivora infection and their upregulation during nodule development is likely attributable to cell division activity of nodule primordia rather than linked to infection thread progression in the cortex.

Figure 3.

SCAR Genes Are Preferentially Expressed in Root Meristems and Nodule Primordia

(A) GUS staining of uninfected transgenic Medicago roots expressing a pAPI:GUS reporter.

(B–D) Expression of a pAPI:NLS:mTFP reporter in epidermal cells of the maturation zone (B), meristem and elongation zone (C), and a root hair cell (D).

(E) Medicago roots expressing a pAPI:NLS:mTFP reporter at mock, 24 h upon P. palmivora LILI-YKDel infection, and 4 days post-inoculation with GFP expressing S. meliloti. Open arrowhead indicates dividing cells of a nodule primordium; closed arrowhead indicates an infection thread.

(F) GUS staining of transgenic Medicago roots expressing pAPI:GUS reporter at mock, 24 h upon P. palmivora LILI-YKDel infection, and 4 days post-inoculation with GFP expressing S. meliloti. Open arrowhead indicates dividing cells of a nodule primordia; closed arrowhead indicates an infection thread.

(G) Transcript levels of API, HAPI1, and HAPI2 genes upon P. palmivora AJ-td inoculation in API and api background. qRT-PCR was analyzed using 2^−ΔCp method and MtUBQ as a reference gene (error bars represent SD; biological replicates n = 3; t test: ^∗p < 0.05).

(H) Transcript levels of API, HAPI1, and HAPI2 genes at early stages of root nodule development in wild-type background. qRT-PCR was analyzed using 2^−ΔCp method and MtUBQ as a reference gene (error bars represent SD; biological replicates n = 3; one-way ANOVA with post hoc Tukey HSD test p < 0.05).

See also Figures S4 and S5 and Data S1 and S2.

Induced Responses to Pathogen Infection Are Unaltered in api Mutants despite Impaired Actin Dynamics

We next addressed whether api mutants display an altered transcriptional response to P. palmivora infection. Microarray experiments indicated only minor changes in transcript levels between uninfected wild-type and mutant seedlings: just 44 of the 50,900 probes hybridized differentially to 32 assignable transcripts (log2FC > 1; Data S1A; Figure S5A). This indicates that the api mutation does not lead to massive constitutive deregulation of the transcriptome. Just a single probe matching a putative transcript of the Mapman biotic stress category [40] was differentially expressed with a log2FC = 1.05, illustrating an absence of a constitutively heightened defense response. Infection by P. palmivora AJ-td deregulated a more significant set of transcripts (Data S1B). However, the infection resulted in similar overall transcriptome dynamics when comparing wild-type and api seedlings (Figure S5B) with just 65 differential probes between both genotypes, four of them assigned to “biotic stress” genes (Data S1C).

Overall similar microarray gene expression profiles were further confirmed by qRT-PCR analysis, and similar levels of previously published pathogen-induced transcripts PRX, GLP, LOX, and THA [41, 42] were quantified in both mutant and wild-type contexts (Figure S5C; Data S2).

Because SCAR2 proteins have been reported to regulate actin processes [35], we assessed whether actin responses were affected in the api mutant background upon microbial infection. Confocal fluorescence microscopy of wild-type and api mutant roots expressing the ABD2-YFP (actin binding domain2-yellow fluorescent protein) actin reporter did not reveal changes in density and bundling of actin in cortical cells of root areas targeted by P. palmivora (Figures S5D–S5F). P. palmivora penetration sites of api and wild-type seedlings showed similar levels of closely positioned plant nuclei (Figure S5G), indicating no significant impairment of actin-mediated nuclear repositioning in api. Furthermore, no difference in actin bundle distribution was observed in developing root nodules of both wild-type and mutant plants (Figure S5H).

However, api mutants are quantitatively impaired in actin dynamics in epidermal and cortical cells of the root elongation zone (Figure 4). This is revealed by consecutive time-lapse images showing a higher correlation coefficient and a lower pixel difference in api mutants than in API wild type (Figures 4A and 4B). Importantly, api mutants still retained the ability for dynamic actin changes compared to roots treated with the inhibitor MBS (m-maleimidobenzoyl-N-hydroxysuccinimide ester), and actin dynamics upon P. palmivora infection are not different between api and wild type (Figure 4B). Taken together, although transcriptomic changes associated to defense responses were similar in wild-type and api roots, api mutants display impaired actin dynamics but remain unaltered in actin network density and bundling.

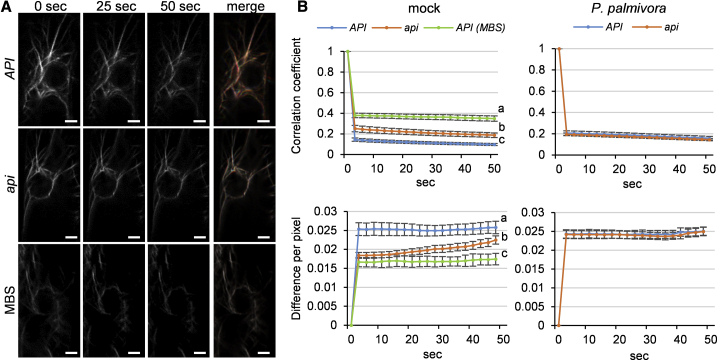

Figure 4.

The Elongation Zone of api Roots Displays Impaired Actin Dynamics

(A) Representative images from a single focal plane time-lapse series at 2.5-s intervals of API and api hairy root epidermal cells expressing YFP-ABD2 actin reporter. The merged image (far-right column) shows all three time points as separate color channels in a red, green, and blue (RGB) image. MBS-treated cells exhibit very minor changes in actin filament organization over the time course analyzed, and this is represented by an almost completely white overlay in the merged image. Scale bars represent 3 μm.

(B) Quantification of actin dynamics in API and api background upon infection with P. palmivora and mock conditions using two independent methods: total differences per pixel and correlation coefficient (ten transgenic roots were analyzed for each condition; cells analyzed: mock n_API = 27, n_api = 26; infected n_API = 23, n_api = 41; error bars represent SE; two-way ANOVA with post hoc Tukey HSD test p < 0.05).

See also Figure S5.

API Controls Endomembrane Trafficking to Establish Cell Wall Properties Compatible with Infection Processes

To investigate whether altered actin dynamics in api result in quantitative differences in secretory processes, we monitored how fast the plasma membrane integral aquaporin PIP1-GFP fusion is redeployed after photobleaching (Figure 5A). The recovery of PIP1-GFP fluorescence after photobleaching was significantly reduced in cells of division and elongation zones of api roots, but no difference was observed in generally slower recovering mature root cells (Figures 5B–5E). This suggests that altered endomembrane dynamics are restricted to those root tissues that display pronounced activity. We subsequently monitored brefeldin-A (BFA)-induced BFA-body formation in the outer cortex of api root elongation zones over time using a GFP secretion reporter system [43]. These analyses revealed that accumulation of GFP-labeled endomembrane compartments into a BFA body was delayed in api, resulting in the formation of small BFA bodies (Figures S6A and S6B). This delay was not caused by differences in general chemical permeability between wild-type and api mutants (Figure S6A).

Figure 5.

api Mutants Display Delayed PIP1 Plasma Membrane Protein Recovery and Reduced Secretion of Xyloglucan

(A) Fluorescence recovery after photobleaching within 40 min measured in inner root cells of elongation and maturation zones of API and api transgenic roots expressing Ub3:PIP1-GFP.

(B and C) Fluorescence recovery kinetics of PIP1-GFP in API (B) and api (C) transgenic roots (API: n_{root tip} = 11, n_{mature root} = 11; R²_{root tip} = 0.95, R²_{mature root} = 0.97; api: n_{root tip} = 12, n_{mature root} = 10; R²_{root tip} = 0.95, R²_{mature root} = 0.99).

(D) Quantification of the mobile fraction contributing to fluorescence recovery of PIP1-GFP at the membrane measured in different root areas of API and api transgenic roots expressing Ub3:PIP1-GFP (error bars represent SE; number of FRAP: root tip n_API = 11, n_api = 12; mature root n_API = 11, n_api = 10).

(E) Quantification of the halftime of recovery in different root areas of API and api transgenic roots expressing Ub3:PIP1-GFP (error bars represent SE; number of FRAP root tip n_API = 11, n_api = 12; mature root n_API = 11, n_api = 10; t test: ^∗p < 0.05).

(F) Immunodetection of xyloglucan (LM25) secretion from plant surfaces. Bright-field image of API and api seedlings grown on agar solid media superimposed with the nitrocellulose print of the solid media surface after removal of seedlings is shown, which was then probed with LM25 antibodies (n = 10 per genotype). See also Figure S6C.

(G) Quantification of LM25 antibody signal (error bars represent SD; biological replicates n = 4 per genotype; t test: ^∗∗∗p < 0.001).

(H) Quantification of the P. palmivora biomass in xyloglucan-treated infected seedlings by qRT-PCR using the 2^−ΔCp method and MtUBQ as a reference gene (error bars represent SE; biological replicates n = 3; one-way ANOVA with post hoc Tukey HSD test p < 0.05).

We then tested whether the delayed endomembrane dynamics in api may affect the secretion of specific cell wall components. An immunoblot of root secretions probed with monoclonal antibodies (mAbs) toward specific cell wall components indicated a reduction in secreted xyloglucans in api mutants relative to wild-type API controls, as detected by the xyloglucan-specific antibody LM25 (Figures 5F and 5G). In contrast, no differences were observed when using antibodies toward pectic polysaccharides of homogalacturonan (via LM19) or RG-I (via LM5, LM26, and LM6-M; Figure S6C). These results suggest a role for SCAR2 proteins in cell wall xyloglucan secretion. Nevertheless, the external application of xyloglucans to api seedlings did not restore susceptibility to P. palmivora (Figure 5H). Taken together, api roots display delayed endomembrane compartment trafficking and altered selective secretion of root cell wall components.

We next addressed whether api root cell walls exhibited altered polysaccharide composition. Wall extracts from three developmental zones of seedling roots (regions I to III in Figure 6) were analyzed via enzyme-linked immunosorbent assay (ELISA) using a range of mAbs toward cell wall polysaccharides (see STAR Methods). No alteration in composition or abundance of any of the tested cell wall components was detected within fractions extracted with calcium chelating (CDTA) and alkaline buffers (KOH), and in support, immunolocalization of different epitopes in cross sections did not reveal any conspicuous differences (Figures 6 and S7). However, solubilization of the cellulose microfibrils and their tightly associated polysaccharides as a cellulose-associated fraction (CAF) [44] revealed an api-specific reduction of epitopes recognized by mAbs toward xyloglucans (LM15 and LM25), RG-I (LM5 and LM26), and homogalacturonan (LM19) in the specific zones I and II comprising meristematic, elongation, and root hair differentiation zones of the root (Figure 6). This transient decrease in detectable cellulose-associated pectin and xyloglucan in the api mutants suggests an alteration in the cell wall architecture in root zones where the preferential colonization by P. palmivora takes place.

Figure 6.

Cell Walls of api Display Altered Biochemical Properties

ELISA analysis of cell wall polysaccharides extracted sequentially with CDTA, KOH, and cellulase treatment yielding the cellulose-associated fraction (CAF) from three root developmental zones: comprising (I) the root meristem and elongation zone; (II) the root hair differentiation zone; and (III) the mature root zone of API and api roots (error bars represent SD; biological replicates n = 3; t test: ^∗p < 0.05). See also Figure S7.

Our data collectively revealed significant differences in actin dynamics, endomembrane secretion processes, cell wall biochemistry, and architecture in api mutants relative to wild-type Medicago plants. To specifically assess the contribution of altered cell wall properties rather than actin dynamics, endomembrane trafficking, and secretion processes to the pathogen phenotype, we infected seedlings that were chemically inactivated using chloroform treatment. At 20 h post-application of spores, P. palmivora hyphae colonizing these dead seedlings were shorter in api mutants compared to wild type (Figure 7). Thus, P. palmivora colonization of api root tissues is impaired even if these tissues are dead. This suggests that API mediates establishment of a preformed cell wall architecture that supports full seedling colonization by this oomycete. By contrast, api mutants present a subtly altered cell wall architecture that is quantitatively more resistant.

Figure 7.

P. palmivora Infection of Chloroform-Treated API and api Plants

(A) Epifluorescence microscopy of chloroform-treated API and api seedlings 20 hpi after inoculation with P. palmivora LILI-td. Arrowheads indicate intraradical growing hyphae; scale bars, 100 μm.

(B) Average length of P. palmivora LILI-td intraradical hyphae per seedling (error bars represent SD; seedlings analyzed: n = 14 per genotype; t test: ^∗∗p < 0.01).

Discussion

We have identified a premature stop codon mutation in the SCAR2-protein-encoding gene API as being responsible for increased quantitative resistance to P. palmivora root infection through the modulation of cell wall properties relevant for infection. A L. japonicus SCARN gene mutation has previously been found to alter root hair length and to impair rhizobia infection during root nodule symbiosis in L. japonicus. On the basis of phylogenetic analyses, the authors had suggested that SCARN may have arisen from a gene duplication and acquired specialized functions in root nodule symbiosis [16]. We demonstrate here that SCAR2-mediated phenotypes in M. truncatula and L. japonicus are not limited to nitrogen fixing symbiosis but also impact root susceptibility to an oomycete pathogen. Therefore, API constitutes a gene commonly contributing to symbiotic and pathogenic microbe colonization in different plants. Furthermore, we showed that ectopic expression of Arabidopsis SCAR2 was able to complement all observed api mutant phenotypes, suggesting that legumes have not evolved additional functionality for SCAR2 proteins during rhizobial colonization.

Notably, mutation of RIT (required for infection thread), encoding the core SCAR/WAVE complex component NAP1 (Nck-Associated Protein 1), results in an arrest of rhizobia infection threads at earlier stages of colonization and visible changes in aboveground trichome development in M. truncatula [15]. By contrast, api mutants did not display such dramatic developmental defects (Figures S1E and S1F). Although infection threads are partially defective in api, they can still initiate and progress through root hairs [37], even though nodule primordia colonization is strongly impaired. It is tempting to speculate that different members of the SCAR family integrate into different SCAR/WAVE complexes consisting of the other components, including NAP1, and therefore, loss of function of a single SCAR gene only impairs a subset of cell processes. API is stronger expressed in root meristems, and PIP1-GFP recovery after photobleaching was faster in these tissues. It is plausible that API may contribute more in tissues with a higher demand in cytoskeleton-mediated trafficking processes.

SCAR/WAVE mutants often display very specific and restricted phenotypes, such as trichome changes [29] or root hair length (Figure S2F), and higher order Arabidopsis SCAR/WAVE gene mutants are not massively impaired in all development processes [35]. Cell morphological changes in api are limited to shorter root hairs and rare events of altered cell groups (Figure S1). It is likely that overall root development is thus maintained through the activity of remaining API homologs as well as other actin regulators. Future work will aim at elucidating whether and how different SCAR proteins confer specific functions in plant-microbe interactions as well as growth and development in specific tissues. An alternative, albeit less likely, possibility for the absence of any dramatic developmental defects in api could be its residual transcript levels (Figure S1D). Nonetheless, this would result in the expression of a truncated protein lacking the essential C-terminal domains that confer the link to the ARP2/3 complex.

Previous studies have highlighted the potential role of cell-wall components to support pathogen infection [3], but the underlying mechanisms remain to be clarified. We demonstrated that the cellulose-associated fractions of api root meristematic, elongation, and differentiation zones display reduced levels of detectable epitopes of xyloglucan (LM15 and LM25), RG-I (LM5 and LM26), and homogalacturonan (LM19). A reduction of these polysaccharides in the cellulose-associated fraction of api suggests an altered cell wall architecture in these particular root zones. Reduced tethering of xyloglucan and pectic carbohydrates during synthesis of cellulose microfibrils is expected to alter the wall’s rheological behavior [45] and influence pathogen penetration. The defective incorporation of non-cellulosic polysaccharides into cellulose microfibrils in api is likely caused by changes in cytoskeleton-mediated endomembrane compartment dynamics, as visualized through impaired actin dynamics and delayed membrane protein delivery, as well as delayed BFA body formation (Figures 4, 5, and S6). This likely impacts on the secretory compartment system for delivering cell wall pectins, xyloglucans, and associated remodeling enzymes. Therefore, our data support a link between API SCAR/WAVE protein-mediated actin cytoskeleton rearrangements, secretory processes, and the extracellular matrix/cell wall composition, ultimately affecting microbial entry at root elongation and differentiation zones.

SCAR genes are expressed constitutively during infection, but the activity of promoter reporter gene fusions was higher in actively dividing tissues of the root tip and nodule primordia (Figure 3). These actively dividing tissues have a high demand for cell wall material deployment. It is therefore reasonable that a mutation in api has a stronger impact in these tissues. Delayed endomembrane dynamics in api roots lead to an extended area with altered cell wall properties compared to wild type (Figure 6), reaching into the root hair emergence zone, where rhizobial symbiotic colonization takes place. Importantly, P. palmivora zoospores preferentially accumulate at root elongation zones [43, 46], where api mutants display altered cell wall properties. It is tempting to speculate that microbial infections in mature root sections remain unaltered, contributing to the quantitative nature of the phenotype. Consistently, no significantly altered arbuscular mycorrhizal fungal symbiosis was observed in api mutants [37]. A benefit of such developmental stage-specific resistance is that plants are resilient to pathogens targeting this specific region, such as P. palmivora, without being impaired in their overall root system, shoot size, and seed production. Reported plant resistance strategies against P. palmivora include the expression of pathogenicity-related genes and antimicrobial secondary metabolites [47]. Furthermore, a diversity panel survey in M. truncatula failed to identify completely resistant accessions. Instead, polymorphisms near RAD1 were correlated with the extent of root disease symptoms [8]. These works and our study highlight the importance of quantitative disease resistance in the control of this pathogen.

STAR★Methods

Key Resources Table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
LM5 Rat monoclonal	[48]	N/A
LM6 Rat monoclonal	[49]	N/A
LM11 Rat monoclonal	[50]	N/A
LM15 Rat monoclonal	[51]	N/A
LM16 Rat monoclonal	[52]	N/A
LM19 Rat monoclonal	[52]	N/A
LM20 Rat monoclonal	[52]	N/A
LM23 Rat monoclonal	[53]	N/A
LM24 Rat monoclonal	[53]	N/A
LM25 Rat monoclonal	[53]	N/A
LM26 Rat monoclonal	[44]	N/A
Rat IgG (whole molecule)-Peroxidase antibody produced in rabbit	Sigma-Aldrich	Cat# A9542; RRID:AB_258456
Rat IgG (whole molecule)-FITC antibody produced in rabbit	Sigma-Aldrich	Cat# F1763; RRID:AB_259443
Bacterial and Virus Strains
Agrobacterium rhizogenes arqua 1	Lab stocks	N/A
Agrobacterium rhizogenes AR1193	Lab stocks	N/A
E. coli TOP10 Chemically Competent	C404010	N/A
Sinorhizobium meliloti 2011	[54]	N/A
Chemicals, Peptides, and Recombinant Proteins
Brefeldin A	Sigma-Aldrich	Cat# B6542
m-maleimidobenzoyl-N-hydroxylsuccinimide ester	Thermo Scientific	Cat# 22311
Deposited Data
Microarray data	http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE65903	GSE65903
Sequencing data	http://www.ddbj.nig.ac.jp	DRA003037
Sequencing data	https://www.ncbi.nlm.nih.gov/sra	SRR8468999
Sequencing data	Bioproject	PRJNA516327
Experimental Models: Organisms/Strains
Medicago truncatula Jemalong A17	Lab stocks	N/A
M. truncatula Jemalong A17 api EMS mutant line	[37]	N/A
Lotus japonicus Gifu B-129	[16]	N/A
L. japonicus scarn-1 EMS mutant line	[16]	N/A
Phytophthora palmivora AJ-td	Lab stocks	N/A
Phytophthora palmivora LILI-td	Lab stocks	N/A
Phytophthora palmivora LILI-YKDel	Lab stocks	N/A
Oligonucleotides
Primers for plasmid construction see Table S1	Eurofins	N/A
Recombinant DNA
pUB-GW-GFP-pUb:SCARN	[16]	N/A
pUB-GW-GFP-pEp:SCARN	[16]	N/A
pUC57-API	GENEWIZ	N/A
pENTR:pAPI	This paper	N/A
pENTR:pHAPI1	This paper	N/A
pENTR:pHAPI2	This paper	N/A
pENTR:AtSCAR2	This paper	N/A
pKGW-MGW-pAPI:API	This paper	N/A
pKGW-MGW-pUb:API	This paper	N/A
pKGW-MGW-pUb:AtSCAR2	This paper	N/A
pK7GWIWG2-35S:hpAPI	This paper	N/A
pKGW-GGRR-pHAPI1:GUS	This paper	N/A
pKGW-GGRR-pHAPI2:GUS	This paper	N/A
pKGW-MGW-pAPI:NLS:mTFP	This paper	N/A
pKGW-MGW-pAPI:GUS	This paper	N/A
pCAMBIA1300-35S:YFP-ABD2	This paper	N/A
pK7WGF2-pUb:SPpr1-GFP	[43]	N/A
pKGW-MGW-pUb:PIP1-GFP	This paper	N/A
Software and Algorithms
MATLAB function corr2	[55]	N/A
Actin_difference_maps	This paper	N/A
Actin_skewness-and-occupancy	This paper	N/A
Microsoft Excel	Microsoft Office	N/A
AxioVision SE64 Rel. 4.9.1	N/A	N/A
RStudio Version 1.0.44	https://www.rsudio.com	N/A
R 3.0.2	https://www.r-project.org/	N/A
Mega6	https://www.megasoftware.net/	N/A
AGCC Scan Control Software	http://www.affymetrix.com/	N/A
GeneSpring GX 12.6.1	https://www.agilent.com/	N/A
MAPMAN BINs	https://mapman.gabipd.org/	N/A
BWA software	http://bio-bwa.sourceforge.net/	N/A
Coval software	https://omictools.com/coval-tool	N/A
MATLAB	https://www.mathworks.com/	N/A
Fiji	[56]	N/A

Lead Contact and Materials Availability

Further information and requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, Sebastian Schornack (sebastian.schornack@slcu.cam.ac.uk). All unique strains and plasmids used for this paper are available from the Lead Contact with a completed Materials Transfer Agreement.

Experimental Model and Subject Details

Plant materials and microbial strains

Medicago truncatula Jemalong A17 wild-type (referred as API) seeds were kindly provided by Dr. Jean-Marie Prospéri (INRA-Montpellier). The api mutant used in this study is derived from the M. truncatula Jemalong A17 reference line after EMS mutagenesis and two backcrosses and displayed similar germination rate and seedling morphology as wild-type [37]. Medicago seed sterilization, germination and growth conditions have been described previously [10]. Agrobacterium rhizogenes-based root transformation of Medicago was performed according to Limpens et al. [57]. For the nodulation assay Medicago roots were inoculated with GFP-expressing Sinorhizobium meliloti 2011 [54].

To allow tracking of the oomycete development in planta fluorescently labeled Phytophthora palmivora AJ-td (derived from accession P6390) and LILI-td (derived from accession P16830) carrying a pTOR:TdTomato vector or LILI-YKDel carrying a pTOR:CALYFP-KDEL were used for the infection assays. P. palmivora isolates were cultivated on V8 vegetable juice agar plates and used to infect M. truncatula plants and to phenotype them as described previously [10]. Briefly, zoospores were released in cold water. The spore concentration was adjusted to 5x10⁴ spores ml^–1. 10 μl droplets of P. palmivora AJ-td or LILI-td spores were placed at the root tip of M. truncatula seedlings on 0.8% agarose plates. In each infection experiment a single application of zoospores was carried out. The same protocol was used for chloroform-treated seedling infection and xyloglucan supplemented infection. For chloroform treatment 1-day-old seedlings were soaked for 10 min in chloroform, rinsed several times with sterile water and infected on 0.8% agarose plates. High purity xyloglucan (Megazyme) was used to prepare a 50mM stock solution in deionized warm water. To obtain a working concentration of xyloglucan the necessary amount of stock solution was added directly to the spore suspension. Spore motility was checked microscopically before infection.

Method Details

Genetic mapping and SNPs analysis

Previous work indicated that the api root hair and symbiotic phenotype are caused by a single recessive mutation, and the API locus was mapped to a 2.8 cM interval on the upper arm of M. truncatula linkage group 4 between markers MTIC331 and McSSR1 [37]. For finer mapping of the locus we screened 193 individuals of the F2 progeny from a cross between the M. truncatula api mutant (backcrossed twice in the A17 genetic background) and the M. truncatula wild-type line F83005.5. We identified 8 lines with recombination events in the above-defined interval between markers MTIC331 and EPJ005 and tested their symbiotic phenotype in F2 and F3 generations. Using 6 additional molecular markers located between MTIC331 and EPJ005 based on M. truncatula genome sequence, we were able to position the API locus to an interval of about 550 kb (Figure S2A). To identify the api mutation we sequenced the api mutant (accession SRR8468999, Bioproject: PRJNA516327) and in parallel employed a comparative genome sequencing strategy. API and api plant genomic DNA was extracted using DNeasy Plant Mini Kit (QIAGEN). The libraries for whole genome sequencing were prepared with TruSeq DNA LT Sample Prep Kit (Illumina) and subjected to 100 bp paired-end sequencing by Illumina Hiseq2500. Raw data can be found on http://www.ddbj.nig.ac.jp/ using accession DRA003037. The sequence reads in which more than 10% of sequenced nucleotides had a phred quality score of less than 30 were excluded from the subsequent analysis. For detecting SNPs of api, we first constructed a “reference sequence” of API by replacing the nucleotides of the publicly available A17 M. truncatula reference genome (ftp://ftp.jcvi.org/pub/data/m_truncatula/Mt4.0/Assembly/JCVI.Medtr.v4.20130313.fasta) with those of API as described previously [58]. A total of 122,523 SNP positions were substituted. The sequence reads from api were aligned to the developed API reference sequence using BWA software [59]. Alignment files were subjected to filtering using Coval software [60] and calculating the SNP-index for all SNP positions using the MutMap pipeline [61]. Finally the SNP positions having a sequence depth > 5 and showing an SNP-index > 0.9 were extracted as homozygous SNPs of api. Presence of the api causal mutation was confirmed via Sanger sequencing service at Source Bioscience (http://www.sourcebioscience.com/).

Design of constructs and cloning

Coding sequences of API (Medtr4g013235/MtrunA17_Chr4g0004861) were synthesized in pUC57 vector by GENEWIZ, Inc. Coding sequences of AtSCAR2 (AT2G38440) and PIP1 (Medtr8g098375/MtrunA17_Chr8g0386961) were amplified from Arabidopsis thaliana (Columbia-0 ecotype) and M. truncatula A17 cDNA, respectively. 2kb of 5′ regulatory sequences of API, HAPI1 (Medtr7g071440/MtrunA17_Chr7g0244031) and HAPI2 (Medtr8g086300/MtrunA17_Chr8g0379031) were amplified from M. truncatula A17 genomic DNA. PCR reactions were performed using Phusion DNA polymerase (New England Biolab Inc., UK) and primers listed in Table S1. Amplicons were introduced into pENTR (D-TOPO® Cloning Kit, Thermo Fisher Scientific) and used as an entry vectors. To generate complementation constructs entry vectors containing clones of API and AtSCAR2 were recombined with pENTR:prAtUBQ3 into pKGW-MGW destination vector [62] using LR Clonase Plus (Thermo Fisher Scientific). To generate the PIP1-GFP reporter construct, the PIP1 entry vector was recombined into a pK7FWG2 destination vector. pENTR clones of promoters were recombined into a pKGW-GGRR destination vector, creating promoter GUS or mTFP fusions using LR Clonase Plus (Thermo Fisher Scientific).

Microscopy

For imaging of P. palmivora colonization in infected API and api root sections excised root tissues were mounted in water and covered by coverslips, using a Leica TCS SP8 confocal microscope with emission/excitation settings 561/570-600 nm for the P. palmivora AJ-td and 514/520-550 nm for the P. palmivora LILI-YKDel strain. Images represent stacks of 20 to 25 1-μm slices in maximum intensity projections merged with inverted transillumination images to outline cells. A line averaging of 4 was applied to reduce noise to signal ratio. Epifluorescence microscopy and sporangia counting were carried out using a Fluorescent Stereo Microscope Leica M165 FC equipped with a DFC310FX camera. The DSR filter (10447412) was used to detect the tdTomato produced by P. palmivora LILI-td or AJ-td. The same settings were used to screen for transgenic hairy roots of M. truncatula expressing monomeric DsRED. Light microscopy imaging and infection scoring were performed using Zeiss Axioimager M2 microscope with a 64 MP color camera. Pictures were processed with ImageJ software v1.46 including Fiji plugins and AxioVision Microscopy Software (Zeiss).

Promoter GUS assay

Medicago transgenic roots were collected and washed twice in 0.1 M sodium phosphate buffer, pH 7.2, incubated in GUS buffer (100 mM sodium phosphate pH 7.0, 5 mM K₃Fe(CN)₆, 5 mM K₄Fe(CN)₆ and 2 mM 5-bromo-4-chloro-3-indoxyl-β-d- glucuronic acid, X-gluc) under vacuum at room temperature for 30 min to allow the buffer to replace air in the tissue, incubated at 37°C for 2-6 h to enable the enzymatic reaction, and analyzed using the Microscope Leica M165 FC and Zeiss Axioimager M2 microscope.

Quantification of actin dynamics and organization

Medicago hairy roots expressing a YFP-ABD2 actin reporter were used for analysis of actin filaments. Imaging was conducted using a Leica SP8 confocal microscope. Images were acquired at 1024 × 1024-pixel resolution. Individual cells were imaged every 2.5 s over a 60 s time course. MBS (m-maleimidobenzoyl N-hydroxylsuccinimide ester) was used as actin stabilizing treatment [63]. Twenty to forty cells were used to calculate actin filament dynamics following the protocols in Vidali et al. [55]. Briefly, the algorithm calculates the correlation and difference of each time-lapse frame by averaging correlation and difference between this frame and all other frames. The correlation was defined as two-dimensional correlations between two matrixes, and the difference was considered by subtracting two matrixes. Correlation coefficient was calculated using the built-in MATLAB function corr2 [55] and differences per pixel were calculated using Actin_difference_maps (https://github.com/SchornacklabSLCU/Actin_difference_maps). For quantification of actin filament bundling and occupancy, cells were imaged using 1024 × 1024 pixel resolution. A maximum intensity projection of 15–20 image stacks was subjected for image processing and analysis performed as described by Higaki et al. [64]. The serial optical sections of the root cell images were skeletonized using the ‘Analyze Skeleton (2D/3D)’ plugin in Fiji [56, 65] and projected. Actin bundling was estimated as the skewness of the intensity distribution of the actin filament pixels. Filament occupancy was defined as ratio of the total pixel numbers of actin filaments and cell area using Actin_skewness-and-occupancy (https://github.com/SchornacklabSLCU/Actin_skewness-and-occupancy).

FRAP acquisition and analysis

Medicago hairy roots expressing a PIP1-GFP reporter were used for fluorescence recovery after photobleaching (FRAP) analysis. Root samples were mounted in water on microscope slides and sealed with Valap (vaseline:lanolin:paraffin, melted and combined 1:1:1). Root cells were imaged using the Leica FRAP wizard. Three scans were made to establish the pre-bleach intensity and then a circular region of interest (2 μm diameter) was drawn in an optical section of the plasma membrane. Twenty iterations of 488 nm set at 100% laser power were used for bleaching. Recovery of the fluorescence was recorded during 40 min with a delay of 1 min between frames and a resolution of 512 × 512 pixels. FRAP analysis was performed according to Rademacher et al. [66].

Endomembrane dynamics analysis

Medicago hairy roots expressing SPPR1-GFP reporter [43] were treated with 50 μM brefeldin A (BFA). The GFP fluorescence signal intensity and distribution were analyzed after 1-2h of treatment. For image processing and analysis, the software ImageJ was used. To obtain intensity information for each BFA compartment per cell, a picture of the GFP channel was duplicated and thresholded to highlight all structures of interest. Once the areas are highlighted a binary version of the image was created. Subsequent steps involved setting the “Redirect to” line to the name of the image of GFP channel and selecting the checkboxes “Mean grey value” and “Area.” The “Analyze Particles” tool then obtained mean pixel intensities and area for the BFA compartments on the original image, based on outlines applied from the binary image.

Cell wall extraction, ELISA and immunolabelling

Three developmental root zones were harvested in triplicate from 2-day old seedlings of wild-type and api Medicago plants, frozen in liquid nitrogen, ground in a tissue lyser, and converted into an alcohol insoluble residue (AIR) [67] via successive washes with 80%, 90% and 100% (v/v) ethanol, acetone and finally methanol:chloroform (2:3 v/v) and left to dry overnight.

The AIRs were extracted sequentially with 50 mM CDTA (1,2-cyclohexanediamine tetraacetic acid, pH 7.5) and 4 M KOH. Residue remaining after the KOH extract was further extracted to solubilise polysaccharides tightly associated with cellulose via chemical solubilisation [44] to yield the cellulose associated fractions (CAF).

CDTA, KOH and CAF fractions were diluted in PBS (1 in 20 for CDTA and KOH, 1 in 5 for CAF), coated onto microtiter plates (Nunc, maxisorb), and ELISAs were performed as described [67]. MAbs used in this study are toward homogalacturonan LM19 and LM20 [52]; RG-I LM5 [48]; LM6-M [49]; LM16 [52]; LM26 [44], xyloglucan LM15 [51]; LM24 and LM25 [53]; xylan LM11 [50], and xylosyl residues LM23 [53].

Root samples used for microscopy were fixed overnight in phosphate-buffered saline (PBS) containing 4% paraformaldehyde and 1% glutaraldehyde. Samples were then washed twice in PBS before being dehydrated in an ethanol series of 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, and twice 100% at 4°C. Samples were then embedded in LR White resin, and polymerized at 37°C. Resin-embedded material was then sectioned (1 μm thickness). Sections were incubated in PBS containing 5% (w/v) milk protein (MP/PBS) and a 5-fold dilution of antibody hybridoma supernatant for 1.5 h. Samples were then washed in PBS at least 3 times and incubated with a 100-fold dilution of anti-rat-IgG-whole molecule-FITC (Sigma-Aldrich, F1763) in MP/PBS for 1.5 h in darkness. The samples were washed in PBS at least 3 times and incubated with Calcofluor White 0.2 μg/mL (Sigma-Aldrich, 18909) for 5 min in darkness. Samples were washed at least 3 times and then mounted in a glycerol-based anti-fade solution (Citifluor AF1, Agar Scientific, UK).

Gene expression assays

RNA extraction was performed with 100 mg of pooled plant material for each biological replicate using RNeasy Mini Kit (QIAGEN), reverse transcription of first strand cDNA and qPCR analysis were performed and analyzed as described in Rey et al. [10]. Medicago MtH3l and MtUBQ genes were used as reference genes to standardized expression of M. truncatula genes of interest in seedlings and hairy roots [41]. In addition, qRT-PCR was also used to assess the accumulation of P. palmivora biomass by tracking expression of the oomycete housekeeping genes of Elongation factor 1α (Ef1α) identified by homology to Phytophthora parasitica transcripts [68]. The 2^-ΔCp method was used to display gene expression levels [69]. Primer sequences used in this study are listed in Table S1.

Microarray

Affymetrix Medicago Gene Chip hybridizations were carried out in biological triplicates at IMGM (Germany). M. truncatula total RNAs were extracted as described previously and quality assessed using NanoDrop ND-1000 spectral photometer and a 2100 Bioanalyzer (Agilent Technologies). Total RNA was processed according to manufacturer recommendations using the 3′IVT Expression Kit (Affymetrix Inc.). After hybridization, microarrays signal intensities were detected with the Affymetrix GeneChip® 3000 Scanner and AGCC Scan Control Software v3.2.3.1515 (Affymetrix). Automatic grid was arranged and raw data (^∗.DAT files) were processed to generate image and intensity files (^∗:CEL, ^∗.JPG) by the AGCC Scan Control Software. The software tool GeneSpring GX 12.6.1 (Agilent Technologies) was used for visualization and normalization (using the RMA algorithm). After normalization, data is returned as log2 transformed values. Significant differential expression level between API and api plants was assessed for each individual probe using a Student’s t test and a Bonferroni correction in R (3.0.2, ww.r-project.org). The Affymetrix probeset was annotated according to Czaja et al. [70] while MAPMAN BINs were used to classify probes in biological processes (http://mapman.gabipd.org/web/guest) and the probes were mapped to version V4.0 of the Medicago gene models (http://jcvi.org/medicago/) Raw data (.CEL files) can be found on the Gene Expression Omnibus (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE65903).

Quantification and Statistical Analysis

The experiments were performed in three independent replicates. The number of biological replicates, exact n values and the type of statistical significance test are described in the figure legends. Statistical significance was determined by ANOVA with Tukey’s post hoc test or the two-tailed Student’s t test.

Data and Code Availability

Microarray data can be found on the Gene Expression Omnibus: GSE65903. Sequencing data can be found on the Bioinformation and DDBJ Center: DRA003037, The Sequence Read Archive: SRR8468999, and Bioproject: PRJNA516327. The Actin_difference_maps script is available on https://github.com/SchornacklabSLCU/Actin_difference_maps. The Actin_skewness-and-occupancy script is available on https://github.com/SchornacklabSLCU/Actin_skewness-and-occupancy.

Published: September 3, 2020

Supplemental Information

Data S1. List of Probes Showing Differential Regulation between API and api Plants and at 16 h after Infection, Related to Figures 3 and S5

(A) List of probes showing differential regulation between wild type API plants and api mutant plants in control condition. Significantly differential probes with a log2 ratio > 1 are in red, repressed probes are in green (log2 ratio < −1), data were considered significant when the fold change lead to a Bonferroni adjusted p value < 0.05. Affymetrix GeneChip Medicago Transcriptome Assay probes identifiers are in column A. Gene accession numbers from version 4.0 of the M. truncatula genome are in column B. Mapman Mapping Mt_AFFY_Mt3.0_0510 of each gene is indicated in column C and D. Annotations are displayed in column G. (B) List of probes showing differential regulation between API plants at 16 hours post inoculation compared to API mock plants as well as api plants at 16 hours post inoculation compared to api mock plants. Significantly differential probes with a log2 ratio > 1 are in red, repressed probes are in green (log2 ratio < −1), data were considered significant when the fold change lead to a Bonferroni adjusted p value < 0.05. Affymetrix GeneChip Medicago Transcriptome Assay probes identifiers are in column A. Gene accession numbers from version 4.0 of the M. truncatula genome are in column B. Mapman Mapping Mt_AFFY_Mt3.0_0510 of each gene is indicated in column C and D. Annotations are displayed in column I. (C) List of probes showing differential regulation between API and api plants at 16 hours post inoculation. Significantly differential probes with a log2 ratio > 1 are in red, repressed probes are in green (log2 ratio < −1), data were considered significant when the fold change lead to a Bonferroni adjusted p value < 0.05. Affymetrix GeneChip Medicago Transcriptome Assay probes identifiers are in column A. Gene accession numbers from version 4.0 of the M. truncatula genome are in column B. Mapman Mapping Mt_AFFY_Mt3.0_0510 of each gene is indicated in column C and D. Annotations are displayed in column G.

Data S2. Validation of Microarray Expression Values by RT-qPCR, Related to Figures 3 and S5

Expression level was measured by RT-qPCR using the 2^-ΔCp method using MtH3l as reference gene. Subsequently, gene regulation between mock and 16 hpi with P. palmivora (API 16hpi / API mock and api 16 hpi / api mock) and between genotypes (api mock / API mock and api 16hpi / API 16hpi) was determined using the 2^-ΔΔCp method. Gene expression ratios obtained from microarray (array) and qPCR were plotted on a logarithmic scale (base 2). Similar gene induction at 16 hpi as compared to mock plants was observed in API and api both in RT-qPCR assays and array data for the immune marker genes THA, PRX, GLP and LOX. Genes showing significant fold change in a given ratio either in the array (Bonferroni-corrected p value < 0.05) or RT-qPCR (t test < 0.05) are colored in red when their log2 FC > 1 or in green when their log2 FC < −1.
