. 2020 Nov 2;16(11):e1007845. doi: 10.1371/journal.pcbi.1007845

PhANNs, a fast and accurate tool and web server to classify phage structural proteins

Vito Adrian Cantu 1,2, Peter Salamon 2,3, Victor Seguritan 1,¤a, Jackson Redfield 4,¤b, David Salamon 3, Robert A Edwards 1,2,4,¤c, Anca M Segall 1,2,4,*
Editor: Mihaela Pertea5
PMCID: PMC7660903  PMID: 33137102

Abstract

For any given bacteriophage genome or phage-derived sequences in metagenomic data sets, we are unable to assign a function to 50–90% of genes, or more. Structural protein-encoding genes constitute a large fraction of the average phage genome and are among the most divergent and difficult-to-identify genes using homology-based methods. To understand the functions encoded by phages, their contributions to their environments, and to help gauge their utility as potential phage therapy agents, we have developed a new approach to classify phage ORFs into ten major classes of structural proteins or into an “other” category. The resulting tool is named PhANNs (Phage Artificial Neural Networks). We built a database of 538,213 manually curated phage protein sequences that we split into eleven subsets (10 for cross-validation, one for testing) using a novel clustering method that ensures there are no homologous proteins between sets yet maintains the maximum sequence diversity for training. An Artificial Neural Network ensemble trained on features extracted from those sets reached a test F1-score of 0.875 and test accuracy of 86.2%. PhANNs can rapidly classify proteins into one of the ten structural classes or, if not predicted to fall in one of the ten classes, as “other,” providing a new approach for functional annotation of phage proteins. PhANNs is open source and can be run from our web server or installed locally.

Author summary

Bacteriophages (phages, viruses that infect bacteria) are the most abundant biological entity on Earth. They outnumber bacteria by a factor of ten. As phages are very different from each other and from bacteria, and we have relatively few phage genes in our database compared to bacterial genes, we are unable to assign function to 50–90% of phage genes. In this work, we developed PhANNs, a machine learning tool that can classify a phage gene as one of ten structural roles, or “other”. This approach does not require a similar gene to be known.


This is a PLOS Computational Biology Software paper.

Introduction

Bacteriophages (phages) are the most abundant biological entity on the Earth [1]. They modulate microbial communities in several possible ways: by lysing specific taxonomic members or narrow groups of microbiomes, they affect the microbial population dynamics and change niche availability for different community members. Via transduction and/or lysogeny, they mediate horizontal transfer of genetic material such as virulence factors [2], metabolic auxiliary genes [3], photosystems and other genes to enhance photosynthesis[4], and phage production in general, by providing the host with immunity from killing by other phages. Temperate phages can become part of the host genome as prophages; most bacterial genomes contain at least one, and often multiple prophages [5,6].

Phage structures (virions) are composed of proteins that encapsulate and protect their genomes. The structural proteins (or virion proteins) also recognize the host, bind to its surface receptors and deliver the phage’s genome into the host’s cell. Phage proteins, especially structural ones, vary widely between phages and phage groups, so much so that sequence alignment based methods to assign gene function fail frequently: we are currently unable to assign function to 50–90% of phage genes [7]. Experimental methods such as protein sequencing, mass spectrometry, electron microscopy, or crystallography, in conjunction with antibodies against individual proteins, can be used to identify structural proteins but are expensive and time-consuming. A fast and easy-to-use computational approach to predict and classify phage structural proteins would be highly advantageous as part of pipelines for identifying functional roles of proteins of bacteriophage origins. The current increased interest in using phages as therapeutic agents [8,9] motivates annotations for as much of the phage genome as possible. Even if they are somewhat tentative and not experimentally validated, annotations of the relatively non-toxic structural proteins versus the potentially host health-threatening toxins and other virulence factors could inform decisions whether to choose one specific phage versus another.

Machine learning has been used to attack similar biological problems. In 2012, Seguritan et al. [10] developed Artificial Neural Networks (ANNs) that used normalized amino acid frequencies and the theoretical isoelectric point to classify viral proteins as structural or not structural with 85.6% accuracy. These ANNs were trained with proteins of viruses from all three domains of life. They also trained two distinct ANNs to classify phage capsid versus phage non-capsid ORFs and phage “tail associated” versus phage “non-tail-associated” ORFs. Subsequently, several groups have used different machine learning approaches to improve the accuracy of predictions. The resulting tools are summarized in Table 1.

Table 1. Summary of previous ML-based methods for classifying viral structural proteins.

Reference Method Target proteins Database size Accuracy
Seguritan et al.[10] ANN structural (all viruses) versus non-structural (all viruses) 6,303 structural 85.6%
7,500 non-structural
Seguritan et al.[10] ANN capsid versus non-capsid (phages only) 757 capsid 91.3%
10,929 non-capsid
Seguritan et al.[10] ANN Tail-associated versus non-tail (phages only) 2,174 tail 79.9%
16,881 non-tail
Feng et al.[33] Naïve Bayes structural versus non-structural 99 structural 79.15%
208 non-structural
Zhang et al.[34] Ensemble Random Forest structural versus non-structural 253 structural 85.0%
248 non-structural
Galiez et al.[11] SVM capsid versus non-capsid 3,888 capsid 96.8%
4,071 non-capsid
Galiez et al.[11] SVM tail versus non-tail 2,574 tail 89.4%
4,095 non-tail
Manavalan et al.[35] SVM structural versus non-structural 129 structural 87.0%
272 non-structural
This work ANN Ten distinct phage structural classes plus “others” 168,660 structural 86.2%
369,553 non-structural

Each of these previous approaches has important limitations: 1) The classification is limited to two classes of proteins (e.g.,”capsid” or “not capsid”). 2) Training and testing sets were small (only a few hundred proteins in some cases), limiting the utility of these approaches beyond those proteins used in testing. 3) Methods that rely on predicting secondary structure (e.g., VIRALpro [11]) are slow to run. In general, these newer methods have improved accuracy at the cost of lengthening the time required for training, or have used very small training and/or test sets.

Artificial Neural Networks (ANN) are proven universal approximators of functions in ℝn [12], including the mathematical function that maps features extracted from a phage protein sequence to its structural class. We have constructed a manually-curated database of phage structural proteins and have used it to train a feed-forward ANN to assign any phage protein to one of eleven classes (ten structural classes plus a catch-all class labeled "others"). Furthermore, we developed a web server where protein sequences can be uploaded for classification. The full database, as well as the code for PhANNs and the webserver, are available for download at http://edwards.sdsu.edu/phanns and https://github.com/Adrian-Cantu/PhANNs

Methods

Database

In this work, we generated two complementary protein databases, "classes" and "others". The "classes" database contains curated sequences of ten phage structural functions (Major capsid, Minor capsid, Baseplate, Major tail, Minor tail, Portal, Tail fiber, Tail sheath, Collar, and Head-Tail Joining). These functional classes are not exhaustive (and we will add more classes in the future); they represent the dominant structural protein roles present in most (but not all) phages [13]. The terms/descriptors for these classes are addressed in the next section. Major capsid proteins are those that form the phage head. Many but not all phages also encode minor capsid proteins that decorate and/or stabilize the head or proteins present at the vertices of the icosahedral heador at the center of the hexon faces. Portals form a ring at the base of the phage head and serve to dock the packaging complex that translocates the genome into the phage head. Head-tail joining (aka head-tail connector or head completion) proteins form rings inserted between the portal ring and the tail. The collar is present in some phages, e.g. the Lactococcal phages, at the base of the neck/top of the tail to which the so-called whiskers attach. Major tail proteins form the inner tail tube of the tailed phages, whereas the tail sheath (aka the tail shaft) proteins form the outside of the tail, and permit contraction. Minor tail proteins may comprise several kinds of proteins associated with the tail, including the tape measure protein. Baseplate proteins are those that are attached to the tail and to which the tail fibers are attached, the latter being a relatively common determinant of host range. The "others" database contains all phage ORFs that do not encode proteins annotated as “structural” or as any of the ten categories above.

The database of "classes"

Sequences from the ten structural classes were downloaded from NCBI's protein database using a custom search for the class title (the queries are in the “ncbi_get_structural.py” script in the GitHub repository). Curation consisted of grouping sequences by their description (part of the fasta header) and deciding which descriptions to include. The list of included headers for each class can be found here https://github.com/Adrian-Cantu/PhANNs/tree/master/model_training/01_fasta; the variations of terms included are too many to be included here. All the terms preceded by a “+” (or “+ +”) were included in the respective database. In the particular case of tail fibers, we did not include the descriptions “phage tail fiber assembly protein” (3,662 proteins) nor many “partial protein” variations (1,500+ proteins).

This method for collecting data has the limitation that a proportion of phage sequences in the database are misannotated and that NCBI has no controlled vocabulary for bacteriophage protein functions so it is occasionally difficult to account for misspelled annotations and/or alternative naming. However, it is clear from previous machine learning applications that a larger number of training examples is more important for optimal model performance than a perfectly curated training set [14]. To minimize inclusion of wrongly annotated protein sequences, we manually curated the databases to address these limitations.

The "others" database

To generate a database for the "others" class, all available phage genomes (8,238) were downloaded from GenBank on 4/13/19. ORFs were found using the GenBank PATRIC [15] server with the phage recipe [16]. Sequences annotated as structural or any of the ten classes were removed during manual curation. Furthermore, the remaining sequences were de-replicated at 60% together with sequences in the “classes” database using CD-hit [17]. Any phage ORF that clustered with a sequence from the "classes" database was removed from the "others" database.

Training, test, and validation split

Sequences in each class were clustered at 40% using CD-hit and split into eleven sets (10 for cross validation and one for testing, as shown in Fig 1). Once the clusters were established, to prevent loss of the sequence diversity available within the clusters, which is essential for optimal training, the clusters were expanded by adding back within each set all the representatives of that set (described in Fig 1). Subsequently, the sets corresponding to each structural class were merged. We named the generated sets 1D-10D and TEST. Splitting the database this way ensures that the different sets share no homologous proteins while recapturing all the sequence diversity present in each class. Finally, 100% dereplication was performed to remove identical sequences (See Table 2). The effect of the cluster expansion on performance is explored in S1 and S2 Figs.

Fig 1. Non homologous database split—To ensure that no homologous sequences are shared between the test, validation, and training sets the sequences from each class (Major capsid proteins in this figure) were de-replicated at 40%.

Fig 1

In the de-replicated set, no two proteins have more than 40% identity and each sequence is a representative of a larger cluster of related proteins. The de-replicated set is then randomly partitioned into eleven equal size subsets, (1dMcp-10dMpc plus TestMpc). Those subsets are expanded by replacing each sequence with all the sequences in the cluster it represents (subsets 1DMpc-10DMpc plus TESTMpc). Analogous subsets are generated for the remaining ten classes and corresponding subsets are combined to generate the subsets used for 10-fold cross-validation and testing (1D-10D and TEST).

Table 2. Database numbers—Raw sequences were downloaded using a custom script available at https://github.com/Adrian-Cantu/PhANNs.

All datasets can be downloaded from the web server. *Numbers before and after removing sequences at least 60% identical to a protein in the classes database.

Class Raw sequences After manual curation After de-replication at 40% After expansion and de-replication at 100%
Major capsid 112,987 105,653 1,945 35,755
Minor capsid 2,901 1,903 261 1,055
Baseplate 75,599 19,293 401 6,221
Major tail 66,513 35,030 536 7,704
Minor tail 94,628 80,467 918 18,002
Portal 210,064 189,143 2,310 59,745
Tail fiber 29,132 18,514 1,222 7,256
Tail sheath 37,885 35,570 599 15,349
Collar 4,224 3,709 339 2,105
Head-Tail joining 60,270 58,658 1,317 15,468
Total structural 694,203 547,940 9,848 168,660
Others 733,006 643,735/643,380* 106,004 369,553

Extraction of features

The frequency of each dipeptide (400 features) and tripeptide (8,000 features) was computed for each ORF sequence in both the “classes” and “others” databases. As a potential time-saving procedure during neural net training while also permitting classification of more diverse sequences, each amino acid was assigned to one of seven distinct "side chain" chemical groups (S1 Table). The frequency of the "side chain" 2-mers (49 features), 3-mers (343 features), and 4-mers (2,401 features) was also computed. Finally, some extra features, namely isoelectric point, instability index (whether a protein is likely to degrade rapidly; [18]), ORF length, aromaticity (relative frequency of aromatic amino acids; [19]), molar extinction coefficient (how much light the protein absorbs) using two methods (assuming reduced cysteins or disulfide bonds), hydrophobicity, GRAVY index (average hydropathy; [20]) and molecular weight, were computed using Biopython [21]. All 11,201 features were extracted from each of 538,213 protein sequences. The complete training data set can be downloaded from the web server (https://edwards.sdsu.edu/phanns).

ANN architecture and training

We used Keras [22] with the TensorFlow [23] back-end to train eleven distinct ANN models using a different subset of features. We named the models to indicate which feature sets were used in training: the composition of 2-mers/dipeptides (di), 3-mers /tripeptides (tri) or 4-mer/tetrapeptide (tetra), or side chain groups (sc) (as shown in S1 Table), and whether we included the extra features (p) or not. A twelfth ANN model was trained using all the features (Table 3).

Table 3. Feature types included in each of the 12 models.

di—2-mer/dipeptide composition; tri—3-mer/tripeptide composition; tetra—4-mer/tetrapeptide composition; sc—side-chain grouping; p—plus all the extra features [isoelectric point, instability index (whether a protein is likely to be degraded rapidly), ORF length, aromaticity (relative frequency of aromatic amino acids), molar extinction coefficient (how much light a protein absorbs) using two methods (assuming reduced cysteines or disulfide bonds), hydrophobicity, GRAVY index (average hydropathy), and molecular weight, as computed using Biopython. - *Per class score figures are available as supplementary material.

Model di tri di_sc tri_sc tetra_sc p
di_sc* x
di_sc_p* x x
tri_sc* x
tri_sc_p* x x
tetra_sc* x
tetra_sc_p* x x
di x
di_p x x
tri x
tri_p x x
tetra_sc_tri_p x x x
all x x x x x x

Each ANN consists of an input layer, two hidden layers of 200 neurons, and an output layer with 11 neurons (one per class). A dropout function with 0.2 probability was inserted between layers to prevent overfitting. ReLU activation (to introduce non-linearity) was used for all layers except the output, where softmax was used. Loss was computed by categorical cross-entropy and the ANN is trained using the "opt" optimizer until 10 epochs see no training loss reduction. The model at the epoch with the lowest validation loss is used. Class weights inversely proportional to the number of sequences in that class were used.

10-fold cross-validation

Sets 1D to 10D (see Fig 1) were used to perform 10-fold cross-validation; ten ANNs were trained as described above, sequentially using one set as the validation set and the remaining nine as the training set. The results are summarized in Figs 2, 3, 4, S1 and S2.

Fig 2. Model-specific F1 score—F1 scores (harmonic mean of precision and recall) for each polypeptide model/class combination.

Fig 2

All models follow similar trends as to which classes are more or less difficult to classify correctly. Error bars represent the 95% confidence intervals.

Fig 3. Class-specific F1 score—F1 scores (harmonic mean of precision and recall) for each polypeptide model/class combination.

Fig 3

Some classes, such as minor capsid, tail fiber, or minor tail, are harder to classify correctly irrespective of the model used. Error bars represent the 95% confidence intervals.

Fig 4. Model-specific validation weighted average scores—Precision, recall, and F1 scores for all models.

Fig 4

Precision is higher in all models as the “others” class is the largest and easiest to classify correctly. Error bars represent the 95% confidence intervals.

The PhANNs score

For each input sequence, PhANNs run 10 ANNs predictions (those trained during the 10-fold cross-validation). Each of those 10 ANNs outputs the soft-max scores for every class (a number between 0 and 1, such that the score of all classes adds to 1). PhANNs outputs the per class sum of the ten ANNs scores (the maximum achievable PhANNs score is 10, as there are ten ANNs). The input sequence is classified as the class with the highest PhANNs score.

To give a clearer indication of the quality of this prediction we added a “confidence” score to each prediction. The “confidence” score shows what fraction of sequences in the test set that were classified as the same class as the input sequence, and with the same PhANNs score or higher, were correctly classified (True positives). The confidence scores differ depending on the protein class. For example, a sequence classified as “major capsid” with a PhANNs score of 7 has 97% confidence, while a “Tail fiber” with a PhANNs score of 7 has only 82.4% confidence. The per class relationship between the PhANNs score and the confidence is explored in Fig 5.

Fig 5. Per class relationship between PhANNs score and confidence—The confidence corresponding to a particular class PhANNs score represents the fraction of true positives (correctly classified) sequences in the test set that were classified as that class, with a given PhANNs score or higher.

Fig 5

As it is uncommon for the highest class PhANNs score to be less than 2, the left side of the graph includes all test proteins that were classified as that class, and the confidence corresponds to the per class precision (see Table 4).

Web server

We developed an easy-to-use web server for users to upload and classify their own sequences. Although ANNs need substantial computational resources for training the model (between 54,861 and 127,756,413 parameters need to be tuned, depending on the model), the trained model can make fast de novo predictions. Our web server (https://edwards.sdsu.edu/phanns) can predict the structural class of an arbitrary protein sequence in seconds and assign all the ORFs in a phage genome to one of the 10 classes in minutes. The application can also be downloaded and run locally for large numbers of queries or if privacy is a concern.

Results and discussion

We evaluated the performance of 120 ANNs (10 per model type) on their respective validation set. For each ANN, we computed the precision, recall, and F1-score of the 11 classes. A “weighted average” precision, recall and F1-score, where the score for each class is weighted by the number of proteins in that class (larger classes contribute more to the score) was computed. The accuracy (fraction of observation correctly classified) is equivalent to the weighted average recall. The three weighted average scores are represented as a 12th class. This gives us ten observations for each combination of model type and class, which allows us to construct the confidence intervals depicted in Figs 2, 3 and 4.

(Figs 2 and S1) shows that all the models follow the same trend as to which classes they predict with higher or lower accuracy. Some classes of proteins, for example major capsids, collars, and head-tail joining proteins, are predicted with high accuracy. On the other hand, the minor capsid and tail fiber protein classes seem to be intrinsically hard to predict with high accuracy irrespective of the model type used (Figs 3 and S2). One reason for this is the limited size of the training set: the minor capsid protein set is the smallest class, with only 581 proteins available for inclusion in our database. Even if the classes were weighted according to their size during training, it appears we do not have enough training examples to identify this class with high accuracy. Furthermore, “minor capsid” is often misclassified as “portal” (Fig 6). This probably reflects an annotation bias, as we found about 800 proteins annotated as “portal (minor capsid)” in the raw sequences. When the ~800 proteins are analyzed with PhANNs, over 90% are predicted to be portal proteins. Although these were removed during manual curation of the training data sets, some (small) fraction of minor capsid proteins in our database may have been annotated as “minor capsid” by homology to one of those 800 sequences.

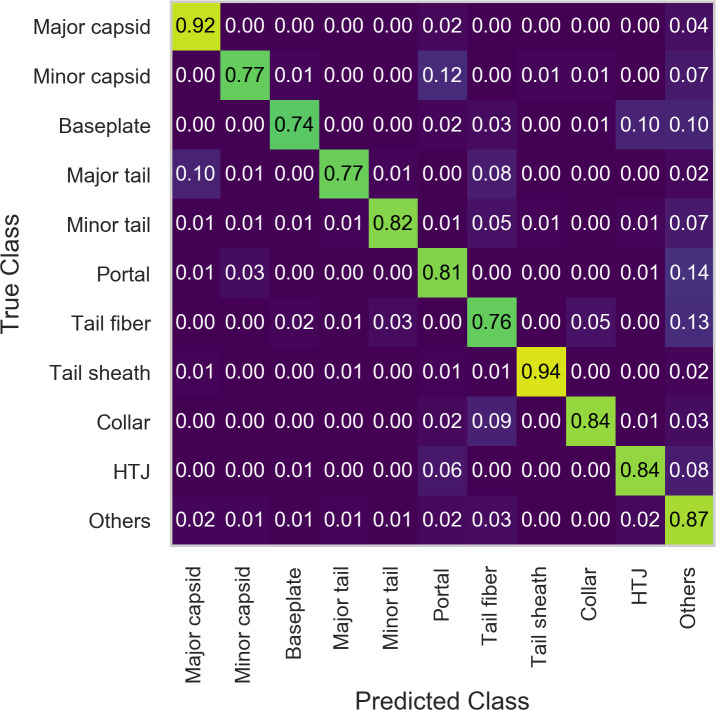

Fig 6. Confusion matrix using the “tetra_sc_tri_p” model—Each row shows the proportional classification of test sequences from a particular class.

Fig 6

A perfect classifier would have 1 on the diagonal and 0 elsewhere. In general, a protein that is misclassified is predicted as “others”.

The predictive accuracy for a specific class of proteins is likely to be affected by the bias in the training datasets. The bias could be biological and/or due to a sampling bias. An example of the former is the tail fiber class: the tail fiber is one of the determinants of the host range of the virus, and is under strong evolutionary selective pressure [2429]. On the other hand, sampling bias may be introduced due to oversampling of certain types of phages, such as the thousands of mycobacterial phages isolated as part of the SEA-PHAGES project [30], many of which are highly related to each other.

Average validation F1-scores range from 0.653 for the “di_sc” model to 0.841 for the “tetra_sc_tri” model (Fig 4). Although the average validation F1-score for the top three models “tri_p” (0.832), “tetra_sc_tri_p” (0.841), and “all” (0.827) are not significantly different from each other, we decided to use “tetra_sc_tri_p” for the web server and all subsequent analyses because, while it uses ~7% fewer features than “all” (10,409 vs 11,201), we expect that the tetra side chain features may be better than the tripeptide features at generalizing predictions and accessing greater sequence diversity.

Using the “tetra_sc_tri_p” ensemble, we predicted the class of each sequence in the test set (46,801) by averaging the scores of each of the ten ANNs. Results are summarized in Fig 6 and Table 4. Doing this we reach a test F1-score of 0.89 and accuracy of 86.2% over the eleven classes.

Table 4. Results of per class classification for the test set.

Support indicates the number of test sequences in each specific class. accuracy (fraction of observation correctly classified) is equivalent to the weighted average recall (weighted by the support of each class). The macro average is unweighted (all classes contribute the same).

precision recall f1-score support
Major capsid 0.80 0.91 0.85 2,456
Minor capsid 0.07 0.78 0.13 81
Baseplate 0.69 0.75 0.72 851
Major tail 0.55 0.79 0.65 502
Minor tail 0.66 0.82 0.73 1,072
Portal 0.81 0.81 0.81 5,261
Tail fiber 0.35 0.74 0.47 648
Tail sheath 0.97 0.93 0.95 2,031
Collar 0.51 0.86 0.64 300
Head-Tail joining 0.56 0.84 0.67 1,277
Others 0.96 0.86 0.91 32,322
macro avg 0.63 0.83 0.68 46,801
weighted avg 0.89 0.86 (accuracy) 0.87 46,801

Higher accuracy can be reached if one is willing to disregard sequences with low PhANNs scores. Using only sequences with a PhANNs score of 5 or higher, the F1-score for the test set is 0.945, accuracy is 94%, with 9,006 of 46,801 (~20%) test sequences being “not classified”. If using sequences with a PhANNs score of 8 or higher, the F1-score for the test set is 0.982, accuracy is 98%, but 19,208 of 46,801 (~41%) test sequences would be “not classified” (see Fig 7). Table 4 shows summary statistics for the complete test set, while Table 5 shows the same statistics for the test subset of sequences with PhANNs 8 or greater. The stringency with which users interpret the PhANNs score may vary depending on their specific need. Therefore we recommend that the actual PhANNs score (or the confidence score) be reported in addition to the predicted function class.

Fig 7. Effect of disregarding low scoring test proteins—Progression of the weighted average precision, recall and F1-score of the test set after excluding low scoring proteins.

Fig 7

The portion of included proteins is the fraction that can be classified if you only trust that score or higher. Very few test proteins have PhANNs score of 10 and not all classes are represented.

Table 5. Results of per class classification for proteins in the test set with a PhANNs score of 8 or higher.

Support indicates the number of test sequences in each specific class. accuracy (fraction of observation correctly classified) is equivalent to the weighted average recall (weighted by the support of each class). The macro average is unweighted (all classes contribute the same).

precision recall F1-score support
Major capsid 0.99 0.99 0.99 1,563
Minor capsid 0.28 0.96 0.43 45
Baseplate 0.97 0.83 0.89 151
Major tail 0.95 0.97 0.96 307
Minor tail 0.95 0.99 0.97 625
Portal 0.99 0.94 0.97 3,810
Tail fiber 0.89 0.94 0.91 360
Tail sheath 1.00 1.00 1.00 1,495
Collar 0.82 1.00 0.90 98
Head-Tail joining 0.91 1.00 0.95 916
Others 0.99 0.99 0.99 18,223
macro avg 0.89 0.96 0.91 27,593
weighted avg 0.98 0.98 (accuracy) 0.98 27,593

Because “minor capsid” is the worst performing class in our test set, we trained an analogous ANN ensemble without that class to explore if accuracy of the remaining classes is improved. Multiple metrics can be used to assess which model is better. The per class ROC curves of both models [Fig 8A (with minor capsid class) and 8-B (without minor capsid class)] and areas under the curves are similar. Removing the minor capsid class from the models doesn't significantly alter the relationship between the PhANNs score and the confidence score (Fig 8C and 8D). The confusion matrices of both models (Fig 8E and 8F) show that predictions for portal proteins improve, as 3% of them are misclassified as minor capsid. For all other classes, the two models are similar with respect to which classes are most commonly confused. A comparison of per class precision, recall and F1-score can be found in Table 6. When the minor capsid class is excluded, metrics are just as likely to improve as to worsen, and the accuracy gain is only 1%; greater accuracy gains can be achieved by disregarding sequences with low PhANNs scores as “not classified,” as described above. Therefore, we decided not to exclude the minor capsid class from our model; the performance in this class is likely to improve in the future, as more sequences become available and, hopefully, are experimentally validated.

Fig 8. Comparison of “tetra_sc_tri_p” model trained with and without the Minor capsid class—As minor capsid is the worst performing class in our test set, we trained an analogous ANN ensemble with it removed.

Fig 8

Panels A and B show the ROC curves for the models with and without minor capsid respectively. Panels C and D show the relationship between PhANNs score and Confidence for the models with and without minor capsid respectively. Panels E and F show the confusion matrix for the models with and without minor capsid respectively.

Table 6. The effect on the models’s scores from excluding the minor capsid class (mc)—Most scores are affected only slightly and are as likely to improve as to worsen.

precision precision (mc) recall recall (mc) F1-score F1-score (mc) support ROC area ROC area (mc)
Major capsid 0.76 0.76 0.92 0.92 0.83 0.83 2456 0.917 0.918
Minor capsid 0.08 - 0.77 - 0.15 - 81 (0) 0.899 -
Baseplate 0.69 0.69 0.74 0.83 0.72 0.75 851 0.621 0.72
Major tail 0.56 0.53 0.77 0.80 0.65 0.64 502 0.918 0.91
Minor tail 0.75 0.70 0.82 0.81 0.78 0.75 1070 0.939 0.94
Portal 0.83 0.80 0.81 0.85 0.82 0.82 5261 0.943 0.945
Tail fiber 0.31 0.32 0.76 0.75 0.44 0.45 648 0.861 0.86
Tail sheath 0.96 0.95 0.94 0.93 0.95 0.94 2031 0.986 0.957
Collar 0.61 0.53 0.84 0.80 0.70 0.63 300 0.865 0.85
HTJ 0.56 0.58 0.84 0.85 0.67 0.69 1277 0.933 0.923
Others 0.96 0.96 0.87 0.88 0.91 0.92 33402 0.838 0.838
macro avg 0.64 0.68 0.83 0.84 0.69 0.74 47879 (47798)
weighted avg 0.90 0.90 0.86 0.87 0.88 0.88 47879 (47798)

We compared the performance of PhANNs with that of VIRALpro by predicting the function class of each other's test set. Doing this requires us to map our 11 classes onto VIRALpro’s 4 (capsid versus not-capsid, tail versus not tail). We decided not to use the PhANNs “collar” or “baseplate” test set as VIRALpro has a hard time classifying them (presumably because it was not trained on those classes). Hence we discarded any of the VIRALpro test proteins that PhANNs predicted as “collar” or “baseplate”. “Capsid” in VIRALpro means either “major capsid” or “minor capsid” in PhANNs. “Tail” in VIRALpro means “Major tail”, “Minor tail”, “Tail fiber” or “Tail sheath” in PhANNs. This transformation makes possible the comparison of the two tools. Results are summarized in Table 7. The two tools have similar accuracy, with VIRALpro slightly better at predicting capsid proteins and PhANNs slightly better at predicting tail proteins. It is important to mention that the VIRALpro predictions took several days on a 200+ CPU cluster (it would take a few years on a laptop). A similarly sized test takes less than an hour using the PhANNs server.

Table 7. Comparison of PhANNs with VIRALpro. Results from using VIRALpro test set in PhANNs and PhANNs test set in VIRALpro.

PhANNs test set in TAILpro TAILpro test set in PhANNs PhANNs test set in CAPSIDpro CAPSIDpro test set in PhANNs
test set size 10,805 672 15,107 787
precision 0.28 0.77 0.14 0.82
recall 0.79 0.68 0.86 0.32
accuracy 0.80 0.82 0.70 0.67
F1-score 0.42 0.72 0.25 0.46

The utility of the PhANNs tool is to permit more extensive function predictions of metagenome sequences from phages used for phage therapy (A. Cobian, N. Jacobson, M. Rojas, H. Hamza, R. Rowe, D. Conrad, and A. Segall, et al., work in progress) and to better describe the coding potential of the virome in patients suffering from diseases such as inflammatory bowel disease versus household controls (A. Segall, R. Edwards, A. Cantu, S. Handley, and D. Wang, work in progress). In some cases, phage-associated sequences from isolated viromes have no or very weak functional predictions when using BLAST, RPS-BLAST, or related bioinformatic tools (work in progress). In parallel, we are experimentally validating some of the predicted functions using electron microscopy and X-ray crystallography (S.H. Hung, V. Seguritan, et al., ms. in preparation).

The performance of any machine learning system is limited by the availability and cost of training examples [14]. Invariably, top performing image and audio classification systems must augment their training data with synthetic examples created by applying semantically orthogonal transformations to the training set (i.e., slightly rotating or distorting an image, or adding background noise to audio) [31,32]. In bioinformatics, the current practice of de-replication moves us in exactly the opposite direction—perfectly good samples cannot be used if their overlap with other samples is too high, leaving only one version of the biostring to use for training, thereby ignoring sequence variations. This despite the fact that biological examples such as protein sequence data are replete with variations from a consensus sequence or motif. Our approach overcomes this failing by using all non-redundant data. By splitting the dataset into the training, validation, and test sets after first de-replicating at 40%, we remove even slightly redundant samples and make sure that none of the performance is due to data memorization rather than generalization. Augmenting the training set by expanding the clusters to include all non-redundant samples is the novel idea we have introduced in the present paper as a way of increasing our training set size and hence our accuracy.

Conclusion

ANNs are a powerful tool to classify phage structural proteins when homology-based alignments do not provide useful functional predictions, such as “hypothetical” or “unknown function”. This approach will become more accurate as more and better characterized phage structural protein sequences, especially more divergent ones, are experimentally validated and become available for inclusion in our training sets. This method can also be applied to predicting the function of unknown proteins of prophage origin in bacterial genomes. In the future, we plan to expand this approach to more protein classes and to viruses of eukaryotes and archaea.

Supporting information

S1 Table. Side chain groupings.

(XLS)

S1 Fig. Model-specific F1 score—F1 scores (harmonic mean of precision and recall) for each side chain model/class combination.

All models follow similar trends as to which classes are more or less difficult to classify correctly. Error bars represent the 95% confidence intervals.

(PNG)

S2 Fig. Class-specific F1 score—F1 scores (harmonic mean of precision and recall) for each side chain model/class combination.

Some classes, such as minor capsid, tail fiber, or minor tail, are harder to classify correctly irrespective of the model used. Error bars represent the 95% confidence intervals.

(PNG)

S3 Fig. Comparison of the validation weighted average F1-score of three models on the same feature sets—We compared our ANN ensemble trained on 1D-10D sets against a logistic regression trained on the 1D-10D sets and an ANN ensemble trained on the 1d-10d sets (40% dereplication, without cluster expansion—see Methods).

The ANN ensembles perform significantly better than the logistic regression. Error bars represent 0.95 confidence intervals.

(PNG)

S4 Fig. Per class comparison of the validation F1-score of three models on the “tetras_sc_tri_p feature” set—In the structural classes, the 1D-10D ANN ensemble performs slightly better than the logistic regression and significantly better than the 1d-10d ANN ensemble.

In the “others” class (by far the largest), 1D-10D ANN ensemble performs as well as 1d-10d ANN and better than logistic regression. Error bars represent 0.95 confidence intervals.

(PNG)

Acknowledgments

AMS would like to acknowledge Drs. Sherwood Casjens (University of Utah) and Ian Molineux (University of Texas Austin) for helpful conversations on phage biology.

Data Availability

The full database, as well as the code for PhANN and the webserver, are available for download at http://edwards.sdsu.edu/phanns and https://github.com/Adrian-Cantu/PhANNs.

Funding Statement

This research is based upon work supported by the Office of the Director of National Intelligence (ODNI), Intelligence Advanced Research Projects Activity (IARPA), via the Army Research Office (ARO) under cooperative Agreement Number W911NF-17-2-0105, and awarded as a partial subcontract to AMS. The views and conclusions contained herein are those of the authors and should not be interpreted as necessarily representing the official policies or endorsements, either expressed or implied, of the ODNI, IARPA, ARO, or the U.S. Government. The U.S. Government is authorized to reproduce and distribute reprints for Governmental purposes notwithstanding any copyright annotation thereon. This work was supported by NIH grant RC2DK116713 to AMS and RAE and US Department of Defense: Defense Threat Reduction Agency grant number DTRA13081-32220 to RAE. Victor Seguritan and Jackson Redfield were supported by NSF DMS 0827278 Undergraduate BioMath Education grant awarded to AMS and PS. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

  • 1.Cobián Güemes AG, Youle M, Cantú VA, Felts B, Nulton J, Rohwer F. Viruses as Winners in the Game of Life. Annu Rev Virol. 2016. September 29;3(1):197–214. 10.1146/annurev-virology-100114-054952 [DOI] [PubMed] [Google Scholar]
  • 2.Waldor MK, Mekalanos JJ. Lysogenic conversion by a filamentous phage encoding cholera toxin. Science. 1996. June 28;272(5270):1910–4. 10.1126/science.272.5270.1910 [DOI] [PubMed] [Google Scholar]
  • 3.Breitbart M, Bonnain C, Malki K, Sawaya NA. Phage puppet masters of the marine microbial realm. Nat Microbiol. 2018. July;3(7):754–66. 10.1038/s41564-018-0166-y [DOI] [PubMed] [Google Scholar]
  • 4.Frank JA, Lorimer D, Youle M, Witte P, Craig T, Abendroth J, et al. Structure and function of a cyanophage-encoded peptide deformylase. ISME J. 2013. June;7(6):1150–60. 10.1038/ismej.2013.4 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Knowles B, Silveira CB, Bailey BA, Barott K, Cantu VA, Cobián-Güemes AG, et al. Lytic to temperate switching of viral communities. Nature. 2016. March 24;531(7595):466–70. 10.1038/nature17193 [DOI] [PubMed] [Google Scholar]
  • 6.Kang HS, McNair K, Cuevas DA, Bailey BA, Segall AM, Edwards RA. Prophage genomics reveals patterns in phage genome organization and replication. bioRxiv. 2017. March 7;114819. [Google Scholar]
  • 7.Edwards RA, Rohwer F. Viral metagenomics. Nat Rev Microbiol. 2005. June;3(6):504–10. 10.1038/nrmicro1163 [DOI] [PubMed] [Google Scholar]
  • 8.McCallin S, Sacher JC, Zheng J, Chan BK. Current State of Compassionate Phage Therapy. Viruses. 2019. April;11(4):343 10.3390/v11040343 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Hesse S, Adhya S. Phage Therapy in the Twenty-First Century: Facing the Decline of the Antibiotic Era; Is It Finally Time for the Age of the Phage? Annu Rev Microbiol. 2019;73(1):155–74. 10.1146/annurev-micro-090817-062535 [DOI] [PubMed] [Google Scholar]
  • 10.Seguritan V, Alves N Jr., Arnoult M, Raymond A, Lorimer D, Burgin AB Jr., et al. Artificial Neural Networks Trained to Detect Viral and Phage Structural Proteins. PLoS Comput Biol. 2012;8(8). 10.1371/journal.pcbi.1002657 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Galiez C, Magnan CN, Coste F, Baldi P. VIRALpro: A tool to identify viral capsid and tail sequences. Bioinformatics. 2016;32(9):1405–7. 10.1093/bioinformatics/btv727 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Csáji BC. Approximation with Artificial Neural Networks. 2001;45. [Google Scholar]
  • 13.Veesler D, Cambillau C. A common evolutionary origin for tailed bacteriophage functional modules and bacterial machineries. Micr Mol Biol Rev. 2011;75(3):423–33. 10.1128/MMBR.00014-11 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Halevy A, Norvig P, Pereira F. The Unreasonable Effectiveness of Data. IEEE Intell Syst. 2009. March;24(2):8–12. [Google Scholar]
  • 15.Wattam AR, Davis JJ, Assaf R, Boisvert S, Brettin T, Bun C, et al. Improvements to PATRIC, the all-bacterial Bioinformatics Database and Analysis Resource Center. Nucleic Acids Res. 2017. 04;45(D1):D535–42. 10.1093/nar/gkw1017 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.McNair K, Zhou C, Dinsdale EA, Souza B, Edwards RA. PHANOTATE: a novel approach to gene identification in phage genomes. Bioinforma Oxf Engl. 2019. April 25; [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Li W, Godzik A. Cd-hit: a fast program for clustering and comparing large sets of protein or nucleotide sequences. Bioinforma Oxf Engl. 2006. July 1;22(13):1658–9. [DOI] [PubMed] [Google Scholar]
  • 18.Guruprasad K, Reddy BVB, Pandit MW. Correlation between stability of a protein and its dipeptide composition: a novel approach for predicting in vivo stability of a protein from its primary sequence. Protein Eng Des Sel. 1990. December 1;4(2):155–61. [DOI] [PubMed] [Google Scholar]
  • 19.Lobry JR, Gautier C. Hydrophobicity, expressivity and aromaticity are the major trends of amino-acid usage in 999 Escherichia coli chromosome-encoded genes. Nucleic Acids Res. 1994. August 11;22(15):3174–80. 10.1093/nar/22.15.3174 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Kyte J, Doolittle RF. A simple method for displaying the hydropathic character of a protein. J Mol Biol. 1982. May 5;157(1):105–32. 10.1016/0022-2836(82)90515-0 [DOI] [PubMed] [Google Scholar]
  • 21.Cock PJA, Antao T, Chang JT, Chapman BA, Cox CJ, Dalke A, et al. Biopython: freely available Python tools for computational molecular biology and bioinformatics. Bioinforma Oxf Engl. 2009. June 1;25(11):1422–3. 10.1093/bioinformatics/btp163 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Chollet F, others. Keras [Internet]. 2015. Available from: https://keras.io
  • 23.Abadi Martín, Agarwal Ashish, Barham Paul, Brevdo Eugene, Chen Zhifeng, Citro Craig, et al. TensorFlow: Large-Scale Machine Learning on Heterogeneous Systems [Internet]. 2015. Available from: https://www.tensorflow.org/ [Google Scholar]
  • 24.Drexler K, Dannull J, Hindennach I, Mutschler B, Henning U. Single mutations in a gene for a tail fiber component of an Escherichia coli phage can cause an extension from a protein to a carbohydrate as a receptor. J Mol Biol. 1991. June 20;219(4):655–63. 10.1016/0022-2836(91)90662-p [DOI] [PubMed] [Google Scholar]
  • 25.Desplats C, Krisch HM. The diversity and evolution of the T4-type bacteriophages. Res Microbiol. 2003. May;154(4):259–67. [DOI] [PubMed] [Google Scholar]
  • 26.Medhekar B, Miller JF. Diversity-generating retroelements. Curr Opin Microbiol. 2007. August;10(4):388–95. 10.1016/j.mib.2007.06.004 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Ciezki K, Murfin K, Goodrich-Blair H, Stock SP, Forst S. R-type bacteriocins in related strains of Xenorhabdus bovienii: Xenorhabdicin tail fiber modularity and contribution to competitiveness. FEMS Microbiol Lett. 2017;364(1). 10.1093/femsle/fnw235 [DOI] [PubMed] [Google Scholar]
  • 28.Akusobi C, Chan BK, Williams ESCP, Wertz JE, Turner PE. Parallel Evolution of Host-Attachment Proteins in Phage PP01 Populations Adapting to Escherichia coli O157:H7. Pharm Basel Switz. 2018. June 20;11(2). 10.3390/ph11020060 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Benler S, Cobián-Güemes AG, McNair K, Hung S-H, Levi K, Edwards R, et al. A diversity-generating retroelement encoded by a globally ubiquitous Bacteroides phage. Microbiome. 2018. 23;6(1):191 10.1186/s40168-018-0573-6 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Jordan TC, Burnett SH, Carson S, Caruso SM, Clase K, DeJong RJ, et al. A Broadly Implementable Research Course in Phage Discovery and Genomics for First-Year Undergraduate Students. mBio [Internet]. 2014. February 4 [cited 2019 Nov 13];5(1). Available from: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3950523/ 10.1128/mBio.01051-13 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Kanda N, Takeda R, Obuchi Y. Elastic spectral distortion for low resource speech recognition with deep neural networks. In: 2013 IEEE Workshop on Automatic Speech Recognition and Understanding. 2013. p. 309–14.
  • 32.Ciregan D, Meier U, Schmidhuber J. Multi-column deep neural networks for image classification. In: 2012 IEEE Conference on Computer Vision and Pattern Recognition. 2012. p. 3642–9.
  • 33.Feng P-M, Ding H, Chen W, Lin H. Naïve bayes classifier with feature selection to identify phage virion proteins. Comput Math Methods Med. 2013;2013 10.1155/2013/530696 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Zhang L, Zhang C, Gao R, Yang R. An ensemble method to distinguish bacteriophage virion from non-virion proteins based on protein sequence characteristics. Int J Mol Sci. 2015;16(9):21734–58. 10.3390/ijms160921734 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Manavalan B, Shin TH, Lee G. PVP-SVM: Sequence-based prediction of phage virion proteins using a support vector machine. Front Microbiol. 2018;9(MAR). 10.3389/fmicb.2018.00476 [DOI] [PMC free article] [PubMed] [Google Scholar]
PLoS Comput Biol. doi: 10.1371/journal.pcbi.1007845.r001

Decision Letter 0

Mihaela Pertea

16 May 2020

Dear Mr. Cantu Alessio Robles,

Thank you very much for submitting your manuscript "PhANNs, a fast and accurate tool and web server to classify phage structural proteins" for consideration at PLOS Computational Biology.

As with all papers reviewed by the journal, your manuscript was reviewed by members of the editorial board and by several independent reviewers. In light of the reviews (below this email), we would like to invite the resubmission of a significantly-revised version that takes into account the reviewers' comments.

We cannot make any decision about publication until we have seen the revised manuscript and your response to the reviewers' comments. Your revised manuscript is also likely to be sent to reviewers for further evaluation.

When you are ready to resubmit, please upload the following:

[1] A letter containing a detailed list of your responses to the review comments and a description of the changes you have made in the manuscript. Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out.

[2] Two versions of the revised manuscript: one with either highlights or tracked changes denoting where the text has been changed; the other a clean version (uploaded as the manuscript file).

Important additional instructions are given below your reviewer comments.

Please prepare and submit your revised manuscript within 60 days. If you anticipate any delay, please let us know the expected resubmission date by replying to this email. Please note that revised manuscripts received after the 60-day due date may require evaluation and peer review similar to newly submitted manuscripts.

Thank you again for your submission. We hope that our editorial process has been constructive so far, and we welcome your feedback at any time. Please don't hesitate to contact us if you have any questions or comments.

Sincerely,

Mihaela Pertea

Software Editor

PLOS Computational Biology

Mihaela Pertea

Software Editor

PLOS Computational Biology

***********************

Reviewer's Responses to Questions

Comments to the Authors:

Please note here if the review is uploaded as an attachment.

Reviewer #1: Cantu et al. present the tool PhANNs for the prediction of phage genes. This tool is greatly needed as the number of phage genomes being detected in metagenomic studies continues to increase and the majority of the genes are unable to be annotated. Having now tested the tool, my comments re: the manuscript can be divided into (1) the tool/code repo and (2) the manuscript. Overall, the manuscript is well written and clear.

Tool:

1. Question: Both the Webserver and GitHub repo rely on this manually-curated database. As is a concern frequently with new tools, how do the authors plan to keep this database up to date?

2. Question: It looks like there is a way for the user/community to update the model file and/or create their own. For building the database and model, I'm assuming it's in the model_training folder, but there is no ReadMe describing the files in there.

3. The web service results list a table. It's great to be able to download it, but there is no details on how to interpret this table. What numbers are being reported by the web? Also, why are some cells highlighted on the web results? Does it automatically pick the highest score or is there some way that it distinguishes a good prediction? This information should be provided on the webpage, either with the results or the submission page. The web service is an attractive tool for less computational users. It however lacks documentation.

4. As a test to see how well the tool worked with non-phage sequences, I fed it some bacterial protein sequences and was surprised to find predictions other than "Other". Some had scores of 10.00, of course without knowing what the number being reported is and what the range is, is that good? I'm imagining a scenario where a user has a contig they think is viral but are uncertain.

Manuscript:

1. Details re: the prediction models are not thoroughly discussed. As this is the computational contribution of this work, additional details and testing would strengthen the paper. Related, I would consider moving Table S2 into the main text. There is no other mention of the codes used for the model names and what the individual models consider in the main text. This makes interpretation of Figure 2 challenging. Alternatively, the Figure 2 legend should include details re: what each of the model names listed on the x axis mean.

2. While the authors acknowledge that there are other tools for phage function prediction, the manuscript lacks a comparison to these tools. For instance, Galiez et al. has a better accuracy than PhANNs for capsid and tail predictions (as indicated in Table 1). And while yes, PhANNs is considering more than just these two types of phage proteins, a comparison of how PhANNs performs relative to these other solutions would convince the reader that they should use PhANNs. Or perhaps they should use another tool for specifically capsid genes in addition to PhANNs. How does PhANNs predictions compare to these other tools? Is it classifying the same proteins?

Reviewer #2: The manuscript by Cantu et al. presents a method for classifying proteins into 11 categories: 10 phage structural types and one catch-all ‘other’ group. The method applies neural network training, and used a large number of protein sequences to generate 12 models. Their source code is freely available under the MIT license for anonymous download in Github, and there is a webserver that applies one of those models (tetra_sc_tri_p) to user data. This work extends upon previous work by the same group and is meant to fill a need in the field for quick classification methods of unstudied phage proteins with low likelihood to be anything besides phage structural proteins. There are multiple concerns, however, around the generation of the training set and validation of the resulting models.

GENERAL COMMENTS

1. The training data sets for the neural network models were collected from the NCBI database using the ncbi_get_structural.py script, which retrieves sequences from the NCBI protein database based solely on how they are named by the sequence depositors. This is problematic, as a) many phage protein annotations in the database are incorrect, and b) even if they are “correct” there is no enforceable naming convention between annotators. For example, the term “minor tail protein” could refer to baseplate components, tail needles, tail fibers, tail tape measure proteins or head-tail joining proteins. Likewise, some groups may use alternate names for the major capsid protein, such as “coat” or “MCP”, and some names may simply be misspelled. It should also be noted that the ncbi_get_structural.py script contains a typo at line 145 (“head-tail joinning”) that would have interfered with data retrieval.

2. Manual curation is mentioned in the manuscript (lines 25, 83, 93, Table 2), but no curation criteria for class inclusion or exclusion are provided. Did the curation involve any validation that the proteins in a given class (e.g., tail fiber) actually had their named functions? Some categories, like baseplate, decreased significantly from manual curation (Table 2) but we do not know why.

3. The biological or structural definitions of each of the ten classes are not defined in the manuscript, so it is difficult to tell what structural components belong to each class. While terms such as “major capsid” and “portal” are generally well-agreed upon (and will often contain those terms in their name), other categories are more ambiguous. Aside from the ambiguity in what constitutes a “minor tail protein” described above, it is not clear what qualifies as “major tail” (could be tail tube, tail sheath or both), a “tail shaft”, or what the structural distinction is between “collar” and “head-tail joining” proteins. The authors are free to define the classes as they wish, but detailed definitions are required, especially if the intent is for these annotations to be applied to novel phage genomes.

4. The manuscript describes validation of the neural network against sets of database proteins, but there is no validation of the tool against sets of known, experimentally verified proteins, or against clusters of structural proteins that are supported by external bioinformatic evidence (e.g., conserved domains, COGs, high-quality UniProt/SwissProt annotations). The authors describe this as a tool for the annotation of novel phage genomes, so there must be some evidence that the tool “works” on predicting known proteins. This validation should also include a description of the scoring criteria produced in the tool output, which appears to score each protein for each category on a scale of 0 to 10. It is not clear how to interpret these outputs or what constitutes a “good” score for the tool.

SPECIFIC COMMENTS

Line 43 – ‘by lysing specific components of microbiomes’ is unclear. Is it meant that specific taxa are targeted? Phage can also interact with bacteria in ways other than lysing them.

Lines 60-62 – the argument that phage therapy has increased demand for phage annotation is supported, but the implication here seems to be that annotation of structural proteins will provide higher confidence in using phages for therapy. Is there a specific connection (positive or negative) to structural proteins and phages used for therapy? What does “provisional” mean in this context? Is this just another word for “inaccurate”?

Figs. 2, 3 and 4 are missing y-axis labels. The bars in Figs. 2 and 3 are very narrow and can only be viewed when zoomed in to >200%.

**********

Have all data underlying the figures and results presented in the manuscript been provided?

Large-scale datasets should be made available via a public repository as described in the PLOS Computational Biology data availability policy, and numerical data that underlies graphs or summary statistics should be provided in spreadsheet form as supporting information.

Reviewer #1: Yes

Reviewer #2: Yes

**********

PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

Figure Files:

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email us at figures@plos.org.

Data Requirements:

Please note that, as a condition of publication, PLOS' data policy requires that you make available all data used to draw the conclusions outlined in your manuscript. Data must be deposited in an appropriate repository, included within the body of the manuscript, or uploaded as supporting information. This includes all numerical values that were used to generate graphs, histograms etc.. For an example in PLOS Biology see here: http://www.plosbiology.org/article/info%3Adoi%2F10.1371%2Fjournal.pbio.1001908#s5.

Reproducibility:

To enhance the reproducibility of your results, PLOS recommends that you deposit laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. For instructions, please see http://journals.plos.org/compbiol/s/submission-guidelines#loc-materials-and-methods

PLoS Comput Biol. doi: 10.1371/journal.pcbi.1007845.r003

Decision Letter 1

Mihaela Pertea

26 Sep 2020

Dear Mr. Cantu Alessio Robles,

We are pleased to inform you that your manuscript 'PhANNs, a fast and accurate tool and web server to classify phage structural proteins' has been provisionally accepted for publication in PLOS Computational Biology.

Before your manuscript can be formally accepted you will need to complete some formatting changes, which you will receive in a follow up email. A member of our team will be in touch with a set of requests.

Please note that your manuscript will not be scheduled for publication until you have made the required changes, so a swift response is appreciated.

IMPORTANT: The editorial review process is now complete. PLOS will only permit corrections to spelling, formatting or significant scientific errors from this point onwards. Requests for major changes, or any which affect the scientific understanding of your work, will cause delays to the publication date of your manuscript.

Should you, your institution's press office or the journal office choose to press release your paper, you will automatically be opted out of early publication. We ask that you notify us now if you or your institution is planning to press release the article. All press must be co-ordinated with PLOS.

Thank you again for supporting Open Access publishing; we are looking forward to publishing your work in PLOS Computational Biology.

Best regards,

Mihaela Pertea

Software Editor

PLOS Computational Biology

Mihaela Pertea

Software Editor

PLOS Computational Biology

***********************************************************

Reviewer's Responses to Questions

Comments to the Authors:

Please note here if the review is uploaded as an attachment.

Reviewer #1: The authors have addressed all of the reviewer comments in their revised manuscript. The gitHub repo and tool are both easy to understand and work well. The additional figures and tables provide additional support for the utility and power of this tool.

Reviewer #2: I think the authors for their attention to the reviewer comments.

**********

Have all data underlying the figures and results presented in the manuscript been provided?

Large-scale datasets should be made available via a public repository as described in the PLOS Computational Biology data availability policy, and numerical data that underlies graphs or summary statistics should be provided in spreadsheet form as supporting information.

Reviewer #1: Yes

Reviewer #2: Yes

**********

PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: Yes: Catherine Putonti

Reviewer #2: No

Associated Data

    This section collects any data citations, data availability statements, or supplementary materials included in this article.

    Supplementary Materials

    S1 Table. Side chain groupings.

    (XLS)

    S1 Fig. Model-specific F1 score—F1 scores (harmonic mean of precision and recall) for each side chain model/class combination.

    All models follow similar trends as to which classes are more or less difficult to classify correctly. Error bars represent the 95% confidence intervals.

    (PNG)

    S2 Fig. Class-specific F1 score—F1 scores (harmonic mean of precision and recall) for each side chain model/class combination.

    Some classes, such as minor capsid, tail fiber, or minor tail, are harder to classify correctly irrespective of the model used. Error bars represent the 95% confidence intervals.

    (PNG)

    S3 Fig. Comparison of the validation weighted average F1-score of three models on the same feature sets—We compared our ANN ensemble trained on 1D-10D sets against a logistic regression trained on the 1D-10D sets and an ANN ensemble trained on the 1d-10d sets (40% dereplication, without cluster expansion—see Methods).

    The ANN ensembles perform significantly better than the logistic regression. Error bars represent 0.95 confidence intervals.

    (PNG)

    S4 Fig. Per class comparison of the validation F1-score of three models on the “tetras_sc_tri_p feature” set—In the structural classes, the 1D-10D ANN ensemble performs slightly better than the logistic regression and significantly better than the 1d-10d ANN ensemble.

    In the “others” class (by far the largest), 1D-10D ANN ensemble performs as well as 1d-10d ANN and better than logistic regression. Error bars represent 0.95 confidence intervals.

    (PNG)

    Attachment

    Submitted filename: PhANNs_reviewers_responses.docx

    Data Availability Statement

    The full database, as well as the code for PhANN and the webserver, are available for download at http://edwards.sdsu.edu/phanns and https://github.com/Adrian-Cantu/PhANNs.


    Articles from PLoS Computational Biology are provided here courtesy of PLOS

    RESOURCES
