Synthesis and Structure–Activity Relationship of Dehydrodieugenol B Neolignans against Trypanosoma cruzi

Abstract

Trypanosoma cruzi is the etiologic agent of Chagas disease, which affects over seven million people, especially in developing countries. Undesirable side effects are frequently associated with current therapies, which are typically ineffective in the treatment of all stages of the disease. Here, we report the first synthesis of the neolignan dehydrodieugenol B, a natural product recently shown to exhibit activity against T. cruzi. Using this strategy, a series of synthetic analogues were prepared to explore structure–activity relationships. The in vitro antiparasitic activities of these analogues revealed a wide tolerance of modifications and substituent deletions, with maintained or improved bioactivities against the amastigote forms of the parasite (50% inhibitory concentration (IC₅₀) of 4–63 μM) and no mammalian toxicity (50% cytotoxic concentration (CC₅₀) of >200 μM). Five of these analogues meet the Drugs for Neglected Disease Initiative (DNDi) “hit criteria” for Chagas disease. This work has enabled the identification of key structural features of the natural product and sites where scaffold modification is tolerated.

Chagas disease, a neglected tropical disease caused by the kinetoplastid parasite Trypanosoma cruzi, affects 6–7 million people worldwide and causes ∼14 000 deaths per year.^1,2 It is endemic in Latin American countries and is spreading further worldwide due to human and vector migration.³ The disease consists of a mostly asymptomatic acute stage, which is typified by the presence of parasites in the blood, and a chronic stage, where the level of parasite in the blood is low/undetectable due to their predominant location in the heart and digestive system. While the chronic phase can persist undetected for decades,⁴ 30–40% of patients suffer severe failure of vital organs (e.g., cardiomyopathy and gastrointestinal disease), leading to major disability or death.⁵ Current treatments (nifurtimox and benznidazole) cause severe side effects and are inefficient in the chronic stage of the disease, and parasite resistance is emerging.⁶ Despite efforts to develop new antiparasitic agents,^7,8 the current pipeline for chemical entities against T. cruzi is limited, and as such, there is an ongoing need for new drug candidates.^9,10

Natural products are a proven source of drugs, either in their natural form, as synthetic/semisynthetic derivatives, or as a basic pharmacophore.¹¹ Parasitic diseases are no exception,¹²⁻¹⁵ with the frontline treatments for malaria (artemisinin) and visceral leishmaniasis (amphotericin B and paromomycin) themselves being natural products.^16,17 As part of a program to identify new antitrypanosomal agents, we previously reported the isolation of dehydrodieugenol B (1, Figure 1) and methyl dehydrodieugenol B (2) from the plant Nectandra leucantha and their bioactivity against T. cruzi.^18,19 A series of semisynthetic analogues was subsequently investigated,²⁰ which were accessed by modification of the phenol and allyl side chains of dehydrodieugenol B. This suggested that at least one nonpolar side chain is required for activity, as the introduction of polar functionalities onto both (a necessary consequence of this semisynthesis approach) resulted in a notable reduction in bioactivity.

Figure 1.

Structures of the dehydrodieugenol natural products and planned SAR/synthesis strategy.

To establish a more detailed structure–activity relationship (SAR) for dehydrodieugenol B, we targeted a concise and robust strategy that would enable facile modification of the natural product core, including selective substitution/deletion of key structural features. We were attracted to a copper-catalyzed biaryl ether formation as a key disconnection (Ullmann coupling, Figure 1), as this would segment the natural product into the readily available eugenol (3) and eugenol-derived iodide (4); analogues would be accessed by the variation of either partner. From an SAR perspective, three sets of modifications were targeted: (1) the phenol/OMe group at C2 on the A-ring (substituent S1, green); (2) the allyl side chains (substituents S2, blue); (3) the methoxy groups (substituents S3, orange). Here, we describe the development of this synthetic strategy to access natural products 1 and 2, its application to prepare 21 analogues (5–25), and the evaluation of their bioactivity against T. cruzi.

Copper-catalyzed Ullmann coupling represents an attractive method to access biaryl ethers.²¹⁻²³ However, this particular C–O bond formation is challenged by the need for an electron-rich halide and steric hindrance (ortho-substitution) on both coupling partners. The need for basic reaction conditions leads to an additional concern, which has been encountered in work toward related natural products,²⁴ namely, isomerization of the allylic side chain to the more thermodynamically favored internal alkene.

The Ullmann coupling conditions described by Buck et al. were chosen as a starting point to study biaryl ether formation,²⁵ as they were successfully employed using electron-rich halides and sterically hindered substrates. In order to optimize the conditions for our system, commercially available 2-iodoanisole (26) was first used as a coupling partner with eugenol (Table 1). Under the reported conditions,²⁵ isomerization of the allylic side chain proved to be a significant problem (Entry 1), with desired product 27 being the minor component of the product mixture. The use of bromoanisole (Entry 2) exacerbated this problem due to the extended reaction time required. However, lowering the reaction temperature to 80 °C dramatically reduced the proportion of isomerized product 28 (Entry 3), and switching to a less polar solvent (dioxane,²⁶ Entry 4) eliminated this problem entirely but at the cost of a significantly reduced reaction rate. A solvent mixture of dioxane and NMP (1:1) resulted in shorter reaction times and greatly reduced the levels of isomerization (Entries 5 and 6). An increase in the proportion of dioxane (2:1) further reduced isomerization but also conversion (Entry 7), while a copper/ligand ratio of 1:1 maximized the reaction efficiency while maintaining minimal isomerization (Entry 8, 90%, <1% isomerization).

Table 1. Optimization of Ullmann Coupling Reaction Conditions.

entry	CuCl (mol %)	TMHD (mol %)	solvent	temp (°C), time (h)	yield (%)a	27:28b
1	50	10	NMP	120, 16	33	1:2.5
2c	50	10	NMP	120, 42	25	0:1
3	50	10	NMP	80, 16	63	1:0.07
4	50	10	dioxane	80, 64	37	1:<0.01
5	50	10	dioxane/NMPd	80, 24	84	1:0.02
6	25	10	dioxane/NMPd	80, 24	66	1:0.03
7	50	10	dioxane/NMPe	80, 22	53	1:0.01
8	50	50	dioxane/NMPe	80, 22	90	1:<0.01

^aIsolated yield.

^bDetermined by ¹H NMR spectroscopic analysis of the crude reaction mixture.

^cUsing 2-bromoanisole.

^d1:1 ratio.

^e2:1 ratio.

With optimized conditions in hand, attention turned to the natural products, which would require the coupling of a suitable iodinated derivative of eugenol (e.g., 4, Figure 1). This was prepared by straightforward ortho-lithiation/iodination of MOM-protected eugenol (Scheme 1).²⁷ The application of our optimized conditions to the coupling of 4 with eugenol resulted in low yields of product 5 due to the unexpected lability of the MOM protecting group under the reaction conditions. However, switching from MOM to PMB (30) or to Me (31, as required for natural product 2) overcame this problem, affording 6 and 2 in 59% and 58% yields, respectively. Interestingly, the more electron-rich “left-hand” side chain was found to be more prone to alkene isomerization during the coupling. Fortunately, the acidic conditions required for deprotection of the PMB group to deliver natural product 1 (67%) also removed any traces of this isomerized byproduct via selective hydration of the styrenyl double bond, which is activated to protonation by the electron-rich arene. This synthetic strategy could be scaled up to enable access to 1 in gram quantities. A series of synthetic derivatives of the natural products, featuring allyl or benzyl ethers at substituent S1 (7, 8) and/or double saturation at S3 (9, 10), was also prepared for reference, with 7–9 having been studied in our earlier work.²⁰

Scheme 1. Synthesis of Natural Products 1 and 2 and Analogues 5–10.

Reagents and conditions: (a) MOMCl (1.5 equiv), i-Pr₂EtN, CH₂Cl₂; (b) s-BuLi (1.5 equiv), TMEDA, THF, 0 °C to rt; I₂ (1.5 equiv); (c) CuCl (50 mol %), TMHD (50 mol %), Cs₂CO₃ (2 equiv), dioxane/NMP (2:1), 80 °C; (d) 2 M HCl/MeOH (1:10); (e) PMBCl (1.2 equiv), K₂CO₃(2.5 equiv), DMF, 100 °C; (f) MeI (1.4 equiv), K₂CO₃ (4 equiv), DMF; (g) 1 M HCl/EtOH (1:2.5), 80 °C; (h) H₂, Pd/C (30 mol %), EtOH.

The modular nature of this route means it can readily be applied to the synthesis of a range of analogues not accessible from the natural products themselves in order to explore structure–activity relationships of dehydrodieugenol B. A series of 14 further compounds 11–25 was thus prepared, featuring systematic selective modification of substituents S1, S2, and S3 (Scheme 2). First, a variation of the B-ring was carried out by coupling of various aryl iodides (4, 30, and 31) with “saturated” eugenol (32). This gave analogues 11–13, which allowed the investigation of the importance of B-ring side chain unsaturation on bioactivity compared to 1, 2, and 6. The need for either the B-ring methoxy substituent or the three-carbon side chain was probed through analogues 14/15 and 16/17, respectively, which were prepared by coupling with the requisite partners 33 and 34 (we note in passing that 15 is itself a natural product, namely, 3-methylobovatol).²⁷⁻²⁹ Equivalent variation of A-ring functionality was achieved by coupling of eugenol with n-propyl iodoarene 36, which gave analogues 18 and 19. Deletion of the A-ring three-carbon side chain and methoxy group was explored through analogues 20–22 and 23/24. Interestingly, when halide 40 (lacking a methoxy group ortho to the MOM ether) was used in the Ullmann coupling, no cleavage of the MOM group was observed as had been the case with the equivalent coupling of 3 with 4 (see Scheme 1). We suggest that this can be rationalized by a steric effect where the MOM group is now able to rotate away from the Lewis-acidic copper atom during the coupling reaction, presumably a more reactive conformation for the coupling process. Finally, deletion of the C1-phenol (25) was accomplished by coupling of 3,5-dibromoanisole with 3, followed by palladium-catalyzed Kumada coupling with allylmagnesium chloride.

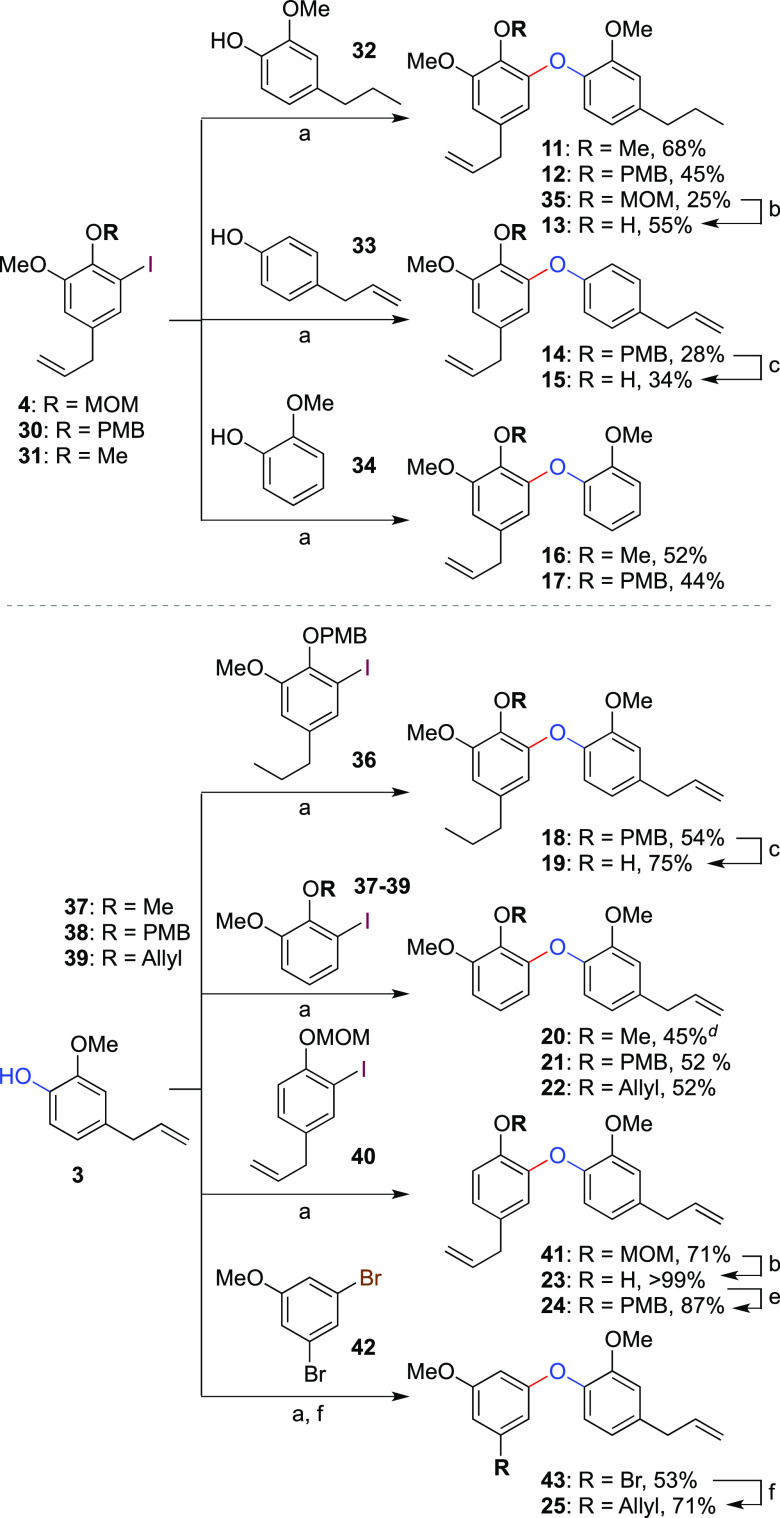

Scheme 2. Synthesis of Analogues 11–25.

Reagents and conditions: (a) CuCl (50 mol %), TMHD (50 mol %), Cs₂CO₃ (2 equiv), dioxane/NMP (2:1), 80 °C; (b) 2 M HCl/MeOH (1:10); (c) 1 M HCl/EtOH (1:2.5), 80 °C; (d) coupled using CuI (10 mol %), N,N-dimethylglycine hydrochloride (30 mol %), K₂CO₃ (2 equiv), DMSO, 80 °C;²⁶ (e) PMBCl (1.2 equiv), K₂CO₃ (2.5 equiv), DMF, 100 °C; (f) Pd₂(dba)₃ (1 mol %), BINAP (1 mol %), AllylMgCl (2.5 equiv), dioxane.

Our attention next turned to an evaluation of the activity of the various natural product analogues against T. cruzi amastigotes (evaluated microscopically using an ex vivo intracellular model with mice macrophages)²⁰ and trypomastigotes (resazurin in vitro assay).³⁰ Among the compounds featuring sole modification of the S1 substituent (5–8 and 25, Table 2), four of the five presented improved activity against the amastigotes compared to the natural products, with 50% inhibitory concentration (IC₅₀) values of 4–24 μM, while only one demonstrated activity against the trypomastigotes (5, 6.5 ± 4.9 μM). Analogue 6 (OPMB) showed the most promising activity (4.0 ± 1.4 μM), being approximately 20-fold more potent than the natural product 1 against the amastigotes and with a selectivity index >50 and activity equivalent to benznidazole, a drug in clinical use against Chagas disease. Interestingly, in addition to the tolerance of functionalization of the phenol with a variety of groups, which offers a scope for future modification, the deletion of this S1 substituent also enhanced bioactivity compared to the parent natural products (25, 10.9 μM). It is noteworthy that all modifications of the S1 substituent did not lead to mammalian cytotoxicity for the highest tested concentration of 200 μM.

Table 2. Anti-T. cruzi Activity and Mammalian Cytotoxicity of Synthetic Analogues with a Variation of S1 Substitution^a.

			IC50 (μM) ± SDb
entry	compound	S1	trypomastigote	amastigote	CC50 (μM) ± SDc	SId
1	1e	OH	38.6 ± 8.3	86.5 ± 16.2	>200	>2.3
2	2e	OMe	NA	NA	>200	ND
3	5	OMOM	6.5 ± 4.9	24.4 ± 10.3	>200	>8.2
4	6	OPMB	NA	4.0 ± 1.4	>200	>50
5	7f	OAllyl	NA	NA	>200	ND
6	8f	OBn	NA	9.5 ± 1.3	>200	>21.1
7	25	H	NA	10.9 ± 6.5	>200	>18.3
8	benznidazole		17.7 ± 1.9	5.0 ± 1.5	190.6 ± 13.4	38.1

^aSD: standard deviation; ND: not determined; NA: not active.

^bIC₅₀: 50% inhibitory concentration.

^cCC₅₀: 50% cytotoxic concentration.

^dSI: selectivity index, given by the ratio between CC₅₀ in NCTC cells and IC₅₀ in intracellular amastigotes.

^ePublished in ref (18).

^fPublished in ref (20).

Considering modification of the S2 hydrocarbon side chains (Table 3), we first questioned whether the saturation of either or both alkenes would affect the biological activity, a potentially important consideration from a synthetic perspective where saturation would avoid the problem of alkene isomerization during Ullmann coupling. Pleasingly, a consistent and potent activity was observed against T. cruzi amastigotes irrespective of which side chain was hydrogenated (or indeed both, 5.5–16.6 μM, Entries 1–7). For the phenols 13 and 19, significant mammalian toxicity was observed, although alkylation of the phenol as methyl or PMB ether avoided this problem. In contrast, analogue 11 was the only derivative of this subset aside from 13 and 19 to display activity against the trypomastigote form. We next examined whether deletion of the S2 side chains was tolerated. For activity against amastigotes, this revealed that both side chains are likely required (Entries 8–12), with only analogue 18 displaying appreciable bioactivity (albeit reduced compared to derivatives featuring two side chains, Entries 1–7). It is curious that this deletion led to activity for compound 16, a direct analogue of 2, which in its native form is apparently inactive (Table 1, Entry 2). Finally, the effect of S3 deletion was studied through analogues 23/24 (A-ring) and 14/15 (B-ring). In all cases (Table 4), appreciable activity was observed against the amastigote form of the parasite and also against trypomastigotes for the free phenols, albeit again at a cost of mammalian toxicity. Given the improved efficiency of Ullmann coupling of iodide 41 (Scheme 2), which lacks the A-ring methoxy substituent, this deletion may again offer a synthetic benefit for access to further natural product analogues.

Table 3. Anti-T. cruzi Activity and Mammalian Cytotoxicity of Synthetic Analogues with a Variation of S2 Substitution^a.

					IC50 (μM) ± SDb
entry	compound	S1	S2-A	S2-B	trypomastigote	amastigote	CC50 (μM) ± SDc	SId
1	13	OH	Allyl	n-Pr	7.6 ± 1.9	16.6 ± 1.0	42.0 ± 3.8	2.5
2	19	OH	n-Pr	Allyl	4.6 ± 3.8	10.5 ± 8.3	14.2 ± 0.1	1.3
3	11	OMe	Allyl	n-Pr	21.9 ± 6.1	11.7 ± 7.0	>200	>17.1
4	9e	OMe	n-Pr	n-Pr	NA	13.3 ± 1.2	>200	>15.0
5	10	OPMB	n-Pr	n-Pr	NA	5.5 ± 3.5	>200	>36.4
6	12	OPMB	Allyl	n-Pr	NA	8.6 ± 2.1	>200	>23.3
7	18	OPMB	n-Pr	Allyl	NA	13.4 ± 5.4	>200	>14.9
8	16	OMe	Allyl	H	20.3 ± 0.4	NA	>200	ND
9	20	OMe	H	Allyl	63.1 ± 6.2	25.7 ± 12.2	>200	>7.8
10	17	OPMB	Allyl	H	NA	NA	>200	ND
11	21	OPMB	H	Allyl	NA	NA	>200	ND
12	22	OAllyl	H	Allyl	NA	NA	>200	ND
13	benznidazole				17.7 ± 1.9	5.0 ± 1.5	190.6 ± 13.4	38.1

^aSD: standard deviation; ND: not determined; NA: not active.

^bIC₅₀: 50% inhibitory concentration.

^cCC₅₀: 50% cytotoxic concentration.

^dSI: selectivity index, given by the ratio between CC₅₀ in NCTC cells and IC₅₀ in intracellular amastigotes.

^ePublished in ref (20).

Table 4. Anti-T. cruzi Activity and Mammalian Cytotoxicity of Synthetic Analogues with S3 Deletions^a.

					IC50 (μM) ± SDb
entry	compound	S1	S3-A	S3-B	trypomastigote	amastigote	CC50 (μM) ± SDc	SId
1	23	OH	H	OMe	2.5 ± 1.3	7.7 ± 1.3	128.6 ± 5.2	16.7
2	24	OPMB	H	OMe	NA	11.6 ± 8.4	>200	>17.2
3	15	OH	OMe	H	4.6 ± 3.0	22.5 ± 18.8	123.4 ± 9.4	5.5
4	14	OPMB	OMe	H	NA	11.0 ± 2.3	>200	>18.2
5	benznidazole				17.7 ± 1.9	5.0 ± 1.5	190.6 ± 13.4	38.1

^aSD: standard deviation; ND: not determined; NA: not active.

^bIC₅₀: 50% inhibitory concentration.

^cCC₅₀: 50% cytotoxic concentration.

^dSI: selectivity index, given by the ratio between CC₅₀ in NCTC cells and IC₅₀ in intracellular amastigotes.

The Drugs for Neglected Disease Initiative (DNDi) defines the “hit criteria” for Chagas disease as a compound accessed by a synthetic pathway of up to 8 steps, with an IC₅₀ value against amastigotes lower that 10 μM and a selectivity index of at least 10.³¹ Among the 21 analogues studied in this work, five meet these criteria, displaying a potency equivalent to the current therapeutic agent benznidazole, and a further seven display activity of <15 μM. Only those analogues possessing a free phenol exhibited mammalian toxicity. In general, low activity was observed against the extracellular trypomastigotes compared to the intracellular amastigotes, which may suggest that the compounds’ mode of action is implicated in amastigote replication or a possible immunomodulatory effect whereby the compounds activate the macrophage, rather than acting on the parasite directly.

The following trends against the amastigote form of T. cruzi emerge from the SAR study (Figure 2): (1) The presence of both S2 side chains is likely important for activity, although one or both may be saturated. (2) Either of the S3 methoxy groups may be removed without a significant effect on antiparasitic activity, which may be of utility from a synthetic perspective. (3) The S1 substituent may not be crucial (Table 3) but can also accommodate functionalization with various ether groups, which in general reduce toxicity compared to the equivalent phenols (e.g., 13 vs 11 or 12, 19 vs 18, 23 vs 24). In particular, the most potent analogues (6, 8, 10, and 12) feature benzylic ethers at this position, suggesting there is significant scope for further exploration of this substituent vector. In all, this study shows that the dehydrodieugenol framework offers a robust platform for further analogue design, including the synthesis of candidates featuring improved “drug-like” properties.

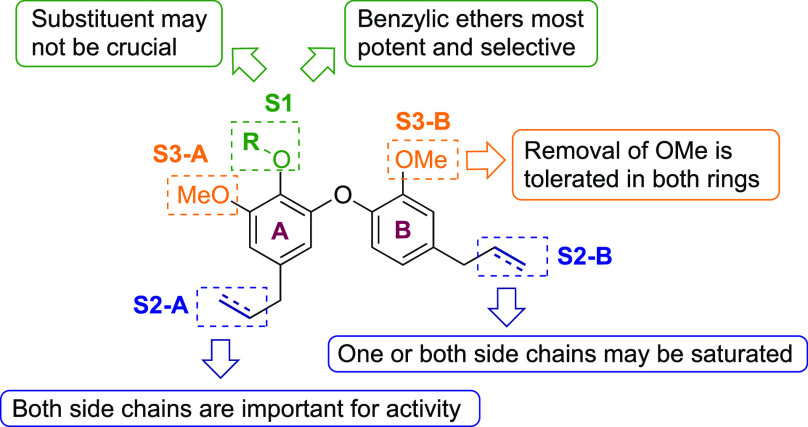

Figure 2.

SAR trends for the dehydrodieugenol scaffold.

In conclusion, a robust synthetic route to the dehydrodieugenol natural products has been developed, which centers on an Ullmann coupling to form the biaryl ether linkage. This approach enabled the preparation of 21 synthetic analogues, most of which are not accessible from the natural products themselves. While further mechanism of action and pharmacokinetic studies as well as additional analogues that encompass more significant variations on the aromatic rings and their side chains will be needed to inform the design process, the study shows that this biaryl ether scaffold has much flexibility and promise for the discovery of bioactive natural-product based antiparasitic agents.

Methods

Ethics Statement

BALB/c mice were obtained from the animal breeding facility at the Instituto Adolfo Lutz, Brazil. The animals were maintained in sterilized cages under a controlled environment and received water and food ad libitum. All procedures performed were previously approved by the Animal Care and Use Committee from Instituto Adolfo Lutz, Secretary of Health of Sao Paulo State (Project number CEUA 05/2018) in agreement with the Guide for the Care and Use of Laboratory Animals from the National Academy of Sciences.

Parasites and Mammalian Cell Maintenance

Macrophages were collected from the peritoneal cavity of BALB/c mice by washing them with RPMI-1640 medium supplemented with 10% fetal calf serum and were maintained at 37 °C in a 5% CO₂ humidified incubator. Trypomastigotes of T. cruzi (Y strain) were maintained in Rhesus monkey kidney cells (LLC-MK2, ATCC CCL 7) and cultivated in RPMI-1640 medium supplemented with 2% fetal calf serum at 37 °C in a 5% CO₂ humidified incubator. Murine conjunctive cells (NCTC clone 929, ATCC) were maintained in RPMI-1640 supplemented with 10% FBS at 37 °C in a 5% CO₂ humidified incubator.²⁰

Antitrypomastigote Assay

LLC-MK2-derived trypomastigotes were seeded (1 × 10⁶ cells/well) in 96-well plates and incubated with the compounds serially diluted 2-fold (up to 100 μM) for 24 h in RPMI 1640 medium at 37 °C in a 5% CO₂ humidified incubator. Subsequently, resazurin (0.011% in PBS) was added for 24 h to check the parasite viability.³⁰ The optical density was determined in the FilterMax F5 (Molecular Devices) at 570 nm. Benznidazole was used as the standard.

Antiamastigote Assay

Peritoneal macrophages (1 × 10⁵ cells/well), collected from the peritoneal cavity of the BALB/c mice, were seeded in 16-well chamber slides (NUNC, Thermo Fisher Scientific) and infected with trypomastigotes (10:1, parasite/macrophage ratio). After 2 h, the compounds (in concentrations of 30–0.23 μM) were incubated with infected macrophages for 48 h at 37 °C in a 5% CO₂ humidified incubator. The slides were fixed with MeOH, stained with Giemsa, and observed under a light microscope (EVOS M5000, Termo, USA) with digital image equipment. The 50% inhibitory concentration (IC₅₀) values were determined by the infection index.²⁰ >90% infection of macrophages was established in this assay.

Cytotoxicity against Mammalian Cells

Fibroblast NCTC cells (clone 929) (6 × 10⁴ cells/well) were seeded in 96-well plates and incubated with the compounds (200–1.56 μM) for 48 h at 37 °C in a 5% CO₂ humidified incubator. The 50% cytotoxic concentration (CC₅₀) was determined by the MTT colorimetric assay.³² The selectivity index (SI) was determined as CC₅₀/IC₅₀ against amastigotes.

Statistical Analysis

IC₅₀ and CC₅₀ values were calculated using a sigmoid dose–response curve in GraphPad Prism 6.0 software (GraphPad Software, San Diego, CA, USA). The assays were repeated at least twice, and the samples were tested in duplicate.

Glossary

Abbreviations

BINAP

(2,2′-bis(diphenylphosphino)-1,1′-binaphthyl)

CCL2

CC chemokine ligand 2

CCR2

CC chemokine receptor 2

CCR5

CC chemokine receptor 5

DMF

N,N-dimethylformamide

MOM

methoxymethyl

NMP

N-methylpyrrolidinone

TMEDA

N,N,N′,N′-tetramethylethylenediamine

PMB

para-methoxybenzyl

TLC

thin layer chromatography

TMHD

2,2,6,6-tetramethyl-3,5-heptanedione

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsinfecdis.0c00523.

• Synthetic procedures and copies of ¹H and ¹³C NMR data for all novel compounds (PDF)

Author Present Address

^# M.M.H.: Department of Chemistry, Faculty of Science and Technology, UiT The Arctic University of Norway, 9037 Tromsø, Norway.

Author Contributions

The manuscript was written through contributions of all authors.

The authors declare no competing financial interest.
