Two new Leptobrachella species (Anura, Megophryidae) from the Yunnan-Guizhou Plateau, southwestern China

Abstract

Two new toad species of the genus Leptobrachella are described from the Yunnan-Guizhou Plateau of China, based on the combination of molecular and morphological data. The description of Leptobrachella aspera Wang, Lyu, Qi & Wang, sp. nov. from Huanglianshan Nature Reserve represents the thirteenth Leptobrachella species known from Yunnan Province, and the description of Leptobrachella dorsospina Wang, Lyu, Qi & Wang, sp. nov. from Yushe Forest Park represents the sixth Leptobrachella species known from Guizhou Province. These new discoveries further emphasize the extremely high diversity of the Leptobrachella toads in these regions.

Introduction

The generic classifications within the family Megophryidae Bonaparte, 1850 have always been controversial. For example, recent comprehensive approaches have produced different taxonomic schemes for the genus Megophrys sensu lato Kuhl and Van Hasselt 1822 (Chen et al. 2017; Mahony et al. 2017; Liu et al. 2018; Li et al. 2020b). The taxonomy of another group of megophrid toads are facing the same problem: Chen et al. (2018) presented the first well-resolved phylogenetic hypothesis for the genera Leptolalax Dubois, 1983 and Leptobrachella Bonaparte, 1850. They tended towards the most conservative “one-genus option” pending the acquisition of additional data by assigning Leptolalax as a junior synonym of Leptobrachella. Their results also rejected the hypothesis that Leptolalax consists of two subgenera as proposed by Delorme et al. (2006) and Dubois et al. (2010). In this context, the genus Leptobrachella currently contains 82 species widely distributed from southern China, west to northeastern India, through Indochina to the island of Borneo (Frost 2020). Leptobrachella is a species-rich genus of megophrid frogs, and a large number of new species have been discovered in recent years due to the application of integrative taxonomy incorporating detailed morphological, bioacoustic and molecular analyses (Rowley et al. 2016, 2017; Yang et al. 2016; Yuan et al. 2017; Eto et al. 2018; Nguyen et al. 2018; Wang et al. 2019; Chen et al. 2020; Luo et al. 2020; Qian et al. 2020).

During recent field surveys in the Yunnan-Guizhou Plateau of southwestern China, a number of megophrid specimens were collected from Yushe Forest Park in western Guizhou (Fig. 1, site 1) and Huanglianshan Nature Reserve in southern Yunnan (Fig. 1, site 2), respectively. Morphologically, all the specimens can be assigned to the genus “Leptolalax” (now a junior subjective synonym of Leptobrachella), based on the following characters: (1) small or moderate size, snout-vent length not greater than 60.0 mm, (2) rounded finger tips, the presence of an elevated inner palmar tubercle not continuous to the thumb, (3) presence of macroglands on body including supra-axillary, pectoral, femoral and ventrolateral glands, (4) vomerine teeth absent, (5) tubercles on eyelids present, and (6) anterior tip of snout with whitish vertical bar (Dubois 1983; Matsui 1997, 2006; Lathrop et al. 1998; Delorme et al. 2006; Das et al. 2010). Although their generic allocation is without doubt, some characters of these specimens do not correspond to the diagnoses of any recognized species. Subsequent molecular analysis further revealed that these specimens represent two distinct evolutionary lineages. Considering both the morphological differences and molecular divergences, these specimens are described herein as two new species.

Figure 1.

Collection sites. Site 1-Yushe Forest Park, Shuicheng County, Guizhou Province, the type locality of Leptobrachella dorsospina sp. nov.; site 2-Huanglianshan Nature Reserve, Lyuchun County, Yunnan Province, the type locality of L. aspera sp. nov.; site 3-Xiaoqiaogou Nature Reserve, Xichou County, Yunnan Province, the type locality of L. feii; and site 4-Daweishan Nature Reserve, Pingbian County, Yunnan Province, another distribution locality of L. feii.

Materials and methods

Sampling

For the molecular analyses, a total of 80 sequences (nine muscle tissue samples was sequenced and 71 sequences obtained from GenBank) were used, including five sequences of the undescribed species from Guizhou, four sequences of the undescribed species from Yunnan, 69 sequences of 66 recognized congeners, and two out-group sequences of Oreolalax rhodostigmatus Hu & Fei, 1979 and Leptobrachium tengchongensis Yang & Huang, 2019, respectively (Table 1). Due to the presence of cryptic diversity within genus Leptobrachella, we chose sequences from type series or topotype specimens for molecular analysis if available to ensure the taxonomic identity of the species being studied.

Table 1.

Collection localities, voucher data and GenBank numbers (16S rRNA) for all samples used in this study.

ID	Ingroup	Collection Locality	Voucher No.	GenBank No.
1	Leptobrachella aspera sp. nov.	Huanglianshan Nature Reserve, Lyuchun, Yunnan, China	SYS a007743	MW046199
2	Leptobrachella aspera sp. nov.	Huanglianshan Nature Reserve, Lyuchun, Yunnan, China	SYS a007744	MW046200
3	Leptobrachella aspera sp. nov.	Huanglianshan Nature Reserve, Lyuchun, Yunnan, China	SYS a007745	MW046201
4	Leptobrachella aspera sp. nov.	Huanglianshan Nature Reserve, Lyuchun, Yunnan, China	SYS a007746	MW046202
5	Leptobrachella dorsospina sp. nov.	Yushe Forest Park, Shuicheng, Guizhou, China	SYS a004961	MW046194
6	Leptobrachella dorsospina sp. nov.	Yushe Forest Park, Shuicheng, Guizhou, China	SYS a004962	MW046195
7	Leptobrachella dorsospina sp. nov.	Yushe Forest Park, Shuicheng, Guizhou, China	SYS a004973	MW046196
8	Leptobrachella dorsospina sp. nov.	Yushe Forest Park, Shuicheng, Guizhou, China	SYS a004974	MW046197
9	Leptobrachella dorsospina sp. nov.	Yushe Forest Park, Shuicheng, Guizhou, China	SYS a004975	MW046198
10	Leptobrachella feii	Xiaoqiaogou Nature Reserve, Yunnan, China	KIZ032625	MT302635
11	Leptobrachella feii	Xiaoqiaogou Nature Reserve, Yunnan, China	KIZ048894	MT302634
12	Leptobrachella feii	Xiaoqiaogou Nature Reserve, Yunnan, China	KIZ048972	MT302636
13	Leptobrachella feii	Xiaoqiaogou Nature Reserve, Yunnan, China	KIZ048973	MT302637
14	Leptobrachella aerea	U Bo, Quang Binh, Vietnam	ZFMK 86362	JN848409
15	Leptobrachella alpina	Huangcaoling, Jingdong, Yunnan, China	KIZ046816	MH055866
16	Leptobrachella applebyi	Ngoc Linh, Kon Tum, Vietnam	AMS R 173778	KR018108
17	Leptobrachella arayai	Mesilau, Sabah, Malaysia	BORNEENSIS 22931	AB847558
18	Leptobrachella ardens	Kon Ka Kinh, Gia Lai, Vietnam	AMS R 176463	KR018110
19	Leptobrachella bidoupensis	Hon Giao, Lam Dong, Vietnam	NCSM 77321	HQ902883
20	Leptobrachella bijie	Zhaozishan Nature Reserve, Guizhou, China	SYS a007320	MK414539
21	Leptobrachella botsfordi	Fansipan, Lao Cai, Vietnam	AMS R 176540	MH055953
22	Leptobrachella bourreti	Lao Cai, Vietnam	AMS R 177673	KR018124
23	Leptobrachella chishuiensis	Chishui, Guizhou Province, China	CIBCS20190518047	MT117053
24	Leptobrachella crocea	Kon Tum, Vietnam	AMS R 173740	MH055954
25	Leptobrachella dringi	Gunung Mulu National Park, Sarawak, Malaysia	NMBE1056372	KJ831298
26	Leptobrachella eos	Long Nai, Phongsaly, Laos	MNHN 2004.0274	JN848452
27	Leptobrachella firthi	Ngoc Linh Nature Reserve, Kon Tum, Vietnam	AMS R 176524	JQ739206
28	Leptobrachella flaviglandulosa	Xiaoqiaogou Nature Reserve, Yunnan, China	KIZ032626	MT302633
29	Leptobrachella fritinniens	Base Camp of Mulu NP, Sarawak, Malaysia	KUHE 55371	AB847557
30	Leptobrachella fuliginosa	Phetchaburi, Thailand	KUHE 20174	LC201987
31	Leptobrachella gracilis	Camp 1 of Gunung Mulu NP, Sarawak, Malaysia	NMBE1056364	KJ831300
32	Leptobrachella hamidi	Bukit Lanjak, Malaysia	KUHE 17545	AB969286
33	Leptobrachella heteropus	Larut, Malaysia	KUHE 15486	LC202005
34	Leptobrachella isos	Gia Lai, Vietnam	AMS R 176480	KT824769
35	Leptobrachella kajangensis	Tioman, Malaysia	LSUHC 4431	LC202001
36	Leptobrachella kalonensis	Song Luy, Binh Thuan, Vietnam	AMNH A191762	KR018115
37	Leptobrachella kecil	Cameron, Malaysia	KUHE 52440	LC202004
38	Leptobrachella khasiorum	Meghalaya, India	SDBDU 2009.329	KY022303
39	Leptobrachella laui	Tai Mo Shan, Hongkong, China	SYS a002057	KM014546
40	Leptobrachella liui	Guadun, Mt. Wuyi, Fujian, China	SYS a002479	MH605574
41	Leptobrachella macrops	Phu Yen, Vietnam	PYU DTD-508	MG787991
42	Leptobrachella maculosa	Phuoc Binh, Ninh Thuan, Vietnam	ZFMK 96600	KR018120
43	Leptobrachella mangshanensis	Mangshan Nature Reserve, Hunan, China	MSZTC201701	MG132196
44	Leptobrachella maoershanensis	Maoershan Nature Reserve, Guangxi, China	KIZ019385	KY986930
45	Leptobrachella marmorata	Annah Rais, Padawan, Malaysia	KUHE 53192	AB969287
46	Leptobrachella maura	Kinabalu, Malaysia	SP 21450	AB847559
47	Leptobrachella melanoleuca	Srat Thani, Thailand	KUHE 19719	LC201990
48	Leptobrachella melica	Virachey, Ratanakiri, Cambodia	MVZ 258197	HM133599
49	Leptobrachella minima	Changdao, Thailand	KUHE 23733	LC201980
50	Leptobrachella nahangensis	Na Hang Nature Reserve, Tuyen Quang, Vietnam	ROM 7035	MH055853
51	Leptobrachella namdongensis	Thanh Hoa, Vietnam	VNUF A.2017.95	MK965390
52	Leptobrachella niveimontis	Daxueshan Nature Reserve, Yunnan, China	KIZ015734	MT302618
53	Leptobrachella nyx	Malipo, Yunnan, China	ROM 35606	MH055814
54	Leptobrachella oshanensis	Mt. Emei, Sichuan, China	SYS a001830	KM014810
55	Leptobrachella pallida	Gia Rich, Lam Dong, Vietnam	UNS00510	KR018112
56	Leptobrachella pelodytoides	Tam Dao, Vinh Phu, Vietnam	MVZ 223642	AY236798
57	Leptobrachella petrops	Tuyen Quang, Vietnam	VNMN:2016 A.06	KY459998
58	Leptobrachella picta	Gunung Kinabalu National Park, Sabah, Malaysia	UNIMAS 8705	KJ831295
59	Leptobrachella pluvialis	Sa Pa, Lao Cai, Vietnam	MNHN: 1999.5675	JN848391
60	Leptobrachella puhoatensis	Nghe An, Vietnam	AMS R184852	KY849588
61	Leptobrachella purpura	Yingjiang, Yunnan, China	SYS a006531	MG520355
62	Leptobrachella purpuraventra	Wujing Nature Reserve, Guizhou, China	SYS a007277	MK414518
63	Leptobrachella pyrrhops	Loc Bac, Lam Dong, Vietnam	ZMMU ABV-00176	KP017576
64	Leptobrachella rowleyae	Son Tra, Da Nang, Vietnam	ITBCZ 4113	MG682549
65	Leptobrachella sabahmontana	Mahua, Crocker, Malaysia	BORNEENSIS 12454	AB847550
66	Leptobrachella shangsiensis	Shiwandashan, Guangxi, China	NHMG1401032	MK095460
67	Leptobrachella sola	Terengganu, Malaysia	KUHE 52342	LC202011
68	Leptobrachella suiyangensis	Suiyang, Guizhou, China	GZNU20180606002	MK829648
69	Leptobrachella sungi	Bac Giang, Vietnam	ZMMU-NAP-02269	MH055859
70	Leptobrachella tadungensis	Dak Nong, Vietnam	UNS00517	KR018122
71	Leptobrachella tengchongensis	Tengchong, Yunnan, China	SYS a004598	KU589209
72	Leptobrachella tuberosa	Kon Ka Kinh National Park, Gia Lai, Vietnam	ZMMU-NAP-02275	MH055959
73	Leptobrachella ventripunctata	Xishuangbanna, Yunnan, China	SYS a001768	KM014811
74	Leptobrachella wuhuangmontis	Mt. Wuhuang, Pubei, Guangxi, China	SYS a003485	MH605577
75	Leptobrachella wulingensis	Tianzishan Nature Reserve, Hunan, China	CSUFT 200	MT530317
76	Leptobrachella yingjiangensis	Yingjiang, Yunnan, China	SYS a006533	MG520350
77	Leptobrachella yunkaiensis	Yunkaishan Nature Reserve, Guangdong, China	SYS a004663	MH605584
78	Leptobrachella zhangyapingi	Chiang Mai, Thailand	KIZ07258	MH055864
79	Leptobrachium tengchongense	Tengchong, Yunnan, China	SYS a004603	KX066876
80	Oreolalax rhodostigmatus	Da Fang, Guizhou, China	CIB ZYCA746	EF397248

DNA Extraction, PCR, and sequencing

DNA was extracted from muscle tissue using a DNA extraction kit from Tiangen Biotech (Beijing) Co., Ltd. The mitochondrial gene 16S ribosomal RNA gene (16S rRNA) fragment from each sample was sequenced. Fragments were amplified using the primer pairs L3975 (5'-CGCCTGTTTACCAAAAACAT-3') and H4551 (5'-CCGGTCTGAACTCAGATCACGT-3') (Simon et al. 1994). PCR amplifications were performed in a 20 μl reaction volume with the following cycling conditions: an initial denaturing step at 95 °C for five min; 35 cycles of denaturing at 95 °C for 40 s, annealing at 53 °C for 40 s and extending at 72 °C for one min; and a final extending step of 72 °C for 10 min. PCR products were purified with spin columns. The purified products were sequenced with both forward and reverse primers using BigDye Terminator Cycle Sequencing Kit according to the guidelines of the manufacturer. The products were sequenced on an ABI Prism 3730 automated DNA sequencer in Shanghai Majorbio Bio-pharm Technology Co., Ltd. All sequences have been deposited in GenBank (Table 1).

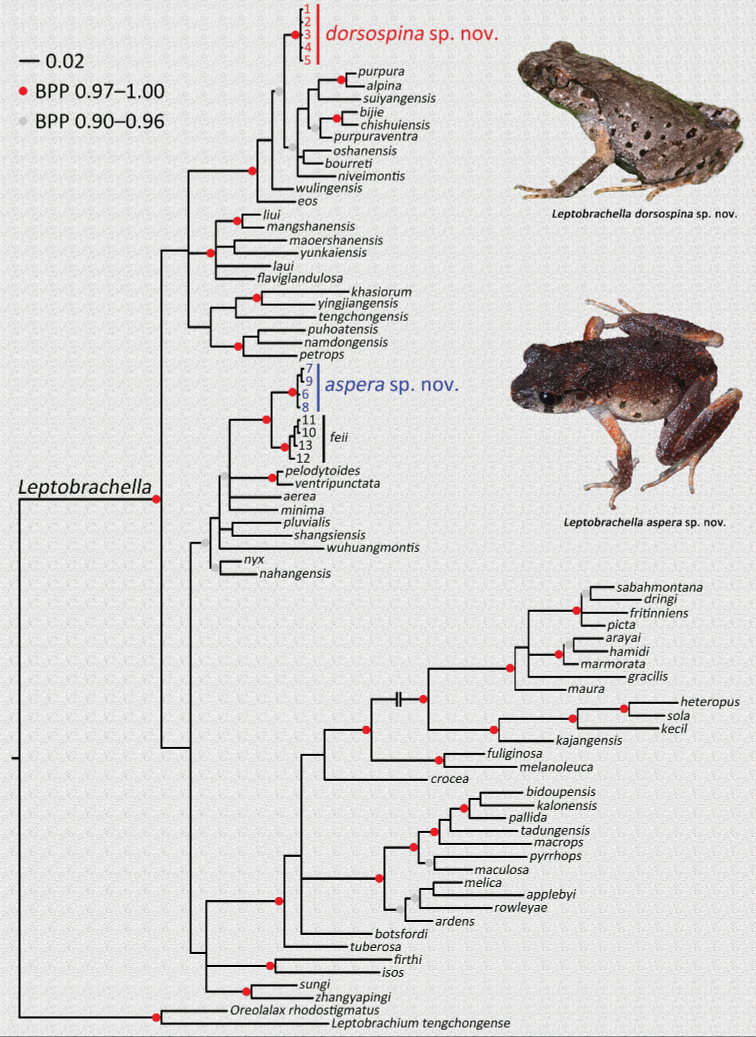

Phylogenetic analyses

Sequences were aligned in Clustal X 2.0 (Thompson et al. 1997) with default parameters. For GenBank sequences which lack information for part of the missing segments, we filled the blank sites with “N”. The aligned data was trimmed allowing no gap positions and default parameters in Gblocks version 0.91b (Castresana 2000). lyWe ran Jmodeltest v2.1.2 (Darriba et al. 2012) with Akaike and Bayesian information criteria on the alignment and obtained the best-fitting nucleotide substitution model of GTR + I + G. Phylogenetic analysis was using Bayesian inference (BI) in MrBayes 3.2.4 (Ronquist et al. 2012). Two independent runs with four Markov Chain Monte Carlo simulations were performed for ten million iterations and sampled every 1000 iterations. The first 25% of samples were discarded as burn-in. Convergence of the Markov Chain Monte Carlo simulations was assessed by PSRF ≤ 0.01 and ESS (effective sample size) value > 200 using Tracer 1.4 (http://tree.bio.ed.ac.uk/software/tracer/). Genetic distances among all Leptobrachella samples were calculated in MEGA 6 using the uncorrected p-distance model, with pairwise deletion of gaps and missing data.

Morphometrics

Measurements followed Fei et al. (2009) and Rowley et al. (2013), and were taken with a digital caliper to the nearest 0.1 mm. These measurements were as follows:

SVL snout-vent length (from tip of snout to vent);

HDL head length (from tip of snout to rear of jaws);

HDW head width (head width at commissure of jaws);

SNT snout length (from tip of snout to anterior corner of eye);

EYE eye diameter (diameter of exposed portion of eyeball);

IOD interorbital distance (minimum distance between upper eyelids);

IND internasal distance (distance between nares);

TMP tympanum diameter (horizontal diameter of tympanum);

TEY tympanum-eye distance (distance from anterior edge of tympanum to posterior corner of eye);

TIB tibia length (distance from knee to heel);

ML manus length (distance from tip of third digit to proximal edge of inner palmar tubercle);

PL pes length (distance from tip of fourth toe to proximal edge of the inner metatarsal tubercle);

LAHL length of lower arm and hand (distance from tip of the third finger to elbow);

HLL hindlimb length (distance from tip of fourth toe to vent).

Sex was determined by the presence of internal vocal sac openings, and the presence of eggs in abdomen seen via external inspection.

All specimens were fixed in 10% buffered formalin and later transferred to 70% ethanol for preservation, and deposited at the Museum of Biology, Sun Yat-sen University (SYS) and Chengdu Institute of Biology, the Chinese Academy of Sciences (CIB), China; tissue samples were preserved in 95% ethanol for molecular studies.

Comparative morphological data of Leptobrachella species were obtained from examination of museum specimens (see Appendix 1) and from the references listed in Table 2. Due to the high likelihood of undiagnosed diversity within the genus (Rowley et al. 2016; Yang et al. 2016), where available, we rely on examination of topotypic material and/or original species descriptions.

Table 2.

Data sources of the 82 currently known species of the genus Leptobrachella.

ID	Leptobrachella species	Literature
1	L. aerea (Rowley, Stuart, Richards, Phimmachak & Sivongxay, 2010)	Rowley et al. 2010c
2	L. alpina (Fei, Ye & Li, 1990)	Fei et al. 2009, 2016
3	L. applebyi (Rowley & Cao, 2009)	Rowley and Cao 2009
4	L. arayai (Matsui, 1997)	Matsui 1997
5	L. ardens (Rowley, Tran, Le, Dau, Peloso, Nguyen, Hoang, Nguyen & Ziegler, 2016)	Rowley et al. 2016
6	L. baluensis Smith, 1931	Dring 1983; Eto et al. 2016
7	L. bijie Wang, Li, Li, Chen & Wang, 2019	Wang et al. 2019
8	L. bidoupensis (Rowley, Le, Tran & Hoang, 2011)	Rowley et al. 2011
9	L. bondangensis Eto, Matsui, Hamidy, Munir & Iskandar, 2018	Eto et al. 2018
10	L. botsfordi (Rowley, Dau & Nguyen, 2013)	Rowley et al. 2013
11	L. bourreti (Dubois, 1983)	Ohler et al. 2011
12	L. brevicrus Dring, 1983	Dring 1983; Eto et al. 2015
13	L. crocea (Rowley, Hoang, Le, Dau & Cao, 2010)	Rowley et al. 2010a
14	L. chishuiensis Li, Liu, Wei & Wang, 2020	Li et al. 2020a
15	L. dringi (Dubois, 1987)	Inger et al. 1995; Matsui and Dehling 2012
16	L. eos (Ohler, Wollenberg, Grosjean, Hendrix, Vences, Ziegler & Dubois, 2011)	Ohler et al. 2011
17	L. feii Chen, Yuan & Che, 2020	Chen et al. 2020
18	L. firthi (Rowley, Hoang, Dau, Le & Cao, 2012)	Rowley et al. 2012
19	L. fritinniens (Dehling & Matsui, 2013)	Dehling and Matsui 2013
20	L. fuliginosa (Matsui, 2006)	Matsui 2006
21	L. flaviglandulosa Chen, Wang & Che, 2020	Chen et al. 2020
22	L. fusca Eto, Matsui, Hamidy, Munir & Iskandar, 2018	Eto et al. 2018
23	L. gracilis (Günther, 1872)	Günther 1872; Dehling 2012b
24	L. hamidi (Matsui, 1997)	Matsui 1997
25	L. heteropus (Boulenger, 1900)	Boulenger 1900
26	L. isos (Rowley, Stuart, Neang, Hoang, Dau, Nguyen & Emmett, 2015)	Rowley et al. 2015a
27	L. itiokai Eto, Matsui & Nishikawa, 2016	Eto et al. 2016
28	L. juliandringi Eto, Matsui & Nishikawa, 2015	Eto et al. 2015
29	L. kajangensis (Grismer, Grismer & Youmans, 2004)	Grismer et al. 2004
30	L. kalonensis (Rowley, Tran, Le, Dau, Peloso, Nguyen, Hoang, Nguyen & Ziegler, 2016)	Rowley et al. 2016
31	L. kecil (Matsui, Belabut, Ahmad & Yong, 2009)	Matsui et al. 2009
32	L. khasiorum (Das, Tron, Rangad & Hooroo, 2010)	Das et al. 2010
33	L. lateralis (Anderson, 1871)	Anderson 1871; Humtsoe et al. 2008
34	L. laui (Sung, Yang & Wang, 2014)	Sung et al. 2014
35	L. liui (Fei & Ye, 1990)	Fei et al. 2009; Sung et al. 2014
36	L. macrops (Duong, Do, Ngo, Nguyen & Poyarkov, 2018)	Duong et al. 2018
37	L. maculosa (Rowley, Tran, Le, Dau, Peloso, Nguyen, Hoang, Nguyen & Ziegler, 2016)	Rowley et al. 2016
38	L. mangshanensis (Hou, Zhang, Hu, Li, Shi, Chen, Mo & Wang, 2018)	Hou et al. 2018
39	L. maoershanensis (Yuan, Sun, Chen, Rowley & Che, 2017)	Yuan et al. 2017
40	L. marmorata (Matsui, Zainudin & Nishikawa, 2014)	Matsui et al. 2014b
41	L. maura (Inger, Lakim, Biun & Yambun, 1997)	Inger et al. 1997
42	L. melanoleuca (Matsui, 2006)	Matsui 2006
43	L. melica (Rowley, Stuart, Neang & Emmett, 2010)	Rowley et al. 2010b
44	L. minima (Taylor, 1962)	Taylor 1962; Ohler et al. 2011
45	L. mjobergi Smith, 1925	Eto et al. 2015
46	L. nahangensis (Lathrop, Murphy, Orlov & Ho, 1998)	Lathrop et al. 1998
47	L. natunae (Günther, 1895)	Günther 1895
48	L. namdongensis Hoang, Nguyen, Luu, Nguyen & Jiang, 2019	Hoang et al. 2019
49	L. neangi Stuart & Rowley, 2020	Stuart and Rowley 2020
50	L. niveimontis Chen, Poyarkov, Yuan & Che, 2020	Chen et al. 2020
51	L. nokrekensis (Mathew & Sen, 2010)	Mathew and Sen 2010
52	L. nyx (Ohler, Wollenberg, Grosjean, Hendrix, Vences, Ziegler & Dubois, 2011)	Ohler et al. 2011
53	L. oshanensis (Liu, 1950)	Fei et al. 2009, 2016
54	L. pallida (Rowley, Tran, Le, Dau, Peloso, Nguyen, Hoang, Nguyen & Ziegler, 2016)	Rowley et al. 2016
55	L. palmata Inger & Stuebing, 1992	Inger and Stuebing 1992
56	L. parva Dring, 1983	Dring 1983
57	L. pelodytoides (Boulenger, 1893)	Boulenger 1893; Ohler et al. 2011
58	L. petrops (Rowley, Dau, Hoang, Le, Cutajar & Nguyen, 2017)	Rowley et al. 2017a
59	L. pictua (Malkmus, 1992)	Malkmus 1992
60	L. platycephala (Dehling, 2012)	Dehling 2012a
61	L. pluvialis (Ohler, Marquis, Swan & Grosjean, 2000)	Ohler et al. 2000, 2011
62	L. puhoatensis (Rowley, Dau & Cao, 2017)	Rowley et al. 2017b
63	L. purpura (Yang, Zeng & Wang, 2018)	Yang et al. 2018
64	L. purpuraventra Wang, Li, Li, Chen & Wang, 2019	Wang et al. 2019
65	L. pyrrhops (Poyarkov, Rowley, Gogoleva, Vassilieva, Galoyan & Orlov, 2015)	Poyarkov et al. 2015
66	L. rowleyae (Nguyen, Poyarkov, Le, Vo, Ninh, Duong, Murphy & Sang, 2018)	Nguyen et al. 2018
67	L. sabahmontana (Matsui, Nishikawa & Yambun, 2014)	Matsui et al. 2014a
68	L. serasanae Dring, 1983	Dring 1983
69	L. shangsiensis Chen, Liao, Zhou & Mo, 2019	Chen et al. 2019
70	L. sola (Matsui, 2006)	Matsui 2006
71	L. suiyangensis Luo, Xiao, Gao & Zhou, 2020	Luo et al. 2020
72	L. sungi (Lathrop, Murphy, Orlov & Ho, 1998)	Lathrop et al. 1998
73	L. tadungensis (Rowley, Tran, Le, Dau, Peloso, Nguyen, Hoang, Nguyen & Ziegler, 2016)	Rowley et al. 2016
74	L. tamdil (Sengupta, Sailo, Lalremsanga, Das & Das, 2010)	Sengupta et al. 2010
75	L. tengchongensis (Yang, Wang, Chen & Rao, 2016)	Yang et al. 2016
76	L. tuberosa (Inger, Orlov & Darevsky, 1999)	Inger et al. 1999
77	L. ventripunctata (Fei, Ye & Li, 1990)	Fei et al. 2009, 2016
78	L. wuhuangmontis Wang, Yang & Wang, 2018	Wang et al. 2018
79	L. wulingensis Qian, Xia, Cao, Xiao & Yang, 2020	Qian et al. in publication
80	L. yingjiangensis (Yang, Zeng & Wang, 2018)	Yang et al. 2018
81	L. yunkaiensis Wang, Li, Lyu & Wang, 2018	Wang et al. 2018
82	L. zhangyapingi (Jiang, Yan, Suwannapoom, Chomdej & Che, 2013)	Jiang et al. 2013

Results

The BI analyses are shown in Fig. 2 with Bayesian posterior probabilities (BPP) for major nodes > 0.90. Genetic distances among all Leptobrachella samples are given in the Suppl. material 1: Table S1. Comparative morphological data of all recognized Leptobrachella species occurring north of the Kra Isthmus are listed in Table 3.

Figure 2.

Bayesian Inference tree. The Bayesian posterior probabilities (BPP) > 0.90 were retained.

Table 3.

Comparisons of selected diagnostic characters for the new species described herein and congeners occurring north of the Kra Isthmus (modified from Rowley et al. 2017; Wang et al. 2019; Chen et al. 2020).

Leptobrachella species	Male SVL (mm)	Black spots on flanks	Toe webbing	Toe fringes	Ventral coloration	Dorsal skin texture
L. aspera sp. nov.	22.4	Present	Rudimentary	Narrow	Creamy white with distinct dark patches on chest and abdomen	Rough with dense conical granules, tubercles, and glandular folds
L. dorsospina sp. nov.	28.7–30.5	Present	Rudimentary	Narrow	Greyish white with black spots and orange pigmentations	Rough with dense conical granules, tubercles, glandular folds, and conical spines
L. aerea	25.1–28.9	Absent	Rudimentary	Wide	Near immaculate creamy white, brown speckles on margins	Finely tuberculate
L. alpina	24.0–26.4	Present	Rudimentary	Wide in males	Creamy-white with dark spots	Relatively smooth, some with small warts
L. applebyi	19.6–22.3	Present	Rudimentary	Absent	Reddish brown with white speckles	Smooth
L. ardens	21.3–24.7	Present	Absent	Absent	Reddish brown with white speckles	Smooth, finely shagreened
L. bidoupensis	18.5–25.4	Present	Rudimentary	Weak	Reddish brown with white speckles	Smooth
L. bijie	29.0–30.4	Present	Rudimentary	Narrow	White with distinct nebulous greyish speckles on chest and ventrolateral flanks	Shagreened and granular
L. botsfordi	29.1–32.6	Absent	Rudimentary	Narrow	Reddish brown with white speckles	Shagreened
L. bourreti	28.0–36.2	Present	Rudimentary	Weak	Creamy white	Relatively smooth, some with small warts
L. crocea	22.2–27.3	Absent	Rudimentary	Absent	Bright orange	Highly tuberculate
L. chishuiensis	30.8–33.4	Present	Rudimentary	Narrow	White with distinct nebulous greyish speckles on chest and ventrolateral flanks	Shagreened and granular
L. eos	33.1–34.7	Absent	Rudimentary	Wide	Creamy white	Shagreened
L. feii	21.5–22.8	Present	Rudimentary	Narrow	Creamy white with black blotches	Shagreened with small tubercles and ridge
L. firthi	26.4–29.2	Absent	Rudimentary	Wide in males	Creamy white	Shagreened with fine tubercles
L. flaviglandulosa	23.0–27.0	Present	Poorly developed	Narrow	Whitish with black speckles on margins	Shagreened with yellowish- brown tubercles
L. fuliginosa	28.2–30.0	Present	Rudimentary	Weak	White with brown dusting	Nearly smooth with few tubercles
L. isos	23.7–27.9	Absent	Rudimentary	Wide in males	Creamy white with white dusting on margins	Mostly smooth, females more tuberculate
L. kalonensis	25.8–30.6	Present	Absent	Absent	Pale, speckled brown	Smooth
L. khasiorum	24.5–27.3	Present	Rudimentary	Wide	Creamy white	Isolated, scattered tubercles
L. laui	24.8–26.7	Present	Rudimentary	Wide	Creamy white with dark brown dusting on margins	Round granular tubercles
L. liui	23.0–28.7	Present	Rudimentary	Wide	Creamy white with dark brown spots on chest and margins	Round granular tubercles with glandular folds
L. lateralis	26.9–28.3	Present	Rudimentary	Absent	Creamy white	Roughly granular
L. macrops	28.0–29.3	Present	Rudimentary	Absent	Greyish violet with white speckles	Roughly granular with larger tubercles
L. maculosa	24.2–26.6	Present	Absent	Absent	Brown with few white speckles	Mostly smooth
L. mangshanensis	22.2–27.8	Present	Rudimentary	Weak	White speckles on throat and belly	Nearly smooth
L. maoershanensis	25.2–30.4	Present	Rudimentary	Narrow	Creamy white chest and belly with irregular black spots	With longitudinal folds
L. melica	19.5–22.7	Present	Rudimentary	Absent	Reddish brown with white speckles	Smooth
L. minima	25.7–31.4	Present	Rudimentary	Absent	Creamy white	Smooth
L. nahangensis	40.8	Present	Rudimentary	Absent	Creamy white with light speckles on throat and chest	Smooth
L. niveimontis	22.5–23.6	Present	Rudimentary	Narrow	Marbling with black speckles	Relatively smooth with small tubercles
L. nokrekensis	26.0–33.0	Present	Rudimentary	Unknown	Creamy white	Tubercles and longitudinal folds
L. nyx	26.7–32.6	Present	Rudimentary	Absent	Creamy white with brown margins	Rounded tubercles
L. namdongensis	30.9	Present	Rudimentary	Absent	Immaculate white, chest and belly with dark specking on outer margins	Low, round tubercles, more dense in posterior part of the back
L. neangi	-	Present	Weak (in females)	Absent (in females)	Light purplish gray with dark brown mottling on throat	Small, irregular bumps and ridges
L. oshanensis	26.6–30.7	Present	Absent	Absent	Whitish with no markings or only small, light grey spots	Smooth with few glandular ridges
L. pallida	24.5–27.7	Absent	Absent	Absent	Reddish brown with white speckles	Tuberculate
L. pelodytoides	27.5–32.3	Present	Wide	Narrow	Whitish	Small, smooth warts
L. petrops	23.6–27.6	Absent	Absent	Narrow	Immaculate creamy white	Highly tuberculate
L. pluvialis	21.3–22.3	Present	Rudimentary	Absent	Dirty white with dark brown marbling	Smooth, flattened tubercles on flanks
L. puhoatensis	24.2–28.1	Present	Rudimentary	Narrow	Reddish brown with white dusting	With longitudinal skin ridges
L. purpura	25.0–27.5	Present	Rudimentary	Wide	Dull white with indistinct grey dusting	Shagreen with small tubercles
L. purpuraventra	27.3–29.8	Present	Rudimentary	Narrow	Grey purple with distinct nebulous greyish speckles on chest and ventrolateral flanks	Shagreened with granules
L. pyrrhops	30.8–34.3	Present	Rudimentary	Absent	Reddish brown with white speckles	Slightly shagreened
L. rowleyae	23.4–25.4	Present	Absent	Absent	Pinkish milk-white to light brown chest and belly with numerous white speckles	Smooth with numerous tiny tubercles
L. suiyangensis	28.7–29.7	Present	Rudimentary	Narrow	Yellowish creamy-white with marble texture chest and belly or with irregular light brown speckles	Shagreen with small granules
L. sungi	48.3–52.7	Absent or small	Wide	Weak	White	Granular
L. tadungensis	23.3–28.2	Present	Absent	Absent	Reddish brown with white speckles	Smooth
L. tamdil	32.3	Present	Wide	Wide	White	Weakly tuberculate
L. tengchongensis	23.9–26.0	Present	Rudimentary	Narrow	White with dark brown blotches	Shagreened with small tubercles
L. tuberosa	24.4–29.5	Absent	Rudimentary	Absent	White with small grey spots/streaks	Highly tuberculate
L. ventripunctata	25.5–28.0	Present	Rudimentary	Absent	Chest and belly with dark brown spots	Longitudinal skin ridges
L. wuhuangmontis	25.6–30.0	Present	Rudimentary	Narrow	Greyish white mixed by tiny white and black dots	Rough, scattered with dense conical tubercles
L. wulingensis	22.7–30.5	Present	Rudimentary	Narrow	Translucent creamy white, with distinct or indistinct brown speckles at margins	Shagreened with sparse large warts, some with longitudinal ridges
L. yingjiangensis	25.7–27.6	Present	Rudimentary	Wide	Creamy white with dark brown flecks on chest and margins	Shagreened with small tubercles
L. yunkaiensis	25.9–29.3	Present	Rudimentary	Wide	Belly pink with distinct or indistinct speckles	Shagreened with short skin ridges and raised warts
L. zhangyapingi	45.8–52.5	Absent	Rudimentary	Wide	Creamy-white with brown margins	Mostly smooth with distinct tubercles

As shown by the phylogenetic result, Leptobrachella samples from Huanglianshan Nature Reserve are clustered in a distinct and robust monophyletic lineage with strong support (BPP 1.00). This lineage forms the sister taxon to L. feii occurring in Xiaoqiaogou Nature Reserve (BPP 1.00). The genetic distances between these two lineages are 3.0–3.4%, which is significantly larger than that among other recognized species (e.g., p-distance 2.6% between L. liui and L. mangshanensis). Detailed morphological examination also reveals a combination of characters that distinguish the specimens of the unnamed lineage from L. feii and other known congeners (see taxonomic comparison below). Therefore, based on the molecular and morphological differences, the population from Huanglianshan Nature Reserve is proposed as a new species, Leptobrachella aspera sp. nov.

Samples of the other unnamed lineage from Yushe Forest Park, cluster in another distinct and robust monophyletic lineage with strong support (BPP 1.00). This lineage is close to several species occurring in southwestern China, but its specific placement remains unresolved due to the insufficient support values. The smallest genetic distance between this lineage and another congener is 3.5% (vs. L. purpuraventra), which is significantly larger than that between other recognized species (e.g., p-distance 2.6% between L. liui and L. mangshanensis). Detailed morphological examination also reveals a combination of characteristics distinguishing the specimens of this lineage from all known congeners (see taxonomic comparison below). Therefore, based on the molecular and morphological differences, the population from Yushe Forest Park is proposed as a new species, Leptobrachella dorsospina sp. nov.

Taxonomic accounts

Leptobrachella aspera

Wang, Lyu, Qi & Wang sp. nov.

19439853-C359-5C28-9B4B-02464BA9160D

http://zoobank.org/4919B18E-B0D0-4329-90BF-8AC77280D263

Fig. 3

Figure 3.

Morphological features in life. Leptobrachella aspera sp. nov., holotype SYS a007743.

Type material.

Holotype.SYS a007743, adult male, collected by Jian Wang, Yao Li and Yu-Long Li on 31 May 2019 from Huanglianshan Nature Reserve (22.89°N, 102.29°E; ca. 1930 m a.s.l.), Lyuchun County, Yunnan Province, China.

Paratypes (N = 3). Three adult females, SYS a007744–7745, SYS a007746/CIB116080, the same collection data as the holotype.

Diagnosis.

(1) Small size (SVL 22.4 mm in a single adult male, 25.0–26.4 in three adult females), (2) dorsal skin rough, with dense conical granules, tubercles and glandular folds, (3) iris bicolored, amber on upper half and silver on lower half, (4) tympanum distinctly discernible, distinct black supratympanic line present, (5) absence of webbing and lateral fringes on fingers, toes with rudimentary webbing and narrow lateral fringes both in males and females, (6) longitudinal ridges under toes not interrupted at the articulations, (7) relative finger lengths I < IV < II < III, relative toe length I < II < V < III < IV, (8) heels just meeting, tibia-tarsal articulation reaches the region between middle of eye to anterior corner of eye, (9) dorsum greyish brown to yellowish brown grounding, with small light orange granules and distinct darker brown markings scattered with irregular light orange or greyish white pigmentations, (10) flanks with several enlarged dark patches with light yellowish green margin, (11) ventral surface creamy white, with distinct regular dark patches on chest and abdomen.

Comparison.

From the 26 known congeners of the genus Leptobrachella occurring south of the Kra Isthmus, the presence of supra-axillary and ventrolateral glands, can easily distinguish L. aspera sp. nov. from L. arayai, L. dringi, L. fritinniens, L. gracilis, L. hamidi, L. heteropus, L. kajangensis, L. kecil, L. marmorata, L. melanoleuca, L. maura, L. picta, L. platycephala, L. sabahmontana and L. sola, all of which lack the supra-axillary and ventrolateral glands; and by the significantly larger body size, SVL 22.4 mm in a single male, L. aspera sp. nov. differs from the smaller L. baluensis (14.9–15.9 mm in males), L. brevicrus (17.1–17.8 mm in males), L. bondangensis (17.8 mm in male), L. fusca (16.3 mm in male), L. itiokai (15.2–16.7 mm in males), L. juliandringi (17.0–17.2 mm in males), L. mjobergi (15.7–19.0 mm in males), L. natunae (17.6 mm in one adult male), L. parva (15.0–16.9 mm in males), L. palmata (14.4–16.8 mm in males), and L. serasanae (16.9 mm in female).

Leptobrachella aspera sp. nov. is recovered as a sister taxon to L. feii in the phylogenetic tree (Fig. 2). However, the new species can be distinguished from L. feii by the following morphological characters: head relatively short, HDL/SVL 0.33–0.35 (vs. head relatively long, HDL/SVL 0.38–0.43); distinct regular dark patches on skin of chest and abdomen (vs. irregular black blotches scattered on skin of chest and belly); color of upper half of iris amber (vs. color of upper half of iris lighter, golden orange); ventrolateral glands forming an non-continuous line (vs. ventrolateral glands forming a continuous line); relative finger lengths I < IV < II < III (vs. relative finger lengths II < I < IV < III); tibio-tarsal articulation of adpressed limb reaching the region between middle of eye to anterior corner of eye (vs. tibio-tarsal articulation of adpressed limb reaching beyond eye).

While Leptobrachella pluvialis is distributed in the same mountain range on the Vietnamese side and possesses similar body size (Ohler et al. 2000), it can be separated from L. aspera sp. nov. by the following characters: (1) smooth dorsal skin with flattened tubercles on flanks (vs. rough dorsal skin with dense conical granules in L. aspera sp. nov.), (2) absence of webbing on toes (vs. rudimentary webbing on toes in L. aspera sp. nov.), and (3) relatively longer hindlimbs, the tibia-tarsal articulation reaching to the nostril (vs. relatively shorter hindlimbs, the tibia-tarsal articulation reaching the region between middle of eye to anterior corner of eye in L. aspera sp. nov.).

For the remaining 54 members of the genus Leptobrachella, in having SVL 22.4 mm in a single male, L. aspera sp. nov. differs from the larger L. aerea (25.1–28.9 in males), L. alpina (24.0–28.9 mm in males), L. bijie (29.0–30.4 mm in males), L. botsfordi (29.1–32.6 mm in males), L. bourreti (28.0–36.2 mm in males), L. chishuiensis (30.8–33.4 in males), L. eos (33.1–34.7 mm in males), L. firthi (26.4–29.2 mm in males), L. flaviglandulosa (23.0–27.0 mm in males), L. fuliginosa (28.2–30.0 mm in males), L. isos (23.7–27.9 mm in males), L. kalonensis (25.8–30.6 mm in males), L. khasiorum (24.5–27.3 mm in males), L. laui (24.8–26.7 mm in males), L. lateralis (26.9–28.3 mm in males), L. macrops (28.0–29.3 mm in males), L. maculosa (24.2–26.6 mm in males), L. minima (25.7–31.4 mm in males), L. nahangensis (40.8 mm in male), L. nokrekensis (26.0–33.0 mm in males), L. nyx (26.7–32.6 mm in males), L. neangi (30.9 mm in male), L. namdongensis (30.9 mm in male), L. oshanensis (26.6–30.7 mm in males), L. pallida (24.5–27.7 mm in males), L. pelodytoides (27.5–32.3 mm in males), L. petrops (23.6–27.6 mm in males), L. puhoatensis (24.2–28.1 mm in males), L. purpura (25.0–27.5 mm in males), L. purpuraventra (27.3–29.8 mm in males), L. pyrrhops (30.8–34.3 mm in males), L. rowleyae (23.4–25.4 mm in males), L. suiyangensis (28.7–29.7 mm in males), L. sungi (48.3–52.7 mm in males), L. tadungensis (23.3–28.2 mm in males), L. tamdil (32.3 mm in male), L. tengchongensis (23.9–26.0 mm in males), L. tuberosa (24.4–29.5 mm in males), L. ventripunctata (25.5–28.0 mm in males), L. wuhuangmontis (25.6–30.0 mm in males), L. yingjiangensis (25.7–27.6 mm in males), L. yunkaiensis (25.9–29.3 mm in males), and L. zhangyapingi (45.8–52.5 mm in males). By presence of black spots on flanks, the new species can be distinguished from L. crocea, versus absence of black spots on flanks; by rudimentary webbing on toes, the new species can be distinguished from L. ardens, versus absence of webbing on toes; by narrow lateral fringes on toes, the new species can be distinguished from L. applebyi, L. ardens, L. crocea, and L. melica, all having no lateral fringes on toes, and from L. liui, having wide lateral fringes on toes; by the creamy white ventral coloration and distinct regular dark patches on the chest and abdomen, the new species can be distinguished from L. applebyi, L. ardens, L. bidoupensis, and L. melica, all having reddish brown ventral coloration with white specks, from L. crocea, having bright orange ventral coloration, from L. mangshanensis, lacking dark skin patches on the chest and abdomen, from L. liui, having creamy white ventral coloration with dark brown spots on the chest and margins, and from L. niveimontis, having marbling ventral coloration with black speckling; by rough dorsal skin with dense conical granules, tubercles and glandular folds, the new species can be distinguished from L. applebyi, L. ardens, L. bidoupensis, L. mangshanensis, L. melica, and L. niveimontis, all having smooth dorsal skin.

Description of holotype.

Adult male. Body size small, SVL 22.4 mm. Head length slightly larger than head width, HDW/HDL 0.99; snout slightly protruding, projecting slightly beyond margin of the lower jaw; nostril closer to snout than eye; canthus rostralis gently rounded; loreal region slightly concave; interorbital space flat, internarial distance greater than interorbital distance, IND/IOD 1.07; pineal ocellus absent; pupil vertical; snout length longer than eye diameter, SNT/EYE 1.26; tympanum distinct, rounded, and slightly concave, diameter smaller than that of the eye and larger than tympanum-eye distance, TMP/EYE 0.52 and TEY/TMP 0.44; upper margin of tympanum in contact with supratympanic ridge; distinct black supratympanic line present; vomerine teeth absent; vocal sac openings slit-like, paired, located posterolaterally on floor of mouth in close proximity to the margins of the mandible; tongue deeply notched posteriorly; supratympanic ridge distinct, extending from posterior corner of eye to supra-axillary gland.

Tips of fingers rounded, slightly swollen; relative finger lengths I < IV < II < III; nuptial pad absent; subarticular tubercles absent; large, rounded inner palmar tubercle distinctly separated from small, rounded outer palmar tubercle; webbing and lateral fringes on fingers absent. Tips of toes rounded, slightly swollen; relative toe length I < II < V < III < IV; subarticular tubercles absent; distinct longitudinal dermal ridges present under the 3^rd to 5^th toes, not interrupted; large, oval inner metatarsal tubercle present, outer metatarsal tubercle absent; toes webbing rudimentary; narrow lateral fringes present on all toes. Tibia 47% of snout-vent length; tibiotarsal articulation reaching to anterior corner of eye; heels slightly overlapping when thighs are appressed at right angles with respect to body.

Dorsal skin rough, with dense conical granules, tubercles and glandular folds; ventral skin smooth; sparse tiny tubercles present on surface of chest; pectoral gland and femoral gland oval; the size of pectoral glands almost equal to tips of fingers and femoral glands; femoral gland situated on posteroventral surface of thigh, closer to knee than to vent; supra-axillary glands raised. Ventrolateral glands distinctly visible, raised, forming an incomplete line.

Coloration of holotype in life.

Dorsum greyish brown with small light orange granules, distinct darker brown markings scattered with irregular light orange and greyish white pigmentations. A dark brown inverted triangular pattern between the anterior corners of the eyes in connection with a dark brown W-shaped marking in the interorbital region, which is also connected to a W-shaped marking between the axillae. Tympanum dark brown. Small light orange granules present on dorsum of body and limbs; a dark brown blotch under the eye; transverse dark brown bars present on dorsal surface of limbs and digits; distinct dark brown patches with light yellowish green margin on flanks from groin to axilla; elbow and upper arms with distinct coppery orange coloration.

Ventral surface of throat, chest, and belly creamy white; presence of distinct nebulous greyish speckles present on throat, and distinct dark patches on chest and abdomen; ventral surface of limbs greyish purple, scattered with greyish white spots and small patches. Supra-axillary gland coppery orange; femoral, pectoral, and ventrolateral glands greyish white. Iris bicolored, amber on upper half and silver on lower half.

Coloration of holotype in preservative

(Fig. 4A). Dorsum of body and limbs dark brown; transverse bars on limbs become more distinct; dark brown patterns, markings and spots on the back become indistinct, orange pigmentations become dark brown, greyish white pigmentations become dark grey. Ventral surface of limbs and surface of throat light brown, surface of abdomen greyish white, nebulous speckles on throat absent, dark patches on chest, abdomen and flanks become more distinct, light yellowish green margin of patches on flanks absent. Supra-axillary, femoral, pectoral, and ventrolateral glands greyish white.

Figure 4.

Morphological features in preserved specimens of ALeptobrachella aspera sp. nov., holotype SYS a007743 BLeptobrachella dorsospina sp. nov., holotype SYS a004974. Ellipse selected region showing the tiny spines on dorsal skin.

Variation.

Measurements and body proportions are listed in Table 4. Nonsexual characters of all the female paratypes (SYS a007744, 7745, 7746) match the overall characters of the holotype except that: the dorsum is greyish brown in the holotype SYS a007743 (vs. yellowish brown in the paratypes); the size of the pectoral glands are almost equal to the tips of the fingers and the femoral glands (vs. the size of the pectoral glands are larger than the tips of fingers and the femoral glands in the paratypes); the tibia-tarsal articulation reaches forward to the anterior corner of the eye in the holotype (vs. the tibia-tarsal articulation reaches forward to the middle of the eye in the paratypes SYS a007745, 7746); the ventral skin of the thighs smooth (vs. the ventral skin of the thighs rough with dense raised tubercles in the paratypes).

Table 4.

Measurements and body proportions of Leptobrachella aspera sp. nov.

Voucher	SYS a 007743	SYS a 007744	SYS a 007745	SYS a 007746
Sex	Male	Female	Female	Female
SVL	22.4	25.3	25.0	26.4
HDL	8.1	9.5	9.5	9.6
HDW	8.0	9.3	9.2	9.0
SNT	3.7	3.8	3.8	3.4
IND	2.5	2.3	2.7	2.7
IOD	2.3	2.5	2.5	2.5
EYE	2.9	3.2	3.2	3.1
TMP	1.5	1.8	1.9	1.6
TEY	0.7	1.0	1.0	0.8
ML	5.9	7.0	6.6	6.3
LAHL	11.2	13.5	12.7	12.6
PL	10.1	11.7	10.2	11.1
TIB	10.6	12.4	11.9	11.9
HLL	34.4	41.5	40.4	39.1
HDL/SVL	0.36	0.37	0.38	0.36
HDW/SVL	0.36	0.37	0.37	0.34
HDW/HDL	0.99	0.98	0.97	0.94
SNT/HDL	0.16	0.15	0.15	0.13
IND/HDW	0.31	0.25	0.29	0.30
IOD/HDW	0.29	0.27	0.27	0.28
IND/IOD	1.07	0.91	1.08	1.09
EYE/HDL	0.36	0.34	0.34	0.32
TMP/EYE	0.52	0.56	0.60	0.51
ML/SVL	0.26	0.28	0.26	0.24
LAHL/SVL	0.50	0.53	0.51	0.48
PL/SVL	0.45	0.46	0.41	0.42
TIB/SVL	0.47	0.49	0.48	0.45
HLL/SVL	1.53	1.64	1.61	1.48

Etymology.

The specific epithet, aspera, is a Latin adjective which means rough, in reference to the dorsal skin texture of the new species. According to its type locality, we suggest its English common name as “Huanglianshan Leaf Litter Toad”, and the Chinese name “Huang Lian Shan Zhang Tu Chan (黄连山掌突蟾)”.

Distribution and habits.

Currently, Leptobrachella aspera sp. nov. is known only from its type locality Huanglianshan Nature Reserve, near the border between China and Vietnam. The new species was found along a drainage ditch of a mountainous road. The road was surrounded by broad-leaved forest at an altitude ca. 1930 m and not close to any hillstreams. Males were not heard calling during the field survey from 31 May to 1 June 2019.

Leptobrachella dorsospina

Wang, Lyu, Qi & Wang sp. nov.

F51266DD-BB9E-50C6-A5DB-F2BC1A339F9C

http://zoobank.org/B0EA8FA8-0193-43BF-AA93-6D010467CF84

Fig. 5

Figure 5.

Morphological features in life. Leptobrachella dorsospina sp. nov., holotype SYS a004974.

Type material.

Holotype.SYS a004974, adult male, collected by Zhi-Tong Lyu and Run-Lin Li on 21 June 2016 from Yushe Forest Park (26.47°N, 104.80°E; ca. 2100 m a.s.l.), Shuicheng District, Liupanshui City, Guizhou Province, China.

Paratypes (N = 6). An adult male, SYS a004977, and five adult females, SYS a004961/CIB116081, SYS a 004962, SYS a004973, 4975, 4976, collected by Zhi-Tong Lyu and Run-Lin Li on 20–21 June 2016 from the same locality as the holotype.

Diagnosis.

(1) Small size (SVL 28.7–30.5 mm in two adult males, 32.1–39.8 mm in five adult females), (2) dorsal skin rough, with dense conical granules, tubercles, glandular folds and conical spines, (3) iris bicolored, light orange on upper half and silver on lower half, (4) tympanum distinctly discernible, distinct black supratympanic line present, (5) absence of webbing and lateral fringes on fingers, toes with rudimentary webbing and narrow lateral fringes both in males and females, (6) longitudinal ridges under toes interrupted at the articulations, (7) relative finger lengths II = IV < I < III, relative toe length I < II < V < III < IV, (8) heels slightly overlapping, tibia-tarsal articulation reaches forward to the posterior corners of eyes, (9) dorsum greyish brown to dark brown grounding, with distinct darker brown markings and scattered with irregular light greyish brown pigmentations and yellowish brown spots, (10) flanks with several enlarged dark patches positioned longitudinally in two rows, (11) ventral surface greyish white with black spots and orange pigmentations.

Comparison.

Compared with the 26 known congeners of the genus Leptobrachella occurring south of the Kra Isthmus, L. dorsospina sp. nov. can be easily distinguished by the presence of supra-axillary and ventrolateral glands, from L. arayai, L. dringi, L. fritinniens, L. gracilis, L. hamidi, L. heteropus, L. kajangensis, L. kecil, L. marmorata, L. melanoleuca, L. maura, L. picta, L. platycephala, L. sabahmontana and L. sola, all of which are lacking the supra-axillary and ventrolateral glands; and by the significantly larger body size, SVL 28.7–30.5 mm in two adult male, L. dorsospina sp. nov. differs from the smaller L. baluensis (14.9–15.9 mm in males), L. brevicrus (17.1–17.8 mm in males), L. bondangensis (17.8 mm in male), L. fusca (16.3 mm in male), L. itiokai (15.2–16.7 mm in males), L. juliandringi (17.0–17.2 mm in males), L. mjobergi (15.7–19.0 mm in males), L. natunae (17.6 mm in one adult male), L. parva (15.0–16.9 mm in males), L. palmata (14.4–16.8 mm in males), and L. serasanae (16.9 mm in female).

Leptobrachella dorsospina sp. nov. can be easily distinguished from Leptobrachella aspera sp. nov. by having distinctly larger body size, SVL 28.7–30.5 mm in males, 32.1–39.8 mm in females (vs. SVL 22.4 mm in male, 25.0–26.4 in females); conical spines on dorsal skin present (vs. absent); black spots on flanks in one row (vs. black spots on flanks in two rows); ventral skin greyish white with black spots and orange pigmentations (vs. ventral skin creamy white with distinct dark patches on chest and abdomen); longitudinal ridges under toes interrupted at the articulations (longitudinal ridges under toes not interrupted at the articulations).

For the remaining 56 members of the genus Leptobrachella, in having SVL 28.7–30.5 mm in two males, L. dorsospina sp. nov. differs from the larger L. eos (33.1–34.7 mm in males), L. nahangensis (40.8 mm in male), L. sungi (48.3–52.7 mm in males), L. tamdil (32.3 mm in male), and L. zhangyapingi (45.8–52.5 mm in males); and from the smaller L. alpina (24.0–26.4 mm in males), L. applebyi (19.6–22.3 mm in males), L. ardens (21.3–24.7 mm in males), L. bidoupensis (18.5–25.4 mm in males), L. crocea (22.2–27.3 mm in males), L. feii (21.5–22.8 mm in males), L. flaviglandulosa (23.0–27.0 mm in males), L. isos (23.7–27.9 mm in males), L. khasiorum (24.5–27.3 mm in males), L. laui (24.8–26.7 mm in males), L. maculosa (24.2–26.6 mm in males), L. mangshanensis (22.2–27.8 mm in males), L. melica (19.5–22.7 mm in males), L. niveimontis (22.5–23.6 mm in males), L. pallida (24.5–27.7 mm in males), L. petrops (23.6–27.6 mm in males), L. pluvialis (21.3–22.3 mm in males), L. puhoatensis (24.2–28.1 mm in males), L. purpura (25.0–27.5 mm in males), L. rowleyae (23.4–25.4 mm in males), L. tadungensis (23.3–28.2 mm in males), L. tengchongensis (23.9–26.0 mm in males), L. ventripunctata (25.5–28.0 mm in males), and L. yingjiangensis (25.7–27.6 mm in males). By having black spots on the flanks, L. dorsospina sp. nov. can be distinguished from L. aerea, L. botsfordi, L. firthi, and L. tuberosa, all of which lack black spots on the flanks. By having rough dorsal skin with conical spines, the new species can be distinguished from L. bijie, L. chishuiensis, L. liui, L. maoershanensis, L. pyrrhops, L. purpuraventra, L. suiyangensis, L. wuhuangmontis, L. wulingensis, and L. yunkaiensis (dorsal skin lacking spines); and from L. bourreti, L. fuliginosa, L. kalonensis, L. minima, L. oshanensis, and L. pelodytoides (dorsal skin smooth). By having narrow lateral fringes on the toes, the new species can be distinguished from L. lateralis, L. macrops, L. nyx, L. pyrrhops, L. namdongensis and L. neangi, all of which lack lateral fringes on the toes. The new species can be separated from the remaining L. nokrekensis by having greyish white ventral coloration with black patches and orange pigmentations (vs. creamy white), and having dense short glandular folds on the dorsal surface (vs. only a few glandular folds on the dorsal surface).

Description of holotype.

Adult male. Body size rather small, SVL 30.5 mm. Head length slightly larger than head width, HDW/HDL 0.99; snout slightly protruding, projecting slightly beyond margin of the lower jaw; nostril closer to snout than eye; canthus rostralis gently rounded; loreal region slightly concave; interorbital space flat, internarial distance smaller than interorbital distance, IND/IOD 0.91; pineal ocellus absent; vertical pupil; snout length larger than eye diameter, SNT/EYE 1.29; tympanum distinct, rounded, and slightly concave, diameter smaller than that of the eye and larger than tympanum-eye distance, TMP/EYE 0.43 and TEY/TMP 0.50; upper margin of tympanum in contact with supratympanic ridge; distinct black supratympanic line present; vomerine teeth absent; vocal sac openings slit-like, paired, located posterolaterally on floor of mouth in close proximity to the margins of the mandible; tongue deeply notched posteriorly; supratympanic ridge distinct, extending from posterior corner of eye to supra-axillary gland.

Tips of fingers rounded, slightly swollen; relative finger lengths II = IV < I < III; nuptial pad absent; subarticular tubercles absent; large, rounded inner palmar tubercle distinctly separated from small, rounded outer palmar tubercle; absence of webbing and lateral fringes on fingers. Tips of toes rounded, slightly swollen; relative toe length I < II < V < III < IV; subarticular tubercles absent; distinct longitudinal dermal ridges present under the 3^rd to 5^th toes, interrupted; large, oval inner metatarsal tubercle present, outer metatarsal tubercle absent; toes webbing rudimentary; narrow lateral fringes present on all toes. Tibia 44% of snout-vent length; tibiotarsal articulation reaches to posterior corner of eye; heels slightly overlapping when thighs are appressed at right angles with respect to body.

Dorsal skin rough, with dense conical granules, tubercles, glandular folds and conical spines; ventral skin smooth; pectoral gland and femoral gland oval; the size of pectoral glands almost equal to tips of fingers and femoral glands; femoral gland situated on posteroventral surface of thigh, closer to knee than to vent; supra-axillary glands raised. Ventrolateral glands distinctly visible, raised, forming an incomplete line.

Coloration of holotype in life.

Dorsum greyish brown with distinct darker brown markings on sides and scattered with irregular light greyish brown pigmentations and yellowish brown spots. An indistinct, darker brown inverted triangular pattern between anterior corners of the eyes, connected to an indistinct dark brown W-shaped marking between the axillae. Dense translucent spines present on dorsal skin of body and limbs. Upper 2/3 of the tympanum dark brown, lower 1/3 light orange, scattered with tiny coppery orange spots. Small greyish white and light brown granules present on the dorsum of the body and limbs; a dark brown vertical bar under the eye; transverse dark brown bars on the dorsal surface of the limbs and digits; distinct dark brown patches on the flanks, from groin to axilla; elbow and upper arms with distinct light orange coloration.

Ventral surface of throat, chest, and belly greyish white; throat with light brown speckles, chest, and abdomen with distinct dark patches; ventral surface of limbs dark grey, scattered with greyish white spots and small patches. Supra-axillary gland light orange; femoral, pectoral, and ventrolateral glands greyish white. Iris bicolored, light orange on upper half and silver on lower half.

Coloration of holotype in preservative

(Fig. 4B). Dorsum of body and limbs dark brown; transverse bars on limbs, dark brown patterns, markings, and spots on back become indistinct, light greyish brown pigmentations and yellowish spots absent. Translucent spines on dorsal skin of body and limbs become grey. Ventral surface of limbs and surface of throat light brown, surface of abdomen greyish white, dark patches on chest, abdomen and flanks become more distinct. Supra-axillary, femoral, pectoral, and ventrolateral glands greyish white.

Variations.

Measurements and body proportions are listed in Table 5. All the female paratypes match the overall characters of the holotype except that: the dorsum is greyish brown in the holotype SYS a004974 (vs. dark brown in the paratypes SYS a004961, 4962), and black spots on the ventral skin are more dense and distinct in the paratypes SYS a004961, 4962.

Table 5.

Measurements, and body proportions of Leptobrachella dorsospina sp. nov.

Voucher	SYS a004977	SYS a004974	SYS a004961	SYS a004962	SYS a004973	SYS a004975	SYS a004976
Sex	Male	Male	Female	Female	Female	Female	Female
SVL	28.7	30.5	36.1	37.3	39.8	32.1	33.8
HDL	10.3	10.8	12.8	12.4	12.9	11.3	12.0
HDW	10.6	10.7	11.9	12.9	13.2	11.8	12.2
SNT	4.5	4.2	5.1	5.4	5.8	5.0	4.8
IND	3.1	3.2	3.6	3.9	4.0	3.7	3.4
IOD	3.4	2.9	3.5	3.4	3.3	3.0	2.9
EYE	3.5	3.7	3.9	3.7	4.3	4.2	3.8
TMP	1.7	1.6	2.3	2.3	2.6	2.1	2.1
TEY	1.1	0.8	1.3	1.4	1.5	1.2	1.1
ML	7.4	7.3	8.8	7.7	9.1	7.8	7.6
LAHL	14.1	14.2	17.1	16.8	17.5	16.2	15.9
PL	12.1	12.8	14.9	14.5	15.5	13.9	13.6
TIB	13.5	13.4	15.5	16.3	16.6	14.9	14.5
HLL	41.7	42.7	49.1	49.9	52.9	46.8	48.0
HDL/SVL	0.36	0.35	0.35	0.33	0.32	0.35	0.36
HDW/SVL	0.37	0.35	0.33	0.35	0.33	0.37	0.36
HDW/HDL	1.03	0.99	0.93	1.04	1.02	1.04	1.02
SNT/HDL	0.44	0.39	0.40	0.44	0.45	0.44	0.40
IND/HDW	0.29	0.30	0.30	0.30	0.30	0.31	0.28
IOD/HDW	0.32	0.27	0.29	0.26	0.25	0.25	0.24
EYE/HDL	0.34	0.34	0.30	0.30	0.33	0.37	0.32
TMP/EYE	0.49	0.43	0.59	0.62	0.60	0.50	0.55
ML/SVL	0.26	0.24	0.24	0.21	0.23	0.24	0.22
LAHL/SVL	0.49	0.47	0.47	0.45	0.44	0.50	0.47
PL/SVL	0.42	0.42	0.41	0.39	0.39	0.43	0.40
TIB/SVL	0.47	0.44	0.43	0.44	0.42	0.46	0.43
HLL/SVL	1.45	1.40	1.36	1.34	1.33	1.46	1.42

Etymology.

The specific epithet, dorsospina, is in reference to the conical spines on the dorsal surface of body in the new species. According to its type locality, we suggest its English common name as “Shuicheng Leaf Litter Toad”, and the Chinese name “Shui Cheng Zhang Tu Chan (水城掌突蟾)”.

Distribution and habits.

Currently, Leptobrachella dorsospina sp. nov. is known only from its type locality, Yushe Forest Park, which is near the border between Guizhou and Yunnan. The new species was found on the surface of fallen leaves by the clear-water rocky hill-stream in well-preserved montane evergreen broadleaf forest (ca. 2100 m a.s.l.). Males were not heard calling.

Discussion

In the phylogenetic tree, the Leptobrachella pelodytoides (voucher number: MVZ 223642) sample from Tam Dao, northern Vietnam is clustered together with the topotypic L. ventripunctata (voucher number: SYS a001768) sample from Xishuangbanna, Yunnan, China, with a genetic divergence of only 1.5% (Fig. 2, Suppl. material 1: Table S1), which is of a intraspecific level. In addition, the type locality of L. pelodytoides is Thao [= Thamo], Kayah State, Myanmar, which is geographically distant from northern Vietnam with a distance over 900 km. Considering the above, we recommend that the specimen MVZ 223642 be reappraised as L. ventripunctata.

Yunnan and Guizhou are both largely within the species-rich Dian freshwater zoogeographical dominion (Huang et al 2020). Spanning the Indo-Burma Hotspot and the Mountains of Southwest China Hotspot (Tordoff et al. 2012), Yunnan Province has for long been considered as one of the most biodiverse regions in China and its flora and fauna have attracted much attention. However, Guizhou Province, which also shares the Yunnan-Guizhou Plateau, remains relatively neglected; knowledge of biodiversity levels and patterns are seriously lacking. In recent years, large numbers of discoveries have been made from Guizhou, dramatically raising the number of frog species known from the region (Zhang et al. 2017; Li et al. 2018a, b, 2019a, b, 2020a; Lyu et al. 2019; Wang et al. 2019; Luo et al. 2020; Wei et al. 2020). Further comprehensive surveys are urgently needed to determine the true diversity of the amphibians of Guizhou Province.

Appendix 1

Specimens examined

Leptobrachella alpina (n = 6): China: Yunnan Province: Jingdong County: Mt. Wuliang: CIB 24353 (holotype), CIB 24354; SYS a 003927.

Leptobrachella bijie (n = 8): China: Guizhou: Bijie City: SYS a007313–7320.

Leptobrachella laui (n = 26): China: Hong Kong: SYS a002057 (holotype), SYS a002058; China: Guangdong Province: Shenzhen City: SYSa 001505–1507, 1515–1521, 3471–3472, 5644–5645.

Leptobrachella liui (n = 18): China: Fujian Province: Mt. Wuyi: CIB 24355 (holotype), CIB 24356, SYS a001571–1578, 1595–1599, 2478–2479, 5925–5826.

Leptobrachella mangshanensis (n = 5): China: Guangdong: Nanling Nature Reserve: SYS a002827–2830, 5754.

Leptobrachella purpuraventra (n = 15): China: Guizhou: Bijie City: SYS a007277–7284, 7300–7306.

Leptobrachella tengchongensis (n = 6): China: Yunnan Province: Baoshan City: Mt. Gaoligong: SYS a004600 (holotype), 4596–4599, 4601–4602.

Leptobrachella wuhuangmontis (n = 12): China: Guangxi Province: Pubei County: Mt. Wuhuang: SYS a003500/CIB107274, SYS a000578, 0580–0581, 3485–3489, 3499, 3504–3506.

Leptobrachella yunkaiensis (n = 8): China: Guangdong Province: Maoming City: Dawuling Forest Station: SYS a004664/CIB107272, SYS a004663, 4665–4669, 4690.

Citation

Wang J, Lyu Z-T, Qi S, Zeng Z-C, Zhang W-X, Lu L-S, Wang Y-Y(2020) Two new Leptobrachella species (Anura, Megophryidae) from the Yunnan-Guizhou Plateau, southwestern China. ZooKeys 995: 97–125. https://doi.org/10.3897/zookeys.995.55939

Supplementary materials

Supplementary material 1

Table S1. Pairwise distances based on 16S gene among all sample used in this study

This dataset is made available under the Open Database License (http://opendatacommons.org/licenses/odbl/1.0/). The Open Database License (ODbL) is a license agreement intended to allow users to freely share, modify, and use this Dataset while maintaining this same freedom for others, provided that the original source and author(s) are credited.

Jian Wang, Zhi-Tong Lyu, Shuo Qi, Zhao-Chi Zeng, Wen-Xiang Zhang, Long-Shan Lu, Ying-Yong Wang

Data type

phylogenetic

Explanation note

Genetic distances among all Leptobrachella samples.
