Abstract
With a half-life of 10.7 years, the noble gas radioisotope 85Kr is perfectly suited as a tracer to date ice and water that formed during the past half century. Furthermore, due to its inhomogeneous input into the atmosphere, it is a useful tool to investigate atmospheric circulation and back-trajectory analysis. The data presented here represent a comprehensive time series of atmospheric 85Kr activity concentrations in ground level air that can be used to model northern and southern hemispheric input functions, which is essential to apply 85Kr as a dating tracer. The collection comprises 11 datasets from 4 monitoring stations in the northern and 7 monitoring stations in the southern hemisphere, respectively. In total, it contains about 8000 measurements performed over the past 60 years, making it the largest published 85Kr record.
Keywords: krypton-85, Tracer, Dating, Monitoring, Noble gas radionuclides
Specifications Table
| Subject | Atmospheric Science |
| Specific subject area | Monitoring of the atmospheric 85Kr concentrations in ground level air in the northern and southern hemisphere |
| Type of data | Excel file in data repository, Table Figure |
| How data were acquired | The 85Kr activity concentration data were acquired after gaschromatographic separation of krypton followed by β-decay counting of Kr-85 in gas proportional counters. |
| Data format | Raw |
| Parameters for data collection | The krypton was sampled from ground level air and the monitoring stations were carefully chosen, to avoid contamination with locally produced 85Kr. |
| Description of data collection | Primary data of the data collection comprises the Adelaide dataset and all samples of the Schauinsland, Jungfraujoch and Freiburg datasets taken since (December 2018). All other data is secondary data taken from the cited papers. |
| Data source location | Primary data sources: Adelaide: Institution: CSIRO City/Town/Region: Adelaide Country: South Australia Lat/Lon of monitoring station: 34°58’ S 138°38’ E Antarctica: Institution: Institute of Environmental Physics, University Heidelberg, Germany City/Town/Region: Georg von Neumayer Station Country: Antarctica Lat/Lon of monitoring station: 70°40’ S 08°16’ W Cape Grim: Institution: CSIRO & Institute of Environmental Physics, University Heidelberg, Germany City/Town/Region: Tasmania Country: Australia Lat/Lon of monitoring station: 40°41’ S 144°41’ E Cape Point: Institution: Institute of Environmental Physics, University Heidelberg, Germany City/Town/Region: Cape of Good Hope Country: South Africa Lat/Lon of monitoring station: 34°32’ S 18°29’ E Darwin: Institution: Supervising Scientist Division, Environment Australia City/Town/Region: Darwin Country: Australia Lat/Lon of monitoring station: 12°28’ S 130°50’ E Early Measurements: Institutions: Physics Department, University Heidelberg, Germany Institute of Environmental Physics, University Heidelberg, Germany Planck Institute for Nuclear Physics, Heidelberg, Germany Max Planck Institute for Nuclear Physics, Freiburg-Schauinsland Branch, Germany Institute for Atmospheric Radioactivity (IAR), Federal Office of Civil Defence, Freiburg, Germany Commissariat a l'Energie Atomique, Department de la Protection Sanitaire, Fontenay-aux-Roses, France Air Resources Laboratories, National Oceanic and Atmospheric Administration, Silver Spring, MD 20910, U.S.A Freiburg: Institution: Bundesamt für Strahlenschutz City/Town/Region: Freiburg Country: Germany Lat/Lon of monitoring station: 48°00’ N 07°51’ E Jungfraujoch: Institution: Bundesamt für Strahlenschutz City/Town/Region: Berner Alps |
| Country: Swiss Lat/Lon of monitoring station: 46°24’ N 08°42’ E Schauinsland: Institution: Bundesamt für Strahlenschutz City/Town/Region: Freiburg Country: Germany Lat/Lon of monitoring station: 47°55’ N 07°54’ E Tahiti: Institution: Office of Atomic Energy City/Town/Region: Tahiti Country: French Polynesia Lat/Lon of monitoring station: 17°37’ S 149°28’ W Terre-Adélie: Institution: Office of Atomic Energy City/Town/Region: Eastern Antarctica Country: Antarctica Lat/Lon of monitoring station: 66°40’ S 140°00’ E |
|
| Data accessibility | Kersting, Arne; Bollhöfer, Andreas; Schlosser, Clemens; Schmid, Sabine; Konrad, Martina; Barry, Karen; Suckow, Axel (2020), “Atmospheric krypton-85 activity concentrations”, Mendeley Data, V1, doi:10.17632/p32bmw6rgs.1 Direct URL to data: https://data.mendeley.com/datasets/p32bmw6rgs/1 |
| Related research article | Kersting, C. Schlosser, A. Bollhöfer und A. Suckow, “Evaluating 5 decades of atmospheric 85Kr measurements in the southern hemisphere to derive an input function for dating water and ice with implications for interhemispheric circulation and the global 85Kr emission inventory.“ Journal of Environmental Radioactivity. In Press https://doi.org/10.1016/j.jenvrad.2020.106451 |
Value of the Data
-
•
This comprehensive dataset is important for the application of 85Kr as a dating tracer in water and ice
-
•
Researchers in the field of tracer hydrology can benefit from these data as it allows deriving a 85Kr input function for dating
-
•
The 85Kr data is useful for investigating atmospheric circulation and it can support back trajectory models due to nuclear reprocessing plants as point like sources of 85Kr.
-
•
The dataset will support the potential future application of 85Kr as a tool for the verification of nuclear arms control treaties.
1. Data Description
The data collection consists of 11 datasets of atmospheric 85Kr activity concentrations with 4 datasets from monitoring stations in the northern hemisphere ("Early Measurements NH", "Freiburg", "Schauinsland" and "Jungfraujoch") and 7 datasets from monitoring stations in the southern hemisphere ("Adelaide", "Antarctica", Cape Grim", "Cape Point", "Darwin", "Tahiti" and "Terre-Adelie") (Table 1).
Table 1.
List of all the datasets with start and end of the sampling as well as the number of total samples and the elevation of the monitoring station.
| Dataset | First sample | Last sample | Measurements | Elevation [m a.s.l.] |
|---|---|---|---|---|
| Adelaide | 20.07.2015 | 17.06.2020* | 255 | 140 |
| Antarctica | 08.06.1983 | 18.01.2008 | 415 | 20 |
| Cape Grim [1] | 14.04.1987 | 18.07.1996 | 166 | 40 |
| Cape Point | 21.08.1985 | 31.10.1997 | 415 | 240 |
| Darwin [2] | 15.08.2007 | 24.05.2010 | 120 | 10 |
| Early Measurements NH [3,4,5,6,7,8,9,10,11,12] | 13.12.1959 | 15.05.1976 | 204 | - |
| Freiburg [13] | 15.06.1973 | 13.07.2020* | 2386 | 280 |
| Jungfraujoch [13] | 06.01.1990 | 15.06.2020* | 1547 | 3500 |
| Schauinsland [13] | 03.02.1976 | 12.07.2020* | 2386 | 1200 |
| Tahiti [5, 14] | 18.08.1969 | 15.11.1976 | 18 | 10 |
| Terre-Adélie [5, 14] | 17.03.1968 | 05.10.1977 | 32 | 10 |
At these monitoring stations, sampling is still ongoing. The date just refers to the last sample in the dataset.
All measurements were conducted via β-decay counting in gas proportional counters with a measurement uncertainty of about 3%. However, for the datasets "Tahiti" and "Terre-Adelie" no errors were given in the original publications and a conservative estimate of 10% measurement uncertainty was taken.
As seen in Fig. 1, the northern hemispheric data represents a coherent 60 years long series of measurements, while the southern hemispheric data set contains gaps of about 5 years between around 1980 and in the early 2010s. The 85Kr activity concentrations in the Freiburg, Schauinsland and Jungfraujoch dataset reach up to 6 Bq/m³ air, while the southern hemispheric data do not exceed 1.5 Bq/m³ air.

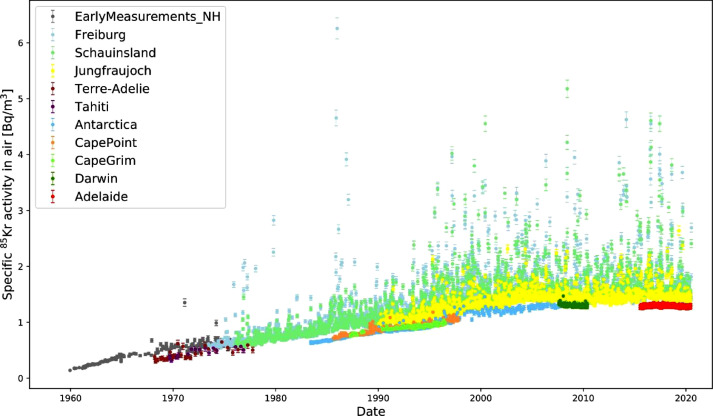

Fig. 1.
The 85Kr activity concentration in ground level air is plotted against the sampling date for all 11 datasets.
2. Experimental Design, Materials and Methods
The collection of krypton samples for the analysis of 85Kr follows the same principle for all datasets. In a multistage process, 2 to 5 ml of pure krypton are separated from about 10 m³ of air and the 85Kr activity concentration is determined via radioactive β-decay counting in gas proportional counters.
The first separation step is done by pumping air for one week with a constant flow of about 1 L/min through a liquid nitrogen cooled activated charcoal column. The pressure in the column is regulated to about 500 mbar to avoid condensation of oxygen and nitrogen, while most of the krypton is trapped [15]. After one week, the activated charcoal column is replaced with a clean column, to ensure continuous sampling. The charged column is heated to 300°C and the released gas is flushed into a 1 L aluminium container with helium as carrier gas. For the second purification step, the 1 L aluminium container is shipped to the laboratories of the “Bundesamt für Strahlenschutz” in Freiburg, Germany.
Via cryogenic purification, CO2 is removed, and the residual gas mixture is flushed with helium through a smaller liquid nitrogen cooled activated charcoal trap to further remove the lighter air components, mainly O2, N2 and Ar.
In a third step, krypton is separated from xenon by gas chromatography with methane serving as a carrier and counting gas. The highly enriched krypton fraction is then flushed into a gas proportional counter to measure its 85Kr activity.
The overall measurement uncertainty for an atmospheric 85Kr measurement is about 3% with a 85Kr detection limit of typically around 4 mBq/m³ air.
