Mitigating Damage to Hybrid Perovskites Using Pulsed-Beam TEM

Abstract

Using a pulsed-beam transmission electron microscope, we discover a reduction in damage to methylammonium lead iodide (MAPbI₃) as compared to conventional beams delivered at the same dose rates. For rates as low as 0.001 e·Å^–2·s^–1, we find up to a 17% reduction in damage at a total dose of 10 e·Å^–2. We systematically study the effects of number of electrons in each pulse and the duration between pulse arrival. Damage increases for both, though the number of electrons per pulse has a larger effect. A crossover is identified, where a pulsed beam causes more damage than a conventional one. Although qualitatively similar to previous findings, the degree to which damage is reduced in MAPbI₃ is less than that observed for other materials (e.g., C₃₆H₇₄), supporting the hypothesis that the effects are material- and damage-mechanism-dependent. Despite this, the observation here of damage reduction for relatively large electron packets (up to 200 electrons per pulse) suggests that MAPbI₃ is in fact less susceptible to irradiation than C₃₆H₇₄, which may be related to reported self-healing effects. This work provides insights into damage processes and durability in hybrid perovskites and also illustrates the viability of using pulsed-beam TEM to explore the associated molecular-level routes to degradation, analogous to laser-accelerated energetic pulsed electron beams and the study of damage to biomolecules, cells, and tissues in radiobiology.

Introduction

Comprehensive understanding of high-power-conversion efficiencies of hybrid organic–inorganic perovskite (HOIP) photovoltaic cells, as well as apparent self-healing properties and the associated implications for durability under illumination, requires elucidation of atomic and nanoscale properties and behaviors of these materials.^1,2 Structural, chemical, electronic, and dynamic properties at this scale are accessible with transmission electron microscopy (TEM), but the stability of HOIPs is such that electron-beam damage can be significant, while connections to photon-induced damage can be drawn.³⁻⁵ Indeed, sensitivity of HOIPs to even low dose rates (∼1 e·Å^–2·s^–1) may limit what can be learned about fundamental structure/function relationships and illustrates the importance of developing new methods for probing degradation and uncovering new behaviors.⁶⁻⁸ For example, damage during electron-beam irradiation is thought to occur through a combination of charging, ionic excitation, and heating leading to ion migration and separation of organic and inorganic constituents.^8,9 As such, a number of methods, such as cryo-electron microscopy and low-dose imaging and diffraction, have been used to reduce deleterious beam effects.^10,11

Femtosecond (fs) laser-driven and picosecond chopped-beam sources in modified TEMs offer additional means for mitigating and studying damage.¹²⁻¹⁶ These methods employ temporally-modulated beams, where electrons are delivered to the specimen in discrete pulses with well-defined durations between each, rather than in the random fashion of conventional sources (e.g., thermionic). Indeed, time-dependent aspects of charging and thermal energy, as well as the dynamic self-healing properties of HOIPs, suggest that there may be insights into these temporal mechanisms that can be achieved by using well-timed pulses.^3,17−19 Accordingly, here we explore fs laser-driven pulsed TEM for studying damage in HOIPs, specifically methylammonium lead iodide (CH₃NH₃PbI₃ or MAPbI₃). Our main goal was to determine—all else being equal—if a pulsed beam leads to a reduction in MAPbI₃ damage compared to a conventional beam. We focused on quantitatively comparing damage caused by pulsed beams to that caused by conventional thermionic beams at the same dose rates and the same total doses. We also studied the effects of the number of electrons per pulse (e/p) and the duration between pulse arrival at the specimen (f^–1, where f is the laser repetition rate). We find a clear reduction in damage for pulsed beams compared to that for random (thermionic) beams, as well as an apparent exacerbation of damage with increasing instantaneous dose (i.e., with more electrons per pulse) even with a longer time elapsed between the arrival of each. We also observe a crossover effect, where pulsed beams become more detrimental than random beams. Interestingly, the degree to which damage is reduced in MAPbI₃ is lower than that for C₃₆H₇₄, supporting the hypothesis that the pulsed-beam effect is material- and mechanism-dependent. In addition to observing damage reduction with pulsed-beam TEM in an electronic material, the dose rates and doses used here are comparable to those typically used in conventional low-dose TEM. The combination of relatively low repetition rates in laser-driven pulsed-beam TEM (thus maximizing time between electron arrival and specimen relaxation time) at low-dose beam currents enables quantitative studies of damage mechanisms and the opportunity for exploring improvements in data quality, particularly when combined with cryogenic methods.

Results and Discussion

Beam-damage mechanisms in TEM are numerous and often synergistic, necessitating detailed design and systematic execution of experiments.^5,20 Conveniently, fs pulsed lasers in a stable lab environment afford high levels of control, enabling accurate and precise quantification of pulsed TEM beam damage.¹⁴ An overview of the fs laser-driven approach used here and the method for quantifying damage to MAPbI₃ specimens are shown in Figure 1. Temporal regularity of the pulsed electron beam was accomplished using a 300-fs pulsed laser (PHAROS, Light Conversion), which confines the electron emission to a train of 300-fs windows evenly spaced in time by f^–1. The pulse train was generated via the photoelectric effect in a modified 200 kV TEM (Tecnai Femto, Thermo Fisher) using ultraviolet laser pulses (hν = 4.8 eV) and a LaB₆ electron source (φ = 2.4 eV; Figure 1a). The dose rate was controlled with both the laser-pulse fluence (which dictates e/p) and f (which dictates the number of pulses per second and the specimen relaxation time between each pulse, f^–1).

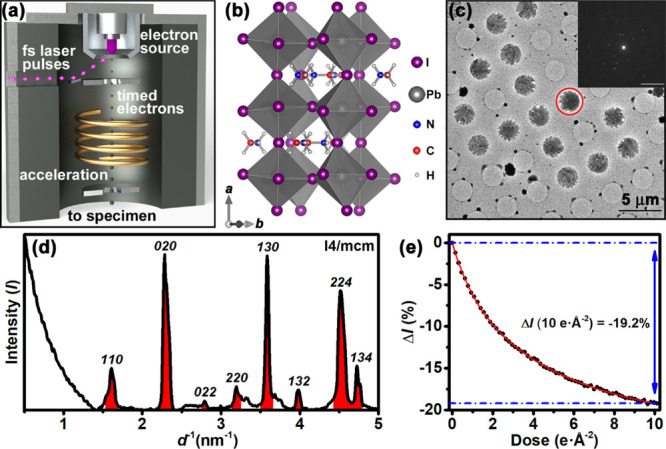

Figure 1.

Laser-driven pulsed-beam TEM and quantification of damage to MAPbI₃. (a) Simplified schematic of the electron-source region with pertinent aspects and components labeled. Adapted with permission from VandenBussche, E. J.; Flannigan, D. J. Nano Lett.2019, 19, 6687–6694. Copyright 2019 American Chemical Society. (b) Structure of MAPbI₃.²¹ Crystallographic axes are shown in the lower left of the panel. (c) Low-magnification bright-field image of the TEM specimens. The diffraction pattern (inset; scale bar = 5 nm^–1) was obtained from the red circled region. (d) Intensity plot from azimuthally averaging the pattern in (c). Red peaks are those used for monitoring beam-induced intensity changes. The space group used for indexing was I4/mcm, though the structure is not yet universally agreed upon.^22,23 (e) Bragg-intensity fading curve for a pulsed electron beam (dose rate = 0.001 e·Å^–2·s^–1; beam size = 245 ± 3 μm²; 50.4 ± 1.0 e/p; f^–1 = 2 μs). The red curve is used to determine ΔI at 10 e·Å^–2, which here is −19.2%.

Specimens were synthesized by spin-coating a 0.3 M solution of MAPbI₃ with 10% molar excess methylammonium iodide in a 4:1 volume ratio of DMF/DMSO onto holey amorphous-carbon grids (Quantifoil, Electron Microscopy Sciences) (Figure 1b,c) inside an inert atmosphere glove box. First, the grid was reversibly adhered to a silicon support using a drop of toluene, followed by heating at 100 °C for 1 min. Next, 0.2 mL of MAPbI₃ solution was dropped onto the supported grid while spinning at 3000 rpm for 2 min. Finally, the grid was annealed at 100 °C for 1 h. This produced free-standing, polycrystalline MAPbI₃ islands spanning the 2.5 μm holes of the grids (Figure 1c,d). Accordingly, each island was determined from the bright-field TEM images to be 4.8 ± 0.2 μm² in area (error is one standard deviation from the mean). Damage was quantified using a fading-curve method, where the reduction in Bragg-beam intensities (ΔI: indicative of the destruction of MAPbI₃ crystallinity) was tracked as a function of accumulated dose (Figure 1e).²⁴ Peaks arising from planes with d < 6.3 Å were used to monitor the damage effects for both beam types (i.e., pulsed and conventional). Note that ΔI = (I – I_o)/I_o, which is the normalized change in intensity relative to that at nominally zero dose (I_o). A total accumulated dose of 10 e·Å^–2 was used as the reference point throughout.

Comparison of damage caused to MAPbI₃ by a pulsed beam to that caused by a conventional thermionic beam is shown in Figure 2. For a common dose rate (0.001 e·Å^–2·s^–1 for an illuminated area of 245 ± 3 μm²), there is a clear reduction in the extent to which the intensities fade for the pulsed beam under the conditions used for this experiment (50.4 ± 1.0 e/p and f^–1 = 2 μs). At a total accumulated dose of 10 e·Å^–2, the intensity change for the pulsed beam is −19.2%, while that of the thermionic beam is −23.2%. This shows that providing temporally-regular pauses in electron-beam irradiation, and thus providing regular periods of specimen relaxation and a reduction in exacerbating effects (e.g., multi-electron impact within the damage radius), leads to enhanced preservation of MAPbI₃ structural order compared to that of conventional random-beam low-dose methods. Note that for pulsed-beam TEM experiments performed on C₃₆H₇₄ and bacteriorhodopsin, the extent to which damage was reduced was greater than that seen here, though evidence indicates that the degree of reduction also depends on f^–1.^14,16 This suggests that the extent to which damage is reduced is material- and mechanism-dependent (perhaps strongly so) and that the overall effect of pulsed beams with respect to damage reduction is a general one.

Figure 2.

Bragg-peak intensity fading curves for MAPbI₃ for pulsed (blue; also shown in Figure 1e) and thermionic (red) beams delivered at the same dose rate (0.001 e·Å^–2·s^–1). Fits to the data are for determining ΔI at 10 e·Å^–2, which here is −19.2% for the pulsed beam and −23.2% for the conventional thermionic beam (as indicated by the blue and red horizontal dot-dashed lines, respectively). The beam was spread over an area of 245 ± 3 μm² for both types. The pulsed beam consisted of 50.4 ± 1.0 e/p and f^–1 = 2 μs (i.e., a 500-kHz repetition rate).

A number of effects and conditions—in addition to beam-induced damage to crystalline order—can produce an apparent dose-dependent drop in Bragg-beam intensities. Thus, drawing conclusions from direct comparisons made across multiple measurements and specimens requires control of myriad variables that might influence, interfere with, and overwhelm the intrinsic beam-damage behavior (e.g., specimen thickness and lateral dimensions, specimen bending under the beam, lab- and instrument-temperature stability, and specimen and beam drift). Accordingly, sources of error and artifacts were identified and accounted for via control experiments and monitoring of experimental conditions routinely employed during these studies. Thus, detailed descriptions of the measures taken here are reported elsewhere.¹⁴ As an example of the requirements that need to be met for data to be accepted, experiments were rejected and repeated when the beam current, as well as the beam size, differed by more than 1% before and after acquisition of a data series. Experiments were conducted after observable directional specimen drift ceased. Furthermore, experiments were rejected if the specimen was found to have directionally drifted more than 1% of the substrate hole diameter (i.e., by 25 nm) between the start and the finish of data acquisition. Pre-irradiation was eliminated by navigating the specimen movement systematically and ensuring that no two experiments were conducted within two beam diameters of one another. Data presented here consist of multiple experimental trials conducted over several days.

To better understand the origins of damage reduction when using a pulsed beam, effects of varying e/p and f^–1 were systematically explored (Figure 3). Depending upon the mechanisms at work, one might intuitively expect an increase in damage with increased e/p, due to more inelastic electron/specimen collisions occurring within a given pulse, and also with decreased f^–1, due to there being less time between electron arrival at the specimen (thus reducing the relaxation and recovery time and increasing the probability of simultaneous or near-simultaneous impact within a particular damage radius).¹⁴⁻¹⁶ However, regimes do exist wherein the benefits gained by increasing f^–1 are lost when simultaneously increasing e/p, as observed for C₃₆H₇₄.¹⁴ This indeed is the case for MAPbI₃. For dose rates of 0.001 and 0.01 e·Å^–2·s^–1 (Figure 3a,b, respectively), damage increases with increasing e/p despite an accompanying modest increase in f^–1 from 2 μs to 4 μs for the larger electron pulses. Such an effect was also observed in single crystals of C₃₆H₇₄, where going from 1 e/p to 5 e/p had a substantially larger effect on damage than did decreasing f^–1 from 20 μs to 5 μs.¹⁴ Taken altogether, these results suggest that specimen relaxation and recovery processes at work during the few microseconds between pulses can be overwhelmed by exacerbating effects of multi-electron impact within a given damage radius. That is, additional energy deposited into the already-excited specimen region causes further structural damage that otherwise would have recovered—or would have been exponentially less significant (owing to the exponential relationships for reaction kinetics, diffusion rates, and thermal energy)—during a single electron event isolated in space and time.

Figure 3.

Effect of e/p and f^–1 on damage to MAPbI₃ for a total dose of 10 e·Å^–2. (a) Bragg-intensity reduction (ΔI) for pulsed (blue) and thermionic (therm., red) beams administered at a dose rate of 0.001 e·Å^–2·s^–1. The time between electron pulses in microseconds (f^–1) is noted below the number of electrons per pulse (e/p). Error bars for 50 e/p, 100 e/p, and thermionic are one standard deviation over 2, 4, and 2 separate experiments, respectively. (b) Bragg-intensity reduction (ΔI) for pulsed (blue) and thermionic (therm., red) beams administered at a dose rate of 0.01 e·Å^–2·s^–1. Error bars for 200 e/p, 400 e/p, and thermionic are one standard deviation over 2, 2, and 3 separate experiments, respectively.

In addition to the overall trends shown in Figure 3, a type of crossover or threshold region exists, where more—rather than less—damage is caused by the pulsed beam as compared to a conventional beam delivered at the same dose rate (Figure 3b). Here, such a crossover is seen when increasing from 200 e/p separated by 2 μs to 400 e/p separated by 4 μs. This behavior lends support to the hypothesis that it is multi-electron impact leading to compounding effects that is driving the dramatic increase in damage with increasing e/p.¹⁴ In essence, this is due to additional energy being deposited into already-excited specimen regions prior to full relaxation back to ground-state conditions. Interestingly, the instantaneous dose rate for a single pulse of 400 electrons confined to a 300-fs window (more likely a few picoseconds due to Coulombic expansion)²⁵ is 5 × 10⁴ e·Å^–2·s^–1, assuming uniform illumination across the 245-μm² beam area. It is therefore perhaps surprising that such a beam does not produce substantially more damage than observed, though the number of electrons per Ų per pulse is only 2 × 10^–8. Though the time-averaged reduction in damage for pulsed beams is clear, pulse-to-pulse behaviors and the resulting specimen effects are largely unknown and require additional investigation.

Damage reduction (and increase at the crossover) to MAPbI₃ when using pulsed-beam TEM is likely driven by temporal processes that are active on the pulse-to-pulse timescales.¹²⁻¹⁶ Such processes include thermal effects which, while not yet well understood for electron-beam excitation and damage in MAPbI₃, are important in similar low-thermal-conductivity materials.^20,24,26 The effect of thermal processes in damage reduction can be appreciated by noting timescales of thermal diffusion and relaxation in MAPbI₃ relative to f^–1. Using known constants,²⁷⁻³⁰ it is estimated that thermal energy deposited into a 2.5-μm diameter MAPbI₃ crystal would largely dissipate into the carbon substrate within several microseconds. Note, however, that temperature from the perspective of the entire specimen is likely too coarse a view when considering pulsed-beam damage mechanisms and temporal aspects of molecular-scale excitations. Nevertheless, this estimate indicates that thermal-dissipation times are comparable to f^–1, suggesting complete relaxation of increased vibrational energies prior to a subsequent inelastic collision is a plausible source of reduced damage when electron delivery to the specimen is precisely temporally controlled.

Timescales of electron–phonon coupling and lattice thermalization are also worth noting. Electron–phonon coupling in MAPbI₃ films occurs on the order of hundreds of femtoseconds, while lattice thermalization takes a few picoseconds.³¹ Owing to the electron-pulse duration, most or all will arrive within this time frame. Furthermore, increasing e/p generally causes an increase in pulse duration,²⁵ thus creating an environment where the likelihood of exacerbating effects contributing to damage is increased. Systematic pulse-duration experiments may shed light on such effects. Indeed, similar arguments can be made regarding specimen charging, charge dissipation, and electron-pulse durations and timing.

Conclusions

In conclusion, for common total doses and dose rates, we have discovered a regime where using a pulsed-beam TEM leads to reduced damage to MAPbI₃. The degree of reduction is enhanced by using pulses with fewer electrons, while the duration between pulses appears to have a smaller but still non-trivial effect. We also discover a crossover effect, in which pulsed beams cause more damage than an otherwise identical conventional beam. This constitutes the first example of these effects for direct-comparison experiments at dose rates commonly used in low-dose TEM. The findings also support the hypothesis that the behavior is material- and mechanism-dependent owing to differences when compared to other materials systems. These results have fundamental and practical implications, in that fs-laser-driven pulsed TEM offers a combination of stability and tunability that affords studying specific damage mechanisms and durability of MAPbI₃, as well as providing structural, chemical, electronic, and dynamic information from less-damaged specimens obtained at low repetition rates compared to RF-modulated chopped electron beams.

Author Contributions

E.J.V. contributions were formal analysis, investigation, methodology, software, validation, visualization, writing—original draft, and writing—review and editing. C.P.C. contributions were investigation, methodology, specimen preparation, writing—original draft, and writing—review and editing. R.J.H. contributions were conceptualization, funding acquisition, project administration, supervision, and writing—review and editing. D.J.F. contributions were conceptualization, formal analysis, funding acquisition, methodology, project administration, resources, supervision, visualization, writing—original draft, and writing—review and editing.

The authors declare no competing financial interest.
