. 2020 Dec 21;21(Suppl 6):889. doi: 10.1186/s12864-020-07227-0

A comprehensive evaluation of long read error correction methods

Haowen Zhang 1, Chirag Jain 1, Srinivas Aluru 1,2,
PMCID: PMC7751105  PMID: 33349243

Abstract

Background

Third-generation single molecule sequencing technologies can sequence long reads, which is advancing the frontiers of genomics research. However, their high error rates prohibit accurate and efficient downstream analysis. This difficulty has motivated the development of many long read error correction tools, which tackle this problem through sampling redundancy and/or leveraging accurate short reads of the same biological samples. Existing studies to asses these tools use simulated data sets, and are not sufficiently comprehensive in the range of software covered or diversity of evaluation measures used.

Results

In this paper, we present a categorization and review of long read error correction methods, and provide a comprehensive evaluation of the corresponding long read error correction tools. Leveraging recent real sequencing data, we establish benchmark data sets and set up evaluation criteria for a comparative assessment which includes quality of error correction as well as run-time and memory usage. We study how trimming and long read sequencing depth affect error correction in terms of length distribution and genome coverage post-correction, and the impact of error correction performance on an important application of long reads, genome assembly. We provide guidelines for practitioners for choosing among the available error correction tools and identify directions for future research.

Conclusions

Despite the high error rate of long reads, the state-of-the-art correction tools can achieve high correction quality. When short reads are available, the best hybrid methods outperform non-hybrid methods in terms of correction quality and computing resource usage. When choosing tools for use, practitioners are suggested to be careful with a few correction tools that discard reads, and check the effect of error correction tools on downstream analysis. Our evaluation code is available as open-source at https://github.com/haowenz/LRECE.

Supplementary Information

The online version contains supplementary material available at (10.1186/s12864-020-07227-0).

Keywords: Long read, Error correction, Benchmark, Evaluation

Background

Third-generation sequencing technologies produce long reads with average length of 10 Kbp or more that are orders of magnitudes longer than the short reads available through second-generation sequencing technologies (typically a few hundred bp). In fact, the longest read length reported to date is >1 million bp [1]. Longer lengths are attractive because they enable disambiguation of repetitive regions in a genome or a set of genomes. The impact of this valuable long-range information has already been demonstrated for de novo genome assembly [24], novel variant detection [5, 6], RNA-seq analysis [7], metagenomics [8], and epigenetics [9, 10].

The benefit of longer read lengths, however, comes with the major challenge of handling high error rates. Currently, there are two widely used third-generation single molecule sequencing platforms – Pacific Biosciences (PacBio) and Oxford Nanopore Technologies (ONT). Both sequencing platforms are similar in terms of their high error rates (ranging from 10-20%) with most errors occurring due to insertions or deletions (indels); however the error distribution varies [4, 11, 12]. Pacbio sequencing errors appear to be randomly distributed over the sequence [13]. For ONT on the other hand, the error profile has been reported to be biased. For example, A to T and T to A substitutions are less frequent than other substitutions, and indels tend to occur in homopolymer regions [12, 14]. These error characteristics pose a challenge for long read data analyses, particularly for detecting correct read overlaps during genome assembly and variants at single base pair resolution, thus motivating the development of error correction methods.

Error correction algorithms are designed to identify and fix or remove sequencing errors, thereby benefiting resequencing or de novo sequencing analysis. In addition, the algorithms should be computationally efficient to handle increasing volumes of sequencing data, particularly in the case of large, complex genomes. Numerous error correction methodologies and software have been developed for short reads; we refer readers to [15] and [16] for a thorough review. Given the distinct characteristics of long reads, i.e., significantly higher error rates and lengths, specialized algorithms are needed to correct them. Till date, several error correction tools for long reads have been developed including PacBioToCA [17], LSC [18], ECTools [19], LoRDEC [20], proovread [21], NaS [22], Nanocorr [23], Jabba [24], CoLoRMap [25], LoRMA [26], HALC [27], FLAS [28], FMLRC [29], HG-CoLoR [30] and Hercules [31].

In addition, error correction modules have been developed as part of long read de novo assembly pipelines, such as Canu [32] and HGAP [33]. In the assembly pipeline, correction helps by increasing alignment identities of overlapping reads, which facilitates overlap detection and improves assembly. Many long read error correction tools require and make use of highly accurate short reads to correct long reads (accordingly referred to as hybrid methods). Others, referred to as non-hybrid methods, perform self-correction of long reads using overlap information among them.

A few review studies have showcased comparisons among rapidly evolving error correction algorithms to assess state-of-the-art. Laehnemann et al. [34] provide an introduction to error rates/profiles and a methodology overview of a few correction tools for various short and long read sequencing platforms, although no benchmark is included. A review and benchmark for hybrid methods is also available [35]. However, the study only used simulated reads and focused more on speed rather than correction accuracy. Besides, it does not include non-hybrid methods in the assessment. More recently, LRCstats [36] was developed for evaluation of long read error correction software; however, it is restricted to benchmarking with simulated reads.

While benchmarking with simulated reads is useful, it fails to convey performance in real-world scenarios. Besides the base-level errors (i.e., indels and substitutions), real sequencing data sets also contain larger structural errors, e.g., chimeras [37]. However, state-of-the-art simulators (e.g., SimLoRD [38]) only generate reads with base-level errors rather than structural errors. Furthermore, Miclotte et al. [24] consistently observed worse performance when using real reads instead of simulated reads, suggesting that simulation may fail to match the characteristics of actual error distribution. Therefore, benchmarking with real data sets is important.

A more recent study by Fu et al. [39] was published during the final stage of our work, which like our survey is also aimed to characterize long read error correction performance using real data. In contrast to their review, we include both hybrid and non-hybrid methods rather than just the former. Our benchmark data includes data from the latest generation of long read sequencers (e.g., ONT R9 instead of ONT R7.3). We also shed light on the effect of long read sequencing depth to the overall performance, which is important to evaluate expected sequencing coverage and cost requirements to achieve good correction performance.

In this study, we establish benchmark data sets, present an evaluation methodology suitable to long reads, and carry out comprehensive evaluation of the quality and computational resource requirements of state-of-the-art long read correction software. We also study the effect of trimming and different sequencing depths on correction quality. To understand impact of error correction on downstream analysis, we perform assembly using corrected reads generated by various tools and assess quality of the resulting assemblies.

Overview of long read error correction methods

Hybrid methods

Hybrid methods take advantage of high accuracy of short reads (error rates often <1%) for correcting errors in long reads. An obvious requirement is that the same biological sample must be sequenced using both short read and long read technologies. Based on how these methods make use of short reads, we further divide them into two categories: alignment-based and assembly-based. The first category includes Hercules, CoLoRMap, Nanocorr, Nas, proovread, LSC and PacBioToCA, whereas HG-CoLoR, HALC, Jabba, LoRDEC, and ECTools are in the latter. The ideas underlying the methods are summarized below.

Short-read-alignment-based methods

As a first step, these methods align short reads to long reads using a variety of aligners, e.g. BLAST [40], Novoalign (http://www.novocraft.com/products/novoalign/). As long reads are usually error-prone, some alignments can be missed or biased. Thus, most of the tools in this category utilize various approaches to increase accuracy of alignments. Drawing upon the alignments, these methods use distinct approaches to generate corrected reads.

PacBioToCA:

Consensus sequences for long reads are generated by multiple sequence alignment of short reads using AMOS consensus module [41].

LSC:

Short reads and long reads are compressed using homopolymer compression (HC) transformation prior to alignment. Then error correction is performed at HC points, mismatches and indels by temporarily decompressing the aligned short reads and then generating consensus sequences. Finally, the corrected sequences are decompressed.

proovread:

Similar to PacBioToCA and LSC, short reads are mapped to long reads, and the resulting alignments are used to call consensus. But its alignment parameters are carefully selected and adapted to the PacBio sequencing error profile. To further improve correction, the phred quality score and Shannon entropy value are calculated at each nucleotide for quality control and chimera detection, respectively. To reduce run time, an iterative correction strategy is employed. Three pre-correction steps are performed using increasing subsamples of short reads. In each step, the long read regions are masked to reduce alignment search space once they are corrected and covered by a sufficient number of short read alignments. In the final step, all short reads are mapped to the unmasked regions to make corrections.

NaS:

Like the other tools in this category, it first aligns short reads with long reads. However, only the stringently aligned short reads are found and kept as seed-reads. Then instead of calling consensus, similar short reads are retrieved with these seed-reads. Micro-assemblies of these short reads are performed to generate contigs, which are regarded as corrected reads. In other words, the long reads are only used as template to select seed-reads.

Nanocorr:

It follows the same general approach as PacBioToCA and LSC, by aligning short reads to long reads and then calling consensus. But before the consensus step, a dynamic programming algorithm is utilized to select an optimal set of short read alignments that span each long read.

CoLoRMap:

CoLoRMap does not directly call consensus. Instead, for each long read region, it runs a shortest path algorithm to construct a sequence of overlapping short reads aligned to that region with minimum edit distance. Subsequently, the region is corrected by the constructed sequence. In addition, for each uncovered region (called gap) on long reads, any unmapped reads with corresponding mapped mates are retrieved and assembled locally to fill the gap.

Hercules:

It first aligns short reads to long reads. Then unlike other tools, Hercules uses a machine learning-based algorithm. It creates a profile Hidden Markov Model (pHMM) template for each long read and then learns posterior transition and emission probabilities. Finally, the pHMM is decoded to get the corrected reads.

Short-read-assembly-based methods

These methods first perform assembly with short reads, e.g., generate contigs using an existent assembler, or only build the de Bruijn graph (DBG) based on them. Then the long reads are aligned to the assemblies, i.e., contigs/unitigs or a path in the DBG, and corrected. Algorithms for different tools in this category are summarized below.

ECTools:

First, unitigs are generated from short reads using any available assembler and aligned to long reads. Afterwards, the alignments are filtered to select a set of unitigs which provide the best cover for each long read. Finally, differences in bases between each long read and its corresponding unitigs are identified and corrected.

LoRDEC:

Unlike ECTools which generates assemblies, LoRDEC only builds a DBG of short reads. Subsequently, it traverses paths in the DBG to correct erroneous regions within each long read. The regions are replaced by the respective optimal paths which are regarded as the corrected sequence.

Jabba:

It adopts a similar strategy as in LoRDEC, and builds a DBG of short reads followed by aligning long reads to the graph to correct them. The improvement is that Jabba employs a seed-and-extend strategy using maximal exact matches (MEMs) as seeds to accelerate the alignment.

HALC:

Similar to ECTools, short reads are used to generate contigs as the first step. Unlike other methods which try to avoid ambiguous alignments [17, 42], HALC aligns long reads to the contigs with a relatively low identity requirement, thus allowing long reads to align with their similar repeats which might not be their true genomic origin. Then long reads and contigs are split according to the alignments so that every aligned region on read has its corresponding aligned contig region. A contig graph is constructed with the aligned contig regions as vertices. A weighted edge is added between two vertices if there are adjacent aligned long read regions supporting it. The more regions support the edge, the lower is the weight assigned to it. Each long read is corrected by the path with minimum total weight in the graph. Furthermore, the corrected long read regions are refined by running LoRDEC, if they are aligned to similar repeats.

FMLRC:

This software uses a DBG-based correction strategy similar to LoRDEC. However, the key difference in the algorithm is that it makes two passes of correction using DBGs with different k-mer sizes. The first pass does the majority of correction, while the second pass with a longer k-mer size corrects repetitive regions in the long reads. Note that a straightforward implementation of a DBG does not support dynamic adjustment of k-mer size. As a result, FMLRC uses FM-index to implicitly represent DBGs of arbitrary length k-mers.

HG-CoLoR:

Similar to FMLRC, it avoids using a fixed k-mer size for the de Bruijn graph. Accordingly, it relies on a variable-order de Bruijn graph structure [43]. It also uses a seed-and-extend approach to align long reads to the graph. However, the seeds are found by aligning short reads to long reads rather than directly selecting them from the long reads.

Non-hybrid methods

These methods perform self-correction with long reads alone. They all contain a step to generate consensus sequences using overlap information. However, the respective methods vary in how they find the overlaps and generate consensus sequences. The details are as follows.

FLAS:

It takes all-to-all long read overlaps computed using MECAT [44] as input, and clusters the reads that are aligned with each other. In case of ambiguous instances, i.e., the clusters that share the same reads, FLAS evaluates the overlaps by computing alignments using sensitive alignment parameters either to augment the clusters or discard the incorrect overlaps. The refined alignments are then used to correct the reads. To achieve better accuracy, it also corrects errors in the uncorrected regions of the long reads. Accordingly, it constructs a string graph using the corrected regions of long reads, and aligns the uncorrected ones to the graph for further correction.

LoRMA:

By gradually increasing the k-mer size, LoRMA iteratively constructs DBGs using k-mers from long reads exceeding a specified frequency threshold, and runs LoRDEC to correct errors based on the respective DBGs. After that, a set of reads similar to each read termed friends are selected using the final DBG, which should be more accurate due to several rounds of corrections. Then, each read is corrected by the consensus sequence generated by its friends.

Canu error correction module:

As a first step during the correction process, Canu computes all-versus-all overlap information among the reads using a modified version of MHAP [45]. It uses a filtering mechanism during the correction to favor true overlaps over the false ones that occur due to repetitive segments in genomes. The filtering heuristic ensures that each read contributes to correction of no more than D other reads, where D is the expected sequencing depth. Finally, a consensus sequence is generated for each read using its best set of overlaps by leveraging “falcon_sense" consensus module [3].

Results and discussion

Experimental setup

All tests were run on the Swarm cluster located at Georgia Institute of Technology. Each compute node in the cluster has dual Intel Xeon CPU E5-2680 v4 (2.40 GHz) processors equipped with a total of 28 cores and 256GB main memory.

Evaluated software

We evaluated 14 long read error correction programs in this study: Hercules, HG-CoLoR, FMLRC, HALC, CoLoRMap, Jabba, Nanocorr, proovread, LoRDEC, ECTools, LSC, FLAS, LoRMA and the error correction module in Canu. NaS was not included in the evaluation because it requires Newbler assembler which is no longer available from 454. PacBioToCA was also excluded since it is deprecated and no longer being maintained. The command line parameters were chosen based on user documentations of each software (Additional file 1 section “Versions and configurations”). The tools were configured to run exclusively on a single compute node and allowed to leverage all the 28 cores if multi-threading is supported. A cutoff on wall time was set to three days.

Performance on benchmark data sets

We evaluated the quality and computational resource requirements of each software on our benchmark data sets (“Methods” section). Results for the different data sets are shown in Tables 1, 2, 3, 4, 5 and 6. Because multiple factors are at play when considering accuracy, it is important to consider their collective influence in assessing quality of error correction. In what follows, we present a detailed and comparative discussion on correction accuracy, runtime and memory-usage. In addition, to guide error correction software users and future developers, we provide further insights into the strengths and limitations of various approaches that underpin the software. This includes evaluating their resilience to handle various sequencing depths, studying the effect of discarding or trimming input reads to gain higher accuracy, and impact on genome assembly.

Table 1.

Experimental results for E. coli PacBio data set D1-P

Method # Reads # Bases # Aligned # Aligned Maximum N50 Genome Alignment CPU time Wall time Memory
(Mbp) reads bases (Mbp) length (bp) (bp) fraction (%) identity(%) (hh:mm:ss) (hh:mm:ss) usage (GB)
Original 85460 748.0 82886 688.0 44113 13990 100.000 86.8763 - - -
Non-hybrid methods
FLAS 69327 632.3 68786 621.2 40117 13212 100.000 99.5959 09:47:50 00:56:45 4.9
LoRMA 330811 623.3 330715 623.0 22499 2441 100.000 99.6814 45:24:49 02:10:36 67.2
Canu 9283 168.1 9193 166.7 39693 20391 100.000 99.6970 07:47:33 00:27:14 6.0
Short-read-assembly-based methods
HG-CoLoR - - - - - - - - - - -
FMLRC 85260 706.5 83320 669.9 44084 13364 100.000 99.6983 03:05:06 00:30:07 9.8
HALC 85256 711.1 84030 661.7 44117 13399 100.000 99.4374 60:41:59 16:02:32 30.2
Jabba 77508 620.2 77508 619.7 41342 12557 99.258 99.9624 02:05:09 00:12:01 37.0
LoRDEC 85324 716.9 83507 665.9 44311 13491 100.000 98.4149 15:03:42 00:40:05 2.0
ECTools 55687 577.4 55687 575.7 39772 13583 100.000 99.8592 11:25:22 00:29:49 8.2
Short-read-alignment-based methods
Hercules - - - - - - - - - >72:00:00 -
CoLoRMap 85674 730.7 83765 678.6 44113 13641 100.000 95.2930 31:35:16 02:53:33 34.9
Nanocorr 73368 504.9 73316 493.1 41079 10796 100.000 98.3257 1862:59:19 70:57:19 15.1
proovread 85367 720.2 83142 665.7 44113 13524 100.000 96.7250 71:17:14 12:21:53 53.9
LSC - - - - - - - - - >72:00:00 -

Note: HG-CoLoR reported an error when correcting this dataset

Table 2.

Experimental results for E. coli ONT data set D1-O

Method # Reads # Bases # Aligned # Aligned Maximum N50 Genome Alignment CPU time Wall time Memory
(Mbp) reads bases (Mbp) length (bp) (bp) fraction (%) identity (%) (hh:mm:ss) (hh:mm:ss) usage (GB)
Original 163747 1481.5 163386 1454.4 131969 14895 100.000 81.3559 - - -
Non-hybrid methods
FLAS 138472 1401.3 138458 1392.9 130497 14748 99.997 93.0176 20:27:50 01:56:52 8.0
LoRMA 595072 1433.5 595051 1432.5 31743 3333 99.924 96.6525 182:14:17 07:30:30 77.8
Canu 19335 226.2 19326 225.0 133168 38034 99.953 94.5969 17:14:11 00:50:04 6.7
Short-read-assembly-based methods
HG-CoLoR 159856 1540.7 159854 1518.1 138002 15744 100.000 98.1308 231:20:30 44:41:19 13.8
FMLRC 163749 1555.4 163593 1546.3 137960 15687 100.000 99.6423 05:50:54 00:32:27 3.3
HALC - - - - - - - - - >72:00:00 -
Jabba 162970 1287.0 162970 1286.1 93923 12795 99.515 99.9557 02:51:05 00:10:33 37.1
LoRDEC 163838 1555.5 163722 1530.1 137887 15664 100.000 98.9920 32:35:27 01:12:37 2.2
ECTools 116868 1431.7 116868 1428.2 137863 16354 100.000 99.8116 19:44:40 00:46:51 8.1
Short-read-alignment-based methods
Hercules - - - - - - - - - >72:00:00 -
CoLoRMap 164072 1518.3 163782 1495.7 134302 15180 100.000 89.2049 32:55:26 04:01:18 35.5
Nanocorr - - - - - - - - - >72:00:00 -
proovread 163815 1514.0 163481 1489.1 135798 15222 100.000 89.2071 104:33:09 18:35:46 47.8
LSC - - - - - - - - - >72:00:00 -

Table 3.

Experimental results for yeast PacBio data set D2-P

Method # Reads # Bases # Aligned # Aligned Maximum N50 Genome Alignment CPU time Wall time Memory
(Mbp) reads bases (Mbp) length (bp) (bp) fraction (%) identity (%) (hh:mm:ss) (hh:mm:ss) usage (GB)
Original 239408 1462.7 235620 1332.6 35196 8656 99.976 87.2637 - - -
Non-hybrid methods
FLAS 173187 1093.2 173046 1078.8 30046 8132 99.976 99.5777 11:46:31 01:15:40 7.9
LoRMA 650467 1142.0 650333 1141.4 18127 2323 99.951 99.7583 172:24:38 07:03:03 72.9
Canu 38228 453.2 38172 446.7 28748 12021 99.975 99.5864 15:18:34 00:50:12 6.5
Short-read-assembly-based methods
HG-CoLoR - - - - - - - - - - -
FMLRC 238706 1380.8 236883 1311.0 33658 8185 99.977 99.3889 07:52:17 00:28:55 5.5
HALC 238787 1395.4 238097 1287.6 34785 8270 99.976 99.0796 52:12:11 09:45:10 29.0
Jabba 202980 1087.2 202879 1086.6 30141 7847 95.627 99.9832 00:38:30 00:04:57 21.4
LoRDEC 238847 1405.0 237278 1297.1 34896 8326 99.978 97.9568 01:10:03 00:57:17 1.9
ECTools 130863 946.9 130832 943.1 28749 8412 99.810 99.7712 938:25:28 58:25:00 4.3
Short-read-alignment-based methods
Hercules 239389 1460.3 235630 1330.4 35196 8644 99.976 87.6711 87:53:55 03:18:41 247.8
CoLoRMap 239309 1429.6 237135 1321.3 34850 8409 99.976 96.3912 18:44:48 03:07:34 37.3
Nanocorr - - - - - - - - - >72:00:00 -
proovread 238992 1412.4 236519 1298.0 35122 8369 99.978 97.9568 184:02:07 23:45:37 47.9
LSC - - - - - - - - - >72:00:00 -

Note: HG-CoLoR reported an error when correcting this dataset

Table 4.

Experimental results for yeast ONT data set D2-O

Method # Reads # Bases # Aligned # Aligned Maximum N50 Genome Alignment CPU time Wall time Memory
(Mbp) reads bases (Mbp) length (bp) (bp) fraction (%) identity (%) (hh:mm:ss) (hh:mm:ss) usage (GB)
Original 118723 715.7 108463 638.1 55374 7003 99.976 86.1986 - - -
Non-hybrid methods
FLAS 95606 585.6 95290 581.5 26592 6893 99.940 97.1699 07:42:10 07:42:10 4.4
LoRMA 398863 497.0 398350 495.2 16027 1439 99.485 98.4024 68:02:36 02:55:05 68.8
Canu 64829 475.1 64649 475.1 26895 7518 99.914 97.7710 12:31:04 00:37:53 9.0
Short-read-assembly-based methods
HG-CoLoR - - - - - - - - - - -
FMLRC 118701 713.7 111869 666.4 55374 6990 99.975 99.2529 03:35:44 00:17:21 2.2
HALC 118707 718.2 114071 647.9 55379 7025 99.976 98.8884 50:11:58 04:03:18 3.6
Jabba 99044 536.9 98631 535.9 28194 6730 95.400 99.9809 00:55:32 00:04:20 21.5
LoRDEC 118727 720.8 110606 647.8 55375 7049 99.976 96.9369 11:22:09 00:26:13 2.1
ECTools 81105 531.9 80843 529.3 26810 7071 99.314 99.7697 09:31:32 20:17:33 5.6
Short-read-alignment-based methods
Hercules 118721 716.3 108467 638.9 55374 7008 99.976 87.2912 125:22:19 04:37:01 246.6
CoLoRMap 118774 722.0 108969 649.4 55374 7049 99.976 95.5851 11:01:38 01:34:52 27.8
Nanocorr - - - - - - - - - >72:00:00 -
proovread 118729 716.7 109057 643.4 55374 7007 99.976 96.3689 66:14:09 07:20:18 28.1
LSC - - - - - - - - - >72:00:00 -

Note: HG-CoLoR reported an error when correcting this dataset

Table 5.

Experimental results for fruit fly PacBio data set D3-P

Method # Reads # Bases # Aligned # Aligned Maximum N50 Genome Alignment CPU time Wall time Memory
(Mbp) reads bases (Mbp) length (bp) (bp) fraction (%) identity (%) (hh:mm:ss) (hh:mm:ss) usage (GB)
Original 5366088 28797.8 1839681 16543.5 74735 15374 99.191 85.2734 - - -
Non-hybrid methods
FLAS 1435682 14585.2 1428018 13574.1 43556 13550 98.915 98.8363 271:44:27 36:30:42 53.1
LoRMA - - - - - - - - - - -
Canu - - - - - - - - - >72:00:00 -
Short-read-assembly-based methods
HG-CoLoR - - - - - - - - - - -
FMLRC 5246485 27354.6 2477890 16543.5 74735 14554 99.191 96.5284 327:37:22 13:49:04 31.2
HALC 4451474 21997.5 3434779 12793.3 74735 14349 99.178 96.8863 770:35:46 55:58:24 73.0
Jabba 35549 239.8 35505 239.1 37729 10461 65.616 99.9615 656:05:15 24:33:41 175.8
LoRDEC 5363998 28354.1 2056812 15636.9 74719 15078 99.200 92.2954 1011:52:27 36:19:18 5.9
ECTools - - - - - - - - - >72:00:00 -
Short-read-alignment-based methods
Hercules - - - - - - - - - - -
CoLoRMap 5366107 28891.6 1841822 14976.8 74735 15442 99.189 83.2580 495:11:17 64:52:25 189.4
Nanocorr - - - - - - - - - >72:00:00 -
proovread - - - - - - - - - >72:00:00 -
LSC - - - - - - - - - >72:00:00 -

Note: LoRMA, HG-CoLoR and Hercules reported errors when correcting this dataset

Table 6.

Experimental results for fruit fly ONT data set D3-O

Method # Reads # Bases # Aligned # Aligned Maximum N50 Genome Alignment CPU time Wall time Memory
(Mbp) reads bases (Mbp) length (bp) (bp) fraction (%) identity (%) (hh:mm:ss) (hh:mm:ss) usage (GB)
Original 642255 4609.5 554083 3857.9 446050 11956 98.719 83.5921 - - -
Non-hybrid methods
FLAS 423097 3507.6 422206 3402.6 64365 11517 97.588 95.3301 23:04:50 03:12:50 10.8
LoRMA 703097 615.5 682288 592.3 32644 865 30.338 98.1230 666:37:35 25:52:14 92.8
Canu 430082 3415.6 421475 3220.2 254967 12090 97.592 96.3739 88:51:10 04:36:20 20.2
Short-read-assembly-based methods
HG-CoLoR - - - - - - - - - - -
FMLRC 641945 4647.2 578290 3978.2 444605 12088 98.592 97.6010 47:45:17 03:06:05 31.2
HALC 643002 4668.5 611191 3955.7 451284 12115 98.616 97.6634 126:30:01 05:43:37 42.4
Jabba 494546 2878.2 494430 2876.3 72501 9305 83.166 99.9745 175:19:34 06:56:29 136.8
LoRDEC 642882 4655.9 567878 3921.1 447726 12079 98.691 94.0382 152:05:32 05:38:05 5.7
ECTools - - - - - - - - - >72:00:00 -
Short-read-alignment-based methods
Hercules 642287 4612.8 554630 3859.4 449799 11966 98.713 83.9340 398:10:17 17:32:36 247.7
CoLoRMap 649041 4692.1 565881 3963.8 442948 12050 98.715 94.3361 160:00:22 16:07:18 57.3
Nanocorr - - - - - - - - - >72:00:00 -
proovread - - - - - - - - - >72:00:00 -
LSC - - - - - - - - - >72:00:00 -

Note: HG-CoLoR reported an error when correcting this dataset

Correction quality

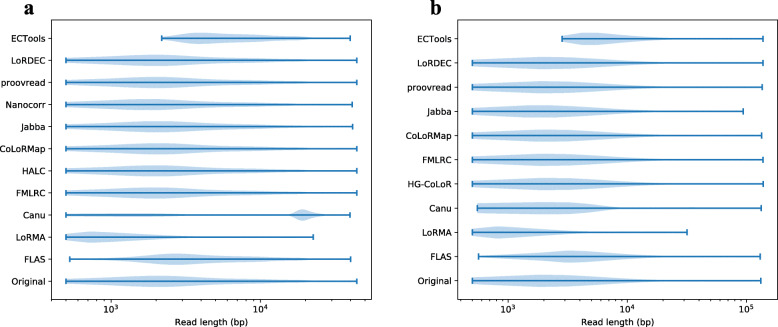

We measure quality using the number of reads and total bases output in comparison with the input, the resulting alignment identity, fraction of the genome covered and read length distribution including maximum size and N50 length. From Tables 1, 2, 3, 4, 5 and 6, we gather that the best performing hybrid methods (e.g., FMLRC) are capable of correcting reads to achieve base-level accuracy in the high 90’s. For the E. coli and yeast data sets, many of these programs achieve alignment identity >99%. A crucial aspect to consider here is whether the high accuracy is achieved while preserving input read depth and N50. Few tools (e.g. Jabba) seem to attain high alignment identity at the cost of producing shorter reads and reduced depths because they choose to either discard uncorrected reads or trim the uncorrected regions. This may have a negative impact on downstream analyses. This trade-off is further discussed later in “Effect of discarding reads during correction” section.

Among the hybrid methods, a key observation is that short-read-assembly-based methods tend to show better performance than short-read-alignment-based methods. We provide the following explanation. Given that long reads are error-prone, short read alignment to long reads is more likely to be wrong (or ambiguous) than long read alignment to graph structures built using short reads. Errors in long reads can cause false positives in identifying the true positions where the respective short reads should align, which causes false correction later. For example, during the correction of D3-P, the alignment identity of corrected reads generated by CoLoRMap in fact decreased when compared to the uncorrected reads. The reason is that CoLoRMap uses BWA-mem [46] to map short reads, which is designed to report best mapping. However, due to the high error rates, the best mapping is not necessarily the true mapping. Large volume of erroneous long reads in D3-P can lead to many false alignments, which affected the correction process. On the other hand, long read lengths make it possible to have higher confidence when aligning them to paths in the graph. Therefore, in most of the experiments, assembly-based methods were able to produce reasonable correction.

Non-hybrid correction is more challenging as it relies solely on overlaps between erroneous long reads, yet the tools in this category yield competitive accuracy in many cases. However, non-hybrid methods may achieve lower alignment identity when the long reads are more erroneous. For example, the alignment identity of corrected reads generated by FLAS, LoRMA and Canu is lower than almost all hybrid methods for D1-O where the average alignment identity of uncorrected reads is only 81.36%.

Runtime and memory usage

Scalability of the correction tools is an important aspect to consider in their evaluation. Slow speed or high memory usage makes it difficult to apply them to correct large data sets. Our results show that hybrid methods, in particular assembly-based methods, are much faster than the rest. For instance, Hercules and LSC failed to generate corrected reads in three days for D1-P, while most of the assembly-based tools finished the same job in less than one hour. Hercules, Nanocorr and LSC were unable to finish the correction of D2-O in three days, which was finished by FMLRC or LoRDEC in hours. Although proovread can complete the corrections of D2-P and D2-O, the run-time was 49.3 and 34.4 times longer, respectively, than run-time needed by FMLRC. Moreover, assembly-based methods, e.g., LoRDEC and FMLRC, used less memory in most of the experiments. Therefore, in terms of computational performance, users should give priority to short-read assembly-based methods over short-read alignment-based methods.

Among the non-hybrid methods, LoRMA’s memory usage was generally the highest among all the tools, and was slower than assembly-based methods. However, Canu showed superior scalability. Owing to a fast long read overlap detection algorithm using MinHash [45], Canu was able to compute long read overlaps and used them to correct the reads in reasonable time, which is comparable to most of the hybrid methods. The memory footprint of Canu was also lower than many hybrid-methods. However, Canu did not finish the correction of D3-P in three days probably because this data set is too large to compute pairwise overlaps. FLAS showed performance comparable to Canu as FLAS also leverages the fast overlap computation method in MECAT [44].

Effect of long read sequencing depth on error correction

Requiring high sequencing coverage for effective error correction can impact both cost and time consumed during sequencing and analysis. The relative cost per base pair using third-generation sequencing is still several folds higher when compared to the latest Illumina sequencers [1]. Accordingly, we study how varying long read sequencing depth affects correction quality, while keeping the short read data set fixed. We conducted this experiment using data sets D2-P and D2-O with various depth levels obtained using random sub-sampling. The details of the subsamples are summarized in Additional file 1 Table S1. The output behavior of the correction tools is shown in Additional file 1 Tables S2-S9.

Figure 1 shows the correction performance of four tools– CoLoRMap, LoRMA, Canu and FLAS that were significantly affected by the long read sequencing depth. For corrected reads generated by hybrid methods, no significant change on the metrics was observed except those generated by CoLoRMap. The alignment identity of its corrected reads increased with decreased sequencing depth. This observation is consistent with the experimental results reported by its authors. Similarly, CoLoRMap did not perform well on large data sets such as D3-P as large data sets increase the risk of false positive alignments.

Fig. 1.

Fig. 1

Correction performance with respect to different long read sequencing depths The alignment identity and genome fraction of yeast PacBio and ONT corrected subsamples generated by CoLoRMap, FLAS, LoRMA and Canu are shown in the figure

On the other hand, the performance of non-hybrid methods deteriorated significantly when sequencing depth was decreased. As non-hybrid methods leverage overlap information to correct errors, they require sufficient long read coverage to make true correction. The genome fraction covered by corrected reads produced by LoRMA with subsamples of D2-P decreased from 99.59% to 82.97% when sequencing depth dropped from 90x to 60x, and further decreased to 9.61%, 5.39% and 3.78% for 30x, 20x and 10x respectively, implying loss of many long reads after correction. The alignment identities were still greater than 99% using all subsamples because LoRMA trimmed the uncorrected regions. For corrected reads generate by Canu, no significant change on genome fraction was observed. But the alignment identity dropped from above 99% to 97.03% and 95.63% for 20x and 10x sequencing depths, respectively. FLAS showed similar performance but genome fraction for 10x sequencing depth was only 90.20% lower than the 99.92% achieved by Canu, which indicates FLAS drops some reads when sequencing depth is low.

Effect of discarding reads during correction

Many correction tools opt for discarding input reads or regions within reads that they fail to correct. As a result, the reported alignment identity is high (>99%), but much fewer number of bases survive after correction. This effect is more pronounced in corrected reads generated by Jabba, ECTools, and LoRMA. They either trim uncorrected regions at sequence ends, or even in the middle, to avoid errors in the final output which eventually yields high alignment identity. However, aggressive trimming also makes the correction lossy and may influence downstream analysis because long range information is lost if the reads are shortened or broken into smaller pieces. Therefore, users should be conservative in trimming and turn it off when necessary. One good practice is to keep the uncorrected regions and let downstream analysis tools perform the trimming, e.g. overlap-based trimming after read correction in Canu.

A direct implication of discarding or trimming reads is the change of read length distribution. Figure 2 shows the original and corrected read length distributions. Among all the tools, HG-CoLoR, FMLRC, HALC, CoLoRMAP, LoRDEC and proovread can maintain a similar read length distribution after correction whereas Nanocorr, Jabba and ECTools lost many long reads after correction due to their trimming step. Nanocorr drops a long read when there is no short read aligning to it. This procedure can remove many error-prone long reads, which leads to a higher alignment identity after correction. However, the fraction of discarded reads in many cases is found to be significant. For example, a mere 376.3 million bp cumulative length of sequences survived out of 1462.7 million bp data set, after correction of D2-P. ECTools also generated only 946.9 million corrected bases using this data set. Canu changed the read length distribution significantly after correction although due to a different reason. Canu estimates the read length after correction and tries to keep the longest 40x reads for subsequent assembly. FLAS kept most of the reads with short length while losing many reads with long length.

Fig. 2.

Fig. 2

E. coli corrected read length distribution Corrected read length distribution is shown in violinplots for E. coli PacBio and ONT sequencing data in a and b respectively. Note that ECTools only corrects reads longer than 1000 bp and drops the reads shorter than that

Effect of error correction on genome assembly

Error correction of long reads remains a useful pre-processing stage for reliable construction of overlap graphs during genome assembly. We examined how well the accuracy of error correction correlates with the quality of genome assembly performed using corrected reads. To do so, we conducted an experiment to compute genome assembly using corrected PacBio and ONT reads of E. coli, i.e., corrected reads for D1-P and D1-O. Assembly was computed using Canu with its error correction module turned off, and assembly quality was assessed using QUAST [47]; the results are shown in Tables 7 and 8.

Table 7.

Results of genome assembly computed using corrected reads of D1-P

Method # contigs NGA50 Largest Total Genome # # # indels # indels Indel
(bp) contigs (bp) length (bp) fraction (%) misassemblies mismatches (<=5bp) (>5bp) length (bp)
Non-hybrid methods
FLAS 2 3996362 4681650 4689583 99.998 4 4 162 0 167
LoRMA 14 696878 2501146 4663900 99.938 4 75 4181 6 4295
Canu 1 3976437 4670120 4670120 99.998 4 7 92 0 95
Short-read-assembly-based methods
FMLRC 9 3821409 4657352 4831908 99.998 8 1 4 0 5
HALC 25 2947777 4682714 5388722 99.983 8 541 35 8 257
Jabba 58 138874 398327 4623296 97.273 1 172 32 3 167
LoRDEC 2 3996441 4681757 4703690 99.998 4 66 18 2 55
ECTools 19 3548731 4657296 5154324 99.974 4 592 80 2 188
Short-read-alignment-based methods
CoLoRMap 86 1217587 1448649 5700143 99.998 4 42 3 7 478
Nanocorr 18 3095077 4646253 4931697 99.998 5 65 34 2 157
proovread 2 1686030 4626702 4666724 99.656 4 76 97 1 176
Table 8.

Results of genome assembly computed using corrected reads of D1-O

Method # contigs NGA50 Largest Total Genome # # # indels # indels Indel
(bp) contigs (bp) length (bp) fraction (%) misassemblies mismatches (<=5bp) (>5bp) length (bp)
Non-hybrid methods
FLAS 1 1283465 4561925 4561925 99.834 4 4785 70062 1310 122264
LoRMA 14 726649 1239048 4583602 99.650 3 23275 57650 37 73578
Canu 1 3335496 4601279 4601279 99.914 2 14810 56511 283 78931
Short-read-assembly-based methods
HG-CoLoR 32 3924167 4634988 5555776 99.845 28 393 82 8 246
FMLRC 9 4325756 4718452 4974808 99.874 6 6 7 4 242
Jabba 57 105474 311624 4460218 95.838 0 117 22 5 179
LoRDEC 57 3492326 4044623 5389657 99.800 10 402 162 18 448
ECTools 2 2891718 4733248 4797686 99.885 3 632 267 16 682
Short-read-alignment-based methods
CoLoRMap 55 206971 501963 6007440 94.790 4 11074 14392 206 24183
proovread 99 75162 225568 4613429 98.737 14 276 41 1 75

Considering the assemblies generated using corrected PacBio reads (Table 7), NGA50 of about 3 Mbp was obtained when using reads generated by FLAS, Canu, FMLRC, HALC, Nanocorr, LoRDEC or ECTools. When using corrected ONT reads (Table 8), assemblies generated using reads corrected by Canu, HG-CoLoR, FMLRC, LoRDEC and ECTools have NGA50 near 3 Mbp. In contrast, assemblies generated using reads corrected by Jabba and LoRMA showed lower NGA50 in both cases. Their trimming procedure possibly led to the loss of some long range information, thereby causing lower continuity in assembly. Post error correction, alignment identity of corrected reads needs to be sufficiently high to identify true overlaps during assembly. We observe that NGA50 of assemblies generated using reads corrected by CoLoRMap and proovread is low, as the corrected reads generated by these two tools have low alignment identity (e.g., <90% for D1-O, Table 2).

We also examined the frequency of mismatches and indels in the assemblies. For data set D1-P, corrected reads generated by HALC and ECTools produced assemblies with >500 mismatches, significantly higher than the other tools. However, alignment identity of their corrected reads was either competitive with, or superior to, what is produced by other tools. Notably, both HALC and ECTools use assembled contigs from short reads to do error correction. Mis-assemblies of short reads, especially in repetitive and low-complexity regions, may cause false corrections, which leads to errors during assembly [29]. Corrected reads produced by FMLRC achieved the least number of errors in assembly. Meanwhile, its alignment identity was also the highest among the methods which avoid trimming. Therefore, higher alignment identity of corrected reads is an important but not a sufficient criteria to minimize errors in genome assemblies.

Non-hybrid methods such as LoRMA, Canu and FLAS produced more indels than mismatches in their assemblies while most of the hybrid methods showed the opposite behavior. These observations suggest that existing self-correction methods are not good at handling indels when compared to hybrid methods. Consequently, de novo long read assemblers that use self-correction methods typically rely on post-processing ‘polishing’ stages, using signal-level data from long read instruments [2, 33] or alternate sequencing technologies [48].

Conclusions and future directions

In this work, we established benchmark data sets and evaluation methods for comprehensive assessment of long read error correction software. Our results suggest that hybrid methods aided by short accurate reads can achieve better correction quality, especially when handling low coverage-depth long reads, compared with non-hybrid methods. Within the hybrid methods, assembly-based methods are superior to alignment-based methods in terms of scalability to large data sets. Besides, better performance on correction such as preserving higher proportion of input bases and high alignment identity often leads to better performance in downstream applications such as genome assembly. But the tools with superior correction performance should be further tested in the context of applications of interest.

Users can also select tools according to our experimental results for their specific expectations. When speed is a concern, assembly-based hybrid methods are preferred whenever short reads are available. Besides, hybrid methods are more immune to low long read sequencing depth than non-hybrid methods. Thus, users are recommended to choose hybrid methods when long read sequencing depth is relatively low. In cases where indel errors may cause a serious negative impact on downstream analyses, hybrid methods should be preferred over non-hybrid ones if short reads are available.

FMLRC outperformed other hybrid methods in almost all the experiments. For non-hybrid methods, Canu and FLAS showed better performance over LoRMA. Hence, these three are recommended as default when users want to avoid laborious tests on all the error correction tools.

For future work, better self-correction algorithms are expected to avoid hybrid sequencing, thus reducing experimental labor on short read sequencing preparation. In addition, most of the correction algorithms run for days to correct errors in the sequencing of even moderately large and complex genomes like the fruit fly. These algorithms will spend much more time on correcting larger sequencing data sets of human, and become a bottleneck in sequencing data analysis. Therefore, more efficient or parallel correction algorithms should be developed to ease the computational burden. Furthermore, none of the hybrid tools makes use of paired-end information in their correction, except CoLoRMap. But the use of paired-end reads in CoLoRMap did not improve correction performance significantly according to previous studies. Paired-end reads have already been used to resolve repeats and remove entanglements in de Bruijn graphs [49]. Since many error correction tools build de Bruijn graphs to correct long reads, the paired-end information may also be able to improve error correction.

Most of the published error correction tools focus on correction of long DNA reads sequenced from a single genome, which also served as the motivation for our review. Long read sequencing is increasingly gaining traction in transcriptomics and metagenomics applications. It is not clear whether the existing tools can be leveraged or extended to work effectively in such scenarios, and is an active area of research [50].

Methods

We selected data sets from recent publicly accessible genome sequencing experiments. For benchmarking the different programs, our experiments used genome sequences from multiple species and different sequencing platforms with recent chemistry, e.g., R9 for ONT or P6-C4/P5-C3 for PacBio. We describe our evaluation criteria and use it for a comprehensive assessment of the correction methods/software.

Benchmark data sets

Our benchmark includes resequencing data from three reference genomes – Escherichia coli K-12 MG1655 (E. coli), Saccharomyces cerevisiae S288C (yeast), and Drosophila melanogaster ISO1 (fruit fly). The biggest hurdle when benchmarking with real data is the absence of ground truth (i.e., perfectly corrected reads). However, the availability of reference genomes of these strains enables us to evaluate the output of correction software in a reliable manner using the reference. Essentially, differences in a corrected read with respect to the reference imply uncorrected errors. A summary of the selected read data sets is listed in Table 9. We leveraged publicly available high coverage read data sets of the selected genomes available from all three platforms – Illumina (for short reads), Pacbio, and ONT. In addition, some of these samples were sequenced using multiple protocols, yielding reads of varying quality. This enabled us to do a thorough comparison among error correction software across various error rates and error profiles.

Table 9.

Details of the benchmark data sets

Data Sequencing Sequencing Sequencing Read length Number of Reference Genome Reference
set specification NCBI accession depth a (bp) b reads genome length (Mbp) NCBI accession
D1-I Illumina Miseq - c 373x 2 ×151 2 ×5 729 470 E. coli K-12 MG1655 NC_000913.3
D1-P Pacbio P6C4 - d 161x 13 982 87 217 4.6
D1-O MinION R9 1D - e 319x 14 891 164 472
D2-I Illumina Miseq ERR1938683 81x 2 ×150 2 ×3 318 467 S. cerevisiae S288c GCF_000146045.2
D2-P Pacbio P6C4 PRJEB7245 120x 8 656 239 408 12.2
D2-O MinION R9 2D ERP016443 59x 7 001 119 955
D3-I Illumina Nextseq SRX3676782 44x 2 ×151 2 ×20 619 401 D. melanogaster ISO1 GCF_000001215.4
D3-P Pacbio P5C3 SRX499318 204x 15 132 6 864 972 143.7
D3-O MinION R9.5 1D SRX3676783 32x 11 934 663 784

aSequencing depth is estimated using the sequencing data and reference genome size

bN50 is reported for PacBio or ONT reads, since their lengths vary

cDownloaded from Illumina at https://ftp://webdata:webdata@ussd-ftp.illumina.com/Data/SequencingRuns/MG1655/MiSeq_Ecoli_MG1655_110721_PF_R1.fastq.gzand https://ftp://webdata:webdata@ussd-ftp.illumina.com/Data/SequencingRuns/MG1655/MiSeq_Ecoli_MG1655_110721_PF_R2.fastq.gz

dDownloaded from PacBio at https://github.com/PacificBiosciences/DevNet/wiki/E.-coli-Bacterial-Assembly

eDownloaded from Loman Labs at https://s3.climb.ac.uk/nanopore/E_coli_K12_1D_R9.2_SpotON_2.pass.fasta

To conduct performance evaluation under different sequencing depths, yeast sequencing reads (D2-P and D2-O) were subsampled randomly using Seqtk (https://github.com/lh3/seqtk). Subsamples with average depth of 10x, 20x and 30x were generated for ONT reads. In addition, 10x, 20x, 30x, 60x and 90x PacBio read subsamples were generated from D2-P. Details of these subsamples are available in Additional file 1 Table S1.

Evaluation methodology

Our evaluation method takes corrected reads and a reference genome as input. The corrected reads were filtered using a user defined length (default 500). Reads which were too short to include in downstream analysis were dropped during the filtration. Filtered reads were aligned to the reference genome using Minimap2 [51] (using “-ax map-pb” and “-ax map-ont” parameters for PacBio and ONT reads respectively). The primary alignment for each read was used in the evaluation.

In an ideal scenario, an error correction software should take each erroneous long read and produce the error-free version of it, preserving each read and its full length. To assess how close to the ideal one can get, measures such as error rate post-correction or percentage of errors removed (termed gain; see [15]) can be utilized. However, long read error correction programs do not operate in this fashion. They may completely discard some reads or choose to split an input read into multiple reads when the high error rate cannot be reckoned with. In addition, short read assembly based error correction programs use long read alignments to de Bruijn graphs, and produce sequences corresponding to the aligned de Bruijn graph paths as output reads instead. Though original reads may not be fully preserved, all that matters for effective use of error correction software is that its output consists of sufficient number of high quality long reads that reflect adequate read lengths, sequencing depth, and coverage of the genome. Accordingly, our evaluation methodology reflects such assessment.

We measure the number of reads and total bases output by each error correction software, along with the number of aligned reads and total number of aligned bases extracted from alignment statistics, because they together reveal the effectiveness of correction. Besides, statistics which convey read length distribution such as maximum length and N50 were calculated to assess effect of the correction process on read lengths. Fraction of bases on the genome covered by output reads is also reported to assess if there are regions of the genome that lost coverage or suffered significant deterioration in coverage depth post-correction. Any significant drop on these metrics can be a potential sign of information loss during the correction. Finally, alignment identity is calculated by the number of total matched bases divided by the total alignment length. Tools which achieve maximum alignment identity with minimum loss of information are desirable.

As part of this study, we provide an evaluation tool to automatically generate the evaluation statistics of corrected reads mentioned above (https://github.com/haowenz/LRECE). We include a wrapper script which can run state-of-the-art error correction software on a grid engine given any input data from user. Using the script, two types of evaluations can be conducted; users can either evaluate the performance on a list of tools with their own data to find a suitable tool for their studies, or they can run any correction tool with the benchmark data and compare it with other state-of-the-art tools.

Supplementary Information

12864_2020_7227_MOESM1_ESM.pdf (146.5KB, pdf)

Additional file 1 Settings of the error correction tools and correction results on subsamples of yeast PacBio and ONT sequencing data.

Acknowledgements

Not applicable.

About this supplement

This article has been published as part of BMC Genomics Volume 21 Supplement 6, 2020: Selected articles from the 8th IEEE International Conference on Computational Advances in Bio and medical Sciences (ICCABS 2018): genomics. The full contents of the supplement are available online at https://bmcgenomics.biomedcentral.com/articles/supplements/volume-21-supplement-6.

Abbreviations

PacBio

Pacific bioscience

ONT

Oxford Nanopore technologies

pHMM

Profile Hidden Markov Model

DBG

de Bruijn graph

MEM

Maximal exact matches

Authors’ contributions

HZ, CJ and SA designed the study. HZ performed the experiments and wrote the paper. CJ and SA revised the paper. All authors read and approved the final manuscript.

Funding

This work was supported in part by the National Science Foundation under CCF-1718479. Publication costs are funded by the National Science Foundation under CCF-1718479. The funding body played no role in the design of the study and collection, analysis, interpretation of data or in writing the manuscript.

Availability of data and materials

E. coli Illumina reads are available at https://ftp://webdata:webdata@ussd-ftp.illumina.com/Data/SequencingRuns/MG1655/MiSeq_Ecoli_MG1655_110721_PF_R1.fastq.gzand https://ftp://webdata:webdata@ussd-ftp.illumina.com/Data/SequencingRuns/MG1655/MiSeq_Ecoli_MG1655_110721_PF_R2.fastq.gz. E. coli PacBio reads are available at https://github.com/PacificBiosciences/DevNet/wiki/E.-coli-Bacterial-Assembly. E. coli ONT reads are available at https://s3.climb.ac.uk/nanopore/E_coli_K12_1D_R9.2_SpotON_2.pass.fasta. E. coli reference genome is available with NCBI accession number NC_000913.3. Yeast reference genome and sequencing data are available with NCBI accession number GCF_000146045.2, ERR1938683, PRJEB7245 and ERP016443. Fruit fly reference genome and sequencing data are available with NCBI accession number GCF_000001215.4, SRX3676782, SRX499318 and SRX3676783.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Footnotes

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Contributor Information

Haowen Zhang, Email: hwzhang@gatech.edu.

Chirag Jain, Email: cjain@gatech.edu.

Srinivas Aluru, Email: aluru@cc.gatech.edu.

References

  • 1.Sedlazeck FJ, Lee H, Darby CA, Schatz MC. Piercing the dark matter: bioinformatics of long-range sequencing and mapping. Nat Rev Genet. 2018:1. 10.1038/s41576-018-0003-4. [DOI] [PubMed]
  • 2.Loman NJ, Quick J, Simpson JT. A complete bacterial genome assembled de novo using only nanopore sequencing data. Nat Methods. 2015;12(8):733. doi: 10.1038/nmeth.3444. [DOI] [PubMed] [Google Scholar]
  • 3.Chin CS, Peluso P, Sedlazeck FJ, Nattestad M, Concepcion GT, Clum A, et al. Phased diploid genome assembly with single-molecule real-time sequencing. Nat Methods. 2016;13(12):1050. doi: 10.1038/nmeth.4035. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 4.Jain M, Koren S, Miga KH, Quick J, Rand AC, Sasani TA, et al. Nanopore sequencing and assembly of a human genome with ultra-long reads. Nat Biotechnol. 2018;36(4):338. doi: 10.1038/nbt.4060. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Sedlazeck FJ, Rescheneder P, Smolka M, Fang H, Nattestad M, Von Haeseler A, Schatz MC. Accurate detection of complex structural variations using single-molecule sequencing. Nat Methods. 2018;15(6):461–468. doi: 10.1038/s41592-018-0001-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Chaisson MJ, Huddleston J, Dennis MY, Sudmant PH, Malig M, Hormozdiari F, et al. Resolving the complexity of the human genome using single-molecule sequencing. Nature. 2015;517(7536):608. doi: 10.1038/nature13907. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Gordon SP, Tseng E, Salamov A, Zhang J, Meng X, Zhao Z, et al. Widespread polycistronic transcripts in fungi revealed by single-molecule mRNA sequencing. PLoS ONE. 2015;10(7):e0132628. doi: 10.1371/journal.pone.0132628. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Dilthey A, Jain C, Koren S, Phillippy A. MetaMaps-Strain-level metagenomic assignment and compositional estimation for long reads. bioRxiv. 2018:372474. 10.1101/372474. [DOI] [PMC free article] [PubMed]
  • 9.Rand AC, Jain M, Eizenga JM, Musselman-Brown A, Olsen HE, Akeson M, et al. Mapping DNA methylation with high-throughput nanopore sequencing. Nat Methods. 2017;14(4):411. doi: 10.1038/nmeth.4189. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Simpson JT, Workman RE, Zuzarte P, David M, Dursi L, Timp W. Detecting DNA cytosine methylation using nanopore sequencing. Nat Methods. 2017;14(4):407. doi: 10.1038/nmeth.4184. [DOI] [PubMed] [Google Scholar]
  • 11.Carneiro MO, Russ C, Ross MG, Gabriel SB, Nusbaum C, DePristo MA. Pacific biosciences sequencing technology for genotyping and variation discovery in human data. BMC Genomics. 2012;13(1):375. doi: 10.1186/1471-2164-13-375. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Jain M, Fiddes IT, Miga KH, Olsen HE, Paten B, Akeson M. Improved data analysis for the MinION nanopore sequencer. Nat Methods. 2015;12(4):351. doi: 10.1038/nmeth.3290. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Korlach J, Biosciences P. Understanding accuracy in SMRT sequencing. Technical report. 2013. www.pacb.com.
  • 14.Ashton PM, Nair S, Dallman T, Rubino S, Rabsch W, Mwaigwisya S, et al. MinION nanopore sequencing identifies the position and structure of a bacterial antibiotic resistance island. Nat Biotechnol. 2015;33(3):296. doi: 10.1038/nbt.3103. [DOI] [PubMed] [Google Scholar]
  • 15.Yang X, Chockalingam SP, Aluru S. A survey of error-correction methods for next-generation sequencing. Brief Bioinforma. 2012;14(1):56–66. doi: 10.1093/bib/bbs015. [DOI] [PubMed] [Google Scholar]
  • 16.Alic AS, Ruzafa D, Dopazo J, Blanquer I. Objective review of de novo stand-alone error correction methods for NGS data. Wiley Interdiscip Rev Comput Mol Sci. 2016;6(2):111–46. doi: 10.1002/wcms.1239. [DOI] [Google Scholar]
  • 17.Koren S, Schatz MC, Walenz BP, Martin J, Howard JT, Ganapathy G, et al. Hybrid error correction and de novo assembly of single-molecule sequencing reads. Nat Biotechnol. 2012;30(7):693. doi: 10.1038/nbt.2280. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Au KF, Underwood JG, Lee L, Wong WH. Improving PacBio long read accuracy by short read alignment. PLoS ONE. 2012;7(10):e46679. doi: 10.1371/journal.pone.0046679. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Lee H, Gurtowski J, Yoo S, Marcus S, McCombie WR, Schatz M. Error correction and assembly complexity of single molecule sequencing reads. BioRxiv. 2014:006395. 10.1101/006395.
  • 20.Salmela L, Rivals E. LoRDEC: accurate and efficient long read error correction. Bioinformatics. 2014;30(24):3506–14. doi: 10.1093/bioinformatics/btu538. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Hackl T, Hedrich R, Schultz J, Förster F. proovread: large-scale high-accuracy PacBio correction through iterative short read consensus. Bioinformatics. 2014;30(21):3004–11. doi: 10.1093/bioinformatics/btu392. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Madoui MA, Engelen S, Cruaud C, Belser C, Bertrand L, Alberti A, et al. Genome assembly using Nanopore-guided long and error-free DNA reads. BMC Genomics. 2015;16(1):327. doi: 10.1186/s12864-015-1519-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Goodwin S, Gurtowski J, Ethe-Sayers S, Deshpande P, Schatz MC, McCombie WR. Oxford Nanopore sequencing, hybrid error correction, and de novo assembly of a eukaryotic genome. Genome Res. 2015;25(11):1750–6. doi: 10.1101/gr.191395.115. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Miclotte G, Heydari M, Demeester P, Rombauts S, Van de Peer Y, Audenaert P, et al. Jabba: hybrid error correction for long sequencing reads. Algoritm Mol Biol. 2016;11(1):10. doi: 10.1186/s13015-016-0075-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Haghshenas E, Hach F, Sahinalp SC, Chauve C. Colormap: Correcting long reads by mapping short reads. Bioinformatics. 2016;32(17):i545–51. doi: 10.1093/bioinformatics/btw463. [DOI] [PubMed] [Google Scholar]
  • 26.Salmela L, Walve R, Rivals E, Ukkonen E. Accurate self-correction of errors in long reads using de Bruijn graphs. Bioinformatics. 2016;33(6):799–806. doi: 10.1093/bioinformatics/btw321. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Bao E, Lan L. HALC: High throughput algorithm for long read error correction. BMC Bioinformatics. 2017;18(1):204. doi: 10.1186/s12859-017-1610-3. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Bao E, Xie F, Song C, Dandan S. FLAS: fast and high-throughput algorithm for PacBio long-read self-correction. Bioinformatics. 2019;35(20):3953–60. doi: 10.1093/bioinformatics/btz206. [DOI] [PubMed] [Google Scholar]
  • 29.Wang JR, Holt J, McMillan L, Jones CD. FMLRC: Hybrid long read error correction using an FM-index. BMC Bioinformatics. 2018;19(1):50. doi: 10.1186/s12859-018-2051-3. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Morisse P, Lecroq T, Lefebvre A, Berger B. Hybrid correction of highly noisy long reads using a variable-order de Bruijn graph. Bioinformatics. 2018. 10.1093/bioinformatics/bty521. [DOI] [PubMed]
  • 31.Firtina C, Bar-Joseph Z, Alkan C, Cicek AE. Hercules: a profile HMM-based hybrid error correction algorithm for long reads. Nucleic Acids Res. 2018; 46(21):e125-. [DOI] [PMC free article] [PubMed]
  • 32.Koren S, Walenz BP, Berlin K, Miller JR, Bergman NH, Phillippy AM. Canu: scalable and accurate long-read assembly via adaptive k-mer weighting and repeat separation. Genome Res. 2017;27(5):722–36. doi: 10.1101/gr.215087.116. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Chin CS, Alexander DH, Marks P, Klammer AA, Drake J, Heiner C, et al. Nonhybrid, finished microbial genome assemblies from long-read SMRT sequencing data. Nat Methods. 2013;10(6):563. doi: 10.1038/nmeth.2474. [DOI] [PubMed] [Google Scholar]
  • 34.Laehnemann D, Borkhardt A, McHardy AC. Denoising DNA deep sequencing data high-throughput sequencing errors and their correction. Brief Bioinforma. 2015;17(1):154–79. doi: 10.1093/bib/bbv029. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Mahmoud M, Zywicki M, Twardowski T, Karlowski WM. Efficiency of PacBio long read correction by 2nd generation Illumina sequencing. Genomics. 2017. 10.1016/j.ygeno.2017.12.011. [DOI] [PubMed]
  • 36.La S, Haghshenas E, Chauve C. LRCstats, a tool for evaluating long reads correction methods. Bioinformatics. 2017;33(22):3652–4. doi: 10.1093/bioinformatics/btx489. [DOI] [PubMed] [Google Scholar]
  • 37.Fichot EB, Norman RS. Microbial phylogenetic profiling with the Pacific Biosciences sequencing platform. Microbiome. 2013;1(1):10. doi: 10.1186/2049-2618-1-10. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Stöcker BK, Köster J, Rahmann S. SimLoRD: simulation of long read data. Bioinformatics. 2016;32(17):2704–6. doi: 10.1093/bioinformatics/btw286. [DOI] [PubMed] [Google Scholar]
  • 39.Fu S, Wang A, Au KF. A comparative evaluation of hybrid error correction methods for error-prone long reads. Genome Biol. 2019;20(1):26. doi: 10.1186/s13059-018-1605-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40.Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ. Basic local alignment search tool. J Mol Biol. 1990;215(3):403–10. doi: 10.1016/S0022-2836(05)80360-2. [DOI] [PubMed] [Google Scholar]
  • 41.Pop M, Phillippy A, Delcher AL, Salzberg SL. Comparative genome assembly. Brief Bioinforma. 2004;5(3):237–48. doi: 10.1093/bib/5.3.237. [DOI] [PubMed] [Google Scholar]
  • 42.Yang X, Dorman KS, Aluru S. Reptile: representative tiling for short read error correction. Bioinformatics. 2010;26(20):2526–33. doi: 10.1093/bioinformatics/btq468. [DOI] [PubMed] [Google Scholar]
  • 43.Kowalski T, Grabowski S, Deorowicz S. Indexing arbitrary-length k-mers in sequencing reads. PLoS ONE. 2015;10(7):e0133198. doi: 10.1371/journal.pone.0133198. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 44.Xiao CL, Chen Y, Xie SQ, Chen KN, Wang Y, Han Y, et al. MECAT: fast mapping, error correction, and de novo assembly for single-molecule sequencing reads. nature methods. 2017;14(11):1072. doi: 10.1038/nmeth.4432. [DOI] [PubMed] [Google Scholar]
  • 45.Berlin K, Koren S, Chin CS, Drake JP, Landolin JM, Phillippy AM. Assembling large genomes with single-molecule sequencing and locality-sensitive hashing. Nat Biotechnol. 2015;33(6):623. doi: 10.1038/nbt.3238. [DOI] [PubMed] [Google Scholar]
  • 46.Li H. Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM. arXiv preprint arXiv. 2013:13033997.
  • 47.Gurevich A, Saveliev V, Vyahhi N, Tesler G. QUAST: quality assessment tool for genome assemblies. Bioinformatics. 2013;29(8):1072–5. doi: 10.1093/bioinformatics/btt086. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 48.Walker BJ, Abeel T, Shea T, Priest M, Abouelliel A, Sakthikumar S, et al. Pilon: an integrated tool for comprehensive microbial variant detection and genome assembly improvement. PLoS ONE. 2014;9(11):e112963. doi: 10.1371/journal.pone.0112963. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 49.Bankevich A, Nurk S, Antipov D, Gurevich AA, Dvorkin M, Kulikov AS, et al. SPAdes: a new genome assembly algorithm and its applications to single-cell sequencing. J Comput Biol. 2012;19(5):455–77. doi: 10.1089/cmb.2012.0021. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 50.de Lima LIS, Marchet C, Caboche S, Da Silva C, Istace B, Aury JM, et al.Comparative assessment of long-read error-correction software applied to RNA-sequencing data. bioRxiv. 2018:476622. [DOI] [PubMed]
  • 51.Li H. Minimap2: pairwise alignment for nucleotide sequences. Bioinformatics. 2018;1:7. doi: 10.1093/bioinformatics/bty191. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

12864_2020_7227_MOESM1_ESM.pdf (146.5KB, pdf)

Additional file 1 Settings of the error correction tools and correction results on subsamples of yeast PacBio and ONT sequencing data.

Data Availability Statement

E. coli Illumina reads are available at https://ftp://webdata:webdata@ussd-ftp.illumina.com/Data/SequencingRuns/MG1655/MiSeq_Ecoli_MG1655_110721_PF_R1.fastq.gzand https://ftp://webdata:webdata@ussd-ftp.illumina.com/Data/SequencingRuns/MG1655/MiSeq_Ecoli_MG1655_110721_PF_R2.fastq.gz. E. coli PacBio reads are available at https://github.com/PacificBiosciences/DevNet/wiki/E.-coli-Bacterial-Assembly. E. coli ONT reads are available at https://s3.climb.ac.uk/nanopore/E_coli_K12_1D_R9.2_SpotON_2.pass.fasta. E. coli reference genome is available with NCBI accession number NC_000913.3. Yeast reference genome and sequencing data are available with NCBI accession number GCF_000146045.2, ERR1938683, PRJEB7245 and ERP016443. Fruit fly reference genome and sequencing data are available with NCBI accession number GCF_000001215.4, SRX3676782, SRX499318 and SRX3676783.


Articles from BMC Genomics are provided here courtesy of BMC

RESOURCES
