Implantable Subacromial Balloon Spacers in Patients With Massive Irreparable Rotator Cuff Tears: A Systematic Review of Clinical, Biomechanical, and Financial Implications

Abstract

Purpose

To determine the clinical, biomechanical, and financial impact of the use of subacromial balloon spacers in the surgical management of massive, irreparable rotator cuff tears (RCTs).

Methods

All studies assessing the use of implantable subacromial balloon spacers for management of massive, irreparable RCTs were systematically searched. Risk of bias was assessed using Methodological Index for Non-Randomized Studies criteria. Data extraction and analysis was performed for pain and function scores, shoulder range of motion (ROM), glenohumeral contact pressure and vertical migration of humeral head, and cost. Subjective synthesis was performed with forest plots when outcomes were reported in 3 or more studies.

Results

In total, 19 studies met inclusion criteria for analysis; 337 patients (mean age 68 years) had 343 subacromial balloon spacer implantations. Throughout a mean follow-up of 33 months, there was significant improvement in the Total Constant Score (preoperative: 22.5-41.8; postoperative: 51.4-72.3), Oxford Shoulder Score (preoperative: 21.3-26; postoperative: 34.39-48.2), American Shoulder and Elbow Surgeons score (preoperative: 24.5-59.1; postoperative: 72.5-85.7), and shoulder ROM parameters. Subacromial balloon spacer placement resisted superior humeral head migration (range of preoperative to postoperative difference: 2.8-6.2 mm) and decreased peak subacromial pressure during shoulder ROM.

Conclusions

Existing literature of subacromial balloon spacers has a high risk of bias, lack of appropriate control, and low levels of evidence. A qualitative synthesis indicates that subacromial balloon spacer implantation in patients with massive irreparable RCTs is cost-effective and leads to improved function (Total Constant Score and Oxford Shoulder Score) and ROM. In cadaveric studies, subacromial balloon spacers resist superior humeral head migration and reduce subacromial pressure. The theoretical risk of biodegradation of the balloon spacer has not been substantiated in study of up to 5-years follow-up, and the risk of complications from this procedure appears to be minimal.

Level of Evidence

IV; Systematic review of level III-IV studies.

Rotator cuff tears are found in nearly 50% of patients aged 70-90 years.^1,2 Among these rotator cuff tears, up to 40% of all tears are categorized as massive,^3,4 which is defined as the rupture of 2 or more rotator cuff tendons and/or retraction ≥5 cm away from the tendon insertion site.^5,6 A key issue for these massive rotator cuff tears is that many are irreparable, due to significant tendon retraction to the glenoid,^7,8 the tear being ≥3 cm in size,⁷ extensive muscle atrophy,^7,8 or a combination of these factors.

Despite the many surgical options that exist,9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 there continues to be no consensus on the appropriate surgical strategy for patients suffering from massive, irreparable rotator cuff tears. A potential treatment for massive, irreparable rotator cuff tears is the InSpace arthroscopic biodegradable balloon spacer (InSpace Balloon; Orthospace, Caesarea, Israel). This spacer is placed within the subacromial space via arthroscopic delivery and inflated with saline.²⁴ The biodegradable spacer is composed of a copolymer material that lasts for approximately 12 months before full degradation occurs.²⁴ Reported advantages of this device are its minimal technical demands and shorter operative duration,^7,24,25 evidence of expedited postoperative shoulder mobility,²⁶ and improved postoperative clinical function scores, such as Total Constant Score (TCS), American Shoulder and Elbow Surgeons (ASES) score, and Oxford Shoulder Score (OSS) in patients,27, 28, 29 and the ability to implant the device under fluoroscopic guidance without general anesthesia in those patients with medical contraindications.^7,25 Recent systematic reviews by Moon et al.²⁹ and Stewart et al.³⁰ demonstrated improvements in patient satisfaction and clinical outcomes such as TCS and ASES in patients managed with subacromial balloon spacers. However, there is limited research regarding the potential biomechanical and clinical advantages in addition to the cost associated with subacromial balloon spacers in a systematic review. Further understanding of the biomechanical and financial literature regarding subacromial balloon spacers is imperative; therefore, review and analysis of these outcomes in the present study provides value to the existing systematic reviews on the topic.

Therefore, the purpose of this systematic review is to determine the clinical, biomechanical, and financial impact of the use of subacromial balloon spacers in the surgical management of massive, irreparable rotator cuff tears. We hypothesized that the use of implantable subacromial balloon spacers in patients with massive, irreparable rotator cuff tears would be associated with improved shoulder range of motion (ROM) and clinical function scores such as TCS, ASES, and OSS in addition to biomechanical advantages such as increased acromiohumeral distance and decreased subacromial pressure, all in a cost-effective manner.

Methods

The study was designed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses protocol³¹ using Cochrane Review Methods.³²

Search Strategy

MEDLINE, EMBASE, CINAHL, and the Cochrane Library were searched from their inception to September 2019. The search strategy (Table 1) was developed with the assistance of a medical librarian. Following identification of potential articles for inclusion, an initial screening of titles and abstracts that addressed the research question of interest was then performed. Afterwards, relevant full-text articles were obtained and re-evaluated for eligibility based on the inclusion and exclusion criteria below to determine the final studies to be included in the systematic review. Any disagreements regarding the articles for inclusion were resolved by the senior author. The bibliographies of all articles identified also were searched for further studies that specifically pertained to cost, biomechanical, and clinical outcomes involving the use of subacromial balloon spacers for the management of massive, irreparable rotator cuff tears. The authors determined that inclusion of nonrandomized studies was appropriate considering that randomized controlled trials on the topic have not yet been completed, and therefore this is the only literature available that effectively describes the topic.

Table 1.

MEDLINE Search Strategy

Line 1: Interpositional balloon spacer OR Interpositional spacer OR Subacromial interpositional balloon spacer OR Subacromial interpositional balloon OR balloon-shaped spacer or Inspace OR Inspace balloon OR Subacromial spacer OR Balloon arthroplasty OR Subacromial balloon interpositional arthroplasty OR Subacromial balloon spacer OR Balloon OR Balloon spacer OR Biodegradable spacer OR Biodegradable balloon spacer OR Subacromial biodegradable spacer OR Biodegradable balloon

AND

Line 2: Cuff tear OR Shoulder OR Irreparable cuff OR superior rotator cuff tear OR Massive rotator cuff tear OR Rotator cuff tear OR Rotator cuff OR Irreparable rotator cuff tear OR Irreparable rotator cuff OR Irreparable massive rotator cuff tear OR irreparable OR subacromial OR acromion OR impingement OR tear OR tendinopathy

Inclusion and/or Exclusion Criteria

This article includes English-language original data studies published at any time that report outcomes relating to biomechanics, clinical function scores (TCS, ASES, OSS, University of California Los Angeles [UCLA] Shoulder Score, visual analog scale [VAS]), shoulder ROM, patient satisfaction, costs, and complications following the use of subacromial balloon spacers for the management of massive, irreparable rotator cuff tears. Studies that were excluded were those not written in English and those did not assess biomechanical, clinical, or financial outcomes after the use of subacromial balloon spacers in massive, irreparable rotator cuff tears.

Quality Appraisal and Assessment of Risk of Bias

The quality and assessment of risk of bias for each clinical study included in the review was independently rated by the primary and senior authors using the Methodological Index for Non-Randomized Studies (MINORS) criteria, which is a validated 8-item checklist that is designed to analyze the quality of comparative and noncomparative nonrandomized, surgical studies.³³ Each checklist item is scored from 0 to 2, in which a score of 0 is assigned if an item is not reported, a score of 1 is assigned if an item is only partially addressed, and a score of 2 is provided if the item parameter is completely addressed. Follow-up of 18 months was considered adequate to assess clinical efficacy and potential complications of the subacromial balloon spacer as device degradation is reportedly complete within 12 months of insertion.^24,30 The Cohen’s κ statistic was calculated to determine interrater reliability.³⁴ Cohen suggested that the kappa value should be interpreted as follows: values <0 represents less than chance agreement, 0.01-0.20 represents slight agreement, 0.21-0.40 represents fair agreement, 0.41-0.60 represents moderate agreement, 0.61-0.80 represents substantial agreement, and 0.81-1.00 represents almost-perfect agreement.^35,36

Data Collection and Abstraction

Two investigators independently extracted data from those groups with massive, irreparable rotator cuff tears treated with subacromial balloon spacer from all eligible studies. Any disagreements were resolved by discussion. Unresolved disagreements were resolved by the senior author. The following data was extracted for the clinical and biomechanical studies: first author, year of publication, journal publication, sample size, individual group demographics, surgical interventions, mean follow-up, and the primary and secondary outcomes. The primary outcome measures for the clinical studies were TCS, OSS, ASES score, VAS pain score; shoulder ROM parameters such as abduction, flexion, and external rotation; and radiologic measures such as acromiohumeral distance, proximal humeral migration. The primary outcome measures for the biomechanical studies were mean and peak subacromial pressure, glenohumeral contact pressure, functional abduction force, acromiohumeral distance, inferior–superior humeral head migration, and anterior–posterior humeral head migration. Secondary outcomes included resource use (financial cost, quality-adjusted life years [QALYs], operating room time, anesthesia requirements, hospital length of stay), patient satisfaction data, and complications.

Meta-Analysis Methodology for Biomechanical Studies

Meta-analysis with the random-effects model was performed for biomechanical studies when sufficient data existed from 2 or more studies. Data analysis was done using the Review Manager (RevMan) version 5.3. The Cochrane Collaboration, 2014. Standardized mean difference with 95% confidence interval was calculated for continuous data and statistical significance was determined by using P values, with alpha set at .05. Heterogeneity was assessed by the Breslow–Day method³⁷ using the χ² test and I² statistic. Meta-analysis was not performed for clinical studies because of the heterogeneity and potential for high risk of bias among studies.

Results

Search Results

The search returned a total of 2165 articles. After duplicates were excluded and the title and abstract screen was performed, 50 articles were retrieved for full-text screening. A total of 18 articles met the aforementioned inclusion criteria. One additional article was retrieved from an outside source. Among the 19 total articles that met inclusion criteria, 4 articles reported biomechanical outcomes, 14 articles reported clinical outcomes, and 1 article reported financial outcomes regarding the use of subacromial balloon spacers for the management of irreparable rotator cuff tears. The process of study selection is included in Figure 1. Risk of bias assessment using the MINORS criteria is displayed in Table 238, 39, 40, 41, 42, 43, 44, 45, 46, 47 and Figure 2, and design characteristics of selected studies are included in Tables 3 and 4.38, 39, 40, 41, 42, 43, 44, 45, 46, 47 Two studies by Piekaar et al.^1,42 were retrieved, which included clinical results from the same group at 1 and 3 years of follow-up after implantation of a subacromial balloon spacer. Only the results from Piekaar et al.⁴² reporting 3-year follow-up were included in the results and statistical analysis of the present study.

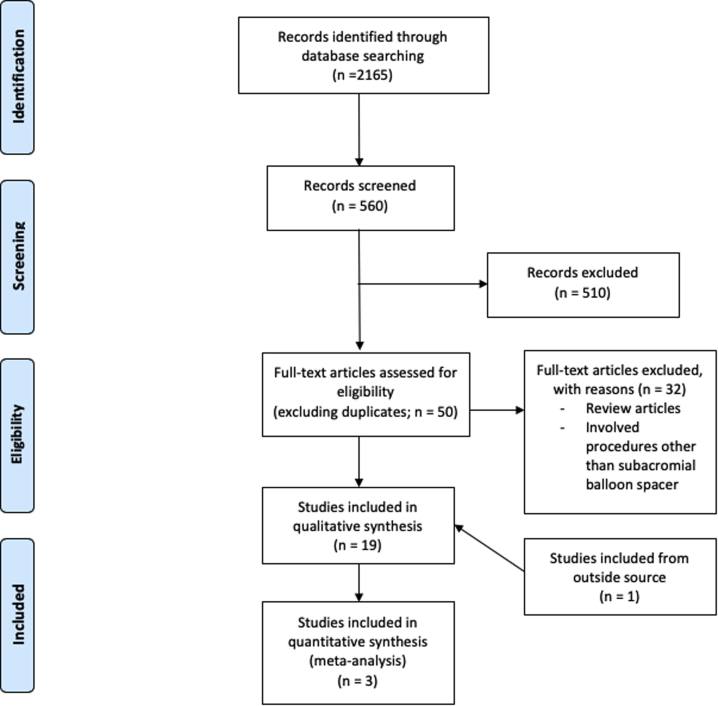

Fig 1.

Search strategy and study selection process using Preferred Reporting Items for Systematic Reviews and Meta-Analyses methodology.

Table 2.

Risk of Bias Assessment: MINORS Score and Subscales

Study	Cumulative MINORS Score	Clearly Stated Aim of the Study	Inclusion of Consecutive Patients	Prospective Data Collection	End Point Appropriate to Study Arm	Unbiased Evaluation of End Points	Follow-Up Period Appropriate to the Major End Point	Loss to Follow-Up Not Exceeding 5%	Prospective Calculation of Sample Size
Basat et al., 201726	12	2	2	2	2	0	2	2	0
Deranlot et al., 201738	10	2	0	1	2	0	2	2	1
Gervasi et al., 20167	11	2	2	2	2	0	2	1	0
Holschen et al., 201739	9	2	1	1	2	0	2	1	0
Malahias et al., 201940	11	2	2	2	1	0	2	2	0
Maman et al., 201825	7	2	2	2	1	0	0	0	0
Naggar 201841	10	2	2	2	2	0	2	0	0
Piekaar et al., 202042	11	2	2	2	2	0	2	1	0
Prat et al., 201843	7	2	2	1	1	0	0	1	0
Ricci et al., 201744	7	2	2	1	2	0	0	0	0
Ruiz Ibán et al., 201845	11	2	2	2	2	0	2	1	0
Senekovic et al., 201746	10	2	2	2	2	0	2	0	0
Yallapragada et al., 201847	10	2	2	2	2	0	0	2	0

MINORS, Methodological Index for Non-Randomized Studies.

Fig 2.

Risk of bias summary: review authors’ judgments about each risk of bias item for each included study. Green = low risk of bias, yellow = unclear risk of bias, red = high risk of bias.

Table 3.

Design Characteristics of Each Clinical Study Included in this Systematic Review: Part 1

Study	LOE	n	Adjustment for Confounding Variables	Experimental Group(s) Interventions	Control Group Interventions
Basat et al., 201726	P (IV)	12	Inclusion: MIRCT (Patte > stage 3, Goutallier state 3 or 4, acromiohumeral distance <7 mm), complete disruption of supraspinatus and infraspinatus, presence of functional deltoid, age >60 y, failure of conservative treatment >6 mo. Exclusion: rotator cuff arthropathy, repairable RCT during MRI or arthroscopy, shoulder infection, neurologic deficit in shoulder muscles	Balloon spacer placement, subacromial debridement +/– biceps tenotomy (if biceps tendon intact)
Deranlot et al., 201738	R (IV)	39	Inclusion: MIRCT (Patte > stage 2, Goutallier > or = stage 3, no OA), Ffailure of conservative treatment >6 mo, minimum 1-year f/u. Exclusion: CTA > stage 3 Hamada class, subscapularis tear, intraoperative ability to repair tendon. Statistical analysis: CA was adjusted for age and sex, subgroup analysis (post hoc) was performed to identify differences based on the status of the long head biceps tendon (spontaneous preoperative rupture of biceps tendon didn’t influence postop acromiohumeral distance or constant score)	Balloon spacer placement, Subacromial debridement +/– biceps tenotomy (if biceps tendon intact)
Gervasi et al., 20167	P (IV)	15	Inclusion: MIRCT, age >50 y, failure of conservative therapy >4 mo. Exclusion: significant OA, GH instability, major joint trauma, infection, necrosis in shoulder. Statistical analysis: Adjusted CS and their subscales were determined using a repeated measures analysis variance model	Fluoroscopic-guided balloon spacer placement
Holschen et al., 201739	R (III)	23 (11 in Group A, 12 in Group B)	Inclusion: MRCT, painful loss of shoulder function. Exclusion: no arthritis, no cranial migration of humeral head > type II Hamada, cuff tear arthropathy	Balloon spacer placement with subacromial debridement or partial repair +/– biceps tenotomy (if biceps tendon intact)	RTC debridement, synovectomy, bursectomy, biceps tenotomy/tenodesis, and partial reconstruction/repair of rotator cuff if possible
Malahias et al., 201940	R (IV)	31 (18 in Group A and 13 in Group B)	Inclusion: >50 y old, symptomatic MRCT, intraoperatively found to have irreparable (not able to perform complete repair) tears. Exclusion: <50 y old, no preoperative TCS scores, pseudoparalysis, small/medium RCTs, irreparable subscapularis tears, previous shoulder surgery on same side, open/mini-open repair, GH arthritis, rheum arthritis, psych disease, active shoulder infection, “uncontrolled hormonal disorders,: coagulopathy. Statistical analysis: no significant differences were found between ISB w/partial repair vs ISB alone and no significant differences in baseline demographics or clinical characteristics	Group A: Partial repair, balloon spacer placement, subacromial debridement, biceps tenotomy; Group B: balloon spacer placement, subacromial debridement, biceps tenotomy
Maman et al., 201825	P (IV)	42 (21 in Group A and 21 in Group B)	Inclusion: functional disability/pain >4 mo, imaging confirmation of RCT, failure of conservative therapy. Exclusion: significant shoulder OA, GH instability, active shoulder infection, previous shoulder surgery, uncontrolled diabetes, immunosuppression, coagulopathy. Statistical analysis: mean changes from baseline in total CS and adjusted CS and subscales were determined using repeated measures analysis variance model (no significant difference between spacer placement with or without tenotomy)	Group A: balloon spacer placement, biceps tenotomy (unless tendon already completely ruptured), and subacromial debridement; Group B: balloon spacer placement and subacromial debridement
Naggar 201841	P (IV)	22	–	Balloon spacer placement
Piekaar et al., 202042	P (IV)	39 (31 in Group A and 8 in Group B)	Inclusion: shoulder pain due to MIRCT on imaging and arthroscopy, failure of conservative management or failure of previous surgery, >18 y old. Exclusion: severe GH OA, rupture of subscapularis muscle, previous participation in research study of affected shoulder, allergy to device materials, active shoulder infection. Statistical analysis: CMS was adjusted for age and sex.	Group A: Arthroscopic bursectomy and decompression with balloon spacer placement +/– biceps tenotomy (only if biceps tendon intact); Group B: arthroscopic bursectomy and decompression, partial RTC repair, balloon spacer placement +/– biceps tenotomy (only if biceps tendon intact)
Prat et al., 201843	R (IV)	24	Inclusion: failure of conservative management; exclusion: inflammatory arthropathy, GH OA	Balloon spacer placement, Subacromial debridement +/– biceps tenotomy (if biceps tendon intact)
Ricci et al., 201744	R (IV)	30	Inclusion: Goutallier stage 3 or 4, Persistent pain for >6 mo, failure of conservative treatment. Exclusion: GH OA, GH instability, previous shoulder surgery, shoulder infection	Balloon spacer placement, subacromial bursectomy, biceps tenotomy, acromioplasty
Ruiz Ibán et al., 201845	P (IV)	15	Inclusion: MIRCTs on MRI, >50 y old, persistent pain/disability for >6 mo w/ >3 mo failed conservative therapy, Goutallier stages 3 or 4, Irreparability confirmed on arthroscopy, No cuff tear arthropathy, No GH OA. Statistical analysis: Post hoc analysis performed between preoperative situation (age, degenerative arthropathy, Constant score, active or passive ROM, pseudoparalysis) of the 6 subjects that had clinically relevant improvement and the 9 subjects that did not fare well	Balloon spacer placement, subacromial debridement +/– biceps tenotomy (if biceps tendon intact)
Senekovic et al., 201746	P (IV)	24	Inclusion: persistent pain/functional disability >6 mo, imaging confirmation of RCT, failure of conservative therapy, confirmation of irreparability and fatty infiltration on arthroscopy. Exclusion: GH OA, GH instability, active shoulder infection, previous shoulder surgery, DM, immunosuppression, coagulopathy. Statistical analysis: adjusted CS and its subscales were determined using a repeated measures analysis variance model (subgroup analysis revealed there were no statistical differences between clinical outcomes of subjects who went device implantation alone vs those who had any level of tendon repair, but those patients who had repair were NOT included in clinical efficacy assessment results).	Balloon spacer placement +/– biceps tenotomy, partial repair was performed in 3 patients
Yallapragada et al., 201847	P (IV)	14	Inclusion: MIRCT, failed conservative management >6 mo, muscle retraction (Patte > stage 2), muscle atrophy, fatty infiltration (Goutallier stage 3). Exclusion: GH OA Hamada grade 3, no preserved passive ROM, active infection, or allergies to the balloon material	Balloon spacer placement, subacromial debridement, biceps tenotomy in 9 patients

CMS, Constant-Murley shoulder score; CS, Constant score; CTA, cuff tear arthropathy; DM, diabetes mellitus; f/u, follow-up; GH, glenohumeral; ISB, InSpace Balloon; LOE, level of evidence; MIRCT, massive irreparable rotator cuff tear; MRCT, massive rotator cuff tear; MRI, magnetic resonance imaging; OA, osteoarthritis; P, prospective; R, retrospective; RCT, rotator cuff tear; ROM, range of motion; RTC, rotator cuff; TCS, Total Constant Score.

Table 4.

Design Characteristics of Each Clinical Study Included in this Systematic Review: Part 2

Study	Measured Outcomes	Mean Follow-Up (Months ± SD)	Patients Lost to Follow-Up	Conclusions
Basat et al., 201726	Constant score; Oxford Shoulder Score; VAS; abduction	38.3 ± 8.03	–	In patients in whom conservative treatment is insufficient for irreparable RTC tears, the biodegradable balloon has shown to improve mean constant score, mean Oxford Shoulder Score, and mean shoulder abduction degree.
Deranlot et al., 201738	Flexion, abduction, external rotation; Constant score; acromiohumeral distance; Hamada classification	32.8 ± 12.4	–	Arthroscopic implantation of a subacromial spacer for irreparable RTC tears leads to significant improvement in mean Constant score and shoulder anterior elevation, abduction, and external rotation at a minimum of 1 year postoperatively.
Gervasi et al., 20167	Constant score; ASES score, range of motion	24	1/15 (6.66%) patients lost to follow-up at 6 months due to ref for RTSA (clinical condition not improving) and only 10/15 patients completed at least 2 years’ follow-up	Fluoroscopy-guided implantation of the InSpace system for management of MRTC tears results in an overall improvement in total Constant score and ASES score beginning at 6 wk postoperatively and sustained by at least 12 wk postoperatively.
Holschen et al., 201739	Constant score, ASES score, subjective satisfaction	30.6 for Group A, 22.3 for Group B	2/23 (8.70%) patients lost to follow-up because of conversion to reverse total shoulder arthroplasty due to lack of improvement of symptoms	The ISB is a feasible treatment for patients with MRCT and compared to conventional treatment methods, the ISB results in greater absolute improvement in both ASES score and Constant score.
Malahias et al., 201940	Constant score, ASES score, Flexion, abduction, external rotation, internal rotation, VAS score, patient satisfaction	22.1 ± 9.8	–	The use of ISB for patients suffering from MRCT leads to significantly improved ASES score, Constant score, and VAS pain scores. The use of arthroscopic partial repair with ISB was not superior to ISB implantation alone.
Maman et al., 201825	Constant score	12	Only 43% (18/42) of patients were willing to return between 24-40 months postoperatively either due to logistical reasons or other non-shoulder comorbidities	Spacer implantation in patients with MRTC provides significant improvement in Constant score up to the 1-y follow-up visit. Additional long head of the biceps tenotomy did not influence the postoperative results.
Naggar 201841	Constant score, UCLA	52.5	–	Arthroscopic implantation of an inflatable biodegradable balloon provides significant improvement in Constant score and UCLA score in patients with MIRCT.
Piekaar et al., 202042	NRS for pain, Oxford Shoulder Score, Constant-Murley shoulder score (CMS), Satisfaction	34	1 patient lost to follow-up due to chemotherapy, 1 patient died 2 mo postoperatively from cardiac disease, 2 patients with RTSA, and 1 patient received repeat arthroscopy	Arthroscopic implantation of the balloon spacer leads to sustained reduction in NRS pain score and Oxford Shoulder Score in patients with irreparable RTC tears during 3 years of follow-up.
Prat et al., 201843	UCLA, Quick-DASH; flexion, external rotation, internal rotation, satisfaction, upward migration index (UMI)	14.4 ± 15	2 patients lost to follow-up 3 mo after surgery (7.69%)	Subacromial balloon spacer placement for MIRCT led to improvements in UCLA score, but poor patient satisfaction rating and minimal improvement in proximal humeral head migration on postoperative radiographs.
Ricci et al., 201744	Constant score, VAS score, subacromial space on AP radiographs	9.8	–	Placement of subacromial spacer resulted in sustained improvement in TCS, range of motion, and ADL performance while also providing pain relief at 24 mo follow-up in patients with MIRCT.
Ruiz Ibán et al., 201845	Constant score, Quick Dash; flexion, external rotation, internal rotation, abduction, simple shoulder score	Median 24	1 patient lost to follow-up due to severe worsening of Parkinson disease	The use of the subacromial spacer does not seem to be a reasonable alternative to the management of the majority of patients with irreparable RTC tears because only 40% of the patients in this study experienced an improved Constant score at 24 mo.
Senekovic et al., 201746	Constant score, range of motion, subjective pain score, relief of shoulder night pain, ultrasound evaluation	60	Dropout rate was 9/24 (37.5%) w/ 1 patient withdrawing at 6 weeks due to lack of improvement, 2 patients died due to non-ortho issues, 1 patient had RTSA at 4 years, and 5 other patients refused to come for follow-up	Implantation of the InSpace system in patients with MRCT refractory to conservative treatment is an effective alternative because it results in sustained improvement of total Constant score through 5 y of follow-up.
Yallapragada et al., 201847	Constant score, Oxford Shoulder Score; flexion, abduction, external rotation	12.6	–	Implantation of a subacromial spacer or irreparable RCTs results in significantly improved mean Constant score, Oxford Shoulder Score, and range of motion through a mean of 12.6 mo follow-up.

AP, anteroposterior; ASES Score, American Shoulder and Elbow Surgeons score; ISB, InSpace Balloon; MRCT, massive rotator cuff tear; NRS, numeric rating scale; Quick-DASH, Disabilities of the Arm, Shoulder, and Hand score; RCT, rotator cuff tears; RTC, rotator cuff; RTSA, reverse total shoulder arthroplasty; SD, standard deviation; VAS, visual analog scale.

Quality Appraisal and Risk of Bias

A total of 13 nonrandomized, clinical studies were assessed using MINORS criteria. There was not an appropriate comparison group in the included studies, so the 8-item MINORS criteria for noncomparative studies were used (Table 2).38, 39, 40, 41, 42, 43, 44, 45, 46, 47 The mean MINORS score was 9.69. The κ statistic value for interrater reliability was 0.81, suggesting strong agreement between raters.

Patient Demographics

The 19 studies that met inclusion criteria involved a total of 337 patients, with a total of 343 subacromial balloon spacer surgeries performed (300 included in clinical studies, 43 included in biomechanical studies). Mean reported age of subjects in both clinical and biomechanical studies was 68 years old. In total, 158 of reported patients were male and 143 were female; however, not all of the biomechanical studies reported patient sex. All studies included patients with persistent symptoms for a minimum of 3 to 6 months with failure of conservative treatment, including activity modification, treatment with non-steroidal anti-inflammatory medications, intra-articular corticosteroid injections, and/or physical therapy before balloon spacer treatment. Among the studies that reported preoperative characteristics, 75 of 76 (98.6%) of patients had a preoperative Patte classification of 3. In addition, 101 of 125 (80.8%) of the included patients had a preoperative Goutallier classification of ≥3 and 24 of 125 (19.2%) had a preoperative classification of ≤2. Patients with extensive glenohumeral osteoarthritis, known allergy to balloon spacer material, or active infection were excluded from operative intervention in all included studies. Two studies included patients with previous attempts at surgical management.^7,42 The study by Gervasi et al.⁷ included 5 of 15 (33%) of patients who previously were treated with either rotator cuff repair or subacromial debridement and biceps tenotomy before subacromial balloon spacer placement. In all clinical studies, the patient was indicated for arthroscopic shoulder surgery preoperatively based on clinical symptoms and/or magnetic resonance imaging (MRI) findings (Table 5),38, 39, 40, 41, 42, 43, 44, 45, 46, 47 and 8 of 13 clinical studies specifically reported that the rotator cuff tear was deemed irreparable intraoperatively by the primary surgeon based on the inability to attach the tendon to its insertion footprint.^26,38,40,42,44, 45, 46, 47 Among the clinical studies, a total of 95 biceps tenotomy procedures were reported and performed in concordance with the balloon spacer placement procedure and an additional 4 studies included biceps tenotomy but did not report the prevalence. A total of 33 partial rotator cuff repairs were performed in conjunction with implantation of a subacromial balloon spacer. Average length of follow-up in studies reporting clinical outcomes was 33.37 months. Baseline demographic data for patients included in each study is included in Table 5.38, 39, 40, 41, 42, 43, 44, 45, 46, 47

Table 5.

Baseline Demographics From Each Clinical Study Included in This Systematic Review

Study	Age, y, mean ± SD	Sex (M:F)	Rotator Cuff Tear Size	Goutallier Stage	Patte Stage	Hamada Stage
Basat et al., 201726	64.3 ± 3.55	8:4	>5 cm (12)	Stage 4 (12/12)	Stage 3 (12/12)	–
Deranlot et al., 201738	69.8 ± 7.9	15:22	–	Stage 2 (2/38) Stage 3 (26/38) Stage 4 (10/38)	Stage 2 (1/38) Stage 3 (37/38)	Stage 1 (24/38) Stage 2 (6/38) Stage 5 (1/38)
Gervasi et al., 20167	74 ± 6	7:8	–	Stage 3 (6/15) Stage 4 (9/15)	–	–
Holschen et al., 201739	62.4	6:6	–	–	Stage 3 (12/12)	–
Malahias et al., 201940	65.2 ± 8.5	18:13	–	Stage ≤2 (22/31) Stage >2 (9/31)	–	–
Maman et al., 201825	–	–	–	–	–	–
Naggar 201841	69.3	13:8	–	–	–	–
Piekaar et al., 202042	65	20:19	–	–	–	–
Prat et al., 201843	70 ± 7.9	12:12	–	–	–	–
Ricci et al., 201744	65.7	13:17	–	–	–	–
Ruiz Ibán et al., 201845	69.4 ± 7.5	4:11	>3 cm (15)	Stage 3 (15/15)	–	–
Senekovic et al., 201746	68.8	12:12	–		–	–
Yallapragada et al., 201847	76.2	10:4	–	Stage ≥3 (14/14)	Stage >2 (12/14)	Stage ≥3 (0/14)

F, female; M, male; SD, standard deviation.

Functional Scores

Patients treated with a subacromial balloon spacer demonstrated overall improvement in postoperative TCS compared with preoperative TCS based on the data from 11 studies (preoperative range: 22.5-41.8; postoperative range: 51.4-72.3; Fig 3). Of these studies, TCS outcomes were reported in a combined 19 follow-up periods from 12 months to 60 months postoperatively. All of these studies reported statistically significant improvement in TCS from preoperative to postoperative measurements at all short-term and long-term follow-up timepoints (Fig 4). There was also substantial improvement from pre- to postoperative OSS after the subacromial balloon spacer procedure according to the data from 3 studies (preoperative range: 21.3-26; postoperative range: 34.39-48.2; Fig 5). In addition, 4 studies reporting ASES scores showed significant improvement from preoperative to postoperative values (Fig 6). In terms of VAS pain scores, Ricci et al.⁴⁴ found significant improvement in VAS scores in those groups with 3- (6.13-3.38, P = .0005), 6- (6.45-3.67, P = .0019), 12- (6.25-2.86, P = .0001), and 24-month (6.6-2.8, P = .0019) follow-up. Gervasi et al.⁷ demonstrated similar findings at 12-month (7.1-1.4, P < .0001) and 24-month (7.1-2.1, P < .0001) follow-up. Malahias et al.⁴⁰ also demonstrated significant improvement in VAS score at rest, at night, and during activity following both partial rotator cuff repair with implantation of the balloon spacer and implantation of balloon spacer alone, with no significant difference in VAS scores between intervention groups. The UCLA shoulder score was also improved from 10.9 ± 3.24 preoperatively to 15.9 ± 6.87 postoperatively (P = .001) in the study by Prat et al.⁴³

Fig 3.

Forest plot comparing preoperative to postoperative Total Constant Score (TCS) values after placement of subacromial balloon spacer for patients with massive irreparable rotator cuff tear. (CI, confidence interval; SD, standard deviation.)

Fig 4.

Comparison of mean preoperative to postoperative Total Constant Scores (TCS) after placement of subacromial balloon spacer. Author (length of follow-up).

Fig 5.

Forest plots comparing preoperative to postoperative Oxford Shoulder Score (OSS) after placement of subacromial balloon spacer for patients with massive irreparable rotator cuff tear

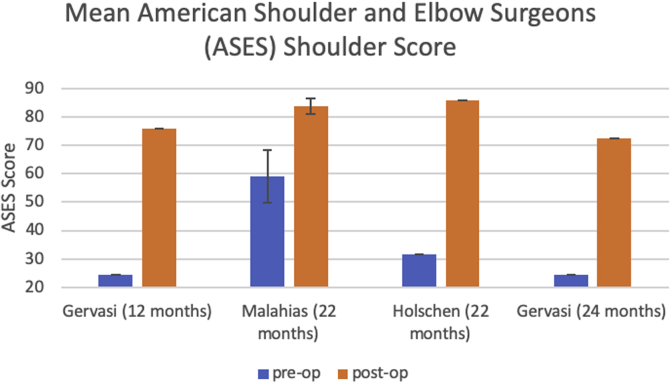

Fig 6.

Comparison of mean preoperative to postoperative American Shoulder and Elbow Surgeons (ASES) Shoulder Score after placement of subacromial balloon spacer. Author (length of follow-up).

Shoulder ROM

There was significant improvement of shoulder abduction (preoperative range: 70-113°; postoperative range: 110-165°), shoulder flexion (preoperative range: 80-130°; postoperative range: 106.5-161°), and external rotation (preoperative range: 25-44.5°; postoperative range: 35-63.7°) from preoperative to postoperative ROM after placement of the subacromial balloon spacer (Fig 7, A-C). In addition, Ricci et al. demonstrated positive results in ROM scores in the 3- (33-40.75, P = .0002), 6- (30-43.56, P = .0001), 12- (32.5-44.75, P < .0001), and 24-month (32.4-45.6, P < .0001) follow-up groups. Senekovic et al.⁴⁶ also demonstrated a mean change of ROM of 8.31 ± 9.62° (P < .0001) from baseline out to 60 months of follow-up.

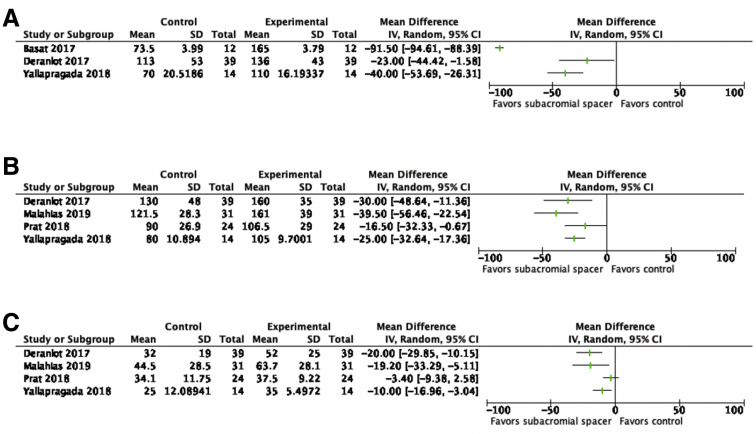

Fig 7.

Forest plots comparing preoperative to postoperative shoulder range of motion (ROM) parameters (A, abduction, B, flexion, C, external rotation) after placement of subacromial balloon spacer for patients with massive irreparable rotator cuff tear. (CI, confidence interval; SD, standard deviation.)

Biomechanics

We were able to combine the data from 3 studies including 30 cadavers to demonstrate that in irreparable rotator cuff tears, subacromial balloon spacer placement resists superior humeral head migration by an average of 4.04 mm when the spacer is filled with 25 mL of saline and the shoulder is at 0 degrees of abduction without a load (confidence interval –6.09 to –2.00; P = .0001; Fig 8).48, 49, 50 Chevalier et al.⁵¹ also performed a study with 6 cadaveric shoulders to determine the effect of placing a subacromial balloon spacer on top of a supraspinatus tendon repair on the mean and peak subacromial pressure. They determined that the peak, or maximal subacromial pressure, during shoulder ROM (flexion–extension and abduction–adduction) was significantly decreased compared to repair without the overlying balloon spacer (1749.6 ± 80.7 MPa vs 535.1 ± 27.6 MPa, P < .0001 for adduction–abduction and 1171.3 ± 99.5 MPa vs 468.7 ± 16.0 MPa, P < .0001 for flexion–extension). Furthermore, the duration of time that the subacromial pressure was at peak pressure during ROM was reduced with the placement of the subacromial balloon spacer compared to without the balloon spacer.⁵¹ In addition, during shoulder adduction–abduction, the mean subacromial pressure over a repaired supraspinatus tendon was lower with an overlying subacromial balloon spacer compared with without (121.7 ± 9.5 MPa vs 51.5 ± 1.2 MPa, P < .0001).⁵¹

Fig 8.

Forest plot comparing preoperative with postoperative values for humeral head position/resistance to superior translation of the humeral head. (CI, confidence interval; SD, standard deviation.)

Radiographic Results

In the study performed by Deranlot et al.,³⁸ the mean preoperative acromiohumeral distance in 38 shoulders was 8.2 ± 3.4 mm whereas the mean acromiohumeral distance at an average of 32.8 months postoperatively was 6.2 ± 3.1 mm. In the study performed by Ricci et al.,⁴⁴ the mean preoperative acromiohumeral distance varied from 6.45 to 6.67 mm among 30 patients. However, in contrast to the study by Deranlot et al.,³⁸ the mean postoperative acromiohumeral distance was greater than the preoperative value for the 3 months (7.99 mm, P < .0001), 6 months (8.16 mm, P < .0004), 12 months (7.09 mm, P < .00067), and 24 months (7.94 mm, P < .0007) follow-up groups.⁴¹ Prat et al.⁴³ also evaluated the effect of the subacromial balloon spacers on acromiohumeral distance by comparing preoperative to 3-month postoperative upward migration indexes (UMIs) in 24 shoulders. In contrast to the results found by Ricci et al., Prat et al.⁴³ determined no difference in humeral migration with the use of subacromial balloon spacers. In their study, the mean preoperative UMI was 1.15 (range 1.0-1.33) and the mean postoperative UMI was similarly at 1.16 (range 1.0-1.33).⁴³ Deranlot et al.³⁸ also evaluated the effect of subacromial balloon spacers on the progression of rotator cuff arthropathy. The authors report that among the 38 shoulders they studied, preoperatively, 7 shoulders had no evidence of rotator cuff arthropathy, 24 shoulders were Hamada stage 1, 6 shoulders were classified as Hamada stage 2, and 1 shoulder was Hamada stage 5. However, after management of the irreparable rotator cuff tears with a subacromial balloon spacer, progression of rotator cuff arthropathy was evident in 5 of the shoulders studied (4 patients progressed by 1 Hamada stage and 1 patient progressed by 3 Hamada stages).³⁸

Time and Utility of Operation

Ruiz Ibán et al.⁴⁵ reported a median operative duration of 27.3 minutes. A study by Basat et al.²⁶ reported a mean total operative duration of 33 minutes. Two other studies reported a mean of 10 minutes for balloon spacer implantation, with a range from 2 to 20 minutes, and a decrease in time to implantation as the surgeon gained more experience with the procedure.^7,46

Cost Analysis

In an estimate of costs during a 24-month follow-up period, Castagna et al.⁵² demonstrated that use of a subacromial balloon spacer was less costly, more effective, and therefore associated with increased QALYs for patients with irreparable rotator cuff tears in comparison with arthroscopic partial repair and shoulder arthroplasty. Mean total per patient cost of the InSpace balloon spacer procedure was 17,327 euros in comparison with 31,031 euros for total reverse shoulder arthroplasty and 24,312 euros for arthroscopic partial rotator cuff repair. Although the subacromial balloon spacer was more costly than conservative management, it offers improvement in QALYs for a mean additional cost of 522 euros. The group concluded that the use of subacromial balloon spacer was the most cost-effective strategy for irreparable rotator cuff tears.

Patient Satisfaction

A total of 4 studies reported patient satisfaction scores following surgery in a combined 82 patients.^7,39,40,43 A total of 13 of 15 patients rated their satisfaction from 8 to 10 on a 10-point scale, with the value 10 representing “very satisfied.” There was a mean of 3.7 on the 4-point Likert satisfaction scale, with most patients believing that the most invasive treatment option had been avoided (3.6). In a study by Malahias et al.,⁴⁰ 25 of 31 (80.6%) of patients were fully or almost satisfied with their balloon spacer treatment, whereas 3 of 31 (9.6%) of patients reported moderate satisfaction, and 3 of 31 (9.6%) reported no satisfaction. Prat et al.⁴³ reported that 11/24 (46%) of patients reported satisfaction with their treatment outcome.

Complications

In total, 1 of 350 (0.29%) patients experienced a transient forearm dysesthesia in the lateral cutaneous nerve of the forearm after implantation of the subacromial balloon spacer. A total of 1 of 350 (0.29%) procedures was complicated by superficial wound infection at the surgical site, which resolved after a course of antibiotics per orem, and 1 of 350 (0.29%) procedures was complicated by a deep wound infection, which was culture-negative and treated with 1 week of intravenous antibiotics followed by 2 weeks of per orem antibiotics. One patient with an increasingly painful shoulder was found to have remnants of a deflated InSpace Balloon with transformation to scar tissue in the subacromial space on MRI. In total, 11 of 350 (3.14%) of procedures required reoperation, including 5 (1.42%) for InSpace Balloon migration, 1 (0.29%) for synovitis, and 6 (1.71%) underwent reverse total shoulder arthroplasty due to absence of clinical improvement or worsening of symptoms at various postoperative follow-up durations ranging from 6 weeks to 16 months. A total of 4 patients were found to have synovitis on MRI at 3 years postimplantation, and there was 1 shoulder dislocation at 6 weeks postoperative secondary to an acute trauma.

Discussion

Our study results demonstrate that the use of subacromial balloon spacers for the management of patients with irreparable rotator cuff tears results in a significant improvement in the following clinical outcome measures: TCS,^{7,25,26,38,3,40,41,44,45,46,47,53} OSS,^26,42,47 and ROM parameters such as mean shoulder abduction, mean shoulder elevation, internal rotation, and external rotation.^{26,39,40,42,44,45} Furthermore, the clinical improvements in ASES, TCS, shoulder ROM, and patient satisfaction associated with subacromial balloon spacer use are comparable to those seen after management with other treatments for massive, irreparable rotator cuff tears such as subacromial debridement,^54,55 biceps tenotomy,⁵⁶ partial rotator cuff repair,57, 58, 59 latissimus dorsi transfer,⁶⁰ and reverse total shoulder arthroplasty.^14,15 In addition, the mean improvement of 33 points in TCS following placement of balloon spacer significantly exceeds the minimal clinically important difference threshold of 10.4 for TCS in patients with rotator cuff tears.⁶¹

The present findings are consistent with the systematic reviews by Moon et al.²⁹ and Stewart et al.,³⁰ which demonstrated improvemet in ASES and TCS scores associated with subacromial spacer use for the treatment of massive, irreparable rotator cuff tears. However, this systematic review was the first of its kind to analyze all available data regarding biomechanical, clinical, and cost outcomes as well as complications associated with subacromial balloon spacer use for the surgical management of massive, irreparable rotator cuff tears. Therefore, with this present systematic review, we are able to demonstrate that the use of subacromial balloon spacers for the management of massive, irreparable rotator cuff tears results in the improvement of shoulder function scores, shoulder ROM testing, QALYs, and both kinematic and kinetic biomechanical measures, all with minimal complications.

It is worth noting that a majority of these studies included interventions featuring subacromial balloon implantation in addition to biceps tenotomy and 9.43% (33/350) were performed in conjunction with partial rotator cuff repair; therefore, the true effect of subacromial balloon spacer use alone is not fully elucidated. Maman et al.²⁵ attempted to answer this question, as their study demonstrated no difference in functional outcomes such as TCS following placement of the balloon spacer both with and without biceps tenotomy and Senekovic et al.⁴⁶ corroborated these findings in a group of 9 patients. Malahias et al.⁴⁰ and Holschen et al.³⁹ both demonstrated that balloon spacer implantation with concomitant partial rotator cuff repair provided no significant improvement in clinical outcomes compared to balloon spacer placement alone. In addition, Gervasi et al.⁷ and Maman et al.²⁵ performed the balloon spacer implantation procedure simply under fluoroscopic guidance with local anesthesia. While such an approach may result in the missed opportunity to treat additional pathologies such as bursitis and biceps tendinitis,³⁹ the potential for decreased anesthesia requirement and reduced operative time^7,25,41 makes the subacromial balloon spacer a less-invasive but equally effective option for the surgical management of massive, irreparable rotator cuff tears.

The reasons for the clinical improvements with the subacromial balloon spacer demonstrated in this study are multifactorial. We were able to determine that placement of a subacromial balloon spacer is able to effectively resist superior humeral head migration.48, 49, 50 Several biomechanical studies are able to demonstrate that in the cadaveric shoulder, the humeral head may superiorly translate from 3.5 to 4.2 mm at 0 degrees of abduction after a massive rotator cuff tear.^48,50 Biomechanically, by superiorly translating the humeral head, the deltoid muscle, a muscle essential for shoulder ROM, is shortened. Therefore, by resisting superior humeral head migration, placement of a subacromial balloon spacer is able to restore both the native glenohumeral joint position and the deltoid moment arm. This concomitant restoration of joint position and deltoid function may be the cause for the improved shoulder ROM and overall function associated with the placement of subacromial balloon spacer.

In addition, the placement of a subacromial balloon spacer has been demonstrated to increase glenohumeral contact pressure. In a cadaveric study, Lobao et al.⁴⁸ 2019 demonstrated that the placement of a balloon spacer above a rotator cuff repair is associated with significantly increased glenohumeral contact pressure at 0, 30, and 60° of abduction compared with repair alone. This result further supports the ability of the subacromial balloon spacer to restore native glenohumeral joint position and articulation. The subacromial balloon spacer is also effective in decreasing peak subacromial pressure. In a cadaveric study performed by Chevalier et al.,⁵¹ the authors were able to demonstrate that the placement of a subacromial balloon spacer above a repaired supraspinatus tear decreased both the mean and peak subacromial pressure during passive ROM. Therefore, placement of the subacromial balloon spacer could theoretically be used to prevent retear of a primary rotator cuff repair by reducing subacromial impingement and injury to the repair during the rehabilitation process.

In addition to the clinical biomechanical benefits illustrated, this systematic review demonstrates a financial benefit with the use of subacromial balloon spacers for the management of patients with an irreparable rotator cuff tear. Castagna et al.⁵² concluded that the use of subacromial balloon spacers results in improved QALYs in comparison with conservative treatment and both arthroscopic partial rotator cuff tear and shoulder arthroplasty. This is the only study of its kind, and additional studies are required to validate the financial benefit of using subacromial balloon spacers for irreparable rotator cuff tears.

One potential limitation of the use of subacromial balloon spacers stems from the fact that it biodegrades. The subacromial balloon spacer is made of poly(L-lactide-co-ε-caprolactone), which is a biodegradable material previously shown to degrade over a period of 12 months.^62,63 Through ultrasonographic and MRI evaluation, one study found that the balloon spacer was barely detectable in about 50% of patients after 6 months and MRI in 19 patients confirmed total biodegradation of the device within 3 years. However, despite degradation of the device, implantation of the balloon appears to have lasting effects on shoulder pain and function scores even after 5-year follow-up.⁴⁶ Although the exact mechanism for persistent relief beyond device degradation has not yet been fully elucidated, it is possible that this benefit stems from adaptation of muscle forces due to restoration of the humeral head positioning or from a reduction in subacromial inflammatory conditions such as bursitis or synovitis due to the frictionless balloon surface while the balloon is intact.³⁹

Like all implantable materials, there is a risk of local foreign body response and local irritation, infection, and inflammation with the subacromial balloon spacer. Poly(L-lactide-co-ε-caprolactone) is not known to have toxic properties,⁶⁴ and review of the literature demonstrates very few complications associated with implantation of the subacromial balloon spacer in humans.^1,7,26,38, 39, 40^,42,45, 46, 47, 48^,53 A rodent study by Ramot et al.⁶⁴ was notable for development of a fibrosarcoma at the subcutaneous implantation site of 1 rodent. In a 5-year follow-up study, Senekovic et al.⁴⁶ noted 2 patients with synovitis associated with slight deterioration in shoulder function after implantation; however, there was no baseline imaging for these patients, and it was not felt to be possible to determine if these were truly a device-related complication.

Limitations

The primary limitation of this study stems from the low quality of evidence of the included studies. The majority of included studies are retrospective and without a control group, which make it difficult to draw conclusions for clinical decision making in comparison to other surgical interventions considered for massive irreparable rotator cuff tears. Second, the methods for determination of an irreparable rotator cuff tear were heterogenous across included studies and largely relied on the interpretation of each individual surgeon, thus introducing observer bias. In 3 studies, funding was provided by Ortho-Space Inc., the manufacturer of the device under study. Furthermore, 2 biomechanical studies consisted of researchers who are employees or own stocks in the company.^46,48,50,65 In addition, the length of follow-up of several studies was limited, which precludes the comparison of long-term clinical and cost-effectiveness between balloon spacers and other surgical interventions for massive irreparable rotator cuff tears. Furthermore, generalizability of study findings and study power are limited based on the small sample size in each study. Eleven of the studies included subacromial decompression and/or biceps tenotomy in addition to implantation of a subacromial balloon spacer, making it difficult to decipher which of these interventions was most responsible for the reported clinical outcomes. Finally, the clinical and radiographic data assessment was performed across multiple institutions and examiners, thereby introducing the potential for a measurement bias. However, the reliability of these measurements was improved through the use of validated assessment tools.

Conclusions

Existing literature of subacromial balloon spacers has high risk of bias, lack of appropriate control, and low level of evidence. A qualitative synthesis indicates that subacromial balloon spacer implantation in patients with massive irreparable rotator cuff tears is cost-effective and leads to improved function (TCS and OSS) and ROM. In cadaveric studies, subacromial balloon spacers resisted superior humeral head migration and reduced subacromial pressure. The theoretical risk of biodegradation of the balloon spacer has not been substantiated in study of up to 5-year follow-up, and the risk of complications from this procedure appears to be minimal.
